Polymers 2019, 11(3), 499; https://doi.org/10.3390/polym11030499

A Novel Polymethyl Methacrylate Derivative Grafted with Cationic Iridium(III) Complex Units: Synthesis and Application in White Light-Emitting Diodes

Key Laboratory of Green-Chemistry Materials in University of Yunnan Province, National and Local Joint Engineering Research Center for Green Preparation Technology of Biobased Materials, School of Chemistry & Environment, Yunnan Minzu University, Kunming 650500, China
*
Authors to whom correspondence should be addressed.
Received: 18 February 2019 / Revised: 8 March 2019 / Accepted: 8 March 2019 / Published: 14 March 2019
(This article belongs to the Special Issue Metallopolymer, supramolecular chemistry and materials)
Full-Text   |   PDF [1973 KB, uploaded 14 March 2019]   |

Abstract

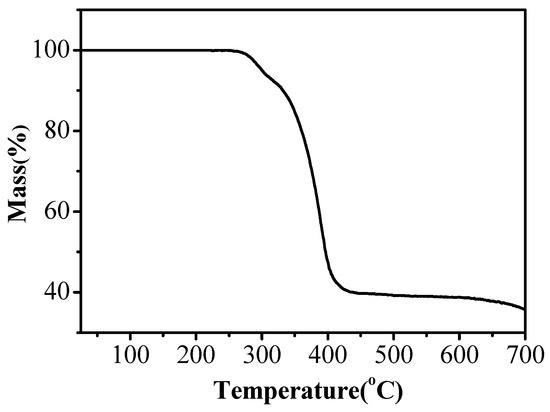

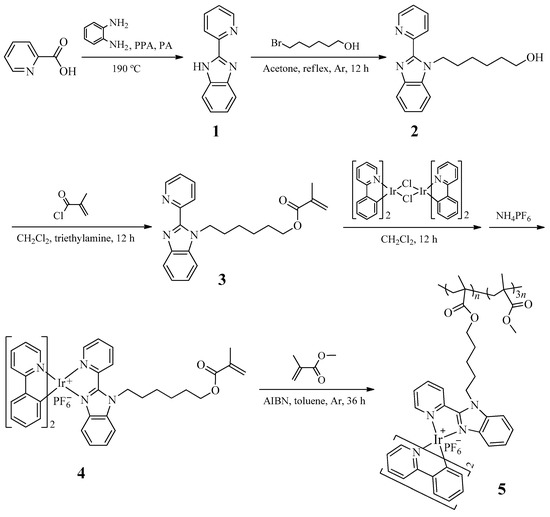

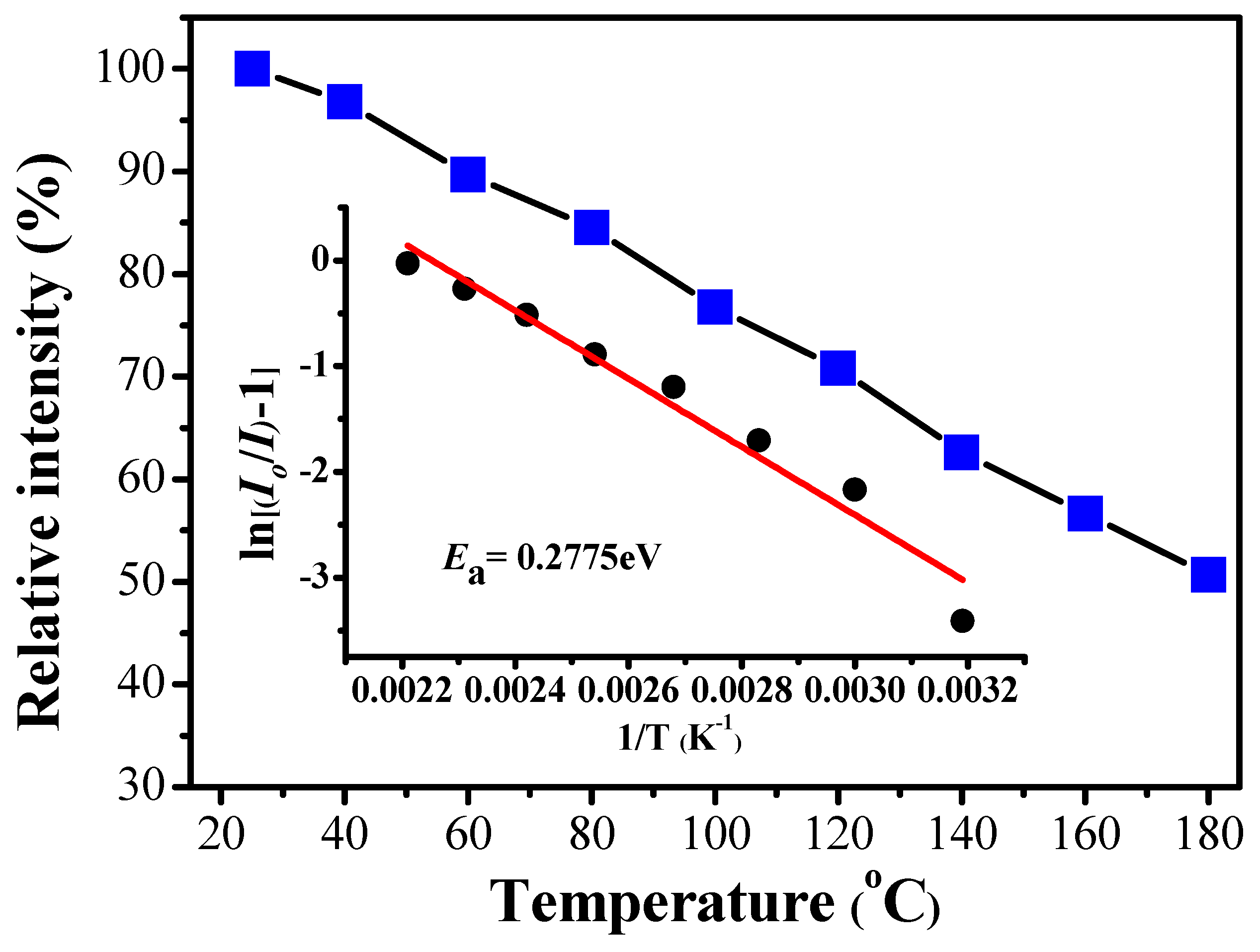

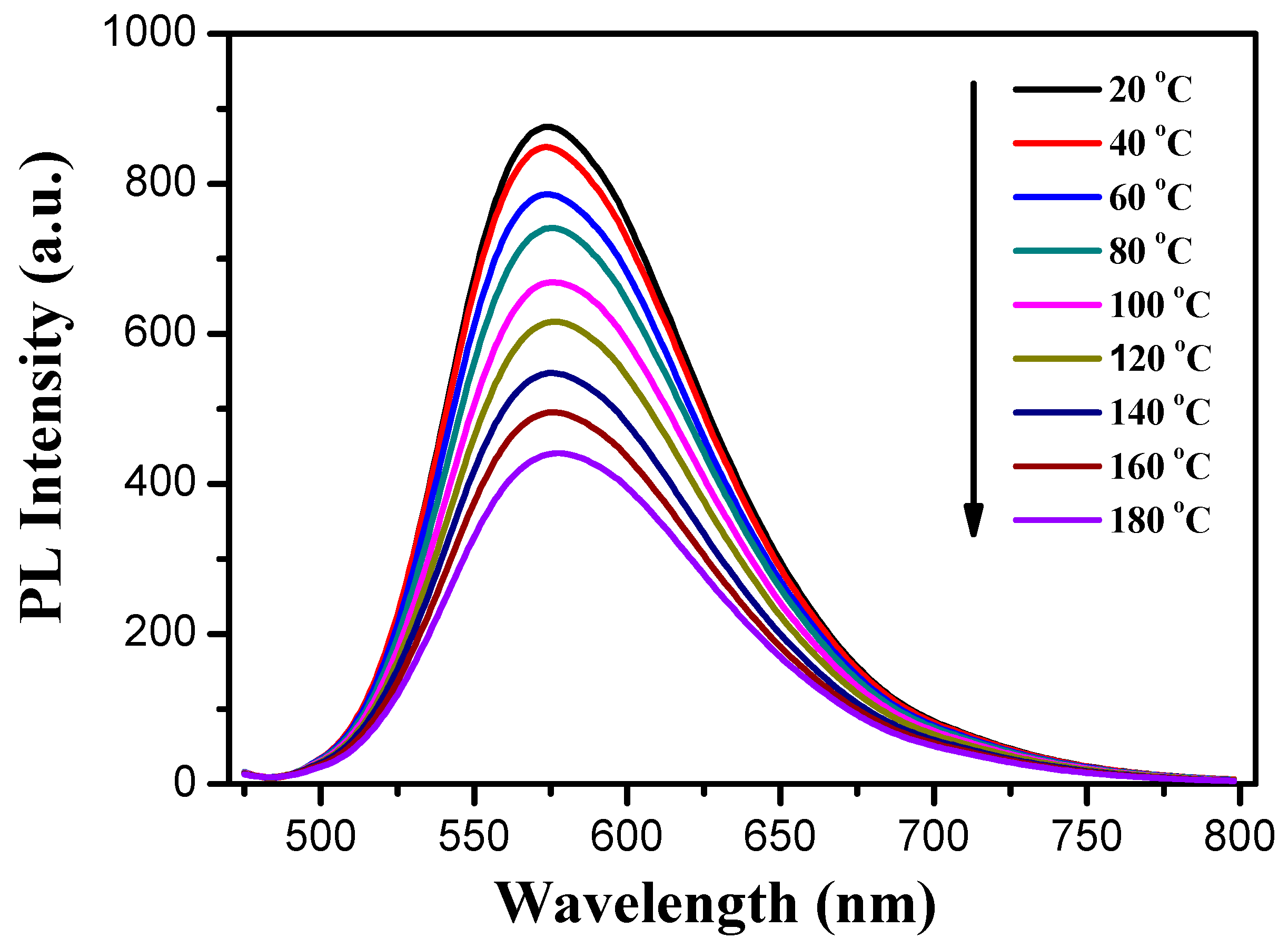

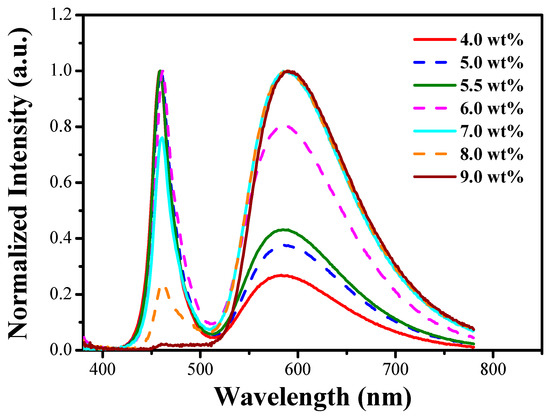

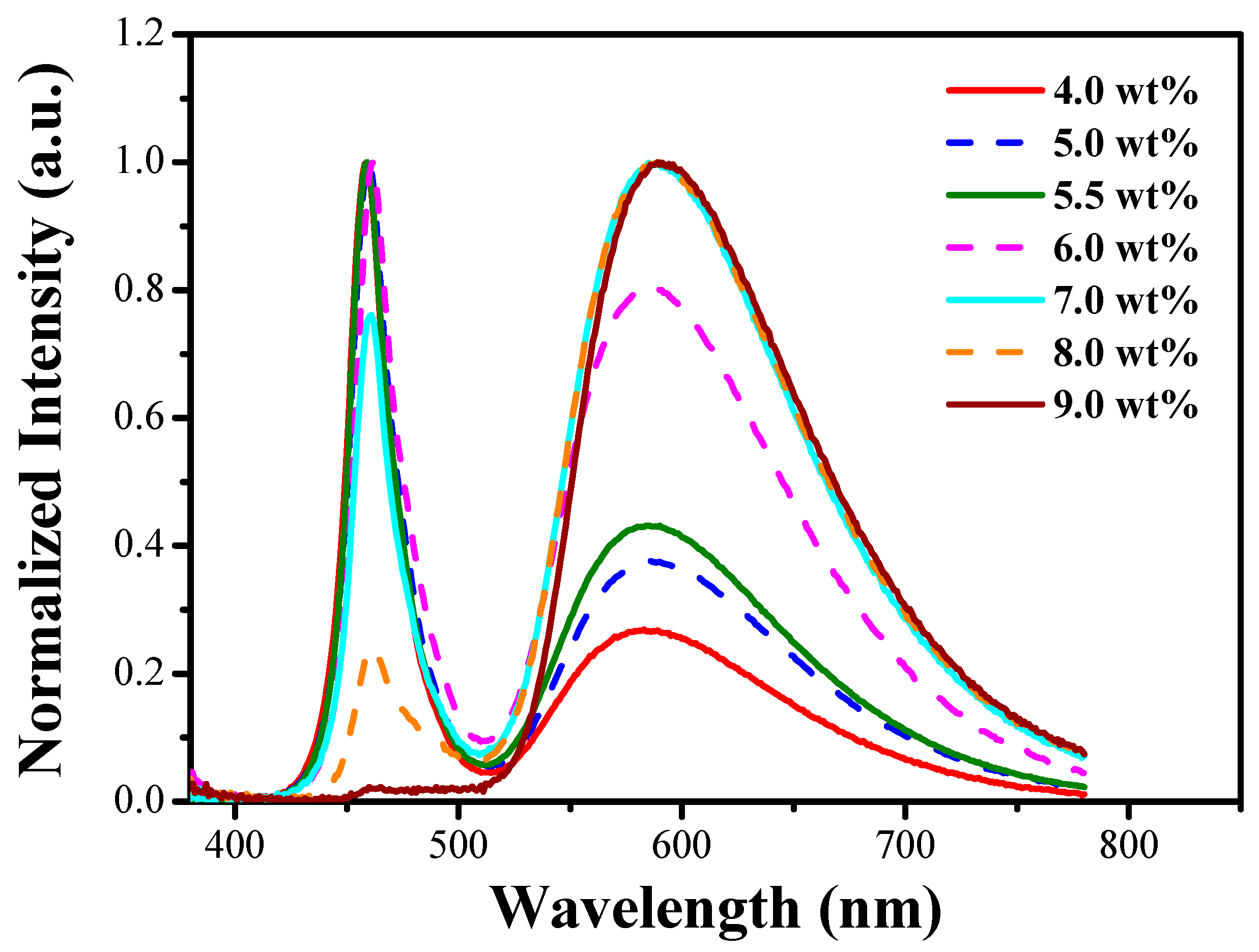

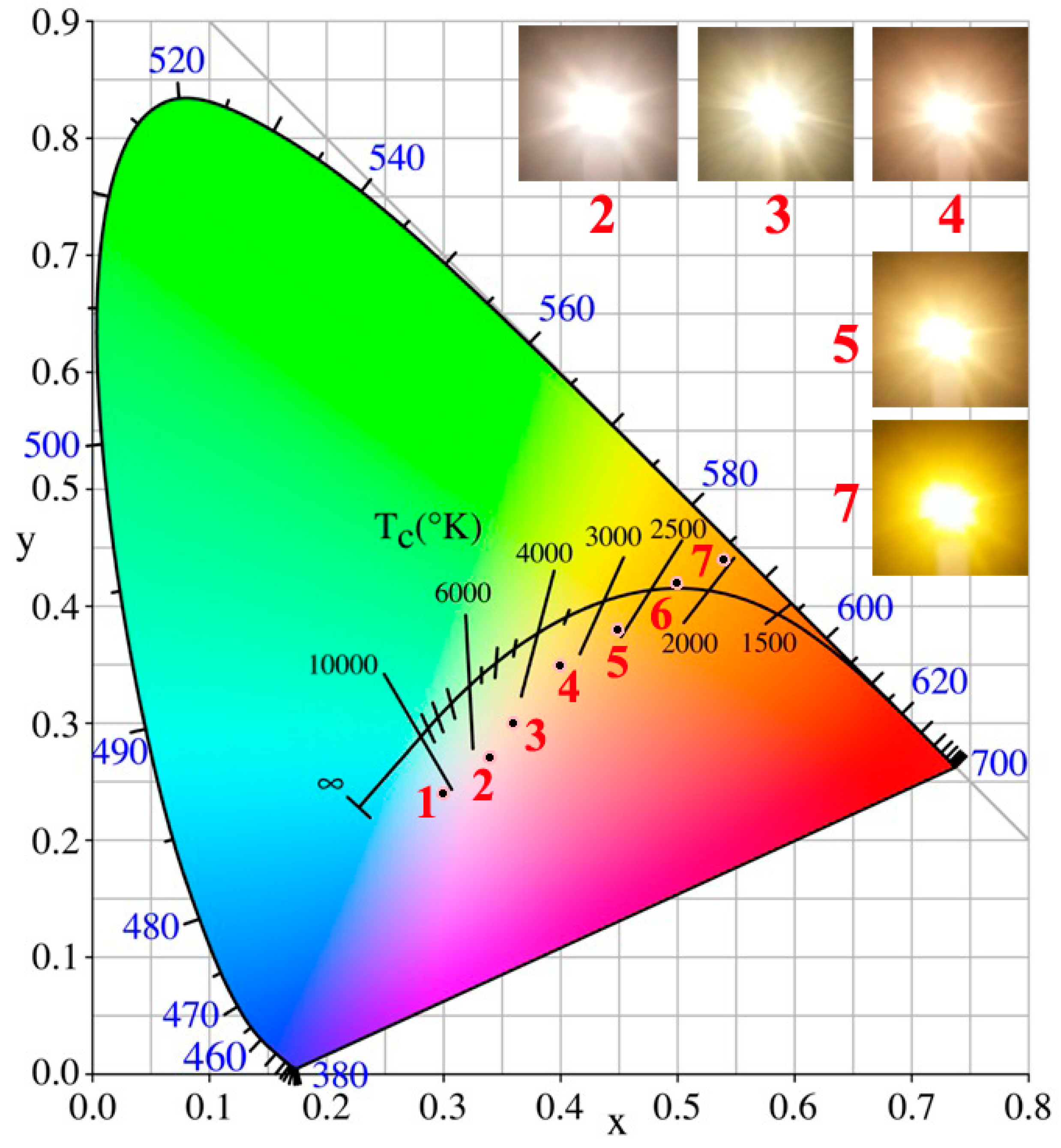

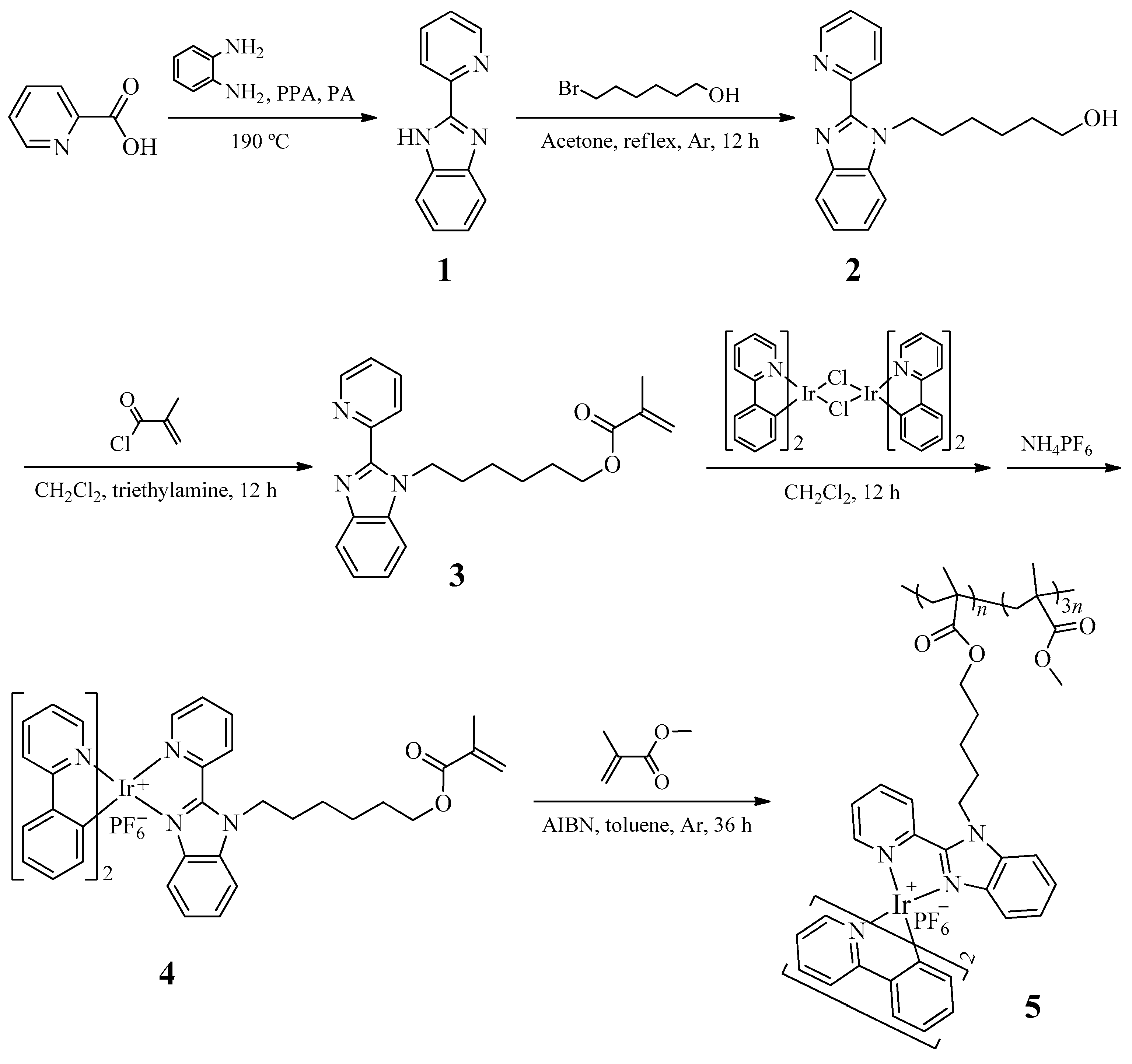

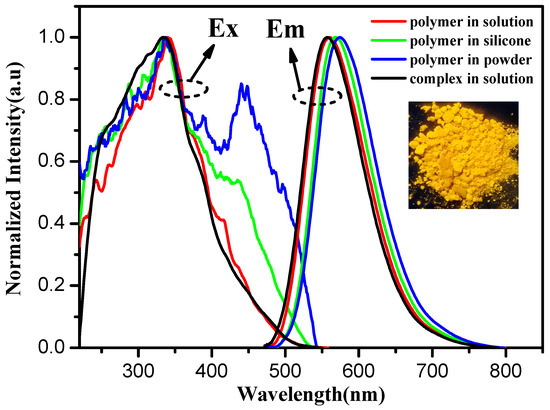

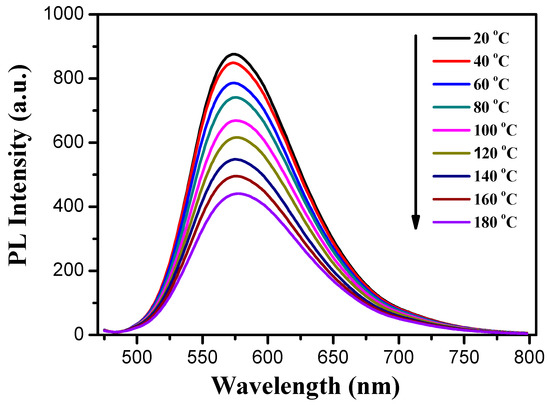

A novel orange-yellow-emitting polymethyl methacrylate derivative grafted with cationic iridium(III) complex units was synthesized and used as down-conversion luminescent materials in light-emitting diodes (LEDs). The polymer had a thermal decomposition temperature (Td) of 275 °C. With the temperature increasing from 20 to 100 °C, its photoluminescent intensity decreased to 76.8% with thermal quenching activation energy (Ea) of 0.2775 eV. A series of LEDs was fabricated by 460 nm blue GaN chips and the polymer blended in silicone at different concentrations. At 4.0 wt %, a cold white LED was obtained, the correlated color temperature (CCT) was 10,050 K, color rendering index (CRI) was 71.2, luminous efficiency (ηL) was 5.3 lm·w−1, and Commission Internationale de L’Eclairage (CIE) chromaticity coordinates were (0.30, 0.24). At 5.0 wt.%, the LED emitted neutral white light, its CCT was 4938 K, CRI was 75, ηL was 13.8 lm·w−1, and the CIE value was (0.34, 0.27). At 5.5 wt %, 6.0 wt %, 7.0 wt %, and 8.0 wt %, the LEDs all emitted warm white light; their CCTs were 3446, 3093, 2557, and 2337 K, respectively; their CRIs were 73.6, 71.8, 63.8, and 59.0, respectively; their ηL were 18.1, 16.3, 14.8, and 13.7 lm·w−1, respectively; and their CIE values were (0.36, 0.30), (0.40, 0.35), (0.45, 0.38), and (0.50, 0.42), respectively. At 9.0 wt %, the blue light of GaN chip was completely absorbed by the polymer and only the orange-yellow light of the polymer emitted. The results suggested the polymer was a promising orange-yellow-emitting phosphor candidate for white LEDs, especially for warm white LEDs. View Full-Text
Keywords: luminescent polymers; metal-containing polymers; white light-emitting diode; down-conversion luminescent materials; blue GaN chip luminescent polymers; metal-containing polymers; white light-emitting diode; down-conversion luminescent materials; blue GaN chip
