Next Article in Journal
Hybrid Rubberised Bitumen from Reactive and Non-Reactive Ethylene Copolymers
Previous Article in Journal
Fabrication of PLLA/C3S Composite Membrane for the Prevention of Bone Cement Leakage
Previous Article in Special Issue
A Novel Inherently Flame-Retardant Composite Based on Zinc Alginate/Nano-Cu2O
Open AccessArticle

An Alginate Hybrid Sponge with High Thermal Stability: Its Flame Retardant Properties and Mechanism

1
College of Life Sciences, Institute of Advanced Cross-Field Science, Qingdao University, Qingdao 266071, China
2
College of Chemistry and Chemical Engineering, Qingdao University, Qingdao 266071, China
3
Shandong Collaborative Innovation Center of Marine Biobased Fibers and Ecological Textiles, Qingdao University, Qingdao 266071, China
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Polymers 2019, 11(12), 1973; https://doi.org/10.3390/polym11121973
Received: 17 October 2019 / Revised: 19 November 2019 / Accepted: 25 November 2019 / Published: 30 November 2019

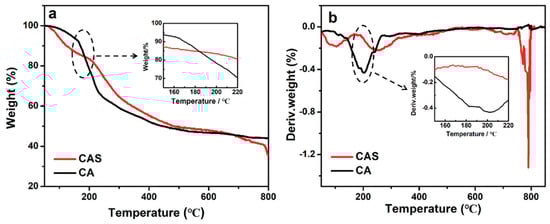

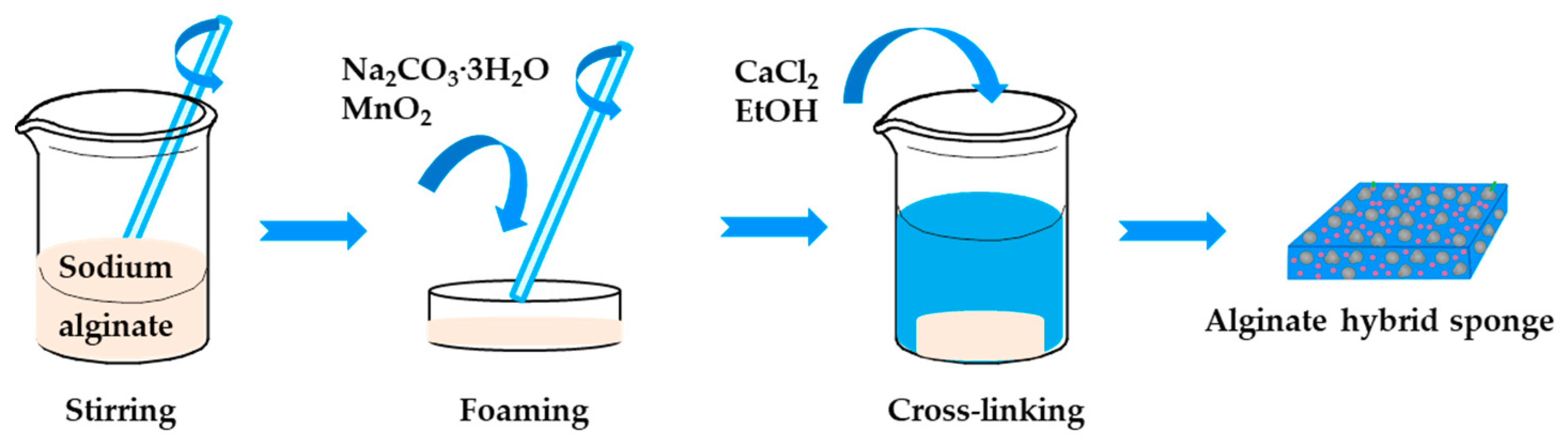

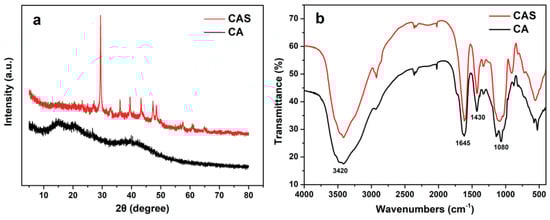

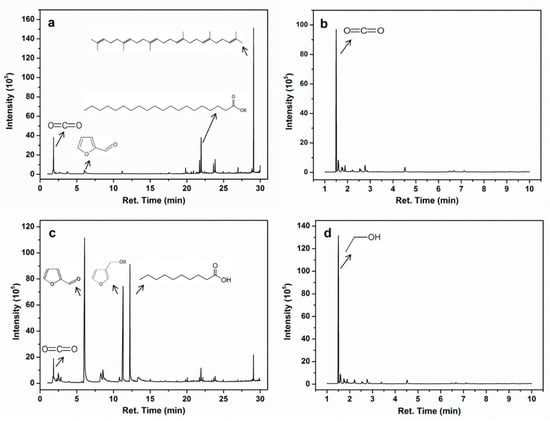

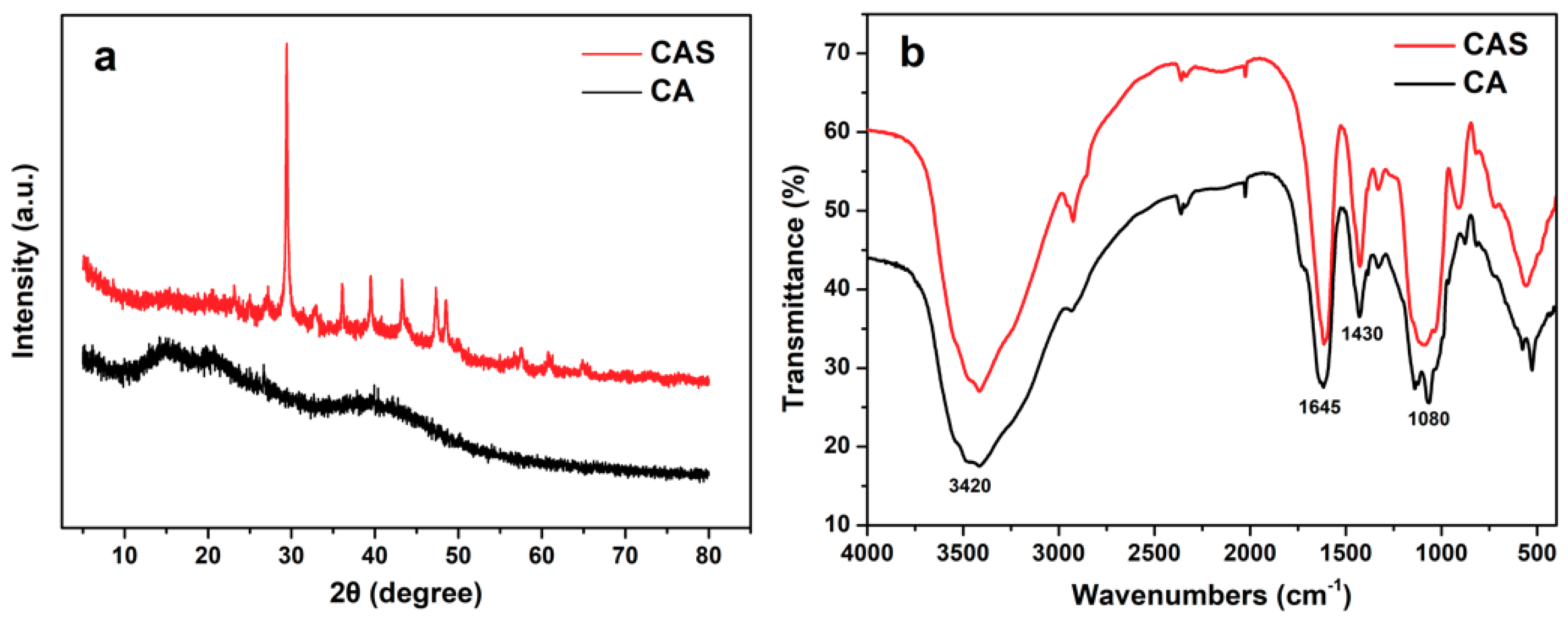

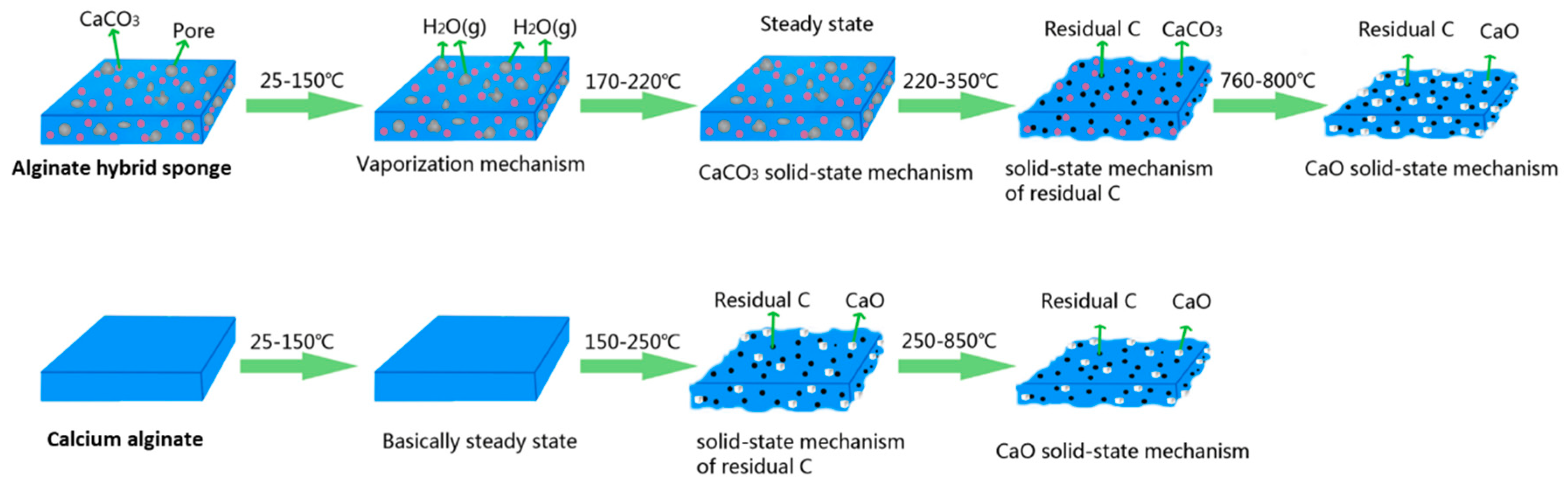

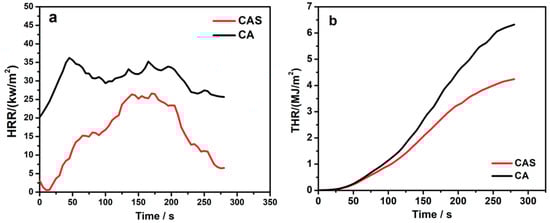

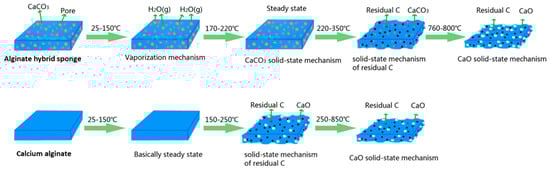

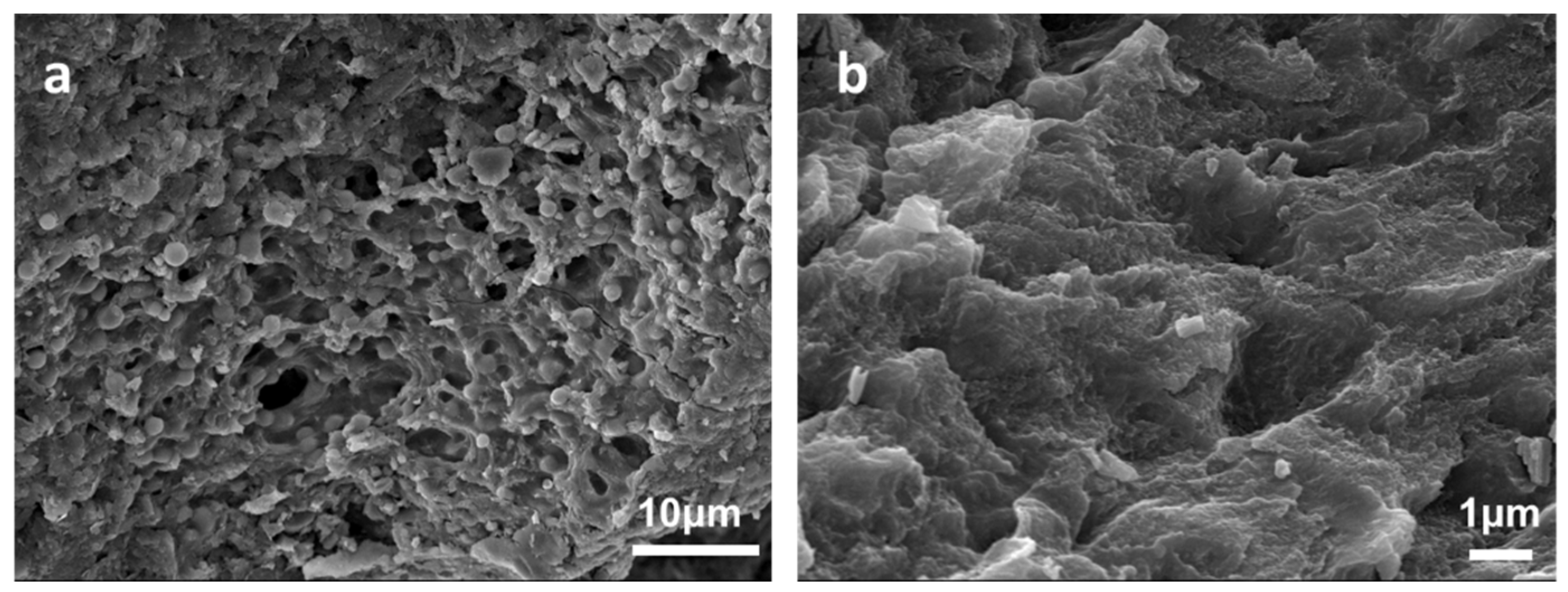

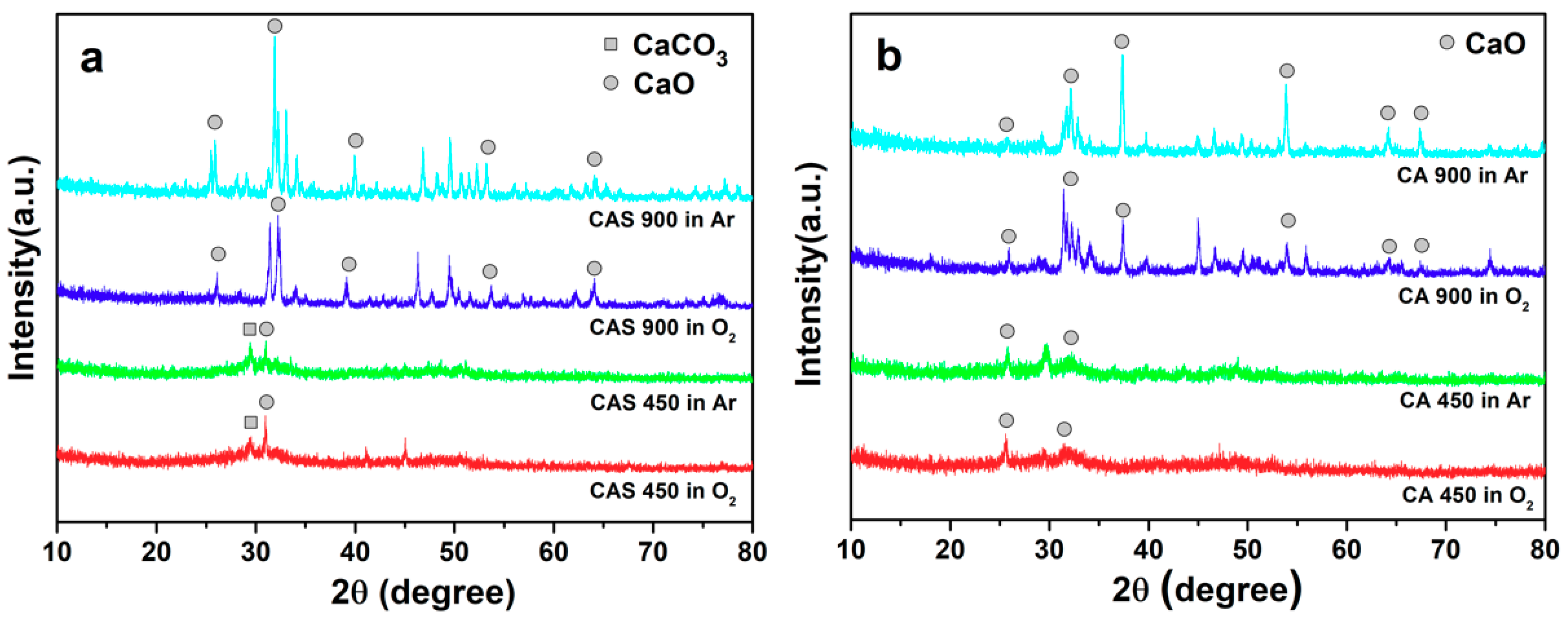

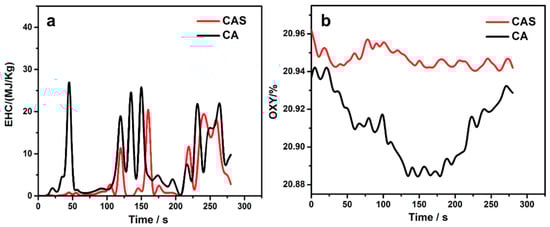

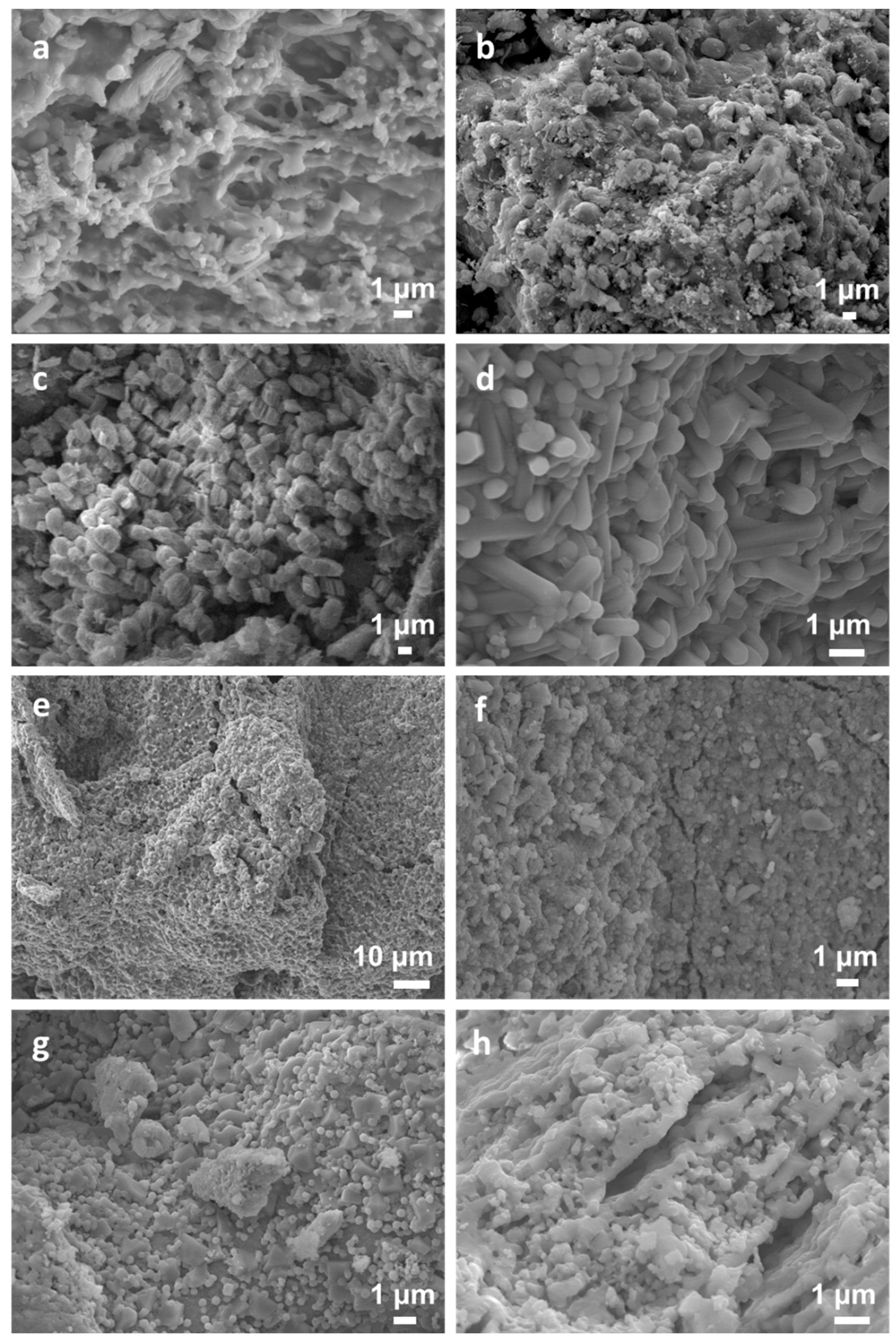

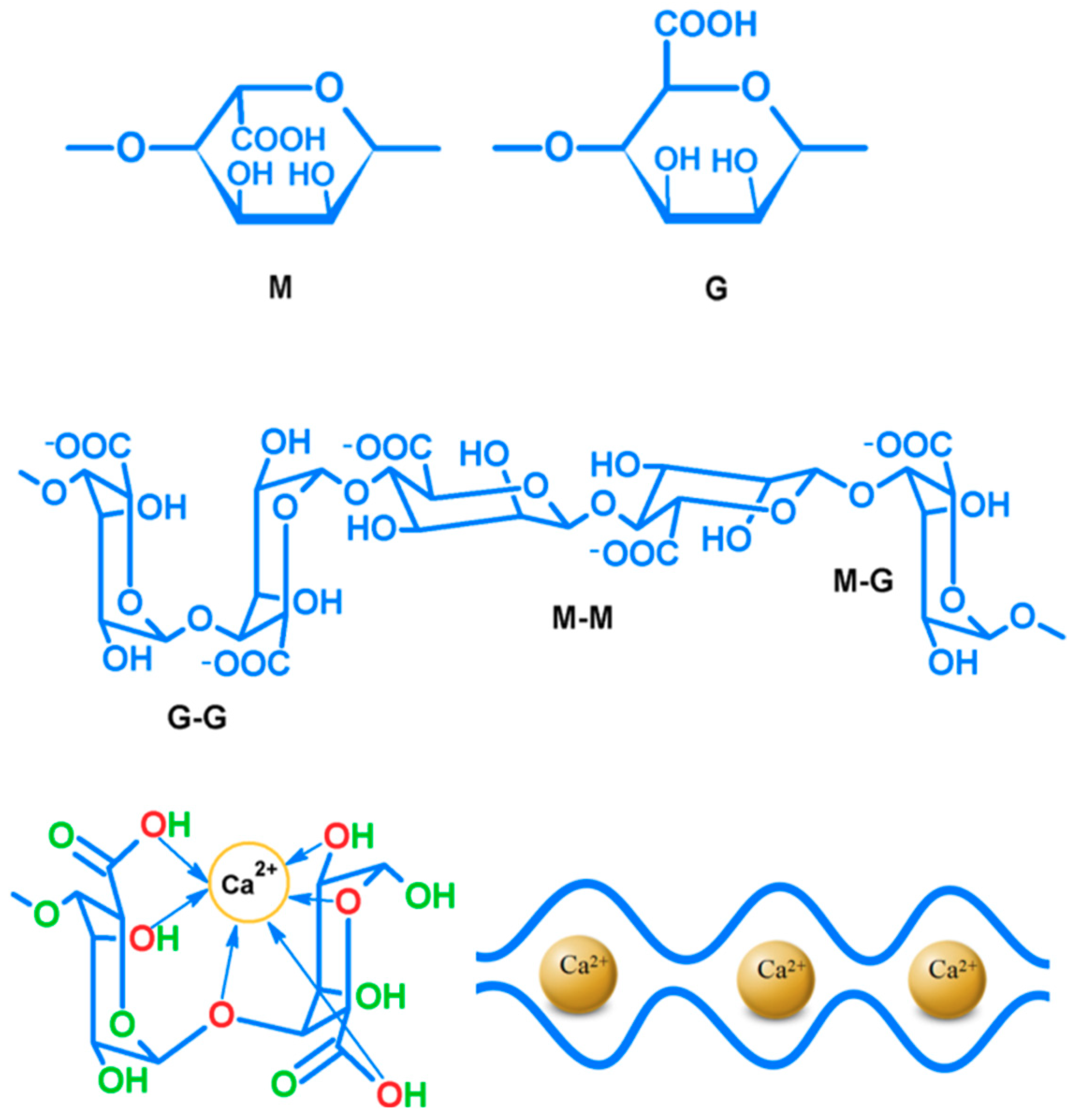

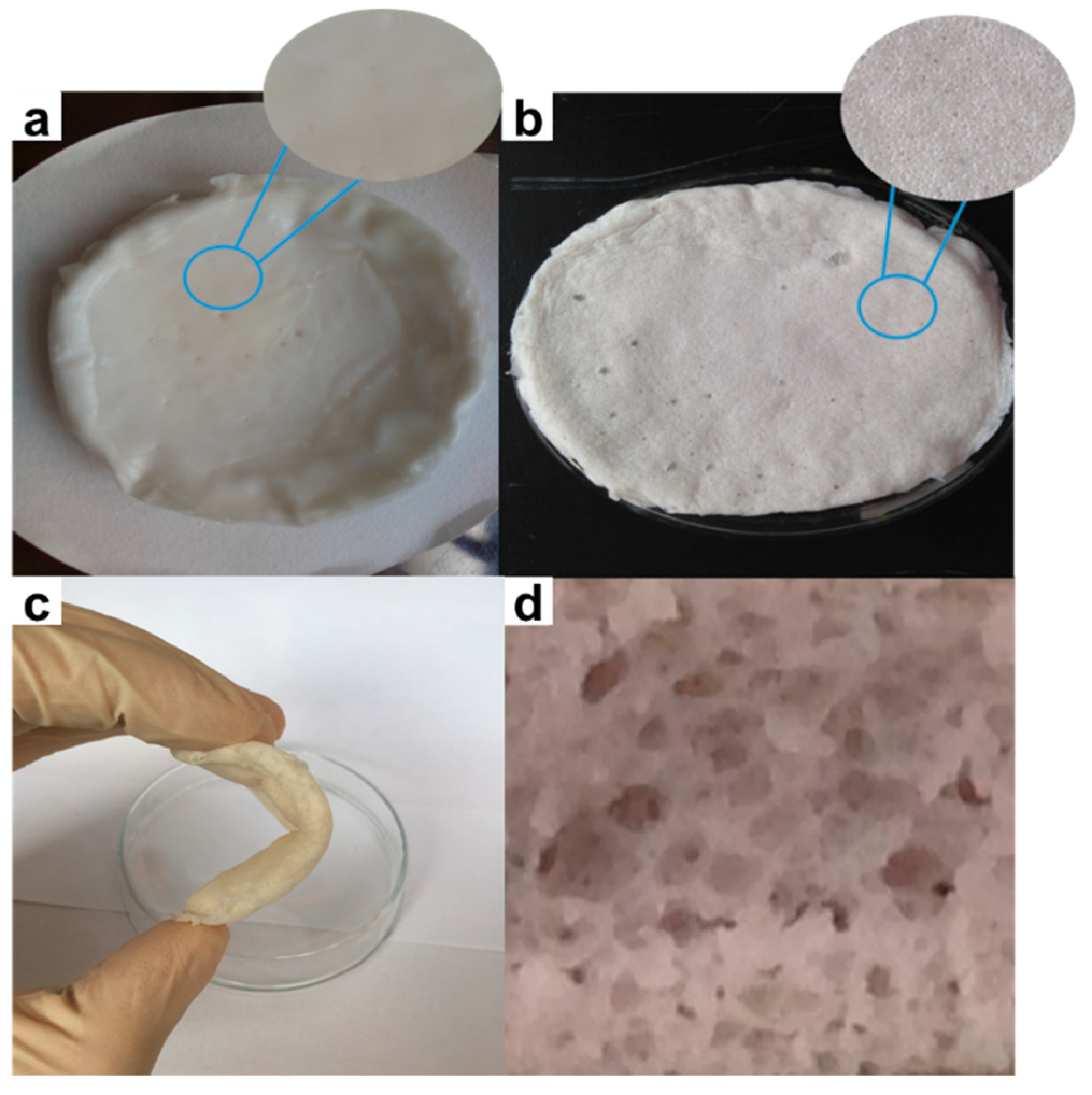

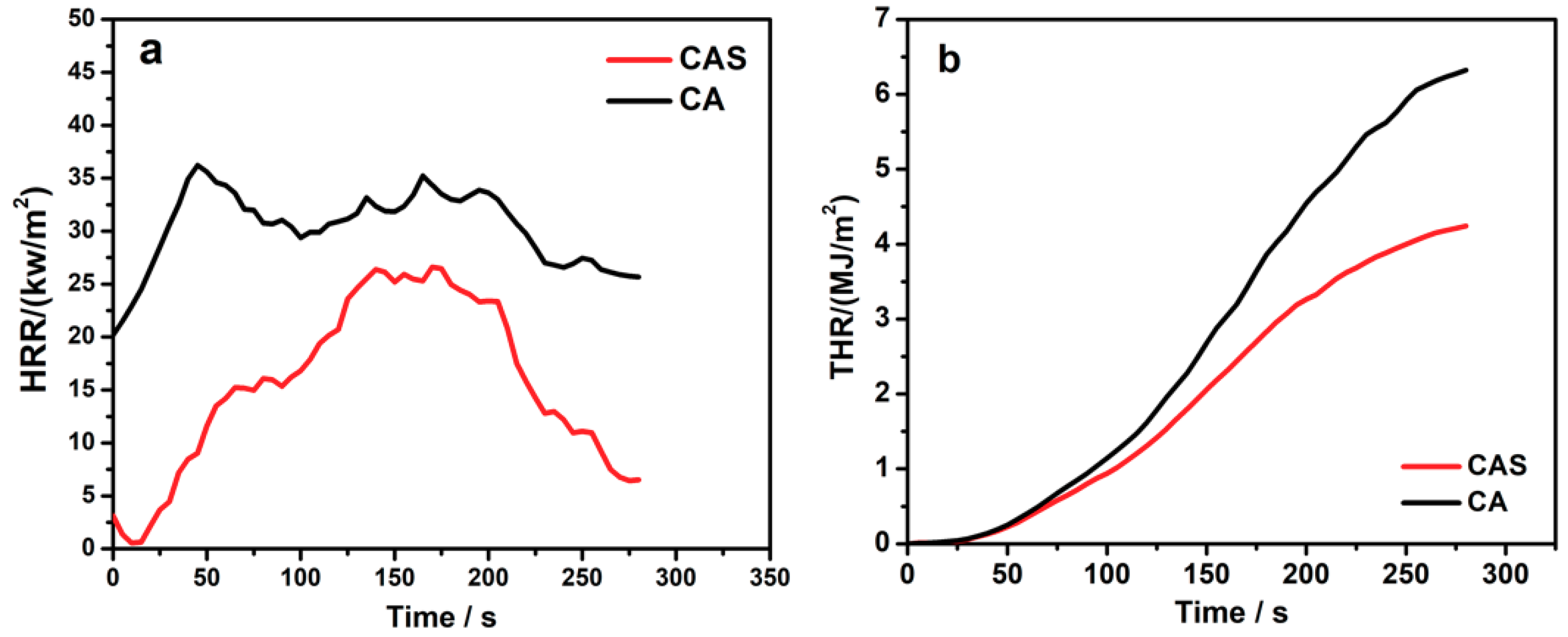

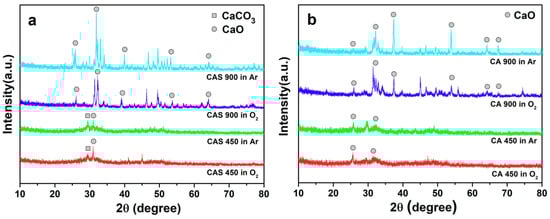

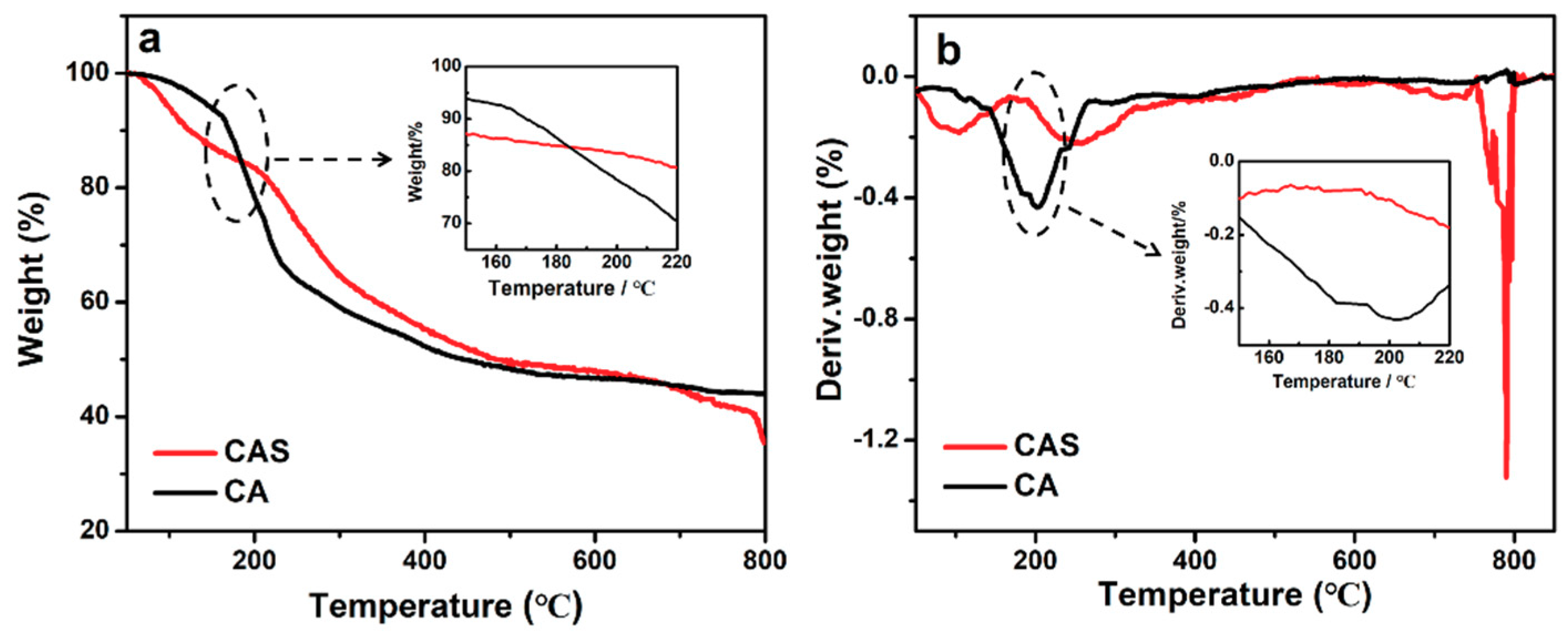

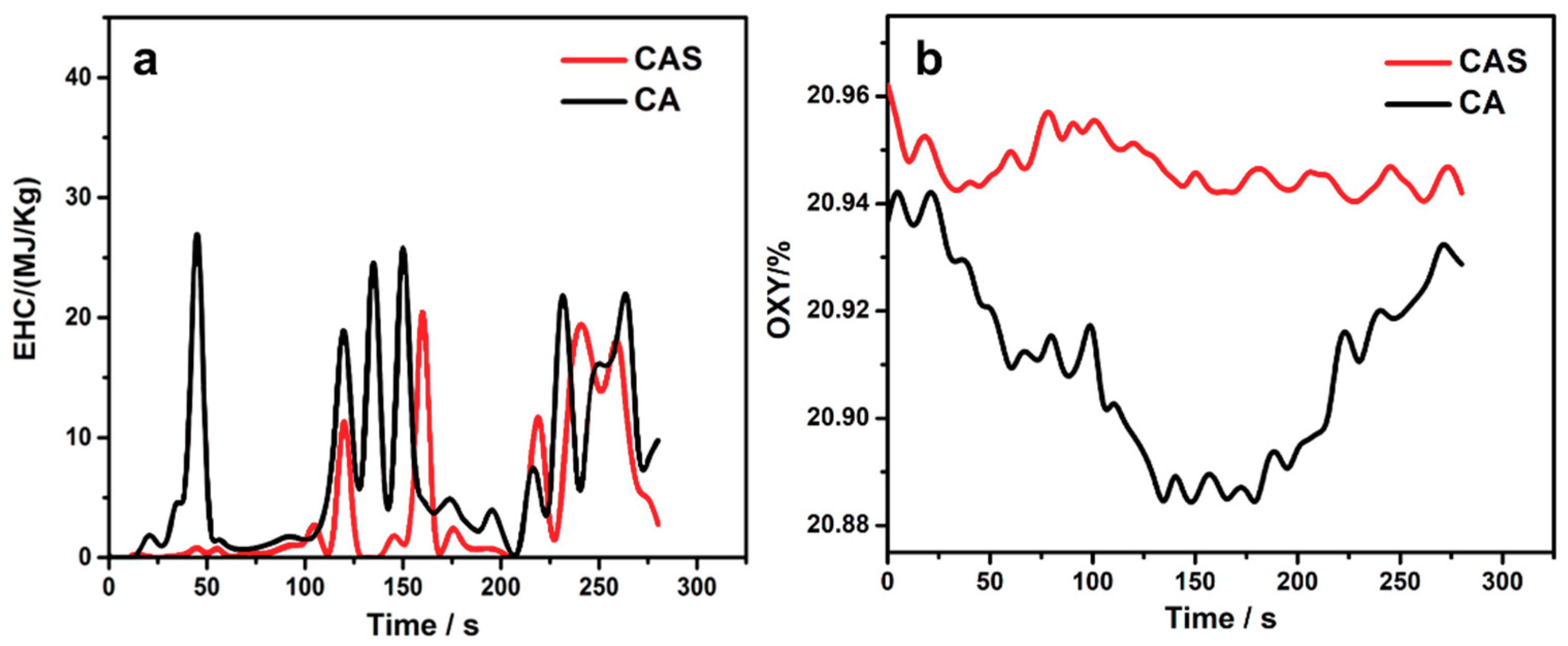

The worldwide applications of polyurethane (PU) and polystyrene (PS) sponge materials have been causing massive non-renewable resource consumption and huge loss of property and life due to its high flammability. Finding a biodegradable and regenerative sponge material with desirable thermal and flame retardant properties remains challenging to date. In this study, bio-based, renewable calcium alginate hybrid sponge materials (CAS) with high thermal stability and flame retardancy were fabricated through a simple, eco-friendly, in situ, chemical-foaming process at room temperature, followed by a facile and economical post-cross-linking method to obtain the organic-inorganic (CaCO3) hybrid materials. The microstructure of CAS showed desirable porous networks with a porosity rate of 70.3%, indicating that a great amount of raw materials can be saved to achieve remarkable cost control. The sponge materials reached a limiting oxygen index (LOI) of 39, which was greatly improved compared with common sponge. Moreover, with only 5% calcium carbonate content, the initial thermal degradation temperature of CAS was increased by 70 °C (from 150 to 220 °C), compared to that of calcium alginate, which met the requirements of high-temperature resistant and nonflammable materials. The thermal degradation mechanism of CAS was supposed based on the experimental data. The combined results suggest promising prospects for the application of CAS in a range of fields and the sponge materials provide an alternative for the commonly used PU and PS sponge materials. View Full-Text
Keywords: sponge; alginate; organic-inorganic hybrid materials; flame retardancy; thermal properties; mechanism sponge; alginate; organic-inorganic hybrid materials; flame retardancy; thermal properties; mechanism
Show Figures

Graphical abstract

MDPI and ACS Style

Jiang, Y.; Pang, X.; Deng, Y.; Sun, X.; Zhao, X.; Xu, P.; Shao, P.; Zhang, L.; Li, Q.; Li, Z. An Alginate Hybrid Sponge with High Thermal Stability: Its Flame Retardant Properties and Mechanism. Polymers 2019, 11, 1973.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
