Microstructure and Mechanical/Hydrophilic Features of Agar-Based Films Incorporated with Konjac Glucomannan

Glyn O. Phillips Hydrocolloid Research Centre at HBUT, School of Food and Biological Engineering, Hubei University of Technology, Wuhan 430068, Hubei, China
Department of Chemical Engineering, Guangxi Key Laboratory Cultivation Base for Polysaccharide Materials and Modifications, Guangxi University for Nationalities, Nanning 530008, Guangxi, China
Group for Cereals and Oils Processing, College of Food Science and Technology, Key Laboratory of Environment Correlative Dietology (Ministry of Education), Huazhong Agricultural University, Wuhan 430070, Hubei, China
Faculty of Engineering, University of Nottingham, Nottingham NG7 2RD, UK
Authors to whom correspondence should be addressed.
Polymers 2019, 11(12), 1952;
Received: 7 September 2019 / Revised: 17 November 2019 / Accepted: 19 November 2019 / Published: 27 November 2019
(This article belongs to the Special Issue Biopolymers and Biobased Polymers: Chemistry and Engineering)

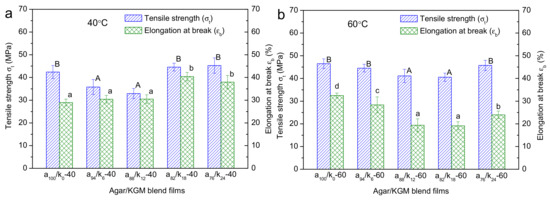

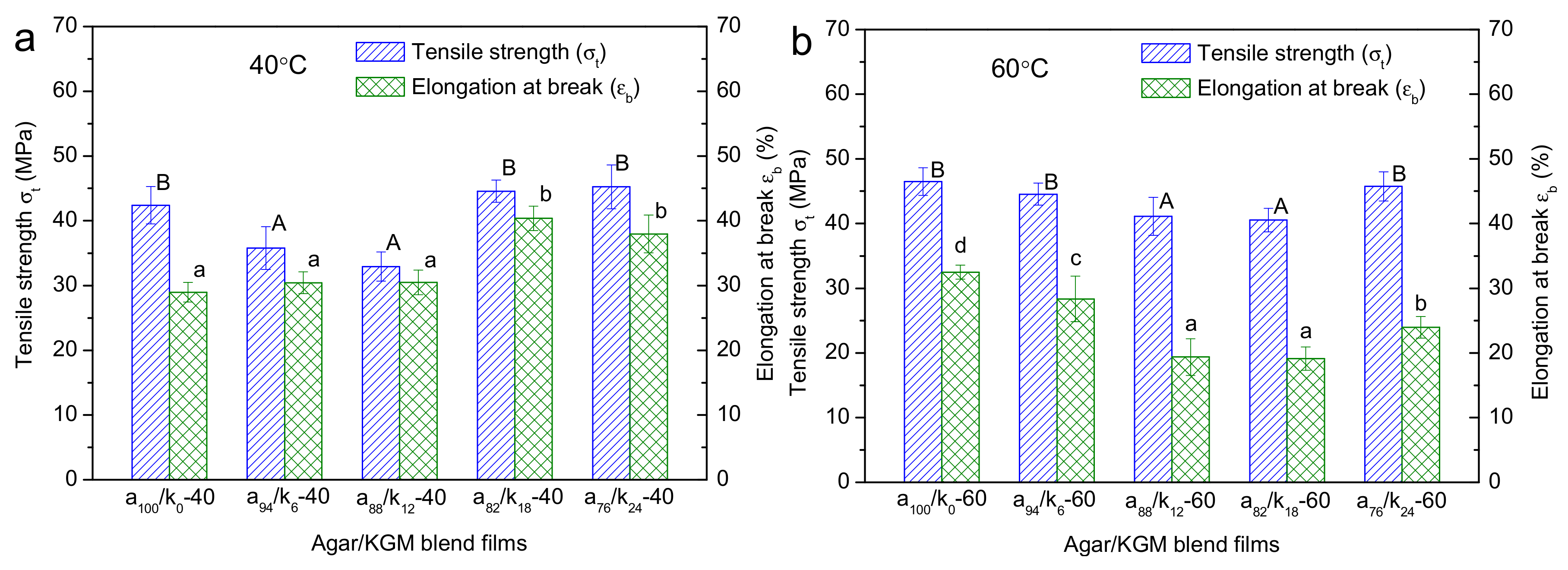

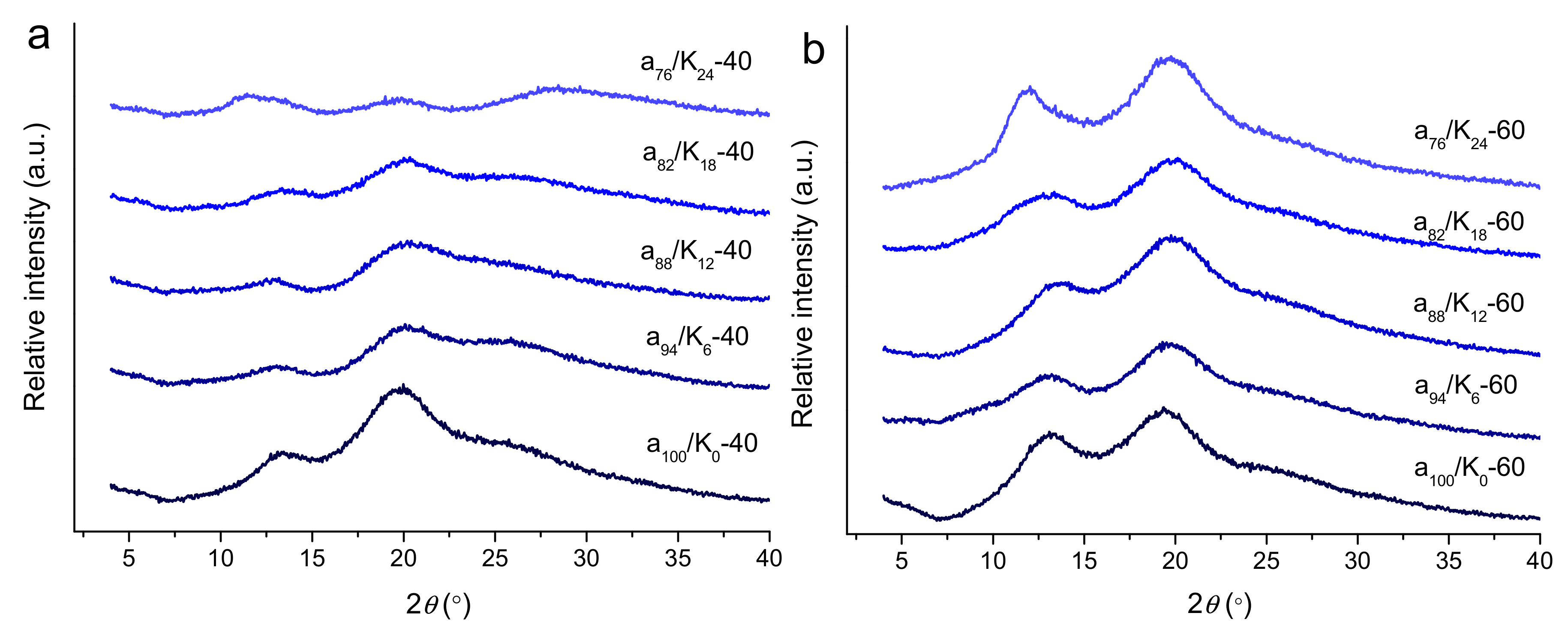

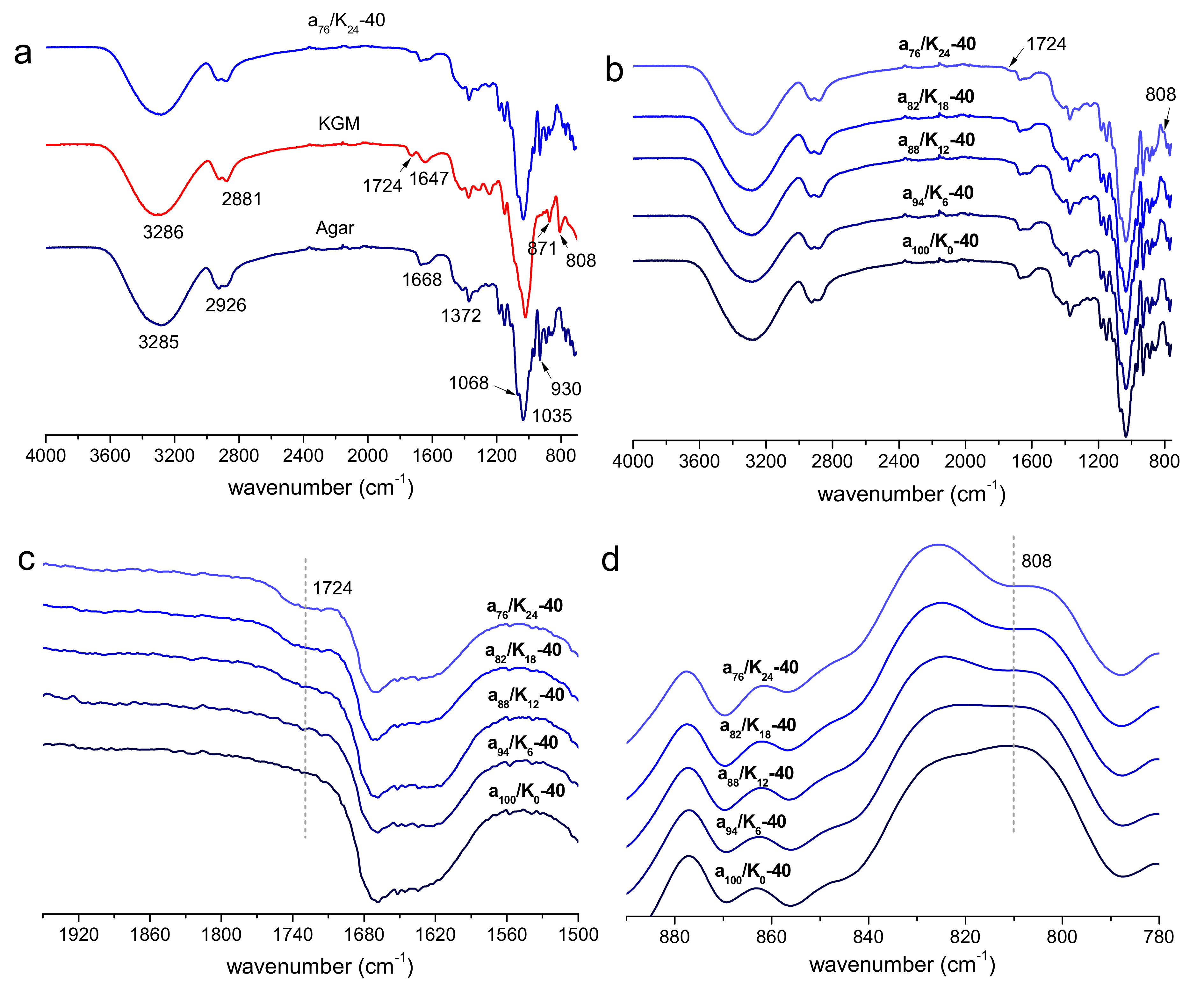

Different characterization methods spanning length scales from molecular to micron scale were applied to inspect the microstructures and mechanical/hydrophilic features of agar/konjac glucomannan (KGM) films prepared under different drying temperatures (40 and 60 °C). Note that the lower preparation temperature (40 °C) could increase the strength and elongation of agar/KGM films at high KGM levels (18:82 wt/wt KGM-agar, or higher). This was related to the variations in the film multi-scale structures with the increment of KGM content: the reduced crystallinity, the increased perfection of nanoscale orders at some KGM amounts, and the negligibly-changed morphology and molecular chemical structure under 40 °C preparation temperature. These structural changes initially decreased the film tensile strength, and subsequently increased the film strength and elongation with increasing KGM content. Moreover, under the higher drying temperature (60 °C), the increased KGM content could concurrently reduce the strength and elongation for the films, associated with probable phase separations on nano and smaller scales. In addition, the increased KGM amount tended to make the film more hydrophilic, whereas the changes in the film structures did not dominantly affect the changing trend of hydrophilicity. View Full-Text
Keywords: agar-based film; konjac glucomannan; structural features agar-based film; konjac glucomannan; structural features
Show Figures

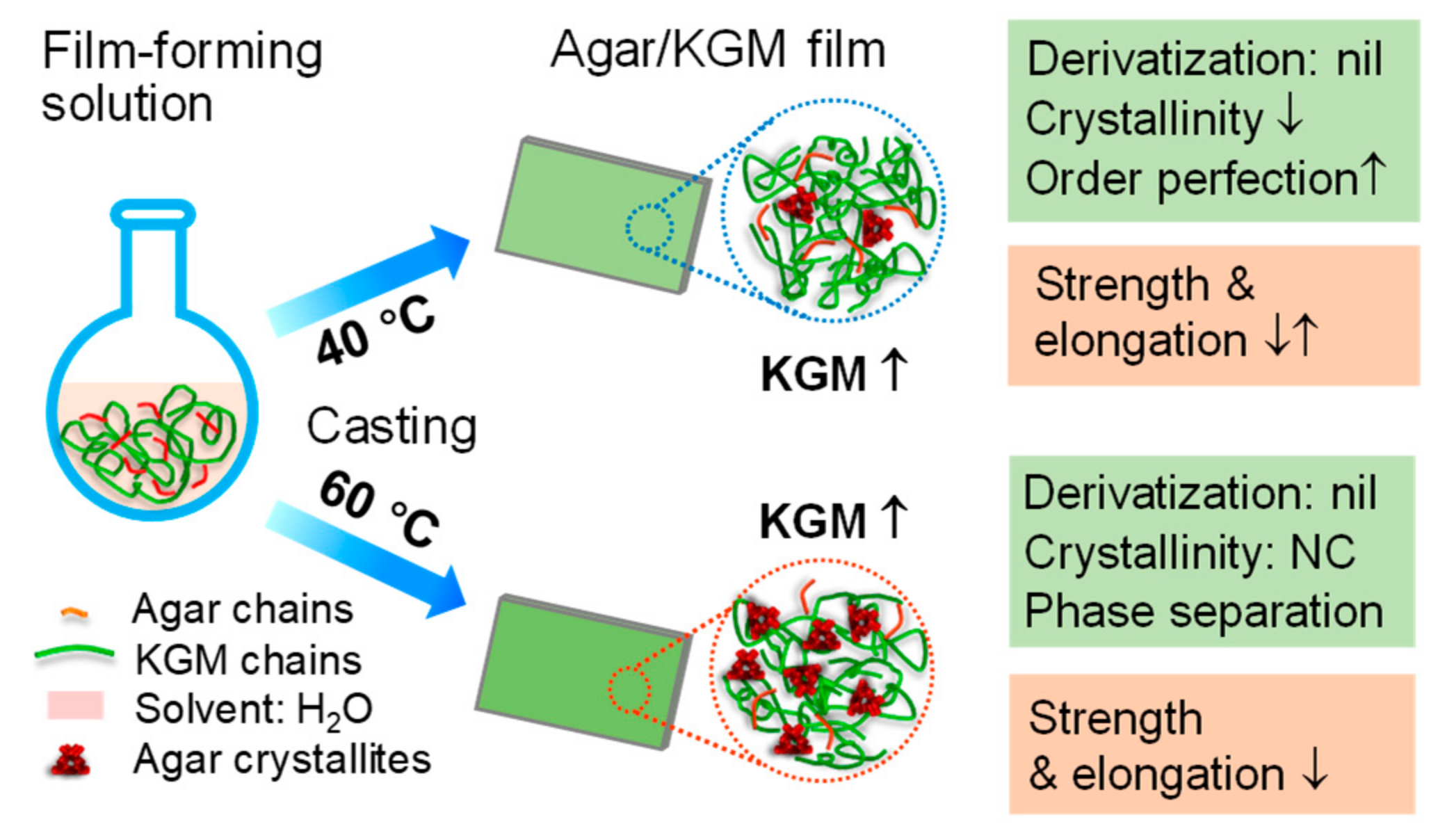

Graphical abstract

MDPI and ACS Style

Qiao, D.; Tu, W.; Zhong, L.; Wang, Z.; Zhang, B.; Jiang, F. Microstructure and Mechanical/Hydrophilic Features of Agar-Based Films Incorporated with Konjac Glucomannan. Polymers 2019, 11, 1952.

AMA Style

Qiao D, Tu W, Zhong L, Wang Z, Zhang B, Jiang F. Microstructure and Mechanical/Hydrophilic Features of Agar-Based Films Incorporated with Konjac Glucomannan. Polymers. 2019; 11(12):1952.

Chicago/Turabian Style

Qiao, Dongling; Tu, Wenyao; Zhong, Lei; Wang, Zhong; Zhang, Binjia; Jiang, Fatang. 2019. "Microstructure and Mechanical/Hydrophilic Features of Agar-Based Films Incorporated with Konjac Glucomannan" Polymers 11, no. 12: 1952.
