Polymers 2019, 11(1), 116; doi:10.3390/polym11010116

Article
Photoinitiator Free Resins Composed of Plant-Derived Monomers for the Optical µ-3D Printing of Thermosets
1
Department of Polymer Chemistry and Technology, Kaunas University of Technology, Radvilenu Rd. 19, 50254 Kaunas, Lithuania
2
Laser Research Center, Vilnius University, Sauletekis Ave. 10, 10223 Vilnius, Lithuania
*
Author to whom correspondence should be addressed.
Received: 19 December 2018 / Accepted: 6 January 2019 / Published: 11 January 2019

Abstract

:
In this study, acrylated epoxidized soybean oil (AESO) and mixtures of AESO and vanillin dimethacrylate (VDM) or vanillin diacrylate (VDA) were investigated as photosensitive resins for optical 3D printing without any photoinitiator and solvent. The study of photocross-linking kinetics by real-time photorheometry revealed the higher rate of photocross-linking of pure AESO than that of AESO with VDM or VDA. Through the higher yield of the insoluble fraction, better thermal and mechanical properties were obtained for the pure AESO polymer. Here, for the first time, we validate that pure AESO and mixtures of AESO and VDM can be used for 3D microstructuring by employing direct laser writing lithography technique. The smallest achieved spatial features are 1 µm with a throughput in 6900 voxels per second is obtained. The plant-derived resins were laser polymerized using ultrashort pulses by multiphoton absorption and avalanche induced cross-linking without the usage of any photoinitiator. This advances the light-based additive manufacturing towards the 3D processing of pure cross-linkable renewable materials.
Keywords:
acrylated epoxidized soybean oil; vanillin dimethacrylate; vanillin diacrylate; photocross-linking; direct laser writing; nanolithography; optical 3D printing; two-photon polymerization (2PP); multi-photon processing

1. Introduction

In recent years, 3D printing or rapid prototyping as a flexible additive manufacturing technique became very popular because of its simplicity, relatively low cost, and unlimited creativity. This process enables the creation of complex three-dimensional objects which cannot be cut, assembled or carved. It is possible because of Computer-Aided Design (CAD) modeling, where various objects are generated and files are transmitted for the printing of 3D items [1]. Stereolithography (SLA) is a process which obtains a high printing accuracy and speed, simple and low raw material usage technology [2]. It is a layer by layer photopolymerization method, where the photosensitive resin is polymerized by UV/VIS light.
Epoxy and acrylic resins are the most popular materials in optical 3D printing. Printed epoxy polymers have low shrinkage and high structural stability, while acrylates have high light sensitivity, low critical energy and viscosity, controllable mechanical properties and relatively high dependence on temperature and humidity changes [3]. While epoxides have higher structural stability, acrylates possess higher photosensitivity due to which they are more popular in the SLA process.
Most of the photosensitive resins for optical 3D printing are made from acrylic oligomers, acrylic monomers and/or reactive diluents, photoinitiator and UV stabilizators/blockers [4]. Photopolymerized acrylates are in an irregular molecular structure because of high curing speed. Petroleum-derived acrylic resins such as polyesters, polyether oligomers or diglicidylether bisphenol A acrylates are those that are mostly used for optical 3D printing [5]. Due to decreasing petroleum recourses, it became crucial to search for alternative materials such as renewable resources [6]. Natural oils are one of the best alternatives for petroleum-derived resins [7,8,9]. Due to their richness in double bonds which can be polymerized or converted to other functional groups, biodegradability and renewability, natural oils became a popular target of researchers [10,11].
Soybean oil is one of the most promising materials to replace petroleum-derived resins. It contains a high amount of unsaturated fatty acids such as monounsaturated oleic acid (C-18:1, ~23%), polyunsaturated α-linoleic acid (C-18:3, 7–10%), and linoleic acid (C-18:2, ~51%) [12,13]. Carbon-carbon double bonds of fatty acids can be oxidized [14], polymerized [15,16] or converted to various reactive groups [17,18,19].
Acrylated epoxidized soybean oil (AESO) is produced by the epoxidation of fatty acid double bonds followed by epoxy ring acrylation [20,21,22,23]. Due to the high amount of various functional groups such as the acrylic, epoxy and hydroxy groups, AESO is widely used in industry and is commercially available under Ebecryl 860 trademark [24]. AESO can be polymerized by UV/VIS light using appropriate photoinitiators and can form a cross-linked polymer network. AESO is already photopolymerized with polycaprolactone diacrylate and polyethylenglycol diacrylate [25], tetrahydrophurphuryl acrylate [26,27], myrcene [28], and various thiols [29,30]. The addition of comonomers improved the mechanical and thermal properties as well as solvent resistance of the resulted polymers. Due to AESO fatty acid long aliphatic chains, cross-linked polymers are soft and mechanically resistless. To improve the polymer mechanical properties, aromatic comonomers are added. Such compounds such as styrene [31,32], divinylbenzene (DVB) [33,34], dicyclopentadiene [35] and acrylepoxymethylester [36] were used as stiffening agents for AESO polymers. But these materials are petroleum-derived and harmful to health [37,38,39]. Initially, we selected the plant-derived vanillin acrylates to replace the petroleum-derived aromatic compounds because of their aromatic structure, renewability and reactivity [40].
Vanillin dimethacrylate (VDM) or methacrylated vanillin alcohol is produced from lignin, one of the most abundant natural polymers [41]. The bio-based thermosets made from VDM and maleinated AESO showed high glass transition temperatures (63–79 °C) and high Young’s modulus values (570–855 MPa), but a high viscosity of the mixture and very long reaction time (about 8 h) was also observed [42]. Vanillin diacrylate (VDA) is a bifunctional aromatic compound which can also be produced from lignin. It has two acrylic groups which can be polymerized via free-radical polymerization, yet no data was found of its usage in polymerization.
In this study, the plant-derived AESO, VDM and VDA (Scheme 1) were used as photosensitive monomers for the optical 3D printing of thermosets. The monitoring of photocross-linking kinetics was carried out by real-time photorheometry which provides a wide range of information on typical rheological properties such as viscosity and shear modulus while the material is irradiated with UV/VIS light. It enables us to track the occurrence of structural phenomena, such as gelation and vitrification [43], indicating the moment, when the structural changes have started [44]. The chemical structure of the polymers was investigated by FTIR spectroscopy. The formation of polymer cross-linked structure was confirmed by Soxhlet extraction. The thermal properties of cross-linked polymers were investigated by differential scanning spectroscopy and thermogravimetric analysis. The compressive modulus was determined from the top pressure test. The plant-derived resins AESO and AESO/VDM were laser polymerized using ultrashort pulses by multiphoton absorption and avalanche induced cross-linking without a photoinitiator.

2. Materials and Methods

2.1. Materials

Acrylated epoxidized soybean oil (AESO, an average number of acryloyl groups per molecule calculated from the 1H-NMR spectrum is 2.7 and 0.3 of epoxide groups) was purchased from Sigma-Aldrich (Darmstadt, Germany). Vanillin dimethacrylate (VDM) and vanillin diacrylate (VDA) were purchased from Specific Polymers. Chloroform was purchased from Chempur (Karlsruhe, Germany). All materials were used without further purification.

2.2. Real-Time Photorheometry

UV/VIS curing tests of pure AESO and two resin series, AESO/VDM and AESO/VDA (Table 1), without any photoinitiator and solvent were carried out with an MCR302 rheometer from Anton Paar (Graz, Austria) equipped with plate/plate measuring system. A Peltier-controlled temperature chamber with the glass plate (diameter of 38 mm) and the top plate PP08 (diameter of 8 mm) was used. The measuring gap was set to 0.3 mm. The samples were irradiated at room temperature by UV/VIS radiation in a wavelength range of (250–450) nm through the glass plate of the temperature chamber using a UV/VIS spot curing system OmniCure S2000, Lumen Dynamics Group Inc (Mississauga, Ontario, Canada). The intensity of the irradiation was 9.3 W·cm−2 (high pressure 200 W mercury vapor short arc). Shear mode with a frequency of 10 Hz and a strain of 0.3% was used. Storage modulus G’, loss modulus G”, loss factor tanδ (tanδ = G”/G’), and complex viscosity η* were recorded as a function of irradiation time. The onset of UV/VIS irradiation was at 60 s after the experiment start for all samples.

2.3. Preparation of Cross-Linked Polymers

The homopolymer pAESO was synthesized from pure AESO and the copolymer series pAESO/VDM was synthesized from the mixtures of AESO and VDM without a photoinitiator and any solvent. The mixtures of AESO and VDM (Table 1) were stirred at 40 °C for 24 h. Resins were poured into a tablet-shaped (⦰ 15 mm, h 3 mm) Teflon mold and irradiated with Helios Italquartz, model GR.E 500 W lamp with an intensity of 310 mW·cm−2 at the distance of 15 cm until hard polymer tablets were formed.

2.4. Chemical Structure Analysis

Fourier Transform Infrared Spectroscopy (FT-IR) measurements of photocross-linked polymer samples were performed on a Spectrum BX II FT-IR spectrometer (Perkin Elmer, Llantrisant, UK). The spectra were acquired from 10 scans. The range of the wavenumber was (400–4000) cm−1.

2.5. Soxhlet Extraction

The amount of the insoluble fraction was determined by Soxhlet extraction. Samples of photocross-linked polymers were put into a filter package and placed in a Soxhlet apparatus (Sigma-Aldrich, Darmstadt, Germany). Extraction was performed with chloroform for 24 h. Insoluble fractions were dried under vacuum to a constant weight. The amount of insoluble fraction was calculated as the difference of the sample weight before and after extraction.

2.6. Differential Scanning Calorimetry

The glass transition temperature (Tg) of the photocross-linked polymers were estimated by differential scanning calorimetry (DSC). The measurements were performed on a DSC 8500 apparatus (Perkin Elmer, Llantrisant, UK) with a heating-cooling-heating rate of 10 °C·min−1 under a nitrogen atmosphere (nitrogen flow rate 50 mL·min−1). The Tg value was taken as the middle point in the heat capacity step of the glass transition.

2.7. Thermogravimetric Analysis

The thermal stability of prepared polymers was determined by thermogravimetric analysis (TGA). The measurements were performed on a TGA 4000 apparatus (Perkin Elmer, Llantrisant, UK) in a temperature range from room temperature to 800 °C at a heating rate of 20 °C·min−1 under a nitrogen atmosphere (nitrogen flow rate 100 mL·min−1).

2.8. Mechanical Testing

The mechanical properties of the photocross-linked polymer tablets were estimated by a compression test on a BDO-FB0.5TH (Zwick/Roell, Kennesaw, Georgia, USA) testing machine at room temperature. The cross-linked polymer specimen with a 15 mm diameter and 3 mm thickness was placed in a Teflon mold of the same size in order to avoid the expansion of specimen to the sides during the test. The specimen was pressed with a cylindrical steel rod with a flat end diameter of 8 mm. The speed of the rod movement was 5 mm/min. The specimen pressure was stopped when the upper force limit of 100 N was reached. The compressive modulus was calculated by the following equation:
E c = F l 0 S l
where Ec is a compressive modulus (N/mm2); F is a force (N); S is a surface area of the specimen that interacts with the steel rod flat end (mm2); l0 is an initial thickness of the specimen (mm); Δl is the difference of the initial thickness of the specimen and the thickness of a loaded specimen (mm).
The mean values of the ten samples of each polymer were calculated. Results with a within-group variation below 5% were taken.

2.9. Direct Laser Writing 3D Lithography

Direct laser writing (DLW) 3D lithography experiments were conducted employing a Pharos laser (515 nm, 300 fs, 200 kHz, Light Conversion Ltd, Vilnius, Lithuania), 20 × NA = 0.8 objective and the combined movement of the linear stages and Galvano-scanners. A detailed description of the experimental setup can be found in a previous publication [45]. The goal was to figure out if AESO and VDM monomer based resins can be suitable for ultra-fast laser pulses initiated by 3D polymerization in a confined space. An investigation test to assess the optimal fabrication parameters was performed. A 3D model of so-called resolution bridges (RB) was programmed accordingly. It consisted of five rectangle-shaped columns which were 15 µm wide, 60 µm long and 15 µm high. Gaps between the columns varied from 5 µm to 20 µm every 5 µm. The five straight lines perpendicular to the columnar long edges formed in the gaps. Such a structure corresponds to the RB suspended between the columns. Each line was polymerized from a single laser beam scan. RB were obtained with different longitudinal and lateral sizes by varying the laser power (P), which corresponded to the light intensity (I) at the sample and the scanning velocity (v). It enabled the evaluation of the smallest features and their dependence on the applied I which could be formed in AESO and VDM based resins. The capability to form 3D microporous woodpile structures was demonstrated. They consisted out of two layers separated via vertical 20 µm height columns. The layers were made of a 15 µm wide and 75 µm long log pattern with a 15 µm gap between the logs, resulting in a 30 µm period. Each log was made from multiple scans whose number depended from the distance dxy between scans. dxy was 0.25–2 µm every 0.25 µm. During the fabrication, the resin was placed between two glass slides, as shown in Figure 1. After the exposure the samples were developed in 4-methyl-2-pentanone for 15 min, removing the uncured resin and leaving only the formed structures on the substrate. The fabricated structures were characterized using a scanning electron microscope (SEM, Hitachi TM-1000, Tokyo, Japan).

3. Results

3.1. Kinetics of Photocross-Linking

In this study, the photocross-linking of AESO and the mixtures of AESO and VDM or AESO and VDA was performed without any photoinitiator and solvent. The composition of resins is presented in Table 1. Different ratios of AESO and VDM or VDA were used in the resin series AESO/VDM and AESO/VDA. The resin AESO/VDM1 contains the maximum amount of VDM possible to dissolve in AESO without any solvent at 40 °C. The same amounts of VDA and VDM were taken in the resin series AESO/VDA and AESO/VDM for comparison.
The kinetics of photocross-linking was monitored by real-time photorheometry. In the photorheometry test, when the photosensitive resin is being irradiated with UV/VIS light, the values of storage modulus G’, loss modulus G”, and complex viscosity η* start to increase. This increment indicates the formation of a three-dimensional polymer network. During the process, the values of G’ increase faster and exceed the values of G” showing the high viscosity Newton liquid transforms into a hard elastic polymer. In this transformation, the point where G’ = G” is commonly used to define the gel point (tgel) [46]. At this point, the loss factor tanδ, the ratio of the viscous and the elastic portion of the viscoelastic deformation behavior (G”/G’) starts to decrease. Then, the values of G’ and G” increase continuously and the tanδ value decreases until the final degree of cross-linking is reached [47,48]. As an example, the dependencies of G’, G”, tanδ and η* on the irradiation time of the photocross-linking of AESO are presented in Figure 2.
The values of G’, G”, η*, and tgel of AESO, the resin series AESO/VDM and AESO/VDA are presented in Table 2. It was determined that the rate of photocross-linking of resins containing AESO and VDM or VDA was lower than that of pure AESO. The addition of VDM or VDA to the resins caused a longer induction period and the higher tgel values. The values of tgel of the resin series AESO/VDA were much higher than those of AESO or the resin series AESO/VDM. Moreover, the G’ values of AESO were higher than those of the resin series AESO/VDM and AESO/VDA, indicating the lower rigidity of the latter polymers (Figure 3 and Figure 4).
It is known that the acrylic group is more reactive than methacrylic [49]. This explains the increase of the induction period and tgel value during the photocross-linking of the resin series AESO/VDM in comparison to AESO. Additionally, the slope of the G’ curve of AESO was steeper than that of the resin series AESO/VDM indicating the quicker formation of the polymer network [50]. High G’ values indicate better mechanical properties of polymers caused by the high density of cross-links [41]. Thus, the higher G’ values of AESO indicate the higher density of cross-links in this polymer (pAESO).
The irradiation time dependencies of the storage modulus of the resin series AESO/VDA are shown in Figure 4. The photocross-linking kinetics of this resin series strongly depends on the VDA concentration. The higher the amount of VDA was used, the higher the values of tgel obtained (Table 1). The increase of the VDA amount caused the lower G’ values obtained to show a lower density of cross-links in these polymers. The induction period of AESO/VDA was longer and the G’ values were lower compared to those of the resin series AESO/VDM. Due to these data, especially due to the very high tgel values of the resin series AESO/VDA, further experiments were performed only with AESO and the resin series AESO/VDM.

3.2. Characterization of Photocross-Linked Polymer Structure

The chemical structure of the polymer pAESO and the polymer series pAESO/VDM was investigated by FTIR spectroscopy (Figure 5). The reduction of the acrylic group signal at 1637 cm−1 was observed in the FTIR spectra of photocross-linked polymers pAESO and all the polymers pAESO/VDM in comparison to that of the FTIR spectra of AESO and VDM showing that most of the acrylic groups were reacted. The more intensive signal of acrylic group C=C at 1630 cm−1 in FTIR spectra of pAESO/VDM could be assigned to the free VDM methacrylic groups. The strong peak at 1513 cm−1 is assigned to VDM aromatic ring C=C vibrations.
The formation of polymer cross-linked structure was confirmed by Soxhlet extraction. The yield of insoluble fraction of pAESO was much higher (88%) than that of the cross-linked polymers pAESO/VDM (31–63%) (Table 2). This showed that AESO tends to form densely cross-linked polymers even without photoinitiators. Sucha low yield of insoluble fraction of the polymer series pAESO/VDM could be explained by the tendency of VDM to form linear and/or branched polymers. This statement is confirmed by the increase of the yield of an insoluble fraction with the reduction of VDM amount.

3.3. Thermal Properties

DSC confirmed that all synthesized photocross-linked polymers are amorphous materials. Only the glass transitions were observed in the thermograms of all the polymers prepared. The values of the glass transition temperatures (Tg) were very low and varied from −4.5 °C to −1.6 °C (Table 3) even though these polymers were solid materials at room temperature. Such low Tg values were determined by the flexible chains of AESO. The lower Tg value of the polymers pAESO/VDM1 and pAESO/VDM2 than pAVDM3 could be explained by their lower yield of insoluble fraction. A huge amount of linear and/or branched macromolecules was formed in these polymers probably due to the different activities of the functional group affected the Tg value of these copolymers [51]. The cross-linked structure of polymers caused their solid state at room temperature. Such a feature of the natural oil-based cross-linked polymers was observed in earlier studies [30,52].
TGA confirmed that the photocross-linked polymers exhibited high thermal stability. TGA curves of the cross-linked polymers are presented in Figure 6. The 10% weight loss temperatures (Tdec-10%) of pAESO and the polymer series pAESO/VDM range from 295 °C to 356 °C (Table 3). It was noticed, that the higher the amount of VDM was used, the lower the Tdec-10% value indicated. Lower Tdec-10% values and a two- or even three-step thermal decomposition of the polymers containing VDM fragments could be due to the higher rate of linear and/or branched macromolecules while higher thermal stability is related to the high density of the cross-links [53].

3.4. Compressive Modulus

The compressive modulus of the synthesized cross-linked polymer samples was determined from the top pressure test. No visible cracks were observed after the testing of all polymer samples. The higher value of the compressive modulus was observed for the polymer pAESO in comparison to that of the polymers pAESO/VDM1 and pAESO/VDM2, and similar to that of the polymer pAESO/VDM3 (see Table 2). This shows the correlation of the compressive modulus and insoluble fraction of cross-linked polymers. The higher yield of the insoluble fraction caused the higher value of the compressive modulus. The tendency of the increase of the compressive modulus with the reduction of the VDM amount in the resin was also observed.

3.5. Characterization of DLW 3D Lithography Produced Structures

RB and 3D microporous woodpile structures obtained via DLW 3D lithography out of AESO and ASEO/VDM1 were characterized. These plant-derived resins were laser polymerized using ultrashort pulses by multiphoton absorption and avalanche induced cross-linking [54,55]. Scanning Electron Microscopy (SEM) images are shown in Figure 7. Figure 7a demonstrates RB—five columns with five straight lines perpendicular to the column long edges. Figure 7b shows a close up view of RB from the top. P was set to 0.6 mW (2 TW/cm2) for the lines and each line was scanned with a different velocity v, varying from 2 mm/s to 6 mm/s. It can be seen that each line has a slightly different width: the higher the v, the narrower the line. Further 3D microporous woodpile structures were formed. Arrays of 75 × 75 µm2 woodpiles are demonstrated in Figure 7c,e. In both cases, v was set to 5 mm/s and P was varied in the range of 0.4–1 mW (1.3–3.3 TW/cm2). It can be seen that an increased laser power P higher than dxy can be used. Finally, the mm scale woodpiles were fabricated. Figure 7d shows a 1065 × 1065 µm2 woodpile with a 75 µm period and 4 layers, v = 5 mm/s, P = 0.4 mW (1.3 TW/cm2). However, it did not sustain itself due to the low mechanical rigidity. Figure 7f demonstrates a 1095 × 1095 µm2 woodpile with a 120 µm period and 6 layers, v = 5 mm/s, P = 0.6 mW (2 TW/cm2). The structure sustained itself and had a 3D architecture. To sum up, AESO and the resin AESO/VDM1 can be the great candidates as new renewable materials for DLW 3D lithography technology [56]. It has a wide working window ranging P from 0.1 mW to 1 mW (dynamic fabrication window aspect ratio 10 times). Spatial features of 1 µm and a 6900 voxels/second throughput was achieved as a method for the evaluation of normalized µ-3D fabrication throughput [57]. We note that the possibility to the photostructure without the use of photoinitiators is not limited to serial direct write (DLW/SLA), but also can be extended to projection DLP lithography (SLM/DMD based) if the peak exposure intensity is sustained (for current case of employed material and light source the ranging within ≈ 1–3 TW/cm2).
It is envisaged that the photostructuring without the photoinitiators is beneficial for the fields of biomedicine, micro-optics and nanophotonics. The avoidance of toxic photoinitiators increases the integrity of biodegradable cell-growth scaffolds and reduces the auto-fluorescence while performing microscopy in vitro or in vivo. The absorbing materials are detrimental for the use in micro-optics and nanophotonics due to their reduced optical resilience and induced signal losses [58]. Moreover, the use of plant-derived materials in such technologies would benefit greatly due to their low toxicity, high biodegradability, and improved recycling options. Finally, it would reduce the dependency on limited and increasingly expensive fossil resources as well as greenhouse gas emission, which are the targets of the European Commission initiated “Europe 2020” strategy.

4. Conclusions

The real-time photorheometry study revealed the higher rate of photocross-linking of pure acrylated epoxidized soybean oil than that of its mixture with vanillin dimethacrylate or vanillin diacrylate without a photoinitiator and solvent. Novel plant-derived photocross-linked polymers were synthesized from acrylated epoxidized soybean oil and its mixtures with vanillin dimethacrylate. It was determined that the addition of vanillin dimethacrylate reduced the rate of photocross-linking and the values of the glass transition temperature, thermal decomposition temperature and compressive modulus. The formation of more linear and/or branched macromolecules considered the vanillin dimethacrylate effect as a plasticizer for acrylated epoxidized soybean oil in photocross-linking without a photoinitiator. It was experimentally demonstrated that the homopolymer of acrylated epoxidized soybean oil and the copolymer of acrylated epoxidized soybean oil and vanillin dimethacrylate are suitable materials for rapid 3D microstructuring by the direct laser writing lithography technique. Spatial features of 1 µm and a 6900 voxels/second throughput was achieved. Since the 3D cross-linking of the plant-derived materials was initiated using ultrafast laser inducing multiphoton absorption and avalanche ionization, it does not require the usage of any photoinitiator and opens a new pathway for green 3D µ-printing as a flexible tool for rapid prototyping or advanced additive manufacturing.

Author Contributions

J.O. and M.L. conceived and designed the experiments, analyzed the data; M.L. performed all experiments and characterizations except the E.S. part; E.S. performed the direct laser writing 3D lithography experiments and characterization of microstructures; both E.S. and M.M. conceived the experimental plan and did the interpretation of the laser 3D printing results; all of the Authors contributed to writing the manuscript.

Acknowledgments

Financial support from the Research Council of Lithuania (project No. S-LAT-17-2) and EU ERDF, through the INTERREG BSR Programme, (ECOLABNET project (#R077)) are gratefully acknowledged.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Rengier, F.; Mehndiratta, A.; Von Tengg-Kobligk, H.; Zechmann, C.M.; Unterhinninghofen, R.; Kauczor, H.; Giesel, F.L. 3D Printing Based on Imaging Data: Review of Medical Applications. Int. J. Comput. Assist. Radiol. Surg. 2010, 5, 335–341. [Google Scholar] [CrossRef] [PubMed]
  2. Cooke, M.N.; Fisher, J.P.; Dean, D.; Rimnac, C.; Mikos, A.G. Use of Stereolithography to Manufacture Critical-sized 3D Biodegradable Scaffolds for Bone Ingrowth. J. Biomed. Mater. Res. Part B: Appl. Biomater. 2003, 64, 65–69. [Google Scholar] [CrossRef] [PubMed]
  3. Corbel, S.; Dufaud, O.; Roques-Carmes, T. Materials for stereolithography. In Stereolithography; Springer: Boston, MA, USA, 2011; pp. 141–159. [Google Scholar]
  4. Skliutas, E.; Kasetaite, S.; Jonušauskas, L.; Ostrauskaite, J.; Malinauskas, M. Photosensitive Naturally Derived Resins toward Optical 3-D Printing. Opt. Eng. 2018, 57, 041412. [Google Scholar] [CrossRef]
  5. Ligon-Auer, S.C.; Schwentenwein, M.; Gorsche, C.; Stampfl, J.; Liska, R. Toughening of Photo-Curable Polymer Networks: A Review. Polym. Chem. 2016, 7, 257–286. [Google Scholar] [CrossRef]
  6. Reddy, M.M.; Vivekanandhan, S.; Misra, M.; Bhatia, S.K.; Mohanty, A.K. Biobased Plastics and Bionanocomposites: Current Status and Future Opportunities. Prog. Polym. Sci. 2013, 38, 1653–1689. [Google Scholar] [CrossRef]
  7. Güner, F.S.; Yağcı, Y.; Erciyes, A.T. Polymers from Triglyceride Oils. Prog. Polym. Sci. 2006, 31, 633–670. [Google Scholar] [CrossRef]
  8. Lligadas, G.; Ronda, J.C.; Galia, M.; Cádiz, V. Plant Oils as Platform Chemicals for Polyurethane Synthesis: Current State-of-the-Art. Biomacromolecules 2010, 11, 2825–2835. [Google Scholar] [CrossRef]
  9. Pelletier, H.; Gandini, A. Preparation of Acrylated and Urethanated Triacylglycerols. Eur. J. Lipid Sci. Technol. 2006, 108, 411–420. [Google Scholar] [CrossRef]
  10. Pelletier, H.; Belgacem, N.; Gandini, A. Acrylated Vegetable Oils as Photocrosslinkable Materials. J. Appl. Polym. Sci. 2006, 99, 3218–3221. [Google Scholar] [CrossRef]
  11. Wool, R.; Sun, X.S. Bio-Based Polymers and Composites; Elsevier: Burlington, MA, USA, 2011. [Google Scholar]
  12. Ivanov, D.S.; Lević, J.D.; Sredanović, S.A. Fatty Acid Composition of various Soybean Products. Food Feed Res. 2010, 37, 65–70. [Google Scholar]
  13. Haun, W.; Coffman, A.; Clasen, B.M.; Demorest, Z.L.; Lowy, A.; Ray, E.; Retterath, A.; Stoddard, T.; Juillerat, A.; Cedrone, F. Improved Soybean Oil Quality by Targeted Mutagenesis of the Fatty Acid Desaturase 2 Gene Family. Plant Biotechnol. J. 2014, 12, 934–940. [Google Scholar] [CrossRef] [PubMed]
  14. Lowe, A.B. Thiol–ene “click” Reactions and Recent Applications in Polymer and Materials Synthesis: A First Update. Polym. Chem. 2014, 5, 4820–4870. [Google Scholar] [CrossRef]
  15. Huang, X.; Liu, H.; Shang, S.; Rao, X.; Song, J. Preparation and Characterization of Polymeric Surfactants Based on Epoxidized Soybean Oil Grafted Hydroxyethyl Cellulose. J. Agric. Food Chem. 2015, 63, 9062–9068. [Google Scholar] [CrossRef]
  16. Liu, Z.; Doll, K.M.; Holser, R.A. Boron Trifluoride Catalyzed Ring-Opening Polymerization of Epoxidized Soybean Oil in Liquid Carbon Dioxide. Green Chem. 2009, 11, 1774–1780. [Google Scholar] [CrossRef]
  17. Fu, L.; Yang, L.; Dai, C.; Zhao, C.; Ma, L. Thermal and Mechanical Properties of Acrylated Expoxidized-soybean Oil-based Thermosets. J. Appl. Polym. Sci. 2010, 117, 2220–2225. [Google Scholar] [CrossRef]
  18. De Espinosa, L.M.; Meier, M.A. Plant Oils: The Perfect Renewable Resource for Polymer Science?! Eur. Polym. J. 2011, 47, 837–852. [Google Scholar] [CrossRef]
  19. Sacristán, M.; Ronda, J.C.; Galià, M.; Cádiz, V. Synthesis and Properties of Boron-Containing Soybean Oil Based Thermosetting Copolymers. Polymer 2010, 51, 6099–6106. [Google Scholar] [CrossRef]
  20. Del Rio, E.; Lligadas, G.; Ronda, J.; Galia, M.; Cadiz, V. Biobased Polyurethanes from Polyether Polyols obtained by Ionic-coordinative Polymerization of Epoxidized Methyl Oleate. J. Polym. Sci. Part A Polym. Chem. 2010, 48, 5009–5017. [Google Scholar] [CrossRef]
  21. Del Rio, E.; Galia, M.; Cadiz, V.; Lligadas, G.; Ronda, J. Polymerization of Epoxidized Vegetable Oil Derivatives: Ionic-coordinative Polymerization of Methylepoxyoleate. J. Polym. Sci. Part A Polym. Chem. 2010, 48, 4995–5008. [Google Scholar] [CrossRef]
  22. Yang, Y.; Shen, M.; Huang, X.; Zhang, H.; Shang, S.; Song, J. Synthesis and Performance of a Thermosetting Resin: Acrylated Epoxidized Soybean Oil Curing with a Rosin-based Acrylamide. J. Appl. Polym. Sci. 2017, 134. [Google Scholar] [CrossRef]
  23. Demengeot, E.; Baliutaviciene, I.; Ostrauskaite, J.; Augulis, L.; Grazuleviciene, V.; Rageliene, L.; Grazulevicius, J.V. Crosslinking of Epoxidized Natural Oils with Diepoxy Reactive Diluents. J. Appl. Polym. Sci. 2010, 115, 2028–2038. [Google Scholar] [CrossRef]
  24. Yadav, S.K.; Schmalbach, K.M.; Kinaci, E.; Stanzione, J.F.; Palmese, G.R. Recent Advances in Plant-Based Vinyl Ester Resins and Reactive Diluents. Eur. Polym. J. 2018, 98, 199–215. [Google Scholar] [CrossRef]
  25. Kim, H.M.; Kim, H.R.; Kim, B.S. Soybean Oil-Based Photo-Crosslinked Polymer Networks. J. Polym. Environ. 2010, 18, 291–297. [Google Scholar] [CrossRef]
  26. Chen, Z.; Wu, J.F.; Fernando, S.; Jagodzinski, K. Soy-Based, High Biorenewable Content UV Curable Coatings. Prog. Org. Coat. 2011, 71, 98–109. [Google Scholar] [CrossRef]
  27. Wu, J.F.; Fernando, S.; Jagodzinski, K.; Weerasinghe, D.; Chen, Z. Effect of Hyperbranched Acrylates on UV-curable Soy-based Biorenewable Coatings. Polym. Int. 2011, 60, 571–577. [Google Scholar] [CrossRef]
  28. Yang, X.; Li, S.; Xia, J.; Song, J.; Huang, K.; Li, M. Renewable Myrcene-Based UV-Curable Monomer and Its Copolymers with Acrylated Epoxidized Soybean Oil: Design, Preparation, and Characterization. BioResources 2015, 10, 2130–2142. [Google Scholar] [CrossRef]
  29. Chen, Z.; Chisholm, B.J.; Patani, R.; Wu, J.F.; Fernando, S.; Jogodzinski, K.; Webster, D.C. Soy-Based UV-Curable Thiol–ene Coatings. J. Coat. Technol. Res. 2010, 7, 603–613. [Google Scholar] [CrossRef]
  30. Kašėtaitė, S.; De la Flor, S.; Serra, A.; Ostrauskaitė, J. Effect of Selected Thiols on Cross-Linking of Acrylated Epoxidized Soybean Oil and Properties of Resulting Polymers. Polymers 2018, 10, 439. [Google Scholar] [CrossRef]
  31. Can, E.; Wool, R.; Küsefoğlu, S. Soybean-and Castor-oil-based Thermosetting Polymers: Mechanical Properties. J. Appl. Polym. Sci. 2006, 102, 1497–1504. [Google Scholar] [CrossRef]
  32. Lu, J.; Khot, S.; Wool, R.P. New Sheet Molding Compound Resins from Soybean Oil. I. Synthesis and Characterization. Polymer 2005, 46, 71–80. [Google Scholar] [CrossRef]
  33. Lu, Y.; Larock, R.C. Corn Oil-based Composites Reinforced with Continuous Glass Fibers: Fabrication and Properties. J. Appl. Polym. Sci. 2006, 102, 3345–3353. [Google Scholar] [CrossRef]
  34. Lu, Y.; Larock, R.C. Novel Biobased Nanocomposites from Soybean Oil and Functionalized Organoclay. Biomacromolecules 2006, 7, 2692–2700. [Google Scholar] [CrossRef] [PubMed]
  35. Andjelkovic, D.D.; Larock, R.C. Novel Rubbers from Cationic Copolymerization of Soybean Oils and Dicyclopentadiene. 1. Synthesis and Characterization. Biomacromolecules 2006, 7, 927–936. [Google Scholar] [CrossRef] [PubMed]
  36. Campanella, A.; Scala, J.J.L.; Wool, R. Fatty Acid-based Comonomers as Styrene Replacements in Soybean and Castor Oil-based Thermosetting Polymers. J. Appl. Polym. Sci. 2011, 119, 1000–1010. [Google Scholar] [CrossRef]
  37. National Toxicology Program. Toxicology and Carcinogenesis Studies of Divinylbenzene-HP (Cas no. 1321-74-0) in F344/N Rats and B6C3F1 Mice (Inhalation Studies). Natl. Toxicol. Program. Tech. Rep. Ser. 2006, 534, 1–290. [Google Scholar]
  38. Roe, F.J. Styrene: Toxicity Studies—What do they show? Crit. Rev. Toxicol. 1994, 24, s117–s125. [Google Scholar] [CrossRef]
  39. Kinkead, E.; Pozzani, U.; Geary, D.; Carpenter, C. The Mammalian Toxicity of Dicyclopentadiene. Toxicol. Appl. Pharmacol. 1971, 20, 552–561. [Google Scholar] [CrossRef]
  40. Fache, M.; Boutevin, B.; Caillol, S. Vanillin Production from Lignin and its use as a Renewable Chemical. ACS Sustain. Chem. Eng. 2015, 4, 35–46. [Google Scholar] [CrossRef]
  41. Zhang, C.; Madbouly, S.A.; Kessler, M.R. Renewable Polymers Prepared from Vanillin and Its Derivatives. Macromol. Chem. Phys. 2015, 216, 1816–1822. [Google Scholar] [CrossRef]
  42. Zhang, Y.; Thakur, V.K.; Li, Y.; Garrison, T.F.; Gao, Z.; Gu, J.; Kessler, M.R. Soybean-Oil-Based Thermosetting Resins with Methacrylated Vanillyl Alcohol as Bio-Based, Low-Viscosity Comonomer. Macromol. Mater. Eng. 2018, 303, 1700278. [Google Scholar] [CrossRef]
  43. Schmidt, L.E.; Leterrier, Y.; Vesin, J.; Wilhelm, M.; Månson, J.E. Photorheology of Fast UV-Curing Multifunctional Acrylates. Macromol. Mater. Eng. 2005, 290, 1115–1124. [Google Scholar] [CrossRef]
  44. Schmidt, L.E.; Schmäh, D.; Leterrier, Y.; Månson, J.E. Time-Intensity Transformation and Internal Stress in UV-Curable Hyperbranched Acrylates. Rheol. Acta 2007, 46, 693–701. [Google Scholar] [CrossRef]
  45. Rekštytė, S.; Jonavičius, T.; Malinauskas, M. Direct Laser Writing of Microstructures on Optically Opaque and Reflective Surfaces. Opt. Lasers Eng. 2014, 53, 90–97. [Google Scholar] [CrossRef]
  46. Kasetaite, S.; Ostrauskaite, J.; Grazuleviciene, V.; Bridziuviene, D.; Budreckiene, R.; Rainosalo, E. Biodegradable Photocross-Linked Polymers of Glycerol Diglycidyl Ether and Structurally Different Alcohols. React. Funct. Polym. 2018, 122, 42–50. [Google Scholar] [CrossRef]
  47. Borges, A.; Bourban, P.; Pioletti, D.; Månson, J. Curing Kinetics and Mechanical Properties of a Composite Hydrogel for the Replacement of the Nucleus Pulposus. Compos. Sci. Technol. 2010, 70, 1847–1853. [Google Scholar] [CrossRef]
  48. Sarmento, V.; Frigerio, M.; Dahmouche, K.; Pulcinelli, S.H.; Santilli, C.V. Evolution of Rheological Properties and Local Structure during Gelation of Siloxane-Polymethylmethacrylate Hybrid Materials. J. Sol. Gel. Sci. Technol. 2006, 37, 179–184. [Google Scholar] [CrossRef]
  49. Anseth, K.S.; Wang, C.M.; Bowman, C.N. Reaction Behaviour and Kinetic Constants for Photopolymerizations of Multi (Meth) Acrylate Monomers. Polymer 1994, 35, 3243–3250. [Google Scholar] [CrossRef]
  50. Kreutzer, J.; Qin, X.; Gorsche, C.; Peterlik, H.; Liska, R.; Schubert, U. Variation of the Crosslinking Density in Cluster-Reinforced Polymers. Mater. Today Commun. 2015, 5, 10–17. [Google Scholar] [CrossRef]
  51. Beyler, C.L.; Hirschler, M.M. Thermal Decomposition of Polymers. SFPE Handb. Fire Prot. Eng. 2002, 2, 111–131. [Google Scholar]
  52. Kasetaite, S.; Ostrauskaite, J.; Grazuleviciene, V.; Svediene, J.; Bridziuviene, D. Camelina Oil-and Linseed Oil-based Polymers with Bisphosphonate Crosslinks. J. Appl. Polym. Sci. 2014, 131. [Google Scholar] [CrossRef]
  53. Nagai, A.; Kamei, Y.; Wang, X.; Omura, M.; Sudo, A.; Nishida, H.; Kawamoto, E.; Endo, T. Synthesis and Crosslinking Behavior of a Novel Linear Polymer Bearing 1, 2, 3-triazol and Benzoxazine Groups in the Main Chain by a Step-growth Click-coupling Reaction. J. Polym. Sci. Part A Polym. Chem. 2008, 46, 2316–2325. [Google Scholar] [CrossRef]
  54. Malinauskas, M.; Žukauskas, A.; Bičkauskaitė, G.; Gadonas, R.; Juodkazis, S. Mechanisms of Three-Dimensional Structuring of Photo-Polymers by Tightly Focussed Femtosecond Laser Pulses. Opt. Express 2010, 18, 10209–10221. [Google Scholar] [CrossRef] [PubMed]
  55. Parkatzidis, K.; Kabouraki, E.; Selimis, A.; Kaliva, M.; Ranella, A.; Farsari, M.; Vamvakaki, M. Initiator-Free, Multiphoton Polymerization of Gelatin Methacrylamide. Macromol. Mater. Eng. 2018, 303, 1800458. [Google Scholar] [CrossRef]
  56. Malinauskas, M.; Žukauskas, A.; Hasegawa, S.; Hayasaki, Y.; Mizeikis, V.; Buividas, R.; Juodkazis, S. Ultrafast Laser Processing of Materials: From Science to Industry. Light Sci. Appl. 2016, 5, e16133. [Google Scholar] [CrossRef] [PubMed]
  57. Jonušauskas, L.; Gailevičius, D.; Rekštytė, S.; Baldacchini, T.; Juodkazis, S.; Malinauskas, M. Mesoscale Laser 3D Printing. Preprints 2018, 2018100384. [Google Scholar] [CrossRef]
  58. Jonušauskas, L.; Gailevičius, D.; Mikoliūnaitė, L.; Sakalauskas, D.; Šakirzanovas, S.; Juodkazis, S.; Malinauskas, M. Optically Clear and Resilient Free-Form µ-Optics 3D-Printed via Ultrafast Laser Lithography. Materials 2017, 10, 12. [Google Scholar] [CrossRef] [PubMed]
Scheme 1. The chemical structure of acrylated epoxidized soybean oil (AESO), vanillin dimethacrylate (VDM) and vanillin diacrylate (VDA).
Scheme 1. The chemical structure of acrylated epoxidized soybean oil (AESO), vanillin dimethacrylate (VDM) and vanillin diacrylate (VDA).
Polymers 11 00116 sch001
Figure 1. The explanatory scheme of a sample preparation and Direct Laser Writing (DLW) 3D lithography: (a) Kapton tape attached to the glass slide and working as an intermediate, resin’s droplet drop cast on such a substrate; (b) another glass slide used as a cover to squeeze the droplet and spread it uniformly through the substrate; (c) laser beam focused through the cover glass into the resin and initiating the 3D confined polymerization reaction.
Figure 1. The explanatory scheme of a sample preparation and Direct Laser Writing (DLW) 3D lithography: (a) Kapton tape attached to the glass slide and working as an intermediate, resin’s droplet drop cast on such a substrate; (b) another glass slide used as a cover to squeeze the droplet and spread it uniformly through the substrate; (c) laser beam focused through the cover glass into the resin and initiating the 3D confined polymerization reaction.
Polymers 11 00116 g001

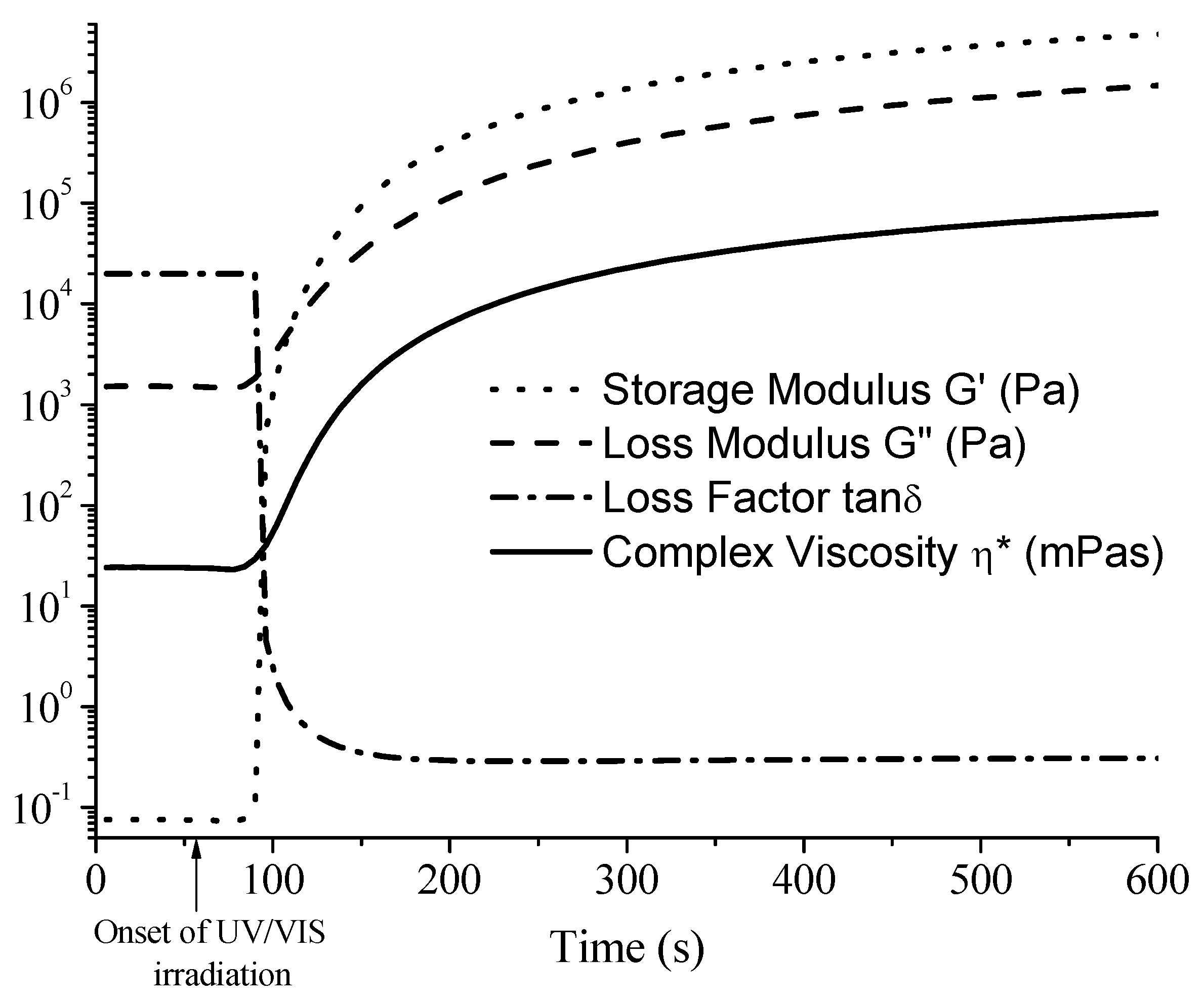

Figure 2. The dependencies of storage modulus G’, loss modulus G”, loss factor tanδ and complex viscosity η* of AESO on irradiation time.
Figure 2. The dependencies of storage modulus G’, loss modulus G”, loss factor tanδ and complex viscosity η* of AESO on irradiation time.
Polymers 11 00116 g002

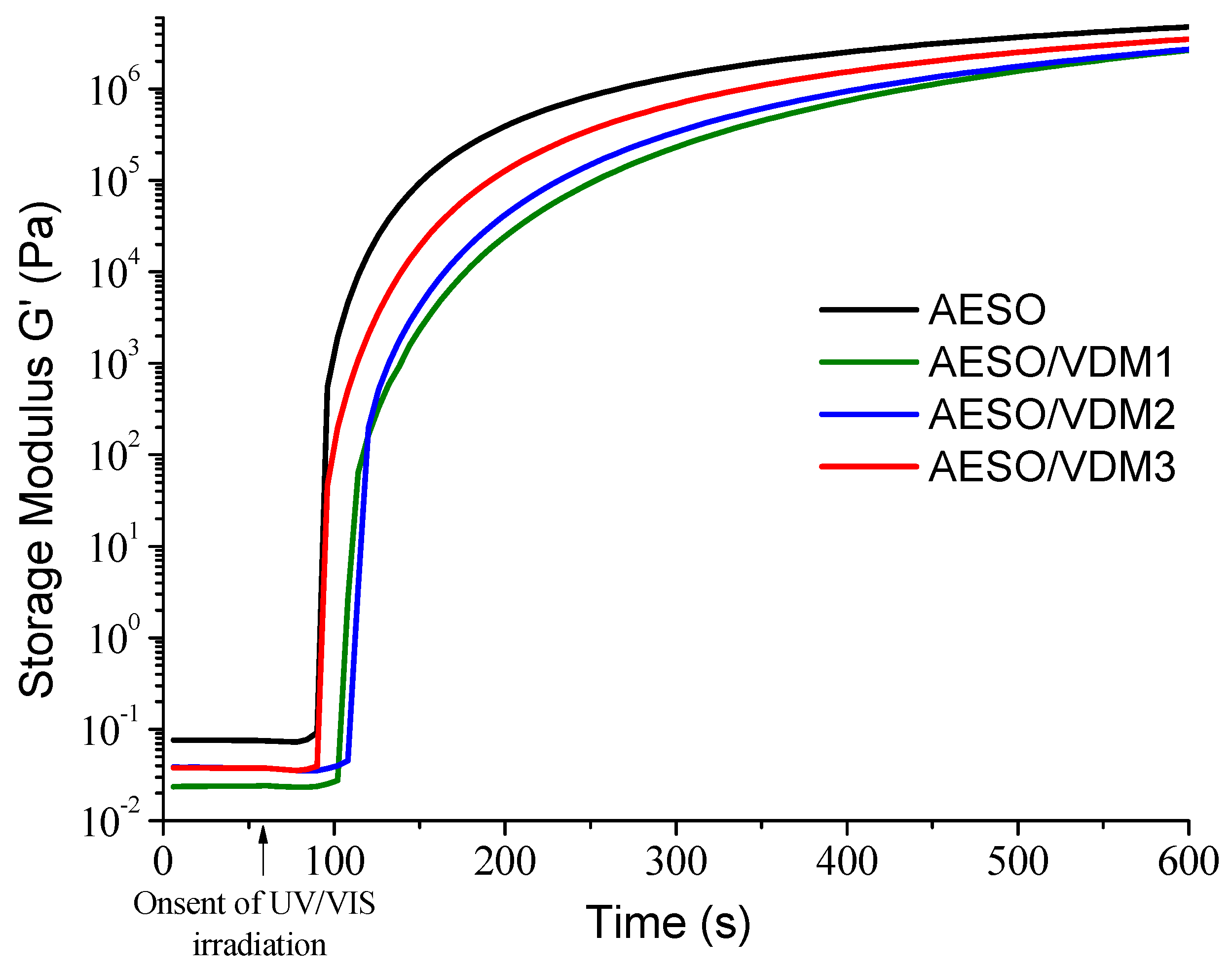

Figure 3. The irradiation time dependencies of the storage modulus G’ of AESO and the resin series AESO/VDM.
Figure 3. The irradiation time dependencies of the storage modulus G’ of AESO and the resin series AESO/VDM.
Polymers 11 00116 g003

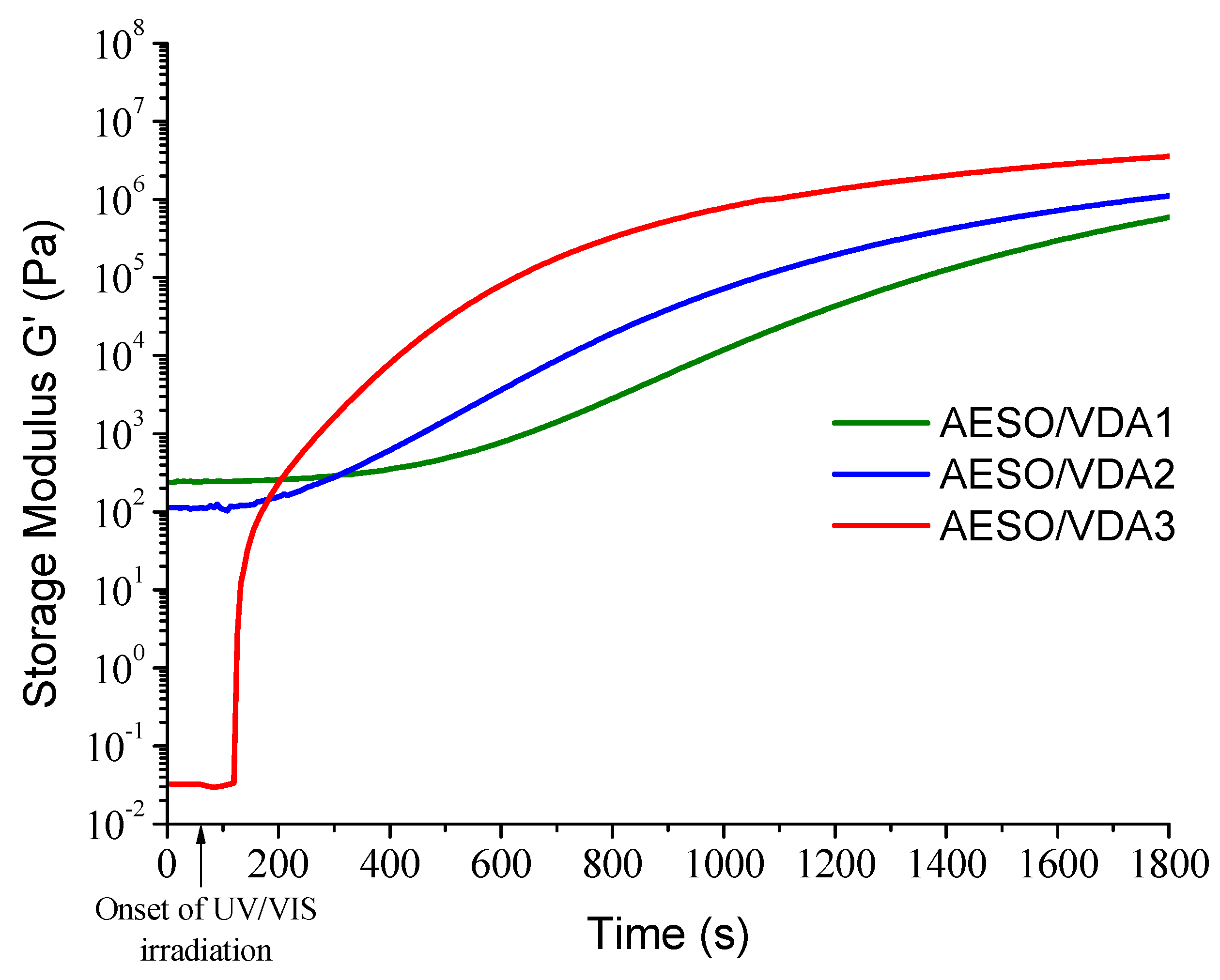

Figure 4. The irradiation time dependencies of the storage modulus G’ of the resin series AESO/VDA.
Figure 4. The irradiation time dependencies of the storage modulus G’ of the resin series AESO/VDA.
Polymers 11 00116 g004

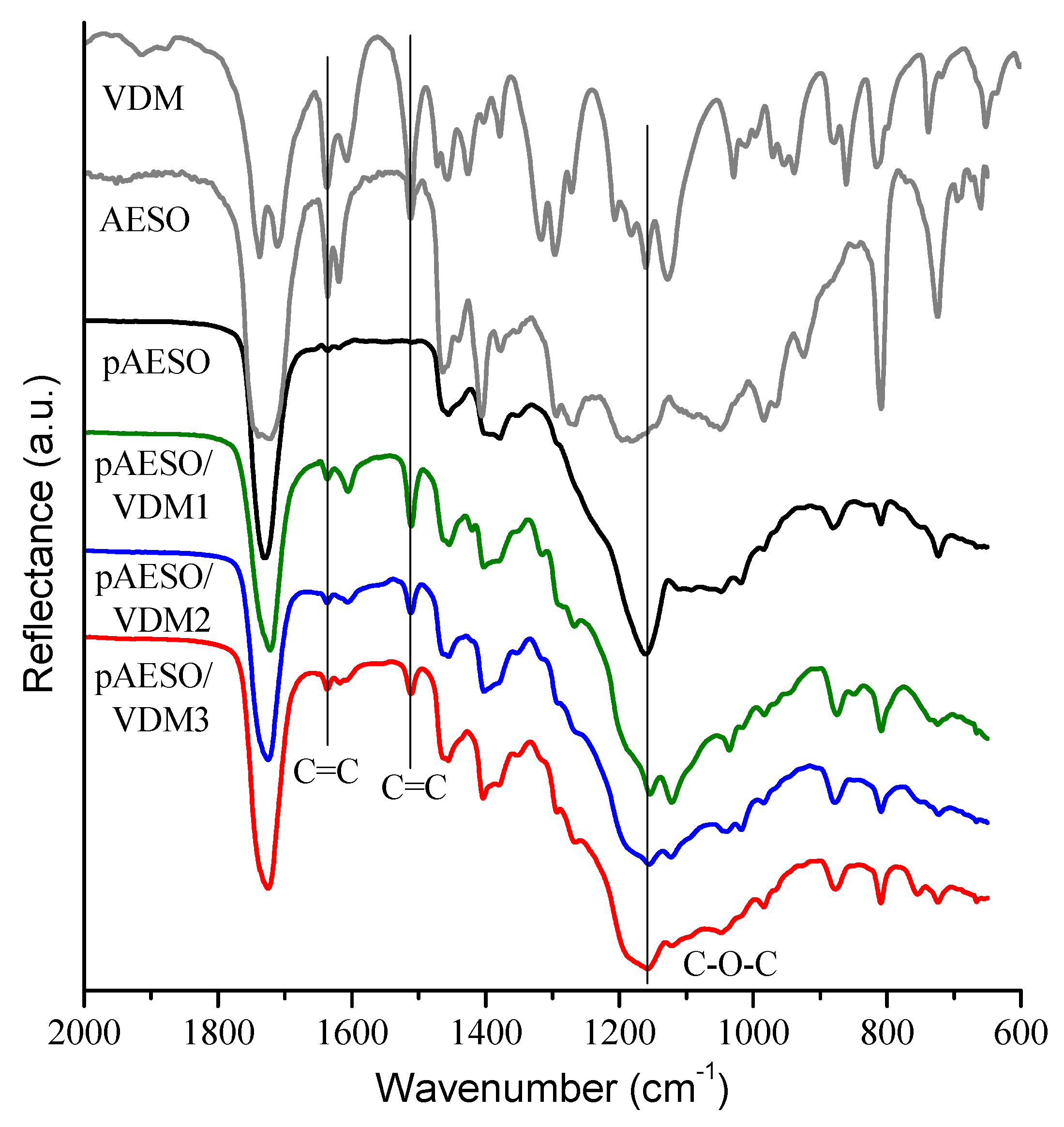

Figure 5. The FT-IR spectra of AESO, VDM, homopolymer pAESO and copolymer series pAESO/VDM.
Figure 5. The FT-IR spectra of AESO, VDM, homopolymer pAESO and copolymer series pAESO/VDM.
Polymers 11 00116 g005
Figure 6. The thermogravimetric curves of the polymers pAESO and the polymer series pAESO/VDM.
Figure 6. The thermogravimetric curves of the polymers pAESO and the polymer series pAESO/VDM.
Polymers 11 00116 g006
Figure 7. The SEM images of RB and 3D microporous woodpile structures: (a) a side view of RB at the angle of 45 degrees and 1800 magnification. The applied power P to produce bridges was 0.6 mW (2 TW/cm2), scan velocity v varied from 0.1 mm/s to 0.5 mm/s every 0.1 mm/s; (b) a top view of the other RB at 4000 magnification. P = 0.6 mW (2 TW/cm2), v = 2–6 mm/s every 1 mm/s; (c) 75 × 75 µm2 woodpile structures with a 30 µm period, v = 5 mm/s, the scale at the top of the image demonstrates the applied I; (d) a 1065 × 1065 µm2 woodpile with a 75 µm period, v = 5 mm/s, P = 0.4 mW (1.3 TW/cm2). (a–d) The structures were fabricated out of the resin AESO/VDM1; (e) 75 × 75 µm2 woodpile structures with a 30 µm period, v = 5 mm/s. Scale on the left of image shows the distance dxy between neighboring scans; (f) a 1095 × 1095 µm2 woodpile with 120 µm period, v = 5 mm/s, P = 0.6 mW (2 TW/cm2). (e,f) structures were fabricated out of AESO.
Figure 7. The SEM images of RB and 3D microporous woodpile structures: (a) a side view of RB at the angle of 45 degrees and 1800 magnification. The applied power P to produce bridges was 0.6 mW (2 TW/cm2), scan velocity v varied from 0.1 mm/s to 0.5 mm/s every 0.1 mm/s; (b) a top view of the other RB at 4000 magnification. P = 0.6 mW (2 TW/cm2), v = 2–6 mm/s every 1 mm/s; (c) 75 × 75 µm2 woodpile structures with a 30 µm period, v = 5 mm/s, the scale at the top of the image demonstrates the applied I; (d) a 1065 × 1065 µm2 woodpile with a 75 µm period, v = 5 mm/s, P = 0.4 mW (1.3 TW/cm2). (a–d) The structures were fabricated out of the resin AESO/VDM1; (e) 75 × 75 µm2 woodpile structures with a 30 µm period, v = 5 mm/s. Scale on the left of image shows the distance dxy between neighboring scans; (f) a 1095 × 1095 µm2 woodpile with 120 µm period, v = 5 mm/s, P = 0.6 mW (2 TW/cm2). (e,f) structures were fabricated out of AESO.
Polymers 11 00116 g007
Table 1. The composition of resins.
Table 1. The composition of resins.
ResinRatio of Functional Groups 1Ratio of Monomers, molAmount of Monomers, g
AESO-11.5
AESO/VDM11.5:11:11.5/0.375
AESO/VDM23:11:0.51.5/0.187
AESO/VDM36:11:0.251.5/0.094
AESO/VDA11.5:11:11.5/0.339
AESO/VDA23:11:0.51.5/0.170
AESO/VDA36:11:0.251.5/0.085
1 Ratio of AESO acrylic groups and VDM or VDA acrylic groups.
Table 2. The storage modulus (G’), loss modulus (G”), complex viscosity (η*), and gel time (tgel) of all resins.
Table 2. The storage modulus (G’), loss modulus (G”), complex viscosity (η*), and gel time (tgel) of all resins.
ResinG’ 1, PaG” 1, Paη* 1, mPa·stgel, s 2
AESO4.76 × 1061.47 × 1067.93 × 10449
AESO/VDM12.65 × 1061.01 × 1064.51 × 10498
AESO/VDM22.70 × 1069.31 × 1054.55 × 10491
AESO/VDM33.51 × 1061.18 × 1065.89 × 10466
AESO/VDA15.89 × 1052.27 × 1051.01 × 104782
AESO/VDA21.11 × 1063.74 × 1051.87 × 104531
AESO/VDA33.56 × 1061.17 × 1065.96 × 104290
1 at an irradiation time of 600 s for AESO and AESO/VDM, and 1800 s for AESO/VDA. 2 calculated from the onset of UV/VIS irradiation.
Table 3. The yield of the insoluble fraction and the thermal and mechanical characteristics of the cross-linked polymers.
Table 3. The yield of the insoluble fraction and the thermal and mechanical characteristics of the cross-linked polymers.
PolymerYield of Insoluble Fraction 1 (%)Tg 2 (°C)Tdec-10% 3 (°C)Ec 4 (Pa)
pAESO88−4.53560.62 ± 0.1
pAESO/VDM131−2.62950.19 ± 0.03
pAESO/VDM248−2.63180.46 ± 0.13
pAESO/VDM363−1.63310.66 ± 0.13
1 After Soxhlet extraction with chloroform for 24 h.; 2 Glass transition temperature estimated by DSC; 3 Temperature at the weight loss of 10 % obtained from TGA curves; 4 Compressive modulus from the top pressure test.
