Next Article in Journal
Reversible Actuation Ability upon Light Stimulation of the Smart Systems with Controllably Grafted Graphene Oxide with Poly (Glycidyl Methacrylate) and PDMS Elastomer: Effect of Compatibility and Graphene Oxide Reduction on the Photo-Actuation Performance
Next Article in Special Issue
Effect of Extrusion Temperature on the Physico-Mechanical Properties of Unidirectional Wood Fiber-Reinforced Polylactic Acid Composite (WFRPC) Components Using Fused Deposition Modeling
Previous Article in Journal
Stimuli-Responsive Polypeptides for Biomedical Applications
Previous Article in Special Issue
Fabrication of Composite Beads Based on Calcium Alginate and Tetraethylenepentamine-Functionalized MIL-101 for Adsorption of Pb(II) from Aqueous Solutions
Article Menu
Issue 8 (August) cover image

Export Article

Open AccessArticle
Polymers 2018, 10(8), 831;

Ultraviolet Weathering Performance of High-Density Polyethylene/Wood-Flour Composites with a Basalt-Fiber-Included Shell

Key Laboratory of Biobased Material Science & Technology (Education Ministry), NortheastForestry University, Harbin 150040, China
Vietnam Academy of Forest Sciences, VAFS, Đuc Thang, Bac Tu Liem District, Ha Noi 100000, Vietnam
Author to whom correspondence should be addressed.
Received: 21 June 2018 / Revised: 20 July 2018 / Accepted: 24 July 2018 / Published: 27 July 2018
(This article belongs to the Special Issue Renewable Polymer Composites)
Full-Text   |   PDF [2917 KB, uploaded 27 July 2018]   |

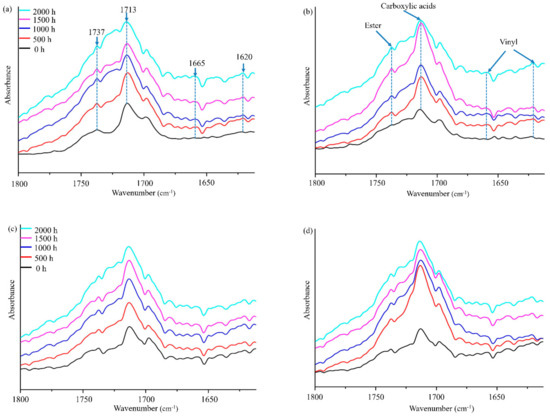

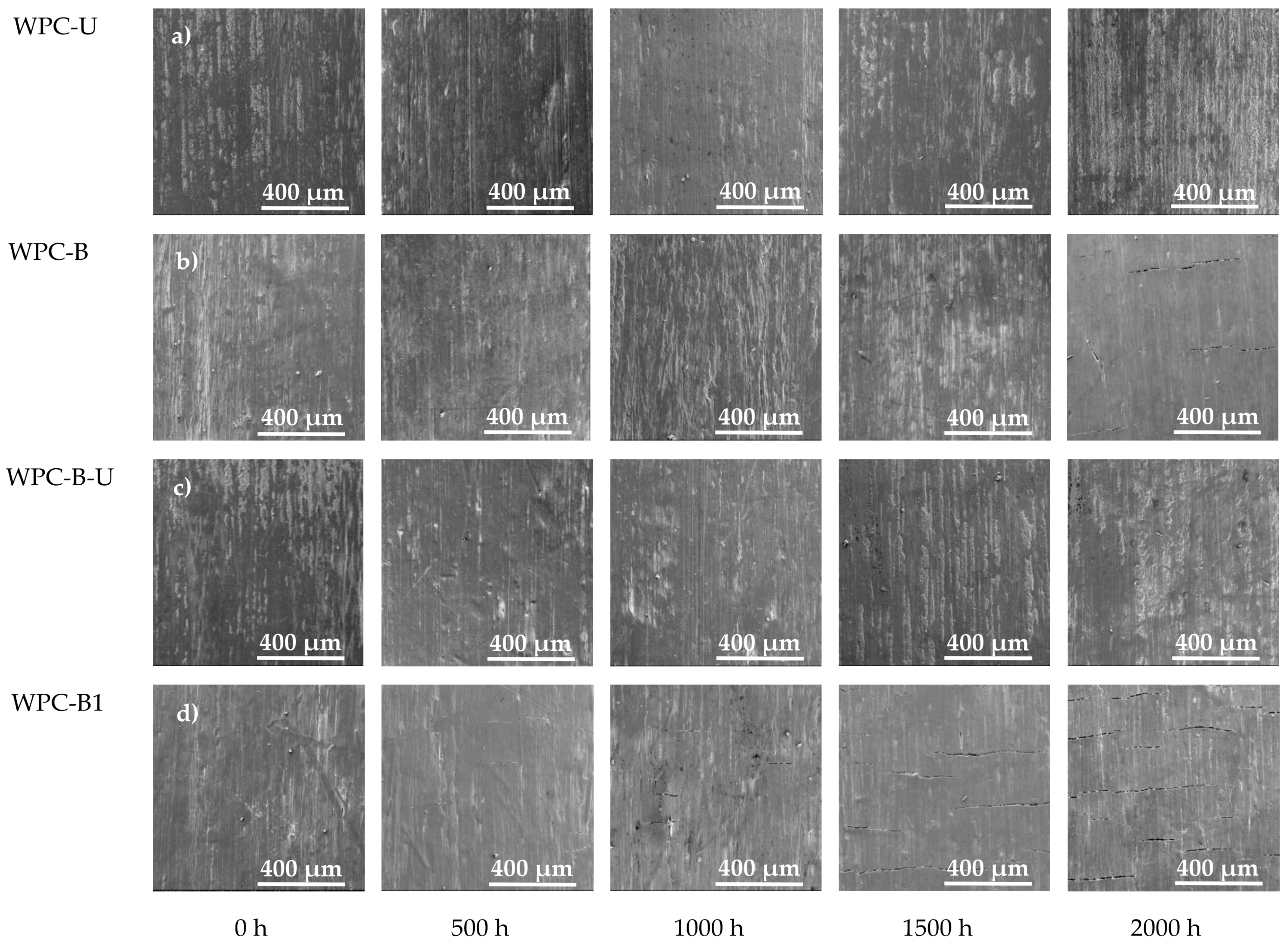

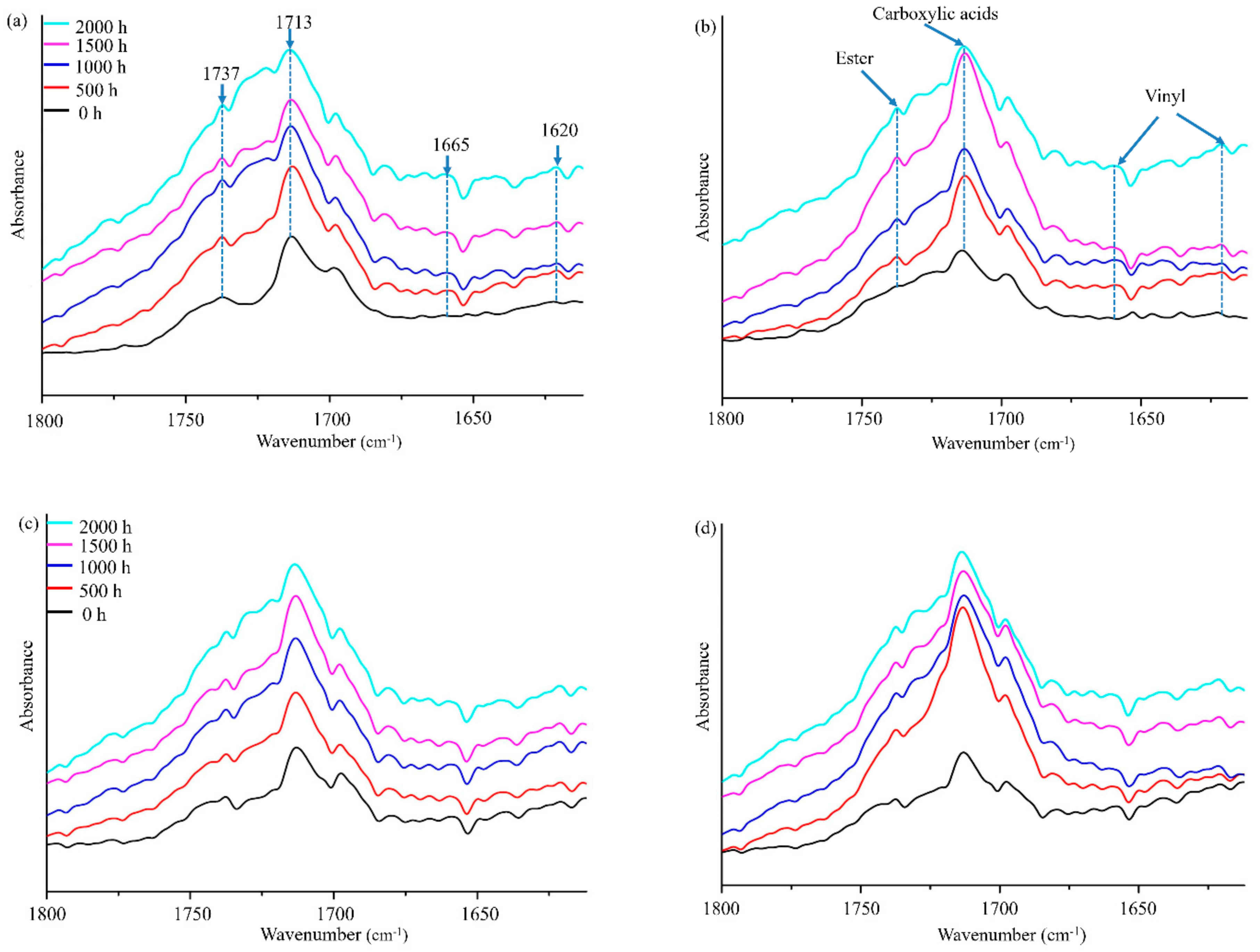

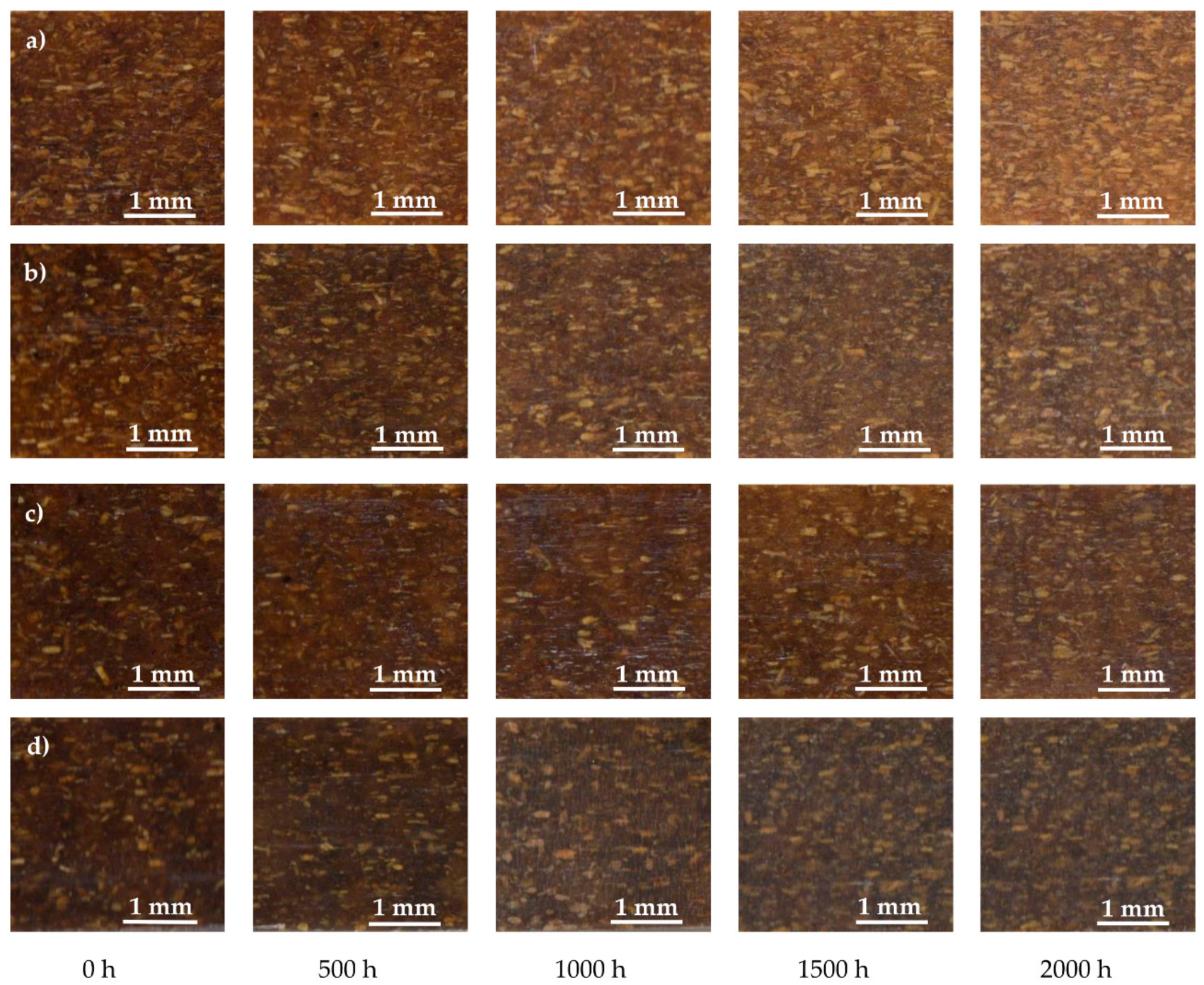

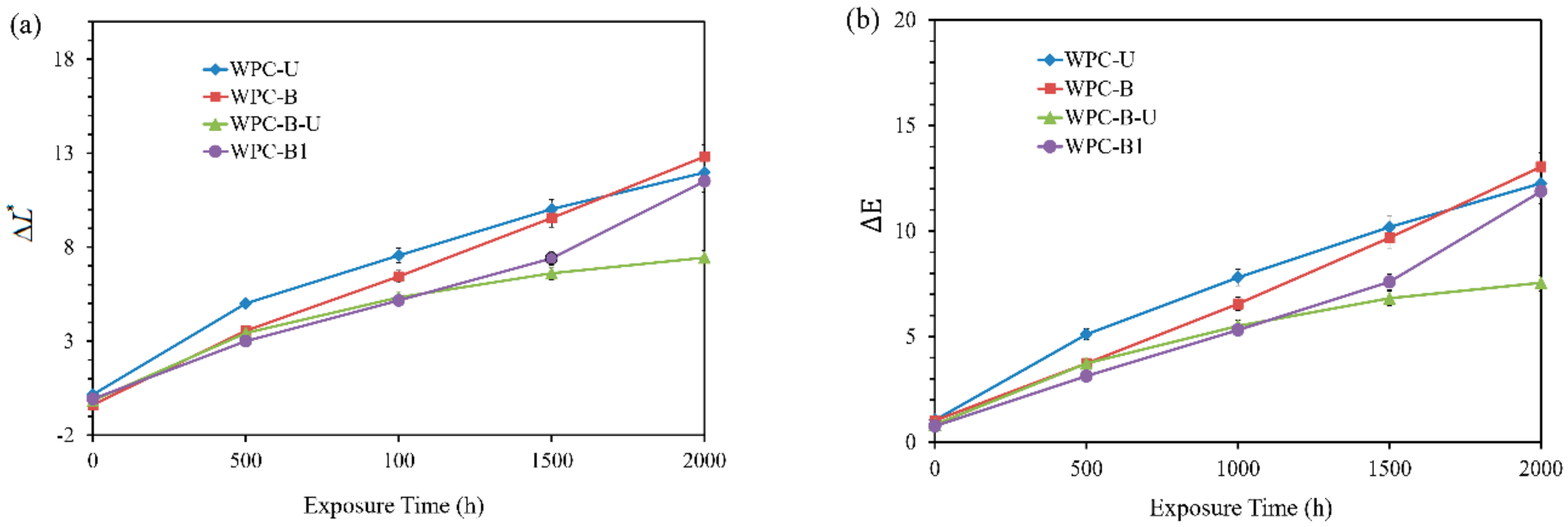

In this study, high-density polyethylene (HDPE)/wood-flour composites with a basalt fiber (BF)-reinforced shell were prepared by coextrusion. After exposing these composites to ultraviolet weathering for 2000 h, their performances were examined from their measurements of color, surface morphology, and chemical properties. As a control, UV326 was also added to the shell formula. The weathered surface was characterized by scanning electron microscopy, Fourier transform infrared (FTIR) spectroscopy, and X-ray photoelectron spectroscopy. The results revealed that the shells filled with 8% and 12% BF exhibited low lightness and color change in comparison to those filled with UV326 for a limited duration. The composite shells with the combined BF and UV326 exhibited the least discoloration and surface cracks. FTIR spectra revealed that the oxidation of the composites increases with the duration of exposure to the assessment of the carbonyl group concentration on the surface. The combination of BF and UV326 revealed a synergistic effect on the alleviation of the photooxidation of wood-plastic composite shell layers, verifying the UV-shielding effect. View Full-Text
Keywords: wood-plastic composites; ultraviolet radiation; weathering; coextrusion; basalt fiber wood-plastic composites; ultraviolet radiation; weathering; coextrusion; basalt fiber

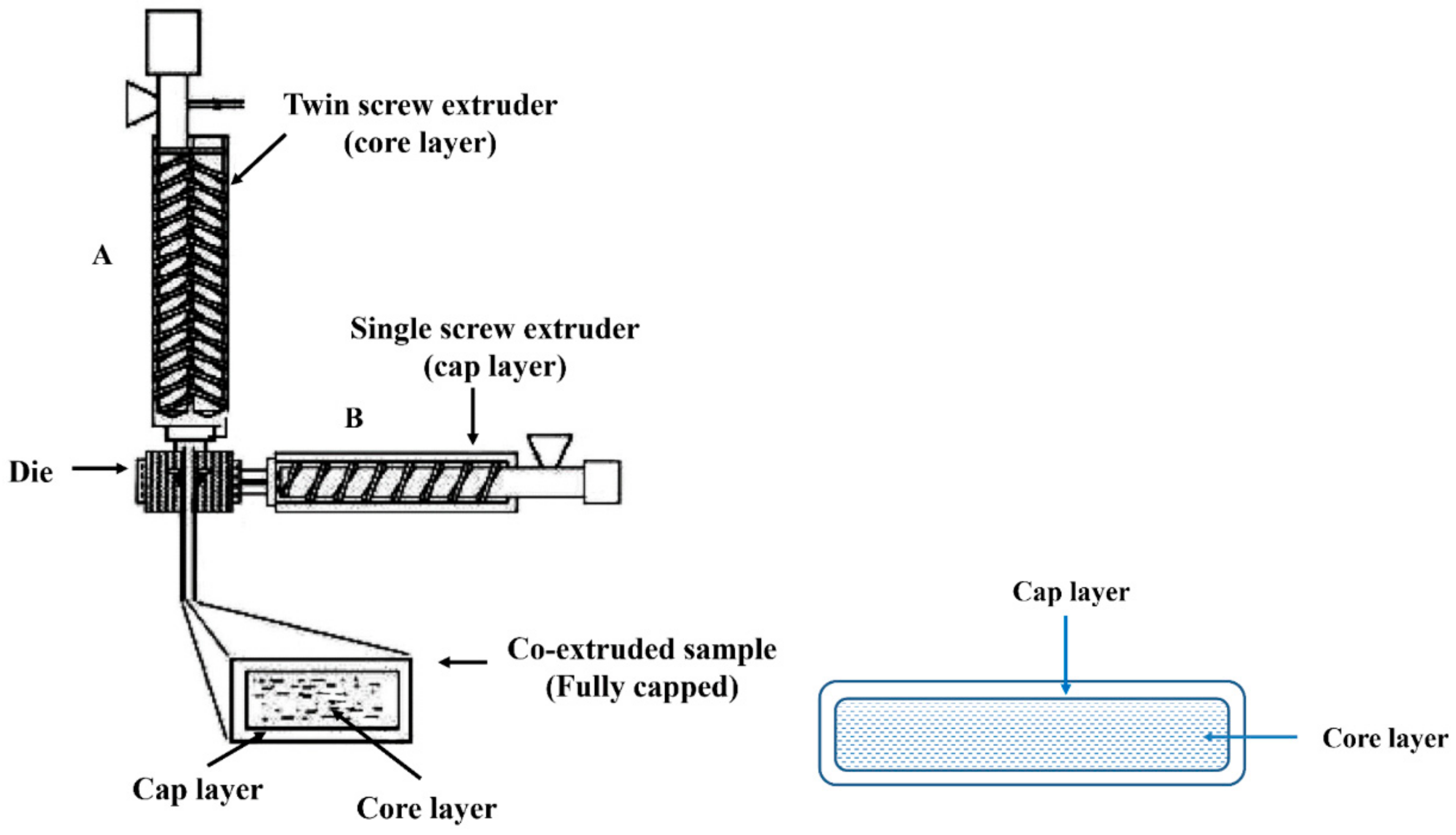

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Nguyen, V.D.; Hao, J.; Wang, W. Ultraviolet Weathering Performance of High-Density Polyethylene/Wood-Flour Composites with a Basalt-Fiber-Included Shell. Polymers 2018, 10, 831.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Polymers EISSN 2073-4360 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
