Open AccessArticle
Polymers 2018, 10(6), 646; https://doi.org/10.3390/polym10060646

Designing Green Plasticizers: Linear Alkyl Diol Dibenzoate Plasticizers and a Thermally Reversible Plasticizer

1
Department of Chemical Engineering, McGill University, 3610 University Street, Montréal, QC H3A 0C5, Canada
2
Department of Chemical and Environmental Engineering, Yale University, 10 Hillhouse Avenue, New Haven, CT 06511, USA
3
Department of Civil Engineering & Applied Mechanics, McGill University, 817 Sherbrooke Street West, Montréal, QC H3A 0C3, Canada
*
Authors to whom correspondence should be addressed.
Received: 5 May 2018 / Revised: 2 June 2018 / Accepted: 7 June 2018 / Published: 9 June 2018
(This article belongs to the Special Issue Green Plasticizers for Polymers)
Full-Text   |   PDF [4489 KB, uploaded 13 June 2018]   |

Abstract

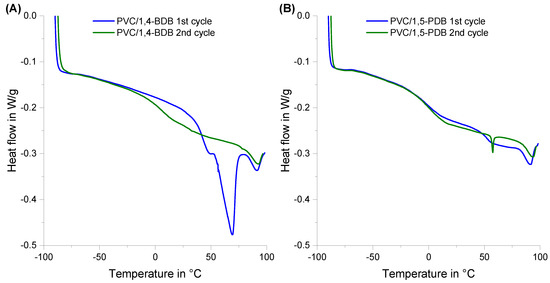

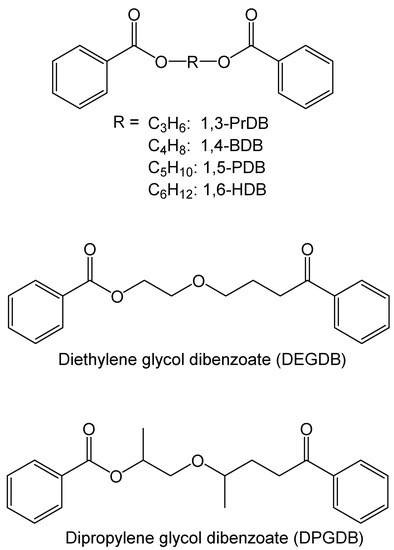

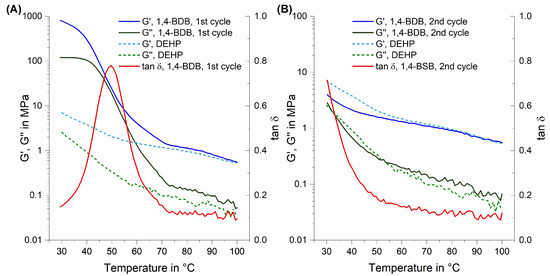

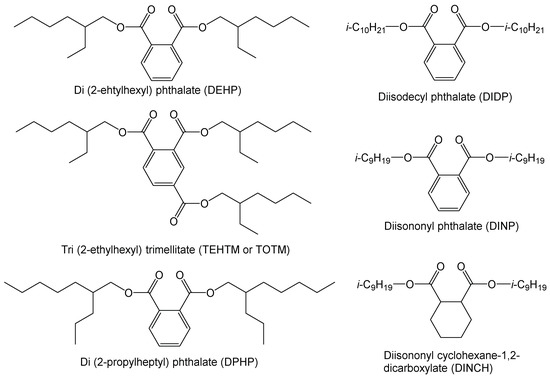

Several linear alkyl diol dibenzoate compounds, ranging from C3 to C6 in central diol length, were evaluated for their plasticizing effectiveness in blends with poly(vinyl chloride) (PVC). The results were compared to blends of PVC/di(2-ethylhexyl) phthalate (DEHP), the most commonly used commercial plasticizer. DEHP has come under scrutiny, due to its suspected endocrine-disrupting behaviour, and the proposed diol dibenzoates have previously been shown to have the potential to be green, safe candidates for DEHP replacement. The thermal and mechanical properties of PVC/dibenzoate blends were determined, and include glass transition temperature (Tg), the elongation at break, maximum stress, apparent moduli, torsional modulus, and surface hardness. The C3, C5, and C6 dibenzoates performed as well as or better than DEHP, with the exception of torsional modulus, further supporting their use as green plasticizers. For blends with 1,4-butanediol dibenzoate, differential scanning calorimetry and torsional temperature sweeps suggested that the compound partly crystallizes within PVC blends over the course of two days, thereby losing the ability to effectively plasticize PVC. However, upon heating to temperatures above 60 °C, effective plasticization was again observed. 1,4-Butanediol dibenzoate is thereby a reversible heat-activated plasticizer or processing aid with excellent plasticizer properties at mildly elevated temperatures. View Full-Text
Keywords: green plasticizer; reversible heat-activated plasticizer; low toxicity profile; PVC; DEHP replacement; phthalates; glass transition temperature; tensile properties; torsional modulus; surface hardness green plasticizer; reversible heat-activated plasticizer; low toxicity profile; PVC; DEHP replacement; phthalates; glass transition temperature; tensile properties; torsional modulus; surface hardness
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material
