Article

Efficient Adsorption of Pb(II) from Aqueous Solutions by Metal Organic Framework (Zn-BDC) Coated Magnetic Montmorillonite

by
Jian Shen
1,
Nan Wang
2,*,
Yang Guang Wang
2,
Di Yu
2 and
Xiao–kun Ouyang
2,*
1
School of Materials and Chemical Engineering, Ningbo University of Technology, Ningbo 315211, China
2
School of Food and Pharmacy, Zhejiang Ocean University, Zhoushan 316022, China
*
Authors to whom correspondence should be addressed.
Polymers 2018, 10(12), 1383; https://doi.org/10.3390/polym10121383
Submission received: 29 November 2018 / Revised: 11 December 2018 / Accepted: 12 December 2018 / Published: 13 December 2018
(This article belongs to the Special Issue Metal-Organic Frameworks)
Browse Figures
Versions Notes

Abstract

:
Composite adsorption materials combine the advantages of various adsorptive materials and compensate for the defects of single adsorbents. Magnetic montmorillonite (MMMT) shows good adsorption properties for Pb(II). In order to further improve the adsorption properties of MMMT, in this work, Zn-BDC, a kind of metal–organic framework (MOF), was modified onto the surface of MMMT by in situ polymerization. The composite material MMMT@Zn-BDC was characterized by Zetasizer, SEM, TEM, FTIR, XRD, VSM, and XPS. The influence of adsorption conditions on the adsorption capacity of MMMT@Zn-BDC for Pb(II) was examined, including the adsorbent dosage, pH of Pb(II) solution, initial concentration of Pb(II), and the temperature and adsorption time. Also, the adsorption mechanism was studied. The results of this study show that MMMT@Zn-BDC adsorbs Pb(II) via chemisorption. In addition, MMMT@Zn-BDC exhibits good potential for adsorbing Pb(II), including its high adsorption capacity (724.64 mg/g) and good recyclability.

Graphical Abstract

1. Introduction

Heavy metal pollution in water is becoming a more serious problem with increasing industrialization. Heavy metal pollution is a serious threat to the human body, ecological environment, and economic development [1,2]. Heavy metals are highly toxic, are easily enriched in organisms, and cannot be degraded naturally [3]. Trace heavy metals cause serious harm to microorganisms, aquatic plants, and animals. They can also enter the human body through the food chain or drinking water and cause serious injury and disease [4,5]. Lead is one such heavy metal. Lead and its compounds are frequently used as raw materials for modern industrial transportation, they are also used in metallurgy, printing, military and electronics. Incidents of excessive Pb(II) in liquid food and water have been reported many times [6,7]. Lead poisoning is a kind of accumulative poisoning. With the increasing accumulation of lead in the human body, people have a higher risk of kidney damage, hematopoietic dysfunction, and mental impairment [8].
Heavy metal wastewater is usually treated by ion exchange, biological treatment, precipitation, membrane permeation and adsorption [9,10]. The adsorption method [11,12] is widely used because of its performance efficiency, simple operation, selectivity, lack of pollution and low cost. Magnetic adsorbent materials represent a new type of adsorbent and have been shown to effectively adsorb lead ions [13,14]. More importantly, applying a magnetic field can easily separate the adsorbent from the water, which is beneficial for reusing the materials and concentrating heavy metals during treatment. Magnetic particles, especially Fe3O4, are easy to prepare and inexpensive [15,16,17]. However, Fe3O4 is easy to collect using the magnetic dipole effect [18]. Montmorillonite (MMT) is a lamellar crystalline mineral, consisting of eight layers sandwiched between two layers of tetrahedra. The cations in the middle of the interlayer include K+, Na+, Ca2+, Mg2+ and so on, which balance the negative charges of the main layers [19,20]. These cations can be exchanged by other cations with a high valence state and concentration [21]. In addition, the surface of MMT is electronegative; thus, it easily electrostatically adsorbs heavy metal ions such as lead ions [22]. Therefore, MMT is an ideal adsorbent for heavy metals [16,23,24]. However, as a dispersible adsorbent, MMT is not easy to recover; in contrast, magnetic MMT (MMMT) is both easily separated and exhibits good adsorption properties.
During this study, we found that MMMT has unsatisfactory adsorption capacity when the is Pb(II) concentration is high. Therefore, we considered modifying MMMT so that it can cope effectively with both high and low concentrations of Pb(II). Metal–organic framework (MOF) materials were first proposed by the Yaghi group [25]. MOFs are zeolite materials with a network structure, and they can be self-assembled from organic compounds and metal ions [26]. The pore size ratio and specific surface area of MOFs is high [27]. The physical and chemical properties of MOF materials are stable, and they can also be easily recycled. These advantages make MOFs an excellent adsorbent [28,29,30]. Especially in the field of heavy metal adsorption, MOFs have shown excellent adsorption properties [31,32]. Zn-BDC is a type of MOF that can be prepared from Zn2+ and terephthalic acid and catalyzed by triethylamine at room temperature. In this study, Zn-BDC was coated onto the surface of MMMT via in situ polymerization, thus obtaining the composite MMMT@Zn-BDC.
In this study, we propose a simple in situ polymerization method to combine MMMT with Zn-BDC. This composite material not only exhibits better recyclability but can also cope with a higher concentration of Pb(II). Additionally, it has good potential for the removal of Pb(II) from water and liquid food.

2. Materials and Methods

2.1. Materials

Pb(NO3)2, Zn(CH3CO2)2·6H2O, 1,4-dicarboxybenzene (BDC), FeCl3·6H2O, FeCl2·4H2O, MMT (>98%) were purchased from Aladdin Chemical Reagent Co., Ltd. (Shanghai, China). Methanol, triethylamine, N,N-dimethylformamide (DMF), and ammonia were all analytical reagent grade.

2.2. Preparation of MMMT@Zn-BDC

2.2.1. Preparation of Zn-BDC

The preparation of Zn-BDC was done according to the method in [33]. The procedure was as follows: Zn(CH3CO)2 (1.699 g) and BDC (0.506 g) were separately dissolved in 200 mL and 100mL of DMF. These two solutions were combined and stirred for 30 min. Then, 0.85 mL of TEA was slowly dropped into the mixed solution and stirred for 2 h at room temperature. The white precipitates produced were collected by centrifugation. The product was washed alternately with DMF and methanol. Then, the product was immersed in methanol, which was replaced every 12 h to remove the DMF in Zn-BDC. After repeating the centrifugation, washing, and immersion steps two times, the product was dried for 6 h at 60 °C under vacuum condition. The final mass of Zn-BDC was 1 g.

2.2.2. Preparation of MMMT

The co-precipitation method was applied to synthesize MMMT [34]. Various amounts of MMT (0.5, 1, 1.5, or 2 g) were separately dispersed in 70 mL of deionized water; then, the dispersions were transferred into round-bottomed flasks. At the same time, nitrogen was continuously flowed into the dispersions to remove oxygen from the dispersions. After 30 min, FeCl3·6H2O (0.01 mol) and FeCl2·4H2O (0.005 mol) were dissolved in these dispersions, the reaction temperature was 70 °C, and the pH was adjusted to 9–10 using ammonia. After stirring for 30 min, the products were separated by external magnetic field. Next, the separated MMMT products were washed with alternating deionized water and ethanol, and finally, the product was dried in a freeze-drying box. Using this same method but without adding MMT, the resulting weight of Fe3O4 would be 1 g.

2.2.3. Preparation of MMMT@Zn-BDC

First, MMMT (1 g) was added to a round-bottomed flask containing 33 mL of DMF. Then, Zn(CH3CO)2 (1.699 g) was dissolved in this dispersion, and BDC (0.506 g) was separately dissolved in 33 mL of DMF. After stirring for 1 h, the dispersion and BDC solution were mixed. TEA (0.85 mL) was slowly added to the resulting suspension; then, after continuously stirring for 2 h, the reaction was stopped. This synthesis process is shown schematically in Figure 1. The products were separated and washed using the same process as used in the preparation of Zn-BDC, and finally, they were dried in a freeze-drying box.

2.3. Characterization

The surface morphology was recorded by scanning electron microscopy (SEM, S4800, Hitachi, Tokyo, Japan). A transmission electron microscope (TEM, JEM-2100, Lorentz, Tokyo, Japan) and energy dispersive spectrometer (EDS, GENESIS, EDAX, Mahwah, NJ, USA) were used to analyze the internal structures and composition of the materials. Nitrogen adsorption isotherms were obtained using Micromeritics ASAP 2020M. Functional groups of the adsorbent were determined using a Fourier transform infrared spectrometer (FTIR, Bruker, Karlsruhe, Germany). The crystallinity was determined by X-ray diffraction (XRD, Bruker, Karlsruhe, Germany). The magnetic properties were evaluated by vibrating sample magnetometry (VSM) analysis (SQUID-VSM, Quantum Design, Santiago, CA, USA). The elements of the adsorbent were analyzed by X-ray photoelectron spectroscopy (XPS, AXIS ULTRA DLD, Shimadzu, Tokyo, Japan).

2.4. Adsorption Experiment

The mother Pb(II) solution was prepared by Pb(NO3)2, and the resulting Pb(II) concentration was 1000 mg/L. Various Pb(II) solutions were diluted from this mother liquor. A Pb(II) solution (20 mL, 200 mg/L) was placed into several flasks, and various dosages of MMMT@Zn-BDC from 5 to 20 mg were separately added to these flasks. HNO3 and NaOH (0.1 mol/L) were applied to adjust the pH of the Pb(II) solution from 2 to 6. Then, the flasks were placed in an oscillator; the speed of revolution was 150 rpm. After the adsorption finished, the adsorbent was recovered using magnetic field. The concentration of residual Pb(II) solution was detected with an atomic absorbance spectrophotometer. The adsorption capacity of MMMT@Zn-BDC for Pb(II) at a certain time (qt) was calculated by Equation (1), Equation (2) was used to calculate the adsorption capacity of MMMT@Zn-BDC for Pb(II) to be in equilibrium (qe).
q t = ( C 0 − C t ) V m
q e = ( C 0 − C e ) V m
C0 (mg/L) is the initial concentration of Pb(II), Ct (mg/L) is the concentration of Pb(II) at a certain time during the process of adsorption, V (mL) is the volume of the Pb(II) solution, m (mg) is the dosage of adsorbent. Ce is the remaining Pb(II) concentration after the adsorption process reaching equilibrium. Finally, Equation (3) shows the calculated method of removal ratio (R) of MMMT@Zn-BDC for Pb(II):
R = C 0 − C e C 0 × 100 %

2.5. Reutilization Test

HCl (0.1 mol/L) was used to elute Pb(II) loaded in MMMT@Zn-BDC. The elution process was as follows: Pb(II)-loaded MMMT@Zn-BDC and the eluent were added into a conical flask, and the concentration was maintained at 1 g/L. Then, the flask was placed in the oscillator, the eluent was replaced every 3 h until Pb(II) could no longer be detected in the eluent. After elution, the adsorbent was freeze-dried and then reused four times to evaluate the relationship between reuse times and the adsorption capacity.

3. Results and Discussion

3.1. Optimize the Preparation Conditions of MMMT@Zn-BDC

We studied the effects of adding MMT and Zn-BDC on the adsorption capacity and the binding rate (BR) of MMT and Zn-BDC coated onto the adsorbent to the actual weight added in the reaction solution. The results are shown in Table 1.
B R = m M × 100 %
where m (g) is the mass of MMT and Zn-BDC loaded onto the adsorbent, and M (g) is the weight of MMT and Zn-BDC inserted in the reaction solution.
According to Table 1, when the mass ratio of MMT to Fe3O4 is 1:1, the BR and the adsorption capacity showed a good result. Based on the optimal ratio (1:1) of MMT to Fe3O4, we further optimized the amount of added Zn-BDC. Considering both BR and the adsorption capacity, we chose 1:1 as the reaction mass ratio of MMMT and Zn-BDC.

3.2. Characterization

3.2.1. SEM Observation

SEM images of Fe3O4, MMMT, Zn-BDC, and MMMT@Zn-BDC are shown in Figure 2. In Figure 2a, the morphology of magnetic nanoparticles is agglomerated spherical. After MMT was coated onto Fe3O4 by co-precipitation method, as shown in Figure 2b, irregular sheet MMT adheres to surface of Fe3O4. In Figure 2c, Zn-BDC shows an uneven crystal shape and size because it was prepared at room temperature [35]. In Figure 2d, after Zn-BDC was coated onto MMMT via in situ polymerization, short, rod-shaped crystals of Zn-BDC appear on the rough surface of the MMMT. The introduction of MMMT changed the size of the Zn-BDC crystal.

3.2.2. TEM Analysis

TEM was used to analyze the internal structures and composition of MMMT, Zn-BDC, and MMMT@Zn-BDC. As shown in Figure 3a, when the amplification size is 500 nm, Fe3O4 particles are nearly spherical, while the irregular crystals are MMT. Fe3O4 and MMT are distributed almost in the same plane. It was confirmed that MMMT had been prepared successfully. In Figure 3b, the Zn-BDC crystals are also irregular, and it shows a slender lamellar structure. After synthesizing Zn-BDC on the MMMT surface, a slender lamellar structure appeared as can be seen in Figure 3c. It was concluded that a slender lamellar structure had been prepared successfully.

3.2.3. N2 Adsorption and Desorption Analysis

Figure 4a shows the results of N2 adsorption and desorption. The adsorption isotherm belongs to the type II isotherm. With increasing adsorption pressure, the first inflection point of the isotherm rapidly appears, indicating that monolayer adsorption is complete. As the adsorption pressure continues to increase, multi-layer adsorption gradually occurs, and when the saturated vapor pressure is reached, the adsorption layer is infinite. The surface area of MMMT@Zn-BDC was calculated to be 74.35 m2/g by the multipoint BET (Brunauer–Emmett–Teller) method [36], and the pore volume and pore size were 0.27 cm3/g and 15.48 nm, respectively.

3.2.4. FTIR Analysis

Figure 4b is the FTIR spectra of MMMT. The peaks at 811 cm−1, 848 cm−1 and 1046 cm−1 belong to the asymmetric stretching of O–Si–O, deformation vibration of Al–OH–Mg, and stretching vibration of Si–O. These three characteristic peaks belong to MMT [37]. For MMMT prepared by the co-precipitation method, the stretching vibration of Fe–O caused a peak at 576 cm−1 [38], and the peak at 3439 cm−1 is the stretching vibration of O–H, which together show that MMMT was synthesized successfully. The band between 1376 cm−1 and 1589 cm−1 was attributed to the stretching vibration of the carbonyl group in BDC [39]. After Zn-BDC was coated onto the surface of MMMT, the characteristic absorption band remained, which shows that Zn-BDC was successfully synthesized on the surface of MMMT.

3.2.5. VSM Analysis

The magnetic properties of MMMT and MMMT@Zn-BDC were studied by VSM analysis, and the results are shown in Figure 3d. The saturation magnetization of MMMT was 31.88 emu/g. After MMMT was coated onto Fe3O4, this value decreased to 10.09 emu/g. The decrease in magnetic properties indicated that Zn-BDC successfully covered MMMT. Good magnetic properties enable MMMT@Zn-BDC to accumulate rapidly under the external magnetic field. As shown in the inset of Figure 4d, MMMT@Zn-BDC could be separated by applying an external magnet for 20 s.

3.2.6. XPS Analysis

Figure 5a is the full XPS spectrum of MMMT@Zn-BDC before and after adsorption. The peak of Fe 2p belongs to Fe3O4, the peaks of Si 2p, Al 2p, Mg(KL23L23) originate from MMT [40], and the Zn 2p peak is from Zn-BDC. Meanwhile, the Pb4f peak appeared only after loading MMMT@Zn-BDC with Pb(II), demonstrating that MMMT@Zn-BDC is a good adsorbent for Pb(II). In Figure 5b, the peaks at 725.12 eV and 711.08 eV are characteristic of Fe 2p1/2 and Fe 2p3/2. Notably, the satellite peak of Fe2O3 at 714 eV did not appear in Figure 4b; this is because the peak is covered by the peaks of Fe 2p1/2 and Fe 2p3/2, which also proves Fe3O4 was successfully prepared [41]. In the C 1s spectrum in Figure 5c, the peaks at 288.75 eV, 286.14 eV and 284.80 eV belong to C=O, C–O and C–C, respectively [42]. However, as shown in Figure 5d, after loading MMMT@Zn-BDC with Pb(II), the above three peaks are moved to 288.45 eV, 285.96 eV, and 284.75 eV, respectively. The hydroxyl and carboxyl groups can complex with Pb(II), and caused the move of the binding energy.

3.3. Optimization of the Adsorption Conditions

3.3.1. Effect of the pH of Pb(II) Solution

A NaOH and HNO3 (0.1 mol/L) solution was used to adjust the pH of the Pb(II) solution from 2 to 6. When the pH is greater than 7, Pb(II) precipitates in the form of Pb(OH)2. Therefore, the pH was adjusted to 2−6 in this study. The effect of pH value on the adsorption capacity is shown in Figure 6a. MMMT@Zn-BDC (20 mg) was added to 20 mL Pb(II) with a concentration of 200 mg/L. The solution was agitated in a rocking bed. The adsorption capacity of MMMT@Zn-BDC to Pb(II) was then measured at each pH value. When the pH was between 2 and 4, the adsorption capacity increased rapidly with increasing pH. However, between 4 and 6, the adsorption capacity increased slowly. The pH of the Pb(II) solution can affect the surface charge of the adsorbent. At a lower pH, the surface negative charge of MMMT@Zn-BDC is relatively less; thus, its capacity to electrostatically adsorb Pb(II) is poor. With the increasing pH, the amount of surface negative charge of MMMT@Zn-BDC increases, which makes it favorable to positively charged Pb(II). This also proves that electrostatic adsorption is one way that the adsorbent adsorbs Pb(II). Because the initial pH of the 200 mg/L Pb(II) solution was 5.45, when the pH was not adjusted the adsorption capacity was 195.33 mg/g, which is close to that of the adsorption capacity with a pH of 6. So, there is no need to further adjust the pH.

3.3.2. Effect of the Adsorbent Dose

Various amounts of MMMT@Zn-BDC (from 10 mg to 40 mg) were separately dispersed in 20 mL of Pb(II) solution with a concentration of 200 mg/L. Figure 6b shows the effect of the dosage of MMMT@Zn-BDC on the adsorption capacity. As the dosage of MMMT@Zn-BDC increased from 10 mg to 40 mg, qe decreased from 326.99 to 99.03 mg/g. At the same time, the removal ratio increased from 81.74% to 99.03%. When the dosage of the adsorbent was low, the amount of Pb(II) was excessive for the available adsorption sites. At this time, the probability that adsorption sites were occupied was high, so the adsorption capacity was high. When the dosage of the adsorbent increased, sufficient adsorption sites were available for Pb(II), so the removal ratio increased while qe decreased because of a large number of unoccupied adsorption sites exist in the adsorbent. When the adsorbent dosage was 1.0 mg/mL, the removal ratio reached 97.67%. As the adsorbent dosage increased, the change in the removal ratio was not obvious. Thus, considering the adsorption capacity, we chose 1 mg/ml as the dosage of the adsorbent for further experiments.

3.3.3. Effect of the Pb(II) Concentration

The initial concentration of Pb(II) can have serious implications for the adsorption capacity of MMMT@Zn-BDC. Therefore, we investigated the adsorption capacity of the solution with concentrations ranging from 10 to 1000 mg/L. Similarly, 20 mg of MMMT@Zn-BDC was separately dispersed in 20 mL different concentrations of Pb(II) solutions, the results are shown in Figure 6c. Even if the concentration reached 1000 mg/L, the adsorption was still not saturated but the removal rate decreased to 71.7% at this concentration. In practical applications, the removal ratio is an important factor for evaluating the adsorption properties of an adsorbent, so we did not continue to increase the Pb(II) concentration. With the increase in Pb(II) concentration from 10 to 1000 mg/L, the adsorption capacity increased from 10 mg/g to 717.01 mg/g. This is because at a higher concentration, excessive Pb(II) is available for the adsorption sites of MMMT@Zn-BDC, thus, it is easy to capture Pb(II) for the adsorbent sites. When the concentration of Pb(II) was below 200 mg/L, the lead ions were almost completely removed, and the removal ratio reached 97.67%. So, the Pb(II) concentration of 200 mg/L was chosen as the experimental concentration for further experiments.

3.3.4. Effect of Adsorption Time

The relationship between adsorption time and adsorption capacity was also investigated in this study. MMMT@Zn-BDC (20 mg) was dispersed in 20 mL of Pb(II) solution, and the concentration remained at 200 mg/L. The adsorption capacities at different times are shown in Figure 6d. During the primary stage of the adsorption process, the increase in the adsorption capacity is an almost logarithmic relationship. As adsorption proceeded between 0 and 20min, a large number of free adsorption sites could rapidly bind Pb(II). As the adsorption time was prolonged, the adsorption sites gradually become occupied by Pb(II), and the increase in the adsorption capacity started to slow down. After 90 min of the adsorption process, the adsorption capacity was 195.33 mg/g, and the removal rate was 97.67%. Beyond this adsorption time, the adsorption capacity remained unchanged. Thus, the time that the adsorption reached equilibrium was 90min, at the concentration of 200 mg/L.

3.3.5. Effect of the Adsorption Temperature

The adsorption capacity of MMMT@Zn-BDC for Pb(II) was measured from 293.2 K to 308.2 K. The dosage of the addition of MMMT@Zn-BDC in Pb(II) solution was 1 mg/mL. The effects of temperature on the adsorption capacity are shown in Figure 6e. With increasing temperature, the adsorption capacity increased from 194.34 mg/g to 198.21 mg/g. At the same time, the removal rate increased from 97.17% to 99.11%. The results show that the adsorption process of MMMT@Zn-BDC for Pb(II) is an endothermic process. Therefore, increasing the temperature is beneficial to the adsorption process.

3.3.6. Effect of the Recycling Process

Dilute HCl (0.1 mol/L) was used to desorb the Pb(II) loaded on the adsorbent and after detachment the adsorbent was repeatedly applied to remove Pb(II). The effects of reuse cycles on adsorption capacity and removal ratio are shown in Figure 6f. With the increasing number of reuses, the adsorption capacity decreased gradually. After being reused five times, the adsorption capacity was 160.90 mg/g, that is, the adsorption capacity declined. However, the adsorption rate remained at 80.45%, which shows that MMMT@Zn-BDC has good recyclability.

3.4. Adsorption Mechanism

The adsorption isotherm was determined by the Langmuir and Freundlich models. The adsorption data were taken from Figure 5c. In general, the Langmuir isotherm model usually assumes that the adsorption capacity of the adsorption site is uniform, and this isotherm model is often applied to describe monolayer adsorption processes. On the other hand, the Freundlich isotherm model is used to describe the effect of the adsorbate concentration on the adsorption capacity and whether adsorption is prone to occur. The two equations of the adsorption isotherms are as follows:
Langmuir   equation :   C e q e = 1 b q m + C e q m
Freundlich   equation :   lg q e = lg K F + 1 n lg C e
where the maximum adsorption capacity (qm, mg/g) can be obtained from the Langmuir model, b and n are the constants of Langmuir and Freundlich isotherm models, respectively, and KF is a constant representing the adsorption capacity. RL is a dimensionless constant for Langmuir isotherm model, and it is used to determine whether the adsorption behavior is preferential adsorption. The equation is as follows:
R L = 1 1 + b C 0
Figure 7a,b shows the curves fitted by the Langmuir and Freundlich isotherm models, Table 2 shows all of the related parameters while the correlation coefficients (R2) fitted by the Langmuir and Freundlich isotherm models are 0.9850 and 0.9239, respectively. According to its higher correlation coefficient, the adsorption process of MMMT@Zn-BDC for Pb(II) is better described by the Langmuir isotherm model, which indicates that Pb ions do not interact. The adsorption capacity of each site on the adsorbent is the same, and monolayer adsorption accords with the adsorption process. Moreover, qm reached 724.64 mg/g. In Table 3, the calculated RL values are all less than 1, therefore, it can be concluded that this adsorption process is favorable [43].
Diffusion is the main adsorption mode for adsorption processes conforming to a pseudo-first-order kinetics model. The adsorption process that accords with this model, only have one kind of binding site while the adsorption process that accords with the pseudo-second-order model is chemical adsorption, which involves the sharing or transfer of electron pairs between the adsorbent and the adsorbate.
Pseudo - first - order   equation :   ln ( q e − q t ) = ln q e − k 1 t
Pseudo - sec ond - order   equation :   t q t = 1 k 2 q e 2 + t q e
k1 (1/min) and k2 (g/mg∙min) are the constants in these two models. The linear equation fitted by the above two models is shown in Figure 7c,d, and the parameters were calculated and are shown in Table 4. The correlation coefficient (R2) of the pseudo-second-order kinetics model is 0.9999, and the qe,cal is 194.93 mg/g; this result is similar to the experimental result (195.33 mg/g). Meanwhile, the R2 of the pseudo-first-order kinetics model is 0.9566, and the qe,cal is 8.71.Therefore, we can conclude that the adsorption process of MMMT@Zn-BDC on Pb(II) fits the pseudo-second-order kinetics model, combined with the hypothetical premise of the pseudo-first-order kinetics, the adsorption process of MMMT@Zn-BDC for Pb(II) is chemical adsorption [44].
Moreover, the adsorption capacity changes in the range of 293.2 K to 308.2 K were also investigated. These data were used to study the adsorption thermodynamics, and the relevant parameters were calculated by Equation (10):
Δ G = − R T ln q e C e = − R T ( − Δ H R T + Δ S R )
where ΔG (kJ/mol), ΔH (kJ/mol) and ΔS (kJ/mol) represent Gibbs free energy, enthalpy and entropy, respectively. T (K) is the thermodynamic temperature, and R is the gas constant. Table 5 shows the calculated results.
The negative ΔG indicates that the adsorption process of MMMT@Zn-BDC for Pb(II) is endothermic and spontaneous under constant pressure. Meanwhile, ΔH is greater than 40 kJ/mol, indicating that the adsorption process is chemisorption. This conclusion is in agreement with the adsorption kinetics model. Therefore, a higher temperature is beneficial to the adsorption process.
In general, based on the results of the optimization process of the adsorption conditions, the adsorption capacity of MMMT@Zn-BDC for Pb(II) suffers most with changes in the pH. The hydroxyl and carboxyl groups of the adsorbent surface are not easily dissociated when the pH is lower than 2. Moreover, a high concentration of hydrogen ions is not conducive to ion exchange between MMMT and Pb(II). At a higher pH, hydroxyl and carboxyl groups are easier to dissociate, and these dissociated hydroxyl and carboxyl groups easily form complexes with Pb(II). The study of adsorption kinetics and adsorption thermodynamics confirmed that the adsorption process is chemisorption, as shown schematically at different pH values in Figure 8.
In this study, MMMT@Zn-BDC is a type of composite material. In order to further understand the advantages of MMMT@Zn-BDC for the adsorption of Pb(II), we compared MMMT@Zn-BDC with the qm and equilibrium time of the adsorption of several reported adsorbents (Table 6).

4. Conclusions

For the first time, we prepared a magnetic composite material by combining Fe3O4, MMT and Zn-BDC using a co-precipitation method and in situ polymerization. This magnetic compound was applied to adsorb Pb(II). Based on the results of adsorption isotherm and adsorption kinetics, the adsorption behavior is in accordance with the Langmuir isotherm model and pseudo-second-order kinetics model, and the process of MMMT@Zn-BDC adsorbing Pb(II) is endothermic. The time required to reach adsorption equilibrium is 90 min. In addition, MMMT@Zn-BDC also exhibited excellent recycling performance. The removal rate remained at 80.45% after recycling five times. Its easy separation and sustainability make MMMT@Zn-BDC a superior adsorbent for removing Pb(II).

Author Contributions

X.–k.O. and N.W. conceived and designed the experiments; J.S. and Y.G.W. performed the experiments; J.S. and N.W. analyzed the data; D.Y. and X.–k.O. contributed reagents/materials/analysis tools; N.W. wrote the paper.

Acknowledgments

This work was supported by the National Natural Science Foundation of China (Grant No.: 21476212), Key research and development plan of Zhejiang Province (2018C02038) and the Foundation of Bureau of Science and Technology of Zhoushan (2017C41005).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yang, J.; Meng, X.Z.; Duan, Y.P.; Liu, L.Z.; Chen, L.; Cheng, H. Spatial distributions and sources of heavy metals in sediment from public park in shanghai, the yangtze river delta. Appl. Geochem. 2014, 44, 54–60. [Google Scholar] [CrossRef]
  2. Awasthi, A.K.; Zeng, X.; Li, J. Environmental pollution of electronic waste recycling in india: A critical review. Environ. Pollut. 2016, 211, 259–270. [Google Scholar] [CrossRef] [PubMed]
  3. Lemtiri, A.; Liénard, A.; Alabi, T.; Brostaux, Y.; Cluzeau, D.; Francis, F.; Colinet, G. Earthworms eisenia fetida affect the uptake of heavy metals by plants vicia faba and zea mays in metal-contaminated soils. Appl. Soil Ecol. 2016, 104, 67–78. [Google Scholar] [CrossRef]
  4. He, Y.F.; Zhang, L.; Wang, R.M.; Li, H.R.; Wang, Y. Loess clay based copolymer for removing Pb (II) ions. J. Hazard. Mater. 2012, 227–228, 334–340. [Google Scholar] [CrossRef] [PubMed]
  5. Vijayaraghavan, K.; Joshi, U.M. Chicken eggshells remove Pb (II) ions from synthetic wastewater. Environ. Eng. Sci. 2013, 30, 67–73. [Google Scholar] [CrossRef]
  6. Kikuchi, Y.; Qian, Q.; Machida, M.; Tatsumoto, H. Effect of zno loading to activated carbon on Pb (II) adsorption from aqueous solution. Carbon 2006, 44, 195–202. [Google Scholar] [CrossRef]
  7. Collins, J.; Li, X.; Pletcher, D.; Tangirala, R.; Stratton-Campbell, D.; Walsh, F.C.; Zhang, C. A novel flow battery: A lead acid battery based on an electrolyte with soluble lead (II). Part ix: Electrode and electrolyte conditioning with hydrogen peroxide. J. Power Sources 2010, 195, 2975–2978. [Google Scholar] [CrossRef]
  8. Wang, N.; Ouyang, X.K.; Yang, L.Y. Fabrication of a magnetic cellulose nanocrystal/metal-organic framework composite for removal of Pb (II) from water. Acs Sustainable Chem. Eng. 2017, 5, 10447–10458. [Google Scholar] [CrossRef]
  9. Wang, N.; Jin, R.; Omer, A.M.; Ouyang, X. Adsorption of Pb (II) from fish sauce using carboxylated cellulose nanocrystal: Isotherm, kinetics, and thermodynamic studies. Int. J. Biol. Macromol. 2017, 102, 232–240. [Google Scholar] [CrossRef] [PubMed]
  10. Islam, M.S.; Choi, W.S.; Nam, B.; Yoon, C.; Lee, H.J. Needle-like iron oxide@CaCO3 adsorbents for ultrafast removal of anionic and cationic heavy metal ions. Chem. Eng. J. 2016, 307, 208–219. [Google Scholar] [CrossRef]
  11. Huang, B.; Lu, M.; Wang, D.; Song, Y.; Zhou, L. Versatile magnetic gel from peach gum polysaccharide for efficient adsorption of Pb2+ and Cd2+ ions and catalysis. Carbohydr. Polym. 2018, 181, 785–792. [Google Scholar] [CrossRef] [PubMed]
  12. Hu, Z.H.; Omer, A.M.; Ouyang, X.K.; Yu, D. Fabrication of carboxylated cellulose nanocrystal/sodium alginate hydrogel beads for adsorption of Pb (II) from aqueous solution. Int. J. Biol. Macromol. 2018, 108, 149–157. [Google Scholar] [CrossRef] [PubMed]
  13. Lu, J.; Jin, R.N.; Liu, C.; Wang, Y.F.; Ouyang, X.K. Magnetic carboxylated cellulose nanocrystals as adsorbent for the removal of Pb (II) from aqueous solution. Int. J. Biol. Macromol. 2016, 93, 547–556. [Google Scholar] [CrossRef] [PubMed]
  14. Wang, Y.F.; Wang, Y.G.; Ouyang, X.K.; Yang, L.Y. Surface-imprinted magnetic carboxylated cellulose nanocrystals for the highly selective extraction of six fluoroquinolones from egg samples. ACS Appl. Mater. Interfaces 2017, 9, 1759–1769. [Google Scholar] [CrossRef] [PubMed]
  15. Feng, M.B.; Zhang, P.; Zhou, H.C.; Sharma, V.K. Water-stable metal-organic frameworks for aqueous removal of heavy metals and radionuclides: A review. Chemosphere 2018, 209, 783–800. [Google Scholar] [CrossRef] [PubMed]
  16. Hughes, D.L.; Afsar, A.; Harwood, L.M.; Jiang, T.; Laventine, D.M.; Shaw, L.J.; Hodson, M.E. Adsorption of Pb and Zn from binary metal solutions and in the presence of dissolved organic carbon by dtpa-functionalised, silica-coated magnetic nanoparticles. Chemosphere 2017, 183, 519–527. [Google Scholar] [CrossRef] [PubMed]
  17. Fan, J.-P.; Zheng, B.; Qin, Y.; Yang, D.; Liao, D.-D.; Xu, X.-K.; Zhang, X.-H.; Zhu, J.-H. A superparamagnetic Fe3O4-graphene oxide nanocomposite for enrichment of nuciferine in the extract of nelumbinis folium (lotus leaf). Appl. Surf. Sci. 2016, 364, 332–339. [Google Scholar] [CrossRef]
  18. Nikje, M.M.A.; Moghaddam, S.T.; Noruzian, M.; Nejad, M.A.F.; Shabani, K.; Haghshenas, M.; Shakhesi, S. Preparation and characterization of flexible polyurethane foam nanocomposites reinforced by magnetic core-shell Fe3O4@apts nanoparticles. Colloid Polym. Sci. 2014, 292, 627–633. [Google Scholar] [CrossRef]
  19. Bhattacharyya, K.G.; Gupta, S.S. Calcined tetrabutylammonium kaolinite and montmorillonite and adsorption of Fe (II), Co (II) and Ni (II) from solution. Appl. Clay Sci. 2009, 46, 216–221. [Google Scholar] [CrossRef]
  20. Wu, P.; Wu, W.; Li, S.; Xing, N.; Zhu, N.; Li, P.; Wu, J.; Yang, C.; Dang, Z. Removal of Cd2+ from aqueous solution by adsorption using fe-montmorillonite. J. Hazard. Mater. 2009, 169, 824–830. [Google Scholar] [CrossRef]
  21. Hu, B.; Luo, H. Adsorption of hexavalent chromium onto montmorillonite modified with hydroxyaluminum and cetyltrimethylammonium bromide. Appl. Surf. Sci. 2010, 257, 769–775. [Google Scholar] [CrossRef]
  22. Liu, C.; Omer, A.M.; Ouyang, X.K. Adsorptive removal of cationic methylene blue dye using carboxymethyl cellulose/k-carrageenan/activated montmorillonite composite beads: Isotherm and kinetic studies. Int. J. Biol. Macromol. 2018, 106, 823–833. [Google Scholar] [CrossRef] [PubMed]
  23. Hu, C.; Zhu, P.; Cai, M.; Hu, H.; Fu, Q. Comparative adsorption of Pb (II), Cu (II) and Cd (II) on chitosan saturated montmorillonite: Kinetic, thermodynamic and equilibrium studies. Appl. Clay Sci. 2017, 143, 320–326. [Google Scholar] [CrossRef]
  24. Ma, Z.Y.; Shan, C.; Liang, J.L.; Tong, M.P. Efficient adsorption of selenium (IV) from water by hematite modified magnetic nanoparticles. Chemosphere 2018, 193, 134–141. [Google Scholar] [CrossRef] [PubMed]
  25. Eddaoudi, M.; Kim, J.; Rosi, N.; Vodak, D.; Wachter, J.; O’Keeffe, M.; Yaghi, O.M. Systematic design of pore size and functionality in isoreticular mofs and their application in methane storage. Science 2002, 295, 469–472. [Google Scholar] [CrossRef]
  26. Liu, D.; Lu, K.; Poon, C.; Lin, W. Metal–organic frameworks as sensory materials and imaging agents. Inorg. Chem. 2014, 53, 1916. [Google Scholar] [CrossRef] [PubMed]
  27. Sikdar, N.; Bhogra, M.; Waghmare, U.V.; Maji, T.K. Oriented attachment growth of anisotropic meso/nanoscale mofs: Tunable surface area and CO2 separation. J. Mater. Chem. A 2017, 5. [Google Scholar] [CrossRef]
  28. Song, J.Y.; Jhung, S.H. Adsorption of pharmaceuticals and personal care products over metal-organic frameworks functionalized with hydroxyl groups: Quantitative analyses of h-bonding in adsorption. Chem. Eng. J. 2017, 322, 366–374. [Google Scholar] [CrossRef]
  29. Zhuo, N.; Lan, Y.; Yang, W.; Yang, Z.; Li, X.; Zhou, X.; Liu, Y.; Shen, J.; Zhang, X. Adsorption of three selected pharmaceuticals and personal care products (PPCPs) onto mil-101(Cr)/natural polymer composite beads. Sep. Purif. Technol. 2016, 177, 272–280. [Google Scholar] [CrossRef]
  30. Jabbari, V.; Veleta, J.M.; Zarei-Chaleshtori, M.; Gardea-Torresdey, J.; Villagran, D. Green synthesis of magnetic MOF@GO and MOF@CNT hybrid nanocomposites with high adsorption capacity towards organic pollutants. Chem. Eng. J. 2016, 304, 774–783. [Google Scholar] [CrossRef] [Green Version]
  31. Wang, K.; Tian, Z.; Yin, N. Significantly enhancing Cu (II) adsorption onto zr-mofs through novel cross-flow disturbance of ceramic membrane. Ind. Eng. Chem. Res. 2018, 57, 3773–3780. [Google Scholar] [CrossRef]
  32. Du, X.D.; Yi, X.H.; Wang, P.; Zheng, W.W.; Deng, J.G.; Wang, C.C. Robust photocatalytic reduction of cr(II) on UIO-66-NH2(Zr/HF) metal-organic framework membrane under sunlight irradiation. Chem. Eng. J. 2019, 356, 393–399. [Google Scholar] [CrossRef]
  33. Khanjani, S.; Morsali, A. Ultrasound-promoted coating of MOF-5 on silk fiber and study of adsorptive removal and recovery of hazardous anionic dye "congo red. Ultrason. Sonochem. 2014, 21, 1424–1429. [Google Scholar] [CrossRef] [PubMed]
  34. Chen, H.; Li, Y.; Wang, S.; Zhou, Y. Synthesis of montmorillonite/Fe3O4-OTAB composite capable of using as anisotropic nanoparticles. Appl. Surf. Sci. 2017, 402, 384–391. [Google Scholar] [CrossRef]
  35. Li, J.; Cheng, S.; Zhao, Q.; Long, P.; Dong, J. Synthesis and hydrogen-storage behavior of metal–organic framework MOF-5. Int. J. Hydrog. Energy 2009, 34, 1377–1382. [Google Scholar] [CrossRef]
  36. Fu, W.; Huang, Z.Q. Magnetic dithiocarbamate functionalized reduced graphene oxide for the removal of Cu (II), Cd (II), Pb (II), and Hg (II) ions from aqueous solution: Synthesis, adsorption, and regeneration. Chemosphere 2018, 209, 449–456. [Google Scholar] [CrossRef] [PubMed]
  37. Adzmi, F.; Meon, S.; Musa, M.H.; Yusuf, N.A. Preparation, characterisation and viability of encapsulated trichoderma harzianum upm40 in alginate-montmorillonite clay. J. Microencapsul. 2012, 29, 205–210. [Google Scholar] [CrossRef] [PubMed]
  38. Wang, N.; Wang, Y.F.; Omer, A.M.; Ouyang, X.K. Fabrication of novel surface-imprinted magnetic graphene oxide-grafted cellulose nanocrystals for selective extraction and fast adsorption of fluoroquinolones from water. Anal. Bioanal. Chem. 2017, 409, 6643–6653. [Google Scholar] [CrossRef] [PubMed]
  39. Arjmandi, M.; Pakizeh, M. Mixed matrix membranes incorporated with cubic-MOF-5 for improved polyetherimide gas separation membranes: Theory and experiment. J. Ind. Eng. Chem. 2014, 20, 3857–3868. [Google Scholar] [CrossRef]
  40. Mravčáková, M.; Omastová, M.; Olejníková, K.; Pukánszky, B.; Chehimi, M.M. The preparation and properties of sodium and organomodified-montmorillonite/polypyrrole composites: A comparative study. Synth. Met. 2007, 157, 347–357. [Google Scholar] [CrossRef]
  41. Feng, X.; Li, W.; Fang, L.; Wang, D. Synthesis of akageneite (beta-Feooh)/reduced graphene oxide nanocomposites for oxidative decomposition of 2-chlorophenol by fenton-like reaction. J. Hazard. Mater. 2016, 308, 11–20. [Google Scholar]
  42. Jiang, L.H.; Liu, Y.G.; Zeng, G.M.; Xiao, F.Y.; Hu, X.J.; Hu, X.; Wang, H.; Li, T.T.; Zhou, L.; Tan, X.F. Removal of 17β-estradiol by few-layered graphene oxide nanosheets from aqueous solutions: External influence and adsorption mechanism. Chem. Eng. J. 2016, 284, 93–102. [Google Scholar] [CrossRef]
  43. Wu, F.C.; Ruling, T.; Rueyshin, J. A review and experimental verification of using chitosan and its derivatives as adsorbents for selected heavy metals. J. Environ. Manag. 2010, 91, 798–806. [Google Scholar] [CrossRef] [PubMed]
  44. Ho, Y.S.; Ofomaja, A.E. Pseudo-second-order model for lead ion sorption from aqueous solutions onto palm kernel fiber. J. Hazard. Mater. 2006, 129, 137–142. [Google Scholar] [CrossRef] [PubMed]
  45. Zhou, J.; Liu, Y.; Zhou, X.; Ren, J.; Zhong, C. Magnetic multi-porous bio-adsorbent modified with amino siloxane for fast removal of Pb (II) from aqueous solution. Appl. Surf. Sci. 2018, 427, 976–985. [Google Scholar] [CrossRef]
  46. Huang, G.; Wang, D.; Ma, S.; Chen, J.; Jiang, L.; Wang, P. A new, low-cost adsorbent: Preparation, characterization, and adsorption behavior of Pb (II) and Cu (II). J. Colloid Interface Sci. 2015, 445, 294–302. [Google Scholar] [CrossRef] [PubMed]
  47. Zhou, Y.; Fu, S.; Zhang, L.; Zhan, H.; Levit, M.V. Use of carboxylated cellulose nanofibrils-filled magnetic chitosan hydrogel beads as adsorbents for Pb (II). Carbohydr. Polym. 2014, 101, 75–82. [Google Scholar] [CrossRef]
  48. Wang, K.; Gu, J.; Yin, N. Efficient removal of Pb (II) and Cd (II) using NH2-functionalized zr-mofs via rapid microwave-promoted synthesis. Ind. Eng. Chem. Res. 2017, 56, 1880–1887. [Google Scholar] [CrossRef]
  49. Wang, N.; Yang, L.Y.; Wang, Y.G.; Ouyang, X.K. Fabrication of composite beads based on calcium alginate and tetraethylenepentamine-functionalized mil-101 for adsorption of Pb (II) from aqueous solutions. Polymers 2018, 10, 750. [Google Scholar] [CrossRef]
Polymers 10 01383 g001 550
Figure 1. Synthesis of MMMT@Zn-BDC.
Figure 1. Synthesis of MMMT@Zn-BDC.
Polymers 10 01383 g001
Polymers 10 01383 g002 550
Figure 2. SEM images of (a) Fe3O4, (b) MMMT, (c) Zn-BDC, and (d) MMMT@Zn-BDC.
Figure 2. SEM images of (a) Fe3O4, (b) MMMT, (c) Zn-BDC, and (d) MMMT@Zn-BDC.
Polymers 10 01383 g002
Polymers 10 01383 g003 550
Figure 3. TEM of (a) MMMT, (b) Zn-BDC, and (c) MMMT@Zn-BDC.
Figure 3. TEM of (a) MMMT, (b) Zn-BDC, and (c) MMMT@Zn-BDC.
Polymers 10 01383 g003
Polymers 10 01383 g004 550

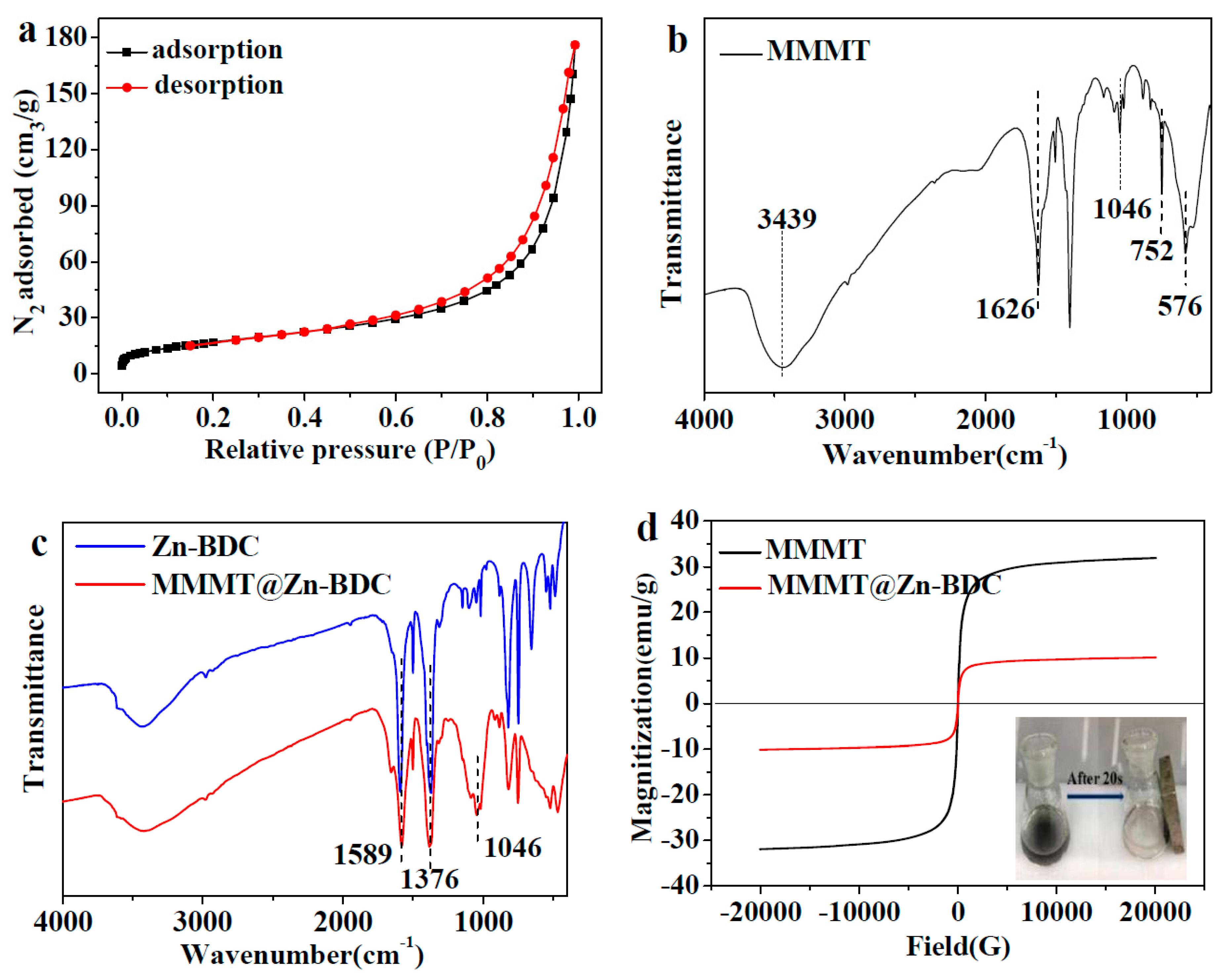

Figure 4. (a) N2 adsorption and desorption test for MMMT@Zn-BDC; FTIR spectra of (b) MMT, (c) Zn-BDC and MMMT@Zn-BDC, (d) VSM magnetization curves of MMMT and MMMT@Zn-BDC (inset: MMMT@Zn-BDC before and after application of a magnetic field for 20 s).
Figure 4. (a) N2 adsorption and desorption test for MMMT@Zn-BDC; FTIR spectra of (b) MMT, (c) Zn-BDC and MMMT@Zn-BDC, (d) VSM magnetization curves of MMMT and MMMT@Zn-BDC (inset: MMMT@Zn-BDC before and after application of a magnetic field for 20 s).
Polymers 10 01383 g004
Polymers 10 01383 g005 550
Figure 5. XPS spectra of MMMT@Zn-BDC: (a) wide scan, (b) Fe 2p; C 1s spectra of (c) MMMT@Zn-BDC and (d) MMMT@Zn-BDC loaded with Pb(II).
Figure 5. XPS spectra of MMMT@Zn-BDC: (a) wide scan, (b) Fe 2p; C 1s spectra of (c) MMMT@Zn-BDC and (d) MMMT@Zn-BDC loaded with Pb(II).
Polymers 10 01383 g005
Polymers 10 01383 g006 550
Figure 6. Effects of (a) pH, (b) adsorbent dosage, (c) initial concentration of Pb(II), (d) adsorption time, (e) adsorption temperature, and (f) recycling times on the adsorption capacity (left axis, black) and removal ratio (right axis, blue) of Pb(II) by MMMT@Zn-BDC.
Figure 6. Effects of (a) pH, (b) adsorbent dosage, (c) initial concentration of Pb(II), (d) adsorption time, (e) adsorption temperature, and (f) recycling times on the adsorption capacity (left axis, black) and removal ratio (right axis, blue) of Pb(II) by MMMT@Zn-BDC.
Polymers 10 01383 g006
Polymers 10 01383 g007a 550Polymers 10 01383 g007b 550
Figure 7. Fitting curves of the Pb(II) adsorption process by MMMT@Zn-BDC: (a) the Langmuir and (b) the Freundlich isotherm models, (c) a pseudo-first order and (d) a pseudo-second order kinetic models.
Figure 7. Fitting curves of the Pb(II) adsorption process by MMMT@Zn-BDC: (a) the Langmuir and (b) the Freundlich isotherm models, (c) a pseudo-first order and (d) a pseudo-second order kinetic models.
Polymers 10 01383 g007aPolymers 10 01383 g007b
Polymers 10 01383 g008 550

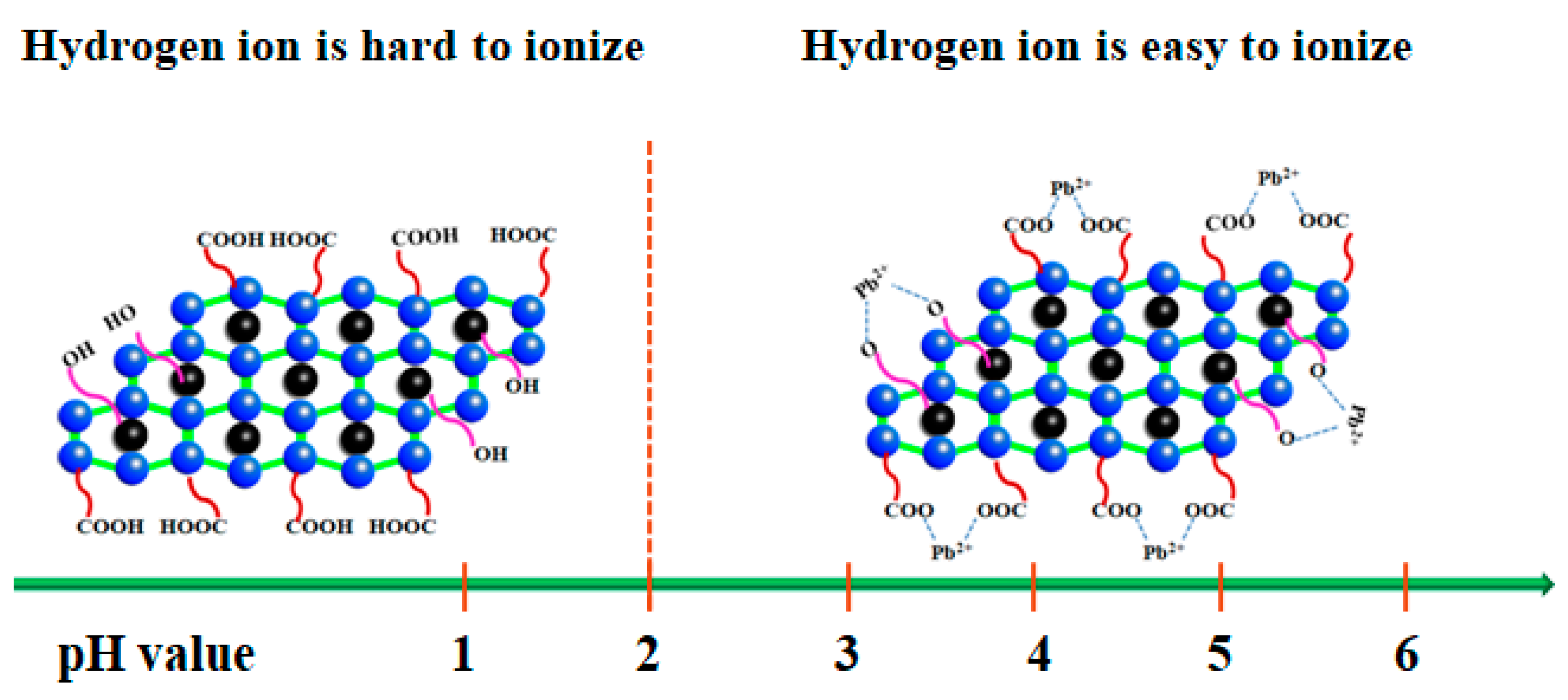

Figure 8. Diagram of the adsorption mechanism.
Figure 8. Diagram of the adsorption mechanism.
Polymers 10 01383 g008
Table
Table 1. The effect of the addition of Fe3O4, MMT, and Zn-BDC on the adsorption capacity.
Table 1. The effect of the addition of Fe3O4, MMT, and Zn-BDC on the adsorption capacity.
Fe3O4:MMT (g/g)BR (%)qe (mg/g)MMMT: Zn-BDC (g/g)BR (%)qe (mg/g)
2:197.26 ± 0.3271.36 ± 0.232:169.12 ± 0.28224.66 ± 0.18
1:196.83 ± 0.4198.67 ± 0.191:166.39 ± 0.57280.51 ± 0.23
2:365.94 ± 0.2999.06 ± 0.222:332.94 ± 0.69281.48 ± 0.35
1:249.61 ± 0.3098.92 ± 0.471:219.97 ± 0.64282.04 ± 0.44
Table
Table 2. Langmuir and Freundlich models’ parameters for removing Pb(II) with MMMT@Zn-BDC.
Table 2. Langmuir and Freundlich models’ parameters for removing Pb(II) with MMMT@Zn-BDC.
T (K)Langmuir IsothermFreundlich Isotherm
qm (mg/g)b (L/mg)R2KFnR2
298.2724.640.0470.9850110.073.030.9239
Table
Table 3. RL for Pb(II) removal by MMMT@Zn-BDC.
Table 3. RL for Pb(II) removal by MMMT@Zn-BDC.
C0(mg/L)10501002003005008001000
RL0.680.300.180.0960.0660.0410.0260.021
Table
Table 4. The kinetic models’ parameters of the Pb(II) adsorption process by MMMT@Zn-BDC.
Table 4. The kinetic models’ parameters of the Pb(II) adsorption process by MMMT@Zn-BDC.
qe,expPseudo-First-Order ModelPseudo-Second-Order Model
qe,calk1R2qe,calk2R2
197.638.710.023900.9566194.930.025210.9999
Table
Table 5. The parameters of thermodynamics for the Pb(II) adsorption process on MMMT@Zn-BDC.
Table 5. The parameters of thermodynamics for the Pb(II) adsorption process on MMMT@Zn-BDC.
Δ G (kJ/mol)
T (K)		Δ H
(kJ/mol)		Δ S
(J/mol∙K)
293.2298.2303.2308.2
−8.62−9.26−10.74−12.0660.7790.2359
Table
Table 6. Comparison of the adsorption capacity of MMMT@Zn-BDC for Pb(II) with that of other composite materials.
Table 6. Comparison of the adsorption capacity of MMMT@Zn-BDC for Pb(II) with that of other composite materials.
Sorbentqm (mg/g)Adsorption TimeRef.
AS-ACI133.3150[45]
Mg2Al–CO3–LDH123120[46]
m-CS/PVA/CCNFs175.4200[47]
Zr-MOF166.74120[48]
MIL-101-NH2@SA529.10180[49]
MMMT@Zn-BDC724.6490This work

Share and Cite

MDPI and ACS Style

Shen, J.; Wang, N.; Wang, Y.G.; Yu, D.; Ouyang, X. Efficient Adsorption of Pb(II) from Aqueous Solutions by Metal Organic Framework (Zn-BDC) Coated Magnetic Montmorillonite. Polymers 2018, 10, 1383. https://doi.org/10.3390/polym10121383

AMA Style

Shen J, Wang N, Wang YG, Yu D, Ouyang X. Efficient Adsorption of Pb(II) from Aqueous Solutions by Metal Organic Framework (Zn-BDC) Coated Magnetic Montmorillonite. Polymers. 2018; 10(12):1383. https://doi.org/10.3390/polym10121383

Chicago/Turabian Style

Shen, Jian, Nan Wang, Yang Guang Wang, Di Yu, and Xiao–kun Ouyang. 2018. "Efficient Adsorption of Pb(II) from Aqueous Solutions by Metal Organic Framework (Zn-BDC) Coated Magnetic Montmorillonite" Polymers 10, no. 12: 1383. https://doi.org/10.3390/polym10121383

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
