Open AccessArticle
Polymers 2018, 10(12), 1340; https://doi.org/10.3390/polym10121340

Mixed Membranes Comprising Carboxymethyl Cellulose (as Capping Agent and Gas Barrier Matrix) and Nanoporous ZIF-L Nanosheets for Gas Separation Applications

Jiangsu Provincial Key Lab of Pulp and Paper Science and Technology, Nanjing Forestry University, 210037 Nanjing, Jiangsu Province, China
*
Author to whom correspondence should be addressed.
Received: 27 October 2018 / Revised: 29 November 2018 / Accepted: 1 December 2018 / Published: 4 December 2018
Full-Text   |   PDF [26080 KB, uploaded 4 December 2018]   |

Abstract

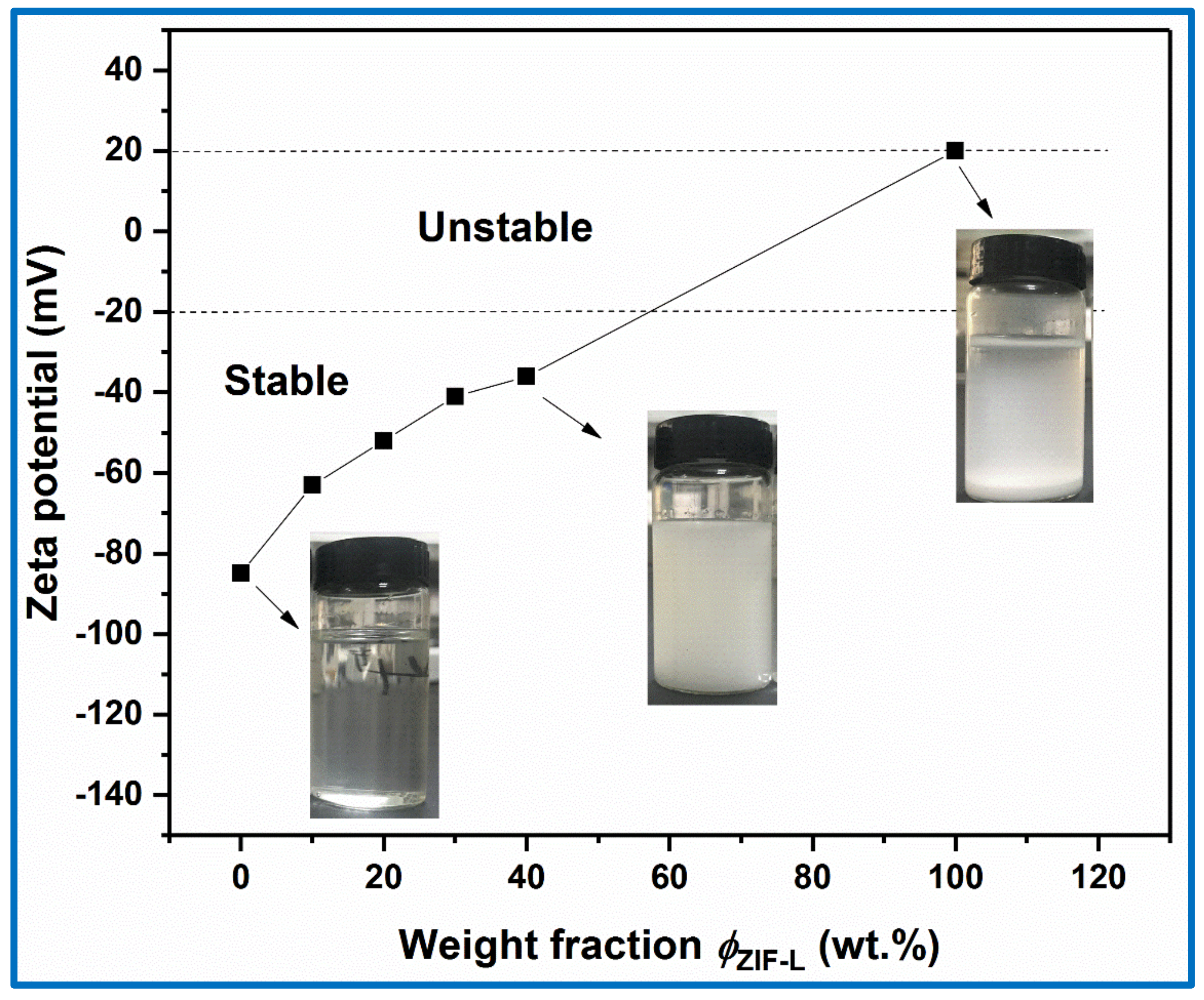

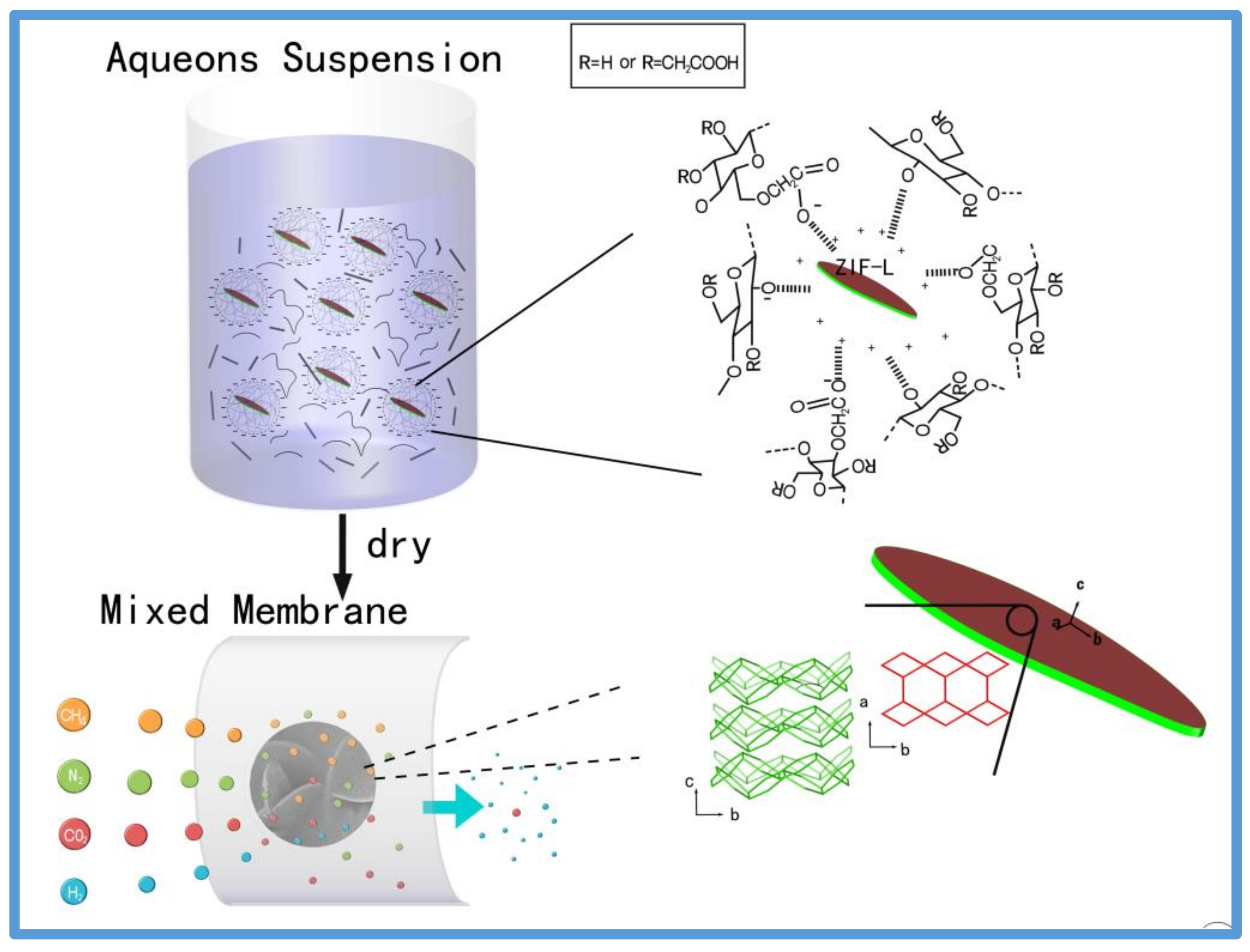

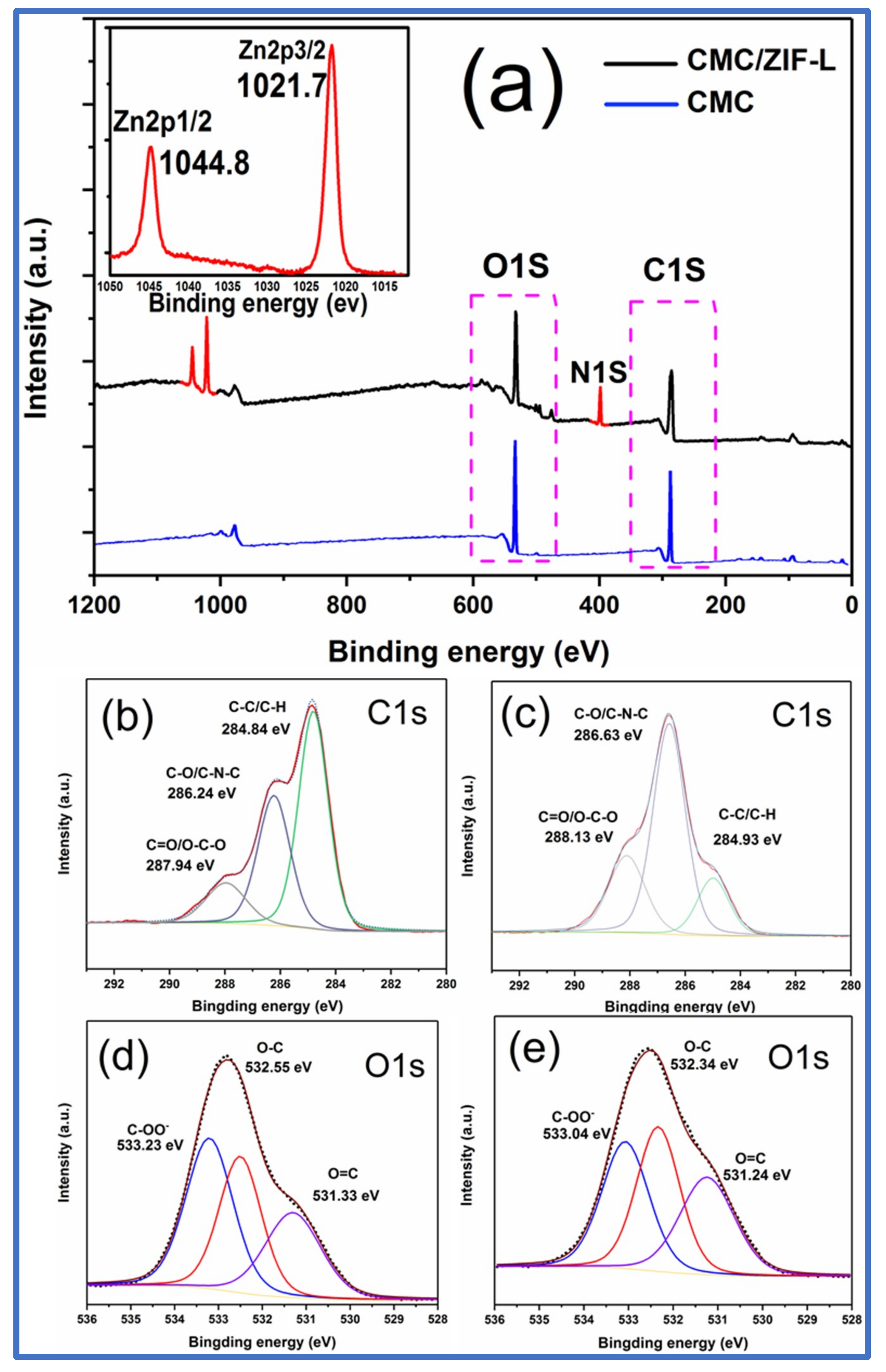

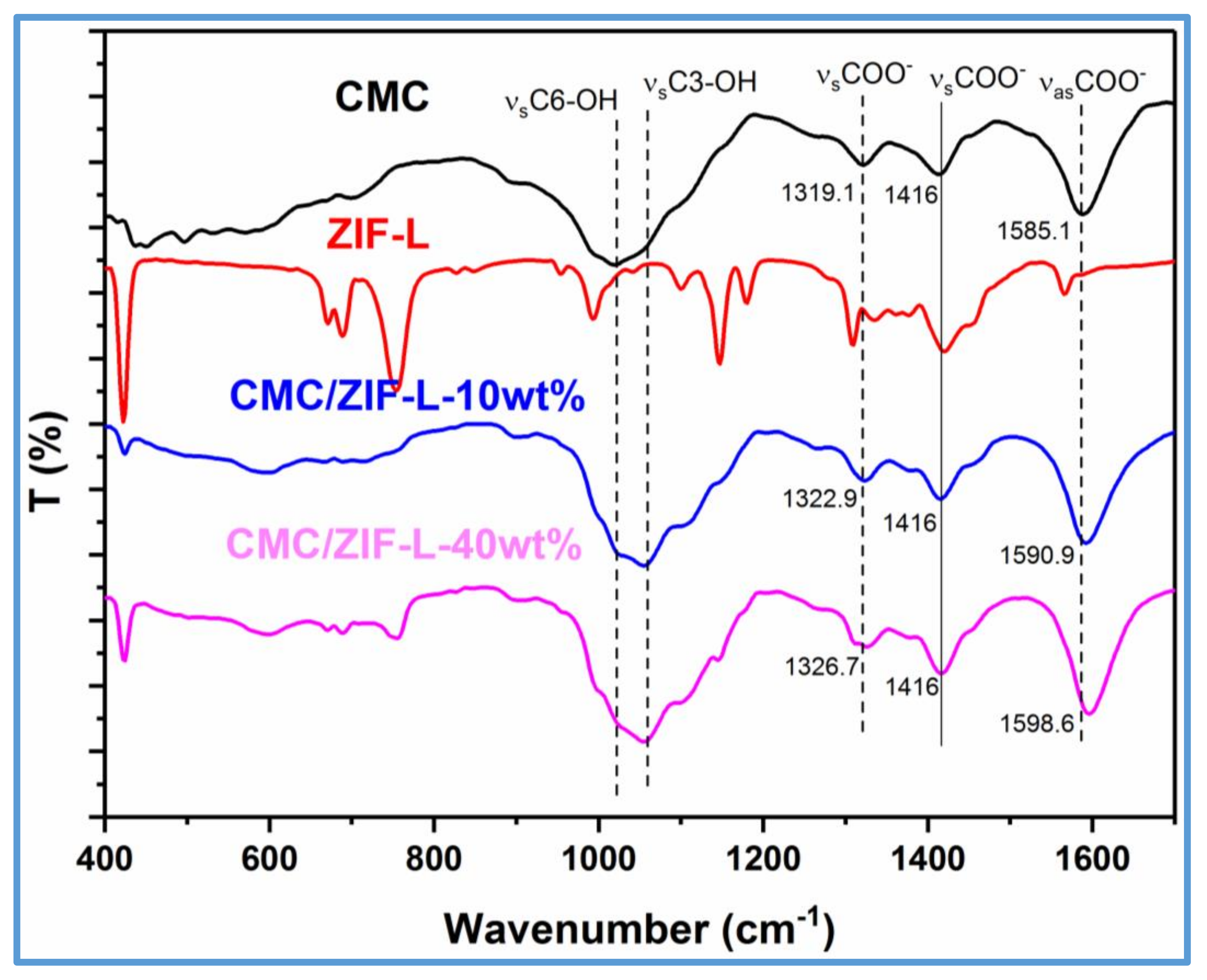

Two-dimensional metal–organic framework (MOF) nanosheets with molecular sieving properties and unique dimensional advantages are highly desired as polymer fillers for gas separation applications. Regarding polymer-supported MOF membranes, it is crucial to enhance the adhesion between the polymeric substrate and the MOF component and avoid MOF particle agglomeration. In this study, hydrophobic, embedded nanoporous nanosheets of a 2D zeolitic imidazolate framework synthesized using zinc salt and 2-methylimidazole (Hmim) aqueous solution (ZIF-L) were incorporated into a carboxymethyl cellulose (CMC) solution to form a steady mixed aqueous suspension through one-step solution blending. This prepared the composite membranes with a fine dispersion of ZIF-L nanosheets (up to loadings of 52.88 vol %) and good adhesion within the highly dense structural CMC matrix due to the strong interactions between ZIF-L and CMC, as confirmed by FTIR, Zeta potential, XPS, and SEM analysis. The potential advantages of CMC over classic polymer matrices used for gas separation mainly include: (a) Good interaction, (b) high dispersion of ZIF-L nanosheets, (c) the gas barrier nature of the CMC membrane, and (d) a facile water-based synthetic process. Based on the molecular sieving effect of ZIF-L and the gas barrier nature of the CMC matrix, gas permeation tests (H2, CO2, N2, CH4) of the mixed membrane showed a great improvement in gas selectivities compared with the CMC membrane and the reported pure ZIF membranes. View Full-Text
Keywords: carboxymethyl cellulose; metal–organic framework nanosheets; interactions; gas permeability; gas selectivity carboxymethyl cellulose; metal–organic framework nanosheets; interactions; gas permeability; gas selectivity
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material

SciFeed

Share & Cite This Article

MDPI and ACS Style

Zhang, F.; Dou, J.; Zhang, H. Mixed Membranes Comprising Carboxymethyl Cellulose (as Capping Agent and Gas Barrier Matrix) and Nanoporous ZIF-L Nanosheets for Gas Separation Applications. Polymers 2018, 10, 1340.
