Open AccessArticle
Polymers 2018, 10(10), 1169; https://doi.org/10.3390/polym10101169

High-Performance PEDOT:PSS/Hexamethylene Diisocyanate-Functionalized Graphene Oxide Nanocomposites: Preparation and Properties

1
Department of Analytical Chemistry, Physical Chemistry and Chemical Engineering, Faculty of Biology, Environmental Sciences and Chemistry, Alcalá University, 28871 Madrid, Spain
2
Department of Signal Theory and Communication, Alcalá University, 28805 Madrid, Spain
*
Author to whom correspondence should be addressed.
Received: 20 September 2018 / Revised: 17 October 2018 / Accepted: 17 October 2018 / Published: 20 October 2018
(This article belongs to the Special Issue Applications of Graphene and Fullerene Nanocomposites)
Full-Text   |   PDF [11329 KB, uploaded 20 October 2018]   |

Abstract

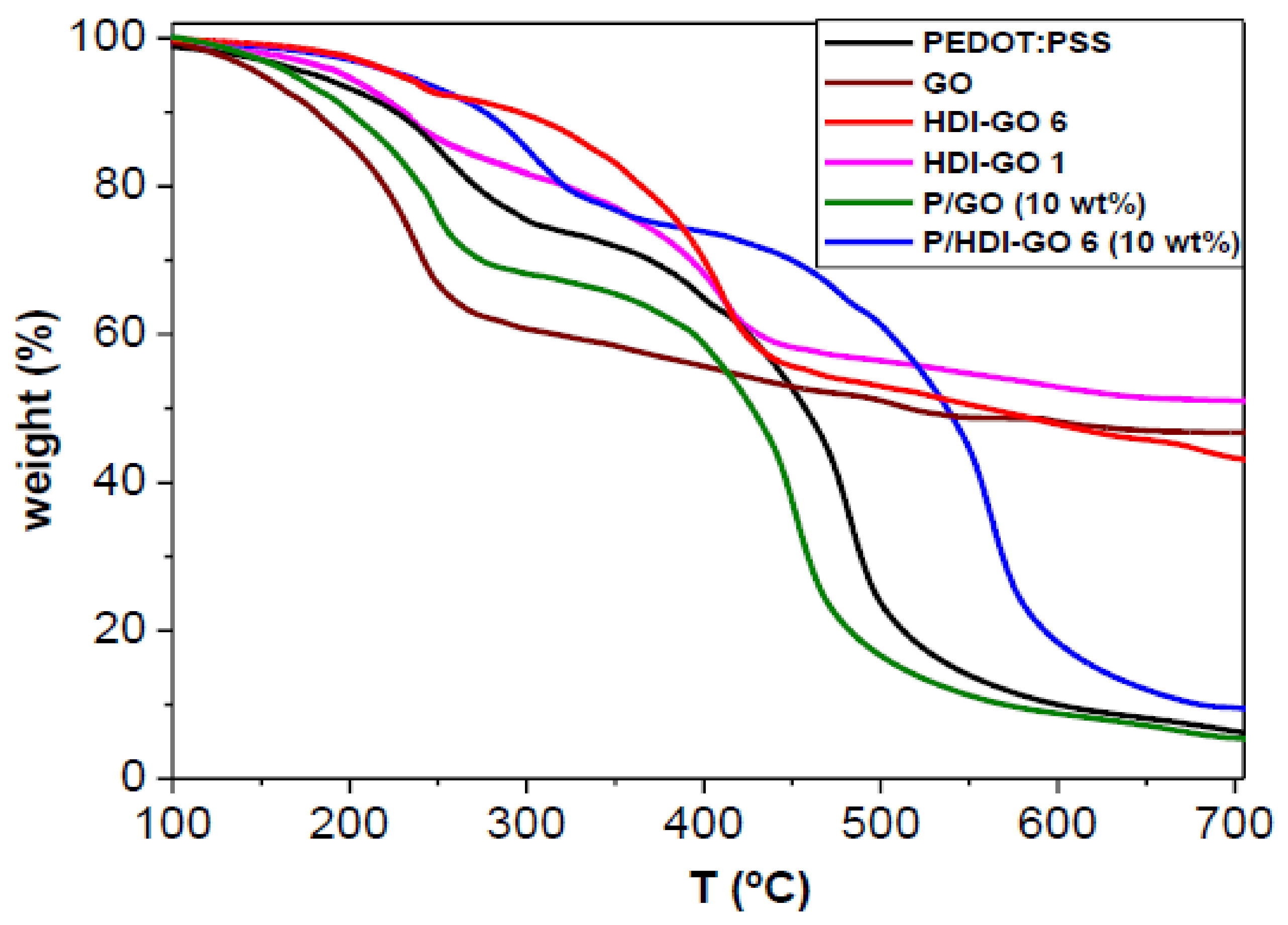

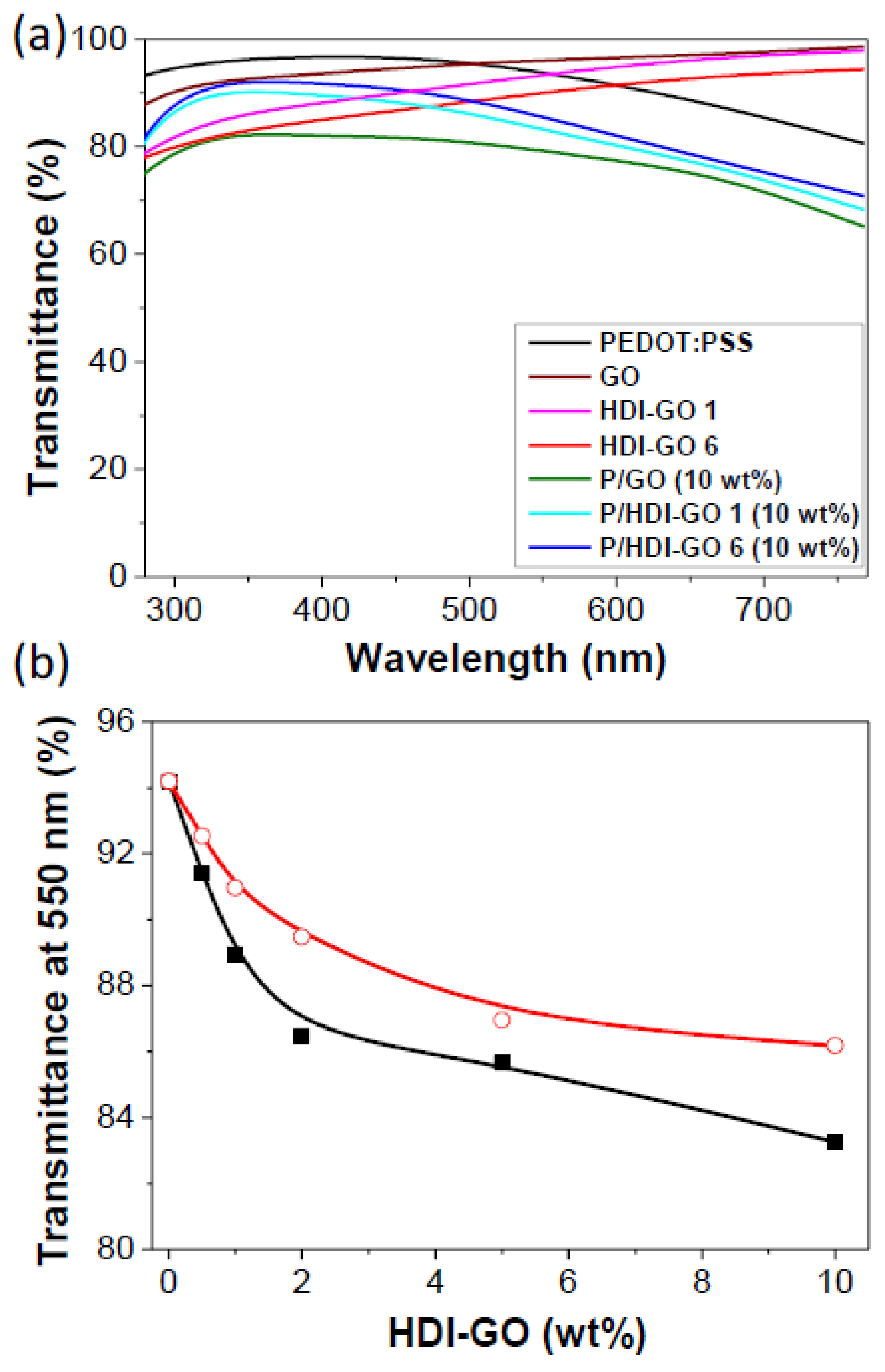

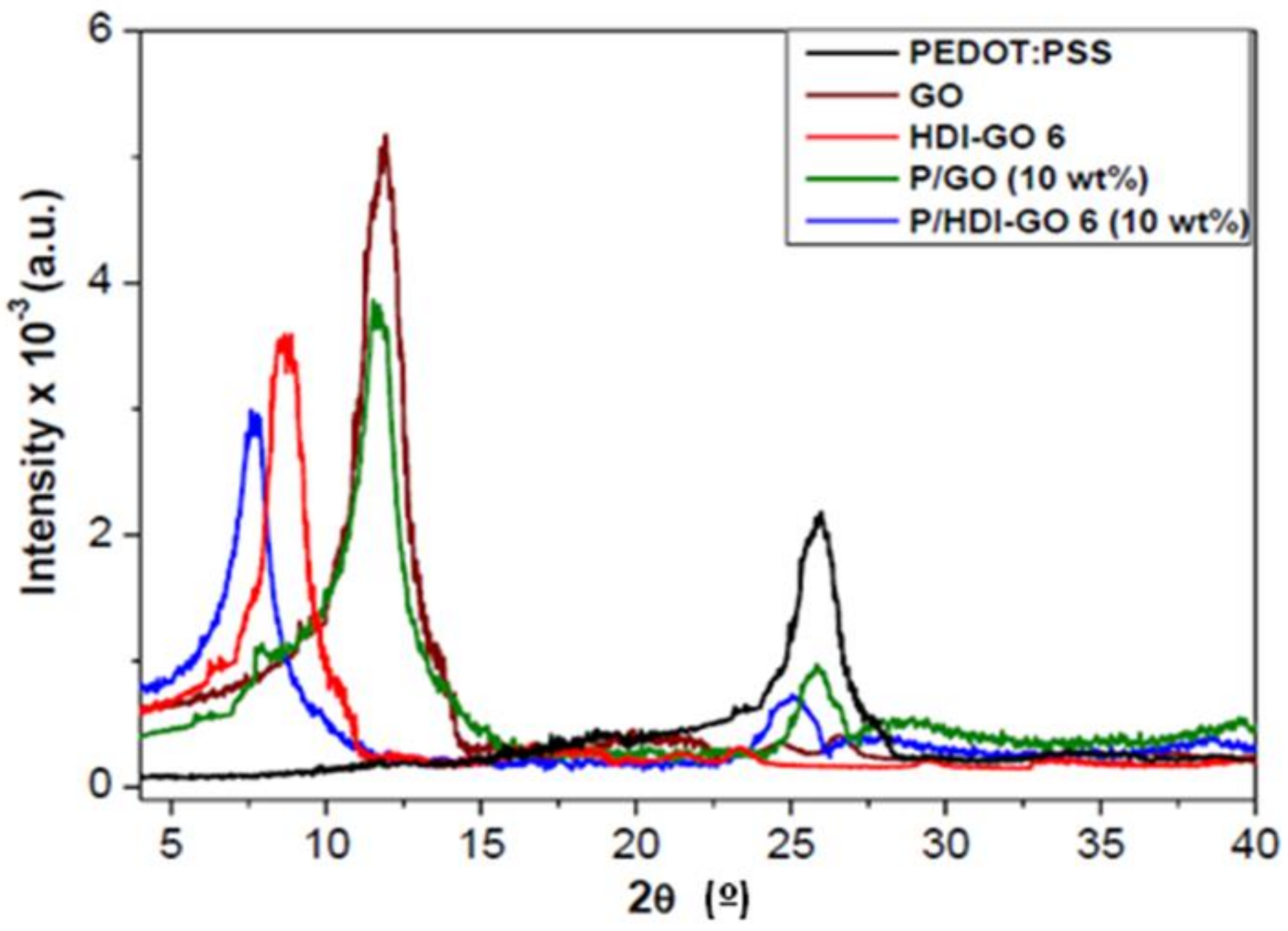

Graphene oxide (GO) has emerged as an ideal filler to reinforce polymeric matrices owing to its large specific surface area, transparency, flexibility, and very high mechanical strength. Nonetheless, functionalization is required to improve its solubility in common solvents and expand its practical uses. In this work, hexamethylene diisocyanate (HDI)-functionalized GO (HDI-GO) has been used as filler of a conductive polymer matrix, poly(3,4-ethylenedioxythiophene):poly(styrenesulfonate) (PEDOT:PSS). The nanocomposites have been prepared via a simple solution casting method, and have been characterized by scanning electron microscopy (SEM), UV–Vis and Raman spectroscopies, X-ray diffraction (XRD), thermogravimetric analysis (TGA), tensile tests, and four-point probe measurements to get information about how the HDI-GO functionalization degree (FD) and the HDI-GO concentration in the nanocomposite influence the final properties. SEM analysis showed a very homogenous dispersion of the HDI-GO nanosheets with the highest FD within the matrix, and the Raman spectra revealed the existence of very strong HDI-GO-PEDOT:PSS interactions. A gradual improvement in thermal stability was found with increasing HDI-GO concentration, with only a small loss in transparency. A reduction in the sheet resistance of PEDOT:PSS was found at low HDI-GO contents, whilst increasing moderately at the highest loading tested. The nanocomposites showed a good combination of stiffness, strength, ductility, and toughness. The optimum balance of properties was attained for samples incorporating 2 and 5 wt % HDI-GO with the highest FD. These solution-processed nanocomposites show considerably improved performance compared to conventional PEDOT:PSS nanocomposites filled with raw GO, and are highly suitable for applications in various fields, including flexible electronics, thermoelectric devices, and solar energy applications. View Full-Text
Keywords: PEDOT:PSS; graphene oxide; nanocomposite; hexamethylene diisocyanate; functionalization degree; sheet resistance; optical transmittance; mechanical properties PEDOT:PSS; graphene oxide; nanocomposite; hexamethylene diisocyanate; functionalization degree; sheet resistance; optical transmittance; mechanical properties
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material

SciFeed

Share & Cite This Article

MDPI and ACS Style

Luceño Sánchez, J.A.; Peña Capilla, R.; Díez-Pascual, A.M. High-Performance PEDOT:PSS/Hexamethylene Diisocyanate-Functionalized Graphene Oxide Nanocomposites: Preparation and Properties. Polymers 2018, 10, 1169.
