Article

Facile and Rapid Formation of Giant Vesicles from Glass Beads

1
Department of Chemistry, University of Fribourg, Chemin du Musée 9, 1700 Fribourg, Switzerland
2
Department of Biochemistry, University of Geneva, 30, Quai Ernest-Ansermet, 1211 Geneva, Switzerland
3
National Centre of Competence in Research in Chemical Biology, 1211 Geneva, Switzerland
*
Author to whom correspondence should be addressed.
Polymers 2018, 10(1), 54; https://doi.org/10.3390/polym10010054
Received: 8 December 2017 / Revised: 31 December 2017 / Accepted: 4 January 2018 / Published: 9 January 2018
(This article belongs to the Special Issue Selected Papers from "ECIS 2017")

Abstract

:
Giant vesicles (GVs) are widely-used model systems for biological membranes. The formulation of these vesicles, however, can be problematic and artifacts, such as degraded molecules or left-over oil, may be present in the final liposomes. The rapid formulation of a high number of artifact-free vesicles of uniform size using standard laboratory equipment is, therefore, highly desirable. Here, the gentle hydration method of glass bead-supported thin lipid films has been enhanced by adding a vortexing step. This led to the formulation of a uniform population of giant vesicles. Batches of glass beads coated with different lipids can be combined to produce vesicles of hybrid lipid compositions. This method represents a stable approach to rapidly generate giant vesicles.

Graphical Abstract

1. Introduction

Lipid vesicles or liposomes are 3D structures made from a bilayer of phospholipid molecules enclosing an aqueous compartment. Giant vesicles (GVs) typically have a diameter of >1 µm, which enables easy visualization and manipulation under an optical microscope. Today, many technologies exist to formulate lipid vesicles [1]. Most current methods have drawbacks, such as instability of molecules under the conditions used or residual solvent or oil left in the vesicles after preparation. What is needed is a simple and robust formulation technology that can be performed in any laboratory.
Giant vesicles can be formulated by adding an aqueous buffer to a dried thin film of lipids [2,3]. To accelerate this process, the film can be placed between two conductive plates and an applied alternating electrical field will promote the swelling of the lipid film into liposomes [4]. This method is now widely used and has been improved over the years for buffer exchange with flow chambers and for higher compatibility with respect to lipid and buffer compositions [5,6]. However, electroformation can lead to phospholipid degradation, thus limiting the type of lipids that can effectively be employed [7,8]. Furthermore, the method does not allow direct vesicle formulation under the high salt concentrations that would mimic a biological environment.
The agarose swelling method is based on spreading a lipid-containing solvent on a thin dried agarose film [9]. Upon buffer addition, GVs are generated at the swollen agarose/water interface. The speed of liposome formation is hereby highly increased compared to conventional hydration techniques and the method accommodates for a large range of lipid compositions and buffer conditions. Furthermore, it enables the efficient encapsulation of numerous biomolecules [9] including proteins [10]. The downside of this approach is that lipids are distributed over the entire gel thickness, which reduces the vesicle formation efficiency. Moreover, partial gel dissolution upon swelling leads to carry-over of the gel matrix into the vesicle sample [9]. An alternative is to use polyvinyl alcohol gels with optimized lipid distribution at the gel/buffer interface, which abolishes gel dissolution at room temperature [11]. However, at temperatures above 50 °C the gel starts to decompose, making the technique incompatible with the use of lipids having a high main phase transition temperature. A recent addition to the spectrum of GV preparation techniques is the formulation of GVs on cellulose paper [12].
Additionally, giant vesicles can be formed by creating double-emulsion droplets followed by oil removal [13], or by transferring lipid monolayer-stabilized droplets through an oil/water interface [14,15,16]. Encapsulating biomolecules into emulsion droplets, even at physiological conditions, is very effective and reproducible, and the technique can be implemented in microfluidic devices for high-throughput vesicle production [17,18]. However, drawbacks of the method include limited compatibility with a large repertoire of lipids (in part due to their poor solubility in the used solvent) and membrane contamination with traces of oil [10,19]. Yet, by applying the proper techniques, the oil contamination seems to be avoidable [20,21,22].
Still, none of the GV formulation techniques is universal, and, e.g., there is a lack of uniform phospholipid bilayers for precise biophysical measurements [23]. Therefore, the first experiments with glass beads were initiated: small glass beads were vigorously shaken in a heated suspension of small vesicles. The liposomes broke up and solid supported bilayers formed on the glass surfaces [23]. Danelon and coworkers produced lipid-coated glass beads by directly adding the lipid-containing organic solvent onto the beads and evaporating the solvent [24]. The lipid-coated beads were then hydrated and giant unilamellar vesicles were formed. This method provides a much larger surface area of lipid film per volume compared to that with flat solid supports. In addition, lipid-coated beads can easily be aliquoted and the volume of the swelling solution can be as small as a few microliters. We reasoned that a concurrent shaking step would form more homogenous GVs because the generated vesicles should be sheared between the glass beads. Therefore, this method should be a robust, rapid, and convenient formulation technique for giant liposomes (see Figure 1).

2. Materials and Methods

2.1. Materials

1,2-dipalmitoyl-sn-glycero-3-phosphocholine (DPPC) and 1,2-dioleoyl-sn-glycero-3-phosphocholine (DOPC) were purchased from Lipoid (Ludwigshafen, Germany) or Avanti Polar Lipids (Alabaster, AL, USA) and used without further purification. Laurdan [25,26] (6-dodecanoyl-N,N-dimethyl-2-naphthylamine) and Brand cavity slides with three cavities were purchased from Sigma-Aldrich (St. Louis, MO, USA). Glass beads, unwashed, 212–300 µm (50–70 U.S. sieve, average surface = 2.06 × 105 μm2) were bought from Sigma-Aldrich (St. Louis, MO, USA). The glass beads were stirred in concentrated nitric acid for 2 h, washed with ultra-pure water followed by methanol and acetone, and dried under high vacuum (40 µbar) overnight.

2.2. Preparation of Glass Beads

The beads (2 g) were weighed in a round bottom glass flask and the appropriate volume (see paragraph “liposome formulation on glass beads”) of the lipid stock solution in chloroform (720 µg of lipid in 1 mL chloroform) was added on top plus 1 mL of chloroform to ensure optimal solvent coverage of the bead bed. For each experiment, a ratio of beads and lipids corresponding to a theoretical bead coverage with ten bilayers was used. For fluorescence imaging of the liposomes the membrane dye Laurdan (1 mol %) was included in the lipid mixture. The solvent was removed under reduced pressure using a rotary evaporator at mild rotation speed to ensure optimal coverage of the glass beads with the lipids. After complete solvent removal, the beads were dried under high vacuum overnight and stored at −20 °C under argon. The beads can be stored for at least one year (see supporting information Figure S1).

2.3. Liposome Formulation on Glass Beads

The different bead sizes qualitatively yielded the same results, therefore we focused on one bead size only, namely beads with an average size of 212–300 µm, corresponding to a surface of 1.4 × 105–2.8 × 105 µm2. For the formulation of GVs 200 mg of lipid-coated 212–300 µm-sized beads (corresponding to 72 µg of phospholipids) were weighed into a 2-mL Eppendorf vial. The appropriate swelling liquid, namely 500 µL of ultra-pure water (>18 MΩ·cm) or sucrose buffer (200 mM sucrose in phosphate buffered saline, pH 7.4, at an osmotic concentration of 400 mOsm/L) was added and the vial was shaken at 65 °C for 1 h at the indicated speed using a PHMT-PSC24 thermoshaker (Grant Bio, Cambridge, UK). Typically, only sucrose is used in GV formulation experiments. Here, phosphate-buffered saline was employed to create an environment of high ionic strength that inhibits vesicle formulation in many other techniques [7]. Prior to microscopy, 20 µL of the vesicle suspension prepared in sucrose buffer were added into the cavity of a Brand cavity slide and diluted five times with glucose buffer (200 mM glucose in phosphate buffered saline, pH 7.4, at an osmotic concentration of 400 mOsm/L). Vesicles formed in ultra-pure water were added onto the microscopy slide undiluted.
For the experiment where vesicles were formulated from different phospholipids on different glass beads, two different types of lipid-coated beads were prepared containing either DOPC or DPPC. Then 100 mg of each bead were mixed together in an Eppendorf tube with 500 µL hydrating liquid and the mixture was treated as stated above.
The first step of a typical vesicle preparation in a round bottom flask is the formation of a thin film. Slow evaporation of the solvent under rotation creates a visible lipid film on about half of the flask’s inner surface, i.e., 2.5 × 10−3 m2 for a 25-mL flask. Given a molecular size of 63 Å2 per DPPC molecule [27], the thin lipid film corresponds to roughly 1032 stacks of lipid bilayers. If this flask is half-filled with 212–300 µm-sized glass beads, the available area increases by two orders of magnitude. The thin lipid film now forms preferentially on the surface of the glass beads allowing for a thinner and more uniform lipid coating of the glass beads with theoretically ten stacks of bilayers. The dried lipid-coated glass beads can readily be aliquoted and stored in a freezer under inert atmosphere for at least one year without noticeable quality loss. It is also interesting to note that an amount of lipid-coated glass beads was used that corresponds to 72 µg of lipid. The standard thin film method would not allow working with such a low amount of lipid because hydration of the resulting thin film would require a too-small amount of buffer.
During the formulation procedure, the vial containing the coated beads and the swelling liquid was heated above the main phase transition temperature of the corresponding lipid bilayers while simultaneously shaking the vial. We hypothesized that the shaking would influence the size of the GVs formed and that smaller diameter GVs would be formed when the speed of the shaking increases. Newly-formed vesicles would be mechanically reduced in diameter during the shaking step.

2.4. Preparation of Liposomes by Bead Gentle Hydration or by Electroformation

In order to compare the new method with other formulation techniques, the bead gentle hydration experiment was repeated following the standard protocol but omitting the shaking step.
For the electroformation experiments, a swelling chamber was constructed by placing a Teflon ring (17 mm inner diameter, 2 mm height) onto an ITO-coated microscopy slide (70–100 Ω/sq, Sigma-Aldrich, St. Louis, MO, USA). Then, 5 µL of a lipid solution (2 mg/mL) was spread into the Teflon ring. The organic solvent was removed under high vacuum for 1 h at 30 °C. The lipid film was hydrated with 500 µL of ultra-pure water or sucrose in PBS buffer and a second ITO-coated slide was positioned to close the chamber. Vesicles were grown by applying a sinusoidal wave (1 V and 10 Hz for 1 h at RT (DOPC) or 55 °C (DPPC or DPPC/DOPC-mixture)) using a potentiostat. For microscopy imaging 20 µL of the sucrose buffered vesicle suspension were diluted five times with glucose buffer. The vesicle suspensions formulated in ultra-pure water were used neat.

2.5. Microscopy Experiments

For imaging, a Ti Eclipse confocal microscope (Nikon, Tokyo, Japan) was used with an excitation wavelength of 405 nm. The emitted light was split using a prism detector. The images were saved as Nikon Viewer software .nd2 files, exported as .tif files, and treated with Fiji/ImageJ software [28,29,30]. For visualization purposes, the image contrast was enhanced by 0.5%. In order to better discriminate between the gel and liquid crystalline membrane phases the Laurdan signal at 441 nm was artificially changed to red and the signal at 495 nm was artificially changed to green.

2.6. Generalized Polarization Experiment

The generalized polarization (GP) measurements were performed using the emission wavelengths at 441 nm (gel phase) and 495 nm (liquid crystalline phase). The resulting images were analyzed using the GP-plugin for Fiji/ImageJ [31]. The generalized polarization was calculated according to the formula:
G P = I 441 I 495 I 441 + I 495
A high GP value would represent a liposomal gel phase membrane and a low GP represents a liposome membrane in a liquid crystalline phase [32].

3. Results and Discussion

3.1. Qualitative and Quantitative Comparison of Different GV Formulation Techniques

In addition to producing artifacts, many of the current GV preparation techniques suffer from the fact that a highly-polydispersed sample population is formed, slowing the process of finding suitable vesicle candidates for biophysical analysis. Figure 2 gives an overview of the typical density of giant vesicles formed by DPPC formulation in ultra-pure water. Shaking the glass beads during hydration leads to a similarly high density of vesicles under the microscope as found for the electroformation technique.
In order to more quantitatively compare the different vesicle formulation techniques, DPPC and DOPC vesicles were prepared and their diameter and uniformity were assessed by measuring a series of liposomes (see Table 1). The two phospholipids will lead to GVs of different membrane fluidity, as seen by the emission of the co-formulated Laurdan probe: DPPC would be in a gel phase, whereas DOPC would be in a fluid liquid crystalline phase (see Figure 3).
All the different techniques tested here yielded GVs in ultra-pure water (see Table 1). For DPPC vesicles, electroformation on ITO slides yielded GVs of 9.9 μm ± 4.9 μm in diameter and the gentle hydration of the glass beads without shaking yielded DPPC GVs of 8.8 μm ± 4.1 μm in diameter. Both methods yielded high differences in vesicle diameter of 4–5 μm. Combining the bead gentle hydration method with a shaking step significantly improved the uniformity of the vesicles and lowered the diameter differences to 1.3 μm or below. Furthermore, as anticipated, increasing the shaking speed by a factor of three during swelling significantly reduced the diameter of the GVs from 8.9 μm ± 1.3 μm at 500 rpm to 4.1 μm ± 1.1 μm at 1400 rpm possibly due to increased shearing of the GVs between the glass beads. Under the conditions used, the vesicles formed by electroformation were typically of larger diameter compared to the vesicles prepared by the other techniques. This trend was also visible for DOPC vesicles: electroformation yielded large GVs of 13.4 μm ± 5.6 μm diameter and gentle hydration lead to highly polydisperse GVs of 7.9 μm ± 7.2 μm diameter. Depending on the speed of shaking, the diameter of the GVs prepared by our new method ranged from 11.2 μm ± 2.2 μm at 500 rpm to 9.6 μm ± 1.2 μm at 1400 rpm each with a low polydispersity. The new technique, therefore, significantly simplifies access to GVs of desired sizes, independently of the phospholipid used.

3.2. GV Formulation in High Salt Conditions

Next, we formulated the same lipids again, but this time in a sucrose/glucose gradient at 400 mOsm/L PBS buffer concentration (see Figure 4). These high ionic strength conditions were deleterious for the electroformation method and no liposomes were formed anymore. This, of course, limits the usefulness of electroformation for experiments under biologically relevant conditions or requires reconstitution of the vesicle suspension with external buffer after formation in buffer-free conditions. The bead gentle hydration method was less affected by the high ionic strength and yielded GVs with medium diameters of 5.0 μm ± 2.6 μm for DPPC and 8.8 μm ± 4.9 μm for DOPC but high polydispersity (see Table 1). Compared to these methods, the shaking method was much less affected by the PBS present and yielded GVs of consistent diameters of 4.9 μm ± 0.9 μm for DPPC at 1400 rpm and 5.0 μm ± 1.0 μm for DOPC at 1400 rpm. Again, the diameter of the vesicles could be tuned by adapting the speed of the vortexing with speeds of 1400 rpm showing virtually no difference between GVs formulated in buffer-free and buffered solutions.

3.3. Formulation of GVs from Phospholipid Mixtures in Pure Water

We then examined the formulation of GVs made from a 1:1 mixture of DPPC and DOPC. Figure 5 depicts the different GVs formed. First, the two lipids were weighed at equimolar concentration and subjected to the electroformation protocol. Additionally, the glass beads were coated with this mixture. The formulation led to hybrid GVs in ultra-pure water. The electroformation yielded GVs with large diameters and high polydispersity of 17.3 μm ± 9.1 μm (see Table 1). Bead gentle hydration yielded GVs of lower diameters but still high polydispersity of 9.2 μm ± 6.1 μm. Again, the vesicles formed by the shaking method were more uniform compared to the vesicles prepared with the other methods ranging from 10.4 μm ± 1.3 μm for 500 rpm shaking speed and 4.1 μm ± 1.2 μm for shaking at 1400 rpm (see Table 1). As seen in Figure 5, the GVs formed by bead gentle hydration showed a clear phase separation and the curvature difference between gel and liquid crystalline phases were clearly observed.
Unlike the other methods, where a lipid film of specific composition has to be prepared for each type of vesicles, our new approach opens the way for rapid formulation of various hybrid GVs. For this, we took equal weights of glass beads that were each coated with DPPC or DOPC and combined them in an Eppendorf tube. Bead gentle hydration of this mixture lead to the formulation of two separate populations of DPPC or DOPC GVs, each sized, respectively, at 5.3 μm ± 2.8 μm. In contrast to that, when the shaking step was added to the formulation procedure, hybrid liposomes formed at diameters between 8.3 μm ± 1.4 μm for 500 rpm and 4.6 μm ± 1.0 μm at 1400 rpm. This makes it possible to formulate GVs of various compositions starting from only a few batches of lipid-coated beads. Thus, glass beads coated with different thin lipid films can be combined to form hybrid GVs.
In another experiment, the hybrid vesicles were formulated at high ionic strength in a sucrose/glucose gradient (see Figure 6). Here, the bead gentle hydration did not yield consistent GVs. However, the shaking method yielded uniform vesicles and qualitatively, no difference between the GVs formulated from one bead versus two different beads was found. The mean diameters of the GVs ranged from 8.2 μm ± 1.3 μm at 500 rpm to 4.2 μm ± 0.7 μm at 1400 rpm shaking speed.
The possibility to combine different phospholipids into single hybrid vesicles just by changing the combination of a limited number of lipid-coated glass beads is, of course, quite powerful in terms of combinatorial potential but raises questions about how well the vesicles compare to vesicles formed from phospholipid combinations on a single glass bead. We, therefore, utilized the polarity-sensitive dye Laurdan in order to quantify membrane properties. Due to its sensitivity to the polarity of the immediate environment, Laurdan can be used to visualize changes in membrane fluidity [25,26]. Figure 5 and Figure 6 depict signals measured at the two Laurdan emission wavelengths of 441 nm (gel phase) and 495 nm (liquid crystalline phase). Using Laurdan instead of individual dedicated fluorescent membrane markers has the advantage that different types of phospholipids can be mixed together without the need for adapting the concentration of the marker molecules.
Shifts in the emission wavelengths of Laurdan can be quantified in a generalized polarization analysis on the various GV combinations allowing a quantification of the extent of gel and liquid crystalline phases in each liposome ensemble [31,32]. The analysis was performed over all GV micrographs, averaging 20–300 individual GVs for each measurement. The measurement for mixed phospholipid GVs formulated by electroformation was taken as a reference (see Figure 7A). The GVs prepared by electroformation showed a higher content in liquid crystalline phase possibly due to the lower main phase transition temperature of DOPC compared to DPPC.
The formulation using the shaking method yielded various results with preferences for either phospholipid (see Figures S2 and S3). Salt-free and high salt conditions could be combined with shaking at various speeds to formulate different GV populations. However, we found conditions where the resulting GV phospholipid composition was qualitatively very similar to the electroformation, although with a lower diameter (see Figure 7B,C). Interestingly, it was indeed possible to combine two sets of glass beads, each covered with a different phospholipid, and formulate a hybrid GV containing both lipids, provided the shaking speed during the hydration step was high enough. Globally, in water, there was a trend to form GVs with a preference for a liquid crystalline phase and, in high salt conditions, a gel phase was preferred. This trend was inversed by applying high shear forces.

4. Conclusions

We have presented a rapid formulation technique for monodisperse giant vesicles. Glass beads coated with dehydrated stacks of lipid bilayers can be conveniently prepared, stored at low temperature, and be easily distributed to other laboratories. Once needed, the glass beads are placed in an aqueous buffer solution and shaken at the appropriate speed and temperature. The initial coating of the glass beads with a thin lipid film requires a chemistry laboratory. After the solvent removal, no additional steps require any handling of organic solvents. The coated beads can be stored at low temperature for over one year. The quantities of lipids needed can be very low. Furthermore, beads covered with different lipids can be easily combined avoiding measuring very small amounts of hygroscopic phospholipids. After a one-hour hydration and vortexing step, giant vesicles are formed. This procedure offers facile access to hybrid GVs.

Supplementary Materials

The following are available online at www.mdpi.com/2073-4360/10/1/54/s1, Figure S1: GV formulated from 1 year old coated beads. Figures S2 and S3: complete set of general polarization histograms measured in water and buffer.

Acknowledgments

The authors thank Christophe Danelon for very helpful discussions concerning this manuscript. Andreas Zumbuehl thanks the Swiss National Science Foundation (PP00P2_166209) and the COST Action CM1304 for financial support.

Author Contributions

Radu Tanasescu, Ute Mettal, and Adai Colom performed the experiments, and all authors contributed to the data analysis and writing process. Andreas Zumbuehl conceived the experiments.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Walde, P.; Cosentino, K.; Engel, H.; Stano, P. Giant vesicles: Preparations and applications. ChemBioChem 2010, 11, 848–865. [Google Scholar] [CrossRef] [PubMed]
  2. Reeves, J.P.; Dowben, R.M. Formation and properties of thin-walled phospholipid vesicles. J. Cell. Physiol. 1969, 73, 49–60. [Google Scholar] [CrossRef] [PubMed]
  3. Akashi, K.; Miyata, H.; Itoh, H.; Kinosita, K. Preparation of giant liposomes in physiological conditions and their characterization under an optical microscope. Biophys. J. 1996, 71, 3242–3250. [Google Scholar] [CrossRef]
  4. Angelova, M.I.; Dimitrov, D.S. Liposome electroformation. Faraday Discuss. 1986, 81, 303–311. [Google Scholar] [CrossRef]
  5. Estes, D.J.; Mayer, M. Giant liposomes in physiological buffer using electroformation in a flow chamber. Biochim. Biophys. Acta 2005, 1712, 152–160. [Google Scholar] [CrossRef] [PubMed]
  6. Pott, T.; Bouvrais, H.; Meleard, P. Giant unilamellar vesicle formation under physiologically relevant conditions. Chem. Phys. Lipids 2008, 154, 115–119. [Google Scholar] [CrossRef] [PubMed]
  7. Morales-Penningston, N.F.; Wu, J.; Farkas, E.R.; Goh, S.L.; Konyakhina, T.M.; Zheng, J.Y.; Webb, W.W.; Feigenson, G.W. Guv preparation and imaging: Minimizing artifacts. Biochim. Biophys. Acta 2010, 1798, 1324–1332. [Google Scholar] [CrossRef] [PubMed]
  8. Weinberger, A.; Tanasescu, R.; Stefaniu, C.; Fedotenko, L.A.; Favarger, F.; Ishikawa, T.; Brezesinski, G.; Marques, C.M.; Zumbuehl, A. Bilayer properties of 1,3-diamidophospholipids. Langmuir 2015, 31, 1879–1884. [Google Scholar] [CrossRef] [PubMed]
  9. Horger, K.S.; Estes, D.J.; Capone, R.; Mayer, M. Films of agarose enable rapid formation of giant liposomes in solutions of physiologic ionic strength. J. Am. Chem. Soc. 2009, 131, 1810–1819. [Google Scholar] [CrossRef] [PubMed]
  10. Tsai, F.C.; Stuhrmann, B.; Koenderink, G.H. Encapsulation of active cytoskeletal protein networks in cell-sized liposomes. Langmuir 2011, 27, 10061–10071. [Google Scholar] [CrossRef] [PubMed]
  11. Weinberger, A.; Tsai, F.C.; Koenderink, G.H.; Schmidt, T.F.; Itri, R.; Meier, W.; Schmatko, T.; Schroder, A.; Marques, C. Gel-assisted formation of giant unilamellar vesicles. Biophys. J. 2013, 105, 154–164. [Google Scholar] [CrossRef] [PubMed]
  12. Kresse, K.M.; Xu, M.; Pazzi, J.; Garcia-Ojeda, M.; Subramaniam, A.B. Novel application of cellulose paper as a platform for the macromolecular self-assembly of biomimetic giant liposomes. ACS Appl. Mater. Interfaces 2016, 8, 32102–32107. [Google Scholar] [CrossRef] [PubMed]
  13. Shum, H.C.; Lee, D.; Yoon, I.; Kodger, T.; Weitz, D.A. Double emulsion templated monodisperse phospholipid vesicles. Langmuir 2008, 24, 7651–7653. [Google Scholar] [CrossRef] [PubMed]
  14. Abkarian, M.; Loiseau, E.; Massiera, G. Continuous droplet interface crossing encapsulation (cdice) for high throughput monodisperse vesicle design. Soft Matter 2011, 7, 4610–4614. [Google Scholar] [CrossRef]
  15. Pautot, S.; Frisken, B.J.; Weitz, D.A. Production of unilamellar vesicles using an inverted emulsion. Langmuir 2003, 19, 2870–2879. [Google Scholar] [CrossRef]
  16. Pontani, L.L.; van der Gucht, J.; Salbreux, G.; Heuvingh, J.; Joanny, J.F.; Sykes, C. Reconstitution of an actin cortex inside a liposome. Biophys. J. 2009, 96, 192–198. [Google Scholar] [CrossRef] [PubMed]
  17. Stachowiak, J.C.; Richmond, D.L.; Li, T.H.; Liu, A.P.; Parekh, S.H.; Fletcher, D.A. Unilamellar vesicle formation and encapsulation by microfluidic jetting. Proc. Natl. Acad. Sci. USA 2008, 105, 4697–4702. [Google Scholar] [CrossRef] [PubMed]
  18. Bastrop, M.; Meister, A.; Metz, H.; Drescher, S.; Dobner, B.; Mader, K.; Blume, A. The motional dynamics in bolaamphiphilic nanofibers and micellar aggregates: An esr spin probe study. J. Phys. Chem. B 2009, 113, 574–582. [Google Scholar] [CrossRef] [PubMed]
  19. Beck, P.; Liebi, M.; Kohlbrecher, J.; Ishikawa, T.; Ruegger, H.; Fischer, P.; Walde, P.; Windhab, E. Novel type of bicellar disks from a mixture of dmpc and dmpe-dtpa with complexed lanthanides. Langmuir 2010, 26, 5382–5387. [Google Scholar] [CrossRef] [PubMed]
  20. White, S.H. Solvent-free planar bilayer membranes—Novel method of formation. Biophys. J. 1978, 21, A123. [Google Scholar]
  21. Campillo, C.; Sens, P.; Koster, D.; Pontani, L.L.; Levy, D.; Bassereau, P.; Nassoy, P.; Sykes, C. Unexpected membrane dynamics unveiled by membrane nanotube extrusion. Biophys. J. 2013, 104, 1248–1256. [Google Scholar] [CrossRef] [PubMed]
  22. Karamdad, K.; Law, R.V.; Seddon, J.M.; Brooks, N.J.; Ces, O. Preparation and mechanical characterisation of giant unilamellar vesicles by a microfluidic method. Lab Chip 2015, 15, 557–562. [Google Scholar] [CrossRef] [PubMed]
  23. Bayerl, T.M.; Bloom, M. Physical-properties of single phospholipid-bilayers adsorbed to micro glass-beads—A new vesicular model system studied by H-2-nuclear magnetic-resonance. Biophys. J. 1990, 58, 357–362. [Google Scholar] [CrossRef]
  24. Nourian, Z.; Roelofsen, W.; Danelon, C. Triggered gene expression in fed-vesicle microreactors with a multifunctional membrane. Angew. Chem. Int. Ed. 2012, 51, 3114–3118. [Google Scholar] [CrossRef] [PubMed]
  25. Parasassi, T.; Gratton, E.; Yu, W.M.; Wilson, P.; Levi, M. Two-photon fluorescence microscopy of laurdan generalized polarization domains in model and natural membranes. Biophys. J. 1997, 72, 2413–2429. [Google Scholar] [CrossRef]
  26. Bagatolli, L.A.; Gratton, E. Two photon fluorescence microscopy of coexisting lipid domains in giant unilamellar vesicles of binary phospholipid mixtures. Biophys. J. 2000, 78, 290–305. [Google Scholar] [CrossRef]
  27. Nagle, J.F.; Tristram-Nagle, S. Lipid bilayer structure. Curr. Opin. Struct. Biol. 2000, 10, 474–480. [Google Scholar] [CrossRef]
  28. Schneider, C.A.; Rasband, W.S.; Eliceiri, K.W. Nih image to imagej: 25 years of image analysis. Nat. Methods 2012, 9, 671–675. [Google Scholar] [CrossRef] [PubMed]
  29. Schindelin, J.; Arganda-Carreras, I.; Frise, E.; Kaynig, V.; Longair, M.; Pietzsch, T.; Preibisch, S.; Rueden, C.; Saalfeld, S.; Schmid, B.; et al. Fiji: An open-source platform for biological-image analysis. Nat. Methods 2012, 9, 676–682. [Google Scholar] [CrossRef] [PubMed]
  30. Schindelin, J.; Rueden, C.T.; Hiner, M.C.; Eliceiri, K.W. The imagej ecosystem: An open platform for biomedical image analysis. Mol. Reprod. Dev. 2015, 82, 518–529. [Google Scholar] [CrossRef] [PubMed]
  31. Sezgin, E.; Waithe, D.; Bernardino de la Serna, J.; Eggeling, C. Spectral imaging to measure heterogeneity in membrane lipid packing. ChemPhysChem 2015, 16, 1387–1394. [Google Scholar] [CrossRef] [PubMed]
  32. Sanchez, S.A.; Tricerri, M.A.; Gunther, G.; Gratton, E. Laurdan generalized polarization: From cuvette to microscope. In Modern Research and Educational Topics in Microscopy; Méndez-Vilas, A., Diaz, J., Eds.; Formatex: Badajoz, Spain, 2007. [Google Scholar]

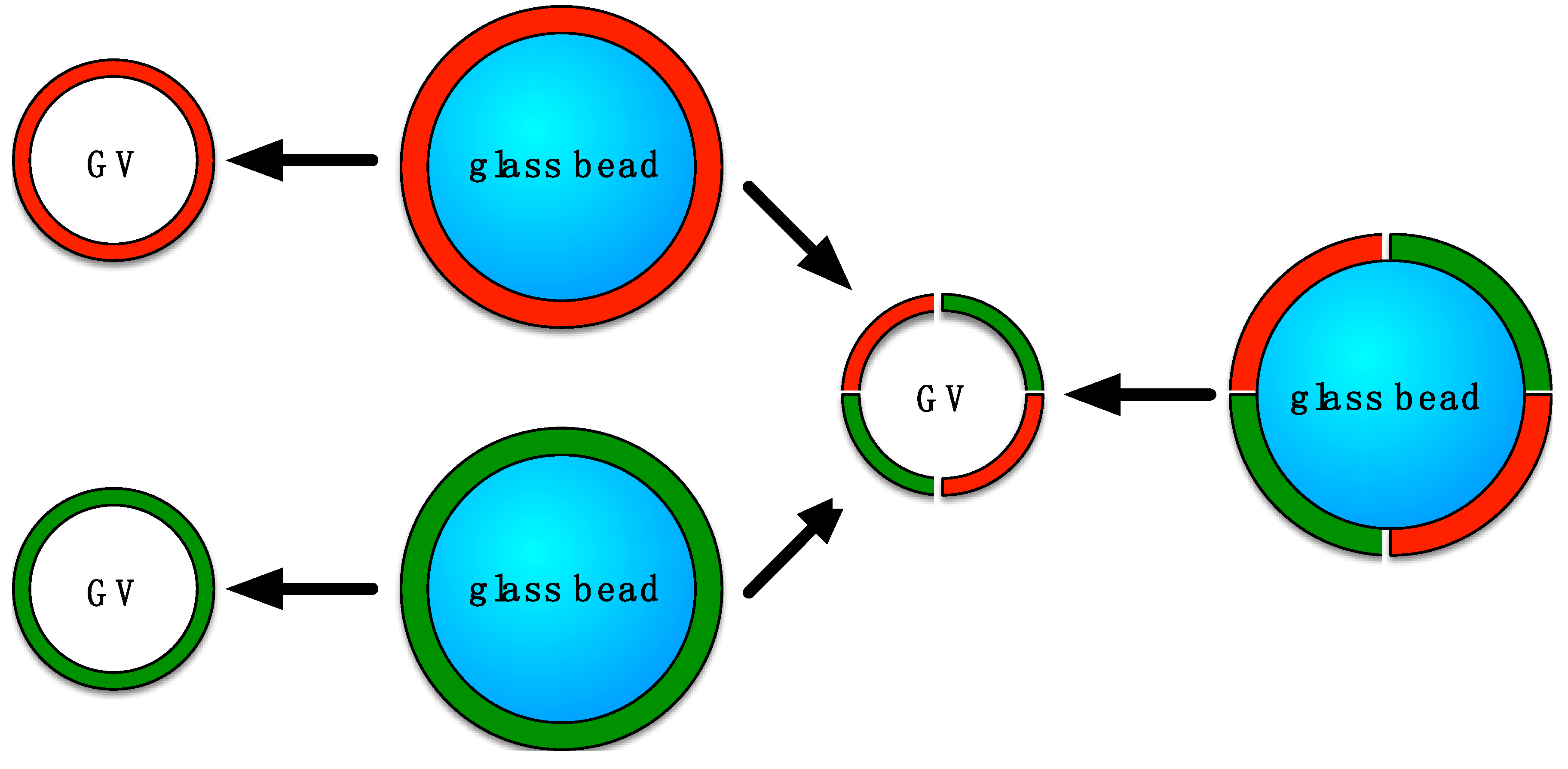

Figure 1. Schematic view of the formation of giant vesicles (GVs) by hydration of a glass-supported thin film of phospholipids while shaking. The glass beads are covered with thin multilayers of lipids, depicted in red and green. Two films containing two different types of phospholipids (either on the same bead or on different beads) can be combined into a hybrid vesicle.
Figure 1. Schematic view of the formation of giant vesicles (GVs) by hydration of a glass-supported thin film of phospholipids while shaking. The glass beads are covered with thin multilayers of lipids, depicted in red and green. Two films containing two different types of phospholipids (either on the same bead or on different beads) can be combined into a hybrid vesicle.
Polymers 10 00054 g001

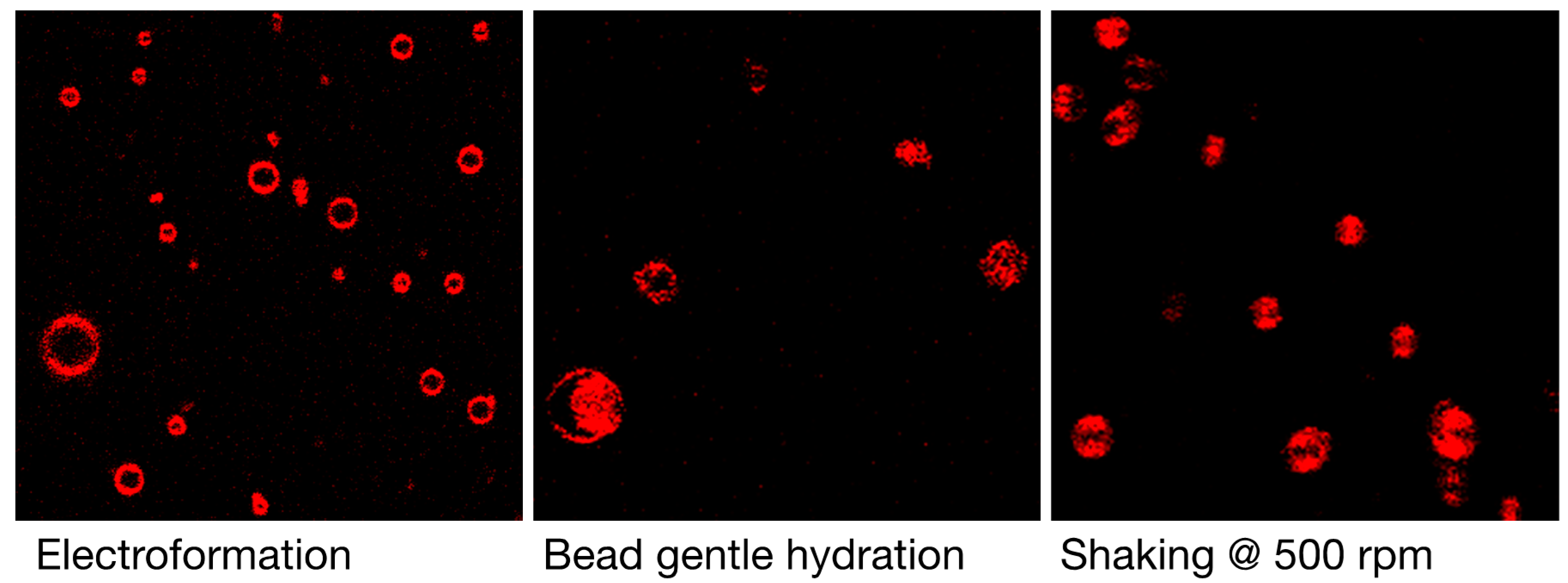

Figure 2. Typical qualitative perception of vesicle densities are represented in these low magnification images of a population of DPPC GVs formulated by different techniques in ultra-pure water. The glass bead shaking technique does produce a high density of vesicles. The sides of the quadratic figures measure 120 µm. The color was artificially changed to red. The individual vesicles are moving around leading to the shape effects seen in these pictures.
Figure 2. Typical qualitative perception of vesicle densities are represented in these low magnification images of a population of DPPC GVs formulated by different techniques in ultra-pure water. The glass bead shaking technique does produce a high density of vesicles. The sides of the quadratic figures measure 120 µm. The color was artificially changed to red. The individual vesicles are moving around leading to the shape effects seen in these pictures.
Polymers 10 00054 g002

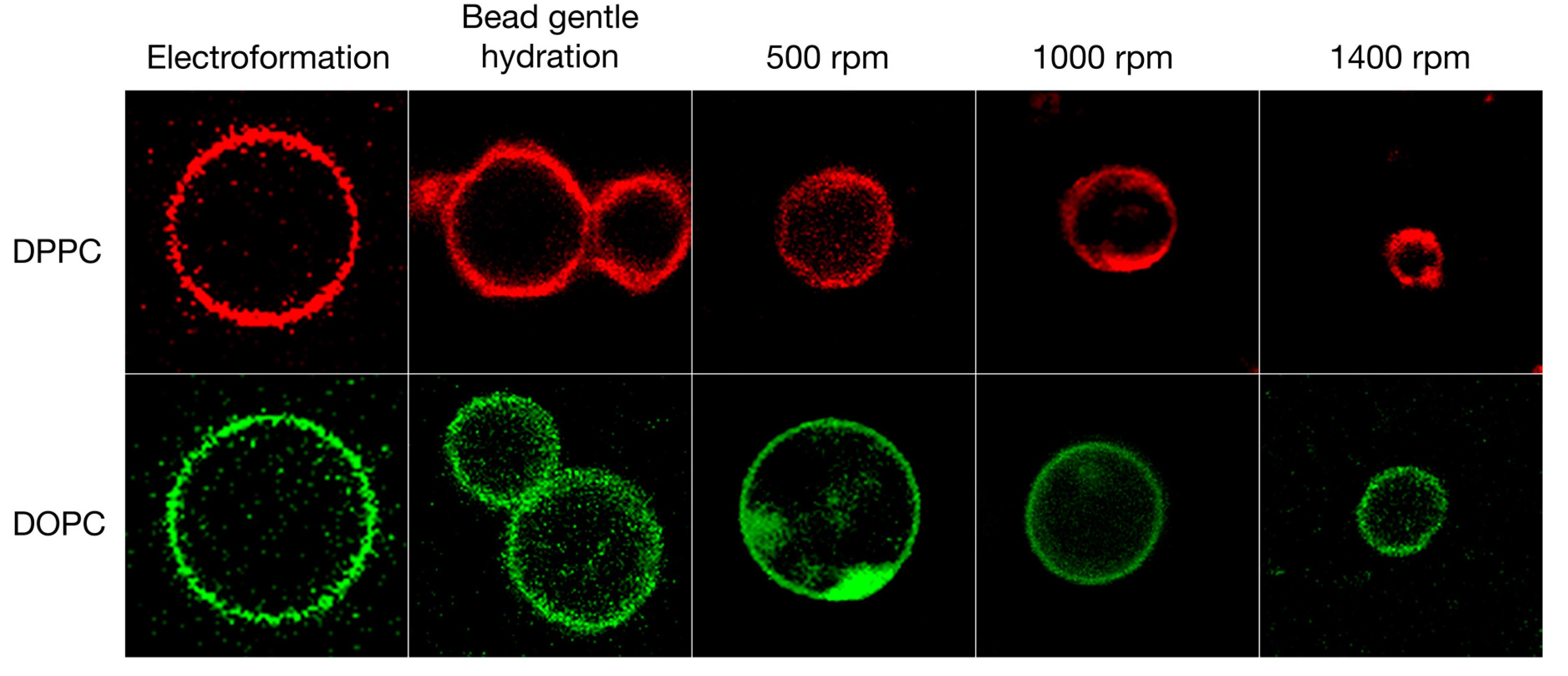

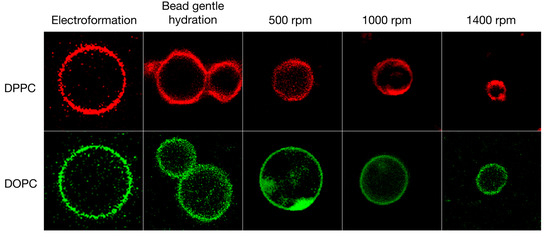

Figure 3. Giant vesicles formed from three different techniques: electroformation, gentle hydration of a thin film of lipids on glass beads, and the new method where the glass beads were vortex shaken during lipid film hydration at 65 °C for 1 h at different speeds. The vesicles were formulated from ultra-pure water. Each square is sized to 20 µm × 20 µm. The colors have been artificially adapted to red and green for bilayer gel and liquid crystalline phases, respectively.
Figure 3. Giant vesicles formed from three different techniques: electroformation, gentle hydration of a thin film of lipids on glass beads, and the new method where the glass beads were vortex shaken during lipid film hydration at 65 °C for 1 h at different speeds. The vesicles were formulated from ultra-pure water. Each square is sized to 20 µm × 20 µm. The colors have been artificially adapted to red and green for bilayer gel and liquid crystalline phases, respectively.
Polymers 10 00054 g003

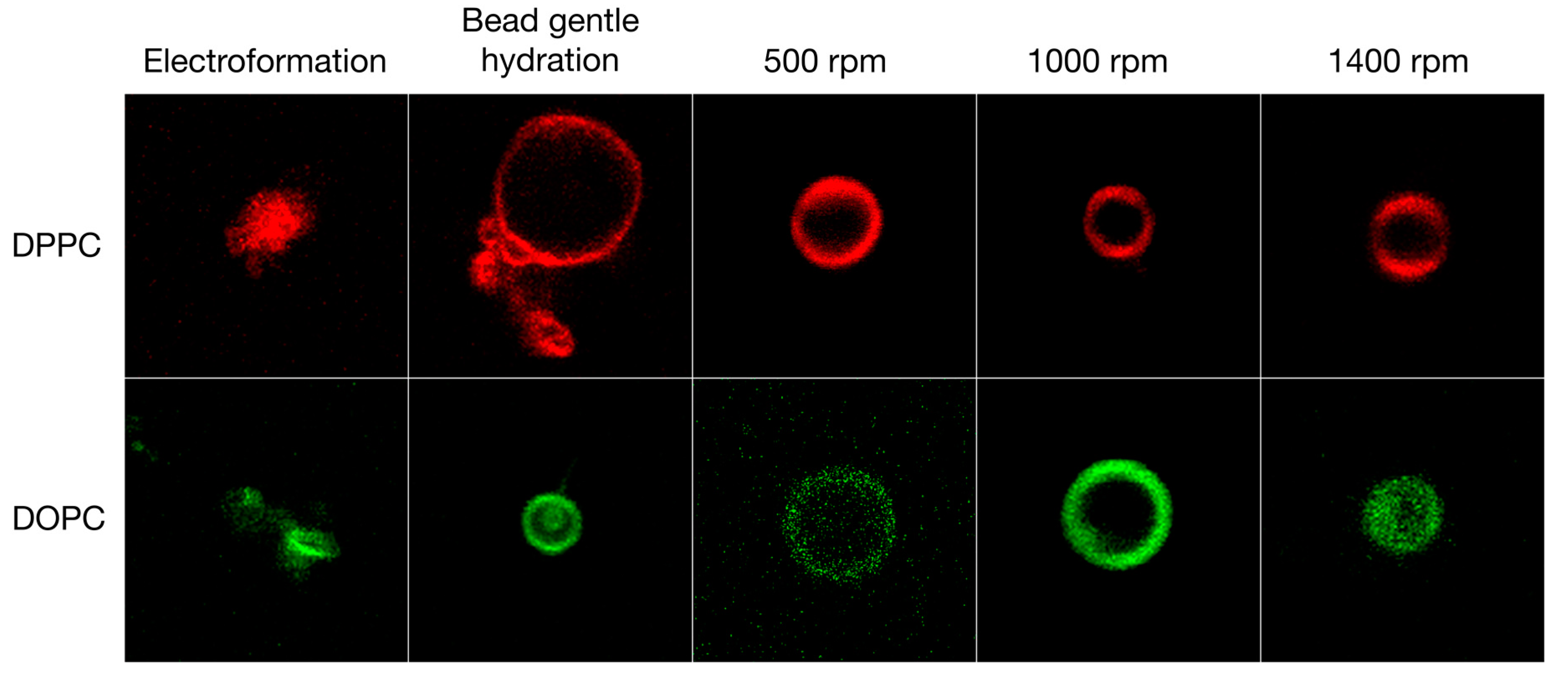

Figure 4. Giant vesicles formed in 400 mOsm/L PBS and a sucrose/glucose gradient. The shaking method was not affected by the high salt concentration. In contrast, electroformation did not yield vesicles. Each square is sized to 20 µm × 20 µm. The colors have been artificially adapted to red and green for bilayer gel and liquid crystalline phases, respectively.
Figure 4. Giant vesicles formed in 400 mOsm/L PBS and a sucrose/glucose gradient. The shaking method was not affected by the high salt concentration. In contrast, electroformation did not yield vesicles. Each square is sized to 20 µm × 20 µm. The colors have been artificially adapted to red and green for bilayer gel and liquid crystalline phases, respectively.
Polymers 10 00054 g004
Figure 5. Giant vesicles formed in ultra-pure water. Each square but one is sized to 20 µm × 20 µm, the scale bar in one picture is 20 µm. The general polarization was calculated in order to quantify the extent of the gel vs. liquid crystalline phases (represented also in the heat map). The empty squares represent experiments that have been performed but did not yield mixed vesicles or that were not possible to perform using electroformation.
Figure 5. Giant vesicles formed in ultra-pure water. Each square but one is sized to 20 µm × 20 µm, the scale bar in one picture is 20 µm. The general polarization was calculated in order to quantify the extent of the gel vs. liquid crystalline phases (represented also in the heat map). The empty squares represent experiments that have been performed but did not yield mixed vesicles or that were not possible to perform using electroformation.
Polymers 10 00054 g005

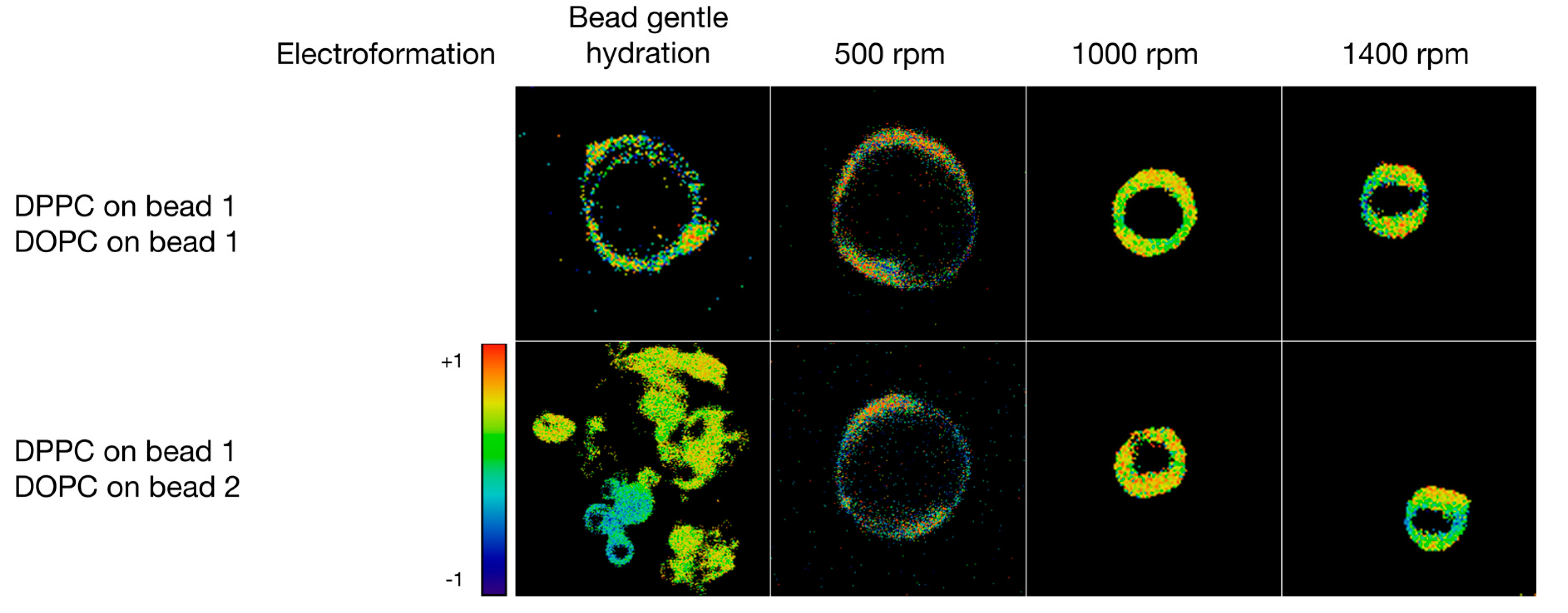

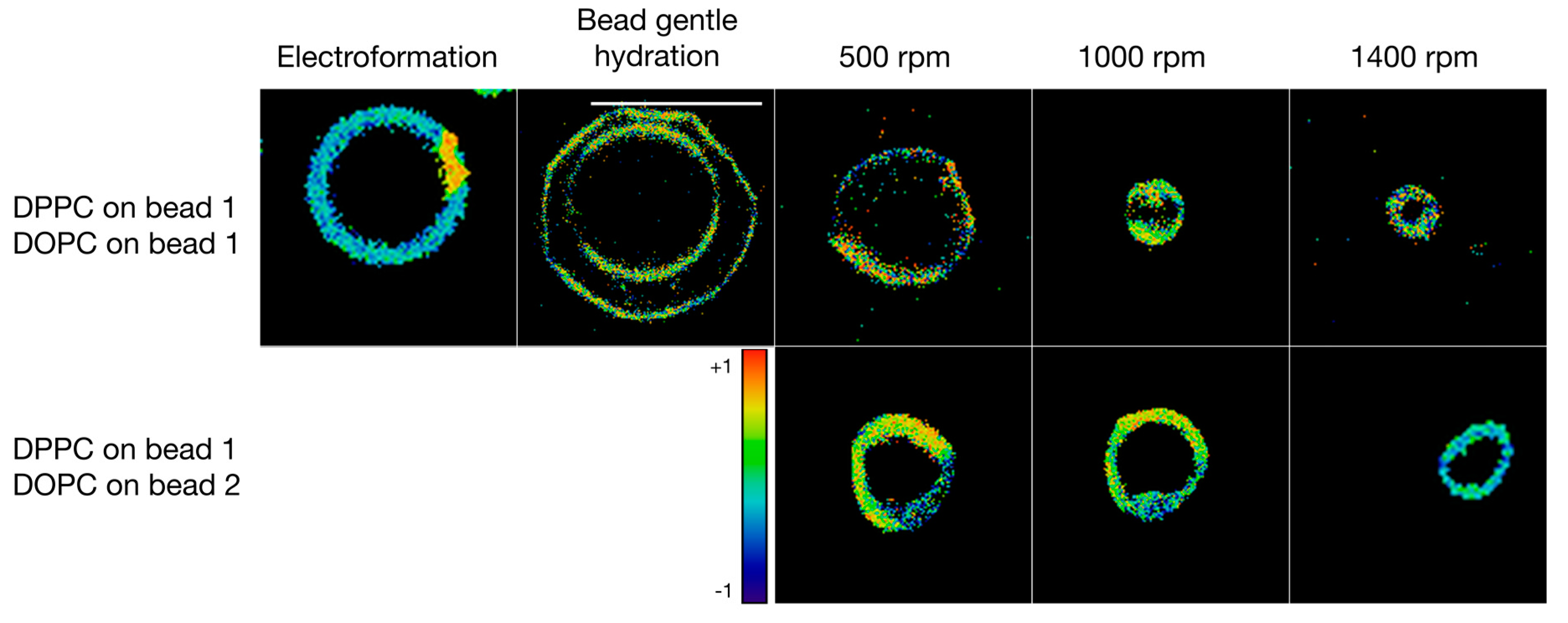

Figure 6. Calculated general polarization values for giant vesicles formulated in PBS buffer in a sucrose/glucose gradient. The empty squares represent experiments that were carried out, but did not yield vesicles or that were not possible to perform using electroformation. Each square is sized to 20 µm × 20 µm.
Figure 6. Calculated general polarization values for giant vesicles formulated in PBS buffer in a sucrose/glucose gradient. The empty squares represent experiments that were carried out, but did not yield vesicles or that were not possible to perform using electroformation. Each square is sized to 20 µm × 20 µm.
Polymers 10 00054 g006

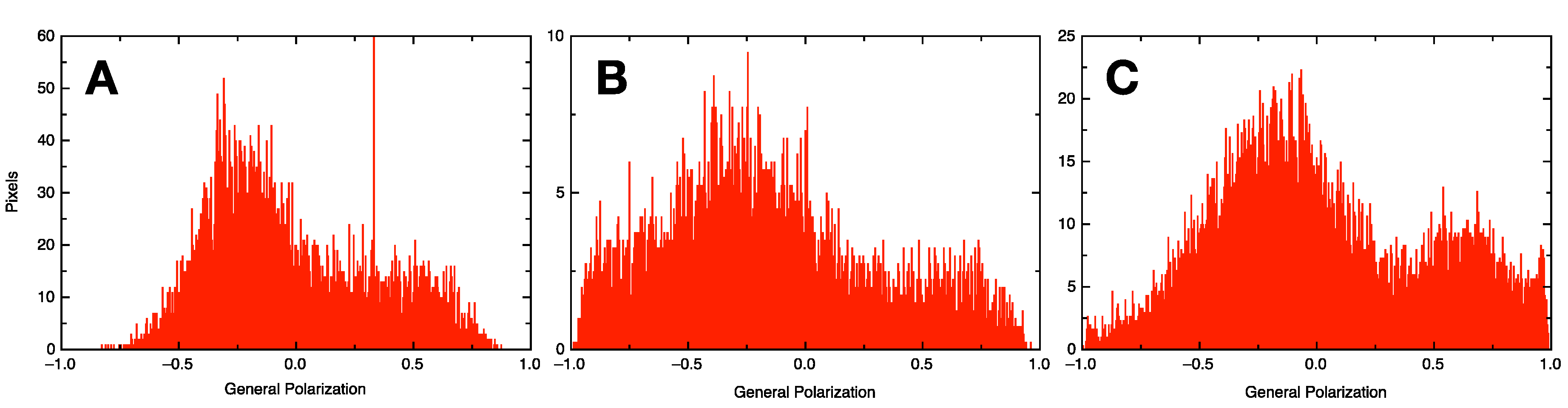

Figure 7. Comparison of the general polarization values measured from DPPC/DOPC GVs formulated via electroformation (A) or shaking method at 1400 rpm (B,C). For electroformation (A) a film of both DPPC and DOPC was formed in the electroformation chamber and formulated using pure water. For (B,C) two sets of glass beads were mixed, one coated with DPPC, the other with DOPC. The glass beads were hydrated in pure water (B) or in PBS buffer (C) with shaking at 1400 rpm and imaged in a sucrose/glucose gradient. Each histogram summarized an overview micrograph with at least 20 GVs. The three GV populations are qualitatively very similar.
Figure 7. Comparison of the general polarization values measured from DPPC/DOPC GVs formulated via electroformation (A) or shaking method at 1400 rpm (B,C). For electroformation (A) a film of both DPPC and DOPC was formed in the electroformation chamber and formulated using pure water. For (B,C) two sets of glass beads were mixed, one coated with DPPC, the other with DOPC. The glass beads were hydrated in pure water (B) or in PBS buffer (C) with shaking at 1400 rpm and imaged in a sucrose/glucose gradient. Each histogram summarized an overview micrograph with at least 20 GVs. The three GV populations are qualitatively very similar.
Polymers 10 00054 g007
Table 1. Quantitative comparison of the size and uniformity of GVs formed by different techniques in ultra-pure water or sucrose PBS buffer. If no value is recorded, then the corresponding experiments have been carried out, but no liposomes were formed.
Table 1. Quantitative comparison of the size and uniformity of GVs formed by different techniques in ultra-pure water or sucrose PBS buffer. If no value is recorded, then the corresponding experiments have been carried out, but no liposomes were formed.
LipidSolvent Formulation#GVs CountedSize ± STD (μm)
DPPCwaterElectroformation249.9 ± 4.9
Bead gentle hydration118.8 ± 4.1
Shaking @ 500 rpm148.9 ± 1.3
Shaking @ 1000 rpm267.8 ± 1.3
Shaking @ 1400 rpm214.1 ± 1.1
DPPCPBS sucrose Electroformation- 1- 1
Bead gentle hydration205.0 ± 2.6
Shaking @ 500 rpm157.5 ± 1.2
Shaking @ 1000 rpm204.9 ± 1.1
Shaking @ 1400 rpm234.9 ± 0.9
DOPCwaterElectroformation1913.4 ± 5.6
Bead gentle hydration267.9 ± 7.2
Shaking @ 500 rpm1711.2 ± 2.2
Shaking @ 1000 rpm239.6 ± 1.6
Shaking @ 1400 rpm255.9 ± 1.2
DOPCPBS sucroseElectroformation- 1- 1
Bead gentle hydration138.8 ± 4.9
Shaking @ 500 rpm217.8 ± 1.5
Shaking @ 1000 rpm196.6 ± 1.2
Shaking @ 1400 rpm165.0 ± 1.0
DPPC on bead 1
DOPC on bead 1
waterElectroformation3117.3 ± 9.1
Bead gentle hydration239.2 ± 6.1
Shaking @ 500 rpm2410.4 ± 1.3
Shaking @ 1000 rpm145.9 ± 1.4
Shaking @ 1400 rpm194.1 ± 1.2
DPPC on bead 1
DOPC on bead 1
PBS sucroseElectroformation- 1- 1
Bead gentle hydration116.9 ± 2.3
Shaking @ 500 rpm1910.8 ± 1.3
Shaking @ 1000 rpm216.1 ± 1.1
Shaking @ 1400 rpm194.6 ± 0.6
DPPC on bead 1
DOPC on bead 2
water Electroformation- 2- 2
Bead gentle hydration295.3 ± 2.8
Shaking @ 500 rpm168.3 ± 1.4
Shaking @ 1000 rpm177.8 ± 1.3
Shaking @ 1400 rpm214.6 ± 1.0
DPPC on bead 1
DOPC on bead 2
PBS sucroseElectroformation- 2- 2
Bead gentle hydration214.7 ± 2.7
Shaking @ 500 rpm188.2 ± 1.3
Shaking @ 1000 rpm165.6 ± 1.1
Shaking @ 1400 rpm244.2 ± 0.7
1 No GVs formed in the experiments; 2 This experiment cannot be performed using electroformation.
