Pulse-Propagation Modeling and Experiment for Femtosecond-Laser Writing of Waveguide in Nd:YAG

1
Chester F. Carlson Center for Imaging Science, Rochester Institute of Technology, Rochester, NY 14623, USA
2
Aktiwave LLC, 150 Lucius Gordon Dr., Rochester, NY 14586, USA
*
Author to whom correspondence should be addressed.
Crystals 2019, 9(8), 434; https://doi.org/10.3390/cryst9080434
Received: 19 July 2019 / Revised: 9 August 2019 / Accepted: 16 August 2019 / Published: 20 August 2019
(This article belongs to the Special Issue Laser Crystals)

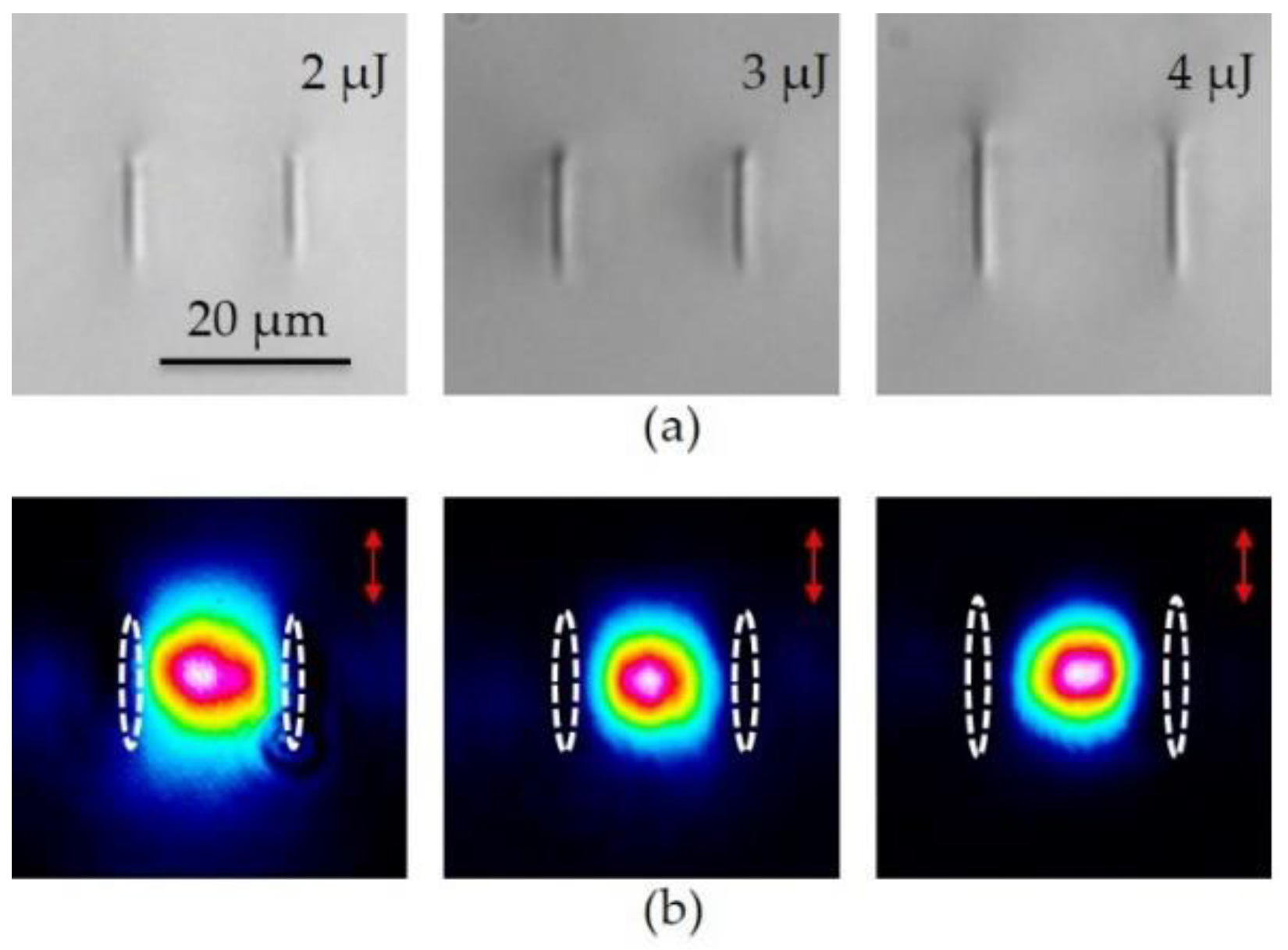

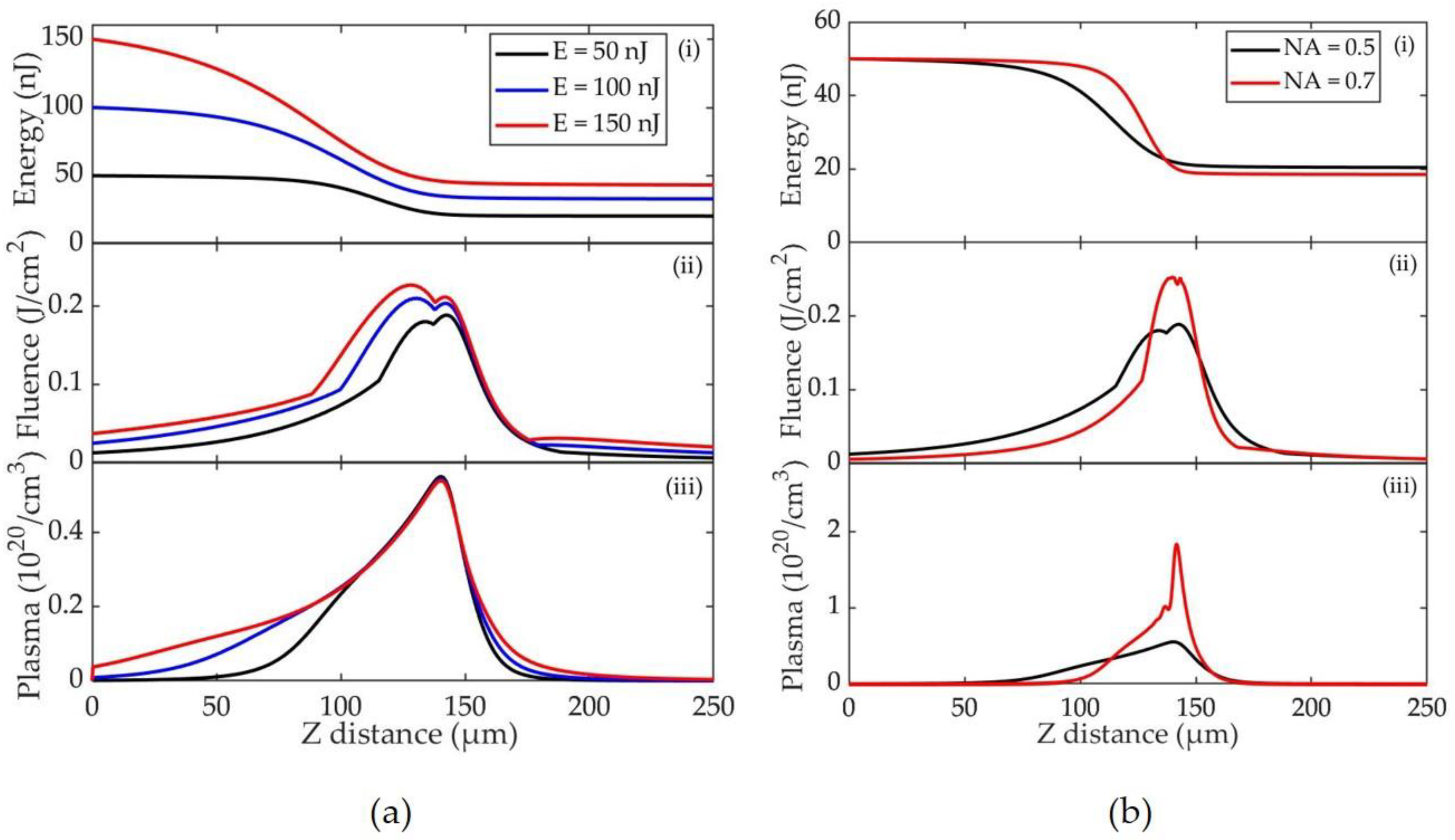

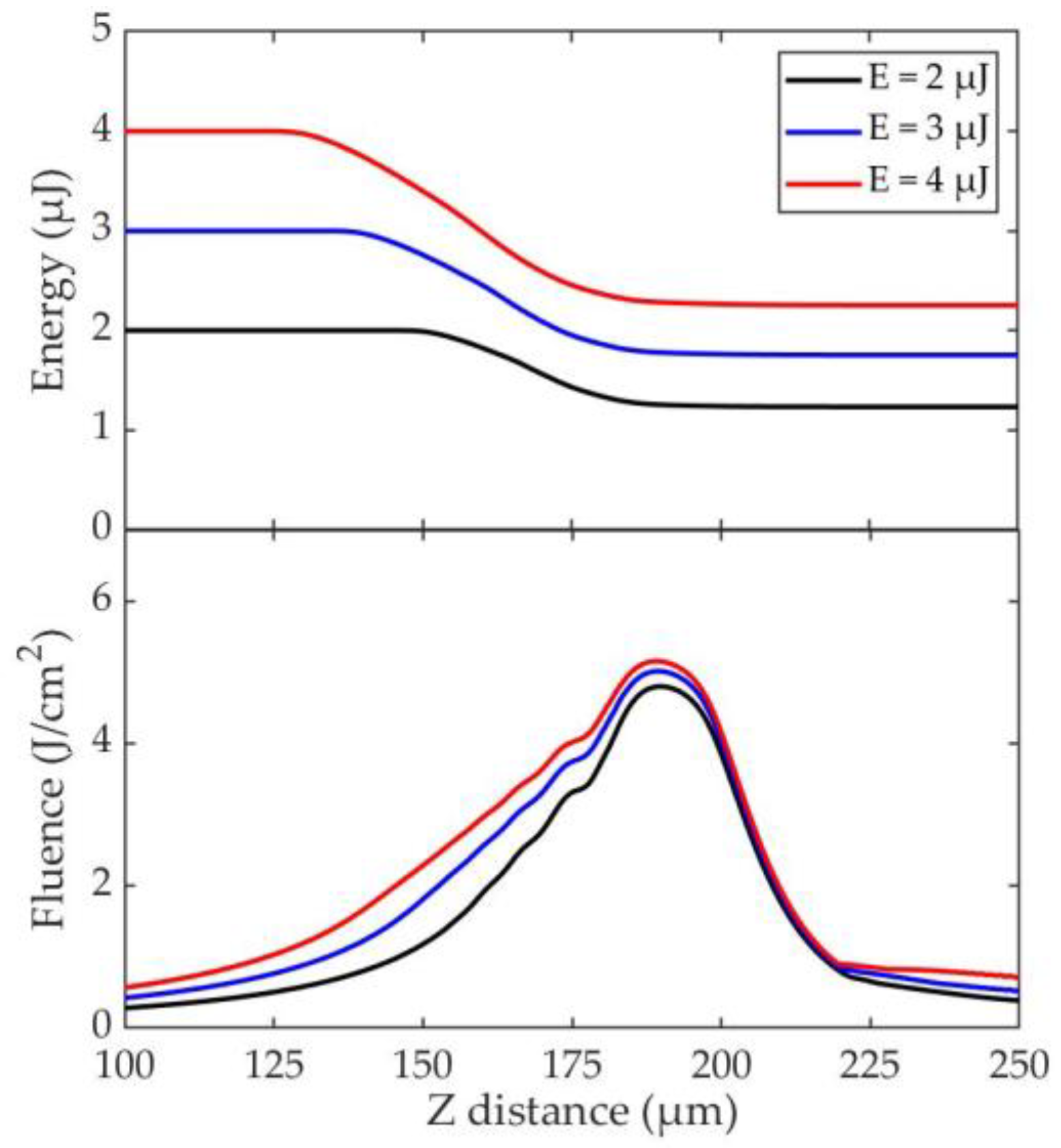

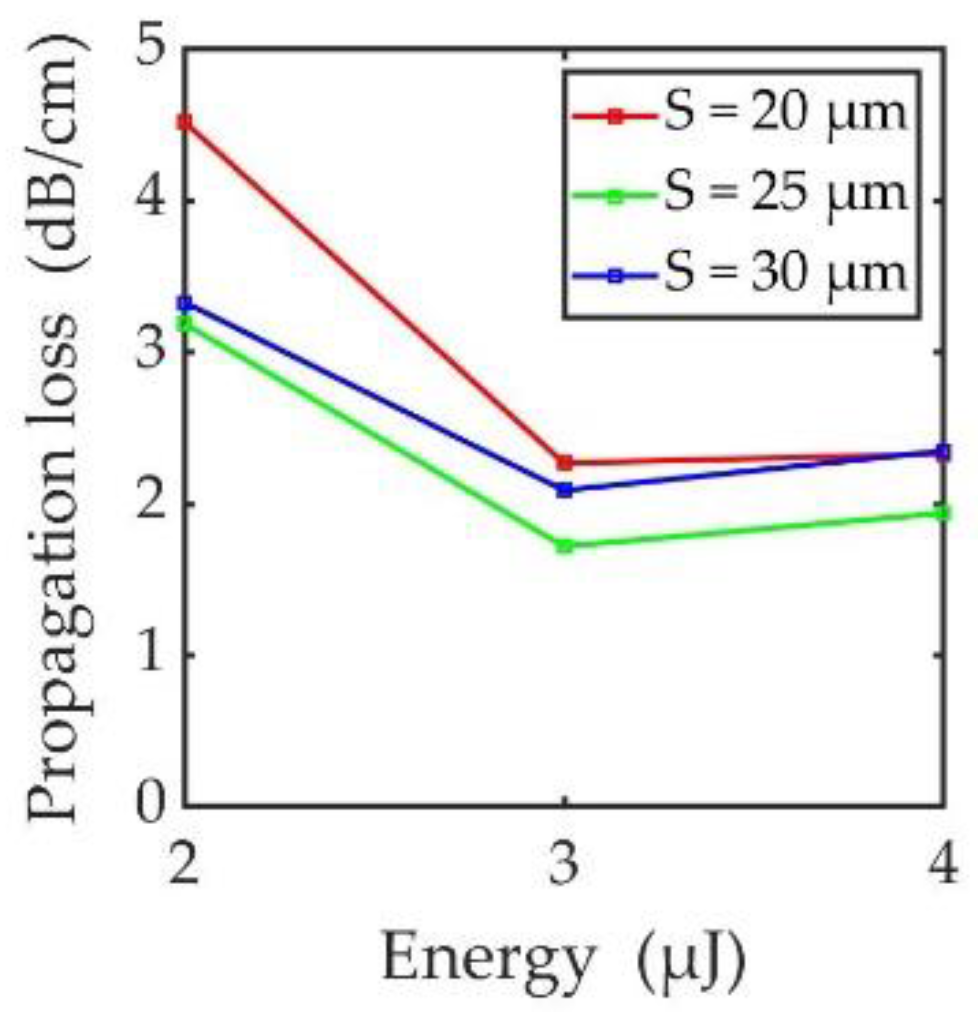

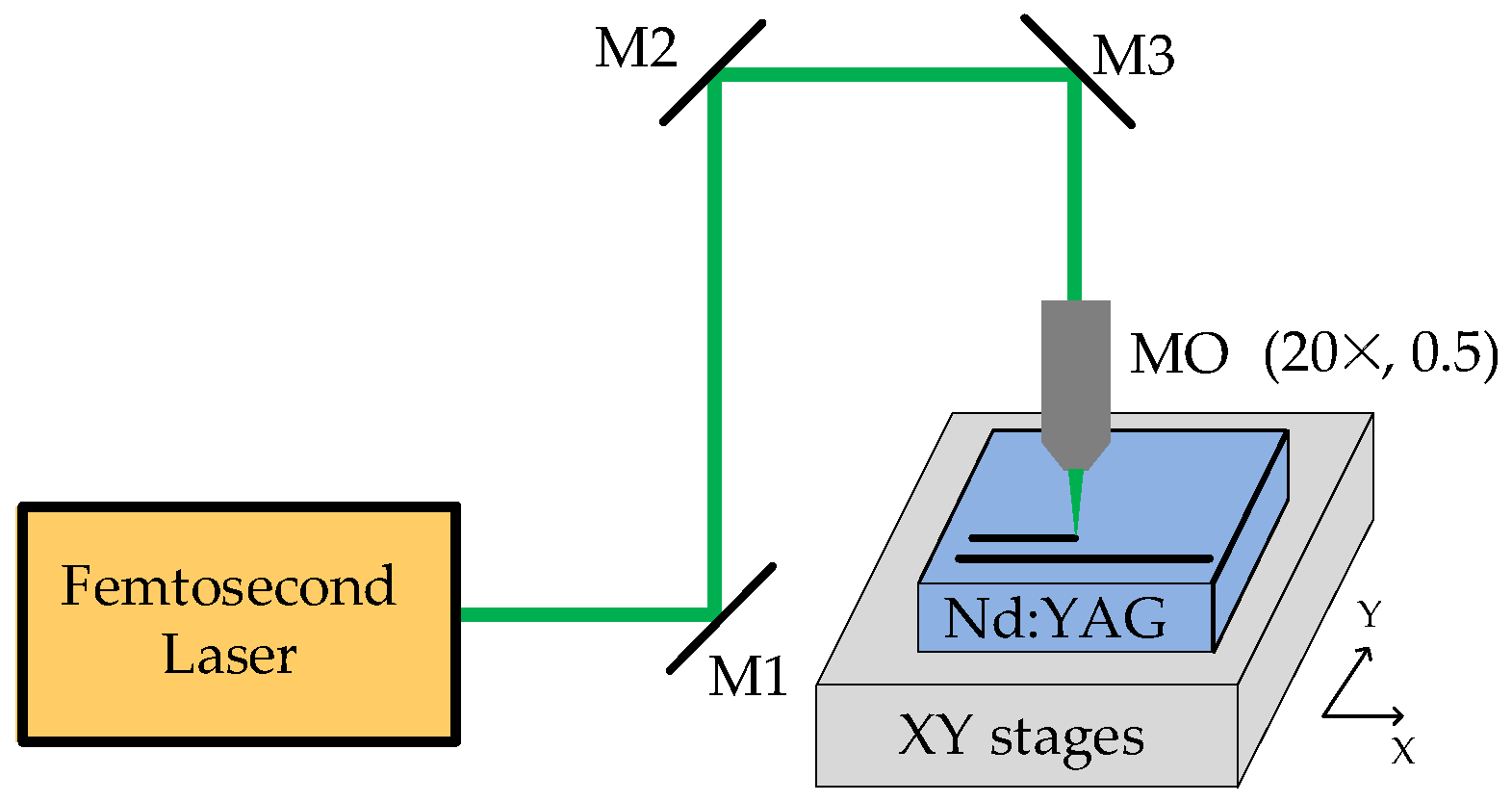

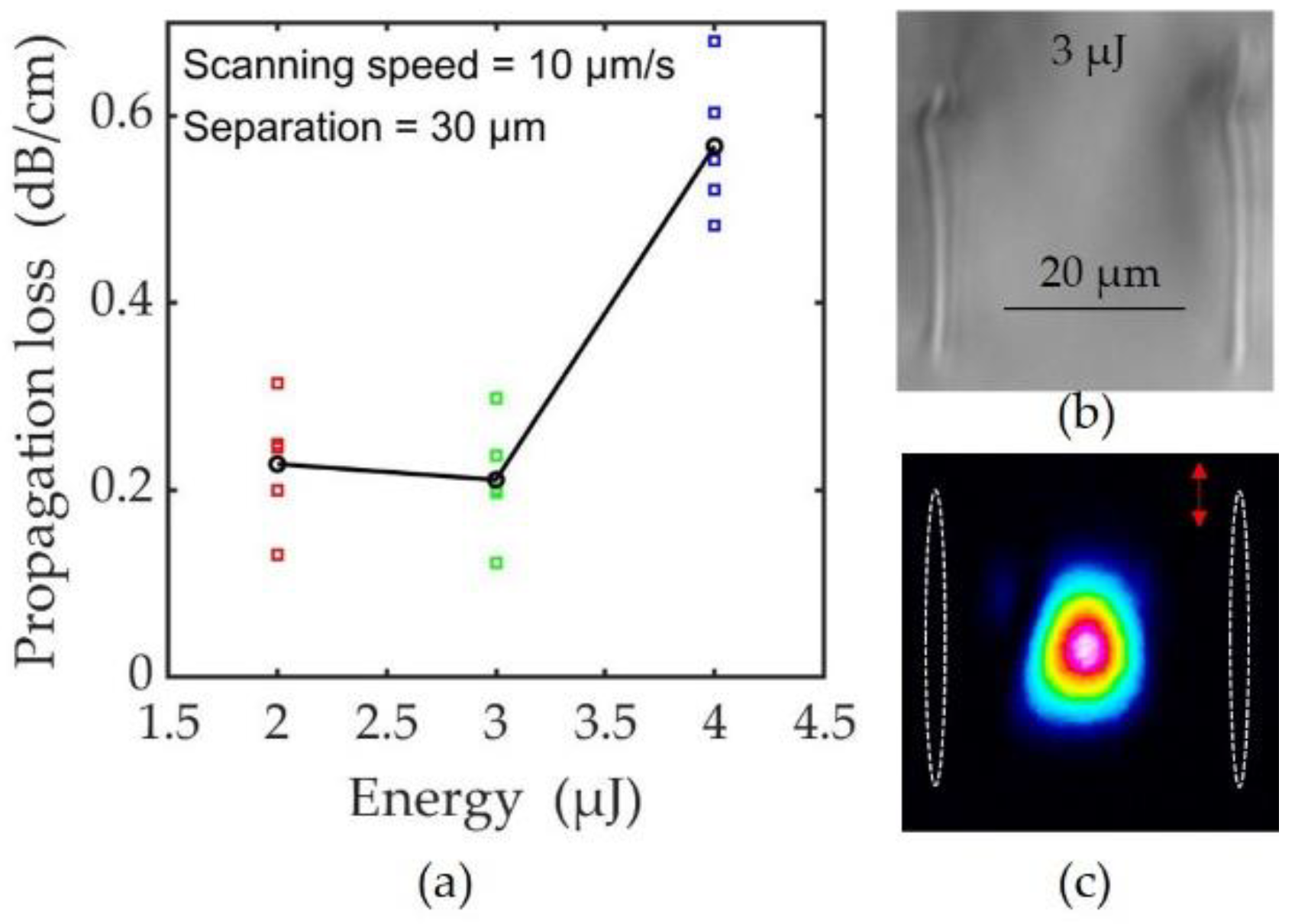

In this work, unidirectional pulse propagation equation (UPPE) modeling is performed to study the nonlinear laser-mater interaction in silicon and Nd:Y3Al5O12 (Nd:YAG) crystals. The simulation results are validated with reported experimental results for silicon and applied to Nd:YAG crystals with experimental validation. Stress-induced waveguides are written in Nd:YAG crystals using 515 nm, 300 fs pulses at a 1 kHz repetition rate. Waveguides having a mean propagation loss of 0.21 ± 0.06 dB/cm are obtained, which is lower than the previous reported values for Type-II waveguides written in Nd:YAG crystals. The modeling and experimental results consistently show that the modification (waveguide track) depth increases with input energy. A detailed analysis is presented to control the modal properties of the waveguide in the context of UPPE simulation. View Full-Text
Keywords: femtosecond laser writing; nonlinear pulse propagation; stress-induced waveguide writing; Nd:YAG crystal femtosecond laser writing; nonlinear pulse propagation; stress-induced waveguide writing; Nd:YAG crystal
Show Figures

Figure 1

MDPI and ACS Style

Feng, T.; Sahoo, P.K.; Arteaga-Sierra, F.R.; Dorrer, C.; Qiao, J. Pulse-Propagation Modeling and Experiment for Femtosecond-Laser Writing of Waveguide in Nd:YAG. Crystals 2019, 9, 434.
