Open AccessCommunication

Electro-Optical Effects of a Color Polymer-Dispersed Liquid Crystal Device by Micro-Encapsulation with a Pigment-Doped Shell

1
Smart Display Lab, Department of Electronic Engineering, Shanghai Jiao Tong University, Shanghai 200240, China
2
Division of Electronic and Display Engineering, Hoseo University, Asan, Chungnam 336-795, South Korea
*
Author to whom correspondence should be addressed.
Crystals 2019, 9(7), 364; https://doi.org/10.3390/cryst9070364
Received: 25 June 2019 / Revised: 10 July 2019 / Accepted: 11 July 2019 / Published: 17 July 2019
(This article belongs to the Special Issue Liquid Crystals Optical Devices (Volume II))
  |
PDF [11078 KB, uploaded 17 July 2019]
  |

Abstract

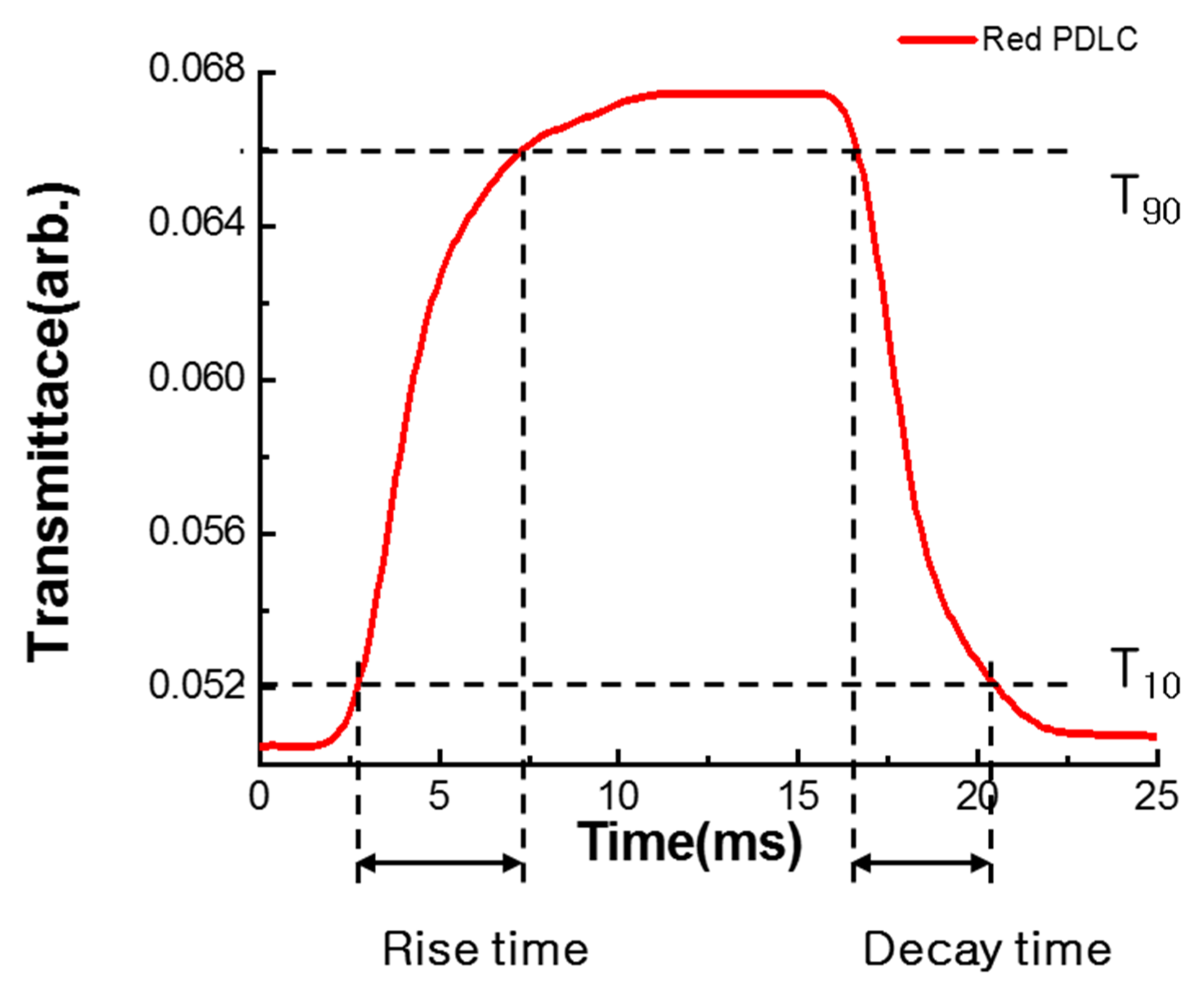

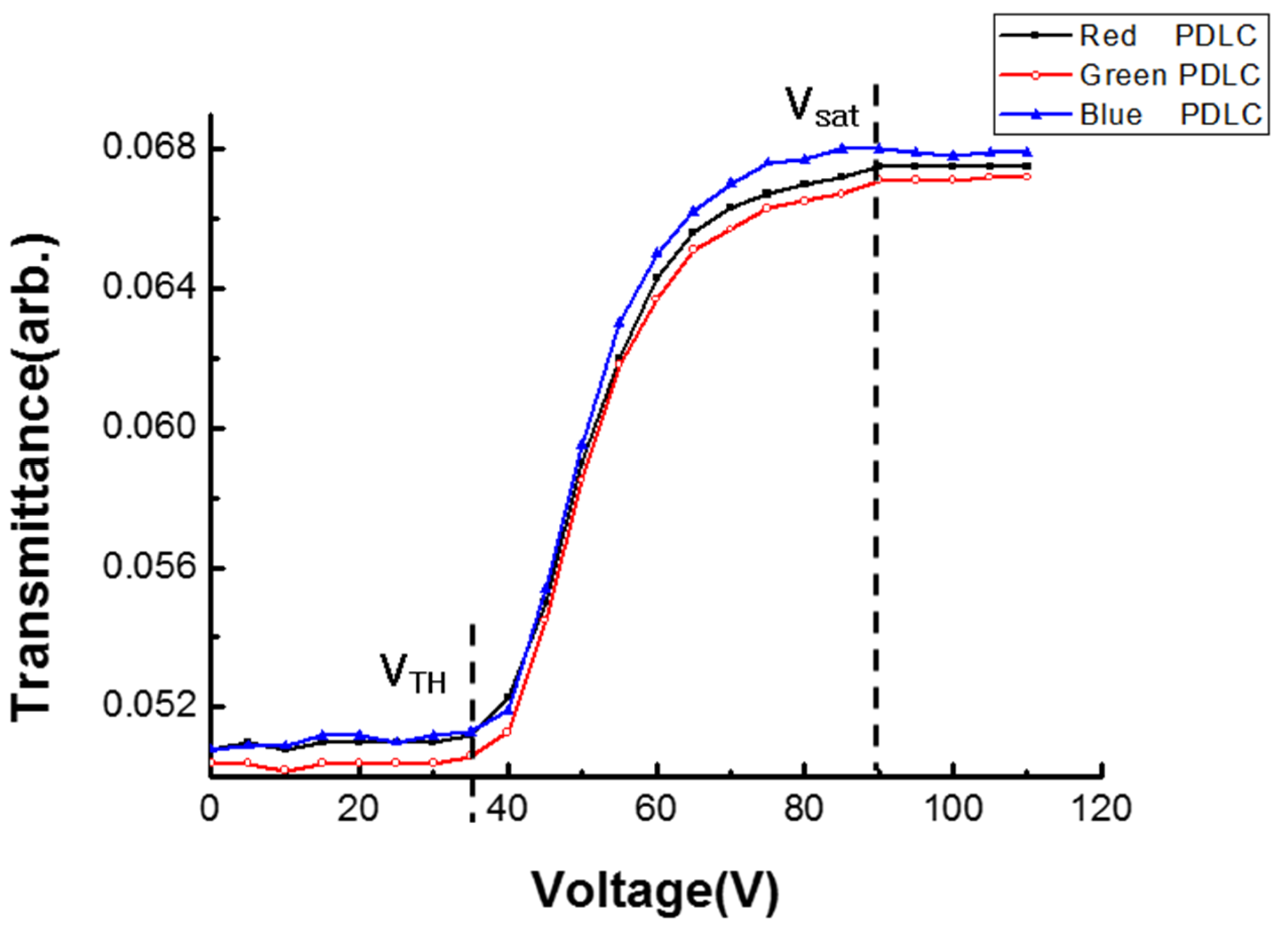

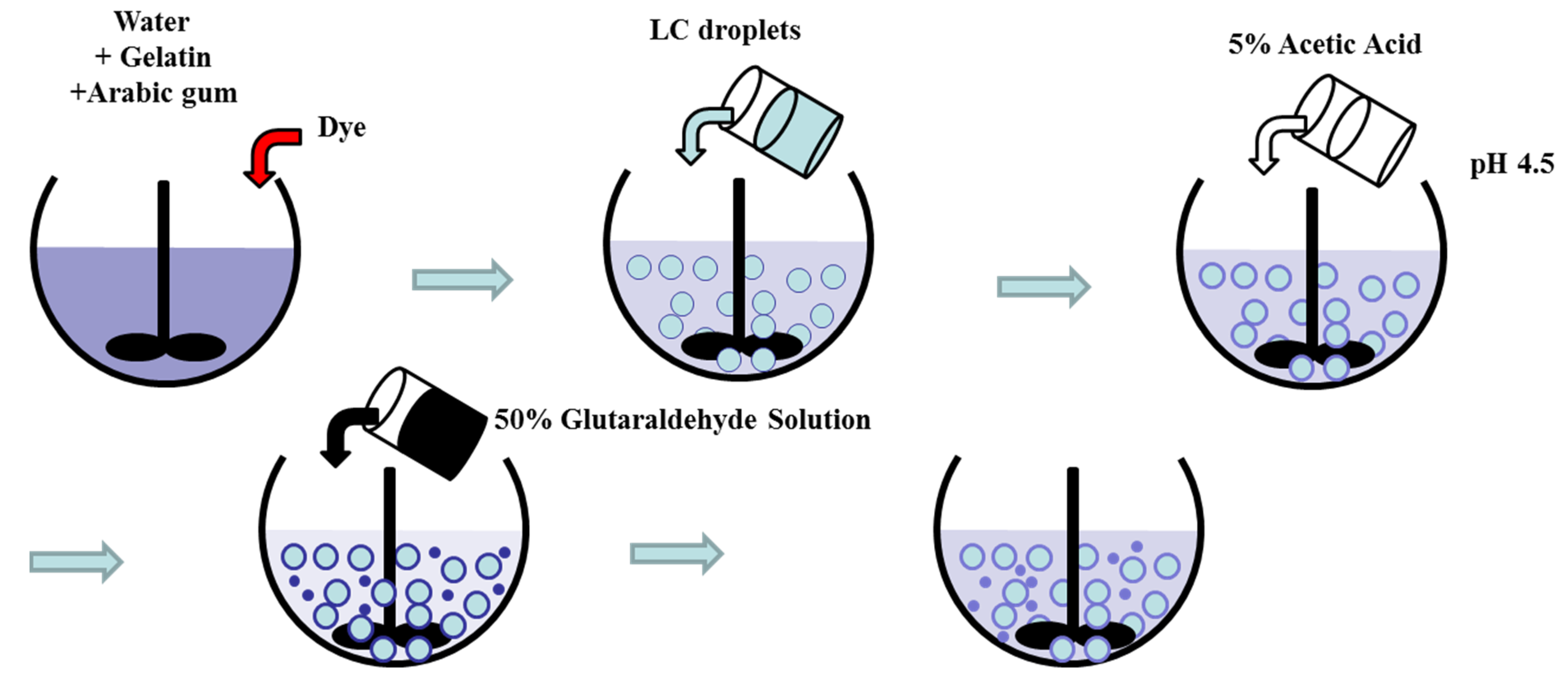

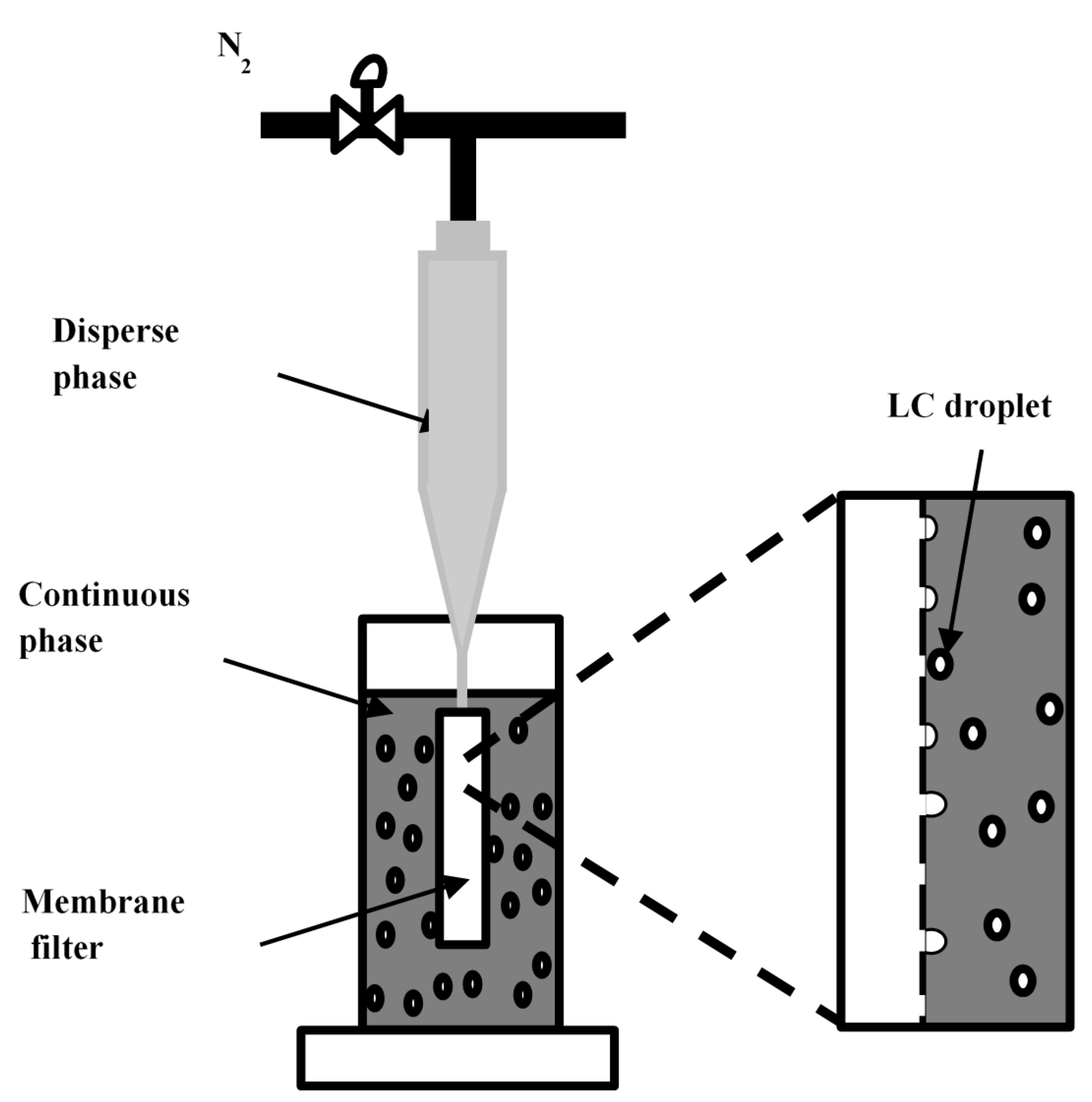

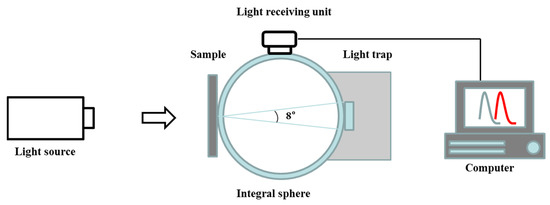

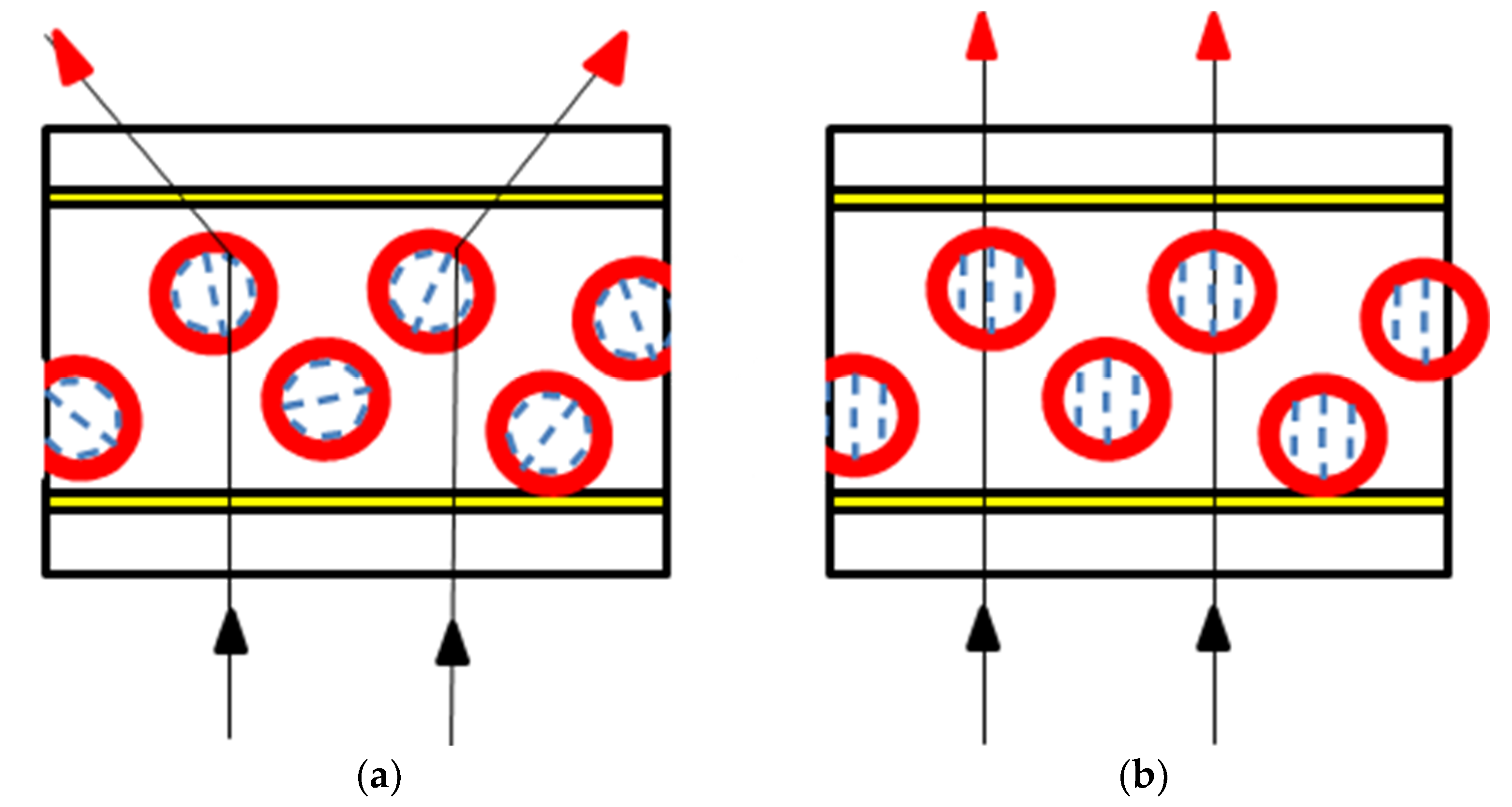

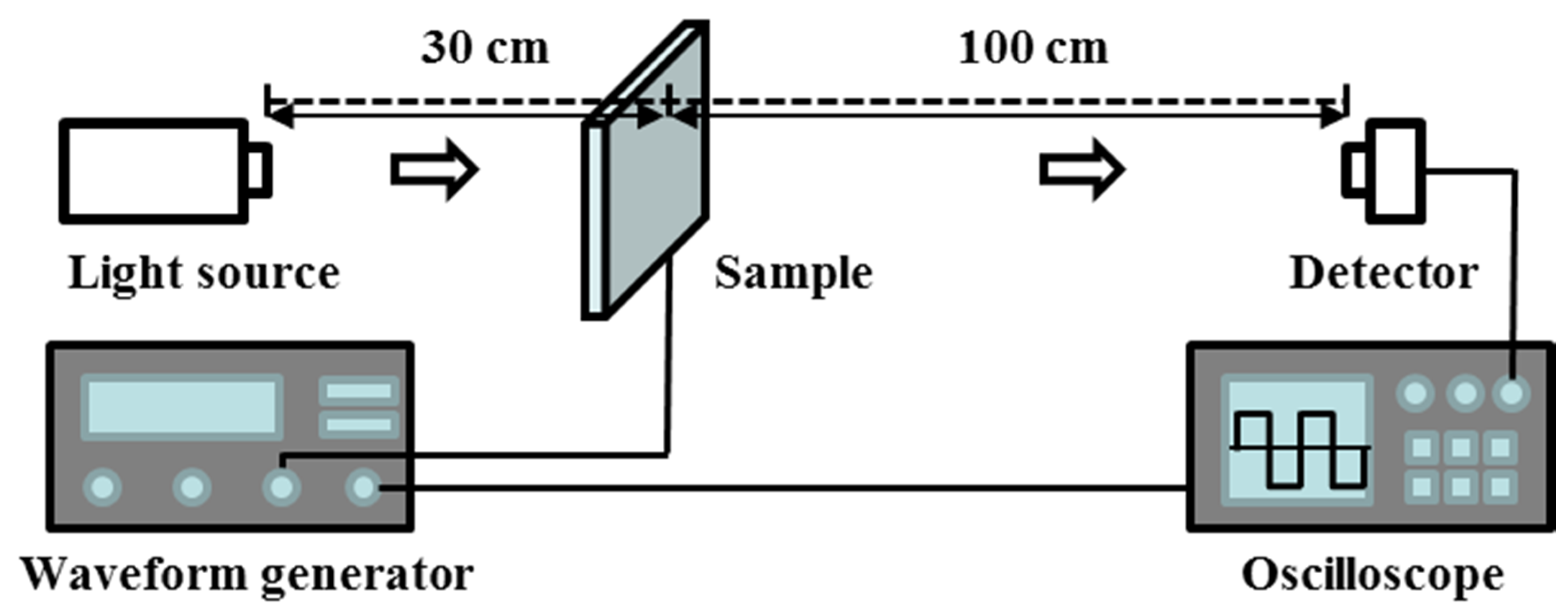

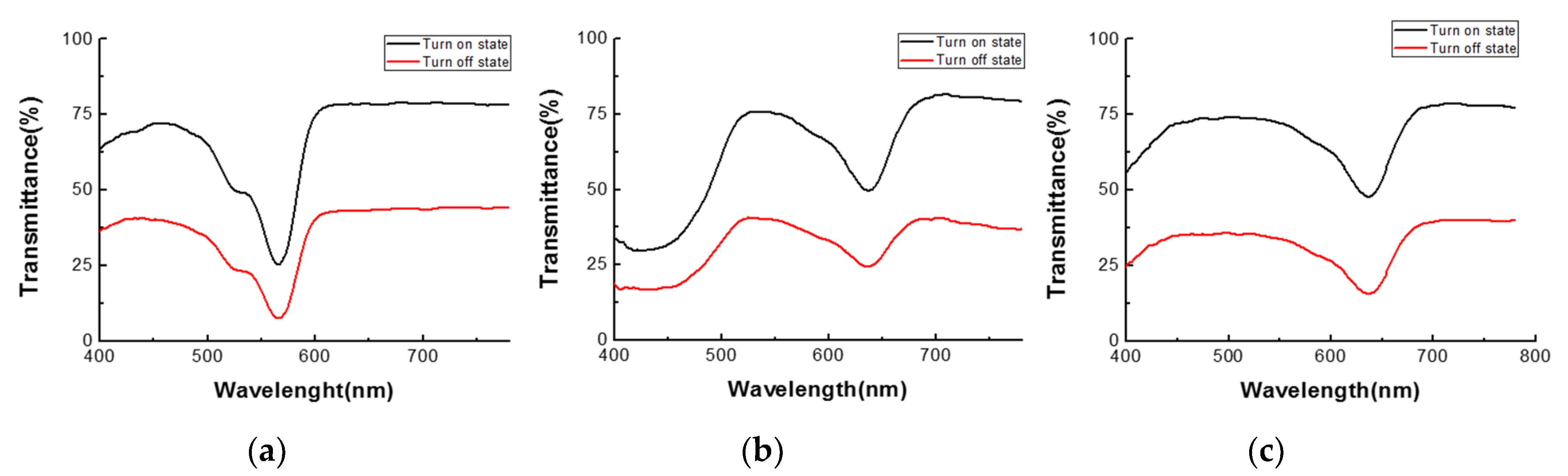

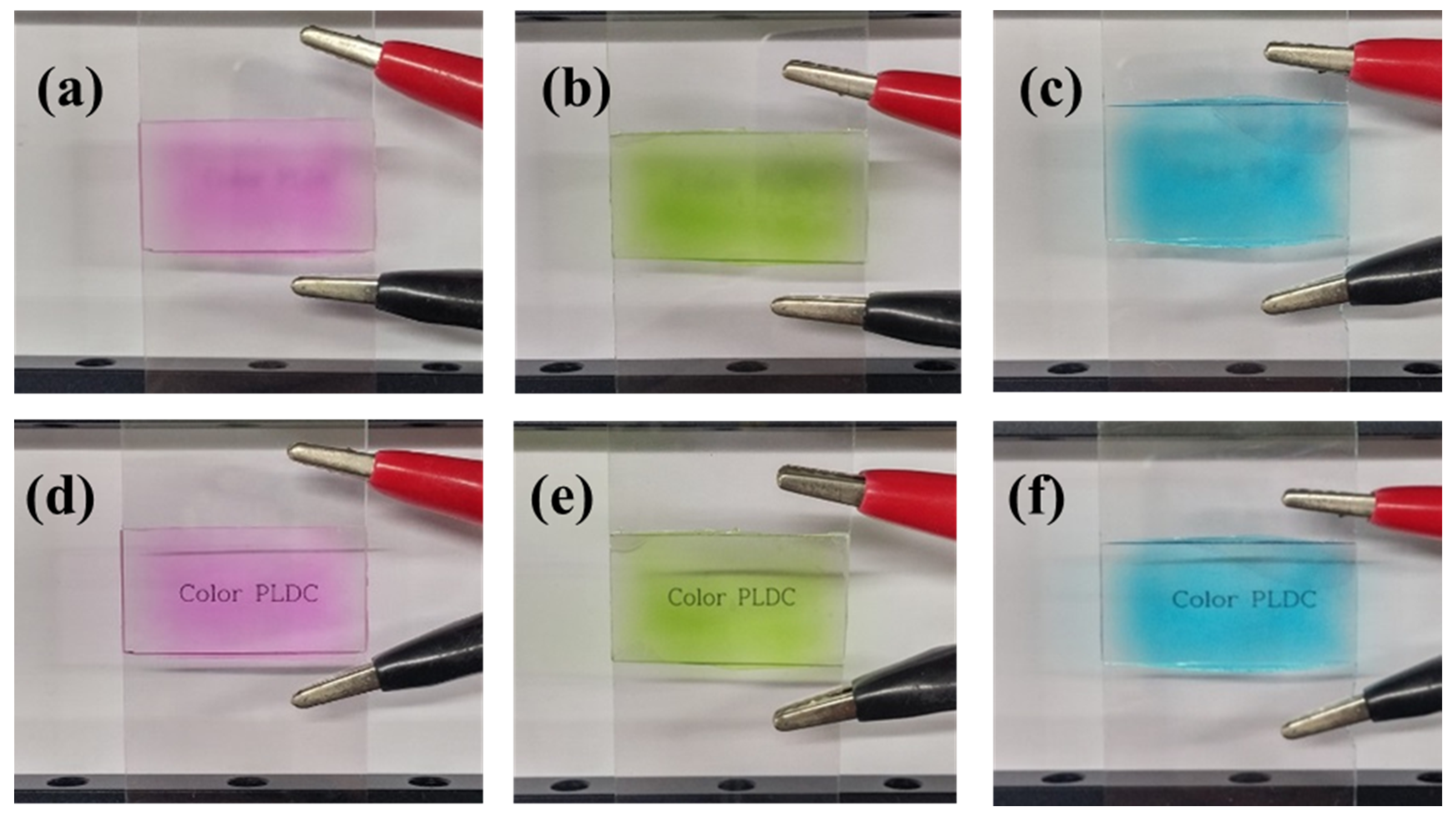

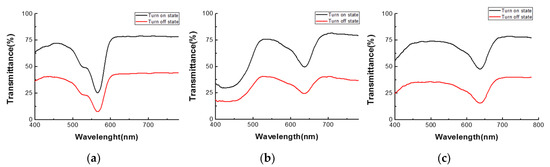

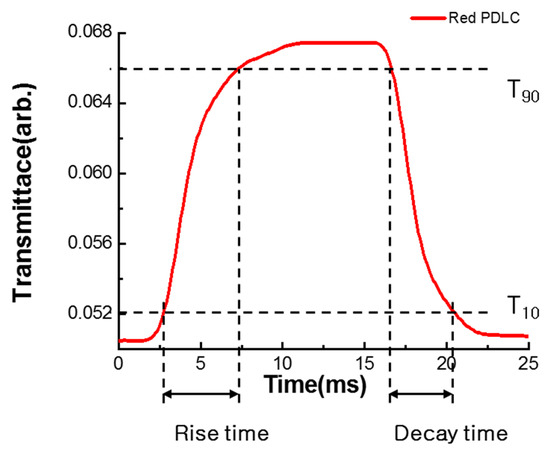

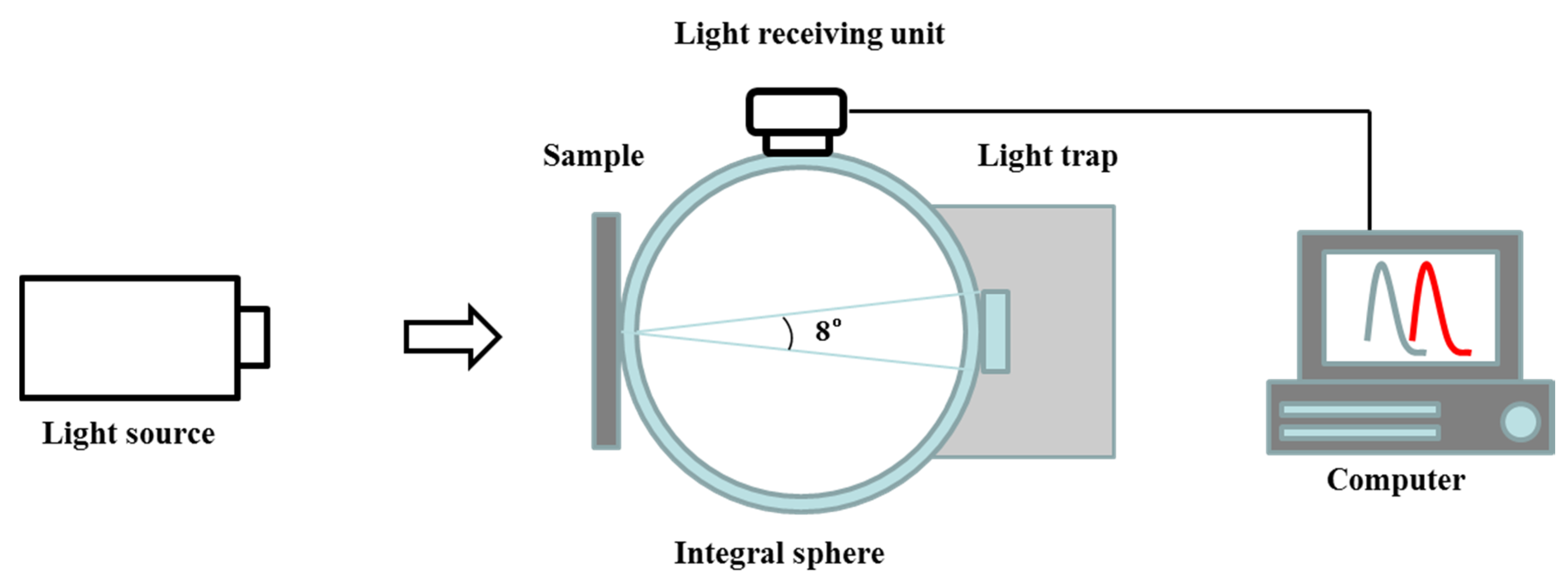

Polymer-dispersed liquid crystals (PDLCs) refer to nematic liquid crystals, which are embedded in a polymer matrix. A conventional PDLC device is fabricated by phase separation. However, this method leads to non-uniform electro-optical characteristics of the device due to the non-uniform size distribution of the liquid crystal droplets. Moreover, the PDLC device is switched between the transparent state and the scattering state so that a full color scheme is intrinsically impossible without a color filter. In this paper, a fabrication method for a color PDLC device with uniform size and shape for liquid crystal droplets is proposed. Droplets of a fairly uniform size in large quantities can be obtained by means of membrane emulsification. Microcapsules are fabricated by complex coacervation with gelatin and gum arabic. By adding red, green, and blue pigments, color microcapsules are obtained. The electro-optical effects of the fabricated color PDLC devices are also demonstrated. The driving voltage of the device is 90 V, and the switching time is 8.3 ms. In the turn-on state, the measured hazes of red, green, and blue PDLC devices are 16.89%, 15.82%, and 18.55%, respectively, while in the turn-off state, the measured hazes of those devices are 65.21%, 67.32%, and 70.76%, respectively. View Full-Text
Keywords: polymer-dispersed liquid crystal; microcapsule; pigment; scattering polymer-dispersed liquid crystal; microcapsule; pigment; scattering
Figures

Figure 1
