Crystals 2019, 9(11), 587; https://doi.org/10.3390/cryst9110587

Article
Bridgman Growth of New Nonlinear Optical Crystal (La1 − xSmx)3Ga5.5Nb0.5O14 for Quasi-Parametric Chirped Pulse Amplification
1
School of Materials Science and Engineering, Shanghai Institute of Technology, Shanghai 201418, China
2
Shanghai Institute of Ceramics, Chinese Academy of Sciences, Shanghai 201899, China
3
Suzhou Research Institute, Shanghai Institute of Ceramics, Chinese Academy of Sciences, 6 Liangfu Road, Taicang, Jiangsu 215400, China
*
Authors to whom correspondence should be addressed.
Received: 13 October 2019 / Accepted: 7 November 2019 / Published: 9 November 2019

Abstract

:
Samarium-doped La3Nb0.5Ga5.5O14 (Sm:LGN) crystals were grown along a (100)-orientation by the Bridgman method for quasi-parametric chirped pulse amplification (QPCPA) applications. The structure of La1-xSxmGN (x = 0.1, 0.2) crystals was the same as that of La3Nb0.5Ga5.5O14 (LGN) crystals. The effective segregation coefficient of Sm3+ in the La0.9Sm0.1GN crystal was 0.140. The full width at half maximum (FWHM) of La1-xSxmGN (x = 0.1,0.2) crystals was lower than 50″, which indicated the high quality of the crystals. The density of the La0.9Sm0.1GN crystal was 5.968 g/cm3 and that of the La0.8Sm0.2GNcrystal was 5.988 g/cm3. The transmittance of the crystals at 532nm and 800nm was all above 73%. The absorption spectra indicated that the crystals had strong absorption peaks at wavelengths of 1544 and 1595 nm. The thermal properties of La1-xSxmGN (x = 0.1, 0.2) crystals were similar to those of the LGN crystals. The laser damage thresholds of La0.9Sm0.1GN and La0.8Sm0.2GN crystals were, respectively, 188.30 and 54.84 TW/cm2 (@800 nm,35 fs).
Keywords:
Bridgman growth; nonlinear optics crystal; Sm-doped; La3Ga5.5Nb0.5O14

1. Introduction

Since the invention of laser technology, many scientists have focused their efforts on obtaining ultra-intense and ultra-short laser pulses. Chirped-pulse amplification (CPA), which won the Nobel Prize in physics in 2018, was first reported in 1985 [1]. The CPA scheme firstly involves the stretch of a femtosecond pulse, followed by amplification and, finally, compression to obtain a high peak power. Nowadays, the main crystal used in the CPA scheme is Ti:sapphire. The conversion efficiency of CPA can be up to 50% [2,3]. However, the gain in bandwidth is limited due to the presence of sharp energy levels. The gain bandwidth is only 75 nm at 800 nm when using the Ti:sapphire amplifier [4]. After the invention of the CPA scheme, optical parametric chirped-pulse amplification (OPCPA) was proposed by Dubietis et al. in 1992 [5]. The amplification process of OPCPA is completed by nonlinear parametric amplification in which the energy level is virtual and tunable. As such, the OPCPA scheme can obtain a wider gain in bandwidth. Furthermore, the thermal effect of OPCPA is weak. Nevertheless, the conversion efficiency of OPCPA is lower because of the backflow effect and strict phase matching condition. The crystals that can be used in OPCPA include BBO (β-BaB2O4), LBO (LiB3O5), KDP (KH2PO4), CLBO (CsLiB6O10), YCOB (YCa4O(BO3)3), LGN (La3Ga5.5Nb0.5O14) and so on [6,7]. In order to obtain a high conversion efficiency and broad bandwidth at the same time, Qian and Zheng et al. reported a new scheme termed quasi-parametric chirped pulse amplification (QPCPA) in 2015 [8]. The only (but important) difference between OPCPA and QPCPA is the nonlinear crystal which is used. The QPCPA uses a specific crystal to absorb the idler wave. The QPCPA can obtain a high conversion efficiency and wide gain in bandwidth at the same time. Furthermore, the QPCPA is insensitive to phase matching. Nowadays, only Sm:YCOB crystals are reported to be used in QPCPA [9]. The YCOB crystal has a wide range of applications in piezoelectric and nonlinear optics fields. Although the Sm:YCOB crystal has been verified in QPCPA, its transmittance and crystal size limit its wider application. The transmittance range of YCOB crystal is 0.5–2.5 μm [10]. Two cleavage planes of YCOB crystal are, respectively, ( 2 ¯ 01) and (101) [11], so it is difficult to obtain high-quality YCOB crystals with an aperture larger than 100 mm. The transmittance of the LGN crystal is 0.28-7.5 μm, which is wider than that of the YCOB crystal; therefore, the LGN crystal has a wider range of application. Furthermore, the LGN crystal has no cleavage plane compared with the YCOB crystal. Therefore, the LGN crystal can easily exist as large-sized single crystals. In 2014, Patricia Segonds et al. reported nonlinear properties of the La3Ga5SiO14 (LGT) crystal [12]. Furthermore, the Sm-doped LGT crystals were also studied by Kaczmarek et al in detail. The magnetic and spectroscopic properties of Sm:LGT were measured [13,14]. Later, further research was carried out on the LGN crystal by Yu et al., [15]. Furthermore, theoretical research was also reported on the LGN crystal in optical parametric chirped pulse amplification (OPCPA), which demonstrates that the LGN crystal is a promising nonlinear optical crystal material [16].
The La3Ga5SiO14 (LGS, langasite) crystal was firstly produced in 1983 by Kaminsky et al through the Czochralski method as a laser crystal [17]. Since the LGS crystal was reported, the isomorphic compounds of LGS, La3Ta0.5 Ga5.5O14 (LGT, langatate), and La3Nb0.5Ga5.5O14 (LGN, langanate) have also been obtained. The electro-optic, piezoelectric, and dielectric properties of these crystals were also intensively studied [18]. These crystals are important single crystals because they do not undergo a phase transition when they reach the melting point [19]. Nowadays, most of the langasite-type crystals are grown by the Czochralski method, and only a few of these crystals are grown by the Bridgman method, such as La3GaSi5O14 (LGS), Sr3Ga2Ge4O14 (SGG), Ca3TaGa3Si2O14 (CTGS), Ca3NbGa3Si2O14 (CNGS), and Sr3NbGa3Si2O14 (SNGS) crystals [20,21,22]. To the best of our knowledge, the LGN crystal has not reported to be grown by the Bridgman method. The LGN crystal reported for OPCPA was grown by the Czochralski method. However, the cost of the Czochralski method is higher than that of the Bridgman method, therefore, it is not suitable for industrial production. Furthermore, the pump wave and signal wave are, respectively, 532 nm and 800 nm, and the idle wave is around 1588 nm, so we replace La3+ with the Sm3+ ion to absorb the idle wave.
In this paper, (La1 − xSmx)3Nb0.5Ga5.5O14 (x = 0.1,0.2) crystals were grown by the Bridgman method. The structures, spectra, and thermal properties of (La1 − xSmx)3Nb0.5Ga5.5O14 crystals were reported.

2. Materials and Methods

The starting materials used for crystal growth were prepared from a mixture of 4N pure La2O3, Sm2O3, Ga2O3, and Nb2O5 powders weighed in stoichiometric proportions in the following reaction:
6(1 − x)La2O3 + 6xSm2O3 + Nb2O5+11Ga2O3 → 4(La1 − xSmx)3Nb0.5Ga5.5O14
Because of the volatility of Ga2O3, 1 wt% of extra Ga2O3 of was added to compensate for the volatility during the crystal growth process. The raw materials were ground, mixed uniformly, and pressed into blocks, before being sintered at 1200 to 1400 °C for at least 20 h to prepare the polycrystalline materials for crystal growth. The crystals of La1 − xSmxGN were grown by the Bridgman method. The growth direction was along (100). The crystallographic LGT crystal bars withΦ10 mm × 60 mm were used as seed crystals. The Pt crucible was 10 mm in diameter and 150 mm in length. The furnace temperature was set to about 1600 °C, and the growth rate was less than 1 mm/h. When the crystal growth process was over, the temperature cooled down to room temperature at 40 °C/h.
X-ray diffraction (XRD, Rigaku, Tokyo, Japan) was used to identify the phase of the grown crystals. XRD data of the crystal sample were collected on a Rigaku D/max 2550 V diffractometer. High-resolution X-ray diffraction (HRXRD) (Bruker, Karlsruhe, Germany) was used to characterize the quality of crystals by D8-discover. The transmission and absorption spectra of the (100)-orientation wafer from 0.2 to 2.5 μm were measured by the Carry 5000 UV-Vis-NIR (Aglient, Palo Alto, CA, USA), and from 2.5 to 10 μm were measured by the Nicolet 6700 (Thermo, MA, USA) instrument at room temperature. The effective segregation coefficient of Sm3+ in the crystal was determined by X-ray fluorescence analysis (PANalytical, Almelo, Netherlands). The thermal properties of crystals were also tested. The density of the crystals was measured by the Archimedes-method. The specific heat of these crystals was measured by DSC-MHTC96 (Setaram, Leon, France). NETZSCH LFA 457(NETZSCH, Selb, Germany) was used to measure the thermal diffusion coefficient of La1 − xSmxGN crystals. The thermal conductivity was calculated by the density, specific heat, and thermal diffusion coefficient of crystals. The laser damage threshold was measured at 800 nm, with a pulse width of 35 fs.

3. Results and Discussion

3.1. Crystal Growth and Characterization

The crystals which were grown by the Bridgman method with different Sm3+ concentrations, which are shown in Figure 1. There were a few expelled impurities observable on the top of the crystals. The diameters of the crystals were 10 mm with a length of 50 to 65 mm. Because of the stripping of the Pt crucible from the crystals, the surface of the crystals was opaque. As shown in Figure 1b,d, the crystals were transparent after cutting and polishing.
Figure 2 shows the XRD patterns of the as-grown La1 − xSmxGN (x = 0.1,0.2) crystals compared with the pure LGN crystals. It can be seen that La1 − xSmxGN crystals have the same structure as pure LGN crystals, which indicates that La1 − XSmXGN crystals still belong to the P321 space group and 32 trigonal point group.
In order to evaluate the crystal quality, the rocking curve of polished (100)-orientation wafers were scanned on HRXRD. The rocking curves of the wafers are shown in Figure 3. The full width at half maximum (FWHM) values of the rocking curves of the polished wafers, with different Sm3+ concentrations were all lower than 50. The FWHM values of La0.9Sm0.1GN and La0.8Sm0.2GN crystals were, respectively, 47.16 and 38.16. The results show that the as-grown crystals were of good quality.
Because the seed crystals were LGT crystals, so it was necessary to measure the compositions of the crystals. The bottom, middle, and top of the crystal, shown, respectively, as ①, ② and ③ in Figure 1a, were selected to perform the XRF. The results are shown in Table 1 and Table 2. The effective segregation coefficient of Sm:LGN crystals can be calculated by the following equation:
Keff = Cbottom/Co,
where Cbottom is the concentration of Sm3+ in the starting position of crystal growth, and the Co is the initial concentration in the melt that is used to grow the crystal. The results measured by XRF of the 10 at% Sm:LGN crystal are listed in Table 1. The effective segregation coefficient is Keff = 0.140, which indicates serious segregation of the Sm:LGN crystals. The density of crystals was measured by the Archimedes-method at room temperature. The density of La0.9Sm0.1GN was 5.968 g/cm3 and that of La0.8Sm0.2GN was 5.988 g/cm3.
From Table 2, we can see that the content of Ta was higher at the bottom than that at the middle and top of the crystal. The reason for this phenomenon is that the seed crystal we used was LGT crystal. The LGT crystal melted during inoculation and brought the Ta element into the crystal, which was grown by the Bridgman method. Since there was a lower concentration of Ta element, except for in the bottom of the crystal, we considered the crystal to be approximately pure Sm:LGN crystal.

3.2. Spectral Properties

One-millimeter-thick (100)-orientation slabs of crystals with a diameter of 10 mm, which were polished and uncoated, were used to test the transmission and absorption spectra. The results of the transmission spectra are shown in Figure 4. The results show that the doping of Sm ions has no effect on the UV and infrared cut-off edges. The transmittance of the crystals at 532 nm and 800 nm was as high as 73%, which is advantageous for device application.
Figure 5 presents the absorption spectra of as-grown single crystals measured from 500 to 2500 nm. We can see that the crystals have two evident absorption peaks near a wavelength of 1588 nm. The two absorption peaks at 1544 and 1595 nm, respectively, result from 6H5/26F1/2 and 6H5/26H15/2 transitions. It can be seen that the intensity of the absorption peak becomes stronger with the increasing concentration of Sm3+. Furthermore, there are no evident peaks near the pump wavelength of 532 nm and the signal wavelength of 800 nm, which indicate that the crystals are suitable for the QPCPA scheme.

3.3. Thermal Properties

The size of the samples measured for their specific heat was 4 × 4 × 0.5 mm3, and the (100)-orientation samples were polished and uncoated. The thermal diffusion coefficient was measured with Φ10 × 1 mm wafers of (100)-orientation. Figure 6a shows the specific heat results of as-grown crystals, which were measured from room temperature to 573.15 K. We can see that the specific heat rose as the temperature increased temperature. The La0.9Sm0.1GN crystal changed from 0.4 J/−1K−1 to 0.514 J/g−1K−1 and that of La0.8Sm0.2GN rose from 0.394 J/g−1K−1 to 0.508 J/g−1K−1. Both of the La1 − xSmxGN crystals had higher values than the LGN crystal. The results of specific heat indicate that the new crystals are suitable for used in high-power lasers. The thermal diffusion coefficient of crystals is shown in Figure 6b. It can be seen that the thermal diffusion coefficient decreased when the temperature increased. However, both of the La1 − xSmxGN crystals containing the Sm element had lower values than the LGN crystal.
The results of the thermal conductivity of crystals which are also of great importance, can be calculated by the following equation:
K = λρCp,
where K is the thermal conductivity, λ, ρ, and Cp, respectively, denote the thermal diffusion coefficient, the density, and the specific heat of the crystal. The calculated results are plotted in Figure 7. The thermal conductivity of as-grown crystals decreased when the temperature reached 500 K and then rose again. The minimum value of specific heat of the crystals was obtained between 425 and 475 K. Compared with the LGN crystal, the maximum reduction in thethermal conductivity was 4.18%. The laser damage threshold was measured at 800 nm with a pulse width of 35 fs. The results of La0.9Sm0.1GN and La0.8Sm0.2GN crystals were, respectively, 188.30 TW/cm2 and 54.84 TW/cm2 lower than LGN crystals by a factor of two and a factor of six, respectively.

4. Conclusions

High quality La1 − xSmxGN (x = 0.1,0.2) single crystals were obtained by the Bridgman method and grown along the (100)-orientation. The results of XRD show that the crystals had the same structure as the LGN crystal. The HRXRD results show that the quality of the crystals was good. The segregation coefficient of the La0.9Sm0.1GN crystal was 0.140. The densities of the La0.9Sm0.1GN and La0.8Sm0.2GN crystals were, respectively, 5.968 g/cm3 and 5.988 g/cm3. The La1 − xSmxGN (x = 0.1,0.2) crystals had no absorption peaks at 532 nm and 800 nm. Furthermore, the crystals demonstrated strong absorption at the wavelengths of 1544 and 1595 nm, including that the crystals can be used in QPCPA applications. The results of specific heat, thermal diffusion coefficient, and thermal conductivity show that La1 − xSmxGN (x = 0.1,0.2) crystals have similar thermal properties to the LGN crystal. The laser damage threshold of La0.9Sm0.1GN and La0.8Sm0.2GN crystals were found to be 188.30 TW/cm2 and 54.84 TW/cm2 (@800 nm,35 fs), respectively, which indicated that the La1 − xSmxGN crystals can be used in higher-power laser systems.

Author Contributions

Conceptualization, L.Y. and Y.Z.; funding acquisition, Y.Z., E.S. and X.T.; investigation, S.W., K.X. and L.Y.; methodology, L.Y., J.X., Y.Z. and S.W.; project administration, Y.Z. and E.S.; resources, J.X., Y.Z., S.W. and E.S.; writing (original draft), L.Y.; writing (review and editing), L.Y., Y.Z. and J.X.

Funding

This work was supported by the National Key Research and Development Plan (Grant No. 2016YFB0402701), the National Nature Science Foundation of China (Grant no. 51832009) and the Key Research and Development Program of Jiangsu Province (Grant NO. BE2018008-5).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Strickland, D.; Mourou, G. Compression of amplified chirped optical pulses. Opt. Commun. 1985, 55, 447–449. [Google Scholar] [CrossRef]
  2. Chu, Y.; Gan, Z.; Liang, X.; Yu, L.; Lu, X.; Wang, C.; Leng, Y. High-energy large-aperture Ti:sapphire amplifier for 5 PW laser pulses. Opt. Lett. 2015, 40, 5011. [Google Scholar] [CrossRef] [PubMed]
  3. Sung, J.H.; Lee, H.W.; Yoo, J.Y.; Yoon, J.Y.; Lee, C.W.; Yang, J.M.; Son, J.Y.; Jang, J.H.; Lee, K.S.; Nam, C.H. 42 PW, 20 fs Ti:sapphire laser at 01 Hz. Opt. Lett. 2017, 42, 2058. [Google Scholar] [CrossRef] [PubMed]
  4. Vaupel, A.; Bodnar, N.; Webb, B.; Shah, L.; Richardson, M.C. Concepts, performance review, and prospects of table-top, few-cycle optical parametric chirped-pulse amplification. Opt. Eng. 2013, 53, 051507. [Google Scholar] [CrossRef]
  5. Dubietis, A.; Jonušauskas, G.; Piskarskas, A. Powerful femtosecond pulse generation by chirped and stretched pulse parametric amplification in BBO crystal. Opt. Commun. 1992, 88, 437–440. [Google Scholar] [CrossRef]
  6. Mori, Y.; Nakajima, S.; Taguchi, A.; Miyamoto, A.; Inagaki, M.; Sasaki, T.; Nakai, S. New nonlinear optical crystal CsLiB6O10 for laser fusion. Aip Conf. Proc. 1996, 396, 998–1003. [Google Scholar] [CrossRef]
  7. Liao, Z.M.; Jovanovic, I.; Ebbers, C.A.; Fei, Y.; Chai, B. Energy and average power scalable optical parametric chirped-pulse amplification in yttrium calcium oxyborate. Opt. Lett. 2006, 31, 1277–1279. [Google Scholar] [CrossRef] [PubMed]
  8. Ma, J.; Wang, J.; Yuan, P.; Xie, G.; Xiong, K.; Tu, Y.; Qian, L. Quasi-parametric amplification of chirped pulses based on a Sm3+-doped yttrium calcium oxyborate crystal. Optica 2015, 2, 1006. [Google Scholar] [CrossRef]
  9. Ma, J.; Wang, J.; Zhou, B.; Yuan, P.; Xie, G.; Xiong, K.; Qian, L. Broadband, efficient, and robust quasi-parametric chirped-pulse amplification. Opt. Express 2017, 25, 25149. [Google Scholar] [CrossRef] [PubMed]
  10. Fei, Y.; Chai, B.H.; Ebbers, C.A.; Liao, Z.M.; Schaffers, K.I.; Thelin, P. Large-aperture YCOB crystal growth for frequency conversion in the high average power laser system. J. Cryst. Growth 2006, 290, 301–306. [Google Scholar] [CrossRef]
  11. Tu, X.; Zheng, Y.; Xiong, K.; Shi, Y.; Shi, E. Crystal growth and characterization of 4in. YCa4O(BO3)3 crystal. J. Cryst. Growth 2014, 401, 160–163. [Google Scholar] [CrossRef]
  12. Boursier, E.; Segonds, P.; Boulanger, B.; Félix, C.; Debray, J.; Jegouso, D.; Shoji, I. Phase-matching directions, refined Sellmeier equations, and second-order nonlinear coefficient of the infrared Langatate crystal La3Ga5.5Ta0.5O14. Opt. Lett. 2014, 39, 4033–4036. [Google Scholar] [CrossRef] [PubMed]
  13. Kaczmarek, S.M.; Leniec, G.; Berkowski, M.; Kazan, S.; Açıkgöz, M. Magnetic properties of La3Ga5.5Ta0.5O14 single crystals doped with Sm3+. J. Alloys Compd. 2016, 687, 696–700. [Google Scholar] [CrossRef]
  14. Komar, J.; Lisiecki, R.; Ryba-Romanowski, W.; Berkowski, M. Spectroscopic characterization of Sm3+ in La3Ga5.5Ta0.5O14 single crystals. J. Alloys Compd. 2014, 610, 50–54. [Google Scholar] [CrossRef]
  15. Lu, D.; Xu, T.; Yu, H.; Fu, Q.; Zhang, H.; Segonds, P.; Wang, J. Acentric langanite La3Ga5.5Nb0.5O14 crystal: A new nonlinear crystal for the generation of mid-infrared parametric light. Opt. Express 2016, 24, 17603. [Google Scholar] [CrossRef] [PubMed]
  16. Ma, J.; Wang, J.; Hu, D.; Yuan, P.; Xie, G.; Zhu, H.; Qian, L. Theoretical investigations of broadband mid-infrared optical parametric amplification based on a La3Ga5.5Nb0.5O14 crystal. Opt. Express 2016, 24, 23957–23968. [Google Scholar] [CrossRef] [PubMed]
  17. Kaminskii, A.A.; Mill, B.V.; Khodzhabagyan, G.G.; Konstantinova, A.F.; Okorochkov, A.I.; Silvestrova, I.M. Investigation of trigonal (La1 − xNdx)3Ga5SiO14 crystals. I. Growth and optical Properties. Phys. Status Solidi A 1983, 80, 387–398. [Google Scholar] [CrossRef]
  18. Bohm, J.; Heimann, R.B.; Hengst, M.; Roewer, R.; Schindler, J. Czochralski growth and characterization of piezoelectric single crystals with langasite structure: La3Ga5SiO14 (LGS), La3Ga5.5Nb0.5O14 (LGN), and La3Ga5.5Ta0.5O14 (LGT): Part I. J. Cryst. Growth 1999, 204, 128–136. [Google Scholar] [CrossRef]
  19. Wang, S.Q.; Uda, S. Phase relations around langasite (La3Ga5SiO14) in the system La2O3–Ga2O3–SiO2 in air. J. Cryst. Growth 2003, 250, 463–470. [Google Scholar] [CrossRef]
  20. Uda, S.; Inaba, H.; Harada, J.; Hoshikawa, K. Growth of langasite via Bridgman technique along [0111] [2 1 ¯ 1 ¯ 0] and [01 1 ¯ 1] for piezoelectric applications. J. Cryst. Growth 2004, 271, 229–237. [Google Scholar] [CrossRef]
  21. Zhou, J.; Xu, J.; Hua, W.; Fan, S. Bridgman growth of new piezoelectric single crystal Sr3Ga2Ge4O14. Mater. Sci. Eng. B 2004, 106, 213–217. [Google Scholar] [CrossRef]
  22. Wu, A. Bridgman growth of langasite-type piezoelectric crystals. Cryst. Res. Technol. 2007, 42, 862–866. [Google Scholar] [CrossRef]

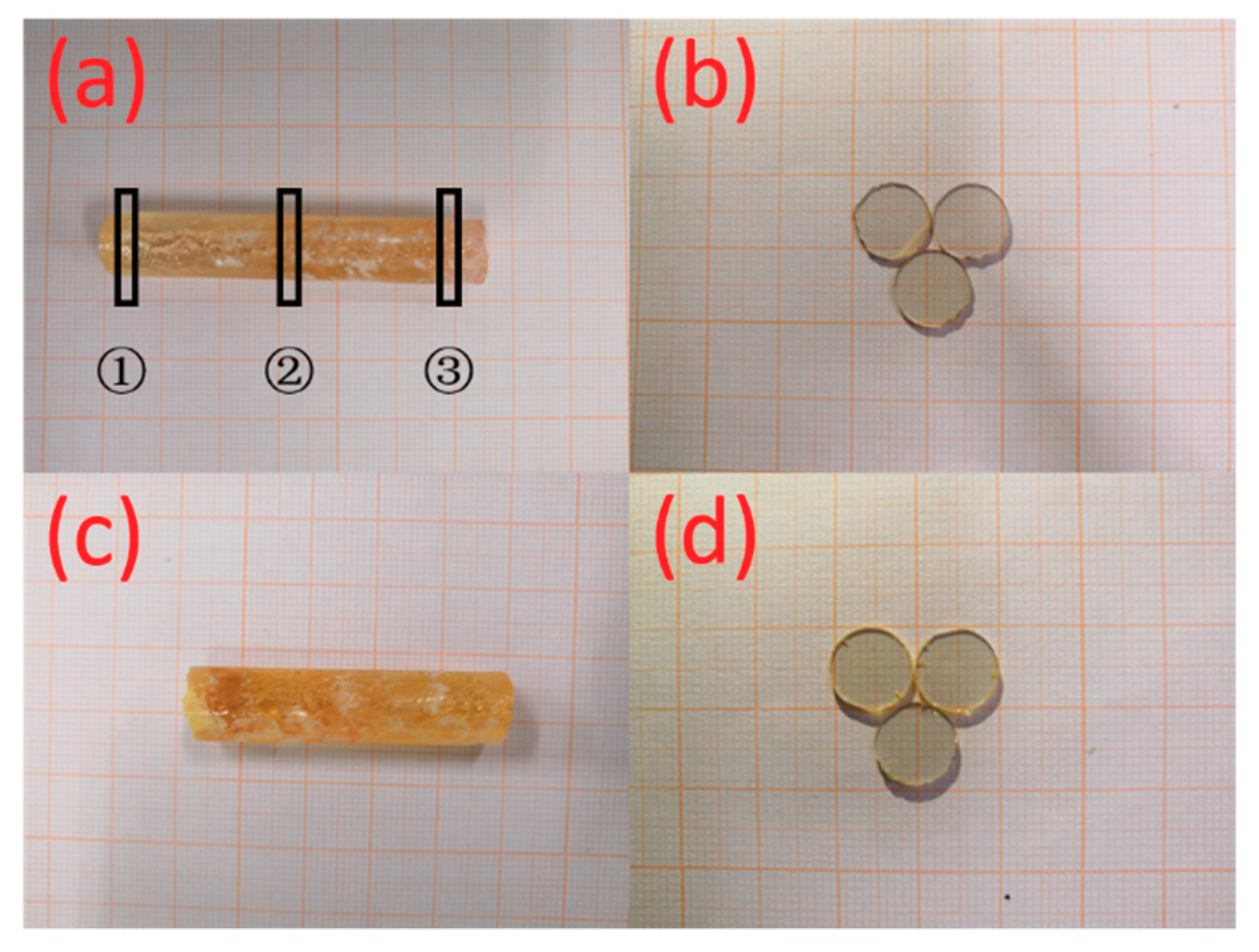

Figure 1. Samarium-doped La3Nb0.5Ga5.5O14 (Sm:LGN) crystals grown by the Bridgman method. (a) and (b) La0.9Sm0.1GN, (c) and (d) La0.8Sm0.2GN.
Figure 1. Samarium-doped La3Nb0.5Ga5.5O14 (Sm:LGN) crystals grown by the Bridgman method. (a) and (b) La0.9Sm0.1GN, (c) and (d) La0.8Sm0.2GN.
Crystals 09 00587 g001

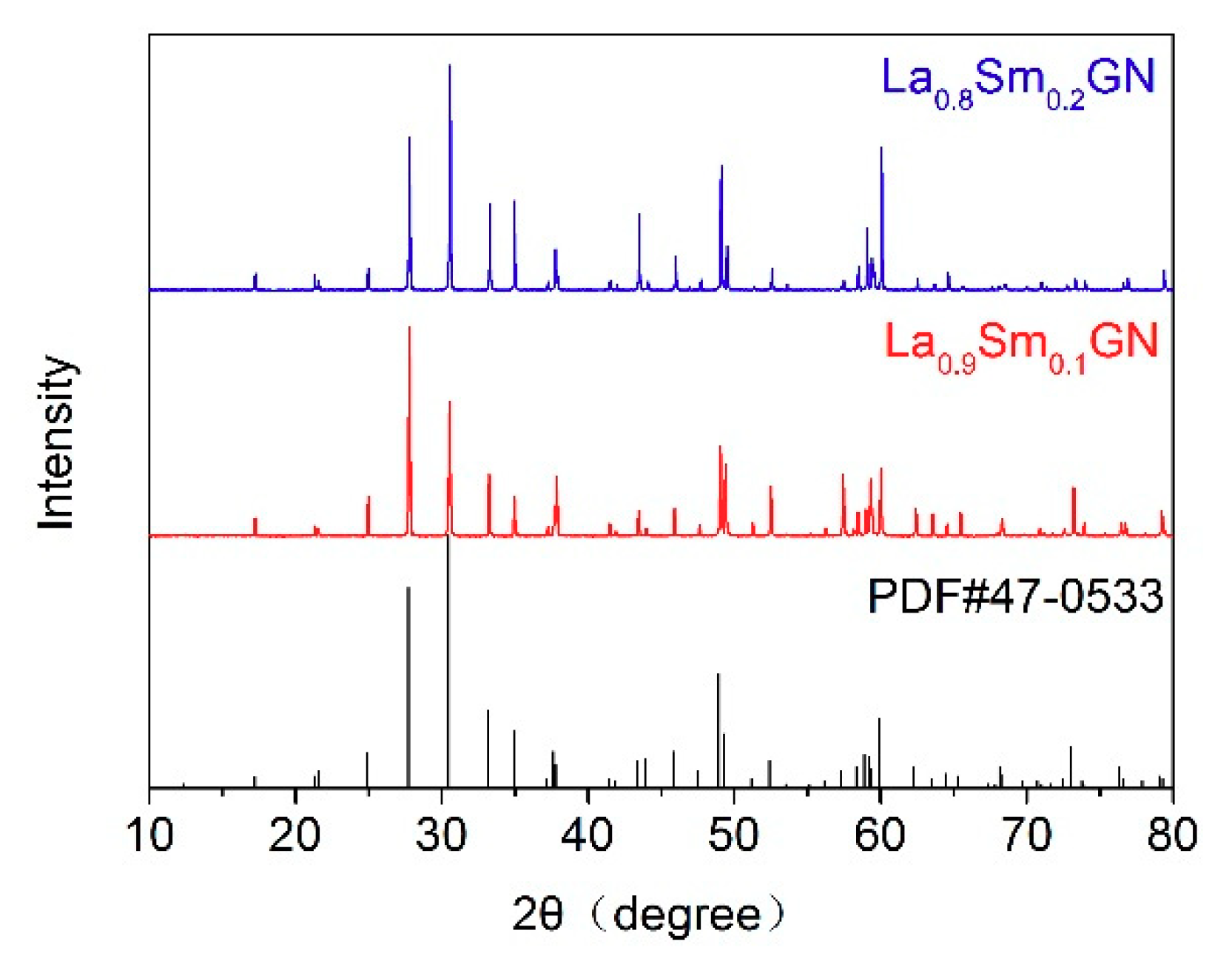

Figure 2. The X-ray diffraction (XRD) patterns of the Sm:LGN crystals.
Figure 2. The X-ray diffraction (XRD) patterns of the Sm:LGN crystals.
Crystals 09 00587 g002
Figure 3. High resolution X-ray diffraction (HRXRD) results of (100)-orientation wafers of Sm:LGN crystals. (a) La0.9Sm0.1GN and (b) La0.8Sm0.2GN.
Figure 3. High resolution X-ray diffraction (HRXRD) results of (100)-orientation wafers of Sm:LGN crystals. (a) La0.9Sm0.1GN and (b) La0.8Sm0.2GN.
Crystals 09 00587 g003

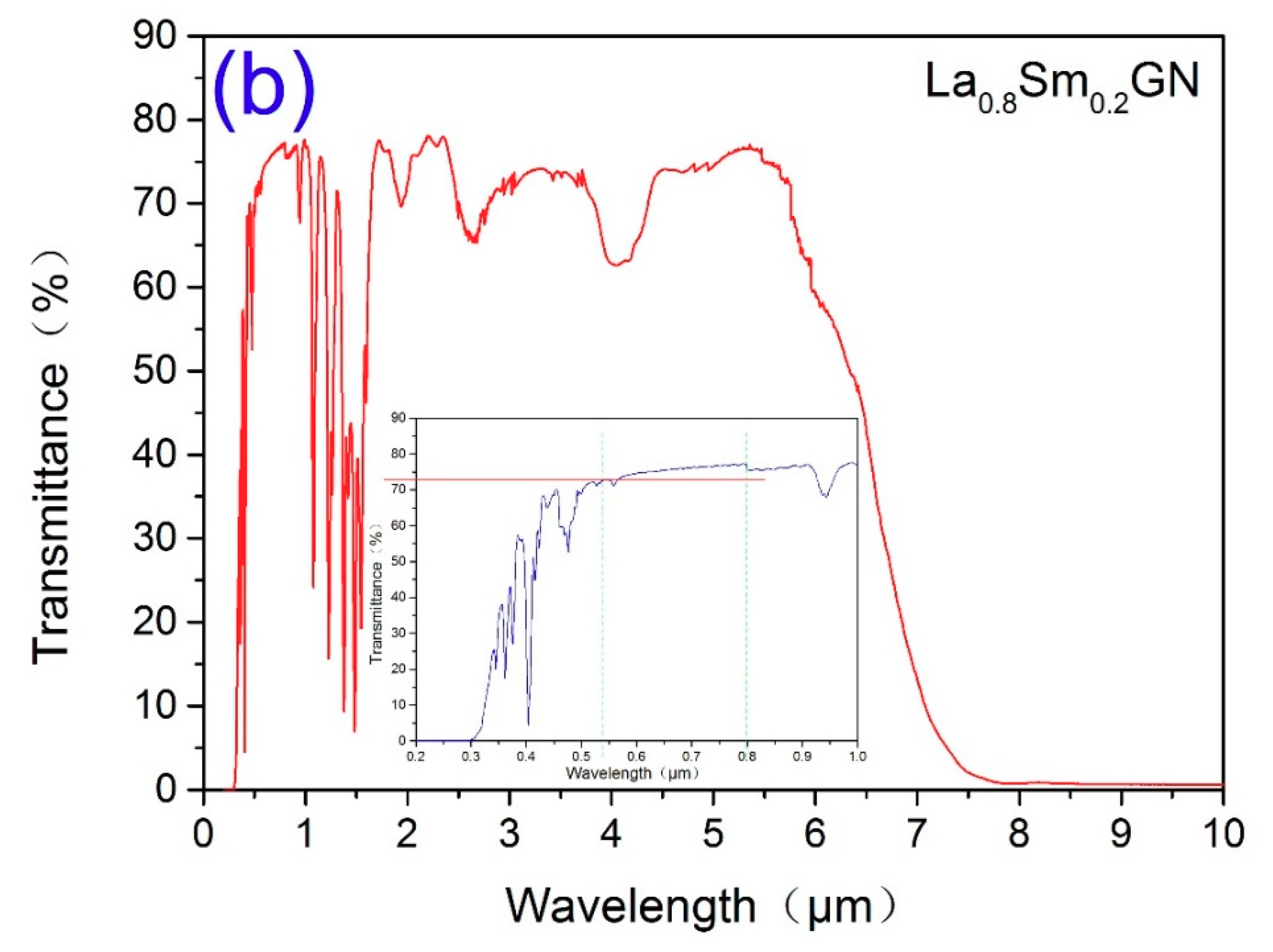

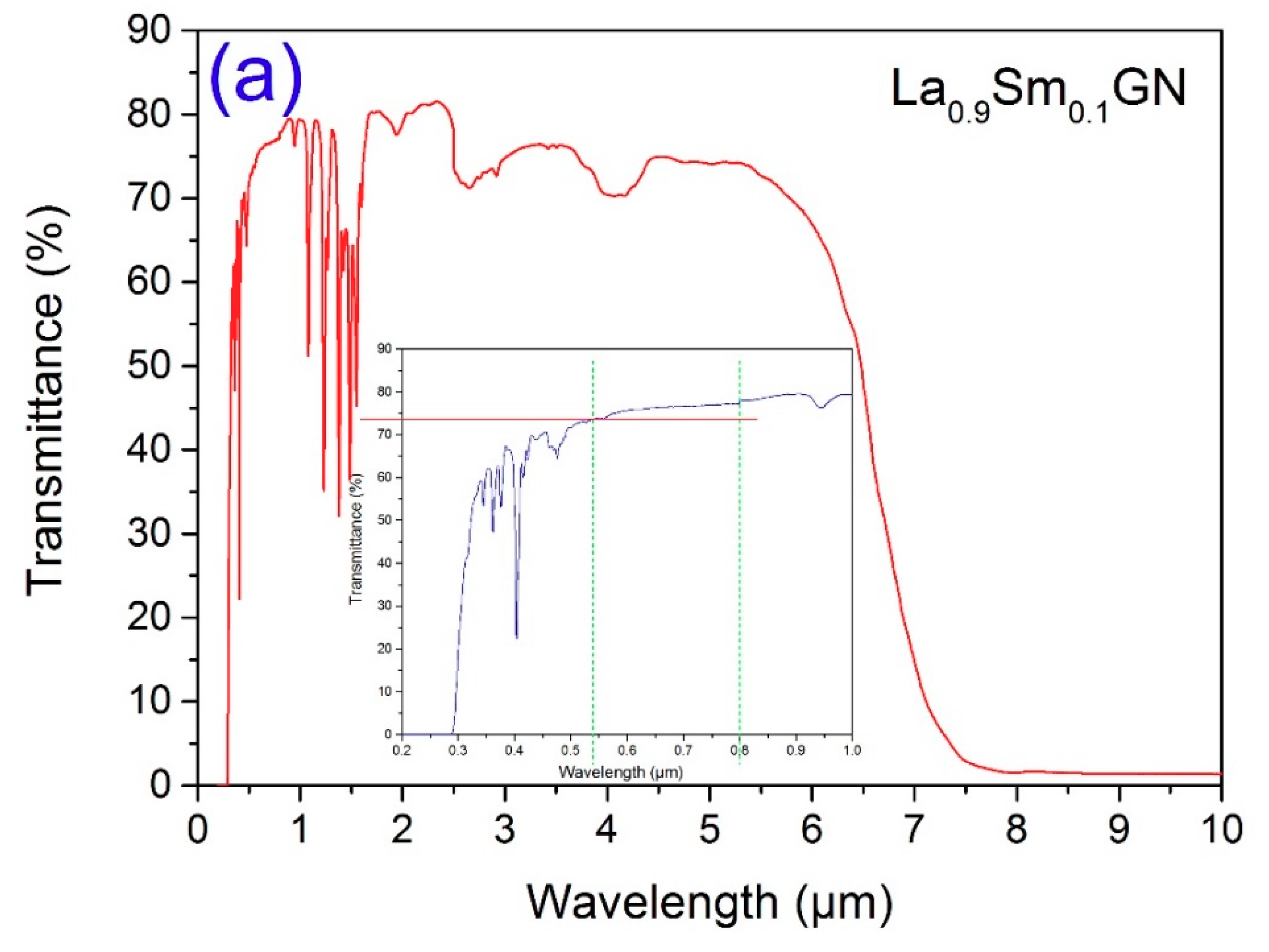

Figure 4. The transmission spectra of Sm:LGN crystals: (a) La0.9Sm0.1GN and (b) La0.8Sm0.2GN.
Figure 4. The transmission spectra of Sm:LGN crystals: (a) La0.9Sm0.1GN and (b) La0.8Sm0.2GN.
Crystals 09 00587 g004aCrystals 09 00587 g004b

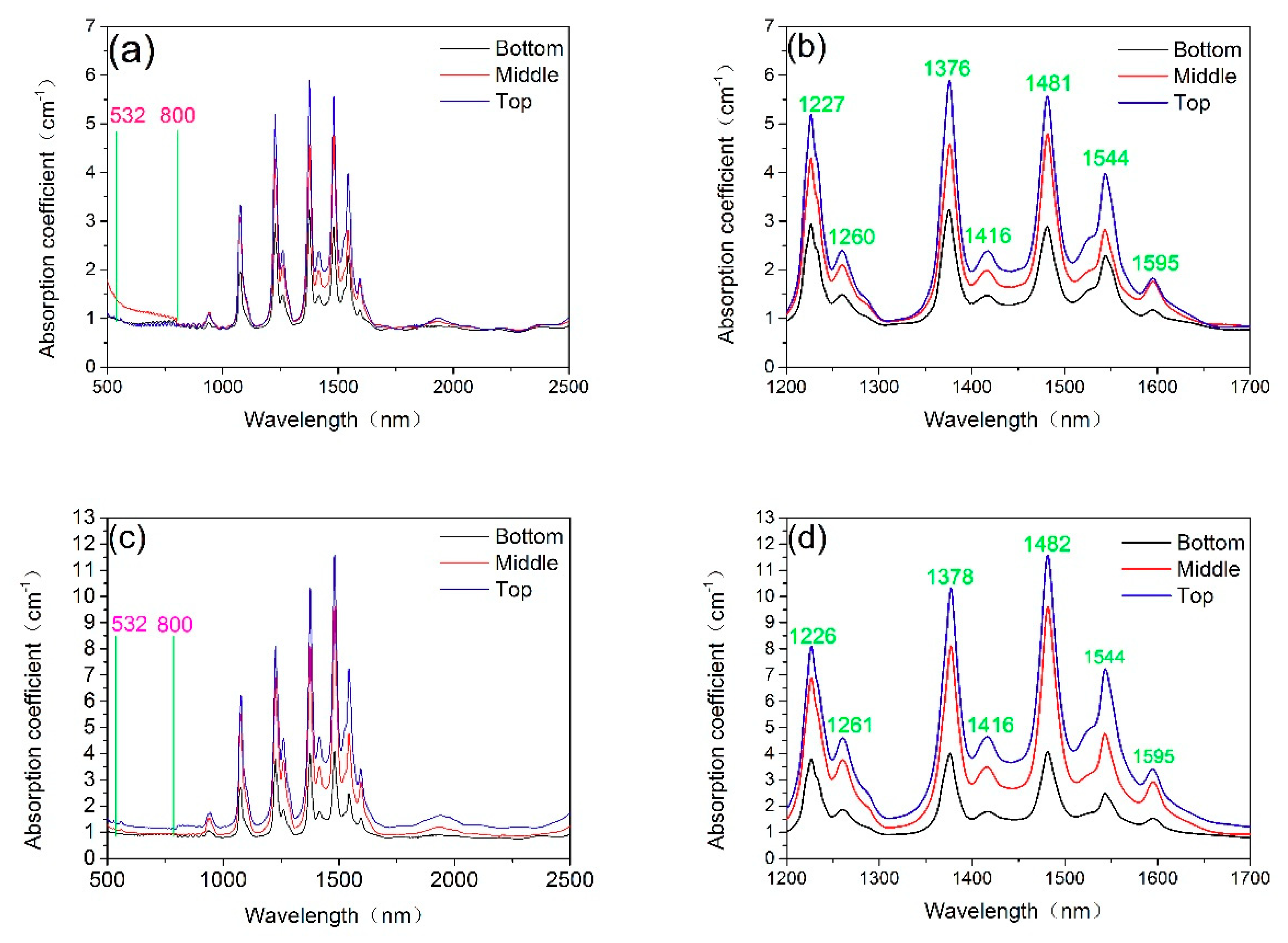

Figure 5. The absorption spectra of Sm:LGN crystals: (a) and (b) La0.9Sm0.1GN; (c) and (d) La0.8Sm0.2GN.
Figure 5. The absorption spectra of Sm:LGN crystals: (a) and (b) La0.9Sm0.1GN; (c) and (d) La0.8Sm0.2GN.
Crystals 09 00587 g005
Figure 6. The specific heat (a) and thermal diffusion coefficient (b) of Sm:LGN crystals.
Figure 6. The specific heat (a) and thermal diffusion coefficient (b) of Sm:LGN crystals.
Crystals 09 00587 g006
Figure 7. The thermal conductivity of Sm:LGN crystals.
Figure 7. The thermal conductivity of Sm:LGN crystals.
Crystals 09 00587 g007
Table 1. The XRF results of Sm in 10 at% Sm:LGN crystal.
Table 1. The XRF results of Sm in 10 at% Sm:LGN crystal.
ElementBottomMiddleTopSolution (Theoretical)
Sm/wt%0.832.383.474.20
Sm/at% (calculated)1.403.845.6510.00
Table 2. The XRF results of the 10 at% Sm:LGN crystal.
Table 2. The XRF results of the 10 at% Sm:LGN crystal.
ElementBottom (wt%)Middle (wt%)Top (wt%)
La40.5540.1239.49
Ga31.0933.2932.87
Nb1.265.295.32
Ta6.420.470.46
Sm0.832.383.47
