Energy Storage Performance of Sandwich Structured Pb(Zr0.4Ti0.6)O3/BaZr0.2Ti0.8O3/Pb(Zr0.4Ti0.6)O3 Films
1
Department of Chemical Engineering and Technology, School of Chemical Engineering and Technology, Harbin Institute of Technology, Harbin 150001, China
2
Material Physics and Chemistry, School of Materials Science and Engineering, Harbin Institute of Technology, Harbin 150001, China
3
Department of Optoelectronic Information Science, School of Materials Science and Engineering, Harbin Institute of Technology, Harbin 150001, China
4
Harbin Institute of Technology, School of Energy Science and Engineering, Harbin 150001, China
*
Authors to whom correspondence should be addressed.
Received: 22 September 2019 / Accepted: 30 October 2019 / Published: 1 November 2019

Abstract

:
We reported a sandwich structured Pb(Zr0.4Ti0.6)O3/BaZr0.2Ti0.8O3/Pb(Zr0.4Ti0.6)O3 (PZT/BZT/PZT) film fabricated by using the sol–gel method, which was dense and uniform with a unique perovskite structure. The PZT/BZT/PZT films displayed high dielectric constants up to 1722.45 at the frequency of 10 kHz. Additionally, the enhanced energy storage density of 39.27 J·cm−3 was achieved at room temperature and 2.00 MV/cm, which was higher than that of the individual BaZr0.2Ti0.8O3 film (21.28 J·cm−3). Furthermore, the energy storage density and efficiency of PZT/BZT/PZT film increased slightly with the increasing temperature from −140 °C to 200 °C. This work proves the feasibility and effectiveness of a sandwich structure in improving dielectric, leakage, and energy storage performances, providing a new paradigm for high-energy–density dielectrics applications.
Keywords:
sandwich structure; thin films; energy storage; dielectric properties

1. Introduction

Development of high-power and large energy–density capacitors are main requisites for fast growing compact and commercially viable electronic devices [1,2,3,4]. Barium zirconate–titanate with a perovskite structure is one of the well-known lead free relaxor ferroelectric materials, which has attracted great attention for its potential applications for microwave technology, due to its high dielectric constant, low dielectric loss, and large tunability [5,6,7,8,9]. Liang et al. prepared a BaZr0.35Ti0.65O3 thin film with ultrahigh energy storage density on (100) Nb:SrTiO3 (NSTO) substrates by using a high-pressure radio-frequency sputtering system [10]. The energy storage density of the thin film exceeded that of most BaTiO3(BT)based materials, and it could reach the value of 78.7 J·cm−3, and the efficiency was 80.5% under a large electric strength of 4.0 MV·cm−1 at room temperature. In addition, BaZr0.2Ti0.8O3 epitaxial thin films with a large energy storage density of 30.4 J·cm−3 and high energy efficiency of 81.7% at 3 MV·cm−1 and RT were prepared by using a radio-frequency magnetron sputtering system [11].
To further improve the figures of merit, much attention has been paid to heterogeneous multilayer films, which have successive layers of different materials, due to their artificially improved dielectric, ferroelectric, and pyroelectric performances [6,9]. It has been shown that multilayered dielectric films such as PbZr0.8Ti0.2O3/PbZr0.2Ti0.8O3, BaTiO3/SrTiO3, PbTiO3/BaTiO3, Bi3.25La0.75Ti3O12/(Na0.5Bi0.5)0.94Ba0.06TiO3/Bi3.25La0.75Ti3O12, Pb(Zr0.4Ti0.6)O3/(Na0.5Bi0.5)0.94Ba0.06TiO3/Pb(Zr0.4Ti0.6)O3, and Ba(Zr0.2Ti0.8)O3/Ba0.6Sr0.4TiO3/Ba(Zr0.2Ti0.8)O3 thin films have dielectric and ferroelectric properties, which are quite different from their base phases [9,12,13,14,15,16]. In a previous work, Bao and co-workers designed BLT/PZT/BLT multilayered structure films by using a chemical solution deposition method [15]. This kind of sandwich structured film could combine the individual advantages of PZT and BLT thin films, the fatigue-free characters of BLT thin films, and the good ferroelectric characters of PZT films. At last, good fatigue and retention properties were obtained for the film with a sandwich structure. Besides, lead zirconate titanate ferroelectric materials have a great maximum polarization (Pmax) even under a low electric field [17,18]. More recently, Diao et al. demonstrated that the energy storage density of the sandwich structured Ba0.4Sr0.6TiO3/BaTiO3/Ba0.4Sr0.6TiO3 film (14.69 J·cm−3 at 1.44 MV/cm) was superior to that of the BaTiO3 film (11.88 J·cm−3 at 1.20 MV/cm) [16].
In this work, we prepared a novel PZT/BZT/PZT sandwich structure film by the sol–gel method, which could enhance the energy storage density of the BaZr0.2Ti0.8O3 (BZT) film via Pb(Zr0.4Ti0.6)O3 layer structure modulation. Furthermore, the structure, dielectric, leakage current, ferroelectric, and energy storage properties of the sandwich structured films were thoroughly investigated, which is critical for future materials engineering and energy applications.

2. Experiment

Pb(Zr0.4Ti0.6)O3/BaZr0.2Ti0.8O3/Pb(Zr0.4Ti0.6)O3 (PZT/BZT/PZT) sandwich structured films were fabricated via the sol–gel method on Pt(111)/Ti/SiO2/Si substrates. Barium acetate (Ba(CH3COO)2, Adrich, Pittsburgh, PA, USA), lead acetate trihydrate (Pb(CH3COO)2·3H2O, Beijing Yili Fine Chemicals Co., Ltd., Beijing, China), zirconium iso-propoxide (Zr(OC3H7)4, Adrich, Pittsburgh, PA, USA), and tetrabutyl titanate (Ti(OC4H9)4, Adrich, Pittsburgh, PA, USA) were chosen as starting materials for the BaZr0.2Ti0.8O3 (BZT) and Pb(Zr0.4Ti0.6)O3 (PZT) precursor solutions. Acetic acid (Beijing Yili Fine Chemicals Co., Ltd., Beijing, China) and ethylene glycol monomethyl ether (Beijing Yili Fine Chemicals Co., Ltd., Beijing, China) were solvents for 0.4 mol/L BZT solutions. For the preparation of PZT solutions, ethylene glycol monomethyl ether was the solvent and 20 mol% excess lead acetate trihydrate was put into the PZT solution to compensate for the loss of the lead [19]. After aging 24 h, the BZT solutions and PZT solutions were deposited on the Pt(111)/Ti/SiO2/Si substrates by spin-coated process according PZT/BZT/PZT from the substrates. Each layer was spin-coated at 3000 rpm for 20 s, then heated on the hot plate at 450 °C for 3 min and finally annealed at 850 °C for 10 min. The process of the film preparation was repeated to obtain the sandwich structured films of desired thickness. Besides, for the electrical performance testing of the thin films, a top electrode with a diameter of 0.2 mm was prepared on the surface by using Pt to form the capacitor structure of the top electrode/ferroelectric thin film/bottom electrode.
The crystal structure of the sandwich films was characterized at small incident angle by X-ray diffraction (XRD, X’ Pert, Philips, Amsterdam, The Netherlands). A scanning electron microscope (SEM, HITACHI S-4800, Hitachi, Tokyo, Japan) was used to confirm the micro-topography and the thickness of the films. Dielectric properties for the BZT and PZT/BZT/PZT thin films were measured by a Solartron 1260 impedance analyzer (Ametek, London, UK). P–E loops were systematically studied by Radiant Technologies Premier II ferroelectric tester (Radiant Technologies, Inc., Albuquerque, NM, USA).

3. Results and Discussion

XRD patterns of the BZT and PZT/BZT/PZT thin films are shown in Figure 1. The BZT and PZT/BZT/PZT films showed a well-developed perovskite structure and could be characterized by the appearance of (100), (110), (111), (200), (210), and (211) peaks. No obvious second phases or impurity peaks were observed in the BZT and PZT/BZT/PZT films. As shown in Figure 1, the intensity of the (111) peak of the PZT/BZT/PZT film was much higher than that of BZT films, which indicated that the compatibility between the PZT and Pt layer was better in the sandwich structured film, owing to the reason that the Pb near the surface of the PZT films could react with the Pt electrodes, generating a new phase PbxPt1-x, and then the PbxPt1-x intermetallic phase could induce the growth of PZT films in the (111) orientation [20,21].
The surfaces of the films were observed by SEM, as illustrated in Figure 2. The BZT and PZT/BZT/PZT films showed similar smooth and uniform surface morphologies, and the overall thickness was about 400 nm for BZT and PZT/BZT/PZT films in the cross-sectional micrographs. Although the unclear interface between the BZT layer and PZT layer made it difficult to observe the thickness of the PZT layer directly, a PZT single film in the sandwich structured film could be estimated, which was about 50 nm.
The temperature dependent dielectric constant (εr) and loss (tanδ) of the PZT/BZT/PZT film measured at −90 °C to 90 °C were plotted in Figure 3a. Dielectric constant showed the maximum value at Tc in Figure 3a. Tc is about 25 °C in BZT films, and the Curie temperature of the PZT/BZT/PZT film is about 40 °C; there is a slight rise in the Curie temperature. The materials were suitable for working at near the room temperature. Figure 3b shows the frequency-dependent εr and dielectric tanδ, which were measured at room temperature from 1 kHz to 1000 kHz. As the frequency increased, the dielectric constant decreased for each sample. While the dielectric loss increased with the frequency increasing at the frequency up to 100 kHz, it may have been due to the polarization value of the thin films not being able to keep up with the change of electric field, and the relaxation loss increased with the higher frequency. At low frequencies, all the polarizations responded easily to the electric field, but as the frequency increased, different polarization contributions were ignored [22]. As last, the net polarization of the films decreased, leading to the decrease of εr. The dielectric constant of the PZT/BZT/PZT film reached the maximum 1722.45 and the loss decreased to 0.010 when the frequency was 10 kHz. The εr of the PZT/BZT/PZT film greatly improved compared with that of pure BZT film of 737.59, while the tan δ of PZT/BZT/PZT film was similar to that of the pure BZT film (0.006) at 10 kHz, indicating a high quality sandwich structured film.
The DC bias dependence of dielectric constant and loss at room temperature were tested at a DC bias of −10 V to 10 V to evaluate the tunability of the PZT/BZT/PZT film, as shown in Figure 3c. The tunability is defined as (εmax−εmin)/εmax, where εmax and εmin are the maximum and minimum dielectric constant [9]. The BZT film showed the maximum dielectric constant of 743.91, while the εr of PZT/BZT/PZT film could be up to 1255.12 at 100 kHz. Additionally, the tunability of the sandwich structured film and the BZT thin film were 25.68% and 15.34%, respectively. The dielectric loss of the multilayer (0.017) was a little higher than that of BZT films (0.011). Obviously, the leading PZT layer could increase the dielectric tunability.
For practical application, the leakage current should be as low as possible. Figure 4 shows the leakage current densities of the PZT/BZT/PZT film measured at −10 V DC bias to 10 V DC bias under 10 kHz and the temperature of 30 °C and 50 °C. The leakage current densities of both samples gradually rose with increases in voltage. In the sandwich structured films, the upper and lower PZT buffer layers suppressed the increase of the leakage current, their leakage current densities became smaller in contrast of the single structured BZT films, and were less than 5 × 10−6 J·(A·cm−2)−1. It was believed that the PZT/BZT/PZT sandwich structured film had stable interfaces and uniform structure. In addition, thermal stability is an important factor to evaluate the applicability of the films. The leakage current densities of both thin films at 30 °C and 50 °C were tested. Changes of temperature from 30 °C and 50 °C were found to have little effect on the leakage current densities of both thin films as shown in Figure 4a,b. Both samples had relative thermodynamic stability with the change of temperature.
Figure 5a shows the P–E loops of the BZT and PZT/BZT/PZT films tested at 10 kHz and 30 °C. All samples showed double slim loops, exhibiting typical soft ferroelectric behaviors. Increasing the intensity of the electric field improved Pmax of both thin films, as shown in Figure 5b. At 2.0 MV·cm−1, the measured Pmax was 67.78 μC·cm−2 and 29.05 μC·cm−2, and Pr was 8.61 μC·cm−2 and 2.61 μC·cm−2 for the BZT/PZT/BZT films and the BZT films, respectively. The Pmax of the sandwich structured film was much higher than that of the BZT thin film due to the introduction of the PZT film with a larger polarization value. PZT films, as the longitudinal symmetry buffer layer structure of the PZT/BZT/PZT thin films, can increase the polarization value of the PZT/BZT/PZT films by adding the number of bound electrons. As seen in Figure 5c, the Pmax varied little with the change of the temperature from −140 °C to 200 °C. It was noted that Pmax decreased slowly with the increase of temperature for both samples, indicating that the PZT/BZT/PZT and BZT thin films had good relaxor features and good thermal stability.
The values of energy storage can be described by the P–E loop, according to the following formulas [16,23,24,25]:
J s = 0 P m a x E d P
J r e v = P r P m a x E d P
η = J r e c J s = J r e c J r e c + J l o s s × 100 %
where Pmax is the maximum polarization value, Pr is the maximum polarization value, Emax is the maximum electric field, Js is the stored energy storage density, Jrec is the recoverable energy storage density, Jloss represents the energy loss, and η is the energy efficiency. To consider the feasibility of applications in practice, the energy storage performances of both samples were investigated as a function of applied electric field and temperature. As shown in Figure 6a, the Jrec increased with increases in the electric field, while the η had the opposite trend, because of the large leakage conduction losses under the high electric field [17]. The maximum Jrec of BZT thin films was 21.28 J·cm−3 and η was 83.51% at 2.00 MV·cm−1. However, in PZT/BZT/PZT thin films, the largest Jrec could reach 39.27 J·cm−3 with a relatively high energy efficiency of 78.71% under the same conditions, owing to the introduction of the PZT layer on the basis of the BZT thin film. The energy storage properties were also compared with other reports summarized from previous literatures, as shown in Table 1. At approximately the same electric field intensity, the energy storage properties of the PZT/BZT/PZT films were greater than those of some other materials published already: 0.88 BaTiO3–0.12 Bi(Mg,Ti)O3 film, (Ba0.955Ca0.045)(Zr0.17Ti0.83)O3 film, and BiFeO3/BaTiO3/BiFeO3 [26,27,28,29]. Thermal stability was considered as one key factor to assess the performance of the samples. Figure 6b depicts the temperature dependent energy storage properties. Both the samples were tested in a range of −140 °C to 200 °C under 2 MV·cm−1. The Jrec and η for the PZT/BZT/PZT and BZT thin films were 36.80 J·cm−3 and 20.80 J·cm−3 and 76.38% and 89.37% at −140 °C, respectively. Additionally, under the temperature of 200 °C, the energy storage densities and efficiencies were 35.69 J·cm−3 and 18.77 J·cm−3 and 72.07% and 84.24% for sandwich structured film and the unique thin film, respectively. The nearly unchanged Jrec and η indicated the optimistic thermal stability of the PZT/BZT/PZT and BZT thin films.

4. Conclusions

Sandwich structured PZT/BZT/PZT films were fabricated by the sol–gel method. It is demonstrated that the dielectric and energy storage properties of the BZT based film could be improved by the introduction of PZT layers. The large recoverable energy storage density of 39.27 J·cm−3 with a relatively high efficiency of 78.71% was obtained in the sandwich structured films at 2.00 MV·cm−1. Moreover, the PZT/BZT/PZT and BZT films exhibited great thermal stability in the temperature range of −140 °C to 200 °C at 2.00 MV·cm−1. All of those excellent performances indicate that introducing PZT layers is an alternative way to optimize the energy storage properties of the BZT films, and the sandwich structured PZT/BZT/PZT films have a promising application in high energy storage capacitors.

Author Contributions

Q.S. and X.C. designed the experiments; J.G., P.Q. and Y.T. performed the experiments; J.G., P.Q., D.W., and Y.T. analyzed the data; Q.S., Y.S., and D.W. contributed analysis tools; J.G. and Q.S. wrote the paper.

Funding

This work was supported by the National Natural Science Foundation of China under the contract No. 51502061 and the fundamental research funds for the Central universities HIT. NSRIF. 201803.

Acknowledgments

The authors acknowledge Mao Ye for fruitful discussions and guidances.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Puli, V.S.; Pradhan, D.K.; Chrisey, D.B.; Tomozawa, M.; Sharma, G.L.; ScottRam, J.F.; Katiyar, S. Structure, dielectric, ferroelectric, and energy density properties of (1−x) BZT–x BCT ceramic capacitors for energy storage applications. J. Mater. Sci. 2013, 48, 2151–2157. [Google Scholar] [CrossRef]
  2. Tong, S.; Ma, B.; Narayanan, M.; Liu, S.; Koritala, R.; Balachandran, U.; Shi, D. Lead Lanthanum Zirconate Titanate Ceramic Thin Films for Energy Storage. ACS Appl. Mater. Interfaces 2013, 5, 1474–1480. [Google Scholar] [CrossRef] [PubMed]
  3. Liu, G.; Zhang, S.; Jiang, W.; Cao, W. Losses in ferroelectric materials. Mater. Sci. Eng. R Rep. 2015, 89, 1–48. [Google Scholar] [CrossRef] [PubMed]
  4. Ye, M.; Sun, Q.; Chen, X.; Jiang, Z.; Wang, F. Electrical and energy storage performance of Eu-doped PbZrO3 thin films with different gradient sequences. J. Am. Ceram. Soc. 2012, 95, 1486–1488. [Google Scholar] [CrossRef]
  5. Instan, A.A.; Pavunny, S.P.; Bhattarai, M.K.; Katiyar, R.S. Ultrahigh capacitive energy storage in highly oriented BaZrxTi1-xO3 thin films prepared by pulsed laser deposition. Appl. Phys. Lett. 2017, 111, 142903. [Google Scholar] [CrossRef]
  6. Guo, Y.; Akai, D.; Sawada, K.; Ishida, M.; Gu, M. Structure and electrical properties of trilayered BaTiO3/(Na0.5Bi0.5)TiO3–BaTiO3/BaTiO3 thin films deposited on Si substrate. Solid State Commun. 2009, 149, 14–17. [Google Scholar] [CrossRef]
  7. Huang, Z.H.; Lai, Y.M.; Guan, W.M.; Zeng, Y.; Wei, Y.; Wu, S.; Han, J.; Mao, Y.; Xiang, Y. Structure, dielectric and ferroelectric properties of lead-free (1−x)(Ba0.85Ca0.15)(Ti0.9Zr0.1)O3-xBa(Mg1/3Nb2/3)O3 ceramics. Mater. Lett. 2016, 178, 163–165. [Google Scholar] [CrossRef]
  8. Cai, W.; Fu, C.; Gao, J.; Lin, Z.; Deng, X. Effect of hafnium on the microstructure, dielectric and ferroelectric properties of BaZr0.2Ti0.8O3 ceramics. Ceram. Int. 2012, 38, 3367–3375. [Google Scholar] [CrossRef]
  9. Qin, W.F.; Xiong, J.; Zhu, J.; Tang, J.L.; Jie, W.J.; Zhang, Y.; Li, Y.R. Enhanced electrical properties of multilayer Ba(Zr0.2Ti0.8)O3/Ba0.6Sr0.4TiO3/Ba(Zr0.2Ti0.8)O3 thin films for tunable microwave applications. J. Mater. Sci. 2008, 43, 409–412. [Google Scholar] [CrossRef]
  10. Liang, Z.; Liu, M.; Ma, C.; Shen, L.; Lu, L.; Jia, C.-L. High-performance BaZr0.35Ti0.65O3 thin film capacitors with ultrahigh energy storage density and excellent thermal stability. J. Mater. Chem. A 2018, 6, 12165–12796. [Google Scholar] [CrossRef]
  11. Sun, Z.; Ma, C.; Xi, W.; Liu, M.; Lu, L.; We, M.; Lou, X.; Wang, H.; Jia, C.-J. Large energy density, excellent thermal stability, and high cycling endurance of lead-free BaZr0.2Ti0.8O3 film capacitors. ACS Appl. Mater. Interfaces 2017, 9, 17096. [Google Scholar] [CrossRef] [PubMed]
  12. Mangalam, R.V.; Karthik, J.; Damodaran, A.R.; Agar, J.C.; Martin, L.W. Unexpected crystal and domain structures and properties in compositionally graded PbZr1-xTixO3 thin films. Adv. Mater. 2013, 25, 1761–1767. [Google Scholar] [CrossRef] [PubMed]
  13. O"Neill, D.; Bowman, R.M.; Gregg, J.M. Investigation into the dielectric behavior of ferroelectric superlattices formed by pulsed laser deposition. J. Mater. Sci. Mater. Electron. 2000, 11, 537–541. [Google Scholar] [CrossRef]
  14. Koebernik, G.; Haessler, W.; Pantou, R.; Weiss, F. Thickness dependence on the dielectric properties of BaTiO3/SrTiO3-multilayers. Thin Solid Film. 2004, 449, 80–85. [Google Scholar] [CrossRef]
  15. Bao, D.; Wakiya, N.; Shinozaki, K.; Mizutani, N. Ferroelectric properties of sandwich structured (Bi, La)4T3O12/Pb(Zr, Ti)O3/ (Bi, La)4Ti3O12 thin films on Pt/Ti/SiO2/Si substrates. J. Phys. D Appl. Phys. 2002, 35, L1. [Google Scholar] [CrossRef]
  16. Diao, C.; Liu, H.; Zheng, H.; Yao, Z.; Iqbal, J.; Cao, M.; Hao, H. Enhanced energy storage properties of BaTiO3 thin films by Ba0.4Sr0.6TiO3 layers modulation. J. Alloy. Compd. 2018, 765, 362–368. [Google Scholar] [CrossRef]
  17. Spierings, G.A.C.M.; Ulenaers, M.J.E.; Kampschoer, G.L.M.; van Hal, H.A.M.; Larsen, P.K. Preparation and ferroelectric properties of PbZr0.53Ti0.47O3 thin films by spin coating and metalorganic decomposition. J. Appl. Phys. 1991, 70, 2290. [Google Scholar] [CrossRef]
  18. Klee, M.; Eusemann, R.; Waser, R.; Brand, W. Processing and electrical properties of PbZrxTi1−xO3 (x = 0.2–0.75) films: Comparison of metallo-organic decomposition and sol-gel processes. J. Appl. Phys. 1992, 72, 1566–1576. [Google Scholar] [CrossRef]
  19. Lin, Z.; Chen, Y.; Liu, Z.; Wang, G.; Rémiens, D.; Dong, X. Large Energy Storage Density, Low Energy Loss and highly stable (Pb0.97La0.02)(Zr0.66Sn0.23Ti0.11)O3 Antiferroelectric Thin-Film Capacitors. J. Eur. Ceram. Soc. 2018, 38, 3177–3181. [Google Scholar] [CrossRef]
  20. Tayebi, N.; Kim, S.; Chen, R.J.; Tran, Q.; Franklin, N.; Nishi, Y.; Ma, Q. Tuning the built-in electric field in ferroelectric PbZr0.2Ti0.8O3 films for long-term stability of single-digit nanometer inverted domains. Nano Lett. 2012, 12, 5455. [Google Scholar] [CrossRef]
  21. Ye, C.; Mcintyre, P.C. Lead zirconate titanate ferroelectric thin film capacitors: Effects of surface treatments on ferroelectric properties. Appl. Phys. Lett. 2007, 91, 064013. [Google Scholar] [CrossRef]
  22. Liu, B.; Wang, X.; Zhang, Y.; Lv, X.; Yang, Y. Synthesis and characteristics of KTa0.5Nb0.5O3thin films. Ionics 2014, 20, 1795–1799. [Google Scholar] [CrossRef]
  23. Liu, Z.; Bai, Y.; Chen, X.F.; Dong, X.; Nie, H.; Cao, F.; Wang, G. Linear composition-dependent phase transition behavior and energy storage performance of tetragonal PLZST antiferroelectric ceramics. J. Alloy. Compd. 2017, 691, 721–725. [Google Scholar] [CrossRef]
  24. Lim, K.W.; Peddigari, M.; Annapureddy, V.; Hwang, G.; Choi, J.; Kim, G.; Yi, S.N.; Ryu, J. Energy storage characteristics of {001 oriented Pb(Zr0.52Ti0.48)O3 thin film grown by chemical solution deposition. Thin Solid Film. 2018, 660, 434–438. [Google Scholar] [CrossRef]
  25. Chen, L.; Sun, N.; Li, Y.; Zhang, Q.; Zhang, L.; Hao, X. Multifunctional antiferroelectric MLCC with high-energy-storage properties and large field-induced strain. J. Am. Ceram. Soc. 2017, 101, 2313–2320. [Google Scholar] [CrossRef]
  26. Puli, V.S.; Pradhan, D.K.; Riggs, B.C.; Chrisey, D.B.; Katiyar, R.S. Structure, ferroelectric, dielectric and energy storage studies of BaCaTiO3, BaZrTiO3 ceramic capacitors. Integr. Ferroelectr. 2014, 157, 139–146. [Google Scholar] [CrossRef]
  27. Kwon, D.K.; Lee, M.H. Temperature-stable high-energy-density capacitors using complex perovskite thin films. IEEE Trans. Ultrason. Ferroelectr. Freq. Control 2012, 59, 1894–1899. [Google Scholar] [CrossRef]
  28. Puli, V.S.; Pradhan, D.K.; Adireddy, S.; Martínez, R.; Silwal, P.; Scott, J.F.; Ramana, C.V.; Chrisey, D.B.; Katiyar, R.S. Nanoscale polarisation switching and leakage currents in (Ba0.955Ca0.045) (Zr0.17Ti0.83)O3 epitaxial thin films. J. Phys. D Appl. Phys. 2015, 48, 355502. [Google Scholar] [CrossRef]
  29. Hou, Y.; Han, R.; Li, W.; Luo, L.; Fei, W. Significantly enhanced energy storage performance in BiFeO3/BaTiO3/BiFeO3 sandwich-structured films through crystallinity regulation. Phys. Chem. Chem. Phys. 2018, 20, 21917–21924. [Google Scholar] [CrossRef]
  30. Chi, Q.; Ma, T.; Zhang, Y.; Chen, Q.; Zhang, C.; Cui, Y.; Zhang, T.; Lin, J.; Wang, X.; Lei, Q. Excellent energy storage of sandwich-structured PVDF-based composite at low electric field by introduced the hybrid CoFe2O4@BZT-BCT nanofibers. ACS Sustain. Chem. Eng. 2018, 6, 403–412. [Google Scholar] [CrossRef]
Figure 1. The low angle XRD patterns for the BZT and PZT/BZT/PZT thin films.
Figure 1. The low angle XRD patterns for the BZT and PZT/BZT/PZT thin films.
Crystals 09 00575 g001

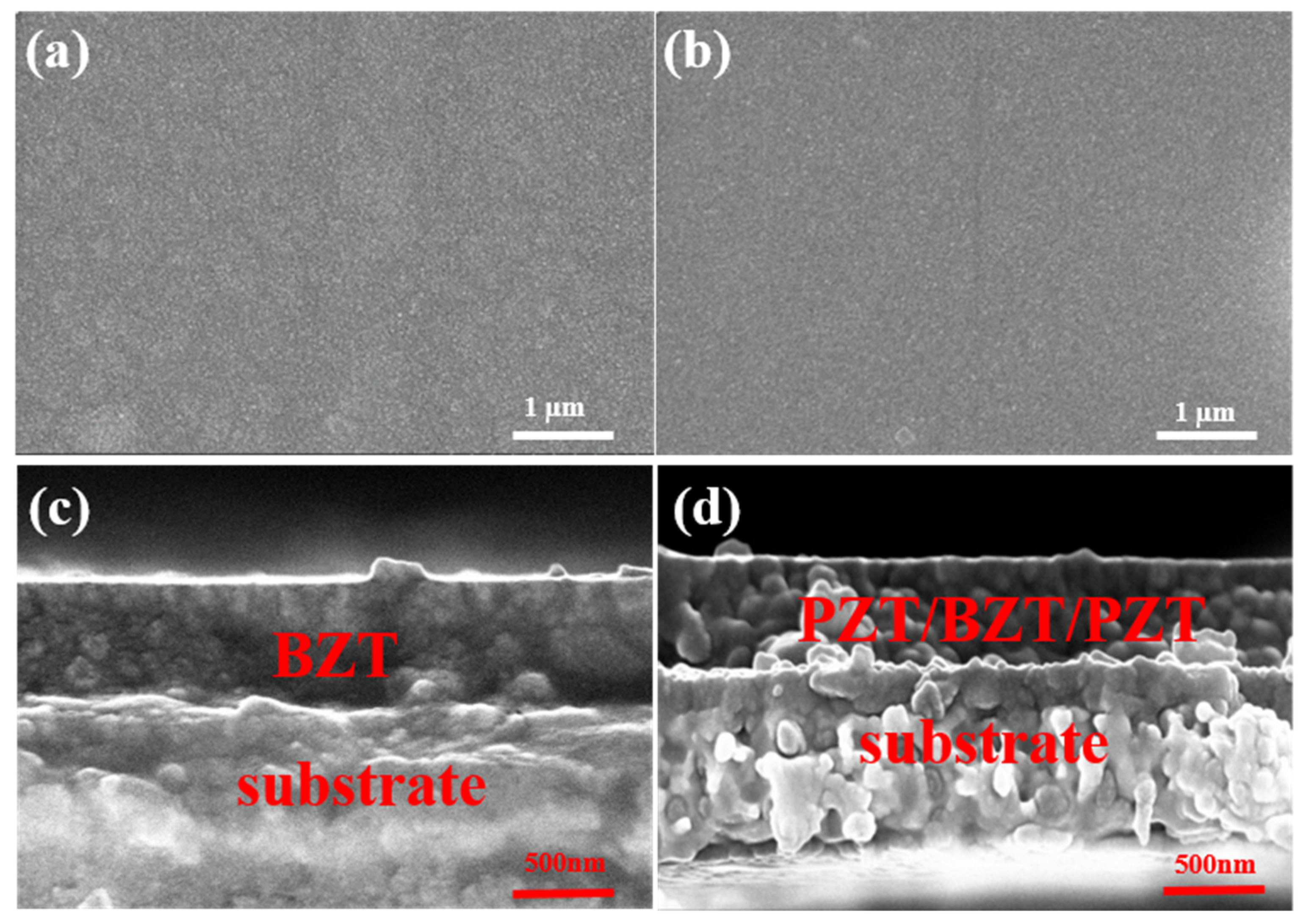

Figure 2. Surface SEM images of (a) BZT and (b) PZT/BZT/PZT thin films; (c) and (d) are the corresponding cross-sectional SEM images of (a) and (b), respectively.
Figure 2. Surface SEM images of (a) BZT and (b) PZT/BZT/PZT thin films; (c) and (d) are the corresponding cross-sectional SEM images of (a) and (b), respectively.
Crystals 09 00575 g002

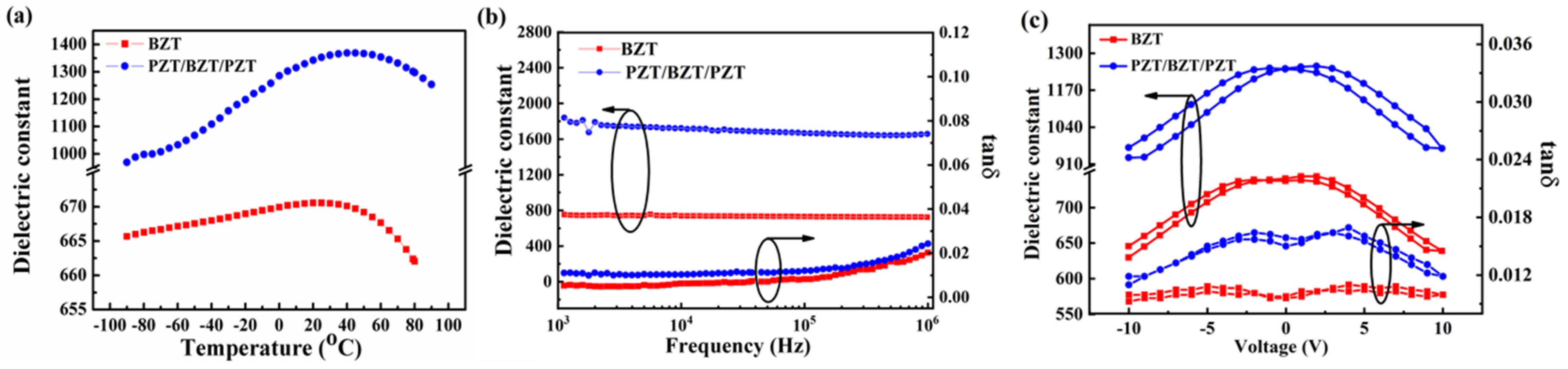

Figure 3. (a) Temperature, (b) frequency, and (c) voltage dependence of dielectric constant ε (upper curves) and loss tanδ (lower curves).
Figure 3. (a) Temperature, (b) frequency, and (c) voltage dependence of dielectric constant ε (upper curves) and loss tanδ (lower curves).
Crystals 09 00575 g003

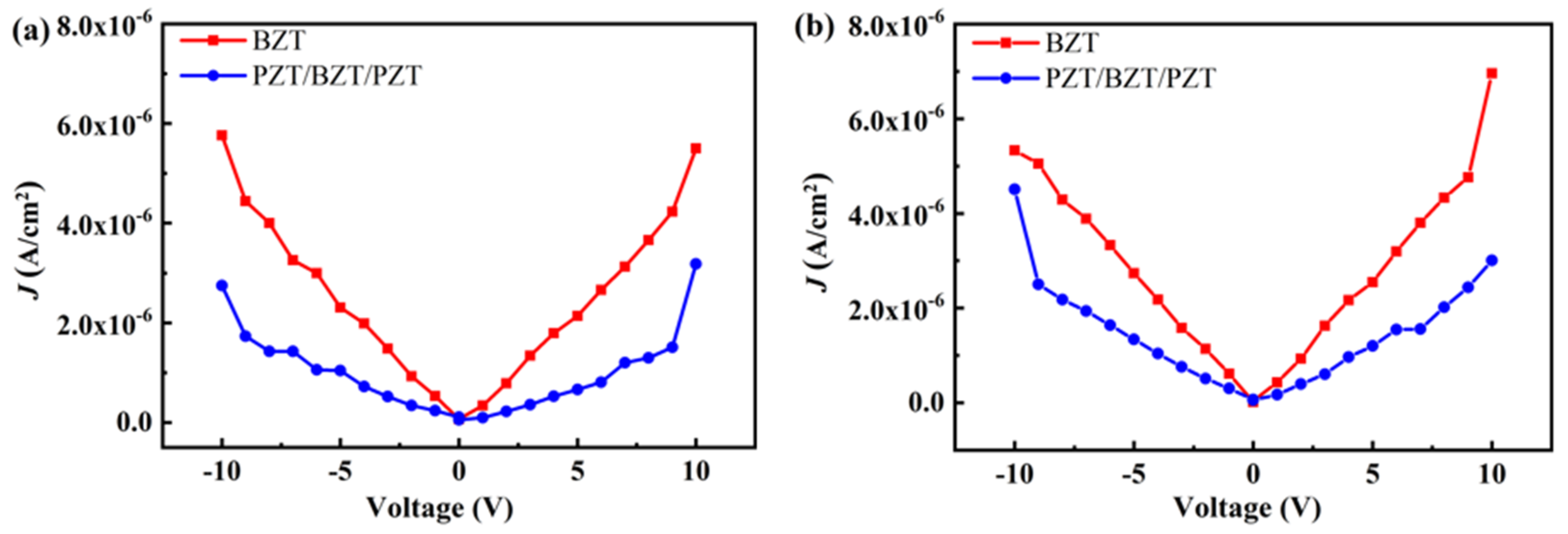

Figure 4. Leakage current densities for BZT and PZT/BZT/PZT films under different temperatures. (a) 30 °C and (b) 50 °C.
Figure 4. Leakage current densities for BZT and PZT/BZT/PZT films under different temperatures. (a) 30 °C and (b) 50 °C.
Crystals 09 00575 g004

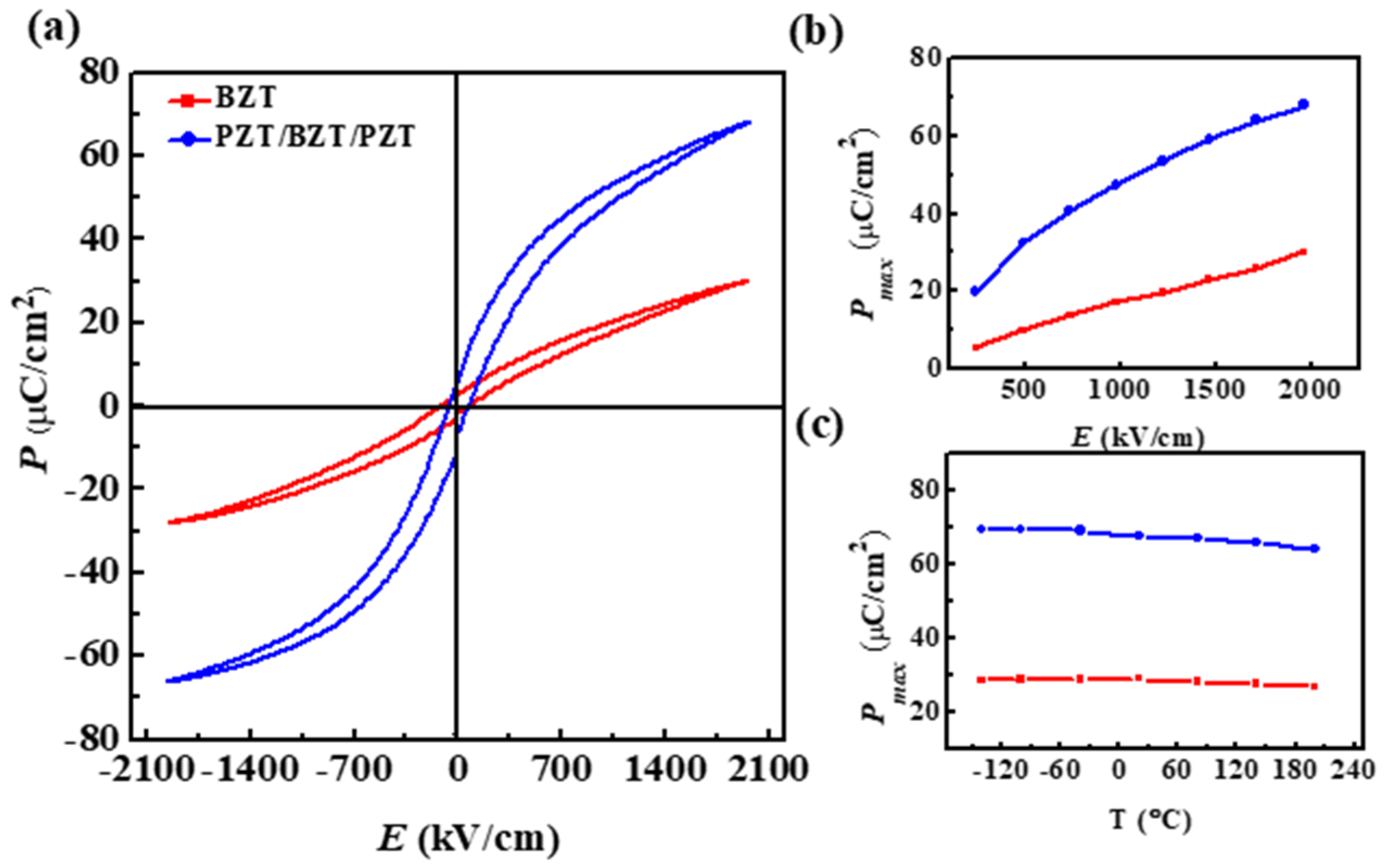

Figure 5. (a) P–E loop of the BZT and PZT/BZT/PZT thin films under 30 °C and 2 MV∙cm−1; the maximum polarization of the BZT and PZT/BZT/PZT thin films under (b) different electric fields and (c) different temperatures.
