Structure and Electrical Properties of Na_0.5Bi_0.5TiO₃ Epitaxial Films with (110) Orientation

Abstract

Pt/Na_0.5Bi_0.5TiO₃/La_0.5Sr_0.5CoO₃ (Pt/NBT/LSCO) ferroelectric capacitors were fabricated on (110) SrTiO₃ substrate. Both NBT and LSCO films were epitaxially grown on the (110) SrTiO₃ substrate. It was found that the leakage current density of the Pt/NBT/LSCO capacitor is favorable to ohmic conduction behavior when the applied electric fields are lower than 60 kV/cm, and bulk-limited space charge-limited conduction takes place when the applied electric fields are higher than 60 kV/cm. The Pt/NBT/LSCO capacitor possesses good fatigue resistance and retention, as well as ferroelectric properties with P_r = 35 μC/cm². The ferroelectric properties of the Pt/NBT/LSCO capacitor can be modulated by ultraviolet light. The effective polarization, ΔP, was reduced and the maximum polarization P_max was increased for the Pt/NBT/LSCO capacitor when under ultraviolet light, which can be attributed to the increased leakage current density and non-reversible polarization P^ caused by the photo-generated carriers.

1. Introduction

Ferroelectric films are widely used in microelectromechanical systems, sensors and ferroelectric random access memory (FeRAM) due to their excellent dielectric, ferroelectric and piezoelectric properties [1,2,3,4,5]. The mainstay ferroelectric materials for applications have traditionally been the Pb(Zr,Ti)O₃ (PZT) films due to their excellent performance (large remnant polarization P_r and small coercive field E_C). However, the use of lead gives rise to environmental concerns, which is the driving force for the development of alternative lead-free ferroelectric materials [6,7,8]. Na_0.5Bi_0.5TiO₃ (NBT) with good ferroelectric properties and high Curie temperature has been considered to be an excellent candidate to replace lead-based ferroelectric materials [9,10,11]. Polycrystalline NBT films with P_r = 11.9 μC/cm² have been grown on Pt/Ti/SiO₂/Si substrates [12]. It is believed that the highly oriented ferroelectric films (especially the epitaxial films) possess higher polarization than the polycrystalline ones due to the lack of grain boundaries. Highly (111) oriented NBT film prepared on Pt/Ti/SiO₂/Si substrate shows a higher P_r of 20.9 μC/cm² [13]. (001) and (011) oriented epitaxial NBT films fabricated on Pt-coated MgO and SrTiO₃ substrates by pulsed laser deposition have good dielectric and ferroelectric properties [14,15]. In addition, both P_r and E_C are dependent on the crystal orientation. For example, the P_r and E_C are 15.9 μC/cm², 12.6 μC/cm² and 126 kV/cm, 94 kV/cm for (111) and (001) oriented NBT films [14,16].

The electrode materials are very important for ferroelectric capacitors. The noble metals, such as Pt, Au and Ag, are good electrode materials due to their excellent conductivity. However, the noble metals as bottom electrodes react easily with oxygen derived from the oxide films and deteriorate the performance of the oxide films [17]. Compared to Pt, Au and Ag, the La_0.5Sr_0.5CoO₃ (LSCO) is low in cost and can provide an oxide/oxide (LSCO/NBT) interface that will not capture the oxygen from the oxide films [18,19]. In this work, Pt/NBT/LSCO ferroelectric capacitors were fabricated on (110)-oriented STO substrate by magnetron sputtering and pulsed laser deposition with LSCO as the bottom electrode. The microstructure and electrical properties of the Pt/NBT/LSCO ferroelectric capacitors, as well as the effect of ultraviolet light on the ferroelectric properties of these capacitors, were investigated.

2. Experimental

The (110) oriented Pt/NBT/LSCO/STO heterojunction was prepared by magnetron sputtering and pulsed laser deposition. Step 1: LSCO film 60 nm in thickness was deposited on (110) STO single crystal substrate by magnetron sputtering at room temperature with the following conditions: Ar:O₂ = 3:1, power: 30 W. Post-annealing was conducted at 550 °C in a 1 atm oxygen-flowing tube furnace. The sheet resistance of the LSCO layer was 20 Ω/□, which is quite low and would not affect the measurements. Step 2: Na_0.5Bi_0.5TiO₃ target with excess 10% bismuth and 10% sodium was used to compensate the loss of bismuth and sodium. NBT film with a thickness of 400 nm was deposited on the LSCO/STO heterostructure by pulsed laser deposition at 550 °C and 7.5 Pa oxygen deposition pressure. The distance between the target and substrate was 5.5 cm; the laser energy density and repetition rate were 2 J/cm² and 5 Hz, respectively. Step 3: Pt film with a thickness of 70 nm and an area of 7.85 × 10⁻⁵ cm² was deposited by magnetron sputtering on the surface of the NBT/LSCO/STO heterostructure through a shadow mask as the top electrodes of the capacitors. The Pt/NBT/LSCO/STO heterostructure was rapidly annealed at 550 °C for 1 min under an O₂ atmosphere to make a better contact between the NBT and Pt.

The surface morphology of the (110) NBT film was measured by atomic force microscopy (AFM, MultiMode 8, Bruker, America). The phase structure was analyzed by X-ray diffractometer (XRD, TD-3700, Tongda, Dandong, China, Cu Kα radiation, tube pressure 30 kV, current 20 mA). The ferroelectric properties of Pt/NBT/LSCO capacitor were tested using a ferroelectric tester (Precision LC II, Radiant, America). The leakage current of the NBT film was tested using an I-V test system (2601B, Kiethley, America ). The ultraviolet light source (CEL-HXUV300, Zhongjiaojinyuan, Beijing, China) with 365 nm (5 mW/cm²) was used.

3. Results and Discussion

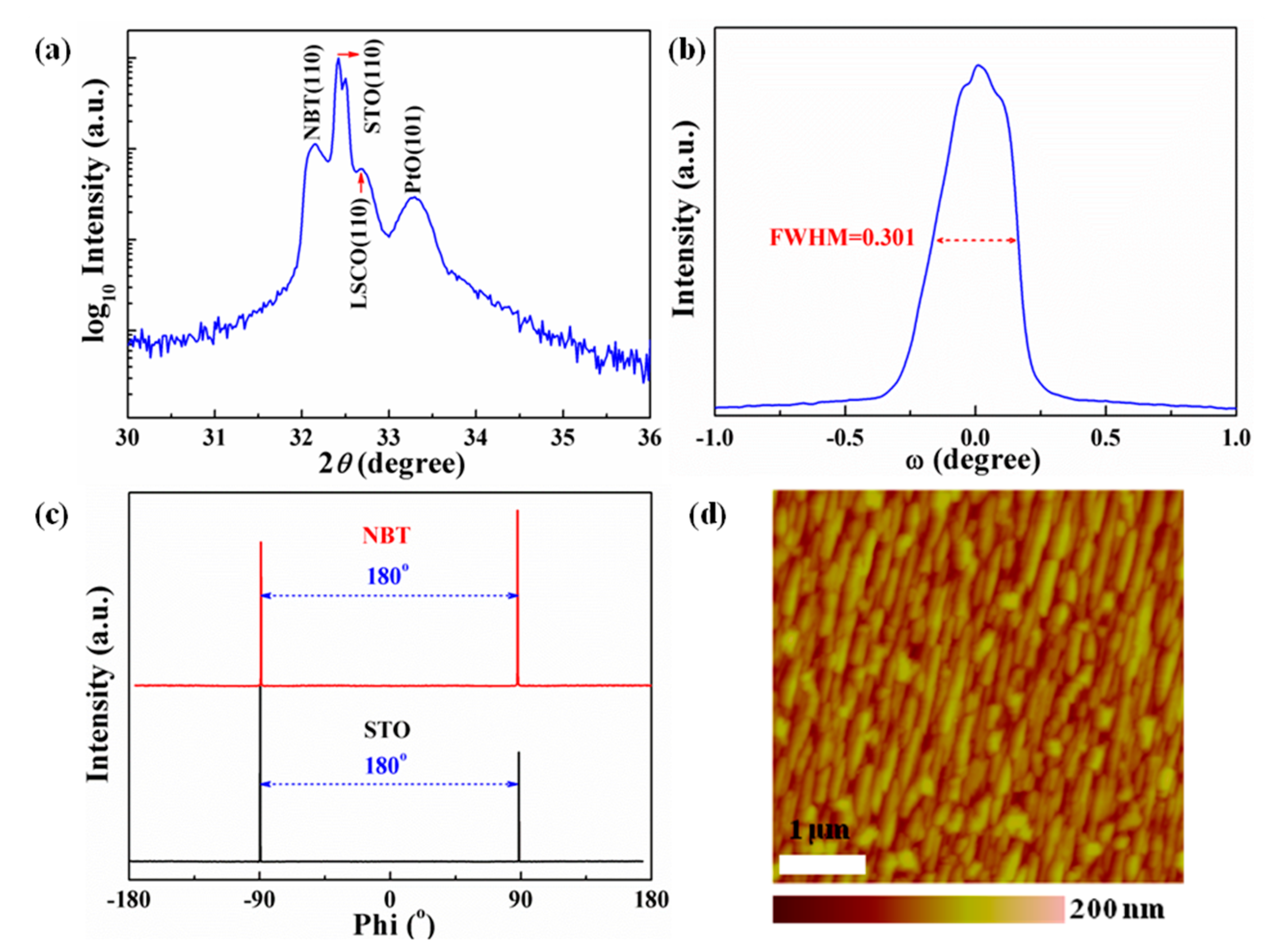

Figure 1a shows the XRD pattern of Pt/NBT/LSCO/STO heterojunction. In addition to the STO (110) peak, (110) diffraction peaks of NBT and LSCO are observed without any diffraction peaks from other directions, indicating that both NBT and LSCO films are highly (110) oriented. The full width at half maximum (FWHM) of the (110) diffraction peak for NBT film is 0.301° based on the rocking curve in Figure 1b, indicating high crystal quality. To further determine the epitaxial property of the NBT film, the phi-scan on the (100) plane of NBT film was performed as shown in Figure 1c. The two periodic diffraction peaks with similar intensity in the phi-scan further confirms that the NBT film is of good epitaxial nature. Figure 1d shows the surface topography of NBT film measured by AFM using tapping mode. It can be seen that the NBT film has a dense microstructure with a layered surface and elongated grains. The grain size is about 265 nm wide. The surface mean square roughness (RMS) is 15.5 nm, demonstrating that the NBT film has a highly crystalline quality. The elongated grain is consistent with that of the (110) oriented NBT film grown on the SrTiO₃ substrate reported by Bousquet [15]. In addition, the appearance of PtO in XRD can be attributed to the reaction of Pt and O₂, since the sample was annealed at 550 °C for 1 min in O₂ atmosphere.

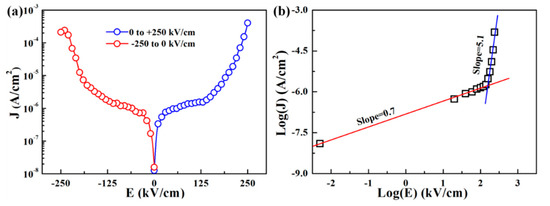

The leakage current density has a great impact on the electrical properties of the ferroelectric capacitors. Low current density is necessary for devices. Figure 2a shows the relationship between the leakage current density J and the electric field E for Pt/NBT/LSCO ferroelectric capacitor. The leakage current density is about 4 × 10⁻⁴ A/cm² and 2 × 10^–4 A/cm² at 250 kV/cm and −250 kV/cm, respectively. To further explore the conduction mechanisms of the Pt/NBT/LSCO capacitor in different electric field ranges, the leakage current curve was re-plotted as shown in Figure 2b. It was found that two mechanisms account for the leakage current characteristic of the Pt/NBT/LSCO capacitor. The log(J) and log(E) show a linear relation with a slope of 0.7 at 0~60 kV/cm, which is close to 1.0 and implies ohmic-like conduction [20,21]. There are a small number of carriers generated by thermal excitation in the NBT film, which contributes to the low J at 0~60 kV/cm. The nonlinear space-charge current-limiting mechanism is responsible for the higher J at 60~250 kV/cm. The Fermi energy is different for LSCO and Pt, which would cause a large Schottky barrier in the interfaces. A large number of electrons gathered in the electrodes under E. These electrons are activated when E is higher than the potential well and enter the NBT film to form leakage current. Thus, J increased sharply.

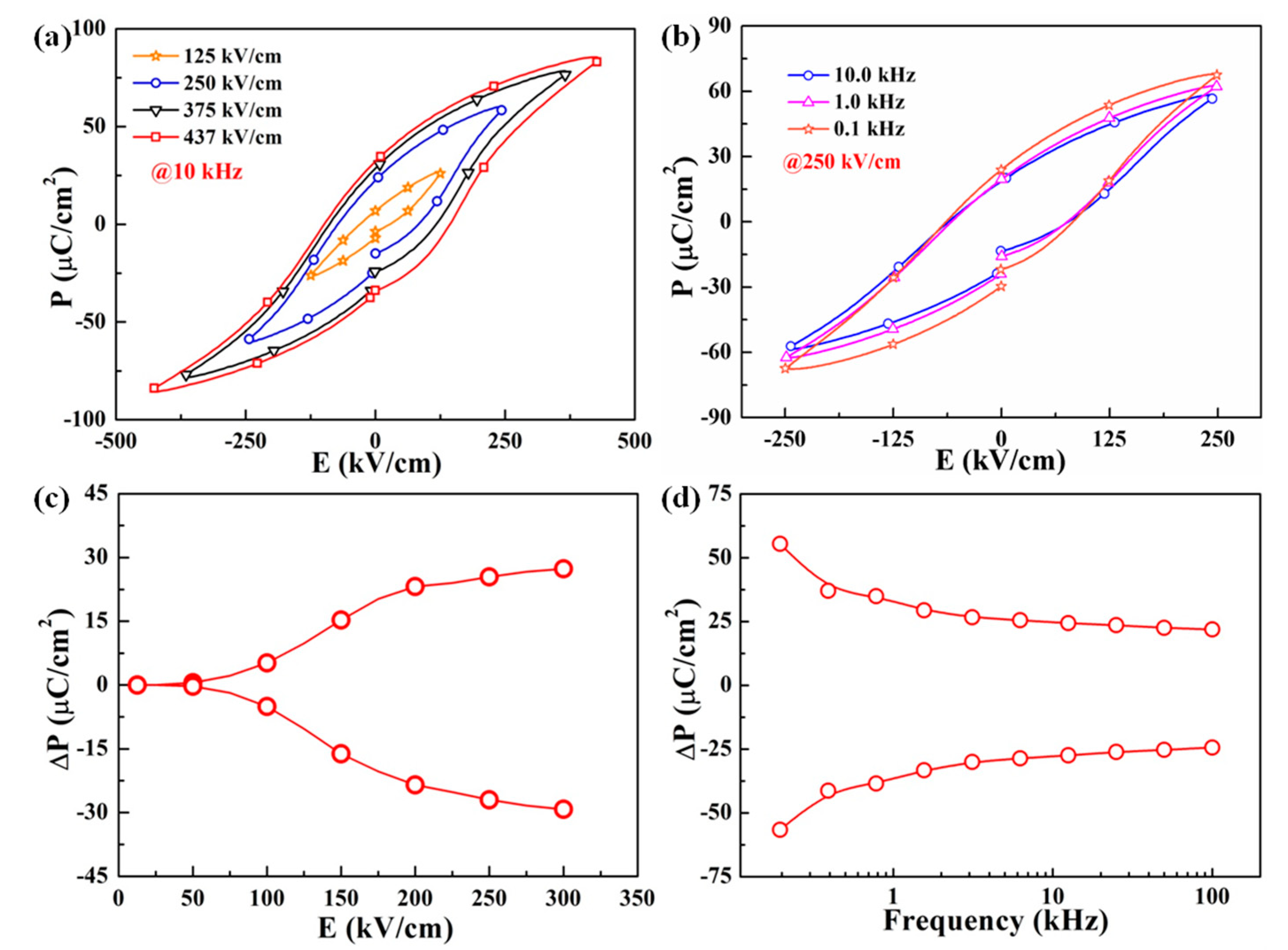

Figure 3a shows the P-E loops of (110) NBT film at different E under 10 kHz. (110) NBT film shows typical ferroelectric P-E loops. Both P_r and P_max increase with E. The saturated P_r of the (110) NBT film is about 35 μC/cm², indicating good ferroelectric properties. The P_r of NBT ceramic is 38.0 μC/cm² [22]. In cubic structure, the angle between the (110) and (111) planes is 35.26°. In theory, P_r = cos(35.26^o) × 38.0 μC/cm² ≈ 31.0 μC/cm² by assuming the polarization vector is along the [111] direction. The saturated P_r of (110) NBT film is 35 μC/cm², which is higher than that (P_r = 31.0 μC/cm²) of the NBT ceramic in (110) orientation. The increased P_r in (110) NBT film can be attributed to the pressure stress caused by the lattice mismatch in the NBT/LSCO interface. In the Pt/NBT/LSCO heterojunction, the in-plane lattice parameter a is 0.389 nm and 0.383 nm for NBT and LSCO based on the XRD pattern. The different lattice parameter a would lead to pressure stress and an enlarged c/a ratio (the out-of-plane lattice parameter c to the in-plane lattice parameter a) in the NBT film. The relationship between the saturation polarization P_s and c/a is (P_s)² ∝ (c/a-1)² in ferroelectric materials [23]. Thus, the pressure stress caused by the lattice mismatch will increase the polarization of the (110) NBT film.

The dependence of P-E loops on the frequency under 250 kV/cm was depicted in Figure 3b. The P-E loops of (110) NBT film become weak with increasing frequency from 0.1 kHz to 10 kHz. This may be due to the fact that the domain cannot be completely reversed at high frequencies, which leads to a decrease in the polarization. The effective polarization ΔP (ΔP = P* − P^, P* is the reversible polarization, P^ is the non-reversible polarization) can remove the influence of leakage current and is an important parameter for ferroelectric memories. Figure 3c is the dependence of ΔP on E. When E is 0~50 kV/cm, ΔP remains unchanged. ΔP rapidly increases with E as E is higher than 50 kV/cm and gradually becomes saturated as E is over 175 kV/cm. At 200 kV/cm, ΔP is 20.3 μC/cm². The slightly increased ΔP as E > 200 kV/cm indicates that the ferroelectric domain may be completely inversed. Figure 3d is the dependence of ΔP on the frequency. The ΔP declines nonlinearly with the increase of frequency since the ferroelectric domains do not have enough time to inverse at high frequencies, which leads to reduced P*. As the frequency is higher than 1 kHz, ΔP shows weaker dependence on the frequency, indicating faster access speed.

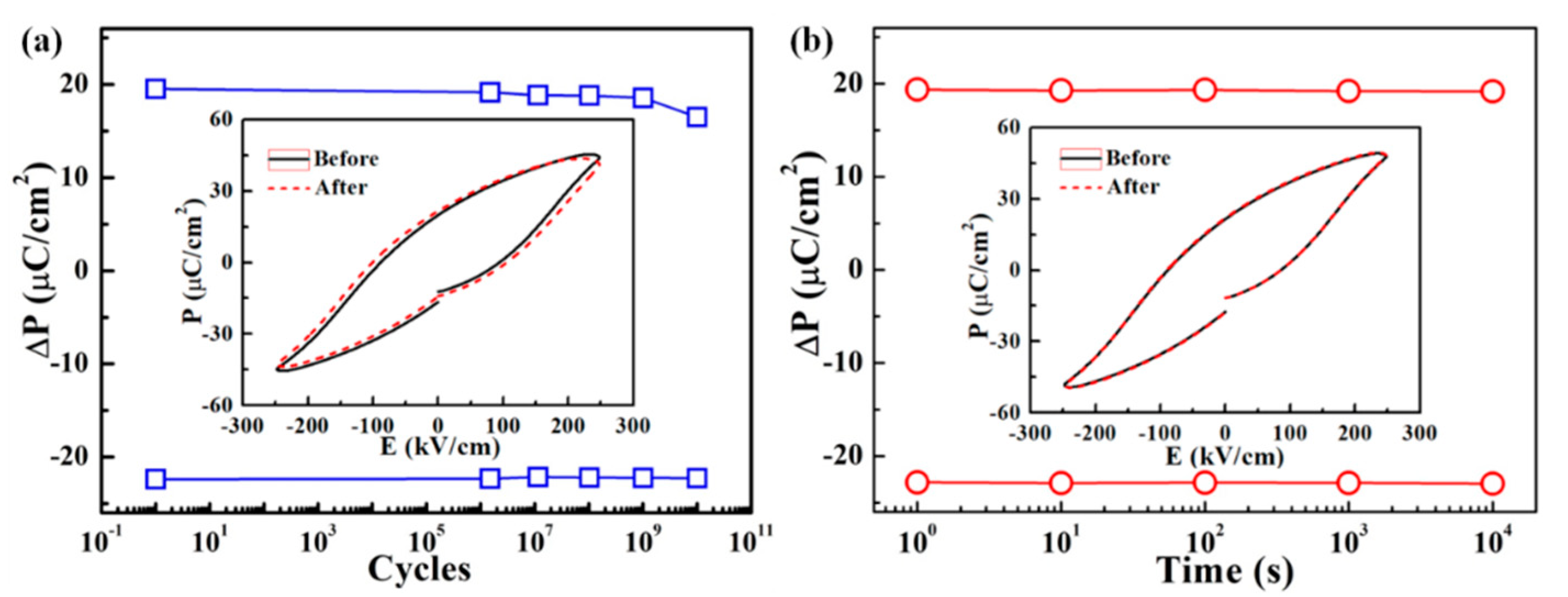

The fatigue of the Pt/NBT/LSCO capacitor was tested at 250 kV/cm and 1 MHz, as shown in Figure 4a. No obvious degradation in ΔP can be found for the LSCO bottom electrode. However, the ΔP reduced to 13.5 μC/cm² from 16.5 μC/cm² after 10¹⁰ switching cycles for the Pt top electrode. These results indicate that the LSCO bottom electrode is good for fatigue resistance and the Pt top electrode would cause decreased ΔP due to the reaction of Pt and O from NBT film [18,19]. The inset of Figure 4a presents the P-E loops before and after 10¹⁰ switching cycles, in which a decreased P-E loop was observed. Figure 4b is the retention of the Pt/NBT/LSCO capacitor. There is no obvious degradation in ΔP for either electrode after 10⁴ s, indicating that the Pt/NBT/LSCO capacitor has good retention characteristics. In addition, the similar P-E loops before and after 10⁴ s shown in the inset of Figure 4b further confirm the good retention characteristics. It seems that the retention characteristic is independent on the electrode materials.

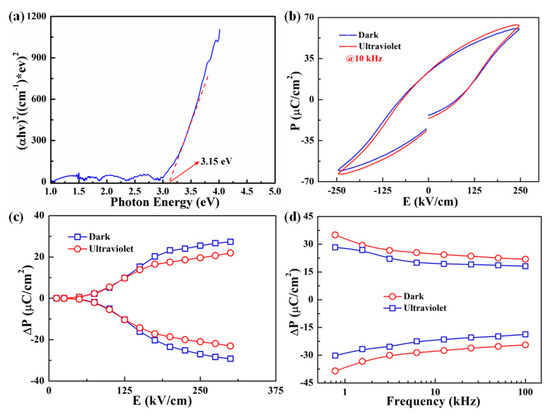

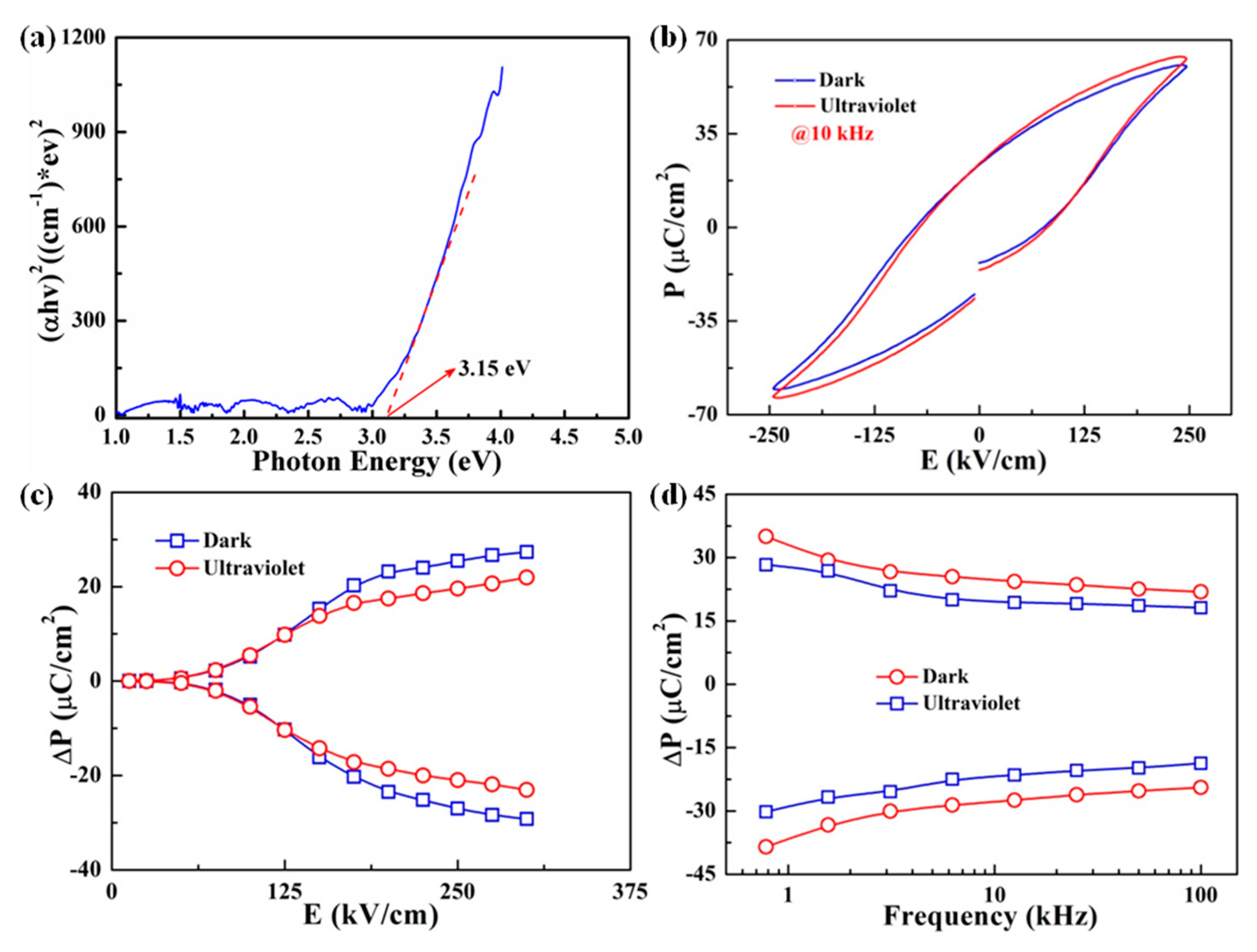

To investigate the effect of light on the ferroelectric properties of the Pt/NBT/LSCO capacitor, ultraviolet light with a wavelength of 365 nm was used, since the forbidden gap of NBT film is 3.15 eV, as shown in Figure 5a. Figure 5b shows the P-E loops of the Pt/NBT/LSCO capacitor under dark and ultraviolet light. It can be seen that the P_max is 60.6 μC/cm² and 63.8 μC/cm² under dark and ultraviolet light, respectively, indicating that the ultraviolet light can increase the polarization of the Pt/NBT/LSCO capacitor. P_max (P_max = 2ΔP + Jt, ΔP is effective polarization, J is leakage current density and t is time) can be affected by ΔP and J. Under ultraviolet light, photo-generated carriers would be generated in NBT film, increasing J, and thus causing an increase in P_max. To further illustrate the effect of ultraviolet light on ΔP, the dependences of ΔP on E and frequency under ultraviolet light were investigated as shown in Figure 5c,d. It can be seen that the ultraviolet light leads to reduced ΔP. This is attributed to the increased P^ caused by the ultraviolet light. The decreased ΔP further confirms that the increased P_max can be attributed to the increased J under ultraviolet light. The ultraviolet light leads to decreased ΔP, but does not change the tendencies of ΔP with E and frequency. Based on the analysis described above, it can be concluded that the increased P_max in the Pt/NBT/LSCO capacitor is due to the increased J caused by the photo-generated carriers rather than the increased ΔP.

4. Conclusions

The Pt/NBT/LSCO capacitor was fabricated on (110) STO substrate by magnetron sputtering and pulsed laser deposition with LSCO as the bottom electrode. The microstructure and electrical properties of the (110) oriented NBT film were investigated. It was found that the (110) oriented NBT/LSCO films were epitaxially grown on SrTiO₃ substrate with high crystal quality. The (110) NBT film shows good ferroelectric properties, with P_r = 35 μC/cm² and a small leakage current density of 4.02 × 10⁻⁴ A/cm² at 250 kV/cm. The ohmic conduction mechanism and nonlinear space charge limiting accounted for the conduction mechanisms at 0–60 kV/cm and 60–250 kV/cm, respectively. The ΔP of the Pt/NBT/LSCO capacitor shows strong dependence on both the electric field and frequency. In addition, the Pt/NBT/LSCO capacitor processes good fatigue resistance and retention. The ultraviolet light leads to increased leakage current density and non-reversible polarization P^, and causes reduced ΔP and increased P_max. These results can provide a reference for the research and development of lead-free NBT ferroelectric storage devices.
