Interference Induced Enhancement of Magneto-Optical Effect in Pt/TbCo Hetero-Structured Films

1
Department of Advanced Science and Technology, Toyota Technological Institute, Nagoya 468-8511, Japan
2
Institute of Materials Science, Vietnam Academy of Science and Technology, Hanoi 100803, Vietnam
3
Department of Physics, The University of Tokyo, Bunkyo, Tokyo 113-0033, Japan
4
National Institute for Materials Science, Tsukuba 305-0047, Japan
*
Author to whom correspondence should be addressed.
Crystals 2018, 8(10), 377; https://doi.org/10.3390/cryst8100377
Received: 28 August 2018 / Revised: 14 September 2018 / Accepted: 20 September 2018 / Published: 24 September 2018

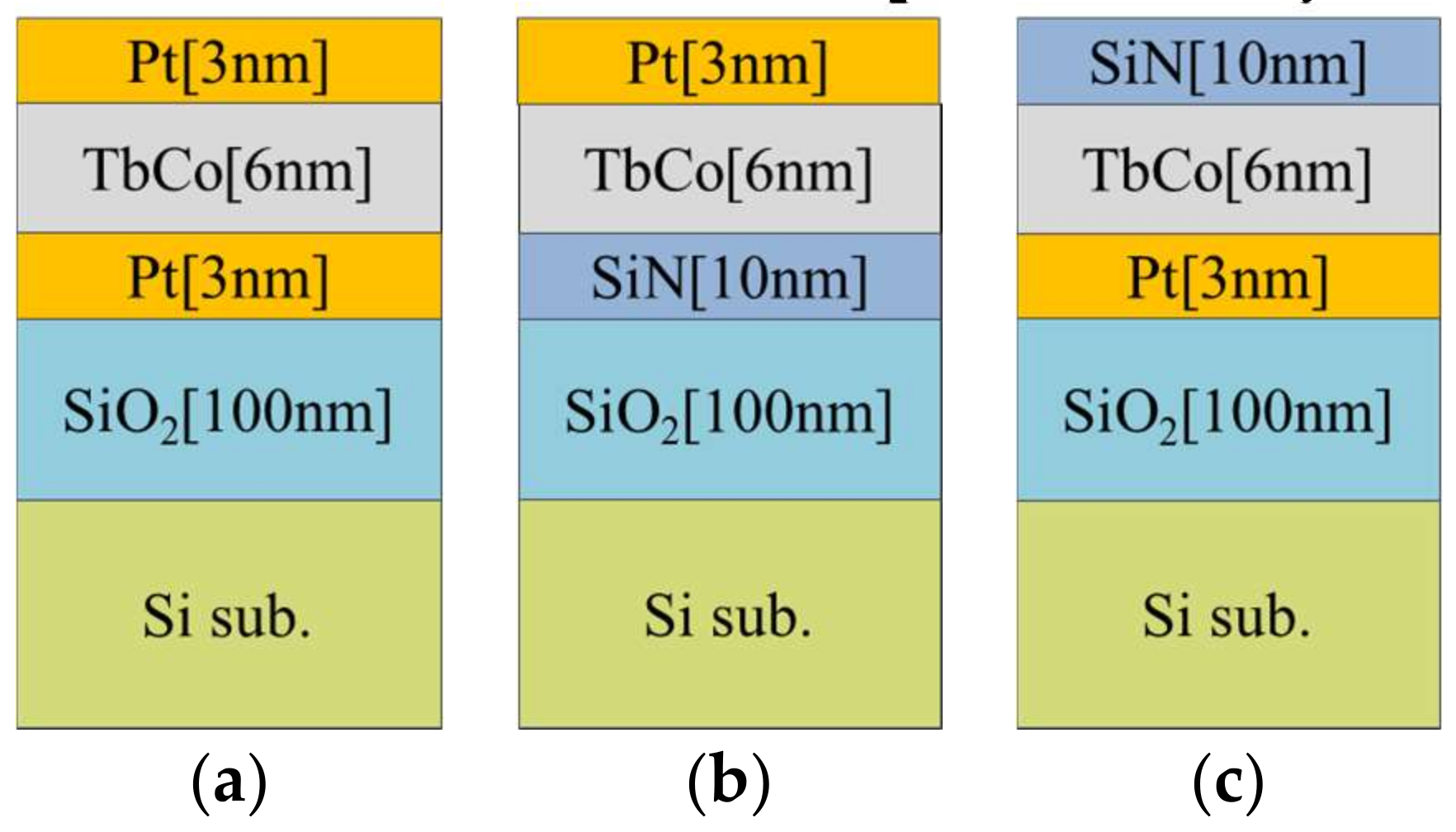

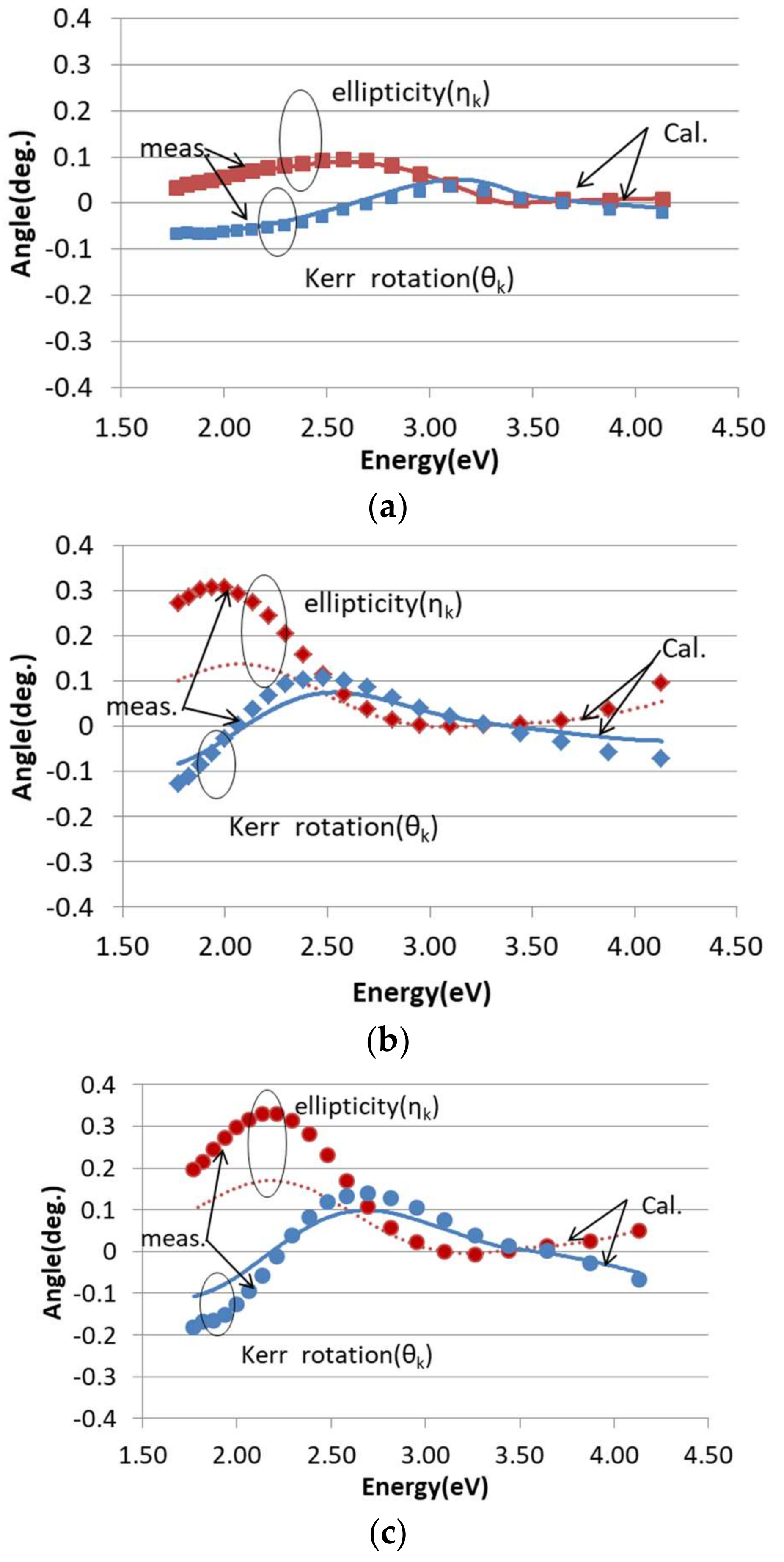

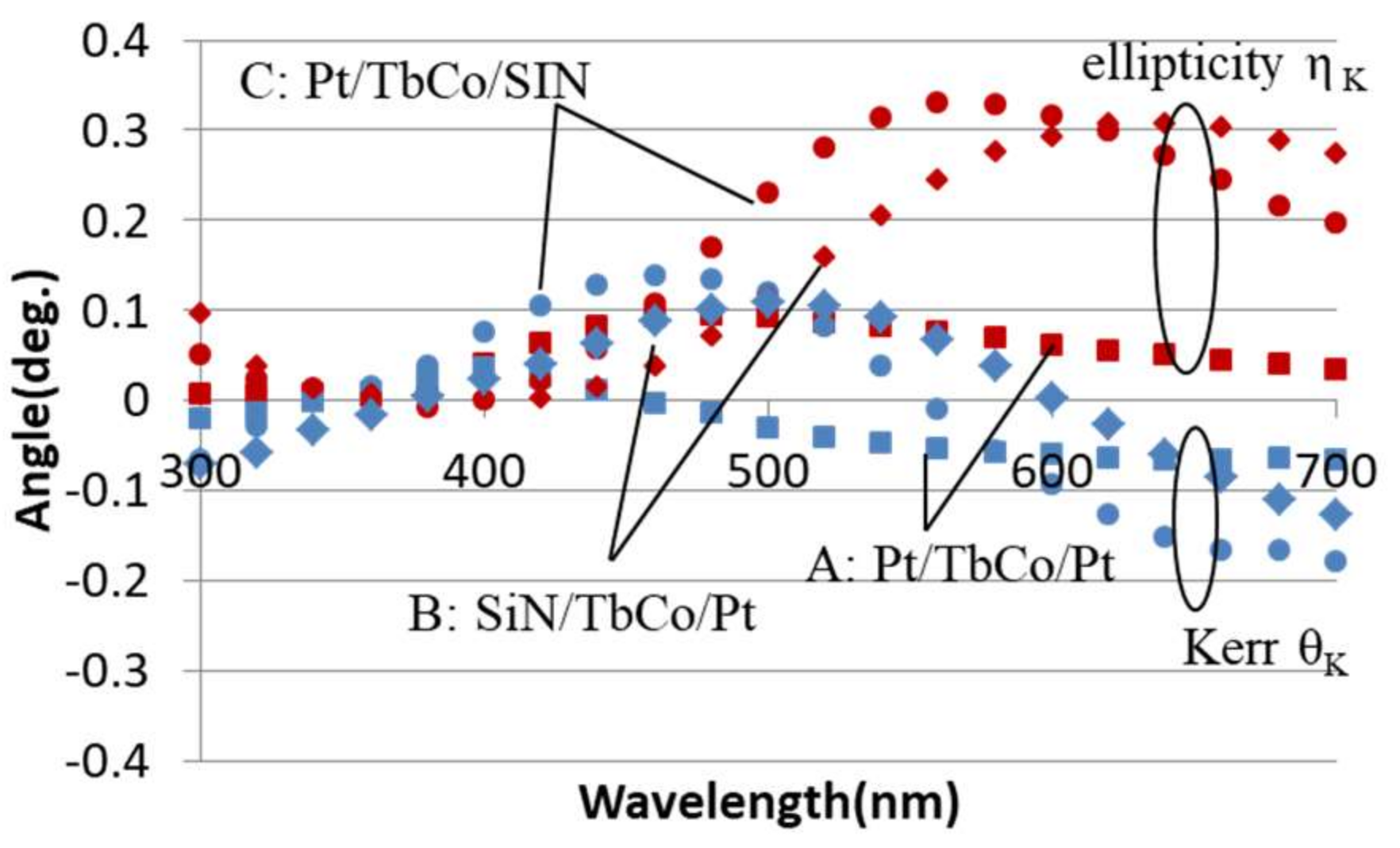

Magnetic films with a heavy metal layer show strong interfacial interaction of spin-orbit. Spin-orbit interaction is one of the key technologies for spintronics. In this paper, we measured magneto-optical Kerr spectra of Pt/TbCo hetero-structure films on a thermally oxidized silicon substrate (0.3 mm); A: Pt (3 nm)/TbCo (6 nm)/Pt (3 nm), B: Si3N4 (10 nm)/TbCo (6 nm)/Pt (3 nm), and C: Pt (3 nm)/TbCo (6 nm)/Si3N4 (10 nm). Magneto-optical Kerr spectra of each sample were measured with a wavelength range of 300–700 nm, and were compared to the simulated spectra using the effective refractive index method. In the sample A, which has a symmetric structure, the simulated spectra are consistent with the measured ones. On the other hand, in the samples B and C, with an asymmetric structure, there are some differences between the simulated spectra and the measured ones in a lower photon energy region. This may be caused by interfacial effects of the spin-orbit interaction. View Full-Text
Keywords: TbCo; heavy metal; hetero structure; spin-orbit interaction; magnetooptical TbCo; heavy metal; hetero structure; spin-orbit interaction; magnetooptical
Show Figures

Figure 1
