Solvent Effects on the Spin-Transition in a Series of Fe(II) Dinuclear Triple Helicate Compounds

1
School of Science and Health, Western Sydney University, Penrith, Sydney, NSW 2751, Australia
2
Mark Wainwright Analytical Centre, University of New South Wales, Sydney, NSW 2052, Australia
3
School of Chemistry, University of Sydney, Sydney, NSW 2006, Australia
*
Author to whom correspondence should be addressed.
Crystals 2018, 8(10), 376; https://doi.org/10.3390/cryst8100376
Received: 11 September 2018 / Revised: 19 September 2018 / Accepted: 19 September 2018 / Published: 23 September 2018
(This article belongs to the Special Issue Synthesis and Applications of New Spin Crossover Compounds)

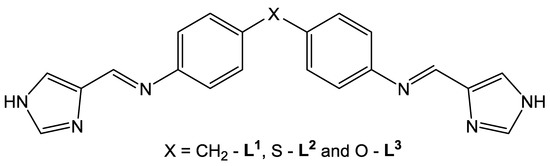

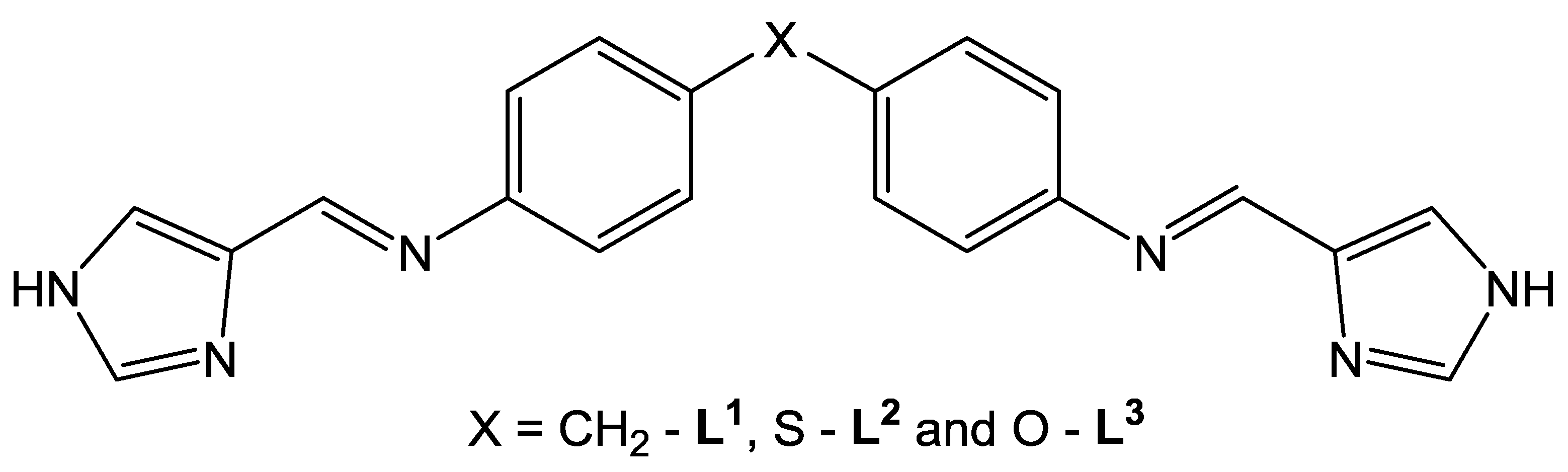

This work explores the effect of lattice solvent on the observed solid-state spin-transition of a previously reported dinuclear Fe(II) triple helicate series 13 of the general form [FeII2L3](BF4)4(CH3CN)n, where L is the Schiff base condensation product of imidazole-4-carbaldehyde with 4,4-diaminodiphenylmethane (L1), 4,4′-diaminodiphenyl sulfide (L2) and 4,4′-diaminodiphenyl ether (L3) respectively, and 1 is the complex when L = L1, 2 when L = L2 and 3 when L = L3 (Craze, A.R.; Sciortino, N.F.; Bhadbhade, M.M.; Kepert, C.J.; Marjo, C.E.; Li, F. Investigation of the Spin Crossover Properties of Three Dinuclear Fe(II) Triple Helicates by Variation of the Steric Nature of the Ligand Type. Inorganics. 2017, 5 (4), 62). Desolvation of 1 and 2 during measurement resulted not only in a decrease in T1/2 and completeness of spin-crossover (SCO) but also a change in the number of steps in the spin-profile. Compounds 1 and 2 were observed to change from a two-step 70% complete transition when fully solvated, to a single-step half complete transition upon desolvation. The average T1/2 value of the two-steps in the solvated materials was equivalent to the single T1/2 of the desolvated sample. Upon solvent loss, the magnetic profile of 3 experienced a transformation from a gradual SCO or weak antiferromagnetic interaction to a single half-complete spin-transition. Variable temperature single-crystal structures are presented and the effects of solvent molecules are also explored crystallographically and via a Hirshfeld surface analysis. The spin-transition profiles of 13 may provide further insight into previous discrepancies in dinuclear triple helicate SCO research reported by the laboratories of Hannon and Gütlich on analogous systems (Tuna, F.; Lees, M. R.; Clarkson, G. J.; Hannon, M. J. Readily Prepared Metallo-Supramolecular Triple Helicates Designed to Exhibit Spin-Crossover Behaviour. Chem. Eur. J. 2004, 10, 5737–5750 and Garcia, Y.; Grunert, C. M.; Reiman, S.; van Campenhoudt, O.; Gütlich, P. The Two-Step Spin Conversion in a Supramolecular Triple Helicate Dinuclear Iron(II) Complex Studied by Mössbauer Spectroscopy. Eur. J. Inorg. Chem. 2006, 3333–3339). View Full-Text
Keywords: spin-crossover; dinuclear triple helicate; Fe(II); solvent effects spin-crossover; dinuclear triple helicate; Fe(II); solvent effects
