Article

Lewis Acid Properties of Tetrel Tetrafluorides—The Coincidence of the σ-Hole Concept with the QTAIM Approach

by
Sławomir J. Grabowski
1,2
1
Faculty of Chemistry, University of the Basque Country and Donostia International Physics Center (DIPC), P.K. 1072, 20080 Donostia, Spain
2
IKERBASQUE, Basque Foundation for Science, 48011 Bilbao, Spain
Crystals 2017, 7(2), 43; https://doi.org/10.3390/cryst7020043
Submission received: 19 January 2017 / Revised: 2 February 2017 / Accepted: 3 February 2017 / Published: 8 February 2017
(This article belongs to the Special Issue Analysis of Halogen and Other σ-Hole Bonds in Crystals)
Browse Figures
Versions Notes

Abstract

:
Tetrel bond is analysed for a series of ZF4 (Z = C, Si, Ge) complexes with one and two NH3 or AsH3 ligands. The MP2/aug-cc-pVTZ calculations were performed and supported by results of the Quantum Theory of “Atoms in Molecules” (QTAIM) and the Natural Bond Orbitals (NBO) approaches. The Z-tetrel atoms of complexes analysed interact through their σ-holes with nitrogen or arsenic Lewis base centres; these interactions correspond to the Z–N/As bond paths according to the QTAIM approach. The QTAIM and NBO results show that these interactions are relatively strong and they possess numerous characteristics of covalent bonds. The theoretical analysis is supported by the discussion on crystal structures which are characterized by the same type interactions.

Graphical Abstract

1. Introduction

Various Lewis acid–Lewis base interactions play a key role in different chemical reactions and biological processes [1,2,3]. The most often investigated hydrogen bond is crucial in numerous such processes [4,5,6,7] but there are also other significant interactions; for example, tetrel bond, which may be defined as an interaction between the Group 14 element acting as the Lewis acid centre and a region that is rich of the electron density by a lone electron pair, π-electron system, etc. [8,9,10,11,12]. This interaction is classified as the σ-hole bond [8,9,10] that is a link between a σ-hole situated in an elongation of one of covalent bonds to the atom considered and the Lewis base centre [13,14,15,16]. The σ-hole is a region depleted of the electron density due to its outflow to the internal part of the system, partly to the σ-bond of the centre considered. Hence, this region is often characterized by a positive electrostatic potential (EP). It has been shown that the atoms of Groups 14–17 often possess σ-holes forming with Lewis base centres the σ-hole bonds [13,14,15,16]. Recently, the Group 18 elements were also considered as those that may form the σ-hole bonds since they possess regions characterized by positive EPs [17].
There are numerous early studies on the tetrel bond; for example, the theoretical analysis of the SiF4–NH3 and SiF4–(NH3)2 complexes [18], or the study on various complexes of silicon species with electron-rich groups [19]. The tetrel bond was analysed in terms of the σ-hole concept for the first time by Murray and co-workers in complexes where the σ-hole on silicon or germanium atom is linked with nitrogen centre of the NH3 or HCN species [8]; in complexes of SiF4 with amines, larger clusters containing up to three NH3 molecules were considered [9]. The interplay between the halogen and tetrel bond was discussed [10]; the tetrel bond was considered as a preliminary stage of the SN2 reaction [12], a computational study of structural and energetic properties of acetonitrile–Group 14 tetrahalide complexes was performed [20]. There is an interesting study on the nature of bonding in dimers of Lappert’s stannylene where the Sn-Sn intermolecular links are observed and where the tin centres play the roles of Lewis acid and Lewis base simultaneously [21].
This study concerns the tetrel bond interaction; five and six coordinated tetrel centres are analysed and it is discussed if all their links possess characteristics of covalent bonds. Very recently, the coordination of tin and lead centres was discussed and it was found that these centres may be classified as pentavalent or even hexavalent ones [22]. This is why it is interesting to analyse if such a situation of covalent in nature interactions occurs for lighter Group 14 elements: carbon, silicon and germanium. One can refer to earlier studies where the coordination of light tetrel centres was analysed; pentacoordinate carbon compounds were analysed experimentally and theoretically by Akiba and co-workers [23,24]; it was discussed if the hexavalent carbon can exist [25]. Pentacoordinate silicon complexes were analysed and the corresponding SN2 reaction pathways were discussed [26], the crystal structures of penta- and hexacoordinated germanium centres were reported [27,28]; hexacoordinated Ge and Sn centres in crystal structures were also analysed [29].
The ZF4–NH3 and ZF4–(NH3)2 (Z = C, Si, Ge) complexes are a subject of this study since one can expect strong interactions between Z-tetrels and the NH3 species that may lead to penta- and hexacoordinated tetrel centres. The same or similar complexes to those chosen here for an analysis were investigated before. One may refer to the above-mentioned early theoretical study on the SiF4–NH3 and SiF4–(NH3)2 complexes (ab initio MO calculations were performed with the use of STO-3G and STO-6G basis sets) [18]. However, there are other early experimental studies, for example, a diammoniate of silicon tetrafluoride, SiF4–(NH3)2, has been prepared in a highly purified form and its X-ray powder diffraction pattern has been measured [30]. The infrared matrix isolation study on the SiF4–NH3 adduct was performed, its spectra suggest a trigonal-bipyramidal arrangement about the Si-centre with the NH3 species in an axial position [31]. One can mention other related studies as the free-jet IR spectroscopy of SiF4–N2 and SiF4–CO complexes [32] or the infrared matrix isolation study on the GeF4 complexes with oxygen containing bases [33]. The crystal structures of germanium tetrafluoride and tin tetrafluoride complexes with soft thioether coordination were analysed [34]; the complexes of germanium tetrafluoride with phosphane ligands were investigated spectroscopically and in crystal structures [35]. In the latter study, the germanium arsanes were also analysed and the GeCl4 arrangement was found in the crystal structure where the germanium centre is additionally involved in the interaction with two arsenic atoms; thus, it may be considered as the hexacoordinated centre. This is why the GeF4–AsH3 and GeF4–(AsH3)2 complexes are also analysed here, since in these species the interactions of germanium with halogen and arsenic centres mimic the interactions existing in the above-mentioned crystal structure.

2. Computational Details

The calculations were carried out with the Gaussian09 set of codes [36] using the second-order Møller–Plesset perturbation theory (MP2) [37], and the Dunning style aug-cc-pVTZ basis set [38]. Frequency calculations have confirmed that the obtained structures correspond to energetic minima. To take into account relativistic effects for arsenic and germanium centres, the Stuttgard/Cologne group ECP10MDF pseudopotentials were applied [39] with the corresponding Peterson AVTZ (11s12p10d2f)/[6s5p4d2f] basis sets [40].
The interaction and binding energies, Eints and Ebins, were calculated; Eint is the difference between the energy of the complex and the sum of energies of monomers which correspond to their geometries in the complex. In the case of the binding energy, Ebin, the energies of isolated monomers not involved in any interactions are taken into account [41]. The deformation energy, Edef, defined as the Ebin − Eint difference [42], is discussed for the complexes analysed. Edef is a positive value since the complex formation leads to a change of geometry of monomers that are pushed out from their energetic minima. The basis set superposition error (BSSE) correction [43] was calculated and the BSSE corrected interaction and binding energies are presented and discussed hereafter.
The Quantum Theory of “Atoms in Molecules” (QTAIM) [44,45] was applied to analyse critical points (BCPs) in terms of the electron density (ρBCP), its Laplacian (∇2ρBCP), the total electron energy density at BCP (HBCP) and the components of the latter value, the kinetic electron energy density (GBCP) and the potential electron energy density (VBCP). The QTAIM calculations were performed with the use of the AIMAll program [46]. The Natural Bond Orbital (NBO) method [47] was also applied to analyse electron charge shifts being the result of complexation as well as orbital–orbital interactions. For the Natural Bond Orbital (NBO) calculations, the NBO 5.0 program [48] implemented in GAMESS set of codes [49] was used.

3. Results and Discussion

3.1. Interaction and Binding Energies

Figure 1 shows molecular graphs of complexes analysed here, where the pentacoordinated tetrel centre is observed, i.e., the complexes of ZF4 with one ligand, NH3 or AsH3. Figure 2 presents, as an example, the molecular graph of the GeF4–(AsH3)2 complex that contains two ligands. The simple ZF4 species as components of complexes were chosen here to analyse the Lewis acid properties of Z-centres that according to previous studies [10] should increase in the following order, C < Si < Ge. It was shown that the fluorine electron withdrawing substituents enlarge the positive electrostatic potential at Group 14 elements [10], similar to that observed for other centres characterized by σ-holes [13,14,15]. Thus, the tetrel centre in ZF4 should interact strongly with Lewis bases since the NH3 species is characterized by strong Lewis base properties of the nitrogen centre.
Figure 1 and Figure 2 show bond paths (BPs) that, according to the Bader theory, correspond to stabilizing interactions [50,51]; Z-centres are characterized by four Z-F bond paths and additionally by one or two Z–N(As) BPs, for complexes with one or two ligands, respectively. The latter bond paths correspond to the interactions between the tetrel σ-hole and electron reach nitrogen or arsenic centre. The CF4–NH3 complex is the only exception since the N-attractor of NH3 is not connected with the carbon but with the fluorine attractors by three BPs (Figure 1) that seems to be surprising because the F-atoms are characterized by the negative EP. However, the local F–N electrostatic repulsions are rather weak here since the EP at F-centres of CF4 is equal to only −0.002 au. It seems that the F–N bond paths correspond to stabilizing interactions, which are ruled by dispersive forces. These conclusions are partly confirmed by results presented in Table 1. The Eint for the CF4–NH3 complex is equal to −1.1 kcal/mol that shows a very weak interaction between the CF4 and NH3 species. This weak interaction is accompanied by the absence of the deformation being the result of complexation, i.e., the Edef is equal to zero. The similar weak interaction, where the CF4 unit is in contact with the nitrogen centre, was found for the pyridine–CF4 complex where the dissociation energy is lower than 1 kcal/mol [52].
Much stronger interactions are observed for remaining complexes (Table 1); for those containing one ligand, the strength of interaction increases with the increase of the atomic number of Z-centre; for the ZF4–NH3 complexes, Eint is equal to −1.1, −29.6 and −33.8 kcal/mol for Z = C, Si and Ge, respectively. Table S1 (Supplementary Materials) shows all interaction and binding energies including calculations where relativistic effects were not taken into account for complexes containing Ge and As atoms. The results show that differences between energies with relativistic corrections and without them are not meaningful.
The C < Si < Ge order of an increase of the electrostatic potential at the tetrel centre for the tetrel tetrafluorides is observed with the following EP maxima: +0.034, +0.072 and +0.086 au, respectively (Table S2), which is in agreement with the above-mentioned increase of the strength of interaction between the ZF4 and NH3 species. It is worth mentioning that, in complexes with one ligand (Figure 1), there are three linearly located N(As)–Z–F atoms while the ZF3 central part is not planar like for the perfect trigonal bipyramidal geometry. The order of an increase of Ebin values for the ZF4–NH3 complexes is the same as for Eint.
One can see large Edef values for the SiF4–NH3 and GeF4–NH3 complexes, equal to 21.1 and 17.6 kcal/mol, respectively; these values correspond to large geometrical changes being a result of complexation. Figure 3 defines the α-angle which for the ZF4 species not involved in any interaction should be equal to 70.5° corresponding to the perfect tetrahedral geometry. However, this angle increases with the increase of a strength of interaction with the Lewis base centre. It was justified that the tetrel bond may be considered as a preliminary stage of the SN2 reaction [12]; α-angle is equal to 90° or nearly so for the transition state of this reaction. Figure 3 shows that α is greater for the SiF4–NH3 and GeF4–NH3 complexes than for the CF4–NH3 and GeF4–AsH3 ones; the latter complexes are characterized by weaker interactions and lower deformation energies than the former complexes. Table 1 also shows that the Z–N(As) distance is close to 2 Å for strong interactions in the SiF4–NH3 and GeF4–NH3 complexes while this value exceeds 3 Å for the CF4–NH3 and GeF4–AsH3 moieties.
Stronger Z–N(As) interactions are observed for complexes containing two ligands than for corresponding complexes containing one ligand (Table 1, Eint values). The energy of interaction, similar to the binding energy, for the complex containing two ligands refers to two components (treated as monomers): ligand (NH3 or AsH3) and the complex containing one ligand (ZF4–NH3 or GeF4–AsH3). The Eint calculated in such a way for ZF4–(NH3)2 is equal to −29.1, −44.4 and −42.4 kcal/mol for Z = C, Si and Ge, respectively; this energy for the GeF4–(AsH3)2 complex is equal to −22.3 kcal/mol. The stronger interactions for complexes with two ligands correspond to shorter Z–N(As) distances than the corresponding distances for complexes containing one ligand (Table 1).
Table 1 shows the positive binding energies for the CF4–(NH3)2 and GeF4–(AsH3)2 complexes. These complexes are in energetic minima, like all systems analysed here, however the positive Ebin values indicate that the additional second ligand leads to the system energetically less favourable than the reaction subtracts. Table 1 also presents, for complexes containing two ligands, the interaction and binding energies related to three subtracts; this means that Eint is calculated as the difference between the energy of the complex and the sum of energies of three components (two ligands and ZF4). The binding energy is also positive for the CF4–(NH3)2 and GeF4–(AsH3)2 complexes.
The α angle for all complexes with two ligands is equal to 90°, or nearly so, and the ZF4 fragments of these complexes are planar; thus there is the central ZF4 fragment here with two ligands situated in the N(As)–Z–N(As) line that corresponds to the octahedral structure (Figure 2). Structures with the hexacoordinated tetrel centre that are not characterized by the regular octahedron are also observed. For example, such a situation was observed for the ZF4–(CH3CN)2 complexes (Z = Si, Ge) where the ZF4 fragments are far from planarity and their tetrahedral structures are not distorted significantly [20]. The SiF4–(NH3)2 complex is another example [9] where four fluorines and two nitrogens constitute a distorted octahedron around the silicon and the N–Si–N angle is equal to 89°; this angle is equal to 180° for the regular octahedral conformation analysed here.

3.2. Electron Charge Shifts Resulting from Complexation—QTAIM Approach

Table 2 presents characteristics of the Z–N(As) bond critical point (BCP). The parameters of BCP characterize an interaction considered; numerous analyses of BCPs were performed for the hydrogen bonded systems [6,53]. For example, the electron density at BCP—ρBCP often correlates with the strength of the corresponding interaction that is usually expressed by the interaction or binding energy [53]. The latter correlations are usually observed for homogenous samples of complexes and for interactions between pairs of the same type atoms. For the Z–N(As) contacts analysed here the Z-centre concerns different Group 14 elements; however, one can see (Table 2) that the Z–N(As) ρBCP is greater for complexes containing two ligands than for corresponding complexes with one ligand. This is in line with the strength of interactions that are stronger for complexes with two ligands. Two Z–N(As) BCPs for each complex with two ligands are equivalent due to the symmetry of these species. There are the lowest ρBCP values of 0.003 and 0.012 au for the CF4–NH3 and GeF4–AsH3 complexes where the weakest interactions are observed (Table 1).
The negative Laplacian of the electron density at BCP, ∇2ρBCP, indicates the electron density concentration in the inter-atomic region that corresponds to a covalent bond [44,45]. On the other hand, the positive Laplacian value shows the depletion of the electron density that corresponds to the closed–shell interaction. Table 2 shows the negative Laplacian only for C–N contacts in the CF4–(NH3)2 complex. For the latter complex, the negative values of ∇2ρBCP for C-F bonds are also observed (Table S3 presents BCP characteristics of the Z-F bond). Thus, according to the QTAIM approach, there is a hexavalent carbon centre in the CF4–(NH3)2 complex. The negative ∇2ρBCP is also observed for C-F bonds in the CF4–NH3 complex (Table S3); however, the C–N bond path is not observed there (Figure 1).
For numerous molecular systems ∇2ρBCP > 0 and HBCP < 0; it was stated that these relations are a sufficient condition to classify any interaction as a covalent bond or at least as an interaction partly covalent in nature [54,55,56]. Table 2 shows the negative HBCP values for the Z–N(As) contacts for almost all complexes analysed here, except for the CF4–NH3 complex, where the C–N bond path is not observed, and the GeF4–AsH3 complex; both complexes are weakly bonded since the HBCP values for BCPs of the F–N and Ge–As bond paths, respectively, are positive and close to zero. Table S3 shows the negative ∇2ρBCP values for the C-F bonds for complexes of the CF4 species; for all remaining complexes, the Z-F ∇2ρBCP and HBCP values are positive and negative, respectively, which means that, according to the QTAIM approach, only for the CF4–(NH3)2 complex the hypervalency (hexavalent carbon) is observed without any doubt; for the CF4–NH3 and GeF4–AsH3 complexes the carbon and germanium centres are tetravalent ones while for the remaining species the negative HBCP values show that this phenomenon may be taken into account. To illustrate the above situation, Figure 4 shows the molecular graphs with the reactive surfaces (∇2ρ(r) = 0) for the CF4–(NH3)2 and SiF4–(NH3)2 complexes.
The areas closed by these surfaces are regions of the electron density concentration. One can see that for the CF4–(NH3)2 complex the N–C–N line (i.e., both N–C contacts) is located in the region of the negative Laplacian, also the BCPs of all C-F bonds are located in such regions, thus the hexavalent C-centre is observed for this complex. For the SiF4–(NH3)2 complex, all BCPs, corresponding to the Si–N contacts and to the Si-F bonds, are located in regions of the positive Laplacian; however, as described earlier here, all corresponding HBCP values are negative. On the other hand, for both complexes presented in Figure 4, all fluorine centres with their spheres of the negative Laplacian are separated from the remaining parts of complexes, which may suggest the strong polarization of Z-F bonds, as is discussed below. Figure 4 also presents the reactive surfaces based on the total electron energy densities (H(r) = 0) where for both CF4–(NH3)2 and SiF4–(NH3)2 complexes all Z-F and Z–N links are located in regions of the negative H-values. This means that the sharp criterion of covalency based on the negative Laplacian leads to the conclusion that the carbon in the CF4–(NH3)2 is hexavalent but the silicon in the SiF4–(NH3)2 complex is not. However, if the criterion of covalency based on the negative H-value is applied to the carbon and silicon centres, the above-mentioned complexes are hexavalent ones. It is worth mentioning that the covalency of Si–N interactions for the SiF4–(NH3)2 complex were suggested early on [18]. However, this analysis was based only on the energetic and geometric parameters resulting from ab initio MO calculations with the use of not saturated STO-3G and STO-6G basis sets [18].

3.3. Electron Charge Shifts Resulting from Complexation—NBO Approach

Table 3 presents NBO parameters for the ZF4 monomers and for their complexes with one and two ligands; the NBO charges and the polarizations of Z-F bonds and of Z–N(As) contacts (denoted as PLs) are presented; the Z-F bond lengths are also included. QZF4 is the NBO charge of the ZF4 moiety; for isolated monomers, it is equal to zero but in complexes the ZF4 species withdraws the electron density from ligands due to its Lewis acid properties. More negatively charged ZF4 fragment is observed for complexes containing two ligands than for the corresponding complexes with one ligand. For the CF4–NH3 and GeF4–AsH3 complexes characterized by the weakest interactions, the lowest electron density transfer is observed; even for the former complex, such transfer is not observed which may support previous conclusions that this complex is stable due to weak dispersive forces. QF is the fluorine charge in the ZF4 fragment. For the ZF4 monomers and for the complexes with two ligands, all F-atoms in the species considered possess the same atomic charge due to the symmetry constraints. The situation is different for complexes with one ligand where the F-atom located in F-Z–N(As) line possesses slightly different charge than the remaining F-atoms (Table 3).
For the Td symmetry isolated CF4 species, all F-centres possess the charge of −0.316 au, while, in the CF4–NH3 complex where the electron charge density transfer from the NH3 ligand is not observed, the charge for F-atom situated in the F-C–N line is equal to −0.358 au while the charges of remaining F-atoms are equal to −0.349 au. Additionally, the carbon centre in this complex possesses the charge amounting +1.404 au while for the isolated CF4 species it is equal to +1.264 au, which means that, in the CF4–NH3 complex, despite the lack of intermolecular electron charge density shift from NH3 to CF4 (QCF4 = 0), the electron density redistribution within CF4 is observed, showing the significance of polarization effects. One can see that the increase of the positive charge of the Z centre in the complex in comparison with the isolated ZF4 species is observed for all complexes containing one ligand (Table 3). For complexes with two ligands, the decrease of the positive charge of Z-centre is observed—this charge is lower than for complexes with one ligand and even lower than for the corresponding isolated ZF4 molecules.
The increase of the positive charge of Z-centre and the increase of the negative charge of F-atom situated in the F-Z–N line shows the mechanism corresponding to that one occurring for the A-H–B hydrogen bond formation [47,57]. In the case of the A-H–B hydrogen bond, the complexation usually leads to the increase of the positive charge of H-atom and to the increase of the negative charge of A-centre [47]; this is connected with two mechanisms steering the H-bond formation; the hyperconjugative A-H bond weakening and the rehybridization-promoted A-H bond strengthening [57].
Table 3 presents bond polarizations calculated as the percentage of the electron density at the Z-centre—it concerns Z–N/As contacts as well as Z-F bonds. It is interesting that most Z–N(As) contacts are classified as covalent bonds within NBO approach since the Z-N(As) bond orbitals are observed here; only for two complexes characterized by the weakest interactions, CF4–NH3 and GeF4–AsH3, such orbitals are not observed. The polarizations of these Z-N(As) bonds within NBO approach show a large electron density shift to N(As)-atoms, the lowest shift but still significant is observed for the CF4–(NH3)2 complex where polarization amounts 22.8%. The significant electron density shifts from Z-centres to F-atoms are also detected for Z-F bonds with the lowest shifts for the CF4–NH3 complex; the C-F bond polarizations are close here to 29%.
One can see that the F-Z–N/As tetrel bonds analysed here are classified as strong ones characterized by the significant contribution of covalency. The latter is confirmed by the NBO and QTAIM approaches, most of interactions may be even classified as strongly polarized covalent bonds. For weaker A-Z–B tetrel bonds analysed previously the most important n(B) → σ*AZ orbital–orbital interaction is observed [12], where B is the electron donating Lewis base centre while Z is the tetrel atom connected with any A-centre. This is the overlap between the lone pair B-orbital, n(B), and the antibonding A-Z orbital, σ*AZ. The analogue situation occurs for the A-H–B hydrogen bond where the n(B) → σ*AH orbital–orbital interaction is a signature of the H-bond formation [47,57].
For two complexes analysed here, where Z-N(As) bond orbitals were not detected, the following situation is observed. For the CF4–NH3 complex, the orbital–orbital interactions between CF4 and NH3 are not detected at all. This corresponds to the weak intermolecular interaction and to the lack of the intermolecular electron charge density shift (Table 3). For the GeF4–AsH3 complex, the strongest orbital–orbital interaction of 2.4 kcal/mol occurs for the n(As) → n*(Ge) overlap. One can see that the orbital–orbital interactions for the CF4–NH3 and GeF4–AsH3 complexes do not follow the typical tetrel bonds [12].

3.4. ZF4 Moiety in Crystal Structures

Cambridge Structural Database (CSD) [58] searches were performed. The following search criteria were used: no disordered structures, no structures with unresolved errors, no powder structures, no polymeric structures, and R ≤ 7.5%.
To analyse systems structurally close to the complexes described here, searches for CF4, SiF4 and GeF4 species connected with two Lewis base ligands were performed. Hence, for the above tetrel centres, additional contacts with the Groups 15 and 16 elements were searched. In other words, the following fragments were considered: CF4L1L2, SiF4L1L2 and GeF4L1L2 where L1 and L2 are any ligands attached to C, Si or Ge by atoms of the Groups 15 and/or 16 element. Carbon CF4L1L2 structures were not found; nine silicon centre crystal structures were found; and 13 germanium centre crystal structures were found. Figure 5 presents few examples of such structures with the corresponding Refcodes.
For the silicon structures in three cases, the non-fluorine ligands are situated in axial positions, like for the SiF4-(NH3)2 conformation analysed in this study. For the remaining six silicon structures the lig-Si-lig angle (lig designates the Lewis base ligand centre) is close to 90° (Figure 5, DOWNIM Refcode is an example) like for the SiF4-(NH3)2 conformer reported by Politzer and co-workers [9]. However, all nine silicon structures are perfect octahedrons or nearly so. For the germanium structures, in six cases the non-fluorine ligands are situated in axial positions (Figure 5, HUMCOH01 and MEQZEN) while for the remaining seven structures the lig-Ge-lig angle is close to 90° (Figure 5, TIVVUG). Similar to the silicon structures for the Ge-complexes with axial position of non-fluorine ligands, almost perfect octahedron is observed, while, for the remaining germanium complexes, it is deformed octahedron but only slightly.

4. Conclusions

The most important conclusion arises that the hypervalent tetrel centres are detected for almost all complexes analysed here, the CF4–NH3 and GeF4–AsH3 complexes are the only exceptions (here the tetrel centre is tetravalent). This conclusion is based on the total electron energy densities at BCPs, HBCPs (QTAIM approach), and on the existence of the ligand–tetrel centre bond orbitals (NBO method). One can observe pentavalent or hexavalent tetrel centres if complexes with one and two ligands are analysed, respectively. However, the tetrel–ligand and Z-F bonds for these complexes are strongly polarized, which means that a large outflow of the electron density from the tetrel atom to the bonded centres, F-atoms and ligands, occurs. Table 3 shows the following trend of the increase of the negative charge of F-atoms: ZF4, ZF4–ligand, and ZF4–two ligands. The latter is accompanied by the change of the polarization of Z-F bonds, which means that the percentage of the electron density for the Z-F bonds at the Z-centre decreases in the same order following the increase of the negative charge of F-atom. These conclusions are in agreement with earlier statements [59,60] that, for molecules usually classified as hypervalent, the electronegativity of ligands should be taken into account [60].
The results presented in this study reveal that complexes with two ligands which possess tetrel centre that may be classified as hexavalent are more stable than complexes containing one ligand where a pentavalent tetrel centre occurs. This stability is related to the electron charge density shifts, particularly to the polarization of bonds of the Z-centre. The hexacoordinated tetrel centres (silicon and germanium) are observed in crystal structures showing that the octahedral structure is an energetically stable motif, which is important in crystal structure engineering.

Supplementary Materials

The following are available online at www.mdpi.com/2073-4352/7/2/43/s1. Figure S1: The maps of the electrostatic potential (EP) calculated at the 0.001 au molecular electron density surfaces for ZF4; red and blue colors correspond to negative and positive EP, respectively; MP2/aug-cc-pVTZ level of calculations; Table S1: The energetic parameters (in kcal/mol); the interaction energy, Eint, and the binding energy, Ebin, corrected for BSSE, the deformation energy, Edef. The tetrel—Lewis base centre distances are included, Z–B (i.e., Z–N or Z–As; Z = C, Si, Ge, in Å); Table S2: Electrostatic potential local maxima and minima for ZF4, ZF4–NH3 and GeF4–AsH3 species (in au); for the species containing Ge and As centers these values are the same if relativistic effects are taken into account; in a case of ZF4–NH3 complexes the local maximum is indicated since the global EP maximum corresponds to H-centers, in a case of the GeF4–AsH3 complex that is the global EP maximum; the EP results for the surfaces of the electron density of 0.001 au are presented; Table S3: The QTAIM characteristics (in au) of the Z-F bond critical point; electron density at BCP, ρBCP, its laplacian, ∇2ρBCP, the total electron energy density at BCP, HBCP, the potential electron energy density at BCP, VBCP, the kinetic electron energy density at BCP, GBCP

Acknowledgments

Financial support comes from Eusko Jaurlaritza (GIC IT-588-13) and the Spanish Office for Scientific Research (CTQ2012-38496-C05-04). Technical and human support provided by Informatikako Zerbitzu Orokora—Servicio General de Informática de la Universidad del País Vasco (SGI/IZO-SGIker UPV/EHU), Ministerio de Ciencia e Innovación (MICINN), Gobierno Vasco Eusko Jaurlanitza (GV/EJ), and European Social Fund (ESF) is gratefully acknowledged.

Conflicts of Interest

The author declares no conflict of interest.

References

  1. Scheiner, S. (Ed.) Molecular Interactions. From van der Waals to Strongly Bound Complexes; John Wiley & Sons: Chichester, UK, 1997.
  2. Schneider, H.-J. Binding Mechanisms in Supramolecular Chemistry. Angew. Chem. Int. Ed. 2009, 48, 3924–3977. [Google Scholar]
  3. Hobza, P.; Müller-Dethlefs, K. Non-Covalent Interactions, Theory and Experiment. Royal Society of Chemistry; Thomas Graham House, Science Park, Milton Road: Cambridge, UK, 2010. [Google Scholar]
  4. Jeffrey, G.A.; Saenger, W. Hydrogen Bonding in Biological Structures; Springer: Berlin, Germany, 1991. [Google Scholar]
  5. Jeffrey, G.A. An Introduction to Hydrogen Bonding; Oxford University Press: New York, NY, USA, 1997. [Google Scholar]
  6. Grabowski, S.J.; Leszczynski, J. (Eds.) Hydrogen Bonding—New Insights; Volume 3 of the Series: Challenges and Advances in Computational Chemistry and Physics; Springer: Berlin, Germany, 2006.
  7. Grabowski, S.J. (Ed.) Analysis of Hydrogen Bonds in Crystals (Printed Edition of the Special Issue Published in Crystals); MDPI: Basel, Switzerland; Beijing/Wuhan, China; Barcelona, Spain, 2016.
  8. Murray, J.S.; Lane, P.; Politzer, P. Expansion of the σ-hole concept. J. Mol. Model. 2009, 15, 723–729. [Google Scholar] [CrossRef] [PubMed]
  9. Politzer, P.; Murray, J.S.; Lane, P.; Concha, M.C. Electrostatically driven complexes of SiF4 with amines. Int. J. Quantum Chem. 2009, 109, 3773–3780. [Google Scholar] [CrossRef]
  10. Bundhun, A.; Ramasami, P.; Murray, J.S.; Politzer, P. Trends in σ-hole strengths and interactions of F3MX molecules (M = C, Si, Ge and X = F, Cl, Br, I). J. Mol. Model. 2012, 19, 2739–2746. [Google Scholar] [CrossRef] [PubMed]
  11. Bauzá, A.; Mooibroek, T.J.; Frontera, A. Tetrel-Bonding Interaction Rediscovered Supramolecular Force? Angew. Chem. Int. Ed. 2013, 52, 12317–12321. [Google Scholar] [CrossRef] [PubMed]
  12. Grabowski, S.J. Tetrel bond—σ-hole bond as a preliminary stage of the SN2 reaction. Phys. Chem. Chem. Phys. 2014, 16, 1824–1834. [Google Scholar] [CrossRef] [PubMed]
  13. Politzer, P.; Murray, J.S.; Clark, T. Halogen bonding: An electrostatically-driven highly directional noncovalent interaction. Phys. Chem. Chem. Phys. 2010, 12, 7748–7758. [Google Scholar] [CrossRef] [PubMed]
  14. Politzer, P.; Murray, J.S.; Clark, T. Halogen bonding and other σ-hole interactions: A perspective. Phys. Chem. Chem. Phys. 2013, 15, 11178–11189. [Google Scholar] [CrossRef] [PubMed]
  15. Politzer, P.; Murray, J.S. Halogen Bonding: An Interim Discussion. ChemPhysChem 2013, 14, 2145–2151. [Google Scholar] [CrossRef] [PubMed]
  16. Politzer, P.; Murray, J.S.; Janjić, G.V.; Zarić, S.D. σ-Hole Interactions of Covalently-Bonded Nitrogen, Phosphorus and Arsenic: A Survey of Crystal Structures. Crystals 2014, 4, 12–31. [Google Scholar] [CrossRef]
  17. Bauzá, A.; Frontera, A. Aerogen Bonding Interaction: A New Supramolecular Force? Angew. Chem. Int. Ed. 2015, 54, 7340–7343. [Google Scholar] [CrossRef] [PubMed]
  18. Chehayber, J.M.; Nagy, S.T.; Lin, C.S. Ab initio studies of complexes between SF4 and ammonia. Can. J. Chem. 1984, 62, 27–31. [Google Scholar] [CrossRef]
  19. Alkorta, I.; Rozas, I.; Elguero, J. Molecular Complexes between Silicon Derivatives and Electron-Rich Groups. J. Phys. Chem. A 2001, 105, 743–749. [Google Scholar] [CrossRef]
  20. Helminiak, H.M.; Knauf, R.R.; Danforth, S.J.; Phillips, J.A. Structural and Energetic Properties of Acetonitrile–Group IV (A & B) Halide Complexes. J. Phys. Chem. A 2014, 118, 4266–4277. [Google Scholar] [PubMed]
  21. Sedlak, R.; Stasyuk, O.A.; Fonseca Guerra, C.; Rézač, J.; Růžička, A.; Hobza, P. New Insight into the Nature of Bonding in the Dimers of Lappert’s Stannylene and Its Ge Analogs: A Quantum Mechanical Study. J. Chem. Theory Comput. 2016, 12, 1696–1704. [Google Scholar] [CrossRef] [PubMed]
  22. Grabowski, S.J. Tetrel bonds, penta- and hexa-coordinated tin and lead centres. Appl. Organometal. Chem. 2017, e3727. [Google Scholar] [CrossRef]
  23. Yamashita, M.; Yamamoto, Y.; Akiba, K.-Y.; Hashizume, D.; Iwasaki, F.; Takagi, N.; Nagase, S. Syntheses and Structures of Hypervalent Pentacoordinate Carbon and Boron Compounds Bearing an Anthracene Skeleton—Elucidation of Hypervalent Interaction Based on X-ray Analysis and DFT Calculation. J. Am. Chem. Soc. 2005, 127, 4354–4371. [Google Scholar] [CrossRef] [PubMed]
  24. Akiba, K.-Y.; Moriyama, Y.; Mizozoe, M.; Inohara, H.; Nishii, T.; Yamamoto, Y.; Minoura, M.; Hashizume, D.; Iwasaki, F.; Takagi, N.; et al. Synthesis and Characterization of Stable Hypervalent Carbon Compounds (10-C-5) Bearing a 2,6-Bis(p-substituted phenyloxymethyl)benzene Ligand. J. Am. Chem. Soc. 2005, 127, 5893–5901. [Google Scholar] [CrossRef] [PubMed]
  25. Akiba, K. Hypervalent Carbon Compounds: Can Hexavalent Carbon Exist? In Organo Main Group Chemistry; Akiba, K., Ed.; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2011; Chapter 12; pp. 251–268. [Google Scholar]
  26. Sohail, M.; Panisch, R.; Bowden, A.; Bassindale, A.R.; Taylor, P.G.; Korlyukov, A.A.; Arkhipov, D.E.; Male, L.; Callear, S.; Coles, S.J.; et al. Pentacoordinate silicon complexes with dynamic motion resembling a pendulum on the SN2 reaction pathway. Dalton Trans. 2013, 42, 10971–10981. [Google Scholar] [CrossRef] [PubMed]
  27. Pelzer, S.; Neumann, B.; Stammler, H.-G.; Ignat’ev, N.; Hoge, B. Synthesis of bis(pentafluoroethyl)germanes. Chem. Eur. J. 2016, 22, 4758–4763. [Google Scholar] [CrossRef] [PubMed]
  28. Pelzer, S.; Neumann, B.; Stammler, H.-G.; Ignat’ev, N.; Hoge, B. Hypervalent Pentafluoroethylgermanium Compounds, [(C2F5)nGeX5-n]− and [(C2F5)3GeF3]2− (X = F, Cl; n = 2–5). Chem. Eur. J. 2016, 22, 16460–16466. [Google Scholar] [CrossRef] [PubMed]
  29. Bouška, M.; Dostal, L.; Růžička, A.; Jambor, R. Stabilization of Three-Coordinated Germanium(II) and Tin(II) Cations by a Neutral Chelating Ligand. Organometallics 2013, 32, 1995–1999. [Google Scholar] [CrossRef]
  30. Miller, D.B.; Sisler, H.H. Observations on the Addition Compound of Silicon Tetrafluoride and Ammonia. J. Am. Chem. Soc. 1955, 77, 4998–5000. [Google Scholar] [CrossRef]
  31. Ault, B.S. Matrix-isolation studies of Lewis acid/base interactions: Infrared spectra of the 1:1 adduct SiF4.NH3. Inorg. Chem. 1981, 20, 2817–2822. [Google Scholar] [CrossRef]
  32. Urban, R.-D.; Rouillé, G.; Takami, M. Free jet IR spectroscopy of SiF4-N2 and SiF4-CO complexes in the 10 μm region. J. Mol. Struct. 1997, 413–414, 511–519. [Google Scholar] [CrossRef]
  33. Walther, A.M.; Ault, B.S. Infrared matrix isolation study of intermediate molecular complexes: Complexes of tetrafluorogermane with oxygen-containing bases. Inorg. Chem. 1984, 23, 3892–3897. [Google Scholar] [CrossRef]
  34. Davis, M.F.; Levason, W.; Reid, G.; Webster, M.; Zhang, W. The first examples of germanium tetrafluoride and tin tetrafluoride complexes with soft thioether coordination—Synthesis, properties and crystal structures. Dalton Trans. 2008, 533–538. [Google Scholar] [CrossRef] [PubMed]
  35. Davis, M.F.; Levason, W.; Reid, G.; Webster, M. Complexes of germanium(IV) fluoride with phosphane ligands: Structural and spectroscopic authentication of germanium(IV) phosphane complexes. Dalton Trans. 2008, 17, 2261–2269. [Google Scholar] [CrossRef]
  36. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09, Revision A.1, Gaussian, Inc.: Wallingford, CT, USA, 2009.
  37. Møller, C.; Plesset, M.S. Note on an Approximation Treatment for Many-Electron Systems. Phys. Rev. 1934, 46, 618–622. [Google Scholar] [CrossRef]
  38. Woon, D.E.; Dunning, T.H., Jr. Gaussian Basis Sets for Use in Correlated Molecular Calculations. III. The second row atoms, Al-Ar. J. Chem. Phys. 1993, 98, 1358–1371. [Google Scholar]
  39. Metz, B.; Stoll, H.; Dolg, M. Small-core multiconfiguration-Dirac–Hartree–Fock-adjusted pseudopotentials for post-d main group elements: Application to PbH and PbO. J. Chem. Phys. 2000, 113, 2563–2569. [Google Scholar] [CrossRef]
  40. Peterson, K.A. Systematically convergent basis sets with relativistic pseudopotentials. I. Correlation consistent basis sets for the post-d group 13–15 elements. J. Chem. Phys. 2003, 119, 11099–11112. [Google Scholar] [CrossRef]
  41. Piela, L. Ideas of Quantum Chemistry; Elsevier Science Publishers: Amsterdam, The Netherlands, 2007; pp. 684–691. [Google Scholar]
  42. Grabowski, S.J.; Sokalski, W.A. Different types of hydrogen bonds: Correlation analysis of interaction energy components. J. Phys. Org. Chem. 2005, 18, 779–784. [Google Scholar] [CrossRef]
  43. Boys, S.F.; Bernardi, F. The calculation of small molecular interactions by the differences of separate total energies. Some procedures with reduced errors. Mol. Phys. 1970, 19, 553–561. [Google Scholar]
  44. Bader, R.F.W. Atoms in Molecules, A Quantum Theory; Oxford University Press: Oxford, UK, 1990. [Google Scholar]
  45. Wiley-VCH. Quantum Theory of Atoms in Molecules: Recent Progress in Theory and Application; Matta, C., Boyd, R.J., Eds.; Wiley-VCH: Weinheim, Germany, 2007. [Google Scholar]
  46. Keith, T.A. AIMAll (Version 11.08.23), TK Gristmill Software: Overland Park, KS, USA, 2011.
  47. Weinhold, F.; Landis, C. Valency and Bonding, A Natural Bond Orbital Donor—Acceptor Perspective; Cambridge University Press: Cambridge, UK, 2005. [Google Scholar]
  48. Glendening, E.D.; Badenhoop, J.K.; Reed, A.E.; Carpenter, J.E.; Bohmann, J.A.; Morales, C.M.; Weinhold, F. NBO 5.0, Theoretical Chemistry Institute, University of Wisconsin: Madison, WI, USA, 2001.
  49. Schmidt, M.W.; Baldridge, K.K.; Boatz, J.A.; Elbert, S.T.; Gordon, M.S.; Jensen, J.H.; Koseki, S.; Matsunaga, N.; Nguyen, K.A.; Su, S.J.; et al. General Atomic and Molecular Electronic Structure System. J. Comput. Chem. 1993, 14, 1347–1363. [Google Scholar] [CrossRef]
  50. Bader, R.F.W. A Bond Path: A Universal Indicator of Bonded Interactions. J. Phys. Chem. A 1998, 102, 7314–7323. [Google Scholar] [CrossRef]
  51. Bader, R.F.W. Bond Paths Are Not Chemical Bonds. J. Phys. Chem. A 2009, 113, 10391–10396. [Google Scholar] [CrossRef] [PubMed]
  52. Maris, A.; Favero, L.B.; Velino, B.; Caminati, W. Pyridine-CF4: A Molecule with a Rotating Cap. J. Phys. Chem. A 2013, 117, 11289–11292. [Google Scholar] [CrossRef] [PubMed]
  53. Grabowski, S.J. What is the Covalency of Hydrogen Bonding? Chem. Rev. 2011, 11, 2597–2625. [Google Scholar] [CrossRef] [PubMed]
  54. Jenkins, S.; Morrison, I. The chemical character of the intermolecular bonds of seven phases of ice as revealed by AB initio calculation of electron densities. Chem. Phys. Lett. 2000, 317, 97–102. [Google Scholar] [CrossRef]
  55. Arnold, W.D.; Oldfield, E. The Chemical Nature of Hydrogen Bonding in Proteins via NMR: J-Couplings, Chemical Shifts, and AIM Theory. J. Am. Chem. Soc. 2000, 122, 12835–12841. [Google Scholar] [CrossRef]
  56. Rozas, I.; Alkorta, I.; Elguero, J. Behavior of ylides containing N, O, and C atoms as hydrogen bond acceptors. J. Am. Chem. Soc. 2000, 122, 1154–11161. [Google Scholar] [CrossRef]
  57. Alabugin, I.V.; Manoharan, M.; Peabody, S.; Weinhold, F. Electronic Basis of Improper Hydrogen Bonding: A Subtle Balance of Hyperconjugation and Rehybridization. J. Am. Chem. Soc. 2003, 125, 5973–5987. [Google Scholar] [CrossRef] [PubMed]
  58. Wong, R.; Allen, F.H.; Willett, P. The scientific impact of the Cambridge Structural Database: A citation-based study. J. Appl. Cryst. 2010, 43, 811–824. [Google Scholar] [CrossRef]
  59. Gillespie, R.J. Fifty years of the VSEPR model. Coord. Chem. Rev. 2008, 252, 1315–1327. [Google Scholar] [CrossRef]
  60. Gillespie, R.J.; Popelier, P.L.A. Chemical Bonding and Molecular Geometry; Oxford University Press: Oxford, UK, 2001. [Google Scholar]
Crystals 07 00043 g001 550

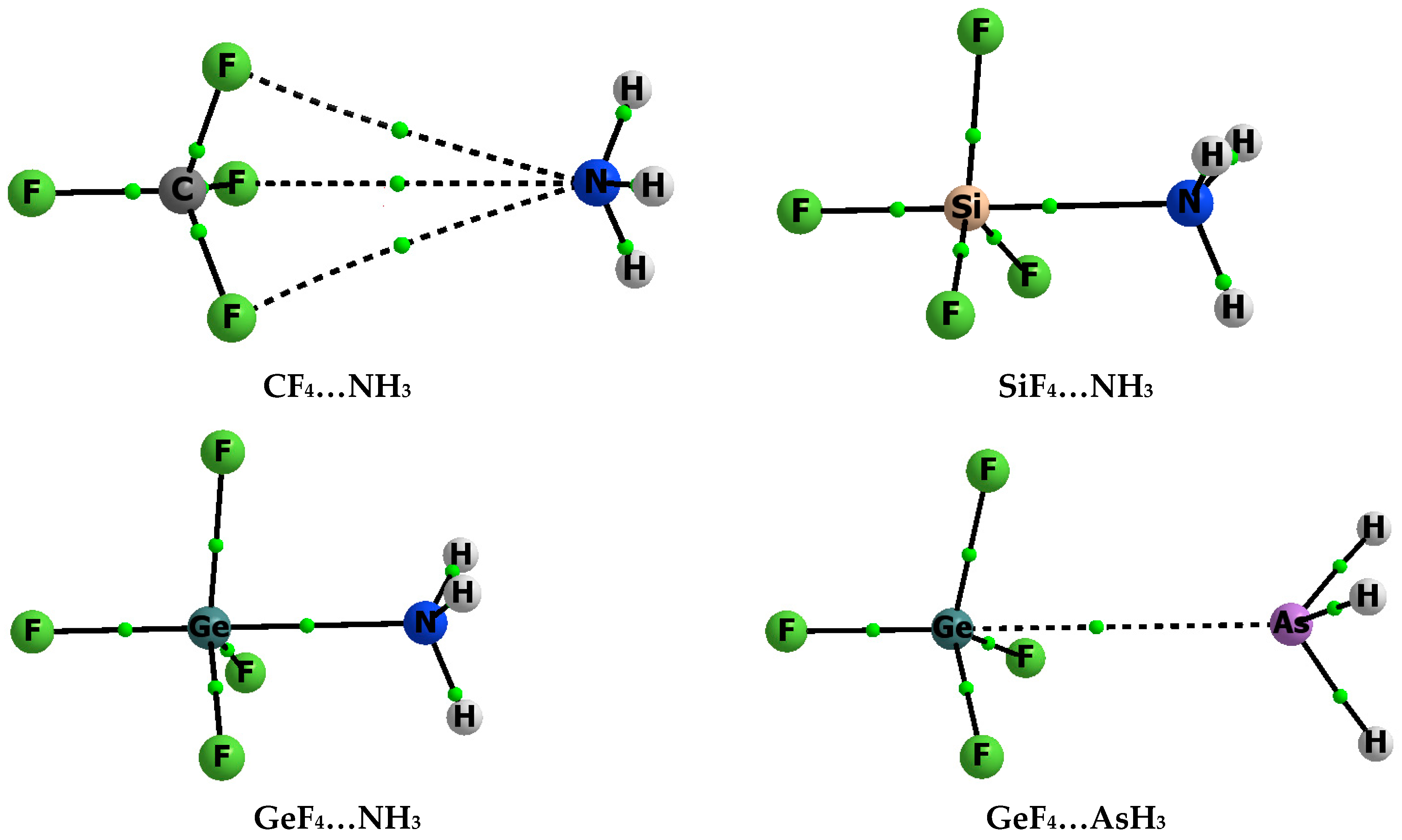

Figure 1. Molecular graphs of complexes containing one ligand (NH3 or AsH3); attractors are designated by big circles while bond critical points by small ones, and continuous and broken lines correspond to bond paths.
Figure 1. Molecular graphs of complexes containing one ligand (NH3 or AsH3); attractors are designated by big circles while bond critical points by small ones, and continuous and broken lines correspond to bond paths.
Crystals 07 00043 g001
Crystals 07 00043 g002 550

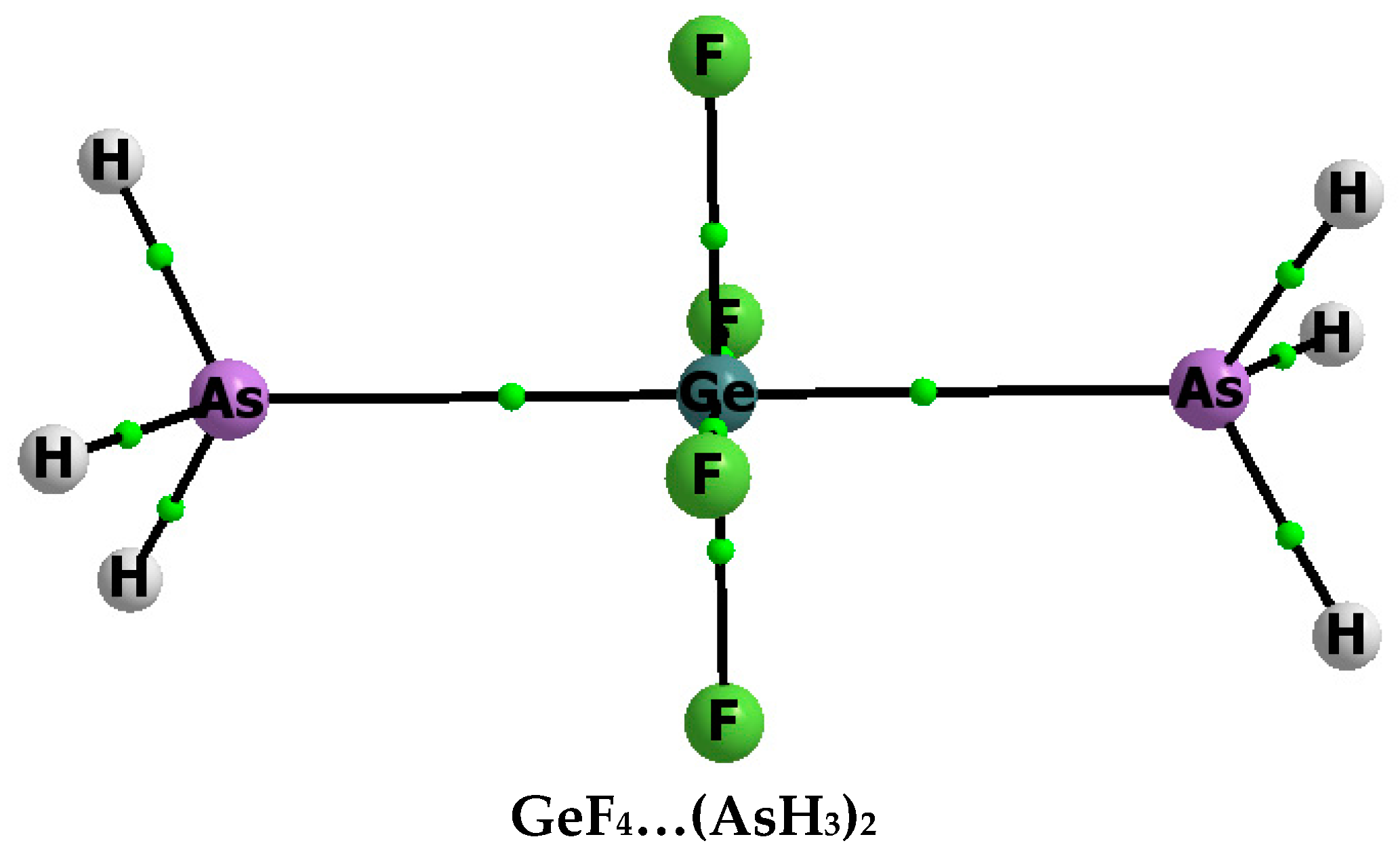

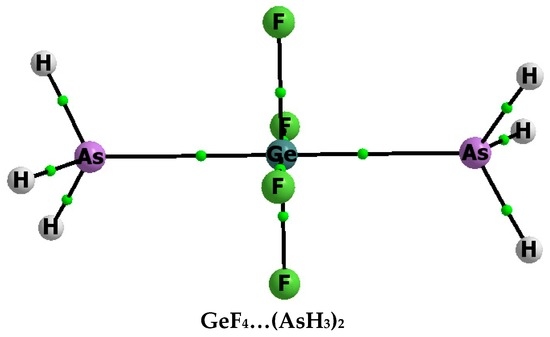

Figure 2. Molecular graph of the GeF4–(AsH3)2 complex; attractors are designated by big circles while bond critical points by small ones, and continuous lines correspond to bond paths.
Figure 2. Molecular graph of the GeF4–(AsH3)2 complex; attractors are designated by big circles while bond critical points by small ones, and continuous lines correspond to bond paths.
Crystals 07 00043 g002
Crystals 07 00043 g003 550

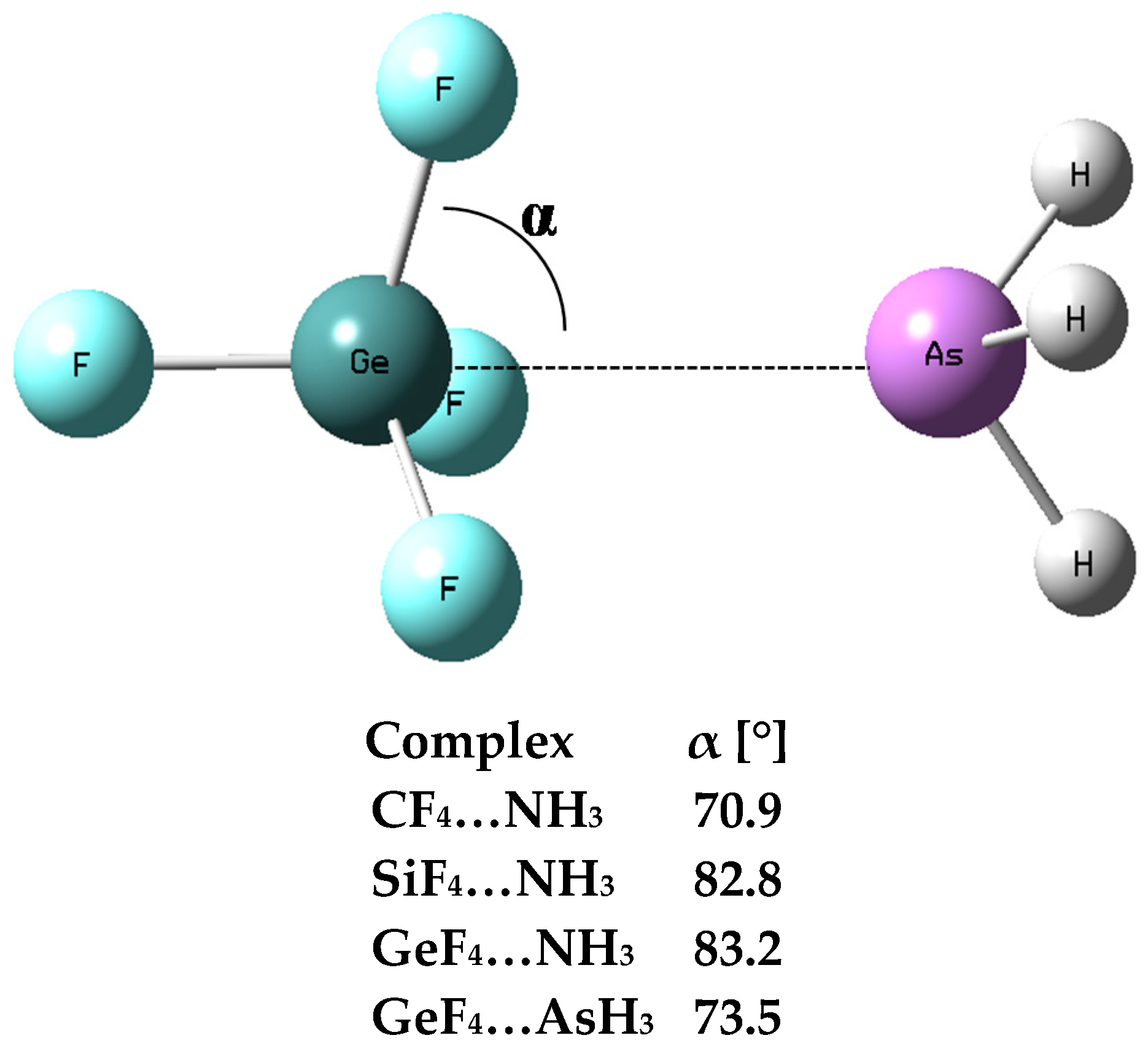

Figure 3. The definition of the α-angle, the GeF4–AsH3 complex is presented as an example, the α-angles for complexes containing one ligand are given, this angle for all complexes with two ligands is equal to 90° or nearly so.
Figure 3. The definition of the α-angle, the GeF4–AsH3 complex is presented as an example, the α-angles for complexes containing one ligand are given, this angle for all complexes with two ligands is equal to 90° or nearly so.
Crystals 07 00043 g003
Crystals 07 00043 g004 550

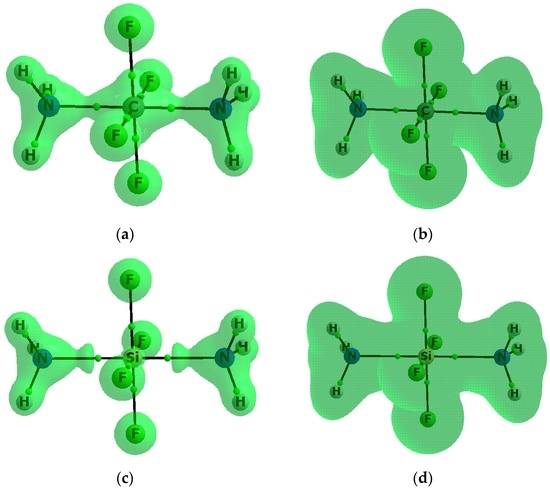

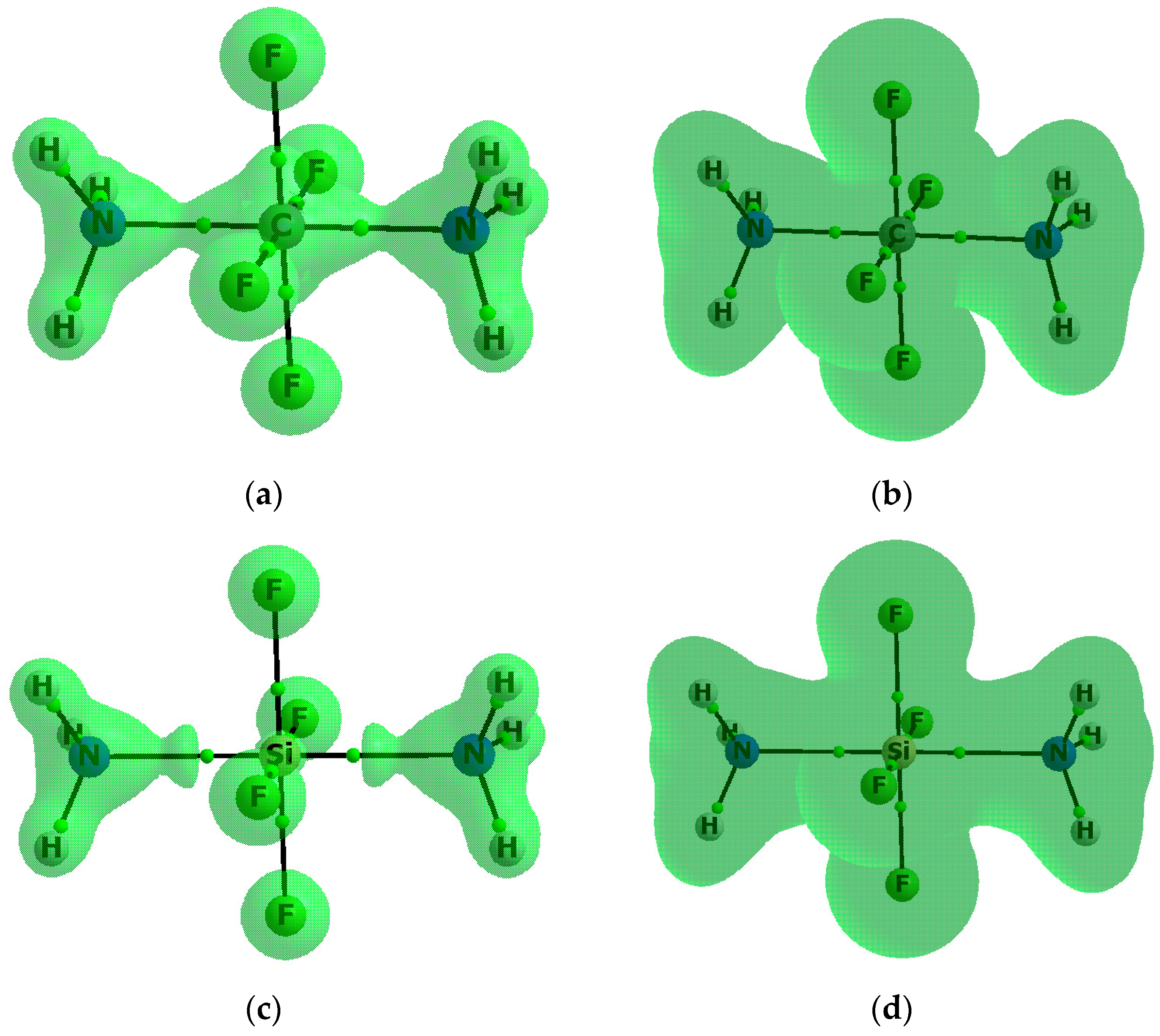

Figure 4. The molecular graph of the: CF4–(NH3)2 complex (a,b); and the SiF4–(NH3)2 complex (c,d). Solid lines correspond to bond paths, big circles to attractors and small green circles to BCPs; the reactive surfaces based on the Laplacian of electron density (∇ 2ρ(r) = 0 isosurfaces (a,c)) and based on the total electron energy density (H(r) = 0 isosurfeces (b,d)).
Figure 4. The molecular graph of the: CF4–(NH3)2 complex (a,b); and the SiF4–(NH3)2 complex (c,d). Solid lines correspond to bond paths, big circles to attractors and small green circles to BCPs; the reactive surfaces based on the Laplacian of electron density (∇ 2ρ(r) = 0 isosurfaces (a,c)) and based on the total electron energy density (H(r) = 0 isosurfeces (b,d)).
Crystals 07 00043 g004
Crystals 07 00043 g005 550

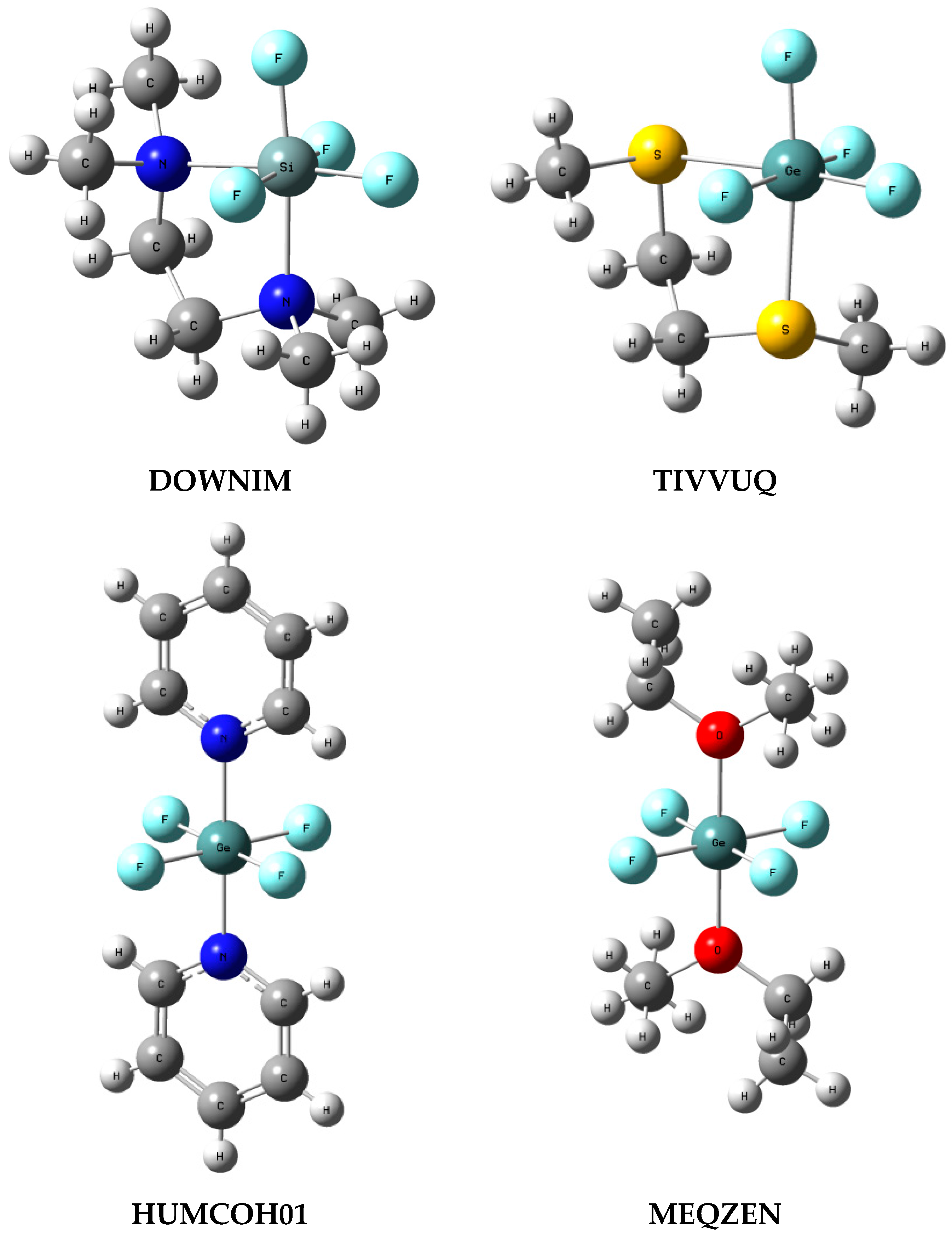

Figure 5. Examples of crystal structures containing hexacoordinated Si or Ge centre, the SiF4L1L2 and GeF4L1L2 arrangements are considered (L1 and L2—ligands connected with Si or Ge by the Groups 15 and 16 element); the Cambridge Structural Database Refcodes are shown.

Figure 5. Examples of crystal structures containing hexacoordinated Si or Ge centre, the SiF4L1L2 and GeF4L1L2 arrangements are considered (L1 and L2—ligands connected with Si or Ge by the Groups 15 and 16 element); the Cambridge Structural Database Refcodes are shown.
Crystals 07 00043 g005
Table
Table 1. The energetic parameters (in kcal/mol); the interaction energy, Eint, and the binding energy, Ebin, corrected for BSSE, the deformation energy, Edef. The tetrel–Lewis base centre distances are included, Z–B (i.e., Z–N or Z–As, Z = C, Si, Ge, in Å).
Table 1. The energetic parameters (in kcal/mol); the interaction energy, Eint, and the binding energy, Ebin, corrected for BSSE, the deformation energy, Edef. The tetrel–Lewis base centre distances are included, Z–B (i.e., Z–N or Z–As, Z = C, Si, Ge, in Å).
ComplexZ–BEintEbinBSSEEdef
CF4–NH33.658−1.1−1.10.30.0
CF4–(NH3)21.658−29.190.13.0119.2
CF4–(NH3)2 *1.658−76.891.96.5168.7
SiF4–NH32.072−29.6−8.52.521.1
SiF4–(NH3)21.940−44.4−14.72.429.7
SiF4–(NH3)2 *1.940−93.9−23.74.470.2
GeF4–NH32.080−33.8−16.24.717.6
GeF4–(NH3)21.997−42.4−19.24.923.2
GeF4–(NH3)2 *1.997−90.5−34.210.956.3
GeF4–AsH33.399−2.8−1.81.91.0
GeF4–(AsH3)22.543−22.310.35.132.6
GeF4–(AsH3)2 *2.543−48.111.510.159.6
* Interaction and binding energies are related to three components (see text for explanation).
Table
Table 2. The QTAIM characteristics (in au) of the Z–N(As) BCP (Z = C, Si, Ge); electron density at BCP, ρBCP, its Laplacian, ∇2ρBCP, the total electron energy density at BCP, HBCP, the potential electron energy density at BCP, VBCP, the kinetic electron energy density at BCP, GBCP.
Table 2. The QTAIM characteristics (in au) of the Z–N(As) BCP (Z = C, Si, Ge); electron density at BCP, ρBCP, its Laplacian, ∇2ρBCP, the total electron energy density at BCP, HBCP, the potential electron energy density at BCP, VBCP, the kinetic electron energy density at BCP, GBCP.
ComplexρBCPVBCPGBCPHBCP∇2ρBCP
CF4–NH3 *0.003−0.0020.0020.0010.012
CF4–(NH3)20.183−0.2110.069−0.142−0.292
SiF4–NH30.062−0.0980.074−0.0240.200
SiF4–(NH3)20.081−0.1470.113−0.0330.319
GeF4–NH30.083−0.1170.081−0.0360.184
GeF4–(NH3)20.098−0.1530.106−0.0470.235
GeF4–AsH30.012−0.0060.0060.0000.026
GeF4–(AsH3)20.062−0.0520.028−0.0250.012
* Concerns one of three F–N contacts.
Table
Table 3. The NBO characteristics; charges (in au) and polarizations (percentage of the electron density at Z-centre, Z = C, Si, Ge); and the Z-F bond lengths (Å) are also included. QZF4, the charge of the ZF4 moiety; QF, the charge of the F-atom; QZ, the charge of Z-centre; PLZF, polarization of the Z-F bond; and PLZB, polarization of the Z-B (B = N, As) contact.
Table 3. The NBO characteristics; charges (in au) and polarizations (percentage of the electron density at Z-centre, Z = C, Si, Ge); and the Z-F bond lengths (Å) are also included. QZF4, the charge of the ZF4 moiety; QF, the charge of the F-atom; QZ, the charge of Z-centre; PLZF, polarization of the Z-F bond; and PLZB, polarization of the Z-B (B = N, As) contact.
MoietyQZF4QF *QZPLZF *Z-F *PLZB
CF40−0.3161.26428.71.321not applied
CF4–NH30−0.349 (−0.358)1.40428.7 (28.5)1.319 (1.327)no occurrence
CF4–(NH3)2−1.111−0.5220.97717.71.55922.8
SiF40−0.6342.53712.41.574not applied
SiF4–NH3−0.163-0.692 (−0.696)2.60811.1(10.4)1.610 (1.612)6.8
SiF4–(NH3)2−0.467−0.7172.3999.71.6759.7
GeF40−0.6282.51113.51.687not applied
GeF4–NH3−0.183−0.706 (−0.704)2.64010.9 (10.2)1.724 (1.719)7.0
GeF4–(NH3)2−0.465−0.7352.4768.51.7768.8
GeF4–AsH3−0.017−0.684 (−0.691)2.72712.7 (12.4)1.691 (1.694)no occurrence
GeF4–(AsH3)2−0.738−0.7332.1958.51.76914.9
* The Z-F bond length, its polarization (PLZF), and the F-charge (QF) of the bond situated approximately at the F-Z–N(As) line are given in parentheses.
