Low-Temperature Coherent Thermal Conduction in Thin Phononic Crystal Membranes

Tuomas A. Puurtinen
Ilari J. Maasilta
Nanoscience Center, Department of Physics, University of Jyvaskyla, P. O. Box 35, FI-40014 Jyvӓskylӓ, Finland
Author to whom correspondence should be addressed.
Crystals 2016, 6(6), 72;
Submission received: 21 April 2016 / Revised: 13 June 2016 / Accepted: 16 June 2016 / Published: 22 June 2016
(This article belongs to the Special Issue Phononic Crystals)


In recent years, the idea of controlling phonon thermal transport coherently using phononic crystals has been introduced. Here, we extend our previous numerical studies of ballistic low-temperature heat transport in two-dimensional hole-array phononic crystals, and concentrate on the effect of the lattice periodicity. We find that thermal conductance can be either enhanced or reduced by large factors, depending on the the lattice period. Analysis shows that both the density of states and the average group velocity are strongly affected by the periodic structuring. The largest effect for the reduction seen for larger period structures comes from the strong reduction of the group velocities, but a contribution also comes from the reduction of the density of states. For the short period structures, the enhancement is due to the enhanced density of states.

Graphical Abstract

1. Introduction

Two-dimensional phononic crystals (PnC) are not only useful for controlling acoustic and elastic waves [1], but have recently been shown to offer great possibilities for engineering thermal conduction, even at room temperatures [2,3,4,5], but most notably at ultra-low temperatures below 1 K [6]. At room temperature, the mechanisms for thermal conductivity reduction in PnCs are still somewhat controversial [4,5,7,8], in particular there is a debate whether coherent effects, as already seen in 1D superlattices [9], play a role or not. At low temperatures, the dominant thermal wavelengths of phonons can reach the micron length scale [6]; moreover, most bulk scattering mechanisms die out. That leads to very strong coherent modification of the phonon dispersion relations [6], if micron length scale periodic phononic crystal structures such as hole arrays are fabricated. In such structures, both the density of states and group velocities are strongly modified [6,10,11], and these directly affect the thermal conductance at low temperatures as the phonon propagation is ballistic in the ultralow temperature regime [12], even in the thin membrane geometry [13].
In Reference [6], the focus was in reduction of thermal conductance. A factor of 30 reduction was theoretically predicted and experimentally observed at 0.5 K, when using square arrays of holes with a filling factor 0.7, a period of 2.4 μm and a membrane thickness 485 nm. A later experimental study [14] with a larger, 4 μm period square array of the same filling factor but thinner 300 nm membrane showed a much improved reduction factor of 130 at 0.4 K, an effect over two orders of magnitude. In that case, the observed effect was much larger than what was predicted by theory, as the ballistic conductance calculation predicted only a reduction factor ∼45. It is not clear yet what causes this strong discrepancy between experiment and theory at the larger period structures.
In our previous studies [6,14], we did not show systematical plots on how the thermal conductance evolves with geometric parameters such as period, membrane thickness, filling factor of the holes or lattice type. In the meantime, another study [10] has shown that in the ballistic case the effect of lattice type (square, hexagonal, honeycomb) and membrane thickness are weak, and that the filling factor has a strong effect, with higher hole filling factors giving reduced conductance. Therefore, in this paper we present computational results concentrating on the effect of changing the period of a square lattice, alone, as it has the most profound effects. We also extend the calculations to much higher frequencies than in Reference [6]. We find that by increasing the lattice constant, one can always reduce the thermal conductance at temperatures T > 10 mK, at least within the limits of our study. The largest reduction, compared to an uncut membrane of the same thickness, is achieved with the longest period 8 μm, reaching a value 40 at 0.3 K, and showing an increasing trend with increasing temperature. In addition, we predict that a thermal conductance enhancement is also possible for the smaller lattice constant structures, at most by a factor 3.2 at 0.14 K for the smallest period 62.5 nm studied here. This is quite unintuitive, as we predict that by removing material thermal conductance can increase.

2. Radiated Phonon Power

A typical sample geometry used in the measurements of thermal conductance of a 2D hole array PnC is the suspended geometry (Figure 1), where the PnC or the uncut membrane is physically supported by a bulk silicon chip, see References [6,14]. Net phonon heat flow takes place outwards along the membrane in all directions, emitted by a heater. This heat flow is typically ballistic at such low temperatures as in References [6,14] (<1 K), meaning that we talk about radiative phonon emission, not diffusive. Only outward propagating phonon modes (mode index j and wave vector k ) with energies ω j ( k ) carry this energy, so we can write for the radiated power the following relation for both PnCs and uncut membranes:
P ( T ) = 1 ( 2 π ) 2 j Γ d Γ K d k ω j ( k ) n ( ω j , T ) ω j k · n ^ Γ Θ ω j k · n ^ Γ
where Γ is the heater element boundary, n ^ Γ an outer unit normal of that boundary (in the membrane plane) and Θ is the Heaviside step function. Here n ( ω , T ) is the Bose-Einstein distribution describing the (assumed) phonon thermal occupation of the emitted phonons and ω j k the group velocity of each mode. The only unknown is thus the set of dispersion relations ω j = ω j ( k ) for the permitted phonon modes j in the membrane, which have to be numerically calculated using for example the finite element method. The 2D K-space integration extends over all K-space for uncut membranes, but is replaced by integration over the first Brillouin zone for the PnCs. Differential thermal conductance can also easily be calculated from this quantity by differentiating with respect to T. We also assume here that the membrane is infinite so that there is no backscattering from the membrane-bulk interface, and that the bath is at T bath = 0 K, so that there is no direct backflow term either.
We would like to point out that due to the group velocity term, it is not possible in general to simplify the above equation to be just an integral over energies weighed by the density of states. This is because the PnC structures are not isotropic so that the group velocity is not a constant on a constant energy surface. Such assumptions [15] lead to inaccuracies in the calculations.
Here, we calculate the radiated phonon power from a line heater for Silicon Nitride (SiN) 2D phononic crystals with square lattice periodic circular holes in a membrane of thickness d = 300 nm, with varying lattice periodicity (lattice constant a). The hole filling fraction is also fixed to ϕ = 0 . 7 , following the experiment [6], meaning that the hole diameter D scales with period as D = 2 a ϕ / π = 0 . 944 a . The elastic stiffness of the isotropic SiN membrane material is defined by the values of the Young’s modulus E = 250 GPa and the Poisson ratio ν = 0 . 23 , and the density is ρ = 3100 kg/ m 3 . The dispersion relations for the PnCs were calculated using the finite element method as detailed in Reference [6], whereas the solid membrane results were obtained with the help of the Rayleigh-Lamb theory [16]. Depending on the value of a, 1161–1829 eigenvalues were computed for 496–4005 K-values in the irreducible first Brillouin zone for the PnC structures.
In Figure 2, the radiated power is shown for a number of membranes on a wide range of lattice constants a = 62 . 5 nm to a = 8 . 0 μm, in the temperature range from T = 1 mK to T = 400 mK. The black dashed line shows the full (non-patterned) membrane results for comparison. At the low end of the temperature range we can see enhancement in radiated power for all patterned membranes compared to a full membrane, but when the heater temperature is increased, the radiated power drops strongly below the full membrane line for most of the samples.
In Figure 3 we examine the power enhancement (reduction) factor p = P PnC / P membrane of PnC membranes with respect to a full membrane with the same thickness d. With this definition p > 1 means enhancement and p < 1 reduction. There is a maximum enhancement of 3.2 for this set of PnCs at T 138 mK, which occurs for the finest scale pattern. This is higher than what was predicted in Reference [15], where an inaccurate formula was used for the calculation of the conductance. Maximum reduction instead occurs for the coarsest pattern at T = 300 mK, but the trend of the curves indicates that level of reduction can go even lower at higher temperatures. At T = 300 mK, the ratio between the radiated powers for the smallest ( a = 62 . 5 nm) and the largest ( a = 8 μm) period membranes p max / p min is 92 , about two orders of magnitude.
Another distinct feature of the curves in Figure 2 is that they seem to converge to the same limiting curve as the lattice constant a is decreased. Convergence rate depends on temperature so that at the low temperature end convergence is faster than at the high temperature end. We can visualize this by plotting the radiated power vs. lattice constant a, as shown in Figure 4 for selected temperatures. In this lattice geometry, this convergence starts at a 1 μm for T = 10 mK and at a 100 nm for T = 100 mK.
Maybe the most interesting conclusion from this dataset is that the radiated power seems to decrease without a lower bound for increasing a. It opens up an interesting theoretical and practical question of how low the thermal conductance can decrease if the lattice constant is increased. Common sense would seem to dictate that if the lattice constant is increased enough, coherence is destroyed by some effects of irregularities and disorder. In the current model, such irregularities are not taken into account.

3. Phonon Density of States

To understand the reason why the radiated power curves have such a big dependence on the lattice constant, we examine the phonon density of states (DOS) for the studied PnC membranes. There are multiple ways to numerically calculate the density of states D ( ω ) from the discrete set of points ω j ( k i ) . We calculate the quasi-2D density of states D 2 D ( ω ) (per unit area) at angular frequency ω as a line integral
D 2 D ( ω ) = 1 ( 2 π ) 2 j γ j d γ | k ω j |
over the intersection paths
γ j : = { ( k , ω j ( k ) | k K } { ( k , ω ) | k K }
of the dispersion branches and horizontal planes of constant angular frequency ω. Because the dispersion relation is calculated over a discrete set of k -points, we only obtain an approximation to the true value of this integral. Integration is done piece-wise linearly over the paths γ j , which can be easily obtained by first triangulating the underlying Brillouin zone grid { k i } and using this triangulation on the dispersion branches. The triangles intersecting the constant angular frequency plane ω exhibit a set of finite line segments that approximate the paths γ j .
In Figure 5 we show the calculated phonon densities of states for four different PnC membranes with varying lattice constants. We show here the results in units of 3D density of states (per unit volume) on the regular frequency scale (not angular). The 3D DOS is thus obtained by dividing D 2 D ( f ) by the membrane thickness d, hence the units H z - 1   m - 3 . The DOS of a full membrane with the same thickness is included as a reference. We notice the similar behaviour here as in Figure 1: at low frequencies, the small period PnC density of states mostly stays above the full membrane DOS, while going under it in the higher frequency regime. For larger periods, there is mostly only a reduction effect, which reaches approximately a factor of 5 when compared to the full membrane case. Therefore, we can conclude that a significant part of the reduction or enhancement of radiated power can be explained by the reduced or enhanced DOS. However, this does not fully account for the changes observed.

4. Average Phonon Group Velocity

To further justify the differences in the radiated power curves, we calculate the average group velocity v ¯ g defined by
v ¯ g ( ω ) = j 1 l ( γ j ) γ j d γ ω j k
as a line integral average of the magnitude of the group velocity over the intersection lines of the dispersion branches and the horizontal plane ω. Here l ( γ j ) denotes the length of γ j . The numerical calculation of v ¯ g is conducted similarly to the one for DOS, by triangulation of the Brillouin zone grid and the associated dispersion branches.
In Figure 6 we plot the average group velocities of the same membranes as in Figure 5. The black dashed line marks the average group velocity of a full membrane. In the high frequency limit, the full membrane dispersion branches (excluding the first two) are known to asymptotically approach the first shear mode branch, so the average group velocity slowly stabilizes to a constant [17]. To our knowledge, it is not known how the average group velocity behaves asymptotically for generic PnC membranes. Here we can only observe that v g for PnC's stabilize much slower, if at all. It approximately stays at ∼1/5 → 1/10 of the level of the corresponding full membrane v g , which is of the correct order of magnitude to explain a large part of the reduction in radiated power of the analyzed PnC's.

5. Discussion and Conclusions

In this work, we have extended our previous numerical work of low-temperature ballistic phonon thermal conduction in hole-array phononic crystals to higher frequencies, and studied mainly the influence of the length scale of the lattice (lattice constant) on the thermal conduction. By changing the periodicity, the interference conditions for coherent phonons in the structure change, leading to strong changes in the eigenmode spectra, or dispersion relations. These will in turn affect the density of states and group velocities, leading to strong enhancement and suppression effects for thermal conductance.
For the case of reducing thermal conductance, we found a clear trend that the larger the period, the larger the reduction, which reached suppression factors ∼40. The reduction factors were also increasing with increasing temperature. Within our simulations, which were limited on the large array side by computational resources and focused in the ballistic limit, no theoretical limit was yet found. This does not, however, mean that such a limit does not exist, as at some length scale the finite mean free path with start to dominate [18]. A clear conclusion from the analysis of the density of states and average group velocity was that the most significant effect for the larger periodicities is the reduction of the group velocities, by an order of magnitude. This reduction seems to result from the increase of the number of flattened branches at the Brillouin zone edge as the period increases and thus the Brillouin zone edge moves to smaller values of K.
We also observe a counterintuitive low-temperature enhancement of the thermal conduction for the smaller period structures, up to a factor ∼3, in qualitative (but not quantitative) agreement with another study [15]. This enhancement is caused by the increase of the density of states at low frequencies, which seems to be dominated by the softening of the quasishear mode. Unlike the reduction, which was already observed experimentally [6], the enhancement has not been observed yet. On this side, there seems to be a maximum that can be achieved as a function of the lattice parameter, as a limiting curve for the power vs. temperature was approached by reducing the period.


This work was supported by the Academy of Finland project No. 260880. We acknowledge the use of CSC-IT Center for Science supercomputing facilities.

Author Contributions

Tuomas Puurtinen performed all the computational work; Tuomas Puurtinen and Ilari Maasilta analyzed the data and wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.


The following abbreviations are used in this manuscript:
Phononic crystal


  1. Pennec, Y.; Vasseur, J.O.; Djafari-Rouhani, B.; Dobrzynski, L.; Deymier, P.A. Two-dimensional phononic crystals: Examples and applications. Surf. Sci. Rep. 2010, 65, 229–291. [Google Scholar] [CrossRef]
  2. Tang, J.; Wang, H.-T.; Lee, D.H.; Fardy, M.; Huo, Z.; Russell, T.P.; Yang, P. Holey silicon as an efficient thermoelectric material. Nano Lett. 2010, 10, 4279–4283. [Google Scholar] [CrossRef] [PubMed]
  3. Yu, J.-K.; Mitrovic, S.; Tham, D.; Varghese, J.; Heath, J.R. Reduction of thermal conductivity in phononic nanomesh structures. Nat. Nanotech. 2010, 5, 718–721. [Google Scholar] [CrossRef] [PubMed]
  4. Alaie, S.; Goettler, D.F.; Su, M.; Leseman, Z.C.; Reinke, C.M.; El-Kady, I. Thermal transport in phononic crystals and the observation of coherent phonon scattering at room temperature. Nat. Commun. 2015, 6, 7228. [Google Scholar] [CrossRef] [PubMed]
  5. Anufriev, R.; Maire, J.; Nomura, M. Reduction of thermal conductivity by surface scattering of phonons in periodic silicon nanostructures. Phys. Rev. B 2016, 93, 045411. [Google Scholar] [CrossRef]
  6. Zen, N.; Puurtinen, T.A.; Isotalo, T.J.; Chaudhuri, S.; Maasilta, I.J. Engineering thermal conductance using a two-dimensional phononic crystal. Nat. Commun. 2014, 12, 3435. [Google Scholar] [CrossRef] [PubMed]
  7. Jain, A.; Yu, Y.-J.; McGaughey, A.J.H. Phonon transport in periodic silicon nanoporous films with feature sizes greater than 100 nm. Phys. Rev. B 2013, 87, 195301. [Google Scholar] [CrossRef]
  8. Ravichandran, N.; Minnich, A.J. Coherent and incoherent thermal transport in nanomeshes. Phys. Rev. B 2014, 89, 205432. [Google Scholar] [CrossRef]
  9. Luckyanova, M.N.; Garg, J.; Esfarjani, K.; Jandl, A.; Bulsara, M.T.; Schmidt, A.J; Minnich, A.J.; Chen, S.; Dresselhaus, M.S.; Ren, Z.; et al. Coherent phonon heat conduction in superlattices. Science 2012, 338, 936–939. [Google Scholar] [CrossRef] [PubMed]
  10. Anufriev, R.; Nomura, M. Reduction of thermal conductance by coherent phonon scattering in two-dimensional phononic crystals of different lattice types. Phys. Rev. B 2016, 93, 045410. [Google Scholar] [CrossRef]
  11. Maldovan, M. Phonon wave interference and thermal bandgap materials. Nat. Mater. 2015, 14, 667–674. [Google Scholar] [CrossRef] [PubMed]
  12. Klitsner, T.; VanCleve, J.E.; Fischer, H.E.; Pohl, R.O. Phonon radiative heat transfer and surface scattering. Phys. Rev. B 1988, 38, 7576–7594. [Google Scholar] [CrossRef]
  13. Karvonen, J.T.; Kühn, T.; Maasilta, I.J. Temperature profile for ballistic and diffusive phonon transport in a suspended membrane with a radially symmetric heat source. Chin. J. Phys. 2011, 49, 435–442. [Google Scholar]
  14. Maasilta, I.J.; Puurtinen, T.A.; Tian, Y.; Geng, Z. Phononic thermal conduction engineering for bolometers: From phononic crystals to radial Casimir limit. J. Low Temp. Phys. 2015, 184, 211–216. [Google Scholar] [CrossRef]
  15. Anufriev, R.; Nomura, M. Thermal conductance boost in phononic crystal nanostructures. Phys. Rev. B 2015, 91, 245417. [Google Scholar] [CrossRef]
  16. Kühn, T.; Maasilta, I.J. Maximizing phonon thermal conductance for ballistic membranes. J. Phys. Conf. Ser. 2007, 92, 012082. [Google Scholar] [CrossRef]
  17. Graff, K.F. Wave Motion in Elastic Solids; Oxford University Press: Oxford, UK, 1975. [Google Scholar]
  18. Simkin, M.V.; Mahan, G.D. Minimum thermal conductivity of superlattices. Phys. Rev. Lett. 2000, 84, 927–930. [Google Scholar] [CrossRef] [PubMed]

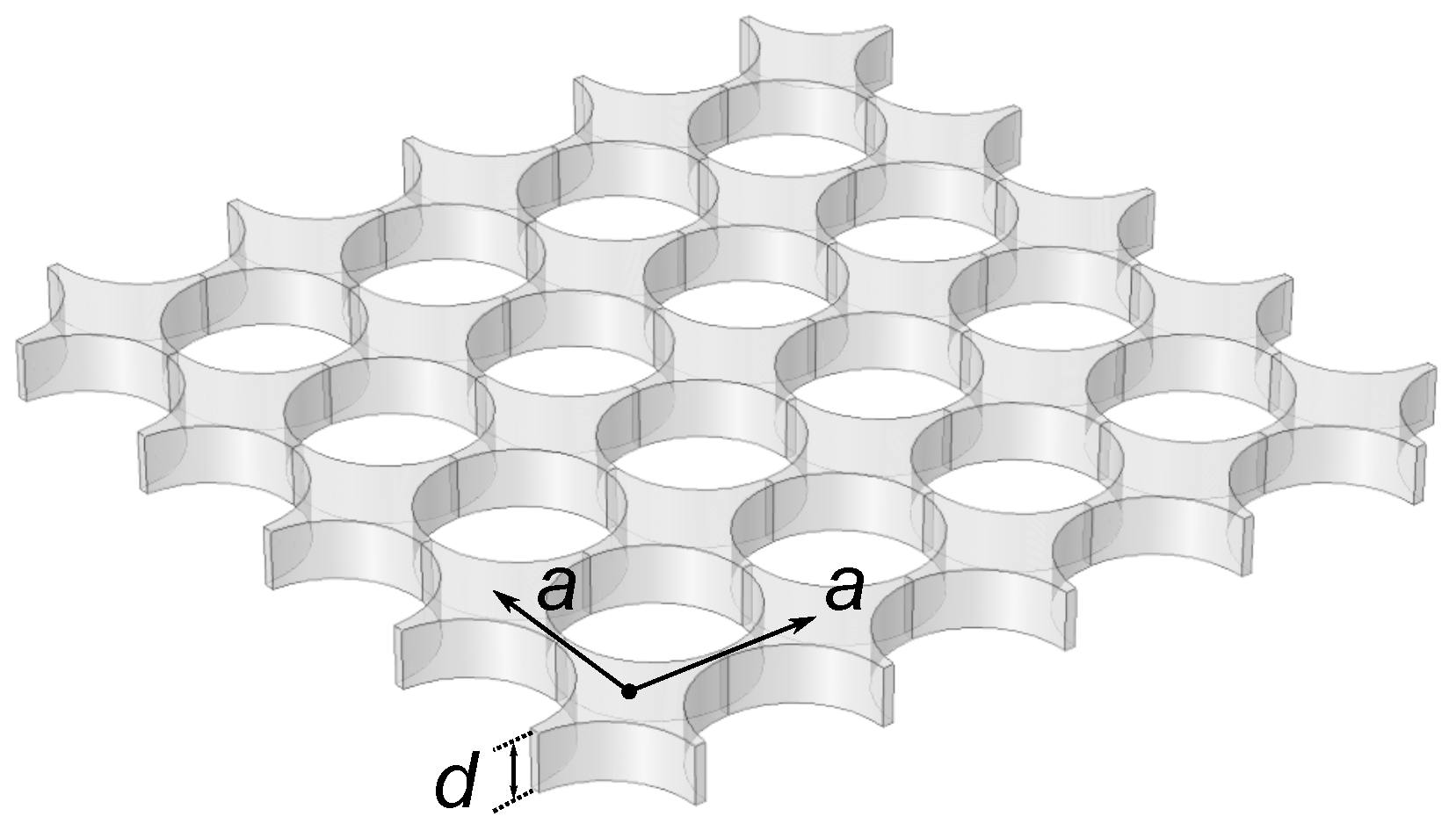

Figure 1. A schematic of a 2D hole array phononic crystal with dimensions d = 300 nm, a = 1 μm.
Figure 1. A schematic of a 2D hole array phononic crystal with dimensions d = 300 nm, a = 1 μm.
Crystals 06 00072 g001

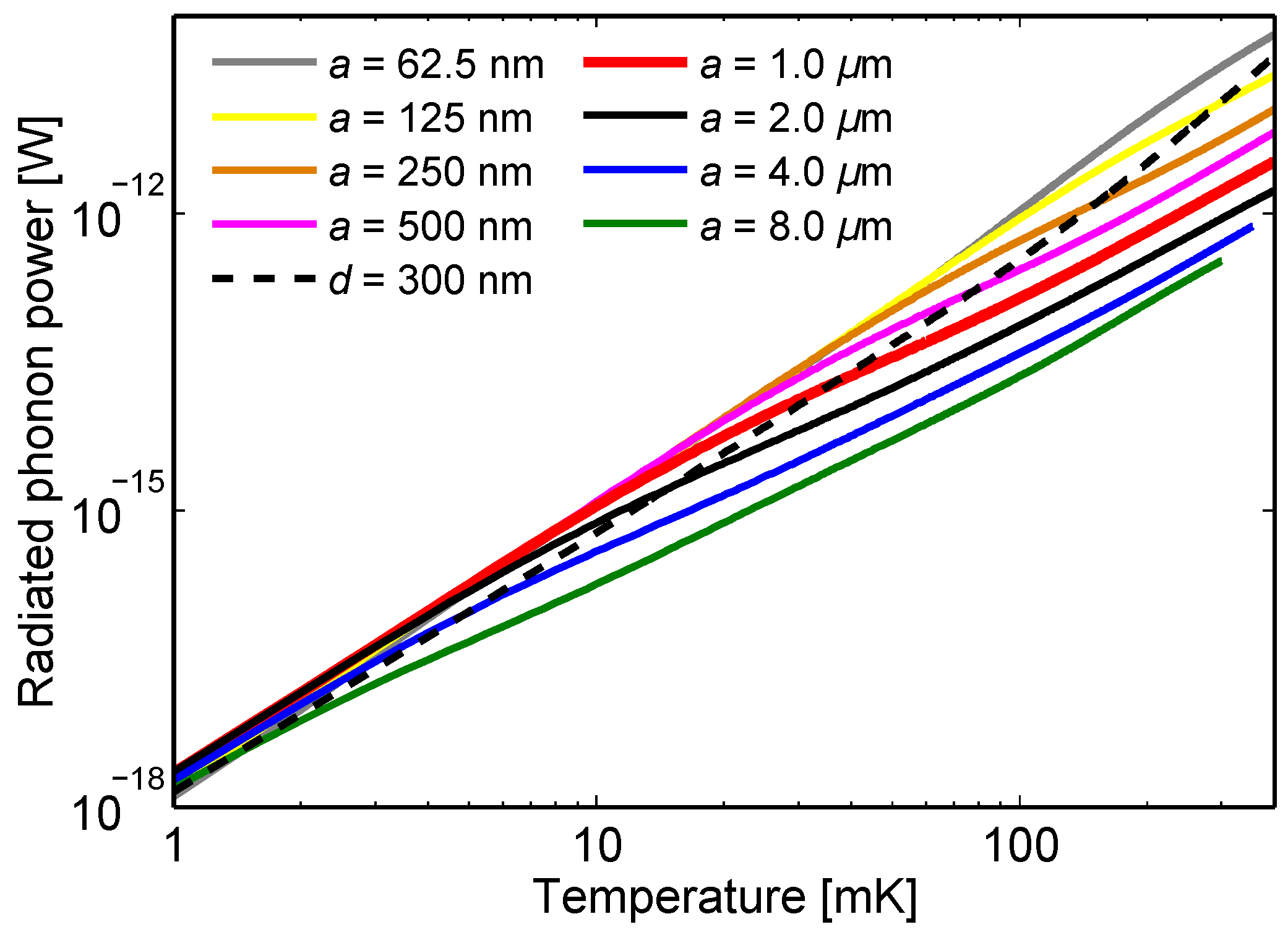

Figure 2. Radiated phonon thermal power for a selection of different phononic crystals (PnC) membranes with a square lattice hole pattern of period a = 62.5 nm – 8 μm, and a full membrane with the same thickness d = 300 nm.
Figure 2. Radiated phonon thermal power for a selection of different phononic crystals (PnC) membranes with a square lattice hole pattern of period a = 62.5 nm – 8 μm, and a full membrane with the same thickness d = 300 nm.
Crystals 06 00072 g002
Figure 3. Radiated power enhancement factor for square PnC membranes with various lattice constants a. The largest ratio of enhancement vs. reduction p max / p min 92 occurs at T = 300 mK.
Figure 3. Radiated power enhancement factor for square PnC membranes with various lattice constants a. The largest ratio of enhancement vs. reduction p max / p min 92 occurs at T = 300 mK.
Crystals 06 00072 g003

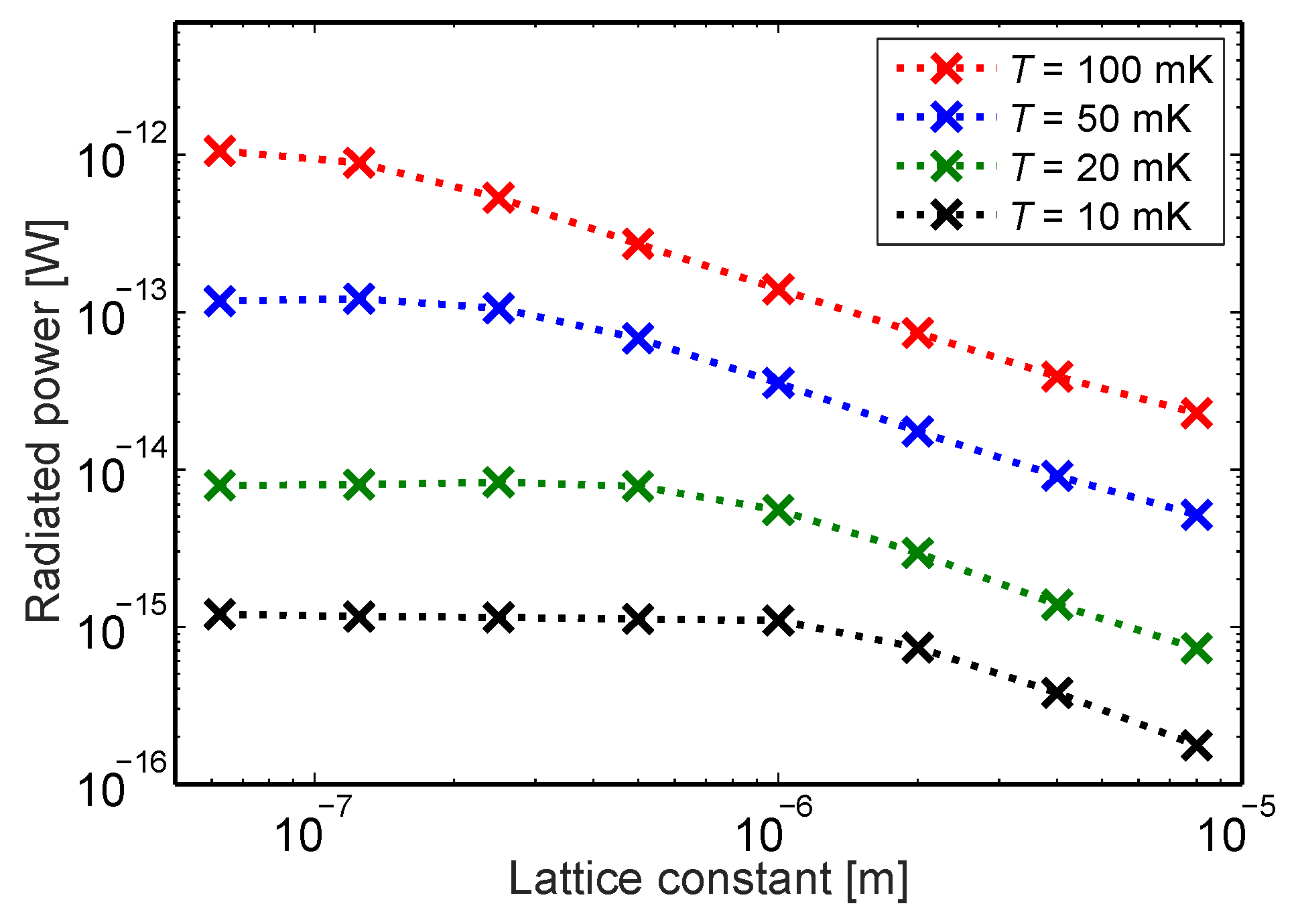

Figure 4. Radiated power for selected temperature points as a function of PnC lattice constant.
Figure 4. Radiated power for selected temperature points as a function of PnC lattice constant.
Crystals 06 00072 g004

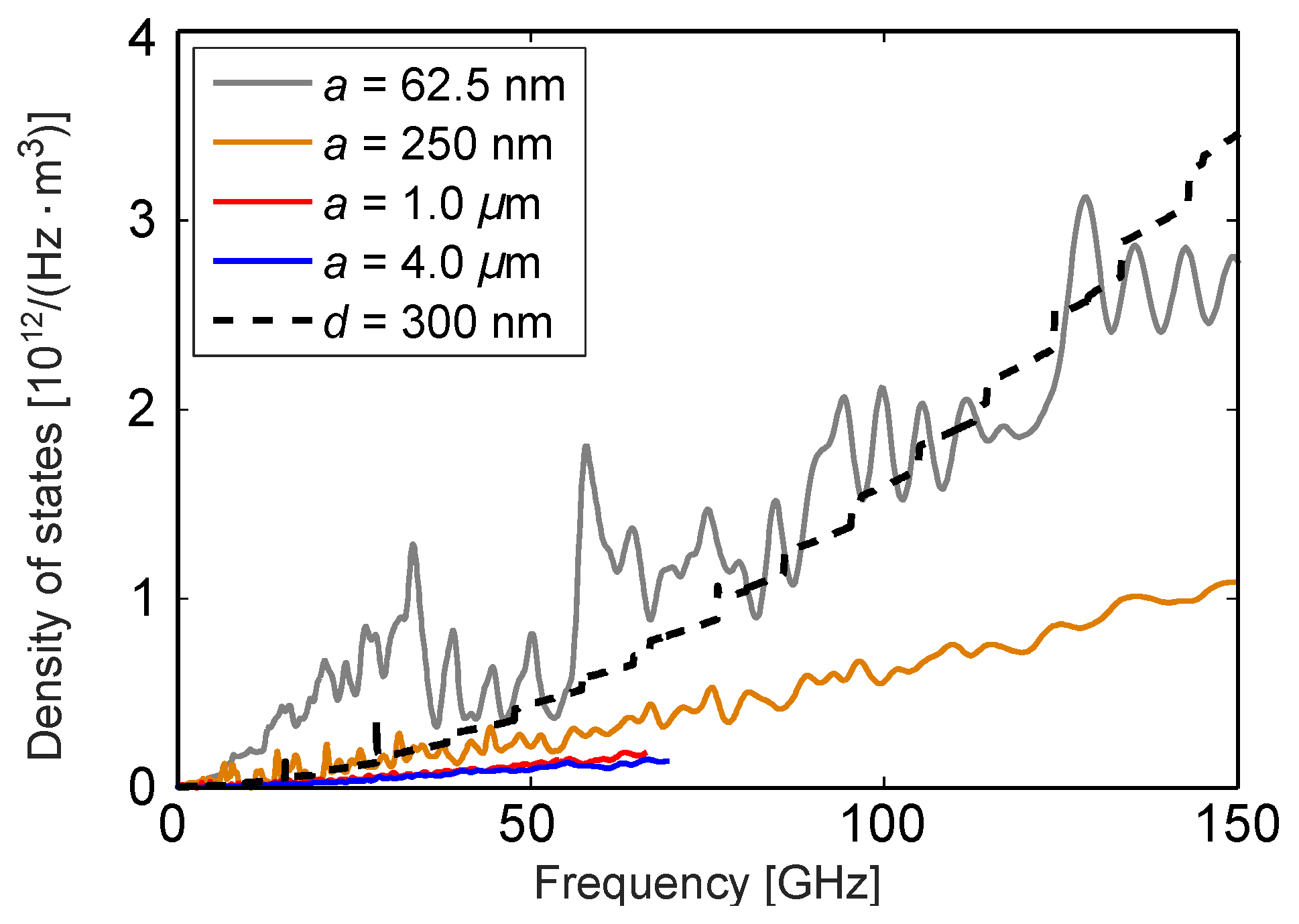

Figure 5. Phonon density of states of a full membrane and four PnC membranes with the same thickness and different lattice constants. The PnC curves are smoothed for visual clarity.
Figure 5. Phonon density of states of a full membrane and four PnC membranes with the same thickness and different lattice constants. The PnC curves are smoothed for visual clarity.
Crystals 06 00072 g005

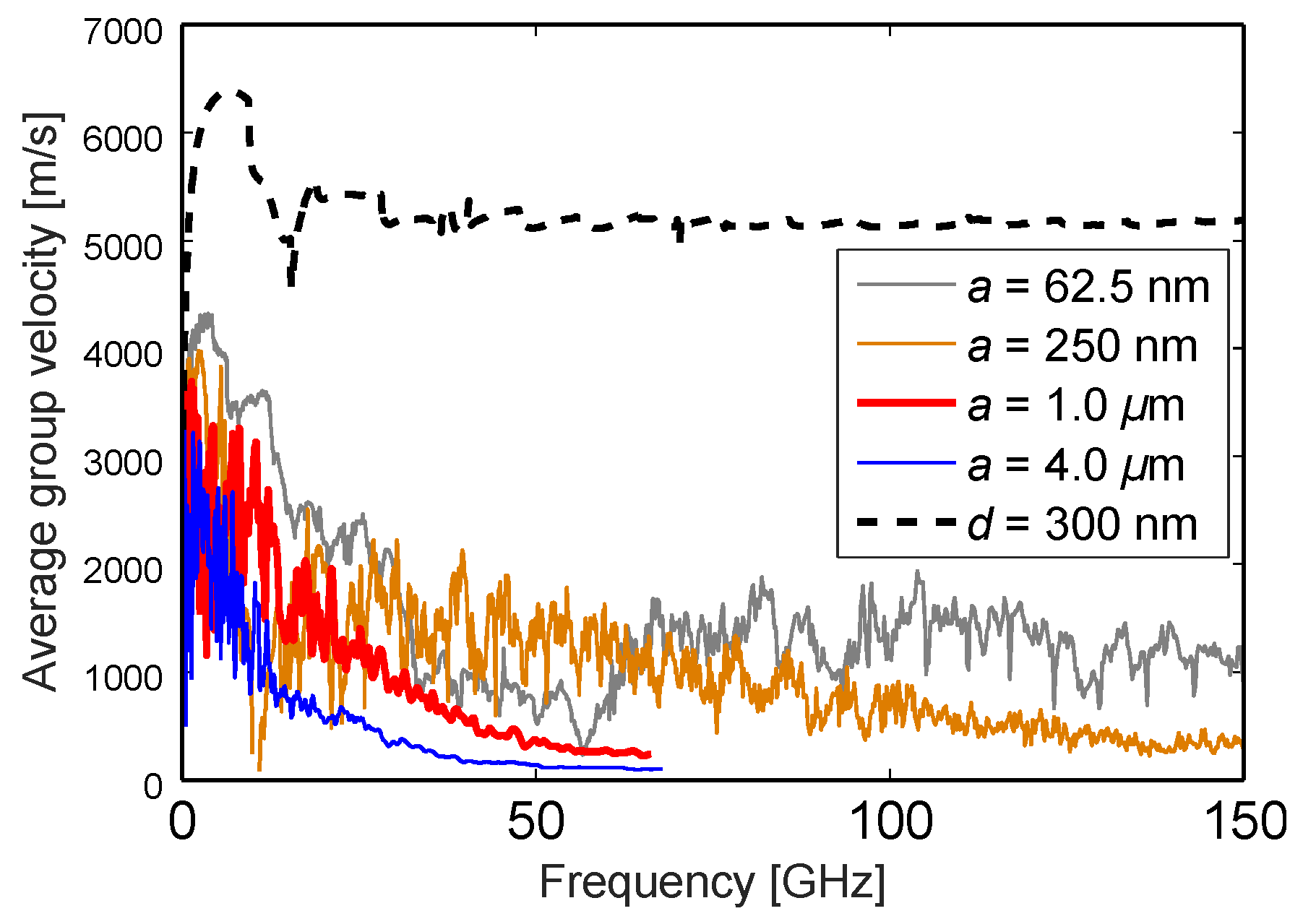

Figure 6. Average group velocity of a full membrane and four PnC membranes with the same thickness and different lattice constants. The PnC curves are smoothed for visual clarity.
