Bending Fatigue in Additively Manufactured Metals: A Review of Current Research and Future Directions

Abstract

Metal additive manufacturing (MAM), also referred to as 3D printing, has proven remarkable in the fabrication of complex metal components in multiple sectors. However, the assessment of this revolutionary process through bending fatigue is frequently impeded due to concerns about mechanical and physical conditions of the printed components. The unique layer-by-layer production process results in varied microstructures, anisotropy, and intrinsic defects that considerably differ from traditionally manufactured wrought metals. This review article aims to integrate and evaluate historical and contemporary research on the bending fatigue of additively manufactured materials. More specifically, the impact of process parameters, build orientation, surface conditions, and post-processing techniques such as machining, surface treatments, and polishing on bending fatigue performance are summarized. Adopting prediction methodologies is emphasized to facilitate flaw detection and thereby ensuring the safe and reliable deployment of AM parts in dynamic load carrying applications. Some future research directions are proposed, including the (i) the development of standardized specimens and test protocols, (ii) the adaptation to miniaturization to overcome challenges in high throughput fatigue testing, (iii) the application of emerging geometries such as the Krouse specimen for mechanistic investigations, and (iv) the possibility of developing a correlation across different testing methods and materials to reduce experimental burden. By synthesizing the recent progresses and identifying unresolved challenges, this review outlines an organized and clear pathway towards future research for the deployment of advanced bending fatigue characterization in AM process. The novel idea of adapting miniaturized Krouse geometries in the bending fatigue testing of additively manufactured metals is a viable prospect for the feasible fabrication of AM fatigue coupons with reduced specimen preparation defects and enhanced fatigue strength.

1. Introduction

Metal additive manufacturing has transformed modern manufacturing processes significantly by enabling the creation of intricate shapes with minimal material wastes, minimal machining operations, and reduced assembly requirements. With the help of CAD-CAM integration, this step-by-step material deposition has become a great replacement for many conventional subtractive methods, enabling the production of complex internal structures, lightweight lattices, and integrated components [1]. This capability has stimulated innovation across high-value industrial and energy sectors such as aerospace, automotive, defense, medical science, and nuclear engineering. In aerospace engineering, AM has contributed to the development of lightweight, topology-optimized structural components, fuel nozzles, and turbine parts to reduce weight, improve engine performance and efficiency, and enhance aircraft safety [2,3,4,5]. In the medical field, additive manufacturing enables the development of tailored implants, such as orthopedic hip stems, cranial plates, and dental restorations, by leveraging the customization capabilities of digital design [6,7,8,9]. In the automotive sector, AM is utilized for rapid prototyping, precision part tooling, and small-scale production of high-performance products for faster innovation cycles and mass customization [10,11,12]. Moreover, by providing efficient, on-demand production of specialized and replacement parts to simplify military logistics and supply chains, additive manufacturing plays a crucial role in national security and the energy sectors by integrating the concept of the Fourth Industrial Revolution (4IR) [13,14,15].

Regardless of these advancements, for the fruitful transition of AM from rapid prototyping to the production of mission-critical, load-bearing components, a thorough understanding is required of the mechanical performance of AM metals under end-use operational settings. Among the major performance indicators, fatigue resistance is most critical and challenging to predict and evaluate.

Fatigue, which is the progressive structural damage resulting from cyclical and periodic loads, is particularly threatening due to its propensity for catastrophic failure with minimal prior indication. Historically, the majority of fatigue research in additive manufacturing has focused on axial loading conditions. However, numerous real-world components encounter complex stress states that incorporate bending loads.

Specifically, bending fatigue is of growing interest because it more accurately replicates the service loading conditions of a wide variety of structural components. Bridges, beams, shafts, turbine blades, and biomedical implants frequently experience flexural stresses in operation. In bending fatigue, the maximum stress is concentrated at the outermost layers of a component, making surface quality and near-surface defects particularly influential on fatigue performance. Consequently, AM parts—which are known for relatively higher surface roughness, surface-connected porosity, and residual stresses—are at an inherent disadvantage in bending fatigue unless these issues are mitigated through design or post-processing.

AM metals also have distinct micro-structural and flaw characteristics that set them apart from their wrought or cast equivalents. Complex thermal history caused by rapid solidification, localized melting, and repeated melting cycles inherent in AM can lead to highly heterogeneous microstructures [16,17,18]. Melt pool boundaries, un-melted or partially melted particles, columnar grains aligned along the build direction, high dislocation densities, a supersaturated matrix and the presence of gas porosity are some other commonly observed features in AM [19,20]. These microstructural abnormalities are due to the layer-wise production nature of AM which could be insidious to fatigue life, particularly when they are located near the surface. Moreover, the mechanical anisotropy caused by the build orientation, coupled with the differences in surface roughness, can promote premature fatigue crack initiation [21,22,23].

In AM metals, porosity is another major factor that can propagate fatigue cracks faster. Round-shaped gas pores, resulting from entrapped shielding gases or material vaporization during the powder melting process, and lack-of-fusion defects, characterized by sharp, planar voids occur due to inadequate overlap between neighboring melt pools or layers. These defects can drastically diminish fatigue life by acting as stress concentrators. Fatigue crack initiation and spreads are significantly affected by the position, size and morphology of these defects, as detailed by Leuders et al. [24] and Kasperovich et al. [25]. Another aggravating factor that could accelerate the fatigue damage is poor surface roughness. When subjected to cyclic bending loads, surface asperities, caused by the stair-stepping effect on the sloping surfaces and the attachment of partially fused powder particles, can initiate microcracks [26,27] which will adversely affect fatigue performance.

Residual stresses add an additional layer of complexity to the fatigue performance assessment of AM-made parts. In AM, considerable residual stresses are built up near the surface due to the thermal gradients from the cyclical melting and solidification phenomena. The most deleterious of these is the tensile residual stresses, which increase the effective mean stress during cycling loading and hasten the onset and spread of a crack. Multiple researchers have suggested that post-heat treatment for stress relieving and HIP (hot isostatic press) can considerably reduce these residual stresses and arrest and minimize internal voids to enhance fatigue performance [28,29]. While applying these post-processing techniques is somewhat challenging due to cost, geometry limitation, or application constraints, a comprehensive framework could be established that integrates processing variables, alloy compositions, and treatment techniques for an optimal microstructure using AM [30].

While optimization and post-processing have been demonstrated to benefit AM-made parts, accurate measurement and assessment techniques based on dynamic loading will generate stochastically relevant data and provide confidence for the adoption of these AM components. Once such measurement, bending fatigue testing, is identified as a sensitive and relevant method for characterizing the fatigue performance of additive manufacturing metals, considering the interplay between these factors. Bending fatigue differs from axial fatigue tests in that it creates a stress gradient, with stress levels reaching zero at the neutral axis and peaking at the surface, rather than applying uniform cyclic stress across the entire cross-section. Bending fatigue serves as an optimal method for investigating surface-initiated fatigue mechanisms, which are prevalent in most additive manufacturing materials. Furthermore, bending fatigue tests can be performed on round, flat, or even miniature specimens, providing adaptability in evaluating various design geometries and accounting for scaling effects.

However, investigations and associated literature on bending fatigue in AM are still sparse in comparison to axial fatigue studies, despite their relevance. A wide range of current researchers focus on common alloys, including Ti-6Al-4V, Inconel 718, and AlSi10Mg. There is a lack of comprehensive studies that investigate the effect of process parameters, build orientations, and post-processing on bending fatigue performance. Again, although a limited number of standards for bending fatigue test exist [31], there are no specific guidelines for their application to AM components.

The appropriate specimen geometries for bending fatigue testing are likewise not universally agreed upon. Flat specimens are more realistic of many real-world components, although round rotating beam specimens are still commonly employed because of their historical precedence and straightforward stress profiles. Miniaturized specimens and unique shapes, such as the Krouse specimen, have also been investigated recently to investigate localized fatigue behavior or to support small AM constructions [32,33]. However, the interpretation and comparison of results across various specimen types are complicated by size effects, stress concentration factors, and boundary conditions.

To mitigate these challenges and knowledge gaps, this review aims to provide a complete synthesis of previous and ongoing research on bending fatigue in additively manufactured metals. It reviews the historical evolution of bending fatigue testing to provide context. It then critically evaluates the current body of literature, focusing on the impact of AM process parameters, material systems, surface quality, and post-processing techniques. A special emphasis is placed on the feasibility and limitations of miniaturized testing, and the importance of unique geometries such as the Krouse specimen in understanding fatigue failure mechanisms and their need for AM components. Finally, this study suggests future research areas, standardization efforts, and testing procedures for advancing bending fatigue evaluation in AM.

By emphasizing both the challenges and opportunities in this field, this review contributes to a better understanding of the complex fatigue behavior of AM metals under bending loads, ultimately supporting their safe and reliable use in structural applications where fatigue failure is not an option.

2. Linking Fatigue Testing to Additive Manufacturing Process

Fatigue analysis has a long history, dating back to the 19th century, when a catastrophic railway accident occurred in France. Tracing back to the industrial revolution, this structural failure in metallic components, particularly in the railway axle, prompted an urgent need to understand the long-term behavior of materials subjected to repeated cyclic loading [34]. The first systematic fatigue tests were initiated by August Wohler for the German Railway system. As a groundbreaking effort and for foundational understanding of material degradation under cyclic stress, he developed S-N curves showing the relationship between the applied cyclic stress (S) and the number of cycles to failure(N) [35]. According to Wohler’s method, rotating beam specimens were subjected to fully reversed bending stress causing alternating tension and compression on the outer surfaces of the specimen. The failures of rotating shafts and axles in early railroads and mechanical systems were thus replicated by this method. This configuration and the resulting Wohler’s curve were particularly applicable to ferrous materials such as steels and various grades of irons [36,37]. These metals exhibit a distinct endurance stress threshold, below which fatigue failure does not occur, regardless of number of cycles [38]. This fundamental concept has laid the foundation of fatigue testing and its design theory today.

Wohler’s original apparatus needed several revisions and improvements over the decades for more accurate and repeatable fatigue testing. For example, servo-hydraulic testing machines, developed in late 20th century, were capable of testing more complex structures and shapes, including variable, multi-axial and strain-controlled fatigue tests at both low and high frequencies [39,40]. Despite these advances in axial and tortional fatigue research, bending fatigue needs extra attention due to its significance for components such as beams, shafts, and rotating machinery subjected to flexural loads in real world applications.

Necessary standards were developed by ASTM and ISO with proper guidelines and instructions for fatigue tests, but those are limited mainly to axial fatigue testing. As an example, ASTM E468 [41] provides recommendations about data processing and some material and specimen-related information that should be reported and recorded although no particular test process was suggested. Similarly, ASTM E606 described a method for a strain-controlled fatigue test which is suitable for low-cycle fatigue situations, where materials undergo cyclic plastic deformation [42]. However, the only standard found in literature for bending fatigue test is ASTM B593-21 [31] which is applicable to copper-alloy spring materials in the form of flat sheets or strips. While this standard provides researchers with an intensive methodology for test specimens preparation, mountings, and types of machines, the suitability of the process to a wide range of materials and shapes is yet to be investigated.

As manufacturing processes matured, fatigue testing became more predictive due to the consistent quality and homogeneity of material properties in forged and wrought components. However, these ideas were challenged by the rise of AM in the late 20th and early 21st centuries. The unusual microstructures, anisotropies, and defect profiles of AM materials make it exceedingly challenging to use conventional fatigue data to predict their performance.

Early studies on AM fatigue, therefore, logically concentrated on axial fatigue because of its relatively easier setup and availability. The first study was performed by Rafi et al. [43] and Blandl E et al. [44] on Ti-6Al-4V and AlSi10Mg, respectively, and they set the standard for the characteristics of AM metals under tensile cyclic loading. These studies reinforced the essential metrics and variables that affect and quantify AM fatigue behavior, such as the orientation of the build, the roughness of the surface, and any post-processing. Their research indicated that AM materials, especially when they are in their as-built condition, performed much worse than wrought materials because of surface defects and residual stresses. However, as AM technologies progressed from making prototypes into structural and functional part production, some problems associated with the limited nature of axial fatigue testing were highlighted. Most of the time, loading conditions in the real world are not uniaxial. In a lot of important applications, including turbine blades, engine parts, and orthopedic implants, parts are subjected to bending-dominated stress states. Such stress profiles create stress gradients that affect crack propagation in a different way from uniaxial loading.

Identifying this deficiency, researchers-initiated investigations into bending fatigue in additive manufacturing materials to more accurately simulate service conditions. One of the initial significant contributions was the research of Ellyson B et al. [45], who performed rotating bending stress tests on additive manufactured Ti-6Al-4V specimens created using selective laser melting (SLM). Their findings again emphasized a pronounced sensitivity to surface roughness and subsurface imperfections, affirming that bending fatigue is considerably affected by surface quality, which is a vital issue in additive manufacturing due to its intrinsically rough surfaces. Romano’s research signified a transformation in the fatigue research community, indicating the necessity to integrate bending fatigue into the assessment framework for additive manufacturing metals [46]. Subsequent studies by researchers such as Leuders S et al. [47] further corroborated this, demonstrating that rotating and flexural bending tests yielded distinct insights into the fatigue damage mechanisms inherent to additive manufacturing, especially when surface defects or build-induced anisotropy were predominant factors.

Ultimately, material engineering needs to adapt to new research and engineering paradigms through their inception and development. There is a significant need to make bending fatigue a top priority, as we move away from using monolithic wrought materials and toward a larger spectrum of additive manufacturing components to ensure robust structures in more complex and crucial applications. Such historical perspective is useful for understanding the current state of research and highlights how crucial it is to establish standardized bending fatigue tests for metals used in additive manufacturing that are specific to the application.

3. Current Research in Bending Fatigue of AM Metals

Recent research has moved beyond basic property reporting to more in-depth studies of the factors that affect bending fatigue performance. Researchers are now focusing significantly on AM process parameters, resulting surface and internal defects, effective post-processing techniques, as well as predictive methodologies, for faster and more reliable qualification of AM parts in fatigue-critical applications by reducing reliance on expensive experiments.

3.1. Influence of Process Parameters on Bending Fatigue Performance of AM Metals

The fatigue life of an AM component greatly depends on the parameters chosen during layer-by-layer manufacturing [48,49,50]. In particular, the variables of Laser Powder Bed Fusion (LPBF) and directed energy deposition (DED) such as laser power, scan speed, hatch spacing, powder particle size, and layer thickness dictate the stability of the melt pool and, consequently, the density and microstructure of the final part. Several studies have been carried out to investigate the effect of these parameters and ultimately find the best combination to ensure a better fatigue life. For example, Ramirez et al. investigated the 4-point and 3-point bending fatigue performance of Ti-6Al-4V, manufactured by LPBF at different process parameters [51]. According to their observations, different laser power and scanning speeds can vary the size, shape, number of surface defects, pores, and surface roughness, which are the dominant factors that control fatigue life. Even different printing parameters can cause varying surface defects. For example, as shown in

Table 1. Variation in defects and porosity at different process parameters in LPBF-produced Ti-6Al-4V fatigue specimens [51].

Printing Parameter	Power (W)	Scanning Speed (mm/s)	% Porosity	Circularity Avg.	Number of Defects	Avg. Dia. (µm)
P3 Keyhole	370	800	0.385 ± 0.004	0.76 ± 0.04	3861	29
P5 Process Window	370	1400	0.106 ± 0.012	0.63 ± 0.06	1363	32
P8 Lack of Fusion	370	2000	0.215 ± 0.046	0.58 ± 0.05	2708	26
EOS Nominal	280	1200	0.008 ± 0.004	0.66 ± 0.06	231	22
EOS Nominal Improved	280	1200	0.017 ± 0.012	0.57 ± 0.05	143	19

[51] for the same laser power of 370 W, the keyhole (P3) condition incurred the highest number of defects, with larger sizes than those observed in porosity (P5) and lack-of-fusion (LOF) defects (P8). The defect quantity drastically dropped with lower laser power and optimum scanning speed. Interestingly, with the same laser power (280 W) and scanning speed (1200 mm/s), EOS nominal exhibited a lower number of smaller defects compared to the EOS nominal condition, due to a different scan strategy.

This study also proved that an improvement in surface roughness from 15 microns to 7 microns resulted in a fatigue life increase of about 100 cycles by varying scan strategy while keeping the process parameters the same, as demonstrated in

Table 2. Variation in surface roughness at different scan offset under the same process parameters [51].

	Nominal Contour Strategy		Improved Contour Strategy
	Contour 1	Contour 2	Contour 1	Contour 2	Contour 3
Contour Offset (micron)	20	0	0	80	0
Laser Power (W)	150	150	100	100	100
Scanning Speed (mm/s)	1250	1250	450	450	550
Surface Roughness (micron)	15		7

[51]. Different hatching offsets, contour paths, and additional contours used to remelt previously printed contours led to improvements in surface smoothness.

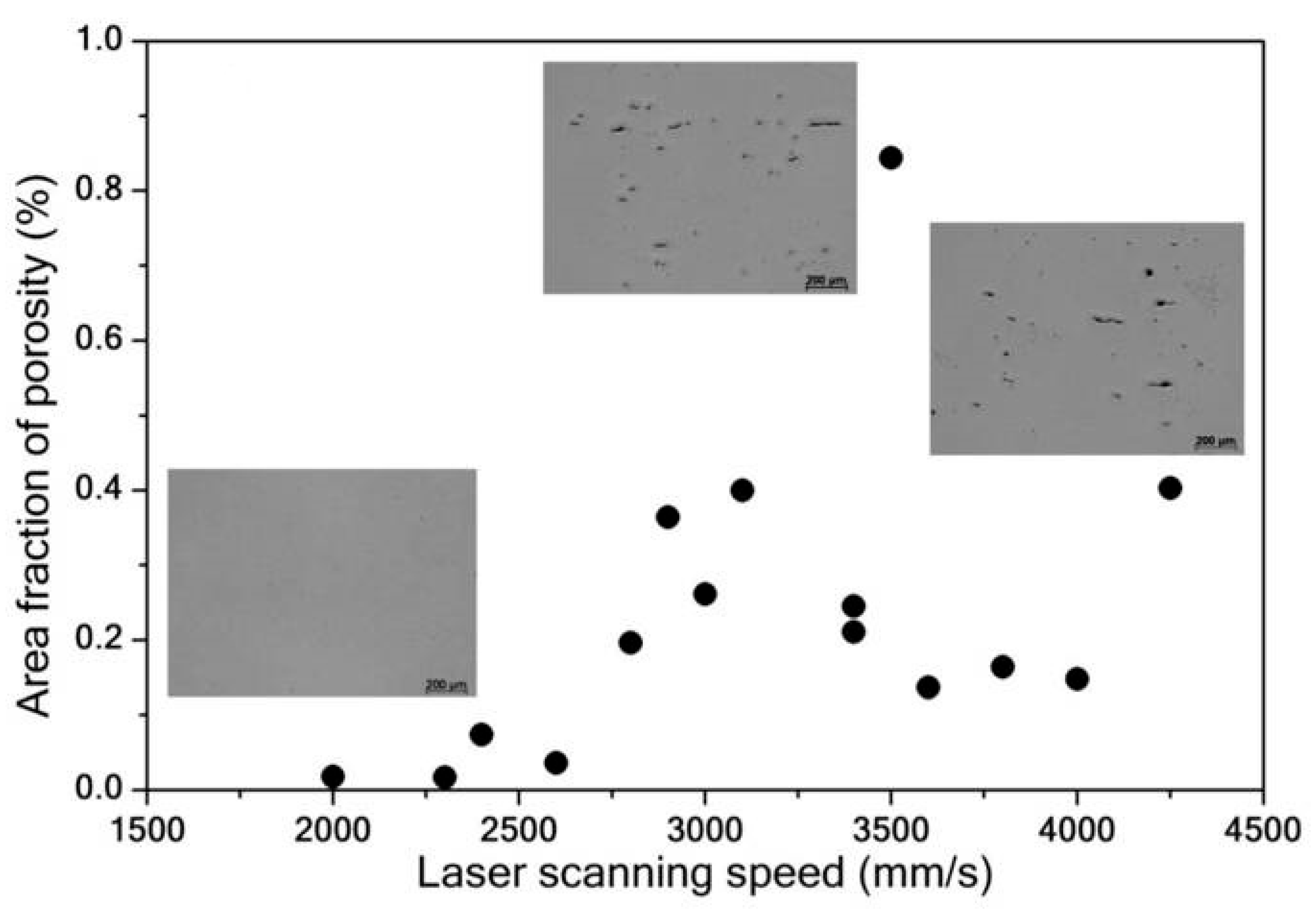

Moon et al. [52] found that laser scanning speed and powder layer thickness influence pore density, which in turn impacts fatigue life. Particularly, low porosity was achieved at a scanning speed lower than 2700 mm/s, while porosity increased when using 2700–4250 mm/s (Figure 1) while keeping the same laser power of 400 W and a fixed powder layer thickness of 20 microns. This is because, at lower speeds, the melted tracks were mostly straight and regularly overlapped with neighboring paths. However, as the scanning speed increased, irregularity and unevenness were observed to increase due to the loss of stability along the scan direction, which ultimately caused high surface roughness.

However, at the low cycle fatigue regimes the effect of scanning speed was difficult to distinguish. Ren Y et al. observed that Ti-6Al-4V produced by laser directed energy deposition process (LDED) showed similar fatigue strength up to 10⁴ cycles when scanned at 900 and 1500 mm/min scanning velocity. This reason was explained by the high scatter of LCF data, heterogenous microstructure, and the presence of defects in the specimen. Moreover, at lower strain amplitudes, the low cycle fatigue properties were comparable to that of wrought counterparts [54].

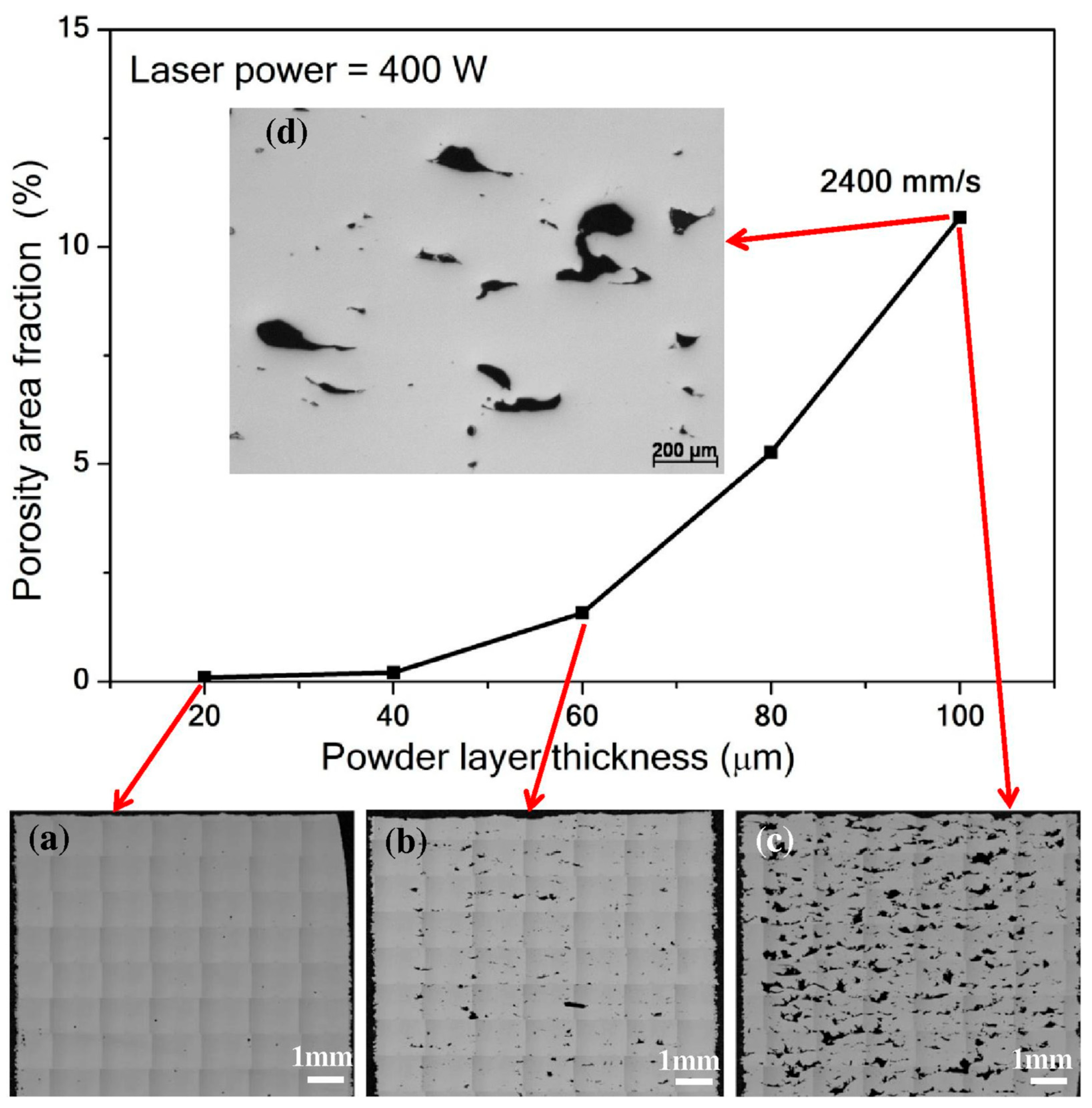

On the other hand, rapid and increased formation of porosity was observed at powder layer thicknesses above 40 microns, under the same laser power of 400 W and scan speed of 2400 mm/s due to inconsistent melt flow between layers and along the top surface (Figure 2) [53]. The thicker layer of powdered material was difficult to fully melt at this laser power, leading to gaps between layers and the inclusion and predominance of the staircase effect, ultimately increasing surface roughness.

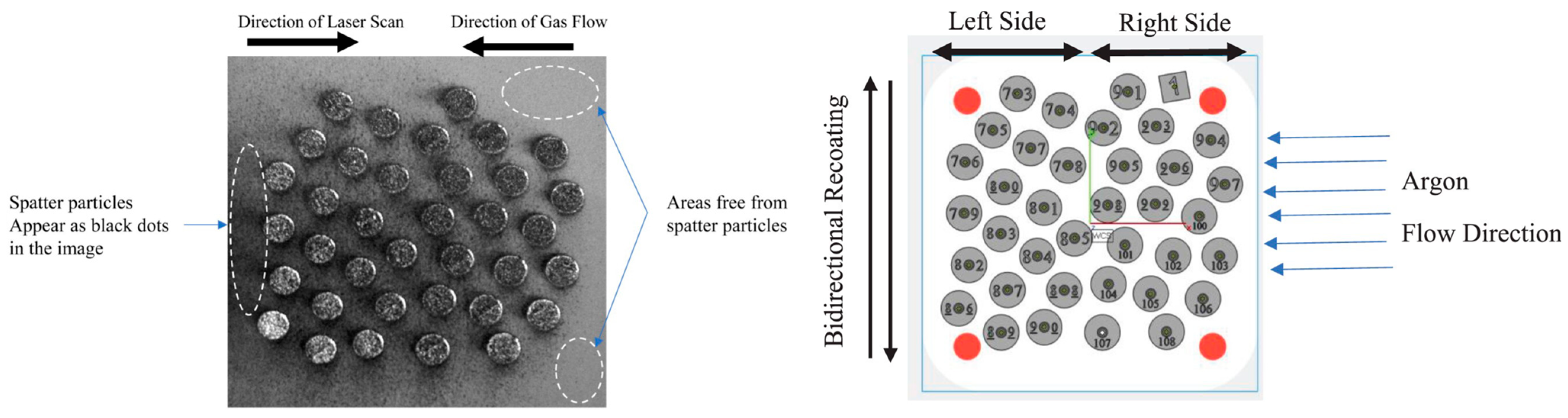

Hatami et al. identified the effect of spattered particles on fatigue strength while printing the specimens on both the left- and right-hand sides of an LPBF build plate [55]. As illustrated in Figure 3, due to scanning direction being opposite to the direction of gas flow, a higher number of spattered particles accumulated on the left side, which contained increased oxide inclusions.

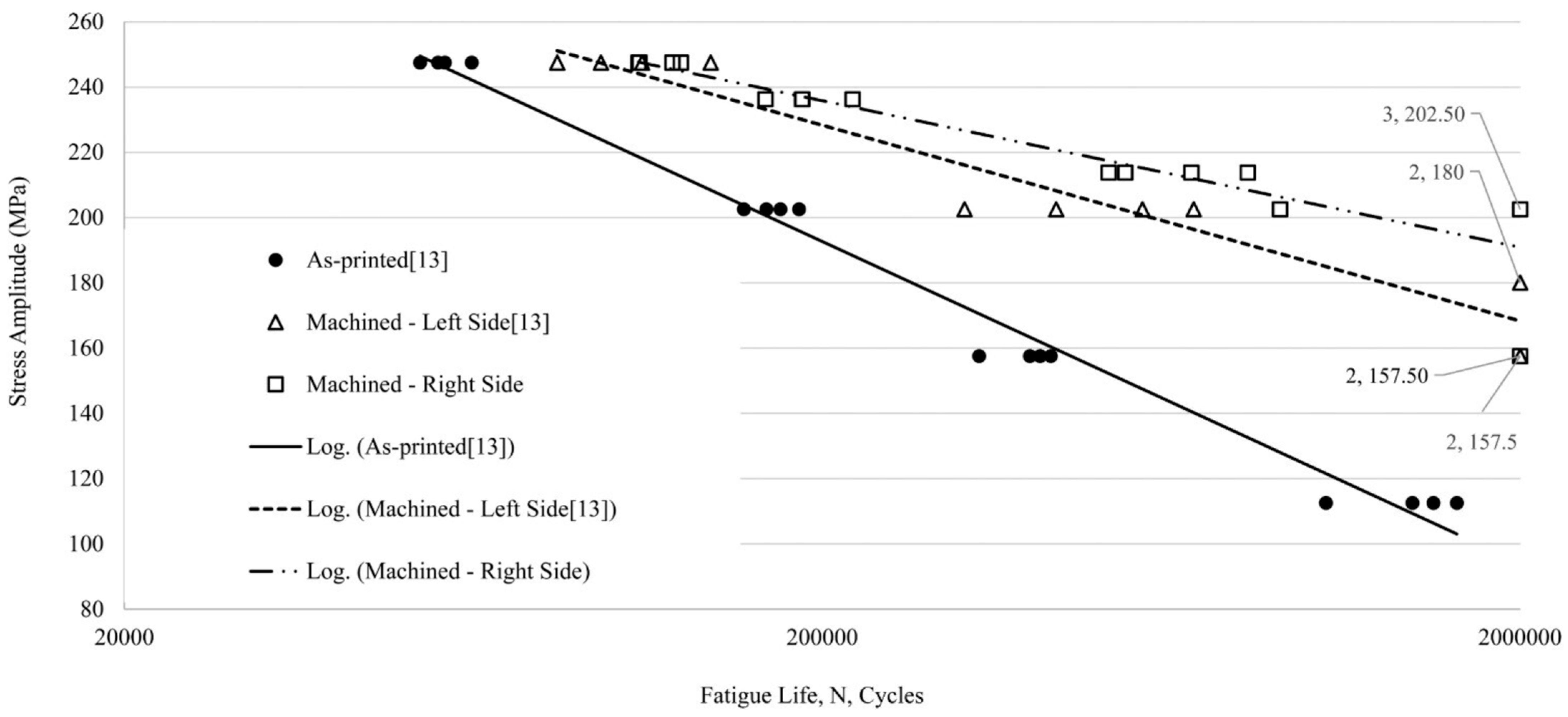

These dissimilar inclusions on two sides remained on the material, causing variation in the tensile strength and enhanced fracture initiations, which were reflected in their fatigue lives [56,57] as displayed in Figure 4 [55].

Some additional observations by numerous researchers regarding the influence of process parameters on bending fatigue performance of several AM-fabricated metals are summarized in

Table 3. Influence of AM process parameters on bending fatigue performance.

References	Process Parameters Used				Materials Tested and Process	Observed Defects/Surface Output	Bending Fatigue Performance
	Laser Power	Scanning Speed (mm/sec)	Hatch Offset, mm	Powder Particle Size/Layer thick, µm
[51]	370J, 280J	800, 1400, 1200, 2000	Scanning direction altered	D10 = 26.4 µm, 55 µm D50 = 37.2 µm, 76 µm D90 = 57.4 µm, 106 µm	Ti-6Al-4V LPBF, EPBF	1.Keyhole porosity, Lack-of-fusion porosity	1. High laser power, low scanning speed affected fatigue life. 2. Fatigue performance improved by optimizing scan strategy.
[58]	370 Watt	1300	0.19	LT = 50, 80 µm,	AlSi10Mg LPBF	1.LOF pores and high roughness, 2. 50 µm has few and small defects	1. 80 µm layer caused larger than 1. 50 µm specimens showed higher rotating bending fatigue limit (70–80 MPa) at 10^8 cycles compared to 80 µm (15–25MPa).
[59,60]	370 Watt	1350	0.09	LT = 50 µm	SS316L LPBF	1. Lack-of-fusion porosity with size 113 µm for pre corroded and 141 µm for corroded specimen 2. Surface degradation with pronounced crevices and pits due to corrosion	1. A corrosion bending fatigue test was performed. Pre-corroded specimens show about 20% reduction in fatigue life than the non-corroded one. 2. Fatigue strength was determined for corroded and pre-corroded as 203 and 243 MPa, respectively.
[61]	400 Watt			Particle size = 40 µm LT = 30 µm	Ti-6Al-4V SLM	1. Gas pores, LOF pores 2. Anisotropic columnar grains	1. Pores have a drastic effect on the fatigue behavior at high-cycle fatigue regimes. 2. Significant fatigue life variation between as built and heat-treated specimens due to removing residual stress. 3. Mean fatigue life increased from 27,000 cycles to 93,000 cycles after stress relieving.

[51,58,59,60,61]. All of these findings collaboratively necessitate optimized printing parameters for better AM materials microstructure and surface finish.

3.2. Impact of Build Orientation on Bending Fatigue Performance

Build orientation significantly affects fatigue strength, as it determines the direction of the grain growth and the orientation of layer lines relative to the principal stress axis, seriously influencing fatigue crack initiation and propagation [62,63,64].

Table 4. Effect of build orientation on the bending fatigue performance of AM specimens.

References	Build Orientation	Materials Tested	AM Process	Bending Fatigue Observation
[22]	0°, 45° and 90°	Al2024-RAM2	Laser Powder Bed Fusion (LPBF)	1. 0° build orientation showed lower roughness and the highest fatigue strength. 2. 45° and 90° build orientations exhibited nearly identical fatigue life, as roughness was almost same.
[65]	0°, 45° and 90°	Ti-6Al-4V	LPBF (SLM)	1.Due to significant anisotropic characteristics, fatigue strength was reduced by around 40% when build orientation changed from 0 to 90 degrees. 2. Favorable orientation was identified as 0° due to the development of columnar grains against crack propagation, thereby enhancing fatigue life.
[66]	Horizontal (0°) and Vertical (90°)	SS 17-4PH	Atomic diffusion AM (ADAM)	1. Vertically oriented specimens experienced lower ductility and lower fatigue life than horizontally oriented specimens. 2. Vertically oriented specimens exhibited poor quality with large pores due to lack of sintering, which mainly extended toward the layer boundaries.
[67]	Flat, On edge and upright orientation	SS17-4PH alloy	Metal fused filament fabrication (MFFF)	1. On-edge orientation displayed lower bending strength than flat orientation due to the creation of a sliding action by Poisson’s effect. This sliding action results in highly deformed and shifted voids towards the edge. 2. Upright orientation exhibited higher bending strain and lower strength, as well limited plasticity.
[67]	Parallel (x-y) and perpendicular (x-z)	AlSi10Mg alloy	SLM	1. At very high cycle fatigue (VHCF) regimes, the bending strength of the horizontally built specimens is higher than that of the vertically oriented parts due to microstructural effects, while larger defect sizes were observed in the vertically fabricated parts.
[68]	X, Y and Z (Build direction)	Ti-6Al-4V	DED	1. The mean fatigue life (logarithmic) in X and Y directions was almost twice that of the specimen built in the Z direction.

summarizes some of the effects of build orientation on bending fatigue performance of different AM metals [22,65,66,67,68]. Although the quality of an AM part can vary depending on the material and printing processes, overall, it turns out that the horizontal or flat orientation exhibits the best bending fatigue performance, which then starts diminishing with increasing inclination, indicating build orientation effects and anisotropies [69,70,71,72]. This could happen for several reasons, such as layer adhesion, melt pool boundaries and interfaces along the build direction, stress concentration, defect orientation, anisotropic microstructures, and grain orientation, etc. [73,74]. As AM is a layer-by-layer fabrication process, the bond between layers might be weaker than its wrought counterpart, brought on by the segregation of materials due to cooling rates or vaporization effects. In such scenarios, a bending load applied parallel to the build orientation causes less harm to these weaker interfaces due to uniform stress distribution along the uniaxial load and build direction. On the contrary, force applied to the vertical layers could accelerate the damage due to high stress concentration at these weak interfaces.

Horizontal orientations were observed to create finer grain size and lower anisotropic trends, which ultimately enhanced material strength according to the Hall–Petch effect [75]. These smaller and fine grain sizes are also beneficial in obstructing crack propagation in fracture surfaces, thereby promoting longer fatigue life [76]. However, many unique and edge case observations contradicting these trends were also prevalent. For example, Dixit S et al. and Sun W et al. identified the highest yield strength and fatigue properties in the specimens fabricated along the 45° orientation due to their containing higher amounts of <111> grains towards the said direction [77,78]. This crystallographic texture is strong, being dense and closely packed, indicating anisotropic behavior. From all of these studies, it is certain that the nature of defects, porosity, and thermal properties of an AM-made part can considerably affect the fatigue performance related to build orientation.

3.3. Impact of Post-Processing and Surface Treatments

While the exceptional design flexibility of additive manufacturing (AM) allows for the creation of complex and tailored metal components without the limitations of conventional manufacturing, the as-fabricated state of these parts frequently poses considerable difficulties for high-performance applications [79,80]. AM metal components produced through methods such as Laser Powder Bed Fusion (LPBF), directed energy deposition (DED), and Electron Beam Powder Bed Fusion (EBPBF) often display increased surface roughness and poor geometric tolerances due to the following attributes: partially melted powder particles and the “staircase” effect on sloped surfaces; internal flaws such as lack-of-fusion voids and gas porosity; and significant residual stress resulting from extreme thermal gradients during these rapid melting and solidification cycles [81,82,83]. These attributes adversely affect mechanical performance, particularly in fatigue-sensitive applications, where crack initiation is frequently governed by surface and near-surface defects. These are the facts which make the post-processing and surface treatment essential to transform additive manufacturing parts from their original state into products that meet the strict requirements of the energy, aerospace, biomedical, and automobile industries. There are two primary categories of post-processing techniques: bulk-modifying treatments, which enhance the microstructure, eliminate internal porosity, and reduce harmful tensile residual stresses; and surface-focused treatments, which smooth the surface, reduce stress concentration points, and create beneficial compressive residual stresses. Some examples of bulk-modifying treatments include stress-relief annealing, hot isostatic pressing (HIP), and solution aging [84,85,86]. All of these techniques, summarized in

Table 5. Effect of post-processing on fatigue performance.

References	Post Processing/ Surface Treatment Applied	Material and Process	Type of Fatigue Test	Usefulness and Improvements in Fatigue Performance
[87]	1. Shot peening (SP) 2. Laser shock penning (LSP) 3. Centrifugal finishing (CF) 4. Laser polishing (LP) 5. Linishing (Lin) 6. Hot iso-static pressing (HIP)	Ti-6Al-4V EPBF and LPBF	Rotating Bending	1. Fatigue life was increased by around 100–125% with CF, SP, and Lin post-processing compared to as-built 2. Laser shock peening was observed to increase fatigue life by around 5–20% 3. Laser polishing reduced fatigue life instead due to the formation of high surface roughness 4. Stress-relieved LPBF samples showed higher strength than EPBF HIPPED specimens
[88]	1. Heat treatment 2. HIP	Ti-6Al-4V alloy, LPBF	Axial	1. Fatigue strength increased threefold compared to the as-built specimens after applying heat treatment 2. HT+HIP increased fatigue properties fivefold
[89]	1. Machining 2. Hot iso-static pressing (HIP)	718 alloy, EBM and SLM	4-Point Bending	1. Machined specimens exhibited lower surface roughness and higher fatigue life, but large scatter observed due to large number of crack initiation sites 2. HIP treatment significantly reduced the number of defects and improved fatigue life
[90]	1. Vibratory polishing 2. Laser surface remelting (LSR) 3. Abrasive polishing	Ti-6Al-4V and Inconel 625 EBM and SLM	High Cycle Fatigue Test	1. Both vibratory and chemical finishing improved fatigue life by 3- to 5-fold for Ti-6Al-4V 2. LSR and abrasive polishing did not improve fatigue life of Inconel 625 alloy significantly due to existing defects despite smoother surfaces

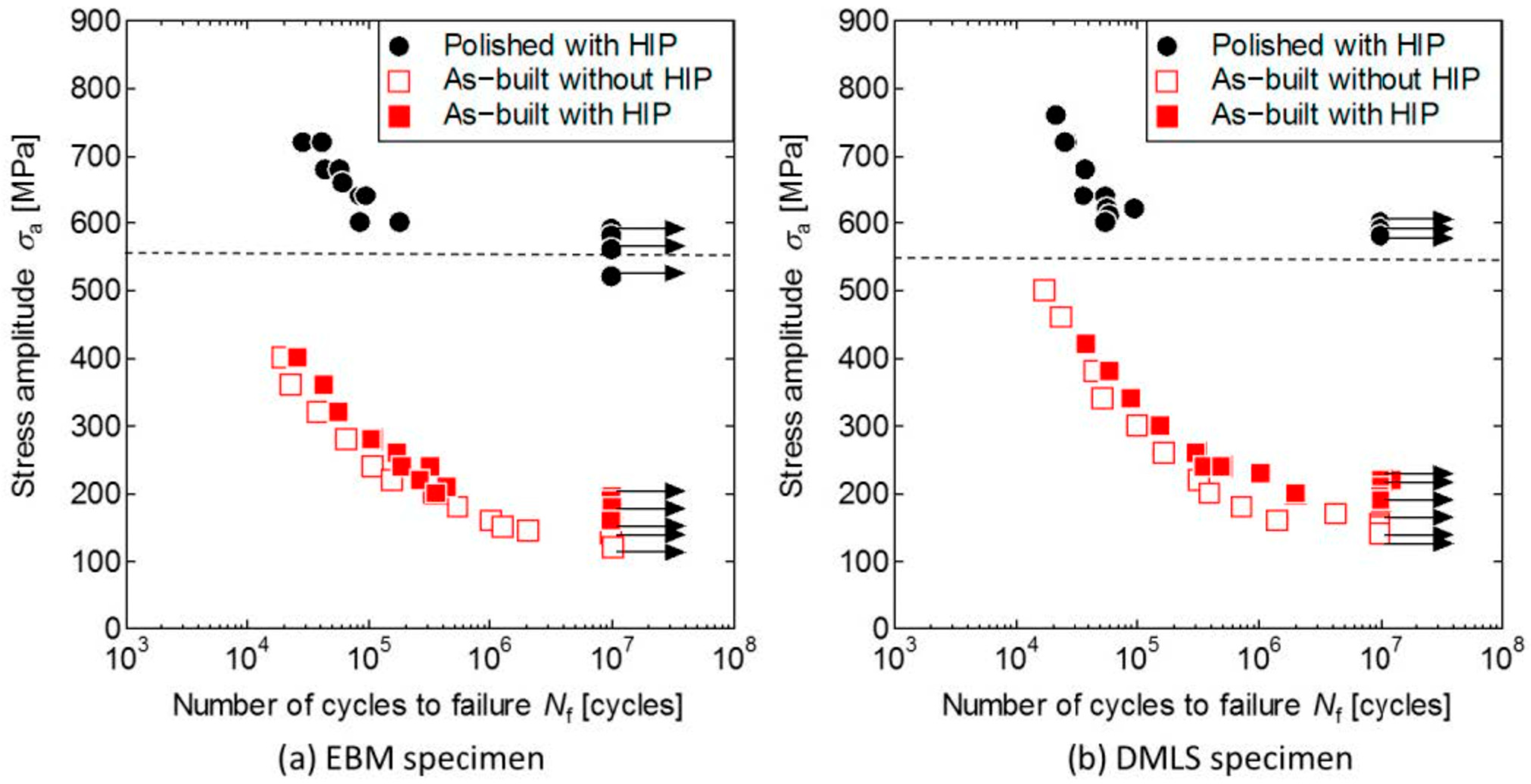

[91,92]	1. Hot iso-static pressing (HIP)	Ti-6Al-4V LPBF DMLS	Axial	1. Internal defects can be minimized by HIP without affecting surface roughness 2. Fatigue life was decreased significantly with the increase of arithmetic mean surface roughness
[93]	1. Laser polishing 2. Stress-relief	Ti-6Al-4V LPBF	Fully Reverse Bending, R = −1	1. Laser-polished specimens exhibited longer fatigue life cycles compared to as-built by decreasing surface roughness due to remelting of the partially melted powdered particles 2. Stress relief process helped improve fatigue strength at low cycle zones
[94]	1. Electrochemical polishing 2. Mechanical Polishing 3. Machined (Round specimen) 4. HIP	AlSi10Mg SLM Ti-6Al-4V DMLS 316L and 17-4PH	Fully Reverse Rotating Bending, R = −1	1. SLM AlSi10Mg showed 60% higher strength than that of conventional Al6061 2. Post-treatment process did not effectively enhance fatigue strength due to high number of defects, pores etc. 3. DMLS-fabricated stainless steels showed 85–95% of the fatigue strength of wrought steels 4. HIP process improved fatigue strength of DMLS 316L in the high-cycle regimes only

[87,88,89,90,91,92,93,94] can be combined to strengthen materials by reducing the initiation and propagation of cracks.

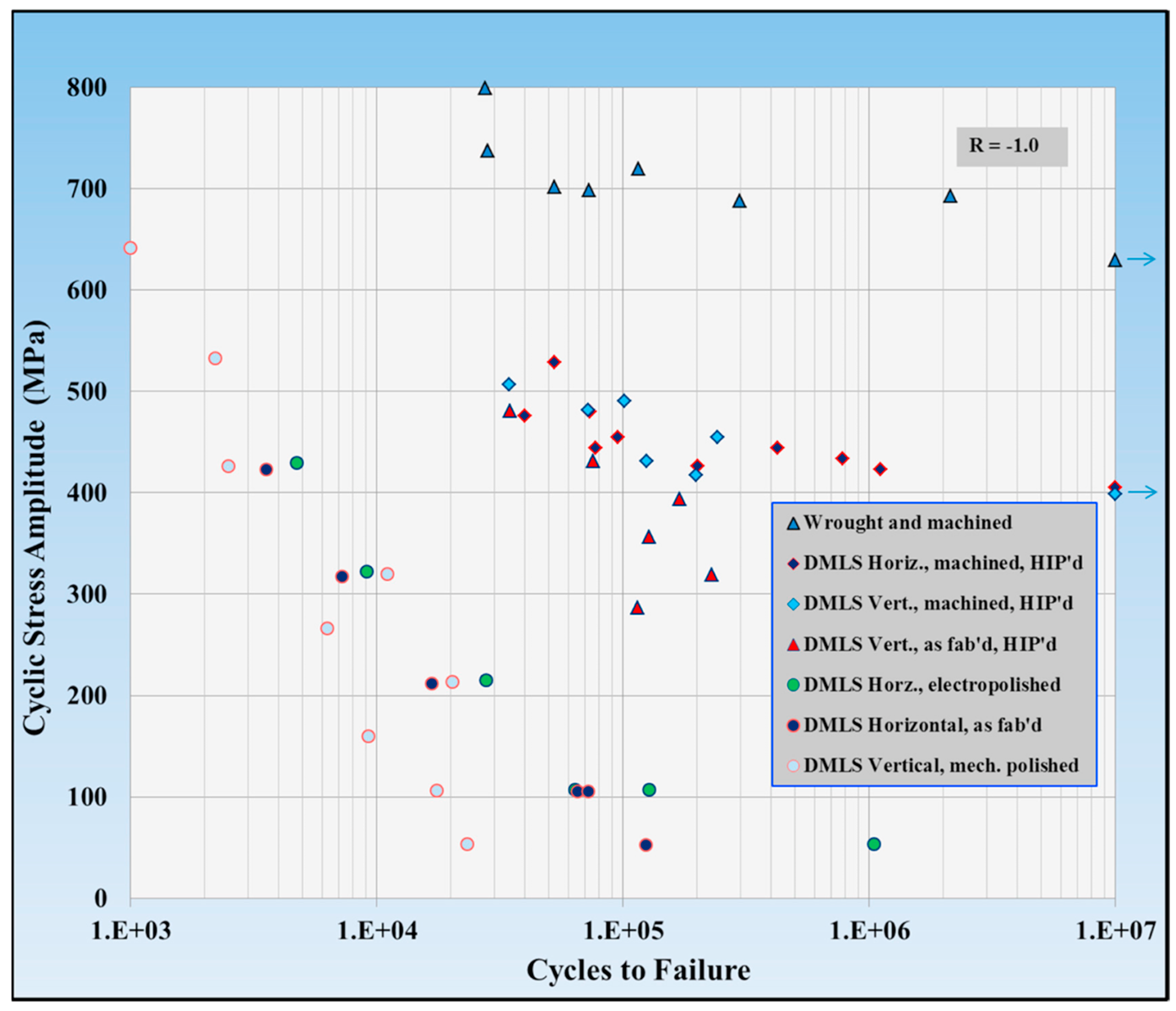

Post-processing can increase yield strength, ultimate tensile strength, and especially fatigue life. Ren et al. found a significant improvement in a material’s fatigue performance as a result of the solution treatment and aging (STA) technique. The components exhibited good low cycle fatigue (LCF) lifetimes and were comparable to those of their wrought counterparts at intermediate strain amplitudes [54]. Mower et al. identified significant enhancement in fatigue strength of DMLS produced Ti-6Al-4V when it was treated by the HIP process. They observed that irrespective of the orientation of scanning, fatigue strength was observed to be 400-MPa at 5 × 10⁴ cycles, which is much higher than that of mechanical or electropolished specimens, which ranged around 100–200 MPa (Figure 5) [94].

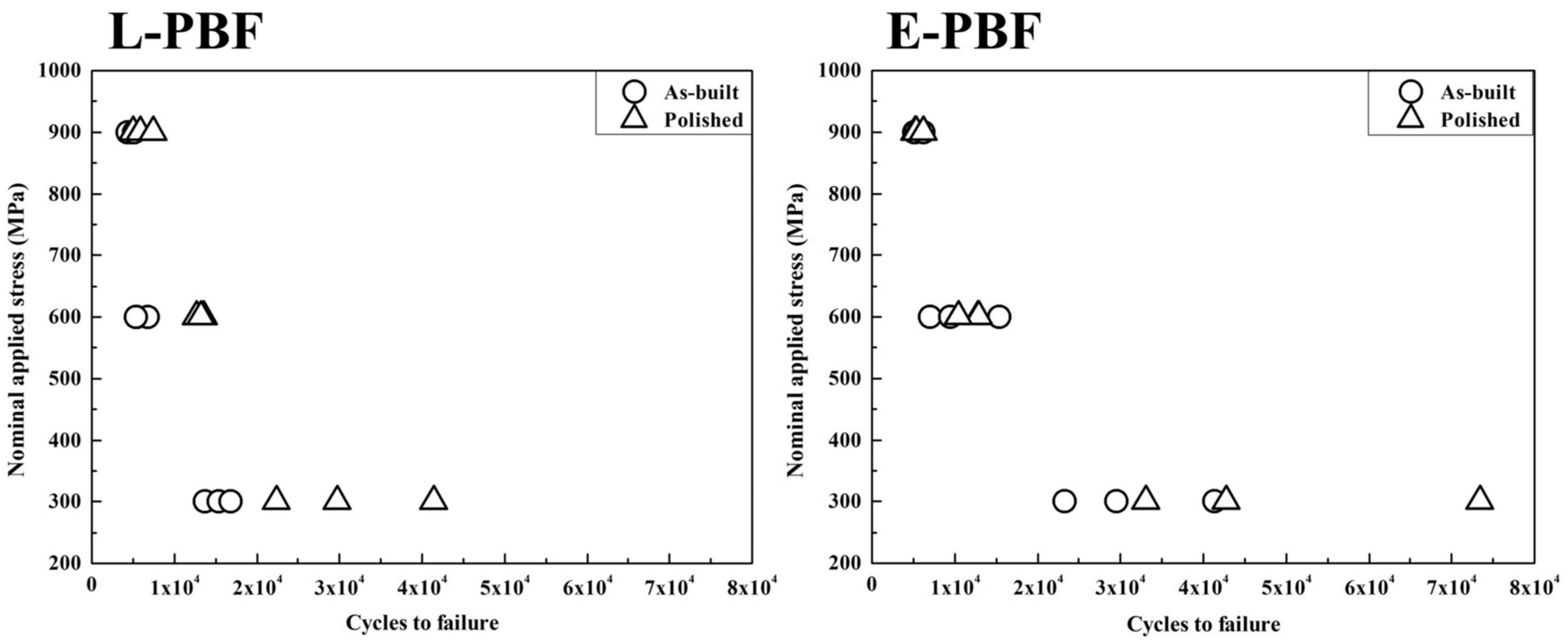

El Hassanin et al. investigated the rotating bending fatigue performance of Ti-6Al-4V fabricated by L-PBF and E-PBF and surface treatment by CO₂ laser polishing [95]. They observed a significant difference in surface roughness between as-built specimens and polished specimens, which ultimately increased fatigue life, as demonstrated in Figure 6 [95]. For both LPBF and EPBF, rotating bending life was increased through polishing by 26% and 1%, respectively, in the plastic deformation region, 127% and 113%, respectively, in the elastic zone, and 103% and 59% in the infinite zone.

Although surface roughness is considered to be the dominant factor for fatigue crack initiation, a high level of scatter in fatigue limit measurements occur due to internal defects and coarser microstructures [91]. Therefore, to eliminate surface impurities of the AM metals, surface treatment is essential. However, to remove internal pores, which are often visible after surface finishing, heat treatment and processes such as HIP and stress relieving are crucial. It can therefore be stated that both surface finishing and heat treatment can simultaneously improve the fatigue performance of AM metals. Nakatani et al. analyzed and compared the surface morphology and fatigue life of the EBM-manufactured Ti-6Al-4V, which are both polished and HIPed [96]. Figure 7 illustrates this phenomenon, indicating that although the defects/pores could be removed from the as-built parts by applying the HIP method, surface roughness still remains. This study also proved that the fatigue limit of the polished specimens outperformed the as-built specimens for both sample groups, with and without HIP. According to their findings, for a targeted life cycle of 10⁷, the polished specimens showed fatigue strength of approximately 550 MPa, whereas as built with and without HIP specimens could at most achieve the strength of 200 and 100 MPa, respectively, which is just one third of the polished specimen (Figure 8).

In additive manufacturing, the as-built parts contain unevenness and irregular shapes due to sintered and partially melted particles during fabrication. To remove those extra materials and to ensure that the part meets tolerance, machining before polishing is often recommended. Parvez M et al. justified the effectiveness of this while comparing the surface profile of machined and polished specimens [97]. They found that the specimens which are both machined and polished exhibit the least waviness compared to the as-built and just-polished specimens.

Besides these mechanical and thermal post-processing techniques, solution-based surface finishing is also effective specially for the internal surfaces of complex geometries [98,99,100]. Pawan Tyagi et al. experimented on the effectiveness of chem-polishing and electro-polishing to reduce the surface roughness of SLM-manufactured stainless steel 316 [101,102]. According to their investigations, both electropolished and chem-polished specimens showed a drastic drop of surface roughness by approximately 80–90% compared to an unpolished specimen. More specifically, electropolishing outperformed chem-polishing, providing an average surface roughness of 48 nm compared to chem-polishing, acquiring an average surface roughness of 370nm. A similar investigation was performed by Jiang et al. to reduce surface roughness of LPBF-produced nickel-based superalloy (Hastelloy X) using electropolishing [103]. They used an environmentally safe electrolyte called deep eutectic solvent (DES), whereby a surface roughness of 1.2 microns could be achieved in just 5 min of treatment.

To conclude, in bending fatigue, where stress gradients are highest at the outer layer of a component, improving surface integrity and defect reduction through post-processing and surface treatments has been instrumental in increasing fatigue life by several hundred percent in some alloys. This can ensure the safe use of metals made with additive manufacturing in real life applications.

3.4. Prediction Methodologies for Bending Fatigue Life in AM Metals

Preparing and testing AM specimens are laborious and expensive due to possessing a higher degree of variability in porosity, microstructure, and surface morphology. Therefore, to reduce the dependency on experimentation, researchers are trying to accelerate this understanding based on predictive methodologies such as numerical simulation, probabilistic estimation, and data-driven machine learning approaches [104,105].

3.4.1. Numerical Approaches

Computational software using Finite Element Analysis (FEA), multiscale modeling, and crystal plasticity simulations are now available to analyze the bending fatigue behavior of AM metals. Optimized process parameters for fabrication can now be obtained in advance by using software such as OpenFoam, ANSYS and COMSOL, etc., which can narrow down the experimental trial-and-error processes. By leveraging finite element simulations, maximum stress points, crack initiation location, and even fatigue life cycle estimations can be determined by using software such as Abaqus and SolidWorks, and the results can be used to propose design corrections for AM components before printing. For instance, Jalalahmadi B et al. [106] developed a predictive model called DCAM (Digital clone for Additive Manufacturing) for fatigue life prediction and the qualification of AM parts. By simulating the entire process, from initial powder characteristics and complex thermal cycles to the final microstructures, they have been able to provide predictions on material characterization across multiple geometries and materials that align well with the experimental results. Hedayati R et al. [107] successfully predicted and validated the S-N curve of porous structures of AM-fabricated Ti-6Al-4V by using FE solver ANSYS for lower fatigue strength regimes. Incorporating these numerical approaches considerably reduces experimental burden during development.

3.4.2. Probabilistic Estimation

Defects in AM parts are randomly distributed in terms of size, location, and morphology. Consequently, failure factors such as crack location and maximum stress are also scattered, causing fatigue in AM metals to be inherently stochastic. By treating these characterization features as distributions rather than deterministic values, probabilistic models such as probabilistic fracture mechanics, reliability-based design, extreme value statistics, or a Bayesian inference-based framework can be used to address these uncertainties [108,109,110]. Being especially valuable for bending fatigue, these models are designed by contemplating the fatigue initiation as the weakest link failure event [111] and defects such as pores or lack of fusion (LOF) are considered statistical populations. For instance, Park et al. provided a Maximum Likelihood Estimation (MLE)- and Median Rank Regression (MRR)-based quantitative evaluation by using Monte Carlo simulations to determine the effect of number of specimens, test duration and censoring interval on the accuracy of Weibull estimators in the crack initiation test during stress corrosion cracking in a nuclear reactor [112]. A probabilistic physics-guided neural network (PPgNN) was developed by Chen et al. [113] for modeling the fatigue properties of SLM-produced Ti-6Al-4V, and it was found that fatigue life is highly sensitive to temperature, layer thickness, laser power, scan speed, and hatch offset. Awd et al. [114] presented a Maximum A Posteriori (MAP) algorithm combined with atomistic simulations to quantify the effect of microstructural heterogeneity in LPBF-built Alsi10Mg and Ti-6Al-4V on fatigue performance. They validated that the predicted fatigue strength distributions align with the experimental high-cycle fatigue data.

3.4.3. Machine Learning Approaches

Machine learning-based bending fatigue performance prediction in AM metals is performed to analyze data-rich features to capture complex, nonlinear relationships between AM process parameters, microstructural characteristics, and defects. The process typically starts with data acquisition from experimental fatigue tests; selection of relevant input parameters like laser power, scanning speed, hatch offset, layer thickness, powder particle size, expected surface roughness, residual stress profile and defect rates; training of the model using algorithms such as XGBoost, Support Vector Mechanics (SVM), Random Forest, or Artificial Neural Networks (ANNs); and finally evaluation of the model for accuracy and reliability. Researchers are demonstrating the feasibility of these data driven models for fatigue performance prediction to reduce reliance on pricy physical tests [115,116,117,118,119,120,121]. As evidence, Bao H et al. found the suitability of the SVM models while determining the influence of the defect size, location and morphology on the fatigue life of a SLM built Ti-6Al-4V [122]. Zhang M et al. examined the Neuro-fuzzy based ML method to predict the high cycle fatigue life of LPBF produced stainless steel 316L by using a dataset of the specimens exposed to different process conditions and surface treatments [123]. Tao Shi et al. [124] and Hornas J et al. [125] applied ANN (Artificial Neural Network), RFR (Random Forest Regression) and SVR (Support Vector Regression) model for fatigue life prediction of SLM produced Alsi10Mg and Ti-6Al-4V respectively based on the data of surface imperfections by µCT measurements, stating that among the 3 models used ANN exhibited the highest accuracy with ${\mathrm{R}}^2=0.848$.

Each methodology described above has demonstrated unique importance on bending fatigue analysis of AM metals. Adoption of computational models overcomes the scarcity of experimental datasets, while the probabilistic estimation with the use of machine learning models can quantify the uncertainty of the results by making accurate model interpretation. The efficient integration and successful implementation of these prediction methodologies are crucial for a faster and confident qualification of AM metals in real-life cyclic stress applications.

4. Future Directions for Mitigating Challenges

Despite considerable advancements in understanding bending fatigue in additively manufactured metals, several fundamental challenges remain unanswered. Lack of reproducibility across machines and strong sensitivity to process parameters cause significant variability in fatigue life arising from the complex interaction of defect populations, surface roughness and residual stresses. This variability is further exacerbated due to strong dependence on specimen geometry and build orientation leading to inconsistent microstructure and failure locations. This inconsistency introduces significant uncertainty and risk into reliability analysis and safety-critical cyclic loading applications of AM components. Resolving these difficulties requires extensive post-processing and a large volume of expensive and time-consuming tests. The adaptation to the miniaturization technique can be potentially useful in this scenario for high throughput testing and stochastic quantification by reducing material consumption, cost and time. Unique geometries such as Krouse or notched specimens can be advantageous for statistically capturing scatter in fatigue performance and localized evaluation of AM features due to randomness in defect distribution across the wider gage volume. Moreover, most existing studies focus on axial fatigue, leaving bending fatigue data scarce and underexplored, which can be mitigated by exploring the correlation among the different fatigue testing methods and materials. Finally, standard operating procedures, describing the guideline for preparation methods, acceptable surface quality level and the defects characterization protocols, will reduce inter-study variability and enable direct comparison of results across laboratories. All of these approaches collectively will create a roadmap to develop relevant AM processes for fatigue-critical applications.

4.1. Adapting Miniaturization Concepts

In support of intricate additive manufacturing processes and components made with multiple materials, miniaturized specimens are being investigated to enhance fatigue testing efficiency and minimize material usage, especially for costly alloys or small production runs [126]. Printing miniaturized specimens requires fewer materials and less effort compared to the conventional full-size coupons. Also, they facilitate the assessment of small, localized features, such as lattice struts within architected additive manufacturing structures, which cannot be evaluated at full scale [127]. Research conducted by Nicoletto et al. has shown that miniaturized bending fatigue tests can yield significant data variability while minimizing costs and enhancing throughput [128]. However, the advantages of miniaturization could be offset by significant “size effects.” Smaller specimens demonstrate steeper stress gradients and heightened sensitivity to defects, indicating that even a single pore or un-melted particle can significantly influence fatigue life by promoting fatigue crack initiation due to the lower distance between the center of the pores to the surface [129]. Thus, although miniaturization serves as an effective approach for expedited screening, it is essential to implement careful calibration and adhere to scaling laws prior to confidently applying results to full-sized components.

4.2. Application to Unique Geometries

Bending fatigue analysis and results on additively manufactured metals are greatly influenced by the geometry of the specimens. AM technologies inherently provide significant design flexibility while imposing distinct geometric limitations; thus, researchers have modified both traditional and novel specimen designs to investigate fatigue behavior under bending loads. These endeavors are not solely theoretical; they embody the essential requirement to elucidate the relationship between flaws, microstructure, and stress states that dictate the fatigue life of additive manufacturing components and parts.

Conventional round beam specimens have historically been regarded as the benchmark in rotating-bending fatigue testing because they produce uniform, fully reversed stress distributions along the specimen’s circumference. The cylindrical design reduces stress concentrations and offers a relatively defect-insensitive reference for assessing a material’s inherent fatigue characteristics. In additive manufacturing investigations, cylindrical specimens are especially significant for elucidating surface-related fatigue behavior: surface roughness, partially melted particles, and staircase effects often serve as sites for crack initiation, which are distinctly manifested in round geometries.

On the contrary, flat specimens are easier to manufacture if processed directly from plate-like additive manufacturing blocks. They are also indicative of actual physical structures such as panels, thin-walled housings, or brackets. However, the use of flat specimens presents specific complexities due to the edge effects in which machined, or as-built edges act as unintentional stress concentrators that promote crack initiation. However, modifying the edge of flat specimens and proper machining parameters can eliminate detrimental surface features or roughness, thereby reduce the impact of surface defects and relocate the crack initiation to internal porosity. Consequently, varying failure mechanisms are evident based on the use of round or flat specimens, which complicate direct data comparison across studies. This necessitates the urgent requirement for standardized protocols that delineate specimen preparation, geometry, and surface conditions in additive manufacturing bending fatigue tests such that each target their own failure modes.

Alternatively, researchers are investigating and increasingly experimenting with specialized fatigue specimen design instead of conventional geometries to address the unique challenges associated with additive manufacturing. One such noteworthy geometry is Krouse specimen which is characterized by a flat cantilever-like design and a tapered gage. The specialty of this geometry is that it can generate a uniform stress field along the gage length as justified by Parvez M et al. [32]. Initially created for wrought steels, this method has been rarely implemented in fatigue properties investigation of AM metals. Other noteworthy specimens are notched and hourglass-shaped specimens which are intentionally designed to create controlled stress concentrations for directing crack initiations in specific locations. Some studies have been carried out to quantify and compare the notch sensitivity of AM metals with that of wrought materials as well as to investigate the microstructural behavior on those notched features [130,131,132,133]. These geometries are essential for examining the notch sensitivity of additive manufacturing metals and for exploring the fatigue crack initiation and propagation nature at reduced life cycles. While these designs offer insights into worst-case loading conditions, they may obscure the natural crack initiation processes characteristic of as-built additive manufacturing surfaces, where fatigue life is typically influenced by a distribution of randomly located defects rather than a single engineered notch. Consequently, although specialized geometries offer significant advantages for mechanistic investigations, their relevance to operational conditions requires thorough consideration.

Overall, it can be stated that specimen geometry plays a significant role in fatigue characterization of AM metals. While round specimens are beneficial for testing intrinsic material response, flat specimens are relevant in terms of ease in manufacturing, preparation and representation of many real-world structures. Special geometries like Krouse or notched offer mechanistic insight under controlled conditions. Therefore, to choose the right geometry, standard operating procedures and testing protocols along with robust design guidelines should be established for the best practices in fatigue analysis of AM products.

4.3. Establish Correlation Across Different Fatigue Test Methods

Establishing reliable correlations across different fatigue testing methods and different materials could be a potential way to deal with the issues associated with additively manufactured metals. Axial, bending, and torsional fatigue tests highlight distinct crack initiation mechanisms such as internal defects in axial loading, surface roughness in bending, and shear-induced flaws in torsion. However, comparing and integrating their fatigue strength results from these different loading modes using theoretical models like stress-life or strain-life models and defect-oriented methodology like “Murakami’s square root of defect area [134]” approach can potentially provide a unified predictive framework for fatigue behavior in additively manufactured metals. Similarly, correlating fatigue behavior among materials with varying microstructural sensitivity can enable researchers to discern overarching trends that will connect process parameters, defect populations, and fatigue life. However, the evidence to experimentally prove these relationships is limited. Akiniwa et al. determined the fatigue strength ratio of spring steel under axial and torsional loading at stress cycles and found an almost constant ratio in different fatigue regimes [135]. Nevertheless, another study performed by Kurek et al. found a discrepancy in this ratio (${\displaystyle \frac{\sigma }{\tau }}$) while comparing the bending and torsional strength of different structural materials [136]. They found that the ratio is not constant for all steels except few non-ferrous metals and varies depending on the chemical composition and heat treatment. Therefore, for safe and confident deployment of the correlation concept, more empirical evidence is essential. With proper integration of machine learning frameworks and high throughput miniaturized testing, these correlations can provide better predictive accuracy with minimal physical experimentation.

4.4. Developing Standard Operating Procedures (SOPs)

The components fabricated through additive manufacturing processes such as Laser Powder Bed Fusion (LPBF), directed energy deposition (DED) and Electron Beam Powder Bed Fusion (EB-PBF) are subjected to fatigue loading in service due to their rapid adoption across multiple industries. For safe and reliable deployment of these AM components in cyclic loading applications, developing standard operating procedures is crucial. Although well-established ASTM standards exist for the axial fatigue test of wrought metals, which specify specimen preparation, surface finish requirements, and test apparatus, providing other documentation [41,42], the bending fatigue test of AM parts drastically lacks such equivalent standards. This led individual researchers to use different specimen geometries and surface conditions, which, coupled with the limited understanding about defect acceptance rates, limit the comparability of the results across studies. Again, due to the dissimilar mechanism of crack initiation between axial and bending fatigue and the distinct defect types present in wrought and AM materials, the standards developed for axial loading of wrought metals cannot be directly applied to the bending of AM metals. Quite a few researchers have suggested the urgent need to address these issues. For example, Slotwinski J et al. studied, sorted out and suggested the applicability of existing standards in AM testing [137]. Rogers J et al. discussed the applicability of pre-tested fatigue data to AM parts and the limitation of using this data and test methodologies without adjustment for AMs unique microstructural anisotropy and/or unique defect driven behaviors [138]. Therefore, for AM parts to be qualified for the bending fatigue test with confidence, robust and harmonized protocols should address several aspects as described below:

Specimen processing: Instructions about specimen preparation, from printing to polishing, should be well defined. For example, characteristics and classification of powder particles specification, process parameters, build orientation, heat treatment procedures, machining parameters, etc., should be standardized.

Surface treatment: As surface sensitivity for bending fatigue is critical, it is important to outline the acceptable limits of surface roughness at different conditions such as machined, polished versus as built, with or without edge effects, etc.; all of which need to be well defined.

Degree of defect acceptance and associated methods: the recommended max defect size, defect distribution and suitable measurement techniques should be standardized to ensure comparability among multiple studies.

Test setup: the standard testing procedure for different fatigue tests, such as rotating bending, pure bending, 2-point, 3-point, and 4-point bending tests should be established with best practices for recommended load ratio, test frequency, and environmental influences.

Correlation among alternatives: Although direct comparison is not feasible, acceptable ranges in test results between conventional and AM metals can be defined. Correlations among test result among axial, bending, and torsional fatigue can be established based on empirical evidence.

Documentation and reporting: the test data, processes, and results can be recorded on a common, transparent platform based on the concept of Digital Twins, enabling researchers to virtually access real-time monitoring data and perform meta-analyses.

A combined community effort, involving academic researchers, industrial innovators, individuals from standard organizations, and certification authorities, is required for establishing such a SOP to ensure that any unique AM specimen can be tested under standardized procedures. This will ultimately reduce the gap between academic research and industrial adoption by building confidence in certifying AM parts for cyclic loading applications.

5. Conclusions

Additive manufacturing provides a lot of advantages in terms of design freedom and customization, capability of building complex geometries, and faster production. However, its implementation in bending fatigue characterization is still limited due to lack of knowledge in mitigating challenges to fit AM components under realistic cyclic loading conditions. The current review article highlighted those gaps while consolidating historical and contemporary research, summarizing the impact of AM processing parameters, build orientation, and post-processing on bending fatigue performance. Additionally, this study also provided a road map toward future research for resolving the difficulties as well as qualifying AM parts for safe deployment in fatigue-critical applications such as automotive, nuclear, medical, energy, defense, and aerospace industries. The key observations are summarized as follows:

• Processing parameters play a significant role in surface roughness, which determines bending fatigue performance. Although these factors are very material-, condition-, and process-specific, lower laser power and lower scanning speed usually result in fewer defects due to fair control of the melt path and the avoidance of large heat-affected zones [51]. A lower powder particle size can significantly improve surface smoothness and fatigue strength due to excellent melting behavior and reduced staircase effect [53].
• Optimized scan strategies such as choosing a higher hatch offset distance with a higher number of contours can remelt the prior printed contours to reduce surface roughness [51].
• Horizontal build orientation with respect to scan direction exhibits the best bending fatigue performance compared to inclined and vertical orientations due to minimized melt-pool and layer boundaries, which could act as failure propagation regions, alleviating stress concentration.
• Post-processing and surface treatment of AM metals significantly improves bending fatigue strength by mitigating two primary limitations, such as surface roughness and near-surface defects. However, the effective choice of these techniques strongly relies on the material, processes, and geometry considerations, coupled with consumer needs.
• For mitigating challenges associated with fabrication and sample preparation, the role of miniaturization, geometric effects, and prediction methodologies needs to be thoroughly explored and adapted by developing optimal standard procedures.
