Article

Characterization of Ca-Dicarboxylate Salt Hydrates as Thermochemical Energy Storage Materials

by
Jakob Werner
1,*,
Jakob Smith
1,
Berthold Stöger
2,
Werner Artner
2,
Andreas Werner
3 and
Peter Weinberger
1,*
1
Institute of Applied Synthetic Chemistry, Getreidemarkt 9/163-01-3, A-1060 Vienna, Austria
2
X-ray Center, Getreidemarkt 9, A-1060 Vienna, Austria
3
Institute of Energy Systems and Thermodynamics, Getreidemarkt 9/302, A-1060 Vienna, Austria
*
Authors to whom correspondence should be addressed.
Crystals 2023, 13(10), 1518; https://doi.org/10.3390/cryst13101518
Submission received: 29 September 2023 / Revised: 16 October 2023 / Accepted: 18 October 2023 / Published: 19 October 2023
(This article belongs to the Special Issue Research in Thermal Energy Storage Materials)
Browse Figures
Versions Notes

Abstract

:
Salt hydrates are highly promising materials for thermochemical energy storage applications to store waste heat below 200 °C. Although highly researched and theoretically promising, in practical applications salt hydrates often cannot fulfill expectations. Based on the promising results of the Ca-oxalate monohydrate/Ca-oxalate system, other Ca-dicarboxylate salt hydrates were investigated to determine whether potential materials for heat storage can be found amongst them. A simultaneous thermal analysis showed that all candidates are applicable in the temperature range of 100–200 °C, and thermally stable up to 220 °C. Calcium malonate dihydrate (637 J/g), calcium terephthalate trihydrate (695 J/g), and tetrafluoro calcium terephthalate tetrahydrate (657 J/g) have shown higher enthalpies of dehydration than Ca-oxalate monohydrate. Due to the investigation of derivatives of Ca-terephthalate, it is possible to report the crystal structure of 2-fluoro calcium terephthalate. In single crystals, it forms a trihydrate and crystallizes in the Pmna space group (Z = 4, Z’ = ½) forming infinite chains of Ca atoms. De- and rehydration reactions of the most promising candidates were studied in situ with powder X-ray diffraction showing the structural changes between the hydrate and anhydrate states.

1. Introduction

Increasing energy efficiency is a fundamental need in order to tackle climate change, reduce greenhouse gas emissions, and achieve energy independence. According to the International Energy Agency (IEA), the production of heat is accountable for around 50% of the global demand of primary energy [1,2]. A significant part of the heat produced is subsequently lost as low-grade waste heat and released into the environment [3]. In 2021, the global demand of primary energy was 595.15 EJ, 82% being covered by fossil fuel sources [4]. Considering that heat production is the biggest “end-use” of primary energy, these numbers highlight the enormous storage potential [5,6,7]. Thermochemical energy storage (TCES) systems are a promising technique for thermal heat storage, suitable for a broad range of waste heat recovery applications [8,9]. Salt hydrates are considered to be promising candidates as thermochemical materials (TCMs) for storing heat in the temperature range of 100–200 °C and have been extensively researched [8,10,11,12]. In general, salt hydrates can obtain high storage densities, often coming from high latent heat capacities, which also enables the application of salt hydrates as phase change materials (PCMs) in latent heat storage systems [13,14,15].
A TCES system that relies on salt hydrates as TCMs uses a reversible chemical reaction as storage principle. Equation (1) illustrates a general reaction of an anhydrous salt A with n moles of water to react to its corresponding hydrate under the release of a certain heat of reaction ΔrH [16,17]. Figure 1 displays a graphical illustration of the storage principle. For a technically promising TCES system, parameters like high energy densities, high cycle stability, usage of non-toxic, low-cost, and non-corrosive materials, as well as fast reaction times, are key [18,19].
A + n   H 2 O     ⇌   A ⋅ n H 2 O + Δ r H ,
A systematic search algorithm screening for chemical reactions suitable to become part of a thermal energy storage system proposed the calcium oxalate monohydrate/calcium oxalate (CaC2O4·H2O/CaC2O4) system as such a potential reaction [20]. The material was analyzed and subsequently characterized, confirming the theoretically promising data by showing excellent cycle stability, full reversibility of reaction, and tuneability of the storage temperature via varying the water vapor concentration [21,22]. Based on the data for the CaC2O4·H2O/CaC2O4 system, a small library of calcium dicarboxylate salt hydrates (1–5f) was chosen to conduct the study of these calcium salt hydrates to investigate whether some of the candidates share the strengths of the oxalate or can even outperform it. The investigated candidates are displayed in Figure 2, and the compound names are found in Table 1.
The thermal behavior of Ca-malonate dihydrate has been investigated before [23,24], and so too has the behavior of its coordinated water [25]. Ca-succinate is reported to form a trihydrate in single crystals [26,27]. For Ca-succinate monohydrate, as well as Ca-glutarate monohydrate, an existing, detailed thermal analysis is unknown to the authors. Ca-terephthalate is a valuable precursor for building metal organic frameworks (MOFs) as well as being the subject of research in macromolecular chemistry [28,29,30,31,32,33]. It possesses a crystal structure documented in the literature [34].
Despite the existing characterizations, to the best of the authors’ knowledge, the mentioned salt hydrates have not been investigated as potential thermochemical materials for TCES systems. However, despite the high potential shown by the CaC2O4·H2O/CaC2O4 system, the family of calcium dicarboxylate salt hydrates is also suitable to study the influence of various chemical factors on the thermophysical properties of the TCMs. In the past, promising salt hydrates were scrutinized, in an attempt to unveil all their properties related to a TCM application. Prominent examples are CaCl2 [35,36], MgSO4 [37,38,39,40], and SrCl2 [41,42]. In this paper, the chemical nature of the compounds and its influence on the thermophysical properties shall be considered. For this purpose, derivatives of Ca-terephthalate were prepared and investigated. By inserting functionalizations with different electronic properties into the system, it is interesting to follow their influence on properties like the onset temperatures of dehydration or the enthalpy of dehydration.

2. Materials and Methods

2.1. Materials

Calcium oxalate monohydrate (CAS 5794-28-5) was obtained from Sigma-Aldrich (Merck KGaA, Darmstadt, Germany) and used as supplied. Calcium malonate was prepared from malonic acid and calcium carbonate. Calcium carbonate (CAS 471-34-1) was obtained from PanReac AppliChem (Ottoweg 4D-64291 Darmstadt, Germany), and malonic acid (CAS 141-82-2) from fluorochem (14 Graphite Way, Hadfield, Glossop SK13 1QH, UK); both were used without further purification. Calcium succinate (CAS 140-99-8) was purchased from Szabo-Scandic HandelsgmbH (Quellenstraße 110, 1100 Vienna, Austria) and used as supplied. Calcium glutarate monohydrate, as well as calcium terephthalate (CAS 16130-76-0) and its derivatives, were synthesized, and the synthetic procedures are found in the supporting information.

2.2. Synthesis

The exact synthetic protocols are given in the supporting information. Calcium malonate dihydrate was prepared according to the procedure found in the literature [24], i.e., by reaction of malonic acid with calcium carbonate in distilled water. After completed CO2 formation, a white precipitate was observed, which could be isolated as product.
Ca-glutarate monohydrate, as well as Ca-terephthalate trihydrate and all of its derivatives, were synthesized by mechanochemical means following the proposed procedure for Ca-terephthalate trihydrate preparation found in [43]. In this method, terephthalic acid, Ca(OH)2, and 130 μL H2O are filled in a ball and milled for 4 h (Reaction (2)).
C8H6O4 + Ca(OH)2 + H2O → CaC8H6O4⋅3H2O
The synthesis of the mono-functionalized Ca-terephthalates was carried out in two steps. In a first step, the mono-functionalized terephthalate was prepared. In a second step, the corresponding calcium salt hydrate was formed by mechanochemical means (see Figure 3).

2.3. Single Crystal Growth

Crystals of 2-fluoro Ca-terephthalate trihydrate were grown by in situ formation of the target compound and slow evaporation. 2-fluoro Ca-terephthalate is insoluble in water, requiring that it is transformed into the corresponding disodium salt which is water-soluble. The preparation is shown by Reaction (3). The exact synthetic details are found in the supporting information.
C8H5O4F + 2 NaOH → Na2C8H6O4F + 2 H2O
An aqueous solution of CaCl2 (6.3 mg, 0.05 mmol) was carefully added to a solution of 2-fluoro terephthalic acid disodium salt (10.5 mg; 0.05 mmol) resulting in a slight turbidity. After two weeks of crystallization at room temperature, red single crystals were obtained in a quality suitable for single crystal XRD (Reaction (4)).
Na2C8H6O4F + CaCl2 + 3 H2O → CaC8H5O4F⋅3H2O + 2 NaCl

2.4. Thermal Analysis

The thermal characterization measurements were carried out on a Netzsch STA 449 F1 Jupiter® system equipped with an automatic sample changer and a combined TGA–DSC sample holder. The sample was measured in aluminum crucibles, containing sample masses between 10 and 12 mg at a heating rate of 2 °C/min.

2.5. Powder X-ray Diffraction

The powder X-ray diffraction measurements were carried out on a PANalytical X’Pert Pro diffractometer in Bragg-Brentano geometry, using a mirror for the separation of Cu-Kα1,2 radiation and a X’Celerator linear detector. The collected diffractograms were evaluated with the PANalytical program suite HighScore Plus v5.1.
For the in-situ monitoring of the experiments, an Anton-Paar XRK 900 reaction chamber was used. The sample was mounted on a hollow ceramic powder sample holder. Dehydration measurements were performed in an atmosphere of dry N2, with a flow rate set to 0.4 L/min.

2.6. Single-Crystal X-ray Diffraction

X-ray diffraction data of 2-fluoro Ca-terephthalate (CSD 2298055) were collected at T = 100 K in a dry stream of nitrogen on a STOE STADIVARI diffractometer system equipped with a Dectris Eiger CdTe hybrid photon counting detector using Cu-Kα radiation (λ = 1.54186 Å). Data were reduced to intensity values with X-Area, and an absorption correction was applied with the multi-scan approach implemented in LANA [44]. The crystal structure was solved by the dual-space approach implemented in SHELXT [45], and refined against F2 with JANA [46]. Non-H atoms were refined with anisotropic atomic displacement parameters (ADPs). H atoms connected to C were placed in calculated positions and refined as riding on the parent atom. The water H atoms were refined freely. The F atom was refined as disordered about three crystallographically distinct positions with the sum of the occupancies constrained to 1. The additional difference electron density in parts of the structure suggested an alternative orientation of the inorganic part of the structure. The Ca atoms and water molecules were, therefore, refined as positionally disordered. The ADPs of the minor positions were constrained to those of the major positions up to the pseudo-symmetry relating the orientations (reflection at y = ¼). Likewise, the coordinates of the H atoms of the minor positions were connected to those of the major position up to this reflection. Molecular graphics were generated with the program MERCURY [47].

2.7. Scanning Electron Microscopy

SEM images were taken on a FEI Quanta 200 F using a Schottky-FEG Emitter. The measurements were performed with an acceleration voltage of 5 kV and a working distance of 6.4–7.7 mm.

3. Results and Discussion

3.1. Synthesis

The mechanochemical synthesis method described in [43] was a very important procedure to prepare most of the investigated salt hydrates. At first, it was interesting to determine whether it is also applicable to calcium salts with anions different than the terephthalate. For this reason, Ca-oxalate monohydrate was prepared analogously and compared with a purchased sample. For the preparation, oxalic acid (0.55 g, 6.11 mmol) and calcium hydroxide (0.45 g, 6.11 mmol) were filled in a ball mill, 130 μL of deionized water was added, and the mixture was milled for 4 h. The product was obtained as white powder (802 mg, 5.49 mmol, 89 %). The product formation was confirmed with PXRD and IR-spectroscopy (Figure 4), showing the identity of the two compounds.

3.2. Characterization and Thermal Dehydration Experiments

Combined TG-DSC experiments are a well-established method to characterize potential TCMs. The dehydration process of CaC2O4⋅H2O is well documented in the literature [21,48] and used as standard for mass-loss calibration in TG analysis [49].
The thermal characterization of the compounds was carried out to determine the applicability of the investigated candidates as thermal energy storage materials in the temperature range from 100 to 200 °C. Decomposition reactions, as well as thermal stability measurements, were not the target of this investigation. Table 2 shows the measured onset temperatures of dehydration (in °C) and enthalpies of dehydration (in J/g) for the investigated calcium dicarboxylate salt hydrates. The two chlorinated derivatives of Ca-terephthalate (5d and 5f) showed a significantly different dehydration behavior than the other components and are, therefore, excluded from the table.
Firstly, it should be noted that all included salt hydrates are stable up to 220 °C and possess onset temperatures of dehydration in the desired temperature range from 100 to 200 °C, with 5b and 5e being slightly below. Furthermore, none of the candidates showed melting or deliquescence effects throughout all experimental investigations. Three candidates (2, 5a, 5e) achieved higher enthalpies of dehydration than calcium oxalate monohydrate. Ca-malonate dihydrate (2), Ca-terephthalate trihydrate (5a), and Tetrafluoro Ca-terephthalate tetrahydrate (5e) formed higher hydrates (more than one water per formula unit). Figure 5 shows the STA curves for calcium malonate dihydrate (2), and Figure 6 shows the TG and DSC curves for calcium terephthalate (5a), in which the TG signal shows a stepless mass loss of 20.1% which corresponds to a loss of 2.85 moles of hydrate water. The enthalpy of dehydration is 695 J/g. The results are in good agreement with literature data [43]. All other STA curves are included in the supporting information (Supplementary Figures S1–S9).
The corresponding enthalpies of dehydration ΔdehH in J/g were converted to J/mol giving the molar dehydration enthalpies Δdehh. They describe the thermal energy related to the process of dehydration related to the moles of TCM. It consists of two energetic contributions: one necessary to induce a phase change of water, represented by the enthalpy of evaporation Δeh, and another necessary for breaking chemical bonds (Δhnet) [50]. Equation (5) leads to the net storage enthalpy representing the sole contribution of the TCM to the enthalpy of dehydration. Equation (6) shows that the energy required to evaporate the coordinated water is built up by two parts. Δvh represents the latent part, which is the energy necessary to evaporate the water. The other part represents the amount of sensible heat stored in the process of heating the water from a storage temperature T1 to a desired evaporation temperature T2. In the case of both storage and evaporation at room temperature (T1 = T2 = 25 °C), the enthalpy values obtained are found in Table 3 (Δhnet_25), and the calculations are based on the methodology of [42,50].
Δ h n e t = Δ d e h h − n ⋅ Δ e h ,
Δ e h = Δ v h + ∫ T 1 T 2 c p d T ,
The net enthalpy values show that in the cases of Ca-malonate dihydrate (2), Ca-terephthalate trihydrate (5a), and its tetrafluorinated derivative (5e) the higher enthalpy of dehydration is not only achieved by an enhanced number of crystal water molecules. For the named candidates, the energetic contribution of the material itself is higher than in the case of Ca-oxalate monohydrate, since Δhnet directly corresponds to the actual energy storage potential [50]. The TG analysis of the monofluorinated compound (5c) gave a mass loss of 2.29 moles of crystal water. Since the crystal structure was not known to the literature, the determination of the exact structural properties was desirable, also to clarify the bonding situation of the crystal water.

3.3. Structure Description of 2-Fluoro Ca-Terephthalate Trihydrate

The crystal structure of 2-fluoro Ca-terephthalate trihydrate (Pmna, Z = 4, Z’ = ½) is built of infinite chains of Ca atoms located on the m [100] reflection plane and connected by 2-fluoroterephthalate ions and water molecules extending in the [100] direction (Figure 7, top). A bridging water molecule located on a 2 [010] rotation axis connects two adjacent Ca atoms in these chains. Two further water molecules, located on m [100], complete the coordination sphere of the Ca atom. The infinite chains are connected by hydrogen bonds from the water molecules to the non-coordinating carboxylate group, forming a triperiodic network (Figure 7, bottom).
The monofluorinated-para-phenylene moiety is disordered around the m [100] reflection plane of the Pmna space group (Figure 8). The F atom is additionally disordered and could be located at three out of the four crystallographic C atom positions. The major F1 position (30.2 (5)% occupancy) is located on the side of the uncoordinated carboxylate group. The alternative F1′ position on the same side features 3.7 (7)% occupancy. Finally, on the side of the coordinating carboxylate group, F2 is occupied by 16.1 (4)%. It should be noted that the occupancies amount to 0.5 owing to the disorder of the phenylene moiety around the m 100 reflection plane. Given the occupancy ratio of ca. 7.5:1 for the F1/F1′ pair, one could expect a F2′ atom at the fourth position with ca. 2% occupancy, which is, however, below the detection limit of a routine X-ray structure analysis.
The structure of 5c features a polytype character as evidenced by distinct one-dimensional diffuse scattering along c*, which means that the structure is ordered on the (001) plane but features a pronounced stacking-fault probability. The alternative arrangements of the layers are reflected by ‘phantom atoms’ corresponding to a reflection of the Ca2+ ions and water molecules on the y = ¼ plane, with 4.5% occupancy. This implies an order-disorder (OD) theory [51] interpretation of the polytypism as follows: The structure is built of two kinds of layers extending on the (001) plane. Layers of the first kind are built of the terephthalate ions. Owing to the disorder of the phenylene moieties, but ignoring the occupancies of the F atoms, these layers possess a pseudo-reflection plane at y = ¼. The second kind of layer (Ca2+ ions and water molecules) does not possess such a reflection symmetry and can, therefore, appear in two orientations with respect to this reflection plane. This second orientation explains the ‘phantom atoms’. There is an infinite number of possible polytypes, depending on the sequence of the orientation of these layers. Nevertheless, all these polytypes are locally equivalent and, therefore, energetically very similar.
The structures of 5c and the unfluorinated analogue (5a) [34] are closely related. In fact, both are built of the same kind of infinite chains connected by an analogous hydrogen bond network. However, in the unfluorinated analogue, the phenylene moieties are not disordered around a reflection plane, which leads to a symmetry descent of order 2 to P21/c (permutation of the b and c axes). The reduction from orthorhombic to monoclinic symmetry leads to a pronounced deviation from the orthorhombic metrics, with a reported β angle of 92.3°. Attempts to refine 2-fluoro Ca-terephthalate trihydrate in the P21/c space group, with twinning by the lost point operations, did not resolve the disorder of the phenylene moieties and showed distinct signs of overparameterization, namely, a large correlation of ADPs and highly anisotropic ADPs.

3.4. In Situ De- and Rehydration

Due to the unavailability of a suitable STA setup for rehydration, an in situ PXRD approach was used to study the de- and rehydration reactions in as detailed a manner as possible. Due to the promising enthalpy data from the TGA-DSC measurements, candidates 2, 5a, 5c and 5e were selected for the in situ PXRD measurements. The dehydration was caried out at isothermal conditions with a chosen temperature Tdeh = Tonset + 10 °C. Tonset corresponds to the onset temperature of dehydration observed in the STA experiments.
The rehydration was carried out with hot water vapor pumped into the system with a HPLC pump. Under the chosen conditions, all four salt hydrates were effortlessly de- and rehydratable.
The two images, a and b, in Figure 9 show the collected diffraction patterns for the calcium terephthalate trihydrate/calcium terephthalate system. Under the applied conditions, rehydration happens too fast to monitor intermediate structures with a scan of 5°–60° 2θ. The third rehydration (blue curve in Figure 9b) shows a reflection at 21.6937 °2θ remaining from the anhydrate structure. The measurement setup can cause inevitable material loss, mainly because of an abrupt exposition to the N2 stream. After the 3rd cycle, the remaining amount of sample was too low to perform a 4th cycle. With this limitation it was not possible to confirm whether the reflection at 21.6937 °2θ means that a part of the material is no longer rehydratable after three cycles. However, in SEM images (Figure 10) no visible particle degradation was observed, indicating that 5a is cyclable for >3 cycles and the observed anhydrate reflection derives from the PXRD setup. To prove that the diffraction pattern of the anhydrate is obtained from fully dehydrated Ca-terephthalate, an IR-spectrum was recorded (Figure 11).
The red curve in Figure 11 shows a prominent, broad absorption band at 3600–2900 cm−1 coming from the OH stretching vibrations of the bound water molecules. The broadening is an effect of H-bonds. In the spectrum of anhydrous 5a, no bands occur in this region, confirming a full dehydration of the sample.
Figure 12 and Figure 13 show one de- and rehydration cycle of the fluorinated derivatives of calcium terephthalate (5c and 5e). The diffraction patterns in (a) in both figures show a successful rehydration of both compounds, with the anhydrous diffraction pattern in (b).

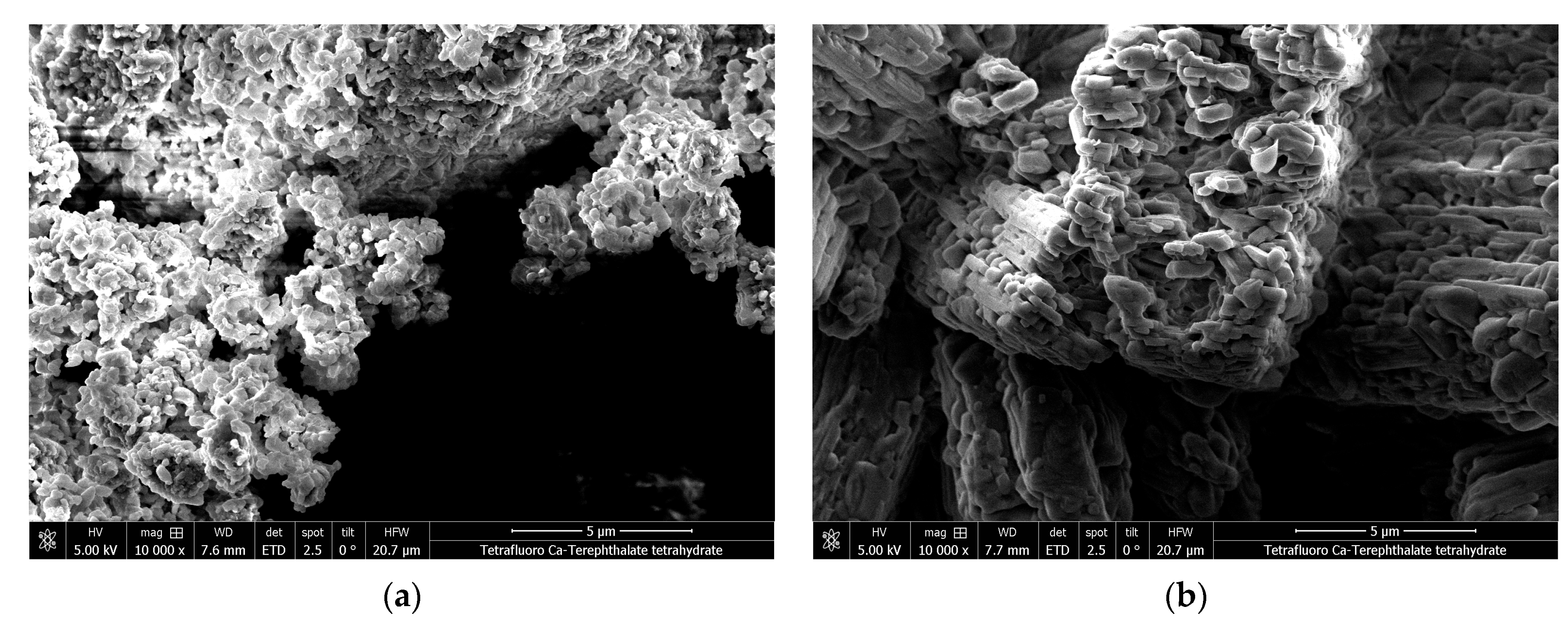

Due to a high amount of particle movement in the scanning electron microscope, SEM images of 5c could not be provided in an appropriate quality. Figure 14 shows SEM images for 5e after preparation (a) and after a full cycle of measurement (b). The rehydrated image is highly comparable to the rehydrated form of 5a (Figure 10b). In general, the de- and rehydration reactions were monitorable with the applied methodology, making it possible to collect diffraction patterns of the fully hydrated and anhydrous states of the salts 2, 5a, 5c, and 5d. The corresponding IR spectra of both fully hydrated and anhydrous states are included in the supporting information (Supplementary Figures S24–S29).

4. Conclusions

A small library of calcium dicarboxylate salt hydrates was prepared and analyzed with respect to their thermophysical and thermochemical properties to search for potential thermochemical materials. The STA experiments of all candidates showed that these salt hydrates possess promising enthalpies of dehydration. The determined net storage enthalpies correlate to the achievable storage densities, especially highlighting Ca-malonate dihydrate (2), Ca-terephthalate trihydrate (5a), and Tetrafluoro Ca-terephthalate tetrahydrate (5e) as promising candidates, being able to deliver net storage enthalpies at T = 25 °C of 34.59 kJ/mol (2), 52.09 kJ/mol (5a), and 64.10 kJ/mol (5e). The rehydration measurements monitored in situ by PXRD showed effortless rehydration back to the fully hydrated structure. Ca-terephthalate trihydrate indicated full cyclability over the three cycles investigated. In a comparison of SEM images after preparation and after three cycles, no particle degradation could be observed. The absence of the prominent, broad absorption band from 3600 to 2900 cm−1 in the IR-spectra of the fully dehydrated salts proves that full dehydration was achieved, and the corresponding diffraction patterns were obtained from the fully dehydrated species. It could be shown that 2-fluoro Ca-terephthalate forms a trihydrate in single crystals and crystallizes in the Pmna space group (Z = 4, Z’ = ½). The crystal is built of infinite chains of Ca atoms located on the m 100 reflection plane and connected by 2-fluoroterephthalate ions and water molecules extending in the [100] direction.
To enable a more profound characterization, rehydration measurements on a suitable STA device are to be conducted, ideally resulting in more reliable data on cycle stability. To enable a calculation of the corresponding energy storage densities, density measurements of the salt hydrates are to be performed in the future.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/cryst13101518/s1, Figure S1: STA of Ca-oxalate monohydrate, Figure S2: STA of Ca-succinate monohydrate, Figure S3: STA of Ca-glutarate monohydrate, Figure S4: STA of 2-methyl Ca-terephthalate n-hydrate, Figure S5: STA of 2-fluoro Ca-terephthalate trihydrate, Figure S6: STA of 2-chloro Ca-terephthalate, measurement 1, Figure S7: STA of 2-chloro Ca-terephthalate, measurement 2, Figure S8: STA of Tetrafluoro Ca-terephthalate tetrahydrate, Figure S9: STA of Tetrachloro Ca-terephthalate n-hydrate, Figure S10: PXRD Ca-oxalate monohydrate, Figure S11: PXRD Ca-oxalate anhydrate, Figure S12: PXRD Ca-malonate dihydrate, Figure S13: PXRD Ca-malonate anhydrate, Figure S14: PXRD Ca-succinate monohydrate, Figure S15: PXRD Ca-succinate anhydrate, Figure S16: PXRD Ca-glutarate monohydrate, Figure S17: PXRD Ca-glutarate anhydrate, Figure S18: PXRD Ca-terephthalate trihydrate, Figure S19: PXRD Ca-terephthalate anhydrate, Figure S20: PXRD 2-fluoro Ca-terephthalate trihydrate, Figure S21: PXRD 2-fluoro Ca-terephthalate anhydrate, Figure S22: PXRD 2-methyl Ca-terephthalate n-hydrate, Figure S23: PXRD 2-methyl Ca-terephthalate anhydrate, Figure S24: FTIR spectrum of Ca-malonate dihydrate, Figure S25: FTIR spectrum of Ca-malonate anhydrate, Figure S26: FTIR spectrum of 2-fluoro Ca-terephthalate trihydrate, Figure S27: FTIR spectrum of 2-fluoro Ca-terephthalate anhydrate, Figure S28: FTIR spectrum of tetrafluoro Ca-terephthalate tetrahydrate, Figure S29: FTIR spectrum of tetrafluoro Ca-terephthalate anhydrate, Table S1: DSC and TG data for Figure 3, Figure 4, Figure 5, Figure 6, Figure 7, Figure 8 and Figure 9.

Author Contributions

Conceptualization, J.W., J.S. and P.W.; methodology, W.A.; software, W.A.; investigation, J.W. and B.S.; resources, A.W. and P.W.; writing—original draft preparation, J.W. and B.S.; writing—review and editing, J.W., J.S., B.S., A.W. and P.W.; visualization, J.W. and B.S.; supervision, A.W. and P.W.; project administration, A.W.; funding acquisition, A.W. and P.W.; All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Austrian Research Promotion Agency (FFG), project number FO999888055.

Data Availability Statement

The data that support the findings of this study are available from the corresponding author upon reasonable request.

Acknowledgments

The authors want to acknowledge the Austrian Research Promotion Agency (FFG) for funding. The X-ray center of TU Wien is acknowledged for their convenient collaboration and for providing access to their devices and facilities. The SEM measurements were carried out using facilities at the University Service Center for Transmission Electron Microscopy, Vienna University of Technology, Austria. We are grateful for their collaboration. Open Access Funding by TU Wien.

Conflicts of Interest

The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. IEA. Co-Generation and Renewables; IEA: Paris, Fance, 2011. [Google Scholar]
  2. IEA. Heating Without Global Warming; IEA: Paris, France, 2014. [Google Scholar]
  3. Cot-Gores, J.; Castell, A.; Cabeza, L.F. Thermochemical energy storage and conversion: A-state-of-the-art review of the experimental research under practical conditions. Renew. Sustain. Energy Rev. 2012, 16, 5224. [Google Scholar] [CrossRef]
  4. Dale, S. BP Statistical Review of World Energy; BP: London, UK, 2021; p. 60. [Google Scholar]
  5. Knoll, C. Investigations of the Reaction Kinetics of Thermochemical Energy Storage Materials. Ph.D. Thesis, University of Vienna, Vienna, Austria, 2017; p. 200. [Google Scholar]
  6. Hasnain, S.M. Review on sustainable thermal energy storage technologies, Part I: Heat storage materials and techniques. Energy Convers. Manag. 1998, 39, 1138. [Google Scholar] [CrossRef]
  7. Shine, K.P.; Fuglestvedt, J.S.; Hailemariam, K.; Stuber, N. Alternatives to the Global Warming Potential for Comparing Climate Impacts of Emissions of Greenhouse Gases. Clim. Chang. 2005, 68, 281–302. [Google Scholar] [CrossRef]
  8. Clark, R.-J.; Mehrabadi, A.; Farid, M. State of the art on salt hydrate thermochemical energy storage systems for use in building applications. J. Energy Storage 2020, 27, 101145. [Google Scholar] [CrossRef]
  9. Miró, L.; Gasia, J.; Cabeza, L.F. Thermal energy storage (TES) for industrial waste heat (IWH) recovery: A review. Appl. Energy 2016, 179, 284–301. [Google Scholar] [CrossRef]
  10. Yan, T.; Wang, R.Z.; Li, T.X.; Wang, L.W.; Fred, I.T. A review of promising candidate reactions for chemical heat storage. Renew. Sustain. Energy Rev. 2015, 43, 13–31. [Google Scholar] [CrossRef]
  11. Ding, Y.; Riffat, S.B. Thermochemical energy storage technologies for building applications: A state-of-the-art review. Int. J. Low Carbon Technol. 2013, 8, 116. [Google Scholar] [CrossRef]
  12. Donkers, P.A.J.; Sögütoglu, L.C.; Huinink, H.P.; Fischer, H.R.; Adan, O.C.G. A review of salt hydrates for seasonal heat storage in domestic applications. Appl. Energy 2017, 199, 68. [Google Scholar] [CrossRef]
  13. Hua, W.; Yan, H.; Zhang, X.; Xu, X.; Zhang, L.; Shi, Y. Review of salt hydrates-based thermochemical adsorption thermal storage technologies. J. Energy Storage 2022, 56, 106158. [Google Scholar] [CrossRef]
  14. Dixit, P.; Reddy, V.J.; Parvate, S.; Balwani, A.; Singh, J.; Maiti, T.K.; Dasari, A.; Chattopadhyay, S. Salt hydrate phase change materials: Current state of art and the road ahead. J. Energy Storage 2022, 51, 104360. [Google Scholar] [CrossRef]
  15. Du, R.; Wu, M.; Wang, S.; Wu, S.; Wang, R.; Li, T. Experimental investigation on high energy-density and power-density hydrated salt-based thermal energy storage. Appl. Energy 2022, 325, 119870. [Google Scholar] [CrossRef]
  16. Cabeza, L.F.; Martorell, I.; Miró, L.; Fernández, A.I.; Barreneche, C. Introduction to Thermal Energy Storage (TES) Systems; Elsevier Ltd.: Amsterdam, The Netherlands, 2015; p. 28. [Google Scholar] [CrossRef]
  17. Linder, M. Using thermochemical reactions in thermal energy storage systems. In Advances in Thermal Energy Storage Systems; Woodhead Publishing: Sawston, UK, 2020; p. 495. [Google Scholar] [CrossRef]
  18. van Essen, V.M.; Cot Gores, J.; Bleijendaal, L.P.J.; Zondag, H.A.; Schuitema, R.; Bakker, M.; van Helden, W.G.J. Characterization of Salt Hydrates for Compact Seasonal Thermochemical Storage. In Proceedings of the ASME 2009 3rd International Conference on Energy Sustainability collocated with the Heat Transfer and InterPACK09 Conferences, San Francisco, CA, USA, 19–23 July 2009; pp. 825–830. [Google Scholar]
  19. Solé, A.; Martorell, I.; Cabeza, L.F. State of the art on gas–solid thermochemical energy storage systems and reactors for building applications. Renew. Sustain. Energy Rev. 2015, 47, 386–398. [Google Scholar] [CrossRef]
  20. Deutsch, M.; Müller, D.; Aumeyr, C.; Jordan, C.; Gierl-Mayer, C.; Weinberger, P.; Winter, F.; Werner, A. Systematic search algorithm for potential thermochemical energy storage systems. Appl. Energy 2016, 183, 120. [Google Scholar] [CrossRef]
  21. Knoll, C.; Müller, D.; Artner, W.; Welch, J.M.; Werner, A.; Harasek, M.; Weinberger, P. Probing cycle stability and reversibility in thermochemical energy storage—CaC2O4·H2O as perfect match? Appl. Energy 2017, 187, 1–9. [Google Scholar] [CrossRef]
  22. Garofalo, L.; Vitiello, F.V.; Montagnaro, F.; Bürgmayr, H.; Winter, F. Salt Hydrates for Thermochemical Storage of Solar Energy: Modeling the Case Study of Calcium Oxalate Monohydrate Dehydration/Rehydration under Suspension Reactor Conditions. Ind. Eng. Chem. Res. 2021, 60, 11357–11372. [Google Scholar] [CrossRef]
  23. Kazuo, M. Thermal behavior of alkaline earth metal malonate hydrates and their anhydrides. Thermochim. Acta 1996, 286, 198. [Google Scholar] [CrossRef]
  24. Galwey, A.K.; Abdel Aziz Mohamed, M. Thermal decomposition of calcium malonate dihydrate. Solid State Ion. 1990, 42, 135–145. [Google Scholar] [CrossRef]
  25. Brusau, E.V.; Narda, G.E.; Pedregosa, J.C.; Varetti, E.L. A low temperature infrared study of the coordinated water in calcium malonate dihydrate. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2002, 58, 1769–1774. [Google Scholar] [CrossRef]
  26. Christy, D.S.; Mahadevan, C.K.; Shajan, X.S. Growth by free evaporation method and physico—Chemical properties of calcium succinate single crystals. Optik 2017, 145, 418–427. [Google Scholar] [CrossRef]
  27. Binitha, M.P.; Pradyumnan, P.P. Studies on growth, thermal and dielectric behavior of calcium succinate trihydrate single crystals. J. Cryst. Growth 2014, 396, 44. [Google Scholar] [CrossRef]
  28. Li, Y.; Yi, H.; Ge, M.; Yao, D. Scale-Up Synthesis of High Purity Calcium Terephthalate from Polyethylene Terephthalate Waste: Purification, Characterization, and Quantification. Macromol. Mater. Eng. 2021, 306, 2100591. [Google Scholar] [CrossRef]
  29. Mazaj, M.; Mali, G.; Rangus, M.; Žunkovič, E.; Kaučič, V.; Zabukovec Logar, N. Spectroscopic Studies of Structural Dynamics Induced by Heating and Hydration: A Case of Calcium-Terephthalate Metal–Organic Framework. J. Phys. Chem. C 2013, 117, 7552–7564. [Google Scholar] [CrossRef]
  30. Groeneman, R.H.; Atwood, J.L. Terephthlate bridged coordination polymers based upon group two metals. Cryst. Eng. 1999, 2, 249. [Google Scholar] [CrossRef]
  31. Dominici, F.; Sarasini, F.; Luzi, F.; Torre, L.; Puglia, D. Thermomechanical and morphological properties of poly(ethylene terephthalate)/anhydrous calcium terephthalate nanocomposites. Polymers 2020, 12, 276. [Google Scholar] [CrossRef]
  32. Zolgharnein, J.; Dermanaki Farahani, S. Experimental design optimization and isotherm modeling for removal of copper(II) by calcium-terephthalate MOF synthesized from recycled PET waste. J. Chemom. 2023, 37, e3396. [Google Scholar] [CrossRef]
  33. Mazaj, M.; Zabukovec Logar, N. Phase Formation Study of Ca-Terephthalate MOF-Type Materials. Cryst. Growth Des. 2015, 15, 617–624. [Google Scholar] [CrossRef]
  34. Matsuzaki, T.; Iitaka, Y. The crystal structure of calcium terephthalate trihydrate. Acta Crystallogr. Sect. B 1972, 28, 1977–1981. [Google Scholar] [CrossRef]
  35. Barsk, A.; Yazdani, M.R.; Kankkunen, A.; Seppälä, A. Exceptionally high energy storage density for seasonal thermochemical energy storage by encapsulation of calcium chloride into hydrophobic nanosilica capsules. Sol. Energy Mater. Sol. Cells 2023, 251, 112154. [Google Scholar] [CrossRef]
  36. Donkers, P.A.J.; Adan, O.C.G.; Smeulders, D.M.J. Hydration/Dehydration Processes in Stabilized CaCl2. In Poromechanics VI; American Society of Civil Engineers: Reston, VA, USA, 2017; pp. 656–663. [Google Scholar] [CrossRef]
  37. Donkers, P.A.J.; Beckert, S.; Pel, L.; Stallmach, F.; Steiger, M.; Adan, O.C.G. Water Transport in MgSO4·7H2O During Dehydration in View of Thermal Storage. J. Phys. Chem. C 2015, 119, 28711–28720. [Google Scholar] [CrossRef]
  38. Van Essen, V.; Zondag, H.; Gores, J.C.; Bleijendaal, L.; Bakker, M.; Schuitema, R.; Van Helden, W.; He, Z.; Rindt, C. Characterization of MgSO4 hydrate for thermochemical seasonal heat storage. J. Sol. Energy Eng. 2009, 131, 041014. [Google Scholar] [CrossRef]
  39. Whiting, G.; Grondin, D.; Bennici, S.; Auroux, A. Heats of water sorption studies on zeolite–MgSO4 composites as potential thermochemical heat storage materials. Sol. Energy Mater. Sol. Cells 2013, 112, 112–119. [Google Scholar] [CrossRef]
  40. Ferchaud, C.; Zondag, H.; Veldhuis, J.; De Boer, R. Study of the reversible water vapour sorption process of MgSO4.7H2O and MgCl2.6H2O under the conditions of seasonal solar heat storage. J. Phys. Conf. Ser. 2012, 395, 012069. [Google Scholar] [CrossRef]
  41. Clark, R.-J.; Farid, M. Hydration reaction kinetics of SrCl2 and SrCl2-cement composite material for thermochemical energy storage. Sol. Energy Mater. Sol. Cells 2021, 231, 111311. [Google Scholar] [CrossRef]
  42. Blijlevens, M.A.R.; Mazur, N.; Kooijman, W.; Fischer, H.R.; Huinink, H.P.; Meekes, H.; Vlieg, E. A study of the hydration and dehydration transitions of SrCl2 hydrates for use in heat storage. Sol. Energy Mater. Sol. Cells 2022, 242, 111770. [Google Scholar] [CrossRef]
  43. Al-Terkawi, A.-A.; Scholz, G.; Prinz, C.; Zimathies, A.; Emmerling, F.; Kemnitz, E. Hydrated and dehydrated Ca-coordination polymers based on benzene-dicarboxylates: Mechanochemical synthesis, structure refinement, and spectroscopic characterization. Electronic supplementary information (ESI) available: Powder X-ray diffraction data, ATR-infrared spectra, EXAFS spectra, EXAFS data, SEM images, adsorption isotherms, and crystal data. CCDC Four files containing the crystal parameters of compounds 1 (CCDC 1582672), (1-H2O) (CCDC 1582673), 2 (CCDC 1582675), and 3 (CCDC 1582674). CrystEngComm. 2018, 20, 946–961. [Google Scholar] [CrossRef]
  44. X-Area 1.31.175.0, LANA 2.6.2.0; STOE & Cie GmbH: Darmstadt, Germany, 2021.
  45. Sheldrick, G. SHELXT—Integrated space-group and crystal-structure determination. Acta Crystallogr. Sect. A 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed]
  46. Petříček, V.; Dušek, M.; Palatinus, L. Crystallographic Computing System JANA2006: General features. Z. Für Krist.-Cryst. Mater. 2014, 229, 345–352. [Google Scholar] [CrossRef]
  47. Macrae, C.F.; Edgington, P.R.; McCabe, P.; Pidcock, E.; Shields, G.P.; Taylor, R.; Towler, M.; van de Streek, J. Mercury: Visualization and analysis of crystal structures. J. Appl. Crystallogr. 2006, 39, 453–457. [Google Scholar] [CrossRef]
  48. Ben Chanaa, M.b.; Lallemant, M.; Bertrand, G. Exploration systematique de la cinetique de rehydratation d’un sel renversable. Exemple de la reaction CaC2O4(s) + H2O(g) → CaC2O4·H2O(s). Thermochim. Acta 1986, 97, 369–385. [Google Scholar] [CrossRef]
  49. Gaisford, S.; Kett, V.; Haines, P. Principles of Thermal Analysis and Calorimetry, 2nd ed.; Royal Society of Chemistry: Cambridge, UK, 2016. [Google Scholar]
  50. N’Tsoukpoe, K.E.; Schmidt, T.; Rammelberg, H.U.; Watts, B.A.; Ruck, W.K.L. A systematic multi-step screening of numerous salt hydrates for low temperature thermochemical energy storage. Appl. Energy 2014, 124, 1–16. [Google Scholar] [CrossRef]
  51. Dornberger-Schiff, K.; Grell-Niemann, H. On the theory of order-disorder (OD) structures. Acta Crystallogr. 1961, 14, 167–177. [Google Scholar] [CrossRef]
Crystals 13 01518 g001

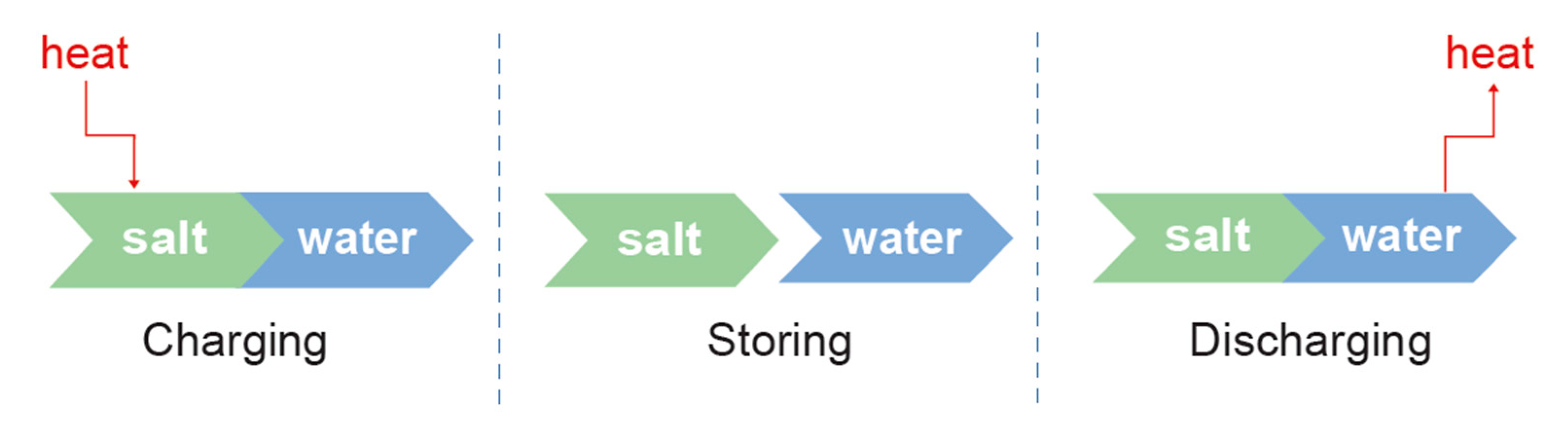

Figure 1. Storage principle of a TCES system utilizing salt hydrates as TCMs.
Figure 1. Storage principle of a TCES system utilizing salt hydrates as TCMs.
Crystals 13 01518 g001
Crystals 13 01518 g002

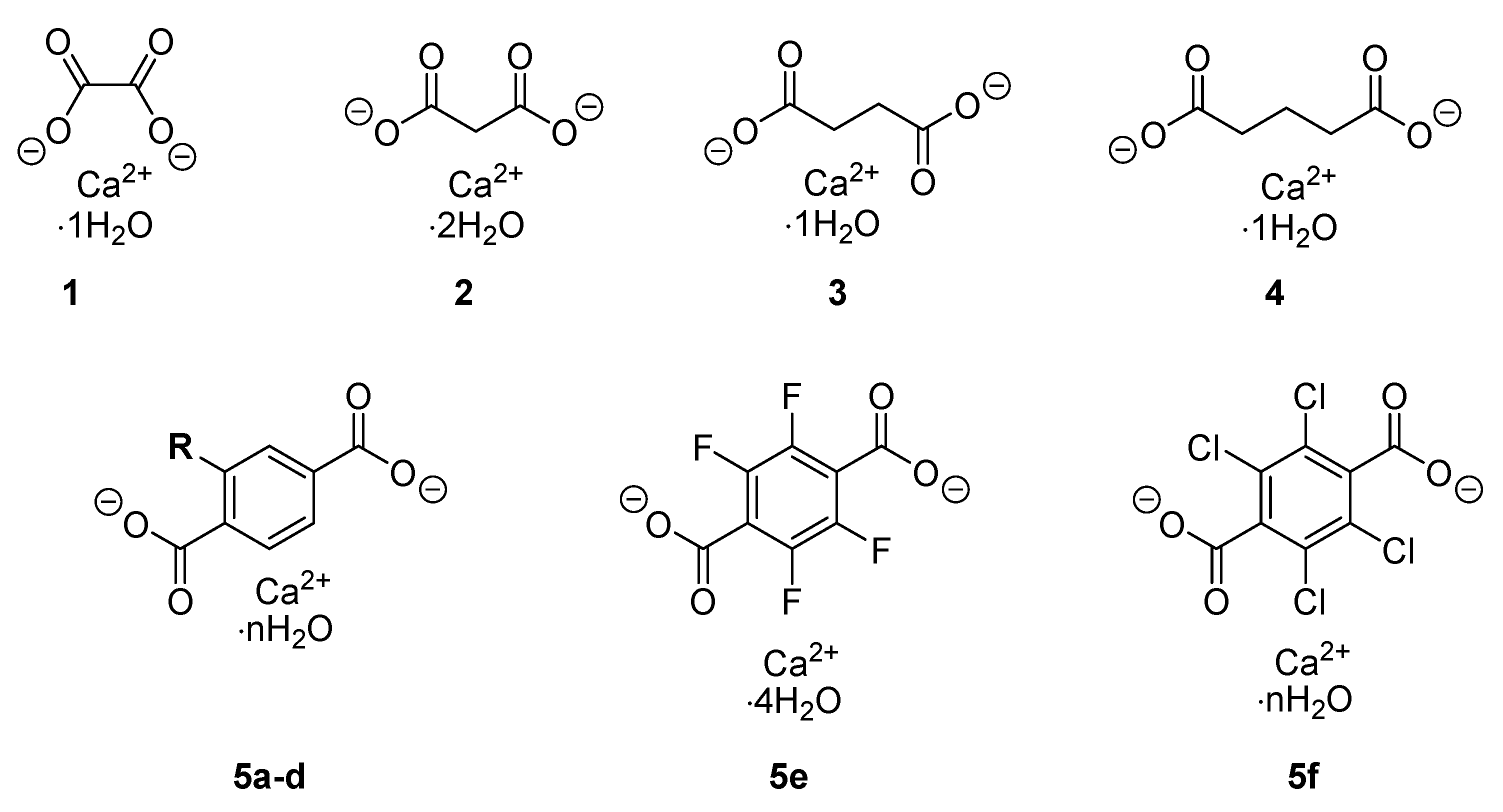

Figure 2. Overview of the investigated Ca-dicarboxylate salt hydrates.
Figure 2. Overview of the investigated Ca-dicarboxylate salt hydrates.
Crystals 13 01518 g002
Crystals 13 01518 g003

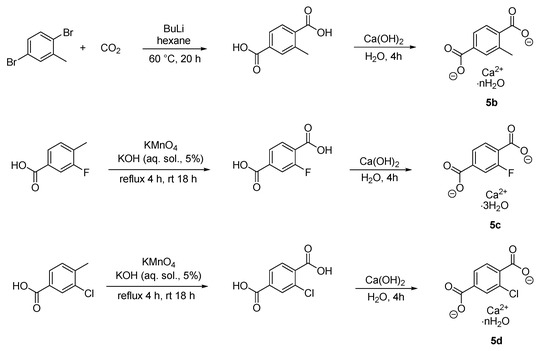

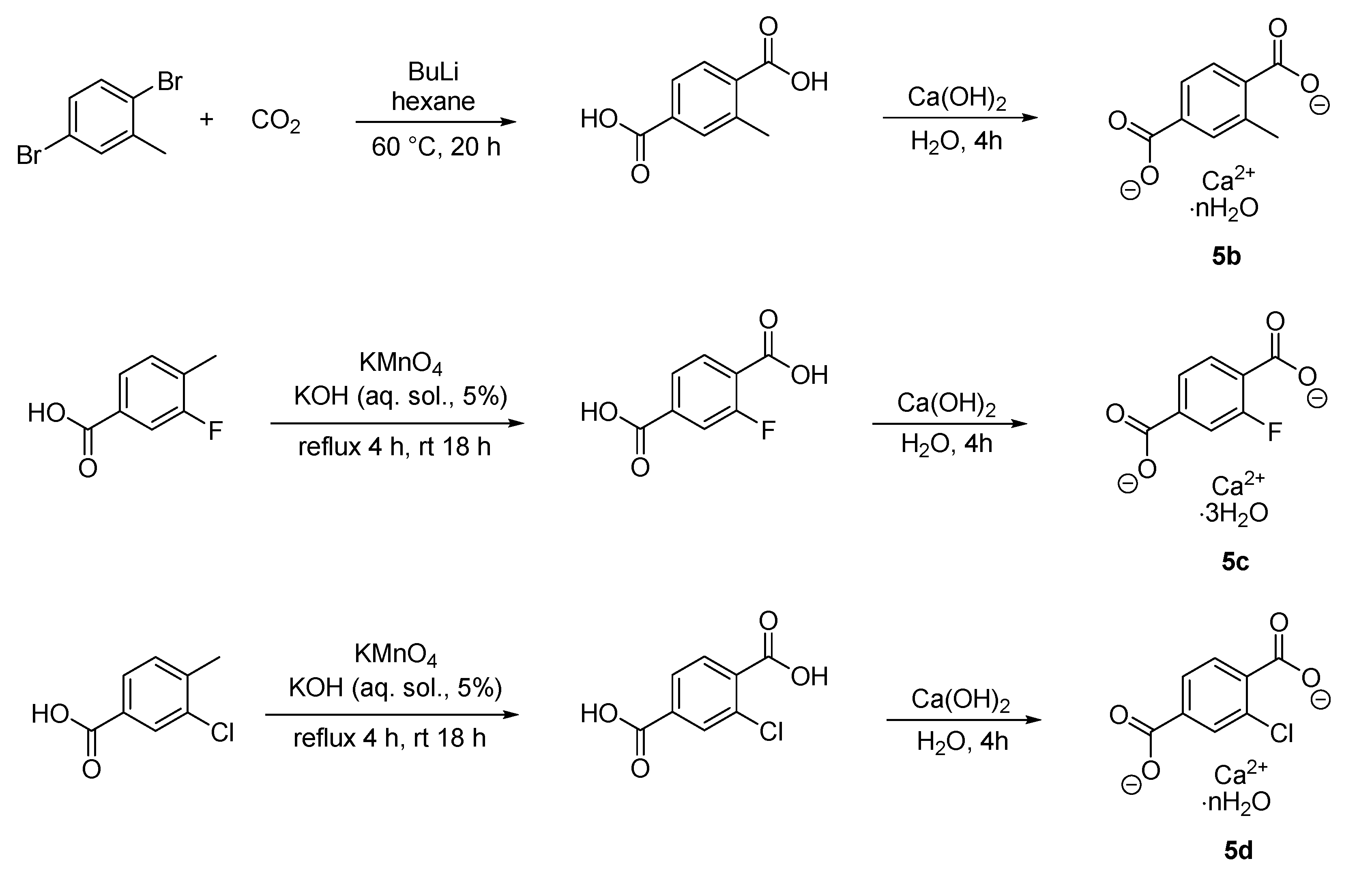

Figure 3. Synthesis of the mono-functionalized Ca-terephthalate hydrates.
Figure 3. Synthesis of the mono-functionalized Ca-terephthalate hydrates.
Crystals 13 01518 g003
Crystals 13 01518 g004

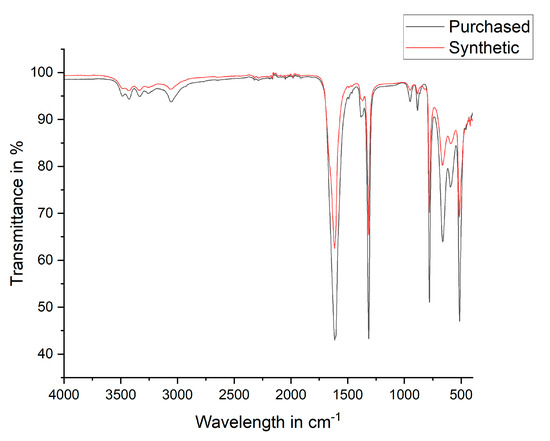

Figure 4. IR spectra of purchased (black) and synthetic (red) Ca-oxalate monohydrate.
Figure 4. IR spectra of purchased (black) and synthetic (red) Ca-oxalate monohydrate.
Crystals 13 01518 g004
Crystals 13 01518 g005

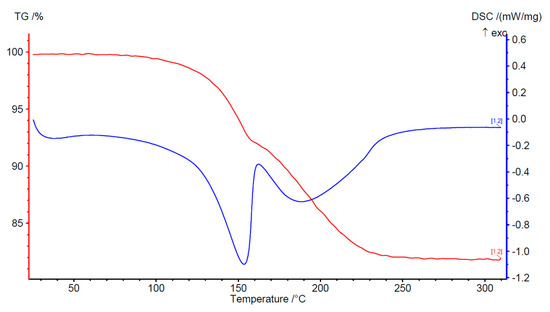

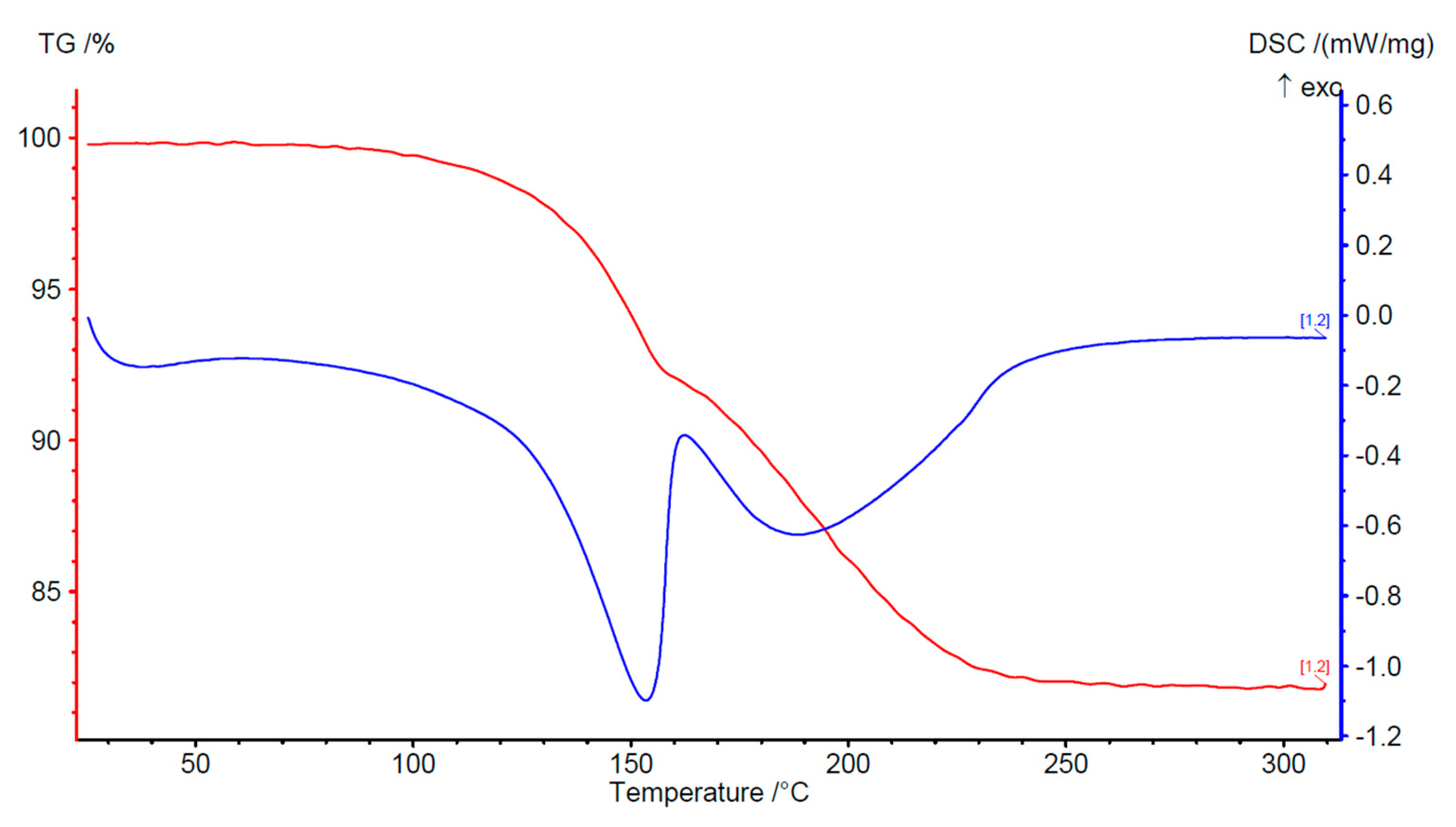

Figure 5. STA curves of 2.
Figure 5. STA curves of 2.
Crystals 13 01518 g005
Crystals 13 01518 g006

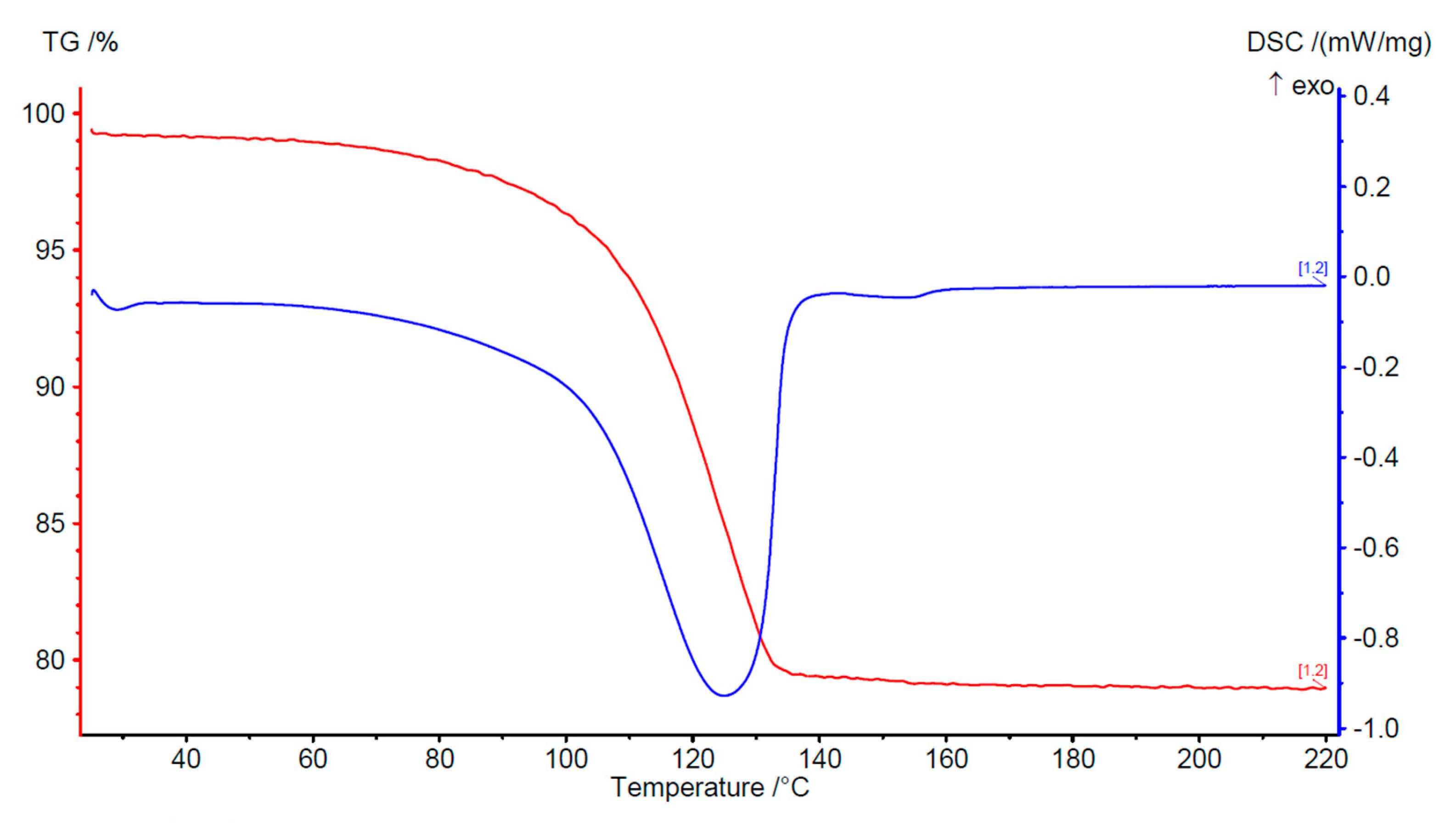

Figure 6. STA curves of 5a.
Figure 6. STA curves of 5a.
Crystals 13 01518 g006
Crystals 13 01518 g007

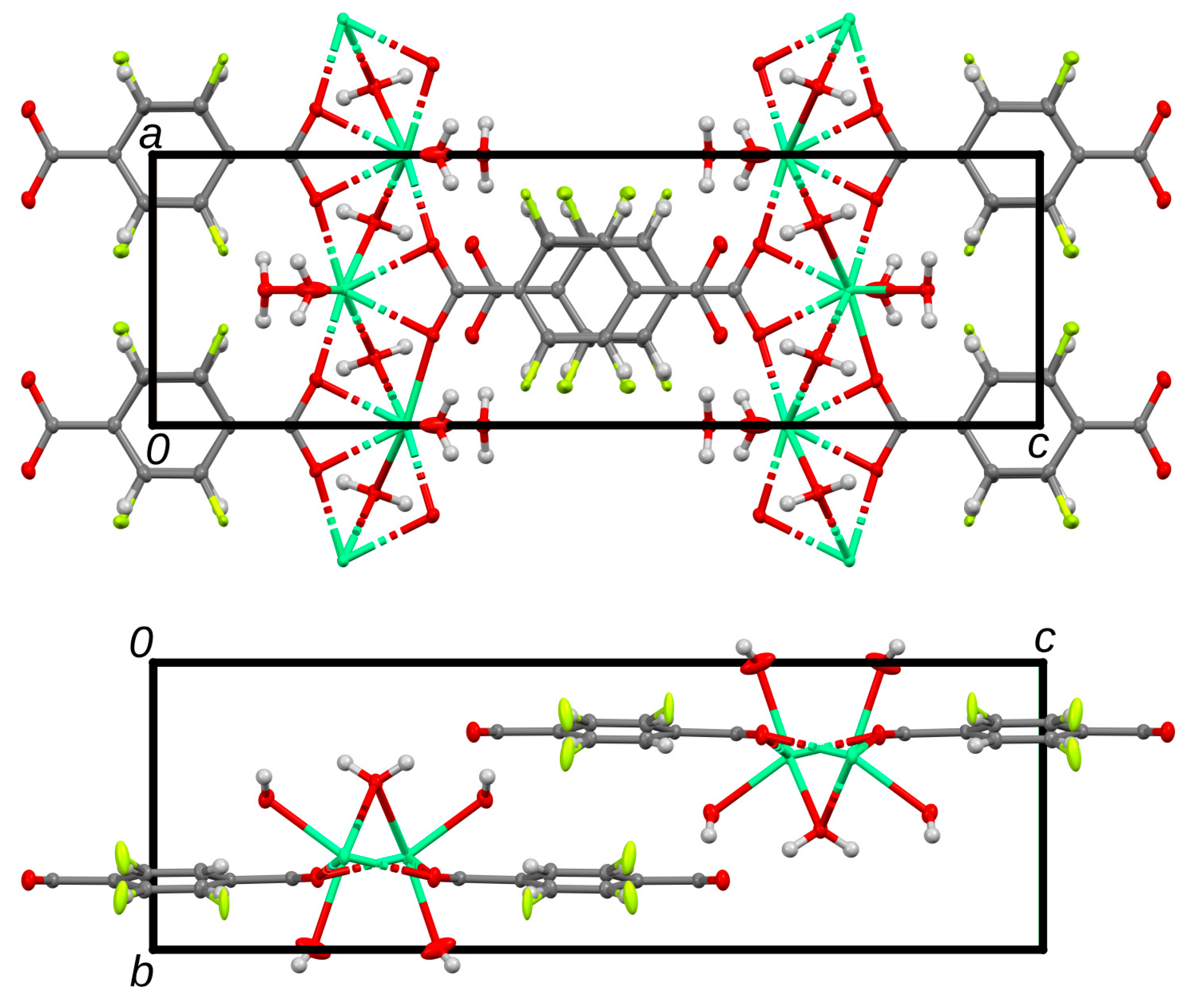

Figure 7. Crystal structure of 2-fluoro calcium terephthalate viewed along (top) [010] and (bottom) [100]. Ca (green), F (yellow), O (red), and C (grey) atoms are represented by ellipsoids drawn at the 50% probability levels; H atoms are represented by spheres of arbitrary radius.
Figure 7. Crystal structure of 2-fluoro calcium terephthalate viewed along (top) [010] and (bottom) [100]. Ca (green), F (yellow), O (red), and C (grey) atoms are represented by ellipsoids drawn at the 50% probability levels; H atoms are represented by spheres of arbitrary radius.
Crystals 13 01518 g007
Crystals 13 01518 g008

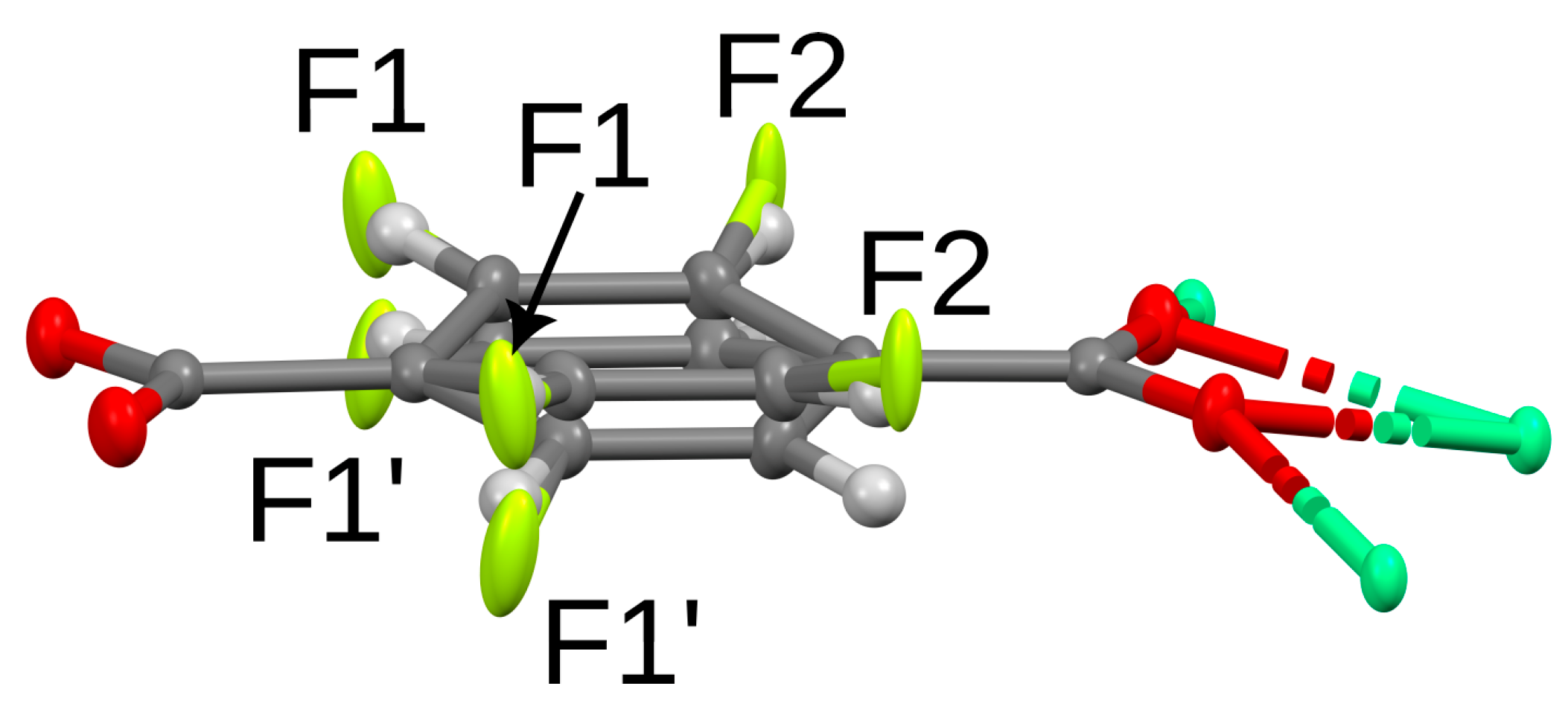

Figure 8. The mono-F-terephthalate molecule and coordinating Ca atoms. Colors as in Figure 7.
Figure 8. The mono-F-terephthalate molecule and coordinating Ca atoms. Colors as in Figure 7.
Crystals 13 01518 g008
Crystals 13 01518 g009

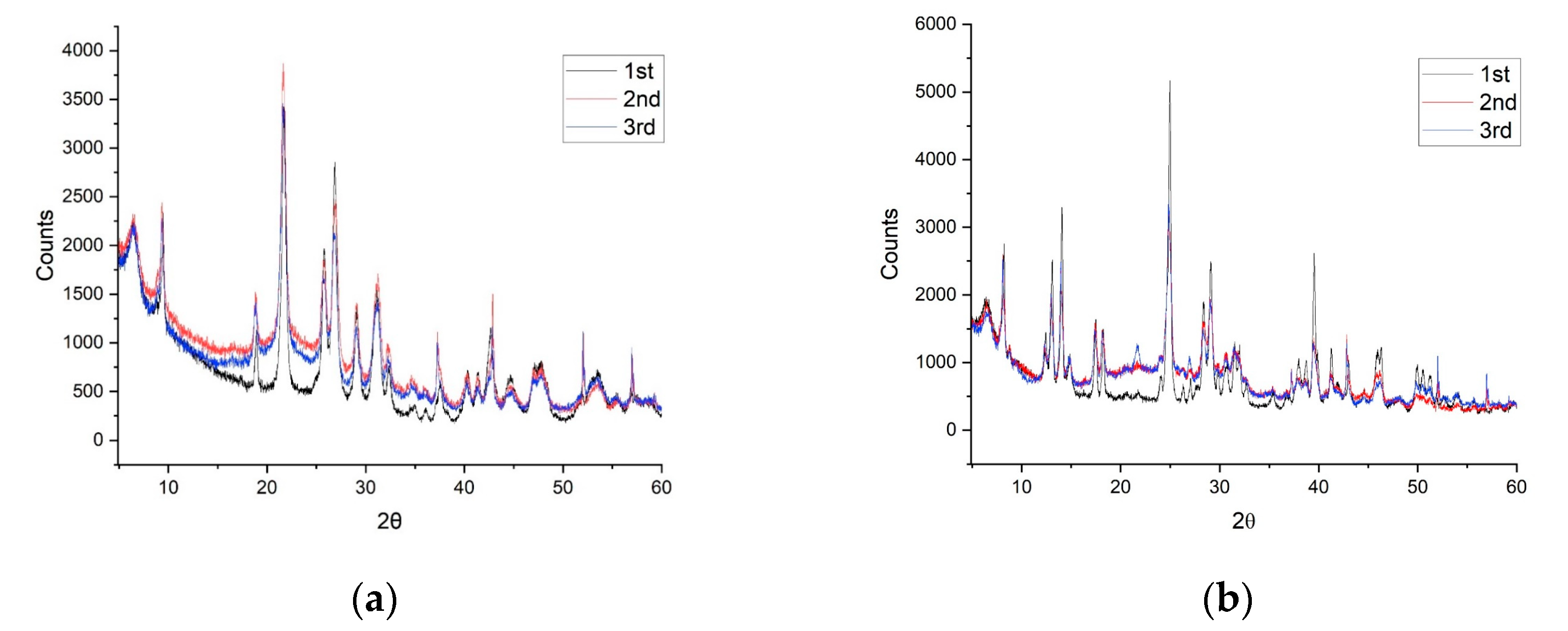

Figure 9. (a) Diffraction patterns after three dehydration cycles of 5a and (b) after the corresponding rehydration reactions.
Figure 9. (a) Diffraction patterns after three dehydration cycles of 5a and (b) after the corresponding rehydration reactions.
Crystals 13 01518 g009
Crystals 13 01518 g010
Figure 10. SEM pictures of Ca-terephthalate trihydrate after preparation (a) and Ca-terephthalate trihydrate after three cycles (b) at a magnification of 10,000×.
Figure 10. SEM pictures of Ca-terephthalate trihydrate after preparation (a) and Ca-terephthalate trihydrate after three cycles (b) at a magnification of 10,000×.
Crystals 13 01518 g010
Crystals 13 01518 g011

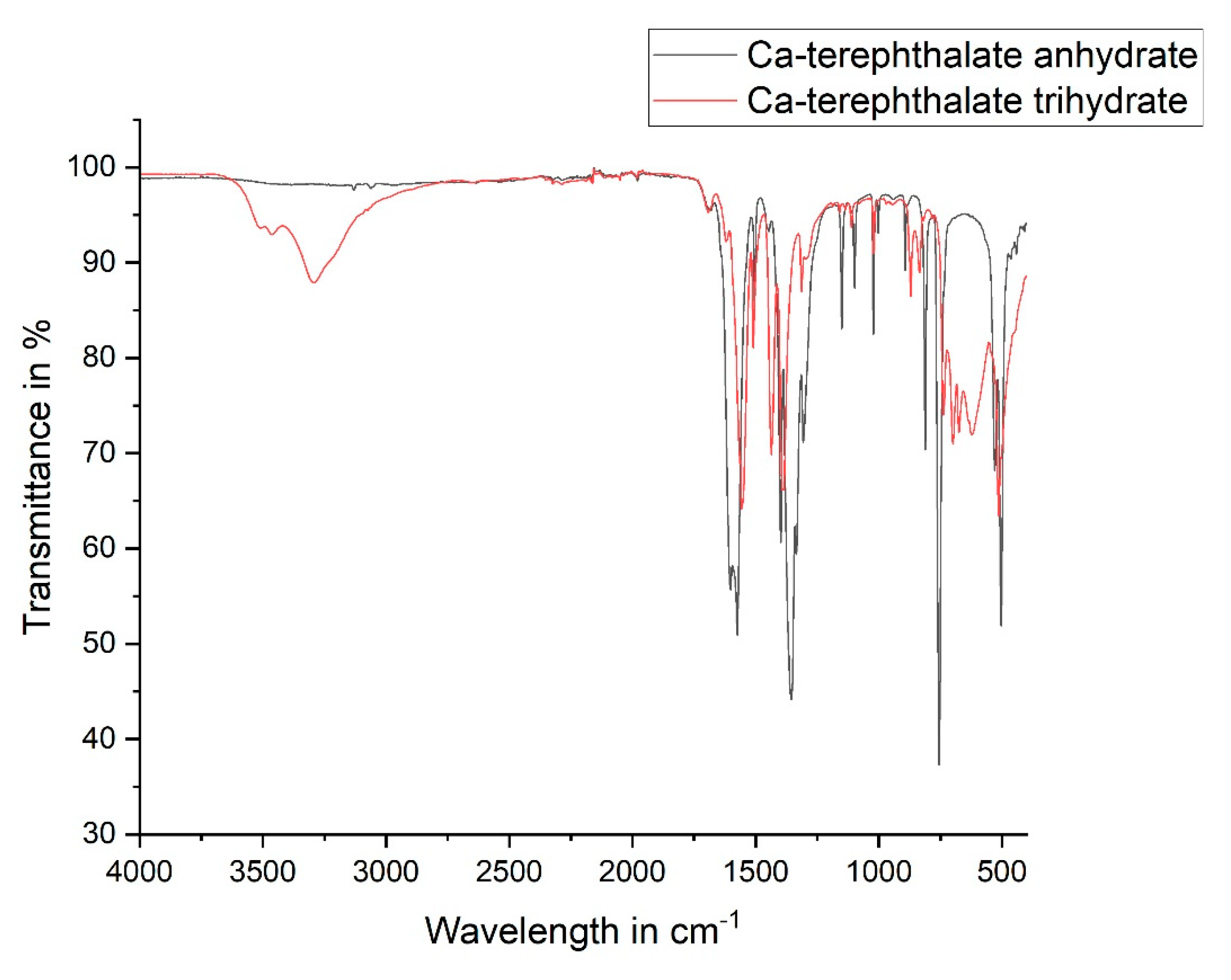

Figure 11. IR-spectra of Ca-terephthalate trihydrate (red) and Ca-terephthalate anhydrate (black).
Figure 11. IR-spectra of Ca-terephthalate trihydrate (red) and Ca-terephthalate anhydrate (black).
Crystals 13 01518 g011
Crystals 13 01518 g012

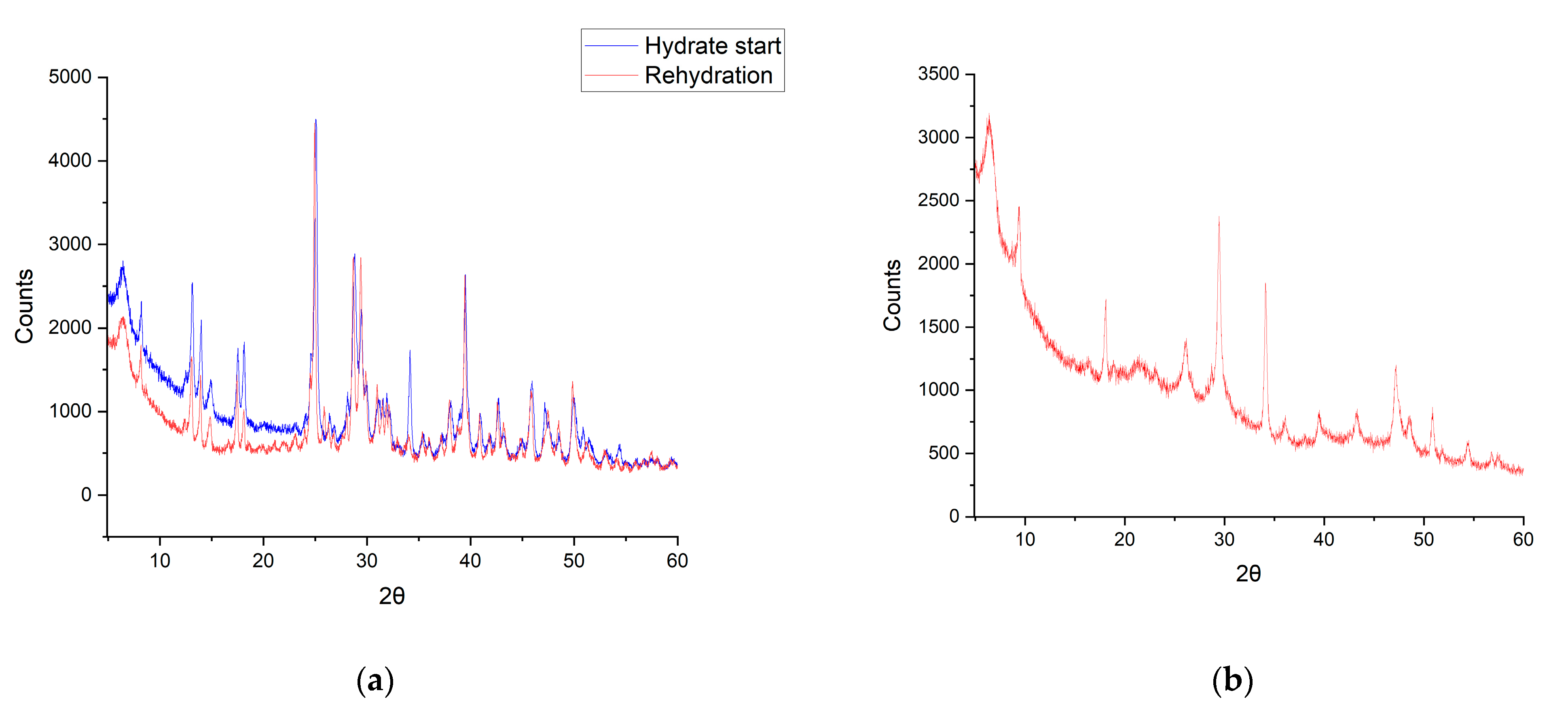

Figure 12. Diffraction patterns of (a) hydrated and rehydrated 5c, and (b) anhydrous 5c.
Figure 12. Diffraction patterns of (a) hydrated and rehydrated 5c, and (b) anhydrous 5c.
Crystals 13 01518 g012
Crystals 13 01518 g013

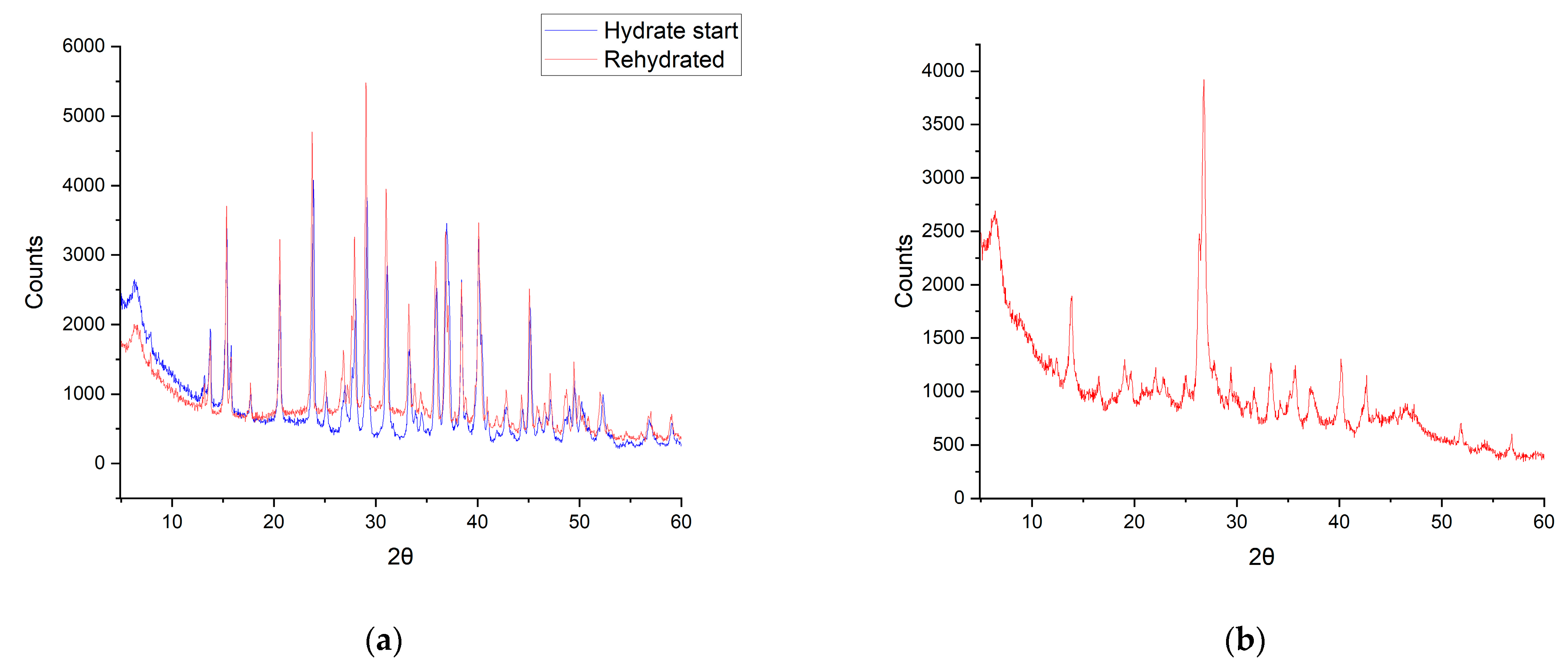

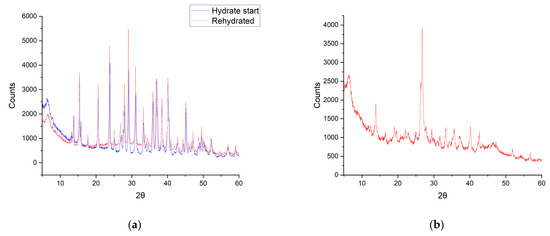

Figure 13. Diffraction patterns of (a) hydrated and rehydrated 5e, and (b) anhydrous 5e.
Figure 13. Diffraction patterns of (a) hydrated and rehydrated 5e, and (b) anhydrous 5e.
Crystals 13 01518 g013
Crystals 13 01518 g014
Figure 14. SEM pictures of Tetrafluoro Ca-terephthalate tetrahydrate (5e) after preparation (a) and one full cycle (b), both at a magnification of 10,000×.
Figure 14. SEM pictures of Tetrafluoro Ca-terephthalate tetrahydrate (5e) after preparation (a) and one full cycle (b), both at a magnification of 10,000×.
Crystals 13 01518 g014
Table 1. Compound names of investigated Ca-dicarboxylate salt hydrates.
Table 1. Compound names of investigated Ca-dicarboxylate salt hydrates.
Compound NumberCompound Name
1Calcium oxalate monohydrate
2Calcium malonate dihydrate
3Calcium succinate monohydrate
4Calcium glutarate monohydrate
5a (R=H)Calcium terephthalate trihydrate
5b (R=CH3)2-methyl calcium terephthalate n-hydrate
5c (R=F)2-fluoro calcium terephthalate trihydrate
5d (R=Cl)2-chloro calcium terephthalate trihydrate
5eTetrafluoro calcium terephthalate tetrahydrate
5fTetrachloro calcium terephthalate n-hydrate
Table 2. Onset temperatures of dehydration and measured dehydration enthalpies.
Table 2. Onset temperatures of dehydration and measured dehydration enthalpies.
SubstanceTheoretical Mass Loss in %Observed Mass Loss in %Onset Temperature of Dehydration in °CΔHdeh in J/g
Ca-oxalate monohydrate12.312.2156489
Ca-malonate dihydrate20.217.9127637
Ca-succinate monohydrate10.310.2166314
Ca-glutarate monohydrate9.612.5145418
Ca-terephthalate trihydrate20.920.1104695
2-methyl Ca-terephthalate n-hydrate15.715.893220
2-fluoro Ca-terephthalate trihydrate19.515.6126483
Tetrafluoro Ca-terephthalate tetrahydrate19.219.299657
Table 3. Calculated enthalpies for investigated calcium dicarboxylic acid hydrates.
Table 3. Calculated enthalpies for investigated calcium dicarboxylic acid hydrates.
TCMMoles of Crystal WaterMoles of Water Lost in TGAΔdehhΔdehh/n H2OΔhnet_25
kJ/molkJ/mol H2OkJ/mol
110.9971.3372.2027.87
221.72110.2664.1034.59
310.9854.6055.4611.29
411.3581.3660.2921.99
5a32.85177.5262.2652.09
5c3 *2.29127.7334.6527.00
5e43.65224.6661.5564.10
* determined by single-crystal analysis.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Werner, J.; Smith, J.; Stöger, B.; Artner, W.; Werner, A.; Weinberger, P. Characterization of Ca-Dicarboxylate Salt Hydrates as Thermochemical Energy Storage Materials. Crystals 2023, 13, 1518. https://doi.org/10.3390/cryst13101518

AMA Style

Werner J, Smith J, Stöger B, Artner W, Werner A, Weinberger P. Characterization of Ca-Dicarboxylate Salt Hydrates as Thermochemical Energy Storage Materials. Crystals. 2023; 13(10):1518. https://doi.org/10.3390/cryst13101518

Chicago/Turabian Style

Werner, Jakob, Jakob Smith, Berthold Stöger, Werner Artner, Andreas Werner, and Peter Weinberger. 2023. "Characterization of Ca-Dicarboxylate Salt Hydrates as Thermochemical Energy Storage Materials" Crystals 13, no. 10: 1518. https://doi.org/10.3390/cryst13101518

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
