Monoammonium Trimetaphosphimate (NH4)H2(PO2NH)3

Daniel Günther; Carsten Paulmann; Oliver Oeckler

doi:10.3390/cryst13010111

,

and

¹

Institute for Mineralogy, Crystallography and Materials Science, Leipzig University, Scharnhorststr. 20, 04275 Leipzig, Germany

²

Department of Earth System Sciences, University of Hamburg, Grindelallee 48, 20146 Hamburg, Germany

^*

Author to whom correspondence should be addressed.

Crystals2023, 13(1), 111;https://doi.org/10.3390/cryst13010111

This article belongs to the Section Inorganic Crystalline Materials

Version Notes

Order Reprints

Abstract

Trimetaphosphimates show a rich structural variability in both cation coordination and anion arrangement. They are precursors for crystalline, as well as amorphous oxonitridophosphates. The ammonium trimetaphosphimate (NH₄)H₂(PO₂NH)₃ is formed during the decomposition of the corresponding acid in solution. The monoclinic crystal structure of the monoammonium salt was elucidated by single crystal X-ray diffraction using synchrotron radiation. The trimetaphosphimate monoanions exhibit a twist conformation and form crankshaft-like stacks along [100], which have so far only been observed in (NH₄)₃(PO₂NH)₃·H₂O and Ag₃(PO₂NH)₃. (NH₄)H₂(PO₂NH)₃ decomposes at 170 °C, forming a poorly crystalline phase. Therefore, it is a model system and possible precursor for the synthesis of oxonitridophosphates.

Keywords:

trimetaphosphimate; single-crystal structure determination; thermal decomposition; hydrogen bonding; packing of rings

1. Introduction

Trimetaphosphimic acid was first mentioned by Stokes in 1895 [1]. Over the years, many of its salts have been synthesized, but only in 1965 Olthof et al. published the first crystal structure of a trimetaphosphimate in their report on Na₃(PO₂NH)₃·4H₂O [2]. To date, many more crystal structures with phosphimate rings have been described. A complete list of crystal structure determinations of trimetahosphimates is given in Table 1. Detailed investigation of these structures revealed a range of structural similarities between different salts. However, only a few compounds exhibit the same structure type, e.g., some salts with transition metal cations Co²⁺ and Zn²⁺ [3]. Most compounds are characterized by one molecule per asymmetric unit. The different cations often exhibit typical coordination known from other compounds, for instance, an octahedral environment for Na⁺ ions or tetrahedral coordination of Ag⁺ ions. Some unusual coordination numbers, like 9 for potassium [4,5] or 7 for earth alkaline ions [6,7], have also been observed. Depending on solvent water content, cation coordination polyhedra are built up from both the trimetaphosphimate anion and/or water molecules in different ratios. The trimetaphosphimate anions form different arrangements when packed in solid-state structures. In chain structures, anions lie side by side along one direction, whereas they lie on top of each other when they form stacks in structures that can be described as rod packings. In layered structures, chains or stacks are closely interconnected by hydrogen bonds and form anion packings that extend in two dimensions. In addition, network structures have been described occasionally [6,8]. Anions closely interconnected via hydrogen bonds can form pairs, which were found in several salts [9,10,11]. Likewise, complex anions that consist of transition metal centers coordinated by trimetaphosphimate anions can form rigid entities in mixed cationic salts [8,12,13,14,15].

Table 1. A list of all crystal structure determinations of trimetaphosphimates.

For some further trimetaphosphimates not mentioned in Table 1, only the chemical composition has been reported. In addition to the listed mixed Na/Ca salts, two compounds, Ca₃[(PO₂NH)₃]·xH₂O and NaCa(PO₂NH)₃·xH₂O, with unknown solvent water content have been obtained [6]. Furthermore, several copper salts containing benzidine, nitrate anions and/or solvent water have been synthesized [23], as well as a range of mixed cationic compounds such as Cd₃[(PO₂NH)₃]₂·11H₂O, NaCd(PO₂NH)₃·4H₂O, Hg₃(OH)₂(PO₂NH)₃·3H₂O, NaHg₂(PO₂NH)₃·4H₂O, Na_1.5Hg(OH)_0.5(PO₂NH)₃·2.5H₂O [13], NaFe(PO₂NH)₃·8H₂O, and K₄Fe(PO₂NH)₃·5H₂O [24].

Herein, we report the new monoammonium trimetaphosphimate, (NH₄)H₂(PO₂NH)₃, with an unusual crankshaft-like stack of monoanions that involves an asymmetric unit with two formula units.

2. Materials and Methods

2.1. Synthesis

The synthesis is initially aimed at trimetaphosphimic acid, which is described in literature [16]. The starting material, K₃(PO₂NH)₃, was prepared as described by Stock et al. [4]. An amount of 4.921 g of K₃(PO₂NH)₃ was then dissolved in 15 mL water and cooled to ~0 °C using an ice bath. A total of 5 mL of HClO₄ (60%) was added dropwise to this solution while continuously stirring it. KClO₄ forms immediately and was removed by filtration after about 1 h. The filtrate was directly passed into 150 mL of acetone, where a white precipitate formed. After 18 h, the solid phase was removed by filtration; its powder X-ray diffraction (PXRD) pattern confirmed that it was pure trimetaphosphimic acid. The filtrate was then left to stand for a week. Again, crystals grew slowly. They were isolated by filtration and washed with acetone. A total of 0.625 g of transparent crystals of the title compound were obtained.

2.2. Single-Crystal Structure Analysis

Single crystal X-ray diffraction (SCXRD), using synchrotron radiation with a wavelength of 0.5000 Å, was carried out on a Huber kappa diffractometer at beamline P24 (DESY; Hamburg, Germany) equipped with a Pilatus CdTe 1M detector (Dectris, Switzerland). The crystal was selected using polarized light and glued on a glass fiber. Indexing and integration were done using the program Crysalis [25]. Scaling and semiempirical absorption correction were carried out using SADABS [26]. Structure solution and refinement were done with the SHELX program package (version 2017-1) [27,28]. Diamond was used for graphical visualization of the structure [29].

2.3. Powder Diffraction

PXRD measurements were carried out on a SmartLab diffractometer equipped with a Hypix-3000 detector (Rigaku, Japan). Cross beam optics with a multilayer mirror were used for monochromation and focusing of the beam (Cu-K_α1 radiation). A HTK 1200N reaction chamber from Anton Paar was used for heating. A small amount of the powdered compound was filled in a 0.3 mm capillary, which was sealed under an Ar atmosphere. Temperature-dependent measurements ranged between 30 °C and 900 °C with increments of 10 K.

3. Results and Discussion

3.1. Synthesis and Characterization

The synthesis, originally just aiming at trimetaphosphimic acid, shows that the latter at least partially hydrolyzes, forming ammonium ions. After removing trimetaphosphimic acid, a second crystallization step afforded the new compound (NH₄)H₂(PO₂NH)_3. Comparison of a measured and a calculated PXRD pattern based on SCXRD (Figure S1, S refers to figures and tables in the Supporting Information) shows that both reflection position and intensity agree very well. A few weak reflections could neither be assigned to (NH₄)H₂(PO₂NH)₃, nor any other known compound; they indicate a small proportion of an additional side product. As trimetaphosphimate monoanions are rather unusual, the additional phase might contain anions that are deprotonated to a higher extent. Also note that the direct reaction of ammonia and trimetaphosphimic acid typically affords (NH₄)₃(PO₂NH)₃·H₂O [18].

It is known that trimetaphosphimic acid is not stable in water. Its complete reaction with water creates ammonia and phosphoric acid; however, partial hydrolysis may also occur. This ammonia then forms the monoammonium salt (NH₄)H₂(PO₂NH)₃, with remaining trimetaphosphimic acid as described by the following equations:

H₃(PO₂NH)₃ + 6H₂O → 3 NH₃ + 3H₃PO₄

NH₃ + H₃(PO₂NH)₃ → (NH₄)H₂(PO₂NH)₃

3.2. Crystal Structure

Crystal structure analysis showed that (NH₄)H₂(PO₂NH)₃ (Figure 1) crystallizes in the monoclinic space group P2₁/c. Crystal data and refinement results are listed in Table 2, atom coordinates, Wyckoff positions, and anisotropic displacement parameters are given in Tables S1 and S2. The ammonium ions can clearly be distinguished from solvent water molecules, which had initially been assumed. Difference Fourier syntheses clearly revealed 4 significant electron density maxima and changing the presumed O site to an N site decreased the R_1(obs) value significantly from 0.0327 to 0.0291. All further H atoms in the structure could also be located as significant residual densities. Free refinement of their atomic parameters is possible but leads to bond lengths with rather large standard deviations, whose absolute values appear somehow unreasonable although they are normal within ~4 standard deviations. Soft distance restraints were therefore used to keep O-H and N-H distances in the range of 0.85(2) Å and 0.89(2) Å, respectively. All H atoms exhibit reasonable acceptors for H bonds (Table S3). Donor–acceptor distances, H-atom–acceptor distances, and donor–H-atom-acceptor angles are in perfect agreement with moderately strong H bonds [30]. The complete scheme of H bonding is shown in Figure 1 with respect to one asymmetric unit.

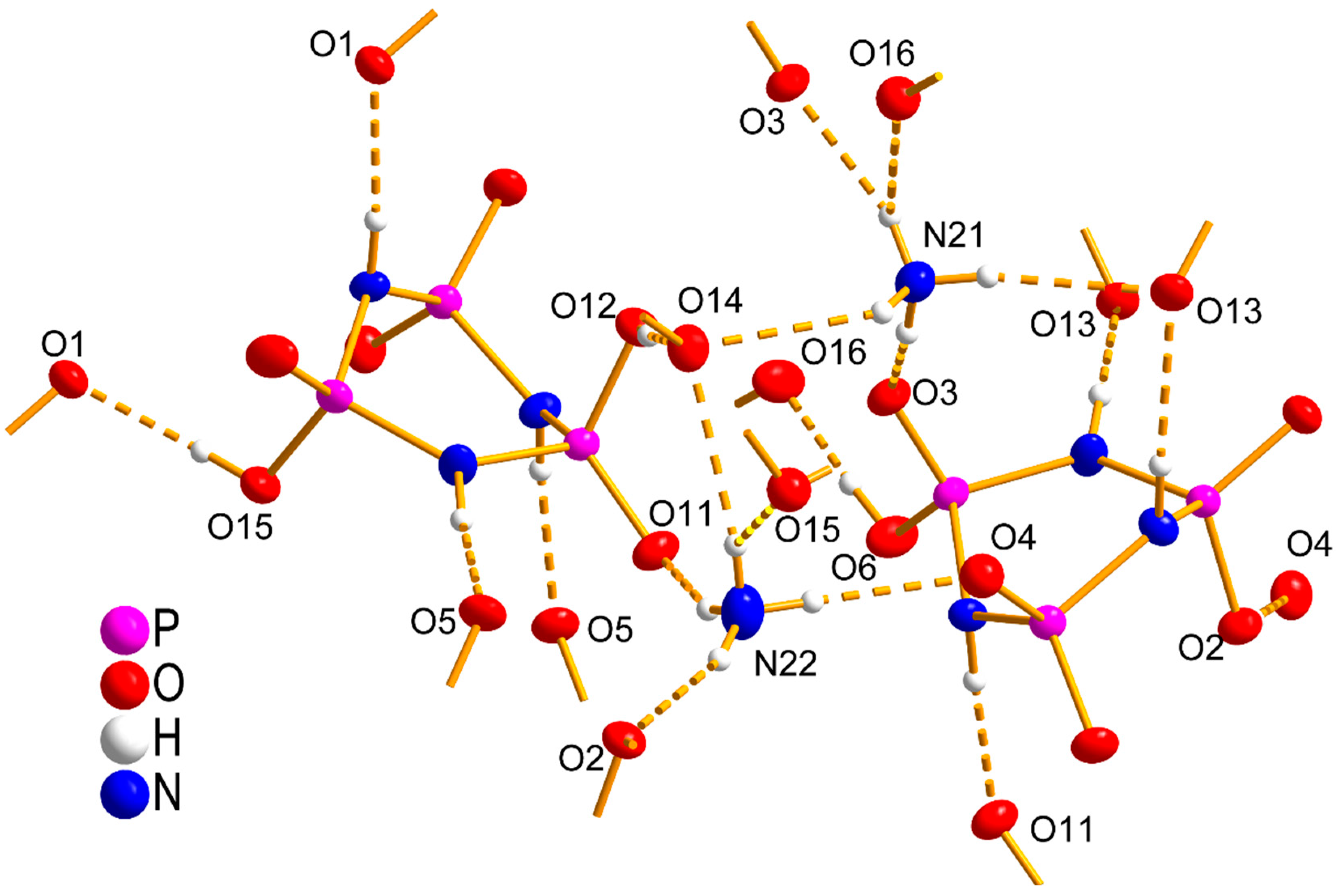

Figure 1. Asymmetric unit of (NH₄)H₂(PO₂NH)₃ with all H bonds and their acceptors.

Table 2. Results of the SCXRD refinement.

The structure is built up from [H₂(PO₂NH)₃]⁻ anions and NH₄⁺ cations. In contrast to most trimetaphosphimates, the asymmetric unit contains two molecules. The unit cell content is shown in Figure S2. The anions build crankshaft-like stacks that extend along [100] (Figure 2). Such stacks of alternating trimetaphosphimate rings have so far only been described for (NH₄)₃(PO₂NH)₃·H₂O and Ag₃(PO₂NH)₃ [4,18]. The degree of deprotonation is thus not the decisive factor of the crankshaft-like sequence. The packing of these stacks corresponds to a rectangular pattern, which has so far only been found in Na₃(PO₂NH)₃·4H₂O and (H₃O)H₂(PO₂NH)₃·H₂O [2,17]. Both symmetry-independent NH₄⁺ ions form three normal hydrogen bonds and an additional bifurcated one. A similar H bonding scheme is present for the cations in (NH₄)₃(PO₂NH)₃·H₂O [18] and Ag atoms in Ag₃(PO₂NH)₃ feature a comparable coordination by O atoms [4].

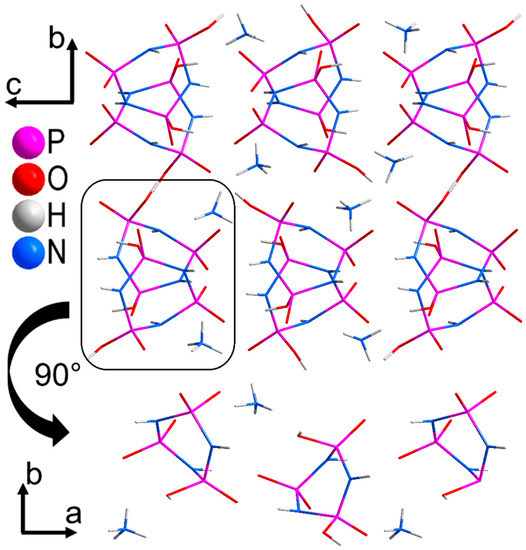

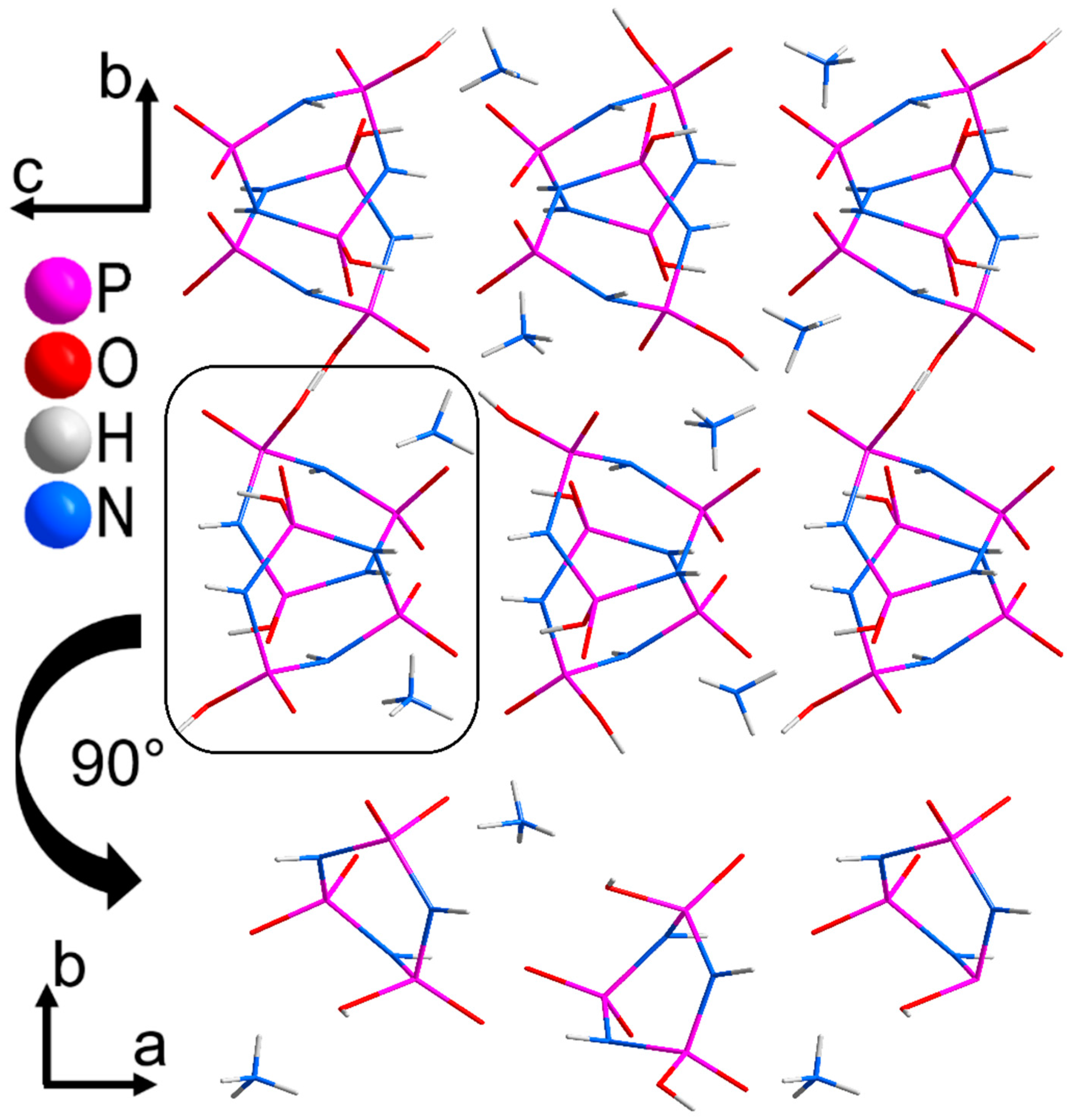

Figure 2. Crystal structure of (NH₄)H₂(PO₂NH)₃ with crankshaft-like stacks of the [H₂(PO₂NH)₃]⁻ anions.

Puckering parameters [31] and analysis of the torsion angle sequence [32,33] were used in order to classify the conformation of the trimetaphosphimate rings. The sequence of torsion angles (Table S4 and Figure 3) can be described as x,x,−y,x,x,−y, which is characteristic for the twist conformation. The puckering parameters (Table S4) of θ ≈ 90° and φ ≈ 2 · 60° + 30° are in good agreement with the expected values of θ = 90° and φ = 2 · n° + 30° (n ∈ N) for twist conformations. One anion of the asymmetric unit is a bit closer to the ideal twist conformation.

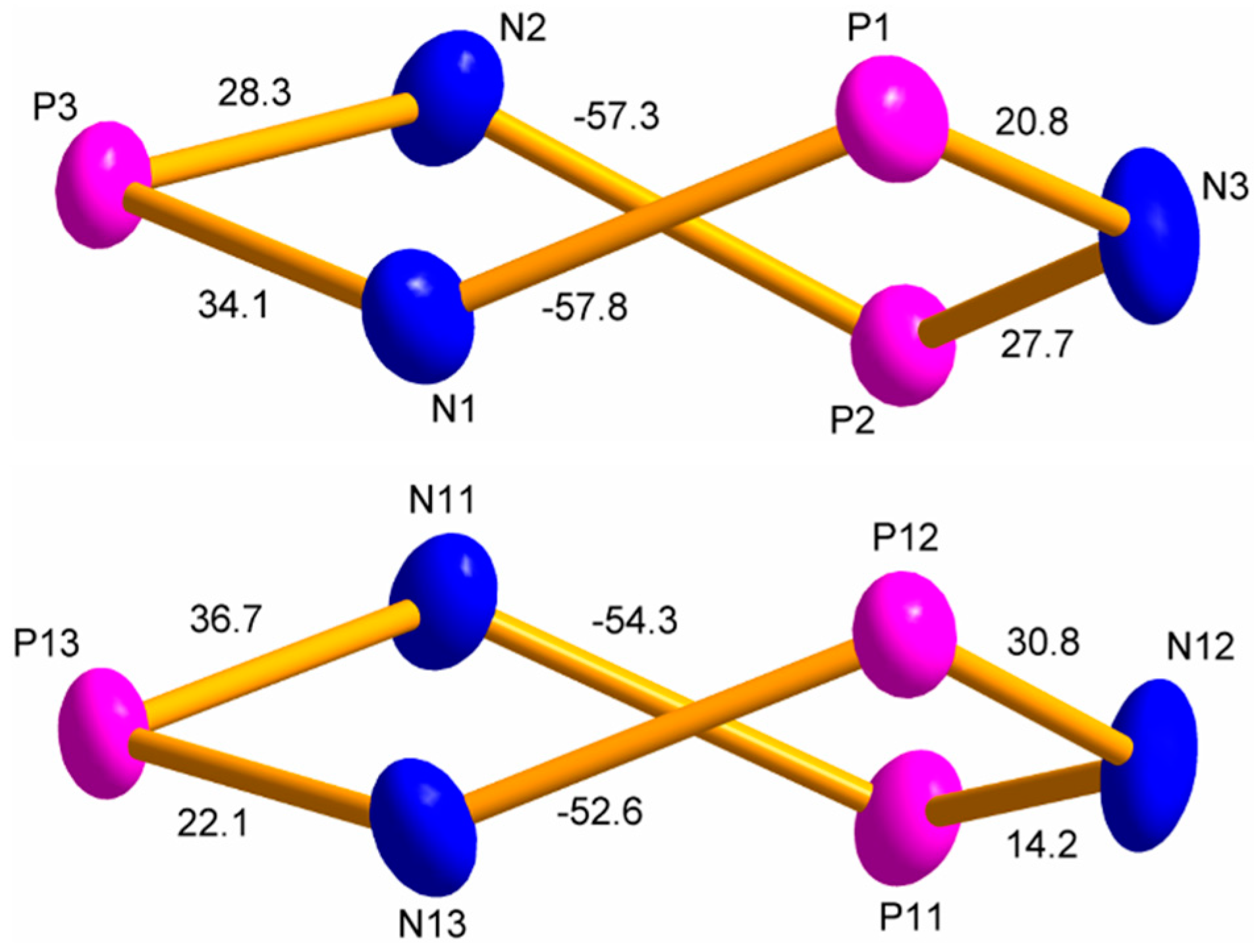

Figure 3. Side views of both P₃N₃ rings with torsion angles (in °) highlighting the twist conformation.

3.3. Thermal Behavior

Temperature-dependent PXRD (Figure S3) reveals decomposition of (NH₄)H₂(PO₂NH)₃ at 170 °C into a poorly crystalline phase. This phase further decomposes into an amorphous compound at 290 °C. Above 550 °C, a new crystalline phase begins to form. Its reflection pattern could not be assigned to any compound known in literature. This means that the ammonium salt can be viewed as a precursor for further compounds.

4. Conclusions

Besides trimetaphosphimic acid, which in fact crystallizes as an oxonium salt, and (NH₄)H₂(PO₂NH)₃·CH₃OH, the new compound (NH₄)H₂(PO₂NH)₃ is the only trimetaphosphimate containing monoanions. The fact that the anions cannot coordinate directly to metal cations may impede further deprotonation. The ammonium salts differ in the types and arrangement of stacks; the title compound contains crankshaft-like stacks in a rectangular pattern, whereas the known monoammonium salt, which contains methanol solvent molecules, forms a distorted hexagonal pattern of double chains. Compared to all known structures, rectangular patterns and crankshaft-like stacks are rarely observed for trimetaphosphimates.

The synthesis of the title compound corroborates the decomposition of trimetaphosphimic acid under formation of NH₃ as this is the only way to provide ammonium ions. (NH₄)H₂(PO₂NH)₃ decomposes to a sequence of amorphous and crystalline compounds upon heating. Therefore, it might be a possible precursor for oxonitridophosphates, especially if reactions are carried out close to the decomposition temperature.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/cryst13010111/s1. Figure S1: Comparison of measured and calculates PXRD patterns; Table S1: Atom coordinates and Wyckoff positions from single-crystal data; Table S2: Anisotropic displacement parameters; Table S3: Hydrogen bonding in (NH₄)H₂(PO₂NH)₃; distances between donors, H atoms and acceptors; Figure S2: Unit cell content of (NH₄)H₂(PO₂NH)₃; Table S4: torsion angles and puckering parameters of P₃N₃ rings; Figure S3: temperature-dependent PXRD of (NH₄)H₂(PO₂NH)₃.

Author Contributions

Conceptualization: D.G. and O.O.; methodology: D.G. and C.P.; validation: D.G. and O.O.; formal analysis: D.G.; investigation: D.G. and C.P.; resources: O.O.; data curation: D.G.; writing—original draft: D.G.; writing—review and editing: C.P. and O.O.; visualization: D.G.; supervision, O.O.; project administration, O.O.; funding acquisition, O.O. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the German Research Foundation (DFG, grant number OE530/6-1) and by the German Electron Synchrotron (DESY, project I-20190437).

Data Availability Statement

CCDC 2191198 contains supplementary crystallographic data. These can be obtained free of charge via http://www.ccdc.cam.ac.uk/conts/retrieving.html from the Cambridge Crystallographic Data Centre, 12 Union Road, Cambridge CB2 1EZ, UK; fax: (+44) 1223-336-033; or by e-mail: deposit@ccdc.cam.ac.uk.

Acknowledgments

We thank Holger Kohlmann for providing the Smartlab diffractometer and Simon Keilholz for conducting the temperature dependent PXRD measurements. We also thank DESY for beamtime (cf. Funding) and Christopher Benndorf and Maxim Grauer for conducting the measurements.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

Stokes, H.N. On the Chloronitrides of Phosphorus. Am. Chem. J. 1895, 17, 275–290. [Google Scholar]
Olthof, R.; Migchelsen, T.; Vos, A. The Crystal Structure of Compounds with (N-P)n Rings. II. Sodium Trimetaphosphimate Terahydrate Na₃(NHPO2)₃·4H₂O. Acta Crystallogr. 1965, 19, 596–603. [Google Scholar] [CrossRef]
Stock, N.; Irran, E.; Schnick, W. Synthese und Kristallstruktur der Übergangsmetalltrimetaphosphimate Zn₃[(PO₂NH)₃]·14H₂O und Co₃[(PO₂NH)₃]·14H₂O. Z. Anorg. Allg. Chem. 1999, 625, 555–561. [Google Scholar] [CrossRef]
Stock, N.; Schnick, W. Synthesen, Kristallstrukturen und Eigenschaften von Trisilber und Trikalium-tri-μ-imido- cyclotriphosphat, Ag₃(PO₂NH)₃ und K₃(PO₂NH)₃. Z. Naturforsch. B 1997, 52, 251–255. [Google Scholar] [CrossRef]
Jacobs, H.; Nymwegen, R. Darstellung und Strukturbestimmung zweier Salze der Trimetaphosphimsäure, K₃(PO₂NH)₃ und Rb₃(PO₂NH)₃. Z. Anorg. Allg. Chem. 1998, 624, 199–204. [Google Scholar] [CrossRef]
Correll, S. Dreierringe in molekulerionischen Imidophosphaten und kondensierten Oxonitridophosphaten mit NPO Zeolithstruktur. Ph.D. Thesis, Ludwig-Maximilians-Universität München, Munich, Germany, 2006. [Google Scholar]
Corell, S.; Sedlmaier, S.J.; Schnick, W. Synthesis, crystal structures and properties of the trimetaphosphimates NaBa(PO₂NH)₃, KSr(PO₂NH)₃·4H₂O and NH₄Sr(PO₂NH)₃·4H₂O. Solid State Sci. 2005, 7, 1261–1271. [Google Scholar] [CrossRef]
Stock, N.; Herrendorf, W.; Beck, J.; Schnick, W. The Synthesis and Structure of Trimetaphophimato Complexes of Hafnium and Zirconium. Eur. J. Inorg. Chem. 1998, 4, 469–476. [Google Scholar] [CrossRef]
Stock, N.; Schnick, W. Trisodium Trimetaphosphimate Monohydrate. Acta Crystallogr. Sect. C 1997, 53, 532–534. [Google Scholar] [CrossRef]
Stock, N.; Jürgens, B.; Schnick, W. Synthese, Kristallstruktur und Eigenschaften von Triguanidinium-tri-μ-imido- cyclotriphosphat-Monohydrat und Tetraguanidinium-tri-μ-imidocyclotriphosphat-Tetrahydrat, [C(NH2)₃]₃(PO₂NH)₃·H₂O und [C(NH₂)₃]₄(PO₂NH)₄·4H₂O. Z. Naturforsch. B 1998, 53, 1115–1126. [Google Scholar] [CrossRef]
Sedlmaier, S.J.; Johrendt, D.; Oeckler, O.; Schnick, W. Synthesis, Crystal Structures and Properties of the Trimetaphosphimates Na₂M(PO₂NH)₃·2H₂O with M = K, Tl. Z. Anorg. Allg. Chem. 2007, 633, 2217–2222. [Google Scholar] [CrossRef]
Correll, S.; Stock, N.; Schnick, W. Synthesis, crystal structures and properties of the bis-(trimetaphosphimato)-metallatesNa₄{Co[(PO₂NH)₃]₂}·12H₂O and Na₄{Ni[(PO₂NH)₃]₂}·12H₂O. Solid State Sci. 2004, 6, 953–965. [Google Scholar] [CrossRef]
Rozanov, I.A.; Medvedeva, L.Y.; Beresnev, E.N.; Sokolov, Y.A.; Sokol, V.I. Some bivalent d-element trimetaphosphimates. Zh. Neorg. Khimii 1981, 3, 668–676. [Google Scholar]
Stock, N. Phosphor(V)-oxidenitride: Von molekularen und molekularionischen Vorstufen zu kondensierten Festkörpern. Ph.D. Thesis, Universität Bayreuth, Bayreuth, Germany, 1998. [Google Scholar]
Correll, S.; Schnick, W. Synthese, Kristallstruktur und Eigenschaften von Tetranatrium-bis(trimetaphosphimato) cuprat(II)-Decahydrat Na₄{Cu[(PO₂NH)₃]₂}·10H₂O. Z. Anorg. Allg. Chem. 2000, 626, 2347–2352. [Google Scholar] [CrossRef]
Attig, R.; Mootz, D. Dihydrat und primäres Ammoniumsalz der Trimetaphosphimsäure. Z. Anorg. Allg. Chem. 1976, 419, 139–156. [Google Scholar] [CrossRef]
Günther, D.; Kalischer, C.; Oeckler, O. A new modification of oxonium trimetaphosphimate monohydrate. Z. Anorg. Allg. Chem. 2022, 648, e202200259. [Google Scholar] [CrossRef]
Stock, N.; Schnick, W. Triammonium Trimetaphosphimate Monohydrate. Acta Crystallogr. Sect. C 1996, 52, 2645–2647. [Google Scholar] [CrossRef]
Correll, S.; Sedlmaier, S.J.; Schnick, W. Synthese, Kristallstruktur und Eigenschaften von Chrom(III)-trimephosphimat-Heptahydrat Cr(PO₂NH)₃·7H₂O. Z. Anorg. Allg. Chem. 2005, 631, 1359–1364. [Google Scholar] [CrossRef]
Yi, J.; Fu, Z.; Liao, S.; Song, D.; Dai, J. Nitrogen-containing porous cerium trimetaphosphimate as a new efficient base catalyst. J. Mater. Chem. 2011, 21, 6144–6147. [Google Scholar] [CrossRef]
Sokol, V.I.; Porai-Koshits, M.A.; Berdnikov, V.R.; Rozanov, I.A.; Butman, L.A. Crystal structure refinement of potassium ammonium bis(trimetaphosphinato)prasedymate octahydrate of the composition K_1.3(NH₄)_1.7{Pr[PO₂NH)₃]₂}·8H₂O. Koord. Khimiya 1979, 5, 1093–1102. [Google Scholar]
Sokol, V.I.; Porai-Koshits, M.A.; Berdnikov, V.R.; Rozanov, I.A. Butman, L.A. Crystal structure of gallium sodium trimetaphosphimate and structure of its complex anion. Koord. Khimiya 1975, 1, 429–434. [Google Scholar]
Schmidt, G.; Fenesan, M. Über komplexe Kupfer(II)-Salze der Trimetaphosphimsäure. Stud. Univ. Babes-Bolyai Chem. 1972, 1, 29–36. [Google Scholar]
Rozanov, N.A.; Medvedeva, L.Y.; Beresnev, E.N. Synthesis of iron(II) and iron(III) trimetaphosphimates. Zh. Neorg. Khimii 1978, 8, 2259–2260. [Google Scholar]
Agilent. CrysAlis PRO, Version 171.38.41; Rigaku Oxford Diffraction Ltd.: Yarnton, UK, 2015.
Krause, L.; Herbst-Irmer, R.; Sheldrick, G.M.; Stalke, D. Comparison of silver an molybdenum microfocus X-ray sources for single-crystal structure determination. J. Appl. Crystallogr. 2015, 48, 3–10. [Google Scholar] [CrossRef] [PubMed]
Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. Sect. C 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed]
Sheldrick, G.M. A short history of SHELX. Acta Crystallogr. Sect. A 2008, 64, 112–122. [Google Scholar] [CrossRef] [PubMed]
Brandenburg, K. DIAMOND 4.6.4; Crystal Impact GbR: Bonn, Germany, 2020. [Google Scholar]
Steiner, T. The hydrogen bond in the solid state. Angew. Chem. Int. Ed. 2002, 41, 48–76. [Google Scholar] [CrossRef]
Cremer, D.; Pople, J.A. Genral Definition of Ring Puckering Coordinates. J. Am. Chem. Soc. 1975, 97, 1354–1358. [Google Scholar] [CrossRef]
Zschunke, A. Molekülstruktur; Spektrum Akademischer Verlag: Heidelberg, Australia, 1993. [Google Scholar]
Bucourt, R. The Torsion Angle Concept in Conformational Analysis. Top. Stereochem. 1975, 8, 159–224. [Google Scholar] [CrossRef]

Figure 1. Asymmetric unit of (NH₄)H₂(PO₂NH)₃ with all H bonds and their acceptors.

Figure 2. Crystal structure of (NH₄)H₂(PO₂NH)₃ with crankshaft-like stacks of the [H₂(PO₂NH)₃]⁻ anions.

Figure 3. Side views of both P₃N₃ rings with torsion angles (in °) highlighting the twist conformation.

Table 1. A list of all crystal structure determinations of trimetaphosphimates.

Sum Formula	Space Group	Lattice Parameters	Cation Coordination	Anion Arrangement
(H₃O)H₂(PO₂NH)₃·H₂O [16]	P2₁/c	a = 7.022(1) Å b = 14.008(1) Å c = 9.353(2) Å β = 93.34(2)°	irregular coordination of H₃O⁺/H₅O₂⁺ connected via hydrogen bonds	hexagonal pattern of anion stacks along [001]
(H₃O)H₂(PO₂NH)₃·H₂O [17]	P2₁/c	a = 7.0289(3) Å b = 14.1700(7) Å c = 11.3378(6) Å β = 124.225°	irregular coordination of H₃O⁺/H₅O₂⁺ connected via hydrogen bonds	rectangular pattern of anion stacks along [001]
(NH₄)H₂(PO₂NH)₃·CH₃OH [18]	Pbca	a = 15.025(3) Å b = 7.264(1) Å c = 19.252(1) Å	distorted tetrahedral coordination of NH₄⁺ ions by O atoms from anions via hydrogen bonds	distorted hexagonal pattern of double chains along [010], solvent between the chains
(NH₄)₃(PO₂NH)₃·H₂O [18]	P2₁	a = 6.5712(6) Å b = 12.9917(6) Å c = 6.9237(3) Å β = 102.133(6)°	irregular coordination of NH₄⁺ ion (H atom positions not determined)	crankshaft-like anion stacks along [010]
Na₃(PO₂NH)₃·H₂O [9]	C2	a = 9.8797(7) Å b = 12.2119(8) Å c = 7.6464(6) Å β = 104.394(6)°	distorted NaO₆ octahedra with all O atoms from anions or O atoms of 4 anions and 2 water molecules	hexagonal pattern of anion pairs stacked along [001]
Na₃(PO₂NH)₃⋅H₂O:Rh [6]	C2/m	a = 9.976(2) Å b = 12.105(3) Å c = 7.641(2) Å β = 104.95(3)°	disordered distorted NaO₆ octahedra with O atoms only from 4 anions and 2 water molecules	hexagonal pattern of anion pairs stacked along [001]
Na₃(PO₂NH)₃·4H₂O [2]	P2₁/n	a = 16.976(9) Å b = 7.834(3) Å c = 8.918(6) Å β = 97.08(7)°	distorted NaO₆ octahedra with O atoms from 5 anions and 1 water or from 3 anions and 3 water molecules	rectangular pattern of anion stacks along [010]
Ag₃(PO₂NH)₃ [4]	P2₁/c	a = 11.666(1) Å b = 7.864(1) Å c = 9.978(1) Å β = 106.91(1)°	distorted AgO₄ or AgO₃N tetrahedra	crankshaft-like anion stacks along [001]
K₃(PO₂NH)₃ [4,5]	R $\bar{3}$	a = 12.714(2) Å c = 10.179(2) Å	ninefold K coordination	hexagonal pattern of anion stacks along [001]
Rb₃(PO₂NH)₃ [5]	R $\bar{3}$	a = 12.9971(5) Å c = 10.5485(5) Å	ninefold Rb coordination	hexagonal pattern of anion stacks along [001]
[C(NH₂)₃]₃(PO₂NH)₃·H₂O [10]	Pbca	a = 15.656(2) Å b = 10.6831(6) Å c = 20.918(2) Å	irregular coordination of C(NH₂)₃⁺ involving 6 hydrogen bonds	layers of anion pairs in (001) plane
Zn₃[(PO₂NH)₃]·14H₂O [3]	P $\bar{1}$	a = 7.443(5) Å b = 9.613(6) Å c = 9.834(5) Å α = 102.60(4)° β = 90.31(4)° γ = 99.92(4)°	distorted ZnO₆ octahedra, O atoms from 3 anions and 3 water or from 2 anions and 4 water molecules	distorted hexagonal pattern of anion stacks along [100], solvent between the chains
Co₃[(PO₂NH)₃]·14H₂O [3]	p $\bar{1}$	a = 7.4605(1) Å b = 9.5706(2) Å c = 9.8851(2) Å α = 102.162(1)° β = 90.044(1)° γ = 99.258(1)°	distorted CoO₆ octahedra, O atoms from 3 anions and 3 water or from 2 anions and 4 water molecules	distorted hexagonal pattern of anion stacks along [100], solvent between the chains
Cr(PO₂NH)₃·7H₂O [19]	P2₁/n	a = 9.461(2) Å b = 10.760(2) Å c = 12.954(3) Å β = 92.68(3)°	distorted Cr(H₂O)₆ octahedra	anion stacks along [100] separated by solvent water
Ce(PO₂NH)₃·5H₂O [6,20]	P2₁2₁2	a = 7.3040(15) Å b = 9.1675(18) Å c = 9.5663(19) Å	CeO₈ quadratic antiprism, O atoms from 6 anions and 2 water molecules	layers of anions in (001) plane
Pr(PO₂NH)₃·5H₂O [6]	P2₁2₁2	a = 7.307(1) Å b = 9.159(1) Å c = 9.585(2) Å	PrO₈ quadratic antiprism, O atoms from 6 anions and 2 water molecules	layers of anions in (001) plane
NaBa(PO₂NH)₃ [7]	C2/m	a = 10.845(2) Å b = 10.250(2) Å c = 7.962(2) Å β = 115.18(3)°	distorted NaO₆ octahedra, Ba: 8 + 2 coordination	staggered arrangement of chains along [010]
KSr(PO₂NH)₃·4H₂O [7]	P2₁/n	a = 10.872(2) Å b = 10.496(2) Å c = 11.912(2) Å β = 111.98(3)°	Sr: sevenfold coordination by O atoms from 5 anions and 2 water molecules, K: nine-fold coordination by 4 O and 2 N anion atoms and 3 water molecules	layers parallel (100) of anion pairs stacked along [010]
NH₄Sr(PO₂NH)₃·4H₂O [7]	P2₁/n	a = 10.884(2) Å b = 10.485(2) Å c = 11.969(2) Å β = 111.43(3)°	Sr: sevenfold coordination by O atoms from 5 anions and 2 water molecules, NH₄⁺: nine-fold coordination by O/N (H atom positions not determined)	layers parallel (100) of anion pairs stacked along [010]
K_1.3(NH₄)_1.7Pr [(PO₂NH)₃]₂·8H₂O [21]	Pna2₁	a = 25.623(8) Å b = 10.577(3) Å c = 8.632(2) Å	distorted PrO₈ quadratic antiprism, all O atoms from anions; K coordinated by 4 O atoms of anions and 3 water molecules	staggered stacks along [010] forming layer parallel (100) and additional anions in between
Na₂K(PO₂NH)₃·2H₂O [11]	P $\bar{1}$	a = 7.948(2) Å b = 8.034(2) Å c = 8.515(2) Å α = 75.84(3)° β = 83.54(3)° γ = 77.37(3)°	NaO₆ octahedra with O atoms from 3 anions and 3 water molecules, K: tenfold coordination by 5 O and 2 N atoms from anions and 3 H₂O	anion pairs stacked along [1 $\bar{1}$ 0]
Na₂Tl(PO₂NH)₃·2H₂O [11]	P $\bar{1}$	a = 7.991(2) Å b = 7.993(2) Å c = 8.646(2) Å α = 76.83(3)° β = 83.81(3)° γ = 77.57(3)°	NaO₆ octahedra with O atoms from 3 anions and 3 water molecules, Tl: tenfold coordination by 5 O and 2 N atoms from anions and 3 H₂O	anion pairs stacked along [1 $\bar{1}$ 0]
Na₄{Co[(PO₂NH)₃]₂}·12H₂O high temperature-phase [12,13]	C2/c	a = 8.889(1) Å b = 19.018(2) Å c = 17.112(2) Å β = 104.59(1)°	disordered NaO₆ octahedra with O atoms from 2 anions and 4 water molecules, CoO₆ tetrahedra with O atoms of anions	layers of complex {Co[(PO₂NH)₃]₂}⁴⁻·ions in (010) plane
Na₄{Co[(PO₂NH)₃]₂}·12H₂O low temperature-phase [12,13]	P2₁/n	a = 8.887(2) Å b = 19.001(4) Å c = 17.072(3) Å β = 104.59(3)°	ordered NaO₆ octahedra, O atoms: 2 anions + 4 crystal water; CoO₆ tetrahedra with O atoms of anions	layers of complex {Co[(PO₂NH)₃]₂}⁴⁻·ions in (010) plane
Na₄{Ni[(PO₂NH)₃]₂}·12H₂O high temperature-phase [12,13]	C2/c	a = 8.944(1) Å b = 18.906(1) Å c = 17.236(1) Å β = 104.49(1)°	disordered NaO₆ octahedra with O atoms from 2 anions and 4 water molecules, NiO₆ tetrahedra with O atoms of anions	layers of complex {Ni[(PO₂NH)₃]₂}⁴⁻·ions in (010) plane
Na₄{Ni[(PO₂NH)₃]₂}·12H₂O low temperature-phase [12,13]	P2₁/n	a = 8.903(1) Å b = 18.902(2) Å c = 17.133(2) Å β = 104.62(1)°	ordered NaO₆ octahedra, O atoms: 2 anions + 4 crystal water; NiO₆ tetrahedra with O atoms of anions	layers of complex {Ni[(PO₂NH)₃]₂}⁴⁻·ions in (010) plane
Na₄{Zn[(PO₂NH)₃]₂} ·12H₂O [13,14]	C2/c	a = 8.883(1) Å b = 18.994(2) Å c = 17.126(2) Å β = 104.54(1)°	disordered NaO₆ octahedra with O atoms from 2 anions and 4 water molecules, ZnO₆ tetrahedra with O atoms of anions	layers of complex {Zn[(PO₂NH)₃]₂}⁴⁻· ions in (010) plane
NaZn[(PO₂NH)₃]₂}·7H₂O [13]	P $\bar{1}$	a = 10.209(3) Å b = 9.256(2) Å c = 9.539(2) Å α = 116.02(4)° β = 97.7(3)° γ = 103.16(3)°	ZnO₆ octahedra with O atoms from 4 anions and 2 water or from 2 anions and 4 water molecules; (Na coordination not given in literature)	chains of comple X[Zn(PO₂NH)₃(H₂O)₃]⁻ ions along [010]
NaCo[(PO₂NH)₃]₂}·7H₂O [13]	P $\bar{1}$	a = 10.207(3) Å b = 9.253(2) Å c = 9.530(2) Å α = 116.00(5)° β = 97.61(3)° γ = 103.17(5)°	CoO₆ octahedra with O atoms from 4 anions and 2 water or from 2 anions and 4 water molecules; (Na coordination not given in literature)	chains of comple X[Co(PO₂NH)₃(H₂O)₃]⁻ ions along [010]
Na₄{Cu[(PO₂NH)₃]₂}·10H₂O [13]	P $\bar{1}$	a = 9.1251(6) Å b = 9.3214(6) Å c = 9.6610(6) Å α = 94.840(5)° β = 108.652(6)° γ = 118.588(6)°	distorted CuO₆ bipyramids with O atoms from 4 anions and 2 water molecules; Na: distorted octahedra with O atoms from 2 anions and 4 water or trigonal bipyramidal coordination with O atoms from 2 anions and 3 water molecules	chains of complex {Cu[(PO₂NH)₃]₂}⁴⁻ ions along [010]
Na₄{Hf(μ-O)(μ₄-OH)₆ [(PO₂NH)₃]₄}·18H₂O [15]	Pa $\bar{3}$	a = 22.678(3) Å	HfO₄ tetrahedra with O atoms from anions; NaO₆ octahedra with O atoms from 3 anions and 3 water or sevenfold coordination with O atoms from 2 anions and 5 water molecules	complex {Hf(μ-O)(μ₄-OH)₆ [(PO₂NH)₃]₄}⁴⁻ ions forming a 3D network
Na₄{Hf(μ-O)(μ₄-OH)₆ [(PO₂NH)₃]₄}·21H₂O [8]	R $\bar{3}$	a = 14.350(2) Å c = 50.348(10) Å	HfO₄ tetrahedra with O atoms from anions; NaO₆ octahedra with O atoms from 3 anions and 3 water or from 2 anions and 4 water molecules	bilayers of complex {Hf(μ-O)(μ₄-OH)₆ [(PO₂NH)₃]₄}⁴⁻ ions in (001) plane
Na₄{Zr(μ-O)(μ₄-OH)₆ [(PO₂NH)₃]₄}·18H₂O [8]	Pa $\bar{3}$	a = 22.693(3) Å	ZrO₄ tetrahedra with O atoms from anions; NaO₆ octahedra with O atoms from 3 anions and 3 water or sevenfold coordination with O atoms from 2 anions and 5 water molecules	complex {Zr(μ-O)(μ₄-OH)₆ [(PO₂NH)₃]₄}⁴⁻ ions forming a 3D network
Na₄{Zr(μ-O)(μ₄-OH)₆ [(PO₂NH)₃]₄}·21H₂O [8]	R $\bar{3}$	a = 14.303(2) Å c = 50.284(10) Å	ZrO₄ tetrahedra with O atoms from anions; NaO₆ octahedra with O atoms from 3 anions and 3 water or from 2 anions and 4 water molecules	bilayers of complex {Zr(μ-O)(μ₄-OH)₆ [(PO₂NH)₃]₄}⁴⁻ ions in (001) plane
NaCa(PO₂NH)₃⋅8H₂O [8]	P2₁/c	a = 7.8138(16) Å b = 6.8026(14) Å c = 29.693(6) Å β = 92.18(3)°	Ca: seven-fold coordination to 5 anions and 2 water molecules; Na(H₂O)₆ octahedra	bilayers parallel (001) of anion stacks along [010]
NaCa(PO₂NH)₃⋅4H₂O [6]	R $\bar{3}$	a = 17.863(3) Å c = 20.548(4) Å	Ca: seven-fold coordination to 6 anions and 1 water molecule; NaO₆ octahedra with all O atoms from anions	anions interconnected by Ca²⁺ and H bonds form zeolite-like framework
NaCa(PO₂NH)₃ [6]	P2₁3	a = 9.34023(10) Å	distorted CaO₆ and NaO₆ octahedra	cubic arrangement of anions that form no stacks
K₆{Cu₃[(PO₂NH)₃]₄}·6H₂O [6]	P $\bar{1}$	a = 8.498(2) Å b = 9.552(2) Å c = 13.222(3) Å α = 86.72(3)° β = 75.09(3)° γ = 70.95(3)°	Cu²⁺: square-pyramidal and octahedral coordination with all O atoms from anions; K: seven- or tenfold coordination by O/N from anions and water molecules	alternating stacks of {Cu[(PO₂NH)₃]₂}⁴⁻ and {Cu₂[(PO₂NH)₃]₂·2H₂O}⁴⁻ complex ions along [10 $\bar{1}$ ]
Na₃{Al[(PO₂NH)₃]₂}⋅12H₂O [6]	P $\bar{1}$	a = 8.6824(15) Å b = 8.7399(16) Å c = 9.1973(14) Å α = 82.131(12)° β = 86.692(9)° γ = 87.505(12)°	AlO₆ octahedra with all O atoms from anions; NaO₆ octahedra with O atoms from 1 anion and 5 water molecules	honeycomb-like arrangement of chains of {Al[(PO₂NH)₃]₂}³⁻ ions along [111]
Na₃{Fe[(PO₂NH)₃]₂}⋅12H₂O [6]	P $\bar{1}$	a = 8.7584(4) Å b = 8.7283(3) Å c = 9.2182(4) Å α = 82.286(3)° β = 86.240(4)° γ = 88.365(3)°	FeO₆ octahedra with all O atoms from anions; NaO₆ octahedra with O atoms from 1 anion and 5 water molecules	honeycomb-like arrangement of chains of {Al[(PO₂NH)₃]₂}³⁻ ions along [111]
Na₃{Ga[(PO₂NH)₃]₂}⋅12H₂O [22]	P $\bar{1}$	a = 8.729(5) Å b = 9.902(5) Å c = 8.716(5) Å α = 97.84(2)° β = 87.88(2)° γ = 93.45(2)°	GaO₆ octahedra with all O atoms from anions; NaO₆ octahedra with O atoms from 1 anion and 5 water or from 6 water molecules	hexagonal pattern of chains of complex {Ga[(PO₂NH)₃]₂}³⁻ ions along [111]

Table 2. Results of the SCXRD refinement.

Sum Formula	(NH₄)H₂(PO₂NH)₃
Formula weight	254.02
Temperature (°C)	25
Crystal system	monoclinic
Space group	P2₁/c (no. 14)
Lattice parameters (Å, °)	a = 10.2511(5) b = 14.0170(9) c = 11.9423(7) β = 101.633(3)
V (Å³)	1680.74(17)
$ρ_{calc} (\frac{g}{c m^{3}})$	2.008
Z	8
F(000)	1040
Wave length (Å)	0.500
No. of reflections (unique)	31,031 (4152)
R_int	0.0758
R_σ	0.0388
μ (mm⁻¹)	0.271
Absorption correction	semiempirical [26]
No. of parameters	290
Weighting scheme	$[σ^{2} ({F_{o}}^{2}) + (0.0482 P)^{2} + 0.4430 P]^{- 1} P = \frac{M a x (F_{o}^{2}) + 2 \cdot F_{c}^{2}}{3}$
R1/wR2 [I > 2σ (I)]	0.0291/0.0831
R1/wR2 (all reflections)	0.0302/0.0844
GooF	1.073
$\min . / \max . electron residue (\frac{e}{Å^{3}})$	−0.53/0.47
