Non-Flammable Dual-Salt Deep Eutectic Electrolyte for High-Voltage Lithium Metal Battery

by
Wanbao Wu
1,†,
Qing Li
2,†,
Miaomiao Cao
1,
Deping Li
3,
Jingyu Lu
4,
Mingyu Li
1 and
Jiaheng Zhang
1,*
1
Research Centre of Printed Flexible Electronics, School of Materials Science and Engineering, Harbin Institute of Technology (Shenzhen), Shenzhen 518055, China
2
Department of Materials Science and Engineering, Southern University of Science and Technology, Shenzhen 518055, China
3
State Key Laboratory of Advanced Welding and Joining, School of Materials Science and Engineering, Harbin Institute of Technology (Shenzhen), Shenzhen 518055, China
4
School of Science, Harbin Institute of Technology (Shenzhen), Shenzhen 518055, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Crystals 2022, 12(9), 1290; https://doi.org/10.3390/cryst12091290
Submission received: 23 August 2022 / Revised: 10 September 2022 / Accepted: 11 September 2022 / Published: 13 September 2022
(This article belongs to the Special Issue Advanced Technologies in Lithium-Ion Batteries)
Browse Figures
Versions Notes

Abstract

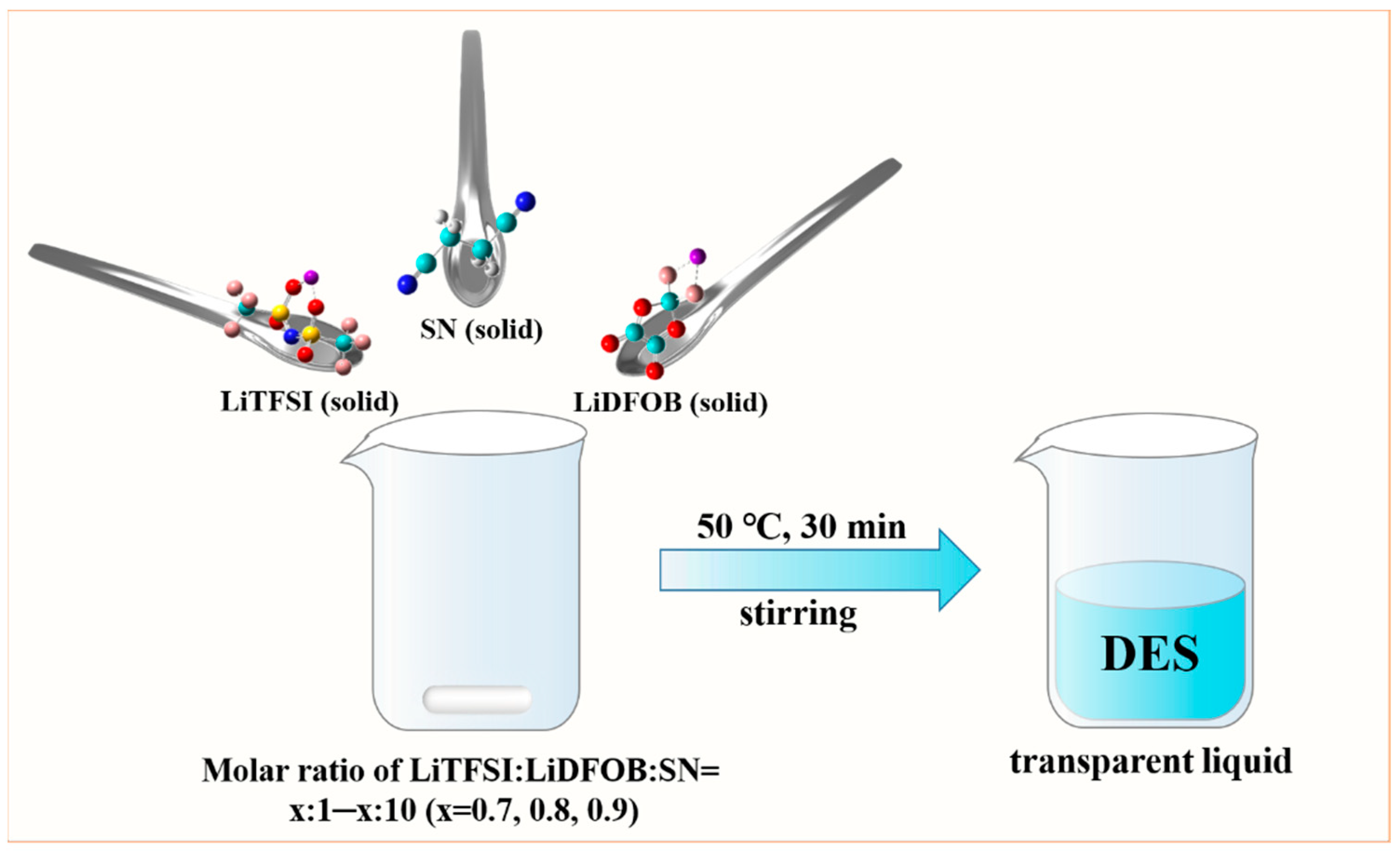

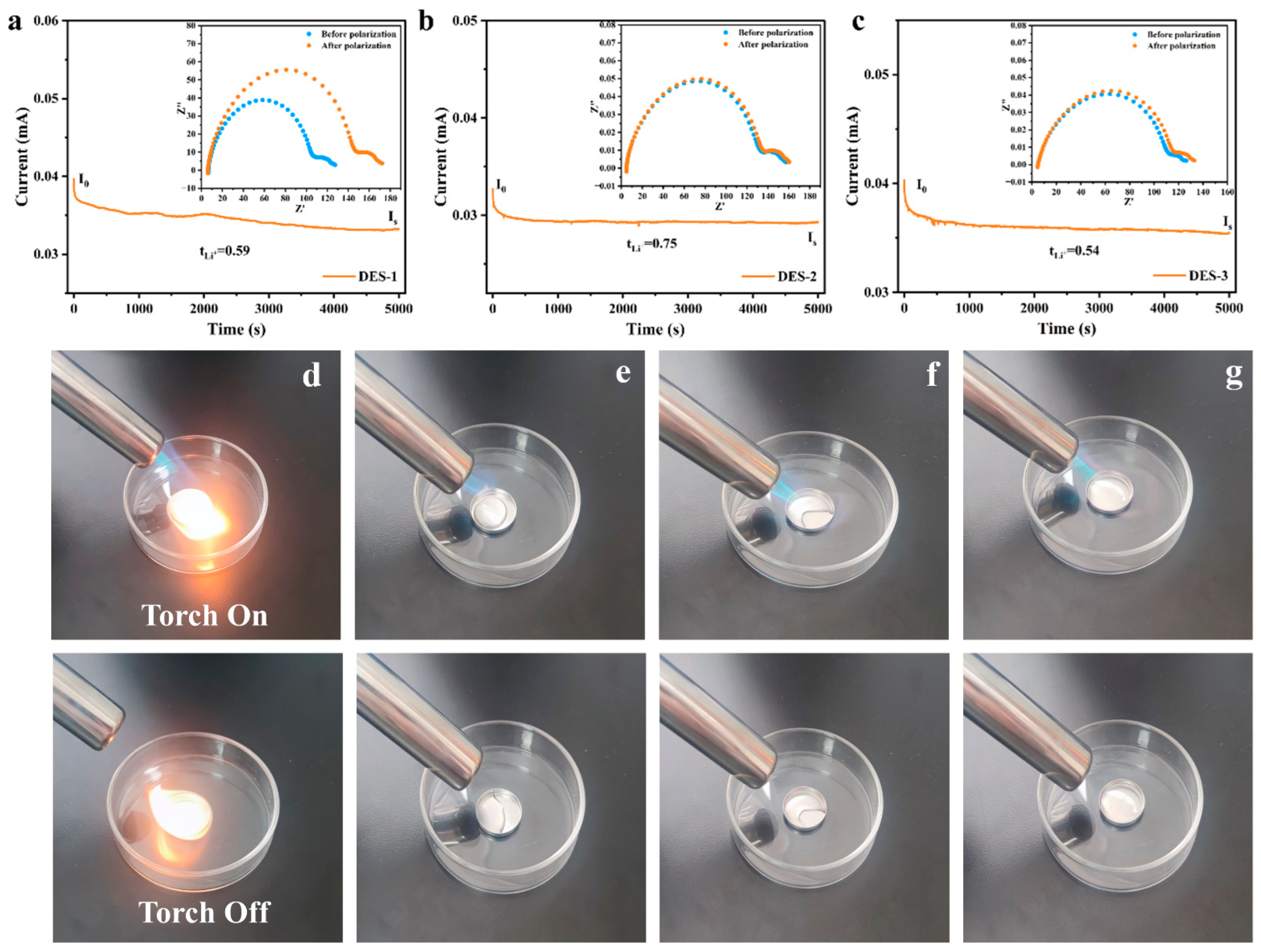

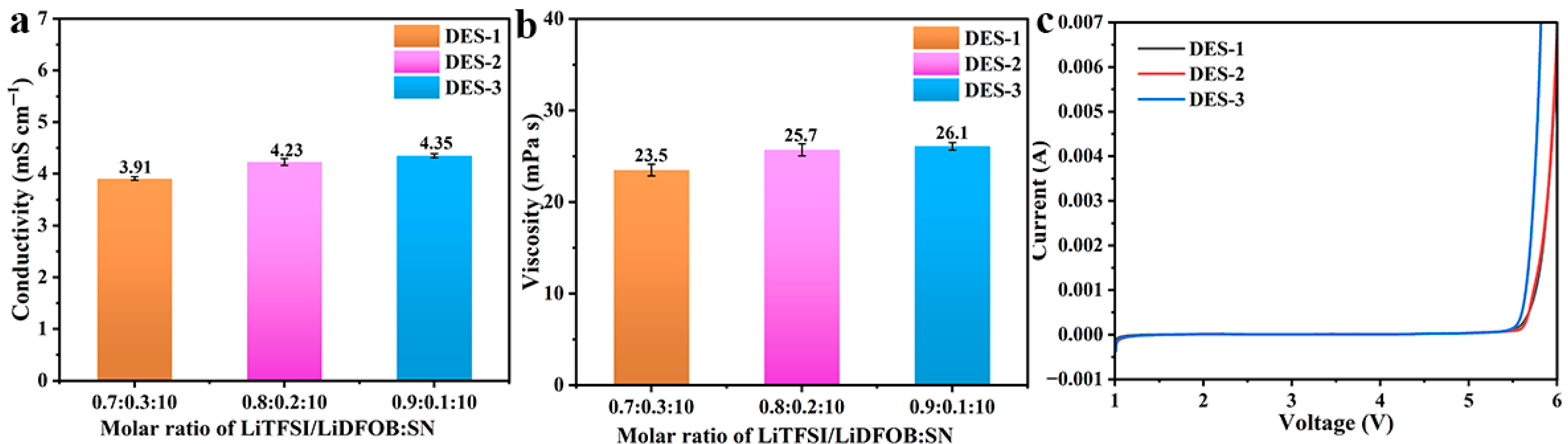

The application of high voltage cathode electrode materials is an effective way to increase the energy density of batteries. However, the development and design of a stable electrolyte at high voltages needs to be further addressed. Herein, we developed a non-flammable dual-salt deep eutectic solvent (DES) as a safe electrolyte containing LiTFSI, LiDFOB, and succinonitrile in different molar ratios. This non-flammable DES provides high ionic conductivity (4.23 mS cm−1) at 25 °C, high Li+ transference number (0.75), and wide electrochemical stability (>5.5 V). When using the designed DES electrolytes in high voltage LiCoO2||Li cells, superior electrochemical performance was achieved at cut-off voltages of 3.0–4.45 V and 3.0–4.6 V, even at a high current density of 2 C. This work offers an in-depth understanding of the critical role of dual-salts in DES and provides an approach to designing safe electrolytes for high voltage LiCoO2||Li cells.
Keywords: non-flammable; high Li+ transference number; deep eutectic solvent; high voltage LCO; lithium metal battery non-flammable; high Li+ transference number; deep eutectic solvent; high voltage LCO; lithium metal battery
