Article

Hyperbolic Behavior and Antiferromagnetic Order in Rare-Earth Tellurides

Department of Physics and Astronomy, California State University, Los Angeles, CA 90032, USA
*
Author to whom correspondence should be addressed.
Crystals 2022, 12(12), 1839; https://doi.org/10.3390/cryst12121839
Submission received: 15 November 2022 / Revised: 13 December 2022 / Accepted: 14 December 2022 / Published: 16 December 2022
(This article belongs to the Special Issue Intermetallic Compound (Volume II))

Abstract

:
Quasi-2D materials have received much attention in recent years for their unusual physical properties. Among the most investigated of these materials are the rare-earth tellurides, which are primarily studied because they exhibit charge density waves and other quantum phenomena and have a high degree of tunability. In this paper, we examine the optical and magnetic properties of several rare-earth tellurides and find that they are antiferromagnetic materials with hyperbolic dispersion. Hyperbolic materials have very promising applications in sub-diffraction-limit optics, nanolithography, and spontaneous emission engineering, but these applications are hampered by low-quality hyperbolic materials. Rare-earth tellurides may provide insight into solving these issues if their properties can be properly tuned using the large variety of techniques already explored in the literature.

1. Introduction

Rare-earth tritellurides (RTe 3 ) are layered materials that have been widely studied due to the numerous quantum states they exhibit, including charge density waves, magnetic ordering, and superconductivity. In particular, scientists have been interested in the charge density wave (CDW) states of RTe 3 and how CDW states interact and coexist with other quantum states [1]. While other materials exhibit all these quantum states, heightened interest in RTe 3 stems from the fact that their properties can be tuned through the application of pressure [2], varying the rare-earth ion, and intercalation of guest atoms [3] or molecules [4] in the gaps between Te layers. These gaps are referred to as Van der Waals (VdW) gaps because the layers are weakly bound together with Van der Waals forces [5], similar to graphite. In this work, we report first-principles calculations of the magnetic and optical properties of some representative rare-earth tritellurides (ErTe 3 and SmTe 3 ) and ditellurides (ErTe 2 and SmTe 2 ).
RTe 3 (space group 63: Cmcm) has a weakly orthorhombic structure [6], meaning two lattice parameters are nearly equal (a ≈ c ≠ b, where b is perpendicular to the layers), with double layers of square Te sheets (sometimes referred to as tellurene). The VdW gap occurs in the space between the two Te layers, which make up the double layer. These Te double layers alternate with double layers of rare-earth telluride (RTe). These two RTe layers can also be viewed as four square layers of a single atom type. From lowest to highest (see Figure 1a), these layers are RE, Te, Te, and RE. However, the distance between the first and second (or third and fourth) layer is very small, typically less than 1 Å, so they are conventionally viewed as a single puckered layer [7]. In these puckered layers, one RE lies at the center of four nearest neighbor Te ions. As can be seen in Figure 1a, the unit cell of RTe 3 has two blocks. The first block consists of an RTe double-layer sandwiched between two Te layers, while the second block is obtained from the first by a translation with the vector 1 2 a + 1 2 b .
A closely related group of materials are the tetragonal rare-earth ditellurides (RTe 2 ). RTe 2 (see Figure 1b) also contains RTe double layers with a structure similar to that in RTe 3 , but these alternate with single layers of square Te, so that there is no VdW gap [8]. In RTe 2 , the long axis, perpendicular to the layers, is conventionally taken as c, while in RTe 3 it is b.
Conduction of electrons in RTe 3 occurs mainly in the square Te layers of rare-earth tellurides, while the puckered RTe layers do not significantly contribute to the conductivity [9]. This motivated a 2d tight-binding model of the electronic band structure, incorporating the p x and p y orbitals of Te [10,11]. The Fermi surface produced by this model is very similar to that measured using angle-resolved photoemission spectroscopy (measured for R = La, Ce, Sm, Gd, Tb, and Dy) [12] and those calculated for LaTe 3 using density functional theory (DFT) [13]. This same tight-binding model has also been applied to RTe 2 [14], giving somewhat reasonable agreement with ARPES measurements in LaTe 1.95 and CeTe 2 [15]. Some evidence that this model may be appropriate was provided when resistivity measurements showed that CeTe 2 was metallic in the plane of the layers and semiconducting perpendicular to the layers [16].
Most rare-earth atoms have unpaired, highly localized 4f electrons, indicating that crystals containing them are likely to have a ferromagnetic or antiferromagnetic ground state. Antiferromagnetism (AFM) occurs when the spins of the magnetic atoms in a material exhibit a regular pattern, but the total magnetic moment adds up to zero, even within a very small volume of the crystal. Unlike ferromagnetism, AFM can lead to several possible arrangements of spin. The long range magnetic orders of RTe 3 were investigated by Ru et al. [17] using magnetic susceptibility and specific heat measurements above 1.8 K for various RTe 3 compounds. All RTe 3 compounds, except those with R = La, Pr, Er, and Tm, were found to exhibit AFM below a maximum Neel temperature (the temperature at which an AFM transition takes place) of about 11 K. La is nonmagnetic, while previous work suggests PrTe 3 has a singlet ground state [18]. The remaining structures, ErTe 3 and TmTe 3 , may have an AFM ground state with a Neel temperature below 1.8 K. AFM states have also been observed for GdTe 2 below 9.8 K [19] and CeTe 2 below 4 K [20], while PrTe 2 and LaTe 2 again were found to be nonmagnetic. The magnetic and electronic properties of GdTe 3 have also been investigated using the VASP DFT code, which confirmed an AFM ground state [21]. The electronic band structures of LaTe 3 and NdTe 3 have been calculated [22] using the Quantum Espresso DFT code, while those of YTe 3 were calculated [3] with VASP. Both VASP [23] and Quantum Espresso [24] use plane waves to expand the wave function of valence electrons, and a pseudopotential to represent the interaction of the valence electrons with core electrons.
Rare-earth tellurides are uniaxial anisotropic materials, meaning symmetry is broken along one of the crystal axes. The interactions of these materials with light depend on the direction of the incident light. This causes the dielectric constant to become a dielectric tensor. Since rare-earth telluride crystals are either tetragonal (RTe 2 ) or almost tetragonal (RTe 3 ), the dielectric tensor can be fully described by two components, namely ϵ x x = ϵ y y and ϵ z z , where the principal axis is assumed to be along the z-direction. The dielectric function depends on the frequency of incoming light; the dispersion equation relating the dielectric function components, frequency of light, and wave vectors for uniaxial materials is:
ω c 2 = k x 2 + k y 2 ϵ z z + k z 2 ϵ x x
where k x , k y , and k z are the wave vector components along the x-, y-, and z-axes, respectively. For many materials, this equation implies ellipsoidal surfaces of constant frequency in k-space. However, if one of the dielectric function components, ϵ x x or ϵ z z , is negative while the other component is positive, the isofrequency surfaces become hyperboloids, which are unbounded surfaces in k-space. This means that, in theory, the wave vector can become arbitrarily large in these materials [25]. This has led to research in a number of exciting applications, such as sub-diffraction-limit imaging [26], spontaneous emission engineering [27], and thermal emission engineering [28].
To understand this phenomenon and its application to RTe, we must ask under what circumstances does a material become hyperbolic? A critical feature of a metal is that its dielectric function is negative for some range of frequencies. So the requirement that either ϵ x x or ϵ z z become negative implies that the material must act as a metal in one or two directions, but as a dielectric in the other one or two. One way to accomplish this is by stacking an alternating sequence of metal and dielectric layers. The layers should have a thickness much smaller than the wavelengths of light under consideration, so that the composite material (known as metamaterial) is approximately homogeneous. In this configuration, the material is metallic in the plane of the layers, but not perpendicular to it. This is referred to as a multilayer hyperbolic metamaterial (HMM). Since the material is metallic in two directions, it produces a hyperboloid of one sheet in k-space, referred to as a type 1 HMM. Another option is to take conducting nanowires and insulate them from each other by embedding them in dielectric [29]. Clearly, this makes the material metallic only in the direction along the nanowires. This produces a hyperboloid of two sheets in k-space, which makes it a type 2 HMM (see Figure 2).
Not all hyperbolic materials need to be engineered in this way. It turns out that there are a number of naturally-occurring materials that meet the requirements for hyperbolic dispersion, including graphite, cuprates, ruthenates, bismuth, sapphire, and hexagonal boron nitride [30]. Graphite, for instance, is a layered material that is known to be able to conduct electrons within the plane of its graphene sheets, but this conduction cannot occur between the layers, because the electrons cannot easily jump across the VdW gap. These are exactly the conditions required for hyperbolic dispersion, and in fact, graphite is hyperbolic for a small range of frequencies in the ultraviolet regime [31]. Cuprates are known to conduct electrons within their copper oxide planes, but not between the planes and, therefore, not in the direction perpendicular to these planes, making them give hyperbolic dispersion [32]. Most of the naturally-occurring hyperbolic materials exhibit hyperbolic behavior in the infrared region [33]. The layered structure of rare-earth tellurides, with conducting tellurium layers separated by nonconducting layers, makes them possible candidates for displaying optical hyperbolic behavior.
The optical properties of RTe 3 (with R = La, Ce, Nd, Sm, Gd, Tb, Dy) and RTe 2 (with R = La, Ce) have been investigated through reflectivity measurements by Sacchetti and Lavagnini [9,34,35,36]. These measurements were primarily concerned with investigating the CDW phase and its dependence on pressure. For this reason, only the interactions with incident light perpendicular to the plane of the layers were studied, and the full, two-component, frequency-dependent dielectric tensor remains unknown.
By calculating the total energy of ferromagnetic (FM) and various possible AFM spin configurations, we find that the ground states, in all four compounds, exhibit an antiferromagnetic order. We also performed optical properties calculations, which predict that all four compounds show hyperbolic behavior in a frequency range extending from the infrared into the visible region.

2. Methods

Both the electronic and optical properties were calculated using Wien2k, an all-electron, full-potential, linearized, augmented plane wave DFT code [37]. Wien2k approximates the electronic wave function using a “muffin-tin” method, in which space is divided into two regions. One region consists of the inside of non-overlapping spheres surrounding the nuclei, while the other is the interstitial region between the spheres. Within the spheres, the wave function is expanded in spherical harmonics up to l m a x = 10 . In the interstitial region, the wave function is expanded in terms of plane waves up to a maximum wave vector K m a x , which is chosen so that K m a x R M T m i n = 9 , where R M T m i n is the smallest muffin-tin radius in the unit cell. The electron density is Fourier expanded in the interstitial region with a wave vector cutoff of 14 / a 0 , where a 0 is the Bohr radius. Inside the spheres, it is expanded in a product of radial functions and lattice harmonics with l m a x = 6 . The electronic exchange and correlation were treated using the generalized gradient approximation (GGA) and Perdew–Burke–Ernzerhof (PBE) exchange–correlation functionals [38]. In the self-consistent field calculations, integration over the Brillouin zone is replaced by a summation over a mesh of 1800 k-points within the Brillouin zone, and convergence is achieved with a tolerance of 10 4 Ry in energy and 10 3 e in charge. In carrying out the DFT calculations on RTe 2 and RTe 3 (R = Sm, Er), we used the experimental values of the lattice constants and atomic position coordinates. The lattice parameters are given in Table 1.
Because of the strong localization of electrons in the 4f orbitals of rare-earth atoms, we add an onsite Coulomb repulsion term, known as a Hubbard U term. Thus, we carry out what is known as a DFT+U calculation of the electronic and optical properties of the rare-earth tellurides. The U values are usually several electron-volts, depending on the type of ion, the localized orbitals, and the chemical environment. In our calculations, we have chosen U = 7 eV for both the samarium and erbium atoms. This is consistent with prior DFT calculations and the generally accepted U values for rare-earth atoms [21,40,41,42].
The dielectric function, absorption, optical conduction, and related quantities, collectively called the optical properties, describe the interaction of a material with light. These interactions are caused by scattering from one state to another by the perturbing potential of light. Scattering can occur within a band (if the band is partially filled) or between filled bands and partially filled or empty bands. Scattering within a band is approximated using the Drude model of free electrons with damping. The damping is characterized by the Drude term, γ , which varies by material, and may vary depending on direction in anisotropic materials. The intraband contribution to the dielectric function is
ϵ i n t r a ( ω ) = 1 ω p 2 ω 2 + i ω γ
Here, ω p is the plasma frequency, which, in cgs units, is given by 4 π n e 2 / m , where n is the free electron density and m is the effective mass of the electron [43]. It should be noted that in anisotropic materials, such as the rare-earth tellurides studied here, the effective mass is a tensor rather than a scalar; this implies that ω p is also a tensor. In the calculations reported in this work, we used a value for γ corresponding to an energy of 0.1 eV.
Interband scattering contributes to the permittivity for both metals and dielectrics. In this case, the energy of a photon is absorbed, causing an electron to jump from a valence band to a conduction band. One important consideration is that the photon wave vector is typically much smaller than the width of the Brillouin zone, so that in a transition, the electron wave vector is approximately unchanged. The interband contribution to the imaginary part of the permittivity is given by [44]:
I m [ ϵ i j i n t e r ( ω ) ] = 2 e 2 π m 2 ω 2 n , n k n k | p i | n k n k | p j | n k f ( E n k ) f ( E n k ) δ ( E n k E n k ω )
Here, f ( E ) is the Fermi distribution function, p i is the i t h component of the momentum operator, n and n are band indices, and δ ( E ) is a Dirac delta function. The optical matrix elements n k | p i | n k are related to the probability amplitude for a transition from band n to band n. This matrix element leaves the wave vector unchanged since the photon momentum is relatively small. Scattering can only occur from an occupied state to an empty one, which is taken into account by the Fermi functions. Finally, conservation of energy demands that the final energy is equal to the initial energy plus the photon energy, which is guaranteed by the delta function. Knowing the imaginary part of permittivity, the real part may be calculated using the Kramers–Kronig relations. The real and imaginary parts of permittivity are then used to calculate all other optical properties.
Because accurate calculation of the dielectric function requires many more points in the Brillouin zone, a denser mesh of 24 × 24 × 12 k-points is used. Since rare-earth atoms are heavy, we ran these calculations with the spin-orbit coupling contribution added for each material.

3. Results and Discussion

For each material, we calculated the energy of the nonmagnetic, ferromagnetic, and several AFM spin arrangements in order to find the ground state. In the ABAB interlayer AFM configuration, each layer of rare-earth atoms is all spin up or down, with spin direction alternating each layer. ABBA interlayer AFM also has each layer all spin up or down, but alternates spin direction every other layer; i.e., in this arrangement, two adjacent rare-earth layers with one spin direction are followed by two adjacent rare-earth layers with the opposite spin direction. In intralayer AFM, each layer is separately antiferromagnetic. In the stripe configuration, the spins in a row of atoms along a lattice vector are aligned, but the spin direction alternates each row (See Figure 3). In the case of RTe 3 , we calculated the energies of ABAB interlayer, intralayer, and stripes along both of the two shorter lattice vectors (a and c). For RTe 2 , we calculated the total energy for the ABAB interlayer, ABBA interlayer, and intralayer AFM configurations. Stripe AFM only applies to RTe 3 because the two shorter lattice vectors are slightly different in length, making it possible to break the symmetry along these directions. ABBA interlayer does not apply to RTe 3 because the distance between RTe double layers is large, making the interactions between atoms in one double layer with those in the adjacent double layer very weak.
The calculated total energies of the various configurations are presented in Table 2. As the table shows, the ground state is predicted to be antiferromagnetic for each of the four compounds: SmTe 2 , SmTe 3 , ErTe 2 , and ErTe 3 . As we noted in the introduction, SmTe 3 was indeed found to be antiferromagnetic at very low temperatures, while ErTe 3 did not undergo an AFM transition above 1.8 K. Our results, however, suggest that ErTe 3 should have an AFM ground state at sufficiently low temperatures. Similarly, we predict that SmTe 2 and ErTe 2 should also be antiferromagnetic at low temperatures. SmTe 3 and ErTe 3 were found to have the lowest energy in the AFM stripe configuration, with both compounds favoring stripes along the a-axis, which has the slightly shorter in-plane lattice parameter. Previous DFT calculations of the possible AFM states of GdTe 3 also found the ground state to be stripe AFM, though the stripe axis was not specified [21]. The ground states of SmTe 2 and ErTe 2 exhibited intralayer AFM. In some cases, the energy difference between the ground state and first excited state magnetic configuration was very small, on the order of meV, suggesting that these configurations may be quite unstable. The magnetic moments of Sm in both SmTe 3 and SmTe 2 were calculated to be approximately 3 μ B , where μ B is the Bohr magneton, while the moments of Er in ErTe 3 and ErTe 2 were about 5.3 μ B .
We have calculated the band structure for the ground state configuration (stripe AFM) of ErTe 3 , shown in Figure 4. The bands along the Γ Y direction, corresponding to the axis perpendicular to the layers, are notably flat. Since the electron effective mass is related to the curvature of the band, this implies a very large effective mass for the electrons along this direction, indicating that conduction along this direction is very poor, which is in good agreement with experimental observations [11]. Since ω p 2 is inversely proportional to the electron effective mass, and assuming the z-axis is perpendicular to the rare-earth and tellurium layers, this implies that ω p , x x will be considerably larger than ω p , z z , as we show later by explicit calculations.
The density of states for ErTe 3 in the stripe AFM configuration, which we predicted to be the spin state adopted at very low temperatures, is shown in Figure 5a. In this configuration, the unit cell contains four Er and twelve Te atoms; however, the crystal symmetry dictates that there are eight nonequivalent positions. Thus, each atom occupies a position that is equivalent by symmetry to the position occupied by one other atom. Hence, two Er atoms occupy two positions equivalent by symmetry, and one of these atoms is denoted Er1. The other two Er atoms also occupy another two symmetry equivalent positions, and one of these atoms is denoted Er2. A similar situation holds for the 12 Te atoms, where we identify six nonequivalent positions. In Figure 5a we plot the total density of states for stripe AFM ErTe 3 , along with the partial density derived from the two nonequivalent Er atoms and one of the Te atoms. The plot reveals that states derived from Te orbitals dominate at the Fermi level, indicating that they are the main drivers of electronic conduction. This agrees with theoretical work by DiMasi et al. [11], but is in contrast with a previous calculation of the density of states for NdTe 3 [22]. That calculation, using Quantum Espresso, found the density of states for the 4f electrons of Nd to be much larger than that of Te at the Fermi level. They theorized that this was due to hybridization between Nd 4f and Te 5p orbitals. It could be that this disparity is due to differences between the two materials. However, the different result may also be due to the fundamental differences between Wien2k and Quantum Espresso. Wien2k is an all-electron, full potential DFT code, while Quantum Espresso treats core electrons approximately using a pseudopotential.
On the other hand, the density of states for ErTe 2 (Figure 5b) shows a somewhat larger contribution from Er than Te at the Fermi level. It seems likely that this is because the quasi-2d character of RTe 2 is reduced compared with RTe 3 due to having one fewer Te layer separating the RTe layers and to the absence of a VdW gap, across which conduction is extremely difficult. As a result, conduction for RTe 3 parallel to the layers is up to 3000 times greater than that perpendicular to the layers [9], while for RTe 2 , this ratio is between roughly 50 and 100 [15]. This indicates that the tight binding model in RTE 2 , using only Te 5p orbitals, is perhaps less accurate than in the RTe 3 case, though clearly still accurate enough to be useful, given experimental results.
The results in Figure 5 were obtained without including the effect of spin-orbit coupling. Upon including this effect, the only significant change was a downshift in the energy, by about 0.5 eV, of the two peaks below about −8 eV, and a reduction in their height. We therefore concluded that spin-orbit coupling does not lead to a significant change in the electronic properties of these materials. This is consistent with prior RTe DFT calculations, which did not include this interaction and produced results that matched experimental measurements of their electronic properties [3,21,22].
We now consider the optical properties of rare-earth tellurides. As indicated earlier, the dielectric function is the sum of two parts, ϵ i n t r a and ϵ i n t e r . The first part depends on the plasma frequency which, due to the anisotropy of the crystals under study, is a tensor. Taking the axis perpendicular to the layers as the z-axis, we have ϵ x x ϵ y y ϵ z z for the weakly orthorhombic (almost tetragonal) RTe 3 crystals, and ϵ x x = ϵ y y ϵ z z for tetragonal RTe 2 crystals. Since we are interested in the optical properties of rare-earth tellurides at room temperature, and since the AFM order sets in only at very low temperatures, we calculate the optical properties of these materials in the non-magnetic phase. Expressed in energy units, the calculated plasma frequencies ω p , x x and ω p , z z are respectively given by 3.11 eV and 0.49 eV for SmTe 3 , 4.95 eV and 1.03 eV for ErTe 3 , 4.98 eV and 1.56 eV for SmTe 2 , and 5.07 eV and 1.60 eV for ErTe 2 . The large difference between the values of ω p , x x and ω p , z z is a consequence of the large anisotropy in these materials.
The calculated real parts of the components ϵ x x and ϵ z z of the dielectric functions are shown in Figure 6, while the corresponding imaginary parts are shown in Figure 7. The plots show that there are energy ranges where the real parts of ϵ x x and ϵ z z have opposite signs; this indicates that in those ranges of the spectrum, the tellurides display hyperbolic dispersion. The imaginary parts were found to be rather large in the hyperbolic range, suggesting that losses would be large if these materials were used in devices. Large losses have been a stumbling block in utilizing hyperbolic materials to their full potential [45]. However, one of the main reasons rare-earth tellurides have been so widely studied is their high degree of tunability. Perhaps these losses could be greatly reduced by tuning the number of charge carriers, their mobility, or other properties using intercalation, substitution, vacancies, or pressure. In particular, it has been shown that pressure has a large impact on the optical properties of CeTe 3 , as does varying the rare-earth ion, which can be viewed as applying chemical pressure [34]. Another study demonstrated the possibility of altering the Fermi surface and band structure of YTe 3 by intercalating Pd atoms in the VdW gap [3]. This would certainly affect the optical properties by altering the available interband transitions, while introducing charge carriers would impact the Drude permittivity. Significant Te vacancies would similarly affect the available band transitions and carrier densities. Substitution of Te atoms with Sb in RTe 2 is another possible tuning method that has been experimentally demonstrated [14]. Further study is required to determine the exact effects of these modifications on the full dielectric tensor.
Our calculations predict that all crystals studied in this work (SmTe 2 , ErTe 2 , SmTe 3 , and ErTe 3 ) display hyperbolic dispersion in the infrared to visible frequency ranges, as can be seen in Figure 8. They all exhibited type 1 hyperbolic behavior for some range of energies. This behavior is a consequence of the large anisotropy attending the electronic properties of these materials, with conductivity in the plane of the layers being much greater than that normal to the layers. For a very limited range of frequencies, however, SmTe 2 and ErTe 2 were also found to exhibit type 2 hyperbolic behavior in the ultraviolet. This further demonstrates that metallic behavior perpendicular to the layers is much more possible in RTe 2 , since electrons are not insulated by a VdW gap.
In conclusion, we have calculated the particular AFM ground states of several rare-earth tellurides, along with their electronic and optical properties, providing deeper insight into how these properties differ between RTe 2 and RTe 3 . We predict that both classes of materials are hyperbolic in the technologically important visible and infrared range, and suggest several feasible methods for altering the optical properties to suit the needs of the experimenter.

Author Contributions

Conceptualization, R.A.J.; validation, R.A.J.; investigation, R.A.J. and J.G.; resources, R.A.J.; writing—original draft preparation, J.G.; writing—review and editing, R.A.J.; visualization, J.G. All authors have read and agreed to the published version of the manuscript.

Funding

This work has been partially supported by the National Science Foundation with Awards HRD-1547723 and HRD-2112554.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

Data will be made available upon reasonable request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yumigeta, K.; Qin, Y.; Li, H.; Blei, M.; Attarde, Y.; Kopas, C.; Tongay, S. Advances in Rare-Earth Tritelluride Quantum Materials: Structure, Properties, and Synthesis. Adv. Sci. 2021, 8, 2004762. [Google Scholar] [CrossRef] [PubMed]
  2. Sacchetti, A.; Condron, C.L.; Gvasaliya, S.N.; Pfuner, F.; Lavagnini, M.; Baldini, M.; Toney, M.F.; Merlini, M.; Hanfland, M.; Mesot, J.; et al. Pressure-Induced Quenching of the Charge-Density-Wave State in Rare-Earth Tritellurides Observed by X-Ray Diffraction. Phys. Rev. B 2009, 79, 201101. [Google Scholar] [CrossRef] [Green Version]
  3. He, J.B.; Wang, P.P.; Yang, H.X.; Long, Y.J.; Zhao, L.X.; Ma, C.; Yang, M.; Wang, D.M.; Shangguan, X.C.; Xue, M.Q.; et al. Superconductivity in Pd-Intercalated Charge-Density-Wave Rare Rarth Poly-Tellurides RETen. Supercond. Sci. Technol. 2016, 29, 065018. [Google Scholar] [CrossRef] [Green Version]
  4. Malliakas, C.D.; Kanatzidis, M.G. Charge Density Waves in the Square Nets of Tellurium of AMRETe4 (A = K, Na; M = Cu, Ag; RE = La, Ce). J. Am. Chem. Soc. 2007, 129, 10675. [Google Scholar] [CrossRef] [PubMed]
  5. Lei, S.; Lin, J.; Jia, Y.; Gray, M.; Topp, A.; Farahi, G.; Klemenz, S.; Gao, T.; Rodolakis, F.; McChesney, J.L.; et al. High Mobility in a Van der Waals Layered Antiferromagnetic Metal. Sci. Adv. 2020, 6, eaay6407. [Google Scholar] [CrossRef] [Green Version]
  6. Norling, B.K.; Steinfink, H. The Crystal Structure of Neodymium Tritelluride. Inorg. Chem. 1966, 5, 1488. [Google Scholar] [CrossRef]
  7. Malliakas, C.D.; Kanatzidis, M.G. Divergence in the Behavior of the Charge Density Wave in RETe3 (RE = Rare-Earth Element) with Temperature and RE Element. J. Am. Chem. Soc. 2006, 128, 12612. [Google Scholar] [CrossRef]
  8. Pardo, M.P.; Flahaut, J.; Domange, L. Chimie Minerale-Les Tellurures des Elements des Terres Rares de Formule Generale MTe2. C. R. Hebd. Seances L’Academie des Sci. 1963, 256, 953. [Google Scholar]
  9. Sacchetti, A.; Degiorgi, L.; Giamarchi, T.; Ru, N.; Fisher, I.R. Chemical Pressure and Hidden One-Dimensional Behavior in Rare-Earth Tri-Telluride Charge-Density Wave Compounds. Phys. Rev. B 2006, 74, 125115. [Google Scholar] [CrossRef] [Green Version]
  10. Brouet, V.; Yang, W.L.; Zhou, X.J.; Hussain, Z.; Ru, N.; Shin, K.Y.; Fisher, I.R.; Shen, Z.X. Fermi Surface Reconstruction in the CDW State of CeTe3 Observed by Photoemission. Phys. Rev. Lett. 2004, 93, 126405. [Google Scholar] [CrossRef] [Green Version]
  11. DiMasi, E.; Foran, B.; Aronson, M.C.; Lee, S. Quasi-Two-Dimensional Metallic Character of Sm2Te5 and SmTe3. Chem. Mater. 1994, 6, 1867. [Google Scholar] [CrossRef]
  12. Brouet, V.; Yang, W.L.; Zhou, X.J.; Hussain, Z.; Moore, R.G.; He, R.; Lu, D.H.; Shen, Z.X.; Laverock, J.; Dugdale, S.B.; et al. Angle-Resolved Photoemission Study of the Evolution of Band Structure and Charge Density Wave Properties in RTe3 (R = Y, La, Ce, Sm, Gd, Tb, and Dy). Phys. Rev. B 2008, 77, 235104. [Google Scholar] [CrossRef] [Green Version]
  13. Pariari, A.; Koley, S.; Roy, S.; Singha, R.; Laad, M.S.; Taraphder, A.; Mandal, P. Interplay Between Charge Density Wave Order and Magnetic Field in the Nonmagnetic Rare-Earth Tritelluride LaTe3. Phys. Rev. B 2021, 104, 155147. [Google Scholar] [CrossRef]
  14. DiMasi, E.; Foran, B.; Aronson, M.C.; Lee, S. Stability of Charge-Density Waves Under Continuous Variation of Band Filling in LaTe2-xSbx (0 ≤ x ≤ 1). Phys. Rev. B 1996, 54, 13587. [Google Scholar] [CrossRef] [PubMed]
  15. Shin, K.Y.; Brouet, V.; Ru, N.; Shen, Z.X.; Fisher, I.R. Electronic Structure and Charge-Density Wave Formation in LaTe1.95 and CeTe2.00. Phys. Rev. B 2005, 72, 085132. [Google Scholar] [CrossRef]
  16. Kwon, Y.S.; Min, B.H. Anisotropic Transport Properties in RTe2 (R: La, Ce, Pr, Sm and Gd). Physica B Condens. Matter 2000, 281–282, 120. [Google Scholar] [CrossRef]
  17. Ru, N.; Chu, J.-H.; Fisher, I.R. Magnetic Properties of the Charge Density Wave Compounds RTe3 (R = Y, La, Ce, Pr, Nd, Sm, Gd, Tb, Dy, Ho, Er, and Tm). Phys. Rev. B 2008, 78, 012410. [Google Scholar] [CrossRef] [Green Version]
  18. Iyeiri, Y.; Okumura, T.; Michioka, C.; Suzuki, K. Magnetic Properties of Rare-Earth Metal Tritellurides RTe3 (R = Ce, Pr, Nd, Gd, Dy). Phys. Rev. B 2003, 67, 144417. [Google Scholar] [CrossRef]
  19. Shin, Y.S.; Han, C.W.; Min, B.H.; Lee, H.J.; Choi, C.H.; Kim, Y.S.; Kim, D.L.; Kwon, Y.S. Anisotropic Magnetization in RTe2 (R: Ce, Pr, Gd and Sm). Phys. B Condens. Matter 2000, 291, 225. [Google Scholar] [CrossRef]
  20. Kwon, Y.S.; Park, T.S.; Lee, K.R.; Kim, J.M.; Haga, Y.; Suzuki, T. Transport and Optical Properties of CeTe2. J. Magn. Magn. Mater. 1995, 140–144, 1173. [Google Scholar] [CrossRef]
  21. Xu, Z.; Ji, S.-H.; Tang, L.; Wu, J.; Li, N.; Cai, X.; Chen, X. Molecular Beam Epitaxy Growth and Electronic Structures of Monolayer GdTe3. Chin. Phys. Lett. 2021, 38, 077102. [Google Scholar] [CrossRef]
  22. Hong, Y.; Wei, Q.; Liang, X.; Lu, W. Origin and Strain Tuning of Charge Density Wave in LaTe3. Phys. B Condens. Matter 2022, 639, 413988. [Google Scholar] [CrossRef]
  23. Kresse, G.; Furthmüller, J. Efficient Iterative Schemes for Ab Initio Total-Energy Calculations Using a Plane-Wave Basis Set. Phys. Rev. B 1996, 54, 11169. [Google Scholar] [CrossRef] [PubMed]
  24. Giannozzi, P.; Baroni, S.; Bonini, N.; Calandra, M.; Car, R.; Cavazzoni, C.; Ceresoli, D.; Chiarotti, G.L.; Cococcioni, M.; Dabo, I.; et al. QUANTUM ESPRESSO: A Modular and Open-Source Software Project for Quantum Simulations of Materials. J. Phys. Condens. Matter 2009, 21, 395502. [Google Scholar] [CrossRef] [PubMed]
  25. Ferrari, L.; Wu, C.; Lepage, D.; Zhang, X.; Liu, Z. Hyperbolic Metamaterials and Their Applications. Prog. Quantum Electron. 2015, 40, 1. [Google Scholar] [CrossRef]
  26. Jacob, Z.; Alekseyev, L.V.; Narimanov, E. Optical Hyperlens: Far-Field Imaging Beyond the Diffraction Limit. Opt. Express 2006, 14, 8247. [Google Scholar] [CrossRef] [Green Version]
  27. Kidwai, O.; Zhukovsky, S.V.; Sipe, J.E. Effective-Medium Approach to Planar Multilayer Hyperbolic Metamaterials: Strengths and Limitations. Phys. Rev. A 2012, 85, 053842. [Google Scholar] [CrossRef]
  28. Guo, Y.; Cortes, C.L.; Molesky, S.; Jacob, Z. Broadband Super-Planckian Thermal Emission from Hyperbolic Metamaterials. Appl. Phys. Lett. 2012, 101, 131106. [Google Scholar] [CrossRef] [Green Version]
  29. Guo, Z.; Jiang, H.; Chen, H. Hyperbolic Metamaterials: From Dispersion Manipulation to Applications. J. Appl. Phys. 2020, 127, 071101. [Google Scholar] [CrossRef] [Green Version]
  30. Korzeb, K.; Gajc, M.; Pawlak, D.A. Compendium of Natural Hyperbolic Materials. Opt. Express 2015, 23, 25406. [Google Scholar] [CrossRef]
  31. Sun, J.; Zhou, J.; Li, B.; Kang, F. Indefinite Permittivity and Negative Refraction in Natural Material: Graphite. Appl. Phys. Lett. 2011, 98, 101901. [Google Scholar] [CrossRef]
  32. Nee, T.J. Anisotropic Optical Properties of YBa2Cu3O7. Appl. Phys. 1992, 71, 6002. [Google Scholar] [CrossRef]
  33. Sun, J.; Litchinitser, N.M.; Zhou, J. Indefinite by Nature: From Ultraviolet to Terahertz. ACS Photonics 2014, 1, 293. [Google Scholar] [CrossRef]
  34. Sacchetti, A.; Arcangeletti, E.; Perucchi, A.; Baldassarre, L.; Postorino, P.; Lupi, S.; Ru, N.; Fisher, I.R.; Degiorgi, L. Pressure Dependence of the Charge-Density-Wave Gap in Rare-Earth Tritellurides. Phys. Rev. Lett. 2007, 98, 026401. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Lavagnini, M.; Sacchetti, A.; Degiorgi, L.; Shin, K.Y.; Fisher, I.R. Optical Properties of the Ce and La Ditelluride Charge Density Wave Compounds. Phys. Rev. B 2007, 75, 205133. [Google Scholar] [CrossRef] [Green Version]
  36. Lavagnini, M.; Sacchetti, A.; Degiorgi, L.; Arcangeletti, E.; Baldassarre, L.; Postorino, P.; Lupi, S.; Perucchi, A.; Shin, K.Y.; Fisher, I.R. Pressure Dependence of the Optical Properties of the Charge-Density-Wave Compound LaTe2. Phys. Rev. B 2008, 77, 165132. [Google Scholar] [CrossRef] [Green Version]
  37. Blaha, P.; Schwarz, K.; Tran, F.; Laskowski, R.; Madsen, G.K.H.; Marks, L.D. WIEN2k: An APW+lo Program for Calculating the Properties of Solids. J. Chem. Phys. 2020, 152, 074101. [Google Scholar] [CrossRef] [Green Version]
  38. Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized Gradient Approximation Made Simple. Phys. Rev. Lett. 1996, 77, 3865. [Google Scholar] [CrossRef] [Green Version]
  39. Cannon, J.F.; Hall, H.T. High-Pressure, High-Temperature Syntheses of Selected Lanthanide-Tellurium Compounds. Inorg. Chem. 1970, 9, 1639. [Google Scholar] [CrossRef]
  40. Xu, G.; Wang, J.; Felser, C.; Qi, X.L.; Zhang, S.C. Quantum Anomalous Hall Effect in Magnetic Insulator Heterostructure. Nano Lett. 2015, 15, 2019. [Google Scholar] [CrossRef] [Green Version]
  41. Kozub, A.L.; Shick, A.B.; Máca, F.; Kolorenč, J.; Lichtenstein, A.I. Electronic Structure and Magnetism of Samarium and Neodymium Adatoms on Free-Standing Graphene. Phys. Rev. B 2016, 94, 125113. [Google Scholar] [CrossRef]
  42. Shick, A.B.; Shapiro, D.S.; Kolorenc, J.; Lichtenstein, A.I. Magnetic Character of Holmium Atom Adsorbed on Platinum Surface. Sci. Rep. 2017, 7, 1. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Ashcroft, N.; Mermin, N. Solid State Phys, 1st ed.; Harcourt: Fort Worth, TX, USA, 1976; pp. 16–18. [Google Scholar]
  44. Ambrosch-Draxl, C.; Sofo, J.O. Linear Optical Properties of Solids Within the Full-Potential Linearized Augmented Planewave Method. Comput. Phys. Commun. 2006, 175, 1. [Google Scholar] [CrossRef] [Green Version]
  45. Naik, G.V.; Saha, B.; Liu, J.; Saber, S.M.; Stach, E.A.; Irudayaraj, J.M.K.; Sands, T.D.; Shalaev, V.M.; Boltasseva, A. Epitaxial Superlattices with Titanium Nitride as a Plasmonic Component for Optical Hyperbolic Metamaterials. Proc. Natl. Acad. Sci. USA 2014, 111, 7546. [Google Scholar] [CrossRef] [PubMed]
Figure 1. The crystal structures of (a) RTe 3 and (b) RTe 2 . The red balls represent the rare-earth atoms, while the smaller blue balls represent the tellurium atoms. As the figure shows, RTe 3 structure consists of a stack of alternating double RTe layers and double Te layers. In RTe 2 , double RTe layers alternate with single Te layers.
Figure 1. The crystal structures of (a) RTe 3 and (b) RTe 2 . The red balls represent the rare-earth atoms, while the smaller blue balls represent the tellurium atoms. As the figure shows, RTe 3 structure consists of a stack of alternating double RTe layers and double Te layers. In RTe 2 , double RTe layers alternate with single Te layers.
Crystals 12 01839 g001

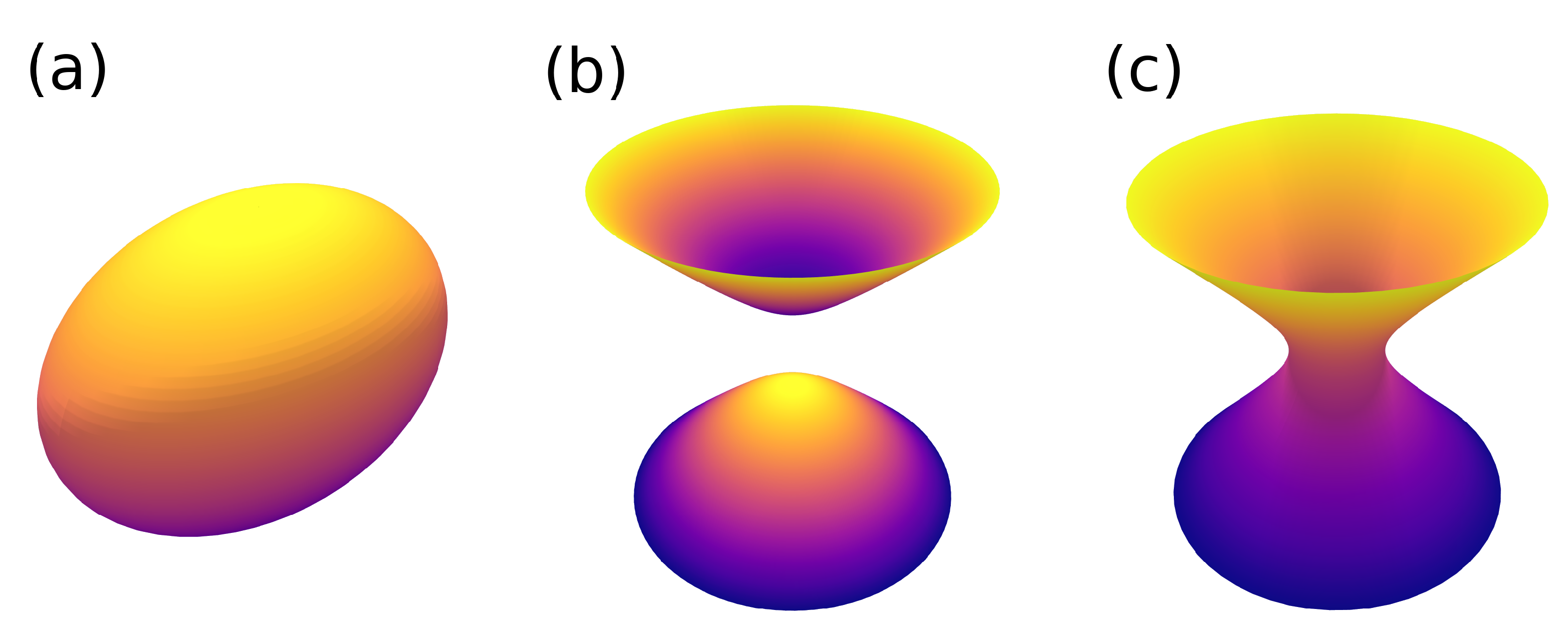

Figure 2. Possible isofrequency surfaces: (a) ellipsoidal, when ϵ x x > 0 and ϵ z z > 0 , (b) type 2 hyperbolic, with ϵ x x > 0 and ϵ z z < 0 , and (c) type 1 hyperbolic, with ϵ x x < 0 and ϵ z z > 0 .
Figure 2. Possible isofrequency surfaces: (a) ellipsoidal, when ϵ x x > 0 and ϵ z z > 0 , (b) type 2 hyperbolic, with ϵ x x > 0 and ϵ z z < 0 , and (c) type 1 hyperbolic, with ϵ x x < 0 and ϵ z z > 0 .
Crystals 12 01839 g002

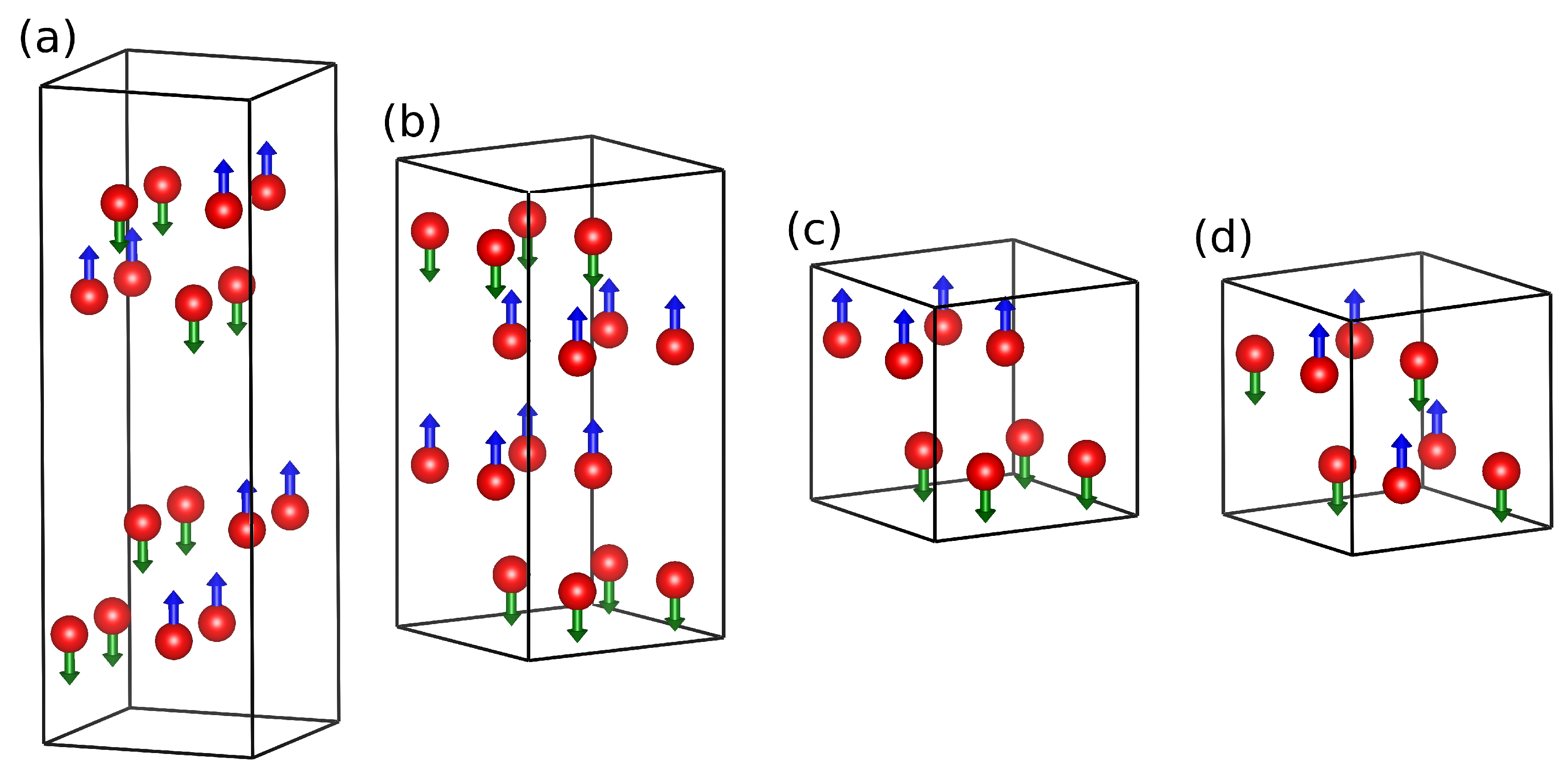

Figure 3. The possible AFM configurations of RTe (with the non-magnetic Te ions hidden): (a) stripe (only relevant for RTe 3 ), (b) ABBA interlayer (only relevant for RTe 2 ), (c) ABAB interlayer, and (d) intralayer (c and d apply to both RTe 3 and RTe 2 structures but are demonstrated here using RTe 2 ).
Figure 3. The possible AFM configurations of RTe (with the non-magnetic Te ions hidden): (a) stripe (only relevant for RTe 3 ), (b) ABBA interlayer (only relevant for RTe 2 ), (c) ABAB interlayer, and (d) intralayer (c and d apply to both RTe 3 and RTe 2 structures but are demonstrated here using RTe 2 ).
Crystals 12 01839 g003
Figure 4. (a) The 3d Brillouin zone of AFM stripe ErTe 3 , with high symmetry points labeled. Γ is at the center of the Brillouin zone, and Y is at the center of the top face. (b) The energy bands of spin-up electrons in stripe antiferromagnetic ErTe 3 , plotted along high symmetry directions in the Brillouin zone. Because ErTe 3 is AFM, the band structure plot for spin-down electrons is indistinguishable from the plot for spin-up electrons. The Fermi energy is set equal to zero and is shown as a dashed horizontal line. The colors of the bands have no significance; they are used only to make the figure clearer.
Figure 4. (a) The 3d Brillouin zone of AFM stripe ErTe 3 , with high symmetry points labeled. Γ is at the center of the Brillouin zone, and Y is at the center of the top face. (b) The energy bands of spin-up electrons in stripe antiferromagnetic ErTe 3 , plotted along high symmetry directions in the Brillouin zone. Because ErTe 3 is AFM, the band structure plot for spin-down electrons is indistinguishable from the plot for spin-up electrons. The Fermi energy is set equal to zero and is shown as a dashed horizontal line. The colors of the bands have no significance; they are used only to make the figure clearer.
Crystals 12 01839 g004

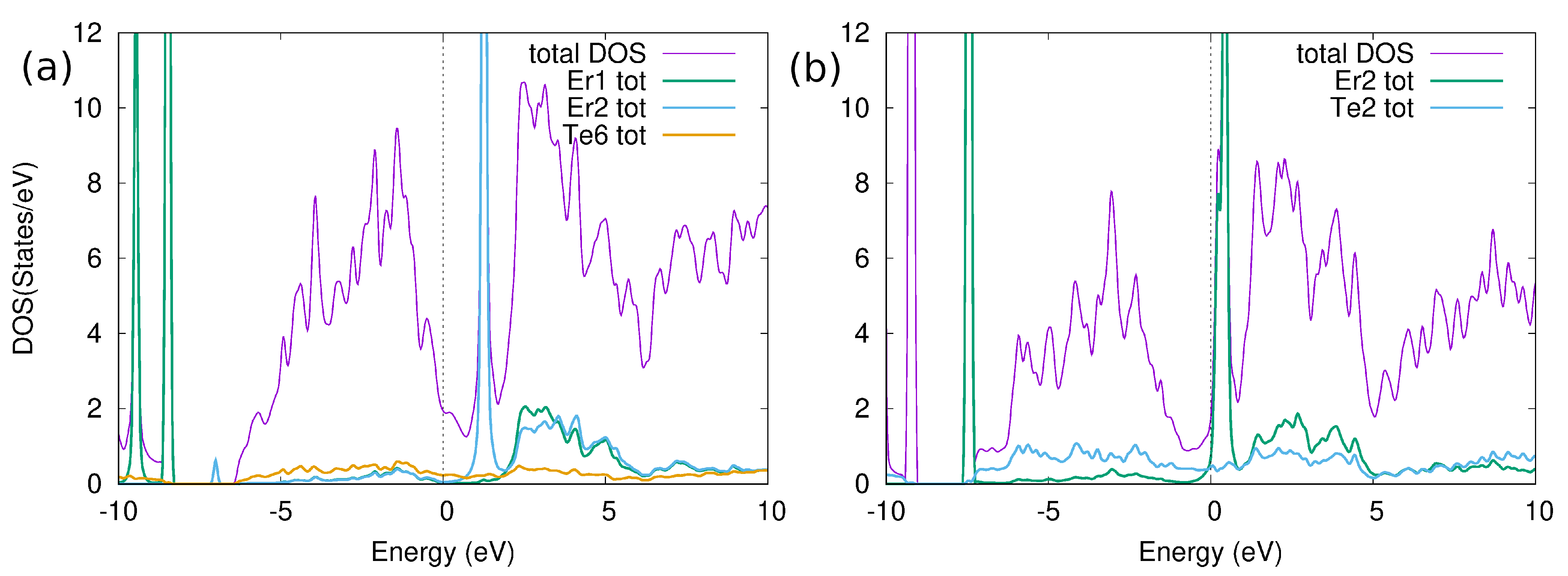

Figure 5. Total and some partial densities of spin-up states for (a) stripe antiferromagnetic ErTe 3 and (b) intralayer antiferromagnetic ErTe 2 . In the case of stripe AFM ErTe 3 , the partial densities contributed by two nonequivalent Er atoms and one Te atom are shown, along with the total density of states. In intralayer AFM ErTe 2 , the contributions of one Er atom and one Te atom are shown, along with the total density of states. The Fermi energy is set at zero energy and is shown as a vertical dotted line.
Figure 5. Total and some partial densities of spin-up states for (a) stripe antiferromagnetic ErTe 3 and (b) intralayer antiferromagnetic ErTe 2 . In the case of stripe AFM ErTe 3 , the partial densities contributed by two nonequivalent Er atoms and one Te atom are shown, along with the total density of states. In intralayer AFM ErTe 2 , the contributions of one Er atom and one Te atom are shown, along with the total density of states. The Fermi energy is set at zero energy and is shown as a vertical dotted line.
Crystals 12 01839 g005

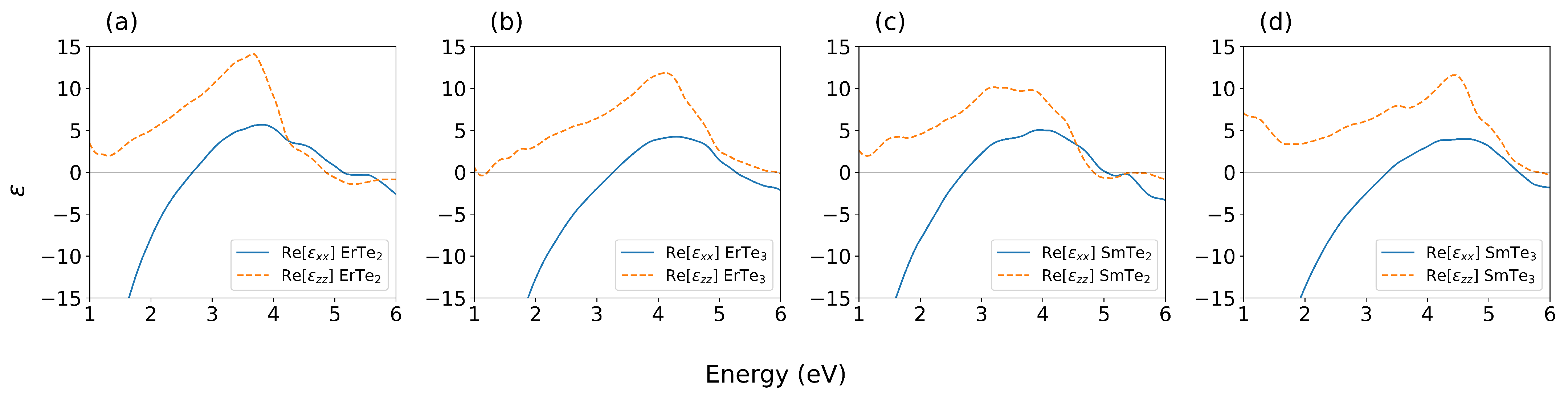

Figure 6. Real parts of the components of the dielectric function parallel ( ϵ x x ) and perpendicular ( ϵ z z ) to the layers for (a) ErTe 2 , (b) ErTe 3 , (c) SmTe 2 , and (d) SmTe 3 .
Figure 6. Real parts of the components of the dielectric function parallel ( ϵ x x ) and perpendicular ( ϵ z z ) to the layers for (a) ErTe 2 , (b) ErTe 3 , (c) SmTe 2 , and (d) SmTe 3 .
Crystals 12 01839 g006

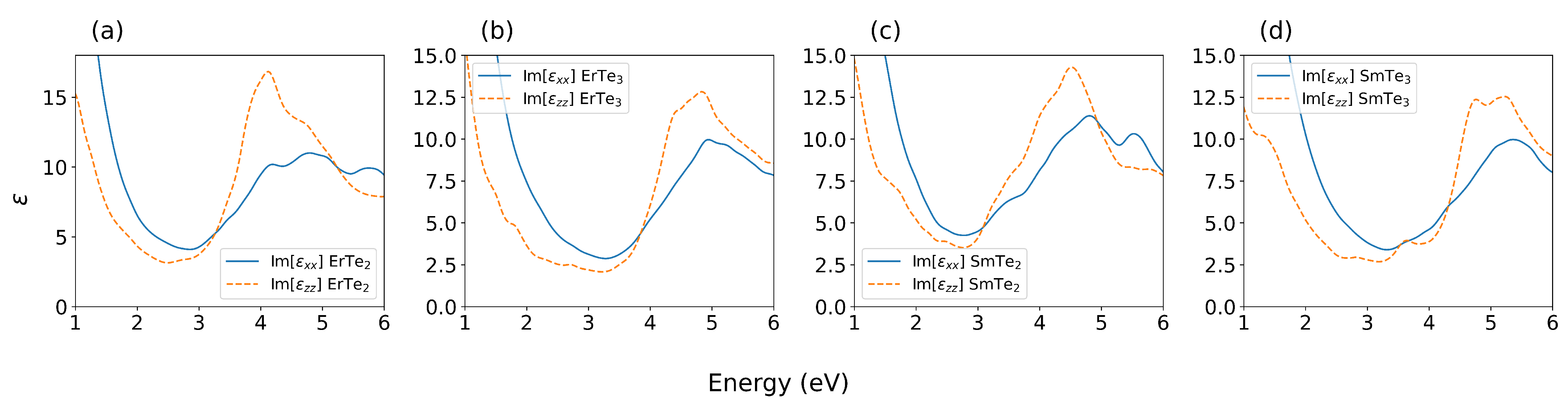

Figure 7. Imaginary parts of the components of the dielectric function parallel ( ϵ x x ) and perpendicular ( ϵ z z ) to the layers for (a) ErTe 2 , (b) ErTe 3 , (c) SmTe 2 , and (d) SmTe 3 .
Figure 7. Imaginary parts of the components of the dielectric function parallel ( ϵ x x ) and perpendicular ( ϵ z z ) to the layers for (a) ErTe 2 , (b) ErTe 3 , (c) SmTe 2 , and (d) SmTe 3 .
Crystals 12 01839 g007

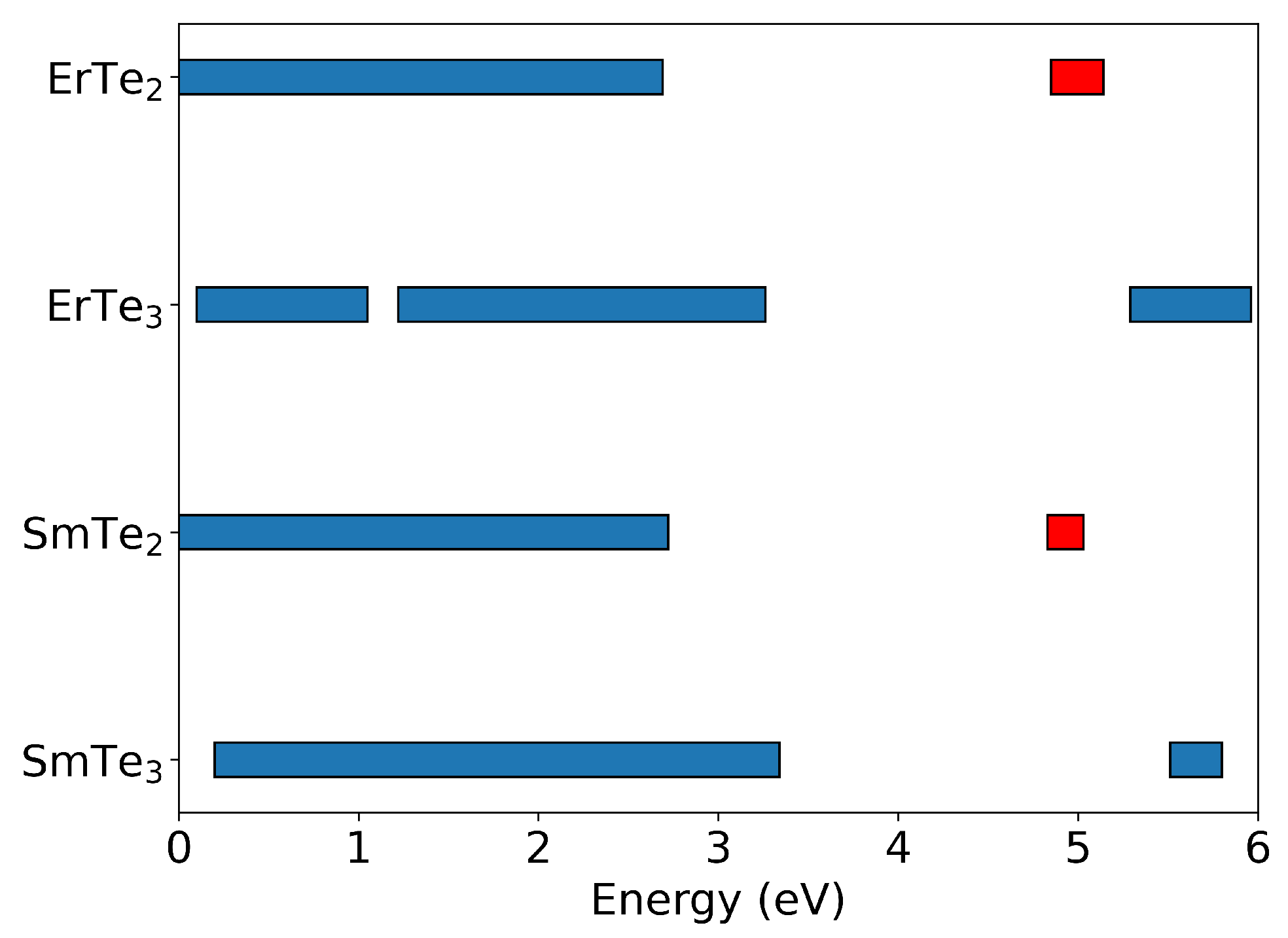

Figure 8. The energy ranges in which RTe crystals exhibit hyperbolic dispersion. The hyperbolic behavior of type 1 is shown in blue and type 2 in red.
Figure 8. The energy ranges in which RTe crystals exhibit hyperbolic dispersion. The hyperbolic behavior of type 1 is shown in blue and type 2 in red.
Crystals 12 01839 g008
Table 1. The lattice constants (Å) of RTe 3 and RTe 2 (R = Sm, Er).
Table 1. The lattice constants (Å) of RTe 3 and RTe 2 (R = Sm, Er).
abc
SmTe 3 [7]4.33425.6744.347
SmTe 2 [8]4.3704.3709.000
ErTe 3 [7]4.24825.2754.279
ErTe 2 [39]4.2484.2488.865
Table 2. The calculated energies (eV), per rare-earth atom, of the various ferromagnetic and antiferromagnetic configurations. The zero point is set to the calculated energy of the nonmagnetic configuration.
Table 2. The calculated energies (eV), per rare-earth atom, of the various ferromagnetic and antiferromagnetic configurations. The zero point is set to the calculated energy of the nonmagnetic configuration.
FMIntraABABStripe(a)Stripe(c)ABBA
SmTe 3 −3.677−3.670−3.575−3.680−3.671
ErTe 3 −1.496−1.496−1.553−1.560−1.554
SmTe 2 −2.778−2.826−2.778−2.784
ErTe 2 −1.998−2.594−2.593−2.002
