Nucleation and Post-Nucleation Growth in Diffusion-Controlled and Hydrodynamic Theory of Solidification

Abstract

Two-step nucleation and subsequent growth processes were investigated in the framework of the single mode phase-field crystal model combined with diffusive dynamics (corresponding to colloid suspensions) and hydrodynamical density relaxation (simple liquids). It is found that independently of dynamics, nucleation starts with the formation of solid precursor clusters that consist of domains with noncrystalline ordering (ringlike projections are seen from certain angles), and regions that have amorphous structure. Using the average bond order parameter ${\overline{q}}_6$, we distinguished amorphous, medium range crystallike order (MRCO), and crystalline local orders. We show that crystallization to the stable body-centered cubic phase is preceded by the formation of a mixture of amorphous and MRCO structures. We have determined the time dependence of the phase composition of the forming solid state. We also investigated the time/size dependence of the growth rate for solidification. The bond order analysis indicates similar structural transitions during solidification in the case of diffusive and hydrodynamic density relaxation.

1. Introduction

Colloid suspensions are considered as model systems for simple molecular liquids [1,2]. A wealth of information is available for the crystallization of colloids including nucleation, which was obtained via tracing the trajectories of colloid particles via optical methods [2,3,4]. For example, in colloids, two-step nucleation, assisted by amorphous/liquid precursor, appears to be a general phenomenon [5,6,7,8,9,10]. Analogous experimental information is not accessible for highly undercooled simple liquids. This raises the question, to what extent the observations made on colloids are applicable to metallic liquids. There appear to be differences: e.g., crystal growth is usually diffusion controlled for colloid suspensions, whereas it may be interface controlled for a hypercooled pure liquid. The velocity of a flat crystal–liquid interface depends on the growth mechanism. In the case of diffusionless processes a steady state velocity is established, whereas in the diffusion-controlled processes the front velocity, v, is proportional to t^−1/2, where t is time [11,12]. The growth rate also depends on the curvature of the interface, as predicted by the classic kinetic model based on monomer attachment and detachment [13,14]. For spherical particles:

$$v=\frac{16D}{{\lambda }^2}{\left(\frac{3v_{at}}{4\pi }\right)}^{1/3}\sinh \left\{\frac{v_{at}}{2k_{B}T}\left(\Delta g-\frac{2\gamma }{r}\right)\right\}$$

(1)

where D is the self-diffusion coefficient, λ the jump distance of atoms, v_at the atomic volume, k_B Boltzmann’s constant, T the temperature, Δg the volumetric free energy difference between the liquid and the solid, γ the solid-liquid interfacial free energy, and r the radius of the crystallite. Note that for the critical size, r* = 2γ/Δg, the deterministic growth rate is zero, for larger particles it is positive, whereas for smaller particles it is negative. This expression is strictly valid only for diffusionless processes, where the velocity of the flat interface (r → ∞) is independent of time. The behavior of post-nucleation particles in diffusion-controlled systems is less obvious.

Recent advances made in solidification modeling [15] allow the investigation of both two-step nucleation and post-nucleation growth. For example, investigations relying on two versions of a simple dynamical density functional theory, termed the phase-field crystal (PFC) approach [16,17,18], have shown steady-state growth when combined with hydrodynamic density relaxation (a model termed HPFC henceforth [19,20]), and v ∝ t^−1/2 for overdamped (diffusion controlled) relaxation dynamics (denoted as DPFC [21,22,23]), at small driving forces. The latter model yields diffusionless growth at extreme undercoolings, where the density of the growing crystal is about the same as that of the liquid [22,23]. These molecular-scale models offer a possibility to study early-stage solidification in three dimensions (3D), and to compare nucleation and post-nucleation growth for the two types of dynamics. While structural aspects of crystal nucleation in the DPFC model has been addressed in some detail in previous work [24,25,26,27,28,29,30,31], similar studies are unavailable for the hydrodynamic model.

Herein, we address nucleation and post-nucleation growth within the HPFC model, including the structural aspects, and compare the results to those from the DPFC model. We are going to investigate whether the two-step nucleation process reported for the DPFC model [27,28,29,30,31] appears in the hydrodynamic approach, and we compare the time evolution of the phase content predicted by the two models.

2. Materials and Methods

2.1. Phase-Field Crystal Method

2.1.1. Thermodynamics

The phase-field crystal approach is a simple, dynamic density functional theory of classic particles [17,30,31]. The free energy functional it relies on can be deduced from the perturbative density functional theory of Ramakrishnan and Yussouff [32], after expanding the direct correlation function in Fourier space up to fourth order, providing thus a single preferred wavelength for the density waves [17,33], hence termed “single-mode PFC” as opposed to more complex approaches that introduce further preferred wavelengths. The local state of matter is characterized by the time-averaged particle density, ρ. Introducing appropriate dimensionless quantities, a Brazowskii/Swift-Hohenberg type expression is obtained for the dimensionless free energy of the inhomogeneous system relative to a homogeneous reference fluid (of density ρ₀):

$$\Delta F={\displaystyle \int }dr\left\{\frac{\psi }{2}\left[-\epsilon +{\left(1+{\nabla }^2\right)}^2\right]\psi +\frac{{\psi }^4}{4}\right\}$$

(2)

Here ψ ∝ (ρ − ρ₀)/ρ₀ is the scaled density difference, whereas ε is the reduced temperature (normalized distance from the critical point). The latter can be connected to such physical properties as the bulk moduli of the fluid and crystalline phases at a reference density and temperature. The phase diagram of the 3D system is shown in Figure 1 [27,30,34]. Besides the homogeneous liquid, stability domains exist for the body-centered cubic (bcc), hexagonal close-packed (hcp), and face-centered cubic structures. With appropriate quenching procedure in the presence of noise representing the thermal fluctuations, amorphous solids of realistic radial distribution function g(r) can also be obtained in the vicinity of the linear stability limit of the liquid state [26,27,28,29,30].

2.1.2. Equations of Motion (EOMs)

Hydrodynamic PFC models: The HPFC model we proposed to describe crystalline solidification in simple liquids [19,20] relies on fluctuating nonlinear hydrodynamics [35] as formulated in [36]. The respective momentum transport and continuity equations are read as

$$\frac{\partial p}{\partial t}+\nabla ·\left(v\otimes p\right)=\nabla ·\left[R(\rho )+D\left(v\right)+S\right]$$

(3)

$$\frac{\partial \rho }{\partial t}+\nabla ·p=0$$

(4)

Here p(r, t) is the momentum, ρ(r, t) the mass density, v = p/ρ the velocity, while ∇⋅R = −ρ∇{δΔF[ρ]/δρ} ≈ −ρ₀∇{δΔF[ρ]/δρ} is the reversible stress tensor, ρ₀ the reference density, and D = μ_S{(∇ ⊗ v)+ (∇ ⊗ v)^T} + [μ_B − (2/3)μ_S] (∇⋅v) the dissipative stress tensor. S represents stochastic momentum noise, with correlation:

$$\begin{array}{c}\langle S_{ij}\left(r,t\right),S_{kl}\left(r^{\prime },t^{\prime }\right)\rangle =\\ \left(2kT{\mu }_S\right)\left[\left({\delta }_{ik}{\delta }_{jl}-{\delta }_{jk}{\delta }_{il}\right)+\left(\frac{{\mu }_B}{{\mu }_S}-\frac{2}{3}\right){\delta }_{ij}{\delta }_{kl}\right]\delta \left(r-r^{\prime }\right)\delta \left(t-t^{\prime }\right)\end{array}$$

(5)

μ_S and μ_B denote the shear and bulk viscosities. To avoid violent interatomic flow in the crystalline phase that would develop due to steep density gradients, coarse-grained momentum and density were used when computing the velocity: $v=\widehat{p}/\widehat{r}$. (For further details see References [19,20].) It has been shown that this model recovers steady-state growth of velocity v ∝ 1/μ_S, the longitudinal and transversal quasi-phonons of proper dispersion, and capillary waves of realistic spectrum at the crystal–liquid interface [19]. While there are other hydrodynamic extensions of the PFC model [37,38,39], they have not been used for studying nucleation, and the amplitude expansion based model [38] cannot be easily formulated for detecting competing amorphous and crystalline polymorphs in the liquid.

Since numerical solution of Equations (2)–(6) in 3D proved computationally rather demanding, we propose here a simplified HPFC model (sHPFC) that relies on linearized hydrodynamics. We assume that the velocity and density gradients are small, the advection term is omitted, and then the time derivative of the continuity equation is inserted into the divergence of the equation for the momentum transport, which is the way we obtain a specific form of the DDFT/HI model by Kikkinides and Monson that was successfully applied for describing capillary waves on the nanoscale [40]:

$$\frac{{\partial }^2\rho }{\partial t^2}+\alpha \frac{\partial \rho }{\partial t}=\nabla ·\left\{\frac{\rho }{m}\nabla \left(\frac{\delta \Delta F}{\delta \rho }\right)+\nabla \left(\beta \frac{\partial \rho }{\partial \mathrm{t}}\right)\right\}+\nabla ·\nabla ·S,$$

(6)

where m is the particle mass, $a$ the damping coefficient, β = {(4/3)μ_S + μ_B}/ρ, and the free energy functional defined by Equation (1) is used in δΔF[ρ]/δρ, while S is the stochastic momentum tensor used in Equation (3). Note, assuming β = 0, and omitting the noise term, we recover the modified PFC (MPFC) model proposed earlier [41,42]. It can be shown that similarly to the full HPFC, at small undercoolings the sHPFC model recovers steady-state growth of velocity v ∝ 1/μ_S, and that longitudinal and transversal quasi-phonons of proper dispersion occur in the crystal. In the present work we use this simplified hydrodynamic approach to study crystal nucleation and early stage growth in simple liquids in 3D.

The diffusive PFC model: In the original PFC model [16,17,18,21,22,23,24,25,26,27,28,29,30,31], the time evolution of the scaled number density is described using conserved overdamped dynamics, which is realized by the following dimensionless EOM:

$$\frac{\partial \psi }{\partial t}=\nabla ·\left\{\nabla \frac{\delta \Delta F}{\delta \psi }\right\}+\zeta .$$

(7)

Here δΔF[ψ]/δψ stands for the functional derivative of the free energy difference, ΔF, with respect to the scaled number density difference. ζ is a colored Gaussian flux noise with correlation 〈ζ(r,t)ζ(r′ t′)〉 = ξ²∇²g(|r − r′|, σ)δ(t − t′), where ξ is the noise strength, and g(|r − r′|, σ) is a high-frequency cutoff function [27,28], to remove wavelengths shorter than the interatomic spacing (σ). In this model different growth modes occur at large and small driving forces for crystallization: (i) at small undercoolings or supersaturations growth is diffusion controlled and v ∝ t^−1/2, whereas (ii) at large driving forces, where diffusion length l_D = D/v becomes comparable to the interface thickness, a transition is observed to a diffusionless fast growth mode displaying steady-state growth (v = const.) [22,23], as expected for colloids [43].

2.2. Numerical Methods

The dimensionless kinetic equations were solved in three dimensions, using a pseudospectral scheme combined with a second-order Runge-Kutta time stepping, while employing periodic boundary conditions on uniform rectangular grid. Unless stated otherwise, the grid size was 512³ that, under the conditions used, corresponds to about 3.6 × 10⁵ atoms. The computations were performed on high-end Graphics Processing Units.

2.3. Materials Parameters

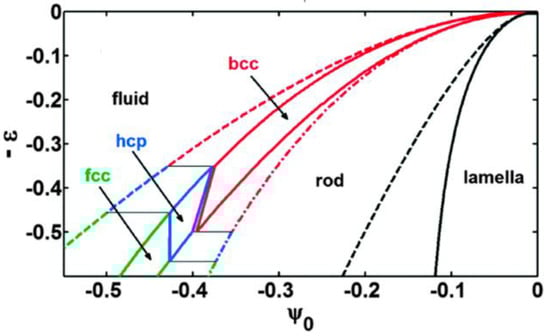

The computations we present were performed at a scaled density of ψ₀ = −0.2720 and different constant reduced temperatures chosen between the values corresponding to the liquidus line ε_L = 0.1548 and the linear stability limit ε_c = 0.2220. The time and spatial steps used in the numerical computations were Δt = 0.01 and Δx = 1. Note that the single PFC model can be fitted to iron [44,45], yielding realistic structural properties for the amorphous state [26,27,28], and combined with the sHPFC dynamics it can be viewed as a model for bcc metals. A noise strength of ξ = 0.005 was used in all three models. When transforming the results to dimensional form, the diffusion coefficient (DPFC) or the viscosity/damping coefficient (sHPFC and DPFC) sets the physical time scale of the process.

2.4. Structural Analysis

The structure of the solid phases was analyzed in terms of the average bond order parameters ${{\overline{q}}_l}^k$ introduced by Lechner and Dellago [46], which incorporates structural information from the first and second neighbor shells:

$${\overline{q}}_l^k={\left\{\frac{4\pi }{2l+1}{{\displaystyle \sum }}_{m=-l}^l{\lfloor {\overline{q}}_{lm}^k\rfloor }^2\right\}}^{1/2}, \mathrm{where} {\overline{q}}_{lm}^k=\frac{1}{N_b^k+1}{{\displaystyle \sum }}_{i=0}^{N_b^k}{q}_{lm}^i \mathrm{and} q_{lm}^i=\frac{1}{n_b^i}{{\displaystyle \sum }}_{j=1}^{n_b^i}{Y}_{lm}\left(r_{ij}\right)$$

(8)

Here N_b^k is the number of neighbors of the particle k, n_bⁱ is the number of the first neighbors of the ith neighbor or particle k, whereas Y_lm is the spherical harmonics of degree l and order m, while r_ij is the vector between the first neighbor atom i and its jth first neighbor.

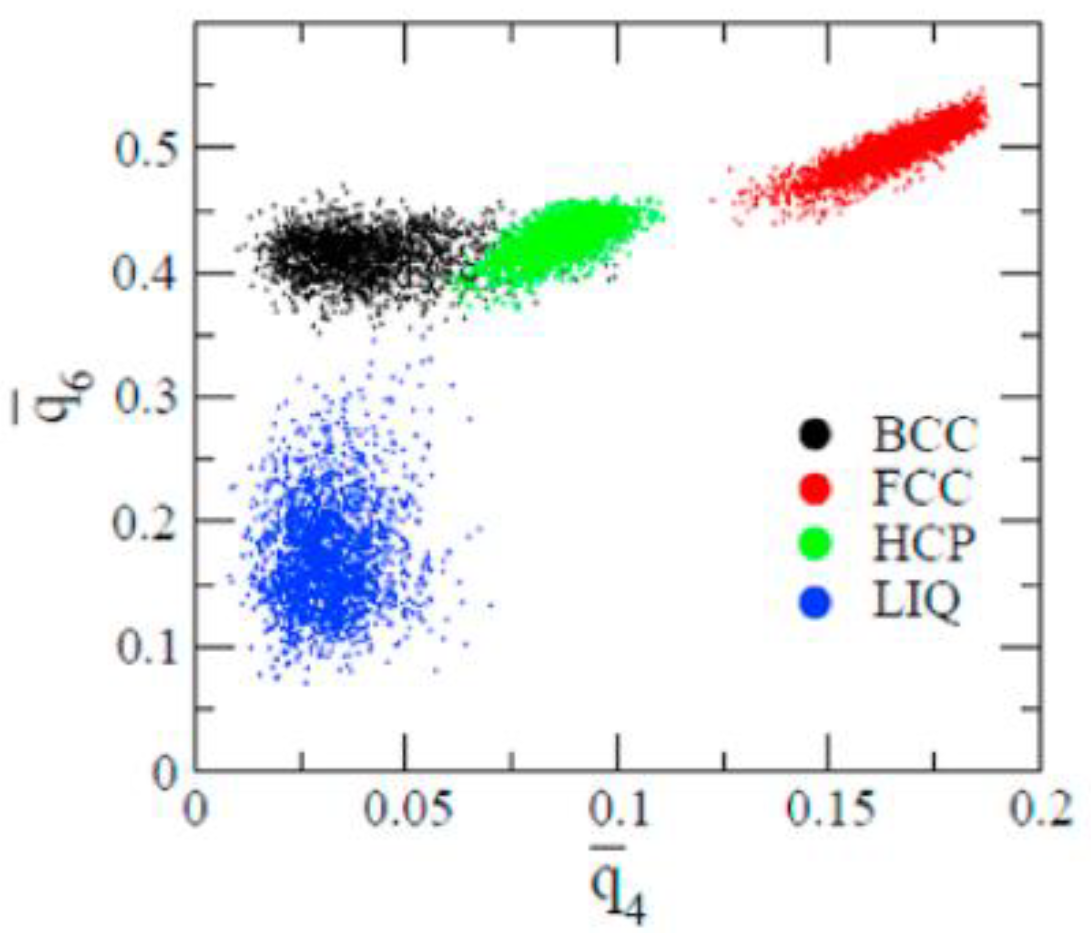

For reference, the ${\overline{q}}_4$–${\overline{q}}_6$ map evaluated for bulk bcc, hcp, fcc and liquid phases from molecular dynamics simulations performed for the Lennard-Jones (LJ) system is shown in Figure 2 [46]. This order parameter map distinguishes the bulk crystal and liquid structures reasonably well.

3. Results and Discussion

3.1. Two-Step Nucleation

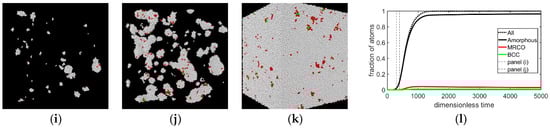

First, we investigate whether the amorphous-precursor-assisted crystal nucleation [26,27,28,29,30] observed in the DPFC model prevails in the sHPFC model. We have performed isothermal simulations for scaled density of ψ₀ = −0.2720 at reduced undercoolings of ε = 0.200, 0.202, and 0.204. Snapshots of these simulations taken at different instances are shown in Figure 3, showing nucleation and post-nucleation growth.

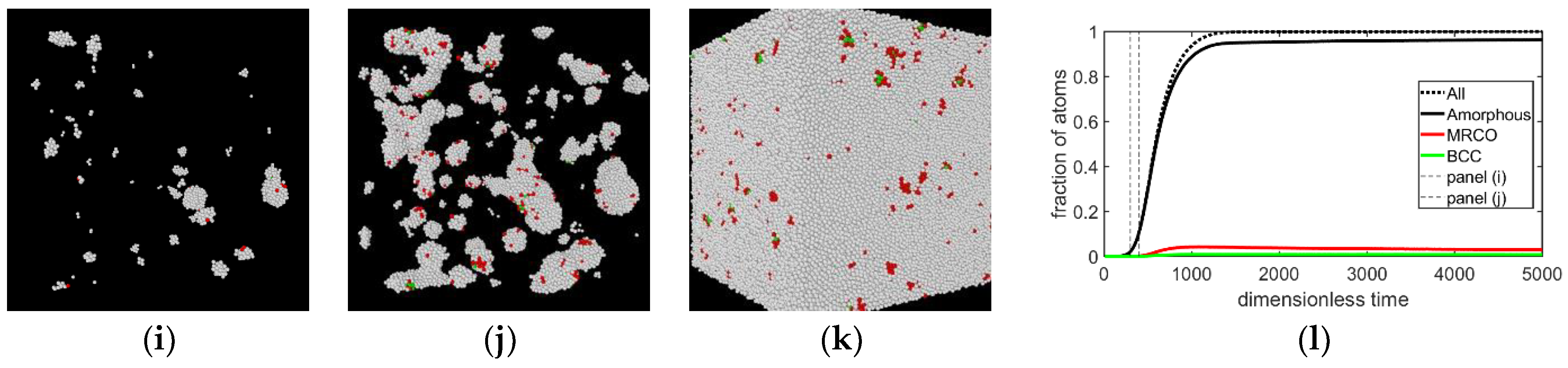

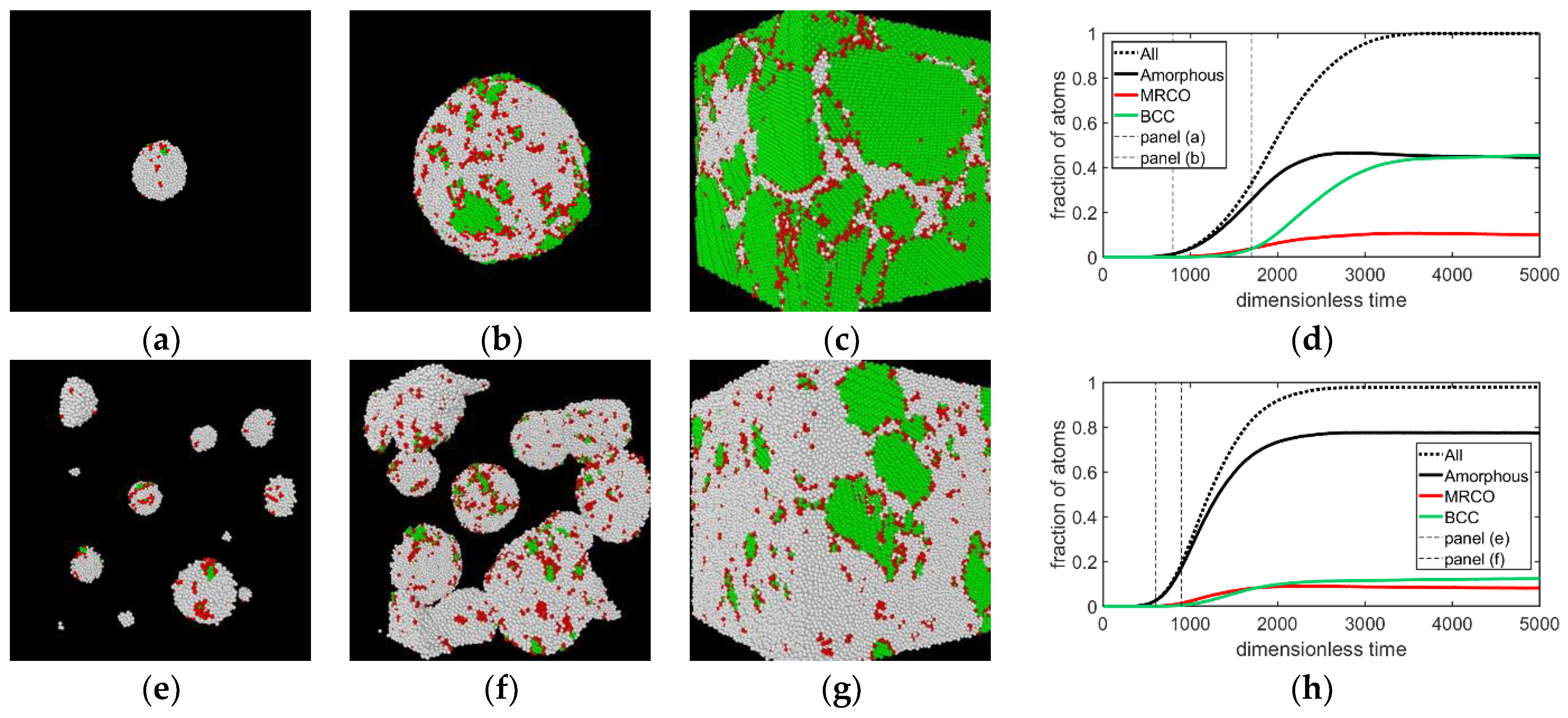

We adopted a ${\overline{q}}_6$-based coloring scheme, introduced by Kawasaki and Tanaka [47], to characterize the pre-nucleation local ordering in the liquid: ${\overline{q}}_6$ > 0.4 (green)—crystalline (bcc in our case); 0.4 > ${\overline{q}}_6$ > 0.28 (red)—MRCO; which we complemented with the white color for solid peaks of 0.28 > ${\overline{q}}_6$, indicating amorphous solid.

As expected, with increasing undercooling, increasing number of solid nuclei formed. Coloring according to the value of ${\overline{q}}_6$ indicates that in all the cases studied, nucleation of the solid started with the formation of an amorphous structure, which was followed by the appearance of MRCO structure, whereas the stable bcc phase formed slightly later but almost together with the MRCO, indicating an essentially two-step process mediated by the amorphous precursor and MRCO structures, akin to that reported in previous work for diffusive dynamics [27,28,29,30]. This sequence is clearly displayed by the time dependence of the phase fractions presented in Figure 3d,h,l. One may conclude that under the conditions investigated, the kinetic preference that determines the sequence by which the different structures appear is similar for diffusion controlled and hydrodynamic solidification mechanisms.

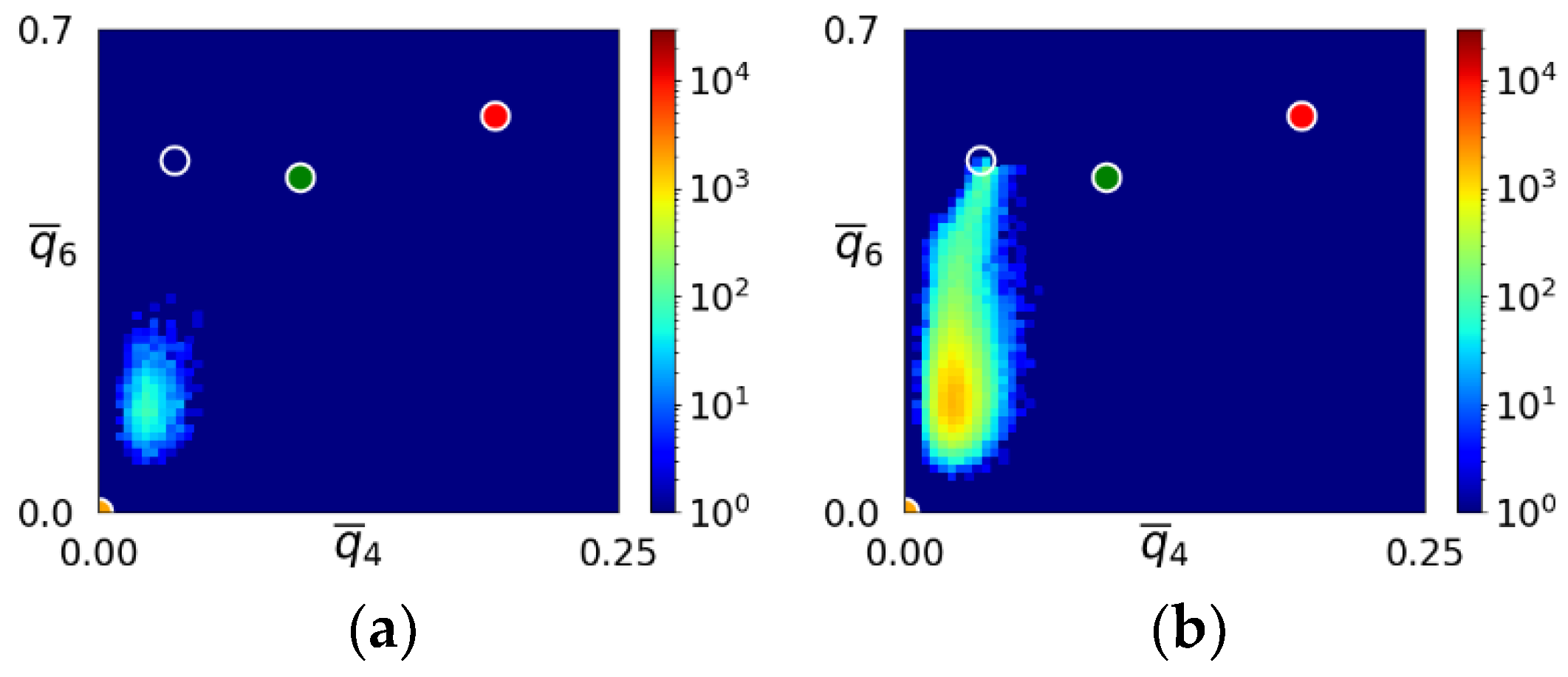

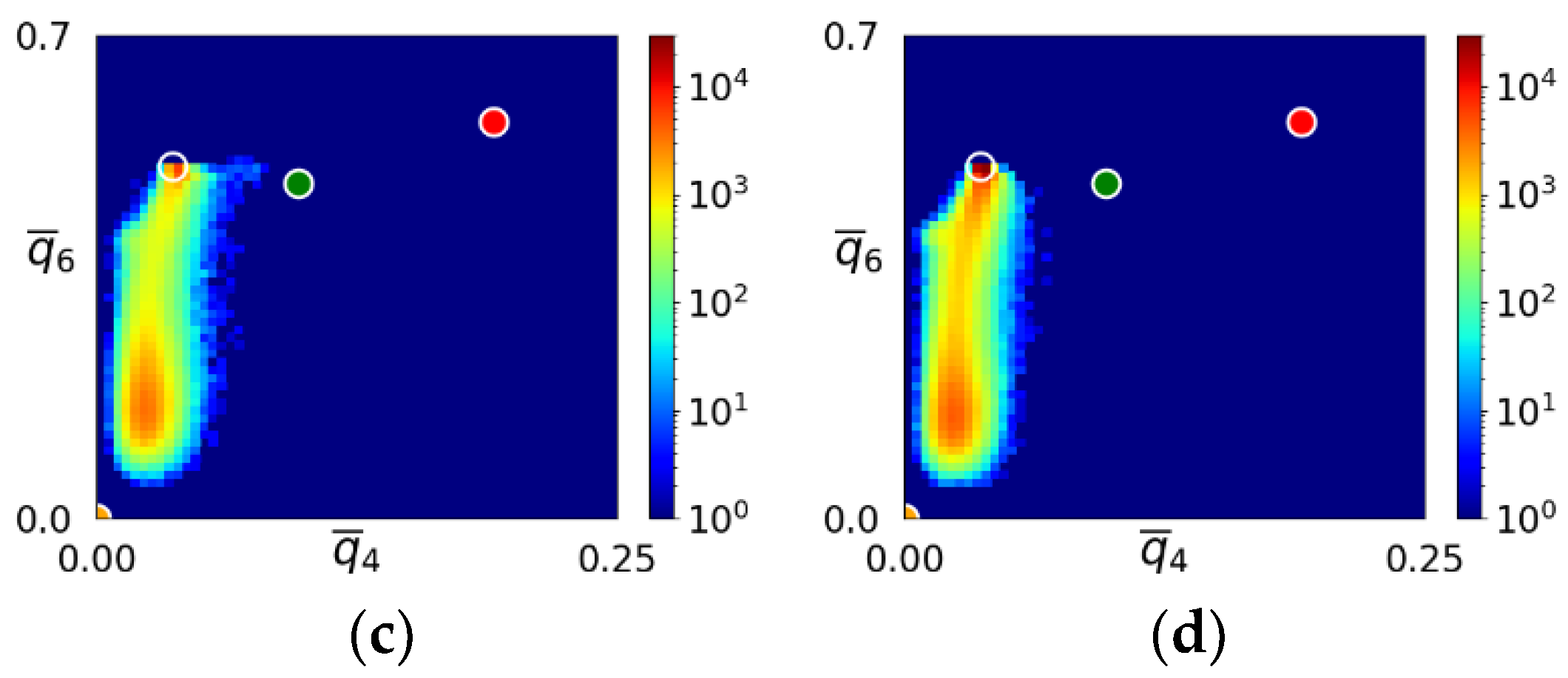

Snapshots of the ${\overline{q}}_4$–${\overline{q}}_6$ map displaying the transition from the initial amorphous state to the bcc crystal is shown in Figure 4 for the simulation depicted in Figure 3a–d. The position of the initial amorphous domain agreed well with the liquid domain in the ${\overline{q}}_4$–${\overline{q}}_6$ map for the LJ system (see Figure 2), suggesting structural similarity between the sHPFC amorphous phase and the LJ liquid. This behavior is very similar to the one reported for DPFC [29]. Unfortunately, the ${\overline{q}}_4$–${\overline{q}}_6$ map does not give a detailed characterization of the structure. Therefore, we further investigated the structures appearing during early-stage solidification.

3.2. Structure Evolution during Nucleation

An intriguing question is what solid structures form first from the uniform liquid. In the classic density functional theories, the local state is characterized by a time-averaged particle density, which is uniform (apart from fluctuations) in the liquid due to the motions of atoms/molecules during time averaging. An important question is, what indeed is this timescale. It is longer than the timescale of thermal vibrations of the particles, and it is so long that it smoothens the particle density in the liquid. It is interesting, therefore, to have a closer look at the first forming structures these models predict. A state appears “solid” on this time scale, when its particles become localized, i.e., move slowly on this time scale. To understand the microscopic processes governing solidification, it may be interesting to find out what type of structures become localized first according to these theories. In the single-mode PFC model, the geometrical constraint exerted by the preferred wavelength of density changes (provided by the approximate two-particle direct correlation function) will determine these structures. Further natural questions are: Is this the dominant factor, or are there others? To what extent can one rely on such predictions?

In this section, we study the structures that form during early stages of solidification in the DPFC and sHPFC simulations. This may offer us hints on how particle “localization” happens, a process that may be more difficult to capture in molecular dynamics simulations.

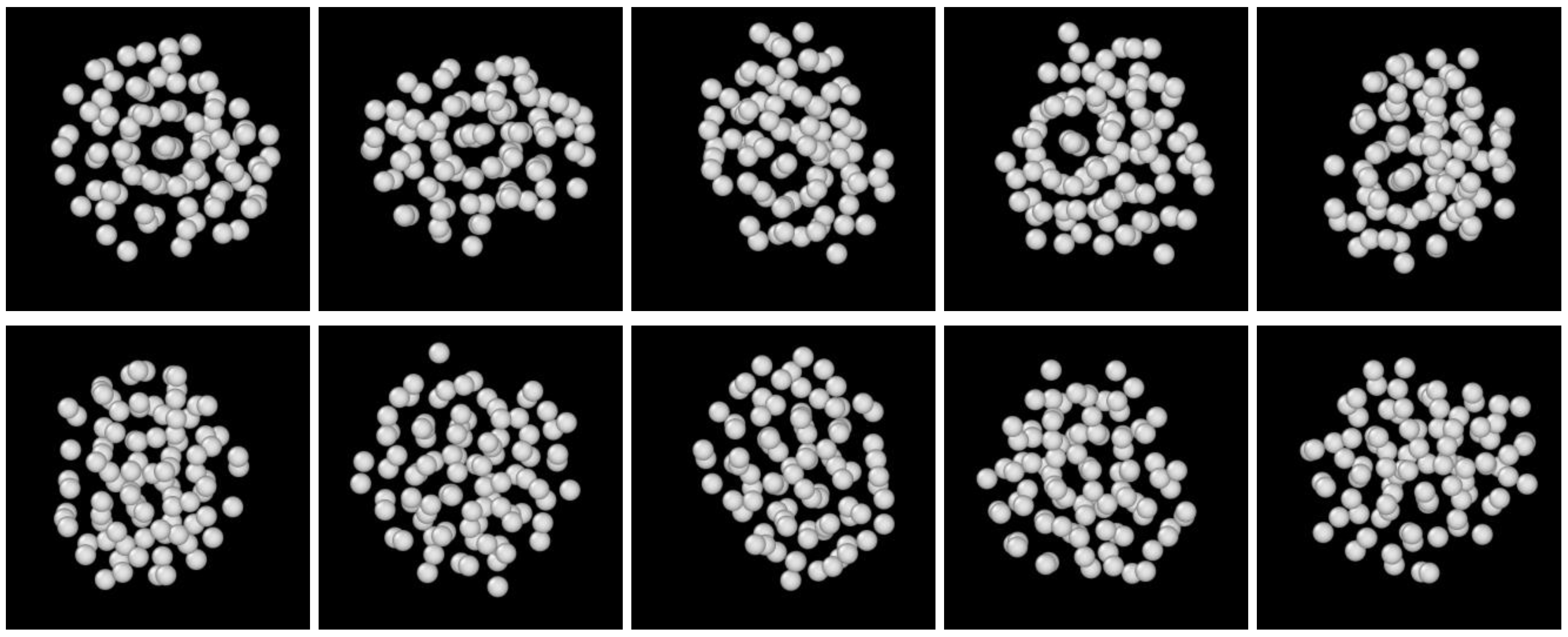

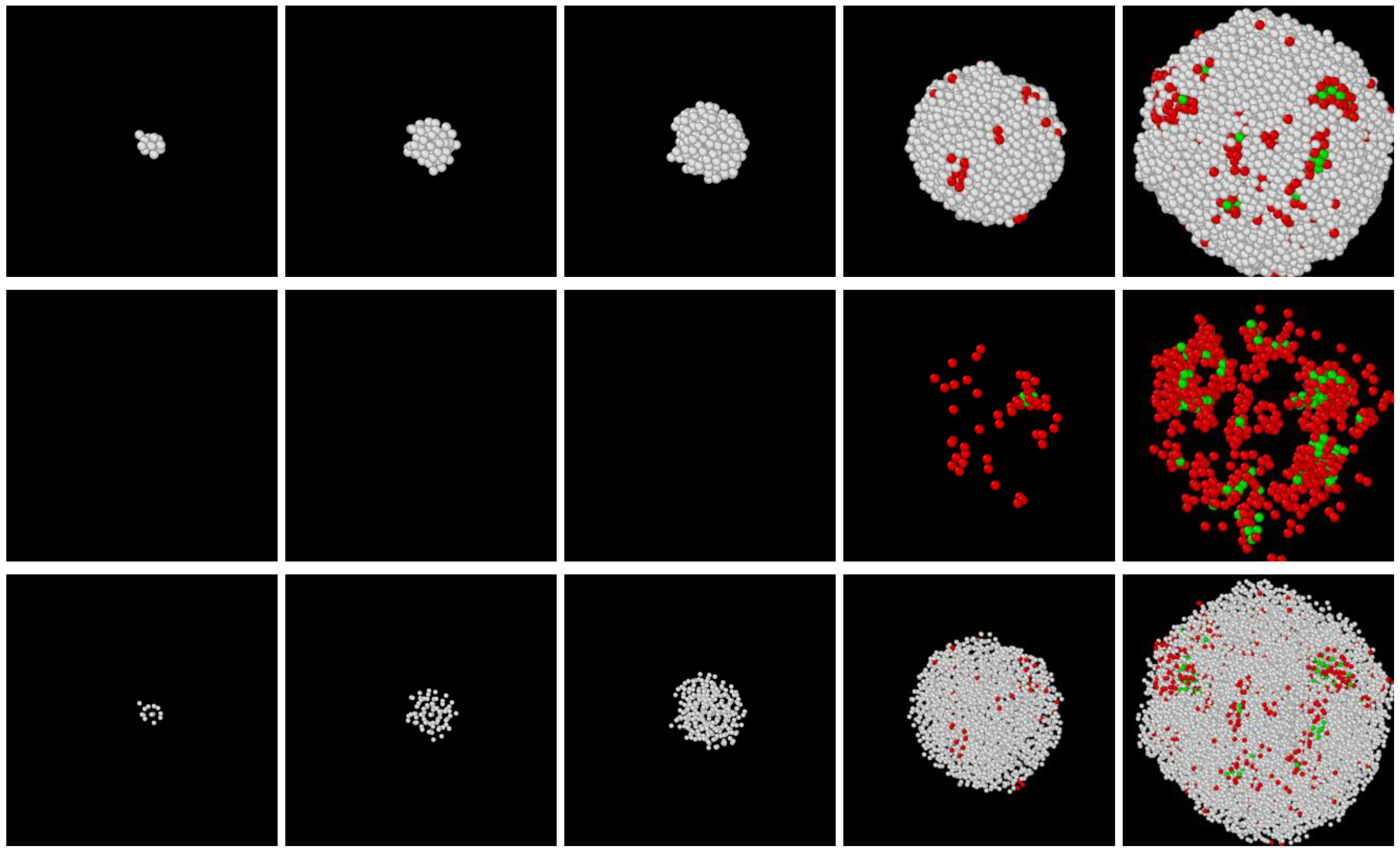

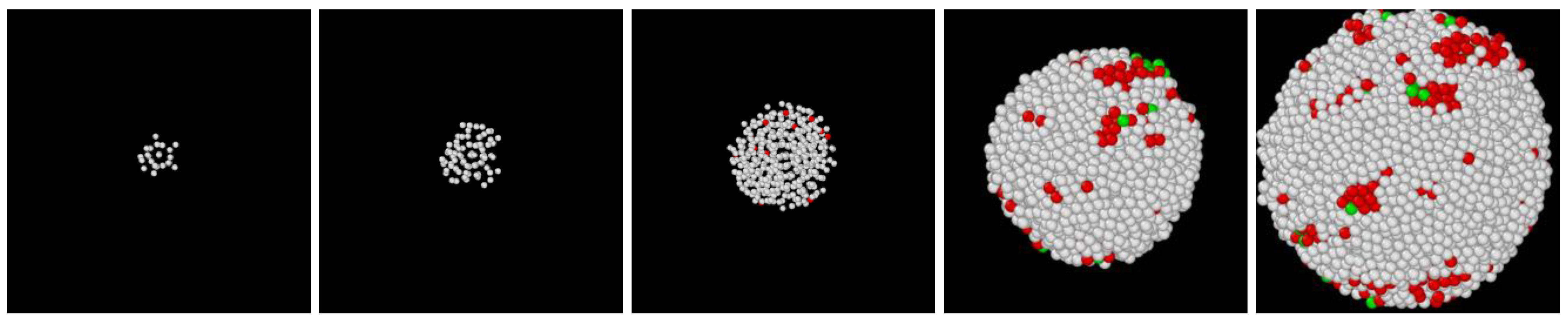

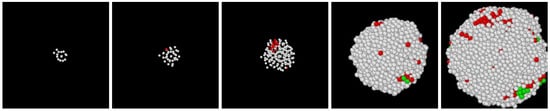

Sequences of snapshots of atom assemblies formed preceding crystallization are shown in Figure 5, Figure 6 and Figure 7. Apparently, non-crystalline structures formed first; however, with some degree of ordering, there were directions from which concentric ring-like arrangements of atoms could be seen, while viewing from some other directions, definite ordering could not be recognized. This structure occurred frequently in the DPFC, MPFC, and sHPFC simulations. During further evolution of the solid cluster, a mixture of non-crystalline order and liquid-like disorder appeared. Coloring according to the magnitude of ${\overline{q}}_6$ did not separate these two types of solid structures. We have employed other structural characterization methods such as polyhedral template matching; however, besides a somewhat higher fraction of icosahedral-like neighborhoods than in the LJ liquid, no conclusive results were obtained for such mixture. Finally, it is worth mentioning that a DFT study indicates “onion” structures [48] as possible initial perturbations in the pre-solidification liquid; however, it does not seem to be related to the ring-like structure observed here, which might indicate ordering in a lower dimension (2D). A couple of different views of the same early-stage cluster are presented in Figure 8. Remarkably, a mixture of order and disorder is present. Whether these structures are akin to the icosahedral aggregates predicted by Dzugutov and coworkers [49,50], using a potential similar to the effective pair-potential we derived for the PFC model [28], is unclear at present. Work is underway to clarify further the nature of the non-crystalline ordering observed during the early stage of solidification.

3.3. Post-Nucleation Growth

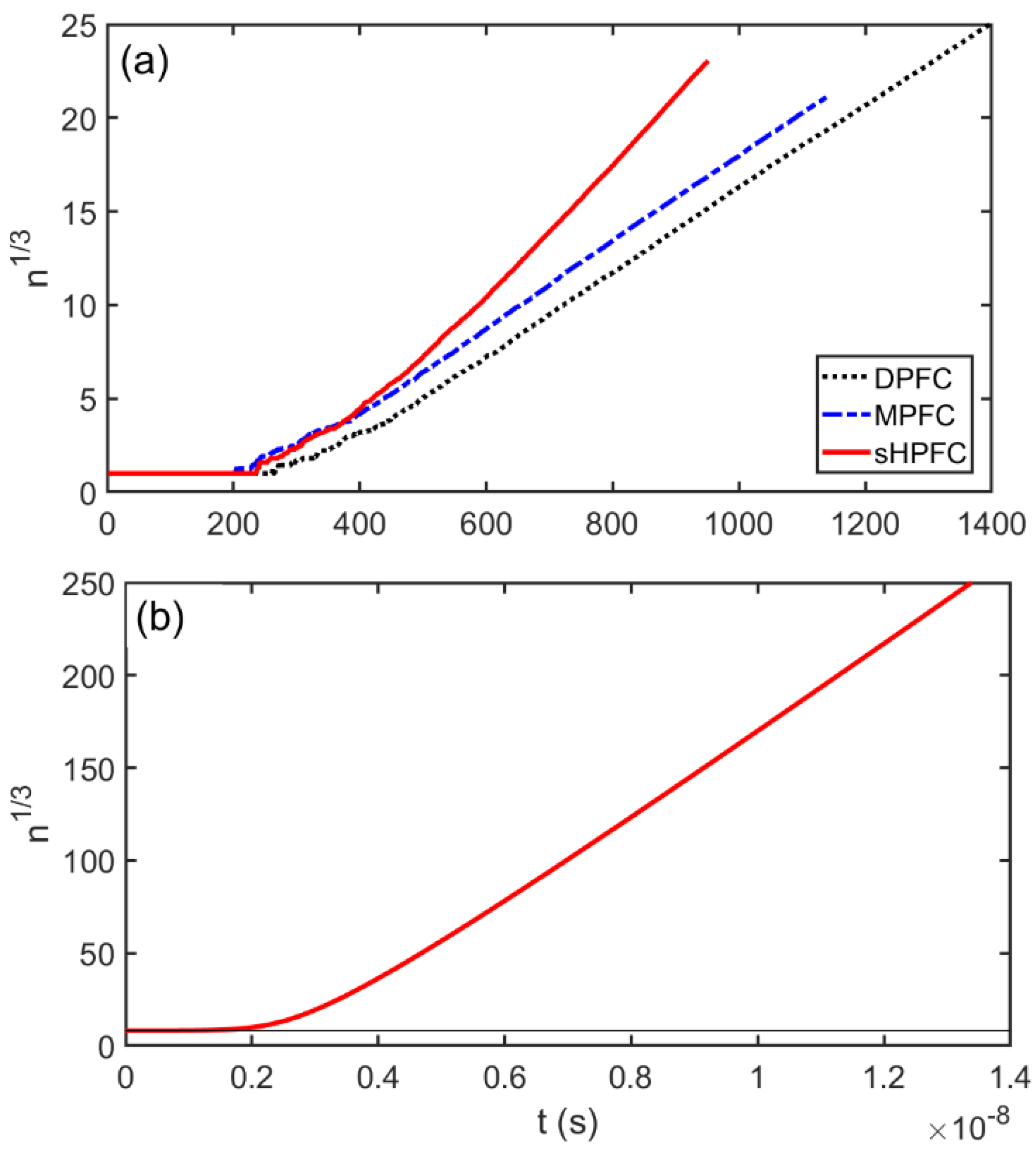

An effective linear size (n^1/3) was evaluated as a function of time from the number n of density peaks for the DPFC, MPFC, and sHPFC clusters shown in Figure 5, Figure 6 and Figure 7, respectively. The results are shown in Figure 9a, whereas the prediction for pure Fe at 1500 K obtained by integrating Equation (1) is shown in Figure 9b. It is found that predictions of the three models for post-nucleation growth were qualitatively similar: after a plateau corresponding roughly to the critical size, a smooth transition into an apparently steady-state growth was seen. In the case of the DPFC model this probably indicates that the system entered the fast diffusionless growth regime. The transition to steady-state growth was somewhat longer for the sHPFC model than for the other two. The differences in the growth mechanisms, according to the three models, were perceptible only for longer time scales.

3.4. Flat-Front Growth in the sHPFC Model

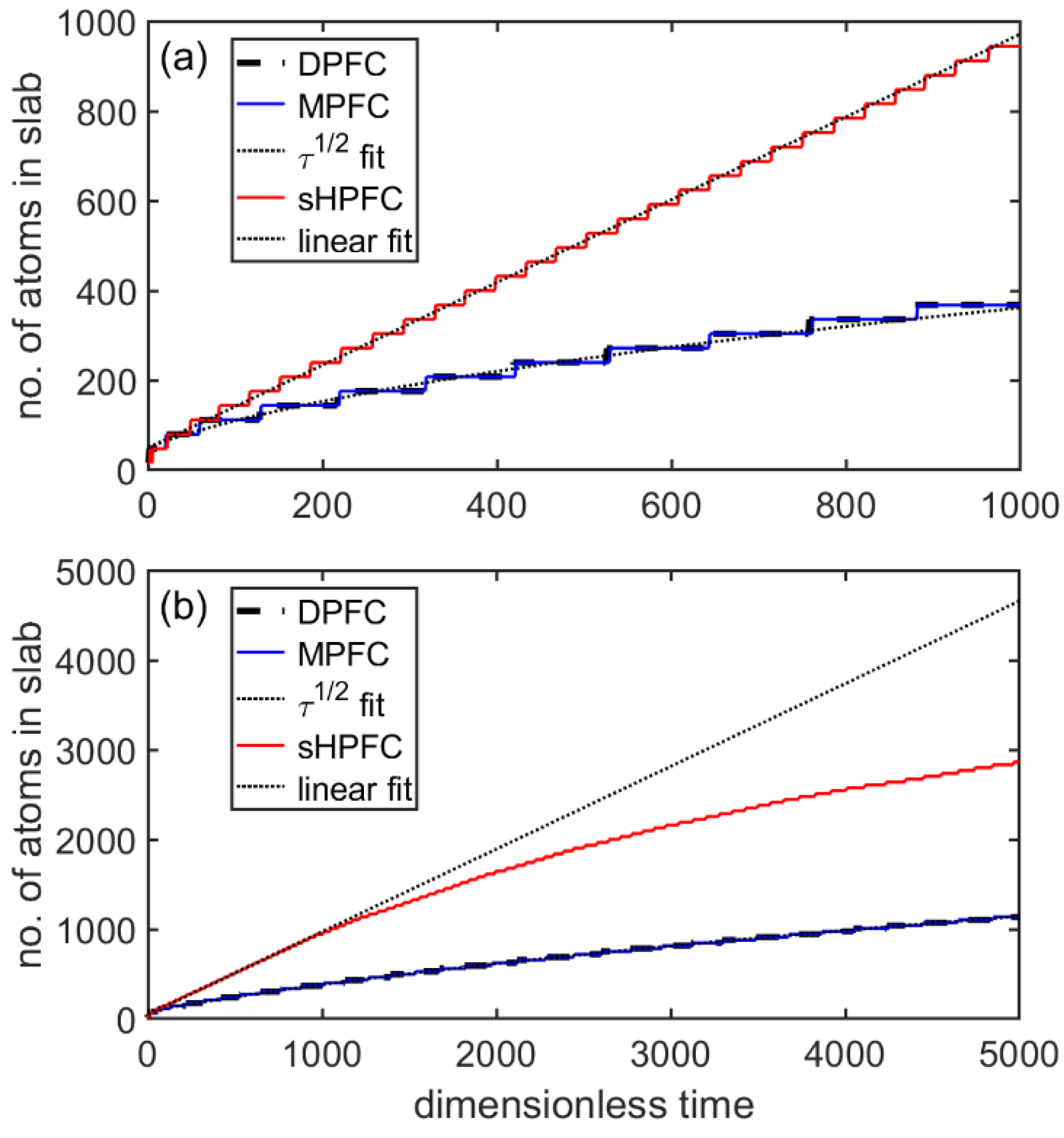

First, we compared the time dependence of growth in the three models for a reduced undercooling of ε = 0.1750. Figure 10 shows the number of atoms in the solid (bcc) phase as a function of time in a slab geometry of aspect ratio 1:32. Remarkably, the MPFC model obtained by substituting α = 1 and β = 0 into Equation (1), showed a practically identical behavior to the DPFC model. After a short initial transient, the position of the growth front varied proportionally to τ^1/2 in the whole-time window covered, indicating a dominantly diffusion-controlled process (see Figure 10a). Deviation from this behavior is expected at much longer times, when the diffusion field ahead of the front interacts with the boundary condition. In contrast, the sHPPC model obtained with α = 0 and β = 1 showed a linear position–time relationship for short times (t < 1000) (Figure 10a), yet for longer times the growth rate decreased due to flow-controlled depletion of the liquid (Figure 10b) and converged towards a stationary state. Note the stepwise change of the number of atoms in all three models, indicating a layerwise growth of the slab.

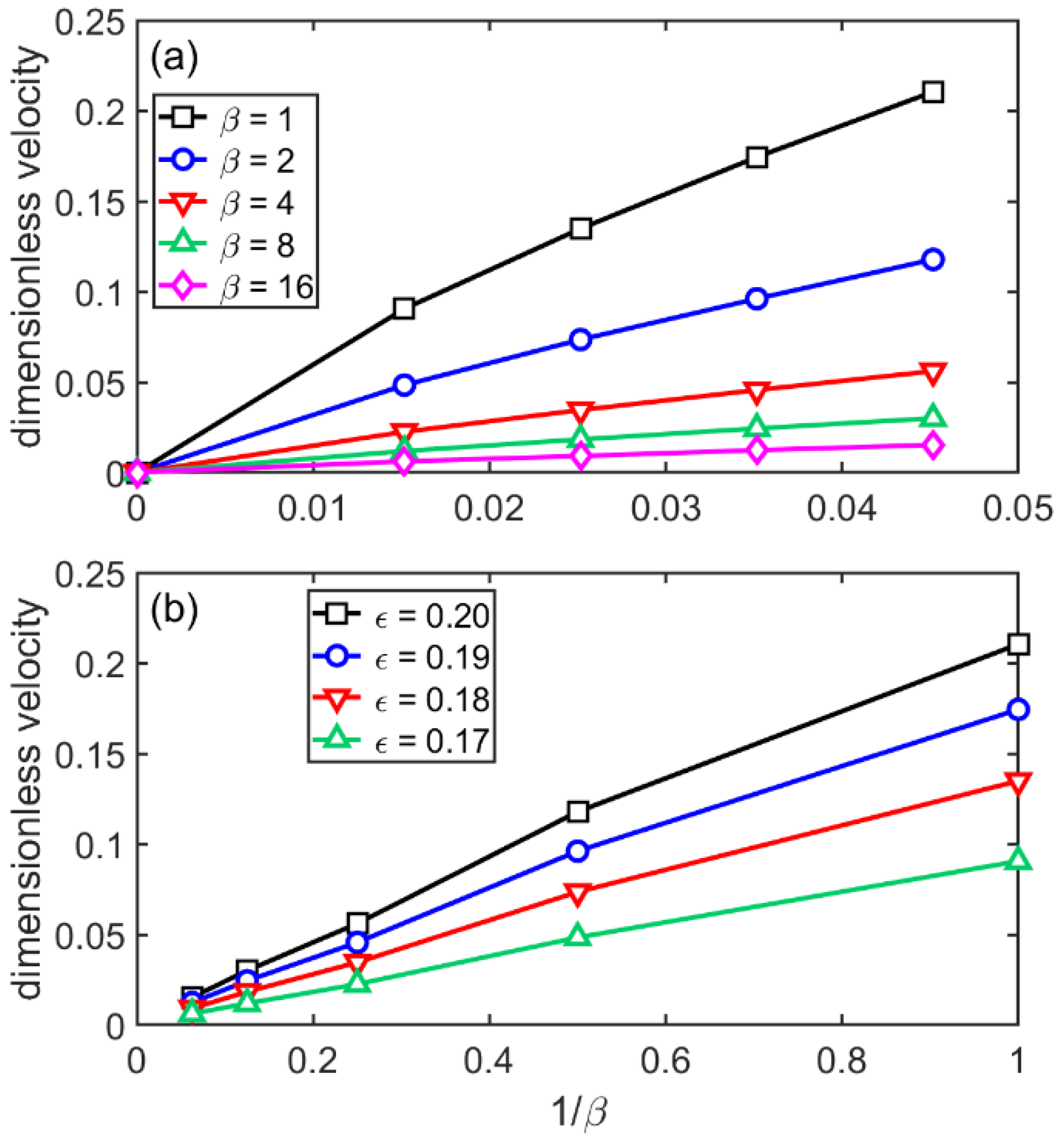

Next, we evaluated the steady-state growth rate as a function of driving force and viscosity in the sHPFC model. As in the case of the HPFC model that relies on full fluctuating nonlinear hydrodynamics, it was found that the steady-state velocity vs. reduced undercooling Δε = ε − ε_L plot was somewhat curved (see Figure 11a) as reported for the MPFC model [51], which may follow either from a deviation from Turnbull’s linear relationship for the thermodynamic driving force [52], or may originate from a relaxation effect Ankudinov and Galenko identified in the case of the MPFC model [53]. The growth velocity, in turn, is about inversely proportional with the viscosity term β (see Figure 11b).

4. Conclusions

We investigated two-step nucleation and post nucleation growth in the framework of PFC models supplemented with diffusive dynamics (DPFC), and two types of linearized hydrodynamics that differ in the dissipation term: α = 0 (sHPFC) and β = 0 (MPFC). It has been shown that

• In all three models the stable bcc phase appears via two-step nucleation.
• During the early stage of nucleation, a disordered solid of liquid-like structure (0.28 > ${\overline{q}}_6$) appears, followed by the formation of MRCO (0.28 < ${\overline{q}}_6$ < 0.4), which precede the formation of the stable bcc structure.
• The first appearing solid structure is ordered so that it has a concentric ring-like view from certain directions. The number of icosahedral neighborhoods is higher in this domain than in the LJ fluid. This structure may coexist with a disordered solid structure of liquid-like order. Remarkably, these two structures are not distinguished by the ${\overline{q}}_6$-based color scheme of Kawasaki and Tanaka.
• The time dependence of grain size emerging from the post-nucleation growth was evaluated from DPFC, MPFC, and sHPFC simulations. At short times the predictions are rather similar to each other and agree reasonably well with the dependence obtained by integrating the size-dependent growth rate given by Equation (1). Differences in the growth mechanism become perceptible only on a longer time scale.
• The steady-state growth velocity the sHPFC predicts increasingly deviates downwards from a linear relationship with increasing undercooling, and it is roughly inversely proportional to the viscosity.
• Finally, we note that nucleation and the post nucleation behavior appear to be less sensitive to the mechanism of density relaxation than the kinetics of crystal growth. This is so, despite the fact that in the present studies the nucleation that took place via intermediate states preferred kinetically relative to direct bcc nucleation.
