Next Article in Journal
Structures of Impurity Defects in Lithium Niobate and Tantalate Derived from Electron Paramagnetic and Electron Nuclear Double Resonance Data
Next Article in Special Issue
Significant Improvement of Strength in Wrought 945A Ni-Based Superalloy by Aging Treatment
Previous Article in Journal
Both Symmetric and Asymmetric Electro-Optic Dynamic Behavior with SSD (Smectic Single Domain) Liquid Crystals
Previous Article in Special Issue
Magnetic Phase Transition, Elastic and Thermodynamic Properties of L12-(Ni,Cu)3(Al,Fe,Cr) in 3d High-Entropy Alloys
Article

Determination of Al-2.18Mg-1.92Li Alloy’s Microstructure Degradation in Corrosive Environment

1
Faculty of Metallurgy, University of Zagreb, 44000 Sisak, Croatia
2
Faculty of Natural Sciences and Engineering, University of Ljubljana, SI-1000 Ljubljana, Slovenia
*
Authors to whom correspondence should be addressed.
Academic Editor: Hyokyung Sung
Crystals 2021, 11(4), 338; https://doi.org/10.3390/cryst11040338
Received: 21 February 2021 / Revised: 24 March 2021 / Accepted: 25 March 2021 / Published: 27 March 2021
(This article belongs to the Special Issue Advance in Alloy Materials)

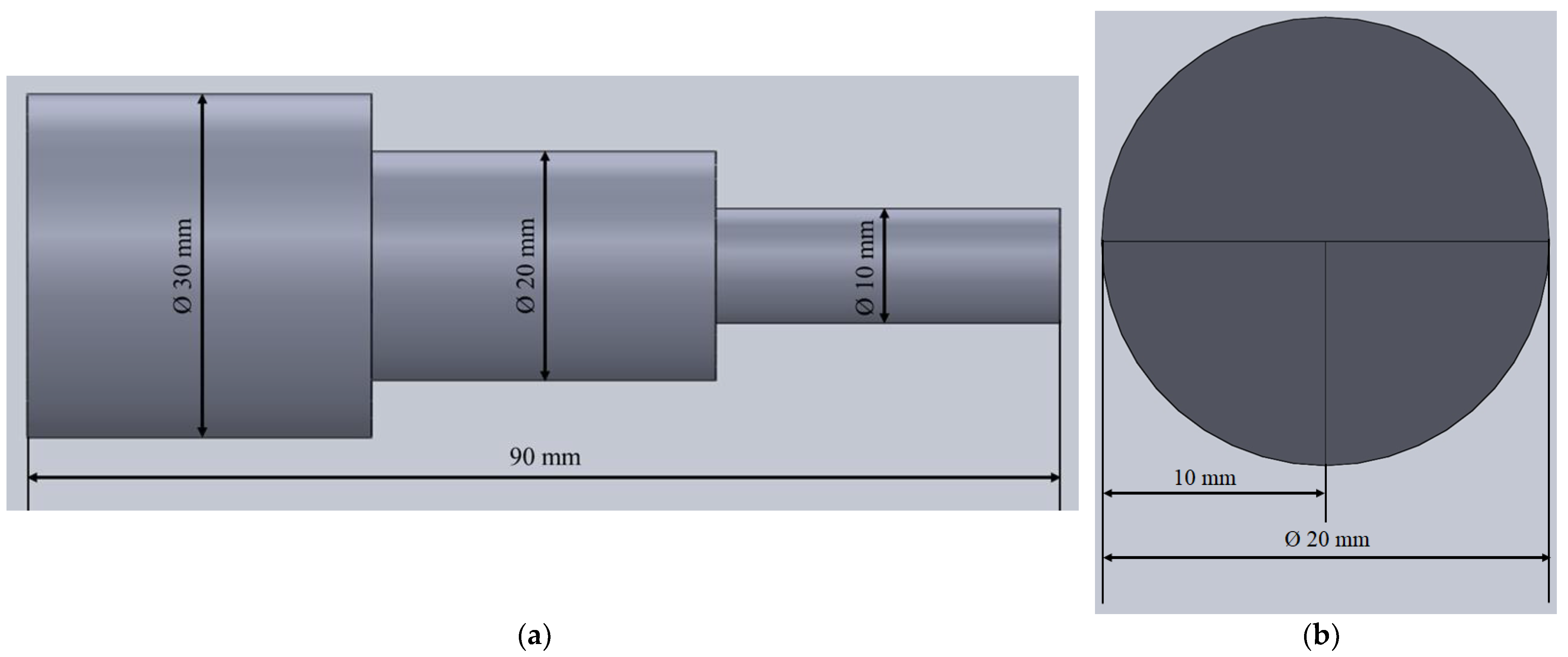

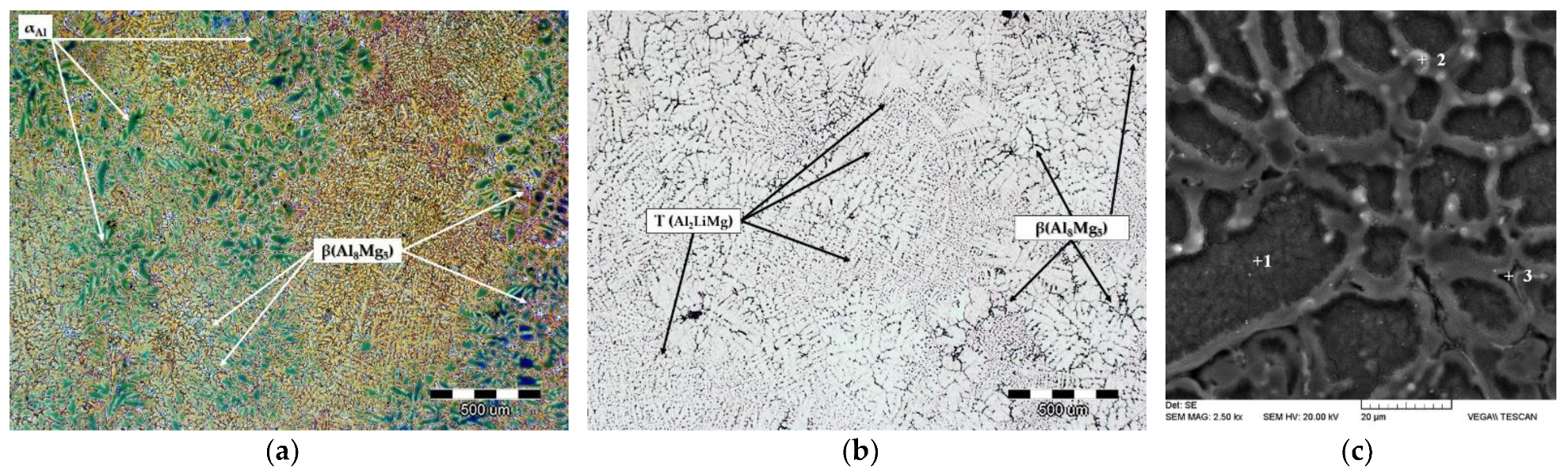

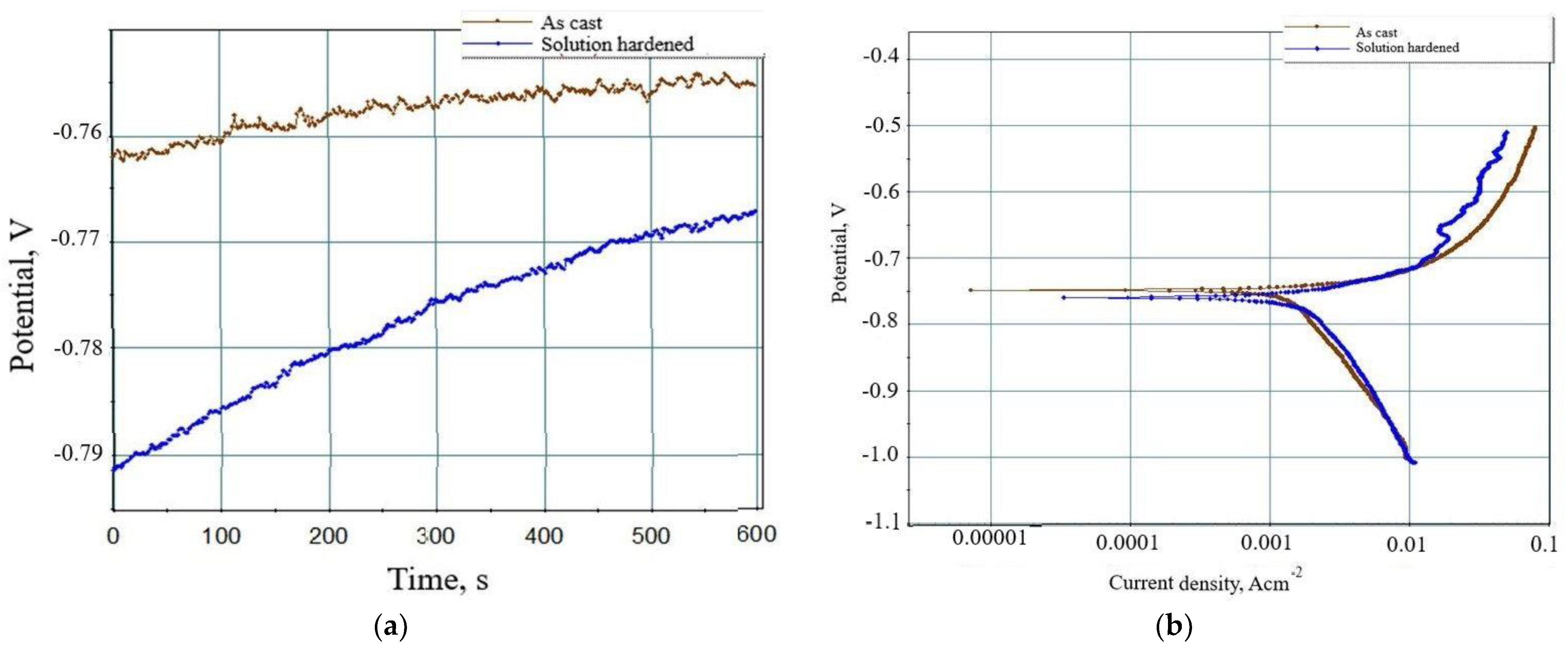

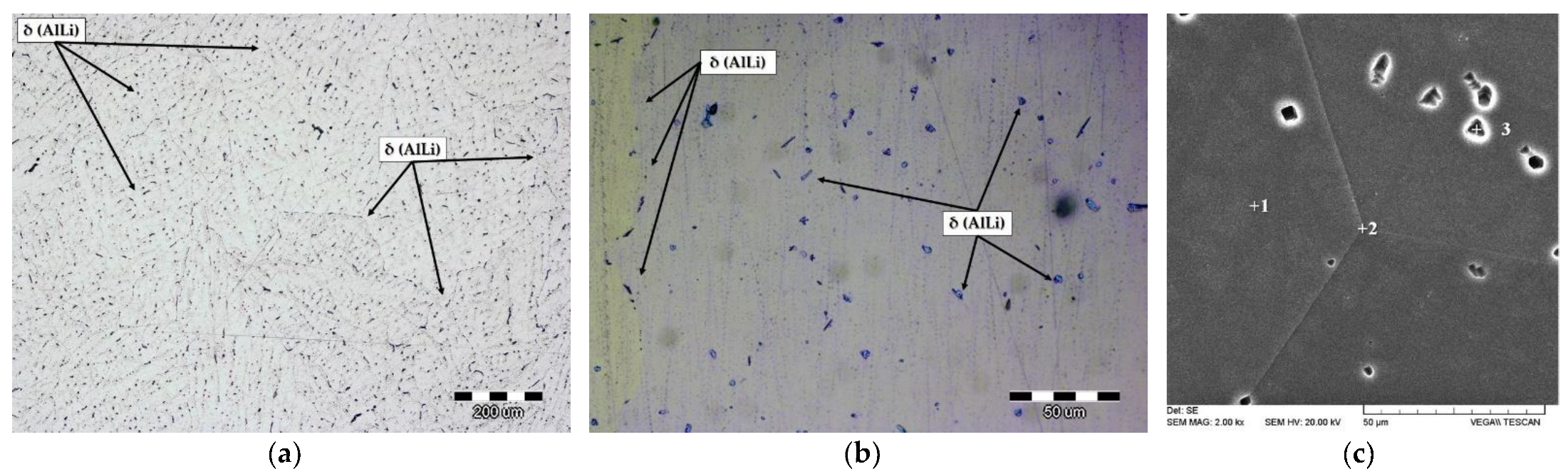

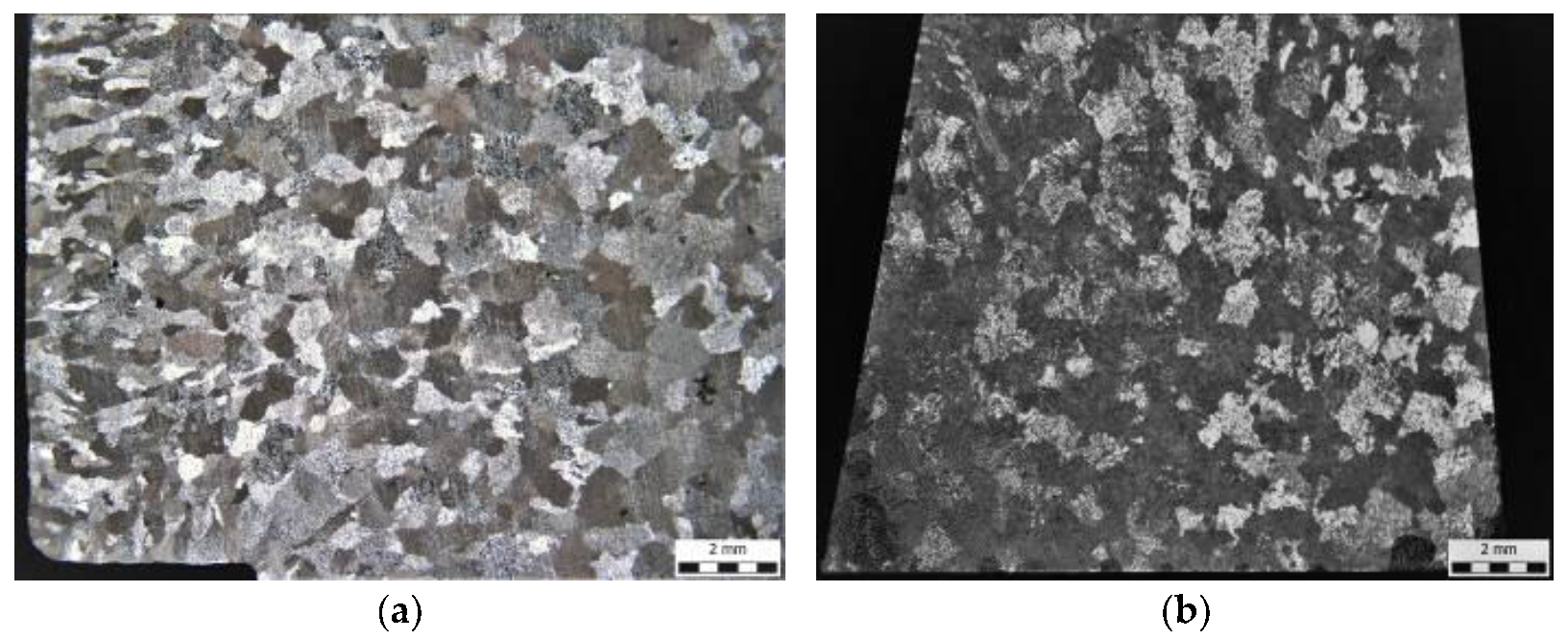

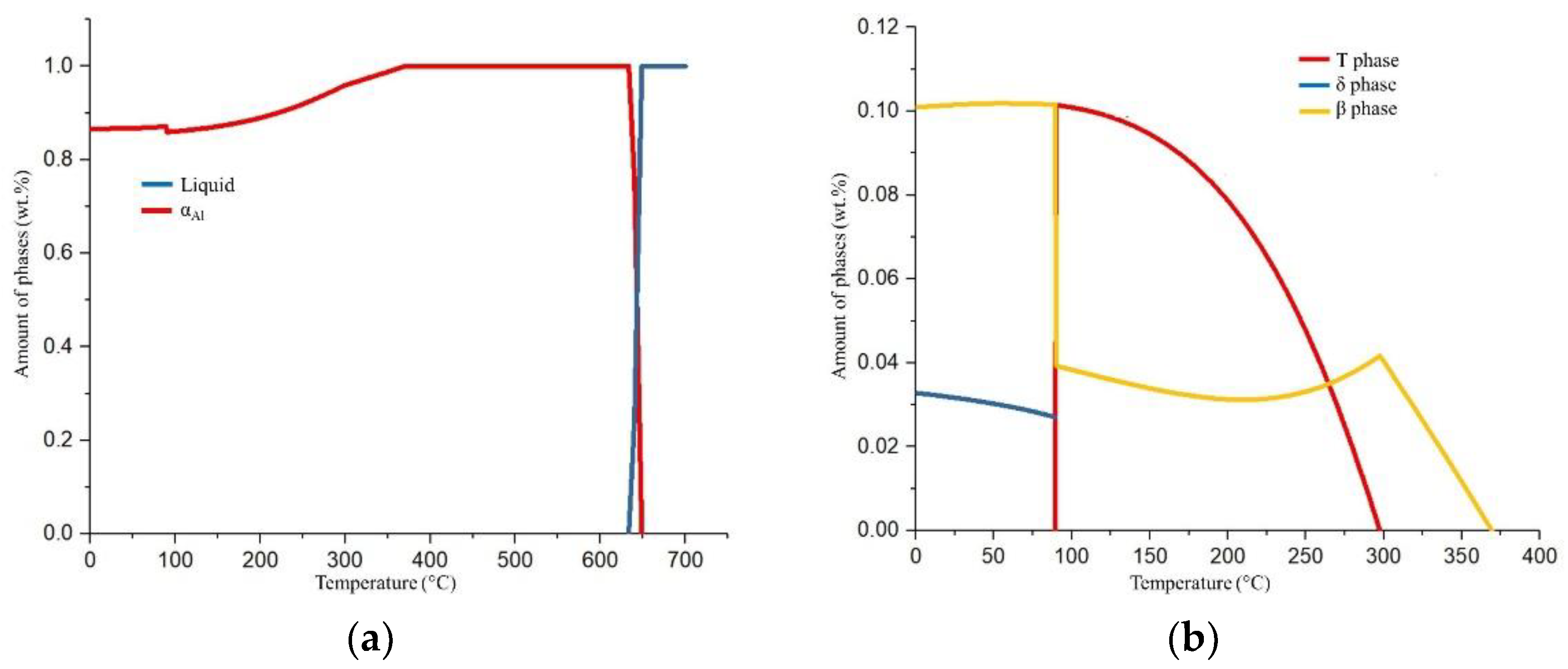

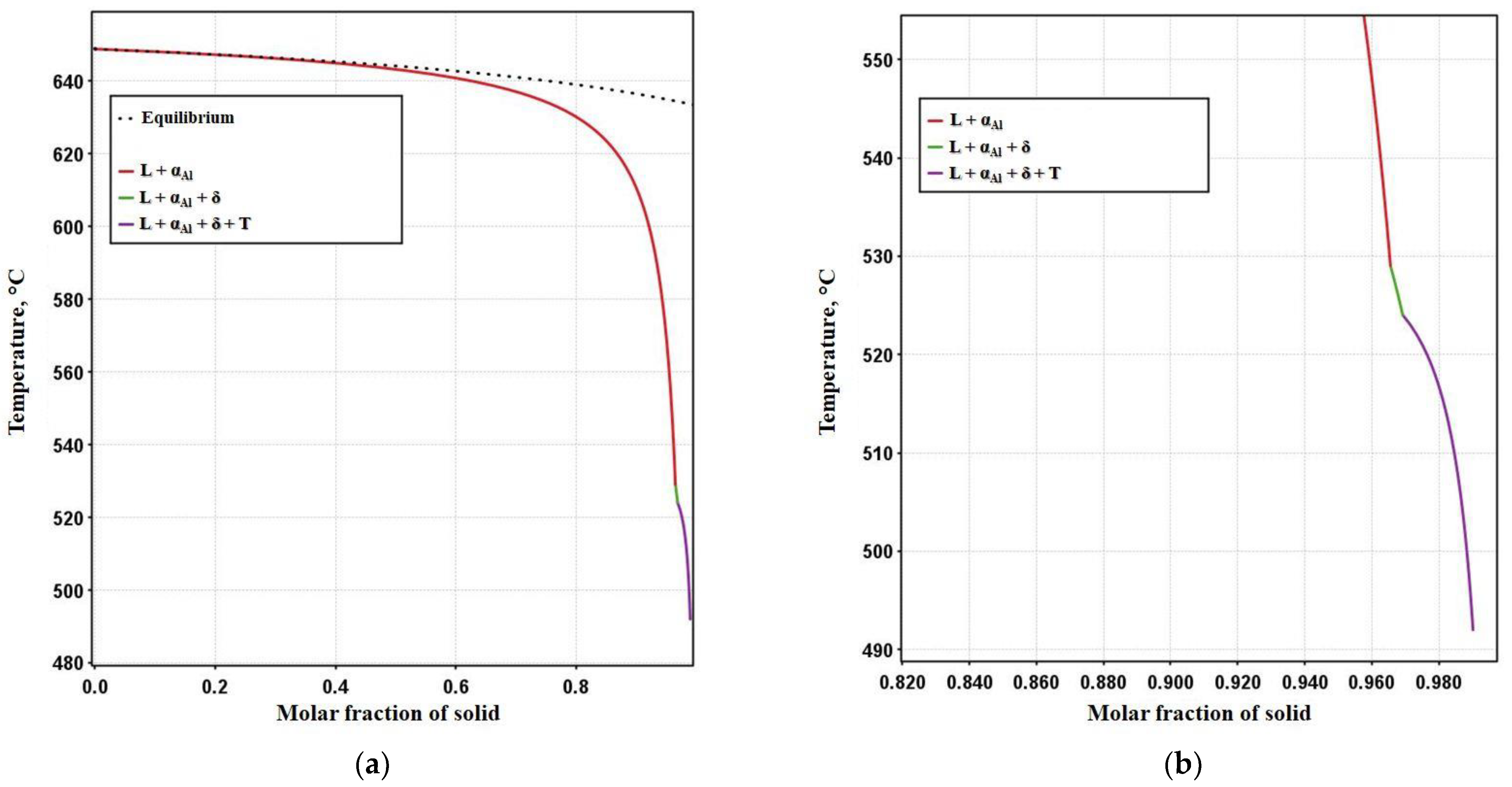

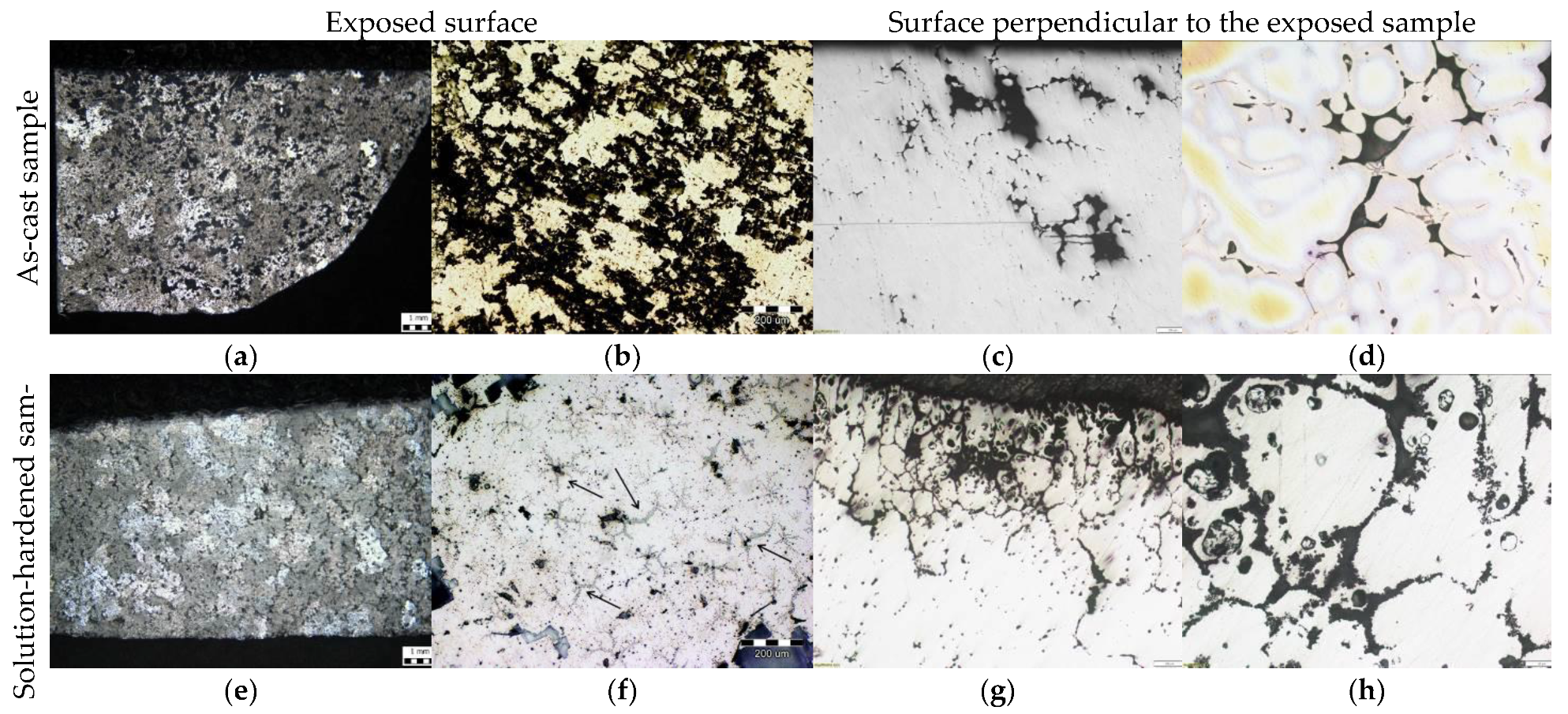

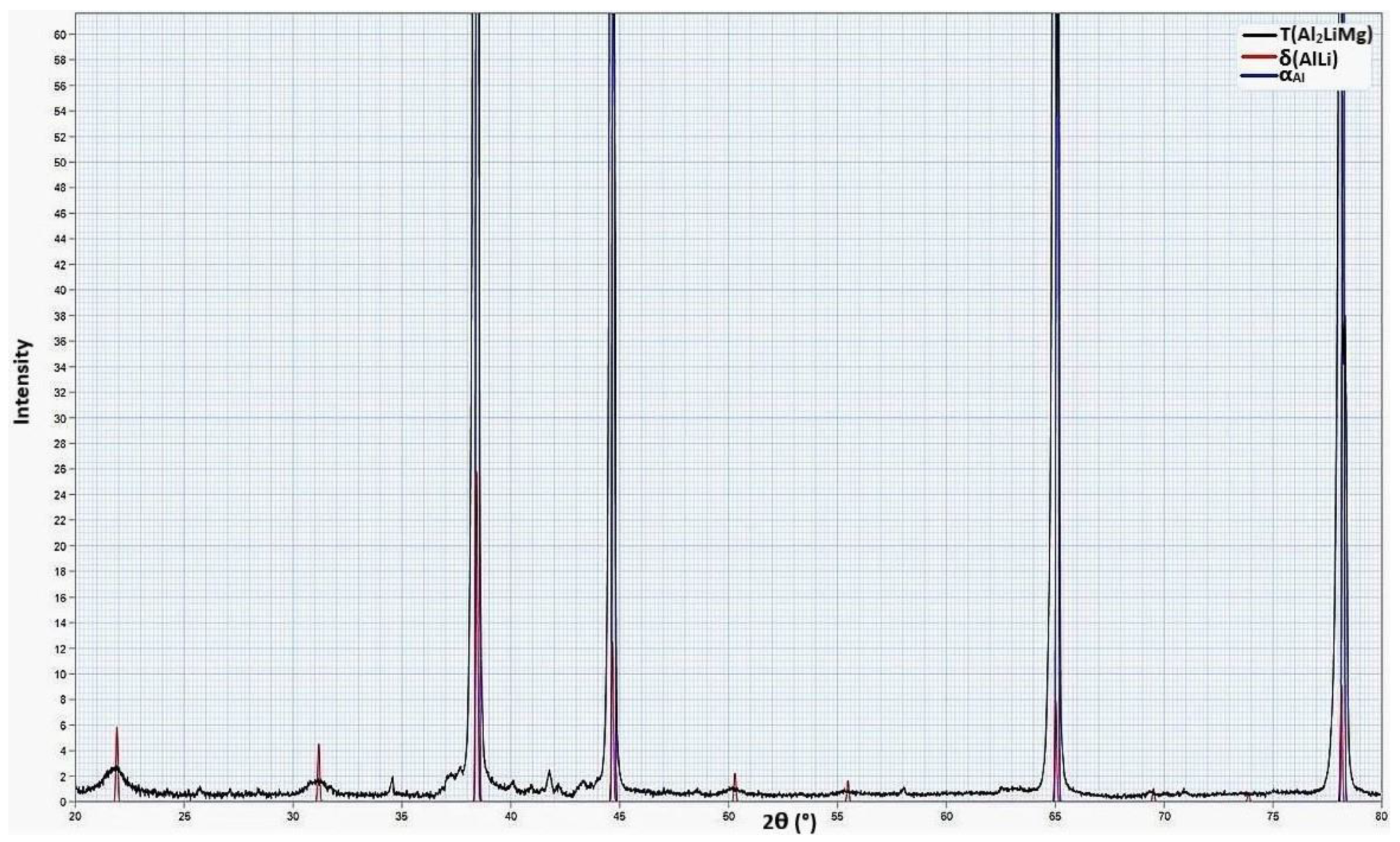

The utilization of aluminum-lithium-magnesium (Al-Li-Mg) alloys in the transportation industry is enabled by excellent engineering properties. The mechanical properties and corrosion resistance are influenced by the microstructure development comprehending the solidification of coherent strengthening precipitates, precipitation of course and angular equilibrium phases as well as the formation and widening of the Precipitate-free zone. The research was performed to determine the microstructure degradation of Al-2.18Mg-1.92Li alloy in a corrosive environment using electrochemical measurements. The solidification sequence of the Al-2.18Mg-1.92Li alloy, obtained using Thermo–Calc software support, indicated the transformation of the αAl dendritic network and precipitation of AlLi (δ), Al2LiMg (T), and Al8Mg5 (β) phase. All of the phases are anodic with respect to the αAl enabling microstructure degradation. To achieve higher microstructure stability, the sample was solution hardened at 520 °C. However, the sample in as-cast condition showed a lower corrosion potential (−749.84 mV) and corrosion rate (17.01 mm/year) with respect to the solution-hardened sample (−752.52 mV, 51.24 mm/year). Higher microstructure degradation of the solution-hardened sample is a consequence of δ phase precipitation at the grain boundaries and inside the grain of αAl, leading to intergranular corrosion and cavity formation. The δ phase precipitates from the Li and Mg enriched the αAl solid solution at the solution-hardening temperature. View Full-Text
Keywords: Al-Mg-Li alloy; solidification sequence; as-cast; solution hardening; microstructure; degradation Al-Mg-Li alloy; solidification sequence; as-cast; solution hardening; microstructure; degradation
Show Figures

Graphical abstract

MDPI and ACS Style

Kozina, F.; Brodarac, Z.Z.; Brajčinović, S.; Petrič, M. Determination of Al-2.18Mg-1.92Li Alloy’s Microstructure Degradation in Corrosive Environment. Crystals 2021, 11, 338. https://doi.org/10.3390/cryst11040338

AMA Style

Kozina F, Brodarac ZZ, Brajčinović S, Petrič M. Determination of Al-2.18Mg-1.92Li Alloy’s Microstructure Degradation in Corrosive Environment. Crystals. 2021; 11(4):338. https://doi.org/10.3390/cryst11040338

Chicago/Turabian Style

Kozina, Franjo, Zdenka Z. Brodarac, Sandra Brajčinović, and Mitja Petrič. 2021. "Determination of Al-2.18Mg-1.92Li Alloy’s Microstructure Degradation in Corrosive Environment" Crystals 11, no. 4: 338. https://doi.org/10.3390/cryst11040338

Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
