Non-Isothermal Crystallization Behavior of Poly(vinylidene fluoride) in Dialkyl Phthalate Diluents during Thermally Induced Phase Separation Process

Abstract

The non-isothermal crystallization behavior of poly(vinylidene fluoride) (PVDF) in dialkyl phthalate diluents during the thermally induced phase separation (TIPS) process was investigated by differential scanning calorimetry (DSC) at various cooling rates. Dialkyl phthalates with different alkyl chain-length, namely dimethyl phthalate (DMP), diethyl phthalate (DEP) and dibutyl phthalate (DBP), were used as the diluent. The effects of alkyl chain-length of dialkyl phthalate and cooling rate on the non-isothermal crystallization behavior as implied by the Avrami analysis modified by Jeziorny and Mo’s analysis were determined. The values of half-time, $t_{1/2}$, and the parameters $Z_c$ and $F(t)$, which characterized the kinetics of non-isothermal crystallization, showed that the crystallization rate increased with the increase of the alkyl chain-length of dialkyl phthalate due to the lower compatibility between PVDF and dialkyl phthalate. Moreover, the alkyl chain-length of dialkyl phthalate also has a great impact on the compact spherulitic structure of PVDF membranes prepared from different PVDF/dialkyl phthalate blends. With the decrease of the alkyl chain-length of dialkyl phthalate, the number of spherulites increased and the size of spherulites became smaller. This research thus not only proves the effects of alkyl chain-length of dialkyl phthalate on the non-isothermal crystallization behavior of PVDF, but also provides a systematic strategy to evaluate a single diluent during the TIPS process.

1. Introduction

Microporous semi-crystalline polymeric membranes with controlled pore size, shape and distribution can be prepared via the thermally induced phase separation (TIPS) method, which was first introduced by Castro in the late 1970s [1]. In the TIPS process, an appropriate polymer/diluent system is heated to achieve a homogeneous solution. During cooling, both by isothermal or non-isothermal quenching, TIPS can proceed either solid–liquid phase separation or liquid–liquid phase separation. The solid–liquid phase separation usually results from the crystallization of polymer from the homogeneous solution phase [2]. In the real TIPS process, the non-isothermal step occurs much more often than the isothermal step. Thus, the non-isothermal crystallization behavior of the crystalline polymer in the diluted system would predominate the pore structure of the resulted membrane.

Poly(vinylidene fluoride) (PVDF), as a semi-crystalline polymer, receives considerable attention as an important membrane material to produce microporous membranes for water treatment processes due to its high mechanical strength, good chemical resistance and thermal stability, as well as excellent chemical resistance against corrosive chemicals [3,4]. A lot of researches have reported the fabrication of PVDF microporous membranes via the TIPS method [5,6,7,8,9,10,11,12,13,14,15,16,17,18]. Most of them focused on the resultant membrane structure, and the spherulite structure was found to be the common structure due to the solid–liquid phase separation occurring. In addition, many of these researchers have adopted dialkyl phthalates (such as dimethyl phthalate (DMP), diethyl phthalate (DEP) and dibutyl phthalate (DBP)) or their mixture to prepare PVDF membranes [10,12,14,15,18]. Although solid–liquid phase separation can be found to occur in all of these systems, the structure and performance of these membranes presented as very different due to the different compatibility between PVDF and diluents, and also different PVDF crystallization behavior. Therefore, it is necessary to study the non-isothermal crystallization behavior of PVDF/diluent blend. Ji et al. investigated the non-isothermal crystallization kinetics of PVDF/dibutyl phthalate (DBP)/di(2-ethylhexyl)phthalate (DEHP) blends via TIPS [19]. The results showed that as the DEHP ratio in the diluent mixture increased, the interaction between PVDF and the diluent mixture became weaker, which resulted in the increase of the crystallization rate of PVDF. However, no such work has so far been carried out to analyze the non-isothermal crystallization behavior of PVDF in PVDF/single diluent blend though these single diluents have been widely used in the TIPS process.

Dialkyl phthalates, which have several advantages, such as low volatility and good thermal stability, have been widely used as single diluents in the TIPS process. In this work, three dialkyl phthalates, with similar structure but different alkyl chain-length, including dimethyl phthalate (DMP), diethyl phthalate (DEP) and dibutyl phthalate (DBP), were utilized as the single diluent of PVDF. The effects of alkyl chain-length of dialkyl phthalate on the non-isothermal behavior of PVDF/dialkyl phthalate blends during the TIPS process were investigated by differential scanning calorimetry (DSC) at various cooling rates. The morphologies of PVDF membranes prepared from different PVDF/dialkyl phthalate systems were also studied through scanning electron microscopy (SEM).

2. Experimental

2.1. Materials

Poly(vinylidene fluoride) (PVDF, Weight average molecular weight is 370,000, the ratio of weight average molecular weight to number average molecular weight is 2.5) was supplied by CMDIC XIAMEN (China). A series of dialkyl phthalate, which were dimethyl phthalate (DMP, Weight average molecular weight is 194.19, boiling point is 282 °C), diethyl phthalate (DEP, Weight average molecular weight is 222.24, boiling point is 295 °C) and dibutyl phthalate (DBP, Weight average molecular weight is 278.35, boiling point is 340 °C), were used as the diluents. All the diluents were analytical grade without further purification.

2.2. Sample Preparation

Certain amounts of PVDF/diluent were weighted into a test tube, which was purged with argon and sealed to prevent oxidation during melt blending. The weight fraction of PVDF was fixed at 30 wt%. The sealed test tube was heated in an oven at 200 °C for 48 h to yield a homogeneous solution. The tube was scrapped, and the homogeneous solution was quenched into liquid nitrogen to obtain a PVDF/diluent sample for differential scanning calorimetry (DSC) measurement.

2.3. Cloud Point and DSC Determination

The cloud points of the PVDF/diluent system were determined using a method reported before [8]. Non-isothermal crystallization behavior was studied using a DSC (Q100, TA, New Castle, DE, USA). All DSC measurements were performed under the nitrogen atmosphere, and sample weights varied from 5 to 9 mg. The sample was first heated to 200 °C and maintained there for 10 min to erase thermal history, and then cooled to 40 °C at a rate of 2, 5, 10 and 20 °C/min. The exothermic curves of heat flow with temperature decreasing at various rates were recorded and investigated. The crystallization half-time ($t_{1/2}$), which is defined as the half-time of crystallization, was used as a characteristic parameter of the crystallization process.

The melting process of PVDF from the PVDF/diluent sample cooled at the different rates mentioned above was detected by maintaining at 40 °C for 2 min, followed by heating to 200 °C at a rate of 10 °C/min. The absolute crystallinity of PVDF (${\chi }_{\mathrm{c}}$) is as recorded below [20]:

$${\mathrm{X}}_c=\frac{\Delta H_f/\varphi }{\Delta H_f^{*}}\times 100\%$$

(1)

where $\Delta H_f{}^{*}=104.5 J/g$ is the melting enthalpy for a 100% crystalline PVDF, $\Delta H_f$ is the melting enthalpy of the PVDF/diluent sample measured in DSC and $\omega$ is the PVDF weight fraction.

2.4. Avrami Analysis Modified by Jeziorny

The Avrami analysis modified by Jeziorny [21] is an extended expression to analyze the non-isothermal crystallization process. The Avrami equation was modified as follows:

$$\log \{-\ln \{1-X(t)\left\}\right\}=\log Z_t+n\log t$$

(2)

where $n$ is the Avrami exponent, $Z_t$ is the Avrami rate constant involving nucleation and growth parameters and $X(t)$ is the relative degree of crystallinity at the time $t$, which was obtained from the area of the DSC exothermic peak at time $t$ divided by the total area under the exothermic peak, as shown in Equation (3):

$$X(\mathrm{t})={\displaystyle {\int }_{t_0}^t(dH/dt)}dt/{\displaystyle {\int }_{t_0}^{t_{\infty }}(dH/dt)}dt$$

(3)

where $t_o$ and $t_{\infty }$ represent the onset and end of crystallization temperatures respectively, and $dH/dt$ is the heat flow rate.

2.5. Mo’s Approach Analysis

By combining the Ozawa analysis [22] and modified Avrami analysis, Mo [23] obtained another kinetic equation for non-isothermal crystallization behavior to relate the crystallinity with the cooling rate, $\varphi$, and the crystallization time, $t$. The relationship between $\varphi$ and $t$ was defined for a given degree of crystallinity as follows.

$$\log \varphi =\log F(t)-b\log t$$

(4)

where the parameter $F(t)$ refers to the necessary value of the cooling rate to reach a defined crystallinity within unit crystallization time, and $b$ is the ratio between Avrami and Ozawa exponents. From Equation (4), it is followed that, at a given crystallinity, the plot of $\log \varphi$ versus $\log t$ should be a straight line with an intercept of $\log F(t)$ and a slope of −$b$.

2.6. Membrane Preparation and Sem Observation

The PVDF/dialkyl phthalate sample obtained in the manner mentioned above was re-heated to 200 °C for 5 min, and then quenched into ice-water to induce phase separation and polymer solidification. The diluent that remained in the membrane precursor was extracted by ethanol, and the PVDF membrane was obtained after the volatilization of ethanol.

The resulting PVDF membrane was fractured in liquid nitrogen and coated with platinum. A scanning electron microscope (SEM, JSM7401, JEOL Ltd., Akishima, Japan) with the accelerating voltage set to 1.0 kV was used to examine the cross-section of membranes.

3. Results and Discussion

3.1. Non-Isothermal Crystallization Behavior

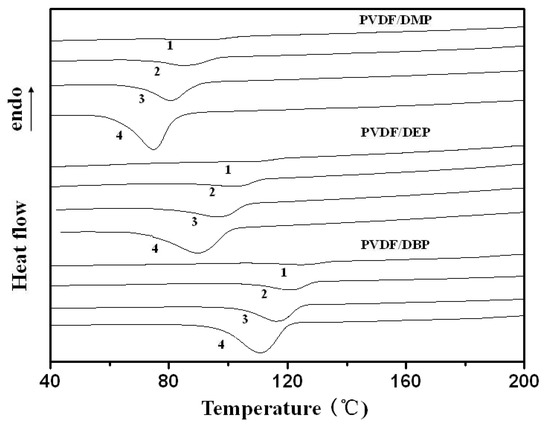

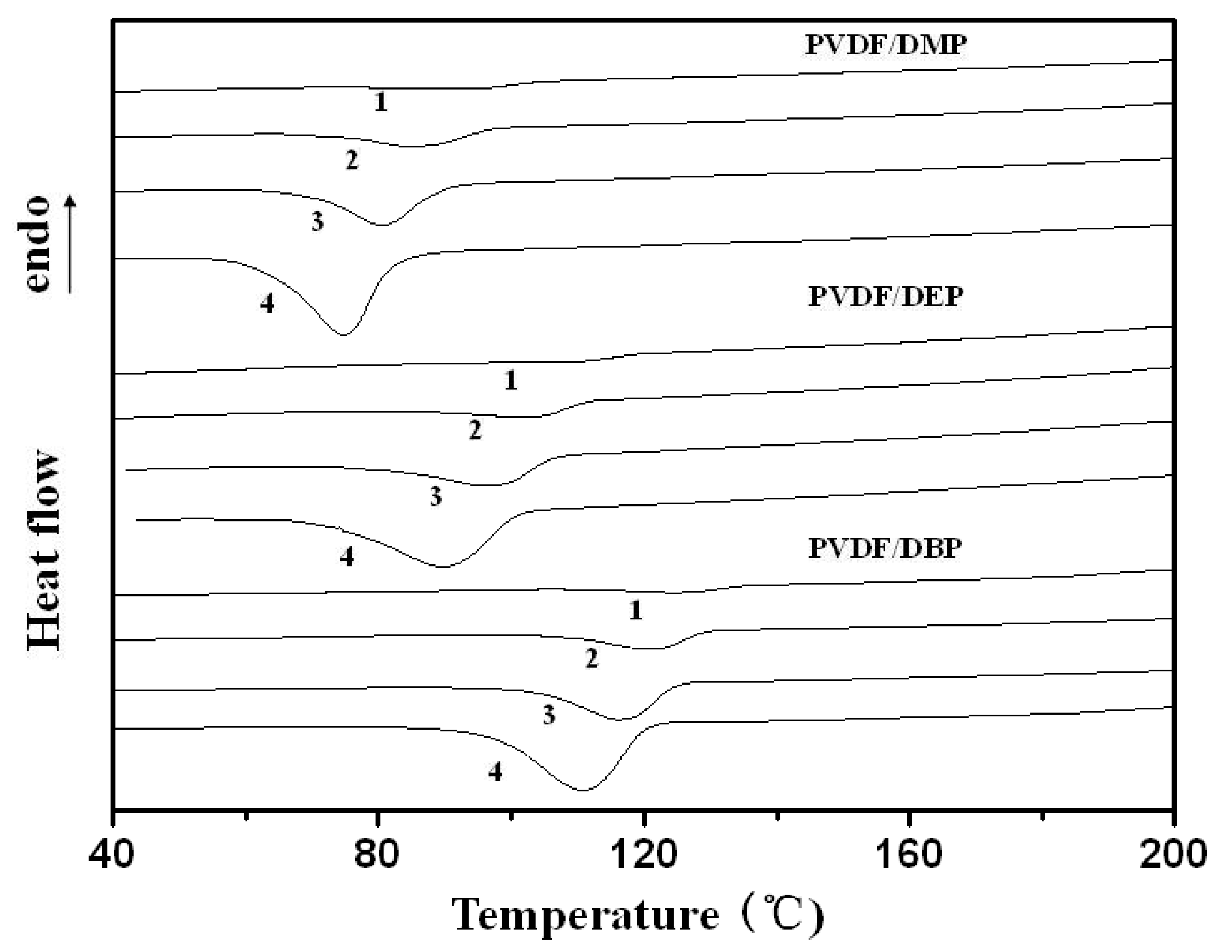

No cloud points were found and only the crystallization (solid–liquid phase separation) occurred in these three PVDF/dialkyl phthalate systems because dialkyl phthalates had good compatibility with PVDF. Figure 1 shows the exothermic curves for PVDF/dialkyl phthalate blends at different cooling rates.

Table 1. DSC crystallization and melting results of PVDF/dialkyl phthalate blends.

Sample	$\mathit{\varphi }$ (°/min)	${\mathit{T}}_{\mathit{c}}{}^{\mathit{o}\mathit{n}}$ (°C)	${\mathit{T}}_{\mathit{c}}{}^{\mathit{p}}$ (°C)	${\mathit{T}}_{\mathit{c}}{}^{\mathit{f}}$ (°C)	${\mathit{T}}_{\mathit{m}}{}^{\mathit{o}\mathit{n}}$ (°C)	${\mathit{T}}_{\mathit{m}}{}^{\mathit{p}}$ (°C)	${\mathit{T}}_{\mathit{m}}{}^{\mathit{f}}$ (°C)	$\mathit{\Delta }{\mathit{H}}_{\mathit{m}}$(J/g)	${\mathit{X}}_{\mathit{c}}$ (%)	${\mathit{t}}_{1/2}$ (min)
PVDF/DMP	2	108.5	94.7	75.4	100.2	122.5	135.2	62.7	60.0	8.0
PVDF/DEP	2	121.7	109.5	88.4	109.6	131.4	144.1	59.8	57.2	7.2
PVDF/DBP	2	138.8	125.4	106.8	125.3	148.0	159.0	58.4	55.9	7.1
PVDF/DMP	5	100.4	85.3	63.5	100.4	120.6	133.7	61.3	58.6	3.2
PVDF/DEP	5	114.3	102.8	76.1	107.6	129.5	141.6	60.4	57.8	3.0
PVDF/DBP	5	133.9	120.6	98.7	123.6	146.4	157.5	58.2	55.7	2.5
PVDF/DMP	10	98.5	80.7	57.9	95.3	116.7	133.2	65.6	62.7	1.9
PVDF/DEP	10	111.1	97.0	68.7	105.5	127.9	140.9	61.7	59.0	1.7
PVDF/DBP	10	129.0	116.6	91.6	123.0	145.2	155.6	57.0	54.5	1.4
PVDF/DMP	20	91.2	75.0	52.6	97.4	115.5	133.0	62.7	60.0	1.0
PVDF/DEP	20	107.9	90.0	62.89	105.7	126.4	140.9	60.7	58.1	0.9
PVDF/DBP	20	126.0	110.8	84.6	123.4	144.0	155.8	57.2	54.8	0.8

DMP: dimethyl phthalate; DEP: diethyl phthalate; DBP: dibutyl phthalate; $\varphi$: Heating/cooling rate; $T_c{}^{on}$: onset crystallization temperature; $T_c{}^p$: peak crystallization temperature; $T_c{}^f$: final crystallization temperature; $T_m{}^{on}$: onset melting temperature; $T_m{}^p$: peak melting temperature; $T_m{}^f$: final melting temperature; $\Delta H_m$ measured melting enthalpy from DSC; $X_c$: crystallinity; $t_{1/2}$: half-time.

summarizes how the crystallization temperature and the value of enthalpy of crystallization for PVDF/dialkyl phthalate blends depended upon the alkyl chain-length of dialkyl phthalate. The melting data are listed in

Table 2. Hansen solubility parameters of PVDF and dialkyl phthalate and their interaction parameters.

Substance	δd (MPa1/2)	δp (MPa1/2)	δh (MPa1/2)	${\mathit{V}}_{\mathit{m}}$(cm3/mol)	${\mathit{\chi }}_{12}$
PVDF	17.0	12.1	10.2	-	-
DMP	18.6	10.8	4.9	163.0	0.66
DEP	17.6	9.6	4.5	180.4	0.73
DBP	17.8	8.6	4.1	266.4	1.40

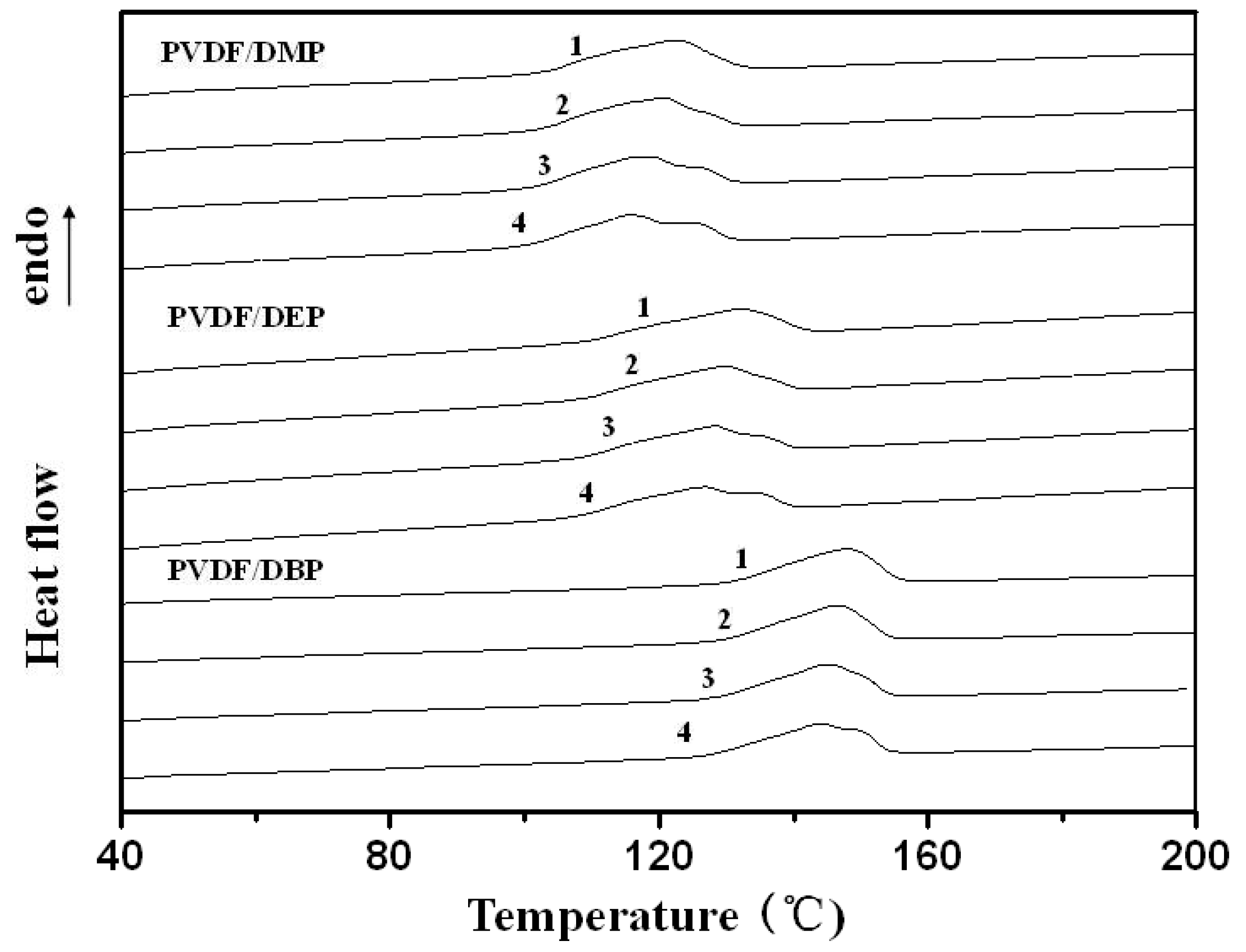

, which were obtained from the melting thermograms shown in Figure 2. It clearly shows that an increase of the alkyl chain-length of dialkyl phthalate accelerated the crystallization of PVDF progressively. The onset crystallization temperature, $t_c{}^o$, peak crystallization temperature, $t_c{}^p$, and final crystallization temperature, $T_c{}^f$, all increased with the increase of the alkyl chain-length of dialkyl phthalate. The crystallization behavior of the PVDF/dialkyl phthalate blend was analyzed in terms of the compatibility between PVDF and dialkyl phthalate. The degree of compatibility could be estimated from the different interaction parameter, ${\chi }_{12}$, between polymer and diluent using the following expression [24]:

$${\chi }_{12}=\frac{V_m}{RT}[{({\delta }_{d1}-{\delta }_{d2})}^2+0.25{({\delta }_{p1}-{\delta }_{p2})}^2+0.25{({\delta }_{h1}-{\delta }_{h2})}^2]$$

(5)

where $R$ is the ideal gas constant (8.314 J/mol/K), T is the environment temperature (298 K), and ${\delta }_d$, ${\delta }_p$ and ${\delta }_h$ are the Hansen’s parameters for dispersion, polar and hydrogen bonding interactions, respectively [25]. $V_m$ is the molar volume of the diluent. In general, the larger the interaction parameter, ${\chi }_{12}$, value, the weaker the compatibility between the polymer and diluents.

Table 2 shows the interaction parameter, ${\chi }_{12}$, value between PVDF and dialkyl phthalate. As a result, with the increase of the alkyl chain-length of dialkyl phthalate, the interaction parameter, ${\chi }_{12}$, value increased, which indicated the decrease of the compatibility between PVDF and the diluent. Favorable compatibility induced full extension of PVDF segments, which led to the required higher supercooling degree for PVDF segments to fold when cooling at the same rate. Namely, the crystallization temperature of PVDF decreased with the decrease of the alkyl chain-length of dialkyl phthalate.

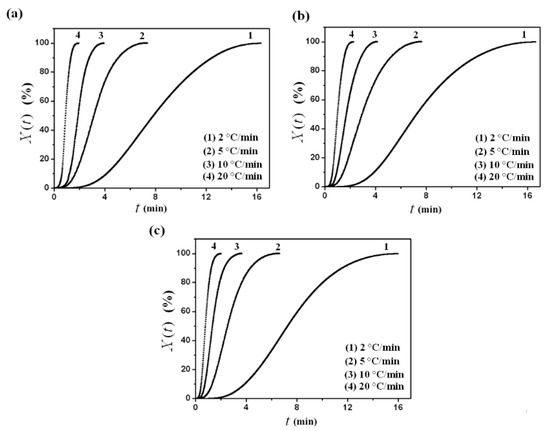

Relative crystallinity, $X(t)$, as a function of the crystallization time, $t$, for PVDF/dialkyl phthalate blends is plotted in Figure 3. As would be expected, PVDF at higher cooling rates required a shorter time to complete crystallization. From these curves, it was easy to find that PVDF/dialkyl phthalate blends showed similar development of the crystallization process, and a series of S-shaped curves were obtained due to the spherulitic impingement in the later crystallization stage. The crystallization half-time, $t_{1/2}$, which represents the overall crystallization rate, is defined as the time at which the relative crystallization degree is 50% completed. The shorter the half-time, $t_{1/2}$, the faster the overall crystallization rate. As listed in Table 1, it could be seen that, as expected, $t_{1/2}$ decreased with the increase of the cooling rate for all the cases. Moreover, $t_{1/2}$ decreased with the increase of the alkyl chain-length of dialkyl phthalate. As stated above, with the increase of the alkyl chain-length of dialkyl phthalate, the compatibility between PVDF and dialkyl phthalate became weaker, which led to a higher growth rate of PVDF crystallization.

As listed in Table 1, the melting temperature was decreased with the decrease of the alkyl chain-length of dialkyl phthalate. As reported, depression of melting temperature, due to a decrease in the chemical potential of the crystalline polymer, could provide the information on compatibility between the polymer and diluent. The higher the depth of melting temperature depression that occurred, the better compatibility between the polymer and diluent [26,27]. So, it was also suggested that the compatibility between PVDF and dialkyl phthalate increased with the decrease of the alkyl chain-length of dialkyl phthalate.

3.2. Avrami Analysis Modified by Jeziorny

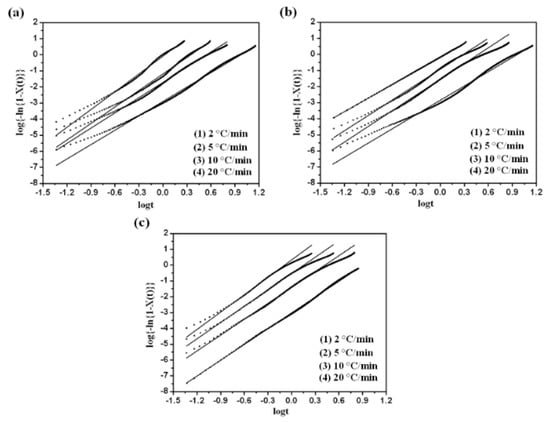

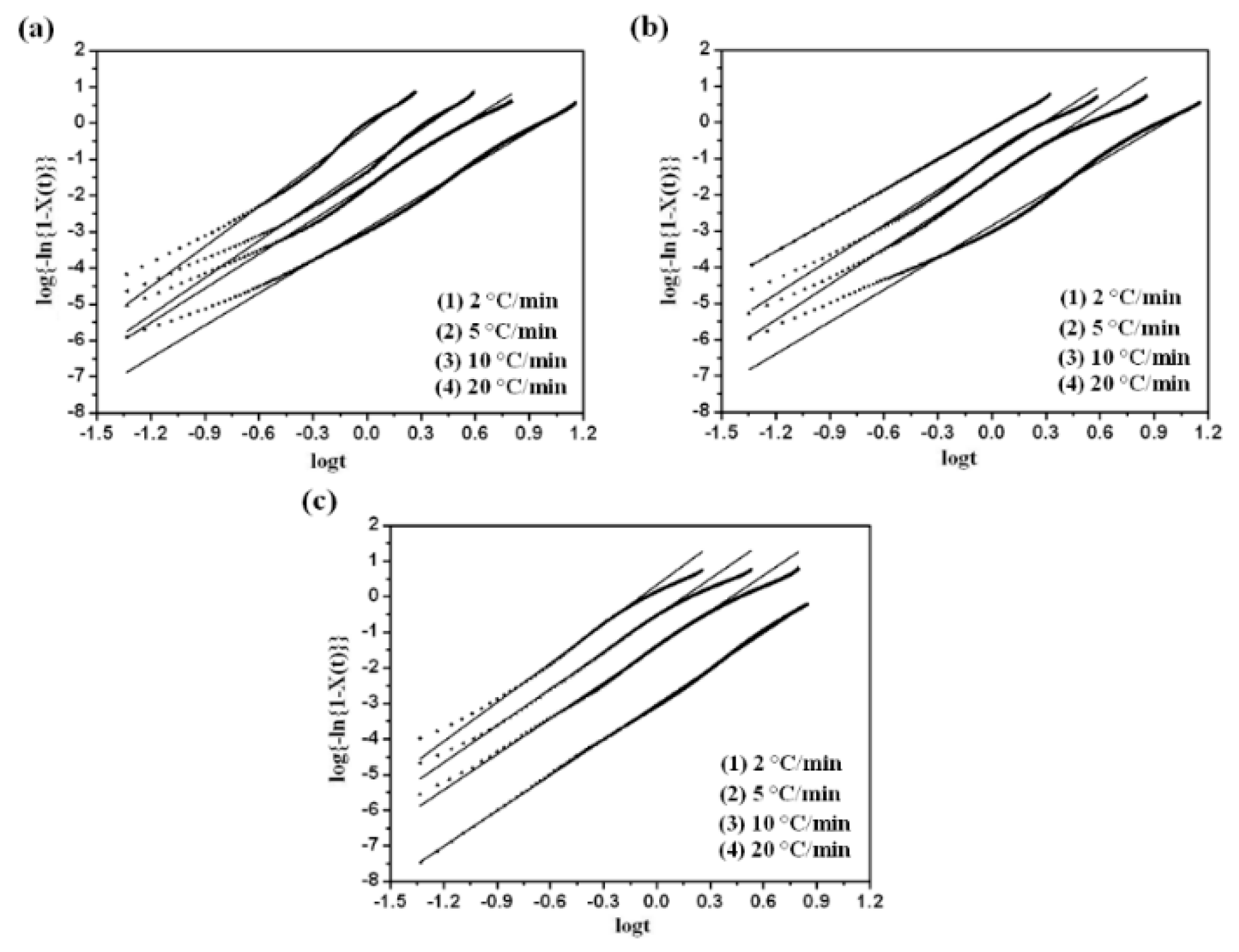

The Avrami plot of $\log \{-\ln \{1-X(t)\left\}\right\}$ versus $\log t$ for PVDF/dialkyl phthalate is shown in Figure 4. Each curve had a linear portion, most of which was followed by a gentle deviation at longer times. Usually, this deviation is considered to be due to the secondary crystallization, which is caused by the spherulite impingement in the later stage [28]. The calculated values of $n$, $Z_t$ and $Z_c$ for the linear portion are listed in

Table 3. Kinetic parameters of PVDF/dialkyl phthalate blends from the modified Avrami analysis.

Sample $\mathit{\varphi }$ (°C/min)	$\mathit{n}$	${\mathit{Z}}_{\mathit{t}}$	${\mathit{Z}}_{\mathit{c}}$
PVDF/DMP
2	2.98	0.001	0.031
5	3.16	0.019	0.453
10	3.42	0.064	0.760
20	3.69	0.820	0.990
PVDF/DEP
2	2.96	0.001	0.035
5	3.26	0.029	0.492
10	3.20	0.122	0.810
20	2.83	0.989	0.999
PVDF/DBP
2	3.33	0.001	0.038
5	3.35	0.039	0.522
10	3.44	0.296	0.885
20	3.67	2.149	1.039

. The Avrami exponent lies between 2.9 and 3.7. The values of crystallization rate parameter, $Z_c$, were comparable for every sample. At a specific cooling rate, the values of $Z_c$ for PVDF decreased with the decreasing alkyl chain-length of dialkyl phthalate. In the case of dialkyl phthalate having a shorter alkyl chain-length, favorable compatibility between PVDF and dialkyl phthalate induced full extension of PVDF segments, which brought resistance for the transport of the PVDF segment to the growing crystal surface and reduced the rate of crystallization growth. At the same time, the values of $Z_c$ increased with the increase of the cooling rate. Increasing the cooling rate could provide the system with more energy to improve the activity of the chain segment, thus resulting in the increase of crystallization rate parameter, $Z_c$.

3.3. Mo’s Approach

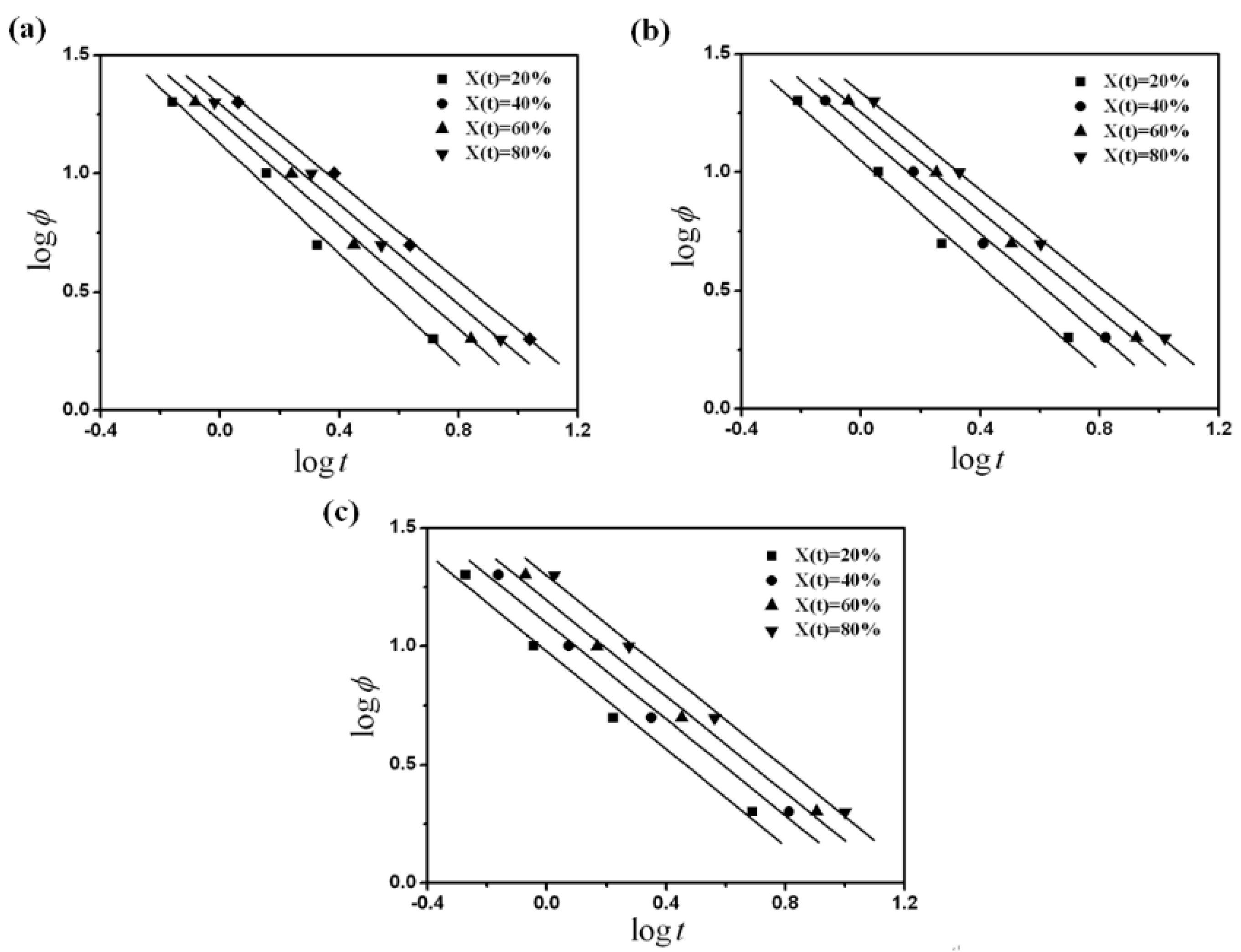

At a given degree of crystallinity, plotting $\log \varphi$ versus $\log t$ (Figure 5) yielded a linear relationship between $\log \varphi$ and $\log t$. The data of the kinetic parameter $F(t)$ and $b$ estimated from the intercept and slope for PVDF/dialkyl phthalate are listed in

Table 4. Values of $b$ and $F(t)$ at various values of $X(t)$ for PVDF/dialkyl phthalate blends.

$\mathit{X}(\mathit{t})$	20%	40%	60%	80%
PVDF/DMP
$b$	1.17	1.10	1.06	1.03
$F(t)$	13.42	16.69	19.63	23.60
PVDF/DEP
$b$	1.11	1.07	1.04	1.03
$F(t)$	11.24	14.83	17.89	21.75
PVDF/DBP
$b$	1.03	1.02	1.01	1.02
$F(t)$	9.52	12.55	15.62	19.89
$X(t)$	20%	40%	60%	80%
PVDF/DMP
$b$	1.17	1.10	1.06	1.03

F(t): the necessary value of the cooling rate to reach a defined crystallinity within unit crystallization time; b: the ratio between Avrami and Ozawa exponents.

. For each sample, with the increase of relative crystallinity, $X(t)$, the values of $b$ changed slightly, while the values of $F(t)$ increased, indicating that at a given crystallization time, a higher cooling rate should be used to obtain a higher degree of crystallinity. However, at the same $X(t)$, the values of $F(t)$ decreased with the increase of the alkyl chain-length of dialkyl phthalate. Namely, the increase of compatibility between PVDF and dialkyl phthalate could reduce the crystallization rate, and this was consistent with the analysis of crystallization half-time and the Avrami analysis modified by Jeziorny.

3.4. Membrane Structure

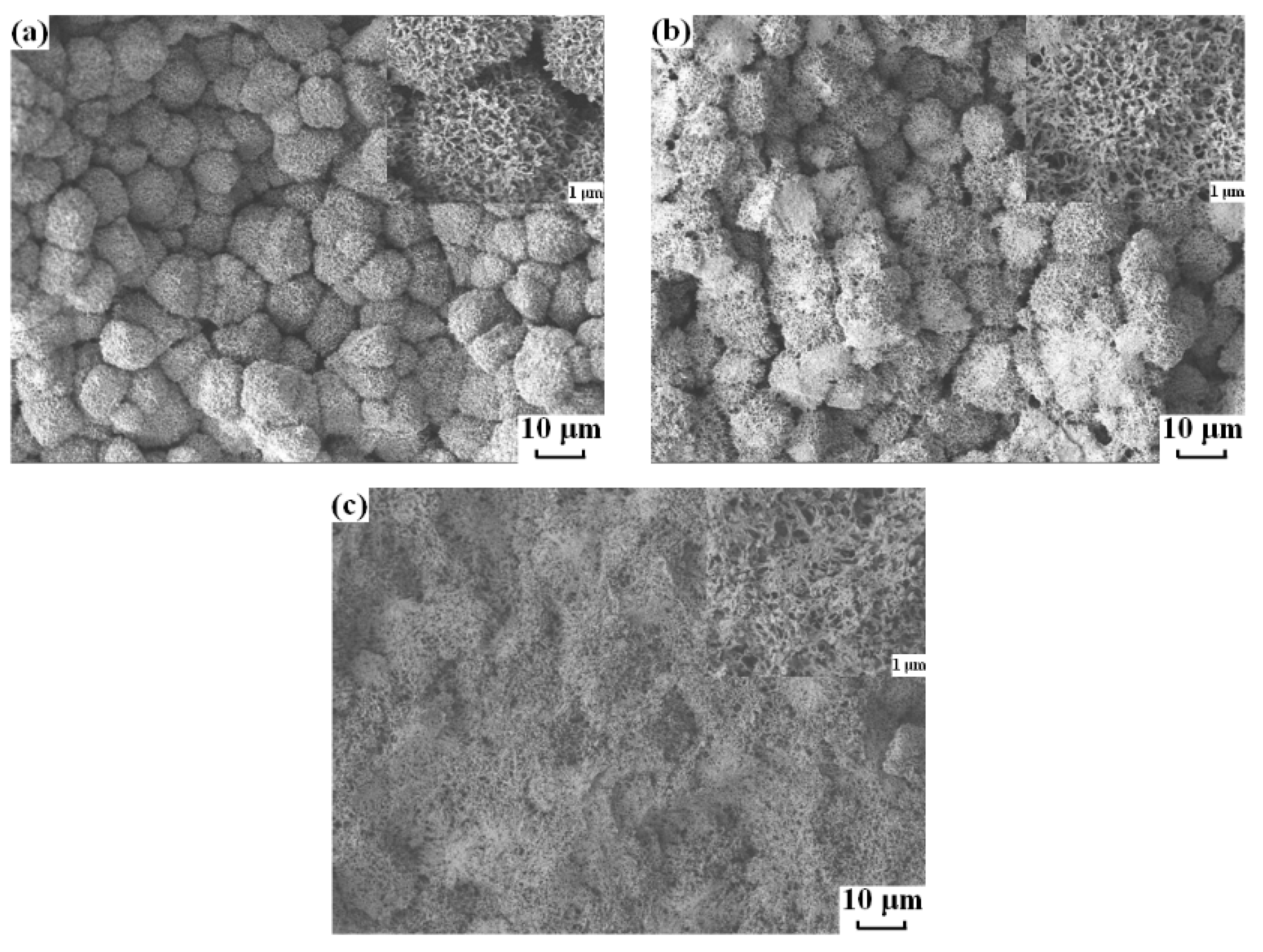

Figure 6 shows the cross-section structure of the membranes prepared from PVDF/dialkyl phthalate systems via the TIPS method. Each sample presented spherulitic structure due to only solid–liquid phase separation occurring. With the decrease of the alkyl chain-length of dialkyl phthalate, the number of spherulites increased and the size of spherulites became smaller. As mentioned above, while the alkyl chain-length of dialkyl phthalate decreased, the onset crystallization temperature, $t_c{}^o$, decreased, which resulted in more nuclei formation at the beginning of crystallization. Therefore, these nuclei grew up into smaller spherulites with the same polymer concentration.

4. Conclusions

With the DSC data obtained at various cooling rates, the effect of the alkyl chain-length of dialkyl phthalate on the non-isothermal crystallization behavior of PVDF/dialkyl phthalate blends during the TIPS process was investigated through the Avrami analysis modified by Jeziorny and Mo’s analysis. DSC exotherms of non-isothermal crystallization showed that all the crystallization temperatures ($t_c{}^o$, $t_c{}^p$ and $t_c{}^f$) increased with the increasing alkyl chain-length of dialkyl phthalate. On the other hand, $t_{1/2}$ increased as the alkyl chain-length of dialkyl phthalate and the cooling rate decreased. With the increase of the alkyl chain-length of dialkyl phthalate, the parameter $Z_c$ increased and $F(t)$ decreased, which revealed that the crystallization rate increased. SEM results showed that the cross-section of the PVDF membrane prepared from the PVDF/dialkyl phthalate system presented spherulitic structure due to the solid–liquid phase separation occurring. Moreover, the number of spherulites increased and the size of spherulites became smaller with the decrease of the alkyl chain-length of dialkyl phthalate.
