# Nanoscale Mapping of Heterogeneous Strain and Defects in Individual Magnetic Nanocrystals

^{1}

^{2}

^{3}

^{4}

^{5}

^{6}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Discussion and Conclusions

## 3. Materials and Methods

#### 3.1. Sample Growth

#### 3.2. CXD Experiments and BCDI Data Reconstructions

#### 3.3. Classical Potential Simulations

#### 3.4. Landau–Lifshitz–Gilbert (LLG) Simulation

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Abbreviations

BCDI | Bragg coherent X-ray diffractive imaging |

CXD | Coherent X-ray diffraction |

SEM | Scanning electron microscopy |

XRD | X-ray diffraction |

NP | Nanoparticle |

EF-TEM | Energy-filtered transmission electron microscopy |

HR-TEM | High-resolution transmission electron microscopy |

PRTF | Phase retrieval transfer function |

## References

- Golosovsky, I.; Salazar-Alvarez, G.; López-Ortega, A.; González, M.; Sort, J.; Estrader, M.; Surinach, S.; Baró, M.; Nogués, J. Magnetic proximity effect features in antiferromagnetic/ferrimagnetic core-shell nanoparticles. Phys. Rev. Lett.
**2009**, 102, 247201. [Google Scholar] [CrossRef] [Green Version] - Zeng, H.; Li, J.; Wang, Z.; Liu, J.; Sun, S. Bimagnetic core/shell FePt/Fe3O4 nanoparticles. Nano Lett.
**2004**, 4, 187–190. [Google Scholar] [CrossRef] - Estrader, M.; López-Ortega, A.; Estradé, S.; Golosovsky, I.; Salazar-Alvarez, G.; Vasilakaki, M.; Trohidou, K.; Varela, M.; Stanley, D.; Sinko, M.; et al. Robust antiferromagnetic coupling in hard-soft bi-magnetic core/shell nanoparticles. Nat. Commun.
**2013**, 4, 2960. [Google Scholar] [CrossRef] [PubMed] - Dormann, J.; Fiorani, D. Magnetic Properties of Fine Particles; Elsevier: Amsterdam, The Netherlands, 2012. [Google Scholar]
- Winkler, E.; Zysler, R.; Mansilla, M.V.; Fiorani, D. Surface anisotropy effects in NiO nanoparticles. Phys. Rev. B
**2005**, 72, 132409. [Google Scholar] [CrossRef] - Leslie-Pelecky, D.; Rieke, R. Magnetic properties of nanostructured materials. Chem. Mater.
**1996**, 8, 1770–1783. [Google Scholar] [CrossRef] - Manna, P.; Yusuf, S.; Basu, M.; Pal, T. The magnetic proximity effect in a ferrimagnetic Fe3O4 core/ferrimagnetic γ-Mn2O3 shell nanoparticle system. J. Phys. Condens. Matter
**2011**, 23, 506004. [Google Scholar] [CrossRef] - Hu, Y.; Wu, G.Z.; Liu, Y.; Du, A. Field-induced transitions from negative to positive exchange bias in nanoparticles with inverted ferromagnetic-antiferromagnetic core-shell morphology. J. Appl. Phys.
**2012**, 111, 053904. [Google Scholar] [CrossRef] - Nogués, J.; Sort, J.; Langlais, V.; Skumryev, V.; Surinach, S.; Munoz, J.; Baró, M. Exchange bias in nanostructures. Phys. Rep.
**2005**, 422, 65–117. [Google Scholar] [CrossRef] - Skumryev, V.; Stoyanov, S.; Zhang, Y.; Hadjipanayis, G.; Givord, D.; Nogues, J. Beating the superparamagnetic limit with exchange bias. Nature
**2003**, 423, 850–853. [Google Scholar] [CrossRef] - Schuller, I.K.; Kim, S.; Leighton, C. Magnetic superlattices and multilayers. J. Magn. Magn. Mater.
**1999**, 200, 571–582. [Google Scholar] [CrossRef] - Nogués, J.; Lederman, D.; Moran, T.; Schuller, I.K. Positive Exchange Bias in Fe F 2-Fe Bilayers. Phys. Rev. Lett.
**1996**, 76, 4624. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Moser, A.; Berger, A.; Margulies, D.T.; Fullerton, E.E. Magnetic tuning of biquadratic exchange coupling in magnetic thin films. Phys. Rev. Lett.
**2003**, 91, 097203. [Google Scholar] [CrossRef] [PubMed] - Granitzer, P.; Rumpf, K.; Krenn, H. Ferromagnetic nanostructures incorporated in quasi-one-dimensional porous silicon channels suitable for magnetic sensor applications. J. Nanomater.
**2006**, 2006, 18125. [Google Scholar] [CrossRef] [Green Version] - Garcia-Sanchez, F.; Szambolics, H.; Mihai, A.; Vila, L.; Marty, A.; Attané, J.P.; Toussaint, J.C.; Buda-Prejbeanu, L. Effect of crystalline defects on domain wall motion under field and current in nanowires with perpendicular magnetization. Phys. Rev. B
**2010**, 81, 134408. [Google Scholar] [CrossRef] - Singh, M.K.; Agarwal, A.; Swarnkar, R.K.; Gopal, R.; Kotnala, R. Magnetic Properties of Ni/NiO Core–Shell Nanoparticles Synthesized by Nanosecond Laser Irradiance of Water Suspended Ni Particles. Sci. Adv. Mater.
**2012**, 4, 532–536. [Google Scholar] [CrossRef] - Jayakumar, O.; Tyagi, A. Synthesis and characterisation of dispersible Ni@ NiO core shell magnetic nanoparticles by polyol method. Int. J. Nanotechnol.
**2010**, 7, 852–860. [Google Scholar] [CrossRef] - D’Addato, S.; Grillo, V.; Altieri, S.; Frabboni, S.; Valeri, S. Assembly and structure of Ni/NiO core-shell nanoparticles. Appl. Surf. Sci.
**2012**, 260, 13–16. [Google Scholar] [CrossRef] - Yuan, C.; Zhang, Q.; Luo, X.; Zhang, Z. Formation and strain distribution of Ni/NiO core/shell magnetic nanoparticles fabricated by pulsed laser deposition. Sci. China Phys. Mechan. Astron.
**2011**, 54, 1254–1257. [Google Scholar] [CrossRef] - Chen, B.; Lutker, K.; Raju, S.V.; Yan, J.; Kanitpanyacharoen, W.; Lei, J.; Yang, S.; Wenk, H.R.; Mao, H.K.; Williams, Q. Texture of nanocrystalline nickel: Probing the lower size limit of dislocation activity. Science
**2012**, 338, 1448–1451. [Google Scholar] [CrossRef] - Patel, J.; Authier, A. X- ray topography of defects produced after heat treatment of dislocation- free silicon containing oxygen. J. Appl. Phys.
**1975**, 46, 118–125. [Google Scholar] [CrossRef] - Hÿtch, M.J.; Putaux, J.L.; Pénisson, J.M. Measurement of the displacement field of dislocations to 0.03 Å by electron microscopy. Nature
**2003**, 423, 270–273. [Google Scholar] [CrossRef] [PubMed] - Bilderback, D.H.; Elleaume, P.; Weckert, E. Review of third and next generation synchrotron light sources. J. Phys. B At. Mol. Opt. Phys.
**2005**, 38, S773. [Google Scholar] [CrossRef] - Fohtung, E.; Kim, J.W.; Chan, K.T.; Harder, R.; Fullerton, E.E.; Shpyrko, O.G. Probing the three-dimensional strain inhomogeneity and equilibrium elastic properties of single crystal Ni nanowires. Appl. Phys. Lett.
**2012**, 101, 033107. [Google Scholar] [CrossRef] [Green Version] - Watari, M.; McKendry, R.A.; Vögtli, M.; Aeppli, G.; Soh, Y.A.; Shi, X.; Xiong, G.; Huang, X.; Harder, R.; Robinson, I.K. Differential stress induced by thiol adsorption on facetted nanocrystals. Nat. Mater.
**2011**, 10, 862–866. [Google Scholar] [CrossRef] [Green Version] - Harder, R.; Liang, M.; Sun, Y.; Xia, Y.; Robinson, I. Imaging of complex density in silver nanocubes by coherent x-ray diffraction. New J. Phys.
**2010**, 12, 035019. [Google Scholar] [CrossRef] - Robinson, I.; Harder, R. Coherent X-ray diffraction imaging of strain at the nanoscale. Nat. Mater.
**2009**, 8, 291–298. [Google Scholar] [CrossRef] - Minkevich, A.; Fohtung, E.; Slobodskyy, T.; Riotte, M.; Grigoriev, D.; Schmidbauer, M.; Irvine, A.; Novák, V.; Holỳ, V.; Baumbach, T. Selective coherent x-ray diffractive imaging of displacement fields in (Ga, Mn) As/GaAs periodic wires. Phys. Rev. B
**2011**, 84, 054113. [Google Scholar] [CrossRef] [Green Version] - Harder, R.; Robinson, I.K. Coherent X-Ray Diffraction Imaging of Morphology and Strain in Nanomaterials. JOM
**2013**, 65, 1202–1207. [Google Scholar] [CrossRef] [Green Version] - Clark, J.; Beitra, L.; Xiong, G.; Higginbotham, A.; Fritz, D.; Lemke, H.; Zhu, D.; Chollet, M.; Williams, G.; Messerschmidt, M.; et al. Ultrafast Three-Dimensional Imaging of Lattice Dynamics in Individual Gold Nanocrystals. Science
**2013**, 341, 56–59. [Google Scholar] [CrossRef] [Green Version] - Chapman, H.N.; Barty, A.; Bogan, M.J.; Boutet, S.; Frank, M.; Hau-Riege, S.P.; Marchesini, S.; Woods, B.W.; Bajt, S.; Benner, W.H.; et al. Femtosecond diffractive imaging with a soft-X-ray free-electron laser. Nat. Phys.
**2006**, 2, 839–843. [Google Scholar] [CrossRef] [Green Version] - Pateras, A.; Harder, R.; Cha, W.; Gigax, J.G.; Baldwin, J.K.; Tischler, J.; Xu, R.; Liu, W.; Erdmann, M.J.; Kalt, R.; et al. Combining Laue diffraction with Bragg coherent diffraction imaging at 34-ID-C. arXiv
**2020**, arXiv:2002.11859. [Google Scholar] - Li, L.; Xie, Y.; Maxey, E.; Harder, R. Methods for operando coherent X-ray diffraction of battery materials at the Advanced Photon Source. J. Synchrotron Radiat.
**2019**, 26, 220–229. [Google Scholar] [CrossRef] [PubMed] - Fienup, J.R. Phase retrieval algorithms: A comparison. Appl. Opt.
**1982**, 21, 2758–2769. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Fienup, J.R. Phase retrieval algorithms: A personal tour. Appl. Opt.
**2013**, 52, 45–56. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Guo, C.; Liu, S.; Sheridan, J.T. Iterative phase retrieval algorithms. I: Optimization. Appl. Opt.
**2015**, 54, 4698–4708. [Google Scholar] [CrossRef] [Green Version] - Minkevich, A.; Baumbach, T.; Gailhanou, M.; Thomas, O. Applicability of an iterative inversion algorithm to the diffraction patterns from inhomogeneously strained crystals. Phys. Rev. B
**2008**, 78, 174110. [Google Scholar] [CrossRef] - Karpov, D.; Liu, Z.; dos Santos Rolo, T.; Harder, R.; Balachandran, P.; Xue, D.; Lookman, T.; Fohtung, E. Three-dimensional imaging of vortex structure in a ferroelectric nanoparticle driven by an electric field. Nat. Commun.
**2017**, 8, 1–8. [Google Scholar] [CrossRef] - Liu, Z.; Schold, E.; Karpov, D.; Harder, R.; Lookman, T.; Fohtung, E. Needle-Like Ferroelastic Domains in Individual Ferroelectric Nanoparticles. Adv. Electron. Mater.
**2020**, 6, 1901300. [Google Scholar] [CrossRef] - Pateras, A.; Harder, R.; Manna, S.; Kiefer, B.; Sandberg, R.L.; Trugman, S.; Kim, J.W.; de la Venta, J.; Fullerton, E.E.; Shpyrko, O.G.; et al. Room temperature giant magnetostriction in single-crystal nickel nanowires. NPG Asia Mater.
**2019**, 11, 1–7. [Google Scholar] [CrossRef] - Ulvestad, A.; Nashed, Y.; Beutier, G.; Verdier, M.; Hruszkewycz, S.; Dupraz, M. Identifying defects with guided algorithms in bragg coherent diffractive imaging. Sci. Rep.
**2017**, 7, 1–9. [Google Scholar] [CrossRef] [Green Version] - Karpov, D.; Liu, Z.; Kumar, A.; Kiefer, B.; Harder, R.; Lookman, T.; Fohtung, E. Nanoscale topological defects and improper ferroelectric domains in multiferroic barium hexaferrite nanocrystals. Phys. Rev. B
**2019**, 100, 054432. [Google Scholar] [CrossRef] [Green Version] - Kawaguchi, T.; Keller, T.F.; Runge, H.; Gelisio, L.; Seitz, C.; Kim, Y.Y.; Maxey, E.R.; Cha, W.; Ulvestad, A.; Hruszkewycz, S.O.; et al. Gas-Induced Segregation in Pt-Rh Alloy Nanoparticles Observed by In Situ Bragg Coherent Diffraction Imaging. Phys. Rev. Lett.
**2019**, 123, 246001. [Google Scholar] [CrossRef] - Robinson, I.; Assefa, T.A.; Cao, Y.; Gu, G.; Harder, R.; Maxey, E.; Dean, M.P. Domain texture of the orthorhombic phase of La
_{2−x}Ba_{x}CuO_{4}. J. Supercond. Nov. Magn.**2020**, 33, 99–106. [Google Scholar] [CrossRef] [Green Version] - Ulvestad, A.; Cherukara, M.; Harder, R.; Cha, W.; Robinson, I.; Soog, S.; Nelson, S.; Zhu, D.; Stephenson, G.; Heinonen, O.; et al. Bragg coherent diffractive imaging of zinc oxide acoustic phonons at picosecond timescales. Sci. Rep.
**2017**, 7, 1–8. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Hofmann, F.; Tarleton, E.; Harder, R.J.; Phillips, N.W.; Ma, P.W.; Clark, J.N.; Robinson, I.K.; Abbey, B.; Liu, W.; Beck, C.E. 3D lattice distortions and defect structures in ion-implanted nano-crystals. Sci. Rep.
**2017**, 7, 45993. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Phillips, N.; Yu, H.; Das, S.; Yang, D.; Mizohata, K.; Liu, W.; Xu, R.; Harder, R.; Hofmann, F. Nanoscale Lattice Strains in Self-ion-implanted Tungsten. Acta Mater.
**2020**, 195, 219–228. [Google Scholar] [CrossRef] - Singer, A.; Zhang, M.; Hy, S.; Cela, D.; Fang, C.; Wynn, T.; Qiu, B.; Xia, Y.; Liu, Z.; Ulvestad, A.; et al. Nucleation of dislocations and their dynamics in layered oxide cathode materials during battery charging. Nat. Energy
**2018**, 3, 641–647. [Google Scholar] [CrossRef] - Karpov, D.; Fohtung, E. Bragg coherent diffractive imaging of strain at the nanoscale. J. Appl. Phys.
**2019**, 125, 121101. [Google Scholar] [CrossRef] [Green Version] - Quiney, H.; Williams, G.; Fohtung, E. Editorial for special issue on coherent diffractive imaging. J. Opt.
**2017**, 20, 010201. [Google Scholar] [CrossRef] [Green Version] - Yau, A.; Cha, W.; Kanan, M.W.; Stephenson, G.B.; Ulvestad, A. Bragg coherent diffractive imaging of single-grain defect dynamics in polycrystalline films. Science
**2017**, 356, 739–742. [Google Scholar] [CrossRef] [Green Version] - Newton, M.C.; Shi, X.; Wagner, U.; Rau, C. Coherent diffraction imaging of a progressively deformed nanocrystal. Phys. Rev. Mater.
**2019**, 3, 043803. [Google Scholar] [CrossRef] [Green Version] - Ulvestad, A.; Singer, A.; Clark, J.N.; Cho, H.M.; Kim, J.W.; Harder, R.; Maser, J.; Meng, Y.S.; Shpyrko, O.G. Topological defect dynamics in operando battery nanoparticles. Science
**2015**, 356, 1344–1347. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Xiong, G.; Moutanabbir, O.; Reiche, M.; Harder, R.; Robinson, I. Coherent X-ray Diffraction Imaging and Characterization of Strain in Silicon-on-Insulator Nanostructures. Adv. Mater.
**2014**, 26, 7747–7763. [Google Scholar] [CrossRef] [Green Version] - Cherukara, M.J.; Pokharel, R.; O’Leary, T.S.; Baldwin, J.K.; Maxey, E.; Cha, W.; Maser, J.; Harder, R.J.; Fensin, S.J.; Sandberg, R.L. Three-dimensional X-ray diffraction imaging of dislocations in polycrystalline metals under tensile loading. Nat. Commun.
**2018**, 9, 1–6. [Google Scholar] [CrossRef] [PubMed] - Hofmann, F.; Phillips, N.W.; Das, S.; Karamched, P.; Hughes, G.M.; Douglas, J.O.; Cha, W.; Liu, W. Nanoscale imaging of the full strain tensor of specific dislocations extracted from a bulk sample. Phys. Rev. Mater.
**2020**, 4, 013801. [Google Scholar] [CrossRef] [Green Version] - Chan, K.T.; Kan, J.J.; Doran, C.; Ouyang, L.; Smith, D.J.; Fullerton, E.E. Oriented growth of single-crystal Ni nanowires onto amorphous SiO2. Nano Lett.
**2010**, 10, 5070–5075. [Google Scholar] [CrossRef] - Chan, K.T.; Kan, J.J.; Doran, C.; Ouyang, L.; Smith, D.J.; Fullerton, E.E. Controlled growth behavior of chemical vapor deposited Ni nanostructures. Philos. Mag.
**2012**, 92, 2173–2186. [Google Scholar] [CrossRef] - Pfeifer, M.; Williams, G.; Vartanyants, I.; Harder, R.; Robinson, I. Three-dimensional mapping of a deformation field inside a nanocrystal. Nature
**2006**, 442, 63–66. [Google Scholar] [CrossRef] - Manna, S.; Kim, J.W.; Lubarda, M.V.; Wingert, J.; Harder, R.; Spada, F.; Lomakin, V.; Shpyrko, O.; Fullerton, E.E. Characterization of strain and its effects on ferromagnetic nickel nanocubes. AIP Adv.
**2017**, 7, 125025. [Google Scholar] [CrossRef] [Green Version] - Miao, J.; Sayre, D.; Chapman, H. Phase retrieval from the magnitude of the Fourier transforms of nonperiodic objects. JOSA A
**1998**, 15, 1662–1669. [Google Scholar] [CrossRef] - Callister, W.D.; Rethwisch, D.G. Materials Science and Engineering; John Wiley & Sons: New York, NY, USA, 2011; Volume 5. [Google Scholar]
- Landau, L.; Lifshitz, E.; Sykes, J.; Reid, W.; Dill, E. Theory of Elasticity: Volume 7 of Course of Theoretical Physics. Phys. Today
**1960**, 13, 44. [Google Scholar] [CrossRef] - Frank, F.; Read, W., Jr. Multiplication processes for slow moving dislocations. Phys. Rev.
**1950**, 79, 722. [Google Scholar] [CrossRef] - Kresse, G.; Hafner, J. Ab initio molecular dynamics for open-shell transition metals. Phys. Rev. B
**1993**, 48, 13115. [Google Scholar] [CrossRef] - Kresse, G.; Furthmüller, J. Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set. Phys. Rev. B
**1996**, 54, 11169. [Google Scholar] [CrossRef] - Prieve, D.C.; Russel, W.B. Simplified predictions of Hamaker constants from Lifshitz theory. J. Colloid Interface Sci.
**1988**, 125, 1–13. [Google Scholar] [CrossRef] - Kresse, G.; Joubert, D. From ultrasoft pseudopotentials to the projector augmented-wave method. Phys. Rev. B
**1999**, 59, 1758. [Google Scholar] [CrossRef] - Wyckoff, R.W.G. Crystal Structures; Interscience Publishers: New York, NY, USA, 1963; Volume 1. [Google Scholar]
- Skrotskii, G.V. The landau-lifshitz equation revisited. Uspekhi Fiz. Nauk
**1984**, 144, 681. [Google Scholar] [CrossRef] - Lakshmanan, M. The fascinating world of the Landau–Lifshitz–Gilbert equation: An overview. Philos. Trans. R. Soc. A Math. Phys. Eng. Sci.
**2011**, 369, 1280–1300. [Google Scholar] [CrossRef] [PubMed] - Aharoni, A. Introduction to the Theory of Ferromagnetism; Clarendon Press: Oxford, UK, 2000; Volume 109. [Google Scholar]
- D’Addato, S.; Spadaro, M.C.; Luches, P.; Grillo, V.; Frabboni, S.; Valeri, S.; Ferretti, A.; Capetti, E.; Ponti, A. Controlled growth of Ni/NiO core–shell nanoparticles: Structure, morphology and tuning of magnetic properties. Appl. Surf. Sci.
**2014**, 306, 2–6. [Google Scholar] [CrossRef] - Lindquist, A.; Feinberg, J.M.; Harrison, R.; Loudon, J.; Newell, A. Domain wall pinning and dislocations: Investigating magnetite deformed under conditions analogous to nature using transmission electron microscopy. J. Geophys. Res. Solid Earth
**2015**, 120, 1415–1430. [Google Scholar] [CrossRef] [Green Version] - Fidler, J.; Kirchmayer, H.; Skalicky, P. Pinning of magnetic domain walls at dislocations and precipitates in Co5Sm crystals. Philos. Mag. B
**1981**, 43, 765–780. [Google Scholar] [CrossRef] - Chapman, H.N.; Barty, A.; Marchesini, S.; Noy, A.; Hau-Riege, S.P.; Cui, C.; Howells, M.R.; Rosen, R.; He, H.; Spence, J.C.; et al. High-resolution ab initio three-dimensional x-ray diffraction microscopy. JOSA A
**2006**, 23, 1179–1200. [Google Scholar] [CrossRef] [PubMed] - Marchesini, S.; Chapman, H.; Barty, A.; Cui, C.; Howells, M.; Spence, J.; Weierstall, U.; Minor, A. Phase aberrations in diffraction microscopy. arXiv
**2005**, arXiv:0510033. [Google Scholar] - Baskes, M. Probing the structure of iron at extreme conditions by X-ray absorption near-edge structure calculations. Phys. Rev. B
**1992**, 46, 2727–2742. [Google Scholar] [CrossRef] - Zhou, X.; Johnson, R.; Wadley, H. Misfit-energy-increasing dislocations in vapor-deposited CoFe/NiFe multilayers. Phys. Rev. B
**2004**, 69, 144113. [Google Scholar] [CrossRef] [Green Version] - Mackay, A.L. A dense non-crystallographic packing of equal spheres. Acta Crystallogr.
**1962**, 15, 916–918. [Google Scholar] [CrossRef] - Baletto, F.; Ferrando, R.; Fortunelli, A.; Montalenti, F.; Mottet, C. Crossover among structural motifs in transition and noble-metal clusters. J. Chem. Phys.
**2002**, 116, 3856. [Google Scholar] [CrossRef] - Cleveland, C.; Landman, U.; Schaaff, T.; Sha, M. gullin, PW Stephens and RL Whetten. Phys. Rev. Lett.
**1997**, 79, 1873–1876. [Google Scholar] [CrossRef] - Blöchl, P.E. Projector augmented-wave method. Phys. Rev. B
**1994**, 50, 17953. [Google Scholar] [CrossRef] [Green Version]

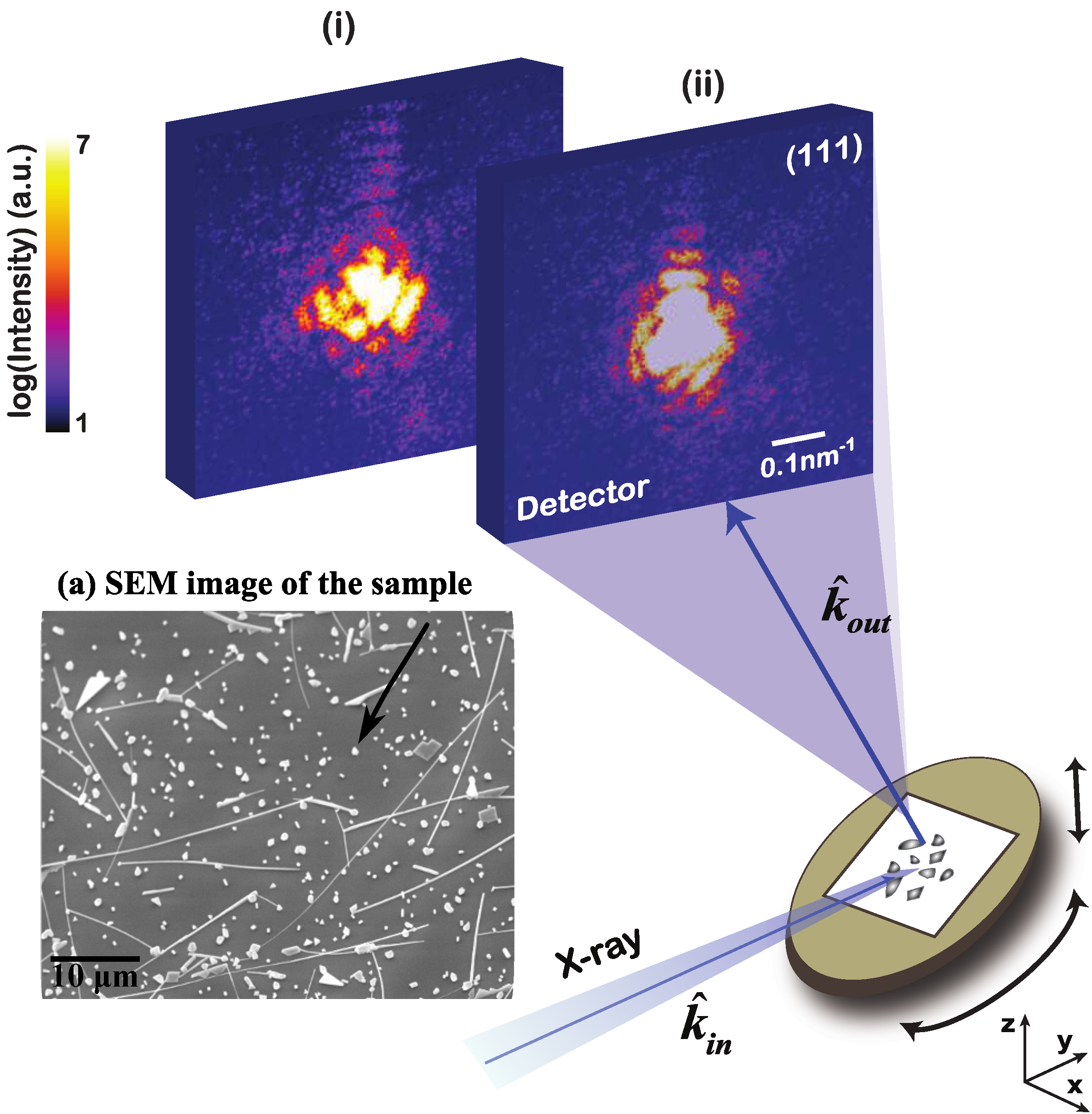

**Figure 1.**Schematic of the experimental set-up and sample. (

**a**) Scanning electron microscopy (SEM) image showing a single isolated Ni nanoparticle (identified by the arrow) in an ensemble of Ni nano-objects. A monochromatic X-ray beam of wave vector ${\widehat{k}}_{in}$ focused by Kirkpatrick–Baez (KB) mirrors (not shown is sketch impinges on the sample. By rotating the sample through the Bragg condition in increments of about 0.006 degrees, coherent X-ray diffraction (CXD) patterns in the vicinity of the (111) reciprocal lattice point are recorded with a two-dimensional pixelated detector. Two typical diffraction patterns (out of the hundreds of patterns collected) are shown here in (i,ii)).

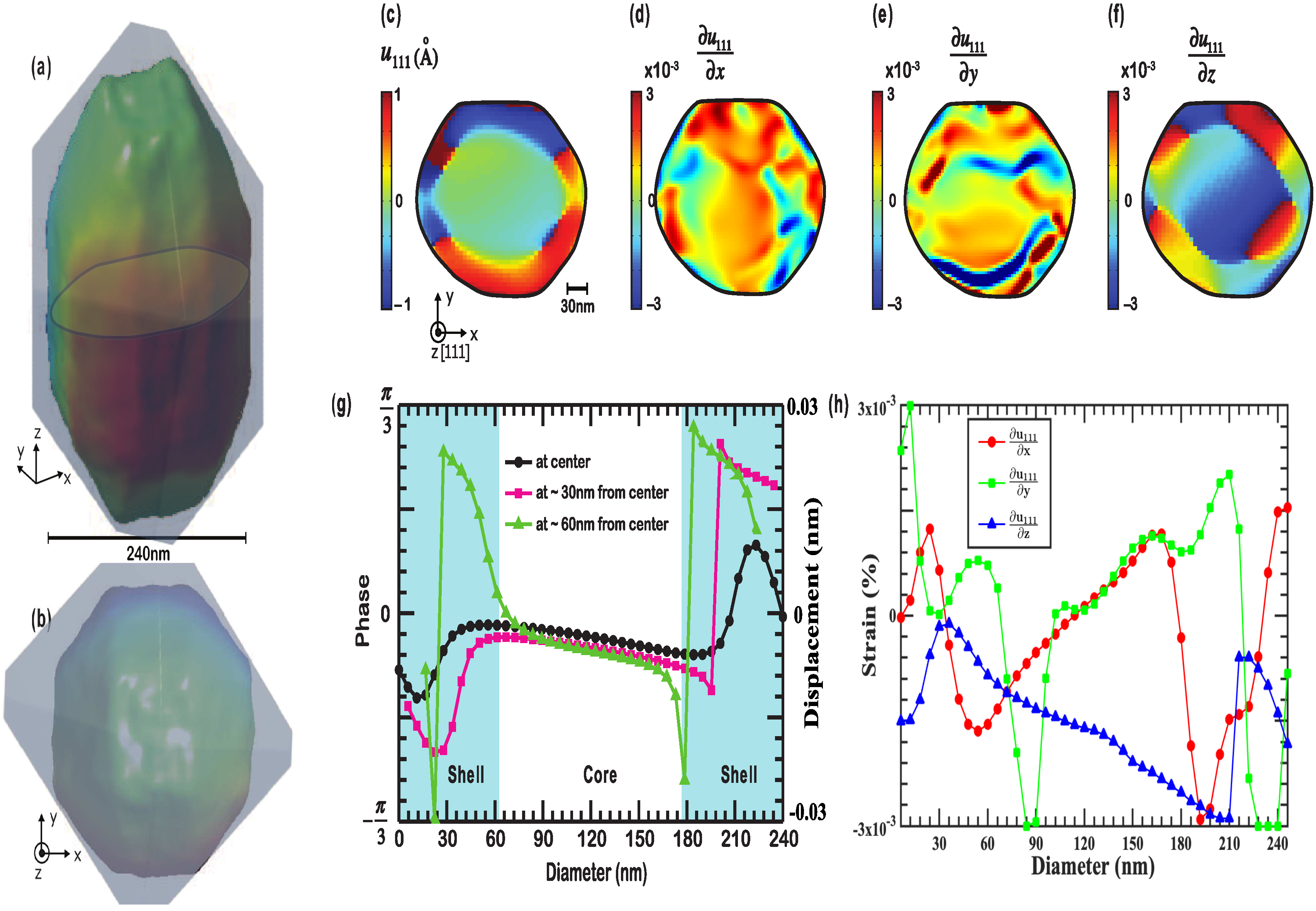

**Figure 2.**Reconstructed projections of the displacement and strain. (

**a**,

**b**) 3D isosurface projections of the displacement field ${\mathbf{u}}_{111}$ and shape morphology of the nanoparticle. (

**c**–

**f**) 2D projections that are extracted from the central slices of the reconstructions, showing strain inhomogeneity of the core and heterogeneity within the shell of the nanoparticle. The strain in (

**c**–

**f**) with non-uniform structure without symmetry within the core; while the strain within the shell is diverse when comparing the components in the three orthogonal directions as shown in (

**d**–

**h**). Line plots showing smooth variation and inhomogeneous strain within the core layer of the nanoparticle (Ni) and large phase jumps in the NiO shell region depicting the presence of singularities such as defects and dislocations. In (

**g**), the phase is plotted from the central slices of the 3D reconstructed particle, 30 nm and 60 nm away from the central slices of the 3D particle, respectively. In (

**h**), the plot was extracted from the one end of the particle to the other end of the particle, that is, from the shell–core–shell for the entire particle for the central slice linecut.

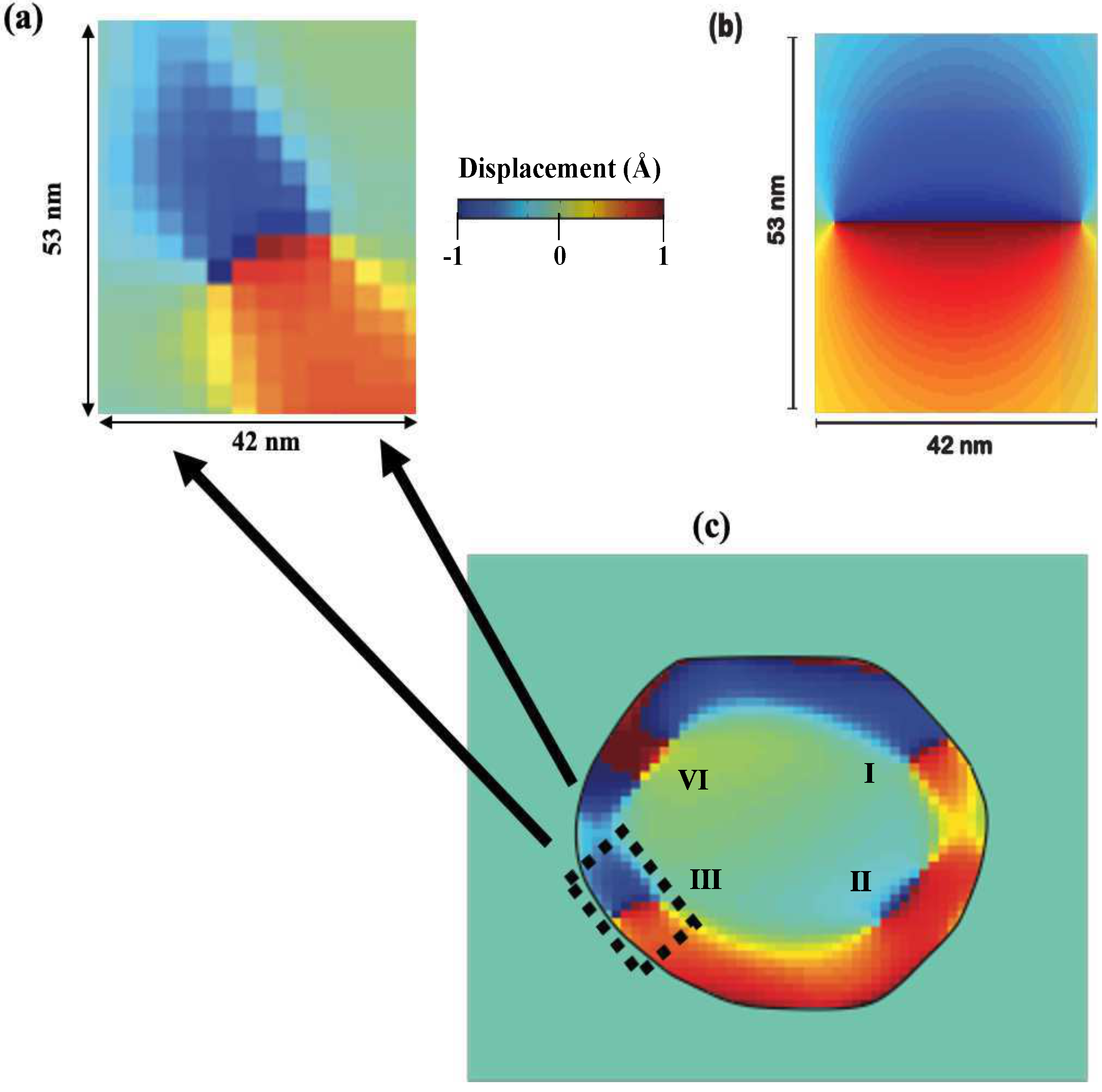

**Figure 3.**Edge dislocation result and simulation. (

**a**) Reconstructed stress field in the vicinity of an edge dislocation within the nanoparticle shell region (magnified 3X) is compared with simulated stress (

**b**) Stress due to an edge dislocation. (

**c**) The overall region of the reconstructed core–shell structure.

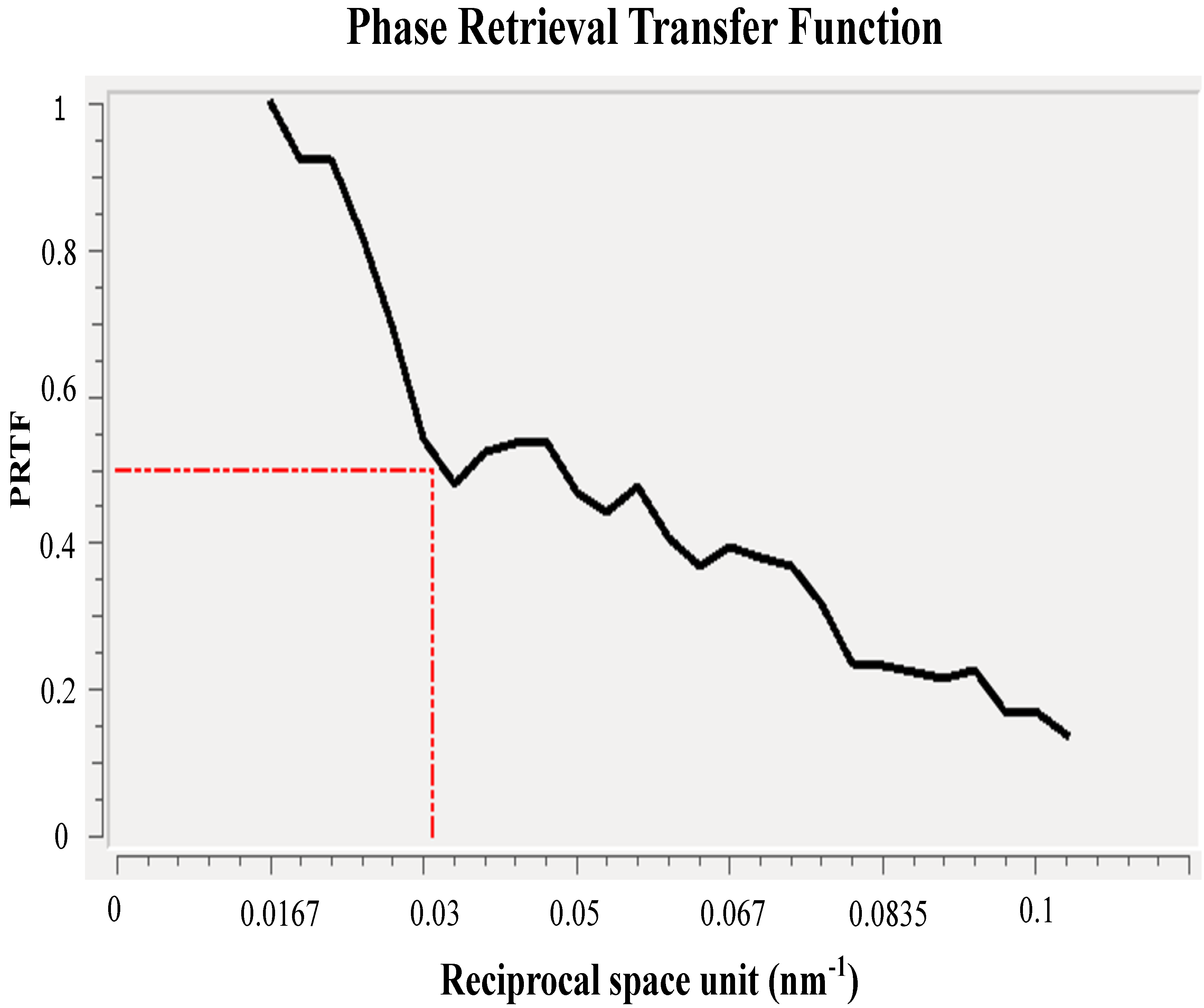

**Figure 4.**Resolution estimation by phase retrieval transfer function (PRTF). The phase retrieval transfer function is a tool that provides an accurate resolution measure. It takes a value of 1 where the iterative algorithm produced perfect convergence consistently, and a value near 0 where the algorithm continually failed to converge. Dashed line on the graph shows 50% cutoff frequency which is used to estimate the threshold of resolution reliability, which for our Bragg coherent diffraction imaging (BCDI) experiment is approximately 30 nm in Figure 2 and Figure 3.

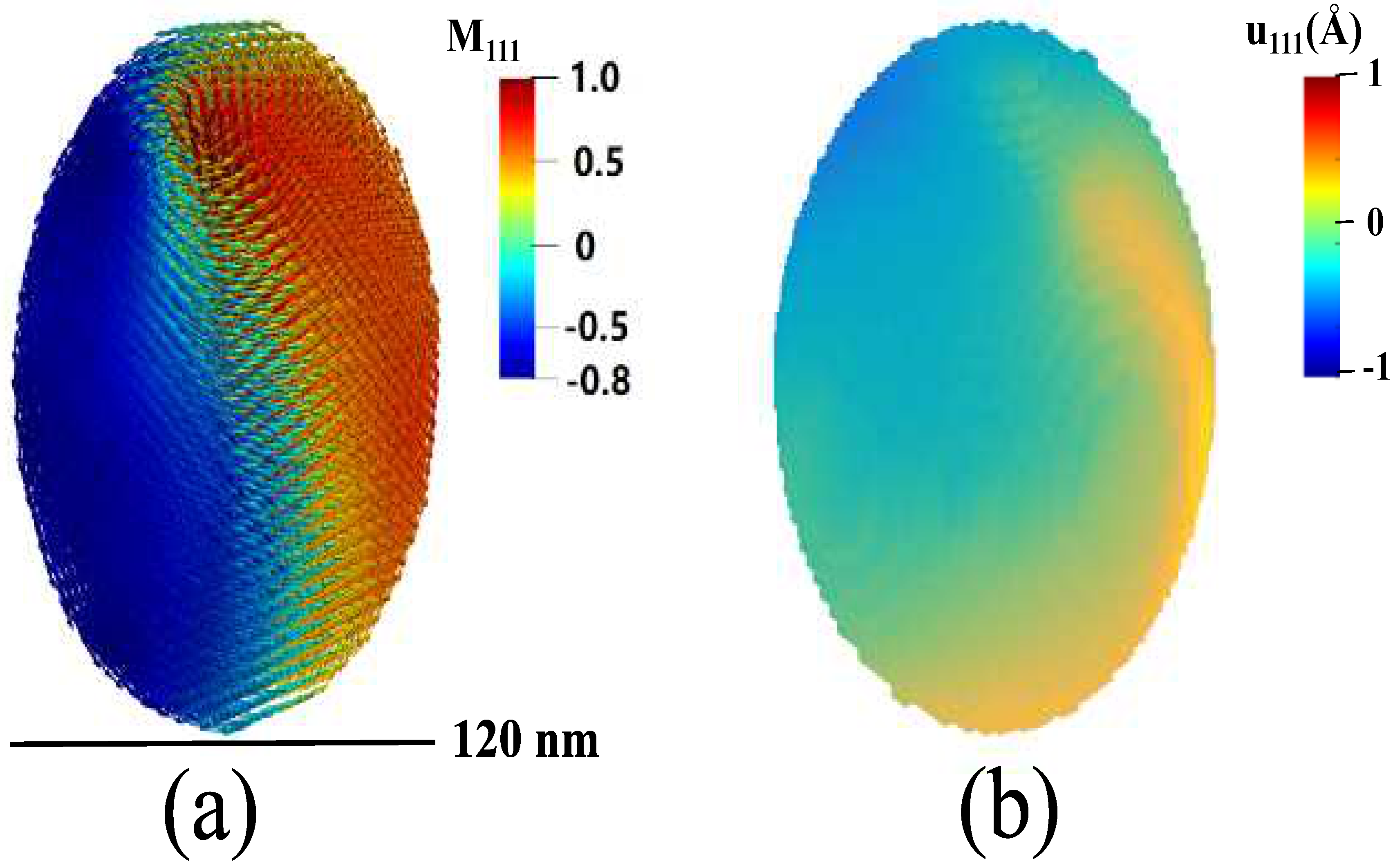

**Figure 5.**(

**a**) The simulated distribution of magnetization within a single Ni nanoparticle. The arrows represent the distribution of the magnetization, and the color denotes the magnitude of the component ${m}_{z}$. (

**b**) The distribution of the displacement along (001) axis.

Dislocation | $\tilde{\mathit{b}}\mathbf{=}\mathit{n}\mathit{b}$ | Dislocation | Source Size | Critical Shear | Stacking Fault |
---|---|---|---|---|---|

($\mathit{b}\mathbf{=}$ 0.22 nm) | Type | Stress | Energy | ||

(i) | 28b | full | 43 nm | ${\sigma}_{f}$ = 12.32 GPa | - |

(ii) | 28b | full | 43 nm | ${\sigma}_{f}$ = 12.32 GPa | - |

(iii) | 27b | full | 42 nm | ${\sigma}_{f}$ = 12.16 GPa | - |

(iv) | 19b | partial | 30 nm | ${\sigma}_{p}$ = 11.98 GPa | 1421 mJ/m${}^{2}$ |

© 2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Shi, X.; Harder, R.; Liu, Z.; Shpyrko, O.; Fullerton, E.; Kiefer, B.; Fohtung, E.
Nanoscale Mapping of Heterogeneous Strain and Defects in Individual Magnetic Nanocrystals. *Crystals* **2020**, *10*, 658.
https://doi.org/10.3390/cryst10080658

**AMA Style**

Shi X, Harder R, Liu Z, Shpyrko O, Fullerton E, Kiefer B, Fohtung E.
Nanoscale Mapping of Heterogeneous Strain and Defects in Individual Magnetic Nanocrystals. *Crystals*. 2020; 10(8):658.
https://doi.org/10.3390/cryst10080658

**Chicago/Turabian Style**

Shi, Xiaowen, Ross Harder, Zhen Liu, Oleg Shpyrko, Eric Fullerton, Boris Kiefer, and Edwin Fohtung.
2020. "Nanoscale Mapping of Heterogeneous Strain and Defects in Individual Magnetic Nanocrystals" *Crystals* 10, no. 8: 658.
https://doi.org/10.3390/cryst10080658
