Krasnoshteinite, Al₈[B₂O₄(OH)₂](OH)₁₆Cl₄⋅7H₂O, a New Microporous Mineral with a Novel Type of Borate Polyanion

Abstract

A new mineral, krasnoshteinite (Al₈[B₂O₄(OH)₂](OH)₁₆Cl₄⋅7H₂O), was found in the Verkhnekamskoe potassium salt deposit, Perm Krai, Western Urals, Russia. It occurs as transparent colourless tabular to lamellar crystals embedded up to 0.06 × 0.25 × 0.3 mm in halite-carnallite rock and is associated with dritsite, dolomite, magnesite, quartz, baryte, kaolinite, potassic feldspar, congolite, members of the goyazite–woodhouseite series, fluorite, hematite, and anatase. D_meas = 2.11 (1) and D_calc = 2.115 g/cm³. Krasnoshteinite is optically biaxial (+), α = 1.563 (2), β = 1.565 (2), γ = 1.574 (2), and 2V_meas = 50 (10)°. The chemical composition (wt.%; by combination of electron microprobe and ICP-MS; H₂O calculated from structure data) is: B₂O₃ 8.15, Al₂O₃ 46.27, SiO₂ 0.06, Cl 15.48, H₂O_calc. 33.74, –O=Cl –3.50, totalling 100.20. The empirical formula calculated based on O + Cl = 33 apfu is (Al_7.87Si_0.01)_Σ7.88[B_2.03O₄(OH)₂][(OH)_15.74(H₂O)_0.26]_Σ16[(Cl_3.79(OH)_0.21]_Σ4⋅7H₂O. The mineral is monoclinic, P2₁, a = 8.73980 (19), b = 14.4129 (3), c = 11.3060 (3) Å, β = 106.665 (2)°, V = 1364.35 (5) ų, and Z = 2. The crystal structure of krasnoshteinite (solved using single-crystal data, R₁ = 0.0557) is unique. It is based upon corrugated layers of Al-centered octahedra connected via common vertices. BO₃ triangles and BO₂(OH)₂ tetrahedra share a common vertex, forming insular [B₂O₄(OH)₂]⁴⁻ groups (this is a novel borate polyanion) which are connected with Al-centered octahedra via common vertices to form the aluminoborate pseudo-framework. The structure is microporous, zeolite-like, with a three-dimensional system of wide channels containing Cl^- anions and weakly bonded H₂O molecules. The mineral is named in honour of the Russian mining engineer and scientist Arkadiy Evgenievich Krasnoshtein (1937–2009). The differences in crystal chemistry and properties between high-temperature and low-temperature natural Al borates are discussed.

1. Introduction

Boron is a rare chemical element in nature; its average content in the upper continental crust of the Earth is 0.0011 wt.% [1]. Despite its rarity, boron demonstrates diverse and complicated mineralogy and mineral crystal chemistry. Three hundred minerals with species-defining B are known, including 160 borates and oxoborates [2], and some of these minerals form huge and sometimes extremely rich deposits. Unusual geochemical and mineralogical features of boron are due to its very bright crystal chemical individuality which causes strong ability to separate from other elements in crystal structures and form very specific, unique structural units [3,4]. Unlike boron, aluminum is one of the most abundant elements in the lithosphere, however, natural Al borates are not numerous (only twelve borate and oxoborate minerals with species-defining Al are known: see Discussion) and are classified as rare minerals.

In the present article, we characterize the new mineral species krasnoshteinite (Cyrillic: краснoштейнит), a hydrous aluminum chloroborate, and its unusual crystal structure. The mineral is named in honour of the Russian mining engineer and scientist, corresponding member of the Russian Academy of Sciences, Arkadiy Evgenievich Krasnoshtein (1937–2009), an outstanding specialist in the mining of potassium salts who made a great contribution to the exploitation of underground mines at the Verkhnekamskoe deposit. Dr. Krasnoshtein was the founder (1988) and first director of the Mining Institute of the Ural Branch of the Russian Academy of Sciences in Perm. Both the new mineral and its name have been approved by the Commission on New Minerals, Nomenclature and Classification of the International Mineralogical Association, IMA No. 2018-077.

The type specimen of krasnoshteinite was deposited in the systematic collection of the Fersman Mineralogical Museum of the Russian Academy of Sciences (Moscow, Russia), under the catalogue number 96274.

2. Materials and Methods

2.1. Occurrence, General Appearance, Physical Properties and Optical Data

Krasnoshteinite was found in the core of the borehole #2001, with a depth of 247.6–248 m, drilled in the Romanovskiy area (30 km south of the city of Berezniki) of the Verkhnekamskoe potassium salt deposit, Perm Krai, Western Urals, Russia. The general data on this well-known. Huge deposits are given in monographs [5,6]. Krasnoshteinite occurs in halite-carnallite rock and is associated with dritsite (Li₂Al₄(OH)₁₂Cl₂·3H₂O) [7], dolomite, magnesite, quartz, Sr-bearing baryte, kaolinite, potassic feldspar, congolite, members of the goyazite SrAl₃(PO₄)(PO₃OH)(OH)₆ – woodhouseite CaAl₃(PO₄)(SO₄)(OH)₆ series, fluorite, hematite, and anatase. The new mineral was probably formed as a result of diagenetic or post-diagenetic processes in halite-carnallite evaporitic rock of the Layer E of the Verkhnekamskoe deposit.

Krasnoshteinite occurs as separate tabular to lamellar crystals of up to 0.06 × 0.25 × 0.3 mm (Figure 1a,b) and their parallel intergrowths (Figure 1c) embedded in carnallite and halite. In some cases, tiny crystals of krasnoshteinite overgrow its larger crystal in random orientations to form a crystal cluster (Figure 1d). Samples shown in Figure 1 were separated after dissolution of a host halite-carnallite rock in water.

Crystals of krasnoshteinite are flattened on the ab plane. The pedions {010} and {0-10} and the pinacoid {100} are major lateral faces of the tabular crystals. The surface of the most developed “face” of a crystal is typically complicated, rough, and demonstrating coarse or/and fine striation along {100} (Figure 1); it is usually composed by several poorly formed faces belonging to the 0kl zone.

Krasnoshteinite is a transparent colorless mineral with a white streak and vitreous luster. It is brittle, with a Mohs hardness is ca. of 3. Krasnoshteinite demonstrates perfect cleavage on {010} and an imperfect cleavage on {100}. A fracture is stepped (observed under the microscope). The mineral is non-fluorescent in the ultraviolet light. The density measured by flotation in heavy liquids (bromoform + dimethylformamide) is 2.11 (1) g/cm³, and the density calculated using the empirical formula and the unit-cell parameters determined from single-crystal X-ray diffraction data is 2.115 g/cm³.

In plane polarized light, krasnoshteinite is colorless and non-pleochroic. It is optically biaxial (+), α = 1.563 (2), β = 1.565 (2), γ = 1.574 (2) (589 nm). 2V (meas.) = 50 (10)° and 2V (calc.) = 51°. Dispersion of optical axes is distinct, r > v. Optical orientation is: Y = b, and X = a.

2.2. Chemical Composition

The chemical composition of krasnoshteinite was studied using a Jeol JSM-6480LV scanning electron microscope equipped with an INCA-Wave 500 wavelength-dispersive spectrometer (Laboratory of Analytical Techniques of High Spatial Resolution, Dept. of Petrology, Moscow State University). Electron microprobe analyses were obtained in the wavelength-dispersive spectroscopy mode (20 kV and 20 nA; the electron beam was rastered to the 5 × 5 μm area to avoid damage of the highly hydrated mineral) and gave contents of Al, Si, O, and Cl. The standards used were: Al₂O₃ (Al), wollastonite (Si), YAl₃(BO₃)₄ (O), and NaCl (Cl). The contents of other elements with atomic numbers higher than 8 are below detection limits.

The presence of significant amount of chlorine in krasnoshteinite prevents the quantitative determination of boron by electron microprobe, due to the overlap of X-ray emission lines of the K series of B with L lines of Cl. The boron content was determined using ICP-MS. The measurements were carried out with the Element-2 (Thermo Fisher Scientific) instrument which has high resolution (that avoids interference of components) and sensitivity. Several crystals of the mineral were dissolved in 10 cm³ of 3% HNO₃ solution (Merck, Suprapur^®) in deionized water (EasyPure). Since the mass of the mineral was too small for accurate weighing, we have determined contents of B and Al in relative units and further used averaged Al content, obtained by electron microprobe, for B content calculation. The obtained value is in good agreement with the boron content determined from the crystal structure refinement. Contents of Li and Be in krasnoshteinite are below detection limits.

H₂O was not analysed because of the paucity of material. Hydrogen (H₂O) content was calculated based on the structure data (see below) and taking into account the charge balance requirement. The analytical total is close to 100 wt.% (

Table 1. Chemical composition (in wt.%) of krasnoshteinite in elements and in oxides (Al, Si, Cl, and O: average data for 7 spot electron-microprobe analyses).

Data in Elements, with Measured O Content				Data Recalculated in Oxides
Constituent	Wt.%	Range	Stand. Dev.	Constituent	Wt.%
B	2.53			B2O3	8.15
Al	24.49	23.79–24.96	0.41	Al2O3	46.27
Si	0.03	0.02–0.05	0.01	SiO2	0.06
Cl	15.48	15.01–16.69	0.59	Cl	15.48
H(calc.)	3.75			H2O (calc.)	33.74
O	53.92	52.43–56.62	1.42	–O=Cl	−3.50
Total	100.20			Total	100.20

) that demonstrates a good agreement between electron microprobe data for Al, Si, O, and Cl, ICP-MS data for B and calculated value for H. The correctness of the obtained chemical data was also confirmed by the superior value of the Gladstone–Dale compatibility index [8]: 1 − (K_p/K_c) = 0.003 (superior) with measured density value, or 0.006 (superior) with calculated density value.

CO₂ was not analysed because the structure data showed the absence of this constituent. The absence of gas release in HCl (see below) also indicated that krasnoshteinite does not contain carbonate groups.

2.3. Single-Crystal X-ray Diffraction and Crystal Structure Determination

Single-crystal X-ray diffraction data were collected by means of an Xcalibur S CCD diffractometer (Dept. of Crystallography and Crystal Chemistry, Faculty of Geology, Moscow State University) operated at 40 kV and 50 mA using MoKα radiation. A full sphere of three-dimensional data was collected. Data reduction was performed using CrysAlisPro Version 1.171.37.35 [9]. The data were corrected for Lorentz factor and polarization effects. The crystal structure was solved and refined with the ShelX program package using direct methods [10].

2.4. Powder X-ray Diffraction

Powder X-ray diffraction data were collected by means of a Rigaku R-Axis Rapid II diffractometer (XRD Resource Center, St. Petersburg State University) equipped with a rotating anode X-ray source and a curved image plate detector (Debye-Sсherrer geometry, d = 127.4 mm, CoKα, λ = 1.79021 Å). The data were integrated using the software package Osc2Tab/SQRay [11]. The unit-cell parameters were refined from the powder data using the Pawley method and Topas software [12].

3. Results

3.1. Chemical Data

Chemical composition of krasnoshteinite is given in Table 1. The empirical formula calculated on the basis of O + Cl = 33 atoms per formula unit is H_32.47Al_7.87Si_0.01B_2.03Cl_3.79O_29.71 or, after recalculation of the anionic part and taking into account crystal-structure data, (Al_7.87Si_0.01)_Σ7.88[B_2.03O₄(OH)₂][(OH)_15.74(H₂O)_0.26]_Σ16[(Cl_3.79(OH)_0.21]_Σ4⋅7H₂O. The ideal formula is Al₈[B₂O₄(OH)₂](OH)₁₆Cl₄⋅7H₂O, which requires Al 24.65, B 2.47, Cl 16.19, H 3.69, O 53.00, total 100 wt.%, or, in oxides, Al₂O₃ 46.58, B₂O₃ 7.95, H₂O 32.93, Cl 16.19, –O=Cl –3.65, total 100 wt.%.

Krasnoshteinite is insoluble in water and slowly dissolves in cold diluted HCl without effervescence. The obtained solution shows characteristic color reaction, with quinalizarin clearly indicating boron presence.

3.2. Single-Crystal X-ray Diffraction and Crystal Structure Determination

The single-crystal X-ray diffraction data were indexed in the P2₁ space group with the following unit-cell parameters: a = 8.73980 (19), b = 14.4129 (3), c = 11.3060 (3) Å, β = 106.665 (2)°, and V = 1364.35 (5) ų (

Table 2. Crystal data, data collection information and structure refinement details for krasnoshteinite.

Formula	Al8[B2O4(OH)2](OH)16Cl4⋅7H2O
Formula weight	875.52
Temperature, K	293(2)
Radiation and wavelength, Å	MoKα; 0.71073
Crystal system, space group, Z	Monoclinic, P21, 2
Unit cell dimensions, Å/°	a = 8.73980(19) b = 14.4129(3)      β = 106.665(2) c = 11.3060(3)
V, Å3	1364.35(5)
Absorption coefficient μ, mm-1	0.809
F000	892
Crystal size, mm	0.06 × 0.16 × 0.17
Diffractometer	Xcalibur S CCD
θ range for data collection, °/Collection mode	2.81 – 28.28/full sphere
Index ranges	−11 ≤ h ≤ 11, −19 ≤ k ≤ 19, −15 ≤ l ≤ 15
Reflections collected	23,807
Independent reflections	6773 (Rint = 0.0759)
Independent reflections with I > 2σ(I)	6142
Data reduction	CrysAlisPro, Agilent Technologies, v. 1.171.37.35 [9]
Absorption correction	multi-scan Empirical absorption correction using spherical harmonics, implemented in SCALE3 ABSPACK scaling algorithm
Structure solution	direct methods
Refinement method	full-matrix least-squares on F2
Number of refined parameters	485
Final R indices [I > 2σ(I)]	R1 = 0.0557, wR2 = 0.1157
R indices (all data)	R1 = 0.0633, wR2 = 0.1196
GooF	1.107
Largest diff. peak and hole, e/Å3	0.60 and −0.56

). Details on data collection and structure refinement are also given in Table 2. The final structure refinement converged to R₁ = 0.0557 for 6142 unique observed reflections with I > 2σ(I). The H atoms of OH groups and H₂O molecules were located from the difference Fourier synthesis. The studied crystal is microtwinned with the inversion center as a twin operation: twinning by merohedry Class I [13] with the twin domain ratio of 68/32. Coordinates and equivalent thermal displacement parameters of atoms are given in

Table 3. Coordinates and equivalent displacement parameters (U_eq, in Ų) of atoms in krasnoshteinite.

Site	X	Y	Z	Ueq *
Al1	0.16497(17)	0.29061(10)	0.29761(12)	0.0100(3)
Al2	−0.15081(17)	0.71563(9)	−0.04927(12)	0.0097(3)
Al3	0.11906(16)	0.67894(10)	−0.16964(12)	0.0098(3)
Al4	−0.15717(16)	0.11133(9)	−0.07805(12)	0.0089(3)
Al5	0.50122(18)	0.16162(11)	−0.01146(13)	0.0101(2)
Al6	0.11383(16)	0.13955(10)	−0.19674(12)	0.0103(3)
Al7	0.16655(16)	0.52591(10)	0.31878(12)	0.0094(3)
Al8	0.00144(18)	0.65411(11)	0.51556(12)	0.0112(3)
B1	0.2145(5)	0.4153(4)	0.0964(4)	0.0102(9)
B2	0.7283(6)	−0.0017(4)	0.0864(5)	0.0123(10)
Cl1	0.62010(14)	0.41682(12)	0.28131(13)	0.0305(3)
Cl2	0.24073(14)	0.91650(11)	0.04320(14)	0.0318(3)
Cl3	0.61509(17)	0.82518(11)	0.35183(13)	0.0321(3)
Cl4	0.5240(2)	0.57208(11)	0.64519(13)	0.0371(4)
O1	0.1226(4)	0.1723(2)	0.2021(3)	0.0096(6)
H1	0.182(5)	0.122(2)	0.247(4)	0.012
O2	0.3923(4)	0.2700(3)	0.3509(3)	0.0175(8)
H2A	0.444(5)	0.2119(17)	0.369(5)	0.021
H2B	0.451(5)	0.302(3)	0.305(4)	0.021
O3	0.1966(3)	0.4058(3)	0.3715(3)	0.0145(6)
H3	0.232(5)	0.402(4)	0.4585(10)	0.017
O4	0.0817(4)	0.7234(2)	−0.0141(3)	0.0103(6)
H4	0.128(6)	0.7797(19)	0.022(4)	0.012
O5	0.3314(4)	0.7079(2)	−0.1198(3)	0.0142(7)
H5	0.341(6)	0.7694(14)	−0.144(4)	0.017
O6	−0.1336(4)	0.7504(2)	0.1100(3)	0.0112(6)
H6	−0.149(6)	0.8122(14)	0.133(4)	0.013
O7	0.0760(4)	0.1003(2)	−0.0385(3)	0.0109(7)
H7	0.137(5)	0.047(2)	−0.008(4)	0.013
O8	0.6348(4)	0.1519(3)	−0.1168(3)	0.0143(7)
H8	0.588(6)	0.165(4)	−0.2011(16)	0.017
O9	0.3603(4)	0.1780(2)	0.0857(3)	0.0104(6)
H9	0.396(6)	0.146(3)	0.161(2)	0.012
O10	−0.0590(4)	0.2960(2)	0.2401(3)	0.0119(7)
H10	−0.113(5)	0.3394(7)	0.179(2)	0.014
O11	−0.1825(4)	0.8288(2)	−0.1385(3)	0.0124(7)
O12	0.5632(4)	0.0394(2)	0.0507(3)	0.0130(7)
H12	0.479(4)	−0.003(3)	0.043(5)	0.016
O13	0.8084(4)	−0.0053(2)	−0.1569(3)	0.0092(6)
O14	0.1514(4)	0.2235(2)	0.4336(3)	0.0124(7)
H14	0.223(4)	0.246(3)	0.5072(14)	0.015
O15	0.7339(3)	−0.0820(3)	0.0047(3)	0.0143(6)
O16	0.5396(4)	0.7888(2)	0.0675(3)	0.0165(7)
H16A	0.625(4)	0.829(3)	0.065(5)	0.020
H16B	0.478(5)	0.824(3)	0.108(4)	0.020
O17	0.0990(4)	0.6243(2)	0.6804(3)	0.0120(7)
H17	0.144(5)	0.5646(16)	0.6811(15)	0.014
O18	0.7769(4)	−0.0354(3)	0.2134(3)	0.0201(7)
H18	0.706(5)	−0.070(3)	0.245(4)	0.024
O19	−0.1261(4)	0.1448(2)	0.7681(3)	0.0092(6)
H19	−0.172(6)	0.198(2)	0.723(4)	0.011
O20	−0.1619(4)	0.0707(2)	0.0752(3)	0.0088(6)
O21	0.3296(4)	0.1147(2)	−0.1411(3)	0.0121(7)
H21	0.364(6)	0.0579(19)	−0.166(4)	0.015
O22	0.1002(4)	0.1859(2)	0.6494(3)	0.0147(7)
H22	0.180(4)	0.228(3)	0.642(5)	0.018
O23	0.0542(4)	0.0215(2)	0.7411(3)	0.0123(7)
H23	0.106(5)	−0.030(2)	0.717(4)	0.015
O24	0.1359(5)	0.0438(3)	0.4965(3)	0.0214(8)
H24A	0.214(5)	0.022(4)	0.567(2)	0.026
H24B	0.150(6)	0.010(3)	0.429(3)	0.026
O25	−0.1540(4)	0.0819(2)	0.5351(3)	0.0145(7)
H25	−0.248(4)	0.088(4)	0.470(3)	0.017
O26	0.3966(4)	0.5521(2)	0.3674(3)	0.0173(8)
H26A	0.458(5)	0.502(2)	0.352(4)	0.021
H26B	0.444(5)	0.566(3)	0.4523(16)	0.021
O27	−0.1362(4)	0.2617(3)	0.4649(3)	0.0230(8)
H27A	−0.134(6)	0.308(3)	0.408(4)	0.028
H27B	−0.223(4)	0.274(3)	0.496(4)	0.028
O28	0.7250(5)	0.2946(3)	0.6403(4)	0.0354(10)
H28A	0.617(3)	0.289(4)	0.641(6)	0.043
H28B	0.760(6)	0.351(3)	0.684(5)	0.043
O29	0.1131(6)	0.9559(4)	0.2765(5)	0.0571(15)
H29A	0.127(8)	0.952(5)	0.197(3)	0.069
H29B	0.010(5)	0.930(6)	0.269(6)	0.069

* The positions of H atoms were located from the difference Fourier map and refined with O-H and H-H distances softly restrained to 0.95(1) and 1.50(1) Å, respectively, to hold near-optimal geometry. U_iso (H) = 1.2 U_eq (O).

, selected interatomic distances in

Table 4. Selected interatomic distances (Å) in the structure of krasnoshteinite.

Al1 - O3	1.843(4)	Al5 - O5	1.882(4)
- O14	1.849(3)	- O9	1.885(3)
- O10	1.879(3)	- O21	1.896(3)
- O2	1.927(4)	- O8	1.897(3)
- O11	1.929(3)	- O12	1.916(4)
- O1	1.996(3)	- O16	1.939(4)
<Al1 – O>	1.904	<Al5 – O>	1.903
Al2 - O6	1.833(3)	Al6 - O22	1.835(3)
- O9	1.839(3)	- O21	1.844(3)
- O11	1.896(3)	- O6	1.857(3)
- O1	1.918(3)	- O23	1.858(4)
- O7	1.951(3)	- O7	1.992(3)
- O4	1.959(3)	- O19	2.021(3)
<Al2 – O>	1.899	<Al6 – O>	1.901
Al3 - O5	1.827(4)	Al7 - O3	1.825(4)
- O17	1.831(3)	- O23	1.853(3)
- O20	1.867(3)	- O25	1.869(3)
- O10	1.875(4)	- O19	1.956(3)
- O4	1.984(3)	- O13	1.956(3)
- O1	2.040(3)	- O26	1.963(4)
<Al3 – O>	1.904	<Al7 – O>	1.904
Al4 - O8	1.839(3)	Al8 - O17	1.864(3)
- O20	1.841(3)	- O22	1.878(3)
- O13	1.886(3)	- O14	1.886(3)
- O19	1.898(3)	- O25	1.905(4)
- O4	1.932(3)	- O27	1.921(4)
- O7	1.963(3)	- O24	1.973(4)
<Al4 - O>	1.893	<Al8 – O>	1.905
B1 - O15	1.344(5)	B2 - O20	1.448(6)
- O13	1.377(7)	- O18	1.459(6)
- O11	1.392(6)	- O15	1.490(6)
<B1 – O>	1.371	- O12	1.504(6)
		<B2 – O>	1.475

, and H-bonding in

Table 5. Hydrogen-bond geometry (Å,°) in the structure of krasnoshteinite.

D – H⋅⋅⋅A	D – H	H⋅⋅⋅A	D⋅⋅⋅A	∠(D – Н⋅⋅⋅A)
O1 - H1⋅⋅⋅O29 O1 - H1⋅⋅⋅Cl4	0.946(10)	2.52(4) 2.61(3)	3.237(7) 3.398(3)	133(4) 141(4)
O2 - H2A⋅⋅⋅Cl4	0.947(10)	2.05(2)	2.942(4)	157(5)
O2 - H2B⋅⋅⋅Cl1	0.947(10)	2.28(2)	3.156(4)	153(4)
O3 - H3⋅⋅⋅Cl3	0.945(10)	2.44(3)	3.300(3)	151(5)
O4 - H4⋅⋅⋅Cl2	0.947(10)	2.185(19)	3.096(4)	161(4)
O5 - H5⋅⋅⋅Cl1	0.940(10)	2.71(2)	3.609(4)	161(4)
O6 - H6⋅⋅⋅O15 O6 - H6⋅⋅⋅O18	0.946(10)	2.15(4) 2.533(15)	2.794(5) 3.468(5)	124(4) 170(4)
O7 - H7⋅⋅⋅Cl2	0.945(10)	2.093(14)	3.030(4)	171(5)
O8 - H8⋅⋅⋅O26	0.942(10)	2.52(5)	3.119(5)	121(4)
O9 - H9⋅⋅⋅Cl4	0.943(10)	2.352(11)	3.294(3)	177(4)
O10 - H10⋅⋅⋅Cl2	0.948(10)	2.684(17)	3.589(3)	160(3)
O12 - H12⋅⋅⋅Cl2	0.946(10)	2.380(15)	3.309(3)	168(4)
O14 - H14⋅⋅⋅Cl3	0.943(10)	2.134(12)	3.059(3)	167(3)
O16 - H16A⋅⋅⋅O15	0.949(10)	1.84(2)	2.747(5)	158(5)
O16 - H16A⋅⋅⋅O6	0.949(10)	2.32(4)	2.812(5)	111(3)
O16 - H16B⋅⋅⋅Cl2	0.952(10)	2.40(4)	3.143(4)	135(4)
O16 - H16B⋅⋅⋅Cl3	0.952(10)	2.67(5)	3.135(4)	111(3)
O17 - H17⋅⋅⋅O18	0.944(10)	1.873(13)	2.677(5)	141.5(19)
O18 - H18⋅⋅⋅Cl3	0.945(10)	2.22(2)	3.123(4)	160(5)
O19 - H19⋅⋅⋅O28	0.946(10)	1.770(12)	2.714(5)	175(5)
O21 - H21⋅⋅⋅Cl1	0.941(10)	2.441(18)	3.353(4)	163(4)
O22 - H22⋅⋅⋅Cl3	0.946(10)	2.259(12)	3.200(4)	173(4)
O23 - H23⋅⋅⋅Cl1 O23 - H23⋅⋅⋅O10	0.944(10)	2.51(3) 2.61(4)	3.295(3) 3.257(4)	140(4) 126(4)
O24 - H24A⋅⋅⋅Cl1	0.940(10)	2.43(2)	3.337(4)	161(4)
O24 - H24B⋅⋅⋅O29	0.942(10)	1.835(16)	2.747(6)	162(4)
O25 - H25⋅⋅⋅Cl4	0.941(10)	2.40(2)	3.294(4)	160(4)
O26 - H26A⋅⋅⋅Cl1	0.951(10)	2.187(18)	3.107(4)	163(5)
O26 - H26B⋅⋅⋅Cl4	0.952(10)	2.092(16)	3.030(4)	168(5)
O27 - H27A⋅⋅⋅O10	0.935(10)	2.19(4)	2.853(5)	128(4)
O27 - H27A⋅⋅⋅Cl1		2.71(4)	3.363(4)	128(3)
O27 - H27B⋅⋅⋅O28	0.940(10)	1.84(3)	2.648(5)	142(4)
O28 - H28A⋅⋅⋅Cl3	0.951(10)	2.12(2)	3.031(4)	161(5)
O28 - H28B⋅⋅⋅O29	0.951(10)	1.86(3)	2.745(7)	154(5)
O29 - H29A⋅⋅⋅Cl2	0.946(10)	2.29(3)	3.196(6)	160(6)
O29 - H29B⋅⋅⋅O18	0.951(10)	2.02(6)	2.820(6)	141(7)

. Other crystal structure information for krasnoshteinite has been deposited with the Editors and is available as Supplementary Materials (see below): anisotropic displacement parameters of non-hydrogen atoms in the structure are presented in Table S1 and bond valence calculations in Table S2; crystallographic information file (CIF) is given as a separate Supplementary Material. Bond-valence parameters for Al-O and B-O were taken from [14] and for H-bonding from [15,16].

3.3. Powder X-ray Diffraction

The indexed powder X-ray diffraction data are given in Table S3 in Supplementary Materials (see below). The powder X-ray diffraction pattern of krasnoshteinite is unique and can be used as a good diagnostic tool of the mineral. The parameters of a monoclinic unit cell refined from the powder data are as follows: a = 8.740 (4), b = 14.409 (4), c = 11.316 (4) Å, β = 106.58 (3)°, and V = 1366 (1) ų.

4. Discussion

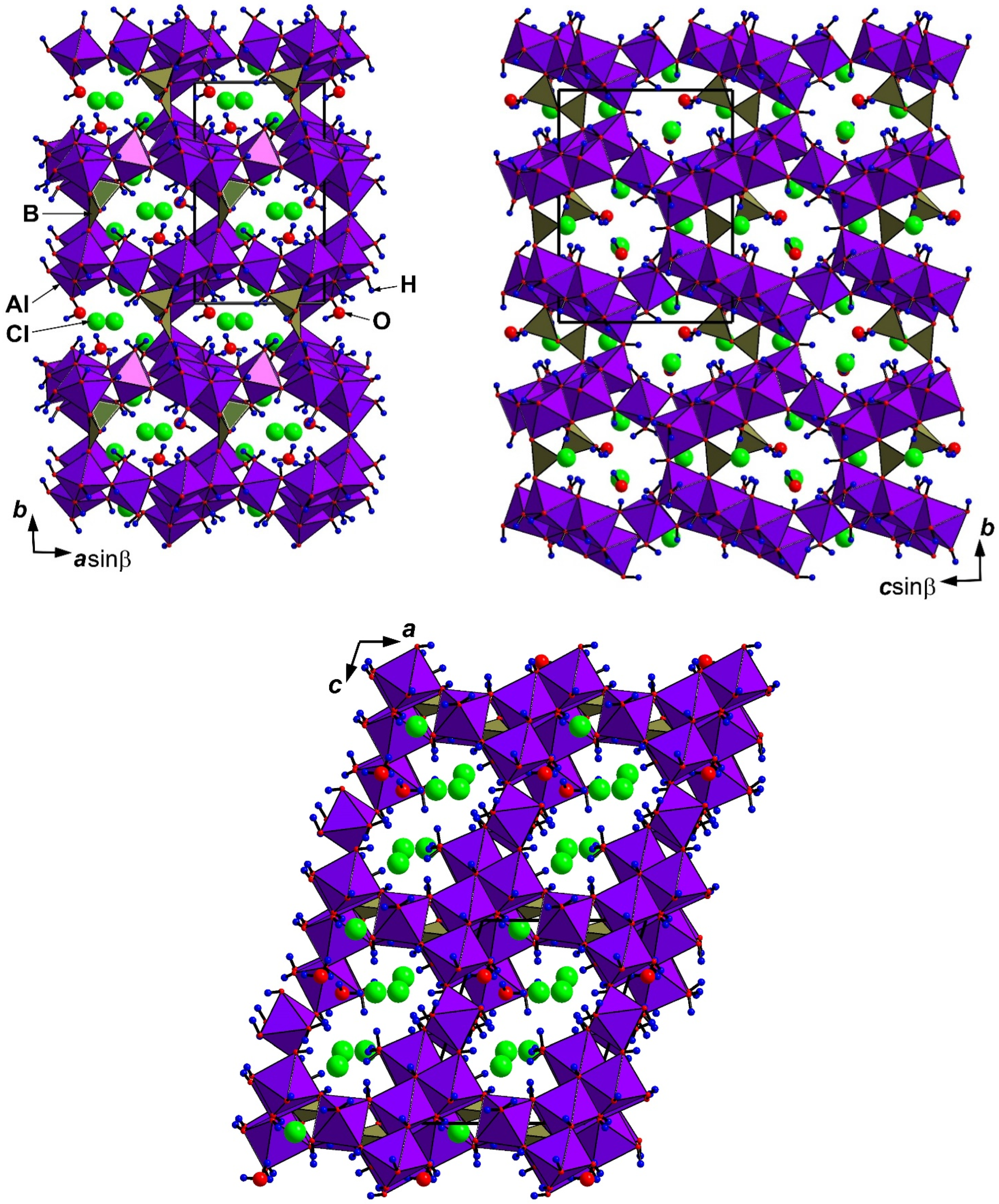

The crystal structure of krasnoshteinite (Figure 2) is unique. It is based upon the (010) corrugated layers of Al-centered octahedra connected via common vertices to form a pseudo-framework. There are eight crystallographically non-equivalent octahedrally coordinated Al sites: Al(1) and Al(7) cations center octahedra AlO(OH)₄(OH₂), Al(2,3) – AlO(OH)₅, Al(4) – AlO₂(OH)₄, Al(5) – Al(OH)₅(OH₂), Al(6) – Al(OH)₆, and Al(8) – Al(OH)₄(OH₂)₂. These Al-centered octahedra play different structural roles. Al(1–4)- and Al(6,7)-centered octahedra share edges to form six-membered clusters. Al(8)-centered octahedra link adjacent clusters along the c axis sharing two corners with each cluster, while Al(5)-centered octahedra play the same role linking the clusters along the a axis to form octahedral layers (Figure 3a). Adjacent layers are connected via the common O(3) vertex of Al(7)- and Al(1)-centered octahedra, forming the three-dimensional octahedral motif.

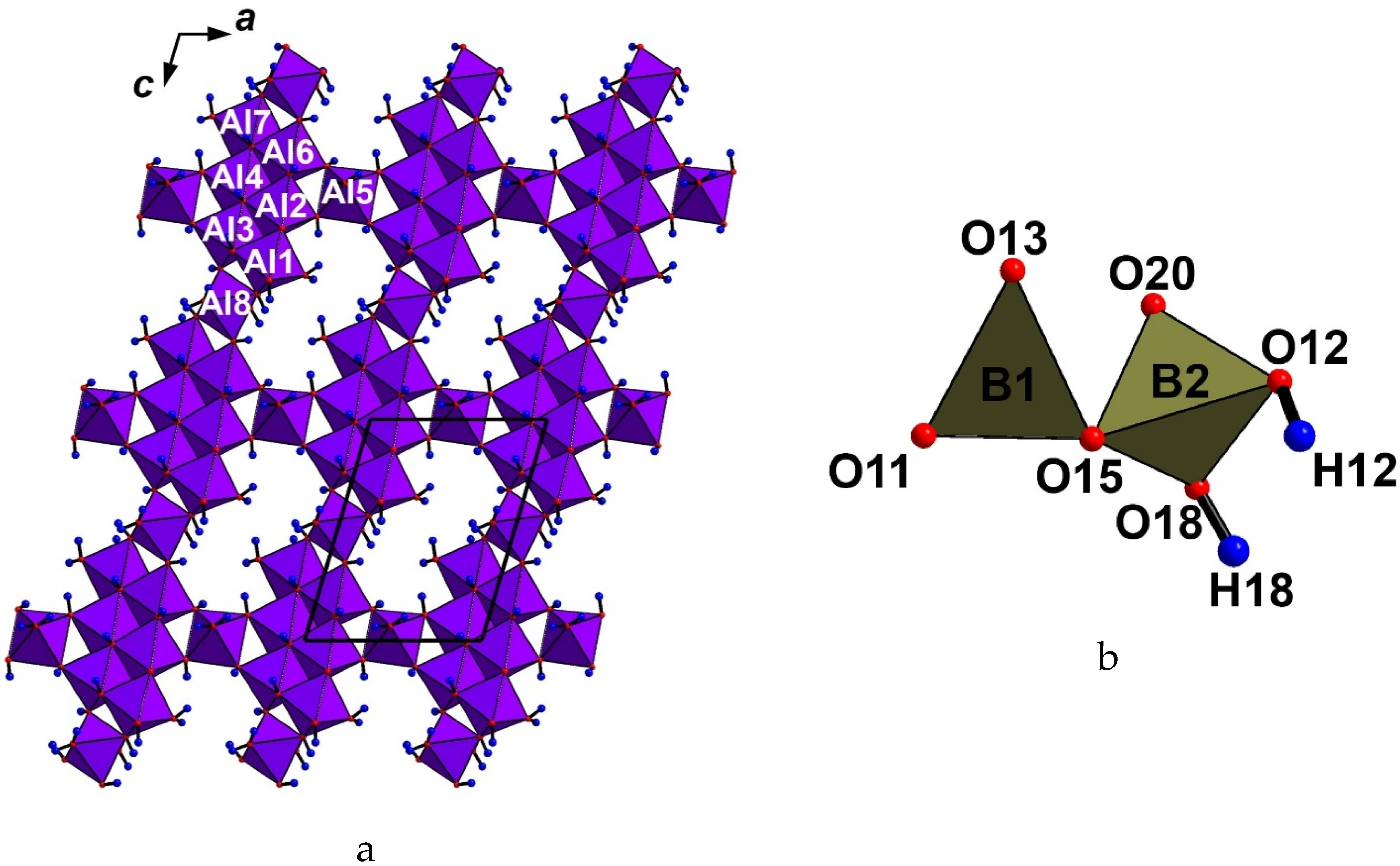

Boron atoms occupy two crystallographically non-equivalent sites and center B(1)O₃ triangles and B(2)O₂(OH)₂ tetrahedra, which share a common vertex to form insular [B₂O₄(OH)₂]⁴⁻ groups (Figure 3b). According to the classification of fundamental building blocks (FBB) in borates [17,18], FBB in krasnoshteinite is 1Δ񲈤:Δ񲈤, i.e., the block with one triangle and one tetrahedron sharing corner. Krasnoshteinite is the first borate with such FBBs. These groups are connected with clusters of Al-centered octahedra via common vertices. Thus, a BO₃ triangle shares one O vertex with a B-centered tetrahedron, one vertex with two Al-centered octahedra [Al(4) and Al(7)] of the layer, and one vertex with Al(1)- and Al(2)-centered octahedra of an adjacent layer (thus reinforcing the linkage between neighboring octahedral layers). A BO₂(OH)₂ tetrahedron shares one O vertex with a BO₃ triangle, one O vertex with two Al-centered octahedra [Al(3) and Al(4)], and one O=OH vertex with a Al(5)-centered octahedron; all Al(3,4,5) octahedra belong to the same layer. The resultant aluminoborate pseudo-framework contains three-membered [2B + Al] rings. Such Al-B-O units are known in the porous aluminoborate frameworks as being crucial to stabilizing them [19,20,21]. The same configuration of the three-membered [2B + Al] ring was described in the crystal structures of satimolite, KNa₂(Al₅Mg₂)[B₁₂O₁₈(OH)₁₂](OH)₆Cl₄·4H₂O [22], and synthetic porous Al borates, PKU-3 H_24.3Al₉B₁₈O₅₁Cl_3.3·6.8H₂O [23] and PKU-8 (H₁₈Al₇B₁₂O₃₆)Cl₃(NaCl)_2.4⋅6.5H₂O [19].

The aluminoborate pseudo-framework in krasnoshteinite is microporous and zeolite-like (Figure 2). The three-dimensional system of wide channels contains Cl⁻ anions and H₂O molecules. Together with OH groups and H₂O molecules belonging to Al- and B-centered polyhedra, they form a complicated system of hydrogen bonds (Table 5).

Among 160 natural borates and oxoborates, known to date as valid mineral species, only twelve minerals contain species-defining Al, namely aluminomagnesiohulsite, (Mg,Fe²⁺)₂(Al,Mg,Sn)(BO₃)O₂; jeremejevite, Al₆(BO₃)₅(F,OH)₃; johachidolite, CaAlB₃O₇; krasnoshteinite, Al₈[B₂O₄(OH)₂](OH)₁₆Cl₄⋅7H₂O; londonite, CsAl₄Be₄B₁₂O₂₈; mengxianminite, (Ca,Na)₂Sn₂(Mg,Fe)₃Al₈[(BO₃)(BeO₄)O₆]₂; painite, CaZrAl₉(BO₃)O₁₅; peprossiite-(Ce), CeAl₂B₃O₉; pseudosinhalite, Mg₂Al₃O(BO₄)₂(OH); rhodizite, KAl₄Be₄B₁₂O₂₈; satimolite, KNa₂(Al₅Mg₂)[B₁₂O₁₈(OH)₁₂](OH)₆Cl₄·4H₂O; and sinhalite, MgAl(BO₄) [2]. Satimolite and krasnoshteinite are low-temperature (LT) borates formed in evaporitic rocks, whereas the other ten minerals are known only in high-temperature (HT) geological formations: granitic pegmatites, HT metamorphic or metasomatic rocks, or post-volcanic HT assemblages. These HT Al borates and oxoborates do not contain H₂O molecules and have compact crystal structures that cause high hardness and mechanical and chemical stability in the majority of them. Data on the Mohs hardness of peprossiite-(Ce) and pseudosinhalite are absent in literature, aluminomagnesiohulsite has the Mohs hardness value of 6, and jeremejevite, johachidolite, londonite, mengxianminite, painite, rhodizite, and sinhalite demonstrate the Mohs hardness values between 7 to 8 [24]. All ten minerals have crystal structures with only one type of B-centered polyhedra, BO₃ triangles [aluminomagnesiohulsite, jeremejevite, mengxianminite, and painite], or BO₄ tetrahedra [johachidolite, londonite, peprossiite-(Ce), pseudosinhalite, rhodizite, and sinhalite], without OH groups coordinating B [25]. In LT formations, the crystal chemistry and properties of borate minerals with species-defining Al change drastically. Satimolite and krasnoshteinite are highly hydrated chloroborates which have low Mohs hardness values, 2 (satimolite) or 3 (krasnoshteinite), and dissolve even in diluted HCl. They contain complex borate polyanions composed of both B-centered triangles and tetrahedra with OH groups which participate in the tetrahedra. The structures of both satimolite and krasnoshteinite are microporous and zeolite-like. Thus, under LT conditions, aluminum octahedra in borates became a building unit of open-work aluminoborate structure motifs.

5. Conclusions

This paper is devoted to the new mineral species, krasnoshteinite. No mineral or synthetic compound related to it, in terms of crystal structure, has been found in literature and databases. Krasnoshteinite contains an earlier unknown borate polyanion, the insular [B₂O₄(OH)₂]⁴⁻ group consisting of one BO₃ triangle and one BO₂(OH)₂ tetrahedron sharing corner. It was a surprise that such a simple anionic complex turned out novel for borates, both natural and synthetic, which is one of the most structurally diverse and best-studied classes of chemical compounds.

Krasnoshteinite (Al₈[B₂O₄(OH)₂](OH)₁₆Cl₄⋅7H₂O) is the second, after jeremejevite (Al₆(BO₃)₅(F,OH)₃), natural borate with only Al as a metal cation; and the second, after satimolite (KNa₂(Al₅Mg₂)[B₁₂O₁₈(OH)₁₂](OH)₆Cl₄·4H₂O), mineral with a zeolite-like aluminoborate framework motif in the structure. Due to the presence of a three-dimensional system of wide channels containing Cl⁻ anions and weakly bonded H₂O molecules, krasnoshteinite is of interest as a potential prototype of a novel family of microporous crystalline materials without large cations.

Borate minerals with species-defining Al formed in high-temperature and low-temperature geological formations are strongly different in crystal chemistry and physical and chemical properties. The high-temperature Al borates and oxoborates do not contain H₂O molecules, have compact crystal structures, and are typically characterized by high hardness and mechanical and chemical stability. Their crystal structures contain only one type of B-centered polyhedral, BO₃ triangles, or BO₄ tetrahedra. Unlike them, the low-temperature Al borates are highly hydrated, have low hardness, and are chemically unstable. They contain complex borate polyanions composed of both triangular and tetrahedral borate polyhedra with OH groups which participate in boron tetrahedra. Their structures are zeolite-like, being based upon open-work aluminoborate motifs.
