Article

Double Palindrome Water Chain in Cu(II) Theophylline Complex. Synthesis, Characterization, Biological Activity of Cu(II), Zn(II) Complexes with Theophylline

by
Michał Gacki
1,*,
Karolina Kafarska
1,
Anna Pietrzak
1,
Izabela Korona-Głowniak
2 and
Wojciech M. Wolf
1
1
Institute of General and Ecological Chemistry, Faculty of Chemistry, Lodz University of Technology, 116 Zeromskiego Street, 90-924 Lodz, Poland
2
Department of Pharmaceutical Microbiology, Medical University of Lublin, Chodzki 1, 20-093 Lublin, Poland
*
Author to whom correspondence should be addressed.
Crystals 2020, 10(2), 97; https://doi.org/10.3390/cryst10020097
Submission received: 22 January 2020 / Revised: 3 February 2020 / Accepted: 5 February 2020 / Published: 8 February 2020
(This article belongs to the Special Issue Synthesis, Crystal Structures and Hirshfeld Surface Analysis of Coordination Compounds)
Browse Figures
Versions Notes

Abstract

Two metal complexes of theophylline were synthesized. Namely, 1 with the formula [Cu(theop)2(H2O)3]·2H2O and 2, [Zn(theop)2]∙H2O (where: theop = theophylline ion). Their properties were thoroughly investigated by the elemental analysis (EA), flame atomic absorption spectrometry (FAAS), Fourier-transform infrared spectroscopy (FTIR), and thermogravimetric analysis (TGA) that were augmented by antimicrobial and antioxidant analyses. Their radical scavenging ability (RSA) is notably higher than that of a pure theophylline itself. Similarly to theophylline complexes already studied by us 3, [Mn(theop)2(H2O)4] 4, [Co(theop)2(H2O)4] and 5, [Ni(theop)2(H2O)4] title compounds are inactive against Gram-negative bacteria, but they show moderate or mild activity against Gram-positive rods. The low temperature, single crystal X-ray diffraction technique determines the crystal structure of 1. Its supramolecular crystal topology is affected by the unique, double palindrome water chain that formed by two conserved and a sole coordinated water molecules. Crystal packing arrangements were characterized by fingerprint plots that were derived from the Hirshfeld surfaces (HS), as calculated for all structures in the series 1, 3, 4, 5.

Graphical Abstract

1. Introduction

Xanthine alkaloids are among pharmacological agents extensively used worldwide [1]. They naturally occur in cacao beans and popular beverages, like tea or coffee [2,3,4]. The most popular and widely used xanthines are caffeine, theophylline, and theobromine [5], which highly appreciated for their medical activity [6,7,8,9,10]. Theophylline is an important methyloxantine (Scheme 1), initially extracted from tea leaves in 1888 by Albrecht Kossel [11]. Its chemical structure and first synthetic method was hammered out by Emil Fischer in 1895 [12]. At the beginning of the 20th century, theophylline was introduced into the pharmaceutical market. Initially, it found application as a diuretic [13], and was further used in the treatment of either asthma or chronic obstructive pulmonary disease [14,15]. The pharmacological action of theophylline follows its ability to relax smooth muscle (bronchi and pulmonary blood vessels) and modulate breathing activity. It also stimulates the myocardium and the central nervous system and decreases peripheral and venous pressure [16,17]. Nevertheless, the bronchodilator activity is essentially due to the (nonspecific) inhibition of adenosine and phosphodiesterase receptors [2,13].
Theophylline (1,3-dimethyl-3,7-dihydro-1H-purin-2,6-dion), like all purines, is characterized by fused pyrimidine and imidazole rings [18]. The latter two endocyclic nitrogen atoms are either acidic or basic (N-7 and N-9, respectively) [19]. In water, theophylline behaves like a weak acid [19], with limited solubility (0.55–0.8 g/100 mL (25 °C)) [20,21]. It can be enhanced upon the transformation to salts through the reaction with organic bases. The resulting theophylline anion with ionized imidazole ring is stabilized by the combined mesomeric and inductive effects [22].
While metals and their salts have been extensively used in medicine for years [23], the modern metallodrugs are emerging new pharmaceuticals with very prospective new applications [23,24]. Metal binding changes drug properties, like redox potential, solubility, half-life time, and bio-catalytic ability, and finally may lead to the enhanced structural diversity and biological activity [25,26,27].
In particular, transition metal complexes with drugs have been attracting continuously growing interest [27]. Regrettably, only a limited number of complexes with theophylline have been reported so far [28,29,30,31,32,33,34,35,36]. In most cases, the coordinating atom is N7, while structures that involve N9 and O6 are also described [32,35,36].
This work enhances our recent structural and biological studies on metal complexes with theophylline 3–5 (Scheme 2), which have been already published by us [28]. Here, we report synthesis, Fourier-transform infrared spectroscopy (FTIR) spectroscopy, thermal analysis, and antioxidant and antimicrobial activities of compounds 1–2. Additionally, the high quality, low temperature crystal structure of 1 was determined and then compared to the previously reported X-ray analysis, as published in 1994 by Begum and Manohar [30]. The latter structure was determined from X-ray intensities that were collected for a major component of the twinned crystal without resolving the twin law. That led to elimination of significant number of reflections from the final data set and resulted in a low precision of geometry parameters. Especially, H atoms were not identified on Fourier maps. Therefore, we have decided to redetermine the structure of 1 by a single-crystal X-ray analysis. In contrast to the former results, the high quality data were collected at low temperature (T = 100 K) and the final refinement yielded precise atomic coordinates. Moreover, peaks that were observed on the residual Fourier map defined all H atoms, including those disordered of water molecules. The latter were crucial for the identification and characterization of H-bonded infinite chains, which are important supramolecular topology.

2. Experimental

2.1. Preparation of Complexes and Crystallization

Compounds 1, 2 were synthesized following procedure, as described by us in [28]. Single crystals of one suitable for X-ray structure analysis were obtained at room temperature by slow evaporation from the aqueous/ethanol (1:2 v/v) solution. Good quality crystals appeared after two weeks. Numerous attempts to obtain single crystals of two were unsuccessful. Anal. calcd. for 1 C14H24CuN8O9 (%): C, 32.84 H, 4.73; N, 21.89; Cu, 12.41. Found: C, 32.09; H. 5.12; N, 21.55; Cu, 12.45, and for 2 C14H16ZnN8O5 (%): C, 38.07; H, 3.65; N, 25.37; Zn, 14.80. Found: C, 38.12; H. 3.55; N, 25.13; Zn, 14.67.

2.2. Materials and Methods

Theophylline was purchased from Sigma-Aldrich and then used without further purification. Metal acetates M(CH3COO)2∙nH2O (where M = Cu, Zn), methanol, and (2,2- diphenyl-1-picrylhydrazyl) DPPH free radical were purchased from Lab-Scan, other chemicals were from POCh- Gliwice, Poland. All of the reagents were chemically pure.
Elemental analysis (EA) and flame atomic absorption spectrometry determined the chemical composition of 1 and 2. The metal content was determined in (20 mg) samples that were initially mineralized by the Multiwave 3000 (Anton Paar GmbH, Graz, Austria) closed microwave system; the mixture of concentrated HNO3 and HCl (6:1, v/v) was applied. The metal concentrations were measured by the flame atomic absorption spectrometry (FAAS) with the GBC Scientific Equipment 932 plus spectrometer (GBC Scientific Equipment, Braeside, Australia). The hydrogen, carbon, and nitrogen contents were measured with the Vario EL III Elemental Analyzer (Elementar Analysensysteme GmbH, Langenselold, Germany).
The infrared spectra of theophylline, 1 and 2 were recorded with the Thermo Scientific Nicolet 6700 FTIR spectrometer (Thermo Scientific, Waltham, USA) that was equipped with liquid nitrogen cooled MCT (Mercury cadmium telluride—MCT, HgCdTe) detector. The samples were prepared as KBr pellets and measured over the range 4000–400 cm−1.
The thermal decomposition and stability of complexes were studied by thermogravimetric techniques. All of the measurements were made with the Netzsch TG 209 apparatus (Netzsch, Germany). The samples (10 mg) were heated (in ceramic crucibles) up to 1000 °C, at a heating rate 10 °C min−1 in the air atmosphere.
The radical scavenging activity of 1, 2 and pure theophylline were evaluated by measuring scavenging ability of the DPPH free radical. The methodology that was suggested by Feng et al. [37] was used.
X-ray data were collected at 100 K on the XtaLAB Synergy, Dualflex, Pilatus 300 K diffractometer (Rigaku Corporation, Tokyo, Japan) that was equipped with the PhotonJet microfocus X-ray tube. Data reduction was performed with the CrysAlisPro [38]. The structure was solved by Intrinsic Phasing as in ShelXT [39] and further refined on F2 in Olex2 [40] and ShelXL [41] by full-matrix least squares. The non-hydrogen atoms were anisotropically refined. Positions of disordered hydrogen atoms were identified on the difference Fourier maps. Their geometry was constrained while using DFIX and DANG commands, while the occupancy ratios were determined by the refinement of respective free variables. The remaining hydrogen atoms were initially located on difference Fourier maps, being further restrained to their geometrical positions and refined riding on their parent atoms. The molecular plots and packing diagrams were drawn while using Mercury [42]. Geometry parameters were computed with PLATON [43]. Table 1 provides the relevant crystallographic data.
The CIF file for 1 is available from the Cambridge Crystallographic Data Centre (CCDC) (deposition numbers CCDC: 1973265). CCDC 1973265 contains supplementary crystallographic data for 1. These data can be obtained free of charge via http://www.ccdc.cam.ac.uk/conts/retrieving.html, or from the Cambridge Crystallographic Data Centre, 12 Union Road, Cambridge CB2 1EZ, UK; fax: (+44) 1223-336-033; or e-mail: deposit@ccdc.cam.ac.uk. Hirshfeld Surfaces were generated while using the CrystalExplorer17 program (University of Western Australia, Crawley, Australia). Molecular geometries were taken directly from the crystal structure. For molecular fragments where the crystallographic disorder was identified, the major components were only considered. The distances from the HS to the nearest atom interior and exterior to the surface (di and de, respectively) were calculated and plotted as scattergrams [44]. A quantitative decomposition analysis of atom-to-surface contacts was calculated as a percentage of the points in the Hirshfeld Surface, with di and de for specific atom pairs.
Theophylline derivatives were screened for antibacterial and antifungal activities by methods already described by us in [45].

3. Results and Discussion

Compounds 1 and 2 are air stable at room temperature. They are moderately soluble in water, while being well soluble in popular polar organic solvents (e.g. DMF, DMSO, methanol, and ethanol). Their properties were thoroughly investigated by the FAAS, EA, FTIR, and thermogravimetric analysis augmented by antimicrobial and antioxidant analyses. Additionally, structure of 1 was determined by the single crystal X-ray diffraction technique.

3.1. Crystal Structure

Figure 1 presents the molecular structure of complex 1. It crystallizes in the monoclinic space group P21/n. The asymmetric unit contains a single copper cation, two independent theophylline anions, and three directly coordinated waters augmented by two additional, conserved water molecules in the outer coordination sphere. The central copper ion adopts distorted square pyramidal coordination. It is surrounded by two almost planar, imidazole N6 and N7 atoms that were supplemented with two axial O5, O6, and a sole apical O7 water molecules. The latter coordination bond, Cu-O7 is longer [2.2628(13) Å] than equatorial Cu-O5 and Cu-O6 bonds [1.9773(14) Å and 1.9711(4) Å, respectively]. Moreover, angles that formed by O7 with equatorial atoms are within the range 91.06–102.85°. The central Cu ion is located 0.183 Å above the square pyramid base plane with theophylline moieties positioned trans and the N5-Cu-N6 angle close to a half-turn angle [161.17(6)°]. On the contrary, complexes 3–5 are characterized by octahedral geometry with coordinating water molecules in equatorial positions and nitrogen atoms placed axially. The Cu-N5 and Cu-N6 bond distances are shorter [1.9814(15) Å, 1.9888(15) Å], then Mn-N7, Co-N7, and Ni-N7 [2.2690(11) Å, 2.1890(13) Å and 2.1310(3) Å] for 3, 4, and 5, respectively. Furthermore, metal-O distances in equatorial positions are longer for 3, 4, and 5 than those in 1.
The crystal structure 1 is stabilized by an extensive network of inter- and intramolecular hydrogen bonds (Table 2). In particular, the strong intramolecular interaction is formed between a sole hydrogen at the coordinating water molecule O7 and the carbonyl O1 of a theophylline moiety. Conserved waters O8 and O9 along with the coordinating water O7 form 1-D, double palindrome chains running along the [100] direction. Those species may be described by the symbol C 4 4 ( 9 ) , according to Etter and Bernstein terminology [46]. They are restricted by two inversion centres located at midpoints of the O7⋯O7 [1−x, 1−y, 1−z] and O9⋯O9 [1−x, 1−y, −z] intra-chain H-bonds, as in Figure 2. Those constraints heavily affect the hydrogen bond geometry and the inflict disorder of hydrogen atoms in those symmetry driven species. Moreover, the coordinating water molecules O5 and O6 are involved in hydrogen-bonding interaction with the carboxyl O2 and O3 groups and imidazole N3 and N7 atoms, respectively. Those interactions form the supramolecular puckered ribbons, which run along the [010] direction (Figure 3). The crystal packing is additionally stabilized by the π⋯π interaction between purine moieties of the neighboring residues, and an average separation is 3.480(5) Å.

Crystal Packing Analysis

Structures 1, 3, 4, and 5 exhibit similar molecular shapes, as represented by their Hirshfeld surfaces (HS), Figure 4. In 1, three water molecules are in the inner coordination sphere, while in 3–5, central metal ion coordinates four waters. The overall molecular shape is strongly influenced by two large, planar and rigid theophylline moieties. The crystal packing of 1 is additionally affected by two conserved water molecules O8 and O9, which are not directly linked to the copper cation. On the contrary, in 3–5, all waters are within the metal coordination sphere.
The hydration of 1 drives changes in the supramolecular assembly as compared to 3–5. In particular, two conserved water molecules are linked by hydrogen bonds and encapsulated in tight pockets. As described above, these dimers are further connected with coordinated water molecules. The resulting double palindrome water chains are located in channels, as presented in Figure 5.
Fingerprint plots (FP) that were derived from the HS were generated for all analyzed structures to characterize used to the crystal packing arrangements in detail. The relevant FP and their percentage contributions to the HS area for the major intermolecular contacts do not differ significantly, as crystals 3–5 are isostructural. Additionally, the FP defining environment of the molecule in 1 reflects similarities in the overall intermolecular contacts contribution as compared to 3–5. Especially, in 1, two non coordinated water molecules are a source of additional hydrogen bonding. Nevertheless, no significant differences in O⋯H contacts contribution are observed i.e. 24.9%, 24.3%, 24.2%, and 23.7% for 1, 3, 4, and 5, respectively. Sharp spikes representing those interactions on FP plots almost overlap with spikes that were derived from N⋯H contacts. The latter contribute in the crystal stabilization to a smaller extent, ranging in value from 10.0% to 10.6%. Moreover, symmetrical wings that reflect C⋯H contacts characterize all FP. Those indicate notable participation of C-H⋯π interactions between methyl group and aromatic, stacked theophylline moieties. Respective contributions of C⋯H contacts defining 3–5 range in value from 8.5% to 8.9%, while in 1 the smaller contribution of 7.0% is observed. In all structures, molecules are assembled in stacks and consequent bright spots in the central region of FP are observed. This region is typical for C⋯C, C⋯N, and N⋯N contacts, which follow stacking interactions between aromatic fragments of molecules. Their contributions in 1 and 3–5 are notably smaller (10.8%, 9.4%, 9.9%, and 9.5%, respectively) as compared to the sum of contacts defining typical donor-acceptor interactions (C⋯H, O⋯H, N⋯H). The latter is higher than 40% in all of the investigated crystals. The H⋯H contacts dominate over all FP, with their contribution ranging in value from 44.7% to 45.4% for 3 and 1, respectively. The H⋯H contacts plotted on FP scattergrams of 1 are shorter than respective van der Waals radii due to the disorder of water hydrogen atoms.

3.2. Infrared Spectra

The IR spectra of 1 and 2 are similar to those recorded for 3, 4, 5. All of the complexes exhibit sharp bands around the 3600 cm−1 augmented by a broad absorption bands in the region 3500–3200 cm−1. The former and latter are assigned to OH stretching vibrations in water molecules. The free theophylline shows a characteristic band at 3116.5 cm−1 that is associated with the ν(NH) vibration. As expected, this band disappears in the IR spectra of all complexes. It indicates the deprotonation of theophylline where the amine group interacts with metal ions. The characteristic stretching vibrations that are attributed to C=O (1650–1720 cm−1) and C=C, C=N (1550–1670 cm−1) of the purine ring are shifted towards lower frequencies for all complexes. Those changes are affected by the theophylline coordination to metal ions and the subsequent formation of hydrogen bond network in the crystal. Figure 6 presents the comparison of IR spectra as in 1, 2 and a free theophylline.

3.3. TG-DTG-DTA Measurements

Figure 7 and Figure 8 show the thermal decomposition curves of 1 and 2, respectively. All of the complexes start to decompose by a dehydration process. It corresponds to the endothermic effect on the DTA curve. The elimination of water molecules in 1 proceeds in three distinguished steps. The first is represented by a loss of two water molecules at the temperature range 50–95 °C (mass loss exp. 6.51%, calc. 7.04%). The second is attributed to the release of one coordinated water with the weight loss 3.01% (teor. 3.52%) at the temperature range of 95–125 °C. The loss of two remained, coordinated water molecule (mass loss exp. 6.51%, calc. 7.04%) leads to the formation of anhydrous Cu(theop)+ complex at 200 °C. Dehydration for 2 is a one stage process (100–250 °C). Further heating leads to the destruction of theophyllinato ligands. The latter proceeds in two separate steps for 1 and one for 2. The corresponding exoeffects were identified on respective DTA curves. The experimental weight losses were 34.01%, 33.16% (calc. 35.00%) and 76.71% (calc. 77.50%) for 1 and 2, respectively. At temperatures above 500 °C, the thermally stable metal oxides are being formed. They are the final product of thermal decomposition. The experimental residual masses for 1, 2 are close to the calculated ones, CuO: exp. 15.86%, calc. 15.54%; ZnO: exp. 18.31%, calc. 18.42%.

3.4. Antioxidant and Antimicrobial Activities

Figure 9 shows the radical scavenging activities for 1, 2 and a pure theophylline. The DPPH (2,2- diphenyl-1-picrylhydrazyl) scavenging activities of metal complexes are higher than that of a pure ligand. The maximum values for 0.1 mol/L concentrations were 70.6% and 78.6% for 1 and 2, respectively. Moreover, the activity of 1, 2 and that of a pure theophylline have also been tested against reference strains of Gram-positive (S. aureus, S. epidermidis, M. luteus, E. faecalis, B. subtillis, B. cereus, S. pyogenes, S. pneumonia, and S. mutans), Gram-negative (S. typhimurium, E. coli, P. mirabilis, K. pneumonia, and P. aeruginosa), and bacteria and yeasts (C. albicans, C. parapsilosis, and C. glabrata). None of the tested compounds exhibit activity against Gram-negative rods (with MIC > 1000 mg/L). They were also inactive also against yeast reference strains (MIC > 1000 mg/L). Notably, 1 was moderately active (500 > MIC > 125 mg/L) against S. epidermidis bacteria. The moderate activity of 2 against S. aureus and S. epidermidis was further observed.

4. Conclusions

In conclusion, we synthesized and thoroughly investigated two theophylline divalent Cu2+ and Zn2+ complexes 1 and 2, respectively. Their properties were compared to the already published by us Mn2+, Co2+, and Ni2+ compounds 3–5. The 1 is characterized by distorted square pyramidal coordination with two theophylline ions and three water molecules within the Cu2+ coordination sphere. On the contrary, complexes 3–5 are isomorphic and they adopt octahedral geometry with coordinating water molecules positioned in equatorial positions and theophylline moieties placed axially. The theophylline ligands are coordinated to the central metal ion through the N7 atom of the imidazole ring. The crystal packing is affected by supramolecular puckered ribbons running along [010] axis as in 1 or [011] in 3–5. The fingerprint analysis revealed that despite differences in either coordinated or conserved waters topologies, structures 1 and 3–5 are driven by the nearly identical non-bonding contact settings. In 1 the two conserved waters O8 and O9 along with the coordinated water O7 form the unique double palindrome chain extending along the [100] crystal axis. Thermogravimetric analysis revealed that 1–5 decompose gradually along the pathways strongly affected by topology of water molecules in the crystal. Their radical scavenging ability is in the order 2 > 3, 4 > 1 > 5, notable higher than the pure theophylline itself. While all complexes are inactive against Gram-negative bacteria and they show moderate or mild activity against Gram-positive rods. On the contrary, the theophylline is inactive against either Gram-negative or Gram-positive species. The latter effect deserves further studies.

Author Contributions

Conceptualization, K.K., M.G. and W.M.W.; Methodology, A.P., I.K.-G., K.K. and M.G.; Validation, A.P., I.K.-G., K.K., M.G. and W.M.W.; Formal analysis, M.G. and W.M.W.; Investigation, A.P., I.K.-G., K.K., M.G. and W.M.W.; Writing—original draft preparation, M.G.; Writing—review and editing, K.K., M.G. and W.M.W.; Visualization, A.P. and M.G.; Supervision, K.K. and W.M.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gilbert, R.M. Caffeine Consumption. Prog. Clin. Biol. Res. 1984, 158, 185–213. [Google Scholar] [PubMed]
  2. Bujdosova, Z.; Gyoryova, K.; Ruzicka, A.; Melnik, M.; Koman, M. Crystal structures of two aromatiic zinc(II) caroboxylates: [Zn(4-chlorosalicylato)2(H2O)4]·2theophylline·(H2O)2 and unique [Zn(5-chlorosalicylato)2(isonicotinamine)2(H2O)]. J. Chem. Crystallogr. 2011, 41, 1077–1084. [Google Scholar] [CrossRef]
  3. Biradha, K.; Samai, S.; Maity, A.C.; Goswami, S. Supramolecular assembly of protonated xanthine alkaloids in their perchlorate salts. Cryst. Growth Des. 2009, 10, 937–942. [Google Scholar] [CrossRef]
  4. Fredholm, B.B. Methylxanthines; Springer: Berlin/Heidelberg, Germany, 2011. [Google Scholar]
  5. Petrucci, R.; Chiarotto, I.; Mattiello, L.; Passeri, D.; Rossi, R.; Zollo, G.; Feroci, M. Graphene Oxide: A smart (starting) material for natural methylxanthines adsorption and detection. Molecules 2019, 24, 4247. [Google Scholar] [CrossRef]
  6. Monteiro, J.; Alves, M.G.; Oliveira, P.F.; Silva, B.M. Pharmacological potential of methylxanthines: Retrospective analysis and future expectations. Crit. Rev. Food Sci. Nutr. 2019, 59, 2597–2625. [Google Scholar] [CrossRef] [PubMed]
  7. Petrucci, R.; Zollo, G.; Curulli, A.; Marrosu, G. A new insight into the oxidative mechanism of caffeine and related methylxanthines in aprotic medium: May caffeine be really considered as an antioxidant? Biochim. Biophys. Acta Gen. Subj. 2018, 1862, 1781–1789. [Google Scholar] [CrossRef]
  8. Panusa, A.; Petrucci, R.; Lavecchia, R.; Zuorro, A. UHPLC-PDA-ESI-TOF/MS metabolic profiling and antioxidant capacity of arabica and robusta coffee silverskin: Antioxidants vs phytotoxins. Food Res. Int. 2017, 99, 155–165. [Google Scholar] [CrossRef]
  9. Monteiro, J.P.; Alves, M.G.; Oliveira, P.F.; Silva, B.M. Structure-Bioactivity Relationships of Methylxanthines: Trying to Make Sense of All the Promises and the Drawbacks. Molecules 2016, 21, 974. [Google Scholar] [CrossRef]
  10. Franco, R.; Oñatibia-Astibia, A.; Martínez-Pinilla, E. Health Benefits of Methylxanthines in Cacao and Chocolate. Nutrients 2013, 5, 4159–4173. [Google Scholar] [CrossRef]
  11. Kossel, A. Über eine neue Base aus dem Pflanzenreich. Ber. Dtsch. Chem. Ges. 1888, 21, 2164–2167. [Google Scholar] [CrossRef]
  12. Fischer, E.; Ach, L. Synthese des Caffeins. Ber. Dtsch. Chem. Ges. 1985, 28, 3135–3139. [Google Scholar] [CrossRef]
  13. Sharron, H.F.; Konjeti, R.S.; Hengming, K.; Jackie, D.C. Inhibition of Cyclic Nucleotide Phosphodiesterases by Methylxanthines. In Methylxanthines, Handbook of Experimental Pharmacology; Fredholm, B.B., Ed.; Springer: Berlin/Heidelberg, Germany, 2011; pp. 93–134. [Google Scholar]
  14. Santos, C.I.A.V.; Ramos, M.L.; Justino, L.L.G.; Burrows, H.D.; Valente, A.J.M.; Esteso, M.A.; Leaist, D.G.; Ribeiro, A.F.C. Effect of pH in the structure and mass transport by diffusion of theophylline. J. Chem. Thermodyn. 2017, 110, 162–170. [Google Scholar] [CrossRef]
  15. Barnes, P.J. Pulmonary Perspectives. Theophylline. Am. J. Respir. Crit. Care Med. 2013, 188, 901–906. [Google Scholar] [CrossRef] [PubMed]
  16. Moratalla, R. Neurobiología de las metilxantinas. Trastor. Adict. 2008, 10, 201–207. [Google Scholar] [CrossRef]
  17. Peck, C.C.; Nichols, A.I.; Baker, J.; Lenert, L.L.; Ezra, D. Clinical pharmacodynamics of theophylline. J. Allergy Clin. Immunol. 1985, 76, 292–297. [Google Scholar] [CrossRef]
  18. Ashihara, H.; Crozier, A. Biosynthesis and metabolism of caffeine and related purine alkaloids in plants. In Advances in Botanical Research; Academic Press: Cambridge, MA, USA, 1999; Volume 30, pp. 117–205. [Google Scholar]
  19. Nishijo, J.; Yonetani, I. The interaction of theophylline with benzylamine in aqueous solution. Chem. Pharm. Bull. 1982, 30, 4507–4511. [Google Scholar] [CrossRef][Green Version]
  20. Santos, C.I.A.V.; Ribeiro, A.C.F.; Esteso, M.A. Drug delivery systems: Study of inclusion complex formation between methylxanthines and cyclodextrins and their thermodynamic and transport properties. Biomolecules 2019, 9, 196. [Google Scholar] [CrossRef]
  21. Budavari, S.; O’Neil, M.J.; Smith, A.; Heckelman, P.E. The Merck Index, 14th ed.; Merck: Rahway, NJ, USA, 2006. [Google Scholar]
  22. Cavalieri, L.F.; Fox, J.J.; Stone, A.; Chang, N. On the nature of xantine and substituted xanthenes in solution. J. Am. Chem. Soc. 1954, 76, 1119–1122. [Google Scholar] [CrossRef]
  23. Desoize, B. Metals and metal compounds in cancer treatment. Anticancer Res. 2004, 24, 1529–1544. [Google Scholar]
  24. Shaw, C.F., III. Gold-based medicinal agents. Chem. Rev. 1999, 99, 2589–2600. [Google Scholar] [CrossRef]
  25. Graf, N.; Lippard, S.J. Redox activation of metal-based prodrugs as a strategy for drug delivery. Adv. Drug Deliv. Rev. 2012, 64, 993–1004. [Google Scholar] [CrossRef] [PubMed]
  26. Van Rijt, S.H.; Sadler, P.J. Current applications and future potential for bioinorganic chemistry in the development of anticancer drugs. Drug Discov. Today 2009, 14, 1089–1097. [Google Scholar] [CrossRef] [PubMed]
  27. Tang, X.; Liang, X. Metal-mediated targeting in the body. Chem. Biol. Drug Des. 2013, 81, 311–322. [Google Scholar] [CrossRef]
  28. Gacki, M.; Kafarska, K.; Pietrzak, A.; Korona-Glowniak, I.; Wolf, W.M. Synthesis, characterization, crystal structure and biological activity of metal(II) complexes with theophylline. J. Saudi Chem. Soc. 2019, 23, 346–354. [Google Scholar] [CrossRef]
  29. El Hamdani, H.; El Amane, M.; Duhayon, C. Crystal structure of tetraaquabis (1,3-dimethyl-2,6-dioxo-7H- purin-7-ido-κ N7)cobalt(II). Acta Crystallogr. Sect. E Crystallogr. Commun. 2017, 73, 1302–1304. [Google Scholar] [CrossRef]
  30. Begum, N.S.; Monohar, H. Synthesis and X-ray crystal structure of a CuII-theophylline complex: [Cu(theo) (H2O)]·2H2O. Polyhedron 1994, 13, 307–312. [Google Scholar] [CrossRef]
  31. Wang, H.; Hu, T.; Wen, R.; Wang, Q.; Bu, X. In vitro controlled release of theophylline from metal-drug complexes. J. Mater. Chem. B 2013, 1, 3879–3882. [Google Scholar] [CrossRef]
  32. Hao, X.M.; Zhao, S.; Wang, H.; Wu, Y.B.; Yang, D.; Zhang, X.F.; Xu, Z.L. In vitro release of theophylline and cytotoxicity of two new metal–drug complexes. Polyhedron 2018, 142, 38–42. [Google Scholar] [CrossRef]
  33. Forizs, E.; Debreczeni, A.; Patrut, A. Synthesis, structure and DFT calculations on complexes of palladium (II) with theophylline. Rev. Roum. 2010, 55, 697–704. [Google Scholar]
  34. Caldwell, K.; Deacon, G.B.; Gatehouse, B.M.; Lee, S.C.; Canty, A.J. Organomercury medicinal chemistry. Synthesis and structure of a (β-methoxyethyl)mercury(II) derivative of N(7)-deprotonated theophylline, [Hg(C3H7O)(C7H7N4O2)]. Acta Cryst. C 1984, 40, 1533–1536. [Google Scholar] [CrossRef]
  35. Aoki, K.; Yamazaki, H. Interaction of tetrakis(-µ-carboxylato)dirhodiurn(II), an antitumour agent, with nucleic acid bases. X-ray crystal structures of [Rh2(acetato)4(theophylline)2] and [Rh2(acetato)4(caffeine)2]. J. Chem. Soc. Chem. Commun. 1980, 926, 186–188. [Google Scholar] [CrossRef]
  36. Griffith, E.H.; Amma, E.L. Reaction of PtCl42− with theophylline: X-ray crystal structures of bis(theophyllinum) tetrachloroplatine(II) and theophyllinum trichlorotheophyllineplatinate(II). Inorg. Chem. 1979, 7, 322–324. [Google Scholar]
  37. Feng, J.; Du, X.; Liu, H.; Sui, X.; Zhang, C.; Tang, Y.; Zhang, J. Manganeseese-mefenamic acid complexes exhibit high lipoxygenase inhibitory activity. Dalton Trans. 2014, 43, 10930–10939. [Google Scholar] [CrossRef] [PubMed]
  38. Rigaku Oxford Diffraction; CrysAlisPro 1.171.39.33c; Agilent Technologies UK Ltd.: Yarnton, UK, 2017.
  39. Sheldrick, G.M. SHELXT-Integrated space-group and crystal-structure determination. Acta Crystallogr. Sect. C Struct. Chem. 2015, 71, 3–8. [Google Scholar] [CrossRef]
  40. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. OLEX2: A complete structure solution, refinement and analysis program. J. Appl. Cryst. 2009, 42, 339–341. [Google Scholar] [CrossRef]
  41. HüBschle, C.B.; Sheldrick, G.M.; Dittrich, B. ShelXle: A Qt graphical user interface for SHELXL. J. Appl. Cryst. 2011, 44, 1281–1284. [Google Scholar] [CrossRef]
  42. Macrae, C.F.; Bruno, I.J.; Chisholm, J.A.; Edgington, P.R.; Mccabe, P.; Pidcock, E.; Rodriguez-Monge, L.; Taylor, R.; Van De Streek, J.; Wood, P.A. Mercury: Visualization and analysis of crystal structures. J. Appl. Cryst. 2008, 41, 466–470. [Google Scholar] [CrossRef]
  43. Spek, A.L. Structure validation in chemical crystallography. Acta Crystallogr. Sect. D Biol. Crystallogr. 2009, 65, 148–155. [Google Scholar] [CrossRef]
  44. McKinnon, J.J.; Jayatilaka, D.; Spackman, M.A. Towards quantitative analysis of intermolecular interactions with Hirshfeld surfaces. Chem. Commun. 2007, 37, 3814–3816. [Google Scholar] [CrossRef]
  45. Żesławska, E.; Korona-Głowniak, I.; Szczesio, M.; Olczak, A.; Żylewska, A.; Tejchman, W.; Malm, A. Structural analysis and antimicrobial activity of 2[1H]-pyrimidinethione/selenone derivatives. J. Mol. Struct. 2017, 1142, 261–266. [Google Scholar] [CrossRef]
  46. Bernstein, J.; Davis, R.; Shimoni, L.; Chang, N. Patterns in hydrogen bonding: Functionality and graph set analysis in crystals. Angew. Chem. Int. Ed. 1995, 34, 1555–1573. [Google Scholar] [CrossRef]
Crystals 10 00097 sch001

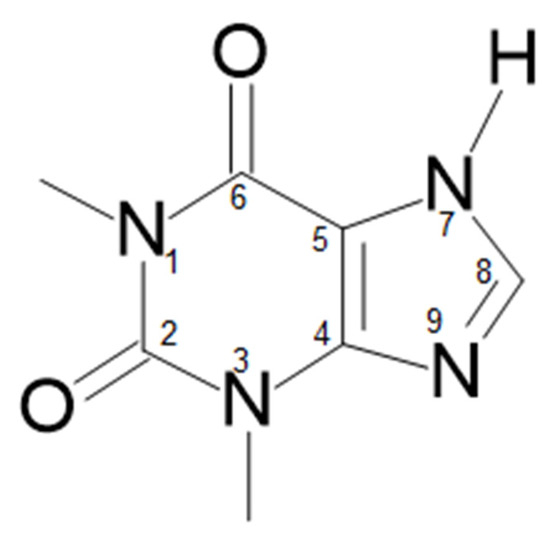

Scheme 1. Structural scheme of theophylline.
Scheme 1. Structural scheme of theophylline.
Crystals 10 00097 sch001
Crystals 10 00097 sch002

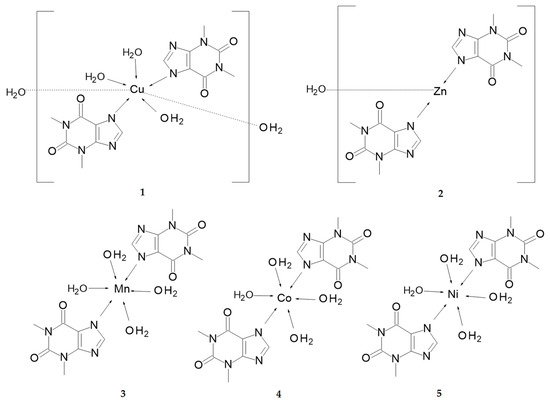

Scheme 2. Structural schemes of 1–5.
Scheme 2. Structural schemes of 1–5.
Crystals 10 00097 sch002
Crystals 10 00097 g001

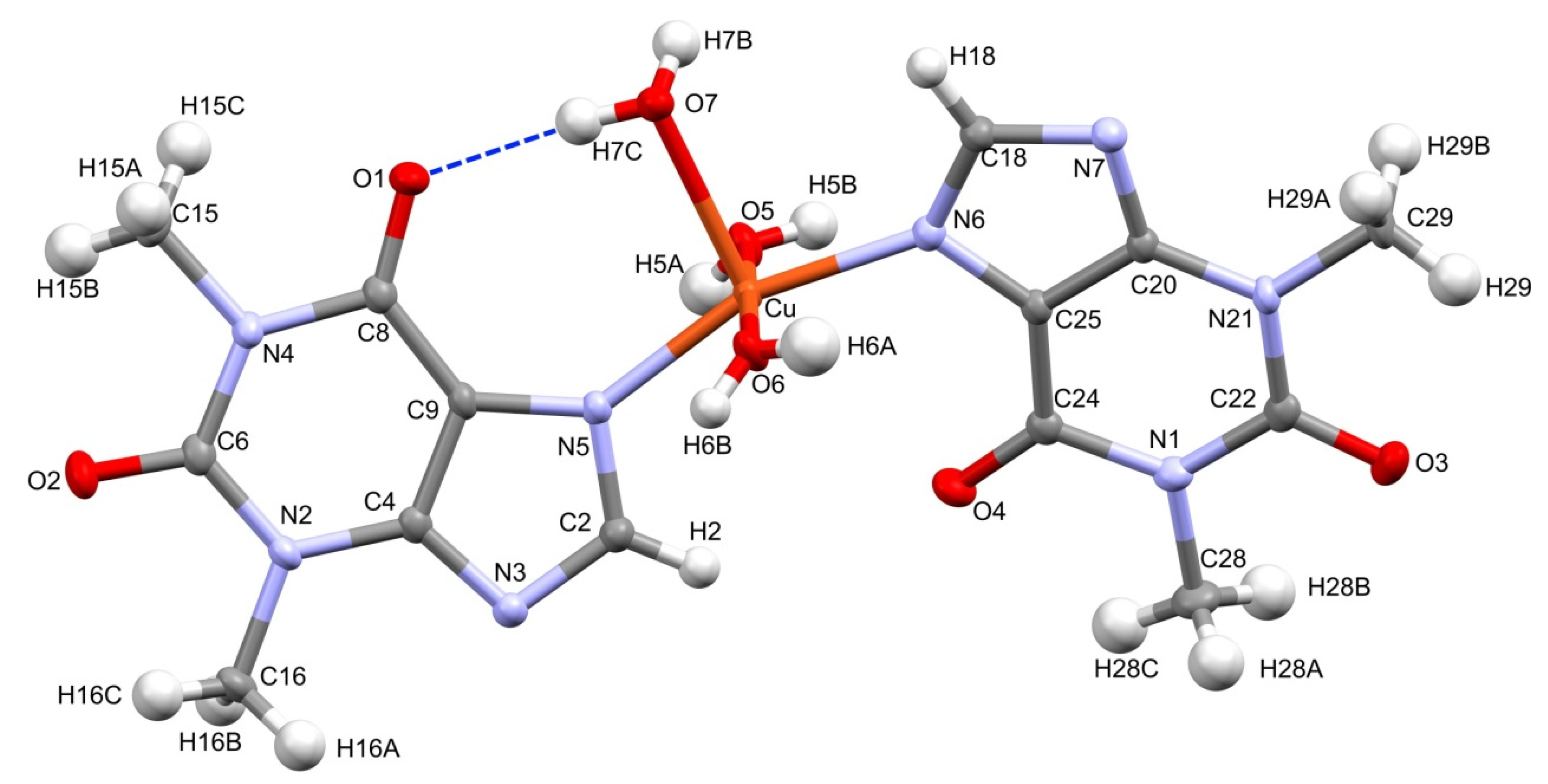

Figure 1. Molecular structure of 1. Conserved waters O8 and O9 are omitted for clarity. Displacement ellipsoids are drawn at the 50% probability level. Hydrogen atoms are represented by spheres of an arbitrary radius. Intramolecular hydrogen bond is shown with a broken line in blue.
Figure 1. Molecular structure of 1. Conserved waters O8 and O9 are omitted for clarity. Displacement ellipsoids are drawn at the 50% probability level. Hydrogen atoms are represented by spheres of an arbitrary radius. Intramolecular hydrogen bond is shown with a broken line in blue.
Crystals 10 00097 g001
Crystals 10 00097 g002

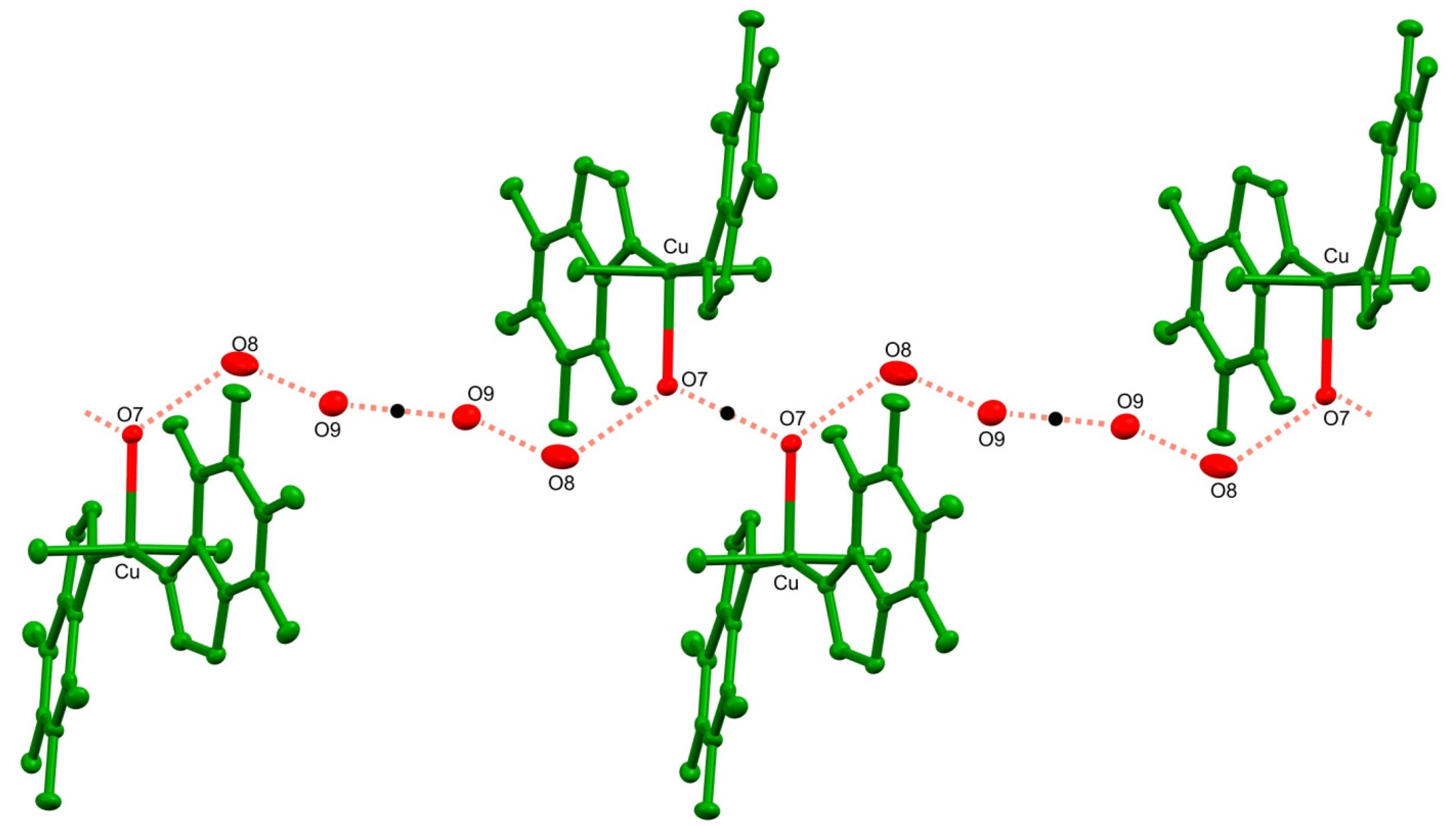

Figure 2. Fragment of the double palindrome water chain in 1 running along the [100] direction. Symmetry centers are indicated with black dots. Hydrogens atom are omitted for clarity.
Figure 2. Fragment of the double palindrome water chain in 1 running along the [100] direction. Symmetry centers are indicated with black dots. Hydrogens atom are omitted for clarity.
Crystals 10 00097 g002
Crystals 10 00097 g003

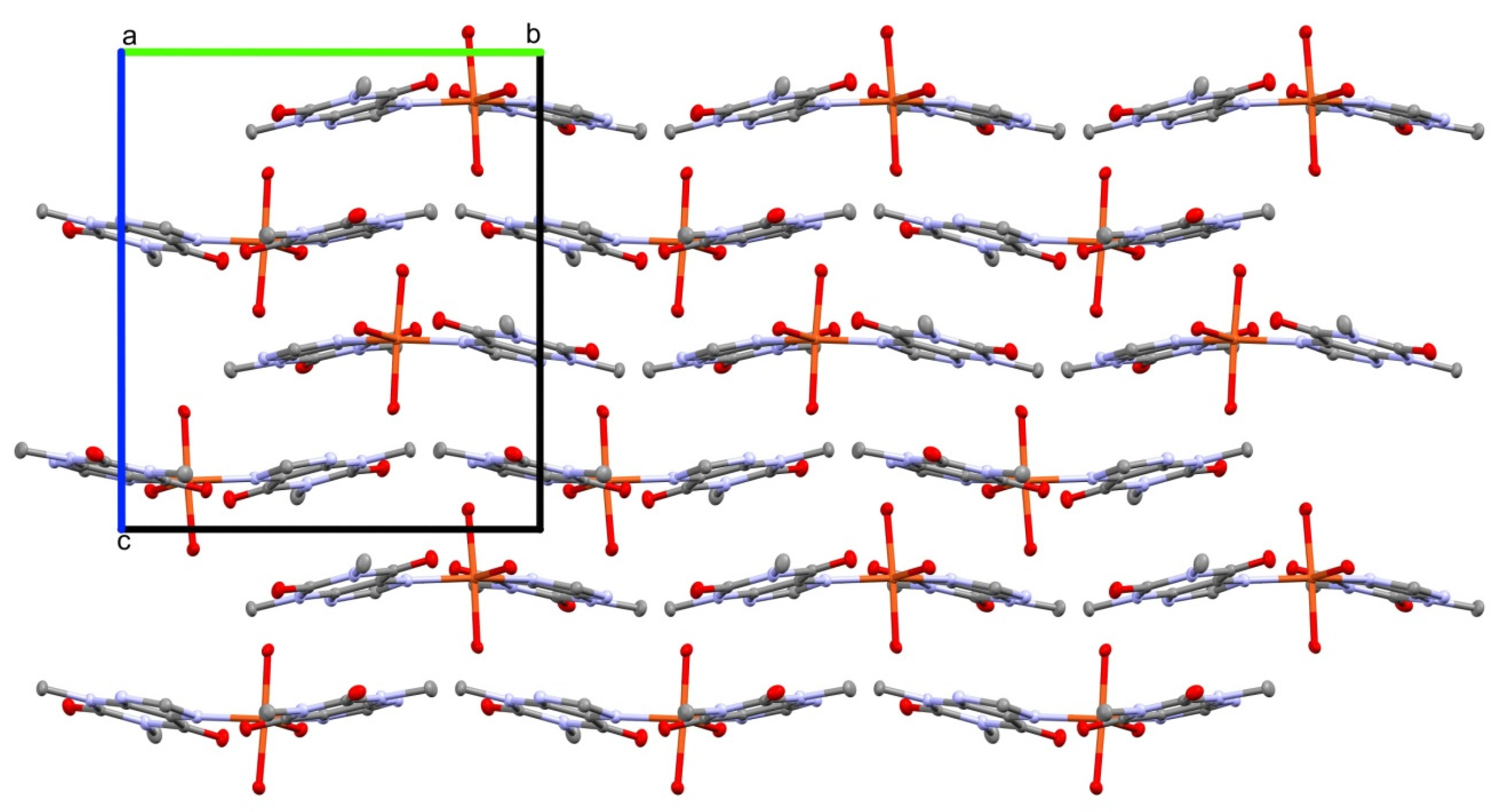

Figure 3. The supramolecular puckered ribbons running along the [010] direction. Crystals axes are indicated by a, b and c symbols.
Figure 3. The supramolecular puckered ribbons running along the [010] direction. Crystals axes are indicated by a, b and c symbols.
Crystals 10 00097 g003
Crystals 10 00097 g004

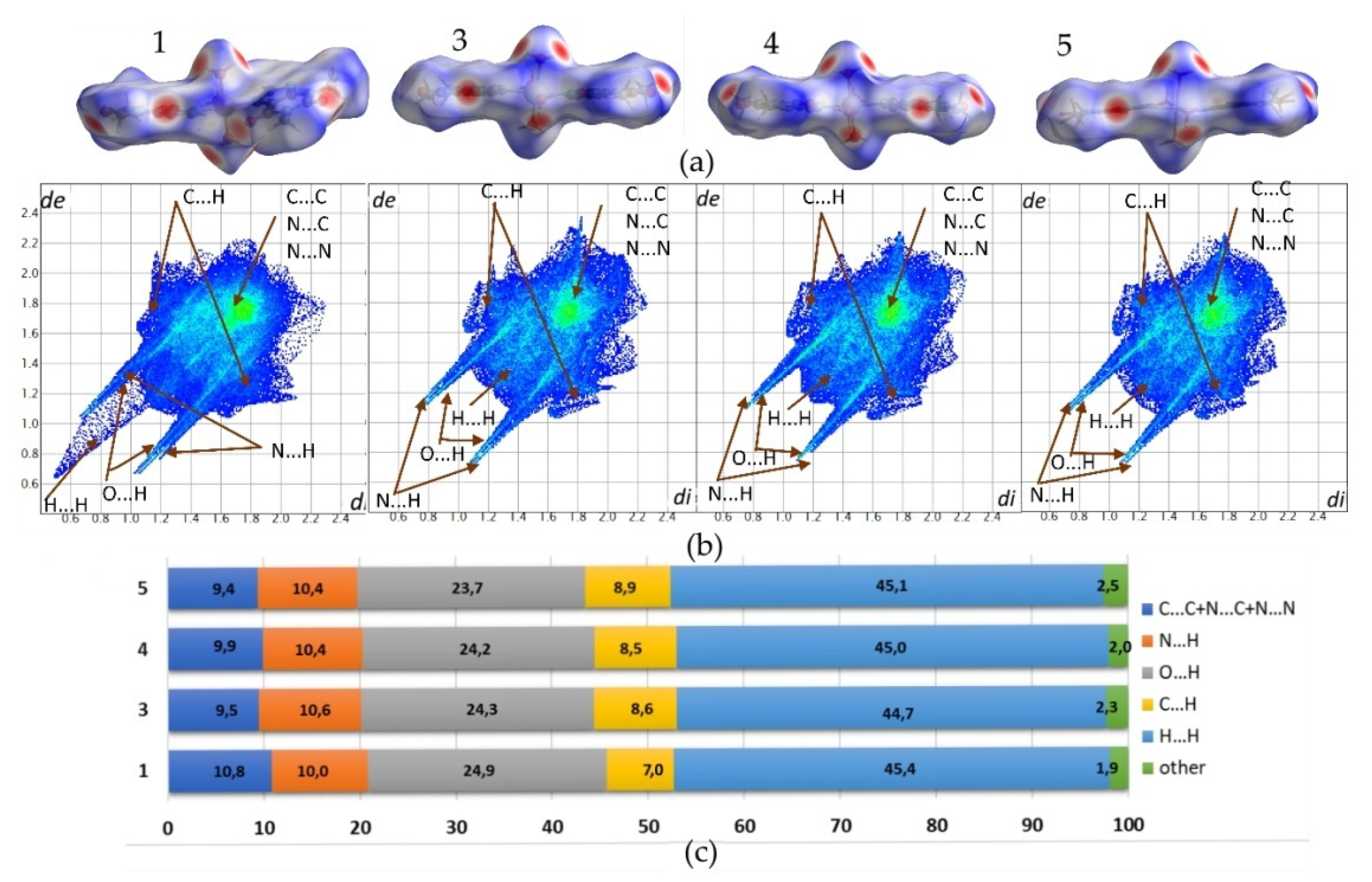

Figure 4. (a) Molecular shapes of 1 and 3–5 visualized as Hirshfeld surfaces; (b) Fingerprint plots generated for single molecules. Labels indicate regions of specific interatomic interactions; and, (c) The percentage contributions to the Hirshfeld surface areas for major intermolecular contacts.
Figure 4. (a) Molecular shapes of 1 and 3–5 visualized as Hirshfeld surfaces; (b) Fingerprint plots generated for single molecules. Labels indicate regions of specific interatomic interactions; and, (c) The percentage contributions to the Hirshfeld surface areas for major intermolecular contacts.
Crystals 10 00097 g004
Crystals 10 00097 g005

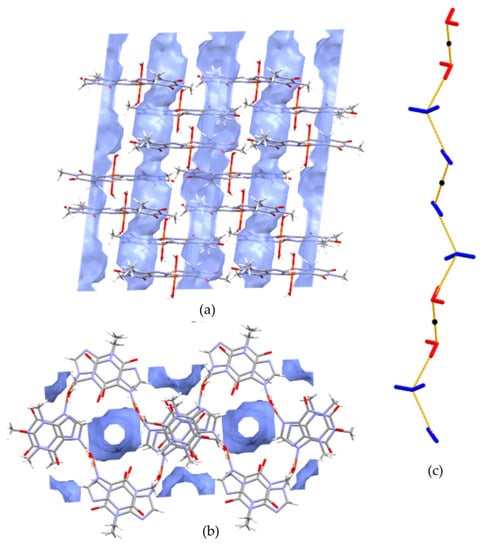

Figure 5. The channels occupied by water molecules in the crystal of 1 as drawn along the b axis (a) and the a axis (b). Void volumes are based on contact surface as calculated by Mercury, with a grid step of 0.7 Å and a probe radius of 1.2 Å. Infinite chains propagated along [100] direction are constituted of non coordinated (blue) and coordinated (red) water molecules associated through hydrogen bonds (c). Black dots indicate symmetry centres.
Figure 5. The channels occupied by water molecules in the crystal of 1 as drawn along the b axis (a) and the a axis (b). Void volumes are based on contact surface as calculated by Mercury, with a grid step of 0.7 Å and a probe radius of 1.2 Å. Infinite chains propagated along [100] direction are constituted of non coordinated (blue) and coordinated (red) water molecules associated through hydrogen bonds (c). Black dots indicate symmetry centres.
Crystals 10 00097 g005
Crystals 10 00097 g006

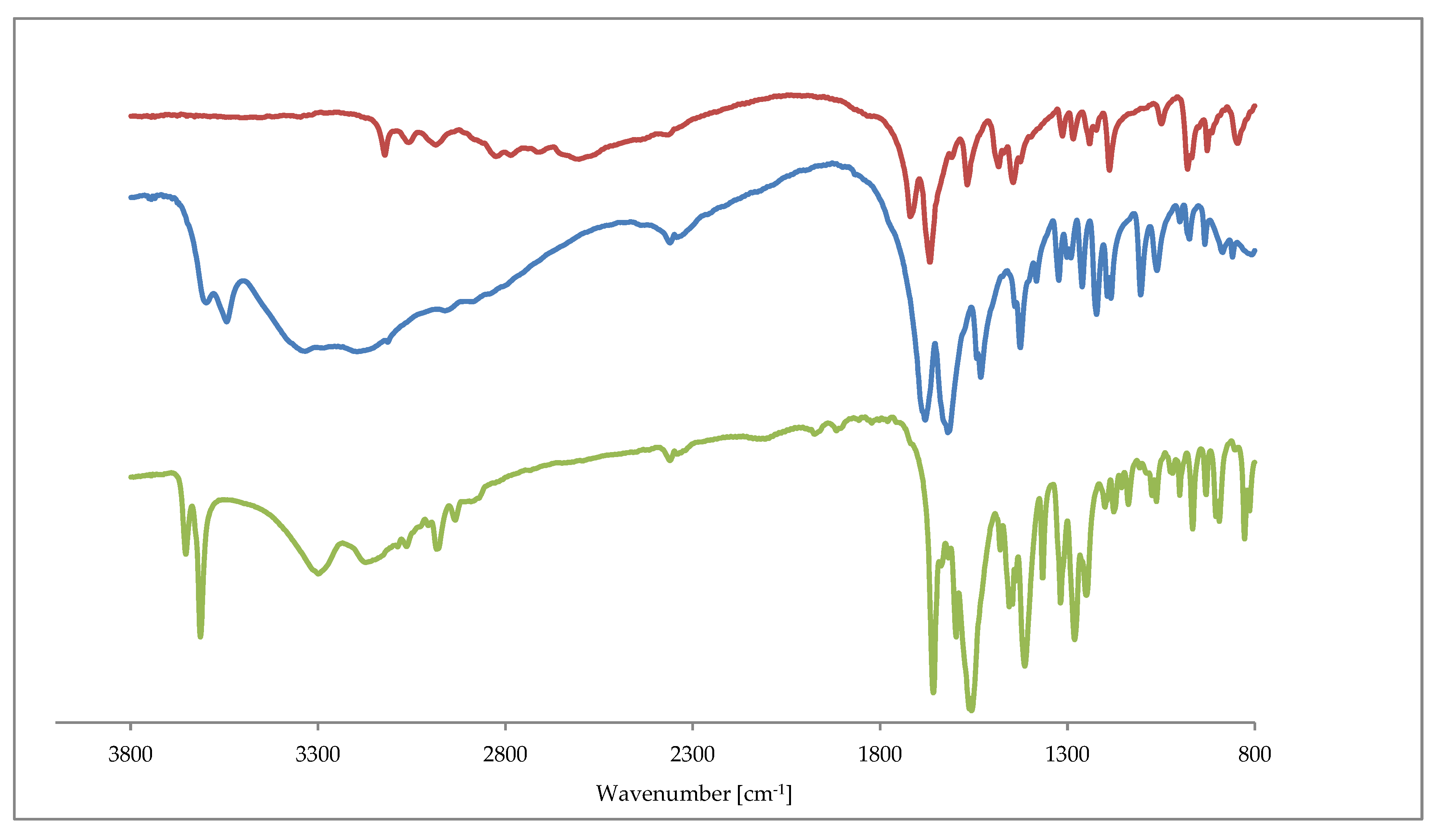

Figure 6. Fourier-transform infrared spectroscopy (FTIR) spectra of theophylline (red line), 1 (blue line) and 2 (green line).
Figure 6. Fourier-transform infrared spectroscopy (FTIR) spectra of theophylline (red line), 1 (blue line) and 2 (green line).
Crystals 10 00097 g006
Crystals 10 00097 g007

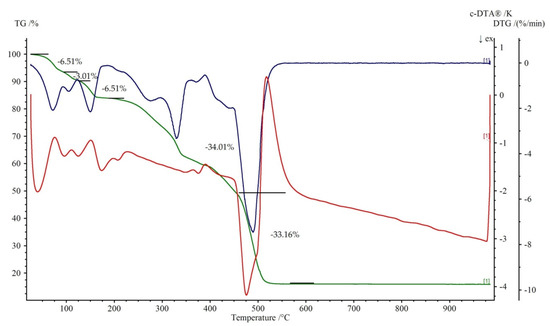

Figure 7. Thermoanalytical curves of 1. Thermogravimetric (TG) is in green with percentage weight losses, DTG is in blue while DTA is in red.
Figure 7. Thermoanalytical curves of 1. Thermogravimetric (TG) is in green with percentage weight losses, DTG is in blue while DTA is in red.
Crystals 10 00097 g007
Crystals 10 00097 g008

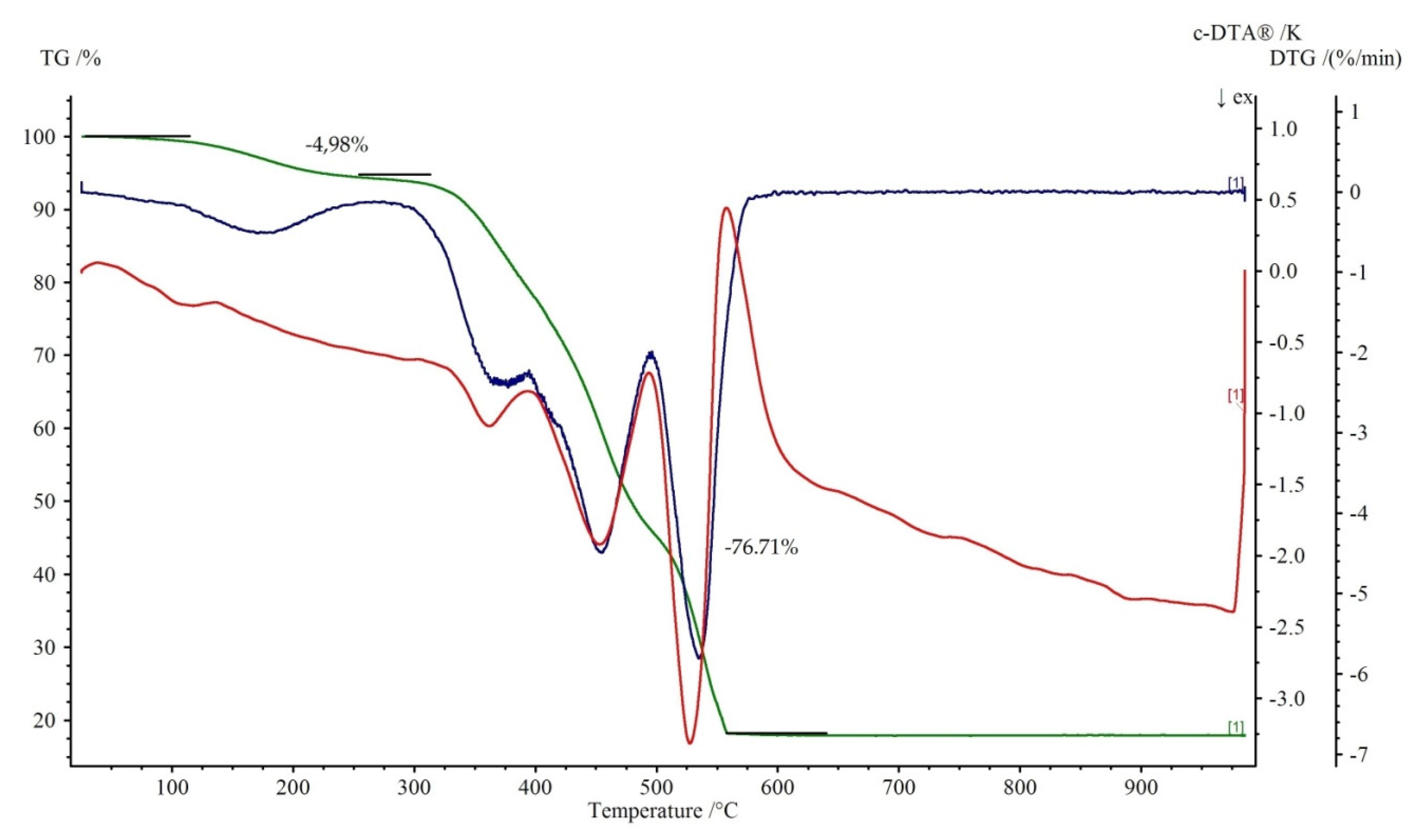

Figure 8. Thermoanalytical curves of 2. TG is in green with percentage weight losses, DTG is in blue while DTA is in red.
Figure 8. Thermoanalytical curves of 2. TG is in green with percentage weight losses, DTG is in blue while DTA is in red.
Crystals 10 00097 g008
Crystals 10 00097 g009

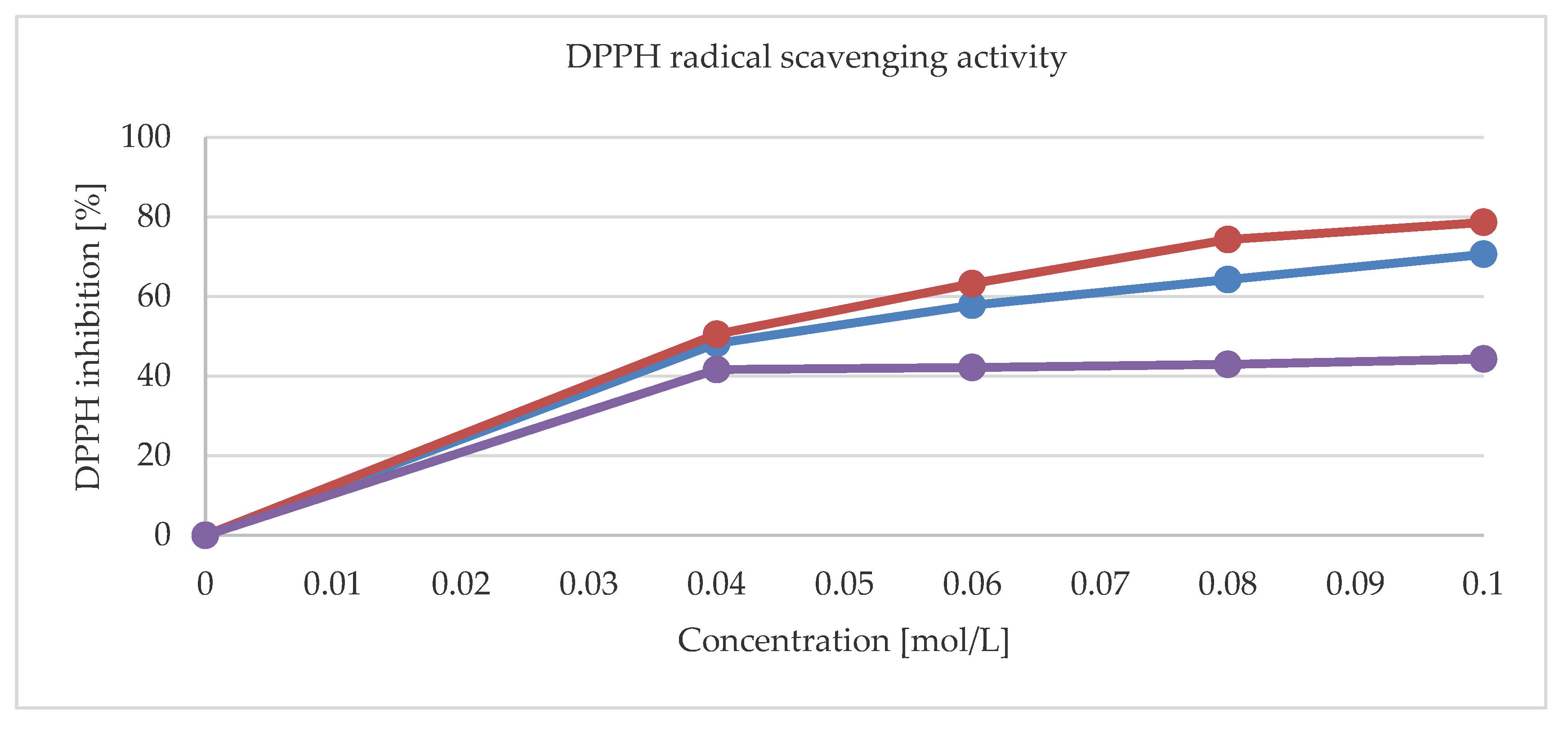

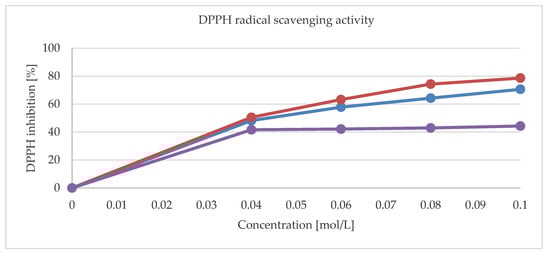

Figure 9. The (2,2- diphenyl-1-picrylhydrazyl) (DPPH) radical scavenging activity for 1 (red line), 2 (blue line), and pure thophylline (purple line).
