Crystals 2020, 10(1), 31; https://doi.org/10.3390/cryst10010031

Article
The Electric and Dielectric Properties of SrF2:Tb3+ Nanocrystals Revealed by AC Impedance Spectroscopy
1
Key Laboratory of Functional Materials Physics and Chemistry of the Ministry of Education, National Demonstration Center for Experimental Physics Education, Jilin Normal University, Siping 136000, China
2
State Key Laboratory of Superhard Materials, Jilin University, Changchun 130012, China
*
Author to whom correspondence should be addressed.
Received: 10 December 2019 / Accepted: 8 January 2020 / Published: 10 January 2020

Abstract

:
The electric and dielectric properties of SrF2:Tb3+ nanocrystals were studied by AC impedance spectroscopy. The grain and grain boundary resistances and the complex permittivity with different Tb-doped concentrations were obtained. As the Tb-doping concentration increases, the grain and grain boundary resistances decrease until 6% and then increase. The Tb doping leads to the increase of interstitial F quantity and the decrease of the activation enthalpy, and finally causes the decreases of grain and grain boundary resistances. When the Tb-doping is larger than 6%, the effect of the deformation potential scattering is dominant, which leads to the increases of grain and grain boundary resistances. The strong dispersion of the permittivity at the low frequencies indicates the carrier was hopping in the transport process. The ε′ and ε″ values at the low frequencies decrease as the sample resistance increases.
Keywords:
Nanocrystals; Electric properties; Complex permittivity; Transport mechanism

1. Introduction

Nanomaterials attract particular interest due to their unique physical and chemical properties [1,2,3,4,5,6,7,8]. It is well known that the unique properties are mainly from their grain boundary and interface. The study on the grain boundary and interface properties of nanomaterials is very important. AC impedance spectroscopy is a powerful method which can give out the transport property of grain and grain boundary individually [9,10,11]. Therefore, the investigation of AC impedance spectroscopy on nanomaterials is very attractive and necessary.
SrF2 is a potential material used as the electrolyte of solid batteries [12]; therefore, how to improve its carrier conduction is an attractive and necessary subject. Many studies had modulated the electric and dielectric properties SrF2 through the rare earth doping [13,14,15,16]. Fedorov et al. measured the conductivity of single crystal SrF2 with the rare earth doping [15]; it was found that with the increasing of the rare earth doping concentration up to about 0.05–0.15, the conductivity increases sharply; then the conductivity increases slightly with the further concentration increasing. Réau et al. studied the electrical properties of rare earth doped SrF2 polycrystalline and found that the conductivity of the sample firstly increases with the doping concentration increasing and then decreases [16]. Synthesis of the nanoscale sample is also an effective method used to improve the material carrier conduction. The study on the electrical transport property of nanostructure rare earth doped SrF2 is important and necessary. However, few works have been conducted on the electric and dielectric properties SrF2 nanocrystals. In this letter, the electric and dielectric properties of SrF2 nanocrystals with different Tb-doped concentration were investigated by AC impedance spectroscopy. The resistances of grain and grain boundary were given out and the complex permittivity was obtained. The carrier transport mechanism was discussed.

2. Materials and Methods

The sample was synthesized as illustrated in previous works [17,18,19,20]. The brief synthesis procedure is as following: the oleic acid, ethanol and sodium hydroxide were mixed and stirred for 10 min; the strontium nitrate/terbium nitrate dissolved in water was put into the above solution and stirred for 10 min; the sodium fluoride was added and stirred for 60 min; then the solution was put into a high-pressure reactor and kept at 180 °C for 24 h; the reactants were collected with cyclohexane, then washed by alcohol and water, and finally dried at 80 °C. The Tb-doped concentration was 2, 4, 6, 8, 10 mol%. The TEM was measured by JEM-2010HR. The EDS was measured by JSM-7800F. The XRD was measured by MXP-18. The AC impedance spectroscopy was measured by Solartron 1260 impedance analyzer with Solartron 1296 dielectric interface. The electrode and sample chamber were described in our previous studies [21,22].

3. Results and Discussion

The XRD, EDS and TEM results are shown in Figure 1, Figure 2 and Figure 3. It can be seen all the XRD patterns can be indexed as the cubic SrF2 structure (JCPDS Card No. 06-0262). The EDS results indicate the Tb3+ was doped into SrF2 crystal lattice. The TEM results exhibit all the samples are near-spherical shape and the particle diameter is about 20 ± 4 nm.
The complex impedance spectra of SrF2:Tb3+ nanocrystals were shown in Figure 4. It can be seen that the shape of Tb-doped spectra is similar to that of un-doped result. According to our previous analysis process [23,24], the charge carriers includes both electron and ion; all the spectra were simulated by the equivalent circuit as the inset of Figure 4. The grain and grain boundary resistances of SrF2 nanocrystals with different Tb doping concentrations were obtained and shown in Figure 5. It can be seen that both the grain and grain boundary resistances decrease with the Tb-doping concentration up to 6% and then increase. The valences of Tb3+ and Sr2+ are different; the Tb doping leads to the interstitial F quantity increases, meanwhile Tb-doping decreases the activation enthalpy of carriers’s transport. These finally cause the decreases of grain and grain boundary resistances. When the Tb-doped concentration is larger than 6%, some defects aggregate into clusters and the interstitial F quantity participated in the conduction process does not increase anymore. The deformation potential scattering increases with the Tb doping concentrations increasing and its effect on the carrier transport becomes dominant. These result in the increases of grain and grain boundary resistances.
Comparing with previous reports [15,16], it can be concluded that to the single crystal and polycrystalline samples, the charge carrier is only ion; while to our nanocrystal sample, the charge carrier includes both electron and ion. To the single crystal sample [15], the conduction increases sharply at first; then the conduction increases slightly with the further the rare earth doping concentration increasing. While to the polycrystalline [16] and our nanocrystal samples, the conduction increases firstly and then decreases with the doping concentration increasing. Therefore, the carrier transport property variation of our nanocrystal sample with different doping concentration is more similar to that of the polycrystalline.
To get a deep understanding about the carrier transport mechanism, the complex permittivity was also investigated. The real part (ε′) and imaginary part (ε″) of permittivity were shown in Figure 6. It can be seen that ε′ decreases sharply with the frequency increasing then decreases flatly and finally increases. ε″ decreases with the frequency increasing and then increases. The strong dispersion of the permittivity in the low frequency indicates that the carrier was hopping in the transport process [25]. From the permittivity results, it can be deduced that the ε′ and ε″ values in the low frequency decrease as the sample resistance increases. With the Tb-doping concentration increasing, the interstitial F quantity increases and the activation enthalpy decreases, these lead to the increases of the carrier quantity and hopping probability; and finally result in the increases of ε′ and ε″. When the doping concentration is higher than 6%, the defects aggregate into clusters and the interstitial F quantity involved in the conduction does not increase anymore; the increase of deformation potential scattering causes the carrier hopping more difficult and the decreases of ε′ and ε″.

4. Conclusions

The SrF2:Tb3+ nanocrystals were studied by XRD, EDS, TEM and AC impedance spectroscopy. The grain and grain boundary resistances and the complex permittivity with different Tb-doped concentrations were obtained. As the Tb-doping concentration increases, the grain and grain boundary resistances decrease until 6% and then increase. The Tb doping leads to the increase of interstitial F quantity and the decrease of the activation enthalpy, and finally causes the decreases of grain and grain boundary resistances. When the Tb-doping is larger than 6%, the effect of the deformation potential scattering is dominant, which leads to the increases of grain and grain boundary resistances. The strong dispersion of the permittivity at the low frequencies indicates the carrier was hopping in the transport process. The ε′ and ε″ values at the low frequencies decrease as the sample resistance increases.

Author Contributions

Conceptualization, X.C. and T.H.; methodology, H.W. and J.Z.; formal analysis, L.Y. and X.Z.; investigation, X.W. and J.W.; writing—original draft preparation, X.C. and T.H.; writing—review and editing, T.H., X.L., J.Y. and C.G. All authors have read and agreed to the published version of the manuscript.

Funding

The authors acknowledge the funding supports from the National Natural Science Foundation of China under Grant Nos. 11904128, 11847126 and 11704151, the Development Program of Science and Technology of Jilin province under Grant Nos. 20190103043JH and 20180101206JC, Science and Technology Program of Education Department of Jilin Province under Grant Nos. JJKH20191004KJ, JJKH20180769KJ and JJKH20180772KJ.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bruchez, M.; Moronne, M.; Gin, P.; Weiss, S.; Alivisatos, A.P. Semiconductor Nanocrystals as Fluorescent Biological Labels. Science 1998, 281, 2013–2016. [Google Scholar] [CrossRef] [PubMed]
  2. Zhao, F.; Gao, S. Pyrolysis of single molecular precursor for monodisperse lanthanide sulfide/oxysulfide nanocrystals. J. Mater. Chem. 2008, 18, 949–953. [Google Scholar] [CrossRef]
  3. Chen, M.; Kim, J.; Liu, J.P.; Fan, H.; Sun, S. Synthesis of FePt Nanocubes and Their Oriented Self-Assembly. J. Am. Chem. Soc. 2006, 128, 7132–7133. [Google Scholar] [CrossRef] [PubMed]
  4. Ambashta, R.D.; Yusuf, S.M.; Mukadam, M.D.; Singh, S.; Wattal, P.K.; Bahadur, D. Physical and chemical properties of nanoscale magnetite-based solvent extractant. J. Magn. Magn. Mater. 2005, 293, 8–14. [Google Scholar] [CrossRef]
  5. Chiu, Y.H.; Lai, T.H.; Chen, C.Y.; Hsieh, P.Y.; Ozasa, K.; Niinomi, M.; Okada, K.; Chang, T.F.M.; Matsushita, N.; Sone, M.; et al. Fully Depleted Ti-Nb-Ta-Zr-O Nanotubes: Interfacial Charge Dynamics and Solar Hydrogen Production. ACS Appl. Mater. Interfaces 2018, 10, 22997–23008. [Google Scholar] [CrossRef]
  6. Chang, Y.S.; Choi, M.; Baek, M.; Hsieh, P.Y.; Yong, K.; Hsu, Y.J. CdS/CdSe co-sensitized brookite H: TiO2 nanostructures: Charge carrier dynamics and photoelectrochemical hydrogen generation. Appl. Catal. B Environ. 2018, 225, 379–385. [Google Scholar] [CrossRef]
  7. Pu, Y.C.; Lin, W.H.; Hsu, Y.J. Modulation of charge carrier dynamics of NaxH2−xTi3O7-Au-Cu2O Z-scheme nanoheterostructures through size effect. Appl. Catal. B Environ. 2015, 163, 343–351. [Google Scholar] [CrossRef]
  8. Lu, Y.H.; Lin, W.H.; Yang, C.Y.; Chiu, Y.H.; Pu, Y.C.; Lee, M.H.; Tseng, Y.C.; Hsu, Y.J. A facile green antisolvent approach to Cu2+-doped ZnO nanocrystals with visible-light-responsive photoactivities. Nanoscale 2014, 6, 8796–8803. [Google Scholar] [CrossRef]
  9. Hilgenkamp, H.; Mannhart, J. Grain boundaries in high-Tc superconductors. Rev. Mod. Phys. 2002, 74, 485–549. [Google Scholar] [CrossRef]
  10. Lin, Y.; Zhang, Z.; Tang, Z.; Yuan, F.; Li, J. Characterisation of ZnO-based varistors prepared from nanometre precursor powders. Adv. Mater. Opt. Electron. 1999, 9, 205–209. [Google Scholar] [CrossRef]
  11. Waser, R.; Hagenbeck, R. Grain boundaries in dielectric and mixed-conducting ceramics. Acta Mater. 2000, 48, 797–825. [Google Scholar] [CrossRef]
  12. Sorokin, N.I.; Sobolev, B.P. Nonstoichiometric fluorides—Solid Electrolytes for Electrochemical Devices: A Review. Cryst. Rep. 2007, 52, 842–863. [Google Scholar] [CrossRef]
  13. Meuldijk, J.; den Hartog, H.W. Ionic thertnocurrents and ionic conductivity of solid solutions of SrF2 and YbF3. Phys. Rev. B 1983, 27, 6376–6384. [Google Scholar] [CrossRef]
  14. Ivanov-Shits, A.K.; Sorokin, N.I.; Fedorov, P.P.; Sobolev, B.P. Specific features of ion transport in nonstoichiometric Sr1−xRxF2+x phases (R=La-Lu, Y) with the fluorite-type structure. Solid State Ion. 1989, 31, 253–268. [Google Scholar] [CrossRef]
  15. Fedorov, P.P.; Turkina, T.M.; Sobolev, B.P.; Mariani, E.; Svantner, M. Ionic conductivity in the single crystals of non-stoichiometric fluorite phases M1−xRxF2+x (M=Ca, Sr, Ba; R=Y, La-Lu). Solid State Ion. 1982, 6, 331–335. [Google Scholar] [CrossRef]
  16. Réau, J.M.; Rhandour, A.; Matar, S.F.; Hagenmuller, P. Optimisation des facteurs influencant la conductivité anionique dans quelques fluorures de structure fluorine. J. Solid State Chem. 1984, 55, 7–13. [Google Scholar] [CrossRef]
  17. Wang, J.; Yang, J.; Hu, T.; Chen, X.; Lang, J.; Wu, X.; Zhang, J.; Zhao, H.; Yang, J.; Cui, Q. Structural Phase Transition and Compressibility of CaF2 Nanocrystals under High Pressure. Crystals 2018, 8, 199. [Google Scholar] [CrossRef]
  18. Wang, J.S.; Zhu, H.Y.; Ma, C.L.; Wu, X.X.; Zhang, J.; Li, D.M.; Cong, R.D.; Liu, J.; Cui, Q.L. High-Pressure Behaviors of SrF2 Nanocrystals with Two Morphologies. J. Phys. Chem. C 2013, 117, 615–619. [Google Scholar] [CrossRef]
  19. Hu, T.; Cui, X.; Wang, J.; Zhong, X.; Chen, Y.; Zhang, J.; Li, X.; Yang, J.; Gao, C. The electrical properties of Tb-doped CaF2 nanoparticles under high pressure. Crystals 2018, 8, 98. [Google Scholar] [CrossRef]
  20. Hu, T.J.; Cui, X.Y.; Wang, J.S.; Zhang, J.K.; Li, X.F.; Yang, J.H.; Gao, C.X. Transport properties of mixing conduction in CaF2 nanocrystals under high pressure. Chin. Phys. B 2018, 27, 016401. [Google Scholar] [CrossRef]
  21. Cui, X.Y.; Hu, T.J.; Wang, J.S.; Zhong, X.; Chen, Y.Z.; Zhang, J.K.; Li, X.F.; Yang, J.H.; Gao, C.X. Effect of Tb-doped Concentration Variation on the Electrical and Dielectric Properties of CaF2 Nanoparticles. Nanomaterials 2018, 8, 532. [Google Scholar] [CrossRef] [PubMed]
  22. Cui, X.Y.; Hu, T.J.; Wang, J.S.; Zhang, J.K.; Zhong, X.; Chen, Y.L.; Li, X.F.; Yang, J.H.; Gao, C.X. Ionic Transportation and Dielectric Properties of YF3:Eu3+ Nanocrystals. Nanomaterials 2018, 8, 995. [Google Scholar] [CrossRef] [PubMed]
  23. Cui, X.Y.; Hu, T.J.; Wang, J.S.; Zhang, J.K.; Li, X.F.; Yang, J.H.; Gao, C.X. High pressure electrical transport behavior in SrF2 nanoplates. Chin. Phys. B 2017, 26, 046401. [Google Scholar] [CrossRef]
  24. Cui, X.Y.; Hu, T.J.; Wang, J.S.; Zhang, J.K.; Zhao, R.; Li, X.F.; Yang, J.H.; Gao, C.X. Mixed conduction in BaF2 nanocrystals under high pressure. RSC Adv. 2017, 7, 12098–12102. [Google Scholar] [CrossRef]
  25. Peláiz Barranco, A.; Calderón Piñar, F.; Pérez Martínezy, O.; De Los Santos Guerra, J.; González Carmenate, I. AC behaviour and conductive mechanisms of 2.5 mol% La2O3 doped PbZr0.53Ti0.47O3 ferroelectric ceramics. J. Eur. Ceram. Soc. 1999, 19, 2677–2683. [Google Scholar] [CrossRef]

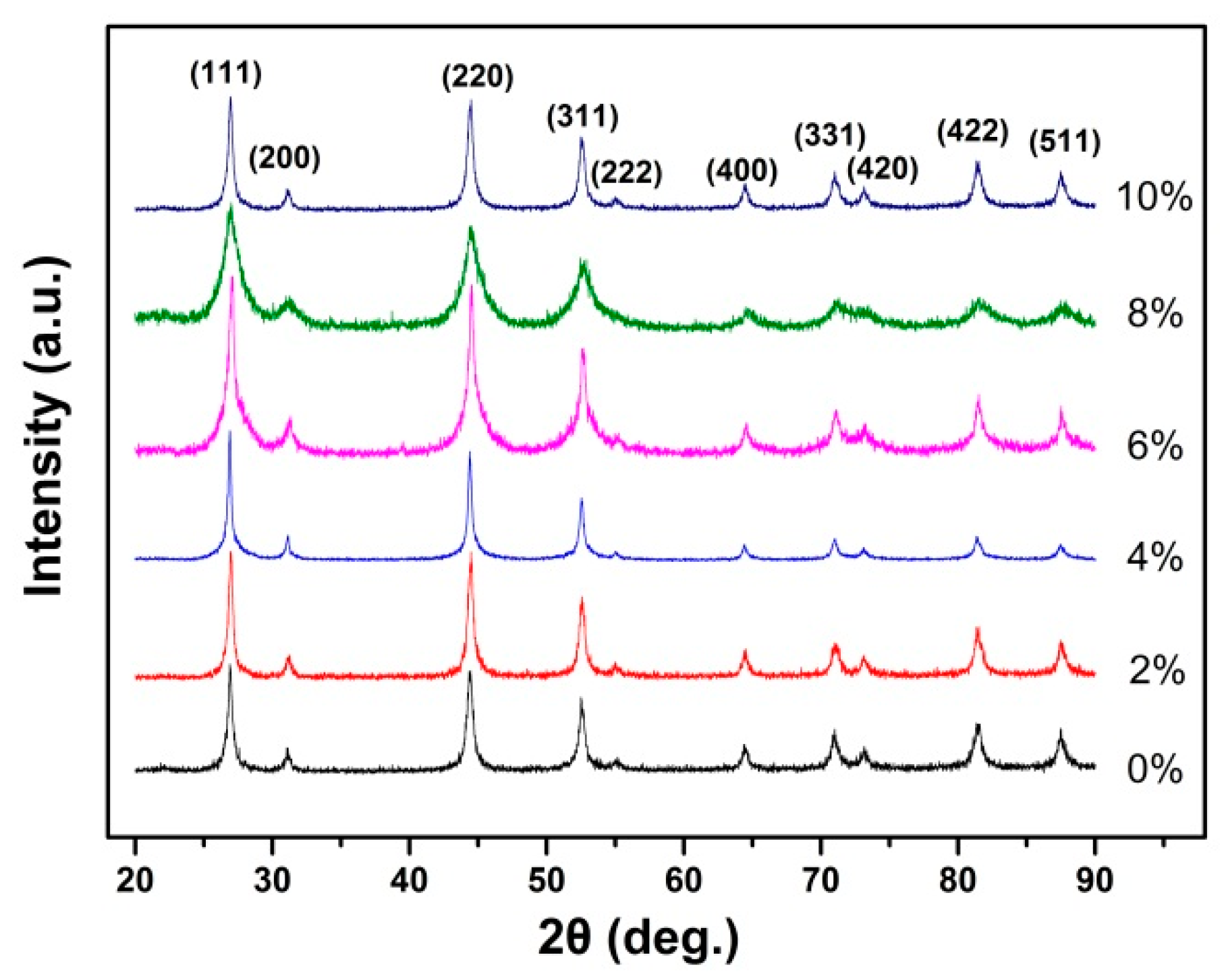

Figure 1. The XRD spectra of SrF2 nanoparticles with different Tb doping concentrations.
Figure 1. The XRD spectra of SrF2 nanoparticles with different Tb doping concentrations.
Crystals 10 00031 g001

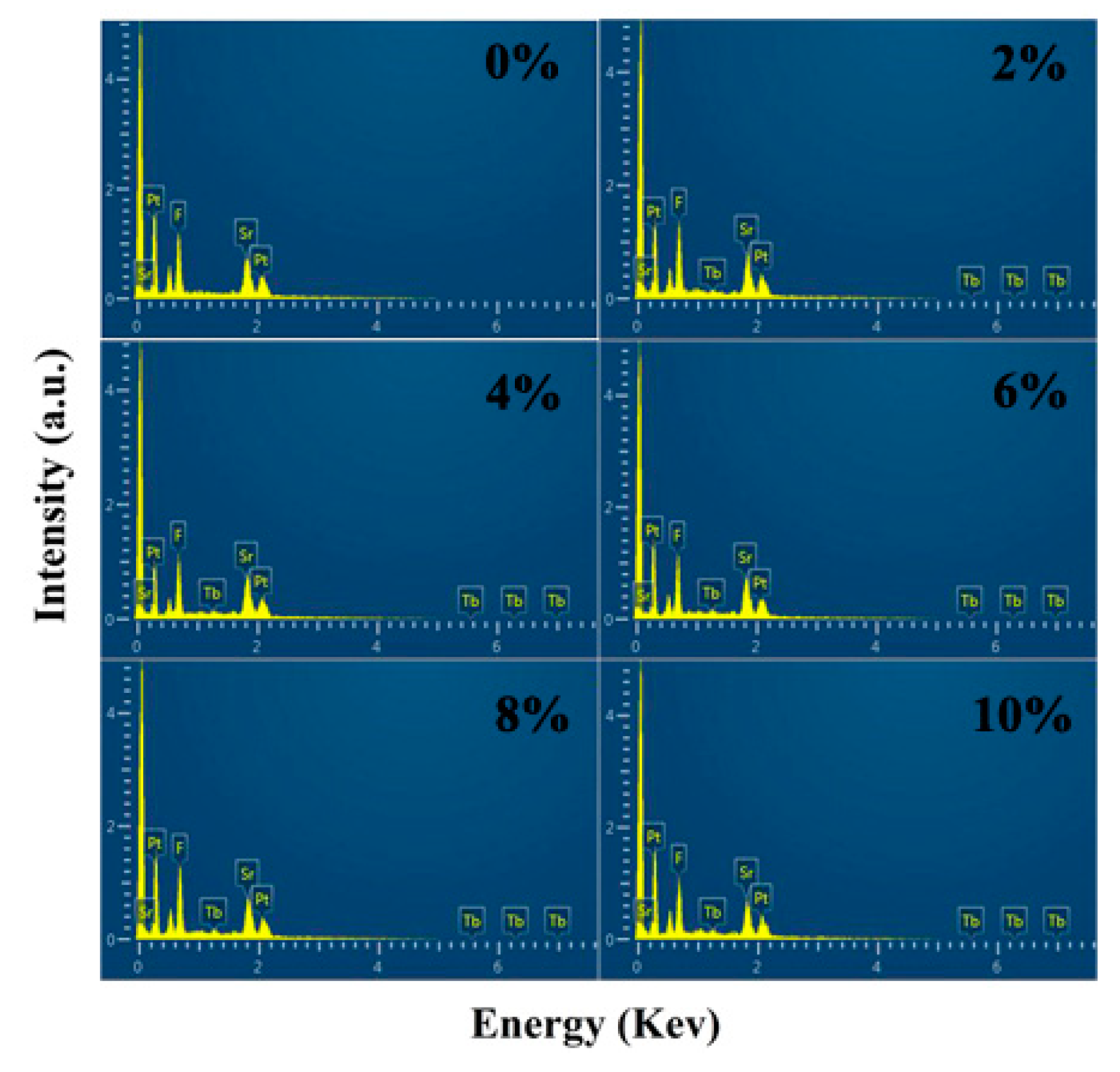

Figure 2. The EDS spectra of SrF2 nanoparticles with different Tb doping concentrations.
Figure 2. The EDS spectra of SrF2 nanoparticles with different Tb doping concentrations.
Crystals 10 00031 g002

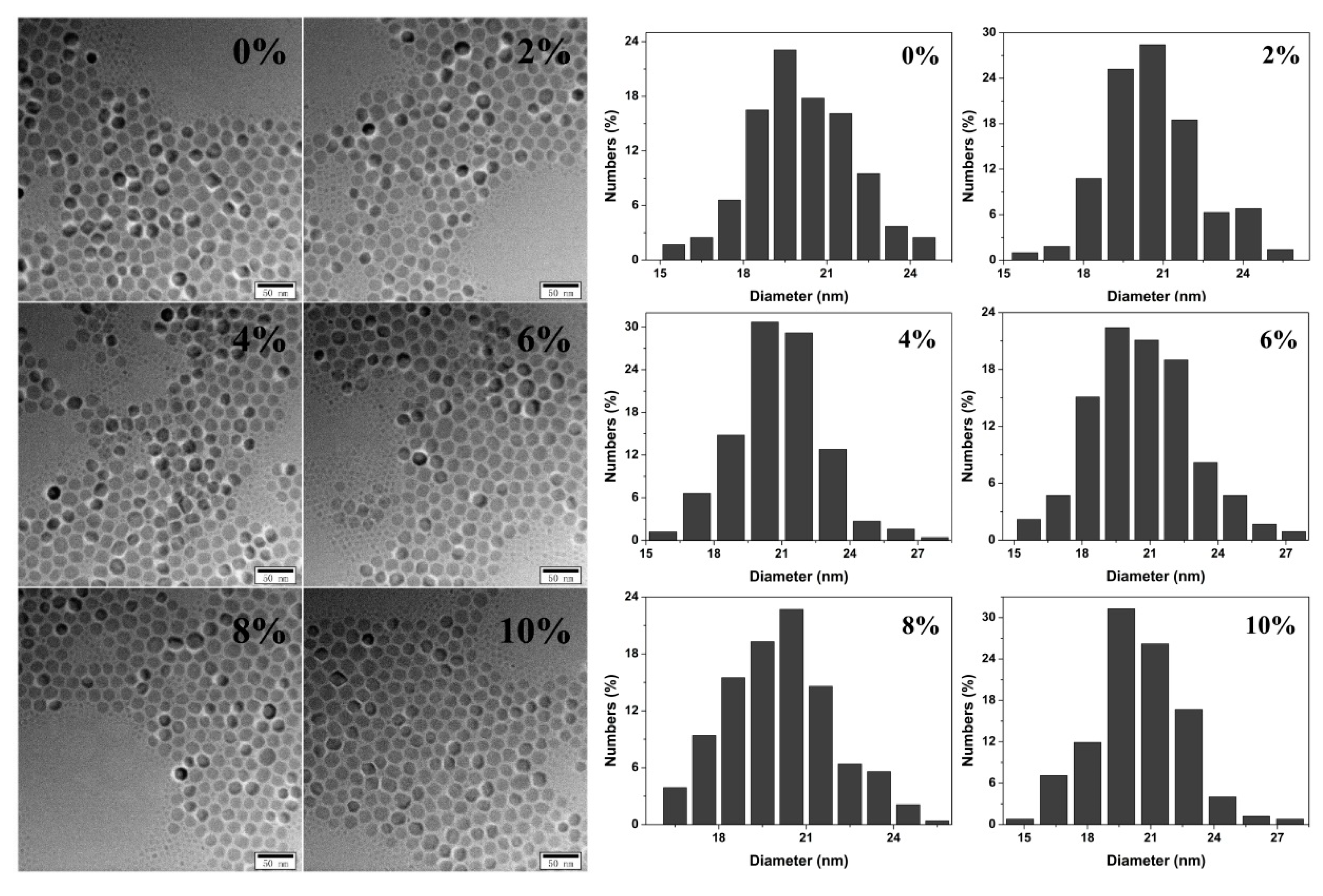

Figure 3. The TEM images and size distribution histogram of SrF2: Tb3+ nanoparticles.
Figure 3. The TEM images and size distribution histogram of SrF2: Tb3+ nanoparticles.
Crystals 10 00031 g003

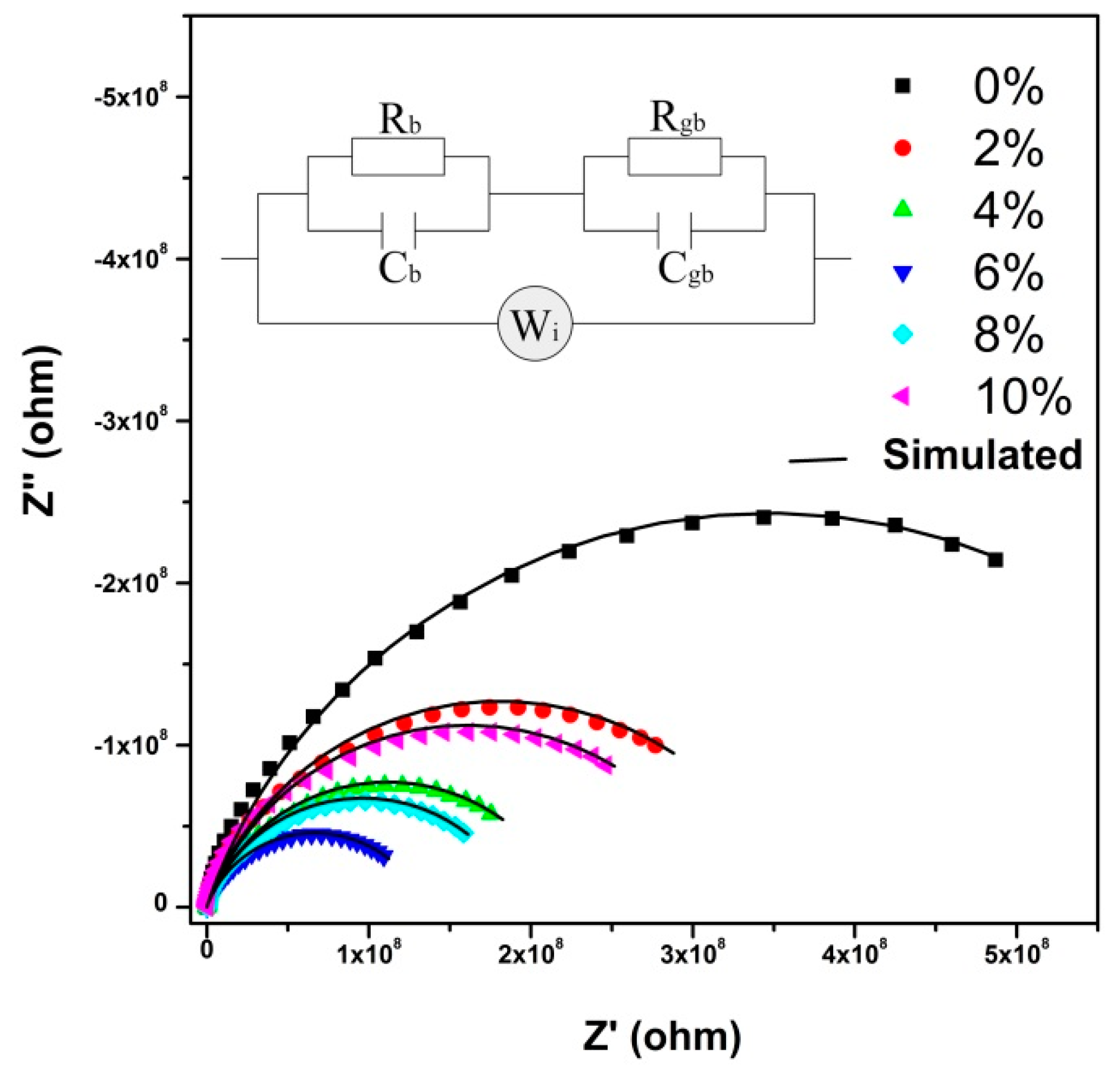

Figure 4. The complex impedance spectra of SrF2:Tb3+ nanocrystals. The inset is the equivalent circuit. Rg and Cg are the grain resistance and capacitance, Rgb and Cgb are the grain and grain boundary, Wi is the Warburg element.
Figure 4. The complex impedance spectra of SrF2:Tb3+ nanocrystals. The inset is the equivalent circuit. Rg and Cg are the grain resistance and capacitance, Rgb and Cgb are the grain and grain boundary, Wi is the Warburg element.
Crystals 10 00031 g004

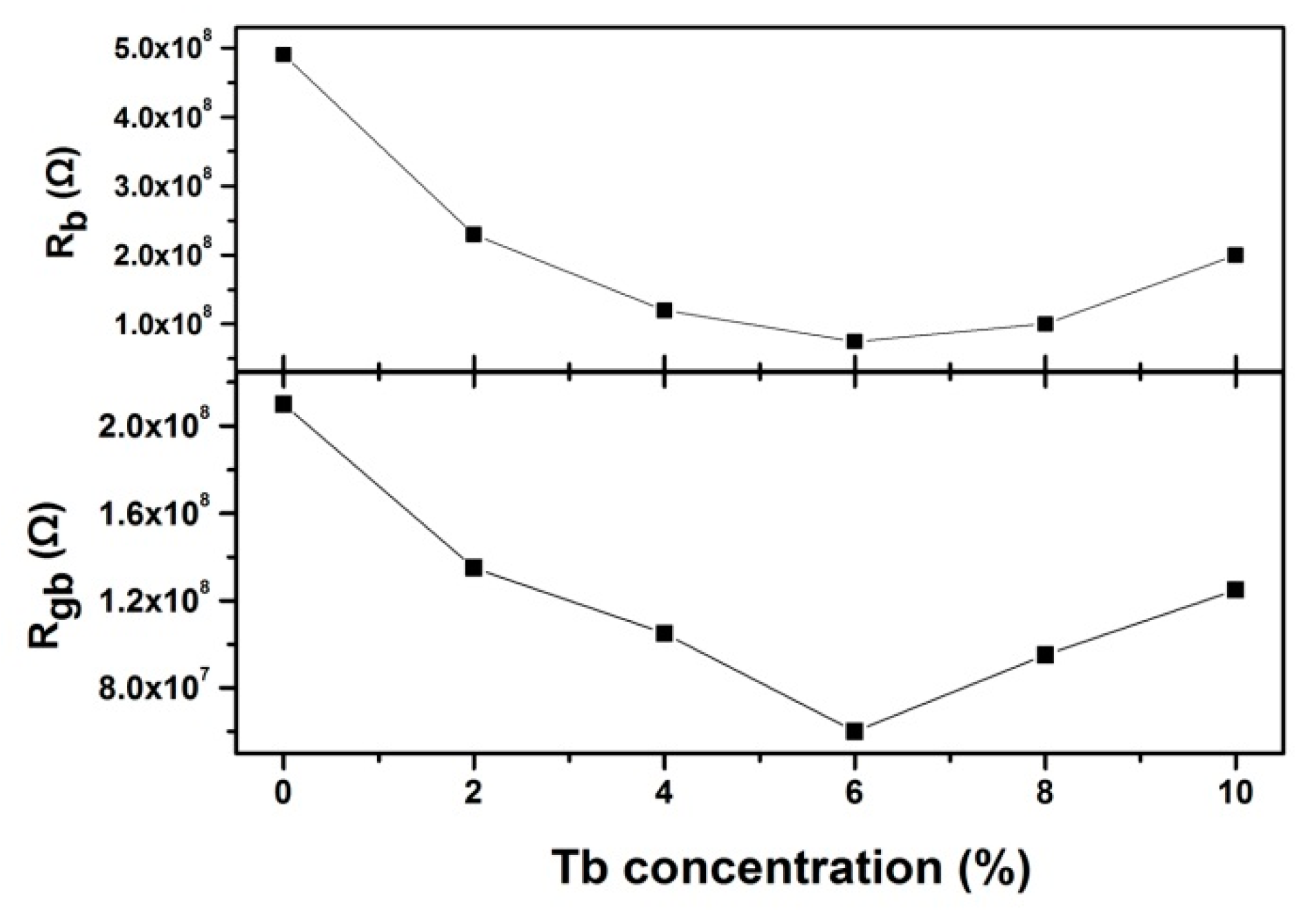

Figure 5. Tb-doped concentration dependence of grain and grain boundary resistances.
Figure 5. Tb-doped concentration dependence of grain and grain boundary resistances.
Crystals 10 00031 g005

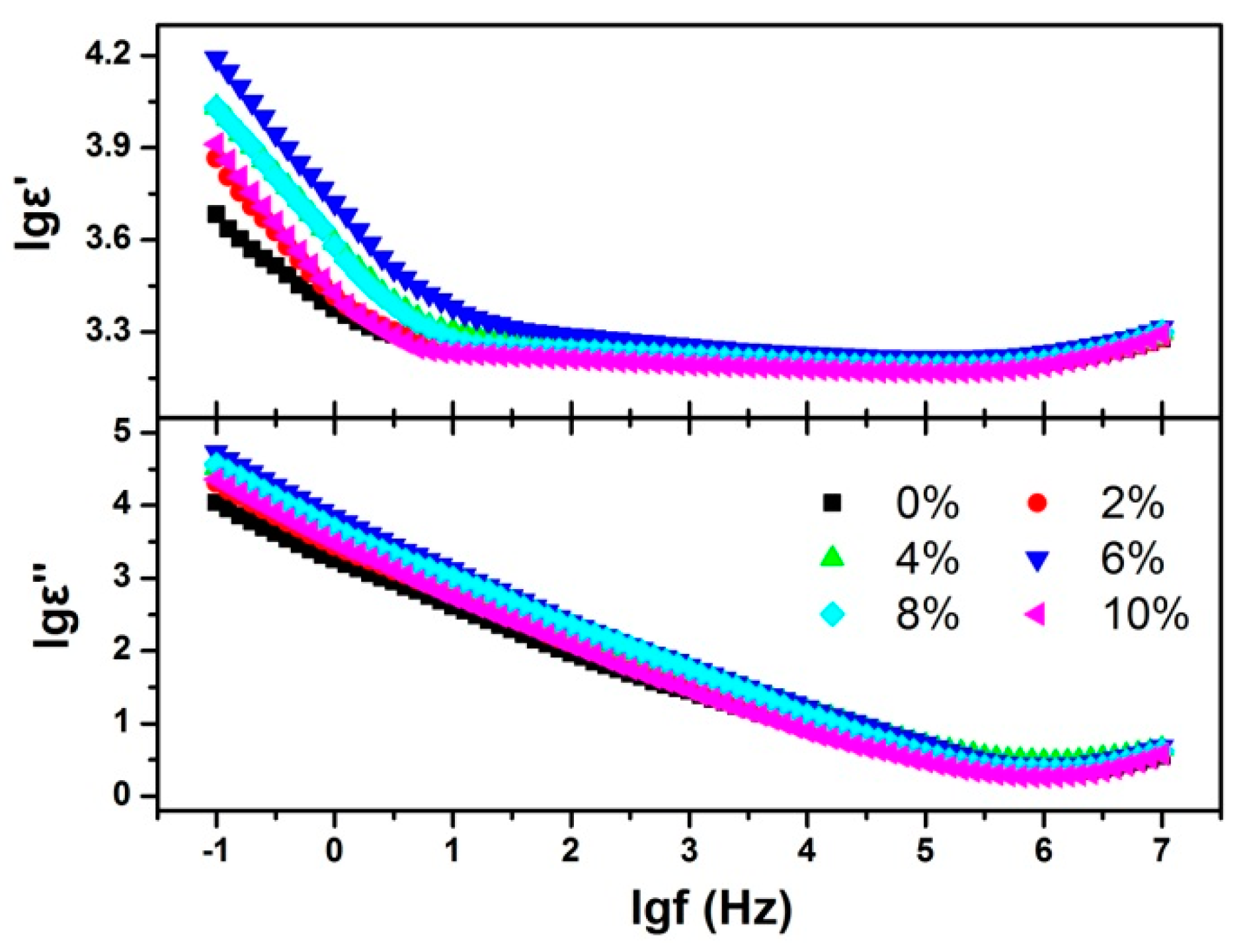

Figure 6. The variations of ε′ and ε″ with frequency of SrF2:Tb3+ nanocrystals.
Figure 6. The variations of ε′ and ε″ with frequency of SrF2:Tb3+ nanocrystals.
Crystals 10 00031 g006
