Next Article in Journal
The Electric and Dielectric Properties of SrF2:Tb3+ Nanocrystals Revealed by AC Impedance Spectroscopy
Previous Article in Journal
Microstructure and Mechanical Properties of Carbon/Carbon Composites Infiltrated with Ti–6Al–4V Titanium Alloy
Open AccessArticle

Influence of Crystallization Behavior of Gas Quenching Blast Furnace Slag on the Preparation of Amorphous Slag Beads

College of Metallurgy & Energy, North China University of Science and Technology, Tangshan 063009, China
*
Author to whom correspondence should be addressed.
Crystals 2020, 10(1), 30; https://doi.org/10.3390/cryst10010030
Received: 17 December 2019 / Revised: 2 January 2020 / Accepted: 6 January 2020 / Published: 10 January 2020
Slag beads with different crystal content could be obtained through the gas quenching blast furnace slag (BFS) process. In order to increase the additional value of the slag beads as much as possible, it was necessary to restrain the crystallization of the slag beads as much as possible. In this paper, the mineral types and crystallization temperatures of BFS with different basicities and cooling rates were studied by using Factsage thermodynamic software, XRD, and differential scanning calorimeter (DSC) experiments, which obtained the gas quenching temperature and the cooling rate needed to restrain crystallization behavior in the gas quenching process; The crystallization mechanism was studied by calculating crystallization activation energy (Ec) using the DSC experiment, at the same time, the thermodynamic results were verified. The proper basicity and cooling rate of BFS were found to be conducive to the preparation of amorphous slag beads. The results showed that the initial crystallization temperature decreased with decreasing the basicity and increasing the cooling rate, which could increase the amorphous content of slag beads in the gas quenching process. The crystallization activation energy (Ec) increased with decreasing basicity, which increased the crystallization barrier. View Full-Text
Keywords: thermodynamics; basicity; amorphous phase; crystallization activation energy; crystallization kinetics thermodynamics; basicity; amorphous phase; crystallization activation energy; crystallization kinetics
Show Figures

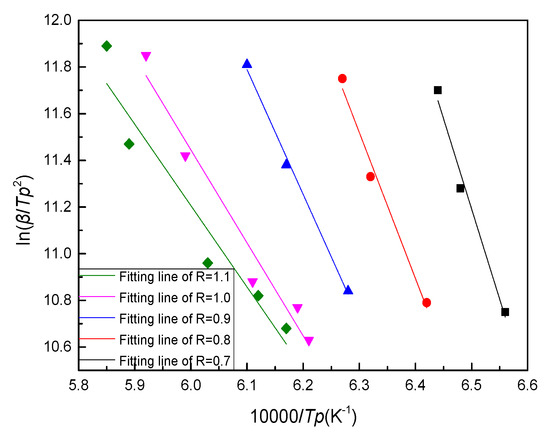

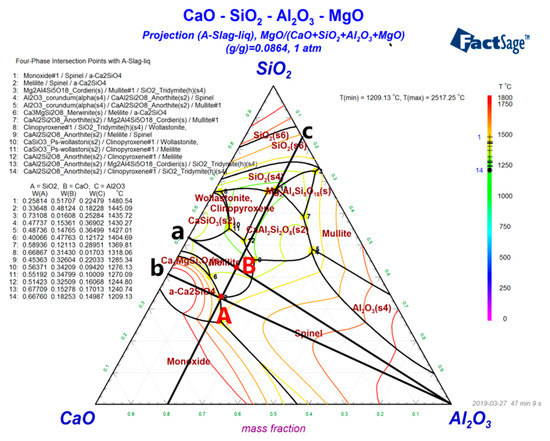

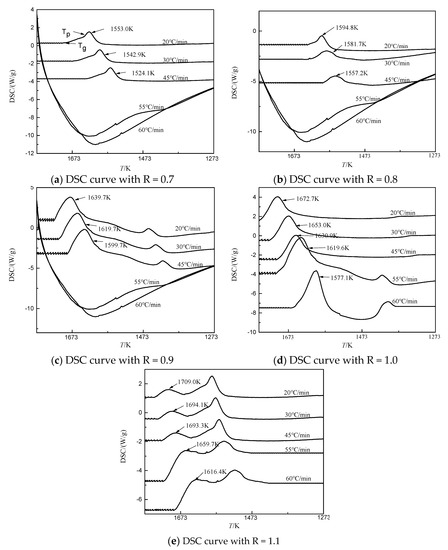

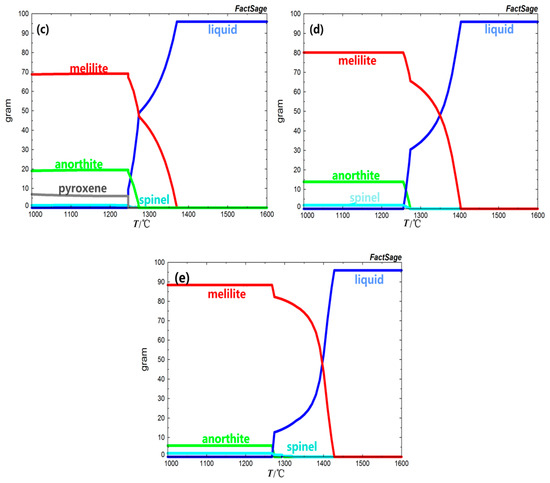

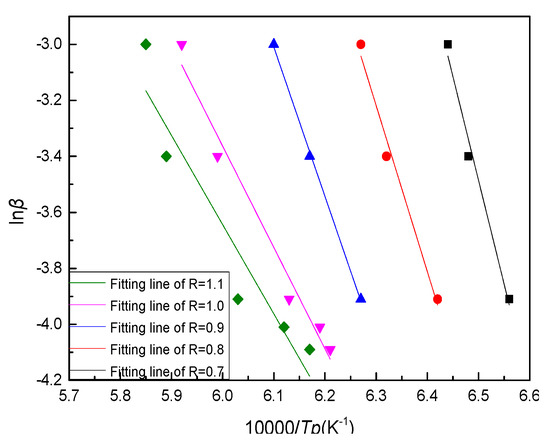

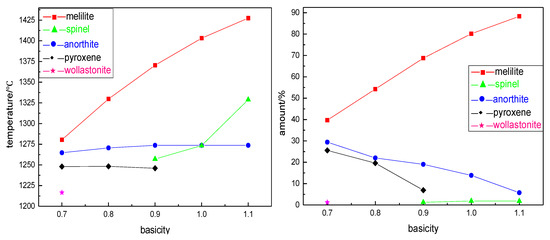

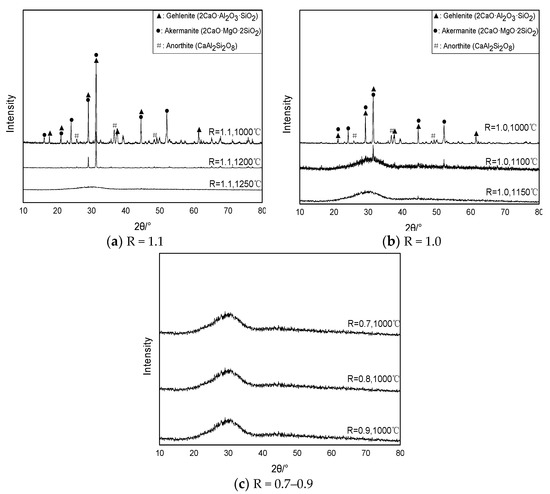

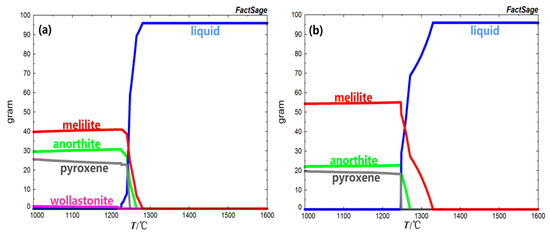

Figure 1

MDPI and ACS Style

Kang, Y.; Liu, C.; Zhang, Y.; Xing, H. Influence of Crystallization Behavior of Gas Quenching Blast Furnace Slag on the Preparation of Amorphous Slag Beads. Crystals 2020, 10, 30.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
