Metal Foams as Novel Catalyst Support in Environmental Processes

1
Institute of Chemical Engineering, Polish Academy of Sciences, Bałtycka 5, 44-100 Gliwice, Poland
2
Faculty of Chemical Engineering and Technology, Cracow University of Technology, Warszawska 24, 31-155 Kraków, Poland
3
Faculty of Physics and Applied Computer Science, AGH University of Science and Technology, Al. Mickiewicza 30, 30-059 Kraków, Poland
4
Faculty of Materials Science and Ceramics, AGH University of Science and Technology, Al. Mickiewicza 30, 30-059 Kraków, Poland
5
Faculty of Chemistry, Jagiellonian University, Gronostajowa 2, 30-387 Kraków, Poland
6
Faculty of Civil Engineering and Architecture, Opole University of Technology, Katowicka 48, 45-061 Opole, Poland
*
Author to whom correspondence should be addressed.
Catalysts 2019, 9(7), 587; https://doi.org/10.3390/catal9070587
Received: 11 June 2019 / Revised: 1 July 2019 / Accepted: 3 July 2019 / Published: 5 July 2019
(This article belongs to the Special Issue Novel Structured Catalytic Reactors)

Abstract

:
Metal foams are considered as promising catalyst carriers due to their high porosity, large specific surface area, and satisfactory thermal and mechanical stability. The study presents heat transfer and pressure drop experiments performed for seven foams of different pore densities made from diverse metals. Mass transfer characteristics are derived using the Chilton–Colburn analogy. It was found that the foams display much more intense heat/mass transfer than a monolith, comparable to packed bed. Next, the foams’ efficiencies have been compared, using 1D reactor modeling, in catalytic reactions displaying either slower (selective catalytic reduction of NOx) or faster kinetics (catalytic methane combustion). For the slow kinetics, the influence of carrier specific surface area at which catalyst can be deposited (i.e., catalyst amount) was decisive to achieve high process conversion and short reactor. For this case, monolith appears as the best choice assuming it’s the lowest pressure drop. For the fast reaction, the mass transfer becomes the limiting parameter, thus solid foams are the best solution.

Graphical Abstract

1. Introduction

It seems usually acceptable that the catalyst is a key element of the catalytic reactor. Indeed, the catalyst enables enhanced reaction kinetics, thus, the reaction rate may be significantly increased when comparing with that of noncatalytic reactions. However, only as many molecules may react as reach the catalyst surface. Hence, the reaction rate depends on the substrate concentration at the catalyst surface (more exactly, at the active centers), not on the concentration in the bulk reactants stream. The concentration at the surface depends, in turn, on the reaction kinetics and the mass transfer coefficient. In fact, the mass transfer rate is as important as the kinetics, being a possible limitation of the process yield. Mass transfer is strictly bound with the heat transfer by the Chilton–Colburn analogy:
Nu Pr 1 / 3 = Sh Sc 1 / 3
where dimensionless Sherwood (Sh) and Nusselt (Nu) numbers describe mass and heat transfer, respectively. Therefore, in many cases, the mass transfer characteristic can be derived based on the heat transfer experiments, and vice versa. Based on the Chilton–Colburn analogy, the relationship between heat and mass transfer coefficients (h and kC, respectively) is:
h ( T s T ) = k C ( C A C A s ) ( Δ H R )
where ΔHR is the reaction enthalpy. It means, that for reactor design the knowledge of the heat and mass transfer characteristics of the reactor internals is as necessary as the kinetics of the reaction. Usually, the better the transport characteristics, the better reactor performance, especially for fast catalytic reactions.
Another parameter characterizing the reactor internals, which is very important for the reactor functioning, is the flow resistance. It is not a process limitation, however high pressure drop means high pumping costs. Hence, the ratio of the flow resistance to the transport intensity is an important factor for the catalytic reactor optimization [1,2].
The classic solution in many processes, especially in the area of environmental protection, is a monolith with a catalyst deposited on its surface (usually through an intermediate layer, the “washcoat”). The undoubted advantage of such a solution, in addition to the reproducible structure of the channels, is the low flow resistance and the relative ease of forming and depositing the catalyst. However, serious disadvantages are the low mass and heat transfer rates, which are particularly important for fast catalytic reactions. On the other side is the packed bed characterized by the high mass transfer, but also high flow resistance.
Solid, open-cellular foams offer significantly higher mass [3] and heat [2] transfer coefficients compared with those of monoliths and lower pressure drop in comparison with that of the packed bed [2,3]. Moreover, solid foams are being manufactured from diverse materials. Ceramic foams are applied as molten metal filters and high-temperature thermal insulations. Metal foams are used in light constructions, as elements of aircraft, and as absorbers of energy, in heat exchangers (as porous fins) or heat recuperators. Thinner struts of metal foams, measuring less than one millimeter, enable the manufacture of foams of larger specific surface area (over 1000 m2/m3) and higher porosity in comparison with that of ceramic ones. Moreover, metal foams show good mechanical properties, high thermal conductivity, and resistance to thermal and mechanical shocks. The above characteristics make metal solid foams attractive for catalytic applications. They have been studied in, for example, the neutralization of air pollutants from automotive exhaust gases [4], the selective catalytic reduction of nitrogen oxides (SCR deNOx) [5,6], the catalytic oxidation of CO [1,7,8,9,10], the catalytic combustion and steam reforming of methane [9,11,12], or the catalytic oxidation of hydrocarbons [13,14].
Because knowledge of the heat and mass transfer parameters is as important as the kinetics, therefore, this study presents the heat transfer experimental results for aluminum (Al), nickel (Ni), nickel–chromium (NC), and Fecralloy foams, differing in the pore densities. Next, in order to check the usefulness of metal foams as the catalyst carriers, NC foams were compared with classical catalyst supports—packed beds and monoliths. The removal of NOx by selective catalytic reduction (SCR deNOx) and the catalytic combustion of methane were chosen as the model processes. These processes display relatively slow and fast reaction kinetics, respectively. In addition, they are very important for environmental protection, hence any improvement in their efficiency is highly desirable.

2. Results

2.1. Heat and Mass Transfer

The heat transfer coefficients were experimentally determined for several metal foams, namely aluminum (Al), nickel (Ni), nickel–chromium (NC), and Fecralloy. Moreover, the chosen foams differ in the pore densities (pores per inch, PPI) (see Section 4 Materials and Methods). Experimental results of heat and mass transfer for tested metal foams are presented in Figure 1, in the term of Nu/Pr1/3 (describing the heat transfer) and in equivalent mass transfer term (Sh/Sc1/3), according to the Chilton–Colburn analogy (Equation (1)).This approach is applied in this paper. Because, for comparison, the results for monolith and packed bed are also presented in Figure 1, therefore, the hydraulic diameter, dh, for all presented catalyst carriers was chosen as the characteristic one. As can be seen, the heat and mass transport properties for solid foams are comparable with packed bed and much higher than for monolith.
In the literature, many correlations describing the heat (e.g., [15,16,17,18]) and mass transfer coefficient (e.g., [1,19,20,21]) for solid foams can be found. A comparison between experimental results in terms of Nu/Pr1/3 (according to the Chilton–Colburn analogy) and calculated based on the selected literature correlations for heat transfer for Al 10 (Figure 2a) and Ni 0610 (Figure 2b) is presented. For the same foams, a similar comparison of mass transfer coefficient obtained experimentally (i.e., based on the Nu number using Chilton–Colburn analogy) and calculated using selected literature correlations is presented in Figure 3 in the form of Sh/Sc1/3. Because literature correlations describing heat and mass transfer coefficient defined dimensionless number (Re, Nu, Sh) with different characteristic dimensions, therefore they were recalculated using strut diameter, ds, (see Section 4 Materials and Methods) as characteristic one. As can be noticed, for both, the heat (Figure 2) and the mass (Figure 3), when a given correlation describes quite well the results obtained for one foam, it very often fails for the others [22]. A similar situation was also observed for flow resistance [23,24].
The heat transfer for solid foams is very often described by the correlation of the form:
Nu = aRe b Pr 1 / 3
that originally was proposed for the bundle of tubes [25], where coefficient a and exponent b depends on the Reynolds number value. As can be seen in Figure 1, all experimental results of heat/mass transfer of solid foams tested are similar. Therefore, for all the foams’, tested parameters a and b from Equation (1) were estimated, based on experimental results, obtaining a = 0.489 and b = 0.552. Because heat transfer for the solid foams depends mainly on the specific surface area and strut diameter [15], therefore strut diameter was chosen as the characteristic diameter in the definition of the Reynolds and Nusselt number. The correlation describes the experimental results with average relative error, ey ≈ 9.3%, as presented in Figure 4.

2.2. Assessment of Solid Foams as Catalyst Carriers

Solid foams can be adapted to process requirements in terms of amount of catalyst due to the wide range of the specific surface area available. The next important benefit of solid foams is a wide range of porosity that offers relatively low flow resistance. Moreover, the complicated three-dimensional (3D) structure of a foam skeleton ensures intense mixing of the flowing fluids, thus intense heat and mass transfer.
Comparison of heat and mass transfer coefficients of solid foams with classic packed bed and monolith, as presented in Figure 1, shows that transport intensity for the foams is close to that of packed bed and much higher than that of the monolith. However, in order to test the applicability of solid foam as a catalyst carrier instead of a monolith or packed bed, the reactor performance was compared for catalytic combustion of methane and SCR deNOx, selected as model catalytic reactions. The catalyst carriers chosen were NC 0610 foam, the 100 cpsi monolith (200 mm long), and packed bed of 3 mm spherical particles (egg-shell type), that displayed a similar specific surface area, defined as the external surface area per unit volume of bed (see Table 1). Moreover, NC 2733 was also taken into account in order to check the effect of foam morphology on the process yield.
The correlations describing the heat, mass transfer, and flow resistance for the solid foams (based on the experimental results), as well as the literature correlation for the monolith [26] and packed bed [27,28], are presented in Table 1. Because the compared catalyst carriers significantly differ in their geometry, therefore the hydraulic diameter was used as the characteristic dimension.
To assist in the evaluation and selection of the most favorable catalyst support for a given catalytic process, different criteria are defined in the literature. The criteria take into account different parameters, such as technological (length of reactor, flow resistance) or process selectivity, yield, etc. Choice of the appropriate criterion depends on which parameter is the most important for the designer (operating cost, selectivity, or conversion), or on the available data. Different criteria commonly yield similar results, which is not surprising, especially given that criteria are usually based on similar dependencies [2].
In this work, the performance for SCR deNOx and the catalytic combustion of methane were modelled using the one-dimensional (1D) plug flow reactor model, in accordance with the procedure checked for n-hexane catalytic combustion [29], assuming steady state conditions:
  • the material balance in the gas phase:
    d ( C A w ) dz + S v k c ( C A C AS ) = 0 ,
    with boundary conditions: z = 0; CA = CA0.
  • the heat balance for the gas phase:
    w ρ c p dT dz + S v h ( T T S ) = 0 ,
    with boundary conditions: z = 0; T = T0, and assuming no heat losses.
  • the material balance at the catalyst surface:
    k c ( C A C AS ) = η ( R A ) = η k r C AS ,
  • the heat balance at the catalyst surface:
    h ( T S T ) = Δ H R η ( R A ) ,
  • the influence of axial dispersion on the final conversion is neglected [29,30].
Kinetic data for considering processes are presented in Table 2. As can be seen, deNOx reaction displays rather slow kinetics, while methane combustion is a very fast reaction.
The modelling was performed in two ways:
  • reaction conversion was calculated along the reactor axis (z) for T = const. and w = const.;
  • necessary reactor length to reach 90% conversion was calculated for given flow velocity at T = const.
The modelling results for SCR deNOx are presented in Figure 5, and for methane catalytic combustion in Figure 6.
Considering the slow deNOx reaction, carriers of close specific surface area (i.e., NC 0610 foam, a 100 cpsi monolith, and a packed bed of 3 mm grains) achieved similar conversion along the reactor axis (Figure 5a). Therefore, also the reactor length necessary to achieve 90% conversion is almost the same for them in a wide range of flow velocities (Figure 5b). On the other hand, flow resistances for those carriers differ greatly. The highest pressure drop is always displayed by the packed bed, and the lowest by the monolith. The NC 0610 foam is in between. The NC 2733 foam has achieved higher conversion along the reactor length, so also 90% conversion of NO requires a much shorter reactor. This is the result of a much larger specific surface area of NC 2733 foam available to catalyst deposition, hence the mass of catalyst (assuming the same catalyst layer thickness) in comparison with that of other tested catalyst supports.
For the fast reaction of the methane catalytic combustion, the behavior is quite different (Figure 6). The lowest conversion is offered by the monolith, somewhat higher is that of NC 0610 foam. Packed bed and NC 2733 foam reach close conversion (Figure 6a), although the NC 2733 foam displays a higher specific surface area. The characteristics presented in Figure 6b are similar: the shortest reactor to achieve 90% conversion is required for packed bed and NC 28733, while the longest one for the monolith. Flow resistance for both the tested foams is similar, and only moderately higher than that of monolith (Figure 6b).

3. Discussion

For processes characterized by rather slow kinetics (SCR deNOx), the conversion achieved (Figure 5a) and the reactor length (Figure 5b) is proportional to the surface area of the catalyst carriers, thus to the catalyst mass, therefore, NC 2733 shows much higher conversion and much shorter reactor length needed to achieve 90% conversion. This results from the slow kinetics of the reaction. For all the carriers considered, the mass transfer is much more intense than the reaction rate. Thus, the process is strictly kinetic dependent. In such a situation, the rational choice of carrier from among those having a comparable Sv is, of course, a monolith, with the lowest flow resistance and reactor length similar to the others. The same results were also obtained for the methane combustion carried out on the palladium catalyst prepared by the incipient wetness method, displaying “slow” kinetics [2].
For processes with fast kinetics (catalytic combustion of methane), the reaction is strongly limited by insufficient mass transfer rate. In this case, the mass transfer becomes the limiting factor for the process yield. Specific surface area and catalyst amount play less important roles. Therefore, foams and packed bed needed much shorter reactor than monolith (Figure 6b), especially for higher fluid velocity. That agrees with the results presented in Figure 1: transport intensity for foams and packed bed is close and much higher than for monolith. The consequence is not only shorter reactor (the smaller volume), but also lower catalyst mass. In this case, the rational choice is the solid foam offering shorter reactor and low flow resistance, that is only slightly higher compared to the monolith.
Importance of the heat transfer is equal for both the fast and slow reactions. Each of them brings a certain energetic effect, thus the reaction heat (or enthalpy ΔHR) has to be transferred between catalyst surface and the bulk reactant stream. The problem is of special importance for highly exothermic reactions like, for example, catalytic combustion. Insufficient heat transfer can lead to the catalyst overheating. This can be avoided by lowering process temperature or substrate concentration, according to Equation (2), but also, to some extent, by choosing (or designing) the reactor internal characterized by desirable heat and mass transfer characteristics.

4. Materials and Methods

4.1. Foam Morphology

The commercially available metal foams used in this study were made of aluminum (ERG Materials and Aerospace Corp., Oakland, CA, USA), nickel and nickel–chromium (Recemat BV, Dodevaard, The Netherlands), and Fecralloy (Goodfellow Cambridge Ltd., Huntingdon, England) with pore density from 10 to 40 PPI (pores per inch).
The porosity and specific surface area for the foams were obtained using X-ray microcomputed tomography (micro-CT). The foam samples had a cylindrical shape with a height and diameter of about 10 mm. For aluminum (Al), nickel (Ni), and nickel–chromium (NC) foam, the microtomography measurements were performed using a SkyScan 1172 micro-CT scanner (Bruker, Kontich, Belgium), while for the Fecralloy foam, the “nanotom 180N” (GE Sensing & Inspection Technologies phoenix|X-ray Gmbh) was used. During the scanning process of each foam, the sample rotated slowly and projection images were acquired for each rotation angle. The obtained 2D shadow projections were preprocessed using iMorph software. First, using the global thresholding method, binarization was performed (Figure 7A). Next, to exclude potential internal discontinuities in the foam skeleton, which can cause large errors in the designated external porosity accessible for fluid flow and the external surface on which the catalyst may be deposited, the dilatation (Figure 7B) and erosion (Figure 7C) operations were performed for the selected region of interest (ROI) (for details see [22,32]). For such postprocessed images, a 3D reconstruction of the ROI was carried out (Figure 7D) and porosity and specific surface area were determined. The procedure is schematically presented in Figure 7.
The strut diameter (i.e., solid elements of foam skeleton, depicted in Figure 7D) was determined using optical microscopy. The results are presented in Table 3.

4.2. Heat and Mass Transfer

The experimental setup is shown in Figure 8. The main part is the heat exchanger, in which the foam samples were tested. The foam specimen, placed in the central part of the exchanger, had a rectangular shape (45 mm × 30 mm) and was oriented perpendicular to the air flow direction. Metal foam samples were heated by the current flowing directly through the foam body (Imax ≈ 150 A ± 0.1 A). The temperatures of the foam sample and the flowing gas were measured by means of thermocouples placed on the inlet and outlet side of the sample and heat exchanger, respectively. Air flow velocity was changed in the velocity range of 0.2–11 m/s (for more details see [22,33]).
The heat transfer coefficient, h, and Nusselt number, Nu, were determined as:
h = Q F · Δ T
Nu = h · d h k
where the hydraulic diameter is defined as:
d h = 4 ε S v
Mass transfer coefficients were not determined experimentally. According to the Chilton–Colburn analogy, the mechanism of heat and mass transfer are essentially the same (see Equation (1)).
This analogy was experimentally confirmed for solid foams [15,21]. Therefore, for the purpose of this work, mass transfer coefficients were calculated based only on the heat transfer experiments.
Moreover, flow resistance experiments for the foams were also performed. The results were correlated for each foam separately (Table 1).

4.3. Kinetic Tests

First, the appropriate catalysts were prepared. For selective catalytic reduction of NO with NH3 (SCR deNOx), ultrastabilized Y-type zeolite (USY) was synthesized under rigorous conditions, then subjected to the sonochemical irradiation with 0.5 M aqueous copper nitrate solutions (for details see [31]), denoted as Cu/USY/s. For CH4 combustion, a palladium catalyst (Pd/ZrO2) was prepared by impregnation, also using a sonochemically irradiated catalyst precursor (for details see [34]). Kinetic tests for both catalysts were performed using a Catlab (Hiden Analytical, Warrington, UK) fixed-bed quartz tubular test reactor. For SCR deNOx, the experiments were carried out at atmospheric pressure within a temperature range of 50–550 °C using a gas mixture containing 2500 ppm of NO, 2500 ppm of NH3, and 25,000 ppm of O2 balanced by helium, with a total flow rate of 40 mL/min [31]. For methane catalytic combustion tests, the temperature ranged from 100 °C to 550 °C and gas composition was set to 2000 ppm CH4/Air [35].

5. Conclusions

The experimental results show that the heat/mass transfer intensity for solid foams is much more intense than that of monoliths and similar to that of packed beds. In turn, performance modelling indicated that, for slow kinetics, when the impact of mass transfer intensity is weak; specific surface area (or catalyst amount) is the decisive factor. For fast kinetics, mass transfer plays a more important role, being the limiting parameter of the process. For carriers of intense mass transfer, such as solid foams, the reactor length is much shorter than for the others and flow resistance can be much lower due to reactor shortening.
Depending on the reaction enthalpy, inlet concentration, and temperature, heat transfer rate between catalyst surface and the bulk reactant stream may be insufficient. The remedy is lowering inlet temperature or substrate concentration, as well as the selection of the catalyst carrier with the most favorable transport parameters. As was presented, the heat and mass transport properties of solid foams are comparable to packed bed and much higher than those of monoliths. Moreover, solid foams offer much lower flow resistance than packed bed. Therefore, solid foams are very promising catalyst carriers, especially for fast reaction.

Author Contributions

Conceptualization, A.G.; Investigation, K.S., M.I., M.P., W.M., P.J. and S.W.; Methodology, P.J., S.W., M.S. and J.Ł.; Supervision, A.G. and A.K.; Writing—original draft, A.G.; Writing—review & editing, A.K.

Funding

The research was supported by the National Science Centre (Projects No. DEC-2011/03/B/ST8/05455, DEC-2016/21/B/ST8/00496, and DEC-2016/23/B/ST8/02024).

Conflicts of Interest

The authors declare no conflict of interest.

List of Symbols

CAreagent concentration in gas stream, mol/m3
cpspecific heat, J/(kg∙K)
Ddiameter, m
DAdiffusivity, m2/s
dccell diameter, m
dhhydraulic diameter, m
dsstrut diameter, m
eyaverage relative error, = i > 1 n | Nu exp Nu corr | · 100 Nu exp n , %
Fheat transfer area, m2
fFanning friction factor, Δ P L = 2 f ρ w 2 ε 2 D
hheat transfer coefficient, W/(m2∙K)
kthermal conductivity, W/(m∙K)
kCmass transfer coefficient, m/s
krreaction rate constant
kpre-exponential coefficient in Arrhenius equation, m/s
Lbed or channel length, m
L+dimensionless length for the hydrodynamic entrance region, = L/(D∙Re)
L*dimensionless length for the thermal entrance region, = L/(D∙Re∙Pr)
L*Mdimensionless length for the mass transfer entrance region, = L/(D∙Re∙Sc)
NuNusselt number, = h∙D/k
PrPrandtl number, = Cp∙ μ/k
Qheat flow rate, W
(−RA)reaction rate, mol/(m2∙s)
ReReynolds number, = w∙D∙ρ/(μ∙ε)
ScSchmidt number, = μ/(ρ∙DA)
ShSherwood number, = kC∙D/DA
Svspecific surface area (external surface area per unit volume of bed) m2/m3
Ttemperature, K
wsuperficial velocity, m/s
ΔHRstandard heat of reaction, J/mol
ΔPpressure drop, Pa
ΔTlogarithmic mean temperature difference between gas and structure surface at the inlet and outlet sides
zreactor axis, m
εporosity
ηeffectiveness factor for catalyst
μdynamic viscosity (Pa∙s)
ρdensity (kg/m3)

Subscripts

dsbased on strut diameter
srefers to the catalyst surface

References

  1. Giani, L.; Groppi, G.; Tronconi, E. Mass-transfer characterization of metallic foams as supports for structured catalysts. Ind. Eng. Chem. Res. 2005, 44, 4993–5002. [Google Scholar] [CrossRef]
  2. Gancarczyk, A.; Iwaniszyn, M.; Piatek, M.; Korpys, M.; Sindera, K.; Jodlowski, P.J.; Lojewska, J.; Kolodziej, A. Catalytic combustion of low-concentration methane on structured catalyst supports. Ind. Eng. Chem. Res. 2018, 57, 10281–10291. [Google Scholar] [CrossRef]
  3. Patcas, F.C.; Garrido, G.I.; Kraushaar-Czarnetzki, B. Co oxidation over structured carriers: A comparison of ceramic foams, honeycombs and beads. Chem. Eng. Sci. 2007, 62, 3984–3990. [Google Scholar] [CrossRef]
  4. Pestryakov, A.N.; Yurchenko, E.N.; Feofilov, A.E. Foam-metal catalysts for purification of waste gases and neutralization of automotive emissions. Catal. Today 1996, 29, 67–70. [Google Scholar] [CrossRef]
  5. Ochońska-Kryca, J.; Iwaniszyn, M.; Piątek, M.; Jodłowski, P.J.; Thomas, J.; Kołodziej, A.; Łojewska, J. Mass transport and kinetics in structured steel foam reactor with cu-zsm-5 catalyst for scr of nox with ammonia. Catal. Today 2013, 216, 135–141. [Google Scholar] [CrossRef]
  6. Liu, Y.; Xu, J.; Li, H.R.; Cai, S.X.; Hu, H.; Fang, C.; Shi, L.Y.; Zhang, D.S. Rational design and in situ fabrication of MnO2@NiCO2O4 nanowire arrays on ni foam as high-performance monolith de-nox catalysts. J. Mater. Chem. A 2015, 3, 11543–11553. [Google Scholar] [CrossRef]
  7. Giani, L.; Cristiani, C.; Groppi, G.; Tronconi, E. Washcoating method for pd/γ-Al2O3 deposition on metallic foams. Appl. Catal. B 2006, 62, 121–131. [Google Scholar] [CrossRef]
  8. Cimino, S.; Lisi, L.; Totarella, G.; Barison, S.; Musiani, M.; Verlato, E. Highly stable core–shell pt-CeO2 nanoparticles electrochemically deposited onto fecralloy foam reactors for the catalytic oxidation of co. J. Ind. Eng. Chem. 2018, 66, 404–410. [Google Scholar] [CrossRef]
  9. Cimino, S.; Gerbasi, R.; Lisi, L.; Mancino, G.; Musiani, M.; Vázquez-Gómez, L.; Verlato, E. Oxidation of co and ch4 on pd–fecralloy foam catalysts prepared by spontaneous deposition. Chem. Eng. J. 2013, 230, 422–431. [Google Scholar] [CrossRef]
  10. Ambrosetti, M.; Balzarotti, R.; Cristiani, C.; Groppi, G.; Tronconi, E. The influence of the washcoat deposition process on high pore density open cell foams activation for co catalytic combustion. Catalysts 2018, 8, 510. [Google Scholar] [CrossRef]
  11. Podyacheva, O.Y.; Ketov, A.A.; Ismagilov, Z.R.; Ushakov, V.A.; Bos, A.; Veringa, H.J. Metal foam supported perovskite catalysts. React. Kinet. Catal. Lett. 1997, 60, 243–250. [Google Scholar] [CrossRef]
  12. Balzarotti, R.; Beretta, A.; Groppi, G.; Tronconi, E. A comparison between washcoated and packed copper foams for the intensification of methane steam reforming. React. Chem. Eng. 2019. [Google Scholar] [CrossRef]
  13. Pestryakov, A.N.; Fyodorov, A.A.; Shurov, V.A.; Gaisinovich, M.S.; Fyodorova, I.V. Foam metal catalysts with intermediate support for deep oxidation of hydrocarbons. React. Kinet. Catal. Lett. 1994, 53, 347–352. [Google Scholar] [CrossRef]
  14. Pestryakov, A.N.; Fyodorov, A.A.; Gaisinovich, M.S.; Shurov, V.P.; Fyodorova, I.V.; Gubaydulina, T.A. Metal foam catalysts with supported active phase for deep oxidation of hydrocarbons. React. Kinet. Catal. Lett. 1995, 54, 167–172. [Google Scholar] [CrossRef]
  15. Giani, L.; Groppi, G.; Tronconi, E. Heat transfer characterization of metallic foams. Ind. Eng. Chem. Res. 2005, 44, 9078–9085. [Google Scholar] [CrossRef]
  16. Das, S.; Deen, N.G.; Kuipers, J.A.M. Direct numerical simulation for flow and heat transfer through random open-cell solid foams: Development of an ibm based cfd model. Catal. Today 2016, 273, 140–150. [Google Scholar] [CrossRef]
  17. Calmidi, V.V.; Mahajan, R.L. Forced convection in high porositymetal foams. J. Heat Transf. 2000, 122, 557–565. [Google Scholar] [CrossRef]
  18. Mancin, S.; Zilio, C.; Diani, A.; Rossetto, L. Air forced convection through metal foams: Experimental results and modeling. Int. J. Heat Mass Transf. 2013, 62, 112–123. [Google Scholar] [CrossRef]
  19. Huu, T.T.; Lacroix, M.; Huu, C.P.; Schweich, D.; Edouard, D. Towards a more realistic modeling of solid foam: Use of the pentagonal dodecahedron geometry. Chem. Eng. Sci. 2009, 64, 5131–5142. [Google Scholar] [CrossRef]
  20. Garrido, G.I.; Kraushaar-Czarnetzki, B. A general correlation for mass transfer in isotropic and anisotropic solid foams. Chem. Eng. Sci. 2010, 65, 2255–2257. [Google Scholar] [CrossRef]
  21. Groppi, G.; Giani, L.; Tronconi, E. Generalized correlation for gas/solid mass-transfer coefficients in metallic and ceramic foams. Ind. Eng. Chem. Res. 2007, 46, 3955–3958. [Google Scholar] [CrossRef]
  22. Gancarczyk, A.; Iwaniszyn, M.; Piątek, M.; Sindera, K.; Korpyś, M.; Jodłowski, P.J.; Łojewska, J.; Kołodziej, A. Interfacial heat and momentum transfer relation for porous media. Int. J. Therm. Sci. 2018, 132, 42–51. [Google Scholar] [CrossRef]
  23. Gancarczyk, A.; Piatek, M.; Iwaniszyn, M.; Jodlowski, P.J.; Lojewska, J.; Kowalska, J.; Kolodziej, A. In search of governing gas flow mechanism through metal solid foams. Catalysts 2017, 7, 124. [Google Scholar] [CrossRef]
  24. Piatek, M.; Gancarczyk, A.; Iwaniszyn, M.; Jodlowski, P.J.; Lojewska, J.; Kolodziej, A. Gas-phase flow resistance of metal foams: Experiments and modeling. ALChE J. 2017, 63, 1799–1803. [Google Scholar] [CrossRef]
  25. Žkauskas, A. Heat transfer from tubes in crossflow. Adv. Heat Transf. 1987, 18, 87–159. [Google Scholar]
  26. Hawthorne, R.D. Afterburner catalysis—Effects of heat and mass transfer between gas and catalyst surface. ALChE Symp. Ser. 1974, 70, 428–438. [Google Scholar]
  27. Bird, R.B. Transport Phenomena; Wiley: New York, NY, USA, 1960; 780p. [Google Scholar]
  28. Wakao, N.; Kaguei, S. Heat and Mass Transfer in Packed Beds; Gordon and Breach Science Publisher: New York, NY, USA, 1982. [Google Scholar]
  29. Kołodziej, A.; Łojewska, J.; Tyczkowski, J.; Jodłowski, P.; Redzynia, W.; Iwaniszyn, M.; Zapotoczny, S.; Kuśtrowski, P. Coupled engineering and chemical approach to the design of a catalytic structured reactor for combustion of vocs: Cobalt oxide catalyst on knitted wire gauzes. Chem. Eng. J. 2012, 200, 329–337. [Google Scholar] [CrossRef]
  30. Kolodziej, A.; Lojewska, J. Prospect of compact afterburners based on metallic microstructures. Design and modelling. Top. Catal. 2007, 42, 475–480. [Google Scholar] [CrossRef]
  31. Jodlowski, P.J.; Kuterasinski, L.; Jedrzejczyk, R.J.; Chlebda, D.; Gancarczyk, A.; Basag, S.; Chmielarz, L. Deno(x) abatement modelling over sonically prepared copper usy and zsm5 structured catalysts. Catalysts 2017, 7, 205. [Google Scholar] [CrossRef]
  32. Leszczyński, B.; Gancarczyk, A.; Wróbel, A.; Piątek, M.; Łojewska, J.; Kołodziej, A.; Pędrys, R. Global and local thresholding methods applied to x-ray microtomographic analysis of metallic foams. J. Nondestruc. Eval. 2016, 35, 35. [Google Scholar] [CrossRef]
  33. Kołodziej, A.; Łojewska, J.; Ochońska, J.; Łojewski, T. Short-channel structured reactor: Experiments versus previous theoretical design. Chem. Eng. Process. 2011, 50, 869–876. [Google Scholar] [CrossRef]
  34. Jodlowski, P.J.; Jedrzejczyk, R.J.; Chlebda, D.K.; Dziedzicka, A.; Kuterasinski, L.; Gancarczyk, A.; Sitarz, M. Non-noble metal oxide catalysts for methane catalytic combustion: Sonochemical synthesis and characterisation. Nanomaterials 2017, 7, 174. [Google Scholar] [CrossRef] [PubMed]
  35. Jodłowski, P.J.; Jędrzejczyk, R.J.; Gancarczyk, A.; Łojewska, J.; Kołodziej, A. New method of determination of intrinsic kinetic and mass transport parameters from typical catalyst activity tests: Problem of mass transfer resistance and diffusional limitation of reaction rate. Chem. Eng. Sci. 2017, 162, 322–331. [Google Scholar] [CrossRef]

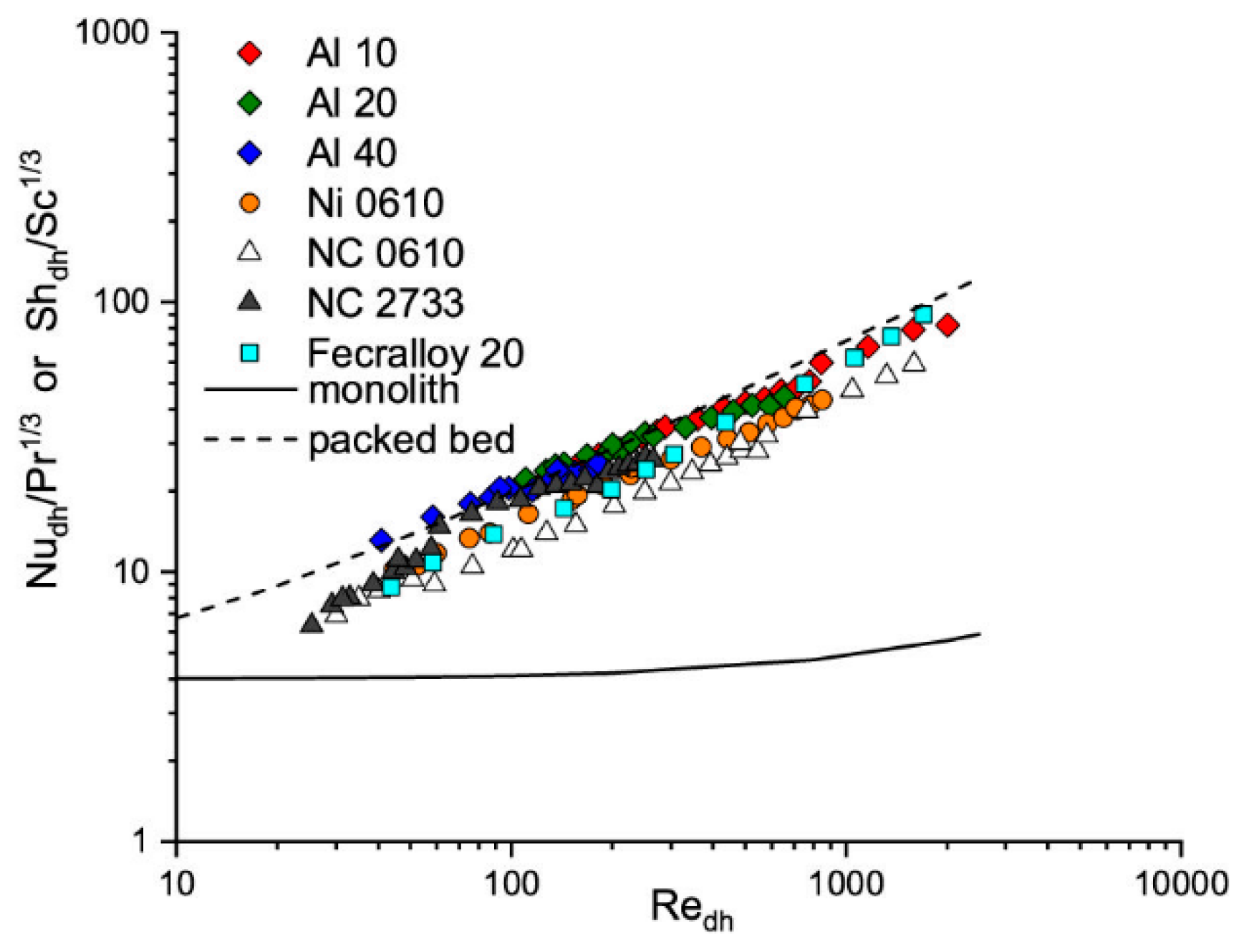

Figure 1. Heat and mass transfer experimental results vs. Reynolds number for tested solid foams. The monoliths and packed bed are shown for comparison.
Figure 1. Heat and mass transfer experimental results vs. Reynolds number for tested solid foams. The monoliths and packed bed are shown for comparison.
Catalysts 09 00587 g001

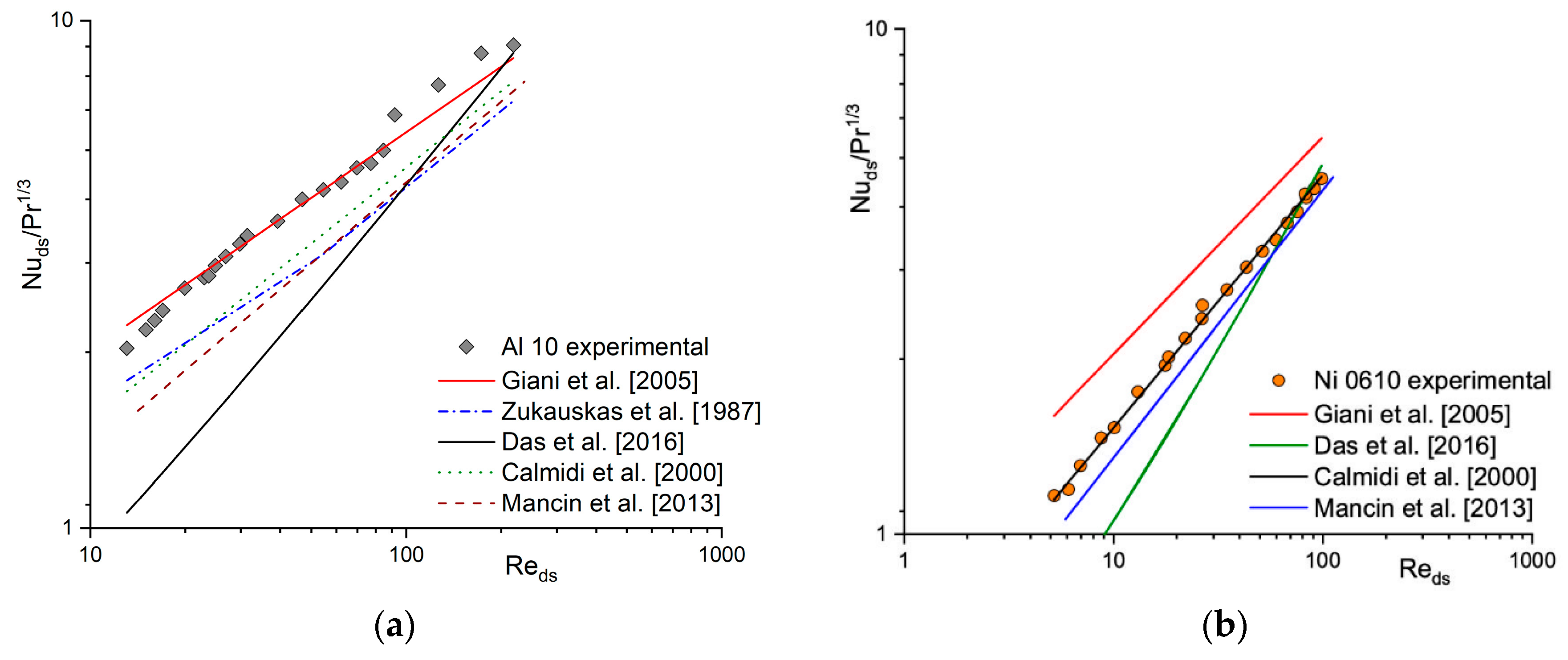

Figure 2. Experimental heat transfer results and those calculated based on the literature correlations for (a) Al 10 and (b) Ni 0610 foams.
Figure 2. Experimental heat transfer results and those calculated based on the literature correlations for (a) Al 10 and (b) Ni 0610 foams.
Catalysts 09 00587 g002

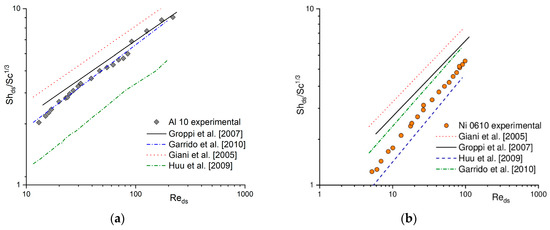

Figure 3. Experimental mass transfer results and those calculated based on the literature correlations for (a) Al 10 and (b) Ni 0610 foams.
Figure 3. Experimental mass transfer results and those calculated based on the literature correlations for (a) Al 10 and (b) Ni 0610 foams.
Catalysts 09 00587 g003

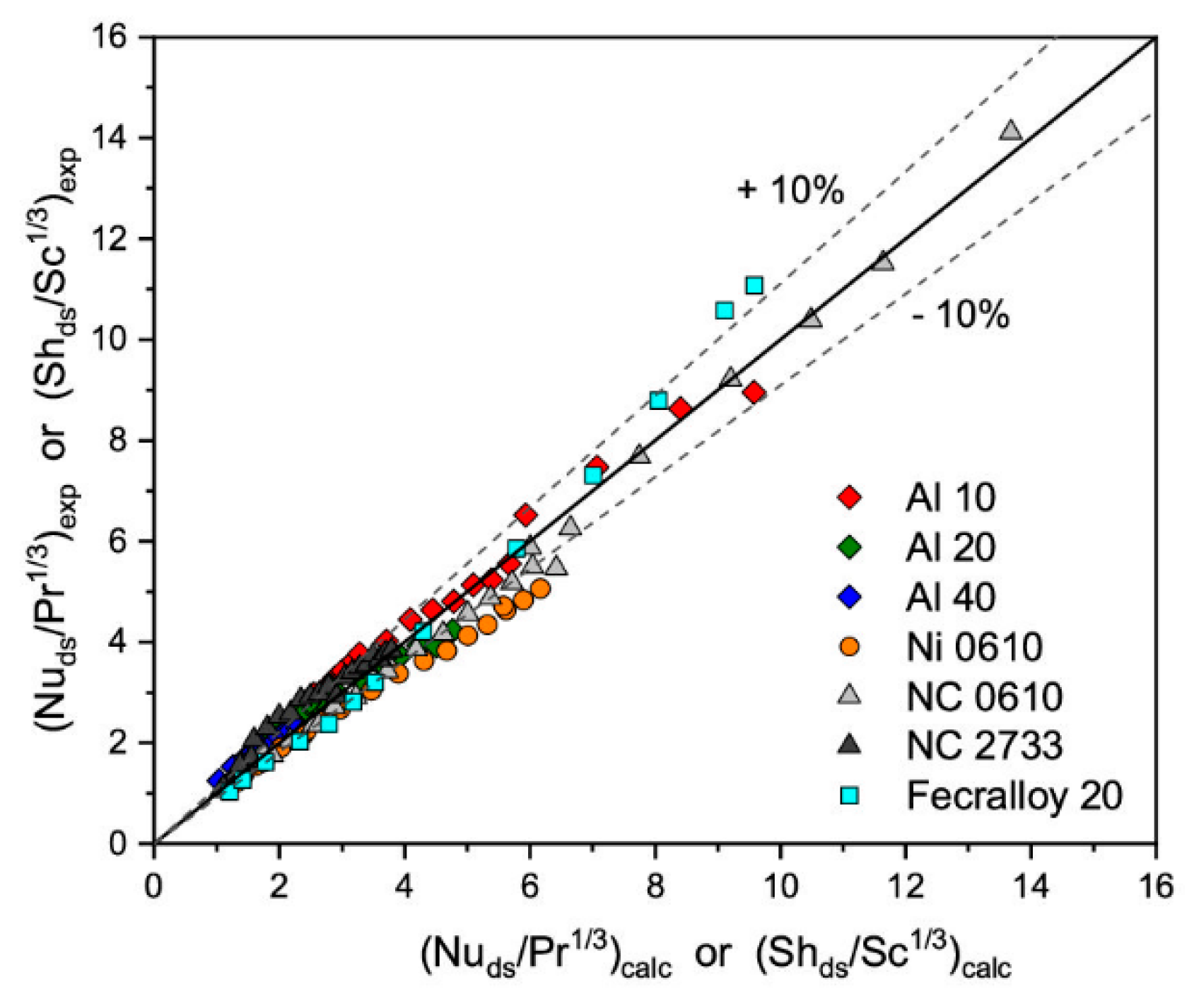

Figure 4. Experimentally determined heat/mass transfer and that calculated based on Equation (3) with a = 0.489 and b = 0.552 and ds as characteristic diameter.
Figure 4. Experimentally determined heat/mass transfer and that calculated based on Equation (3) with a = 0.489 and b = 0.552 and ds as characteristic diameter.
Catalysts 09 00587 g004

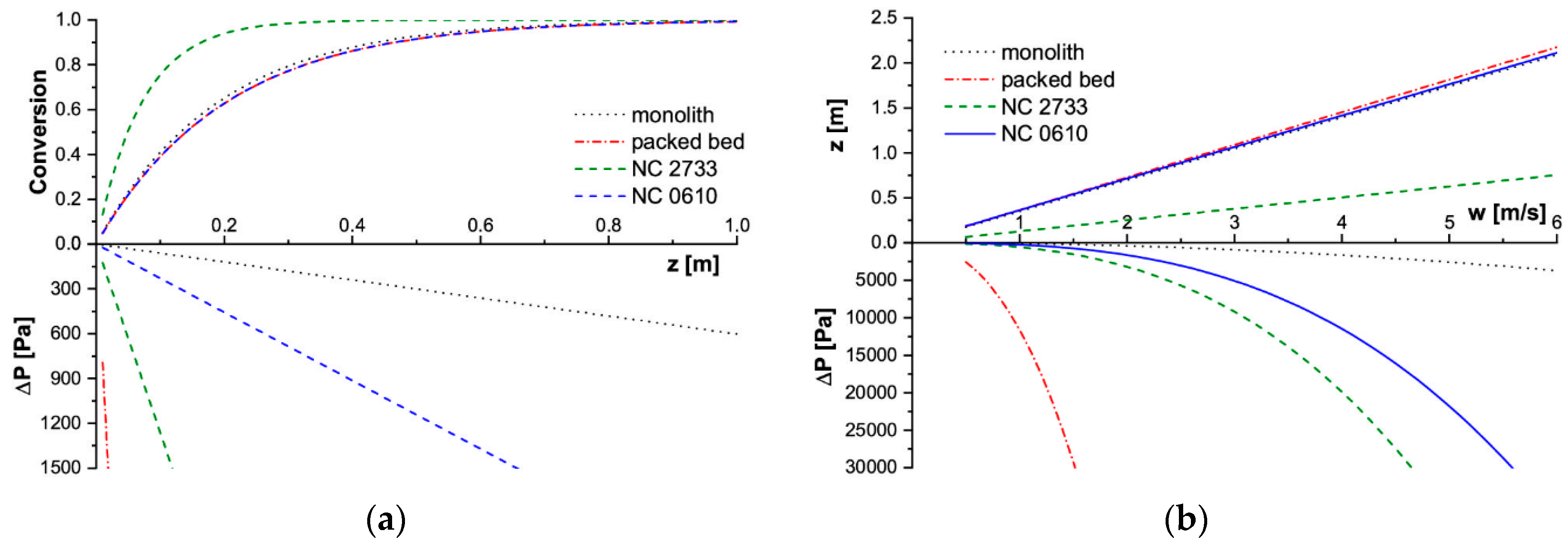

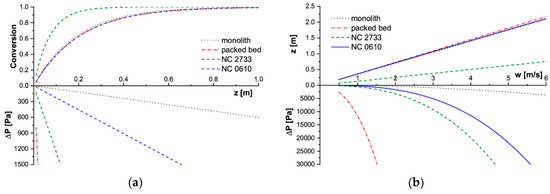

Figure 5. Modelling results for SCR deNOx process in T = 723 K. (a) Conversion and pressure drop profiles along the reactor length for w = 2 m/s, (b) Reactor length and corresponding pressure drop for assumed conversion X = 90%. SCR deNOx: selective catalytic reduction of nitrogen oxides.
Figure 5. Modelling results for SCR deNOx process in T = 723 K. (a) Conversion and pressure drop profiles along the reactor length for w = 2 m/s, (b) Reactor length and corresponding pressure drop for assumed conversion X = 90%. SCR deNOx: selective catalytic reduction of nitrogen oxides.
Catalysts 09 00587 g005

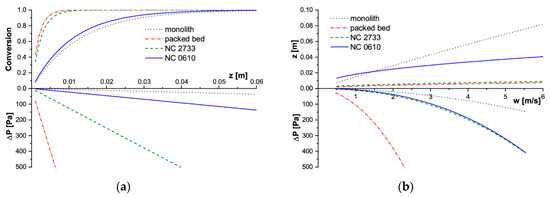

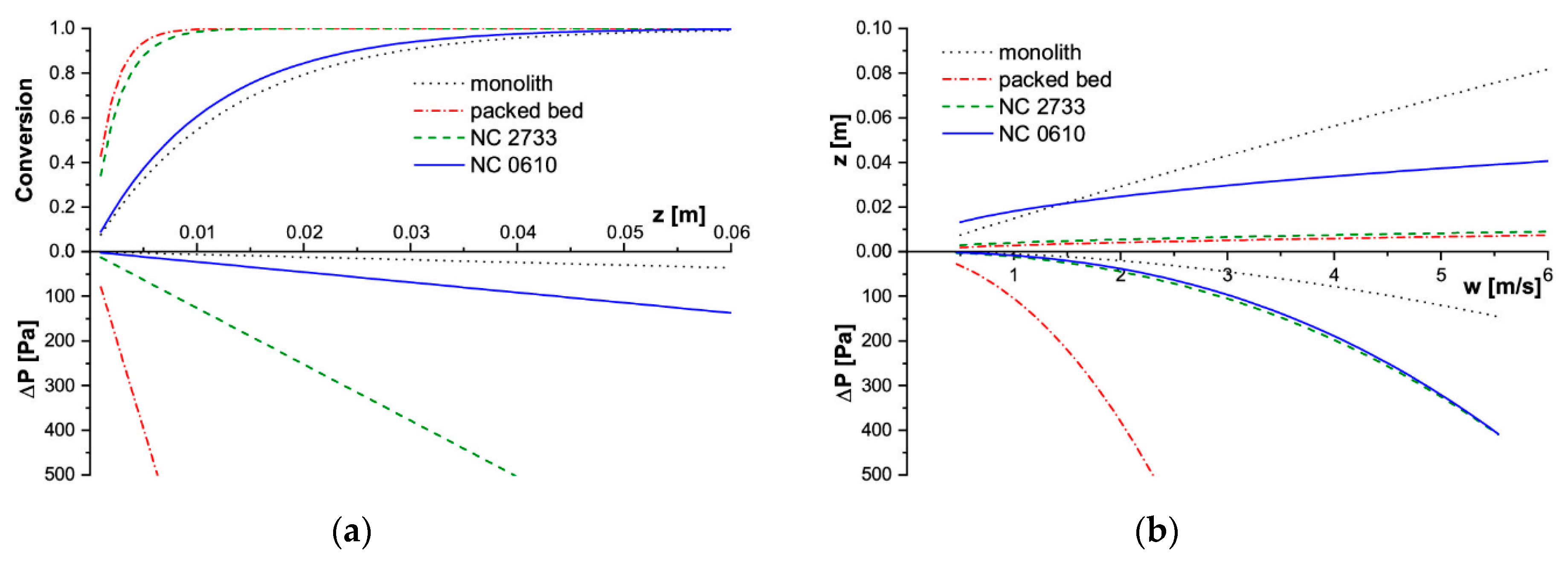

Figure 6. Modelling results for CH4 combustion process in T = 773 K. (a) Conversion and pressure drop profiles along the reactor length for w = 2 m/s, (b) Reactor length and corresponding pressure drop for assumed conversion X = 90%.
Figure 6. Modelling results for CH4 combustion process in T = 773 K. (a) Conversion and pressure drop profiles along the reactor length for w = 2 m/s, (b) Reactor length and corresponding pressure drop for assumed conversion X = 90%.
Catalysts 09 00587 g006
Figure 7. Region of interest (ROI) after (A) binarization, (B) dilatation operation, (C) erosion operation, (D) three-dimensional (3D) reconstruction.
Figure 7. Region of interest (ROI) after (A) binarization, (B) dilatation operation, (C) erosion operation, (D) three-dimensional (3D) reconstruction.
Catalysts 09 00587 g007

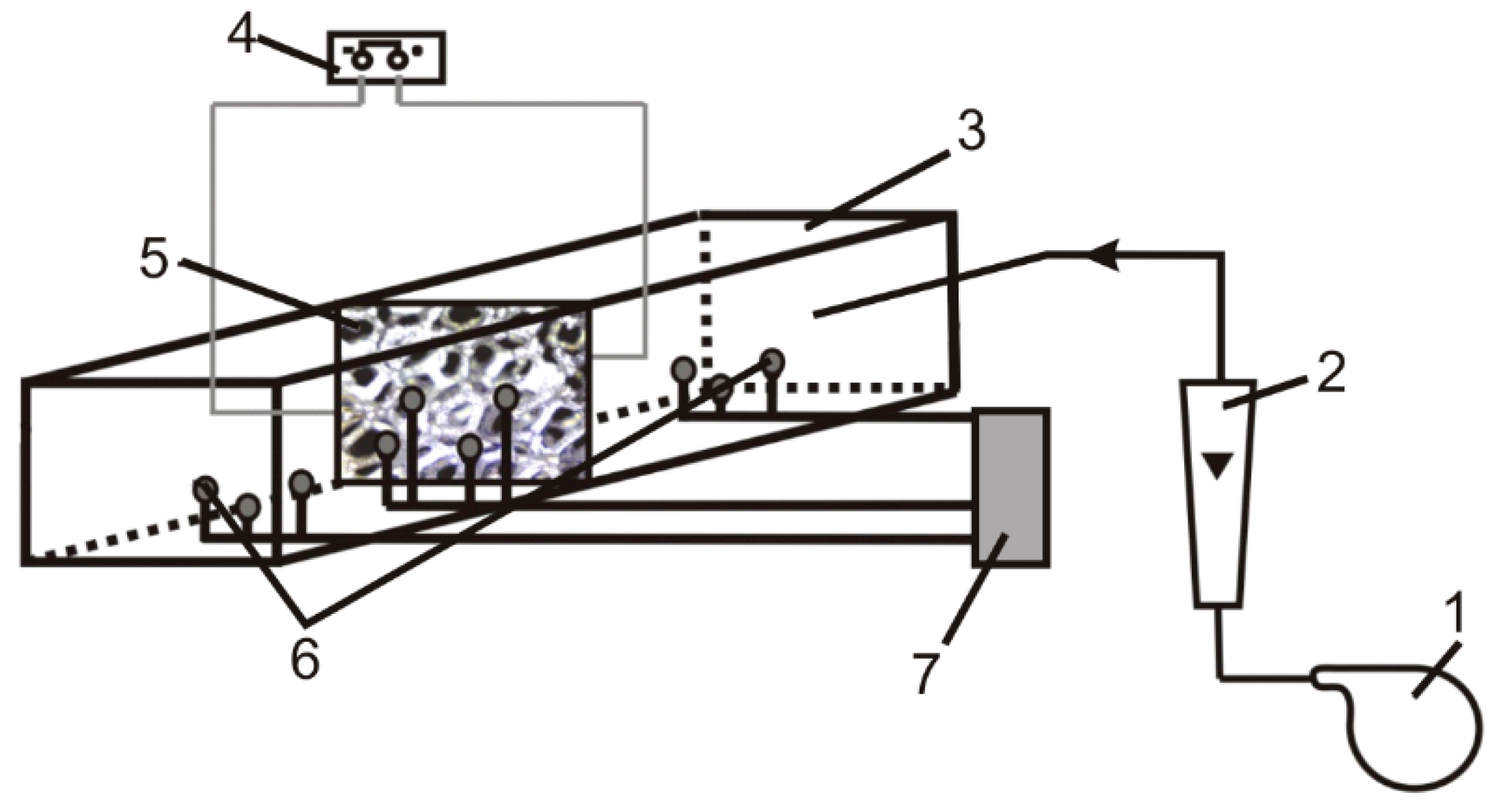

Figure 8. Experimental setup: 1—blower, 2—rotameter, 3—reactor, 4—electric power generation and control system, 5—solid foam, 6—thermocouple, 7—data acquisition system.
Figure 8. Experimental setup: 1—blower, 2—rotameter, 3—reactor, 4—electric power generation and control system, 5—solid foam, 6—thermocouple, 7—data acquisition system.
Catalysts 09 00587 g008
Table 1. Correlations and characteristic parameters for tested catalyst carriers.
Table 1. Correlations and characteristic parameters for tested catalyst carriers.
Catalyst SupportSv (m2/m3)dh (m)Correlations 1
NC 061012982.73 × 10−3 Δ P / L = 443.1 w 2 + 256.8 w
Nu = 0.489 Re 0.552   Pr 1 / 3
Sh = 0.489 Re 0.552   Sc 1 / 3
NC 273336169.61 × 10−3 Δ P / L = 1791.9 w 2 + 2719.4 w
Nu = 0.489 Re 0.552   Pr 1 / 3
Sh = 0.489 Re 0.552   Sc 1 / 3
monolith [26]13392.15 × 10−3 ( fRe ) = 14.23 ( 1 + 0.045 / L + ) 0.5
Nu = 3.608 ( 1 + 0.095 / L * ) 0.45
Sh = 3.608 ( 1 + 0.095 / L * M ) 0.45
packed bed [27,28]12401.23 × 10−3 Δ P / L = 150 μ w D 2 ( 1 ε ) 2 ε 3 + 1.75 ρ w 2 D ( 1 ε ) ε 3
Nu = 2 + 1.1 Re 0.6 Pr 1 / 3
Sh = 2 + 1.1 Re 0.6 Sc 1 / 3
1 Defined with dh as the characteristic diameter.
Table 2. Catalyst preparation and kinetic data.
Table 2. Catalyst preparation and kinetic data.
CatalystMetal Content (wt %)Pre-Exponential Factor, k∞ (m/s)Activation Energy, Ea, (kJ/mol)Effectiveness Factor, η 1
Cu/USY/s [31]3.70 ± 0.043.3236.211
Pd/Al2O3 [2]3.43 ± 0.91.07 × 1010110.40.32
1 calculated for 723 K and catalyst layer thickness l = 20 µm.
Table 3. Morphological parameters of foams tested.
Table 3. Morphological parameters of foams tested.
FoamPPI 1ds (m)dh (m)εSv (m2/m3)
Al 10104.49 × 10−44.12 × 10−30.89860.98
Al 20203.73 × 10−43.94 × 10−30.91926.49
Al 40403.04 × 10−43.19 × 10−30.911139.6
Fecralloy 208 PPC 22.17 × 10−41.55 × 10−30.832084.63
Ni 06106…104.71 × 10−44.05 × 10−30.92908.73
NC 06106…105.29 × 10−42.73 × 10−30.881297.72
NC 273327…331.35 × 10−49.61 × 10−30.873615.7
1 Pores per inch, according to producer. 2 Pores per centimeter

Share and Cite

MDPI and ACS Style

Gancarczyk, A.; Sindera, K.; Iwaniszyn, M.; Piątek, M.; Macek, W.; Jodłowski, P.J.; Wroński, S.; Sitarz, M.; Łojewska, J.; Kołodziej, A. Metal Foams as Novel Catalyst Support in Environmental Processes. Catalysts 2019, 9, 587. https://doi.org/10.3390/catal9070587

AMA Style

Gancarczyk A, Sindera K, Iwaniszyn M, Piątek M, Macek W, Jodłowski PJ, Wroński S, Sitarz M, Łojewska J, Kołodziej A. Metal Foams as Novel Catalyst Support in Environmental Processes. Catalysts. 2019; 9(7):587. https://doi.org/10.3390/catal9070587

Chicago/Turabian Style

Gancarczyk, Anna, Katarzyna Sindera, Marzena Iwaniszyn, Marcin Piątek, Wojciech Macek, Przemysław J. Jodłowski, Sebastian Wroński, Maciej Sitarz, Joanna Łojewska, and Andrzej Kołodziej. 2019. "Metal Foams as Novel Catalyst Support in Environmental Processes" Catalysts 9, no. 7: 587. https://doi.org/10.3390/catal9070587

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
