Oxidative Thermal Sintering and Redispersion of Rh Nanoparticles on Supports with High Oxygen Ion Lability

Laboratory of Physical Chemistry & Chemical Processes (, School of Environmental Engineering, Technical University of Crete, GR-73100 Chania, Greece
European Bioenergy Research Institute, Aston University, Aston Triangle, Birmingham B4 7ET, UK
The School of Chemical Engineering and Analytical Science, The University of Manchester, Manchester M13 9PL, UK
Diamond Light Source, Harwell Campus, The University of Manchester at Harwell, Didcot OX11 0DE, UK
Department of Chemical Engineering, University of Patras, GR-26500 Patras, Greece
Department of Chemistry, Cambridge University, Cambridge CB2 1EW, UK
Author to whom correspondence should be addressed.
Catalysts 2019, 9(6), 541;
Received: 21 May 2019 / Revised: 10 June 2019 / Accepted: 11 June 2019 / Published: 17 June 2019
(This article belongs to the Special Issue Nanomaterials in Catalysis Applications)


The thermal sintering under oxidative conditions of Rh nanoparticles supported on oxides characterized by very different oxygen storage capacities (OSC) and labilities was studied at 750 and 850 °C. Under sintering conditions, significant particle growth occurred for Rh/γ-Al2O3 (up to 120% at 850 °C). In striking contrast, Rh/ACZ (alumina–ceria–zirconia) and Rh/CZ (ceria–zirconia) exhibited marked resistance to sintering, and even moderate (ca. −10% at 850 °C) to pronounced (ca. −60% at 850 °C) redispersion of the Rh. A model is proposed based on a double-layer description of metal–support interactions assigned to back-spillover of labile oxygen ions onto the Rh particles, accompanied by trapping of atomic Rh by the resulting surface oxygen vacancies. This model accounts for the observed resistance to sintering and actual redispersion of Rh, consistent with both alternative sintering mechanisms, namely Ostwald ripening (OR) or particle migration and coalescence (PMC).

Graphical Abstract

1. Introduction

The vast majority of commercial heterogeneous catalysts consist of metal nanoparticles (NPs) supported on oxides, mixed oxides or other high-surface-area materials. Restricting the active phases to the nanoscale maximizes both the number of active catalytic sites and the interaction area between the active phase and the supports [1,2]. The former provides efficient utilization of scarce and expensive platinum group metals (PGMs) whilst the latter commonly leads to beneficial promotional effects on catalytic performance for a range of reactions resulting from the so-called metal–support interaction [3,4,5,6,7,8,9,10]. Major advances in nanocatalysis have been achieved recently due to the advent of new or optimized traditional synthesis routes that enable the deposition of NPs with very narrow particle size distributions, even to the level of atomic dispersion [1,2,11,12,13,14,15].
However, deterioration of catalytic performance via thermal agglomeration under typical operating conditions or during regeneration remains a key problem that has received much attention both for reasons of fundamental significance and practical importance [16,17,18,19,20,21]. It is a leading cause of the degradation of industrial catalysts used for large-scale synthesis of commodity chemicals as well as energy and environmental catalytic applications that operate at elevated temperatures.
Up to date accounts of the mechanisms invoked are available in the comprehensive reviews of Dai et al. [18], Goodman et al. [19] and Hansen et al. [20]. There are two main categories (Figure 1): Either migration of entire nanoparticles and subsequent coalescence (PMC); or net transport of single atomic species from smaller to larger nanoparticles so-called atomic ripening (AR), which includes the particular case of Ostwald ripening (OR) (path b in Figure 1)—AR refers to any path of atom migration, either over the surface of the support, or via the vapor phase [19]. Traditional analyses (e.g., ex situ transmission electron microscopy (TEM)) of samples subjected to a variety of sintering protocols makes distinguishing between OR and PMC a nontrivial and often impossible issue. Modes of sintering are strongly dependent on the metal–support couple under consideration, as well as on the reaction conditions and temperature. Modern state-of-the-art in situ TEM techniques have greatly increased our knowledge, providing clear evidence that OR is the dominant mechanism in some specific catalytic systems [22,23]. On the other hand, very recent literature points to the importance of PMC in controlling sintering of dispersed nanoparticles. Thus, by means of precise atomic layer deposition and modeling, Grillo et al. [14,15] demonstrated that NPs grew mainly via particle migration and coalescence (PMC) rather than by OR. They claimed that OR of supported noble metals NPs is a slow process that typically dominates the late stages of growth of large immobile NPs (ca. >5 nm) at high temperatures (400–1000 °C) and over long time scales (hours to years) [14].
Since all heterogeneous catalysts are inevitably subjected to sintering during operation and regeneration [16,21], regardless of mechanism, the effect poses a grand challenge for the development of sinter-resistant catalysts [18,19]. Both PMC and OR mechanisms require the breaking of bonds between metal atoms and between metal atoms and the support surface, so that sintering is always a strong function of temperature. The characteristic temperatures for atom detachment and their subsequent diffusion can be estimated from the respective Hütting and Tamman temperatures (TH = 0.3Tmelting, TT = 0.5Tmelting) [16,21] which provide an indication of the temperatures at which surface and bulk atoms are mobilized. Indeed, the susceptibilities to sintering of some common heterogeneous catalysts in their metallic state (under reducing atmosphere) are in accordance with their TH and TT temperatures: Nanoparticle stability generally decreases with decreasing TH and TT temperatures in the sequence: Ru > Ir > Rh > Pt > Pd > Ni > Cu > Ag [21]. The actual order is, of course, subject to metal–support adhesion energy and possible strong interactions that can influence behavior in many practical catalyst systems. In oxidizing atmospheres, TH and TT are of much less use for the prediction of nanoparticle stability which also depends on their volatility, thermal stability (some metal oxides decompose before TH or TT are reached) and the strength of the metal–oxide–support interaction [16,21]. Indeed, for PGMs dispersed on a relatively inert support (γ-Al2O3) Fiedorow et al. [24] obtained the following stability sequence in oxidizing atmospheres Rh > Pt > Ir > Ru, which does not match the order indicated by the TT of the corresponding PGM oxides (RuO2(735K), Rh2O3(687K), IrO2(685K), PtO2(362K)). However, under reducing conditions (NPs in the metallic state), the stability sequence was Ir~Ru > Rh > Pt in agreement with their TT values.
As noted above, metal–support interactions may drastically alter such simplified predictions. Accordingly, strategies that involve enhancement of the interaction of NPs with the supports have often been used in efforts aimed at designing sinter-resistant catalysts; a comprehensive tutorial review by Dai et al. [18] is available. In this respect, atom trapping, i.e., immobilization of isolated single atoms at support sites is a new and promising approach, especially with supports that provide surface lattice oxygen defects that could act as trapping centers [11,12,13]. CeO2- and ZrO2-based materials and perovskites that contain a sufficient concentration of surface and bulk oxygen vacancies can provide traps for metal atoms during their diffusion and indeed have been successfully used for this purpose [8,25,26,27,28,29].
Atom trapping methodology may also be used to induce on-stream redispersion of catalyst particles by applying oxidizing conditions at a high temperature [11]. This is of major importance in the chemical industry and studies involving redispersion of PGM nanoparticles, mainly Pt, have recently appeared [13,30,31,32]. In the absence of trapping centers, high-temperature oxidative treatment inevitably leads to particle agglomeration. Fewer studies on the sintering behavior of other PGMs have appeared, Ir [8,27,28], Pd [29], and Rh [33,34,35,36]. Notably, and of direct relevance to the present paper, reports on their potential for in situ redispersion are absent.
Here, we report the resistance, or lack of resistance, to sintering and also the in situ on-stream high-temperature oxidative redispersion of Rh nanoparticles deposited on oxide supports encompassing a wide range of lattice oxygen ion lability, namely γ-Al2O3, alumina–ceria–zirconia (ACZ: 80 wt % Al2O3–20 wt % Ce0.5Zr0.5O2-δ) and ceria-zirconia (CZ: Ce0.5Zr0.5O2-δ) supports. It is found that the higher the oxygen ion lability of the support, the lower the propensity of the nanoparticles to sintering, and most importantly, the higher the propensity towards redispersion at high temperatures. The sintering model recently developed by our group [8,27,28] explains the observed behavior in terms of both OR and PMC mechanisms. As we shall see, it also provides a satisfactory explanation of the redispersion phenomena found here. To the best of our knowledge, this is the first report of Rh redispersion achieved by a simple in situ and cost-effective atomic trapping methodology.

2. Results and Discussion

2.1. Materials Characterization

2.1.1. Textural Characteristics

The pore size distributions of the γ-Al2O3, ACZ and CZ supports and the corresponding Rh/γ-Al2O3, Rh/ACZ and Rh/CZ catalysts are shown in Figure 2; the insets depict the corresponding N2 adsorption–desorption isotherms at −196 °C. γ-Al2O3 and Rh/γ-Al2O3 exhibited type IV isotherms similar to mesoporous oxides according to IUPAC classification, with a H1 hysteresis loop suggesting a channel-like structure with spherical or cylindrical mesopores [37]. The isotherms did not show a distinct plateau at 0.8 < P/Po < 1 probably due to the presence of macroporosity and interparticle porosity. On the other hand, the absence of the characteristic steep rise at the beginning of the absorption branch suggests the absence of micropores. The calculated pore size distribution (PSD) using the Barrett–Joyner–Halenda (BJH) model showed two distributions of mesopores with diameters ~10 and ~15 nm, respectively. In a similar manner the ACZ and Rh/ACZ isotherms may be identified as type IV with H1 tending to H2-type hysteresis, characteristic of cylindrical and cylindrical-ink-bottle pores with a fairly narrow unimodal pore-size distribution of ~8 nm diameter. This is in accord with Brunauer–Emmett–Teller (BET)-BJH results reported for similar materials [38]. CZ and Rh/CZ yield type IV isotherms with H2-like hysteresis attributed to cylindrical-ink-bottle pores with principal distribution centered at ~9 nm diameter, characteristics in agreement with literature data [39,40].
The textural characteristics of the supports and the corresponding Rh catalysts, obtained by means of the BET-BJH method, are summarized in Table 1. It is apparent that differences between the textural characteristics of the supports and the corresponding catalysts are marginal; the small decreases in the total surface areas and pore volumes between pristine supports and the counterpart Rh catalysts indicates the expected presence of some mesopore blocking by the metal particles. The table also includes the inductively coupled plasma–optical emission spectroscopy (ICP-OES) determined Rh loadings of the three catalysts. For Rh/γ-Al2O3, it was 1 wt %, corresponding to the nominal expected value; slightly lower on Rh/ACZ and Rh/CZ (0.8 wt %).

2.1.2. Reducibility Characteristics

Figure 3 depicts the H2 consumption profiles of the supports (Figure 3a) and the Rh catalyst counterparts (Figure 3b) obtained by temperature programmed reduction with hydrogen (H2-TPR) experiments. Since our attention is focused on the amount of labile lattice oxygen in these materials, the discussion below provides this quantity in μmol O2 per gram of material, which corresponds to half of the amount of consumed H2. The oxygen storage capacities for both supports and catalysts assessed by H2-TPR (Figure 3) are included in Table 1. The values of 0, 101 and 557 μmol O2 g−1 for the γ-Al2O3, ACZ and CZ supports, respectively, reflect the nonreducible character of γ-Al2O3, and the Ce4+→Ce3+ reduction of ACZ and CZ supports giving rise in the latter cases to two broad overlapping peaks at ca. 450–500 °C and 650–700 °C (Figure 3a). This is a feature characteristic of ceria-containing samples [41,42]; the low-temperature (LT) peak is attributed to superficial reduction taking place at CZ surfaces, whilst the high-temperature (HT) one is assigned to reduction of bulk ceria [41].
Dispersion of ~1 wt % Rh on the supports resulted in an increase in the hydrogen consumption, thus in oxygen capacity, for all three cases, yielding respectively 70, 146 and 589 μmol O2 g−1 values for Rh/γ-Al2O3, Rh/ACZ and Rh/CZ. These higher values compared to the corresponding values (i.e., 0, 101 and 557 μmol O2 g−1) for the γ-Al2O3, ACZ and CZ supports, respectively, reflect the contribution of rhodium oxide reduction to the metallic phase. Specifically, for Rh/γ-Al2O3, the peak at ca. 150 °C and a broader one at ca. 500 °C, corresponding to 45 and 25 μmol O2 g−1, respectively, due to rhodium oxide reduction, are equivalent to a total of 70 μmol O2 g−1, which is very close to the theoretically calculated amount of 73 μmol O2 g−1 for Rh2O3→Rh0 reduction with 1 wt % Rh in the catalyst. The LT peak (~150 °C) can be attributed to reduction of Rh2O3 species on the alumina surface, while the broad HT peak (~500 °C) could originate from reduction of RhAlxOy formed at the metal–support interface by diffusion of rhodium oxide into the alumina, as reported in the literature [36]. The Rh oxide reduction peaks for both Rh/ACZ and Rh/CZ appear at a much lower temperature (ca. 90 °C) compared to Rh/γ-Al2O3. This is due to hydrogen spillover that promotes the reducibility of both CeO2 and Rh2O3 [7,41,42]. The oxygen capacities corresponding to Rh oxide reduction on Rh/ACZ and Rh/CZ were 45 and 32 μmol O2 g−1, respectively, i.e., both significantly lower than 58.4 μmol O2 g−1 calculated theoretically for these samples containing 0.8 wt % Rh.
This is in agreement with our recent results which demonstrated that rhodium nanoparticles anchored on supports with high oxygen ions lability undergo only partial oxidation because strong interactions with these supports destabilizes the Rh oxide phase [43]. In particular, the capacity of 32 μmol O2 g−1 found for Rh/CZ, where all Rh particles are in interaction with CZ, is close to the theoretical value of 29.2 which corresponds to the transformation of Rh1+→Rh0. This is in good agreement with our recent X-ray photoelectron spectroscopy (XPS) findings, which showed that Rh1+ was the only metal phase present on preoxidized Rh/CZ resulting from extensive O2− back-spillover from the CZ support to Rh particles, thus weakening the Rh-O bond and destabilizing the Rh2O3 phase [43]. At the same time, the enhanced reducibility of ACZ and CZ is evidenced by the substantial shift of the peaks attributed to ceria reduction to lower temperature (ca. 150–450 °C, Figure 3b) indicating strong promotion of H2 spillover, which, in the absence of metal, is limited by H2 dissociation [41,42].

2.1.3. Structural and Morphological Characteristics

Powder X-ray diffraction (PXRD) data for the fresh Rh/γ-Al2O3, Rh/ACZ and Rh/CZ catalysts [43] showed no diffraction peaks corresponding to Rh due to the small metal particle size (<~5 nm), as indeed confirmed by the H2 titration data (Table 2); Rh nanoparticles were, however, visible by high-resolution transmission electron microscopy (HRTEM) as shown below. Characteristic reflections of a Ce0.5Zr0.5O2-δ solid solution were detected in the CZ-containing samples (Rh/ACZ and Rh/CZ). Also observed in the Rh/ACZ catalyst were distinct phases of γ-Al2O3 and CZ, consistent with a mutual partial coating of the two substances at the nanometer scale, in accord with the literature for ACZ mixed oxides prepared by a similar method [7,44,45]. Since the percentage of the CZ component in ACZ support is low (20%), γ-Al2O3 is expected to predominate at the surface—the so-called “alumina diffusion-barrier” [44] characteristic of ACZ composites synthesized as here—which inhibits segregation of alumina and CZ phases at elevated temperatures, thus preventing sintering of noble metal nanoparticles.
Figure 4A shows representative HRTEM images and corresponding particle size distributions for the three freshly prepared catalysts (a) Rh/γ-Al2O3, (b) Rh/ACZ and (c) Rh/CZ which exhibited small randomly distributed spherical metal particles of 1.3 ± 0.4, 1.5 ± 0.5 and 5.1 ± 1.7, respectively (Figure 4A(a,b,c) and Table 2). Oxidative sintering in 20% O2/He flow at 750 °C for 2 h (Sinter #1, Figure 4B), followed by additional sintering in the same environment at 850 °C for 2 h (Sinter #2, Figure 4C) caused significant changes in the mean Rh particle size distribution (though not in particle shape). This implies the simultaneous occurrence of both particle growth and particle redispersion whose relative importance depends strongly on the identity of the supporting material, as discussed in detail below.

2.2. Sintering Behavior

Sintering of Rh nanoparticles on the three supports was investigated by means of H2-chemisorption (H2-uptake data shown in Supplementary Material, Table S1), and corroborated by HRTEM measurements on the (A) fresh, (B) Sinter #1 and (C) Sinter #2 series of the (a) Rh/γ-Al2O3, (b) Rh/ACZ and (c) Rh/CZ samples shown in Figure 4. The resulting mean particle sizes are summarized in Table 2, while the influence of sintering time/temperature and support oxygen storage capacity on Rh particle growth or redispersion defined by the equation
%Rh particle growth = 100∙(PS − PSo)/PSo
are shown in Figure 5 and Figure 6, respectively, where PS denotes mean Rh particle size and the superscript “o” refers to fresh unsintered samples.
The particle sizes (Table 2) measured by TEM (a local technique) and H2-chemisorption (a surface average technique) are in close agreement. Note, however, that the TEM particle size is a number average (counted once per particle) that includes only particles above the instrumental detection limit. H2-chemisorption is a highly sensitive technique that assays all different sizes of Rh clusters on the catalyst surface (though possibly vulnerable to some error from metal–support interaction effects and spillover of hydrogen from the metal to or from the support). H2-chemisorption was, therefore, used as the preferred method for monitoring particle growth and redispersion.
Nanoparticles on γ-Al2O3 exhibited an about 33% growth after procedure Sinter #1 and significantly higher growth, ~117%, after additional sintering according to Sinter #2 (Figure 5, Table 2 and TEM images Figure 4A(a)→4B(a)→4C(a)). In contrast, nanoparticles on ACZ, and especially on CZ, underwent redispersion, which is much more pronounced in the latter case: An initial ~22% redispersion on Rh/ACZ after 2 h of sintering at 750 °C (Sinter #1) was followed by particle growth after two additional hours sintering at 850 °C (Sinter #2), finally leading to only marginal redispersion of ~6% (Figure 5, Table 2 and TEM images Figure 4A(b)→4B(b)→4C(b)). For Rh/CZ however, an initial extended redispersion of ~58% occurred during Sinter #1 and remained almost unaffected after Sinter #2 (Figure 5, Table 2 and TEM images Figure 4A(c)→4B(c)→4C(c)).
Clearly, the nature of the support strongly influences the oxidative sintering behavior of Rh nanoparticles: Supports without or negligible amounts of labile lattice oxygen (i.e., γ-Al2O3 with OSC ~0) do not prevent particle growth of Rh, as found recently for Ir nanoparticles supported on γ-Al2O3 [8,27,28]. In contrast, supports with high oxygen ion lability (i.e., ACZ and CZ with OSC of 101 and 557 μmol O2 g−1, respectively) not only prevent sintering as also found for Ir [8,27,28], but actually promote Rh redispersion: The higher the OSC of the support, the greater the resulting redispersion, as shown in Figure 6.

2.3. Mechanistic Implications of Sinter-Resistant and Redispersion Phenomena

Oxidative redispersion of supported platinum group metals is well known, as recently reviewed by Morgan et al. [30]. In the case of reducible supports, such as ACZ and CZ, it is most likely mediated by metal–support interaction involving atomic trapping [11,12,13] at support sites of atomic species detached from nanoparticles (the initiating step in the OR mechanism of sintering [18,19,20]). As shown in the present work, redispersion depends strongly on the reducibility of the support, i.e., its labile lattice oxygen content, or, equivalently, its oxygen storage capacity (Figure 5 and Figure 6); the effect is very pronounced on CZ, less so on ACZ and absent in the case of γ-Al2O3. In the latter case, extensive particle growth occurred, rather than redispersion. It is therefore reasonable to conclude that surface oxygen defects in the support, so-called oxygen vacancies (VÖ in Kröger–Vink defect notation for point defects in crystals) are the active centers for atom trapping.
We recently developed a plausible model which explained the resistance to oxidative thermal sintering of Ir nanoparticles dispersed on oxide supports with high oxygen ion lability [8,27,28]. This involved the key role of the effective double layer [Oδ−, δ+] account of metal–support interactions [3,9,10,46], whereby thermally driven O2− back-spillover from supports with substantial labile oxygen onto catalyst nanoparticles affects not only their intrinsic surface activity [3,4,5,6,7,8,9,10,46], but also their sintering behavior (Figure 7), as we demonstrated for the first time in References [8,27,28]. We argued that the [Oδ−, δ+] double layer endows catalyst particles with a negative charge at their gas-exposed surfaces, leading to interparticle repulsion at short range, thus preventing particle–particle encounters followed by coalescence (i.e., PMC): The higher the lability of O2− in the support, the lower the vulnerability of the nanoparticles to sintering in an oxidative environment [8,27]. The model also implied simultaneous occurrence of atomic trapping as a contributing factor in the sinter-resistant mechanism: Labile support lattice oxygen creates surface oxygen vacancies (VÖ) that act as traps for very small (atomic) metal particles, thus inhibiting their diffusion and agglomeration [8]. At the same time, the Oδ− modified surface barrier present on large catalyst particles increases the activation energies for detachment and reattachment of metal entities whose transport would otherwise lead to continuous growth of large particles at the expense of smaller particles according to the OR model of sintering.
These effects on metal transport would be negligible for low-lability supports (e.g., Al2O3), which therefore cannot prevent particle agglomeration by either PMC or OR mechanisms. It is worth noting that pure CeO2 has a relatively low concentration of lattice defects in comparison to Gd2O3 or ZrO2-doped CeO2. Therefore, the optimal supports for providing sinter resistance should be those with highest O2− ion mobility, such as CeO2 modified with cations such as gadolinium, zirconium and others that act to enhance ceria lattice defects, increasing O2− vacancies and consequently O2− mobility [5,47,48].
A summary of the factors that inhibit sintering according to effective double-layer approach is depicted schematically Figure 8. Three mechanistic paths are associated with particle growth and our model includes several factors that control their occurrence and strength. Path I concerns large particle migration and coalescence (PMC) which, in our model, can be strongly inhibited by electrostatic interparticle repulsion due to the presence of the effective double layer. Path II (a and b) concerns the OR sequence, i.e., atom detachment (IIa) and reattachment (IIb), both of which are inhibited by the increased activation energies arising from the Oδ−-modified metal particle surfaces. Path III concerns the diffusion of detached atomic species from smaller particles towards larger ones, which is strongly inhibited by atom trapping at VÖ centers.
According to this view, the behavior of Rh particles towards sintering shown in Figure 5 and Figure 6 may be rationalized. The absence of an effective double layer (Rh/Al2O3) leads to severe particle growth, up to ~120% as a function of sintering time and temperature (Figure 5); none of the possible antisintering factors are available. On the other hand, the presence of an effective double layer and its effects on metal transport can lead to either moderate particle growth, sinter prevention or even redispersion, depending on the strength of the phenomena. Thus, for Rh/ACZ, characterized by moderate oxygen ion lability, an initial slight redispersion after 2 h under sintering conditions was almost quenched after 4 h. Evidently, the moderately intense effective double layer could suppress PMC by interparticle repulsion forces, although path IIa, i.e., atom detachment via Ostwald ripening, still seems to have been operating. Diffusing detached atoms on the mixed alumina–CZ surface initially had a finite possibility of encountering trapping centers on the CZ compartment. Otherwise, they were recaptured by large particles, resulting in moderate redispersion (Figure 5). Under further sintering, the population of Rh atom trapping centers was progressively reduced, eventually reversing the net effect as observed (Figure 5). We cannot exclude the possibility that some detached atoms underwent diffusion on the alumina component of the ACZ support. Nevertheless, the overall sintering propensity should be less than that of pure Rh/Al2O3, accounting for the very different sintering behavior of Rh/Al2O3 and Rh/ACZ; the sintering characteristics of Rh/ACZ are closer to those of Rh/CZ than Rh/Al2O3 (Figure 5 and Figure 6). Finally, with Rh/CZ, the expected dense effective double layer on Rh particles strongly suppressed PMC. At the same time, the concomitant high population of support trapping centers acted to efficiently trap detached atoms strongly inhibiting the occurrence of path IIb. The net result was pronounced Rh redispersion, even after prolonged sintering (Figure 5 and Figure 6).

3. Experimental

3.1. Preparation and Aging of Catalysts

Rh nanoparticles were dispersed by wet impregnation on γ-Al2O3, ACZ (80 wt % Al2O3–20 wt % Ce0.5Zr0.5O2-δ) and CZ (Ce0.5Zr0.5O2-δ) supports, with a 1.0 wt % Rh nominal loading. γ-Al2O3 was obtained from Engelhard (Engelhard de Meern B.V., The Netherlands) and ground to a powder. Powders of ACZ and CZ were prepared by coprecipitation, of the corresponding precursor salts Al(NO3)3·9H2O, Zr(NO3)2·H2O and Ce(NO3)3·6H2O supplied by Alfa Aesar (Haverhill, MA, USA), followed by calcination at 800 °C for 1 h, as described in detail elsewhere [7].
Rhodium (III) nitrate solution (10% w/v Rh in 20–25 wt % HNO3) purchased from Acros Organics was used as the metal precursor after dilution in water in order to produce a 2 mg Rh/mL concentrated solution of Rh(NO3)3. An appropriate amount of each support was impregnated with this solution under continuous stirring at 75 °C to yield supported catalysts with 1.0 wt % Rh nominal loading. After water evaporation, the suspension was dried at 110 °C for 12 h and then calcined in air at 450 °C for 1 h to decompose the nitrate precursor. The resulting materials were reduced at 400 °C under 50% H2/He flow for 2 h followed by heating (20 °C/min) under 1% H2/He flow to 800 °C, maintained for 1 h. The as-prepared Rh/γ-Al2O3, Rh/ACZ and Rh/CZ catalysts are hereafter denoted as “fresh” (Table 1).
Sintering behavior was investigated by means of two aging protocols: (i) Heating in 10 NmL∙min−1 20% O2/He flow at 750 °C for 2 h, and (ii) heating in 10 NmL∙min−1 20% O2/He flow at 750 °C for 2 h followed by further heating at 850 °C for 2 h, hereafter denoted as Sinter #1 and Sinter #2 samples, respectively. In accord with the literature, no rhodium weight loss is expected at these temperatures and times [49,50,51].

3.2. Characterization Methods

Textural, structural and other physicochemical characterizations of the catalysts were performed by a variety of techniques as follows:
Inductively Coupled Plasma–Optical Emission Spectroscopy (ICP-OES) Measurements: Total Rh contents were obtained by means of ICP-OES using a Thermo Scientific iCAP 7400 duo instrument (Waltham, MA, USA). Details of the method and sample pretreatment before the ICP-OES measurements can be found in our previous report [43].
BET Measurements: Total surface areas (SBET), average pore volume and mean pore size diameters were determined according to the Brunauer–Emmett–Teller (BET) and Barret–Joyner–Halenda (BJH) methods from N2 adsorption–desorption isotherms obtained with a Quantachrome Nova 2200e instrument (Boynton Beach, FL, USA) at −196 °C. The total pore volume calculation was based on the nitrogen volume obtained at the highest relative pressure. Prior to measurements, the samples were degassed at 350 °C for 12 h under vacuum.
Isothermal Hydrogen Chemisorption (H2-Chem.): Determination of the number of Rh surface sites, (Rh dispersion) and the associated crystallite sizes were achieved by isothermal (at 0 °C) hydrogen chemisorption measurements carried out on a Quantachrome ChemBet Pulsar TPR/TPD chemisorption analyzer (Boynton Beach, Florida) equipped with an Omnistar/Pfeiffer Vacuum mass spectrometer. To this end, ~150 mg of catalyst was loaded into a quartz U-tube connected to the analyzer and pretreated as follows before the measurement: Reduction at 550 °C for 1 h with a flux of 5% H2 in He (15 NmL/min), gas phase purging at the same temperature for 0.5 h by N2 flux (15 Nm/min) and finally cooling 0 °C (ice/water bath) under N2 flow. Pulses of pure hydrogen (280 μL) were then injected until saturation, thus providing the total uptake of chemisorbed hydrogen. These values were used to estimate the number of active surface sites, and hence Rh dispersion and mean crystallite size. The low temperature used for these measurements avoided hydrogen spillover in the case of CeO2-containing supports.
HydrogenTemperatureProgrammed Reduction Measurements: H2-TPR measurements were carried out in the temperature interval 30–850 °C using the same instrumentation as employed for H2-chemisorption experiments. To this end, ~150 mg of catalyst was loaded into a quartz U-tube connected to the TPR apparatus and preoxidized in situ with 20% O2/He at 750 °C for 0.5 h, cooled to room temperature under the same atmosphere, then purged under He flow for 0.5 h. After this pretreatment, a flow of 15 NmL min−1 of 1% v/v H2 in He was continuously passed through the sample and a linear temperature ramp from ~30 °C up to 850 °C was applied at 10 °C min−1 and the H2 content of the effluent gas was measured by MS (H2-TPR spectra). The integrated peak areas were used to calculate the total amount of H2 consumed (in μmol H2 g−1) by labile lattice oxygen; half of this quantity represents the total oxygen storage capacity, OSC, in μmol O2 g−1 [52,53].
TEM Measurements: High-resolution TEM images obtained with an aberration corrected JEOL 2100-F microscope (Tokyo, Japan) operated at 200 kV. Samples were gently ground in high-purity methanol using an agate pestle and mortar prior to TEM observations. The resulting samples were deposited on 300-mesh-carbon-supported copper grids and dried under ambient conditions. ImageJ 1.41 software was used for Image analysis. In order to enable the comparison between Rh particle sizes obtained by H2-chemisoprtion and by TEM, the latter were performed with samples that were preconditioned under the same reducing conditions as those used for the H2-chemisoprtion experiments.
Powder X-ray Diffraction Measurements: PXRD characterization of the fresh catalysts was performed with a Bruker D8 Advance Diffractometer (Billerica, MA, USA) with a LynxEye high-speed strip detector using Cu Kα1 (λ = 0.1542 nm) radiation.

4. Conclusions

Rh nanoparticles dispersed on a variety of oxide supports exhibit markedly different thermal sintering characteristics under oxidative environments, which correlate with the oxygen ion lability of the support.
  • γ-Al2O3 provided little or no resistance to sintering, leading to ~50% Rh particle growth at 750 °C after 2 h and ~150% at 850 °C after two additional hours.
  • High resistance to sintering and even redispersion occurred on ACZ and CZ, characterized respectively by moderate and high values of labile lattice oxygen capacity (~101 and 557 μmol O2 g−1, respectively); the higher the OSC of the support, the greater the extent of particle redispersion—which increased with increasing sintering temperature.
This resistance to sintering and the previously unreported actual redispersion of Rh particles can be rationalized by taking into account the synergistic action of two phenomena: (i) The presence of a spontaneously formed [Oδ−, δ+] double layer on the metal particles resulting from thermally driven oxygen back-spillover from high OSC supports. This effect quenches large particle migration and coalescence (PMC) due to the resulting interparticle electrostatic repulsion and (ii) the trapping of Rh atoms detached from large Rh crystallites by surface oxygen vacancies in the support material, thus suppressing diffusion of rhodium species on the support and their subsequent attachment to larger particles; the higher the population of surface oxygen vacancies on the support the greater the redispersion of Rh, which increased with temperature.
The observed behavior is fully consistent with the proposed model.
In light of these findings a new methodology for in situ on-stream controlled redispersion of metal catalysts may be devised, with potentially major implications for industrial heterogeneous catalysis.

Supplementary Materials

The following are available online at Table S1: H2-uptake values obtained by the isothermal H2-chemisorption experiments and corresponding Rh dispersion values, D (%); Equations used for the calculation of dispersion, active metal surface area and particle size values.

Author Contributions

G.G., G.B., contributed to materials synthesis, characterization and analysis of the results; A.O., C.M.A.P. and G.K. contributed to materials characterization and analysis of the results; G.K. and R.M.L. contributed to results interpretation and paper writing; I.V.Y. contributed to the conceptualization, methodology, results interpretation and visualization, writing the original draft and funding acquisition; All authors contributed to review and editing, discussion, read and approved the final version of the manuscript.


This research was co-financed by the European Union and Greek national funds through the Operational Program Competitiveness, Entrepreneurship and Innovation, under the call RESEARCH–CREATE–INNOVATE (project code: T1EΔK-00782).


The authors acknowledge financial support by the European Union and Greek national funds through the Operational Program “Competitiveness, Entrepreneurship and Innovation”, under the call “RESEARCH-CREATE-INNOVATE” (project code: T1EΔK-00782).

Conflicts of Interest

The authors declare no conflicts of interest.


  1. Yang, X.-F.; Wang, A.; Qiao, B.; Li, J.; Liu, J.; Zhang, T. Single-atom catalysts: A new frontier in heterogeneous catalysis. Acc. Chem. Res. 2013, 46, 1740–1748. [Google Scholar] [CrossRef] [PubMed]
  2. Flytzani-Stephanopoulos, M.; Gates, B.C. Atomically dispersed supported metal catalysts. Ann. Rev. Chem. Biomol. Eng. 2012, 3, 545–574. [Google Scholar] [CrossRef]
  3. Pliangos, A.; Yentekakis, I.V.; Papadakis, V.G.; Vayenas, C.G.; Verykios, X.E. Support-induced promotional effects on the activity of automotive exhaust catalysts: 1. The case of oxidation of light hydrocarbons (C2H4). Appl. Catal. B Environ. 1997, 14, 161–173. [Google Scholar] [CrossRef]
  4. Papadakis, V.G.; Pliangos, C.A.; Yentekakis, I.V.; Verykios, X.E.; Vayenas, C.G. Development of high performance, Pd-based, three way catalysts. Catal. Today 1996, 29, 71–75. [Google Scholar] [CrossRef]
  5. Yentekakis, I.V.; Pliangos, C.A.; Papadakis, V.G.; Verykios, X.E.; Vayenas, C.G. Support and NEMCA induced promotional effects on the activity of automotive exhaust catalysts. Stud. Surf. Sci. Catal. 1995, 96, 375–385. [Google Scholar] [CrossRef]
  6. Konsolakis, M.; Drosou, C.; Yentekakis, I.V. Support mediated promotional effects of rare earth oxides (CeO2 and La2O3) on N2O decomposition and N2O reduction by CO and C3H6 over Pt/Al2O3 structured catalysts. Appl. Catal. B 2012, 123–124, 405–413. [Google Scholar] [CrossRef]
  7. Papavasiliou, A.; Tsetsekou, A.; Matsuka, V.; Konsolakis, M.; Yentekakis, I.V. An investigation of the role of Zr and La dopants into Ce1-x-yZrxLayOδ enriched γ-Al2O3 TWC washcoats. Appl. Catal. A 2010, 382, 73–84. [Google Scholar] [CrossRef]
  8. Yentekakis, I.V.; Goula, G.; Kampouri, S.; Betsi-Argyropoulou, I.; Panagiotopoulou, P.; Taylor, M.J.; Kyriakou, G.; Lambert, R.M. Ir-catalyzed Nitrous oxide (N2O) decomposition: Effect of the Ir particle size and metal-support interactions. Catal. Lett. 2018, 148, 341–347. [Google Scholar] [CrossRef]
  9. Nicole, J.; Tsiplakides, D.; Pliangos, C.; Verykios, X.E.; Comninellis, C.; Vayenas, C.G. Electrochemical promotion and metal-support interactions. J. Catal. 2001, 204, 23–34. [Google Scholar] [CrossRef]
  10. Vernoux, P.; Lizarraga, L.; Tsampas, M.N.; Sapountzi, F.M.; De Lucas-Consuegra, A.; Valverde, J.-L.; Souentie, S.; Vayenas, C.G.; Tsiplakides, D.; Balomenou, S.; et al. Ionically Conducting Ceramics as Active Catalyst Supports. Chem. Rev. 2013, 113, 8192–8260. [Google Scholar] [CrossRef]
  11. Datye, A.; Wang, Y. Atom trapping: A novel approach to generate thermally stable and regenerable single-atom catalysts. Natl. Sci. Rev. 2018, 5, 630–632. [Google Scholar] [CrossRef]
  12. Qiao, B.; Wang, A.; Yang, X.; Allard, L.F.; Jiang, Z.; Cui, Y.; Liu, J.; Li, J.; Zhang, T. Single-atom catalysis of CO oxidation using Pt1/FeOx. Nat. Chem. 2011, 3, 634–641. [Google Scholar] [CrossRef] [PubMed]
  13. Jones, J.; Xiong, H.; DeLaRiva, A.T.; Peterson, E.J.; Pham, H.; Challa, S.R.; Qi, G.; Oh, S.; Wiebenga, M.H.; Hernandez, X.I.P.; et al. Thermally stable single-atom platinum-on-ceria catalysts via atom trapping. Science 2016, 353, 150–154. [Google Scholar] [CrossRef] [PubMed][Green Version]
  14. Grillo, F.; Van Bui, H.; Moulijn, J.A.; Kreutzer, M.T.; van Ommen, R. Understanding and controlling the aggregative growth of platinum nanoparticles in atomic layer deposition: An avenue to size selection. J. Phys. Chem. Lett. 2017, 8, 975–983. [Google Scholar] [CrossRef] [PubMed]
  15. Grillo, F.; Van Bui, H.; La Zara, D.; Aarnink, A.I.; Kovalgin, A.Y.; Kooyman, P.; Kreutzer, M.T.; van Ommen, R. From single atoms to nanoparticles: Autocatalysis and metal aggregation in atomic layer deposition of Pt on TiO2 nanopowder. Small 2018, 14, 1800765. [Google Scholar] [CrossRef] [PubMed]
  16. Moulijn, J.A.; van Diepen, A.E.; Kapteijn, F. Catalyst deactivation: Is it predictable? What to do? Appl. Catal. A 2001, 212, 3–16. [Google Scholar] [CrossRef]
  17. Hu, S.; Li, W.-X. Influence of particle size distribution on lifetime and thermal stability of Ostwald ripening of supported particles. ChemCatChem 2018, 10, 1–9. [Google Scholar] [CrossRef]
  18. Dai, Y.; Lu, P.; Cao, Z.; Campbell, C.T.; Xia, Y. The physical chemistry and materials science behind sinter-resistant catalysts. Chem. Soc. Rev. 2018, 47, 4314–4331. [Google Scholar] [CrossRef] [PubMed]
  19. Goodman, E.D.; Schwalbe, J.A.; Cargnello, M. Mechanistic understanding and rational design of sinter-resistant heterogeneous catalysts. ACS Catal. 2017, 7, 7156–7173. [Google Scholar] [CrossRef]
  20. Hansen, T.W.; DeLaRiva, A.T.; Challa, S.R.; Datye, A.K. Sintering of Catalytic Nanoparticles: Particle Migration or Ostwald Ripening? Acc. Chem. Res. 2013, 46, 1720–1730. [Google Scholar] [CrossRef] [PubMed]
  21. Argyle, M.D.; Bartholomew, C.H. Heterogeneous Catalyst Deactivation and Regeneration: A Review. Catalysts 2015, 5, 145–269. [Google Scholar] [CrossRef][Green Version]
  22. Simonsen, S.B.; Chorkendorff, I.; Dahl, S.; Skoglundh, M.; Sehested, J.; Helveg, S. Direct observations of oxygen-induced platinum nanoparticle ripening studied by in situ TEM. J. Am. Chem. Soc. 2010, 132, 7968–7975. [Google Scholar] [CrossRef] [PubMed]
  23. DeLaRiva, A.T.; Hansen, T.W.; Challa, S.R.; Datye, A.K. In situ Transmission Electron Microscopy of catalyst sintering. J. Catal. 2013, 308, 291–305. [Google Scholar] [CrossRef]
  24. Fiedorow, R.M.J.; Chahar, B.S.; Wanke, S.E. The sintering of supported metal catalysts. II. Comparison of sintering rates of supported Pt, Ir, and Rh Catalysts in hydrogen and oxygen. J. Catal. 1978, 51, 193–202. [Google Scholar] [CrossRef]
  25. Nagai, Y.; Hirabayashi, T.; Dohmae, K.; Takagi, N.; Minami, T.; Shinjoh, H.; Matsumoto, S. Sintering inhibition mechanism of platinum supported on ceria-based oxide and Pt-oxide-support interaction. J. Catal. 2006, 242, 103–109. [Google Scholar] [CrossRef]
  26. Hatanaka, M.; Takahashi, N.; Tanabe, T.; Nagai, Y.; Dohmae, K.; Aoki, Y.; Yoshida, T.; Shinjoh, H. Ideal Pt loading for a Pt/CeO2-based catalyst stabilized by Pt-O-Ce bond. Appl. Catal. B 2010, 99, 336–342. [Google Scholar] [CrossRef]
  27. Yentekakis, I.V.; Goula, G.; Panagiotopoulou, P.; Kampouri, S.; Taylor, M.J.; Kyriakou, G.; Lambert, R.M. Stabilization of catalyst particles against sintering on oxide supports with high oxygen ion lability exemplified by Ir-catalysed decomposition of N2O. Appl. Catal. B 2016, 192, 357–364. [Google Scholar] [CrossRef]
  28. Yentekakis, I.V.; Goula, G.; Panagiotopoulou, P.; Katsoni, A.; Diamadopoulos, E.; Mantzavinos, D.; Delimitis, A. Dry reforming of methane: Catalytic performance and stability of Ir catalysts supported on γ-Al2O3, Zr0.92Y0.08O2-δ (YSZ) or Ce0.9Gd0.1O2-δ (GDC) supports. Top. Catal. 2015, 58, 1228–1241. [Google Scholar] [CrossRef]
  29. Nishihata, Y.; Mizuki, J.; Akao, T.; Tanaka, H.; Uenishi, M.; Kimura, M.; Okamoto, T.; Hamada, N. Self-regeneration of a Pd-perovskite catalyst for automotive emissions control. Nature 2002, 418, 164–167. [Google Scholar] [CrossRef]
  30. Morgan, K.; Goguet, A.; Hardacre, C. Metal redispersion strategies for recycling of supported metal catalysts: A perspective. ACS Catal. 2015, 5, 3430–3445. [Google Scholar] [CrossRef]
  31. Nagai, Y.; Dohmae, K.; Ikeda, Y.; Takagi, N.; Tanabe, T.; Hara, N.; Guilera, G.; Pascarelli, S.; Newton, M.A.; Kuno, O.; et al. In situ redispersion of platinum autoexhaust catalysts: An on-line approach to increasing catalyst lifetimes? Angew. Chem. Int. Ed. 2008, 47, 9303–9306. [Google Scholar] [CrossRef] [PubMed]
  32. Tanabe, T.; Nagai, Y.; Dohmae, K.; Sobukawa, H.; Shinjoh, H. Sintering and redispersion behavior of Pt on Pt/MgO. J. Catal. 2008, 257, 117–124. [Google Scholar] [CrossRef]
  33. Tanabe, T.; Morikawa, A.; Hatanaka, M.; Takahashi, N.; Nagai, Y.; Sato, A.; Kuno, O.; Suzuki, H.; Shinjoh, H. The interaction between supported Rh- and Nd2O3-enriched surface layer on ZrO2 for Rh sintering suppression. Catal. Today 2012, 184, 219–226. [Google Scholar] [CrossRef]
  34. Morikawa, A.; Tanabe, T.; Hatanaka, M.; Takahashi, N.; Sato, A.; Kuno, O.; Suzuki, H.; Shinjoh, H. Inhibition of Rh sintering and improved reducibility of Rh on ZrO2 nanocomposite with an Al2O3 diffusion barrier. Appl. Catal. A 2015, 493, 33–39. [Google Scholar] [CrossRef]
  35. Cao, Y.; Ran, R.; Wu, X.-Y.; Wu, X.-D.; Wan, J.; Weng, D. Ageing resistance of rhodium supported on CeO2-ZrO2 and ZrO2: Rhodium nanoparticle structure and Rh-support interaction under diverse ageing atmosphere. Catal. Today 2017, 281, 490–499. [Google Scholar] [CrossRef]
  36. Zhao, B.; Ran, R.; Cao, Y.; Wu, X.; Weng, D.; Fan, J.; Wu, X. Insight into the effects of different ageing protocols on Rh/Al2O3 catalyst. Appl. Surf. Sci. 2014, 308, 230–236. [Google Scholar] [CrossRef]
  37. Sing, K.S.W.; Everett, D.H.; Haul, R.A.W.; Moscou, L.; Pierotti, R.A.; Rouquerol, J.; Siemieniewska, T. Reporting physisorption data for gas/solid systems with special references to the determination of surface area and porosity. Pure Appl. Chem. 1985, 57, 603–619. [Google Scholar] [CrossRef]
  38. Lan, L.; Chen, S.; Zhao, M.; Gong, M.; Chen, Y. The effect of synthesis method on the properties and catalytic performance of Pd/Ce0.5Zr0.5O2-Al2O3 theree-way catalyst. J. Mol. Catal. A Chem. 2014, 394, 10–21. [Google Scholar] [CrossRef]
  39. Zhou, Y.; Cheng, X.; Li, S.; Xiong, L.; Yan, S.; Wang, J.; Chen, Y. Promotional effect of alkyl acids on thermal stability of nanostructured CeO-ZrO2-Y2O3-La2O3 and its application in automotive three-way catalysts. Mater. Sci. Eng. B 2017, 225, 10–19. [Google Scholar] [CrossRef]
  40. Chen, H.; Ye, Z.; Cui, X.; Shi, J.; Yan, D. A novel mesostructured alumina-ceria-zirconia tri-component nanocomposite with high thermal stability and its trhree-way catalysis. Microporous Mesoporous Mater. 2011, 143, 368–374. [Google Scholar] [CrossRef]
  41. Fornasiero, P.; Di Monte, R.; Ranga Rao, G.; Kaspar, J.; Meriani, S.; Trovarelli, A.; Graziani, M. Rh-Loaded CeO2-ZrO2 Solid-Solutions as Highly Efficient Oxygen Exchangers: Dependence of the Reduction Behavior and the Oxygen Storage Capacity on the Structural-Properties. J. Catal. 1995, 151, 168–177. [Google Scholar] [CrossRef]
  42. Ozawa, M.; Takahashi-Morita, M.; Kobayashi, K.; Haneda, M. Core-shell type ceria zirconia support for platinum and rhodium three way catalysts. Catal. Today 2017, 281, 482–489. [Google Scholar] [CrossRef]
  43. Yentekakis, I.V.; Goula, G.; Hatzisymeon, M.; Betsi-Argyropoulou, I.; Botzolaki, G.; Kiousi, K.; Kontarides, D.I.; Taylor, M.J.; Parlett, C.M.A.; Osatiashtiani, A.; et al. Effect of support oxygen storage capacity on the catalytic performance of Rh nanoparticles for CO2 reforming of methane. Appl. Catal. B 2019, 243, 490–501. [Google Scholar] [CrossRef]
  44. Morikawa, A.; Suzuki, T.; Kanazawa, T.; Kikuta, K.; Suda, A.; Shinjo, H. A new concept in high performance ceria–zirconia oxygen storage capacity material with Al2O3 as a diffusion barrier. Appl. Catal. B Environ. 2008, 78, 210–221. [Google Scholar] [CrossRef]
  45. Silva, F.A.; Martinez, D.S.; Ruiz, J.A.C.; Mattos, L.V.; Hori, C.H.; Noronha, F.B. The effect of the use of cerium-doped alumina on the performance of Pt/CeO2/Al2O3 and Pt/CeZrO2/Al2O3 catalysts on the partial oxidation of methane. Appl. Catal. A Gen. 2008, 335, 145–152. [Google Scholar] [CrossRef]
  46. Vayenas, C.G.; Brosda, S.; Pliangos, C. The double-layer approach to promotion, electrocatalysis, electrochemical promotion, and metal–support interactions. J. Catal. 2003, 216, 487–504. [Google Scholar] [CrossRef]
  47. Vayenas, C.G.; Bebelis, S.; Yentekakis, I.V.; Lintz, H.-G. Non-faradaic electrochemical modification of catalytic activity: A status report. Catal. Today 1992, 11, 303–438. [Google Scholar] [CrossRef]
  48. Montini, T.; Melchionna, M.; Monai, M.; Fornasiero, P. Fundamentals and catalytic applications of CeO2-based materials. Chem. Rev. 2016, 116, 5987–6041. [Google Scholar] [CrossRef]
  49. Crookes, W. The volatility of metals of the platinum group. Proc. R. Soc. A Math. Phys. Eng. Sci. 1912, 86. [Google Scholar] [CrossRef]
  50. Carol, L.A.; Mann, G.S. High-temperature oxidation of rhodium. Oxid. Met. 1990, 34, 1–12. [Google Scholar] [CrossRef]
  51. Powell, A.R. Behaviour of the platinum metals at high temperatures. Platin. Met. Rev. 1958, 2, 96–98. [Google Scholar]
  52. Li, P.; Chen, X.; Li, Y.; Schwank, J.W. A review on oxygen storage capacity of CeO2-based materials: Influence factors, measurement techniques, and applications in reactions related to catalytic automotive emissions control. Catal. Today 2019, 327, 90–115. [Google Scholar] [CrossRef]
  53. Yang, T.; Xia, D. Self-combustion synthesis and oxygen storage properties of mesoporous gadolinia-doped ceria nanotubes. Mater. Chem. Phys. 2010, 123, 816–820. [Google Scholar] [CrossRef]

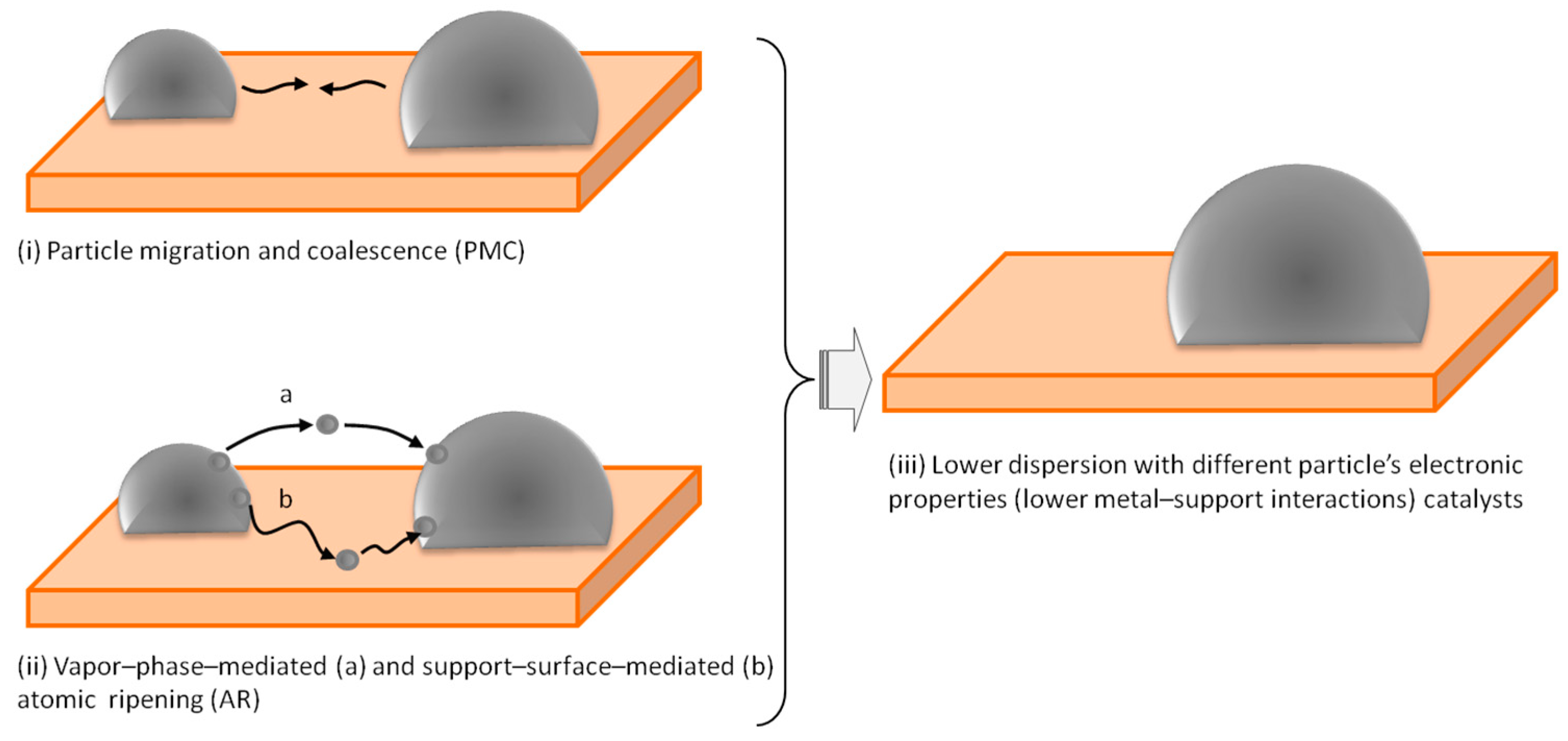

Figure 1. Schematic of potential sintering mechanisms of catalytic nanoparticles leading to sintering, fewer undercoordinated sites and reduced metal–support interaction.
Figure 1. Schematic of potential sintering mechanisms of catalytic nanoparticles leading to sintering, fewer undercoordinated sites and reduced metal–support interaction.
Catalysts 09 00541 g001

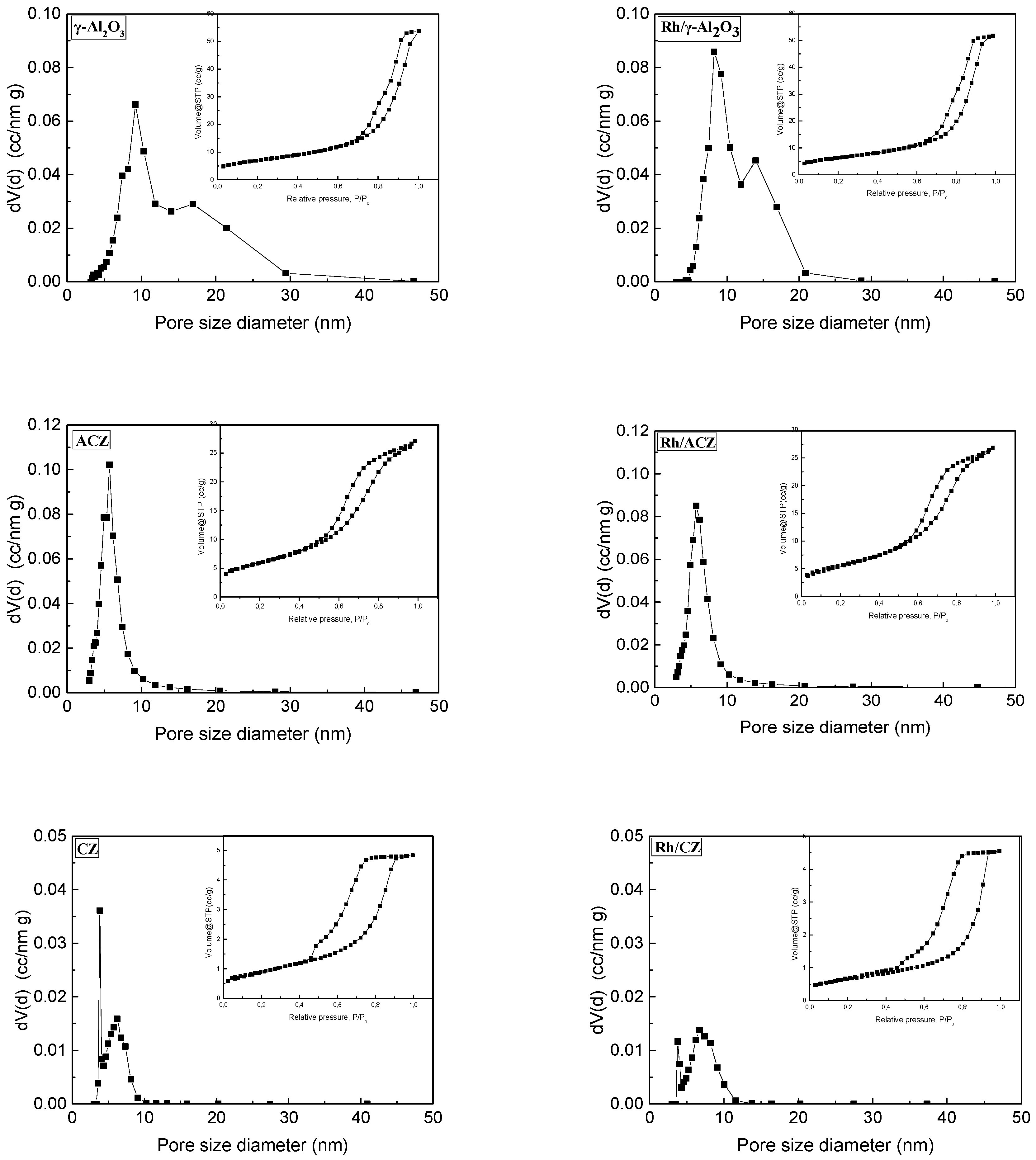

Figure 2. Pore size distribution and N2 adsorption–desorption isotherms (inset) of the support materials and the corresponding Rh catalysts. ACZ: Alumina–ceria–zirconia; CZ: Ceria–zirconia.
Figure 2. Pore size distribution and N2 adsorption–desorption isotherms (inset) of the support materials and the corresponding Rh catalysts. ACZ: Alumina–ceria–zirconia; CZ: Ceria–zirconia.
Catalysts 09 00541 g002

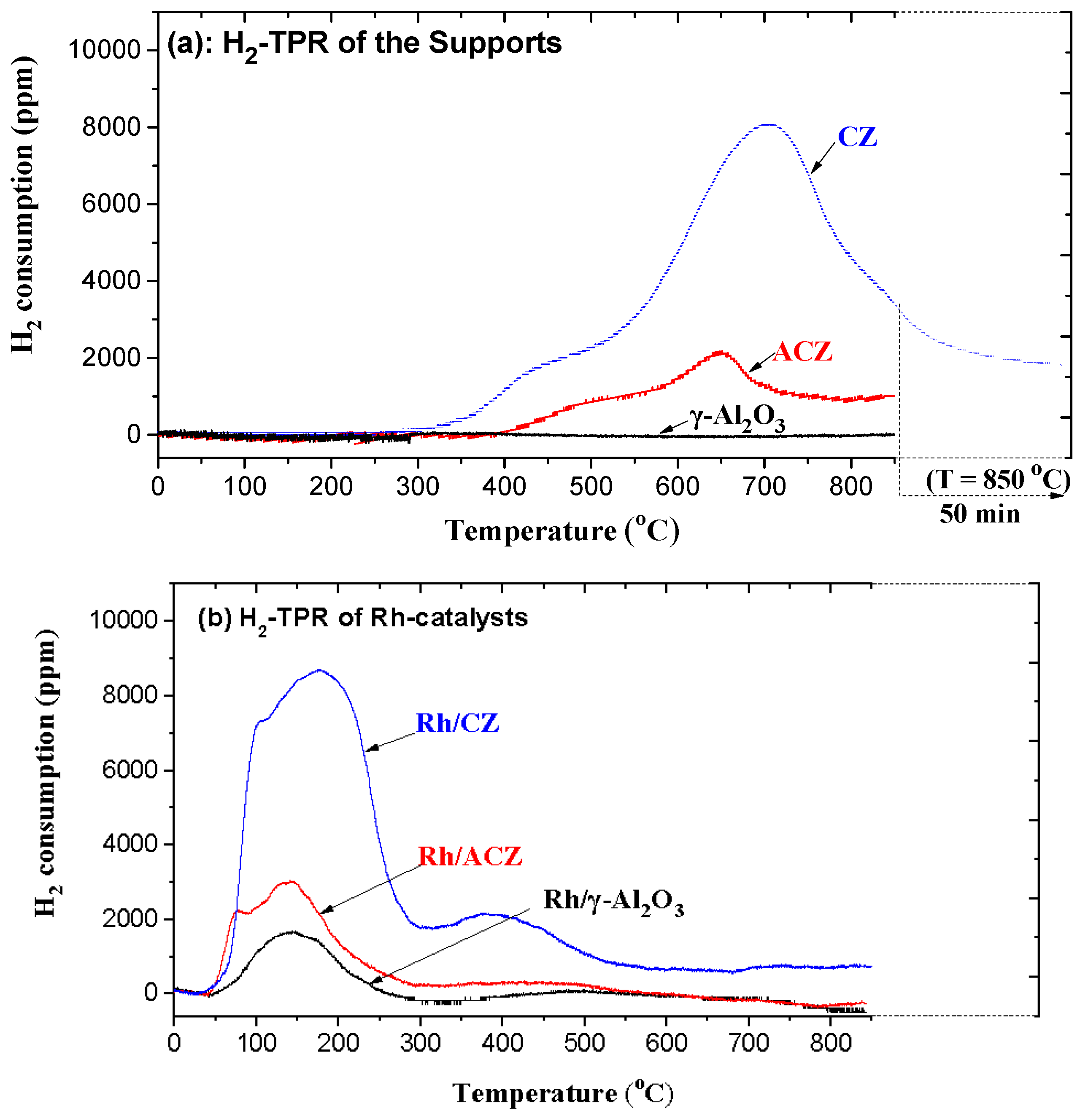

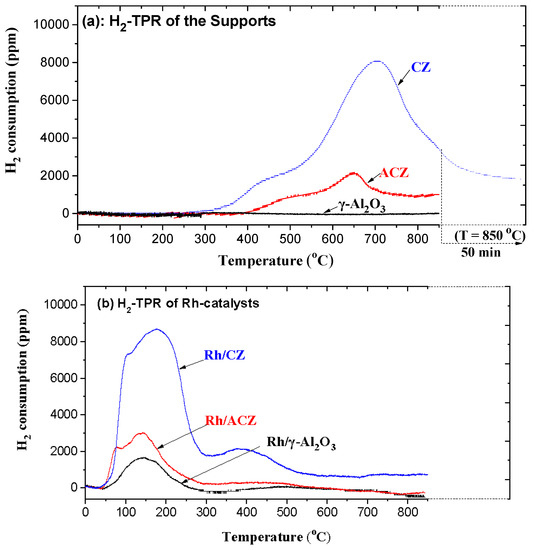

Figure 3. H2-TPR profiles of (a) the γ-Al2O3, ACZ and CZ supports and (b) the corresponding Rh catalysts.
Figure 3. H2-TPR profiles of (a) the γ-Al2O3, ACZ and CZ supports and (b) the corresponding Rh catalysts.
Catalysts 09 00541 g003

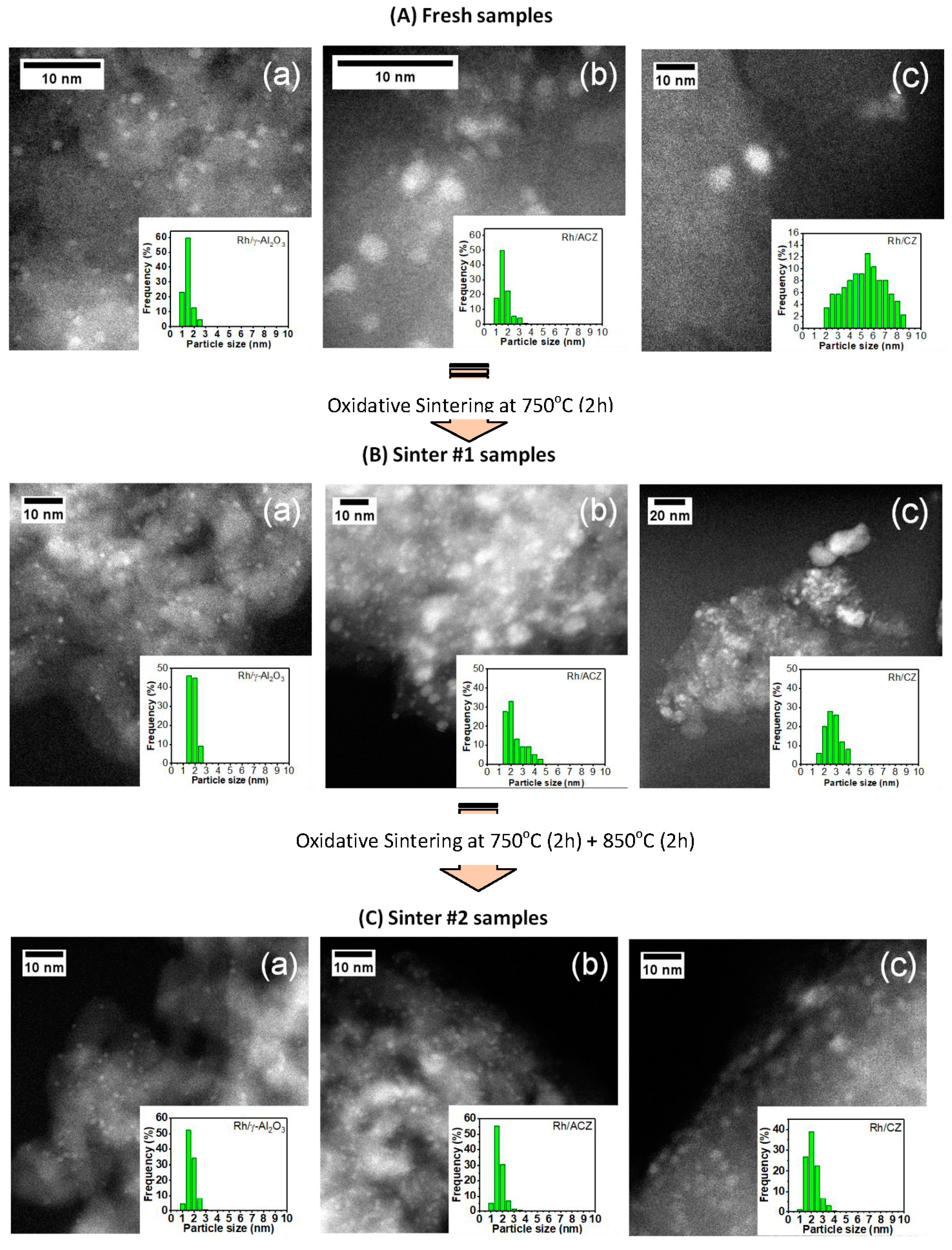

Figure 4. High-resolution transmission electron microscopy (HRTEM) images and particle size distributions of (A) fresh, (B) Sinter #1 and (C) Sinter #2 (a) Rh/γ-Al2O3, (b) Rh/ACZ and (c) Rh/CZ catalysts.
Figure 4. High-resolution transmission electron microscopy (HRTEM) images and particle size distributions of (A) fresh, (B) Sinter #1 and (C) Sinter #2 (a) Rh/γ-Al2O3, (b) Rh/ACZ and (c) Rh/CZ catalysts.
Catalysts 09 00541 g004

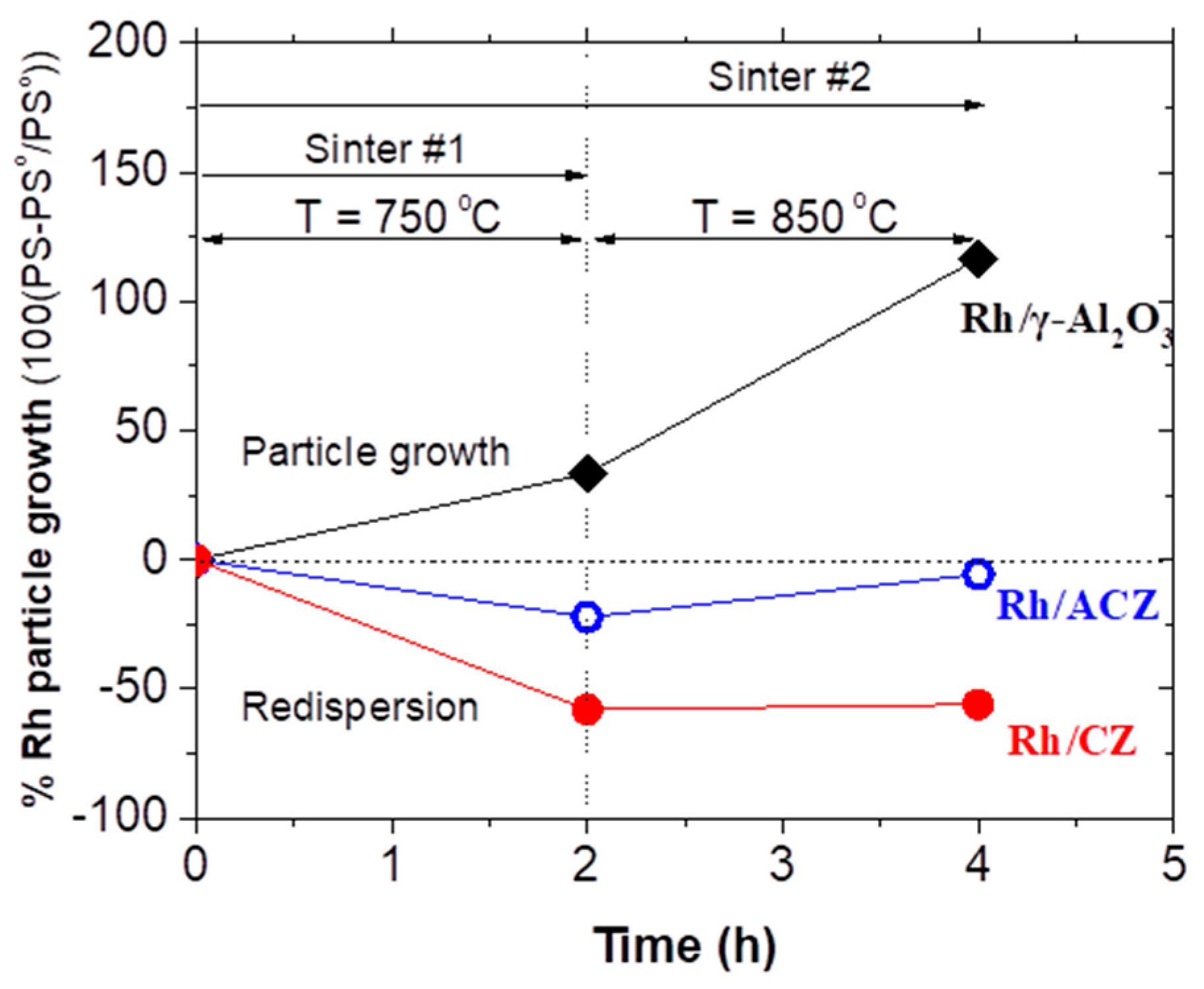

Figure 5. % Rh particle growth (+) or redispersion (−) of Rh nanoparticles supported on γ-Al2O3, ACZ and CZ versus sintering time and temperature under oxidizing environment (20% O2/He). (Results are based on H2-chemisorption data).
Figure 5. % Rh particle growth (+) or redispersion (−) of Rh nanoparticles supported on γ-Al2O3, ACZ and CZ versus sintering time and temperature under oxidizing environment (20% O2/He). (Results are based on H2-chemisorption data).
Catalysts 09 00541 g005

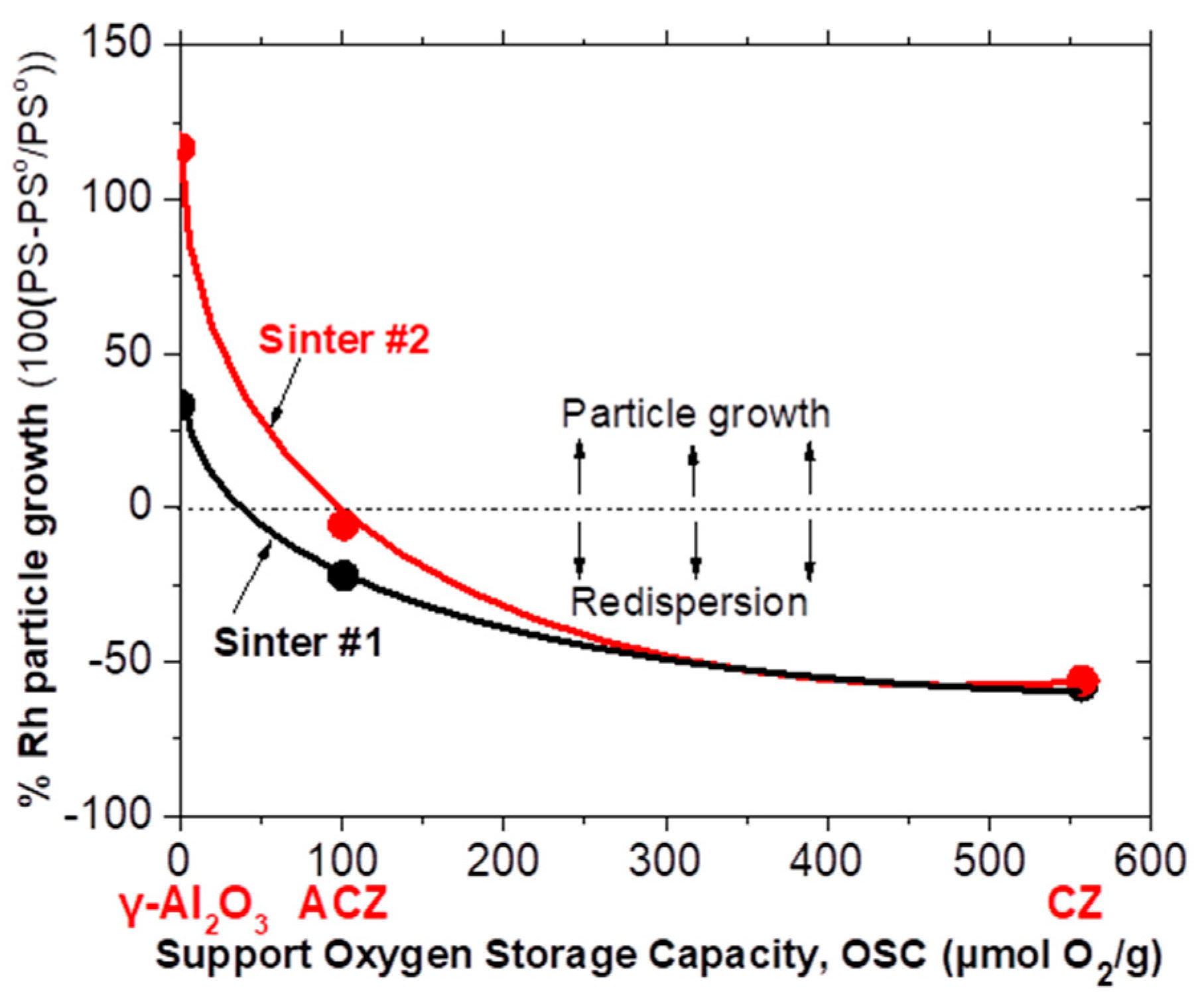

Figure 6. % Rh particle growth (+) or redispersion (−) versus oxygen storage capacity of the support for Sinter #1 and Sinter #2 conditions. (Results are based on H2-chemisorption data).
Figure 6. % Rh particle growth (+) or redispersion (−) versus oxygen storage capacity of the support for Sinter #1 and Sinter #2 conditions. (Results are based on H2-chemisorption data).
Catalysts 09 00541 g006

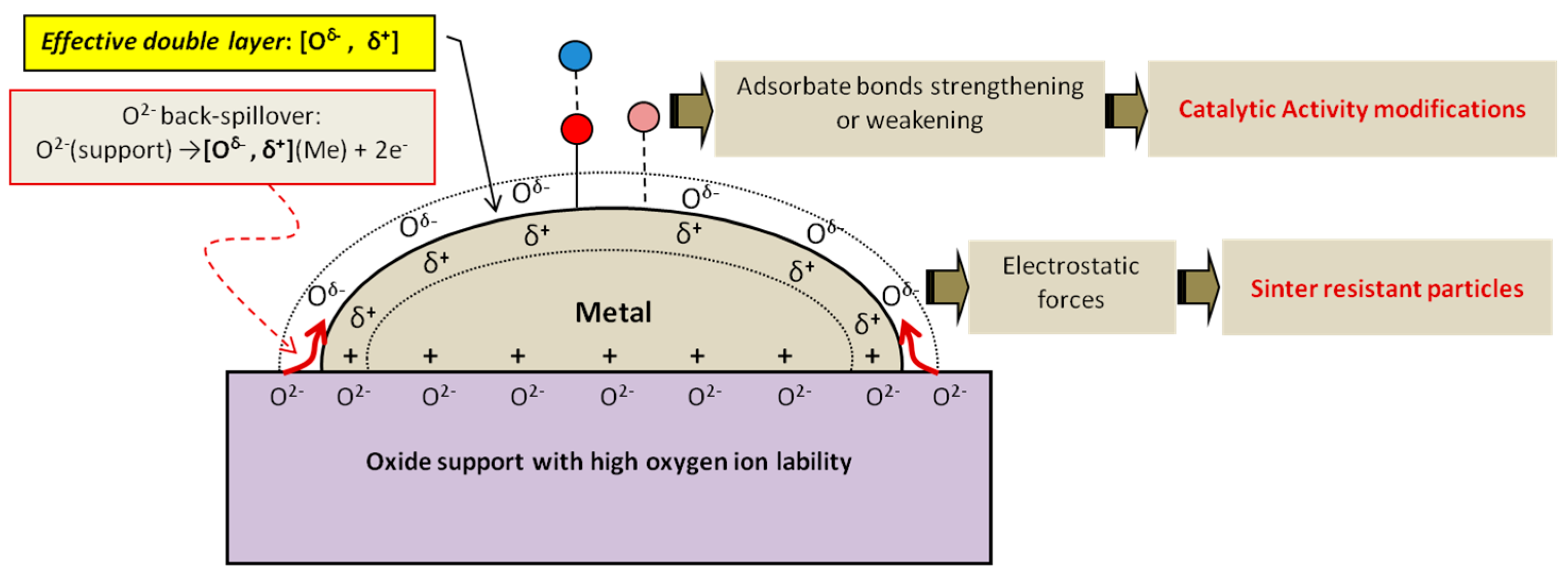

Figure 7. The mechanism of formation of the effective double layer [Oδ−, δ+] and its roles in surface catalytic phenomena and inhibition of metal sintering.
Figure 7. The mechanism of formation of the effective double layer [Oδ−, δ+] and its roles in surface catalytic phenomena and inhibition of metal sintering.
Catalysts 09 00541 g007

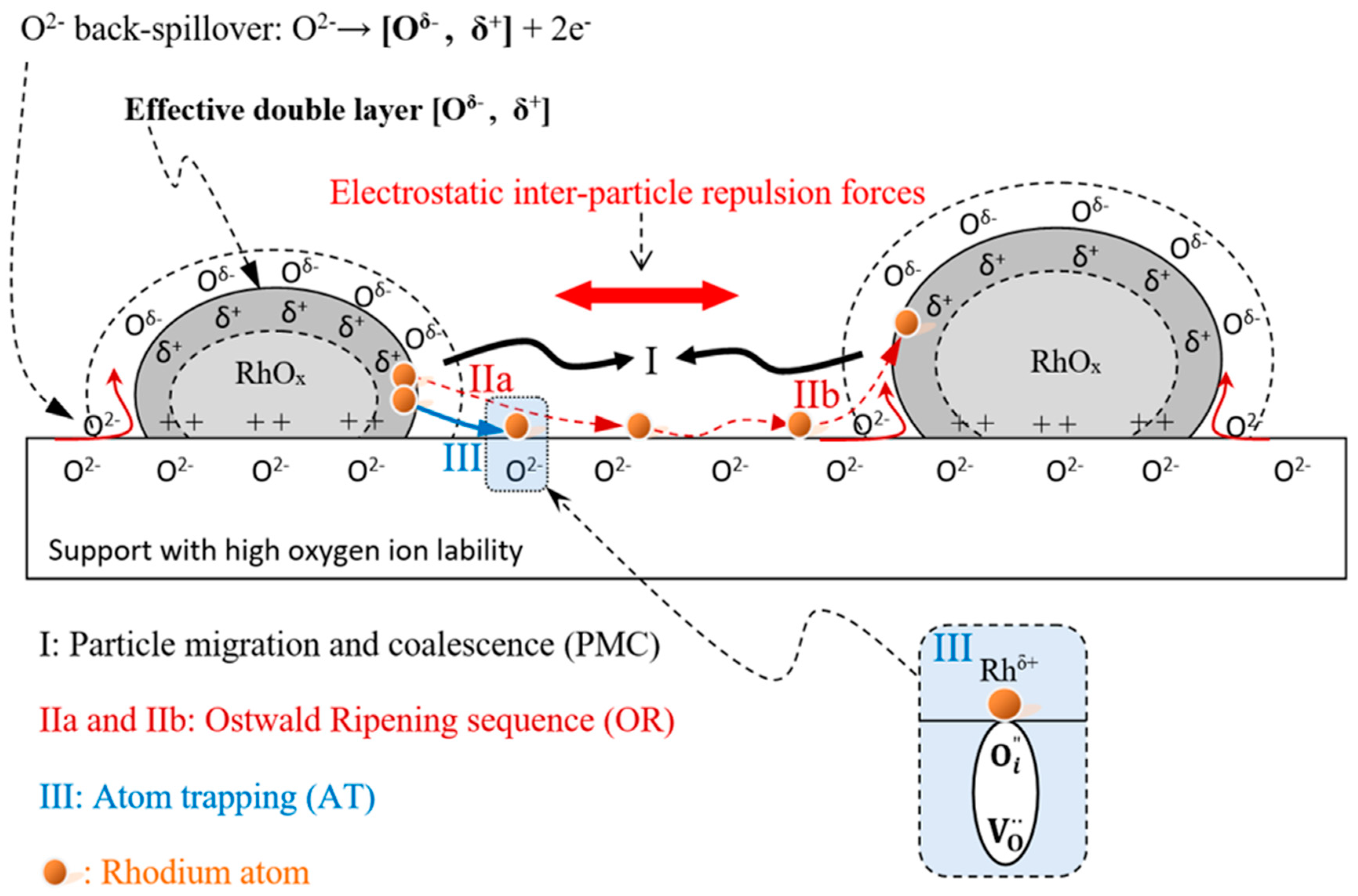

Figure 8. Model for sintering resistance against PMC or OR and redispersion induced by the simultaneous action of interparticle repulsion forces arising from effective double layer and atom trapping at oxygen ion vacancies. ( O i is the Krönger–Vink notation for interstitial (labile) O2−; their concentration is determined by the equilibrium OO ↔ VÖ + O i between lattice oxygen and oxygen ion vacancies [43]).
Figure 8. Model for sintering resistance against PMC or OR and redispersion induced by the simultaneous action of interparticle repulsion forces arising from effective double layer and atom trapping at oxygen ion vacancies. ( O i is the Krönger–Vink notation for interstitial (labile) O2−; their concentration is determined by the equilibrium OO ↔ VÖ + O i between lattice oxygen and oxygen ion vacancies [43]).
Catalysts 09 00541 g008
Table 1. Textural characteristics and oxygen storage capacities (OSC) of the support materials and the corresponding fresh Rh catalysts.
Table 1. Textural characteristics and oxygen storage capacities (OSC) of the support materials and the corresponding fresh Rh catalysts.
Supports and CatalystsChemical FormulaRh Loading (wt %) aSBET (m2 g−1)Total Pore Volume (cm3 g−1)Average Pore Size Diameter (nm)OSC (μmol O2 g−1)Experimental vs. Theoretical O2 Bound to Rh (μmol O2 g−1) c
γ-Al2O3γ-Al2O3 1780.6013.50
Rh/γ-Al2O3Rh/γ-Al2O31.01600.5714.269 b69 vs. 73
ACZ80 wt %Al2O3–20 wt %Ce0.5Zr0.5O2-δ 1490.297.9101
Rh/ACZRh/(80 wt %Al2O3–20 wt %Ce0.5Zr0.5O2-δ)0.81360.288.2146 b45 vs. 58.4
CZCe0.5Zr0.5O2-δ 220.059.2557
Rh/CZRh/Ce0.5Zr0.5O2-δ0.8170.059.3589 b32 vs. 58.4
a Rh content measured by means of inductively coupled plasma–optical emission spectroscopy (ICP-OES). b These values include the amount of oxygen bound to the Rh component of the sample as rhodium oxides (i.e., the O2 amount related to the transformation Rh oxides→Rh0). c These values compare the experimentally measured (via H2-TPR) amount of oxygen bound to the Rh component of the catalysts as rhodium oxide species versus the theoretically calculated amount of oxygen bound to the Rh component of the catalysts as Rh2O3.
Table 2. Sintering characteristics of the fresh Rh catalysts exposed to oxidative thermal aging. (Sinter #1: 2 h @ 750 °C; Sinter #2: 2 h @ 750 °C + 2 h @ 850 °C).
Table 2. Sintering characteristics of the fresh Rh catalysts exposed to oxidative thermal aging. (Sinter #1: 2 h @ 750 °C; Sinter #2: 2 h @ 750 °C + 2 h @ 850 °C).
CatalystsMean Rh Particle Size (nm)
FreshSinter #1Sinter #2
Rh/γ-Al2O31.21.3 ± ± ± 0.3
Rh/ACZ1.81.5 ± ± ± 0.4
Rh/CZ5.05.1 ± ± ± 0.7
