Article

Highly-Dispersed Ni-NiO Nanoparticles Anchored on an SiO2 Support for an Enhanced CO Methanation Performance

by
Jiangwei Li
1,†,
Panpan Li
1,†,
Jiangbing Li
1,
Zhiqun Tian
2 and
Feng Yu
1,*
1
Key Laboratory for Green Processing of Chemical Engineering of Xinjiang Bingtuan, School of Chemistry and Chemical Engineering, Shihezi University, Shihezi 832003, China
2
Collaborative Innovation Center of Sustainable Energy Materials, Guangxi University, Nanning 530004, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Catalysts 2019, 9(6), 506; https://doi.org/10.3390/catal9060506
Submission received: 25 April 2019 / Revised: 31 May 2019 / Accepted: 3 June 2019 / Published: 4 June 2019
(This article belongs to the Special Issue Recent Advances in Nickel-Based Catalysts)
Browse Figures
Review Reports Versions Notes

Abstract

:
Highly-dispersed Ni-NiO nanoparticles was successfully anchored on an SiO2 support via a one-pot synthesis and used as heterogeneous catalysts for CO methanation. The as-obtained Ni-NiO/SiO2 catalyst possessed a high Ni content of 87.8 wt.% and exhibited a large specific surface area of 71 m2g−1 with a main pore diameter of 16.7 nm. Compared with an H2-reduced Ni-NiO/SiO2 (i.e., Ni/SiO2) catalyst, the Ni-NiO/SiO2 displayed a superior CO methanation performance. At the temperature of 350 °C, the Ni-NiO/SiO2 showed a CO conversion of 97.1% and CH4 selectivity of 81.9%, which are much better values than those of Ni/SiO2. After a 50-h stability test, the Ni-NiO/SiO2 catalyst still had an overwhelming stability retention of 97.2%, which was superior to the 72.8% value of the Ni/SiO2 catalyst.

Graphical Abstract

1. Introduction

Fossil fuels and their emissions cause environmental pollution. Therefore, the development of environmentally friendly and sustainable energy is urgently required. The main component of natural gas is methane (CH4), which is characterized by cleanliness, a high calorific value, and a high energy efficiency. This is why it is considered to be an ideal energy source [1,2]. In recent years, the cost of natural gas has increased because of an increase in its demand, and many countries have taken a series of measures to deal with its tight supply. Other than this, synthetic natural gas (SNG) production by methanation from coal or biomass synthesis gas is an effective method. In particular, the production of synthetic gas by CO or CO2 methanation has been extensively studied [3,4,5].
The active components of methanation catalysts are mainly distributed throughout the group VIIIB [6,7]. Among these metals, Ni-based catalysts exhibit excellent catalytic performances and better CH4 selectivity, which make them usable in the industry [8,9]. CO methanation is performed on a large scale and Ni-based catalysts are the most commonly used [10]. Lu et al. [11] and Wang et al. [12] tested and compared the performances of methanation catalysts containing various metal components and found that Ni-based catalysts have a good performance. Lakshmanan et al. [13] prepared Ni/SiO2 catalysts with different loadings and 55 wt.% Ni@SiO2 catalysts for CO methanation. It was found that the core-shell Ni@SiO2 catalysts had a better performance. Yan et al. [14] prepared an Ni/SiO2 catalyst and applied it to CO methanation, which exhibited superior activity and stability. Zhao et al. [15] prepared an Ni/SiO2 catalyst by different solution impregnation methods for CO methanation research. The results showed that ammonia impregnation effectively improved the activity and enhanced the high-temperature stability of the Ni/SiO2 catalyst.
It was reported that the morphology distribution and particle size of the CO methanation catalyst significantly affect the catalytic performance, so the catalysts with better dispersion and smaller particles exhibit significantly improved performances [16,17,18]. Some researchers have prepared Ni-based catalysts with higher dispersion and smaller particles for CO methanation; these measures effectively prevent the sintering of active components and carbon deposition to improve the performance of the catalysts [19].
Here, we report a high Ni content and high-dispersion nickel-based catalysts of Ni-NiO/SiO2 and Ni/SiO2 by a one-pot method for CO methanation. The Ni-Ni/SiO2 catalysts had a metal dispersion that was 0.16% higher than the Ni/SiO2 catalysts of 0.05% and a specific surface area of 71 m2g−1 that was superior to the latter’s area of 25 m2g−1. The two catalysts were subjected to a CO methanation performance test and a 50-h stability test at 350 °C. It was noteworthy that the catalyst of Ni-NiO/SiO2 exhibited exceptional stability and carbon deposition resistance, which may be due to its high dispersion. The high dispersibility of Ni-NiO catalysts increases their activity, and higher Ni loading provides more active sites [20].

2. Results and Discussion

Figure 1 shows the X-ray diffraction (XRD) pattern of the fresh catalyst before the reaction. As observed in the figure, the Ni-NiO/SiO2 catalyst exhibited NiO diffraction peaks at 2θ = 37.2° and 62.9° (PDF-# NO. 47-1049). These peaks, which correspond to the (111) and (220) crystal faces of NiO, were relatively wide, indicating that it had a poor crystallinity. The Ni-NiO/SiO2 catalyst exhibited an Ni diffraction peak (2θ = 44.5°, PDF- # NO. 04-0850). The diffraction peaks of the Ni/SiO2 catalyst (2θ = 44.5°, 51.8°, and 76.4°, PDF-# NO. 04-0850) correspond to the (111), (200), and (220) crystal faces of Ni [21]. The diffraction peaks of the NiO/SiO2 catalyst (2θ = 37.2°, 43.3°, 62.9°, 75.4°, and 79.4°, PDF-# NO. 47-1049) correspond to the (111), (200), (220), (311), and (222) crystal faces of NiO, respectively. The Ni diffraction peak for the Ni/SiO2 catalyst was sharp, indicating that it had a high crystallinity. Additionally, no other impurity peaks were observed, which shows that it had a higher purity. Because the uncalcined Ni-NiO/SiO2 catalyst was amorphous and had a poor crystallinity, the NiO and Ni diffraction peaks were relatively wide and offset compared with those of the NiO/SiO2 catalyst and Ni/SiO2 catalyst. NiO(200) and Ni(111) planes were chosen to calculate the mean size of NiO and Ni crystallites by Scherrer’s equation [22]. The crystal size of NiO particles was 16.5 nm more than the catalysts NiO/SiO2 and the crystal size of Ni was 14.9 nm for the catalysts Ni/SiO2.
To study the oxide state and surface elemental composition, X-ray photoelectron spectroscopy (XPS) analysis of the Ni-NiO/SiO2 and Ni/SiO2 catalysts was performed, and the results are shown in Figure 2. Simultaneously, the peak value was fitted by a Gaussian component to determine the valence states of Ni, O, and Si in the sample. Figure 2a shows the survey peaks of the respective elements in the catalysts Ni-NiO/SiO2 and Ni/SiO2, and it is clear that there was almost no difference between the two catalysts. Figure 2b shows the valence state of Ni in the two catalysts. The typical peaks of the Ni 2p orbit range from 850 eV to 884 eV; both of the catalysts contain Ni 2p3/2 and Ni 2p1/2 orbits. The Ni 2p3/2 orbit can be divided into three small peaks: for catalysts Ni-NiO/SiO2, the three peaks were Ni2+ at 856.6 eV, and satellite peaks of Ni 2p3/2 at 858.1 eV and 862.7 eV, respectively. There are three peaks at 856.6 eV, 858.9 eV, and 862.7 eV for Ni/SiO2 catalysts. The Ni 2p1/2 orbit contains two characteristic peaks of Ni2+ at 874.1 eV and a satellite peak at 880.2 eV for both catalysts. The catalysts of Ni/SiO2 contain the characteristic Ni0 peak at 853.1 eV, while no peak of Ni0 was observed in the Ni-NiO/SiO2 catalysts, a possible reason for which may be that the Ni in the Ni-NiO/SiO2 catalysts was relatively dispersed and could not be detected [9,23]. Figure 2c shows the characteristic O 1s peak for the catalyst, containing 531.4 eV, 532.4 eV, and 533.2 eV peaks. The vibrational peaks at 531.4 eV and 532.4 eV were respectively lattice oxygen and defect oxygen. The lattice oxygen peak area of the catalyst Ni-NiO/SiO2 was larger than that of the catalyst Ni/SiO2, indicating that the catalyst Ni-NiO/SiO2 had more oxygen vacancies, so the catalyst had a better catalytic performance. Figure 2d shows two fitted peaks at binding energies of 102.6 eV and 103.5 eV for Si 2p in the high-resolution spectrum.
Figure 3 shows transmission electron microscopy (TEM) and high resolution TEM (HRTEM) images of the Ni-NiO/SiO2 and Ni/SiO2 catalysts. Figure 3a shows a TEM image of Ni-NiO/SiO2 catalysts. It can be seen that the catalyst had a veil-like structure, which indicates better Ni dispersion. As shown in Figure 3b, there were two lattice fringes of d = 0.241 and 0.203 nm in the catalysts of Ni-NiO/SiO2, which correspond to the (111) plane of the NiO phase and the (111) plane of the Ni phase, respectively. The TEM image of Ni/SiO2 catalysts after calcination and reduction is shown in Figure 3c, and Figure 3d reveals the HRTEM figure of Ni/SiO2 catalysts, which contains a lattice fringe of d = 0.203 nm meeting the (111) crystal plane of Ni. Figure 3e–f shows the nitrogen adsorption and desorption curves and pore volume distributions of the two catalysts. Both catalysts exhibited type IV isothermal adsorption, suggesting that they were both mesoporous. Structural data for the catalyst is shown in Table 1. The specific surface area of the Ni-NiO/SiO2 and Ni/SiO2 catalysts was 71 and 25 m2g−1, and the average pore diameter was 16.7 and 28.4 nm, respectively. The metal dispersion of the two catalysts was tested by hydrogen pulse adsorption. The dispersion of the Ni-NiO/SiO2 catalysts was 0.16%, and the dispersion of the Ni/SiO2 catalysts was 0.05%, indicating that the Ni-NiO/SiO2 catalysts exhibited better dispersion. The Brunauer–Emmett–Teller (BET) characterization results and the hydrogen pulse adsorption test results showed that the catalyst of Ni-NiO/SiO2 had a larger specific surface area and better dispersibility, and thus had a better performance.
The reduction capacity of the catalyst surface is crucial for selective catalytic reduction. Therefore, we conducted a hydrogen temperature-programmed reduction (H2-TPR) test on the catalyst, and the corresponding results are shown in Figure 4. The dispersion of the NiO peak position and the mutual interaction with the carrier were assessed. The reduction peak of the Ni-NiO/SiO2 catalysts at 152.0 °C was the surface NiO, while the reduction peak at 593.9 °C was the NiO interacting with the carrier [24]. The catalysts of NiO/SiO2 showed reduction peaks at 609.4 °C and 765.1 °C. The difference in the reduction peak positions of the two catalysts may be due to the high NiO dispersion in the catalysts of Ni-NiO/SiO2 allowing some of the NiO to be reduced to Ni at a lower temperature. The reduction peak of NiO/SiO2 catalysts shifted to higher temperatures, indicating that NiO interacts strongly with the SiO2 carrier. The hydrogen consumption of the two catalysts was calculated. The hydrogen consumption of the Ni-NiO/SiO2 and NiO/SiO2 catalysts was 44.3 cc and 86.6 cc. The difference in hydrogen consumption reflects the difference in the interaction between the SiO2 and NiO. Both catalysts had two reduction peaks at different positions and different peak areas indicating different hydrogen consumption, corresponding to different reduction rates [25]. For the catalyst of Ni-NiO/SiO2, the reduction rate of the first reduction temperature was 3.6%, and the reduction rate of the second reduction temperature was 96.4%. The reduction rates were 98.8% and 1.2% of the NiO/ SiO2 catalysts for the two reduction temperatures.
Figure 5 shows a catalyst performance chart in the range 250 °C–550 °C, where the test conditions were 0.1 MPa and the space velocity was 19, 500 mL·g−1·h−1. As is shown in Figure 5a, the CO conversion of the Ni-NiO/SiO2 and Ni/SiO2 catalysts increased with the reaction temperature in the range 250 °C–300 °C and remained mainly stable in the range 300 °C–400 °C. The main reason for the decrease in catalyst performance after 400 °C was the fact that the high temperature made the catalyst agglomerate and caused carbon deposition during the reaction. These two phenomena were the main reasons for the catalyst deactivation during CO methanation. The CO conversion of the Ni-NiO/SiO2 and Ni/SiO2 catalysts was 97.1% and 88.7%, which were the highest at 350 °C. The corresponding CH4 selectivity of the two catalysts was 81.9% and 75.3%, respectively. The turnover frequency (TOF) of the Ni-NiO/SiO2 catalysts was 2.3 s−1, while that of Ni/SiO2 catalysts was 7.1 s−1 at 350 °C. Compared with Ni-NiO/SiO2 and Ni/SiO2 catalysts, the performance and stability of NiO/SiO2 catalysts were poor. Therefore, only Ni-NiO/SiO2 and Ni/SiO2 catalysts were systematically studied.
In order to study the structure of the catalyst after the activity test, the two catalysts were characterized. The two catalysts after the activity test were named Ni-NiO/SiO2-550 and Ni/SiO2-550, respectively. The XRD pattern of the catalyst after the 250 °C–550 °C activity test is shown in Figure 6. The two catalysts had Ni diffraction peaks at 2θ = 44.5°, 51.8°, and 76.4° (PDF-# NO. 44-0850), and the three diffraction peaks correspond to the (111), (200), and (220) phases of Ni, respectively. Compared with the XRD pattern of the pre-reaction catalyst, the two catalysts had a C diffraction peak at 2θ = 26.6° (PDF-# NO. 26-1076), indicating that there was C formation in the catalyst after the reaction, which could be an important cause of catalyst inactivation. The C peak for Ni/SiO2-550 catalysts was stronger than that for Ni-NiO/SiO2-550, indicating that carbon deposition was more severe. This showed that Ni-NiO/SiO2-550 could improve the resistance to carbon deposition [26].
TEM and HRTEM images of the catalysts after the activity test are shown in Figure 7. From Figure 7a,c, it is clear that both of the catalysts generated a large number of carbon nanotubes after the reaction, which is a critical factor of catalyst deactivation. The HRTEM images in Figure 7b,d clearly show the lattice fringes on the two catalysts. Each catalyst had two lattice fringes of d = 0.335 and 0.203 nm, which correspond to the (006) crystal plane of C and (111) crystal plane of Ni. Furthermore, Ni/SiO2-550 produced more carbon nanotubes than Ni-NiO/SiO2-550, indicating more serious carbon deposition, which was consistent with the results of the XRD analysis. From Figure 7a,c, we can see that the Ni particles in Ni/SiO2-550 were larger than those in Ni-NiO/SiO2-550, suggesting that agglomeration occurred during the reaction, leading to catalyst deactivation.
In the process of CO methanation, carbon formation and deposition is one of the main causes of catalyst deactivation. Thermal gravimetric analysis (TGA) is a common means for characterizing carbon deposition in catalysts [27]. Therefore, the thermogravimetric method was employed to analyze the catalyst after the reaction. The results of the study are shown in Figure 8. The catalysts of Ni-NiO/SiO2 and Ni/SiO2 showed weight gain in the range of 420 to 500 °C and 420 to 530 °C, respectively, possibly due to the oxidation of Ni nanoparticles to NiO. By comparing the weight loss of the two catalysts, it was found that the carbon content of the Ni-NiO/SiO2 catalyst was 15.86%, while the Ni/SiO2 catalyst’s carbon content was 18.74%. The removal temperatures of carbon in the two catalysts were different; the catalyst of Ni-NiO/SiO2 was 500–790 °C and Ni/SiO2 was 530–690 °C. They were mainly deactivating carbon species deriving from CH4 decomposition, which cannot be removed until a high temperature. [24,28]. The weight of the Ni/SiO2 catalysts was increased after 690 °C, possibly because the unreacted Ni was exposed and oxidized after carbon deposition was removed. Combined with XRD and TEM characterization results, it was found that the catalysts of Ni-NiO/SiO2 had a better carbon deposition resistance and activity.
To test the catalyst stability, the two catalysts were tested at 350 °C for 50 h, and the results are shown in Figure 9, which indicates the change in the CO conversion of the two catalysts within 50 h. The CO conversion of Ni-NiO/SiO2 catalysts decreased from 97.8% to 97.2%, while that of Ni/SiO2 catalysts decreased from 78.9% to 72.8%. The inside figure shows the change in the CH4 selectivity of the catalyst. It was clear that the CH4 selectivity of the two catalysts remained mainly constant within 50 h at 350 °C. The test results showed that the catalytic performance and stability of Ni-NiO/SiO2 catalysts were better than those of Ni/SiO2.
Figure 10 shows the XRD pattern of the catalyst after 50-h testing at 350 °C. The two catalysts after the stability test were named Ni-NiO/SiO2-350 and Ni/SiO2-350, respectively. Both catalysts showed Ni diffraction peaks at 2θ = 44.5°, 51.8°, and 76.3° (PDF-# NO. 04-0850). However, their peak intensities were significantly different. The XRD peaks of Ni of Ni-NiO/SiO2-350 were more intense than those of Ni/SiO2-350. The grain size of Ni in the catalyst after the stability test was calculated by Scherrer’s formula. The grain sizes of Ni(111) of the catalysts Ni-NiO/SiO2 and Ni/SiO2 were 16.3 nm and 20.0 nm, respectively.
TEM and HRTEM figures of the catalyst after 50 h testing at 350 °C are shown in Figure 11. From Figure 11a,c, it is clear that after the 50-h reaction, Ni-NiO/SiO2-350 maintained its veil morphology, regardless of slight agglomeration. However, Ni/SiO2-350 showed significant agglomeration. Figure 11b,d show HRTEM images of Ni-NiO/SiO2-350 and Ni/SiO2-350, respectively. Crystal lattices of C and Ni can be clearly seen in both pictures. After comparing these results with the XRD results before the reaction, it was found that a small quantity of C was formed on the catalyst surface after the 50-h reaction.

3. Materials and Methods

3.1. Preparation of the Catalysts

The catalysts were prepared as follows. A total of 56 mL ethanol and 24 mL deionized water were put in a three-necked flask and mixed well at 30 °C. Then, Ni(NO3)2·6H2O (1.5 g) was added to the solution and stirred it until completely dissolved. After the nickel nitrate was completely dissolved, a small amount of TEOS (0.5 mL) was used as a silicon precursor for synthesizing silica [13]. TEOS was added dropwise to the reaction vessel and stirring was continued for two minutes. Then, an NaBH4 solution (0.4 g of NaBH4 dissolved in 5 mL of water) was quickly added. The reaction was stopped after stirring for 1 h. After the reaction was completed, the solution was centrifuged and dried at 80 °C for 10 h. The obtained catalyst was named Ni-NiO/SiO2. Some of this catalyst was calcined in air at 550 °C for 4 h and named NiO/SiO2, whereas some NiO/SiO2 was reduced at 500 °C in an H2 atmosphere for 2 h and named Ni/SiO2. The theoretical load of Ni in the catalyst of Ni-NiO/SiO2 was 69.5 wt.%, while the inductive coupled plasma (ICP) characterization results showed that the load of Ni was 87.8 wt.%, which may be due to the incomplete hydrolysis of TEOS.

3.2. Catalyst Characterization

X-ray diffractometry was carried out to determine the crystallographic properties of the materials, and XRD patterns were obtained with a BrukerD8 Advance X-ray diffractometer (Bruker Biosciences Corporation, Billerica, MA, USA) using Cu K radiation in the 2θ range 0–90°. XPS experiments used a Thermo ESCALAB 250XIelectron spectrometer from Kratos Analytical with Mg Kα (20 mA, 12 kV) radiation (Escalab 250Xi, Thermo Fisher Scientific, Waltham, MA, USA). H2-TPR experiments were conducted to determine the reducibility of the NiO oxides by the Micromeritics TPx system (Micromeritics ASAP 2720, Micromeritics Instrument Ltd., Norcross, GA, USA) from 20 °C to 900 °C at the heat up speed of 10 °C/min using a 10 vol% H2/Ar flow at 45 mL/min and maintaining the sample at 900 °C for 20 min. TEM and HRTEM images were obtained using a Tecnai G2 F20 S-TWIN(200KV)(Hillsboro, OR, USA). The BET specific surface area and BJH pore structure of the catalysts were evaluated using a Micromeritics ASAP 2020 BET apparatus (Micromeritics Instrument Ltd., Norcross, GA, USA). TGA was conducted on TG-DSC analysis system (STA 449 F3 Jupiter, Germany). ICP was used to detect the content of elements in a sample, and the sample is analyzed by inductively coupled plasma optical emission spectrometer (Agilent ICPOES730, America).

3.3. Activity Measurement

The catalytic performance was evaluated by a fixed-bed reactor e. The catalyst of Ni-NiO/SiO2 (0.2 g) was heated to 250 °C in N2 atmosphere, and the synthesis gas (H2/CO = 3, the CO concentration is 23.0% mol/mol, WHSV = 19, 500 mL·g−1·h−1, P = 0.1 MPa) was then introduced for testing. The catalyst of Ni/SiO2 (0.2 g) was reduced in an H2 atmosphere for 2 h at 500 °C in the reactor and then cooled to 250 °C in an N2 atmosphere. After that, synthesis gas was introduced into the reactor. The performances of the two catalysts were tested from 250 °C to 550 °C, and the effluent gas was analyzed by online gas chromatography (GC-2014C, SHIMADZU, Kyoto, Japan).

4. Conclusions

The catalysts of Ni-NiO/SiO2 and Ni/SiO2 were successfully prepared through co-precipitation with TEOS as the silicon source and Ni(NO3)2·6H2O as the nickel source. The methanation performances of the two catalysts were tested and the results showed that Ni-NiO/SiO2 catalysts exhibited a good catalytic performance. The CO conversion of the Ni-NiO/SiO2 catalysts reached 97.1% at 350 °C, while that of Ni/SiO2 was 88.7%. The CH4 selectivity of the two catalysts was 81.9% and 75.3% at 350 °C, respectively. The fresh and used catalysts were characterized through a variety of testing techniques, demonstrating that Ni-NiO/SiO2 catalysts had a better dispersion, catalytic performance, and carbon deposition resistance. After testing the two catalysts at 350 °C for 50 h, it was found that the Ni-NiO/SiO2 catalyst was more stable than Ni/SiO2. Although the performance of the catalysts was very good, we can conduct more in-depth research to further improve the performance of the catalysts.

Author Contributions

F.Y. designed and administered the experiments. J.L. (Jiangwei Li) and P.L. performed experiments. Z.T. and J.L. (Jiangbing Li) collected and analyzed data. All authors discussed the data and wrote the manuscript.

Acknowledgments

The work was supported by the International Science and Technology Cooperation Project of Shihezi Univeristy (No. GJHZ201804), and the International Science and Technology Cooperation Project of Bingtuan (No. 2018BC002).

Conflicts of Interest

The authors declare no conflicts of interests.

References

  1. Lucchini, M.A.; Testino, A.; Kambolis, A.; Proff, C.; Ludwig, C. Sintering and coking resistant core–shell microporous silica–nickel nanoparticles for co methanation: Towards advanced catalysts production. Appl. Catal. B Environ. 2016, 182, 94–101. [Google Scholar] [CrossRef]
  2. Le, T.A.; Kim, T.W.; Lee, S.H.; Park, E.D. Effects of Na content in Na/Ni/SiO2 and Na/Ni/CeO2 catalysts for CO and CO2 methanation. Catal. Today 2018, 303, 159–167. [Google Scholar] [CrossRef]
  3. Li, H.; Wang, L.; Dai, Y.; Pu, Z.; Lao, Z.; Chen, Y.; Wang, M.; Zheng, X.; Zhu, J.; Zhang, W.; et al. Synergetic interaction between neighbouring platinum monomers in CO2 hydrogenation. Nat. Nanotechnol. 2018, 13, 411–417. [Google Scholar] [CrossRef] [PubMed]
  4. Fukuhara, C.; Hayakawa, K.; Suzuki, Y.; Kawasaki, W.; Watanabe, R. A novel nickel-based structured catalyst for CO2 methanation: A honeycomb-type Ni/CeO2 catalyst to transform greenhouse gas into useful resources. Appl. Catal. A Gen. 2017, 532, 12–18. [Google Scholar] [CrossRef]
  5. Li, P.; Yu, F.; Altaf, N.; Zhu, M.; Li, J.; Dai, B.; Wang, Q. Two-Dimensional Layered Double Hydroxides for Reactions of Methanation and Methane Reforming in C1 Chemistry. Materials 2018, 11, 221. [Google Scholar] [CrossRef] [PubMed]
  6. Cai, W.-J.; Qian, L.-P.; Yue, B.; He, H.-Y. Rh doping effect on coking resistance of Ni/SBA-15 catalysts in dry reforming of methane. Chin. Chem. Lett. 2014, 25, 1411–1415. [Google Scholar] [CrossRef]
  7. Liu, Q.H.; Dong, X.F.; Lin, W.M. Highly selective CO methanation over amorphous Ni–Ru–B/ZrO2 catalyst. Chin. Chem. Lett. 2009, 20, 889–892. [Google Scholar] [CrossRef]
  8. Song, Q.; Altaf, N.; Zhu, M.; Li, J.; Ren, X.; Dan, J.; Dai, B.; Louis, B.; Wang, Q.; Yu, F. Enhanced low-temperature catalytic carbon monoxide methanation performance via vermiculite-derived silicon carbide supported nickel nanoparticles. Sustain. Energy Fuels 2019, 3, 965–974. [Google Scholar] [CrossRef]
  9. Li, P.; Wen, B.; Yu, F.; Zhu, M.; Guo, X.; Han, Y.; Kang, L.; Huang, X.; Dan, J.; Ouyang, F.; et al. High efficient nickel/vermiculite catalyst prepared via microwave irradiation-assisted synthesis for carbon monoxide methanation. Fuel 2016, 171, 263–269. [Google Scholar] [CrossRef]
  10. Pan, Q.; Peng, J.; Wang, S.; Wang, S. In situ FTIR spectroscopic study of the CO2 methanation mechanism on Ni/Ce0.5Zr0.5O2. Catal. Sci. Technol. 2014, 4, 502–509. [Google Scholar] [CrossRef]
  11. Lu, H.; Yang, X.; Gao, G.; Wang, J.; Han, C.; Liang, X.; Li, C.; Li, Y.; Zhang, W.; Chen, X. Metal (Fe, Co, Ce or La) doped nickel catalyst supported on ZrO2 modified mesoporous clays for CO and CO2 methanation. Fuel 2016, 183, 335–344. [Google Scholar] [CrossRef]
  12. Wang, X.; Hong, Y.; Shi, H.; Szanyi, J. Kinetic modeling and transient DRIFTS–MS studies of CO2 methanation over Ru/Al2O3 catalysts. J. Catal. 2016, 343, 185–195. [Google Scholar] [CrossRef]
  13. Lakshmanan, P.; Kim, M.S.; Park, E.D. A highly loaded Ni@SiO2 core–shell catalyst for CO methanation. Appl. Catal. A Gen. 2016, 513, 98–105. [Google Scholar] [CrossRef]
  14. Yan, X.; Liu, Y.; Zhao, B.; Wang, Z.; Wang, Y.; Liu, C.-J. Methanation over Ni/SiO2: Effect of the catalyst preparation methodologies. Int. J. Hydrogen Energy 2013, 38, 2283–2291. [Google Scholar] [CrossRef]
  15. Zhao, B.; Chen, Z.; Yan, X.; Ma, X.; Hao, Q. CO Methanation over Ni/SiO2 Catalyst Prepared by Ammonia Impregnation and Plasma Decomposition. Top. Catal. 2017, 60, 879–889. [Google Scholar] [CrossRef]
  16. Zhang, J.; Bai, Y.; Zhang, Q.; Wang, X.; Zhang, T.; Tan, Y.; Han, Y. Low-temperature methanation of syngas in slurry phase over Zr-doped Ni/γ-Al2O3 catalysts prepared using different methods. Fuel 2014, 132, 211–218. [Google Scholar] [CrossRef]
  17. Shinde, V.M.; Madras, G. CO methanation toward the production of synthetic natural gas over highly active Ni/TiO2 catalyst. AIChE J. 2014, 60, 1027–1035. [Google Scholar] [CrossRef]
  18. Zhang, M.; Li, P.; Zhu, M.; Tian, Z.; Dan, J.; Li, J.; Dai, B.; Yu, F. Ultralow-weight loading Ni catalyst supported on two-dimensional vermiculite for carbon monoxide methanation. Chin. J. Chem. Eng. 2018, 26, 1873–1878. [Google Scholar] [CrossRef]
  19. Li, P.; Zhu, M.; Dan, J.; Kang, L.; Lai, L.; Cai, X.; Zhang, J.; Yu, F.; Tian, Z.; Dai, B. Two-dimensional porous SiO2 nanomesh supported high dispersed Ni nanoparticles for CO methanation. Chem. Eng. J. 2017, 326, 774–780. [Google Scholar] [CrossRef]
  20. Zhang, M.; Li, P.; Tian, Z.; Zhu, M.; Wang, F.; Li, J.; Dai, B.; Yu, F.; Qiu, H.; Gao, H. Clarification of Active Sites at Interfaces between Silica Support and Nickel Active Components for Carbon Monoxide Methanation. Catalysts 2018, 8, 293. [Google Scholar] [CrossRef]
  21. Zhang, S.; Gai, S.; He, F.; Dai, Y.; Gao, P.; Li, L.; Chen, Y.; Yang, P. Uniform Ni/SiO2@Au magnetic hollow microspheres: Rational design and excellent catalytic performance in 4-nitrophenol reduction. Nanoscale 2014, 6, 7025–7032. [Google Scholar] [CrossRef] [PubMed]
  22. Lv, Y.; Xin, Z.; Meng, X.; Tao, M.; Bian, Z. Ni based catalyst supported on KIT-6 silica for CO methanation: Confinement effect of three dimensional channel on NiO and Ni particles. Microporous Mesoporous Mater. 2018, 262, 89–97. [Google Scholar] [CrossRef]
  23. Li, Z.; Mo, L.; Kathiraser, Y.; Kawi, S. Yolk–Satellite–Shell Structured Ni–Yolk@Ni@SiO2 Nanocomposite: Superb Catalyst toward Methane CO2 Reforming Reaction. ACS Catal. 2014, 4, 1526–1536. [Google Scholar] [CrossRef]
  24. Guo, C.; Wu, Y.; Qin, H.; Zhang, J. CO methanation over ZrO2/Al2O3 supported Ni catalysts: A comprehensive study. Fuel Process. Technol. 2014, 124, 61–69. [Google Scholar] [CrossRef]
  25. Ren, J.; Li, H.; Jin, Y.; Zhu, J.; Liu, S.; Lin, J.; Li, Z. Silica/titania composite-supported Ni catalysts for CO methanation: Effects of Ti species on the activity, anti-sintering, and anti-coking properties. Appl. Catal. B Environ. 2017, 201, 561–572. [Google Scholar] [CrossRef]
  26. Zhang, C.; Yue, H.; Huang, Z.; Li, S.; Wu, G.; Ma, X.; Gong, J. Hydrogen Production via Steam Reforming of Ethanol on Phyllosilicate-Derived Ni/SiO2: Enhanced Metal–Support Interaction and Catalytic Stability. ACS Sustain. Chem. Eng. 2012, 1, 161–173. [Google Scholar] [CrossRef]
  27. Liu, Q.; Gao, J.; Zhang, M.; Li, H.; Gu, F.; Xu, G.; Zhong, Z.; Su, F. Highly active and stable Ni/γ-Al2O3 catalysts selectively deposited with CeO2 for CO methanation. RSC Adv. 2014, 4, 16094–16103. [Google Scholar] [CrossRef]
  28. Bian, L.; Wang, W.; Xia, R.; Li, Z. Ni-based catalyst derived from Ni/Al hydrotalcite-like compounds by the urea hydrolysis method for CO methanation. RSC Adv. 2016, 6, 677–686. [Google Scholar] [CrossRef]
Catalysts 09 00506 g001 550

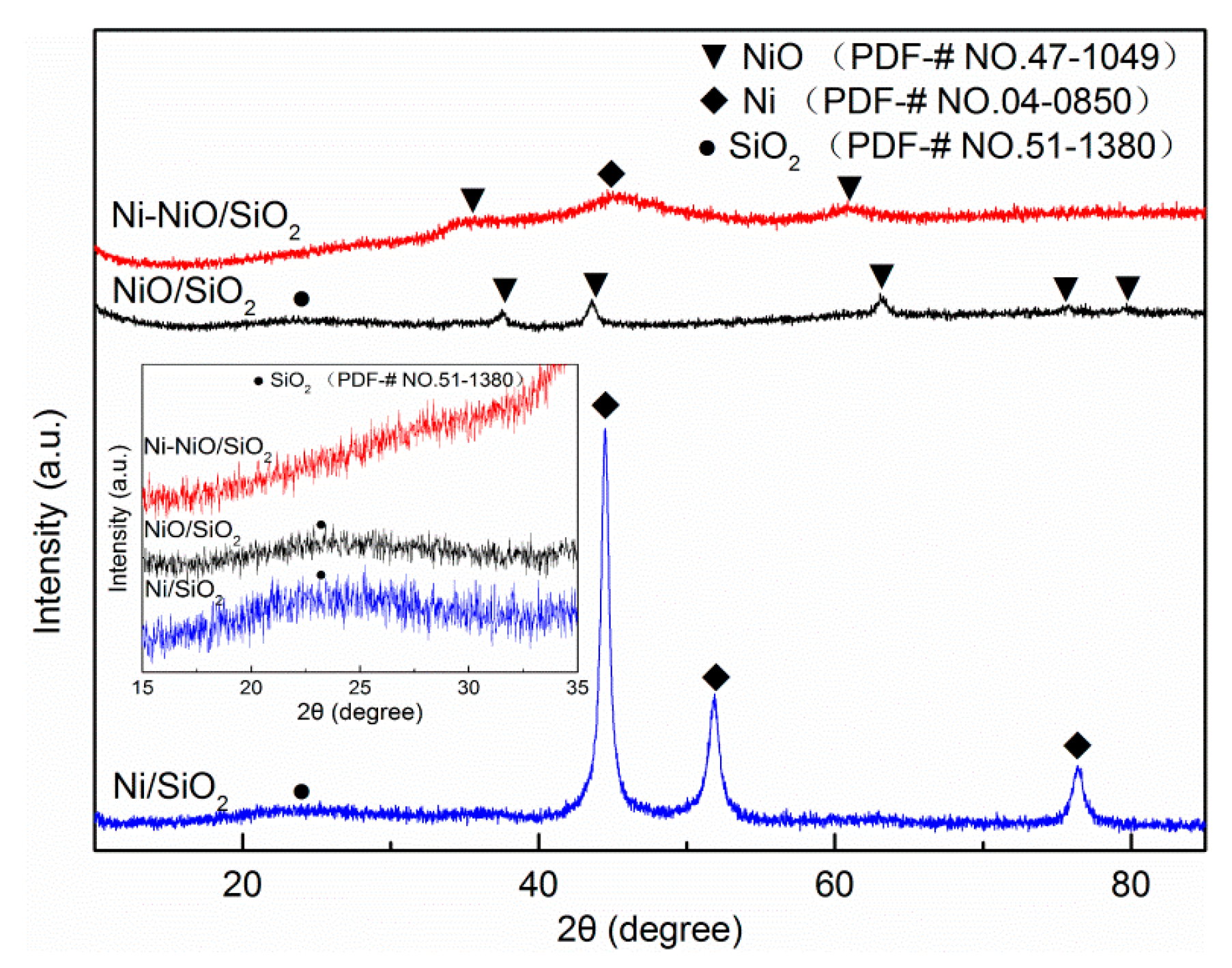

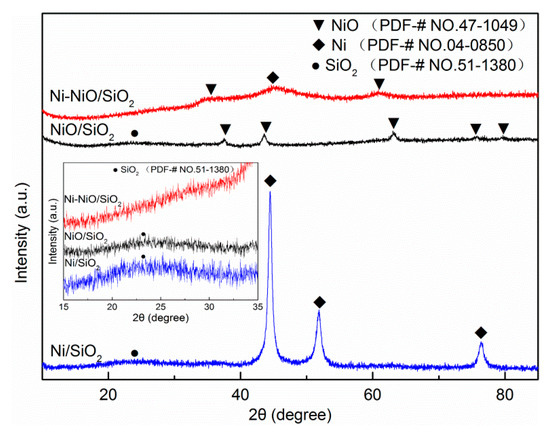

Figure 1. XRD patterns of as-obtained Ni-NiO/SiO2, NiO/SiO2, and Ni/SiO2 catalysts (The inner picture is the diffraction peak of SiO2).
Figure 1. XRD patterns of as-obtained Ni-NiO/SiO2, NiO/SiO2, and Ni/SiO2 catalysts (The inner picture is the diffraction peak of SiO2).
Catalysts 09 00506 g001
Catalysts 09 00506 g002 550

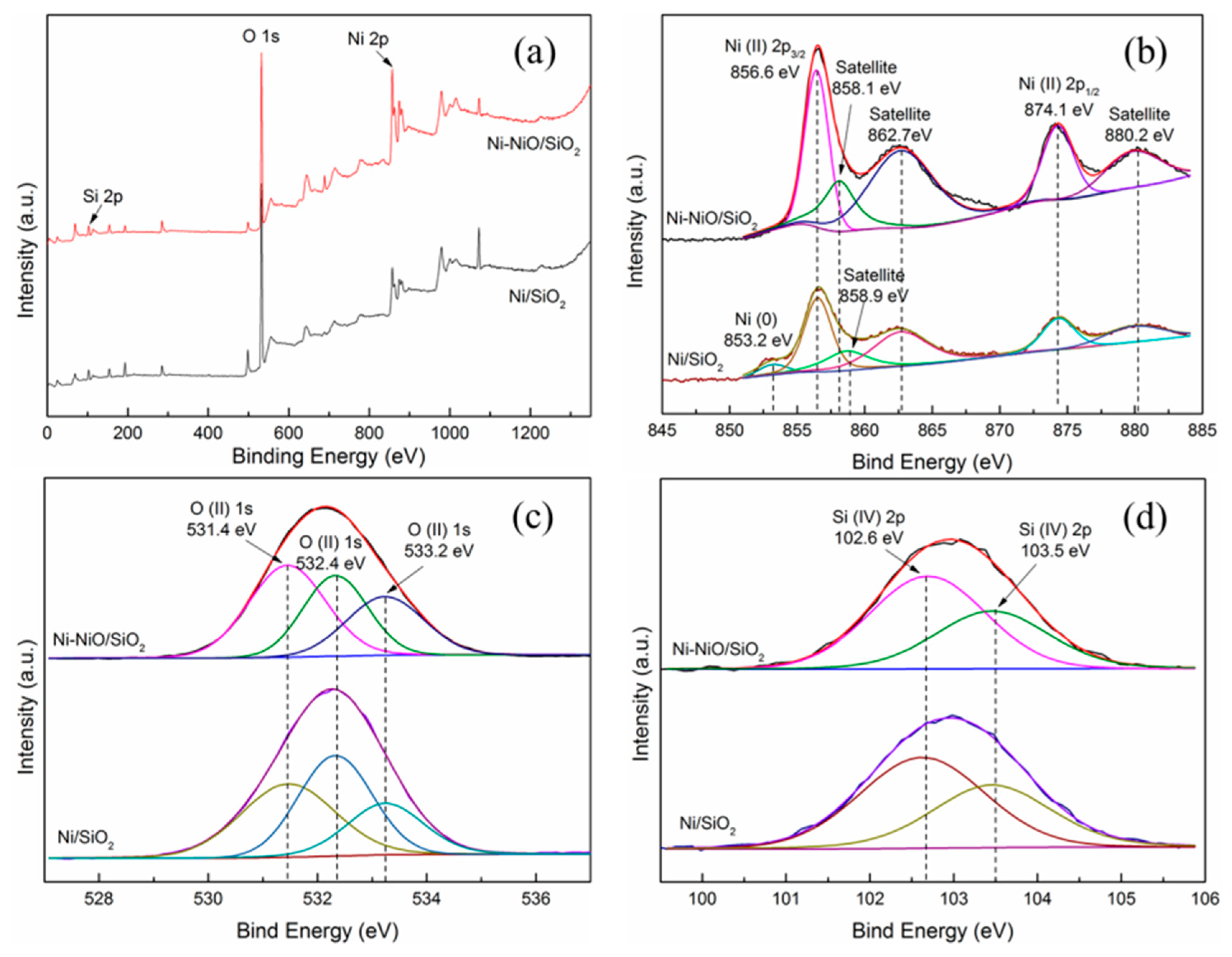

Figure 2. XPS spectrum of catalysts Ni-NiO/SiO2 and Ni/SiO2: (a) survey, (b) Ni 2p, (c) O 1s, and (d) Si 2p.
Figure 2. XPS spectrum of catalysts Ni-NiO/SiO2 and Ni/SiO2: (a) survey, (b) Ni 2p, (c) O 1s, and (d) Si 2p.
Catalysts 09 00506 g002
Catalysts 09 00506 g003 550

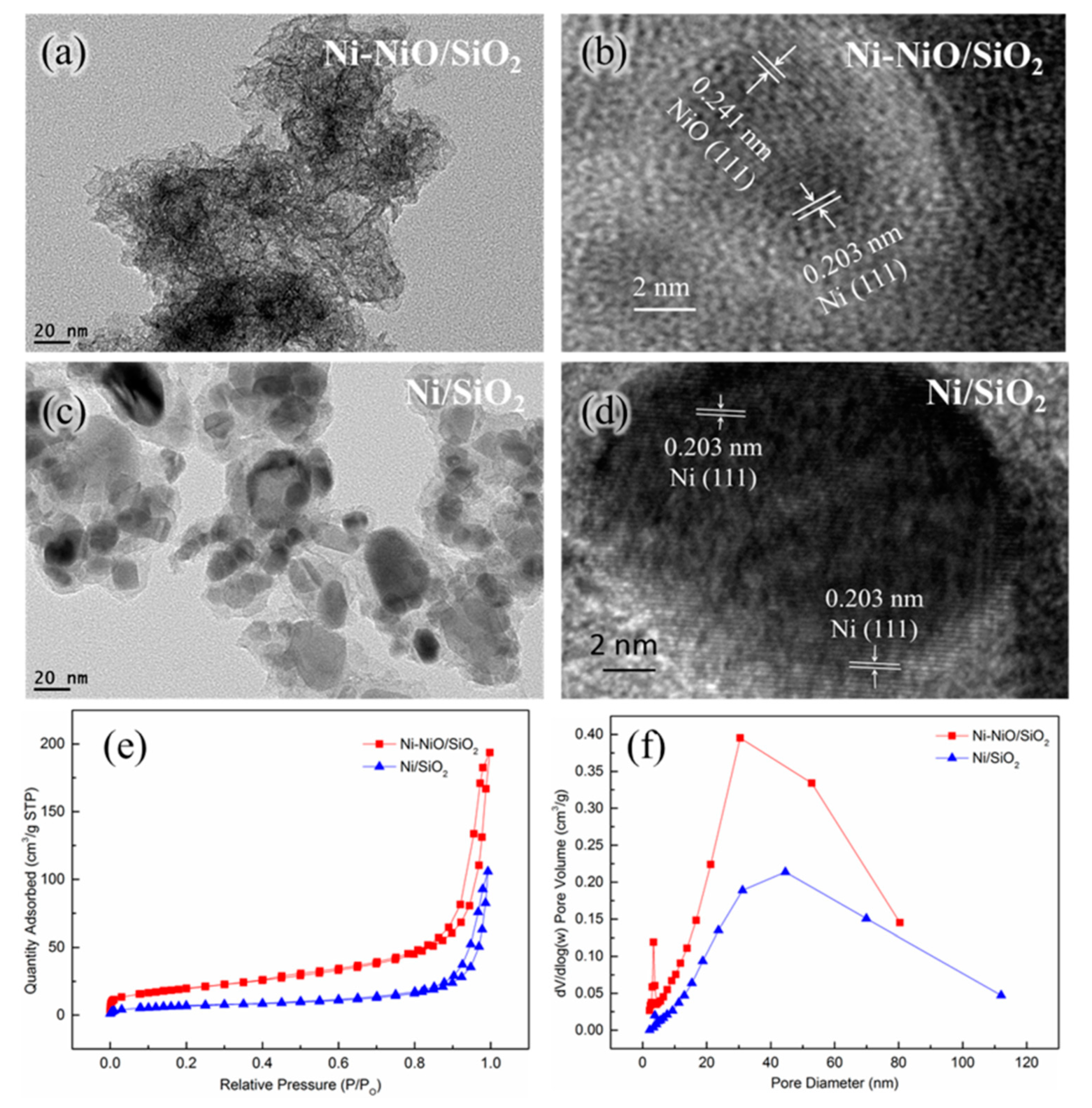

Figure 3. TEM and HRTEM images of (a,b) Ni-NiO/SiO2 and (c,d) Ni/SiO2. (e) N2 adsorption–desorption isotherms and (f) pore size distribution for Ni-NiO/SiO2 and Ni/SiO2, respectively.
Figure 3. TEM and HRTEM images of (a,b) Ni-NiO/SiO2 and (c,d) Ni/SiO2. (e) N2 adsorption–desorption isotherms and (f) pore size distribution for Ni-NiO/SiO2 and Ni/SiO2, respectively.
Catalysts 09 00506 g003
Catalysts 09 00506 g004 550

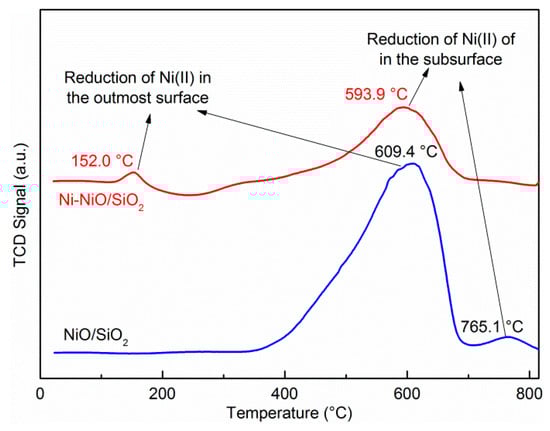

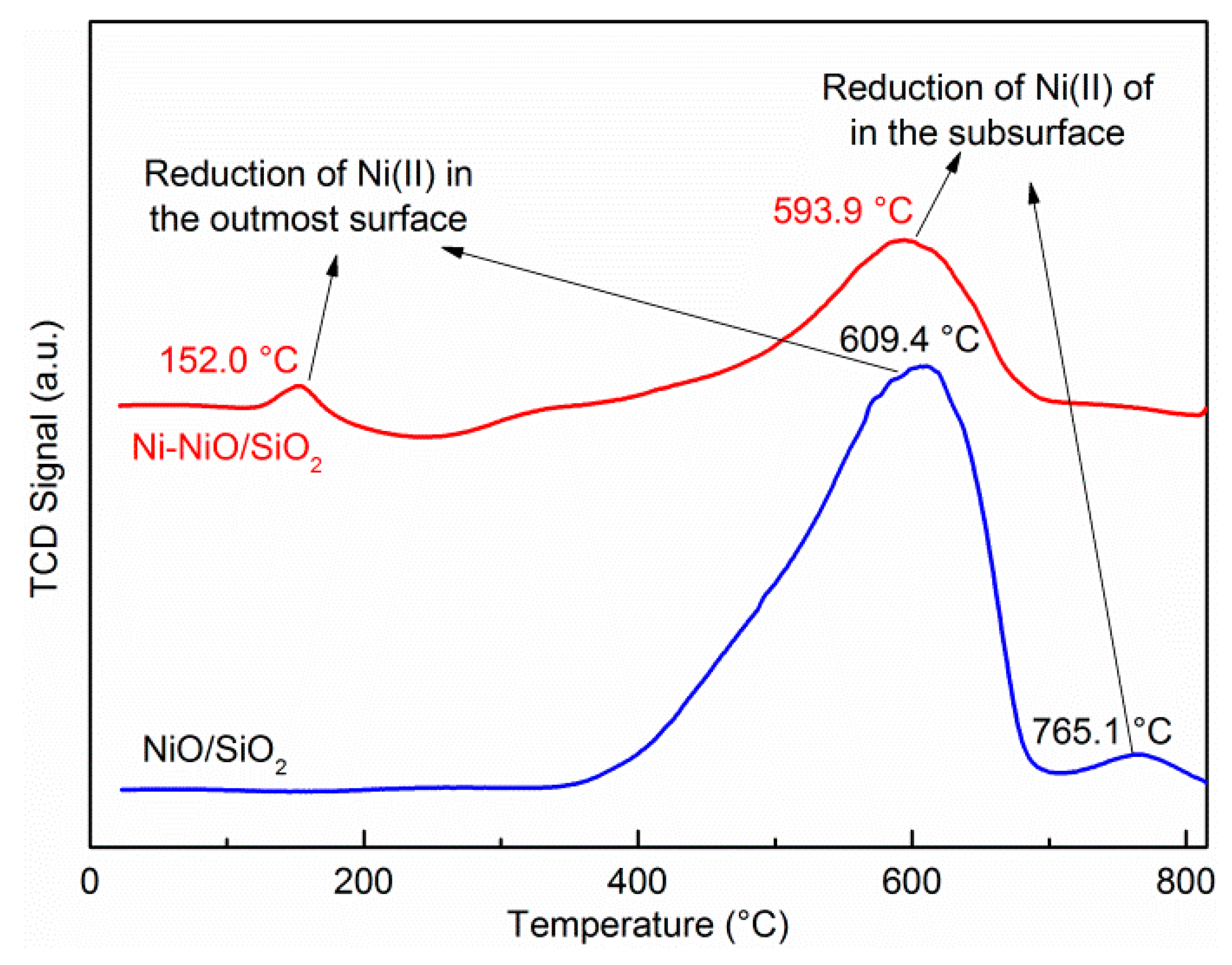

Figure 4. H2-TPR patterns of Ni-NiO/SiO2 and Ni/SiO2.
Figure 4. H2-TPR patterns of Ni-NiO/SiO2 and Ni/SiO2.
Catalysts 09 00506 g004
Catalysts 09 00506 g005 550

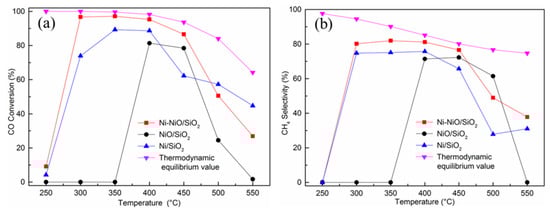

Figure 5. (a) CO conversion and (b) CH4 selectivity of as-obtained Ni-NiO/SiO2, NiO/SiO2, and Ni/SiO2.
Figure 5. (a) CO conversion and (b) CH4 selectivity of as-obtained Ni-NiO/SiO2, NiO/SiO2, and Ni/SiO2.
Catalysts 09 00506 g005
Catalysts 09 00506 g006 550

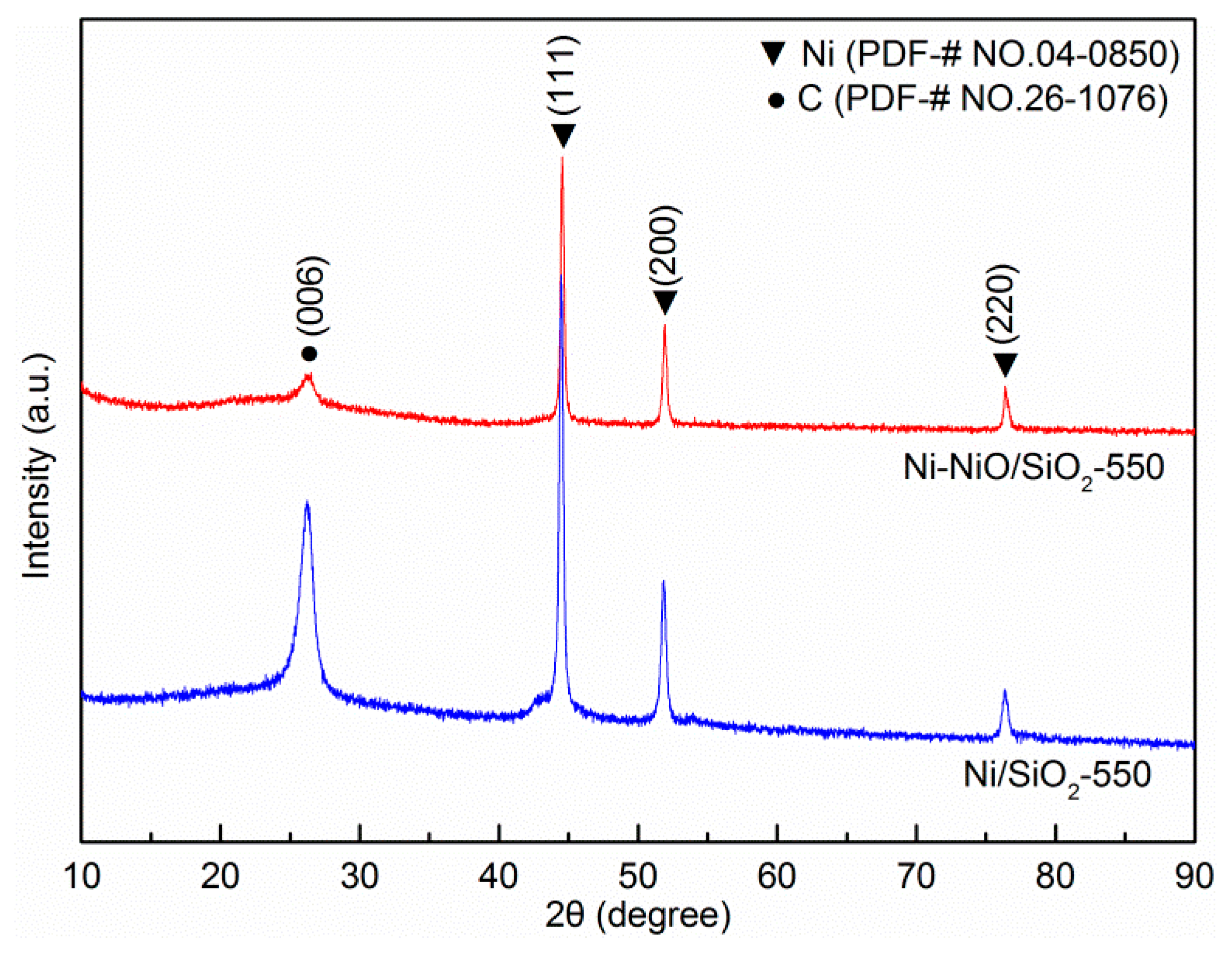

Figure 6. XRD patterns of the Ni-NiO/SiO2-550 and Ni/SiO2-550 catalysts.
Figure 6. XRD patterns of the Ni-NiO/SiO2-550 and Ni/SiO2-550 catalysts.
Catalysts 09 00506 g006
Catalysts 09 00506 g007 550

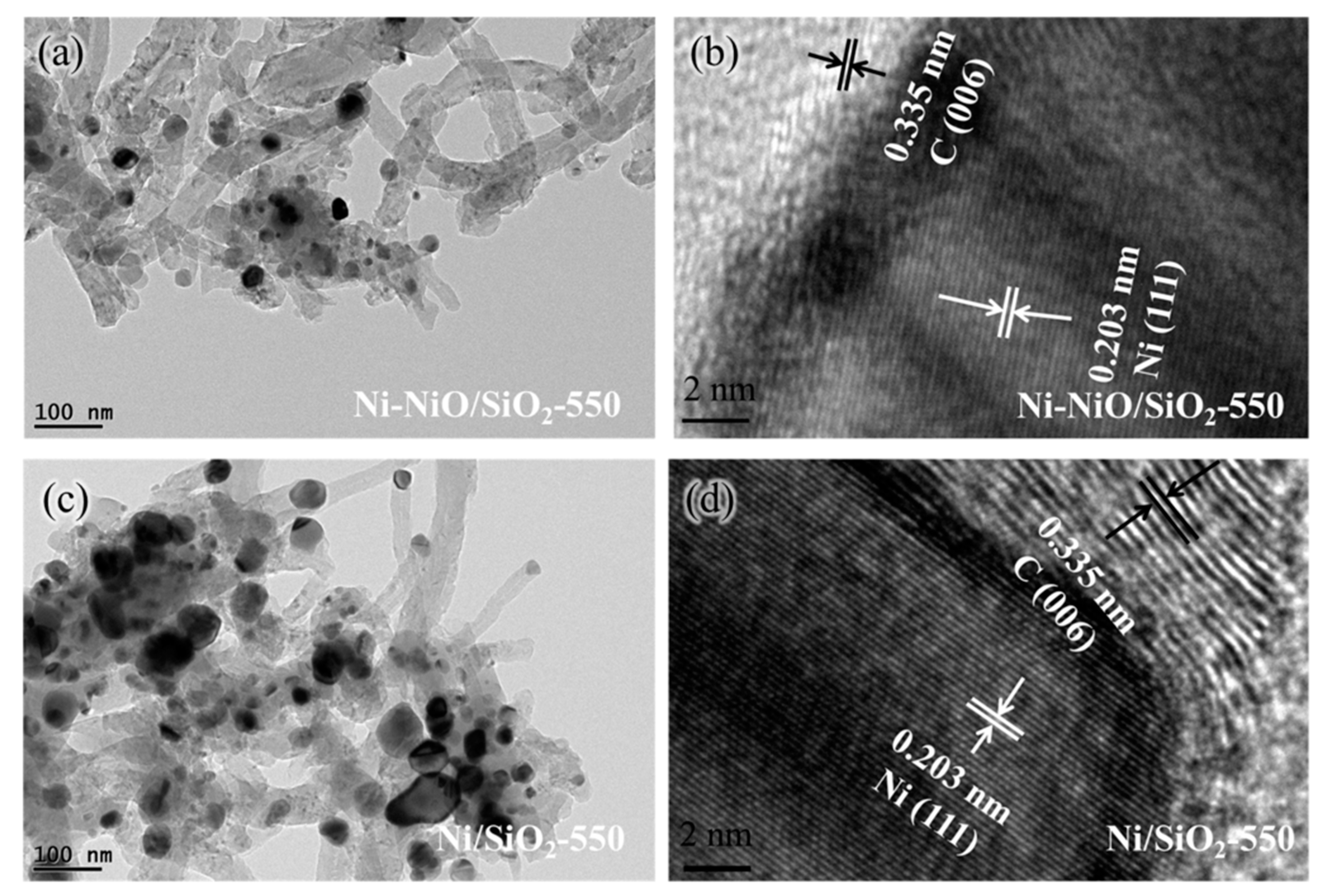

Figure 7. TEM and HRTEM images of (a,b) Ni-NiO/SiO2-550 and (c,d) Ni/SiO2-550.
Figure 7. TEM and HRTEM images of (a,b) Ni-NiO/SiO2-550 and (c,d) Ni/SiO2-550.
Catalysts 09 00506 g007
Catalysts 09 00506 g008 550
Figure 8. TG images of used catalysts of Ni-NiO/SiO2-550 and Ni/SiO2-550.
Figure 8. TG images of used catalysts of Ni-NiO/SiO2-550 and Ni/SiO2-550.
Catalysts 09 00506 g008
Catalysts 09 00506 g009 550

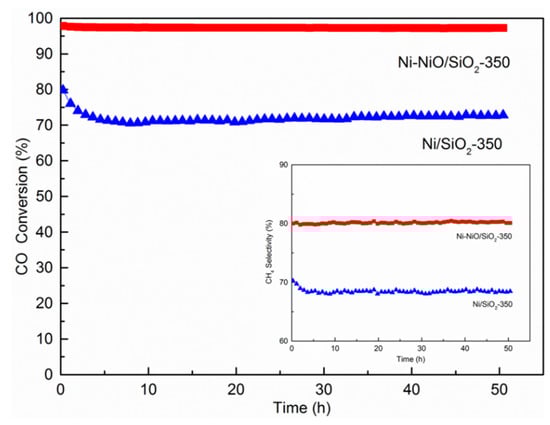

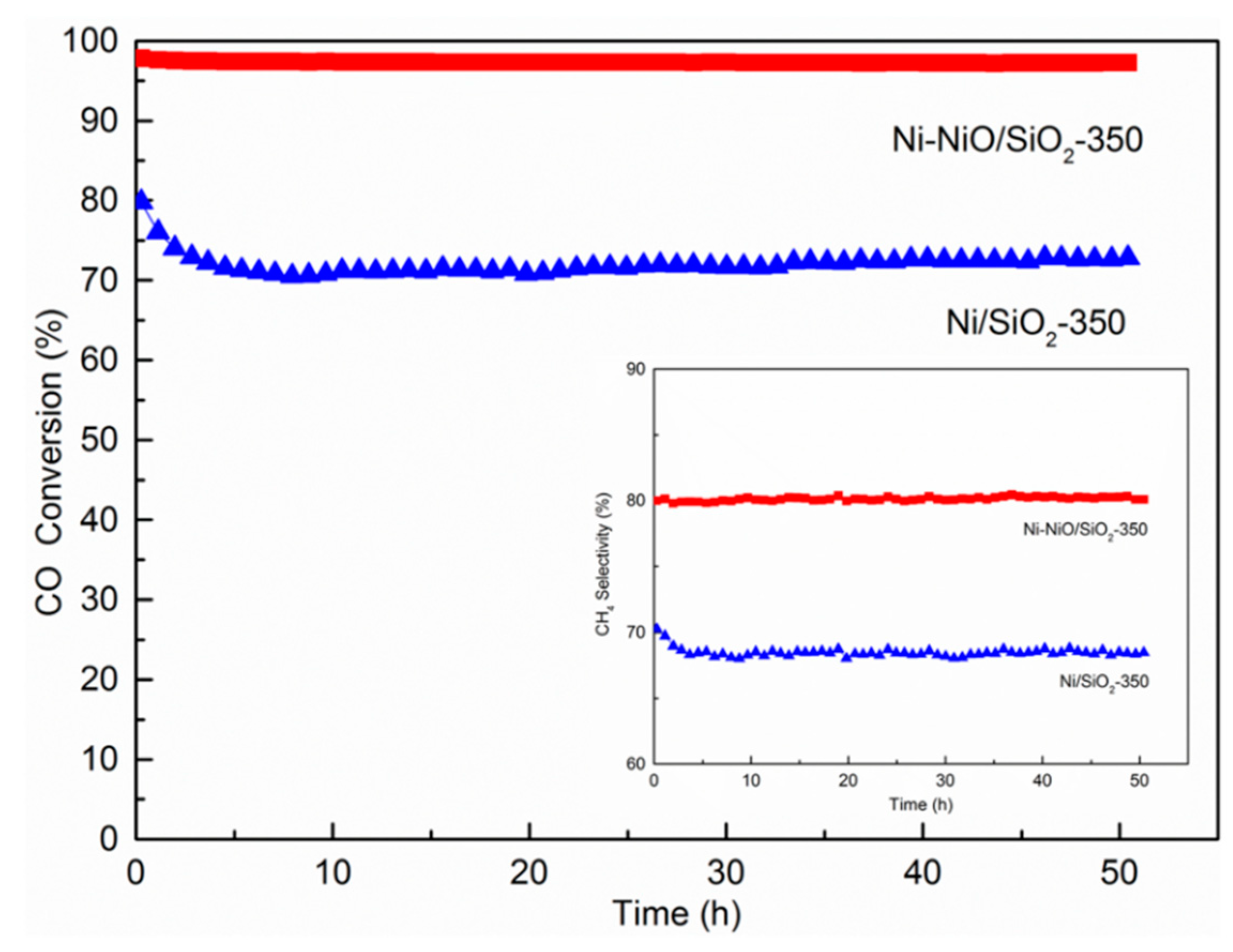

Figure 9. CO conversion and CH4 selectivity (inside) of Ni-NiO/SiO2 and Ni/SiO2 catalysts.
Figure 9. CO conversion and CH4 selectivity (inside) of Ni-NiO/SiO2 and Ni/SiO2 catalysts.
Catalysts 09 00506 g009
Catalysts 09 00506 g010 550

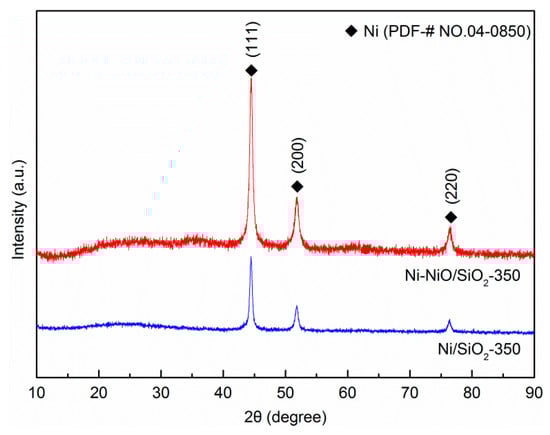

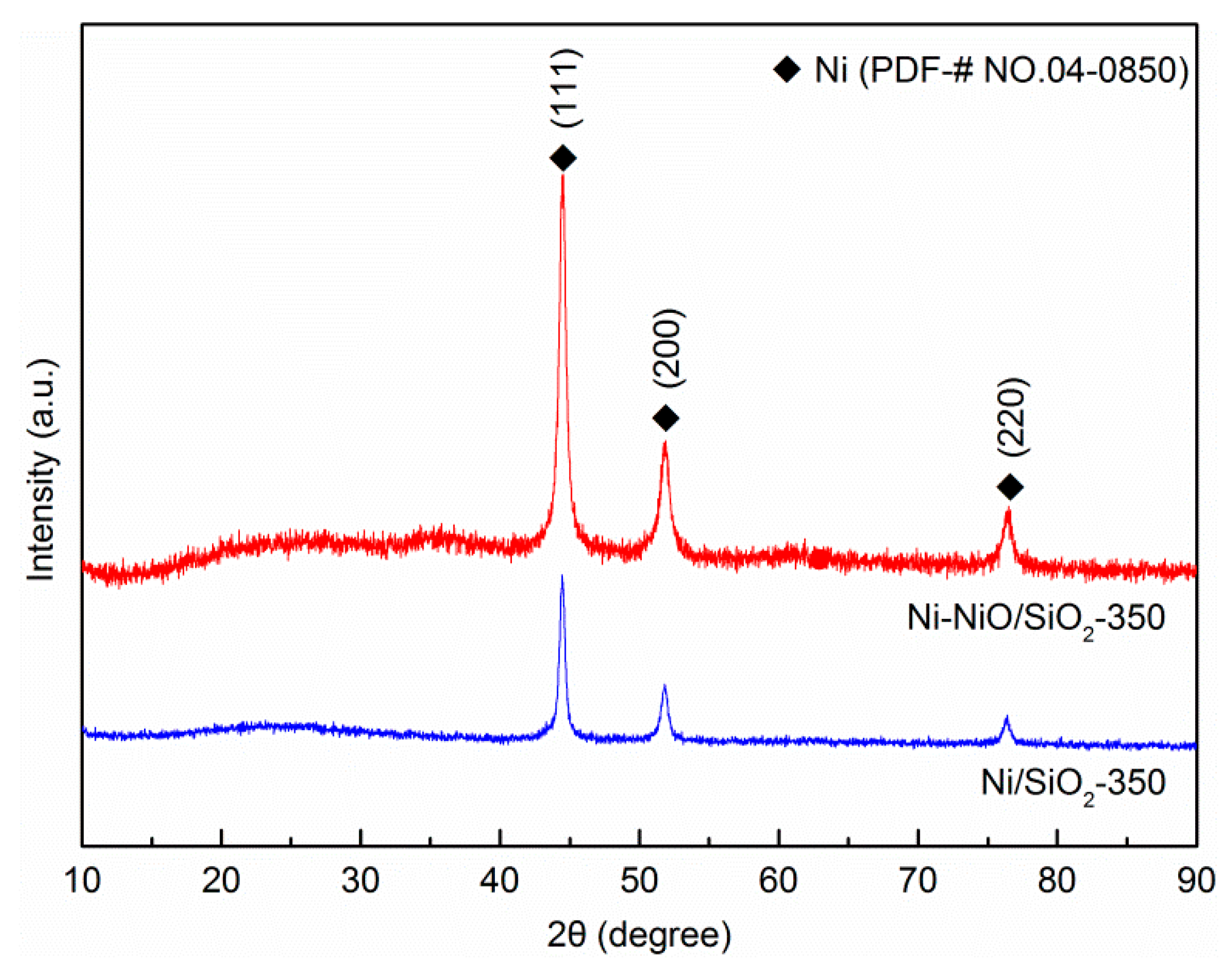

Figure 10. XRD patterns of catalysts Ni-NiO/SiO2-350 and Ni/SiO2-350.
Figure 10. XRD patterns of catalysts Ni-NiO/SiO2-350 and Ni/SiO2-350.
Catalysts 09 00506 g010
Catalysts 09 00506 g011 550

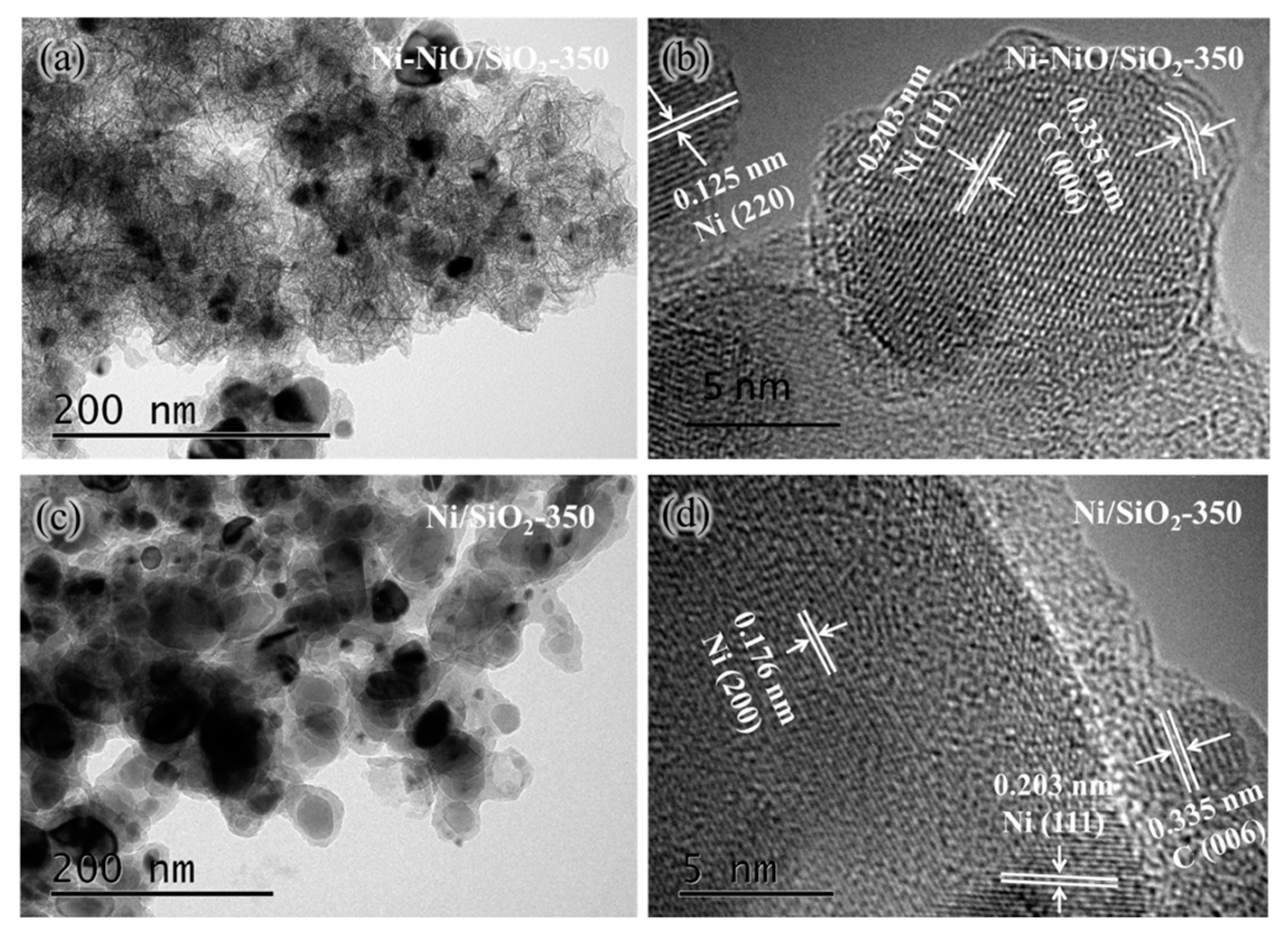

Figure 11. TEM and HRTEM images of the catalysts Ni-NiO/SiO2 -350 (a,b) and Ni/SiO2-350 (c,d).
Figure 11. TEM and HRTEM images of the catalysts Ni-NiO/SiO2 -350 (a,b) and Ni/SiO2-350 (c,d).
Catalysts 09 00506 g011
Table
Table 1. Specific surface area, pore size, and pore volume of the Ni-NiO/SiO2 and Ni/SiO2 catalysts.
Table 1. Specific surface area, pore size, and pore volume of the Ni-NiO/SiO2 and Ni/SiO2 catalysts.
SamplesSBET (m2g−1) aPore Volume (cm3g−1) bPore Size (nm) b
Ni-NiO/SiO2710.2816.7
Ni/SiO2250.1628.4
a Obtained from the BET method. b Obtained from the Barett-Joyer-Halenda (BJH) desorption average pore volume and pore diameter.
