Article

Cyanosilylation of Aldehydes Catalyzed by Ag(I)- and Cu(II)-Arylhydrazone Coordination Polymers in Conventional and in Ionic Liquid Media

1
Centro de Química Estrutural, Instituto Superior Técnico, Universidade de Lisboa, Av. Rovisco Pais, 1049–001 Lisboa, Portugal
2
Department of Chemistry, Baku State University, Z. Xalilov Str. 23, Az 1148 Baku, Azerbaijan
3
LAQV-REQUINTE, Departamento de Química, Faculdade de Ciências e Tecnologias da Universidade Nova de Lisboa, Quinta da Torre, 2829-516 Caparica, Portugal
4
Organic Chemistry Department, Faculty of Science, Peoples’ Friendship University of Russia (RUDN University), 6 Miklukho-Maklaya St., Moscow 117198, Russian
*
Authors to whom correspondence should be addressed.
Catalysts 2019, 9(3), 284; https://doi.org/10.3390/catal9030284
Submission received: 22 February 2019 / Revised: 13 March 2019 / Accepted: 15 March 2019 / Published: 20 March 2019
(This article belongs to the Special Issue Catalysis in Unconventional Media)

Abstract

:
The novel Ag(I) and Cu(II) coordination polymers [Ag(μ3-1κO;2:3κO′;4κN-HL)]n∙n/2H2O (1) and [Cu(en)2(μ-1κO;2κN-L)]n∙nH2O (2) [HL = 2-(2-(1-cyano-2-oxopropylidene)hydrazinyl)benzene sulfonate] were synthesized and characterized by IR and ESI-MS spectroscopies, elemental and single crystal X-ray diffraction analyses. Compounds 1 and 2 as well as the already known complex salt [Cu(H2O)2(en)2](HL)2 (3) have been tested as homogenous catalysts for the cyanosilylation reaction of different aldehydes with trimethylsilyl cyanide, to provide cyanohydrin trimethylsilyl ethers. Coordination polymer 2 was found to be the most efficient one, with yields ranging from 76 to 88% in methanol, which increases up to 99% by addition of the ionic liquid [DHTMG][L-Lactate].

Graphical Abstract

1. Introduction

Cyanohydrins are industrially valuable substrates and important intermediates for the preparation of α-aminonitriles, α-hydroxyketones, α-hydroxyacids, β-hydroxyamines, and β-aminoalcohols, among others [1]. The main synthetic route for the synthesis of cyanohydrins is the catalytic addition of the cyano group to a carbonyl compounds. Trimethylsilyl cyanide (TMSCN) is a frequently explored substrate for catalytic cyanation reaction since it is easy to handle, it has a high atom economy without providing side reactions, and its Si–C bond has low dissociation energy (Scheme 1) [2,3,4,5,6,7], therefore, contrasting with the toxic nature of other cyanide sources such as HCN, NaCN, KCN, etc. Numerous catalysts, including Lewis acids [8,9,10], Lewis bases [11,12,13], oxazaborolidinium ion [14,15], amino-thiourea [16,17], organic-inorganic salts [18,19,20,21,22], N-heterocyclic carbenes [23,24], nonionic bases [25,26], Ti,Al-phosphine oxide bifunctional species with carbohydrate or binaphthol scaffolds [27,28,29], Ti,Al-N-oxide bifunctional catalysts with proline, pyrrolidine and 1,2-diamino ligands [30,31,32], V-, Mn-, Al-, and Ti-salen complexes [33,34,35,36], chiral Ti-α,α,α,α-1,3-dioxolane-tetraaryl-4,5-dimethanols [37,38], Cu(II) and Co(II/III) hydrazone complexes [39,40] and also metal organic frameworks (MOFs) [41,42,43,44], have been developed for this transformation. According to the proposed reaction mechanism [1], the coordination or noncovalent bond acceptor behavior of the oxygen atom of an aldehyde enhances the electrophilic character of the carbon atom at C=O, which makes it more susceptible to a nucleophilic attack by the cyano group. Thus, the reaction rate and yield of cyanohydrin trimethylsilyl ethers are strongly dependent on the nature of metal center and the coordinated ligand in the metal complex catalyzed cyanation reaction [1].
MOFs or coordination polymers are attractive not only as storage, transporter, magnetic and luminescence materials [45,46,47,48], but also as catalysts for various catalytic transformations, such as alkane/alcohol oxidation [49,50], C–C bond formation [40,44], etc., from the viewpoint of green chemistry. The design and synthesis of coordination polymer catalysts, in particular being inexpensive, highly efficient and selective with a wide range of substrates, remains a challenging goal in cyanosilylation reaction. Having this objective in mind, we intend to report the synthesis of new copper(II) and Ag(I) coordination polymers bearing an arylhydrazone ligand and their application in cyanosilylation reaction of different aldehydes with trimethylsilyl cyanide.
Moreover, ionic liquids (ILs) have wide applications in catalysis, namely as green solvents or reaction promoters [51], being able, in some cases, to enhance the reaction rate, improve the yield and selectivity in organic transformations under mild conditions. To date, a few ILs have been reported in the cyanosilylation of aldehydes [52,53]. Thus, another aim of this work is to use a cooperative action of ILs and coordination polymers in cyanosilylation reaction, a type of approach that we have successfully applied in the oxidation of alkanes [54,55] and oxidation of alcohols [56].

2. Results and Discussion

2.1. Synthesis and Characterization of 13

Sodium 2-(2-(1-cyano-2-oxopropylidene)hydrazinyl)benzenesulfonate (NaHL) and [Cu(H2O)2(en)2](HL)2 (3) were synthesized as previously reported [57]. Reaction of AgNO3 or Cu(NO3)2∙2.5H2O with NaHL in methanol in the presence of nitric acid or ethylenediamine (en) led to the novel coordination polymer [Ag(μ3-1κO;2:3κO′;4κN-HL)]n∙n/2H2O (1) or [Cu(en)2(μ-1κO;2κN-L)]n∙nH2O (2), respectively (Scheme 2). Both polymers were characterized by IR spectroscopy, ESI-MS, elemental analysis, and single crystal X-ray diffraction.
The IR spectra of 1 and 2 (see experimental section) show the expected N≡C, C=O and C=N vibrations which generally occur at wavenumbers different from those of the proligand (i.e., 2206, 1645, and average 1570 cm−1, respectively [57]), therefore attesting the involvement of the compound in coordination to the metals. The nitrile group stretching frequency ν(C≡N) in 1 is 8 cm−1 above that measured for NaHL which is consistent with its coordination. In 2, that frequency is 2 cm−1 below. Concerning the ketone vibrations, ν(C=O), they occur 16 (for 1) and 30 (for 2) cm−1 above those of the NaHL reference value, whereas ν(C=N) assume values 13 (for 1) and 26 (for 2) cm−1 above the average one for NaHL. Fragmentation peaks in MS-ESI of the compounds are related as follows: 749.20 [Mr–H2O+H]+ (for 1) and 450.05 [Mr–H2O+H]+ (for 2), accounting for the existence of the dinuclear and mononuclear species in solution, respectively. Elemental analyses and X-ray crystallography experiments are also in accordance with the proposed formulations.
The asymmetric unit of 1 contains one AgI cation, a HL anion and a crystallization water molecule. Upon symmetry expansion, a 2D polymer is revealed with every silver cation adopting a distorted trigonal pyramidal geometry (τ4 = 0.48) [58] filled by one Ncyano- and three Osulfonate-atoms (Figure 1). Each organic ligand behaves as a bridging three donor chelators. Polymer 1 contains four membered {AgO}2 fragments which side-share with two eight-membered {AgO2S}2 metallacycles thus giving rise to infinite chains connected by the organic ligands (Figures S1 and S2). The water molecules are trapped in these metal-organic sheets, each one donating to the Oketo atoms of two hydrazones (Figure S3 and Table S1).
The asymmetric unit of 2 comprises a hydrazine ligand bridging two copper cations that stand in special positions, half a chelating ethylenediamine molecule and a crystallization water molecule. Symmetry expansion reveals a 1D polymer (Figure 2) featuring wave-like chains (base vectors [101]) with the copper cations alternating N6 and N4O2 coordination environments every 7.6836(4) Å (see Figure S4 and Table 1). The octahedral geometries of the two metals are roughly similar in terms of volume and of quadratic elongation (13.319 and 13.935 Å3; 1.021 and 1.046, in this order), but differ in the angle variances (10.77 for 1 against 36.53 °2 for 2) [59]. The water molecules in 2 are trapped between the metal-organic chains (Figure S4 and Table S1), each one donating to an Oketo and accepting from a Namine in a chain, and interacting with an Osulfonate atom in a vicinal one.
The NN and Cketo−Chydraz distances (Table 1) in the compounds considered in this work vary in the order 3 > 1 > 2 and approach single bond characters, while the C−Nhydraz and C−Oketo lengths follow the reverse sequence 2 > 1 > 3 therefore pending to double bond types. Such observations suggest electronic delocalization along the OCketoChidrazNN skeleton of the hydrazo ligand of polymer 2. This is further supported by the presence of the NH groups in polymer 1 and in complex salt 3, which are involved in RAHB interactions with Osulfonate atoms (see also Table S1). The dianionic nature of this ligand in 2 is thus allocated to their O atoms. Since the C≡N groups in 1 and 2 are engaged in coordination, their lengths slightly increased as compared to that found in 3. The M–Namine distances in 2 and 3 are comparable (Table 1) indicating that in the former this parameter was not affected by the coordination of the L2 ligand. In 2 the axial M−Ncyano (eventually, also the M−Osulfonate) length considerably exceeds the equatorial M-Namine, conceivably due to Jahn-Teller effect. Despite the planarity of the hydrazone ligand in 1 and 2, the C≡N−M angle in the latter is considerably lower than that in the former (126.5(6) against 165.2(7)°, see Table 1). As it was found in the complex salt 3, polymer 1 is stabilized by the intramolecular N–H···Osulfonate resonance assisted hydrogen bond (RAHB) system. The N–H∙∙∙O angle of 150(11)° is significantly higher than the average O–H∙∙∙O value of 149° found in β-diketones involved in similar intra-molecular interactions [60].

2.2. Catalytic Activity of 13 in Cyanosilylation Reaction

Polymers 1 and 2, mononuclear complex 3 and NaHL have been tested as homogeneous catalysts in cyanosilylation reaction of benzaldehyde with trimethylsilyl cyanide (model reaction) in different organic solvents (tetrahydrofurane, dichloromethane, or methanol), and at room temperature (Scheme 1, Table 2). In all the experiments, higher yields are observed in MeOH (entries 1–12, Table 2). Polymer 1 can be considered as inactive towards the reaction under study in view of the obtained yields (entries 1–3, Table 2) being identical to those attained in the absence of any metal catalyst (entries 16–18, Table 2). The catalytic activities of polymer 2 and the complex salt 3 are also comparable (compare entries 4–6 with 7–9 in Table 2) suggesting disaggregation of 2 in solution giving rise to 3. Polymer 2 was chosen as the catalyst (it provides 79.9% product yield, slightly above that of 3, 75.3%) and methanol as the solvent for the following studies (Table 3). Reaction of benzaldehyde with TMSCN provides low product yield in the presence of a metal salt, AgNO3 or Cu(NO3)2·2.5H2O (maximum yield of 33%), and without metal catalyst (maximum yield of 25%) (entries 13–18, Table 2). With catalyst 2, a high yield of 2-phenyl-2-((trimethylsilyl)oxy)acetonitrile is already obtained (79.0%) after 8 h, which did not increase considerably for longer times (entries 1–6, Table 3). The amount of this catalyst was varied from 1 to 9 mol %, and no considerable yield increase was observed for a catalyst load above 5% (entries 7–11, Table 3). The temperature (in the 15–55 °C range) had not a marked effect on the product yield (entries 12–15, Table 3).
Among the common organic solvents that we tested, methanol is the best one for this system. However, this solvent is considerably toxic. In order to use a greener solvent, we applied several room temperature ionic liquids (Table 4). In all experiments, the reaction proceeded smoothly to produce 2-phenyl-2-((trimethylsilyl)oxy)acetonitrile in a moderate yield (68.7–75.2%) under catalyst-free conditions (entries 1, 6, 11, and 16), which increases (75.1–82.2%) in the presence of 2 (entries 2, 7, 12, and 17). The use, as reaction medium, of a mixture of IL with MeOH afforded the product in a higher yield in comparison to the IL alone (Table 4). In general, ILs with guanidinium cations shows a higher catalytic performance than imidazolinium or phosphonium cations (Table 4). The ionic liquid [DHTMG][L-Lactate] afforded the product in the highest yield (92.6% yield; Table 4, entry 9).
Subsequently, the cyanosilylation reaction of para-electron-withdrawing or -donating aromatic aldehyde substrates in the presence of catalyst 2 was tested under optimized reaction conditions (entries 1–3 and 5–6 in Table 5, respectively), in MeOH or in IL+MeOH mixture. With 4-nitro-, 4-chloro- or 4-bromobenzaldehyde, higher yields were obtained (Table 5, entries 1–3), as compared to the benzaldehyde derivatives having an electron-donating substituent (methoxy or methyl) (Table 5, entries 5 and 6), due to an increase of the electrophilicity of the carbon atom at C=O in the former case. The use of linear aliphatic aldehydes (acetaldehyde, propionaldehyde and hexanal) as substrates (entries 7–9, Table 5) allowed to reach higher yields than in the case of the aromatic aldehydes, in MeOH or in a mixture of [DHTMG][L-Lactate]:MeOH (1:10, v/v), which decrease with the growth of the aliphatic fragment. In all cases, 2 shows higher catalytic performance in a mixture of [DHTMG][L-Lactate]:MeOH (1:10, v/v) than in the conventional organic solvent MeOH (Table 5).
Up to now, a solvent capable of extracting effectively the products from the IL+catalyst system was not found. Therefore, no recycling experiments were made and the reaction analysis with IL was made by using a sample of the reactional mixture containing the product and the IL (see Experimental). This method was accurate because the 1H NMR peaks of ILs do not overlap with those of the product.
Comparing with reported homogeneous catalytic systems for the cyanosilylation reaction, there are several advantages in using 2 as a catalyst in this transformation: (i) It is available from relatively cheap starting materials (arylhydrazone and copper nitrate); (ii) it shows a higher activity (79.0%) in methanol medium in comparison to Zn(II) (30%) [61], Cu(II) (27%) [62], potassium salt of L-proline (83%) [63], etc.; and (iii) a shorter reaction time (8 h) and the convenient room temperature can be used favorably, in comparison to other cases operating for a longer reaction time (96 h) [64], at higher (40 °C) [62] or lower (even negative) (−50 °C) [65] temperatures.
The reaction mechanism can be similar to that proposed for some reported examples with related catalytic systems [1,66,67]. Moreover, the reaction possibly can be promoted by cooperative action of coordination and noncovalent interactions, which increase the electrophilic character of carbon atom at the carbonyl group of the aldehyde towards the nucleophilic addition of the cyano moiety with the assistance of a tetrel bonding (Scheme 3), and migration of the silyl group to the oxygen followed by product liberation.

3. Experimental

3.1. Materials and Instrumentation

All the chemicals were obtained from commercial sources (Aldrich, St. Louis, MO, USA) and used as received. Sodium 2-(2-(1-cyano-2-oxopropylidene)hydrazinyl)benzenesulfonate (NaHL) and [Cu(H2O)2(en)2](HL)2 (3) were synthesized according to the reported procedures [57]. Infrared spectra (4000–400 cm−1) were recorded on a Vertex 70 (Bruker, Billerica, MA, USA) instrument in KBr pellets. Carbon, hydrogen, and nitrogen elemental analyses were carried out by the Microanalytical service of Instituto Superior Técnico. The 1H and 13C NMR analyses were performed on a Bruker Avance II + 300 (Bruker, Billerica, MA, USA) spectrometer, which operates at 300.130 and 75.468 MHz for 1H and 13C, respectively. The chemical shifts are recorded in ppm in reference to tetramethylsilane. Electrospray mass spectra (ESI-MS) experiments were run by using an ion-trap instrument (Varian 500-MS LC Ion Trap Mass Spectrometer, Palo Alto, CA, USA) containing an electrospray ion source. In order to perform the electrospray ionization, the optimization of the drying gas and flow rate was undertaken in accord to the particular sample with 35 p.s.i. of nebulizer pressure. Scanning was recorded from m/z 0 to 1100 in a methanol solution. The compounds were seen in the positive mode (capillary voltage = 80–105 V).

3.2. Synthesis

3.2.1. Synthesis of 1

1 mmol (289 mg) of NaHL was dissolved in 25 mL of methanol, and 2 drops of HNO3 (70%) and 1 mmol (170 mg) of AgNO3 were added, and the system was then stirred for 10 min. After ca. 3 d at room temperature, orange crystals precipitated and were filtered off and dried in air.
1: Yield, 49% (based on Ag). Calcd. for C20H18Ag2N6O9S2 (Mr = 766.26): C 31.35, H 2.37, N 10.97; found C 31.22, H 2.40, N 10.89. MS (ESI, positive ion mode), m/z: 749.20 [Mr–H2O+H]+. IR (KBr): 3470 ν(OH), 3406 ν(NH), 2214 ν(C≡N), 1661 ν(C=O), and 1583 ν(C=N) cm−1.

3.2.2. Synthesis of 2

1 mmol (289 mg) of NaHL was dissolved in 25 mL of methanol, 0.12 mL (2 mmol) en and 1 mmol (232 mg) of Cu(NO3)2∙2.5H2O were added, and the system was then stirred for 10 min. After ca. 2 d at room temperature, greenish yellow crystals precipitated and were filtered off and dried in air.
2: Yield, 53% (based on Cu). Calcd. for C14H25CuN7O5S (Mr = 467.00): C 36.01, H 5.40, N 21.00; found C 35.96, H 5.43, N 20.93. MS (ESI, positive ion mode), m/z: 450.05 [Mr–H2O+H]+. IR (KBr): 3450 ν(OH), 3340, 3286, 3266 and 3134 ν(NH), 2204 ν(C≡N), 1675 ν(C=O), and 1596 ν(C=N) cm−1.

3.3. Crystal Structure Determination

Intensity data for compounds 1 and 2 were collected at 150 K using a Bruker SMART APEX-II diffractometer equipped with graphite-monochromated Mo-Kα radiation (λ = 0.71073 Å). Data were collected using omega scans of 0.5° per frame and full sphere of data were obtained. Cell parameters were retrieved using Bruker SMART software and refined using Bruker SAINT [68] on all the observed reflections. Absorption corrections were applied using the SADABS program [69]. The structures were solved by direct methods using SIR97 package [70] and refined with SHELXL-2018/3 [71]. Calculations were performed using the WinGX System-Version 2014-1 [72]. The hydrogen atoms of water molecules and hydrazine (in 1) or ethylenediamine (in 2) were found in the difference Fourier map and the isotropic thermal parameters were set at 1.5 times the average thermal parameters of the belonging oxygen or nitrogen atoms, with their distances restrained by using the DFIX and DANG commands. Hydrogen atoms bonded to carbon atoms were included in the refinement using the riding-model approximation with the Uiso(H) defined as 1.2 Ueq of the parent aromatic atoms, and 1.5Ueq of the parent carbon atoms for methyl. Compound 2 was refined as a 2-component twin; the unaccounted twinning was resolved by using the TwinRotMat program in Platon [73]. Least square refinements with anisotropic thermal motion parameters for all the non-hydrogen atoms were employed. The details of the crystallographic data for 1 and 2 are summarized in Table 6. Selected bond distances and angles for polymers 1 and 2 as well as, for comparative purposes, complex salt 3 are shown in Table 1. Ellipsoid plots are presented in Figure 1 and Figure 2, while Figures S1–S5 in the Supplementary Material File illustrate packing properties for both polymers.
Crystallographic data have been deposited at the Cambridge Crystallographic Data Center: CCDC 1891994 for 1 and 1891993 for 2. Copy of this information can be obtained free of charge from The Director, CCDC, 12 Union Road, Cambridge CB2 1EZ, UK (Fax: (+44) 1223-336033; E-mail: [email protected] or www.ccdc.cam.ac.uk/data_request/cif).

3.4. Synthesis of ILs

1-Ethyl-3-methylimidazolium L-prolinate [EMIM][L-Prolinate] and 1’,1’-dihexyl-3,3,3’,3’-tetramethylguanidine L-lactate [DHTMG][L-Lactate] were prepared by known procedure [74,75]. 1,1,3,3-Tetramethylguanidine acetate [TMGH][OAc] and trihexyl(tetradecyl)phosphonium L-prolinate [P6,6,6,14][L-Prolinate] were synthesized by the same methodology (see below).

3.4.1. Synthesis of 1,1,3,3-tetramethylguanidine acetate [TMGH][OAc]

To a solution of 35 mmol of 1,1,3,3-tetramethylguanidine in 20 mL of methanol, 35 mmol of acetic acid were added dropwise. The mixture was then stirred at room temperature for 24 h. Then, the methanol was evaporated, and the product was dried under vacuum during 24 h. A colorless oil was obtained (98% yield). 1H NMR (CDCl3): δ 1.91 (s, 3H, CH3), and 3.01 (s, 12H, 4CH3) ppm.

3.4.2. Synthesis of trihexyl(tetradecyl)phosphonium L-prolinate [P6,6,6,14][L-Prolinate]

This IL was synthesized in two steps: (i) 3.6 mmol of L-proline were dissolved in 50 mL of methanol and 3.6 mmol of crystalline NaOH were added. The reaction was left stirred for 24 h; (ii) After sodium prolinate was formed, 3 mmol of [P6,6,6,14]Cl were added, and the mixture was stirred for 24 h at room temperature. After that time, methanol was removed under low pressure and the mixture was re-dissolved in dichloromethane. The precipitated NaCl was filtered off and the dichloromethane was evaporated. Then, the product was dried under vacuum during 24 h. A yellow oil was obtained (67% yield). 1H NMR (CDCl3): δ 0.89 (t, 12H, 4CH3), 1.25 and 1.30 (m, 40H, 20CH3, peaks very messy and overlapped), 1.50 (m, 16H, 8CH3), and 2.42 (m, 8H, 3CH2, NH, and CH, these peaks correspond to the anion and are all overlapped) ppm.

3.5. General Procedure for Catalytic Studies

In a typical cyanosilylation experiment, to a solution of benzaldehyde (0.4 mmol), catalyst (13) (1–8 mol %) in any of the solvents [CH2Cl2, THF, MeOH or IL; 2 mL], trimethylsilyl cyanide (TMSCN) (0.6 mmol) was added dropwise. The mixture was stirred continuously for a certain amount of time. The solvent was then evaporated (in the case of CH2Cl2, THF and MeOH) and the residue was analyzed by 1H-NMR spectroscopy in CDCl3, in order to evaluate the yield of the products [39,40]. In the case of the reactions with IL, the analysis was made by taking directly a sample of the reactional mixture, which was analyzed by 1H-NMR in CDCl3. For the reactions in a IL+MeOH mixture, MeOH was evaporated and a sample of products+IL was taken for analysis. The adequacy of this procedure was confirmed by using blank 1H NMR analyses with 1,2-dimethoxyethane (0.10 mmol) as an internal reference [benzaldehyde (0.10 mmol) and TMSCN) (0.15 mmol)] (Figure S6). The internal standard method showed the absence of side products

4. Conclusions

We have prepared two new silver(I) and copper(II) coordination polymers 1 and 2, and applied them, with the known mononuclear copper(II) complex 3, as catalysts in cyanosilylation reaction of several aldehydes with TMSCN. The CuII coordination polymer 2 showed the highest activity for the cyanosilylation reaction in methanol and in a mixture of [DHTMG][L-Lactate]:MeOH (1:10, v/v) achieving yields up to 99% at room temperature. Electron-withdrawing substituents, such as –NO2, –Cl, –Br, in the para position of the aromatic aldehyde provide higher product yields, whereas electron-donating groups (–CH3, –OCH3) inhibit the reaction. Cooperative actions of coordination and noncovalent interactions are proposed for the C=O activation in the aldehyde substrate. The use of a IL+MeOH mixture also increases the catalytic activity in comparison with the case of MeOH alone or another organic solvent.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/9/3/284/s1, Figure S1. Fragments of the 2D network in compound 1; Figure S2. Fragment of a 1D infinite chain in compound 1; Figure S3. Fragment of two 2D sheets of polymer 1 with intercalated water molecules; Figure S4. Fragments of the 1D chain in compound 2 viewed perpendicular to the ab plane; Figure S5. Fragment of chains of polymer 2 with intercalated water molecules (represented in space filling model); Table S1. Hydrogen bonding distances and angles for 1 and 2.

Author Contributions

G.A.O.T. did the synthesis of the complexes, the catalytic tests and wrote the majority of the manuscript; K.T.M. provided the plan of the synthesis and catalysis and wrote a part of the introduction; A.P.C.R. helped in the catalytic studies and wrote the discussion of the catalytic results; M.F.C.G.d.S. solved the complexes structures by X-ray diffraction and wrote the corresponding part; L.C.B. and F.I.Z. gave general revision; A.J.L.P. did the final revision and discussion of the paper.

Funding

This research was founded by the Foundation for Science and Technology (FCT), grant PD/BD/106015/2014. KTM and APC acknowledges the FCT and Instituto Superior Técnico (DL 57/2016 and L 57/2017 Program, Contract no: IST-ID/85/2018 and IST-ID/119/2018). Authors are grateful to the FCT: (project UID/QUI/00100/2019), Portugal, for financial support. Authors are thankful to the Portuguese NMR Network (IST-UL Centre) for access to the NMR facility and the IST Node of the Portuguese Network of mass-spectrometry for the ESI-MS measurements. This work also was supported by the “RUDN University Program 5–100”.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Kurono, N.; Ohkuma, T. Catalytic Asymmetric Cyanation Reactions. ACS Catal. 2016, 6, 989–1023. [Google Scholar] [CrossRef]
  2. Kantam, M.L.; Mahendar, K.; Sreedhar, B.; Kumar, K.V.; Choudary, B.M. Cyanosilylation of Aldehydes and Ketones Catalyzed by Nanocrystalline Magnesium Oxide. Synth. Commun. 2008, 38, 3919–3936. [Google Scholar] [CrossRef]
  3. Strappaveccia, G.; Lanari, D.; Gelman, D.; Pizzo, F.; Rosati, O.; Curinib, M.; Vaccaro, L. Efficient synthesis of cyanohydrin trimethylsilyl ethers via 1,2-chemoselective cyanosilylation of carbonyls. Green Chem. 2013, 15, 199–204. [Google Scholar] [CrossRef]
  4. North, M.; Omedes-Pujol, M.; Young, C. Kinetics and mechanism of the racemic addition of trimethylsilyl cyanide to aldehydes catalysed by Lewis bases. Org. Biomol. Chem. 2012, 10, 4289–4298. [Google Scholar] [CrossRef] [PubMed]
  5. North, M.; Omedes-Pujol, M. Kinetics and mechanism of vanadium catalysed asymmetric cyanohydrin synthesis in propylene carbonate. Beilstein J. Org. Chem. 2010, 6, 1043–1055. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Wen, Y.; Huang, X.; Huang, J.; Xiong, Y.; Qin, B.; Feng, X. Asymmetric cyanosilylation of aldehydes catalyzed by novel organo-catalysts. Synlett 2005, 16, 2445–2448. [Google Scholar] [CrossRef]
  7. Zhang, Z.; Chen, J.; Bao, Z.; Chang, G.; Xing, H.; Ren, Q. Insight into the catalytic properties and applications of metal-organic frameworks in the cyanosilylation of aldehydes. RSC Adv. 2015, 5, 79355–79360. [Google Scholar] [CrossRef]
  8. Saravanan, P.; Anand, R.V.; Singh, V.R. Cu(OTf)2 catalyzed trimethylsilyl cyanide addition to carbonyl compounds. Tetrahedron Lett. 1998, 39, 3823–3824. [Google Scholar] [CrossRef]
  9. Curini, M.; Epifano, F.; Marcotullio, M.C.; Rosati, O.; Rossi, M. Potassium exchanged zirconium hydrogen phosphate as heterogeneous catalyst in cyanosilylation of carbonyl compounds. Synlett 1999, 315–316. [Google Scholar] [CrossRef]
  10. Surya, K.D.; Richard, A.G. Vanadyl triflate as an efficient and recyclable catalyst for trimethylsilyl cyanide addition to carbonyl compounds. J. Mol. Catal. A Chem. 2005, 232, 123–125. [Google Scholar] [CrossRef]
  11. Tian, S.-K.; Deng, L. A highly enantioselective chiral Lewis base-catalyzed asymmetric cyanation of ketones. J. Am. Chem. Soc. 2001, 123, 6195–6196. [Google Scholar] [CrossRef] [PubMed]
  12. Tian, S.-K.; Hong, R.; Deng, L. Catalytic asymmetric cyanosilylation of ketones with chiral Lewis base. J. Am. Chem. Soc. 2003, 125, 9900–9901. [Google Scholar] [CrossRef] [PubMed]
  13. Denmark, S.E.; Chung, W. Lewis base catalyzed addition of trimethylsilyl cyanide to aldehydes. J. Org. Chem. 2006, 71, 4002–4005. [Google Scholar] [CrossRef] [PubMed]
  14. Ryu, D.H.; Corey, E.J. Highly enantioselective cyanosilylation of aldehydes catalyzed by a chiral oxazaborolidinium ion. J. Am. Chem. Soc. 2004, 126, 8106–8107. [Google Scholar] [CrossRef]
  15. Ryu, D.H.; Corey, E.J. Enantioselective cyanosilylation of ketones catalyzed by a chiral oxazaborolidinium ion. J. Am. Chem. Soc. 2005, 127, 5384–5387. [Google Scholar] [CrossRef] [PubMed]
  16. Fuerst, D.E.; Jacobsen, E.N. Thiourea-catalyzed enantioselective cyanosilylation of ketones. J. Am. Chem. Soc. 2005, 127, 8964–8965. [Google Scholar] [CrossRef] [PubMed]
  17. Zuend, S.J.; Jacobsen, E.N. Cooperative catalysis by tertiary amino-thioureas: Mechanism and basis for enantioselectivity of ketone cyanosilylation. J. Am. Chem. Soc. 2007, 129, 15872–15883. [Google Scholar] [CrossRef] [PubMed]
  18. Kurono, N.; Yamaguchi, M.; Suzuki, K.; Ohkuma, T. Lithium chloride: An active and simple catalyst for cyanosilylation of aldehydes and ketones. J. Org. Chem. 2005, 70, 6530–6532. [Google Scholar] [CrossRef] [PubMed]
  19. Amurrio, I.; Cordoba, R.; Csaky, A.G.; Plumet, J. Tetrabutylammonium cyanide catalyzed diasteroselective cyanosliylation of chiral alpha-hydroxyketones. Tetrahedron 2004, 60, 10521–10524. [Google Scholar] [CrossRef]
  20. Liu, X.; Qin, B.; Zhou, X.; He, B.; Feng, X. Catalytic asymmetric cyanosilylation of ketones by a chiral amino acid salt. J. Am. Chem. Soc. 2005, 127, 12224–12225. [Google Scholar] [CrossRef] [PubMed]
  21. Raj, I.V.P.; Suryavanshi, G.; Sudalai, A. Organocatalytic activation of TMSCN by basic ammonium salts for efficient cyanation of aldehydes and imines. Tetrahedron Lett. 2007, 48, 7211–7214. [Google Scholar] [CrossRef]
  22. Wang, X.; Tian, S.-K. Catalytic cyanosilylation of ketones with simple phosphonium salt. Tetrahedron Lett. 2007, 48, 6010–6013. [Google Scholar] [CrossRef]
  23. Song, J.J.; Gallou, F.; Reeves, J.T.; Tan, Z.; Yee, N.K.; Senanayake, C.H. Activation of TMSCN by N-heterocyclic carbenes for facile cyanosilylation of carbonyl compounds. J. Org. Chem. 2006, 71, 1273–1276. [Google Scholar] [CrossRef]
  24. Suzuki, Y.; Bakar, A.; Muramatsu, M.D.K.; Sato, M. Cyanosilylation of aldehydes catalyzed by N-heterocyclic carbenes. Tetrahedron 2006, 62, 4227–4231. [Google Scholar] [CrossRef]
  25. Fetterly, B.M.; Verkade, J.G. P(RNCH2CH2)N: Efficient catalysts for the cyanosilylation of aldehydes and ketones. Tetrahedron Lett. 2005, 46, 8061–8066. [Google Scholar] [CrossRef]
  26. Wang, Z.; Fetterly, B.M.; Verkade, J.G. P(MeNMCH2CH2)3N: An effective catalyst for trimethylsilycyanation of aldehydes and ketones. J. Org. Met. Chem. 2002, 646, 161–166. [Google Scholar] [CrossRef]
  27. Hamashima, Y.; Kanai, M.; Shibasaki, M. Catalytic enantioselective cyanosilylation of ketones. J. Am. Chem. Soc. 2000, 122, 7412–7413. [Google Scholar] [CrossRef]
  28. Hamashima, Y.; Sawada, D.; Nogami, H.; Kanai, M.; Shibasaki, M. Highly enantioselective cyanosilylation of aldehydes catalyzed by a Lewis acid-Lewis base bifunctional catalyst. Tetrahedron 2001, 57, 805–814. [Google Scholar] [CrossRef]
  29. Mita, T.; Sasaki, K.; Kanai, M.; Shibasaki, M. Catalytic enantioselective conjugate addition of cyanide to alpha, beta-unsaturated N-acylpyrroles. J. Am. Chem. Soc. 2005, 127, 514–515. [Google Scholar] [CrossRef] [PubMed]
  30. Xiong, Y.; Huang, X.; Gou, S.; Huang, J.; Wen, Y.; Feng, X. Enantioselective cyanosilylation of ketones catalyzed by a nitrogen-containing bifunctional catalyst. Adv. Synth. Catal. 2006, 348, 538–544. [Google Scholar] [CrossRef]
  31. Qin, B.; Liu, X.; Shi, J.; Zheng, K.; Zhao, H.; Feng, X. Enantioselective cyanosilylation of alpha, alpha-dialkoxy ketones catalyzed by proline-derived in-situ-prepared N-oxide as bifunctional organocatalyst. J. Org. Chem. 2007, 72, 2374–2378. [Google Scholar] [CrossRef]
  32. Shen, K.; Liu, X.; Li, Q.; Feng, X. Highly enantio selective cyanosilylation of ketones catalyzed by a bifunctional Ti(IV) complex. Tetrahedron 2008, 64, 147–153. [Google Scholar] [CrossRef]
  33. Baleizao, C.; Gigante, B.; Garcia, H.; Corma, A. Ionic liquids as green solvents for the asymmetric synthesis of cyanohydrins catalysed by VO(salen) complexes. Green Chem. 2002, 4, 272–274. [Google Scholar] [CrossRef]
  34. Baleizao, C.; Gigante, B.; Garcia, H.; Corma, A. Vanadyl salen complexes covalently anchored to an imidazolium ion as catalysts for the cyanosilylation of aldehydes in ionic liquids. Tetrahedron Lett. 2003, 44, 6813–6816. [Google Scholar] [CrossRef]
  35. Kim, S.S.; Song, D.H. Asymmetric cyanohydrin synthesis catalyzed by Al(salen)/triphenylphosphane oxide. Eur. J. Org. Chem. 2005, 1777–1780. [Google Scholar] [CrossRef]
  36. Kim, S.S.; Lee, S.H.; Kwak, J.M. Enantioselective cyanosilylation of ketones catalyzed by Mn(salen)/Ph3PO. Tetrahedron Asymmetry 2006, 17, 1165–1169. [Google Scholar] [CrossRef]
  37. Brunel, J.-M.; Legrand, O.; Buono, G. Enantioselective trimethylsilylcyanation of aromatic aldehydes catalyzed by titanium alkoxide-chiral o-hydroxyarylphosphine oxides complexes. Tetrahedron Asymmetry 1999, 10, 1979–1984. [Google Scholar] [CrossRef]
  38. Kim, S.S.; Kwak, J.M.; Rajagopal, G. Asymmetric cyanosilylation of aldehydes by chiral Ti-TADDOL complex. Bull. Korean Chem. Soc. 2006, 27, 1638–1640. [Google Scholar] [CrossRef]
  39. Gurbanov, A.V.; Maharramov, A.M.; Guedes da Silva, M.F.C.; Pombeiro, A.J.L. Trinuclear and polymeric cobalt(II or II/III) complexes with an arylhydrazone of acetoacetanilide and their application in cyanosilylation of aldehydes. Inorg. Chim. Acta 2017, 466, 632–637. [Google Scholar] [CrossRef]
  40. Ma, Z.; Gurbanov, A.V.; Sutradhar, M.; Kopylovich, M.N.; Mahmudov, K.T.; Maharramov, A.M.; Guseinov, F.I.; Zubkov, F.I.; Pombeiro, A.J.L. Effective cyanosilylation of aldehydes with copper(II)-based polymeric catalysts. Mol. Catal. 2017, 428, 17–23. [Google Scholar] [CrossRef]
  41. Karmakar, A.; Hazra, S.; Guedes da Silva, M.F.C.; Pombeiro, A.J.L. Synthesis, structure and catalytic application of lead(II) complexes in cyanosilylation reactions. Dalton Trans. 2015, 44, 268–280. [Google Scholar] [CrossRef] [PubMed]
  42. Cui, X.; Xu, M.-C.; Zhang, L.-J.; Yao, R.-X.; Zhang, X.-M. Solvent-free heterogeneous catalysis for cyanosilylation in a dynamic cobalt-MOF. Dalton Trans. 2015, 44, 12711–12716. [Google Scholar] [CrossRef] [PubMed]
  43. Aguirre-Díaz, L.M.; Iglesias, M.; Snejko, N.; Gutiérrez-Puebla, E.; Monge, M.Á. Indium metal-organic frameworks as catalysts in solvent-free cyanosilylation reaction. CrystEngComm 2013, 15, 9562–9571. [Google Scholar] [CrossRef]
  44. Karmakar, A.; Paul, A.; Rubio, G.M.D.M.; Guedes da Silva, M.F.C.; Pombeiro, A.J.L. Zinc(II) and Copper(II) Metal-Organic Frameworks Constructed from a Terphenyl-4,4’-dicarboxylic Acid Derivative: Synthesis, Structure, and Catalytic Application in the Cyanosilylation of Aldehydes. Eur. J. Inorg. Chem. 2016, 5557–5567. [Google Scholar] [CrossRef]
  45. Batten, S.R.; Neville, S.M.; Turner, D.R. Coordination Polymers: Design, Analysis and Application; The Royal Society of Chemistry: Cambridge, UK, 2009. [Google Scholar]
  46. Kitagawa, S.; Kitaura, R.; Noro, S.-I. Functional porous coordination polymers. Angew. Chem. Int. Ed. 2004, 43, 2334–2375. [Google Scholar] [CrossRef] [PubMed]
  47. Wu, D.; Xu, F.; Sun, B.; Fu, R.; He, H.; Matyjaszewski, K. Design and Preparation of Porous Polymers. Chem. Rev. 2012, 112, 3959–4015. [Google Scholar] [CrossRef] [PubMed]
  48. Mahmudov, K.T.; Kopylovich, M.N.; Pombeiro, A.J.L. Coordination chemistry of arylhydrazones of methylene active compounds. Coord. Chem. Rev. 2013, 257, 1244–1281. [Google Scholar] [CrossRef]
  49. Pombeiro, A.J.L.; Guedes da Silva, M.F.C. Alkane Functionalization; Pombeiro, A.J.L., Guedes da Silva, M.F.C., Eds.; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2019. [Google Scholar]
  50. Kopylovich, M.N.; Ribeiro, A.P.C.; Alegria, E.C.B.A.; Martins, N.M.R.; Martins, L.M.D.R.S.; Pombeiro, A.J.L. Catalytic oxidation of alcohols: Recent advances. Adv. Organomet. Chem. 2015, 63, 91–174. [Google Scholar] [CrossRef]
  51. Olivier-Bourbigou, H.; Magna, L.; Morvan, D. Ionic liquids and catalysis: Recent progress from knowledge to applications. Appl. Catal. A Gen. 2010, 373, 1–56. [Google Scholar] [CrossRef]
  52. Shen, Z.-L.; Jib, S.-J.; Loh, T.-P. Ionic liquid [omim][PF6] as an efficient and recyclable reaction media for the cyanosilylation of aldehydes without Lewis acid or any special activation. Tetrahedron Lett. 2005, 46, 3137–3139. [Google Scholar] [CrossRef]
  53. Ullah, B.; Chen, J.; Zhang, Z.; Xing, H.; Yang, Q.; Bao, Z.; Ren, Q. 1-Ethyl-3-methylimidazolium acetate as a highly efficient organocatalyst for cyanosilylation of carbonyl compounds with trimethylsilyl cyanide. Sci. Rep. 2017, 7, 42699. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Jlassi, R.; Ribeiro, A.P.C.; Guedes da Silva, M.F.C.; Mahmudov, K.T.; Kopylovich, M.N.; Anisimova, T.B.; Naïli, H.; Tiago, G.A.O.; Pombeiro, A.J.L. Polynuclear Copper(II) Complexes as Catalysts for the Peroxidative Oxidation of Cyclohexane in Room Temperature Ionic Liquid Medium. Eur. J. Inorg. Chem. 2014, 4541–4550. [Google Scholar] [CrossRef]
  55. Tiago, G.A.O.; Ribeiro, A.P.C.; Mahmudov, K.T.; Guedes da Silva, M.F.C.; Branco, L.C.; Pombeiro, A.J.L. Copper(II) Complexes of Arylhydrazone of 1H-Indene-1,3(2H)-dione as Catalysts for the Oxidation of Cyclohexane in Ionic Liquids. Catalysts 2018, 8, 636. [Google Scholar] [CrossRef]
  56. Tiago, G.A.O.; Ribeiro, A.P.C.; Mahmudov, K.T.; Guedes da Silva, M.F.C.; Branco, L.C.; Pombeiro, A.J.L. Mononuclear Copper(II) Complexes of Arylhydrazone of 1H-Indene-1,3(2H)-dione as Catalysts for the Oxidation of 1-Phenylethanol in Ionic Liquid Medium. RSC Adv. 2016, 6, 83412–83420. [Google Scholar] [CrossRef]
  57. Gurbanov, A.V.; Mahmudov, K.T.; Kopylovich, M.N.; Guedes da Silva, M.F.C.; Sutradhar, M.; Guseinov, F.I.; Zubkov, F.I.; Maharramov, A.M.; Pombeiro, A.J.L. Molecular switching through cooperative ionic interactions and charge assisted hydrogen bonding. Dyes Pigment. 2017, 138, 107–111. [Google Scholar] [CrossRef]
  58. Yang, L.; Powell, D.R.; Houser, R.P. Structural variation in copper(I) complexes with pyridylmethylamide ligands: Structural analysis with a new four-coordinate geometry index, tau(4). Dalton Trans. 2007, 955–964. [Google Scholar] [CrossRef] [PubMed]
  59. Robinson, K.; Gibbs, G.V.; Ribbe, P.H. Quadratic Elongation: A Quantitative Measure of Distortion in Coordination Polyhedra. Science 1971, 172, 567–570. [Google Scholar] [CrossRef] [PubMed]
  60. Gilli, G.; Gilli, P. The Nature of the Hydrogen Bond: Outline of a Comprehensive Hydrogen Bond Theory; Oxford University Press: Oxford, UK, 2009. [Google Scholar]
  61. Neogi, S.; Sharma, M.K.; Bharadwaj, P.K. Knoevenagel condensation and cyanosilylation reactions catalyzed by a MOF containing Coordinatively unsaturated Zn(II) centres. J. Mol. Catal. A Chem. 2009, 299, 1–4. [Google Scholar] [CrossRef]
  62. Lestari, W.W.; Lönnecke, P.; Streit, H.C.; Schleife, F.; Wickleder, C.; Hey-Hawkins, E. A chiral two-dimensional coordination polymer based on Cu-II and (S)-4,4’ bis(4-carboxyphenyl)-2,2’ bis(diphenylphosphinoyl)-1,1’ binaphthyl: Synthesis, structure, and magnetic and optical properties. Inorg. Chim. Acta 2014, 421, 392–398. [Google Scholar] [CrossRef]
  63. Shen, Z.-L.; Ji, S.-J. Alkali Salt of L-Proline as an Efficient and Practical Catalyst for the Cyanosilylation of a Wide Variety of Carbonyl Compounds Under Solvent-Free Conditions. Synth. Commun. 2009, 39, 775–791. [Google Scholar] [CrossRef]
  64. Hamashima, Y.; Sawada, D.; Kanai, M.; Shibasaki, M. A new bifunctional asymmetric catalysis: An efficient catalytic asymmetric cyanosilylation of aldehydes. J. Am. Chem. Soc. 1999, 121, 2641–2642. [Google Scholar] [CrossRef]
  65. Kim, S.S. Asymmetric cyanohydrin synthesis from aldehydes and ketones using chiral metal (salen) complex as catalyst. Pure Appl. Chem. 2006, 78, 977–983. [Google Scholar] [CrossRef]
  66. Chen, F.-X.; Zhou, H.; Liu, X.; Qin, B.; Feng, X.; Zhang, G.; Jiang, Y. Enantioselective cyanosilylation of ketones by a catalytic double-activation method with an aluminium complex and an N-oxide. Chem. Eur. J. 2004, 10, 4790–4797. [Google Scholar] [CrossRef] [PubMed]
  67. Mahmudov, K.T.; Gurbanov, A.V.; Guseinov, F.I.; Guedes da Silva, M.F.C. Noncovalent interactions in metal complex catalysis. Coord. Chem. Rev. 2019, 387, 32–46. [Google Scholar] [CrossRef]
  68. Bruker. APEX2; Bruker AXS Inc.: Madison, WI, USA, 2012. [Google Scholar]
  69. Sheldrick, G.M. SADABS, Program for Empirical Absorption Correction; University of Gottingen: Gottingen, Germany, 2000. [Google Scholar]
  70. Altomare, A.; Burla, M.C.; Camalli, M.; Cascarano, G.L.; Giacovazzo, C.; Guagliardi, A.; Moliterni, A.G.G.; Polidori, G.; Spagna, R. SIR97: A new tool for crystal structure determination and refinement. J. Appl. Cryst. 1999, 32, 115–119. [Google Scholar] [CrossRef]
  71. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. Sect. C Struct. Chem. 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed]
  72. Farrugia, L.J. WinGX and ORTEP for Windows: An update. J. Appl. Cryst. 2012, 45, 849–854. [Google Scholar] [CrossRef]
  73. Spek, A.L. Structure validation in chemical crystallography. Acta Cryst. 2009, 65, 148–155. [Google Scholar] [CrossRef] [Green Version]
  74. Gouveia, A.S.L.; Tomé, L.C.; Marrucho, I.M. Density, Viscosity, and Refractive Index of Ionic Liquid Mixtures Containing Cyano and Amino Acid-Based Anions. J. Chem. Eng. Data 2016, 61, 83–93. [Google Scholar] [CrossRef]
  75. Huang, J.; Jiang, T.; Gao, H.; Han, B.; Liu, Z.; Wu, W.; Chang, Y.; Zhao, G. Pd Nanoparticles Immobilized on Molecular Sieves by Ionic Liquids: Heterogeneous Catalysts for Solvent-Free Hydrogenation. Angew. Chem. 2004, 116, 1421–1423. [Google Scholar] [CrossRef]
Scheme 1. Cyanosilylation of aldehydes.
Scheme 1. Cyanosilylation of aldehydes.
Catalysts 09 00284 sch001
Scheme 2. Synthesis of 13. Hydrate water molecules were omitted in 1 and 2.
Scheme 2. Synthesis of 13. Hydrate water molecules were omitted in 1 and 2.
Catalysts 09 00284 sch002
Figure 1. Ellipsoid plot of a fragment of polymer 1, drawn at 30% probability level and with atom numbering scheme. Crystallization water molecule is omitted for clarity. Symmetry operations to generate equivalent atoms: (i) 1 − x,2 − y,1 − z; (ii) 1.5 − x,1.5 − y,1 − z; (iii) x,−1 + y,z; (iv) x,1 + y,z.
Figure 1. Ellipsoid plot of a fragment of polymer 1, drawn at 30% probability level and with atom numbering scheme. Crystallization water molecule is omitted for clarity. Symmetry operations to generate equivalent atoms: (i) 1 − x,2 − y,1 − z; (ii) 1.5 − x,1.5 − y,1 − z; (iii) x,−1 + y,z; (iv) x,1 + y,z.
Catalysts 09 00284 g001

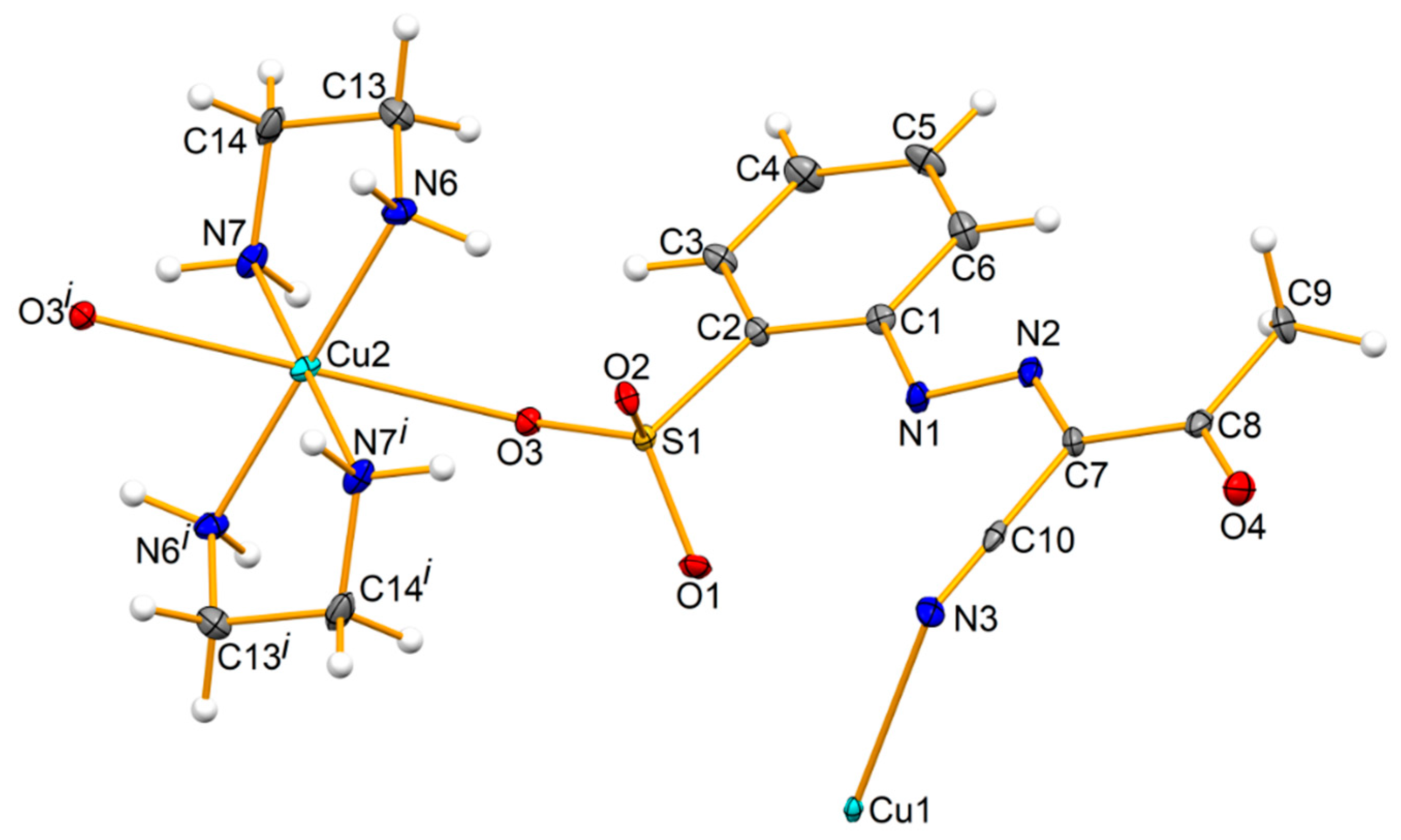

Figure 2. Ellipsoid plot of a fragment of polymer 2, drawn at 30% probability level and with atom numbering scheme. Crystallization water molecule is omitted for clarity. Symmetry operation to generate equivalent atoms: (i) −1 + x,y,−1 + z.
Figure 2. Ellipsoid plot of a fragment of polymer 2, drawn at 30% probability level and with atom numbering scheme. Crystallization water molecule is omitted for clarity. Symmetry operation to generate equivalent atoms: (i) −1 + x,y,−1 + z.
Catalysts 09 00284 g002

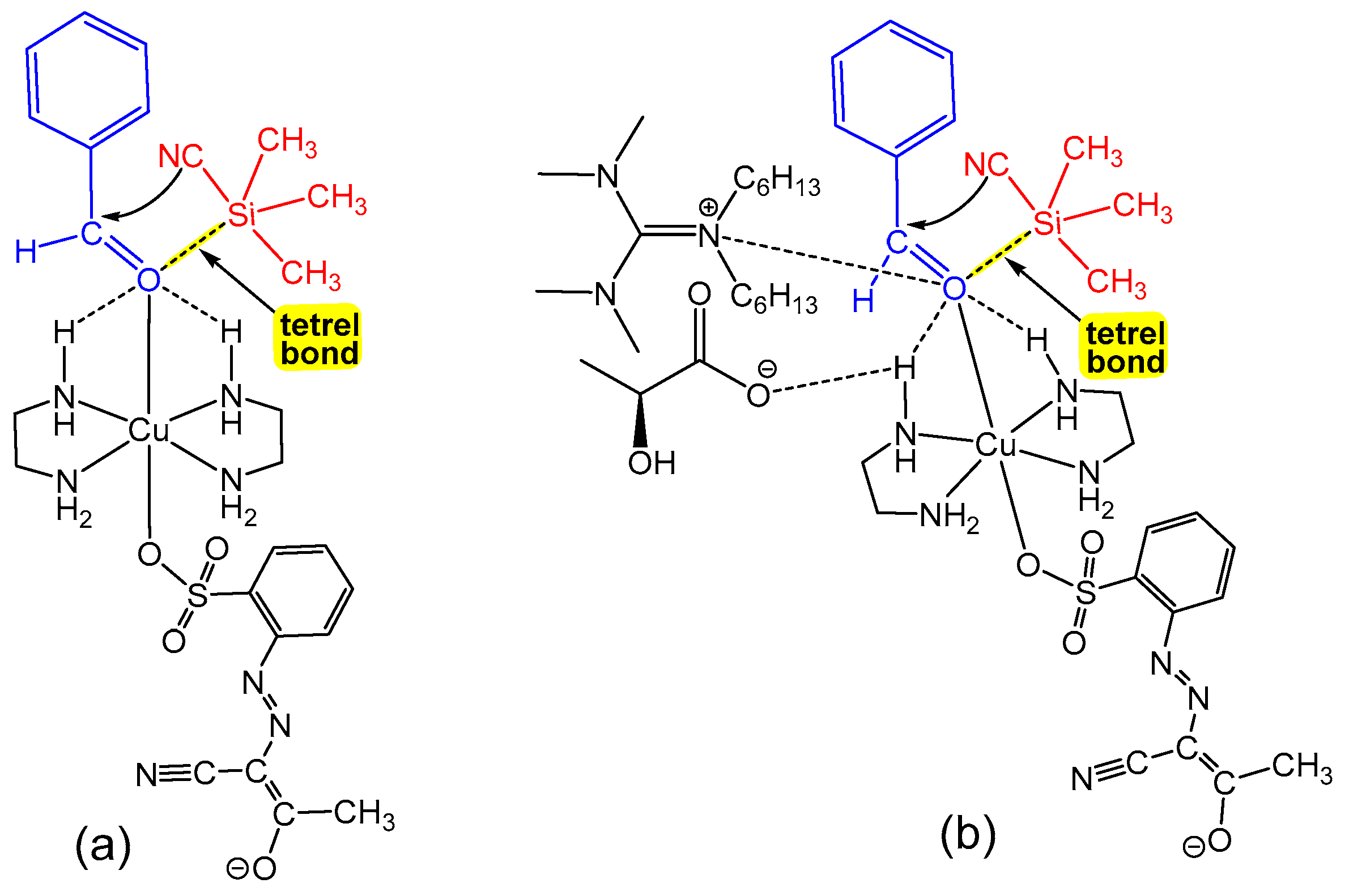

Scheme 3. Proposed intermediates in the absence (a) or presence (b) of [DHTMG][L-Lactate].

Scheme 3. Proposed intermediates in the absence (a) or presence (b) of [DHTMG][L-Lactate].
Catalysts 09 00284 sch003
Table 1. Selected bond distances (Å) and angles (°) for polymers 1 and 2, and for complex salt 3 [57].
Table 1. Selected bond distances (Å) and angles (°) for polymers 1 and 2, and for complex salt 3 [57].
123
Involving the hydrazone skeleton
Catalysts 09 00284 i001
NN1.294(9)1.277(10)1.312(3)
C−Nhydraz1.310(10)1.359(11)1.303(3)
Cketo−Chydraz1.449(11)1.432(12)1.479(3)
Cketo−O1.237(10)1.246(11)1.218(4)
C≡N1.142(10)1.148(12)1.139(4)
Involving the metal centre
M−Ncyano2.249(7)2.458(7)-
M−Namine-1.994(7)
to
2.027(7)
2.002(2)
2.020(2)
M−Osulfonate2.364(6)
2.402(6)
2.580(6)
2.635(3)-
C≡N−M165.2(7)126.5(6)-
Intramolecular M⋅⋅⋅M3.871(1) {Ag2O2}
5.861(1) {Ag2O4S2}
7.6836(4)-
Intermolecular M⋅⋅⋅M>106.0884(4)6.9798(4)
Table 2. Catalyst and solvent screening for the cyanosilylation of benzaldehyde a.
Table 2. Catalyst and solvent screening for the cyanosilylation of benzaldehyde a.
EntryCatalystSolventYield (%) b
11THF15.1
2CH2Cl215.9
3MeOH26.8
42THF26.1
5CH2Cl228.7
6MeOH79.9
73THF25.9
8CH2Cl228.3
9MeOH75.3
10NaHLTHF22.0
11CH2Cl225.2
12MeOH28.3
13AgNO3MeOH30.0
14Cu(NO3)2·2.5H2OMeOH32.9
15 c--20.0
16 c-THF14.0
17 c-CH2Cl214.4
18 c-MeOH24.7
a Reaction conditions: 5 mol % catalyst, 2 mL solvent, 0.12 mmol TMSCN and 0.10 mmol aldehyde, in air at room temperature, 24 h reaction time. b Determined by 1H NMR analysis of crude products. c From Reference [39].
Table 3. Optimization of the parameters of the cyanosilylation reaction of benzaldehyde and TMSCN with catalyst 2 a.
Table 3. Optimization of the parameters of the cyanosilylation reaction of benzaldehyde and TMSCN with catalyst 2 a.
EntryTime (h)Amount (mol %) of Catalyst T (°C)Yield b (%)
1152542.6
2452565.4
3652573.5
4852579.0
51252578.9
62452579.9
7812544.9
8832572.9
9852579.0
10872578.9
11892579.0
12851570.3
13853579.2
14854580.8
15855582.5
a Reaction conditions: MeOH (2 mL), TMSCN (0.6 mmol) and benzaldehyde (0.4 mmol), in air. b Determined by 1H NMR analysis of crude products (see the Experimental part).
Table 4. Cyanosilylation of benzaldehyde with TMSCN in the absence or presence of catalyst 2 in IL or IL + MeOH media a.
Table 4. Cyanosilylation of benzaldehyde with TMSCN in the absence or presence of catalyst 2 in IL or IL + MeOH media a.
EntryIonic LiquidIL or IL:MeOH (v/v)Yield,% b
1 c Catalysts 09 00284 i002
1,1,3,3-Tetramethylguanidine acetate
[TMGH][OAc]
[TMGH][OAc]70.8
2[TMGH][OAc]76.7
31:179.0
41:1078.3
51:2077.7
6 c Catalysts 09 00284 i003
1′,1′-Dihexyl-3,3,3′,3′-tetramethylguanidine L-Lactate
[DHTMG][L-Lactate]
[DHTMG][L-Lactate]75.2
7[DHTMG][L-Lactate]82.2
81:186.5
91:1092.5
101:2091.3
11 c Catalysts 09 00284 i004
1-Ethyl-3-methylimidazolium L-Prolinate
[EMIM][L-Prolinate]
[EMIM][L-Prolinate]70.4
12[EMIM][L-Prolinate]76.6
131:178.6
141:1078.1
151:2077.6
16c Catalysts 09 00284 i005
Trihexyl(tetradecyl)phosphonium L-Prolinate
[P6,6,6,14][L-Prolinate]
[P6,6,6,14][L-Prolinate]68.7
17[P6,6,6,14][L-Prolinate]75.1
181:178.2
191:1077.3
201:2075.9
a Reaction conditions: 5 mol % of catalyst 2, IL or a mixture of IL + MeOH (2 mL), TMSCN (0.6 mmol) and aldehyde (0.4 mmol). Reaction time: 8 h. b Determined by 1H NMR analysis of crude products (see Experimental part). c Without catalyst 2.
Table 5. Cyanosilylation of different aldehydes with TMSCN using catalyst 2, in MeOH or in IL+MeOH mixture a.
Table 5. Cyanosilylation of different aldehydes with TMSCN using catalyst 2, in MeOH or in IL+MeOH mixture a.
EntrySubstrateYield,% b
MeOH
Solvent
[DHTMG][L-Lactate]:MeOH (1:10, v/v)
Medium
14-Nitrobenzaldehyde83.497.8
24-Chlorobenzaldehyde79.794.0
34-Bromobenzaldehyde79.693.3
4Benzaldehyde79.092.6
54-Methylbenzaldehyde78.092.1
64-Methoxybenzaldehyde76.490.7
7Acetaldehyde87.799.0
8Propionaldehyde87.498.5
9Hexanal85.297.9
a Reaction conditions: 5 mol % of catalyst 2, MeOH or a mixture of [DHTMG][L-Lactate]:MeOH (1:10, v/v) (2 mL), TMSCN (0.6 mmol) and aldehyde (0.4 mmol). Reaction time: 8 h. b Determined by 1H NMR analysis of crude products (see Experimental part).
Table 6. Crystallographic data and structure refinement details for 1 and 2.
Table 6. Crystallographic data and structure refinement details for 1 and 2.
12
Empirical formulaC20H18Ag2N6O9S2C14H25CuN7O5S
fw766.26467.01
Temperature (K)150(2)150(2)
Cryst. Syst.monoclinictriclinic
Space groupC 2/cP-1
a (Å)12.982(2)7.2744(8)
b (Å)5.7571(10)11.7588(14)
c (Å)33.603(6)11.8024(13)
α, °9083.559(4)
β, °98.673(6)75.174(3)
γ, °9084.810(4)
V (Å3)2482.7(7)967.78(19)
Z42
ρcalc (g cm−3)2.0501.603
μ(Mo Kα) (mm−1)1.8101.279
F (000)1512486
Rint0.05540.0594
R1 a (I ≥ 2σ)0.05720.0718
wR2 b (I ≥ 2σ)0.13040.2039
GOOF 1.1901.114
a R1 = Σ||Fo| − |Fc||/Σ|Fo|. b wR2 = [Σ[w(Fo2 − Fc2)2]/Σ[w(Fo2)2]]1/2.
