Catalysts 2019, 9(3), 266; https://doi.org/10.3390/catal9030266

Review
Atomic Layer Deposition for Preparation of Highly Efficient Catalysts for Dry Reforming of Methane
1
Department of Chemistry, Sungkyunkwan University, Suwon 16419, Korea
2
Department of Chemistry and Energy Engineering, Sangmyung University, Seoul 03016, Korea
*
Correspondence: [email protected] (H.O.S.); [email protected] (Y.D.K.); Tel.: +82-010-3555-3164 (H.O.S.); +82-010-9163-8045 (Y.D.K.)
These authors contributed equally to this work.
Received: 28 January 2019 / Accepted: 13 March 2019 / Published: 15 March 2019

Abstract

:
In this article, the structural and chemical properties of heterogeneous catalysts prepared by atomic layer deposition (ALD) are discussed. Oxide shells can be deposited on metal particles, forming shell/core type catalysts, while metal nanoparticles are incorporated into the deep inner parts of mesoporous supporting materials using ALD. Both structures were used as catalysts for the dry reforming of methane (DRM) reaction, which converts CO2 and CH4 into CO and H2. These ALD-prepared catalysts are not only highly initially active for the DRM reaction but are also stable for long-term operation. The origins of the high catalytic activity and stability of the ALD-prepared catalysts are thoroughly discussed.
Keywords:
atomic layer deposition; dry reforming of methane; nickel; shell-core type nanoparticle; mesoporous media; surface basicity

1. Introduction

Carbon dioxide is the most important greenhouse gas responsible for climate change; therefore, suppression of its concentration in the atmosphere has been of particular importance over the last several decades [1,2,3,4]. Thus, how to efficiently capture and store CO2 from the emissions of vehicles and power plants has been extensively studied. A variety of storage media such as porous materials including a metal-organic framework (MOF) or compounds with high CO2 affinity such as CaO or MgO have been studied [4,5,6,7,8,9,10,11,12]. More recently, chemical conversion of CO2 has been drawing more attention, since this process is not only able to contribute to the reduction of CO2 levels in the atmosphere but also produces value-added products from CO2 [2,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31].
There are diverse ways of converting CO2 into more valuable chemical compounds. CO2 can be electrochemically or photo-chemically reduced to many valuable chemicals such as CO, CH3OH, and HCOOH [14,15,16,17]. In these processes, it is often important to use a proper heterogeneous catalyst to increase the selectivity of a specific reaction product as well as the total reaction yield. Using chemical reactions between CO2 and other compounds, valuable materials such as polycarbonate plastics can be produced [18,19,20]. There are also thermal catalytic reactions such as hydrogenation of CO2, in which CO2 reacts with H2 to form CO and H2O [21,22,23]. The abovementioned reactions using CO2 as a reactant are generally endothermic due to the high thermodynamic stability of CO2. Therefore, energy needs to be provided in various forms (electric, thermal, or photon energy) to carry out these reactions even in the presence of highly active catalysts. Therefore, these reactions should be coupled with alternative energy sources such as solar or wind energy [2,24,25,26]. The CO2 chemical conversion can be considered as a possibility to store sustainable energy.
Dry reforming of methane (DRM) uses CO2 and CH4 as reactants to produce CO and H2. This reaction is highly endothermic, typically operating at 800 °C or higher [27,28,29]. Once this reaction can operate with long-term stability, the efficient production of syngas (CO and H2) from two major greenhouse gases (CO2 and CH4) can be realized. However, even if alternative energy sources are available to maintain the reactor temperature sufficiently high enough for the catalytic DRM reaction, the catalysts used for this reaction generally do not endure such high temperatures for a long time as they rapidly undergo catalytic deactivation with time, which is the major hurdle of the DRM reaction [13,28,30].
Ni has been considered as a DRM catalyst in the past, yet bare Ni catalyst was shown to be inappropriate for this reaction since its catalytic activity drastically decreases with time due to the formation of a graphitic carbon layer on the Ni surface, which blocks catalytically active Ni sites [13,30,32]. Either disproportionation of CH4 into C(s) and H2 or CO into C and O2 (or H2O by reaction with H2) can result in deposition of a graphitic carbon layer (coke) on the surface of Ni [30,33,34,35,36].
There are several different strategies for preparing coke-resistant DRM catalysts. For example, diverse composite materials consisting of catalytically active Ni and other metal oxides can be used, resulting in reduced coke formation due to, for example, the high adsorption energy of CO2 on metal oxide surfaces [13,31,37,38,39,40]. Please note that CO2 can react with coke to form CO, releasing the deposited coke from the catalyst surface. Nanoparticles of Ni were deposited on supporting materials, and the supported catalyst was used for the DRM reaction. Here, nanoparticles were shown to be more resistant toward coke formation than larger Ni terraces, since small Ni nanoparticles with a high curvature can suppress the formation of two-dimensional graphite domains [41,42,43]. Nevertheless, the low thermal stability of nanoparticles against agglomeration is a problem that needs to be solved [44,45,46].
Atomic layer deposition (ALD) has been widely used in the thin film deposition process of electronic and optical device fabrication [47,48,49,50,51,52,53]. Over the past few decades, application of ALD in the synthesis of heterogeneous catalysts has been vigorously considered [13,30,54,55,56,57,58,59]. In this article, the operation principles and advantages of ALD are briefly summarized. In addition, the structure, chemical uniqueness, and catalytic behavior toward the DRM reaction of ALD-prepared heterogeneous catalysts are reviewed together with potential applications. Two different types of structures prepared by employing ALD as heterogeneous catalysts for the DRM reaction are discussed: (1) shell/core-type, metal-oxide/metal catalyst prepared by depositing additional metal-oxide thin films (MgO, TiO2, ZnO) onto Ni particles using ALD and (2) Ni nanoparticles confined in the mesoporous supporting templates prepared via ALD deposition of NiO on mesoporous materials (silica, alumina) followed by thermal annealing in a reducing atmosphere.

2. Shell-Core-Type DRM Catalysts Prepared by ALD

Figure 1a shows a schematic of the ALD process [47,60,61,62,63]. In principle, one can use more than two precursors to deposit thin films of diverse chemical compositions. In Figure 1a, a simple situation for depositing metal oxide thin films using an inorganic metal precursor and an oxidizing agent such as H2O is described. In the first step, a sufficiently large amount of the metal precursor vapor consisting of metal atoms and organic ligands (e.g., Ti[OCH(CH3)2]4, Mg(Cp)2, or Ni(Cp)2) is supplied into the vacuum chamber where substrates are located. Then, only precursors chemisorbed on the substrate surface remain, whereas physiosorbed species and precursor vapors in the gas phase are removed by purging with inert gases and pumping. Subsequently, oxidizing agent vapor such as H2O(g) or O2(g) is introduced into the chamber and reacts with chemisorbed metal precursors to form the metal oxide and CO2(g) and H2O(g) upon oxidation of the organic ligands. The aforementioned steps constitute one cycle of ALD, and 2–6 cycles of ALD generally form a metal-oxide monolayer, depending on the molecular structures of the inorganic precursors [63,64,65,66,67,68].
A clear advantage of ALD with respect to chemical vapor deposition (CVD), in which two different precursors are provided at the same time onto the substrate surface, is that the thickness of thin films can be controlled on the atomic scale. ALD has been widely employed for fabrication of diverse functional thin films of electronic and optical devices owing to its ability to finely control film thickness [70,71,72,73,74,75,76,77,78,79,80,81,82]. Another advantage of ALD is the formation of conformal thin films on complex structured surfaces. As an example, TiO2 thin films with thicknesses less than 10 nm were deposited on an anodic aluminum oxide (AAO) membrane consisting of regularly ordered 200-nm-sized pores using ALD and the resulting structure consisted of a homogeneous coating of TiO2 without deteriorating the original porous substrate structure of AAO (Figure 1b,c) [69]. The ALD-prepared nanostructure TiO2 with a regularly ordered pore structure demonstrated a superior toluene adsorption efficiency of 3.8 toluene molecules/nm2 by applying 300 ALD cycles [69].
Conventionally, catalytic active metals supported by metal oxides are considered heterogeneous catalysts. Both the geometrical structure (size, shape, morphology) and electronic nature (oxidation states) of the supported metal are related to its catalytic activity. The catalytic activity of conventional metal/metal oxide catalysts can also be influenced by underlying metal oxide supports. The geometrical and electronic structures of the supported metals can be influenced by underlying metal oxides. In addition, the catalytic behaviors of metal/metal oxide catalysts can be varied depending on the choice of metal oxide materials as supports by providing dissimilar metal/metal oxide interface sites as well as the participation of metal oxides in the catalytic reaction. Alternatively, the metal oxide can be deposited on metal particles (metal oxide/metal) which is often referred to as an inverse catalyst [83,84,85,86]. These metal oxide/metal systems have been studied to elucidate the contribution of the metal oxide interface on catalytic activity since the 1940s [83,84,85,86]. A large number of research groups have investigated inverse catalysts, and it has been reported that some inverse catalysts exhibit even higher activities than regularly structured catalysts (metal/metal oxides) consisting of the same compounds [84,87].
Owing to the excellent trench filling capability and controllability of the metal oxide film thickness of ALD, as mentioned above, the ALD technique can be very useful in studies of inverse catalysts by fabricating various thin metal oxide films with different thicknesses on metal particles. The experimental results showing the utilization of ALD in the fabrication of various metal oxide thin films (MgO, TiO2, ZnO) on Ni particles are summarized below including their catalytic behaviors towards the DRM reaction.
Ni particles (Sigma Aldrich) with diameters of 0.5–1 μm were loaded into a home-made sample container, in which particles are maintained and where precursor vapors can penetrate into the container and be purged during the ALD process. ALD was used to deposit metal oxide thin films on Ni particles and, as shown in Figure 2, either TiO2 or MgO thin layers homogeneously wrapping the Ni particles could be prepared [13,30]. Ti[OCH(CH3)2]4 bought from Sigma Aldrich (St. Louis, MO, USA) was used as the Ti precursor for deposition of TiO2 films, while Mg(Cp)2 purchased from EG Chem Co. Ltd (Daegu, Korea) was used as the Mg precursor for deposition of MgO films. For both cases (TiO2 and MgO deposition), H2O vapor was used as the oxidizing agent. By altering the number of ALD cycles, the thickness of the metal oxide thin layers could be finely altered [88].
The ALD process generally operates below 300 °C, where metal oxide layers tend to show amorphous structures with rather ill-defined oxidation numbers of metal atoms as opposed to highly crystalline structures [69]. During ALD under relatively low-temperature conditions, organic ligands and metal atoms are not completely oxidized, resulting in the formation of thin films with ill-defined structural properties. Only upon a proper post-annealing process of the ALD-prepared structure can stoichiometric metal oxide layers be formed, for example, annealing for 5 h at 800 °C under an N2 atmosphere led to the formation of stoichiometric TiO2 layers [13,30]. The specific areas and pore volumes of the samples (bare Ni, MgO/Ni, TiO2/Ni) were determined by Brunauer-Emmett-Teller (BET) and Barret-Joyner-Halenda (BJH) methods, respectively, and they are summarized in Table 1. An interesting aspect of the post-annealed metal-oxide/Ni structure compared to a bare Ni substrate is that the specific surface area or pore volume can increase with increasing thickness of metal oxide films prepared by ALD. For example, the surface area of TiO2/Ni prepared by 500 ALD cycles was 25 m2/g and this value is much larger than that of bare Ni (3.5 m2/g) [30]. On the other hand, MgO/Ni prepared by 200 ALD cycles had a specific surface area of 1.9 m2/g which is lower than the respective value of bare Ni. It is likely that a MgO thin film with a smooth surface structure deposited on a rough Ni surface decreases the specific surface area. However, the pore volume increases from 0.005 to 0.008 cm3/g by depositing MgO on Ni particles [13]. These results can only be understood in terms of crack formation in the oxide layers prepared by ALD and post-annealing. The formation of cracks during fabrication of TiO2 or MgO crystalline layers on Ni can result from the non-flat substrate surface structure of Ni particles since the curvature of the crystalline layer can induce strain on the thin film layer and result in crack formation.

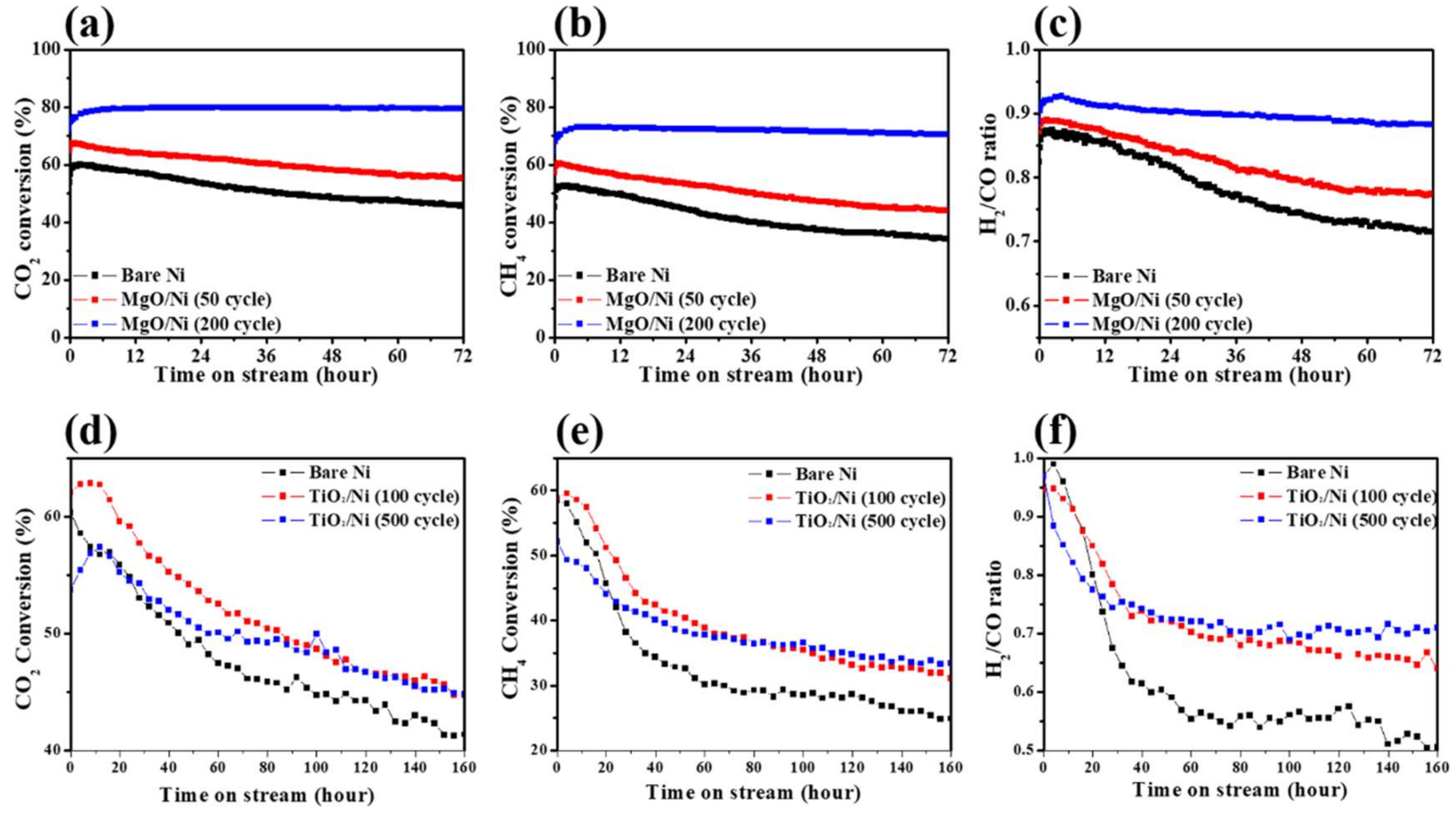

The metal-oxide-wrapped Ni particles were used as catalysts for the DRM reaction at 800 °C and the catalytic activity patterns of bare and oxide-wrapped Ni particles are presented in Figure 3 [13,30]. The DRM reaction was carried out using a vertical fixed-bed quartz reactor under atmospheric pressure. Quart wool loaded with 0.1 g of catalysts was placed in the center of the quartz reactor. The gas mixture of CH4 and CO2 at a ratio of 1:1 was continuously fed into the reactor at a constant total flow rate (20 mL/min) [13,30]. Generally, bare Ni as a catalyst shows high initial activity for conversion of CO2 and CH4 and high initial yields of H2 and CO, which are syngas products. The production of CO is generally slightly higher than that of H2 since H2 produced in the DRM can further react with CO2 to form CO and H2O which is the reverse process of the water-gas shift reaction [89]. This process also contributes to the phenomenon in which CO2 conversion is generally higher than that of CH4 during the DRM reaction. As a function of reaction time, however, the conversion rates of the reactants and the formation rates of the products, as well as the H2/CO ratio, drastically decrease. Such a deactivation process of the DRM reaction using Ni as a catalyst is a well-known phenomenon and is attributed to coke formation on the Ni surfaces, poisoning catalytically active bare Ni sites [30,90,91,92].
For Ni particles wrapped by MgO using ALD, improvement in both initial catalytic activity and sustainability of the catalytic activity with respect to bare Ni are observed. On the other hand, the initial catalytic activities of TiO2/Ni catalysts were slightly higher or lower than those of bare Ni depending on the number of ALD cycles applied for TiO2 deposition (100 cycles or 500 cycles). However, ALD deposition of TiO2 thin layers (either 100 or 500 cycles) always resulted in improved catalytic sustainability of Ni particles. These results indicate that TiO2 or MgO deposited on Ni does not completely block the active Ni sites, which can be attributed to the aforementioned crack formation within TiO2 or MgO layers wrapping Ni particles. CH4 and CO2 molecules can diffuse via the cracks of TiO2 and MgO and react to form CO and H2 on catalytically active Ni sites. In addition, with increasing thickness of TiO2 or MgO layers within 20 nm of the film thickness, the initial reactivity and stability of catalyst are enhanced [13,30]. Even though the TiO2 shell shows higher surface areas corresponding to the higher crack density than MgO, MgO produces much higher enhancement effects of the catalytic activity and stability of Ni for DRM than TiO2 shells. The origin of this result will be discussed in detail later. Ultimately, MgO/Ni with an MgO shell thickness of ~20 nm did not show any deactivation for DRM under ambient pressure conditions for longer than 3 days (Figure 3a–c).
To shed light on the origin of the enhanced catalytic activity upon TiO2 or MgO deposition on Ni particles, detailed characterization of the catalysts using X-ray diffraction (XRD) and scanning electron microscopy (SEM) was carried out (Figure 4a–d) after the catalysts were used for DRM reactions [13,30]. A generally observed phenomenon from TiO2- or MgO-wrapped Ni particles is the formation of carbon filaments on the surface of catalysts after the DRM reaction. In contrast, on bare Ni particle surfaces, two-dimensional graphitic carbon layers are formed. These results are schematically summarized in Figure 4e. There is another effect of the MgO film, which is Lewis-basic and therefore shows high affinity to CO2, which was verified by CO2 temperature programmed desorption [13,93,94,95]. With increasing MgO thickness, the number of moderate MgO adsorption sites decreased, whereas that of stronger adsorption sites of CO2, which can be attributed to under-coordinated surface O species of MgO, increased. When the CO2 affinity of the catalyst surface increases, the reverse Boudouard reaction (C + CO2 → 2CO) can become faster, which can contribute to the removal of coke from the catalyst surface.
Shells of thin layers of TiO2 (100 ALD cycles) and MgO (50 and 200 ALD cycles) on Ni showed improved DRM catalytic activity and stability. In terms of catalytic activity for the DRM reaction, MgO/Ni is superior to TiO2/Ni both in terms of initial activity and long-term stability. The primary roles of MgO and TiO2 layers for enhancing DRM catalytic stability seem to be analogous to a geometric perturbation of coke formation by inducing carbon filament growth. MgO is a Lewis base, whereas TiO2 is not; therefore, MgO shows a higher affinity towards CO2, resulting in higher catalytic activity and stability for DRM [13,31,37]. This suggests that the chemical composition of the metal oxide shell is crucial to obtain a high catalytic activity for DRM. In order to further shed light on this issue, we recently performed the DRM reaction with ZnO-wrapped Ni catalysts and showed (Figure 5) that the ZnO layer increases the deactivation of Ni catalyst during the DRM reaction. It is likely that ZnO layers induce a more facile formation of the coke layer on Ni, which clearly demonstrates that to obtain a high-performing shell-core-type catalyst for DRM, not only the geometric structure of the metal oxide shell/Ni core is beneficial, but the chemical composition and thickness of the oxide shell are crucial. The influence of the chemical nature of metal oxide supports, such as acidity/basicity and reducibility, on the catalytic behaviors of metal particles towards the DRM reaction has been highlighted by many researchers. For instance, basic sites existing on metal oxides such as La2O3 and MgO can enhance the activation of CO2, which can reduce carbon formation and catalyst deactivation [96]. On the other hand, some research groups demonstrated that CO2 activation can also take place on acidic metal oxides via reaction with hydroxyls on the surface of acidic supports, but CO2 activation on acidic supports is weaker than that on basic supports [28,97,98]. The catalytic DRM reaction of Rh catalysts supported on various reducible and irreducible metal oxides was examined and the irreducible metal oxide supports generally led to higher catalytic activity of the supported metal catalyst than in the case of irreducible metal oxide supports [96]. However, it has also been reported that reducible CeO2 can promote the catalytic activity of the Ni catalysts for DRM reaction by acting as an oxygen accumulator [99].
Considering that ALD is able to finely tune the oxide film thickness and can be applied for a wide range of oxide materials, ALD can be regarded as a proper technique for obtaining highly efficient DRM catalysts. It should be emphasized that when the oxide shell becomes much thicker than the oxide shells presented here, collision of CO2 and CH4 with the Ni surface could be hindered and the catalysts will become less active. It is promising that the catalytic activity of metal particles for reactions other than DRM can be also finely controlled by adopting diverse structures of metal oxide shells on catalytically active metal particles, which can be realized by employing ALD.

3. DRM Catalysts Consisting of Nanoparticles Implemented in a Mesoporous Template Prepared by ALD

When ALD is used for depositing materials into a pre-formed mesoporous template, one can often observe the formation of nanoparticles confined in the mesopores instead of formation of homogeneous layers on the internal walls of mesoporous substrates. Nanoparticles are formed not only at the outermost surfaces of mesoporous particles with a diameter around several micrometers, but also in the deeper areas of mesoporous particles far from the particle surface. This can be achieved due to the high trench-fill capability of ALD. As shown in Figure 6, Pt was deposited on carbon aerogel substrate-formed nanoparticles with a mean diameter of 1–2 nm and these structures were shown to be extremely active for CO oxidation [100].

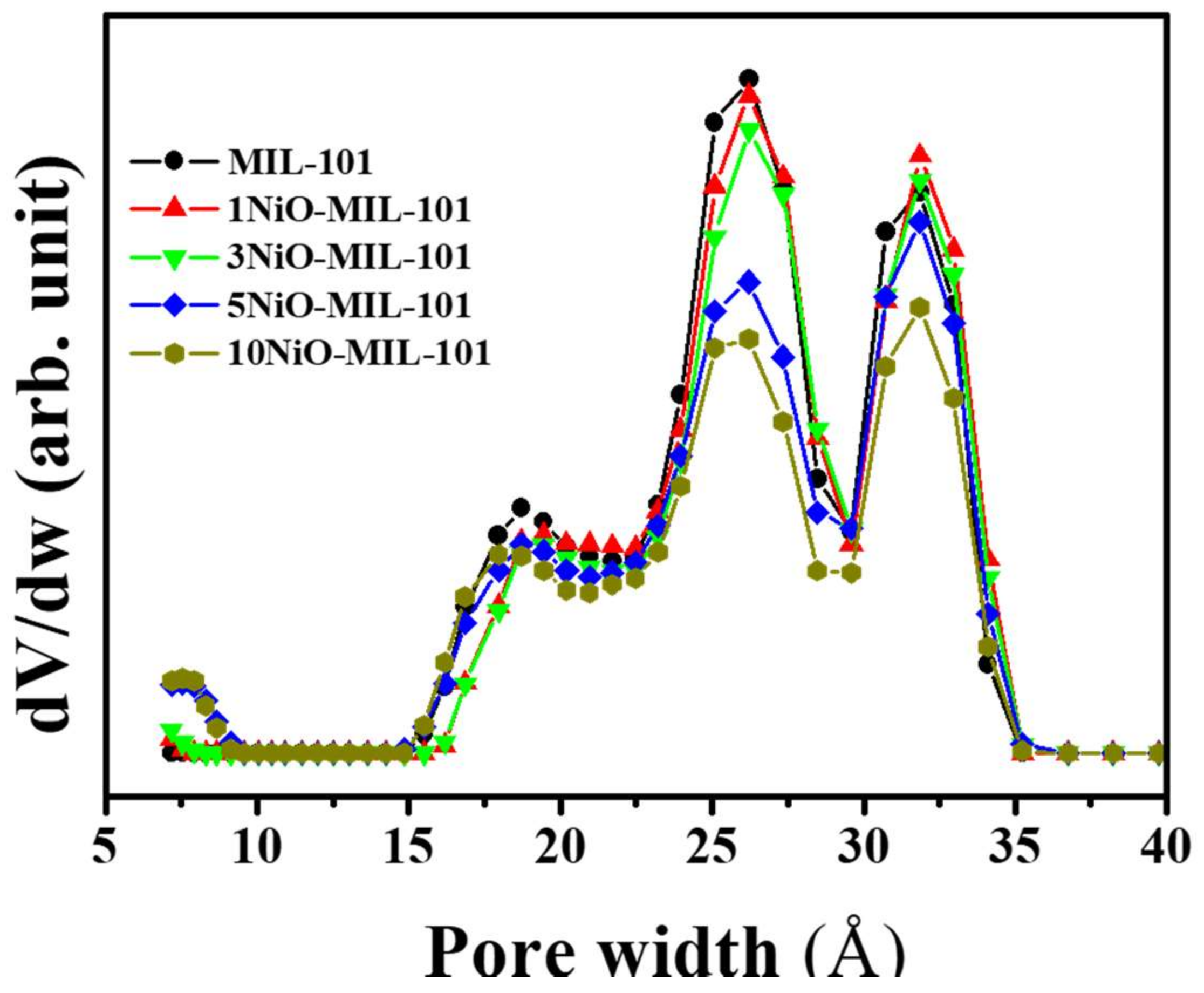

In the case of a metal-organic-framework (MOF), a NiO layer deposited into MIL-101(Cr) by employing ALD resulted in an almost unchanged pattern of pore size distribution compared to that before NiO deposition, where only the total pore volume decreased upon ALD of NiO (Figure 7) [101]. This result implies that some pores of MOF were clogged by NiO nanoparticles, whereas other pores were barely decorated by NiO. The result in Figure 7 also confirms NiO decoration of not only the outermost surface of the MOF particles with a mean size of several hundred nanometers but also a substantially large portion of their internal pores.
For layer-by-layer deposition of thin films on the internal wall of mesoporous substrates, smaller micropores with a dimension of less than 1 nm can be easily clogged in the early stages of ALD with only several deposition cycles, which would further inhibit incorporation of materials into the deeper parts of mesoporous particles by additional ALD. It is possible to load a substantially large amount of additional materials into a mesoporous substrate since some pores are occupied by additional ALD materials, whereas others remain vacant. These vacant pores serve as diffusion channels of precursor vapor into the deeper parts of mesoporous particles. It seems that, at the very initial stage of ALD, some deposited materials form small seeds and a subsequent increase in the number of ALD cycles results in nucleation at the seeds, whereas other vacant places remain unoccupied. In an ideal situation with a relatively strong chemical interaction between the substrate and thin films, a layer-by-layer growth mode should be valid and one can observe atomically homogeneous and conformal thin film formation on the substrate surface [55,60,62,102]. In this case, one cannot easily understand the formation of nanoparticles inside mesoporous materials. However, it is well-known that the growth of thin films can change depending on the substrate-film interaction. With a moderate interaction between the film layer and substrate, the Stranski-Krastanov mode with monolayer formation followed by three-dimensional island formation can be found. With an even weaker film-substrate interaction, three-dimensional growth of a film from the earliest stage of deposition is found and is referred to as the Volmer-Weber growth mode (Figure 8b) [103]. It is often assumed that the ALD process results in layer-by-layer growth of thin films. However, detailed studies of thin film growth on the nanometer scale show diverse growth modes of thin films by employing ALD [88,104].
NiO nanoparticles were prepared inside commercially available mesoporous silica using 50 ALD cycles and the resulting structure was used as a catalyst for DRM [57,58]. Mesoporous silica with a mean pore size of ~12 nm and a pore size distribution from 2–20 nm was purchased from Sigma Aldrich and used as the mesoporous supporting materials. NiO nanoparticles were randomly distributed in a ~10 μm slab from the outermost surface part of the silica beads, demonstrating that ALD shows excellent trench fill capability. The amount of Ni loading was 2.9 wt.%, which was determined using inductively coupled plasma-optical emission spectrometry (ICP-OES) [105].
The DRM reaction was conducted with NiO nanoparticles embedded into mesoporous silica at 800 °C using a horizontal fixed-bed quartz reactor [57]. For this, 0.1 g of Ni/SiO2 catalyst was loaded on a ceramic holder and the holder was placed in the center of the quartz reactor. The gas mixture of CH4 and CO2 with a 1:1 mixing ratio was continuously fed into the reactor and the total flow rate was 20 mL/min [57]. For comparison, the DRM reaction was also carried out with non-supported Ni particles (<1 μm) under the same experimental conditions.

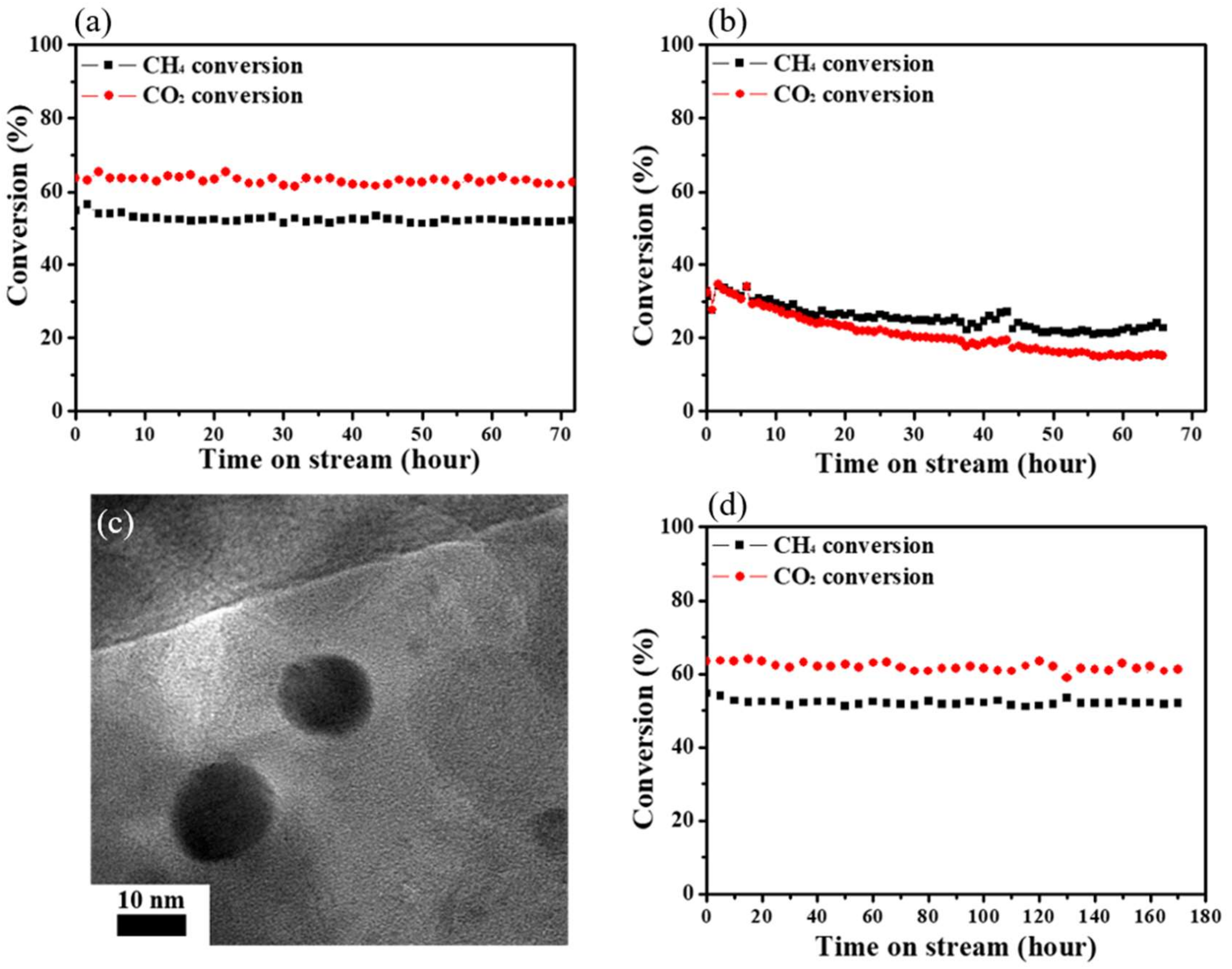

As shown in Figure 9a,b, the ALD-prepared Ni/silica exhibited higher catalytic activity and stability in terms of reactant (CH4 and CO2) conversion and CO evolution ratio compared to non-supported catalysts (Ni particles). These results were attributed to the confined Ni particle size to less than 10 nm in the mesoporous substrate during the DRM reaction at 800 °C (Figure 9c). Even when the reaction time was extended to 168 h (7 days) at 800 °C, the catalytic activity of the ALD-prepared Ni/silica catalysts remained at almost the same level, showing excellent catalytic stability (Figure 9d).
It is interesting to note that coke formation was suppressed in the Ni nanoparticles confined in the mesopores, most likely due to the small nanoparticles with high curvature not showing high efficiency for two-dimensional graphitic carbon formation on Ni nanoparticles. This size-confinement effect on the catalytic activity and stability of Ni nanoparticles has been also reported elsewhere [27]. Recently, many scientific investigations were carried out to realize the effective incorporation of Ni nanoparticles inside porous substrates.
Ni nanoparticles can also be embedded into the pores of porous substrates utilizing conventional wet methods such as impregnation or co-precipitation. Recently, some research groups managed to improve the efficiency of selective dispersion of Ni nanoparticles at the interior of the mesoporous structure by modifying classical impregnation methods [106,107]. However, it has been shown that the formation of Ni particles outside of pores is not avoidable during the wet chemical process [106,107]. It is important to mention that the catalytic activity and stability can be influenced by experimental conditions (amount of catalyst used, reactor design, temperature, gas mixing ratio, and total gas flow). Therefore, direct comparison of the catalytic performances of catalysts (e.g., Ni nanoparticles prepared by ALD vs. Ni nanoparticles prepared via a wet chemical method) reported in various literature is only meaningful if the experimental conditions are comparable. Recently, Gould et al. prepared dispersed Ni nanoparticles on porous alumina supports using either ALD or an incipient wetness (IW) process and their catalytic performances towards the DRM reaction at 600 °C were compared [32]. The ALD-prepared catalyst showed a higher rate of CH4 reforming and stability over IW-prepared catalysts under the same experimental conditions, which was attributed to better dispersion and the smaller size of ALD-prepared Ni nanoparticles than those prepared by the IW process [32]. Shang et al. also reported similar results showing higher catalytic activity and stability of ALD-prepared Ni nanoparticles on porous alumina than IW-prepared Ni nanoparticles on porous alumina in the temperature range of 700 to 850 °C [108]. It was also suggested that the interaction between ALD-prepared Ni nanoparticles and supports was stronger than in IW-prepared Ni nanoparticles cases considering that smaller Ni nanoparticles were formed by ALD compared to the IW method.

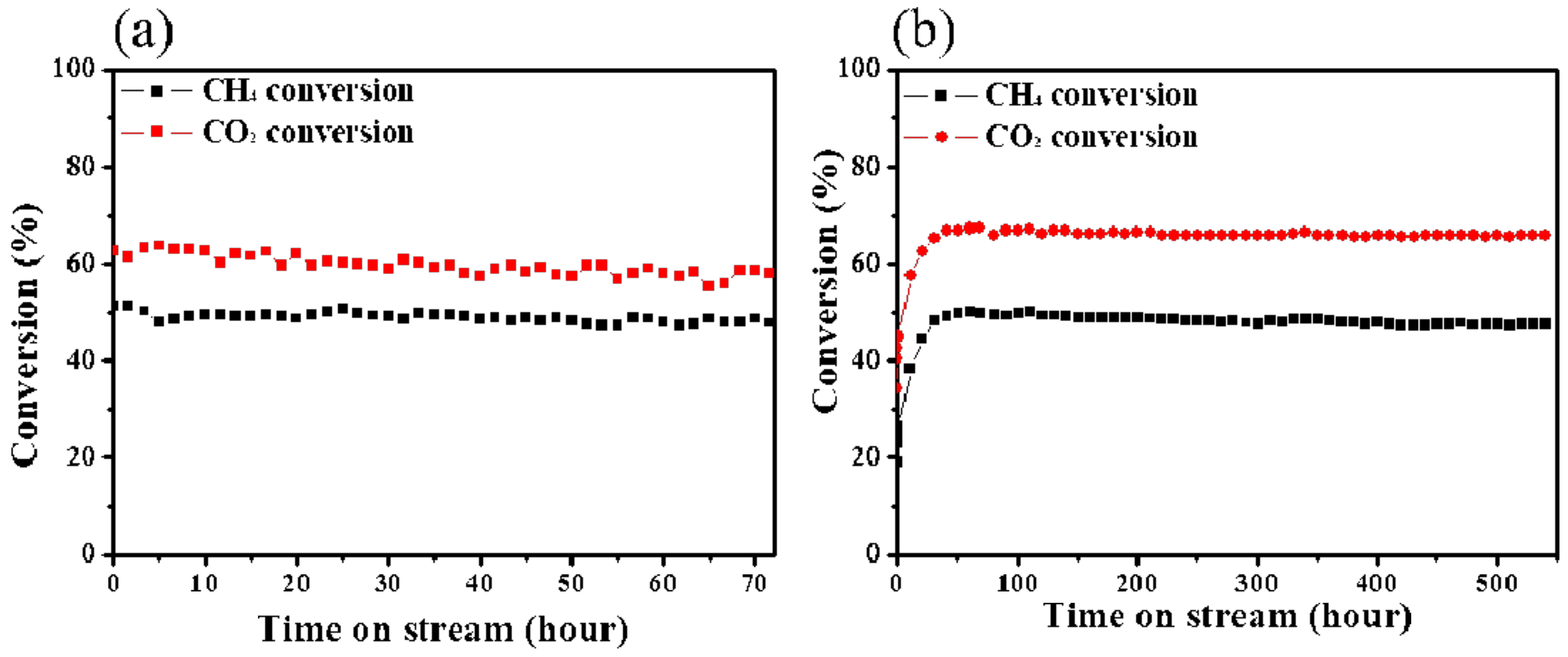

Figure 10 shows the CH4 and CO2 conversion of Ni nanoparticles supported by mesoporous TiO2 and alumina (Sasol, mean pore size of 11.6 nm) during the DRM reaction at 800 °C. Ni/TiO2 and Ni/alumina catalysts were prepared by applying 50 ALD cycles for NiO deposition on mesoporous TiO2 and alumina, respectively. The mesoporous TiO2 substrate was prepared by depositing TiO2 thin films on mesoporous silica (Sigma Aldrich, mean pore diameter of ~12 nm) using the ALD technique, whereas mesoporous alumina with a mean pore diameter of ~11.6 nm was used as purchased (Sasol). The DRM reactions were conducted at 800 °C in a fixed-bed quartz reactor with 0.1 g of Ni/TiO2 and Ni/alumina catalysts. The CH4 and CO2 gas mixture at a 1:1 ratio was fed into the reactor and the total flow rate was 20 mL/min. Ni particles supported by mesoporous silica, TiO2, and alumina showed very similar activities and stabilities for the DRM catalytic reaction. This indicates that for Ni nanoparticle catalysts (~10 nm) supported by a stable mesoporous substrate, the chemical composition of the substrate is less important for the catalytic behavior of Ni nanoparticles than the size of Ni nanoparticles confined by a porous structure of supporting materials [58].

4. Summary and Outlook

ALD can be utilized to deposit thin films with diverse chemical compositions. The important specifications of ALD, which are not available in other thin film deposition methods such as physical vapor deposition, CVD, and wet-chemical coating methods, include its highly efficient trench-fill capability and fine control of film thickness on the atomic scale. These characteristics are beneficial for preparing various heterogeneous catalyst structures, particularly those active for the DRM reaction at 800 °C. As an example, MgO- or TiO2-wrapped Ni sub-micrometer-sized particles with an oxide shell thickness of ~20 nm were shown to be catalytically more active and stable for the DRM reaction compared to bare Ni particles or those wrapped with thinner oxide films. It was shown that these oxide shells suppressed coke formation on Ni surfaces, whereas cracks existing within these oxide shells are important for facile diffusion of reactant molecules (CH4 and CO2) onto the Ni surfaces. Also, ALD was used to deposit Ni nanoparticles into the deep parts of mesoporous particles and the Ni nanoparticles incorporated into a mesoporous substrate were highly resistant towards sintering and coke formation. As a result, they are more catalytically active and stable for the DRM reaction. These unique catalyst structures, either oxide shell-wrapped metal particles or metal nanoparticles incorporated into mesoporous oxide substrates, prepared by ALD can help explain catalytic behaviors of variously structured heterogeneous catalysts.
In terms of practical application of heterogeneous catalysts, ALD is regarded to be less effective for mass-scale production of catalysts, even if its use can produce various interesting catalyst structures which are otherwise difficult to achieve. In order to overcome the disadvantages of ALD for mass production, methods such as temperature-regulated chemical vapor deposition have been developed and considered for preparing heterogeneous catalysts, whose structures are comparable to those prepared by ALD [109,110,111,112,113]. ALD is probably not a method which can be ultimately used in the mass production of heterogeneous catalysts, yet studies of ALD-prepared catalysts can shed light on the structure-function relationship in heterogeneous catalysts owing to the ability of ALD to finely tune the structure of catalysts.

Author Contributions

S.Y.K. analyzed the catalytic performance data of the shell-core type catalysts. S.Y.K., B.J.C., and S.S. carried out the literature review and writing of the manuscript. H.O.S. and Y.D.K. wrote the manuscript and supervised the study.

Funding

This research was supported by the Basic Science Research Program through the National Research Foundation of Korea (NRF) funded by the Ministry of Education (2018R1D1A1B07040916), and by a research grant from the Korea Basic Science Institute (D39613).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Bowes, G. Facing the inevitable: Plants and increasing atmospheric CO2. Annu. Rev. Plant Physiol. Plant Mol. Biol. 1993, 44, 309–332. [Google Scholar] [CrossRef]
  2. Yang, H.; Xu, Z.; Fan, M.; Gupta, R.; Slimane, R.B.; Bland, A.E.; Wright, I. Progress in carbon dioxide separation and capture: A review. J. Environ. Sci. 2008, 20, 14–27. [Google Scholar] [CrossRef]
  3. King, A.W.; Emanuel, W.R.; Post, W.M. Projecting future concentrations of atmospheric CO2 with global carbon cycle models: The importance of simulating historical changes. Environ. Manag. 1992, 16, 91–108. [Google Scholar] [CrossRef]
  4. Sozzani, P.; Bracco, S.; Comotti, A.; Ferretti, L.; Simonutti, R. Methane and carbon dioxide storage in a porous van der waals crystal. Angew. Chem. Int. Ed. 2005, 44, 1816–1820. [Google Scholar] [CrossRef] [PubMed]
  5. Liu, J.; Thallapally, P.K.; McGrail, B.P.; Brown, D.R.; Liu, J. Progress in adsorption-based CO-2 capture by metal–organic frameworks. Chem. Soc. Rev. 2012, 41, 2308–2322. [Google Scholar] [CrossRef] [PubMed]
  6. Liu, Y.; Wang, Z.U.; Zhou, H.-C. Recent advances in carbon dioxide capture with metal-organic frameworks. Greenh. Gases 2012, 2, 239–259. [Google Scholar] [CrossRef]
  7. Sumida, K.; Rogow, D.L.; Mason, J.A.; McDonald, T.M.; Bloch, E.D.; Herm, Z.R.; Bae, T.-H.; Long, J.R. Carbon dioxide capture in metal–organic frameworks. Chem. Rev. 2012, 112, 724–781. [Google Scholar] [CrossRef] [PubMed]
  8. Li, J.-R.; Ma, Y.; McCarthy, M.C.; Sculley, J.; Yu, J.; Jeong, H.-K.; Balbuena, P.B.; Zhou, H.-C. Carbon dioxide capture-related gas adsorption and separation in metal-organic frameworks. Coord. Chem. Rev. 2011, 255, 1791–1823. [Google Scholar] [CrossRef]
  9. Li, J.-R.; Kuppler, R.J.; Zhou, H.-C. Selective gas adsorption and separation in metal–organic frameworks. Chem. Soc. Rev. 2009, 38, 1477–1504. [Google Scholar] [CrossRef] [PubMed]
  10. Wang, S.; Yan, S.; Ma, X.; Gong, J. Recent advances in capture of carbon dioxide using alkali-metal-based oxides. Energy Environ. Sci. 2011, 4, 3805–3819. [Google Scholar] [CrossRef]
  11. Bhagiyalakshmi, M.; Lee, J.Y.; Jang, H.T. Synthesis of mesoporous magnesium oxide: Its application to CO2 chemisorption. Int. J. Greenh. Gas Control 2010, 4, 51–56. [Google Scholar] [CrossRef]
  12. Millward, A.R.; Yaghi, O.M. Metal−organic frameworks with exceptionally high capacity for storage of carbon dioxide at room temperature. J. Am. Chem. Soc. 2005, 127, 17998–17999. [Google Scholar] [CrossRef] [PubMed]
  13. Jeong, M.-G.; Kim, S.Y.; Kim, D.H.; Han, S.W.; Kim, I.H.; Lee, M.; Hwang, Y.K.; Kim, Y.D. High-performing and durable MgO/Ni catalysts via atomic layer deposition for CO2 reforming of methane (CRM). Appl. Catal. A 2016, 515, 45–50. [Google Scholar] [CrossRef]
  14. Kortlever, R.; Shen, J.; Schouten, K.J.P.; Calle-Vallejo, F.; Koper, M.T.M. Catalysts and reaction pathways for the electrochemical reduction of carbon dioxide. J. Phys. Chem. Lett. 2015, 6, 4073–4082. [Google Scholar] [CrossRef] [PubMed]
  15. Jitaru, M.; Lowy, D.A.; Toma, M.; Toma, B.C.; Oniciu, L. Electrochemical reduction of carbon dioxide on flat metallic cathodes. J. Appl. Electrochem. 1997, 27, 875–889. [Google Scholar] [CrossRef]
  16. Gattrell, M.; Gupta, N.; Co, A. A review of the aqueous electrochemical reduction of CO2 to hydrocarbons at copper. J. Electroanal. Chem. 2006, 594, 1–19. [Google Scholar] [CrossRef]
  17. Roy, S.C.; Varghese, O.K.; Paulose, M.; Grimes, C.A. Toward solar fuels: Photocatalytic conversion of carbon dioxide to hydrocarbons. ACS Nano 2010, 4, 1259–1278. [Google Scholar] [CrossRef] [PubMed]
  18. Darensbourg, D.J.; Holtcamp, M.W. Catalysts for the reactions of epoxides and carbon dioxide. Coord. Chem. Rev. 1996, 153, 155–174. [Google Scholar] [CrossRef]
  19. Darensbourg, D.J. Making plastics from carbon dioxide: Salen metal complexes as catalysts for the production of polycarbonates from epoxides and CO2. Chem. Rev. 2007, 107, 2388–2410. [Google Scholar] [CrossRef] [PubMed]
  20. Omae, I. Recent developments in carbon dioxide utilization for the production of organic chemicals. Coord. Chem. Rev. 2012, 256, 1384–1405. [Google Scholar] [CrossRef]
  21. Wang, W.; Wang, S.; Ma, X.; Gong, J. Recent advances in catalytic hydrogenation of carbon dioxide. Chem. Soc. Rev. 2011, 40, 3703–3727. [Google Scholar] [CrossRef] [PubMed]
  22. Saeidi, S.; Amin, N.A.S.; Rahimpour, M.R. Hydrogenation of CO2 to value-added products—A review and potential future developments. J. CO2 Util. 2014, 5, 66–81. [Google Scholar] [CrossRef]
  23. Ma, J.; Sun, N.; Zhang, X.; Zhao, N.; Xiao, F.; Wei, W.; Sun, Y. A short review of catalysis for CO2 conversion. Catal. Today 2009, 148, 221–231. [Google Scholar] [CrossRef]
  24. Soltanieh, M.; Azar, K.M.; Saber, M. Development of a zero emission integrated system for co-production of electricity and methanol through renewable hydrogen and CO2 capture. Int. J. Greenh. Gas Control 2012, 7, 145–152. [Google Scholar] [CrossRef]
  25. Talebian-Kiakalaieh, A.; Amin, N.A.S.; Mazaheri, H. A review on novel processes of biodiesel production from waste cooking oil. Appl. Energy 2013, 104, 683–710. [Google Scholar] [CrossRef]
  26. Aresta, M.; Dibenedetto, A.; Angelini, A. The changing paradigm in CO2 utilization. J. CO2 Util. 2013, 3–4, 65–73. [Google Scholar] [CrossRef]
  27. Seo, O.H. Recent scientific progress on developing supported Ni catalysts for dry (CO2) reforming of methane. Catalysts 2018, 8, 110. [Google Scholar] [CrossRef]
  28. Pakhare, D.; Spivey, J. A review of dry (CO2) reforming of methane over noble metal catalysts. Chem. Soc. Rev. 2014, 43, 7813–7837. [Google Scholar] [CrossRef] [PubMed]
  29. Rostrupnielsen, J.R.; Hansen, J.H.B. CO2-reforming of methane over transition metals. J. Catal. 1993, 144, 38–49. [Google Scholar] [CrossRef]
  30. Kim, D.H.; Kim, S.Y.; Han, S.W.; Cho, Y.K.; Jeong, M.-G.; Park, E.J.; Kim, Y.D. The catalytic stability of TiO2-shell/Ni-core catalysts for CO2 reforming of CH4. Appl. Catal. A 2015, 495, 184–191. [Google Scholar] [CrossRef]
  31. García, V.; Fernández, J.J.; Ruíz, W.; Mondragón, F.; Moreno, A. Effect of MgO addition on the basicity of Ni/ZrO2 and on its catalytic activity in carbon dioxide reforming of methane. Catal. Commun. 2009, 11, 240–246. [Google Scholar] [CrossRef]
  32. Gould, T.D.; Montemore, M.M.; Lubers, A.M.; Ellis, L.D.; Weimer, A.W.; Falconer, J.L.; Medlin, J.W. Enhanced dry reforming of methane on Ni and Ni-Pt catalysts synthesized by atomic layer deposition. Appl. Catal. A 2015, 492, 107–116. [Google Scholar] [CrossRef][Green Version]
  33. Bradford, M.C.J.; Vannice, M.A. Catalytic reforming of methane with carbon dioxide over nickel catalysts I. Catalyst characterization and activity. Appl. Catal. A 1996, 142, 73–96. [Google Scholar] [CrossRef]
  34. Kroll, V.C.H.; Swaan, H.M.; Mirodatos, C. Methane reforming reaction with carbon dioxide over Ni/SiO2 catalyst: I. deactivation studies. J. Catal. 1996, 161, 409–422. [Google Scholar] [CrossRef]
  35. Guczi, L.; Stefler, G.; Geszti, O.; Sajó, I.; Pászti, Z.; Tompos, A.; Schay, Z. Methane dry reforming with CO2: A study on surface carbon species. Appl. Catal. A 2010, 375, 236–246. [Google Scholar] [CrossRef]
  36. Liu, C.-J.; Ye, J.; Jiang, J.; Pan, Y. Progresses in the preparation of coke resistant Ni-based catalyst for steam and CO2 reforming of methane. ChemCatChem 2011, 3, 529–541. [Google Scholar] [CrossRef]
  37. Bouarab, R.; Akdim, O.; Auroux, A.; Cherifi, O.; Mirodatos, C. Effect of MgO additive on catalytic properties of Co/SiO2 in the dry reforming of methane. Appl. Catal. A 2004, 264, 161–168. [Google Scholar] [CrossRef]
  38. Xu, L.; Song, H.; Chou, L. One-pot synthesis of ordered mesoporous NiO–CaO–Al2O3 composite oxides for catalyzing CO2 reforming of CH4. ACS Catal. 2012, 2, 1331–1342. [Google Scholar] [CrossRef]
  39. Wang, S.-G.; Liao, X.-Y.; Cao, D.-B.; Huo, C.-F.; Li, Y.-W.; Wang, J.; Jiao, H. Factors controlling the Interaction of CO2 with transition metal surfaces. J. Phys. Chem. C 2007, 111, 16934–16940. [Google Scholar] [CrossRef]
  40. Quincoces, C.E.; Dicundo, S.; Alvarez, A.M.; González, M.G. Effect of addition of CaO on Ni/Al2O3 catalysts over CO2 reforming of methane. Mater. Lett. 2001, 50, 21–27. [Google Scholar] [CrossRef]
  41. Baudouin, D.; Rodemerck, U.; Krumeich, F.; Mallmann, A.D.; Szeto, K.C.; Ménard, H.; Veyre, L.; Candy, J.-P.; Webb, P.B.; Thieuleux, C.; et al. Particle size effect in the low temperature reforming of methane by carbon dioxide on silica-supported Ni nanoparticles. J. Catal. 2013, 297, 27–34. [Google Scholar] [CrossRef]
  42. Luisetto, I.; Tuti, S.; Battocchio, C.; Lo Mastro, S.; Sodo, A. Ni/CeO2–Al2O3 catalysts for the dry reforming of methane: The effect of CeAlO3 content and nickel crystallite size on catalytic activity and coke resistance. Appl. Catal. A 2015, 500, 12–22. [Google Scholar] [CrossRef]
  43. Kim, J.-H.; Suh, D.J.; Park, T.-J.; Kim, K.-L. Effect of metal particle size on coking during CO2 reforming of CH4 over Ni–alumina aerogel catalysts. Appl. Catal. A 2000, 197, 191–200. [Google Scholar] [CrossRef]
  44. Slagtern, s.; Olsbye, U.; Blom, R.; Dahl, I.M. The influence of rare earth oxides on Ni/Al2O3 catalysts during CO2 reforming of CH4. Stud. Surf. Sci. Catal. 1997, 107, 497–502. [Google Scholar]
  45. Wang, S.; Lu, G.Q. Reforming of methane with carbon dioxide over Ni/Al2O3 catalysts: Effect of nickel precursor. Appl. Catal. A 1998, 169, 271–280. [Google Scholar] [CrossRef]
  46. Lemonidou, A.A.; Vasalos, I.A. Carbon dioxide reforming of methane over 5 wt.% Ni/CaO-Al2O3 catalyst. Appl. Catal. A 2002, 228, 227–235. [Google Scholar] [CrossRef]
  47. Sneh, O.; Clark-Phelps, R.B.; Londergan, A.R.; Winkler, J.; Seidel, T.E. Thin film atomic layer deposition equipment for semiconductor processing. Thin Solid Films 2002, 402, 248–261. [Google Scholar] [CrossRef]
  48. Kim, H. Atomic layer deposition of metal and nitride thin films: Current research efforts and applications for semiconductor device processing. J. Vac. Sci. Technol. B 2003, 21, 2231–2261. [Google Scholar] [CrossRef]
  49. Sheng, J.; Han, K.-L.; Hong, T.; Choi, W.-H.; Park, J.-S. Review of recent progresses on flexible oxide semiconductor thin film transistors based on atomic layer deposition processes. J. Semicond. 2018, 39, 011008. [Google Scholar] [CrossRef]
  50. Yan, B.; Li, X.; Bai, Z.; Song, X.; Xiong, D.; Zhao, M.; Li, D.; Lu, S. A review of atomic layer deposition providing high performance lithium sulfur batteries. J. Power Sources 2017, 338, 34–48. [Google Scholar] [CrossRef]
  51. Palmstrom, A.F.; Santra, P.K.; Bent, S.F. Atomic layer deposition in nanostructured photovoltaics: Tuning optical, electronic and surface properties. Nanoscale 2015, 7, 12266–12283. [Google Scholar] [CrossRef] [PubMed]
  52. Dasgupta, N.P.; Meng, X.; Elam, J.W.; Martinson, A.B.F. Atomic layer deposition of metal sulfide materials. Acc. Chem. Res. 2015, 48, 341–348. [Google Scholar] [CrossRef] [PubMed]
  53. Sutherland, B.R.; Hoogland, S.; Adachi, M.M.; Kanjanaboos, P.; Wong, C.T.O.; McDowell, J.J.; Xu, J.; Voznyy, O.; Ning, Z.; Houtepen, A.J.; et al. Perovskite thin films via atomic layer deposition. Adv. Mater. 2015, 27, 53–58. [Google Scholar] [CrossRef] [PubMed]
  54. O’Neill, B.J.; Jackson, D.H.K.; Lee, J.; Canlas, C.; Stair, P.C.; Marshall, C.L.; Elam, J.W.; Kuech, T.F.; Dumesic, J.A.; Huber, G.W. Catalyst design with atomic layer deposition. ACS Catal. 2015, 5, 1804–1825. [Google Scholar] [CrossRef]
  55. Marichy, C.; Bechelany, M.; Pinna, N. Atomic layer deposition of nanostructured materials for energy and environmental applications. Adv. Mater. 2012, 24, 1017–1032. [Google Scholar] [CrossRef] [PubMed]
  56. Li, J.; Liang, X.; King, D.M.; Jiang, Y.-B.; Weimer, A.W. Highly dispersed Pt nanoparticle catalyst prepared by atomic layer deposition. Appl. Catal. B 2010, 97, 220–226. [Google Scholar] [CrossRef]
  57. Kim, D.H.; Sim, J.K.; Lee, J.; Seo, H.O.; Jeong, M.-G.; Kim, Y.D.; Kim, S.H. Carbon dioxide reforming of methane over mesoporous Ni/SiO2. Fuel 2013, 112, 111–116. [Google Scholar] [CrossRef]
  58. Kim, D.H.; Seo, H.O.; Jeong, M.-G.; Kim, Y.D. Reactivity and stability of Ni nanoparticles supported by mesoporous SiO2 and TiO2/SiO2 for CO2 Reforming of CH4. Catal. Lett. 2014, 144, 56–61. [Google Scholar] [CrossRef]
  59. Seo, H.O.; Sim, J.K.; Kim, K.-D.; Kim, Y.D.; Lim, D.C.; Kim, S.H. Carbon dioxide reforming of methane to synthesis gas over a TiO2–Ni inverse catalyst. Appl. Catal. A 2013, 451, 43–49. [Google Scholar] [CrossRef]
  60. George, S.M. Atomic layer deposition: An overview. Chem. Rev. 2010, 110, 111–131. [Google Scholar] [CrossRef] [PubMed]
  61. Johnson, R.W.; Hultqvist, A.; Bent, S.F. A brief review of atomic layer deposition: From fundamentals to applications. Mater. Today 2014, 17, 236–246. [Google Scholar] [CrossRef]
  62. Ritala, M.; Leskelä, M.; Dekker, J.-P.; Mutsaers, C.; Soininen, P.J.; Skarp, J. Perfectly conformal TiN and Al2O3 films deposited by atomic layer deposition. Chem. Vap. Depos. 1999, 5, 7–9. [Google Scholar] [CrossRef]
  63. Singh, J.A.; Yang, N.; Bent, S.F. Nanoengineering heterogeneous catalysts by atomic layer deposition. Annu. Rev. Chem. Biomol. Eng. 2017, 8, 41–62. [Google Scholar] [CrossRef] [PubMed]
  64. Gao, Z.; Qin, Y. Design and properties of confined nanocatalysts by atomic layer deposition. Acc. Chem. Res. 2017, 50, 2309–2316. [Google Scholar] [CrossRef] [PubMed]
  65. Leskelä, M.; Ritala, M. Atomic layer deposition (ALD): From precursors to thin film structures. Thin Solid Films 2002, 409, 138–146. [Google Scholar] [CrossRef]
  66. Puurunen, R.L.; Vandervorst, W. Island growth as a growth mode in atomic layer deposition: A phenomenological model. J. Appl. Phys. 2004, 96, 7686–7695. [Google Scholar] [CrossRef]
  67. Kim, J.-H.; Kim, J.-Y.; Kang, S.-W. Film growth model of atomic layer deposition for multicomponent thin films. J. Appl. Phys. 2005, 97, 093505. [Google Scholar] [CrossRef]
  68. Aaltonen, T.; Alén, P.; Ritala, M.; Leskelä, M. Ruthenium thin films grown by atomic layer deposition. Chem. Vap. Depos. 2003, 9, 45–49. [Google Scholar] [CrossRef]
  69. Lee, H.J.; Seo, H.O.; Kim, D.W.; Kim, K.-D.; Luo, Y.; Lim, D.C.; Ju, H.; Kim, J.W.; Lee, J.; Kim, Y.D. A high-performing nanostructured TiO2 filter for volatile organic compounds using atomic layer deposition. Chem. Commun. 2011, 47, 5605–5607. [Google Scholar] [CrossRef] [PubMed]
  70. Park, J.S.; Mane, A.U.; Elam, J.W.; Croy, J.R. Amorphous metal fluoride passivation coatings prepared by atomic layer deposition on LiCoO2 for Li-ion batteries. Chem. Mater. 2015, 27, 1917–1920. [Google Scholar] [CrossRef]
  71. Chang, C.-Y.; Lee, K.-T.; Huang, W.-K.; Siao, H.-Y.; Chang, Y.-C. High-performance, air-stable, low-temperature processed semitransparent perovskite solar cells enabled by atomic layer deposition. Chem. Mater. 2015, 27, 5122–5130. [Google Scholar] [CrossRef]
  72. Kozen, A.C.; Lin, C.-F.; Pearse, A.J.; Schroeder, M.A.; Han, X.; Hu, L.; Lee, S.-B.; Rubloff, G.W.; Noked, M. Next-generation lithium metal anode engineering via atomic layer deposition. ACS Nano 2015, 9, 5884–5892. [Google Scholar] [CrossRef] [PubMed]
  73. Kim, D.H.; Kim, Y.D. Oxidation behaviors of poly(3-hexylthiophene-2,5-diyl) on indium tin oxide surfaces without and with additional TiO2 thin films. Bull. Korean Chem. Soc. 2015, 36, 798–803. [Google Scholar]
  74. Kim, D.H.; Jeong, M.-G.; Seo, H.O.; Kim, Y.D. Oxidation behavior of P3HT layers on bare and TiO2-covered ZnO ripple structures evaluated by photoelectron spectroscopy. Phys. Chem. Chem. Phys. 2015, 17, 599–604. [Google Scholar] [CrossRef] [PubMed]
  75. Kim, K.-D.; Im, D.-C.; Jeong, M.-G.; Seo, H.O.; Seo, B.Y.; Lee, J.-Y.; Song, Y.-S.; Cho, S.; Lim, J.-H.; Kim, Y.D. Enhanced stability of organic photovoltaics by additional ZnO layers on rippled ZnO electron-collecting layer using atomic layer deposition. Bull. Korean Chem. Soc. 2014, 35, 353–356. [Google Scholar] [CrossRef]
  76. Kim, K.-D.; Lim, D.C.; Hu, J.; Kwon, J.-D.; Jeong, M.-G.; Seo, H.O.; Lee, J.Y.; Jang, K.-Y.; Lim, J.-H.; Lee, K.H.; et al. Surface modification of a ZnO electron-collecting layer using atomic layer deposition to fabricate high-Performing inverted organic photovoltaics. ACS Appl. Mater. Interfaces 2013, 5, 8718–8723. [Google Scholar] [CrossRef] [PubMed]
  77. Kim, K.-D.; Lim, D.C.; Seo, H.O.; Lee, J.Y.; Seo, B.Y.; Lee, D.J.; Song, Y.; Cho, S.; Lim, J.-H.; Kim, Y.D. Enhanced performance of organic photovoltaics by TiO2-interlayer with precisely controlled thickness between ZnO electron collecting and active layers. Appl. Surf. Sci. 2013, 279, 380–383. [Google Scholar] [CrossRef]
  78. Lim, D.C.; Kim, K.-D.; Park, S.-Y.; Hong, E.M.; Seo, H.O.; Lim, J.H.; Lee, K.H.; Jeong, Y.; Song, C.; Lee, E.; et al. Towards fabrication of high-performing organic photovoltaics: New donor-polymer, atomic layer deposited thin buffer layer and plasmonic effects. Energy Environ. Sci. 2012, 5, 9803–9807. [Google Scholar] [CrossRef]
  79. Park, S.-Y.; Seo, H.O.; Kim, K.-D.; Shim, W.H.; Heo, J.; Cho, S.; Kim, Y.D.; Lee, K.H.; Lim, D.C. Organic solar cells fabricated by one-step deposition of a bulk heterojunction mixture and TiO2/NiO hole-collecting agents. J. Phys. Chem. C 2012, 116, 15348–15352. [Google Scholar] [CrossRef]
  80. Park, S.-Y.; Seo, H.O.; Kim, K.-D.; Lee, J.E.; Kwon, J.-D.; Kim, Y.D.; Lim, D.C. Organic photovoltaics with high stability sustained for 100 days without encapsulation fabricated using atomic layer deposition. Phys. Status Solidi Rapid Res. Lett. 2012, 6, 196–198. [Google Scholar] [CrossRef][Green Version]
  81. Seo, H.O.; Sim, C.W.; Kim, K.-D.; Kim, Y.D.; Park, J.H.; Lee, B.C.; Lee, K.H.; Lim, D.C. Influence of high-energy electron-beam on photocatalytic activity of TiO2 films on carbon-fiber deposited by atomic layer deposition. Radiat. Phys. Chem. 2012, 81, 290–294. [Google Scholar] [CrossRef]
  82. Kim, K.-D.; Dey, N.K.; Seo, H.O.; Kim, Y.D.; Lim, D.C.; Lee, M. Photocatalytic decomposition of toluene by nanodiamond-supported TiO2 prepared using atomic layer deposition. Appl. Catal. A 2011, 408, 148–155. [Google Scholar] [CrossRef]
  83. Schwab, G.-M. Electronics of Supported Catalysts. Adv. Catal. 1979, 27, 1–22. [Google Scholar]
  84. Rodríguez, J.A.; Hrbek, J. Inverse oxide/metal catalysts: A versatile approach for activity tests and mechanistic studies. Surf. Sci. 2010, 604, 241–244. [Google Scholar] [CrossRef]
  85. Rodriguez, J.A.; Liu, P.; Graciani, J.; Senanayake, S.D.; Grinter, D.C.; Stacchiola, D.; Hrbek, J.; Fernández-Sanz, J. Inverse oxide/metal catalysts in fundamental studies and practical applications: A perspective of recent developments. J. Phys. Chem. Lett. 2016, 7, 2627–2639. [Google Scholar] [CrossRef] [PubMed]
  86. Zhang, J.; Medlin, J.W. Catalyst design using an inverse strategy: From mechanistic studies on inverted model catalysts to applications of oxide-coated metal nanoparticles. Surf. Sci. Rep. 2018, 73, 117–152. [Google Scholar] [CrossRef]
  87. Mahapatra, M.; Gutiérrez, R.A.; Kang, J.; Rui, N.; Hamlyn, R.; Liu, Z.; Orozco, I.; Ramírez, P.J.; Senanayake, S.D.; Rodriguez, J.A. The behavior of inverse oxide/metal catalysts: CO oxidation and water-gas shift reactions over ZnO/Cu(111) surfaces. Surf. Sci. 2019, 681, 116–121. [Google Scholar] [CrossRef]
  88. Dey, N.K.; Kim, M.J.; Kim, K.-D.; Seo, H.O.; Kim, D.; Kim, Y.D.; Lim, D.C.; Lee, K.H. Adsorption and photocatalytic degradation of methylene blue over TiO2 films on carbon fiber prepared by atomic layer deposition. J. Mol. Catal. A Chem. 2011, 337, 33–38. [Google Scholar] [CrossRef]
  89. Barroso-Quiroga, M.M.; Castro-Luna, A.E. Catalytic activity and effect of modifiers on Ni-based catalysts for the dry reforming of methane. Int. J. Hydrogen Energy 2010, 35, 6052–6056. [Google Scholar] [CrossRef]
  90. Ginsburg, J.M.; Piña, J.; El Solh, T.; de Lasa, H.I. Coke formation over a nickel catalyst under methane dry reforming conditions: Thermodynamic and kinetic models. Ind. Eng. Chem. Res. 2005, 44, 4846–4854. [Google Scholar] [CrossRef]
  91. Chen, D.; Lødeng, R.; Anundskås, A.; Olsvik, O.; Holmen, A. Deactivation during carbon dioxide reforming of methane over Ni catalyst: Microkinetic analysis. Chem. Eng. Sci. 2001, 56, 1371–1379. [Google Scholar] [CrossRef]
  92. Pechimuthu, N.A.; Pant, K.K.; Dhingra, S.C. Deactivation studies over Ni−K/CeO2−Al2O3 catalyst for dry reforming of methane. Ind. Eng. Chem. Res. 2007, 46, 1731–1736. [Google Scholar] [CrossRef]
  93. Zhang, L.; Li, L.; Li, J.; Zhang, Y.; Hu, J. Carbon dioxide reforming of methane over nickel catalyst supported on MgO(111) nanosheets. Top. Catal. 2014, 57, 619–626. [Google Scholar] [CrossRef]
  94. Koo, K.Y.; Roh, H.-S.; Seo, Y.T.; Seo, D.J.; Yoon, W.L.; Park, S.B. Coke study on MgO-promoted Ni/Al2O3 catalyst in combined H2O and CO2 reforming of methane for gas to liquid (GTL) process. Appl. Catal. A 2008, 340, 183–190. [Google Scholar] [CrossRef]
  95. Xu, L.; Song, H.; Chou, L. Carbon dioxide reforming of methane over ordered mesoporous NiO–MgO–Al2O3 composite oxides. Appl. Catal. B 2011, 108–109, 177–190. [Google Scholar] [CrossRef]
  96. Wang, H.Y.; Ruckenstein, E. Carbon dioxide reforming of methane to synthesis gas over supported rhodium catalysts: The effect of support. Appl. Catal. A 2000, 204, 143–152. [Google Scholar] [CrossRef]
  97. Ferreira-Aparicio, P.; Rodríguez-Ramos, I.; Anderson, J.A.; Guerrero-Ruiz, A. Mechanistic aspects of the dry reforming of methane over ruthenium catalysts. Appl. Catal. A 2000, 202, 183–196. [Google Scholar] [CrossRef]
  98. Amenomiya, Y.; Morikawa, Y.; Pleizier, G. Infrared spectroscopy of C18O2 on alumina. J. Catal. 1977, 46, 431–433. [Google Scholar] [CrossRef]
  99. Daza, C.E.; Gallego, J.; Moreno, J.A.; Mondragón, F.; Moreno, S.; Molina, R. CO2 reforming of methane over Ni/Mg/Al/Ce mixed oxides. Catal. Today 2008, 133–135, 357–366. [Google Scholar] [CrossRef]
  100. King, J.S.; Wittstock, A.; Biener, J.; Kucheyev, S.O.; Wang, Y.M.; Baumann, T.F.; Giri, S.K.; Hamza, A.V.; Baeumer, M.; Bent, S.F. Ultralow loading Pt nanocatalysts prepared by atomic layer deposition on carbon aerogels. Nano Lett. 2008, 8, 2405–2409. [Google Scholar] [CrossRef] [PubMed]
  101. Jeong, M.-G.; Kim, D.H.; Lee, S.-K.; Lee, J.H.; Han, S.W.; Park, E.J.; Cychosz, K.A.; Thommes, M.; Hwang, Y.K.; Chang, J.-S.; et al. Decoration of the internal structure of mesoporous chromium terephthalate MIL-101 with NiO using atomic layer deposition. Microporous Mesoporous Mater. 2016, 221, 101–107. [Google Scholar] [CrossRef]
  102. Ferguson, J.D.; Weimer, A.W.; George, S.M. Atomic layer deposition of ultrathin and conformal Al2O3 films on BN particles. Thin Solid Films 2000, 371, 95–104. [Google Scholar] [CrossRef]
  103. Kaiser, N. Review of the fundamentals of thin-film growth. Appl. Opt. Appl. Opt. 2002, 41, 3053–3060. [Google Scholar] [CrossRef] [PubMed]
  104. Aaltonen, T.; Ritala, M.; Sajavaara, T.; Keinonen, J.; Leskelä, M. Atomic layer deposition of platinum thin films. Chem. Mater. 2003, 15, 1924–1928. [Google Scholar] [CrossRef]
  105. Jeong, M.-G.; Kim, I.H.; Han, S.W.; Kim, D.H.; Kim, Y.D. Room temperature CO oxidation catalyzed by NiO particles on mesoporous SiO2 prepared via atomic layer deposition: Influence of pre-annealing temperature on catalytic activity. J. Mol. Catal. A Chem. 2016, 414, 87–93. [Google Scholar] [CrossRef]
  106. Kaydouh, M.N.; El Hassan, N.; Davidson, A.; Casale, S.; El Zakhem, H.; Massiani, P. Highly active and stable Ni/SBA-15 catalysts prepared by a “two solvents” method for dry reforming of methane. Microporous Mesoporous Mater. 2016, 220, 99–109. [Google Scholar] [CrossRef][Green Version]
  107. Kang, D.; Lim, H.S.; Lee, J.W. Enhanced catalytic activity of methane dry reforming by the confinement of Ni nanoparticles into mesoporous silica. Int. J. Hydrogen Energy 2017, 42, 11270–11282. [Google Scholar] [CrossRef]
  108. Shang, Z.; Li, S.; Li, L.; Liu, G.; Liang, X. Highly active and stable alumina supported nickel nanoparticle catalysts for dry reforming of methane. Appl. Catal. B 2017, 201, 302–309. [Google Scholar] [CrossRef]
  109. Han, S.W.; Kim, I.H.; Kim, D.H.; Park, K.J.; Park, E.J.; Jeong, M.-G.; Kim, Y.D. Temperature regulated-chemical vapor deposition for incorporating NiO nanoparticles into mesoporous media. Appl. Surf. Sci. 2016, 385, 597–604. [Google Scholar] [CrossRef]
  110. Kim, I.H.; Seo, H.O.; Park, E.J.; Han, S.W.; Kim, Y.D. Low temperature CO oxidation over Iron oxide nanoparticles decorating internal structures of a mesoporous alumina. Sci. Rep. 2017, 7, 40497. [Google Scholar] [CrossRef] [PubMed]
  111. Kim, I.H.; Park, E.J.; Park, C.H.; Han, S.W.; Seo, H.O.; Kim, Y.D. Activity of catalysts consisting of Fe2O3 nanoparticles decorating entire internal structure of mesoporous Al2O3 bead for toluene total oxidation. Catal. Today 2017, 295, 56–64. [Google Scholar] [CrossRef]
  112. Kim, I.H.; Park, C.H.; Woo, T.G.; Jeong, J.H.; Jeon, C.S.; Kim, Y.D. Comparative Studies of Mesoporous Fe2O3/Al2O3 and Fe2O3/SiO2 fabricated by temperature-regulated chemical vapour deposition as catalysts for acetaldehyde oxidation. Catal. Lett. 2018, 148, 454–464. [Google Scholar] [CrossRef]
  113. Seo, M.; Kim, S.Y.; Kim, Y.D.; Park, E.D.; Uhm, S. Highly stable barium zirconate supported nickel oxide catalyst for dry reforming of methane: From powders toward shaped catalysts. Int. J. Hydrogen Energy 2018, 43, 11355–11362. [Google Scholar] [CrossRef]
Figure 1. (a) The operating principle of atomic layer deposition is schematically described. (b) Scanning Electron Microscopy (SEM) images of TiO2 thin films on anodic aluminum oxide substrates deposited using atomic layer deposition (ALD). Edited from Reference [69].
Figure 1. (a) The operating principle of atomic layer deposition is schematically described. (b) Scanning Electron Microscopy (SEM) images of TiO2 thin films on anodic aluminum oxide substrates deposited using atomic layer deposition (ALD). Edited from Reference [69].
Catalysts 09 00266 g001
Figure 2. Transmission electron microscopy (TEM) images of (a) TiO2/Ni particles and (b) MgO/Ni particles prepared by applying 500 and 200 cycles of ALD, respectively. Edited from Reference [13,30].
Figure 2. Transmission electron microscopy (TEM) images of (a) TiO2/Ni particles and (b) MgO/Ni particles prepared by applying 500 and 200 cycles of ALD, respectively. Edited from Reference [13,30].
Catalysts 09 00266 g002
Figure 3. (a) CO2 conversion, (b) CH4 conversion, and (c) H2/CO ratio, which are products of the DRM reaction, are compared for bare Ni and MgO-wrapped Ni with two different MgO thicknesses. (df) show the respective data for bare and TiO2-wrapped Ni. The dry reforming of methane (DRM) reactions were carried out at 800 °C under atmospheric conditions with a constant flow of the gas mixture (CH4:CO2 = 1:1, total flow rate of 20 mL/min). The number of ALD cycles used for preparing each metal oxide-wrapped Ni is denoted in the respective figure legend. Edited from Reference [13,30].
Figure 3. (a) CO2 conversion, (b) CH4 conversion, and (c) H2/CO ratio, which are products of the DRM reaction, are compared for bare Ni and MgO-wrapped Ni with two different MgO thicknesses. (df) show the respective data for bare and TiO2-wrapped Ni. The dry reforming of methane (DRM) reactions were carried out at 800 °C under atmospheric conditions with a constant flow of the gas mixture (CH4:CO2 = 1:1, total flow rate of 20 mL/min). The number of ALD cycles used for preparing each metal oxide-wrapped Ni is denoted in the respective figure legend. Edited from Reference [13,30].
Catalysts 09 00266 g003
Figure 4. (a) X-ray diffraction (XRD) and (bd) SEM results of bare and MgO-wrapped Ni particles after 72 h of the DRM reaction. (e) Schematic of the various deactivation behaviors. Edited from Reference [13].
Figure 4. (a) X-ray diffraction (XRD) and (bd) SEM results of bare and MgO-wrapped Ni particles after 72 h of the DRM reaction. (e) Schematic of the various deactivation behaviors. Edited from Reference [13].
Catalysts 09 00266 g004

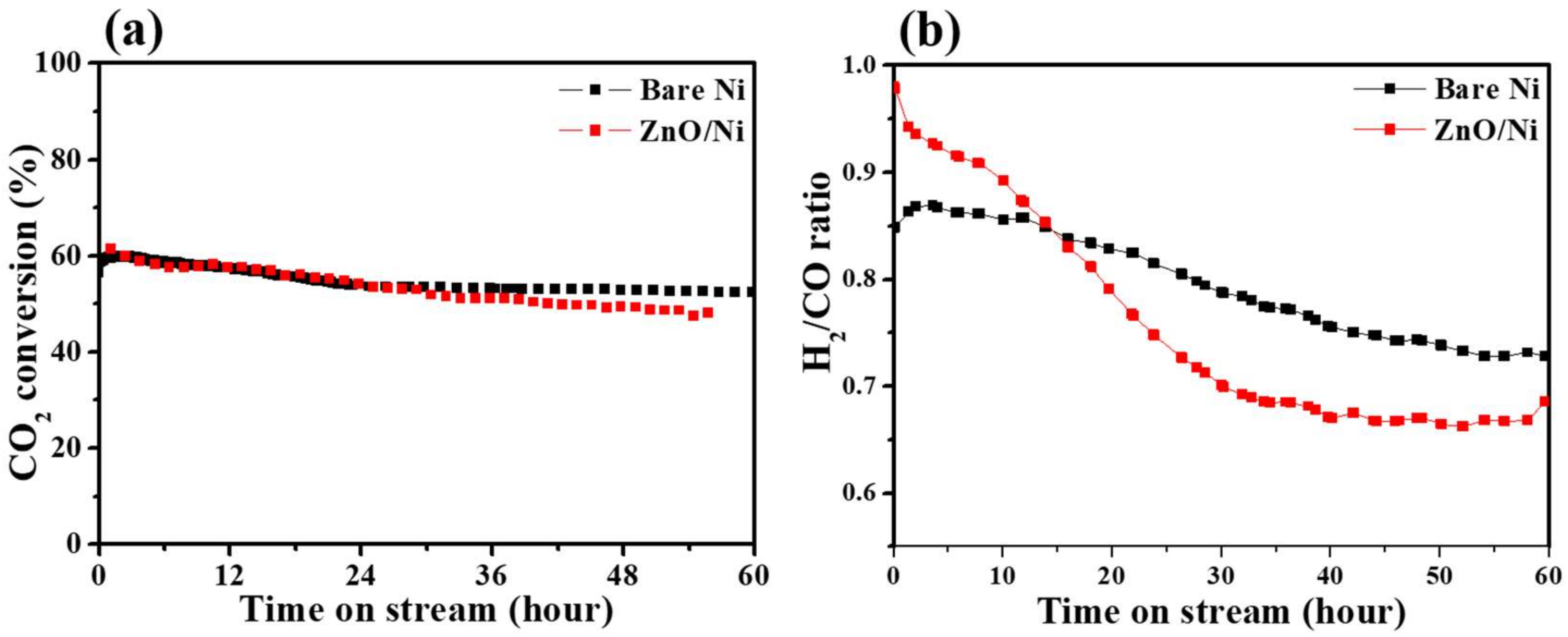

Figure 5. (a) CO2 conversion and (b) ratio of H2 to CO, which are products of the DRM reaction, for bare Ni and ZnO-wrapped Ni. The DRM reactions were carried out at 800 °C under atmospheric conditions with a constant flow of the gas mixture (CH4:CO2 = 1:1, total flow rate of 20 mL/min).
Figure 5. (a) CO2 conversion and (b) ratio of H2 to CO, which are products of the DRM reaction, for bare Ni and ZnO-wrapped Ni. The DRM reactions were carried out at 800 °C under atmospheric conditions with a constant flow of the gas mixture (CH4:CO2 = 1:1, total flow rate of 20 mL/min).
Catalysts 09 00266 g005
Figure 6. TEM image of Pt nanoparticles deposited in carbon aerogel by employing ALD. Reprinted with permission from Reference [100]. Copyright (2008) ACS Publications.
Figure 6. TEM image of Pt nanoparticles deposited in carbon aerogel by employing ALD. Reprinted with permission from Reference [100]. Copyright (2008) ACS Publications.
Catalysts 09 00266 g006
Figure 7. Pore-size distribution of MIL-101 with an increasing number of ALD cycles of NiO deposition. Reprinted with permission from Reference [101]. Copyright (2016) Elsevier.
Figure 7. Pore-size distribution of MIL-101 with an increasing number of ALD cycles of NiO deposition. Reprinted with permission from Reference [101]. Copyright (2016) Elsevier.
Catalysts 09 00266 g007

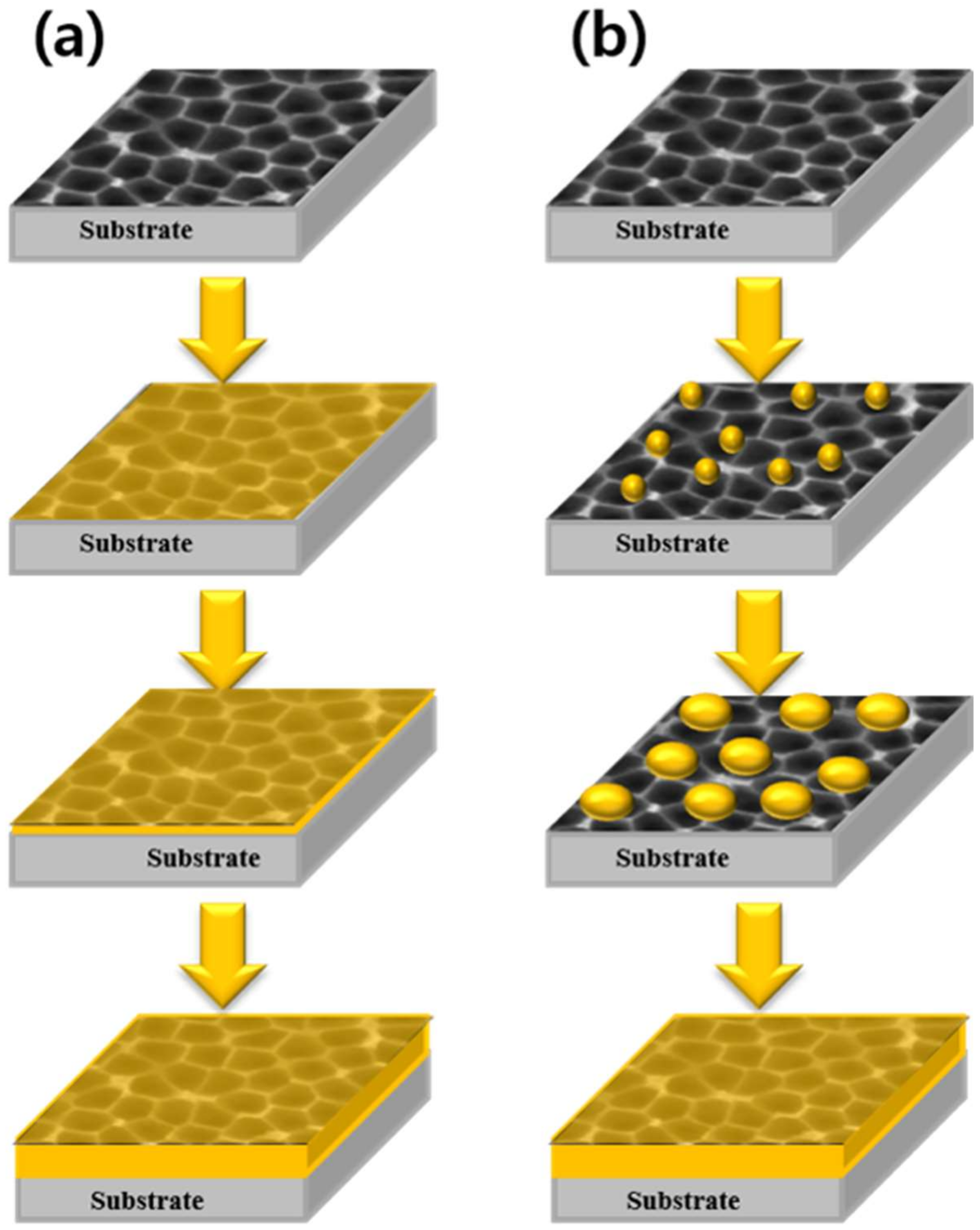

Figure 8. Schematic illustration of thin film growth based on (a) Frank-van der Merwe and (b) Volmer-weber modes.
Figure 8. Schematic illustration of thin film growth based on (a) Frank-van der Merwe and (b) Volmer-weber modes.
Catalysts 09 00266 g008
Figure 9. (a) CH4 and CO2 conversions of Ni/Silica catalyst at 800 °C for 72 h. (b) CH4 and CO2 conversions of Ni catalyst at 800 °C for 72 h. (c) TEM image of Ni/silica obtained after 72 h of the DRM reaction. (d) CH4 and CO2 conversions of the Ni/silica catalyst at 800 °C for 168 h (7 days). Edited from Reference [57].
Figure 9. (a) CH4 and CO2 conversions of Ni/Silica catalyst at 800 °C for 72 h. (b) CH4 and CO2 conversions of Ni catalyst at 800 °C for 72 h. (c) TEM image of Ni/silica obtained after 72 h of the DRM reaction. (d) CH4 and CO2 conversions of the Ni/silica catalyst at 800 °C for 168 h (7 days). Edited from Reference [57].
Catalysts 09 00266 g009
Figure 10. (a) CH4 and CO2 conversion of Ni/TiO2 catalysts at 800 °C for 72 h. (b) CH4 and CO2 conversion of Ni/alumina at 800 °C for 550 h. The DRM reactions were carried out at 800 °C under atmospheric conditions with a constant flow of the gas mixture (CH4:CO2 = 1:1, total flow rate of 20 mL/min). Edited from Reference [57].
Figure 10. (a) CH4 and CO2 conversion of Ni/TiO2 catalysts at 800 °C for 72 h. (b) CH4 and CO2 conversion of Ni/alumina at 800 °C for 550 h. The DRM reactions were carried out at 800 °C under atmospheric conditions with a constant flow of the gas mixture (CH4:CO2 = 1:1, total flow rate of 20 mL/min). Edited from Reference [57].
Catalysts 09 00266 g010
Table 1. Brunauer-Emmett-Teller (BET) surface area and Barret-Joyner-Halenda (BJH) pore volume of bare Ni, MgO/Ni (50 and 200 ALD cycles), and TiO2/Ni (100 and 500 ALD cycles). The ALD-deposited metal oxide thicknesses of MgO/Ni (200 cycles) and TiO2/Ni (500 cycles) determined by TEM analysis are also summarized.
Table 1. Brunauer-Emmett-Teller (BET) surface area and Barret-Joyner-Halenda (BJH) pore volume of bare Ni, MgO/Ni (50 and 200 ALD cycles), and TiO2/Ni (100 and 500 ALD cycles). The ALD-deposited metal oxide thicknesses of MgO/Ni (200 cycles) and TiO2/Ni (500 cycles) determined by TEM analysis are also summarized.
CatalystNumber of CyclesBET Surface Area (m2/g)BJH Pore Volume (cm3/g)Mean Thickness of Metal OxideReference
Bare Ni-3.55.5 × 10−3-[13,30]
MgO/Ni503.54.3 × 10−3-[13]
2001.97.5 × 10−3~20
TiO2/Ni1004.95 × 10−3-[30]
500251.3 × 10−3~40

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Back to TopTop
