Heterometallic CoIIIZnII Schiff Base Catalyst for Mild Hydroxylation of C(sp3)–H Bonds of Unactivated Alkanes: Evidence for Dual Mechanism Controlled by the Promoter

by
Oksana V. Nesterova
1,*,
Katerina V. Kasyanova
2,
Elena A. Buvaylo
2,
Olga Yu. Vassilyeva
2,*,
Brian W. Skelton
3,
Dmytro S. Nesterov
1 and
Armando J.L. Pombeiro
1,*
1
Centro de Química Estrutural, Instituto Superior Técnico, Universidade de Lisboa, Av. Rovisco Pais, 1049-001 Lisboa, Portugal
2
Department of Chemistry, Taras Shevchenko National University of Kyiv, 64/13 Volodymyrska str., Kyiv 01601, Ukraine
3
School of Molecular Sciences, M310, University of Western Australia, Perth, WA 6009, Australia
*
Authors to whom correspondence should be addressed.
Catalysts 2019, 9(3), 209; https://doi.org/10.3390/catal9030209
Submission received: 29 January 2019 / Revised: 12 February 2019 / Accepted: 13 February 2019 / Published: 26 February 2019
Browse Figures
Versions Notes

Abstract

:
The novel Schiff base complex [CoIIIZnIIL3Cl2]·CH3OH (1) was synthesized by interaction of zinc powder, cobalt(II) chloride and methanol solution of the pre-formed HL in air (HL is the product of condensation of o-vanillin and methylamine) and characterized by IR, UV-Vis and NMR spectroscopy, ESI-MS and single crystal X-ray diffraction analysis. In the heterometallic core of 1 the two metal centers are bridged by deprotonated phenoxy groups of the L− ligands with the cobalt-zinc separation of 3.123 Å. Catalytic investigations demonstrated a pronounced activity of 1 towards mild alkane oxidation with m-chloroperbenzoic acid (m-CPBA) as an oxidant and cis-1,2-dimethylcyclohexane (cis-1,2-DMCH) as the model substrate. The influence of the nature of different promoting agents of various acidities (from HOTf to pyridine) on the catalytic process was studied in detail and a pronounced activity of 1 in the presence of nitric acid promoter was found, also showing a high retention of stereoconfiguration of the substrate (>99% for cis-1,2-DMCH). The best achieved yield of tertiary cis-alcohol based on the oxidant was 61%, with a turnover number (TON) of 198 for nitric acid as promoter. The 18O-incorporations into the alcohols when the reactions were performed under 18O2 atmosphere using acetic and nitric acid promoters, suggest that the cis-1,2-DMCH hydroxylation proceeds by two distinct pathways, a non-stereoselective and a stereoselective one (with and without involvement of a long-lived free carbon radical, respectively). The former dominates in the case of acetic acid promoter and the latter is realized in the case of HNO3 promoter.

Graphical Abstract

1. Introduction

Selective transformation of inactive aliphatic C−H bonds into suitable functional groups is a principal goal of modern chemistry [1,2,3,4,5,6,7,8]. Among the already developed approaches towards the C–H activation, those capable of selective insertion of oxygen into a particular sp3 carbon–hydrogen bond are less numerous and often are limited to specific positions (e.g. allylic sites) or require laborious synthesis of catalysts [9,10]. Additional challenges are encountered in stereoselective C−H oxidations. It is known that metalloenzymes, such as cytochrome P450 or methane monooxygenase (MMO), can functionalize C–H bonds of a range of substrates, including alkanes, under very mild conditions and using dioxygen or peroxides as terminal oxidants [11,12,13,14]. These observations inspired chemists to synthesize families of complexes, primarily of copper, iron and manganese, which could mimic the reaction mechanisms of enzymatic oxidations [15]. Nowadays these families are represented mainly by porphyrin complexes and a few classes of non-heme systems, mostly based on N-donor macrocyclic or polypyridyl ligands [13,15,16,17].
Catalytic activity of cobalt complexes in the oxidative functionalization of sp3 C–H bonds is much less explored than that of iron or manganese compounds, although there is clear evidence that cobalt species may serve as highly efficient and selective catalysts [18,19,20,21,22,23,24,25]. We recently reported a cobalt complex with a simple N,O-donor isoindole ligand, which revealed a high stereoselectivity in the course of oxidation of sp3 C–H bonds using m-chloroperoxybenzoic acid (m-CPBA) oxidant [26]. Being interested in better understanding of the mechanism of the retention of stereoconfiguration and following our long-term interest in polynuclear coordination compounds [2,27], we have prepared a novel cobalt complex bearing a similar N,O-donor ligand, but decorated with a second redox inactive metal, [CoIIIZnIIL3Cl2]·CH3OH (1) (HL = 2-methoxy-6-[(methylimino)methyl]phenol, Scheme 1). It was recently shown that non-redox metals, such as zinc, cadmium, bismuth etc., may influence the redox reaction pathway or even serve as the main catalysts [28,29,30,31,32]. Thus, we were motivated to study the catalytic properties of the heterometallic CoIII/ZnII complex 1 in the oxidation of alkanes using m-CPBA as terminal oxidant.
It is known that common C–H hydroxylation pathways (such as radical rebound, concerted, metal-mediated or free radical one) show drastically different 18O-incorporations into the final products, alcohols, from various sources, first of all 18O2, H218O and 18O-labelled peroxides [33,34,35,36]. For example, the use of 18O2, in combination with bond-, regio- and stereoselectivity data, provides evidence about the participation (or non-participation) of a long-lived free carbon radical in the catalytic mechanism [2,36,37,38,39,40,41]. However, this important area still remains underdeveloped.
The heterometallic 1 was prepared using a one-pot reaction of zinc powder with cobalt(II) chloride in methanol in the presence of HL formed in situ in open air. Details and applications of the used synthetic approach were given earlier by some of us [27]. Herein, we report on the synthesis, crystal structure and spectroscopic characterization of complex 1, as well as its catalytic activity towards stereoselective alkane oxidation with m-CPBA in the presence of various promoting agents under mild conditions. To get insights into the type of reaction mechanism, we performed a combined selectivity/18O2 study.

2. Results and Discussion

2.1. Synthesis and crystal structure

The Schiff base HL was synthesized in situ by condensation of o-vanillin and CH3NH2·HCl in methanol in the presence of dimethylaminoethanol. The one-pot reaction of zinc powder, cobalt chloride hexahydrate and the pre-formed HL in methanol using the Zn0 : CoCl2 : HL = 1 : 1 : 3 mole ratio in open air resulted in the formation of a brown-colored solution. The zerovalent metal was oxidized by atmospheric dioxygen and readily dissolved while the reaction mixture was heated mildly under magnetic stirring. Dark-red X-ray quality crystals of complex 1 were formed by the following day. The cobalt(II) is easily oxidized to the cobalt(III) species in open air even in the presence of zerovalent zinc. Cobalt(III) oxidation state is effectively stabilized by the deprotonated Schiff base ligand that enables formation of the neutral CoL3 species with the metal center in a mer configuration (see below). The latter acts as a metalloligand to a Zn2+ ion, affording the heterometallic complex 1.
Complex 1 crystallizes in the monoclinic space group P21/n. It is built of [CoZnL3Cl2] neutral molecules with the metal centers bridged by two deprotonated phenoxy groups from the two L– ligands. Solvent methanol molecules are involved in O–H···O hydrogen bonding. The molecular diagram of 1 with a numbering scheme is given in Figure 1, while selected bond distances and angles are presented in Table S1.
The [CoZnL3Cl2] molecule that lacks crystallographic symmetry contains two metal atoms in Co(1)N3O3 and Zn(1)O3Cl2 distorted octahedral and square-pyramidal geometries, respectively. The oxidation state assignment for the cobalt ion was based on interatomic distances and charge considerations. Three crystallographically non-equivalent Schiff base ligands coordinate the cobalt center through the azomethine nitrogen and phenolate oxygen atoms with Co–O/N bond lengths in the ranges 1.8788(14)–1.9094(14) and 1.9436(17)–1.9506(17), respectively (Figure 1, Table S1). The average Co–O and Co–N bond distances are equal to 1.899 and 1.947 Å, respectively. The trans angles at the cobalt atom fall in the range 171.38(7)–175.35(7)°, the cis angles vary from 84.82(7) to 94.81(7)° (Table S1). The zinc atom possesses a distorted tetrahedral geometry forming two shorter bonds to the phenolato O atoms of the two L– ligands, O(11) and O(21) [2.0300(14), 2.1186(14) Å], and two longer bonds to the chlorine atoms [Cl1: 2.2242(6), Cl2: 2.2183(6) Å]. The angles at the metal atom fall in the range 70.79(5)–143.30(5)°. The additional weak Zn–O bond to the methoxy oxygen atom O(12) of 2.4038(15) Å implies that the Zn(1) coordination polyhedron approximates a highly irregular square pyramid with Cl(1) atom in the axial position. The μ-phenoxo-bridged metal centers are separated at 3.123 Å. No significant intermolecular interactions between the dinuclear units are observed in the solid state. The oxygen atom of the solvent methanol molecule, O1, acts as a donor to O31 and O32 atoms of the ligand [O1–H1···O31, 2.790(2), H1···O31, 1.983(13) Å, ∠ = 157(2)°; O1–H1···O32, 3.035(1), H1···O32, 2.434(1) Å, ∠ = 128.17°] forming a five-membered supramolecular synthon (Figure 2, enlarged fragment). Stacked complex molecules form sheets parallel to the ab plane with polar methoxy-groups and chloride ligands protruding into the intersheet space and together with solvent molecules keeping the sheets apart (Figure 2). In the solid state, numerous C–H···Cl contacts with the H···Cl distances of well above 2.75 Å are due to van der Waals close packing.

2.2. Spectroscopic characterization

The infrared spectrum of complex 1 in the 4000–400 cm−1 range contains broad overlapping bands in the region 3600–3400 cm–1, ascribed to the OH group of the methanol solvent molecule (Figure S1). Bands arising above 3000 cm–1 are due to aromatic = C–H stretching of the ligand and solvent; their alkyl C–H stretching vibration are seen below 3000 cm–1. The characteristic ν(C=N) peak of L– is detected at 1630 cm–1 (1634 cm–1 for free HL, Figure S1). Several sharp bands of medium intensity are observed in the phenyl ring stretching (1600–1400 cm–1) and out-of-plane CH bending regions (800–700 cm–1).
The diamagnetic nature of CoIII enabled NMR characterization of 1 in solution. The 1H NMR spectrum of 1 exhibits the expected set of signals between 8 and 2.5 ppm (Figure S2). The mer arrangement of the bidentate deprotonated ligands around the Co(III) atom, which causes the inequivalence of all three coordinated Schiff bases is retained in DMSO solution. The three different ligand environments are clearly distinguished by three different signals in a 1 : 1 : 1 ratio at δ 7.95, 7.79 and 7.46 for the –CH=N– protons, a set of two signals for nine CH3O protons at δ 3.61, 3.53, in a 1 : 2 ratio and signals of nine aromatic protons due to the three inequivalent rings observed as five doublets, a triplet and a multiplet in the range 6.91–6.22 ppm. The signals of CH3 protons of the ligand and solvent are partly obscured by a H2O residual signal.
The ESI-MS spectrum of complex 1 (Figure S3) in CH3CN (ca. 1 × 10−5 M) shows the strongest peak at 1338 m/z, which was associated to dimer of complex 1 [(CoIIIL3)2Zn2Cl3 – H]+ (Figure S4). A peak of comparable intensity is observed at 1125 m/z, which is assigned to [(CoIIIL3)2Na – H]+ (Figure S5). The molecular ion of 1 was not detected. However, its derivative with eliminated chloride ion, [1 – Cl–]+ is clearly seen at 650 m/z (Figure 3 and Figure S3), showing the intensity, after correction for isotopic distribution, of 43% relative to the top peak at 1338 m/z. Some products of degradation of 1 were also detected as peaks of low intensities, namely [CoIIIL2]+ and [CoIIIL3 – e–]+ species at m/z = 387 and 551 m/z, respectively (Figure S3). The observed ionization pathways and species formed are typical for ESI-MS spectrometry of coordination compounds [42]. These results suggest that the binuclear core of 1 keeps its integrity even in diluted solutions.

2.3. Catalytic activity

The catalytic activity of complex 1 was studied in the hydroxylation of sp3 C–H bonds of unactivated alkanes, under mild conditions. Oxidation of cis-1,2-dimethylcyclohexane (cis-1,2-DMCH) was chosen as a primary reaction. This substrate is a recognized model that allows simultaneous determination of stereo-, bond- and regio-preferences [2,26,35,43,44]. The reaction of m-CPBA, in the presence of nitric acid, with cis-1,2-DMCH, using various loadings of 1 (Table 1, Entries 1–3), afforded the tertiary cis-alcohol as the main product (Figure S6). The dependence of the initial reaction rate W0 on [1] was found to be linear, suggesting that no change of the catalyst composition occurs in the studied range of [1] (Figure 4). The extrapolated line for [1] = 0 M hints at a possible rather high activity with W0 ca. 1 × 10–5 M s–1 in the absence of 1. However, the reaction rate of the metal-free reaction was determined to be 3 orders lower, being equal to 6 × 10–8 M s–1. The reaction rate of chlorobenzene accumulation also follows the concentration of 1 (Figure 4), confirming that chlorobenzene by-product originates from the metal-catalyzed process rather than from spontaneous decomposition of m-CPBA.
Since promoters may play a significant role in the peroxidative oxidation of alkanes and enhance yields and selectivities [2], we screened various promoting agents for the present system. Replacing nitric acid with a promoter of a higher Brønsted acidity [46,47], trifluoromethanesulfonic acid (HOTf), led to complete loss of activity showing negligible yields of products (Table 1, Entry 5). With weaker acids, such as acetic (HOAc) or trifluoroacetic (TFA) ones (Entries 7,6, respectively), the catalytic process retains stereoselectivity, although the cis/trans ratio becomes much lower, corresponding to the retention of stereoconfiguration indexes (RC) of 85% and 89% for HOAc and TFA, respectively. Pyrazinecarboxylic acid (PCA) is a recognized promoter in the catalytic oxidation of C–H bonds with H2O2 due to its specific mechanism of action [48]. However, in the present case the 1/PCA/m-CPBA system showed only trace yields of products, also demonstrating no stereoselectivity (Entry 8). Basic promoters, Et3N and pyridine showed negligible activity (Entries 9,10, respectively). In the cases of Entries 5,8–10 the yields of products formed through the oxidation of methylenic sites of cis-1,2-DMCH were not sufficient for reliable determination of 3° : 2° bond selectivity. In all studied cases, no products of oxidation of primary carbon (methyl group) were detected, implying that the catalytic system is not able to oxidize them.
Hence, nitric acid has proven to be the most efficient promoter (Table 1). Within the respective tests (Entries 1–3), the conditions of Entry 3 were chosen as the optimal ones. Entry 1, while providing higher yields of products (61%), shows lower stereoselectivity with the cis/trans ratio of 82 (Table 1) what corresponds to 99.3% RC index. The test with elevated [1]0 (Entry 3) shows a higher cis/trans ratio (Table 1) reaching the maximum RC of 99.5%, that reflects an almost complete stereospecificity of the catalytic process. We attempted to increase the yields of products based on the substrate by lowering the concentration of substrate to 0.05 M and using 1 equiv. of the oxidant (Table 1, Entry 4). Although the yield based on the substrate increases up to 37% comparing to 17% for Entry 1, the stereoselectivity drops down to cis/trans = 29, keeping nearly the same bond selectivity of 37 : 1 (Table 1).
The accumulation curves for HNO3, TFA and HOAc promoters are given in Figure 5a. As can be seen, while the concentration of cis-tertiary alcohols continuously grows for the cases of TFA and HOAc, the HNO3 one shows a maximum at 40 min with the yield of the tertiary cis-alcohol of 52% (59% for sum of 3° and 2° products), which is considerably higher than 45% exhibited at 90 min (50% for sum of all products, Entry 3). The yield decay in the 40–90 min interval could be related to overoxidation processes with the appearance of reaction by-products, particularly 2,7-octanedione (Figure S6). It is presumably formed through the attack at a second tertiary C–H bond of the cis-alcohol and subsequent cyclohexane ring cleavage.
Oxidation of dimethylcyclohexane isomers was performed to evaluate the selectivity features of the 1/HNO3/m-CPBA system towards a family of substrates with close structures. Previously for an acid-free system oxidizing with m-CPBA we have shown that cis-1,4-DMCH affords almost twice lower yields than its 1,2-isomer [26]. Herein the yields of products in the course of oxidations of 1,4-isomers (Table 2, Entries 2,4) are higher than those of 1,2-isomers (Table 2, Entries 1,3). The 1,4-substrates show lower stereoselectivities than their 1,2-isomers (Table 2). The principal difference between cis- and trans-substrates lies in the 3° : 2° selectivity, which is considerably lower for trans-dimethylcyclohexanes. Oxidation of adamantane revealed the high normalized 3° : 2° bond selectivity of 39 : 1 and the highest yield of 71% among the substrates studied (Table 2, Entry 5).
The UV/Vis spectrum of the solution of 1 (1.4 × 10–4 M) in acetonitrile shows a number of absorption bands, with the most pronounced one at 370 nm and a very weak broad band at 680 nm (Figure 6a, inset, and Figure S7). The spectrum of 1 does not change with time suggesting the complex stability in CH3CN solution. The band at 370 nm can be assigned to intraligand π→π* transitions, while the second one (680 nm) could be due to phenolato-to-cobalt transfer [49,50]. The addition of HNO3 (final concentration 5.5 × 10–3 M) leads to strong increase of the 370 nm absorption and appearance of a new band at 553 nm. The spectrum exhibits changes within ca. 5 min after addition of HNO3, showing isosbestic points at 389, 420 and 669 nm (Figure 6a and Figure S8). Further addition of substrate, cis-1,2-DMCH, and then m-CPBA, in a minimum amount of acetonitrile to reach the final concentration of 1.3 × 10–3 M, leads to an overall intensity decrease with time, as evidenced by monitoring of the 370 nm band, finally showing broad absorption with no clear bands in the visible region (Figure 6b). These results may suggest that complex 1 undergoes transformation upon addition of the promoting agent. However, no expulsion of the ligand can be assumed as free HL has strong absorption at much higher energy at wavelength of 320 nm (Figure S9).
Retention of stereoconfiguration at the sp3 carbon atom in the course of C–H oxidation is a significant indicator of the absence of long-lived carbon-centered radicals as reaction intermediates [2]. Pronounced stereospecificity in the case of 1/HNO3/m-CPBA systems (Entries 1–4, Table 1) may account for the concerted or radical rebound mechanism, which does not involve long-lived radicals. In contrast, for the 1/TFA/m-CPBA and 1/HOAc/m-CPBA systems a much lower stereospecificity is observed, where inversion of the stereoconfiguration of the alkane substrate most probably comes from the presence of free carbon-centered radicals [2,35]. From these observations, as well as from the previous data [26,45,51], we assume that the overall reaction proceeds by two pathways, one possessing absolute stereospecificity and the other with epimerization of the stereoconfiguration of the substrate. Since dioxygen is a suitable radical trap for long-lived alkyl centered radicals [37,38,39,40,41] we performed oxidations using HNO3 and HOAc promoters under the atmosphere of labelled dioxygen, 18O2. Reaction of 18O2 with C• radical produces labelled alcohol as a final product, which formation can be tracked by mass-spectroscopic methods [37,38,39,40,41]:
R3C• + 18O2 → R3C–18O18O• → R3C–18OH
We expected that the system showing lower retention of stereoconfiguration would produce more 18O-labelled products, as it happens for iron-catalyzed oxidations with H2O2 [36,52]. cis-1,2-DMCH oxidation in the presence of HNO3 promoter, under 18O2, revealed pure tertiary alcohols free of 18O isotope (Figure S10). In contrast, the system involving acetic acid promoter showed large incorporation of 18O, up to 68% in the trans-alcohol and up to 14% in the cis-one (Figure 7a). The accumulations of 18O-labelled tertiary alcohols demonstrate similar initial reaction rates (Figure 7b), with the cis/trans ratios of the 18O-alcohols ranging from 0.9 to 1.6 (Figure 7b, inset). Such values are typical for a free-radical oxidation of alkanes, for example, with hydroxyl radicals being attacking species [40,53].
No difference between chromatograms recorded before and after the treatment of the sample with the solid PPh3 was observed, suggesting that alkyl hydroperoxides are either not formed or are not stable under the experiment conditions [54]. Careful investigation of the chromatograms revealed that the ketones, formed through the oxidation of secondary sites of cis-1,2-DMCH, as well as the 2,7-octanedione by-product, contain large amounts of 18O2 (ca. 70%) in the case of HOAc promoter. In contrary, the respective products formed in the HNO3-promoted system contained 16O isotope only. Ketones are known to rapidly exchange their oxygen with water via a metal-free mechanism [39,55]; hence the 18O/16O composition of ketones reflects the respective H218O/H216O ratio in the reaction mixture. This means that the 1/HOAc/m-CPBA/18O2 system leads to the formation of H218O, probably coming from the spontaneous decomposition of 18O-labelled peroxide species (Scheme 2).

3. Materials and Methods

3.1. Reagents and General Procedures

2-Hydroxy-3-methoxy-benzaldehyde (o-vanillin) is commercially available (Sigma-Aldrich) and was used as received. All other chemicals were purchased from local suppliers and used without further purification. Elemental analyses (C, H, N) were performed with a PerkinElmer 2400 series analyzer. Infrared spectra (KBr pellets, 4000–400 cm−1) were recorded using a BX-FT IR Perkin Elmer instrument. UV/Vis spectroscopy measurements were carried out on a Perkin-Elmer Lambda 35 spectrometer. ESI–MS(±) spectra were run on a LCQ Fleet mass spectrometer equipped with an electrospray (ESI) ion source (Thermo Scientific), using ca. 10–5 M solution of 1 in acetonitrile. The 1H NMR spectra of complex 1 and HL in DMSO-d6 were measured at room temperature with a Mercury 400 Varian spectrometer at 400 MHz. The chemical shifts (δ) values are given in ppm downfield from internal Me4Si. The 13C NMR spectrum was recorded on Bruker Avance II+ 300 MHz (UltraShield™ Plus Magnet) spectrometer at ambient temperature.
The pro-ligand HL was prepared according to a reported procedure that was slightly modified [56]. In the synthesis of 1, the reaction of condensation between o-vanillin and CH3NH2·HCl was used without isolation of the Schiff base.

3.2. Synthesis of [CoZnL3Cl2]·CH3OH (1)

A mixture of o-vanillin (0.23 g, 1.5 mmol), CH3NH2·HCl (0.10 g, 1.5 mmol), dimethylaminoethanol (0.1 mL) and methanol (10 mL) in a 50 mL conic flask was stirred magnetically at 60 °C for half an hour. CoCl2·6H2O (0.12 g, 0.5 mmol) dissolved in methanol (5 mL) was added to the yellow solution of the formed Schiff base, and the stirring continued for another 40 mins at the same temperature. After that, 0.03 g (0.5 mmol) of Zn powder was added to the flask and the mixture was stirred for an hour to achieve the total dissolution of the metal powder. Filtration and evaporation of the resultant brown solution at room temperature afforded dark-red crystals of complex 1 by the following day. The crystals were collected by filtration and washed with PriOH (2 × 7 mL). Slow evaporation of the mother liquor produced more product. Yield: 50%. Anal. Calcd. for [CoZnL3Cl2]·CH3OH (719.78): C 46.72, H 4.76, N 5.84%. Found: C 46.11, H 4.54, N 5.60%. 1H NMR (400 MHz, DMSO-d6, 21 °C): δ 7.95, 7.79, 7.46 (s, 3H, 3 × CH=N), 6.91–6.22 (m, 9H, 3 × C6H3), 3.61, 3.53 (s, 3H + 6H, 3 × OCH3), 3.08 (s, 6H, 2 × NCH3). 13C NMR (75 MHz, DMSO-d6, 21 °C, Figure S13): δ 168.19, 165.82, 165.33 (3 × CH=N), 157.76, 156.85, 155.03 (3 × C1), 153.09, 152.92, 152.82 (3 × C2), 126.62, 126.34, 126.27 (3 × C5), 121.99, 119.20, 118.82 (3×C6), 118.20, 117.70, 115.92 (3 × C4), 112.88, 112.49, 112.00 (3 × C3), 56.96, 56.89, 56.28 (3 × OCH3), 47.36, 47.13, 46.58 (3 × NCH3). FT–IR (KBr, ν, cm–1): 3510m, 3444m, 3058w, 2938m, 2836w, 1630s, 1600s, 1568w, 1478s, 1462s, 1438s, 1402w, 1316m, 1300s, 1278m, 1254vs, 1230s, 1196w, 1080m, 1018m, 972m, 858m, 792w, 734s, 668m, 634m. FT–IR (KBr, ν, cm–1): 3510m, 3444m, 3058w, 2938m, 2836w, 1630s, 1600s, 1568w, 1478s, 1462s, 1438s, 1402w, 1316m, 1300s, 1278m, 1254vs, 1230s, 1196w, 1080m, 1018m, 972m, 858m, 792w, 734s, 668m, 634m.

3.3. Single-crystal X-ray diffraction

Crystallographic data for the structure of 1 were collected at 100(2) K on an Oxford Diffraction Xcalibur diffractometer fitted with Mo Kα radiation. Following analytical absorption corrections and solution by direct methods, the structure was refined against F2 with full-matrix least-squares using the program SHELXL-2017 [57]. The Co and Zn atoms were distinguished on the basis of refinement and coordination geometries. The solvent OH, H atom was refined with geometries restrained to ideal values. All remaining hydrogen atoms were added at calculated positions and refined by use of a riding model with isotropic displacement parameters based on those of the parent atom. Anisotropic displacement parameters were employed for the non-hydrogen atoms. The crystal data and structure refinement data are summarized in Table S2. CCDC 1833980 contains the supplementary crystallographic data for this paper.

3.4. Catalytic oxidation of alkanes

The reactions were typically carried out in air in thermostated cylindrical vials with vigorous stirring. Firstly, 0.9–2.1 mg of solid catalyst 1 was weighed into the reaction flask, then 3.4 or 3.5 mL of CH3CN, 0.5 mL of CH3NO2 stock solution (internal standard; 1 mL of CH3NO2 mixed with 9 mL of CH3CN), 2.1–50 μL of promoting agent (HNO3, HOAc and TFA were used in a form of stock solutions in acetonitrile) and 70 μL of cis-1,2-dimethylcyclohexane were added. In the case of solid adamantane (68 mg), it was placed into the vial prior the addition of acetonitrile solution. Solid m-chloroperbenzoic acid (m-CPBA) oxidant was dissolved in acetonitrile (typically 30 mg in 1 mL of CH3CN) and added dropwise within 10 seconds to a warm (40 °C) solution of other components under vigorous stirring. (CAUTION. The combination of m-CPBA with organic compounds at elevated temperatures may be explosive!). The total volume of the reaction solution was 5 mL. Samples were quenched at room temperature with excess of solid PPh3 according to developed methods [54] and directly analyzed by GC and GC-MS techniques. Retention of stereoconfiguration (RC) index was calculated considering that the commercial substrate, cis-1,2-dimethylcyclohexane, contained 0.86% of trans-isomer.

3.5. Catalytic Reactions under 18O2 Atmosphere

The reactions were typically performed in a thermostated Schlenk tube under vigorous stirring. The reagents were introduced in the same order as for a normal catalytic reaction. After the addition of m-CPBA the Schlenk tube was closed with the septum, and the mixture was immediately frozen with liquid nitrogen; the gas atmosphere was pumped and filled with N2 a few times to remove air. The frozen mixture was left to warm under vacuum (to degasify) until becoming liquid, and the above procedure was repeated. Finally, the Schlenk tube was filled with 18O2 through the septum, and the reaction mixture was heated at 40 °C with a possibility of gas to escape to compensate the excessive pressure. The 16O/18O compositions of the tertiary alcohols were determined by the relative abundance of 128/130 m/z mass peaks.

3.6. Gas Chromatography

A Perkin-Elmer Clarus 600 gas chromatograph equipped with two non-polar capillary columns (SGE BPX5; 30 m × 0.22 mm × 25 μm), one having an EI-MS (electron impact) detector and the other one with a FID detector, was used for analyses of the reaction mixtures. The following GC sequence has been used: 50 °C (3 min), 50–120 °C (8 degrees per minute), 120–300 °C (35 degrees per minute), 300 °C (3.11 min), 20 min total run time; 200 °C injector temperature. For analysis of oxidation products of highly-boiling compounds, such as adamantane, different conditioning was employed: 50 °C (3 min), 50–150 °C (30 degrees per minute), 150–300 °C (14 degrees per minute), 300 °C (2.95 min), 20 min total run time; 200 °C injector temperature. Helium was used as the carrier gas with a constant 1 mL per minute flow. All EI–MS spectra were recorded with 70 eV energy. The identification of peaks at chromatograms was made by comparison of respective EI mass-spectra with those from the NIST v.2.0f database (PerkinElmer TurboMass v.5.4.2.1617 software). The mass-spectra patterns of tertiary dimethylcyclohexanols (Figure S12) were not found in the NIST database, and identification of these products was made by comparing with the reported previously mass-spectra [26,58].

4. Conclusions

In this work we have synthesized the novel complex [CoIIIZnIIL3Cl2]·CH3OH (1) starting from zerovalent zinc, cobalt(II) chloride and using the in situ formed Schiff base pro-ligand HL. Single crystal X-ray analysis showed a binuclear core with O-bridging between the two different metal centers. The NMR studies of 1 suggested that the complex keeps its integrity in solution, while the results of ESI-MS investigations do not exclude some alterations of the structure of 1 with formation of larger polynuclear species under the ESI-MS conditions. The catalytic features of 1 were studied in the mild hydroxylation of alkane C–H bonds with m-CPBA oxidant, in the presence of a wide range of co-catalysts (promoters). The influence of the nature of the promoting agents on the catalytic efficiency was studied, revealing nitric acid as the best one, which provides up to 61% yield and >99% retention of stereoconfiguration.
The stereospecific properties of the catalytic system 1/HNO3/m-CPBA were tested on various isomers of dimethylcyclohexane as model substrates. Based on the selectivity and 18O2 isotopic labelling data it was proposed that the 1/Promoter/m-CPBA systems operate via two general reaction pathways, a stereospecific and a non-stereospecific one, which were distinguished by different incorporations of 18O from 18O2 into the alcohol products. The acetic acid promoter was found to enhance the non-selective process with a high level of epimerization of stereoconfiguration of substrate, while at the same time showing a large incorporation of 18O from 18O2 that was explained by the involvement of a long-lived carbon radical. In contrast, the nitric acid promoter showed a high retention of stereoconfiguration and a complete absence of 18O in the reaction products, conceivably involving a metal based oxidant.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/9/3/209/s1: Figure S1: IR-spectra of [CoZnL3Cl2]•CH3OH (1) and HL; Figure S2: 400 MHz 1H NMR spectra of [CoZnL3Cl2]•CH3OH (1) and HL in DMSO-d6 at 294 K in the ranges of 0–18 and 1–14 ppm, respectively; Figure S3: ESI-MS spectrum of a solution of 1 in acetonitrile; Figure S4: Fragment of the ESI-MS spectrum of 1 (Figure S3) showing the isotopic distribution for the peak at 1338 m/z. The inset shows calculated distribution for the proposed species; Figure S5: Fragment of the ESI-MS spectrum of 1 (Figure S3) in acetonitrile showing the isotopic distribution for the peak at 1125 m/z. The inset shows calculated distribution for the proposed species; Figure S6: Fragment of the chromatogram showing the main reaction products and by-products in the course of cis-1,2-dimethylcyclohexane oxidation with m-CPBA catalyzed by 1 in the presence of HNO3 promoter (Table 1, Entry 3); Figure S7: Fragment of the UV/Vis spectrum of 1 in acetonitrile showing the band at 680 nm; Figure S8: Fragment of the UV/Vis spectra depicted in Figure 6, (a), inset (1 + cis-1,2-DMCH + HNO3), showing isosbestic points; Figure S9: UV/Vis spectrum of free HL in acetonitrile (10–4 M); Figure S10: Fragments of the chromatograms, showing the intensities of 130 m/z signals (corresponding to the molecular ion, M+, of the 18O-labelled tertiary alcohols) for the 1/HOAc/m-CPBA and 1/HNO3/m-CPBA tests (Figure 7, 90 min); Figure S11: EI-MS spectra of the partially 18O-labelled tertiary trans- and cis- alcohols, formed in the course of cis-1,2-DMCH oxidation catalyzed by 1 in the presence of HOAc promoter (Figure 7, 40 min); Figure S12: EI-MS spectra of the tertiary alcohols formed as the reaction products in the 1/HNO3/m-CPBA system (Table 2); Figure S13: 13C NMR spectrum of [CoZnL3Cl2]•CH3OH (1) in DMSO-d6; Table S1: Selected bond lengths (A) and angles (°) for [CoZnL3Cl2]•CH3OH (1); Table S2: Crystal data and structure refinement for [CoZnL3Cl2]•CH3OH (1).

Author Contributions

Conceptualization, O.V.N. and D.S.N.; methodology, O.V.N., D.S.N. and O.Y.V.; investigation, O.V.N., D.S.N., K.V.K., E.A.B. and B.W.S.; writing—original draft preparation, O.V.N., D.S.N. and O.Y.V.; writing—review and editing, A.J.L.P.

Funding

This work was supported by the Foundation for Science and Technology (FCT), Portugal (projects PTDC/QEQ-QIN/3967/2014, PTDC/QUI-QIN/29778/2017 and UID/QUI/00100/2013).

Acknowledgments

The authors acknowledge the IST Node of the Portuguese Network of Mass-spectrometry for the ESI-MS measurements.

Conflicts of Interest

The authors declare no conflicts.

References

  1. Gensch, T.; James, M.J.; Dalton, T.; Glorius, F. Increasing Catalyst Efficiency in C–H Activation Catalysis. Angew. Chem. Int. Ed. 2018, 57, 2296–2306. [Google Scholar] [CrossRef] [PubMed]
  2. Nesterov, D.S.; Nesterova, O.V.; Pombeiro, A.J.L. Homo- and heterometallic polynuclear transition metal catalysts for alkane C-H bonds oxidative functionalization: Recent advances. Coord. Chem. Rev. 2018, 355, 199–222. [Google Scholar] [CrossRef]
  3. Ping, L.; Chung, D.S.; Bouffard, J.; Lee, S.-G. Transition metal-catalyzed site- and regio-divergent C–H bond functionalization. Chem. Soc. Rev. 2017, 46, 4299–4328. [Google Scholar] [CrossRef] [PubMed]
  4. Tzouras, N.V.; Stamatopoulos, I.K.; Papastavrou, A.T.; Liori, A.A.; Vougioukalakis, G.C. Sustainable metal catalysis in C–H activation. Coord. Chem. Rev. 2017, 343, 25–138. [Google Scholar] [CrossRef]
  5. Hartwig, J.F.; Larsen, M.A. Undirected, Homogeneous C–H Bond Functionalization: Challenges and Opportunities. ACS Central Sci. 2016, 2, 281–292. [Google Scholar] [CrossRef] [PubMed]
  6. Cernak, T.; Dykstra, K.D.; Tyagarajan, S.; Vachal, P.; Krska, S.W. The medicinal chemist’s toolbox for late stage functionalization of drug-like molecules. Chem. Soc. Rev. 2016, 45, 546–576. [Google Scholar] [CrossRef] [PubMed]
  7. Hartwig, J.F. Evolution of C–H Bond Functionalization from Methane to Methodology. J. Am. Chem. Soc. 2016, 138, 2–24. [Google Scholar] [CrossRef] [PubMed]
  8. Shul’pin, G.B. New Trends in Oxidative Functionalization of Carbon–Hydrogen Bonds: A Review. Catalysts 2016, 6, 50. [Google Scholar] [CrossRef]
  9. Chu, J.C.K.; Rovis, T. Complementary Strategies for Directed C(sp3)-H Functionalization: A Comparison of Transition-Metal-Catalyzed Activation, Hydrogen Atom Transfer, and Carbene/Nitrene Transfer. Angew. Chem. Int. Ed. 2018, 57, 62–101. [Google Scholar] [CrossRef] [PubMed]
  10. He, J.; Wasa, M.; Chan, K.S.L.; Shao, O.; Yu, J.Q. Palladium-Catalyzed Transformations of Alkyl C–H Bonds. Chem. Rev. 2017, 117, 8754–8786. [Google Scholar] [CrossRef] [PubMed]
  11. O’Reilly, E.; Kohler, V.; Flitsch, S.L.; Turner, N.J. Cytochromes P450 as useful biocatalysts: addressing the limitations. Chem. Commun. 2011, 47, 2490–2501. [Google Scholar] [CrossRef] [PubMed]
  12. De Montellano, P.R.O. Hydrocarbon Hydroxylation by Cytochrome P450 Enzymes. Chem. Rev. 2010, 110, 932–948. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Bryliakov, K.P.; Talsi, E.P. Active sites and mechanisms of bioinspired oxidation with H2O2, catalyzed by non-heme Fe and related Mn complexes. Coord. Chem. Rev. 2014, 276, 73–96. [Google Scholar] [CrossRef]
  14. Wang, V.C.C.; Maji, S.; Chen, P.R.Y.; Lee, H.K.; Yu, S.S.F.; Chan, S.I. Alkane Oxidation: Methane Monooxygenases, Related Enzymes, and Their Biomimetics. Chem. Rev. 2017, 117, 8574–8621. [Google Scholar] [CrossRef] [PubMed]
  15. Ray, K.; Pfaff, F.F.; Wang, B.; Nam, W. Status of Reactive Non-Heme Metal-Oxygen Intermediates in Chemical and Enzymatic Reactions. J. Am. Chem. Soc. 2014, 136, 13942–13958. [Google Scholar] [CrossRef] [PubMed]
  16. Olivo, G.; Cusso, O.; Borrell, M.; Costas, M. Oxidation of alkane and alkene moieties with biologically inspired nonheme iron catalysts and hydrogen peroxide: from free radicals to stereoselective transformations. J. Biol. Inorg. Chem. 2017, 22, 425–452. [Google Scholar] [CrossRef] [PubMed]
  17. Nam, W.; Lee, Y.M.; Fukuzumi, S. Tuning Reactivity and Mechanism in Oxidation Reactions by Mononuclear Nonheme Iron(IV)-Oxo Complexes. Acc. Chem. Res. 2014, 47, 1146–1154. [Google Scholar] [CrossRef] [PubMed]
  18. Wang, S.; Chen, S.Y.; Yu, X.Q. C-H functionalization by high-valent Cp*Co(III) catalysis. Chem. Commun. 2017, 53, 3165–3180. [Google Scholar] [CrossRef] [PubMed]
  19. Tan, P.W.; Mak, A.M.; Sullivan, M.B.; Dixon, D.J.; Seayad, J. Thioamide-Directed Cobalt(III)-Catalyzed Selective Amidation of C(sp3)-H Bonds. Angew. Chem. Int. Ed. 2017, 56, 16550–16554. [Google Scholar] [CrossRef] [PubMed]
  20. Kommagalla, Y.; Chatani, N. Cobalt(II)-catalyzed C-H functionalization using an N,N’-bidentate directing group. Coord. Chem. Rev. 2017, 350, 117–135. [Google Scholar] [CrossRef]
  21. Michigami, K.; Mita, T.; Sato, Y. Cobalt-Catalyzed Allylic C(sp3)-H Carboxylation with CO2. J. Am. Chem. Soc. 2017, 139, 6094–6097. [Google Scholar] [CrossRef] [PubMed]
  22. Barsu, N.; Bolli, S.K.; Sundararaju, B. Cobalt catalyzed carbonylation of unactivated C(sp3)-H bonds. Chem. Sci. 2017, 8, 2431–2435. [Google Scholar] [CrossRef] [PubMed]
  23. Shul’pin, G.B.; Loginov, D.A.; Shul’pina, L.S.; Ikonnikov, N.S.; Idrisov, V.O.; Vinogradov, M.M.; Osipov, S.N.; Nelyubina, Y.V.; Tyubaeva, P.M. Stereoselective Alkane Oxidation with meta-Chloroperoxybenzoic Acid (MCPBA) Catalyzed by Organometallic Cobalt Complexes. Molecules 2016, 21, 1593. [Google Scholar] [CrossRef] [PubMed]
  24. Li, Q.; Hu, W.P.; Hu, R.J.; Lu, H.J.; Li, G.G. Cobalt-Catalyzed Cross-Dehydrogenative Coupling Reaction between Unactivated C(sp2)-H and C(sp3)-H Bonds. Org. Lett. 2017, 19, 4676–4679. [Google Scholar] [CrossRef] [PubMed]
  25. Nesterova, O.V.; Nesterov, D.S. Polynuclear Cobalt Complexes as Catalysts for Light-Driven Water Oxidation: A Review of Recent Advances. Catalysts 2018, 8, 602. [Google Scholar] [CrossRef]
  26. Nesterova, O.V.; Kopylovich, M.N.; Nesterov, D.S. Stereoselective oxidation of alkanes with m-CPBA as an oxidant and cobalt complex with isoindole-based ligands as catalysts. RSC Adv. 2016, 6, 93756–93767. [Google Scholar] [CrossRef]
  27. Nesterov, D.S.; Nesterova, O.V.; Kokozay, V.N.; Pombeiro, A.J.L. Polynuclear Heterometallic Complexes from Metal Powders: The “Direct Synthesis” Approach. Eur. J. Inorg. Chem. 2014, 4496–4517. [Google Scholar] [CrossRef]
  28. Novikov, A.S.; Kuznetsov, M.L.; Rocha, B.G.M.; Pombeiro, A.J.L.; Shul’pin, G.B. Oxidation of olefins with H2O2 catalysed by salts of group III metals (Ga, In, Sc, Y and La): epoxidation versus hydroperoxidation. Catal. Sci. Technol. 2016, 6, 1343–1356. [Google Scholar] [CrossRef]
  29. Kuznetsov, M.L.; Rocha, B.G.M.; Pombeiro, A.J.L.; Shul’pin, G.B. Oxidation of Olefins with Hydrogen Peroxide Catalyzed by Bismuth Salts: A Mechanistic Study. ACS Catal. 2015, 5, 3823–3835. [Google Scholar] [CrossRef]
  30. Rocha, B.G.M.; Kuznetsov, M.L.; Kozlov, Y.N.; Pombeiro, A.J.L.; Shul’pin, G.B. Simple soluble Bi(III) salts as efficient catalysts for the oxidation of alkanes with H2O2. Catal. Sci. Technol. 2015, 5, 2174–2187. [Google Scholar] [CrossRef]
  31. Kuznetsov, M.L.; Teixeira, F.A.; Bokach, N.A.; Pombeiro, A.J.L.; Shul’pin, G.B. Radical decomposition of hydrogen peroxide catalyzed by aqua complexes [M(H2O)n]2+ (M = Be, Zn, Cd). J. Catal. 2014, 313, 135–148. [Google Scholar] [CrossRef]
  32. Novikov, A.S.; Kuznetsov, M.L.; Pombeiro, A.J.L.; Bokach, N.A.; Shul’pin, G.B. Generation of HO• Radical from Hydrogen Peroxide Catalyzed by Aqua Complexes of the Group III Metals [M(H2O)n]3+ (M = Ga, In, Sc, Y, or La): A Theoretical Study. ACS Catal. 2013, 3, 1195–1208. [Google Scholar] [CrossRef]
  33. Gamba, I.; Codola, Z.; Lloret-Fillol, J.; Costas, M. Making and breaking of the O-O bond at iron complexes. Coord. Chem. Rev. 2017, 334, 2–24. [Google Scholar] [CrossRef]
  34. Fukuzumi, S.; Kojima, T.; Lee, Y.M.; Nam, W. High-valent metal-oxo complexes generated in catalytic oxidation reactions using water as an oxygen source. Coord. Chem. Rev. 2017, 333, 44–56. [Google Scholar] [CrossRef]
  35. Olivo, G.; Lanzalunga, O.; Di Stefano, S. Non-Heme Imine-Based Iron Complexes as Catalysts for Oxidative Processes. Adv. Synth. Catal. 2016, 358, 843–863. [Google Scholar] [CrossRef]
  36. Chen, K.; Que, L. Stereospecific alkane hydroxylation by non-heme iron catalysts: Mechanistic evidence for an Fe-V = O active species. J. Am. Chem. Soc. 2001, 123, 6327–6337. [Google Scholar] [CrossRef] [PubMed]
  37. Gryca, I.; Czerwinska, K.; Machura, B.; Chrobok, A.; Shul’pina, L.S.; Kuznetsov, M.L.; Nesterov, D.S.; Kozlov, Y.N.; Pombeiro, A.J.L.; Varyan, I.A.; et al. High Catalytic Activity of Vanadium Complexes in Alkane Oxidations with Hydrogen Peroxide: An Effect of 8-Hydroxyquinoline Derivatives as Noninnocent Ligands. Inorg. Chem. 2018, 57, 1824–1839. [Google Scholar] [CrossRef] [PubMed]
  38. Shul’pin, G.B.; Nesterov, D.S.; Shul’pina, L.S.; Pombeiro, A.J.L. A hydroperoxo-rebound mechanism of alkane oxidation with hydrogen peroxide catalyzed by binuclear manganese(IV) complex in the presence of an acid with involvement of atmospheric dioxygen. Inorg. Chim. Acta. 2017, 455, 666–676. [Google Scholar] [CrossRef]
  39. Bilyachenko, A.N.; Levitsky, M.M.; Yalymov, A.I.; Korlyukov, A.A.; Vologzhanina, A.V.; Kozlov, Y.N.; Shul’pina, L.S.; Nesterov, D.S.; Pombeiro, A.J.L.; Lamaty, F.; et al. A heterometallic (Fe6Na8) cage-like silsesquioxane: synthesis, structure, spin glass behavior and high catalytic activity. RSC Adv. 2016, 6, 48165–48180. [Google Scholar] [CrossRef]
  40. Vinogradov, M.M.; Kozlov, Y.N.; Bilyachenko, A.N.; Nesterov, D.S.; Shul’pina, L.S.; Zubavichus, Y.V.; Pombeiro, A.J.L.; Levitsky, M.M.; Yalymov, A.I.; Shul’pin, G.B. Alkane oxidation with peroxides catalyzed by cage-like copper(II) silsesquioxanes. New J. Chem. 2015, 39, 187–199. [Google Scholar] [CrossRef]
  41. Vinogradov, M.M.; Kozlov, Y.N.; Nesterov, D.S.; Shul’pina, L.S.; Pombeiro, A.J.L.; Shul’pin, G.B. Oxidation of hydrocarbons with H2O2/O2 catalyzed by osmium complexes containing p-cymene ligands in acetonitrile. Catal. Sci. Technol. 2014, 4, 3214–3226. [Google Scholar] [CrossRef]
  42. Vikse, K.L.; Ahmadi, Z.; McIndoe, J.S. The application of electrospray ionization mass spectrometry to homogeneous catalysis. Coord. Chem. Rev. 2014, 279, 96–114. [Google Scholar] [CrossRef]
  43. Serrano-Plana, J.; Oloo, W.N.; Acosta-Rueda, L.; Meier, K.K.; Verdejo, B.; Garcia-Espana, E.; Basallote, M.G.; Munck, E.; Que, L.; Company, A.; et al. Trapping a Highly Reactive Nonheme Iron Intermediate That Oxygenates Strong C-H Bonds with Stereoretention. J. Am. Chem. Soc. 2015, 137, 15833–15842. [Google Scholar] [CrossRef] [PubMed]
  44. Font, D.; Canta, M.; Milan, M.; Cusso, O.; Ribas, X.; Gebbink, R.J.M.K.; Costas, M. Readily Accessible Bulky Iron Catalysts exhibiting Site Selectivity in the Oxidation of Steroidal Substrates. Angew. Chem. Int. Ed. 2016, 55, 5776–5779. [Google Scholar] [CrossRef] [PubMed]
  45. Nesterova, O.V.; Kasyanova, K.V.; Makhankova, V.G.; Kokozay, V.N.; Vassilyeva, O.Y.; Skelton, B.W.; Nesterov, D.S.; Pombeiro, A.J.L. Stereospecific sp3 C-H oxidation with m-CPBA: A CoIII Schiff base complex as pre-catalyst vs. its CoIIICdII heterometallic derivative. Appl. Catal. A. 2018, 560, 171–184. [Google Scholar] [CrossRef]
  46. Raamat, E.; Kaupmees, K.; Ovsjannikov, G.; Trummal, A.; Kuett, A.; Saame, J.; Koppel, I.; Kaljurand, I.; Lipping, L.; Rodima, T.; et al. Acidities of strong neutral Bronsted acids in different media. J. Phys. Org. Chem. 2013, 26, 162–170. [Google Scholar] [CrossRef]
  47. Muckerman, J.T.; Skone, J.H.; Ning, M.; Wasada-Tsutsui, Y. Toward the accurate calculation of pK(a) values in water and acetonitrile. Bioenerg. 2013, 1827, 882–891. [Google Scholar] [CrossRef] [PubMed]
  48. Kirillov, A.M.; Shul’pin, G.B. Pyrazinecarboxylic acid and analogs: Highly efficient co-catalysts in the metal-complex-catalyzed oxidation of organic compounds. Coord. Chem. Rev. 2013, 257, 732–754. [Google Scholar] [CrossRef]
  49. Allard, M.M.; Xavier, F.R.; Heeg, M.J.; Schlegel, H.B.; Verani, C.N. Sequential Phenolate Oxidations in Octahedral Cobalt(III) Complexes with N2O3 Ligands. Eur. J. Inorg. Chem. 2012, 4622–4631. [Google Scholar] [CrossRef]
  50. Nesterov, D.S.; Nesterova, O.V.; Guedes da Silva, M.F.C.; Pombeiro, A.J.L. Catalytic behaviour of a novel Fe(III) Schiff base complex in the mild oxidation of cyclohexane. Catal. Sci. Technol. 2015, 5, 1801–1812. [Google Scholar] [CrossRef]
  51. Nesterov, D.S.; Nesterova, O.V.; Kopylovich, M.N.; Pombeiro, A.J.L. Pronounced retention of stereoconfiguration upon sp3 C-H bonds hydroxylation of dimethylcyclohexanes and decahydronaphthalenes with m-CPBA oxidant and a Co-phthalocyanine catalyst. Mol. Catal. 2018, 459, 8–15. [Google Scholar] [CrossRef]
  52. Ghosh, M.; Pattanayak, S.; Dhar, B.B.; Singh, K.K.; Panda, C.; Sen Gupta, S. Selective C-H Bond Oxidation Catalyzed by the Fe-bTAML Complex: Mechanistic Implications. Inorg. Chem. 2017, 56, 10852–10860. [Google Scholar] [CrossRef] [PubMed]
  53. Nesterov, D.S.; Chygorin, E.N.; Kokozay, V.N.; Bon, V.V.; Boca, R.; Kozlov, Y.N.; Shul’pina, L.S.; Jezierska, J.; Ozarowski, A.; Pombeiro, A.J.L. Heterometallic CoIII4FeIII2 Schiff Base Complex: Structure, Electron Paramagnetic Resonance, and Alkane Oxidation Catalytic Activity. Inorg. Chem. 2012, 51, 9110–9122. [Google Scholar] [CrossRef] [PubMed]
  54. Shul’pin, G.B. Metal-catalyzed hydrocarbon oxygenations in solutions: The dramatic role of additives: a review. J. Mol. Catal. A 2002, 189, 39–66. [Google Scholar] [CrossRef]
  55. Ottenbacher, R.V.; Samsonenko, D.G.; Talsi, E.P.; Bryliakov, K.P. Highly Enantioselective Bioinspired Epoxidation of Electron-Deficient Olefins with H2O2 on Aminopyridine Mn Catalysts. ACS Catal. 2014, 4, 1599–1606. [Google Scholar] [CrossRef]
  56. Chatziefthimiou, S.D.; Lazarou, Y.G.; Hadjoudis, E.; Dziembowska, T.; Mavridis, I.M. Keto forms of salicylaldehyde Schiff bases: Structural and theoretical aspects. J. Phys. Chem. B 2006, 110, 23701–23709. [Google Scholar] [CrossRef] [PubMed]
  57. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Cryst. C 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed]
  58. Ottenbacher, R.V.; Talsi, E.P.; Bryliakov, K.P. Mechanism of Selective C-H Hydroxylation Mediated by Manganese Aminopyridine Enzyme Models. ACS Catal. 2015, 5, 39–44. [Google Scholar] [CrossRef]
Catalysts 09 00209 sch001 550

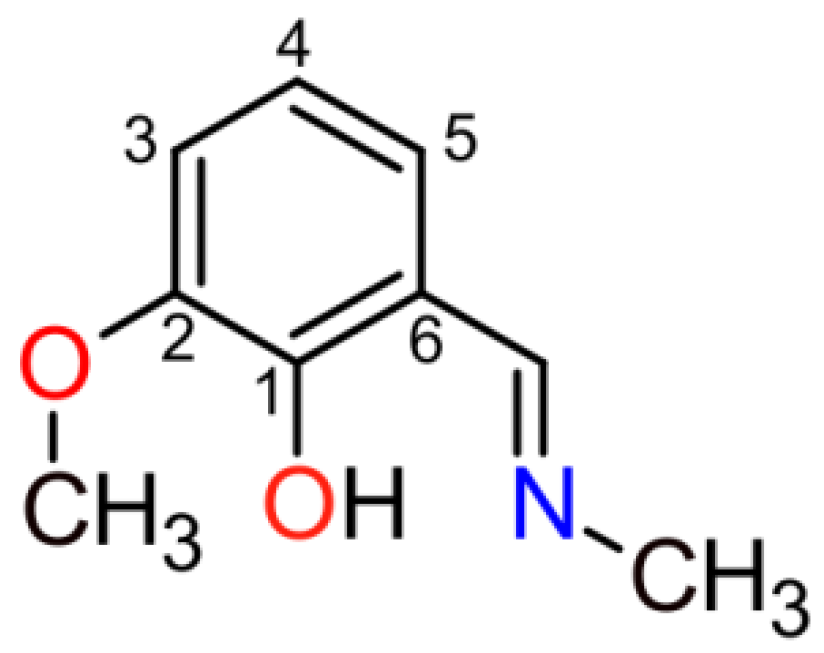

Scheme 1. Structural formula for 2-methoxy-6-[(methylimino)methyl]phenol, HL.
Scheme 1. Structural formula for 2-methoxy-6-[(methylimino)methyl]phenol, HL.
Catalysts 09 00209 sch001
Catalysts 09 00209 g001 550
Figure 1. (a) Molecular structure of complex 1 with principal atom labelling. Non-H atoms are shown with 70% probability displacement ellipsoids. Selected bond lengths (Å): Co1–O31 1.8788(14), Co1–O11 1.9083(14), Co1–O21 1.9094(14), Co1–N16 1.9436(17), Co1–N26 1.9475(17), Co1–N36 1.9506(17), Zn1–O11 2.0300(14), Zn1–O21 2.1186(14), Zn1–Cl2 2.2183(6), Zn1–Cl1 2.2242(6), Zn1–O12 2.4038(15); (b) Chemical scheme of 1.
Figure 1. (a) Molecular structure of complex 1 with principal atom labelling. Non-H atoms are shown with 70% probability displacement ellipsoids. Selected bond lengths (Å): Co1–O31 1.8788(14), Co1–O11 1.9083(14), Co1–O21 1.9094(14), Co1–N16 1.9436(17), Co1–N26 1.9475(17), Co1–N36 1.9506(17), Zn1–O11 2.0300(14), Zn1–O21 2.1186(14), Zn1–Cl2 2.2183(6), Zn1–Cl1 2.2242(6), Zn1–O12 2.4038(15); (b) Chemical scheme of 1.
Catalysts 09 00209 g001
Catalysts 09 00209 g002 550
Figure 2. The crystal packing diagram of [CoIIIZnIIL3Cl2]·CH3OH (1) and the enlarged fragment demonstrating H-bonding between the solvent methanol molecule and deprotonated Schiff base ligand. H atoms are not shown. Color scheme: Co, magenta; Zn, dark grey; O, red; N, blue; C, light grey; Cl, green.
Figure 2. The crystal packing diagram of [CoIIIZnIIL3Cl2]·CH3OH (1) and the enlarged fragment demonstrating H-bonding between the solvent methanol molecule and deprotonated Schiff base ligand. H atoms are not shown. Color scheme: Co, magenta; Zn, dark grey; O, red; N, blue; C, light grey; Cl, green.
Catalysts 09 00209 g002
Catalysts 09 00209 g003 550
Figure 3. Fragment of the ESI-MS spectrum (Figure S3) in acetonitrile showing the isotopic distribution for the peak at 650 m/z attributed to the [1 – Cl–]+ species. The inset shows calculated distribution for the proposed species.
Figure 3. Fragment of the ESI-MS spectrum (Figure S3) in acetonitrile showing the isotopic distribution for the peak at 650 m/z attributed to the [1 – Cl–]+ species. The inset shows calculated distribution for the proposed species.
Catalysts 09 00209 g003
Catalysts 09 00209 g004 550

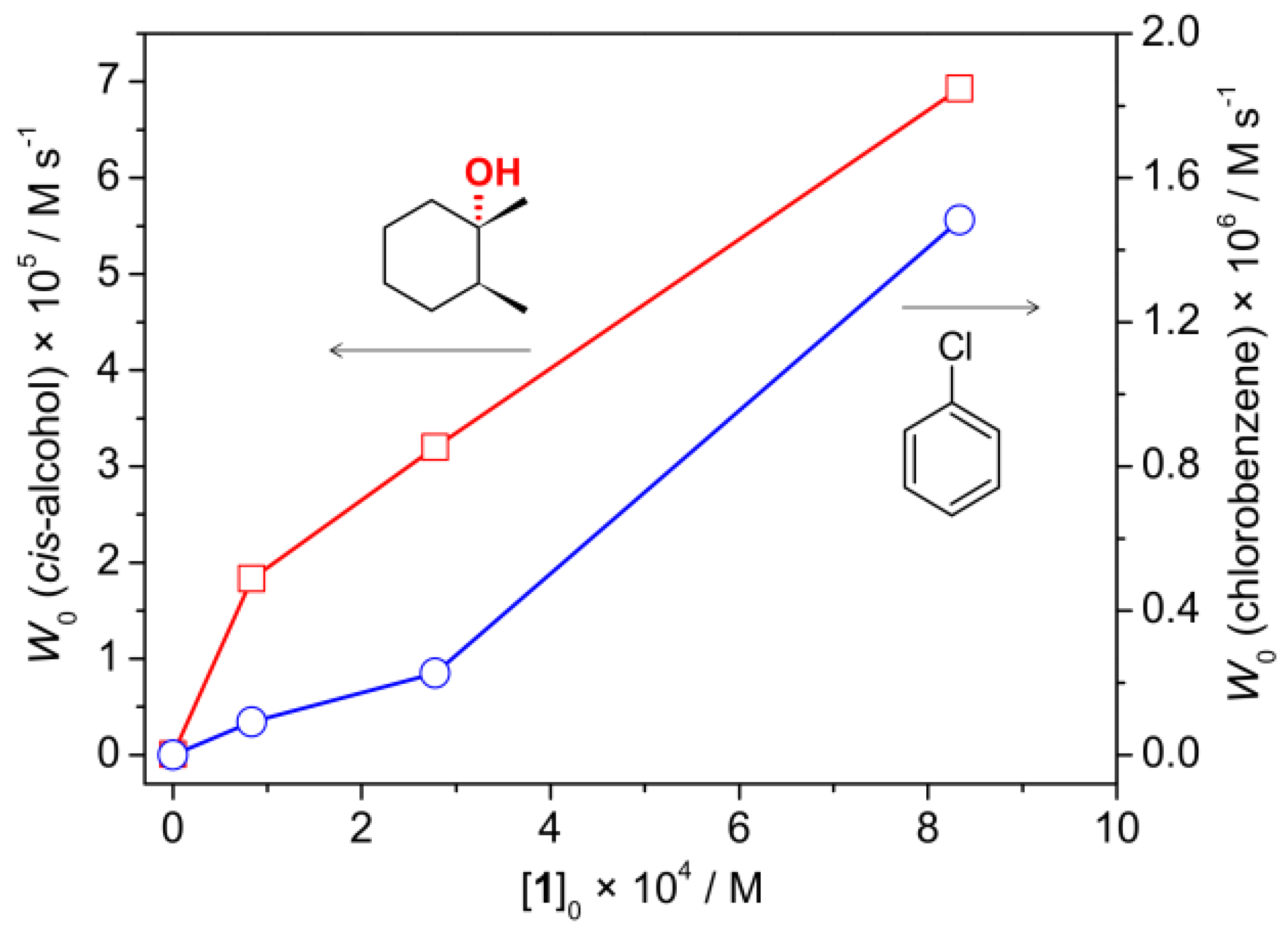

Figure 4. Dependences (experimental points) of the reaction rates of tertiary cis-alcohol (red squares) and chlorobenzene (blue circles) accumulations on concentration of 1 in the course of cis-1,2-DMCH oxidation with [cis-1,2-DMCH]0 = 0.1 M, [m-CPBA]0 = 2.7 × 10–2 M, [promoter]0 = 5.5 × 10–3 M, [1]0 = 2.8 × 10–4 M in CH3CN (5 mL total volume) at 40 °C.
Figure 4. Dependences (experimental points) of the reaction rates of tertiary cis-alcohol (red squares) and chlorobenzene (blue circles) accumulations on concentration of 1 in the course of cis-1,2-DMCH oxidation with [cis-1,2-DMCH]0 = 0.1 M, [m-CPBA]0 = 2.7 × 10–2 M, [promoter]0 = 5.5 × 10–3 M, [1]0 = 2.8 × 10–4 M in CH3CN (5 mL total volume) at 40 °C.
Catalysts 09 00209 g004
Catalysts 09 00209 g005 550
Figure 5. (a) Accumulations of tertiary cis- and trans-alcohols in cis-1,2-DMCH oxidation. Conditions are as those for Entries 3,6,7, Table 1; (b) The same entries, plotted as dependences of cis/trans ratios and retention of stereoconfiguration index (RC, inset).
Figure 5. (a) Accumulations of tertiary cis- and trans-alcohols in cis-1,2-DMCH oxidation. Conditions are as those for Entries 3,6,7, Table 1; (b) The same entries, plotted as dependences of cis/trans ratios and retention of stereoconfiguration index (RC, inset).
Catalysts 09 00209 g005
Catalysts 09 00209 g006 550
Figure 6. (a), inset: UV/Vis spectra of 1 in acetonitrile (1.4 × 10–4 M) (blue line). Grey lines are spectra measured after addition of cis-1,2-DMCH (0.05 M) and HNO3 (5.5 × 10–3 M) to the above solution of 1. Red line corresponds to the spectrum measured after 16 min. (a), main figure: m-CPBA (1.3 × 10–3 M) was added to the above solution of 1, cis-1,2-DMCH and HNO3 in acetonitrile. Red line corresponds to the spectrum measured immediately after addition of m-CPBA, black line shows the spectrum after 100 min. All the above-mentioned concentrations refer to those in the final solution; (b): Changes in the absorbance at 370 nm, plotted as a function of time.
Figure 6. (a), inset: UV/Vis spectra of 1 in acetonitrile (1.4 × 10–4 M) (blue line). Grey lines are spectra measured after addition of cis-1,2-DMCH (0.05 M) and HNO3 (5.5 × 10–3 M) to the above solution of 1. Red line corresponds to the spectrum measured after 16 min. (a), main figure: m-CPBA (1.3 × 10–3 M) was added to the above solution of 1, cis-1,2-DMCH and HNO3 in acetonitrile. Red line corresponds to the spectrum measured immediately after addition of m-CPBA, black line shows the spectrum after 100 min. All the above-mentioned concentrations refer to those in the final solution; (b): Changes in the absorbance at 370 nm, plotted as a function of time.
Catalysts 09 00209 g006
Catalysts 09 00209 g007 550

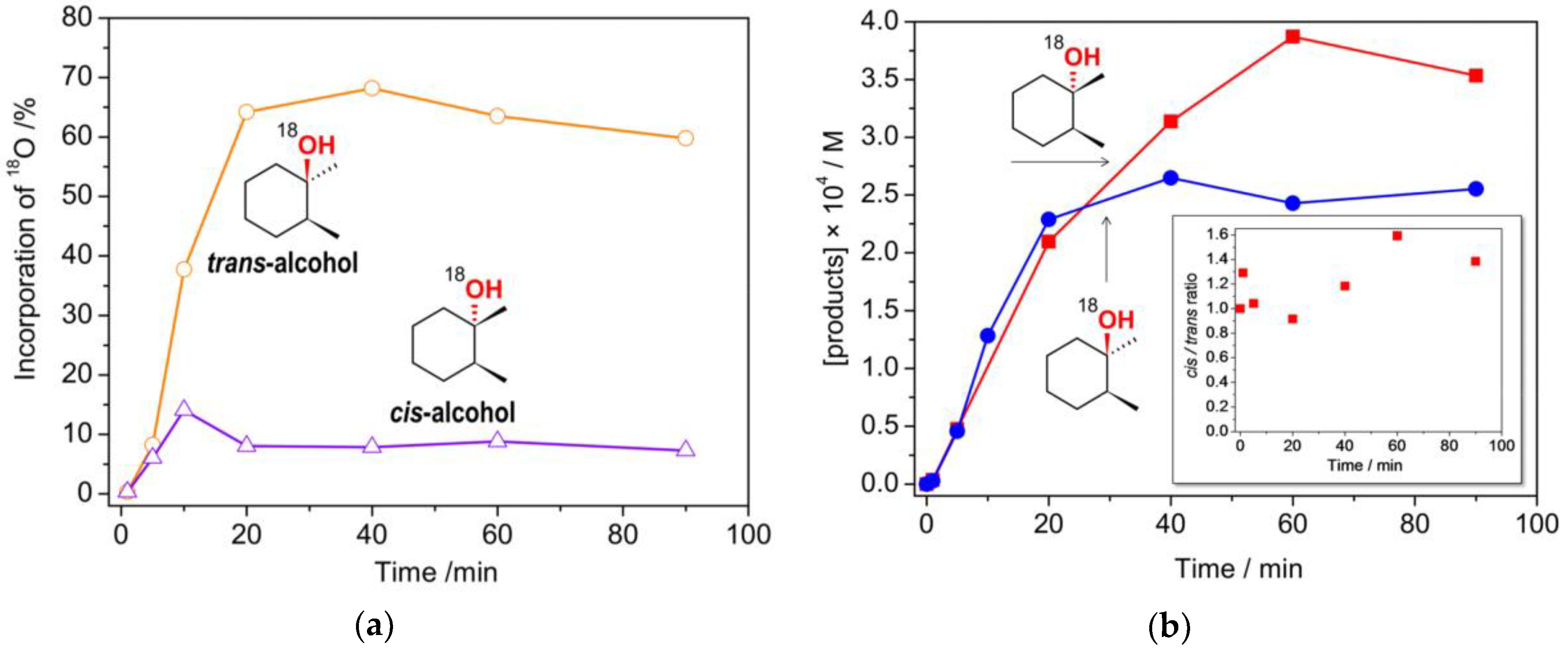

Figure 7. (a): 18O incorporation into the tertiary alcohols in the process of cis-1,2-DMCH oxidation using HOAc promoter (Entry 7, Table 1) under atmosphere of 18O2; (b): Accumulations of 18O-labelled tertiary alcohols in the same reaction. Inset shows cis/trans ratio for 18O-alcohols.
Figure 7. (a): 18O incorporation into the tertiary alcohols in the process of cis-1,2-DMCH oxidation using HOAc promoter (Entry 7, Table 1) under atmosphere of 18O2; (b): Accumulations of 18O-labelled tertiary alcohols in the same reaction. Inset shows cis/trans ratio for 18O-alcohols.
Catalysts 09 00209 g007
Catalysts 09 00209 sch002 550

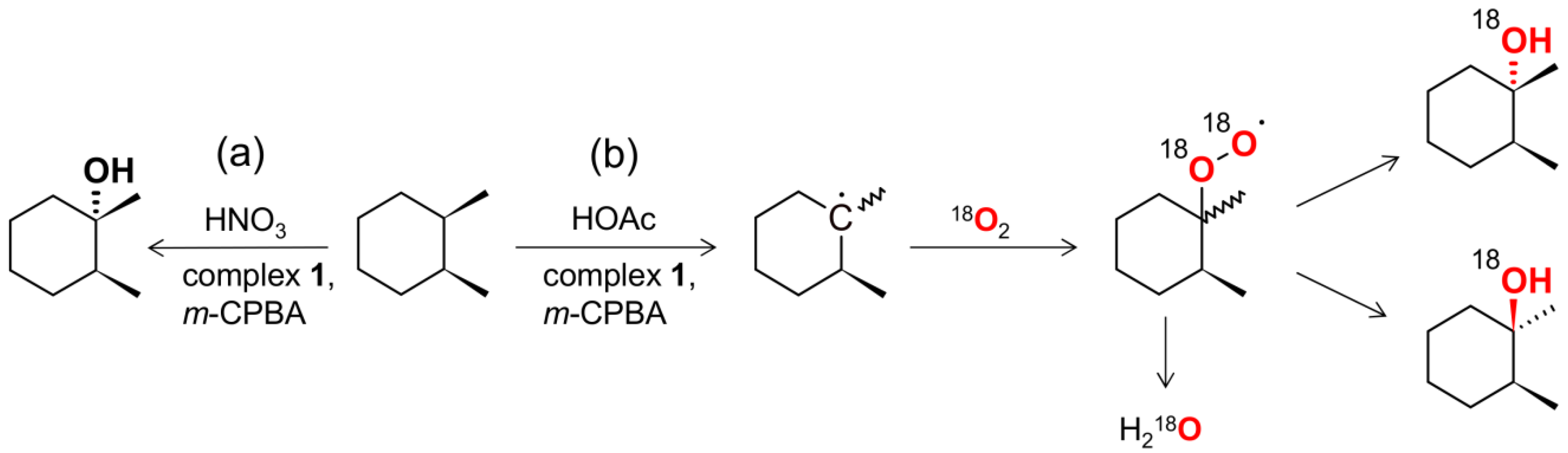

Scheme 2. Two dominant reaction pathways proposed for the (a) 1/HNO3/m-CPBA and (b) 1/HOAc/m-CPBA catalytic systems. Pathway (b), in contrast to (a), proceeds via formation of a long-lived free carbon radical.
Scheme 2. Two dominant reaction pathways proposed for the (a) 1/HNO3/m-CPBA and (b) 1/HOAc/m-CPBA catalytic systems. Pathway (b), in contrast to (a), proceeds via formation of a long-lived free carbon radical.
Catalysts 09 00209 sch002
Table
Table 1. Oxidation of cis-1,2-dimethylcyclohexane with m-CPBA, catalyzed by 1, in the presence of promoters.1.
Table 1. Oxidation of cis-1,2-dimethylcyclohexane with m-CPBA, catalyzed by 1, in the presence of promoters.1.
Catalysts 09 00209 i001
EntryPromoter[Cat]0, mol%2Yield, %3Yield, %4cis/trans5TON63° : 2°7
1HNO30.081761 82 198 38 : 1
2HNO30.81140 8213 38 : 1
3HNO30.314509048 38 : 1
48HNO30.33737295637 : 1
5HOTf90.3 < 1< 1 > 40< 1 ‒
6TFA100.3726 16 2524 : 1
7HOAc110.362411 2519 : 1
8PCA120.3 < 1 < 1 1< 1 ‒
9Et3N0.32612.2 ‒
10Py130.3< 1225.4 ‒
1114HNO30.31451785940 : 1
1215HNO30.31036593632 : 1
1 General conditions are: [substrate]0 = 0.1 M, [promoter]0 = 5.5 × 10–3 M (5.5 mol% relative to substrate), [m-CPBA] = 2.7 × 10–2 M (0.27 equivalents relative to substrate), in acetonitrile, open air, at 40 °C, data shown are for 90 min reaction time; 2 relative to substrate; 3 yield (sum of 3° and 2° products) based on substrate; 4 yield (sum of 3° and 2° products) based on m-CPBA; 5 mols of tertiary cis-alcohol per mol of trans-alcohol; 6 turnover numbers, mols of products (sum of 3° and 2° products) per mol of catalyst; 7 normalized bond selectivity, (4 × mols of 3° products) / mol of 2° products; 8 [substrate]0 = [m-CPBA]0 = 0.05 M; 9 trifluoromethanesulfonic acid; 10 trifluoroacetic acid; 11 acetic acid; 12 pyrazinecarboxylic acid; 13 pyridine; 14 the complex [CoIIICdIIL3Cl2]·0.5H2O [45] was used as a catalyst; 15 the complex [CoL3]•DMF [45] was used as a catalyst.
Table
Table 2. Oxidation of dimethylcyclohexane isomers and adamantane. 1.
Table 2. Oxidation of dimethylcyclohexane isomers and adamantane. 1.
EntrySubstrateYield based on m-CPBA, %2cis/trans3° : 2°
1cis-1,2-DMCH509038 : 1
2cis-1,4-DMCH644222 : 1
3trans-1,2-DMCH4662313 : 1
4trans-1,4-DMCH4937312 : 1
5Adamantane714–39 : 1
1 Reaction conditions and other parameters are as those stated in the Table 1 footnote, unless stated otherwise. Entry 1 is Entry 3 in Table 1; 2 yield (sum of 3° and 2° products) based on m-CPBA; 3 trans/cis ratio, as the trans-substrates produce trans-alcohols as the main products; 4 sum of 3° and 2° products, where 3° products constitute 1-adamantanol and 1,3-adamantanediol (ca. 5%).

Share and Cite

MDPI and ACS Style

Nesterova, O.V.; Kasyanova, K.V.; Buvaylo, E.A.; Vassilyeva, O.Y.; Skelton, B.W.; Nesterov, D.S.; Pombeiro, A.J.L. Heterometallic CoIIIZnII Schiff Base Catalyst for Mild Hydroxylation of C(sp3)–H Bonds of Unactivated Alkanes: Evidence for Dual Mechanism Controlled by the Promoter. Catalysts 2019, 9, 209. https://doi.org/10.3390/catal9030209

AMA Style

Nesterova OV, Kasyanova KV, Buvaylo EA, Vassilyeva OY, Skelton BW, Nesterov DS, Pombeiro AJL. Heterometallic CoIIIZnII Schiff Base Catalyst for Mild Hydroxylation of C(sp3)–H Bonds of Unactivated Alkanes: Evidence for Dual Mechanism Controlled by the Promoter. Catalysts. 2019; 9(3):209. https://doi.org/10.3390/catal9030209

Chicago/Turabian Style

Nesterova, Oksana V., Katerina V. Kasyanova, Elena A. Buvaylo, Olga Yu. Vassilyeva, Brian W. Skelton, Dmytro S. Nesterov, and Armando J.L. Pombeiro. 2019. "Heterometallic CoIIIZnII Schiff Base Catalyst for Mild Hydroxylation of C(sp3)–H Bonds of Unactivated Alkanes: Evidence for Dual Mechanism Controlled by the Promoter" Catalysts 9, no. 3: 209. https://doi.org/10.3390/catal9030209

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
