Article

Deposition of Co onto Supported MoS2 by Water-Assisted Spreading: Increased Activity Promotion in Hydrodesulphurization of 1-Benzothiophene

by
Luděk Kaluža
*,
Martin Koštejn
and
Daniela Gulková
Institute of Chemical Process Fundamentals, Academy of Sciences of the Czech Republic, Rozvojová 135, Prague 6, 16502 Prague, Czech Republic
*
Author to whom correspondence should be addressed.
Catalysts 2019, 9(12), 987; https://doi.org/10.3390/catal9120987
Submission received: 24 October 2019 / Revised: 19 November 2019 / Accepted: 21 November 2019 / Published: 25 November 2019
(This article belongs to the Special Issue Catalytic Hydroprocesses and Oil Refining)
Browse Figures
Versions Notes

Abstract

:
Hydrodesulphurization (HDS) catalysts were newly prepared by water-assisted spreading of CoCO3.Co(OH)2 of low solubility in water onto pre-sulphided Mo species supported on several Al2O3 of surface area SBET 77-262 m2g−1, ZrO2 of SBET 108 m2g−1, and TiO2 of SBET 140 m2g−1. The spreading was followed by scanning electron microscopy (SEM-EDX). X-ray photoelectron spectroscopy (XPS) and temperature programmed reduction (H2-TPR) characterized partial re-oxidation of sulphidic Mo catalysts before Co sorption. The prepared catalysts were characterized in sulphidic form by H2-TPR. Activity of catalysts was determined in the HDS reaction of 1-benzothiophene. The spreading of Co onto sulphidic catalysts led to systematic increase of HDS activity by 16–86% in comparison to the spreading of Co onto oxide samples.

Graphical Abstract

1. Introduction

Sulphidic CoMo/Al2O3 catalysts represent typical heterogeneous catalysts developed for industrial hydrodesulphurization (HDS) reactions over the past 70 years [1]. Due to their key role in sustainable crude-oil processing, their structure, function, or synthesis are thoroughly investigated. The important phenomenon in HDS reactions is the promotional effect of Co on the activity of supported Mo species. Novel preparation methods are thus introduced in the literature both to provide fundamental understanding of promotion and to gain pronounced activity in HDS. One direction of this endeavor represents the examination of chelating agents for deposition of the CoMo phase [2,3,4]. Another direction of advanced syntheses is represented by direct deposition of Co onto sulphide Mo surface instead of promoting oxidic Mo surface [5,6,7,8,9,10,11,12].
For example, Bezverzkyy et al. [5] prepared MoS2/γ-Al2O3 from aqueous solution of (NH4)2MoS4 by reduction with N2H4 and special treatment in acetone. Deposition of Co was done using aqueous solution of cobalt nitrate or methanol solution of Co-acetylacetonate. Acetonic solutions of cobalt nitrate were used for the promotion of sulphided Mo species supported on TiO2 and ZrO2 or co-precipitated mixed Ti–Zr oxides by Ji [6] or Afanasiev [7], respectively. Farag et al. [8] compared carbon-supported CoMo catalysts prepared from methanolic solutions of molybdenyl acetylacetonate, followed by sulphidation and deposition of cobalt acetylacetonate with those catalysts prepared by successive impregnation without a sulphidation step and by the equilibrium adsorption method. About 50% improvement of activity in HDS of dibenzothiophene was observed after promotion of pre-sulphided Mo catalysts. For a series of catalysts supported on TiO2, the result of promotion of pre-sulphided Mo was a 30–70% increase in the activity of thiophene HDS in comparison with the promotion of oxidic Mo [9]. Thirty percent improvement in benzothiophene hydrodesulphurization was achieved in our previous paper dealing with organized mesoporous Al2O3 [10] after deposition of Co-acetylacetonate from ethanolic solution onto a presulphided form of Mo rather than the oxide form.
Another method of efficient promotion of MoS2 species supported on γ-Al2O3 employs a cobalt carbonyl as a precursor. Maugé et al. [11] introduced Co(CO)3NO to sulphided Mo/Al2O3 and thermally decomposed it prior to HDS reaction of thiophene at atmospheric pressure. They found that the ex-carbonyl catalysts are twice as active as a conventional Co–Mo/Al2O3 catalyst. Okamoto et al. [12] observed a similar effect. The promotion of sulphidic Mo using Co(CO)3NO resulted in about 2-fold higher activity in HDS of thiophene than the activity achieved after promotion of oxidic Mo counterparts.
The promotion of supported Mo sulphide is thus also investigated in the present work applying, for the first time, the principle of our original method called water-assisted spreading (WAS). The method is based on gradual spreading of precursors almost insoluble in water such as MoO3 or CoCO3.Co(OH)2. The point of zero charge of Al2O3 (PZC) is about 7 and the pH of MoO3/H2O slurry is 2.5; the sorption of dissolved anionic Mo species onto positively charged support is strong. This sorption proceeds up to the complete saturation of a support surface. The saturated adsorption loading of 3.4 Mo per nm2 was achieved in our previous paper for the Al2O3 supports with surface area (SBET) ranging from to 11 to 279 m2g−1 [13]. Once the saturated MoO3/Al2O3 catalysts are achieved, this oxidic form of catalysts (PZC of 2.8) can react with CoCO3.Co(OH)2/H2O slurry of pH about 8.5. Dissolved cationic Co species are gradually adsorbed onto negatively charged supported MoO3 surface, and efficient promotion of activity in HDS of thiophene is observed [14].
The water-assisted spreading (WAS) is a clean method because it avoids using cobalt nitrate or ammonium heptamolybdate. Dried catalysts can be sulphided without calcination. Avoiding a calcination step is the other advantage of WAS. Comparing WAS with a previously reported method of thermal-assisted spreading (solid-solid wetting) [15,16,17], the main advantage of WAS is that application of the temperatures higher than 400 °C is avoided. Furthermore, the thermal-assisted spreading method has not been applied to spread Co species.
The aim of the present work is to elucidate whether the CoCO3.Co(OH)2/H2O slurry can also be used for efficient promotion of MoS2 species (WASsulph). The studied supports, i.e., Al2O3 with SBET range from 77 to 262 m2g−1, TiO2 (SBET of 140 m2g−1), and ZrO2 (SBET of 108 m2g−1), were selected from our previous studies [13,18]. The promotion effect of Co was determined in an HDS reaction of 1-benzothiophene at 1.6 MPa. The character of sulphidic Mo eligible for promotion by CoCO3.Co(OH)2/H2O slurry was described by measurement of point of zero charge (PZC), temperature programmed reduction (H2-TPR), and X-ray photoelectron spectroscopy (XPS). Sorption of Co species was followed by scanning electron probe microanalysis (SEM-EDX). Deposition of Co over oxidic form of supported Mo species using CoCO3.Co(OH)2/H2O slurry (WASox) or conventional impregnation with Co(NO3)2/H2O solution (CIMox) was done for comparison.

2. Results and Discussion

2.1. Concept of Co Deposition onto Sulphidic Mo Catalysts

The novel approach in the deposition of CoCO3.Co(OH)2 onto pre-sulphided Mo catalysts is suggested and explored in this study. Point of zero charge (PZC) of pre-sulphided Mo catalysts is mutually interrelated with the phenomenon of partial re-oxidation of sulphidic surface, which appeared crucial to carry on water-assistant spreading (WASsulph). Therefore, PZC and re-oxidation are discussed below comprehensively.
The point of zero charge (PZC) of sulphides is often reported to be low of about 2–3 and to be similar to elemental sulphur. However, this PZC often depends on the degree of hydration of the sulphides and on partial re-oxidation of the surface. Furthermore, if a sulphidic phase is immersed in a solution or slurry of high pH, the partial re-oxidation of superficial sulphidic species to form SxOyn− is increased. [19]
We have observed that all freshly sulphided Mo catalysts (the catalysts were immersed into distilled water immediately after sulphidation) exhibited PZC values of about 7. This value was stable for some days if the mixture was not heated, stirred, or if the mixture was bubbled with nitrogen. The spreading of CoCO3.Co(OH)2 did not proceed. This is documented in Figure 1, wherein the content of Co is determined by SEM-EDX after selected time of reaction. Co content inside the extrudate body was zero for 14 days.
However, if sulphided Mo catalysts can oxidize with air, the PZC of these samples decreases to 4. This is caused just by stirring of the impregnation slurry, bubbling the slurry with air or heating the slurry under reflux condenser.
In order to consider how deep this partial re-oxidation of sulphided Mo catalysts is, we have performed H2-TPR and XPS (Figure 2). These techniques were done after controlled re-oxidation of dried and sulphided Mo catalysts by ambient atmosphere. Raman spectroscopy [20,21,22,23,24,25] and O2 chemisorption provided only additional information, and they are discussed in Supplementary Materials (Figure S1).
The examples, how H2-TPR patterns of the partially re-oxidized Mo sulphides differ from the sulphidic phase, are shown in Figure 2a. Figure 2b,c show XPS spectra of Mo and S, respectively. Chemical state of these elements is summarized in Table 1. It was observed that partial re-oxidation of Mo sulphides is recognized after about 2 h exposure of the samples on air (Figure 2 and Table 1). The content of Mo6+ and SO42− increased. TPR patterns differ significantly from the previous one. Despite the fact that partial re-oxidation of molybdenum sulphides on air presumably differs from re-oxidation in CoCO3.Co(OH)2/H2O slurry, both these re-oxidations caused decrease of PZC to 4 and most probably created adsorption centres for Co species.
The continuation of our WASsulph experiment in Figure 1 shows how the sorption of Co from CoCO3.Co(OH)2/H2O slurry proceeded during heating and stirring of the mixture. The Co content inside the extrudates increased. Homogeneous and saturated concentration profile of Co was achieved after 24 h of spreading at 95 °C.
The saturation experiments over Mo/Al-262 and Mo/Al-262-e resulted in practically the same saturated adsorption loadings of Co with the value of about 2.5 wt.% (±0.1 wt%). The saturation of Mo/Zr-108-e and Mo/Ti-140-e with CoCO3.Co(OH)2/H2O slurry resulted in saturation adsorption loadings of Co 2.0 and 2.8 wt.% (±0.1 wt.%), respectively (Figure S3).
It was concluded that the PZC of 4 of sulphided and partially re-oxidized Mo catalysts is sufficiently low to allow the adsorption of Co2+ cations from CoCO3.Co(OH)2/H2O slurry of pH 8.5 onto negatively charged sulphidic surface. In principle, partial re-oxidation reaction is necessary and beneficial for the sorption of the Co2+ species because the negatively charged Mo sulphidic surface is needed. From a practical point of view, this re-oxidation does not need to be too deep. Heating on the water-bath together with CoCO3.Co(OH)2/H2O slurry and shaking of the mixture by bubbling air is sufficient to start this re-oxidation and successful performance of WASsulph.
The overview of actual loadings in all catalysts is presented in Table 2. The saturated adsorption loadings of Co by WASsulph were 15–50% higher than was achieved previously for promotion of supported MoO3 monolayers [14]. Nevertheless, all loadings increased with increasing SBET, and no crystalline phase of Co or Mo species in the catalysts was observed by XRD and Raman spectroscopy. The promotional effect of so deposited Co on HDS activity is discussed below.

2.2. TPR and XPS of Sulphided Catalysts

All prepared catalysts were characterized in their sulphidic state by temperature programmed reduction (H2-TPR) in Figure 3.
The prepared Mo catalysts exhibited the first maxima at about 132–163 °C (Figure 3a). First low-temperature peaks typically appear between 179 and 185 °C [26] or 135–280 °C [27], and they are ascribed to the reduction of weakly bonded sulphur species such as S22− edge moieties [28]. These species are believed to correspond with defects at MoS2 edges. The quantity of these defects mostly depends on preparation procedure including support and activation conditions [27]. The second peak between 300 and 700 °C is typically less pronounced, and it belongs to elimination of less labile sulphur from the edges of the MoS2 crystallites [29,30]. Because the method of preparation of our Mo catalysts was the same (WAS), the character of these defects was similar. We thus observed that the amount of these defects increased with increasing surface area of supports and therefore with saturated adsorption loadings of Mo (Table 2). The support only negligibly influenced the position of the first maxima. Nevertheless, the Mo/Al-262 with the highest surface area exhibited a pronounced second maximum (Figure 3a), which indicated the highest number of defected sites and/or the smallest MoS2 crystallites (the highest MoS2 dispersion) for the studied Mo catalysts. The direct link between the quantity of sulphur elimination during TPR and HDS activity has already been reported, for example [1,31] We observed a relationship of a similar nature (HDS activity is discussed in Section 2.3).
In the prepared CoMo catalysts, shifts of the first maxima to lower temperatures were caused by the promotion of Mo catalysts by Co (Figure 3b,c). These shifts are in agreement with previously reported results about TPR of CoMo catalysts [29,32]. DFT calculation explained this decrease by a weaker sulphur-metal bond energy in CoMoS than in MoS2 [33]. We observed that the CoMo catalysts prepared by CIMox and WASox exhibited the first maxima at 100–144 °C (Figure 3b). The CoMo catalysts prepared by WASsulph exhibited the first maxima at lower temperatures at 90–109 °C (Figure 3c). Moreover, the Co deposited by WASsulph caused a pronounced increase of the second reduction peak with maxima at about 450 °C. The WASsulph method thus distinctly increased the reducibility of the resulting catalysts. This could be caused by formation of specific CoMoS phase with a different character from CIMox or WASox samples. WASsulph could promote the MoS2 edges more efficiently than the other methods. The other explanation could be that the Co deposited by WASsulph could act differently during re-sulphidation, which could lead to smaller crystallites of CoMoS with lower slab length. Similar effects of Co were observed in TPR patterns of unsupported catalysts [34,35,36].
The three most active catalysts, i.e., CoMo(WASsulph)/Al-262, CoMo(WASsulph)/Al-212, and CoMo(WASsulph)/Al-127, were evaluated in their sulphidic state by XPS. They were also compared with their counterparts prepared by the WASox method. The comparison is shown in Table 3 and Supplementary Materials in Figure S5. It was found that the catalysts prepared by WASsulph had a higher Co/Mo ratio, a higher amount of Co in sulphidic state, and higher sulphur content on the surface than the other catalysts had. Superficial XPS analysis thus confirmed that Co loading achieved by WASsulph is higher than that achieved by WASox (Table 2) and that Co deposited by WASsulph increases reducibility of the supported active species.

2.3. HDS Activity

Figure 4 shows how the method of preparation and the surface area of original support influence the activity (kEB) in 1-benzothiophene HDS.
For each support, Co deposited over sulphidic Mo (WASsulph method) led to the catalyst with the highest HDS activity (Figure 4). The activity increase of 16–86% was systematic for all CoMo(WASsulph) catalysts. The most pronounced increase was observed for the catalysts supported on the aluminas with SBET higher than 100 m2g−1 or supported on the zirconia (more than about 80%). Co deposited over sulphidic Mo (WASsulph method) thus exhibited the highest promotional effect in Table 2. It was concluded that the method of preparation of CoMo catalysts increased the HDS activities in the order CIMox < WASox < WASsulph.
The explanation could consist in the partial re-oxidation of MoS2 catalysts during WASsulph. The partial re-oxidation of MoS2 slabs creates sorption sites either at the edges of Mo slabs or at other defect sites of MoS2 surface. Promotion of these sorption sites by Co was effective and essential for the HDS activity increase. These sorption sites are not presented on oxidic Mo monolayer. Therefore, the deposition of Co by conventional impregnation (CIMox) or water-assisted spreading (WASox) leads to less active catalysts.
The effect of sulphidation and partial re-oxidation of sulphided Mo, CoMo and NiMo has also been studied in the previous literature [4,37,38]. The authors focused on resultant surface morphology and HDS activity. They concluded that partial re-oxidation and re-sulphidation slightly decreased the number of MoS2 slabs with a length of 1–1.5 nm while the rest of the MoS2 slabs (length of 1.5–7.0 nm) remained practically unaffected. At the same time, this treatment increased the activity of Mo catalyst in thiophene HDS by about 20%. For the CoMo catalyst, the same treatment increased the HDS activity more, by about 39%. We achieved similar increases in HDS activity, which can also be attributed to re-oxidation of the sulphide Mo phase.
Selectivity to dihydrobenzothiophene provides additional information on HDS of 1-benzothiophene to ethylbenzene (Figure 5). Yields of dihydrobenzothiophene over CoMo catalysts are compared in Supplementary Materials in Figure S6. It was found that the highest activity of CoMo(WASsulph) catalysts was also accompanied with the lowest selectivity to dihydrobenzothiophene. Co in CoMo(WASsulph) thus efficiently promoted the direct desulphurization (DDS) pathway (Figure 5).
It is also worth noting that the ZrO2- and TiO2-supported catalysts still did not reach activities of the alumina-supported counterparts. However, the increase of activity by the WASsulph method was significant (Figure 4, Table 2), but the selectivity to DDS was similar to other CoMo(WASsulph) catalysts (Supplementary Materials, Figure S6). It seems that this lack of promotion by Co is an intrinsic property of the ZrO2− and TiO2-supported CoMo catalysts [1,39].
It was concluded that water-assisted spreading of Co onto pre-sulphided Mo catalysts (WASsulph) represents a convenient way to utilize the surface area of supported Mo and enhance HDS activity. The most active catalyst 2.4Co14.3Mo(WASsulph)/Al-262 was prepared over gamma-alumina Akzo (HDS-000-1.5, Akzo Chemicals, City, the Netherlands), and it was about 1.3-fold more active than the commercial CoMo catalyst.

3. Materials and Methods

3.1. Catalysts Preparation

3.1.1. Mo Deposition

Details about supports were described in our previous work [13,18], and the supports were named in the same way in the present paper. For example, the name Al-262 is used for Al2O3 with surface area SBET of 262 m2g−1. All supports were crushed and sieved to particle size fraction 0.16–0.32 mm. Mo was deposited over support by WAS. MoO3 (Fluka, product no. 69850, Buchs, Switzerland) was ground in stainless steel planetary mill (Fritsch, Pulverisette 6, Idar-Oberstein, Germany) for 24 h in order to increase its dissolution rate. MoO3 was mixed with support (0.9 mg of MoO3 per 1 m2 of support) and distilled water. The mixture was heated under reflux condenser at 95 °C for 24 h. The unreacted slurry of MoO3 was separated from catalyst particles by 5-time decantation with distilled water. Catalysts were dried in a rotary vacuum evaporator at 95 °C for 1 h and the Mo content was determined by atomic adsorption spectroscopy (AAS) in Table 2. Part of the sample was additionally sulphided in H2S/H2 mixture (molar ratio was 10:1) at 400 °C (ramp rate 6 °C min−1 and dwell time 1 h). The sample was inserted into gas tight ampules under nitrogen.

3.1.2. Co Deposition

Co was deposited onto dried MoO3 catalysts by conventional impregnation (CIMox) using aqueous solution of Co(NO3)2 or water-assisted spreading (WASox) using aqueous slurry of CoCO3.Co(OH)2. CoCO3.Co(OH)2 was selected according to our previous research [14], where CoCO3.Co(OH)2 adsorbed onto supported MoO3 catalysts the fastest from the studied compounds (Co3O4, Co(OH)2, CoCO3, CoCO3.Co(OH)2).
Aqueous solution of cobalt nitrate (Co(NO3)2.6H2O, Lachema, purum, Brno, Czech Republic) was stirred with Mo catalyst for 1 h and then the mixture was dried in a rotary vacuum evaporator at 95 °C for 1 h. The obtained CoMo(CIMox) was calcined in air flow at 350 °C for 0.5 h and then sulphided (the sulphidation procedure was described above). The amount of Co was chosen to be equal to actual loading of Co achieved by the WASsulph method (Table 2).
Cobalt hydroxide carbonate (CoCO3.Co(OH)2, Merck, reinst, Buchs, Switzerland) was ground in the stainless steel planetary mill for 24 h. Aqueous slurry of the compound with MoO3 catalyst was heated under reflux condenser at 95 °C for 24 h. The nominal amount of 0.1 g of CoCO3.Co(OH)2 was used to saturate 1 g of dried MoO3 catalyst. The unreacted slurry of CoCO3.Co(OH)2 was separated from catalyst particles by 5-time decantation with distilled water and the samples were dried in a rotary vacuum evaporator at 95 °C for 1 h, sulphided, and labelled CoMo(WASox).
Recently, spreading of the cobalt hydroxide carbonate over supported sulphidic Mo (WASsulph) was performed. The sulphided supported Mo catalyst was immersed into distilled water and CoCO3.Co(OH)2 was added. The nominal amount of 0.1 g of CoCO3.Co(OH)2 was used per 1 g of sulphided Mo catalyst. The mixture was heated under reflux condenser at 95 °C for 24 h. During the heating, the mixture was bubbled with air to increase partial re-oxidation of MoS2 surface. This partial re-oxidation decreases PZC of sulphided Mo catalysts and increases sorption of Co. The aspects of partial re-oxidation and sorption of Co are discussed above in Section 2.1. At the end, the unreacted slurry of CoCO3.Co(OH)2 was separated from catalyst particles by 5-time decantation with distilled water. The samples were dried in rotary vacuum evaporator at 95 °C for 1 h, sulphided and labelled as CoMo(WASsulph).

3.1.3. WASsulph over Extrudates

The original extrudates of the support were used for selected experiments instead of grain fraction. The extrudates were coded Al-262-e, Ti-140-e, and Zr-108-e. First, MoO3 was deposited as it was described above. SEM-EDX measurements confirmed saturated and homogeneous profile of Mo concentration through the body of bisected extrudates. Saturated loadings of Mo were the same as it is shown in Table 2 for the catalysts prepared from grain fraction of the supports. Then, the extrudates were sulphided as it was described above and immersed into an aqueous slurry of CoCO3.Co(OH)2 under nitrogen. The mixture was left standing without any stirring for 14 days. After 14 days, the mixture was heated and stirred by bubbling air as described above. PZC and SEM-EDX measurements were done at various stages of the experiment. The samples of the extrudates were taken from the impregnation slurry, washed and dried as described above. These samples were bisected and analyzed by SEM-EDX for Co content.

3.2. Reference Catalyst

The industrial CoMo/Al2O3 (Albemarle, KF 756, Amsterdam, the Netherlands, 2.5 wt% Co, 12.2 wt% Mo, SBET (sulphidic state) = 211 m2g−1) catalyst was used as reference catalyst in HDS of 1–benzothiophene.

3.3. Characterization

The point of zero charge (PZC) was measured by simplified mass titration method [40] with a WTW pH meter equipped with a cell Hamilton Slimtrode. The textural properties of the supports and selected sulphided catalysts were investigated by N2 adsorption with a Micromeritics ASAP 2010 apparatus (Norcross, USA) after evacuation at 350 °C for 4 h. To calculate the specific surface area (SBET), the data were treated by the standard BET method.
SEM-EDX was performed on a Tescan Indusem apparatus equipped with EDS (SDD XFlash® 5010, Bruker, Karlsruhe, Germany, resolution 125 eV), working at acceleration of 15 kV. Concentration profile was obtained by ten measurements equidistantly distributed from the center of the extrudate to the surface. Each measurement was acquired from squared area 60 × 60 um.
Temperature programmed reduction (H2-TPR) was performed in the flow of H2:Ar (1:19) with a temperature ramp 5 °C min−1 from 40 to 960 °C on a Micromeritics chemisorber AutoChem 2950 HP equipped with a thermal conductivity detector. The catalyst was placed in a quartz ampule and it was ex situ sulphided (details of the sulphidation are given above). The ampule was then filled with nitrogen and transferred into TPR apparatus. Selected samples were also allowed to be re-oxidized in laboratory environment for the selected time before the TPR experiments.
The superficial elemental analyses of the sulphidic catalysts were carried out on XPS (X-ray Photoelectron Spectrometer) spectrometer ESCA 3400 (Kratos, Manchester, Great Britain) with a base pressure in the analysis chamber of∼5.0·10−7 Pa. The spectra were excited with an Mg Kα radiation (hν = 1253.6 eV) generated at 12 kV and 10 mA. The selected samples were allowed to be re-oxidized in laboratory environment for selected time before the XPS experiments. Examples of comprehensive characterization of similar CoMo phases by XPS and by transmission electron microscopy (TEM) assessing the intrinsic activity of active sites can be found elsewhere in the literature [4,38,41,42].

3.4. Catalytic Activity

Hydrodesulphurization of 1–benzothiophene (BT) was performed in the gas phase using an integral fixed–bed tubular flow microreactor (i.d. 3 mm) at 360 °C and 1.6 MPa. Prior to the measurements, the catalysts were sulphided in situ with an H2S/H2 flow (1/10) at 400 °C and atmospheric pressure with a temperature ramp of 10 °C min−1 and a dwell time of 1 h. The composition of the feed was kept constant at 16 kPa, 200 kPa and 1384 kPa of 1-benzothiophene (BT), decane and hydrogen, respectively. The catalyst sample (0.03–0.20 g) was diluted with an inert α–Al2O3 with particle size fraction 0.16–0.32 mm to form a bed length of 30 mm. The reaction was run at three feed rates of BT including 7.7 mmol h−1, 10.3 mmol h−1 and 15.5 mmol h−1. The steady state was reached in 30 min after each change in the feed rate. No changes of conversions during the following 1 h were observed. The reaction mixture was analyzed on a Hewlett–Packard gas chromatograph (6890 series, Waldbronn, Germany) equipped with a capillary column (HP–5, 30 m, 0.53 mm, 1.5 μm). Dihydrobenzothiophene (DH) and ethylbenzene (EB) were identified in the reaction products. The scheme of BT HDS is shown in Figure 5. The relative compositions aBT, aEB and aDH, BT conversion xBT and EB and DH yields, yEB, and yDH were defined as aBT = (1 − xBT) = nBT/n0BT, aEB = yEB = nEB/n0BT, aDH = yDH = nDH/n0BT, where n0BT, nBT, nEB, and nDH were the initial number of moles of BT, final number of moles of BT, EB, and DH, respectively. The rate constant of EB formation, kEB, was calculated using an empirical pseudo-first-order rate equation (aEB = 1 − exp (− kEBW/F). An example of how relative composition depends on space time W/F and how kEB was obtained is given in Figure 6.

4. Conclusions

Recently, the feasibility of the water-assisted spreading of the low solubility CoCO3.Co(OH)2 onto pre-sulphided Mo species was reported. Partial re-oxidation of sulphidic molybdenum during spreading decreased point of zero charge of molybdenum sulphide catalyst to 4, which allowed sorption of dissolved Co2+ cations from CoCO3.Co(OH)2/H2O slurry of pH of 8.5. The saturated adsorption loadings were higher than it was the case of Co spreading onto oxidic MoO3/Al2O3, MoO3/ZrO2, and MoO3/TiO2 precursors. Systematic increase (16–86%) of HDS activity was observed after promotion of pre-sulphided and partially re-oxidized species of Mo in comparison to the promotion of oxidic Mo species. This new method thus led to more efficient promotion of HDS activity.
Furthermore, the spreading of CoCO3.Co(OH)2 onto the sulphided and partially re-oxidized Mo lead to an increase of reducibility of the deposited CoMo phase during temperature programed reduction. This was manifested by decreased temperature of the first reduction peak and increased reduction at temperatures above 300 °C, in comparison to the water-assisted spreading of CoCO3.Co(OH)2 and conventional deposition of Co nitrate onto MoO3 catalysts. Promotional effects of Co deposited onto sulphided Mo phase in activity of benzothiophene HDS were 1.5–3.0 times higher than the promotional effects achieved by conventional impregnation and 1.1–1.9 times higher than the promotional effects achieved by water-assisted spreading onto the oxide Mo phase. The water-assisted spreading method does not principally need using nitrate or ammonium salts during synthesis. The catalysts in their dried stage can be directly sulphided without calcination. All these represent implications attractive for further research and industrial practice.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/9/12/987/s1, the supplementary materials contain: 1. Additional information on re-oxidation of supported Mo sulphides in Figure S1: Raman spectroscopy of reaction of Mo/Al-262 with CoCO3.Co(OH)2/H2O slurry: bottom line–0 min (dried sulphided Mo/Al-262), upper line–example of patterns achieved between 1h–14 days of the WASsulph reaction at 25 °C or between 1 h–24 h of the WASsulph reaction at 95 °C and Figure S2: Re-oxidation of sulphided Mo/Zr-108 (a) and Mo/Ti-140 (b) followed by H2-TPR; 2. Sorption of Co on sulphided Mo supported on Zr-108-e and Ti-140-e by SEM-EDX in Figure S3: Saturation of Mo/Zr-108-e (a) and Mo/Ti-140-e (b) by CoCO3.Co(OH)2/H2O slurry; 3. H2-TPR of sulphided MoO3, CoCO3.Co(OH)2 and the reference CoMo catalyst in Figure S4: H2-TPR patterns of sulphided individual starting compounds and the reference commercial CoMo catalyst; 4. XPS surface analysis of selected sulphided catalysts in Figure S5. XPS Co 2p3/2 (a), Mo 3d5/2 (b), and S 2p3/2 (c) spectra. Binding energies (BE): (a) dot line–oxidic Co2+ (781.6 ± 0.5 eV), dash line–sulphidic Co2+ (778.3 ± 0.5 eV); (b) dot line–oxidic Mo6+ (232.0 ± 0.5 eV), dash dot line–MoSxOy (229.8 ± 0.5 eV), dash line–sulphidic Mo4+ (228.7 ± 0.5 eV), grey solid line–sulphur S 2s; (c) dot line–sulphates SO 42− (169.5 ± 0.5 eV), dash line–sulphides S2− (162.4 ± 0.5 eV); and 5. Selectivity to dihydrobenzothiophene (DH) during 1-benzothiophene (BT) HDS in Figure S6. Selectivity to dihydrobenzothiophene (DH) during 1-benzothiophene (BT) HDS: crossed squares–CoMo(CIMox), open squares–CoMo(WASox), and solid squares–CoMo(WASsulph).

Author Contributions

Conceptualization, writing and funding acquisition L.K.; Methodology M.K. and D.G.

Funding

This research was funded by Czech Science Foundation, grant number 17-22490S.

Acknowledgments

The authors are grateful to M. Zdražil and Z. Vít for reviewing the manuscript and providing useful discussion.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Toulhoat, H.; Raybaud, P. Catalysis by Transition Metal Sulphides; Editions Technip: Paris, France, 2013; pp. 1–787. [Google Scholar]
  2. Lélias, M.A.; Kooyman, P.J.; Mariey, L.; Oliviero, L.; Travert, A.; Van Gestel, J.; Van Veen, J.A.R.; Maugé, F. Effect of NTA addition on the structure and activity of the active phase of cobalt-molybdenum sulfide hydrotreating catalysts. J. Catal. 2009, 267, 14–23. [Google Scholar] [CrossRef]
  3. Escobar, J.; Barrera, M.C.; De los Reyes, J.A.; Toledo, J.A.; Santes, V.; Colín, J.A. Effect of chelating ligands on Ni–Mo impregnation over wide-pore ZrO2–TiO2. J. Mol. Catal. A 2008, 287, 33–40. [Google Scholar] [CrossRef]
  4. Bremmer, G.M.; Van Haandel, L.; Hensen, E.J.M.; Frenken, J.W.M.; Kooyman, P.J. The effect of oxidation and resulfidation on (Ni/Co)MoS2 hydrodesulfurisation catalysts. Appl. Catal. B Environ. 2019, 243, 145–150. [Google Scholar] [CrossRef]
  5. Bezverzkyy, I.; Afanasiev, P.; Lacroix, M. Promotion of highly loaded MoS2/Al2O3 hydrodesulfurization catalysts prepared in aqueous solution. J. Catal. 2005, 230, 133–139. [Google Scholar] [CrossRef]
  6. Ji, Y.; Afanasiev, P.; Vrinat, M.; Li, W.; Li, C. Promoting effects in hydrogenation and hydrodesulfurization reactions on the zirconia and titania supported catalysts. Appl. Catal. A Gen. 2004, 257, 157–164. [Google Scholar] [CrossRef]
  7. Afanasiev, P. Mixed TiO2–ZrO2 support for hydrotreating, obtained by co-precipitation from Zr basic carbonate and Ti oxosulfate. Catal. Commun. 2008, 9, 734–739. [Google Scholar] [CrossRef]
  8. Farag, H.; Whitehurst, D.D.; Mochida, I. Synthesis of Active Hydrodesulfurization Carbon-Supported Co-Mo Catalysts. Relationships between Preparation Methods and Activity/Selectivity. Ind. Eng. Chem. Res. 1998, 37, 3533–3539. [Google Scholar] [CrossRef]
  9. Gulková, D.; Zdražil, M. Increased promotion by deposition of Co acetylacetonate over sulphided Mo/TiO2 hydrodesulphurization catalyst. React. Kinet. Catal. Lett. 2007, 91, 379–384. [Google Scholar] [CrossRef]
  10. Kaluža, L.; Gulková, D.; Šolcová, O.; Žilková, N.; Čejka, J. Hydrotreating catalysts supported on organized mesoporous alumina: Optimization of Mo deposition and promotional effects of Co and Ni. Appl. Catal. A Gen. 2008, 351, 93–101. [Google Scholar] [CrossRef]
  11. Maugé, F.; Vallet, A.; Bachelier, J.; Duchet, J.C.; Lavalley, J.C. Preparation, Characterization, and Activity of Sulfided Catalysts Promoted by Co(CO)3NO Thermodecomposition. J. Catal. 1996, 162, 88–95. [Google Scholar]
  12. Okamoto, Y.; Ishihara, S.; Kawano, M.; Satoh, M.; Kubota, T. Preparation of Co–Mo/Al2O3 model sulfide catalysts for hydrodesulfurization and their application to the study of the effects of catalyst preparation. J. Catal. 2003, 217, 12–22. [Google Scholar] [CrossRef]
  13. Kaluža, L.; Vít, Z.; Zdražil, M. Preparation and properties of filled monolayer of MoO3 deposited on Al2O3 supports by solvent-assisted spreading. Appl. Catal. A Gen. 2005, 282, 247–253. [Google Scholar] [CrossRef]
  14. Kaluža, L.; Zdražil, M. Deposition of CoO onto MoO3/Al2O3 hydrodesulfurization catalysts by solvent assisted spreading. Top. Catal. 2007, 45, 191–194. [Google Scholar] [CrossRef]
  15. Leyrer, J.; Mey, D.; Knözinger, H. Spreading Behavior of Molybdenum Trioxide on Alumina and Silica: A Raman Microscopy Study. J. Catal. 1990, 124, 349–356. [Google Scholar] [CrossRef]
  16. Kisfaludi, G.; Leyrer, J.; Knözinger, H.; Prins, R. An EXAFS Study of the Spreading of MoO3 on the Surface of γ-Al2O3. J. Catal. 1991, 130, 192–201. [Google Scholar] [CrossRef]
  17. Günther, S.; Marsi, M.; Kolmakov, A.; Kiskinova, M.; Noeske, M.; Taglauer, E.; Mestl, G.; Schubert, U.A.; Knözinger, H. Photoelectron Spectromicroscopic Study of the Spreading Behavior of MoO3 on Titania and Alumina Model Supports. J. Phys. Chem. B 1997, 101, 10004–10011. [Google Scholar] [CrossRef]
  18. Kaluža, L.; Gulková, D.; Vít, Z.; Zdražil, M. Effect of support type on the magnitude of synergism and promotion in CoMo sulphide hydrodesulphurisation catalyst. Appl. Catal. A Gen. 2007, 324, 30–35. [Google Scholar] [CrossRef]
  19. Das, K.K. Electrokinetics of mineral particles. In Interfacial Electrokinetics and Electrophoresis; Delgado, A.V., Ed.; Marcel Dekker, Inc.: New York, NY, USA, 2002; pp. 799–824. [Google Scholar]
  20. Lewis, R.; Edwards, H.G.M. Handbook of Raman Spectroscopy; Marcel Dekker Inc.: New York, NY, USA, 2001; pp. 1–1049. [Google Scholar]
  21. Golasa, K.; Grzeszczyk, M.; Korona, K.P.; Bozek, R.; Binder, J.; Szczytko, J.; Wysmolek, A.; Babinski, A. Optical Properties of Molybdenum Disulfide (MoS2). Acta Phys. Pol. A 2013, 124, 849–851. [Google Scholar] [CrossRef]
  22. Mestl, G.; Srinivasan, T.K.K. Raman Spectroscopy of Monolayer-Type Catalysts: Supported Molybdenum Oxides. Cat. Rev. Sci. Eng. 1998, 40, 451–570. [Google Scholar] [CrossRef]
  23. Debecker, D.P.; Stoyanova, M.; Rodemerck, U.; Gaigneaux, E.M. Preparation of MoO3/SiO2-Al2O3 metathesis catalysts via wet impregnation with different Mo precursors. J. Mol. Catal. A 2011, 340, 65–76. [Google Scholar] [CrossRef]
  24. Zingg, D.S.; Makovsky, L.E.; Tischer, R.E.; Brown, F.R.; Hercules, D.M. A Surface Spectroscopic Study of Molybdenum-Alumina Catalysts Using X-ray Photoelectron, Ion-Scattering, and Raman Spectroscopies. J. Phys. Chem. 1980, 84, 2898–2906. [Google Scholar] [CrossRef]
  25. Dufresne, P.; Payen, P.; Grimblot, J.; Bonnelle, J.P. Study of Ni-Mo-γ-Al2O3 Catalysts by X-ray Photoelectron and Raman Spectroscopy. Comparison with Co-Mo-γ-Al2O3 Catalysts. J. Phys. Chem. 1981, 85, 2344–2351. [Google Scholar] [CrossRef]
  26. Afanasiev, P. Calculation of MoS2 slabs morphology descriptors from transmission electron microscopy data revisited. Case study of the influence of citric acid and treatment conditions on the properties of MoS2/Al2O3. Appl. Catal. A Gen. 2017, 529, 10–19. [Google Scholar] [CrossRef]
  27. Baubet, B.; Devers, E.; Hugon, A.; Leclerc, E.; Afanasiev, P. The influence of MoS2 slab 2D morphology and edge state on the properties of alumina-supported molybdenum sulfide catalysts. Appl. Catal. A Gen. 2014, 487, 72–81. [Google Scholar] [CrossRef]
  28. Dinter, N.; Rusanen, M.; Raybaud, P.; Kasztelan, S.; Da Silva, P.; Toulhoat, H. Temperature-programmed reduction of unpromoted MoS2-based hydrodesulfurization catalysts: First-principles kinetic Monte Carlo simulations and comparison with experiments. J. Catal. 2010, 275, 117–128. [Google Scholar] [CrossRef]
  29. Scheffer, B.; Dekker, N.J.J.; Magnus, P.J.; Mouljin, J.A. A temperature-programmed reduction study of sulfided Co-Mo/Al2O3 hydrodesulfurization catalysts. J. Catal. 1990, 121, 31–46. [Google Scholar] [CrossRef]
  30. Calais, C.; Matsubayashi, N.; Geantet, C.; Yoshimura, Y.; Shimada, H.; Nishijima, A.; Lacroix, M.; Breysse, M. Crystallite size determination of highly dispersed unsupported MoS2 catalysts. J. Catal. 1998, 174, 130–141. [Google Scholar] [CrossRef]
  31. Da Silva, P. Influence de la Taille des Particules de MoS2 Supportées sur l´Activité et la Sélectivité des Reactions d´Hydrotraitement; Thèse UMPC Paris VI—ENSPM. Ph.D. Thesis, Université Pierre-et-Marie-Curie, Paris, France, 1998. [Google Scholar]
  32. Yoosuka, B.; Tumnantong, D.; Prasassarakich, P. Unsupported MoS2 and CoMoS2 catalysts for hydrodeoxygenation of phenol. Chem. Eng. Sci. 2012, 79, 1–7. [Google Scholar] [CrossRef]
  33. Raybaud, P.; Hafner, J.; Kresse, G.; Kasztelan, S.; Toulhoat, H. Structure, Energetics, and Electronic Properties of the Surface of a Promoted MoS2 Catalyst: An ab Initio Local Density Functional Study. J. Catal. 2000, 190, 128–143. [Google Scholar] [CrossRef]
  34. Yoosuk, B.; Kim, J.H.; Song, C.; Ngamcharussrivichai, C.; Prasassarakich, P. Highly active MoS2, CoMoS2 and NiMoS2 unsupported catalysts prepared by hydrothermal synthesis for hydrodesulfurization of 4,6-dimethyldibenzothiophene. Catal. Today 2008, 130, 14–23. [Google Scholar] [CrossRef]
  35. Liu, B.; Liu, L.; Chai, Y.; Zhao, J.; Li, Y.; Liu, D.; Liu, Y.; Liu, C. Effect of sulfiding conditions on the hydrodesulfurization performance of the ex-situ presulfided CoMoS/γ-Al2O3 catalysts. Fuel 2018, 234, 1144–1153. [Google Scholar] [CrossRef]
  36. Liu, B.; Liu, L.; Chai, Y.; Zhao, J.; Li, Y.; Liu, Y.; Liu, C. Highly Active CoMoS/Al2O3 Catalysts ex Situ Presulfided with Ammonium Sulfide for Selective Hydrodesulfurization of Fluid Catalytic Cracking Gasoline. Ind. Eng. Chem. Res. 2018, 57, 2041–2049. [Google Scholar] [CrossRef]
  37. Kooyman, P.J.; Van Veen, J.A.R. The detrimental effect of exposure to air on supported MoS2. Catal. Today 2008, 130, 135–138. [Google Scholar] [CrossRef]
  38. Bremmer, G.M.; Van Haandel, L.; Hensen, E.J.M.; Frenken, J.W.M.; Kooyman, P.J. Instability of NiMoS2 and CoMoS2 hydrodesulfurization catalysts at ambient conditions: A quasi in situ high-resolution transmission electron microscopy and x-ray photoelectron spectroscopy study. J. Phys. Chem. C 2016, 120, 19204–19211. [Google Scholar] [CrossRef] [Green Version]
  39. Breysse, M.; Afanasiev, P.; Geantet, C.; Vrinat, M. Overview of support effects in hydrotreating catalysts. Catal. Today 2003, 86, 5–16. [Google Scholar] [CrossRef]
  40. Moya, S.A.; Escudey, M. Use of pH measurements for the characterization of MoO3/Al2O3 catalysts. J. Chem. Soc. Chem. Commun. 1994, 16, 1829–1830. [Google Scholar] [CrossRef]
  41. Nikulshina, M.; Kokliukhin, A.; Mozhaev, A.; Nikulshin, P. CoMo/Al2O3 hydrotreating catalysts prepared from single Co2Mo10-heteropolyacid at extremely high metal loading. Catal. Commun. 2019, 127, 51–57. [Google Scholar] [CrossRef]
  42. Song, W.; Lai, W.; Chen, Z.; Cao, J.; Wang, H.; Lian, Y.; Yang, W.; Jiang, X. Fabrication of 3D Porous Hierarchical NiMoS Flowerlike Architectures for Hydrodesulfurization Applications. ACS Appl. Nano Mater. 2018, 1, 442–454. [Google Scholar] [CrossRef]
Catalysts 09 00987 g001 550

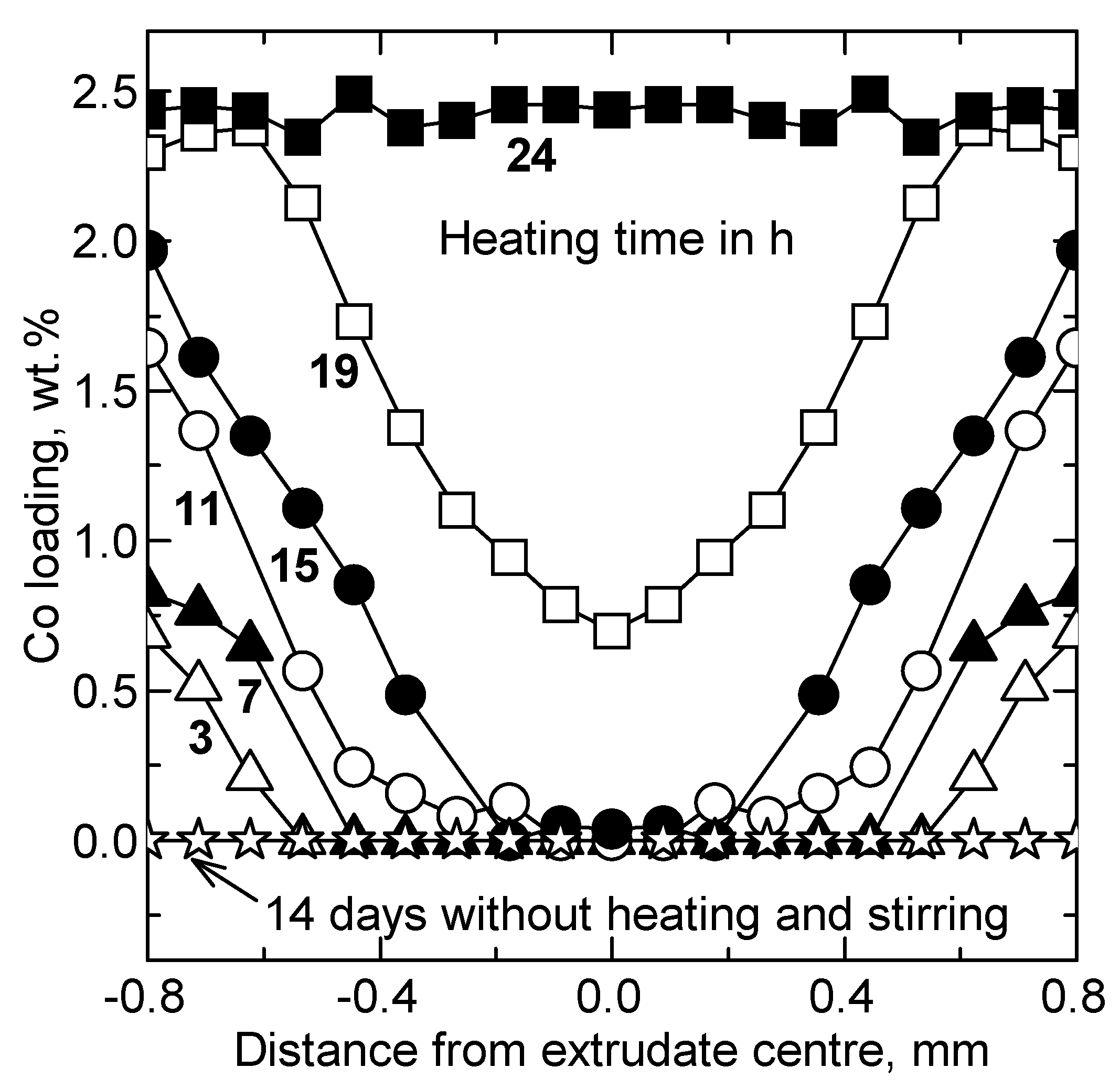

Figure 1. SEM-EDX analysis of Co content in bisected Mo/Al-262-e. Reaction of CoCO3.Co(OH)2/H2O slurry with sulphided Mo/Al-262-e at 95 °C.
Figure 1. SEM-EDX analysis of Co content in bisected Mo/Al-262-e. Reaction of CoCO3.Co(OH)2/H2O slurry with sulphided Mo/Al-262-e at 95 °C.
Catalysts 09 00987 g001
Catalysts 09 00987 g002 550
Figure 2. Re-oxidation of sulphided Mo/Al-262 on air followed by H2-TPR (a) and XPS (b,c).
Figure 2. Re-oxidation of sulphided Mo/Al-262 on air followed by H2-TPR (a) and XPS (b,c).
Catalysts 09 00987 g002
Catalysts 09 00987 g003 550

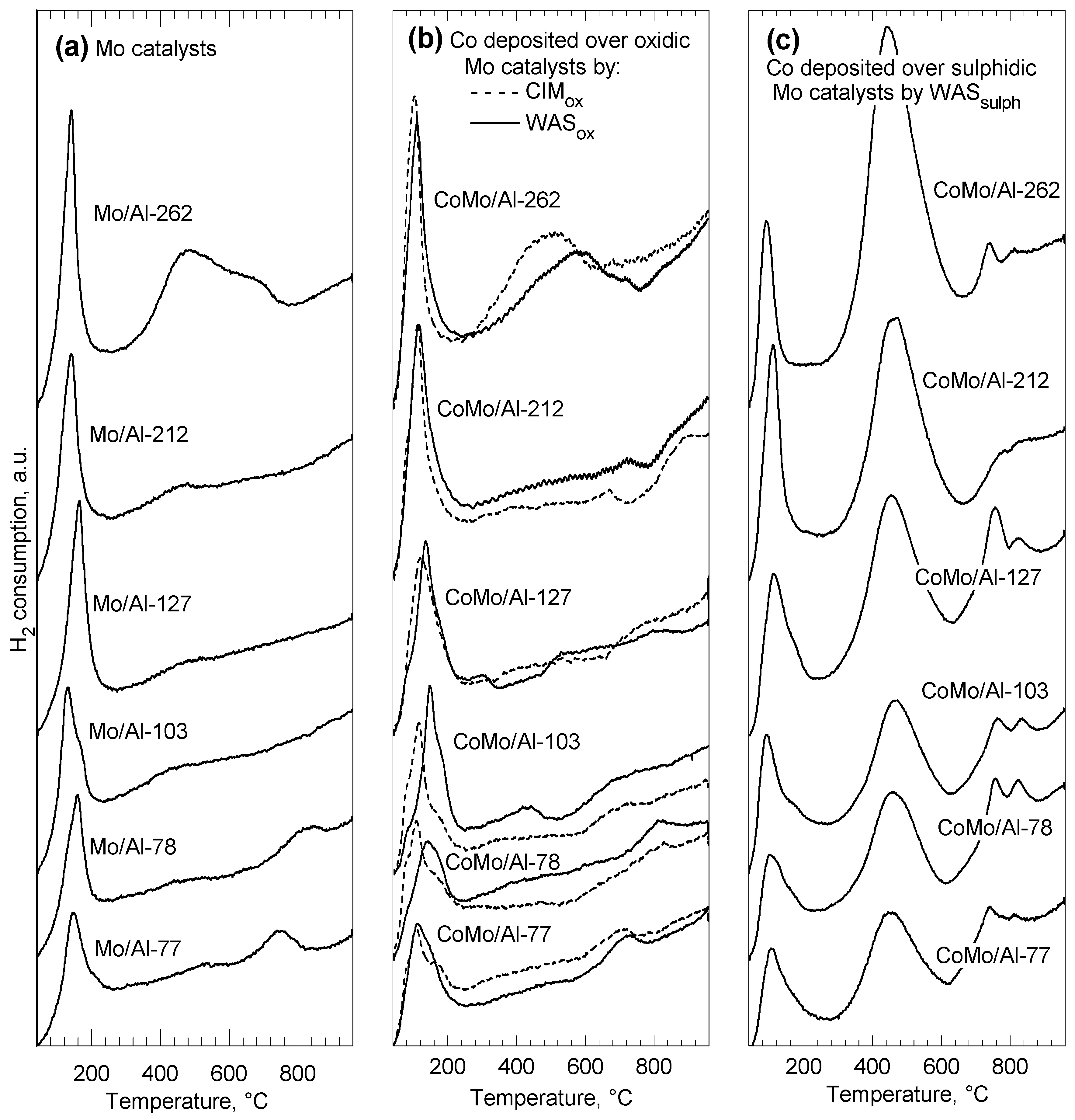

Figure 3. H2-TPR patterns of sulphided (a) Mo, (b) CoMo (WASox) and (CIMox), (c) and CoMo(WASsulph) catalysts.
Figure 3. H2-TPR patterns of sulphided (a) Mo, (b) CoMo (WASox) and (CIMox), (c) and CoMo(WASsulph) catalysts.
Catalysts 09 00987 g003
Catalysts 09 00987 g004 550

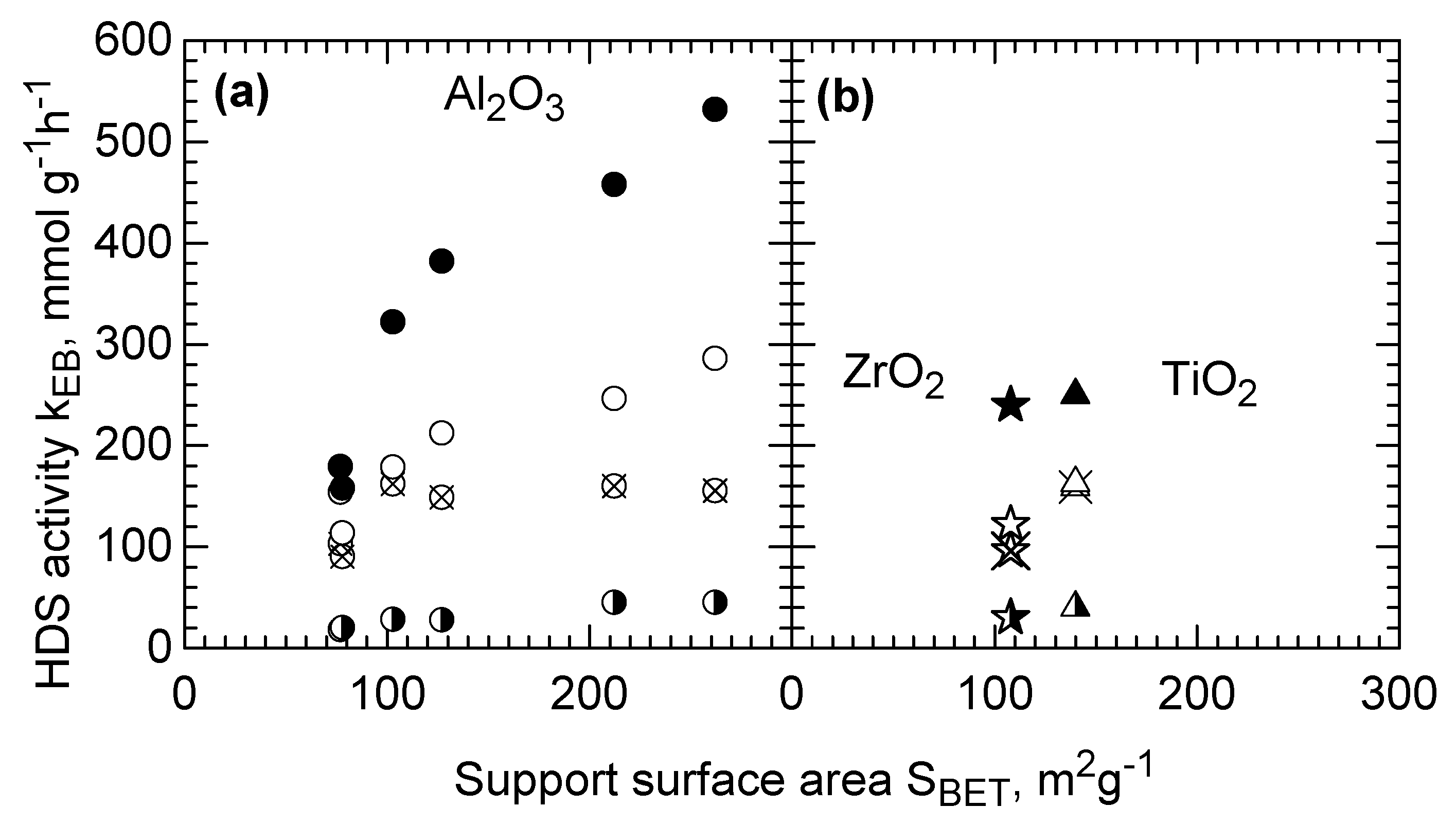

Figure 4. Activity of prepared catalysts kEB in HDS of 1-benzothiophene at 360 °C and 1.6 MPa: (a) circles–Al2O3-supported catalysts; (b) asterisks–ZrO2-supported catalysts, triangles–TiO2-supported catalysts. Half-solid symbols–Mo catalysts, crossed symbols–CoMo(CIMox) catalysts, open symbols–CoMo(WASox) catalysts, solid symbols–CoMo(WASsulph) catalysts. The kEB of commercial CoMo catalyst was 421 mmol g−1h−1.
Figure 4. Activity of prepared catalysts kEB in HDS of 1-benzothiophene at 360 °C and 1.6 MPa: (a) circles–Al2O3-supported catalysts; (b) asterisks–ZrO2-supported catalysts, triangles–TiO2-supported catalysts. Half-solid symbols–Mo catalysts, crossed symbols–CoMo(CIMox) catalysts, open symbols–CoMo(WASox) catalysts, solid symbols–CoMo(WASsulph) catalysts. The kEB of commercial CoMo catalyst was 421 mmol g−1h−1.
Catalysts 09 00987 g004
Catalysts 09 00987 g005 550

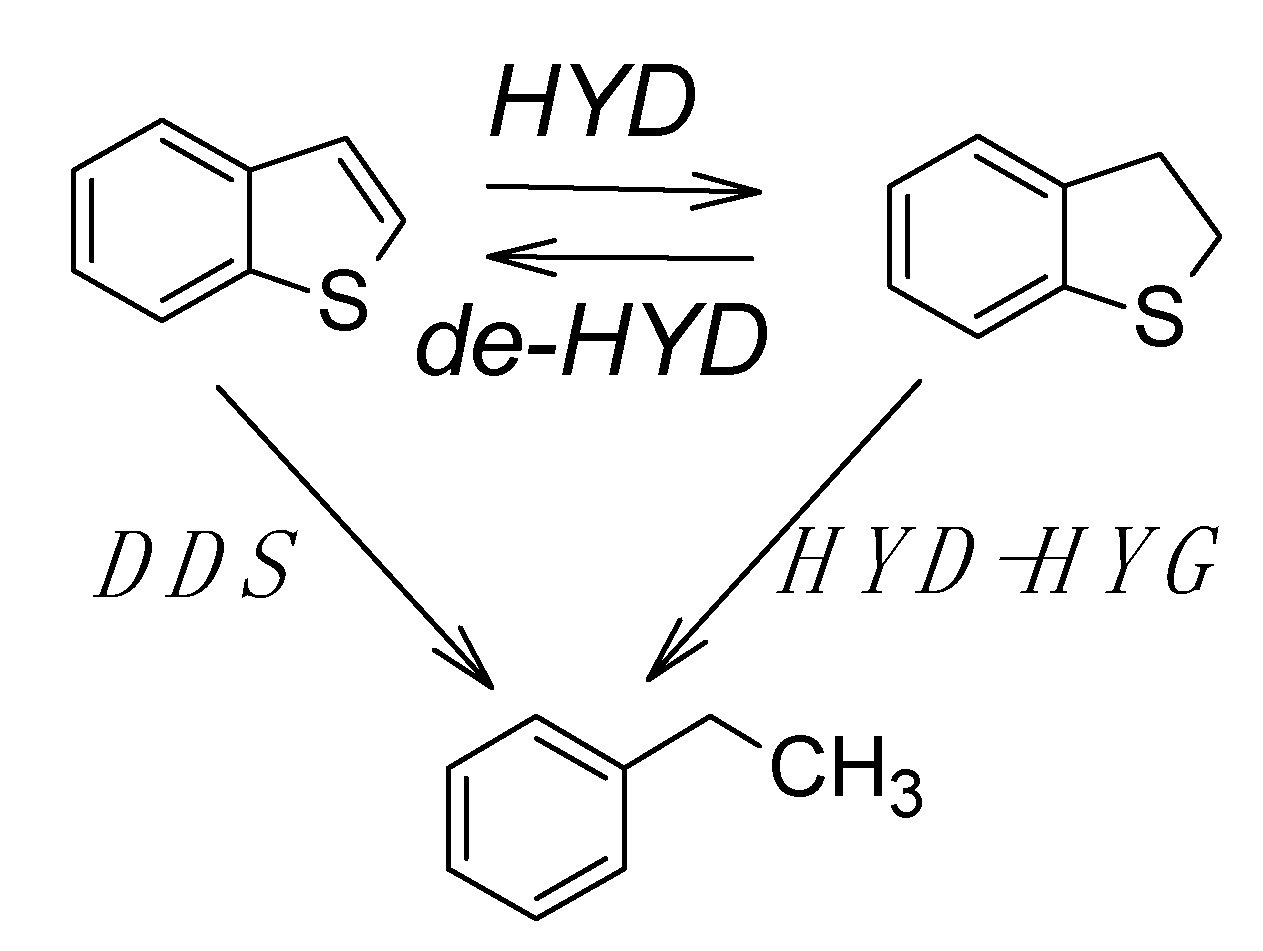

Figure 5. Scheme of 1-benzothiophene hydrodesulphurization: (HYD) hydrogenation of benzothiophene to dihydrobenzothiophene, (de-HYD) dehydrogenation of dihydrobenzothiophene to 1-benzothiophene, (HYD-HYG) hydrogenolysis of dihydrobenzothiophene to ethylbenzene (hydrogenation route), (DDS) hydrogenolysis of 1-benzothiophene to ethylbenzene (direct desulphurization route).

Figure 5. Scheme of 1-benzothiophene hydrodesulphurization: (HYD) hydrogenation of benzothiophene to dihydrobenzothiophene, (de-HYD) dehydrogenation of dihydrobenzothiophene to 1-benzothiophene, (HYD-HYG) hydrogenolysis of dihydrobenzothiophene to ethylbenzene (hydrogenation route), (DDS) hydrogenolysis of 1-benzothiophene to ethylbenzene (direct desulphurization route).
Catalysts 09 00987 g005
Catalysts 09 00987 g006 550
Figure 6. Relative composition during reaction of 1-benzothiophene (BT, open circles) hydrodesulphurization over Mo (a) and CoMo(WASsulph)/Al-262 (b) catalysts: (DH, solid squares) dihydrobenzothiophene, (EB, solid circles) ethylbenzene, (dash lines) the curves calculated using the parallel consecutive scheme of four pseudo-first-order rate reactions from Figure 5, (solid line) the curve calculated using an empirical pseudo-first-order rate equation (see text) to determine empiric HDS activity kEB.
Figure 6. Relative composition during reaction of 1-benzothiophene (BT, open circles) hydrodesulphurization over Mo (a) and CoMo(WASsulph)/Al-262 (b) catalysts: (DH, solid squares) dihydrobenzothiophene, (EB, solid circles) ethylbenzene, (dash lines) the curves calculated using the parallel consecutive scheme of four pseudo-first-order rate reactions from Figure 5, (solid line) the curve calculated using an empirical pseudo-first-order rate equation (see text) to determine empiric HDS activity kEB.
Catalysts 09 00987 g006
Table
Table 1. XPS analysis of re-oxidation of sulphided Mo/Al-262 on air at laboratory temperature.
Table 1. XPS analysis of re-oxidation of sulphided Mo/Al-262 on air at laboratory temperature.
OxidationAtomic %
TimeO 1sAl 2pMo 3dS 2p
Mo4+MoSxOyMo6+S2−S6+
0 min59.8133.481.940.010.234.540
5 min59.1633.802.030.040.234.730
10 min58.7134.461.960.050.204.630
1 h59.0434.131.960.070.254.570
2 h59.8533.191.890.080.324.450.23
1 day59.5933.751.760.080.384.100.35
6 days61.9631.821.360.130.683.570.48
1 month62.6331.091.340.180.763.280.72
Table
Table 2. Survey of prepared catalysts: Saturated adsorption loadings of Mo and Co; Surface area SBET of sulphided catalysts prepared by WASsulph; and Promotional effect of Co, PE, on activity of Mo catalyst in HDS of 1-benzothiophene.
Table 2. Survey of prepared catalysts: Saturated adsorption loadings of Mo and Co; Surface area SBET of sulphided catalysts prepared by WASsulph; and Promotional effect of Co, PE, on activity of Mo catalyst in HDS of 1-benzothiophene.
SupportLoading, wt.% (±0.1)SBET, m2g−1 Promotional Effect PE (± 1.0)
MoCoCo(±5)(PE = kEBCoMo/kEBMo)
WAS aWASox aWASsulphWASsulphCIMox bWASoxWASsulph
Al-774.50.50.8855.68.49.8
Al-784.10.40.8814.55.77.8
Al-1036.30.60.81095.26.411.4
Al-1277.41.01.21315.47.613.7
Al-21212.31.01.72153.65.510.2
Al-26214.32.02.42443.46.311.8
Al-262-e c14.3-2.4249--11.1
Zr-1086.01.32.01013.24.18.0
Ti-1407.92.02.81304.04.16.3
a achieved in our previous studies [13,14]; b Co also deposited by CIMox with the same loading as it was achieved by WASsulph; c HDS activity measured after grinding and sieving to particle size 0.16–0.32 mm.
Table
Table 3. XPS analysis of selected sulphided CoMo catalysts.
Table 3. XPS analysis of selected sulphided CoMo catalysts.
CoMo CatalystsAtomic %
O 1sAl 2pCoMo 3dS 2p
Co2+oxCo2+sulphMo4+MoSxOyMo6+S2−S6+
WASsulph/Al-26259.8430.890.561.321.690.520.245.990
WASsulph/Al-21257.9632.990.551.191.650.470.265.060
WASsulph/Al-12757.2433.050.370.950.820.330.164.020
WASox/Al-26257.7232.960.740.331.600.560.375.700
WASox/Al-21258.0234.130.500.231.560.500.274.800
WASox/Al-12758.7335.500.470.330.750.380.173.270
