SAPO-34 zeolite plays a pivotal role in the chemical industry [1
]. One of its important applications is in a methanol-to-olefins (MTO) process [2
]. Recently, the Chinese government has passed an agreement to scale up MTO processes in tons per year and many operational units are expected in the coming years [6
]. The most desirable product generated in this process is propene. There are certain issues related to this product, including separation of propene from its mixture [7
] and design of new catalytic materials to increase its production yield, stability, and recyclability [9
]. To understand and cope with these issues, researchers are exploring different strategies. One of the approaches is to study the diffusion behavior of propene on SAPO-34. Such studies require experimental data free of any coupling or oligomerization reactions. Some literature have shown that propene reacts with zeolites [13
]. However, exact conditions of propene–zeolite reaction remain unclear, that is, whether propene reacts with every zeolite or whether there are exceptional circumstances is unknown. Recently, Wang et al. [22
] showed that an experimental curve of propene uptake on SAPO-34 zeolite did not reach equilibrium but continued to decline with time, which was attributed to the slow chemical reaction (i.e., slow chemisorption), whereas a simulation uptake curve showed fitted linear equilibrium (i.e., physisorption), which is different from the experimental uptake curve after 20 s (see Figure S1
; Supplementary Materials

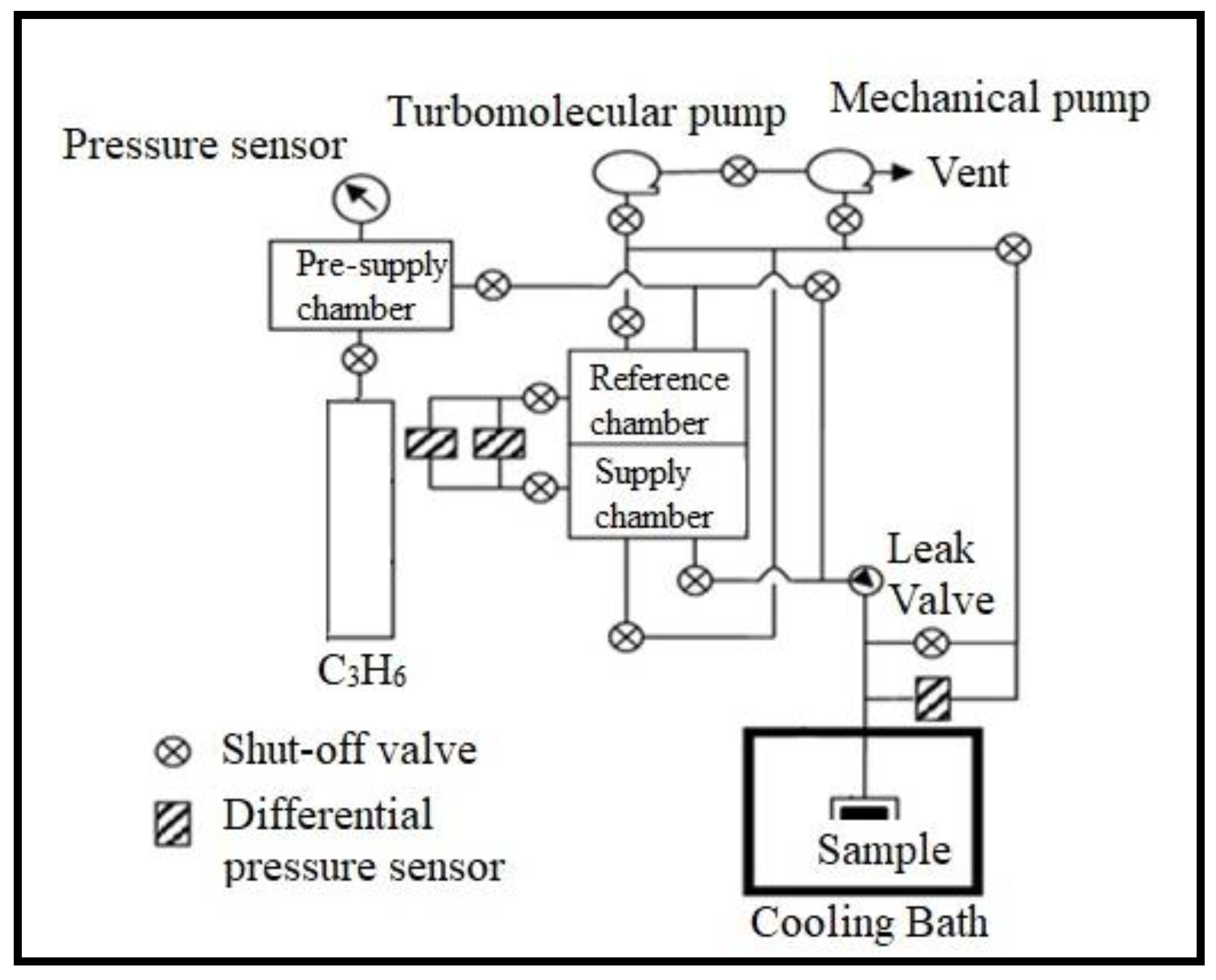

). In order to further explore this behavior, we have designed and examined a new experimental approach, that is, using various types of acidic SAPO-34 zeolites at different temperatures, to understand the reactivity and reproducibility of propene in a vacuum adsorption system. The schematic of the vacuum adsorption system is shown in Figure 1
2. Results and Discussions

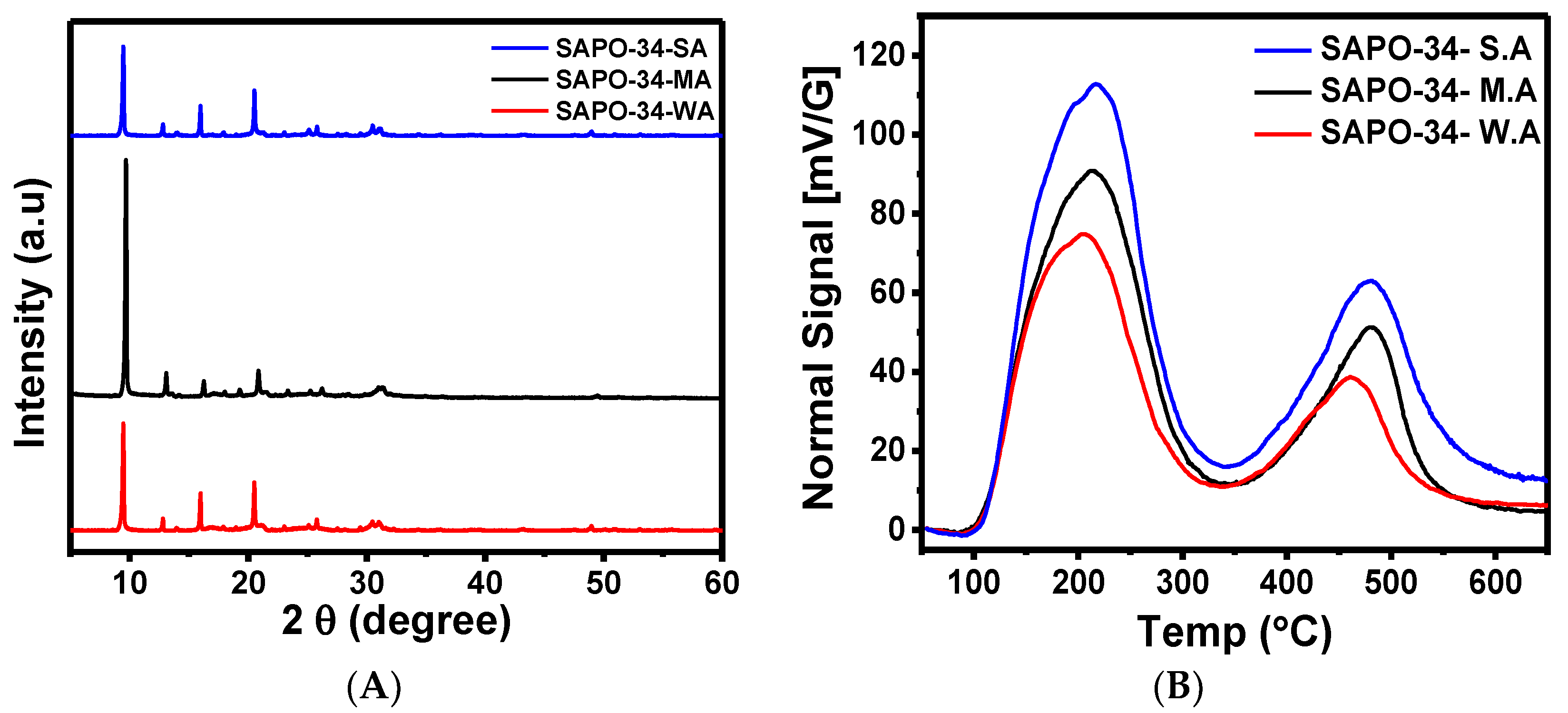

In order to examine the propene–SAPO-34 interaction, different batches of SAPO-34 zeolites were prepared with different strengths of acidity by controlling zeolite alumina and silica components. A higher ratio of silica to alumina was used to produce the SAPO-34 with higher acidity, and SAPO-34 patterns were characterized by X-ray powder diffraction (XRD) (as shown in Figure 2
A), which are comparable to the reported SAPO-34 XRD patterns [2
]. The XRD patterns of moderately acidic zeolite show relatively sharp peaks, reflecting the highest crystallinity of the materials similar to the results in the reported literature [2
]. The morphology and size of three types of zeolites were observed by scanning electron microscopy (SEM). The SEM images in Figure 3
are similar in morphology for high-, moderate-, and low-silica SAPO-34.
In moderately acidic SAPO-34 zeolites, large surface holes distributions were observed as mentioned in an earlier study by Li et al. [2
]. Similarly, low-silicon SAPO-34 has a small cubic structure different from results in the literature [24
] and layered SAPO-34 [25
]. Even though there is a slight variation in particle size, the chemical nature and crystal structure of prepared zeolites are the same. The high-silica zeolite results in bigger particles compared to the low-silica zeolite having small particle sizes. Different particle sizes do not affect the chemisorption as the chemisorption depends only on the strength of acidic sites.
The density of acid sites was measured by temperature-programmed desorption of ammonia (NH3
-TPD). The desorption peaks below 200, 200–400, and 400–600 °C were considered as weakly, moderately, and strongly acidic, respectively [26
]. As shown in Figure 2
B, the ammonia desorption peaks of all three SAPO-34 zeolites confirmed the presence of both weakly and strongly acidic sites but the relative ratio of total acidic sites varies the increases in direct correlation according to the Si/Al ratio. The quantitative analysis was also done by measuring the area under the curve of ammonia desorption peak and the results were presented in Table 1
. The strongly acidic zeolite has a total concentration of 1.58 mmol/g, which is consistent with that for a Si/Al ratio of 0.19 calculated by the SEM-EDX technique. Figure 3
b shows the SEM-EDX results for the strongly acidic SAPO-34. An elemental weight ratio and an atomic weight ratio give values of 0.196 and 0.188, respectively. Similarly, the Si/Al ratios of moderately and weakly acidic zeolite were calculated as 0.15 and 0.097, respectively. The results of NH3
-TPD and SEM-EDX values reflect the successful synthesis of three different acidic SAPO-34 zeolites.
The measurements of propene sorption isotherm on the three H-SAPO-34 zeolites were performed using a volumetric vacuum adsorption apparatus (manometry). The setup and procedure were described by Kobayashi et al. [30
]. Propene uptake was performed on an activated zeolite, at 400 °C for 6 h under an ultra-high vacuum pressure (3.0 × 10−4
Pa) in successive doses. At first, the zeolite surfaces were saturated by propene gas at room temperature (RT) to cover the sites of irreversible adsorption (chemisorption) and the cell was evacuated at RT under a high vacuum pressure (3.0 × 10−4
Pa), so that the subsequent measurement was performed only on a reversibly adsorbed (physisorbed) propene at RT, which was called cycle-1. After cycle-1, the sample at the same temperature was degassed for 2 h under a vacuum pressure (3.0 × 10−4
Pa) and tested for the second run of adsorption at RT, in order to measure the re-adsorbed amount, which was defined as cycle-2. The difference of propene adsorption on the highly acidic SAPO-34 between cycle-1 and cycle-2 showed the occurrence of oligomerization of propene on the zeolite surface, while in case of physisorption, identical adsorption occurs in both cycle-1 and cycle-2. In order to obtain accurate data for each dose, we recorded the adsorption equilibrium at a fixed point, because equilibrium never occurs in highly acidic zeolite due to the very slow reaction of propene with strongly acidic cages of zeolites [22
]. As shown in Figure 4
A, the zeolite with strong acidity shows that cycle-1 and cycle-2 are not the same and illustrates no reproducibility. The moderately acidic SAPO-34 also shows no reproducibility (Figure 4
B), but it is seen that the difference of propene adsorption on The moderately acidic SAPO-34 between cycle-1 and cycle-2 is smaller, reflecting the less chemisorption compare to that in the highly acidic zeolite. Figure 4
C shows the adsorption of propene on the weakly acidic SAPO-34 in cycle-1 and cycle-2. It can be seen that the adsorbed amounts in cycle-1 and cycle-2 are the same. Thus, the physisorption or chemisorption depends on the acidity of SAPO-34 zeolite.
In order to further study the temperature effect on the reactivity of propene in highly and moderately acidic zeolites, we performed propene adsorption isotherm at low temperatures in various cooling baths. These cooling baths were mixtures of octane + dry ice (−56 °C), NaCl + ice (−20 °C), and ice + water (0 °C). The propene adsorption experiments were carried out at different temperatures and revealed that the highly acidic zeolite shows completely reproducible results at temperatures of −56, −20, and 0 °C. Figure 4
D shows the propene adsorption in cycle-1 and cycle-2 at 0 °C. It is noted that the weakly acidic SAPO-34 adsorptions in cycle-1 and cycle-2 are identical at RT, reflecting the physisorption behavior; however, the absorbed amounts of propene in cycle-1 and cycle-2 are not the same for the moderately and highly acidic SAPO-34, reflecting the chemisorption of propene on high-acid-density SAPO-34 at 25 °C. The degree of chemisorption for the moderately acidic SAPO-34 is lower than that for the strongly acidic one, reflecting the direct influence of the acid density on chemisorption. When the temperature was kept at zero and below zero, identical adsorption in cycle-1 and cycle-2 are shown for the strongly acidic zeolite, reflecting that there is no chemical reaction or the chemisorption is slow enough so it could be ignored (see also Figure 5
). These results of propene adsorption on the three different acidic zeolites and their adsorption analyses at different temperatures provide useful information for computational researchers to choose the correct acidity and adsorption temperature while using propene as the adsorbate. It is also beneficial to use the cooling bath for separation of propene from propane or its mixture when there is a chance of a chemical reaction. These results are also helpful in preparing zeolites with specific acidity to avoid chemisorption of products and hence increase the overall lifetime of the catalyst.
3. Materials and Methods
Three different acidic SAPO-34 zeolites were synthesized by a hydrothermal method with some modification in initial stoichiometric ratios of silica to alumina. The silicon source was silica gel (40 wt% SiO2) (Silica sol Qingdao Co, Ltd., Qingdao, China), and the aluminum source was 73 wt% Al2O3 (Chalco Shandong co. Ltd., Shandong, China), the phosphorus source was phosphoric acid (85 wt% H3PO4) (Tianjin Ronghong chemical co. Ltd., Tianjin, China), and the template was tetraethylammonium (TEA) (Tianjin Yongda Chemical Reagent Co., Ltd., Tianjin, China). Liquid compositions were used in ratios of Al2O3:xSiO2:1.15P2O5:2.7TEA:114H2O (x = 0.05–0.5). By changing the content of Si in the catalyst solution, three kinds of the skeleton of silicon content were obtained. For x = 0.5 was synthesized, a catalyst with a high Si/Al ratio was obtained. For x = 0.25, a catalyst with moderate acidity was obtained. For x = 0.05, a catalyst with a low Si/Al ratio was obtained called as the weakly acidic SAPO-34 zeolite. The crystal structure of the sample was characterized by XRD (Bruker D8/Advance, CO, USA). Cu Kα X-ray was used as the X-ray source. Diffraction intensities were recorded from 5° to 80° at a rate of 5°/min. The observed diffraction patterns were assigned by referring to the Joint Committee on the Powder Diffraction Standards (JCPDS) card. The morphology of the zeolite was characterized by SEM (JSE-6700F, JEOL, CA, USA). Acid site density was calculated from NH3-TPD measurement. The sample was first heated up to 400 °C under the He flow and kept for 2 h. After cooling down to 100 °C, it was exposed to the NH3 flow for 1 h and then to the He flow for 1 h to remove excessive NH3. Then, the temperature was increased up to 650 °C at a rate of 10 °C/min. The desorption signal of NH3 from the sample was detected by a thermal conductivity detector. The acid site density was also calculated from the EDS analysis of the Si/Al ratio.
We have successfully developed three H-SAPO-34 zeolites with a similar morphology but different acid properties as evidenced by the XRD, FESEM, EDX, and NH3-TPD measurements. It was obvious that the extent of zeolite–propene interaction, diffusional properties, and adsorptive properties were all dependent on the zeolite acidities and adsorption conditions. At RT, propene separation and diffusion characteristics could be observed on the weakly acidic H-SAPO-34 zeolite. On the other hand, low-temperature conditions are necessary to avoid chemisorption and to establish similar features with the highly acidic H-SAPO-34 zeolite. The results have, therefore, shed useful information on the behavior of propene in H-SAPO-34, separation of propene from other gases, and would be beneficial in further elucidating the mechanism and stability of catalysts in MTO reaction.
