A DFT Study of Acetylene Hydrogenation Catalyzed by S-Doped Pd₁/g-C₃N₄

Abstract

To exploit the excellent properties of g-C₃N₄, more and more studies have been carried out in various fields in recent years to improve the selectivity of catalysts, especially for selective acetylene hydrogenation. To our best knowledge, Pd catalyst is of great importance to hydrogenate acetylene in ethylene feed. Though we have explored the hydrogenation of acetylene catalyzed by Pd₁/g-C₃N₄ before, doping with non-metals has never been studied. In this work, the mechanisms of selective hydrogenation of acetylene to ethylene on S-doped Pd₁/g-C₃N₄ were investigated and we also compared this result with undoped Pd₁/g-C₃N₄. By comparing the activation energy and selectivity of undoped Pd₁/g-C₃N₄ with those of S-doped C and N sites of Pd₁/g-C₃N₄, we found that S-doped C sites can improve the reactivity, but with a poor selectivity, while the activity of S atom doped N sites was not improved, but the selectivity has improved. Our work provides significant insights to explore the development of high efficiency non-metallic doping single metal atoms supported on 2D layered materials.

1. Introduction

Graphite carbonitride (g-C₃N₄) is a planar two-dimensional lamellar structure similar to graphene, which is a candidate material that combines the merits of high surface area and low cost with the most stable phase of all allotropes under varied environmental conditions [1,2,3,4]. The preparation of g- C₃N₄ is relatively simple and inexpensive owing to the fact it can be obtained by urea pyrolysis [5] or direct heating of melamine [6], therefore people have become more interested in the study of g-C₃N₄. Since Wang et al. [7] first reported that g-C₃N₄ can be used to generate hydrogen from water by using visible light photon energy, there has been increasing interest in the application of g-C₃N₄ in different fields for its high chemical and thermal stability, low band gap energy [8] and a lot of efforts have been made to develop and further explore catalysts with excellent performance.

In order to improve the performance of g-C₃N₄, recent studies have proposed the strategy that g-C₃N₄ also can be used as an excellent substrate for supporting catalysts to anchor single metal atoms and catalyze various reactions due to its more specific N species and larger N coordination cavity [9,10,11]. In 2015, Vilé and colleagues [12] investigated and studied a stable single catalyst that could anchor Pd atoms in the cavities of g-C₃N₄ while it could not anchor stably on Al₂O₃ supports, and it seems that active site isolation reduces the formation of high hydrocarbons (green oils) and improves the selectivity of catalysts, as also demonstrated for other types of reactions [13,14,15]. Motivated by these observations, Gao et al. [16] first studied the reduction of carbon dioxide by Pd/g-C₃N₄ as photocatalyst through density functional theory, which showed that the photocatalysts exhibit excellent activity in CO₂ reduction. In addition to photocatalysis, recent experiments have also used this strategy in other types of reactions, especially in selective acetylene hydrogenation to improve the catalyst selectivity. To our best knowledge, Pd catalysts are of great importance to hydrogenate acetylene in ethylene feed and the single-atom Pd₁/C₃N₄ catalyst exhibited higher ethylene selectivity compared with Pd clusters [17,18]. For example, Lu et al. [19] proved that single Pd atom supported on C₃N₄-catalyzed acetylene hydrogenation exhibited excellent selectivity compared with Pd clusters and other support, and our previous study [20] also verified this experimental result well by using density functional theory calculation.

Previous experimental studies have shown that doping C₃N₄ with various non-metallic elements [21,22,23,24,25,26,27,28] and heteroatoms [29,30,31] are effective ways to improve the photocatalytic performance, and in particular doping with S heteroatoms has attracted more and more attention [25,32]. Xie et al. [33] used experimental and theoretical methods to study the advantages of S-doped C₃N₄ nanosheets in surface morphology, special surface area and photocatalytic activity, and explained that the enhancement of photocatalytic activity could be attributed to coupling of the nanostructure and sulfuring. Based on DFT calculations, Wang et al. [34] presented a comprehensive study of CO₂ reduction reaction on g-C₃N₄ and S-doped g-C₃N₄ and made a conclusion that the photoactivity was enhanced by S doping. Sun et al. [35] prepared the Ni/g-S-C₃N₄ composite photocatalyst and exhibited the best photocatalytic activity of H₂ evolution from water under visible light irradiation. Inspired by these experiments, despite the excellent photocatalytic effect of S-doped C₃N₄ on monoatomic metal catalysts and the fact Pd-based catalysts are the best catalysts for acetylene hydrogenation, no experimental or theoretical studies have been carried out to explore acetylene hydrogenation reaction over Pd₁/S-g-C₃N₄ catalysts so far. Therefore, in this work, we systematically investigate the Pd₁/S-g-C₃N₄ catalyzed hydrogenation of acetylene by using density functional theory.

Owing to the fact many experimental studies have shown that heteroatom doped g-C₃N₄ has two kinds of doping sites, namely C-doped sites and N-doped sites [36,37,38], therefore we constructed and found the optimal structure of S-doped C and N sites firstly, then we found the optimal adsorption sites of C₂H₂ and H₂ molecules on the catalyst and obtained the co-adsorption structure, after that we began to study the whole reaction mechanism of acetylene hydrogenation catalyzed by these two dope sites after adsorbing a Pd atom, and compared the activity and selectivity with the catalyst undoped with S atoms. Meanwhile, our work will provide significant insights to explore the development of high efficiency non-metallic doped single metal atom catalysts supported on 2D layered materials.

2. Results and Discussion

2.1. Optimized S-Doped g-C₃N₄

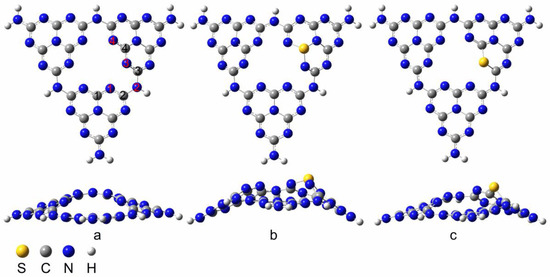

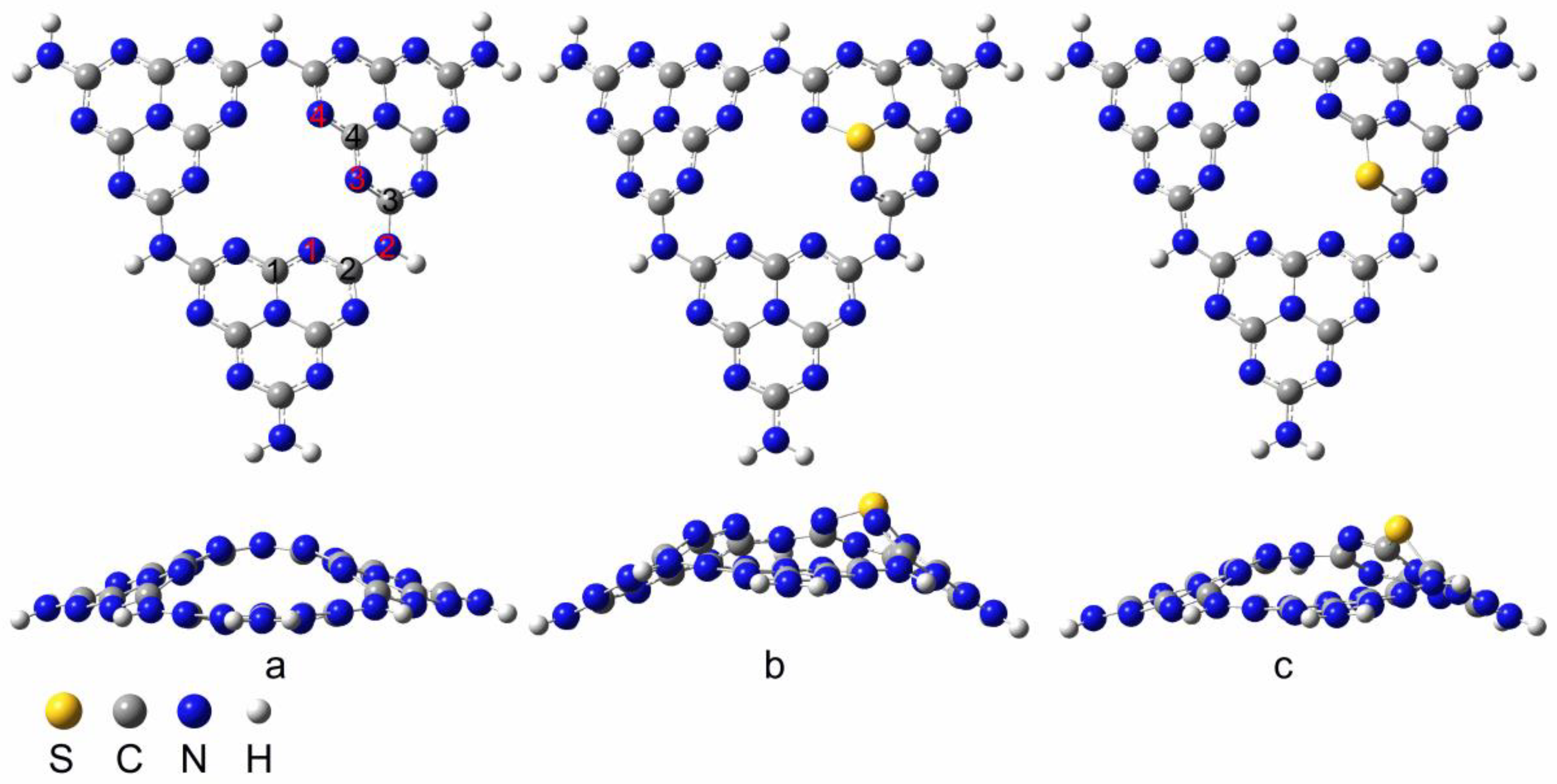

The optimized structures of g-C₃N₄ and S-doped g-C₃N₄, as well as the top and side view are shown in Figure 1. For S-doped g-C₃N₄, there exist two doping sites, namely S-doped C sites and S-doped N sites. As shown in Figure 1a, there exist four doping sites for each doping mode, namely C1-C4 and N1-N4. In order to obtain the optimal doping structure, we examined these four different doping sites separately and obtained the optimal C and N doping sites. We can see that in Figure 1c, gray corresponds to C atom, blue corresponds to N atom and yellow corresponds to S atom. From the side view, it can be seen that the structure of g-C₃N₄ is changed after S-doping C site, which is from wavy structure to bowl-shaped structure, while S-doping N site does not change its structure.

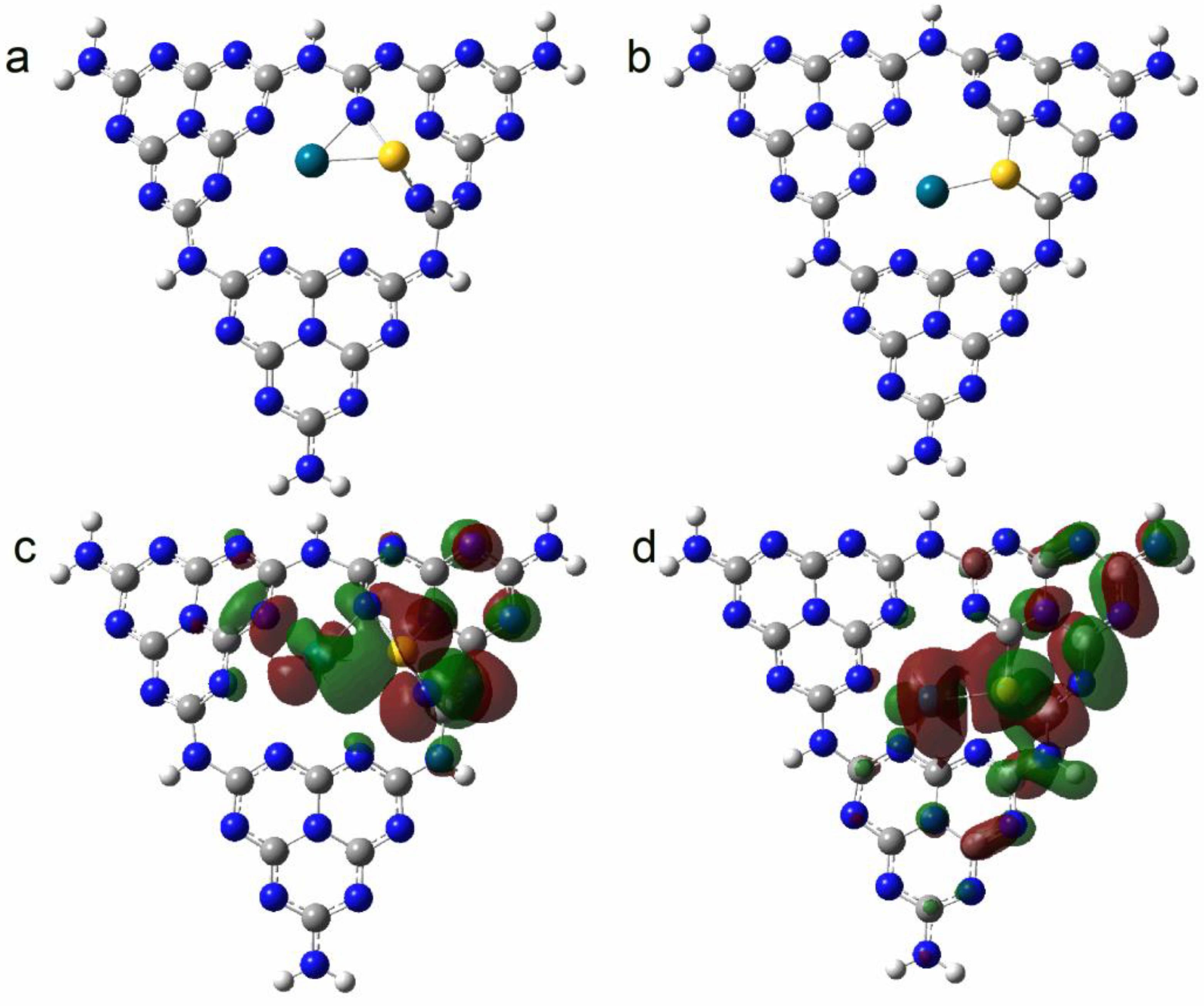

Subsequently, in order to obtain the lowest energy configuration, we placed a single Pd atom at all possible sites and obtained the optimal adsorption sites. The optimal adsorption configuration of Pd adsorbed at the S-doped C site and N site can be seen in Figure 2a,b. The Pd atoms in the S-doped C site and the N site are all bonded to the S atom, with Pd-S bond lengths 2.29 Å and 2.38 Å, respectively. In order to explore the optimal adsorption structure of the reactants, we analyzed the highest occupied orbital of the catalyst, which corresponds to the highest occupied molecular orbital (HOMO) pattern shown in Figure 2c,d. We found that the electron distribution of the highest occupied molecular orbitals produced by the two doping sites is concentrated on the Pd and S atoms, indicating that near the two atoms is the most likely site for adsorption. The HOMO energies were −0.19727 eV and −0.1446 eV respectively. For S-doped g-C₃N₄ at C site, the Mulliken charge for Pd and S atoms are about 0.18e and 0.70e, the adjacent two N atoms have a Mulliken charge of −0.66e and −0.51e, while for S-doped g-C₃N₄ at a N site, the Mulliken charge for Pd and S atoms are about 0.02e and 0.04e, with the adjacent two N atoms of −0.40e and −0.47e, respectively. Both of these imply an electron transfer from Pd and S atoms to the g-C₃N₄ support, and there exists a strong interaction. Beside, when compared with previous studies [20], the corresponding electrons of the Pd atom decrease a lot after S-doping g-C₃N₄ at a C site, indicating that Pd atom transfers more electrons to the support, while the electrons on Pd atoms do not change much for S-doped g-C₃N₄ at a N site, which affects the activity of the reaction.

2.2. Adsorption of Reactants

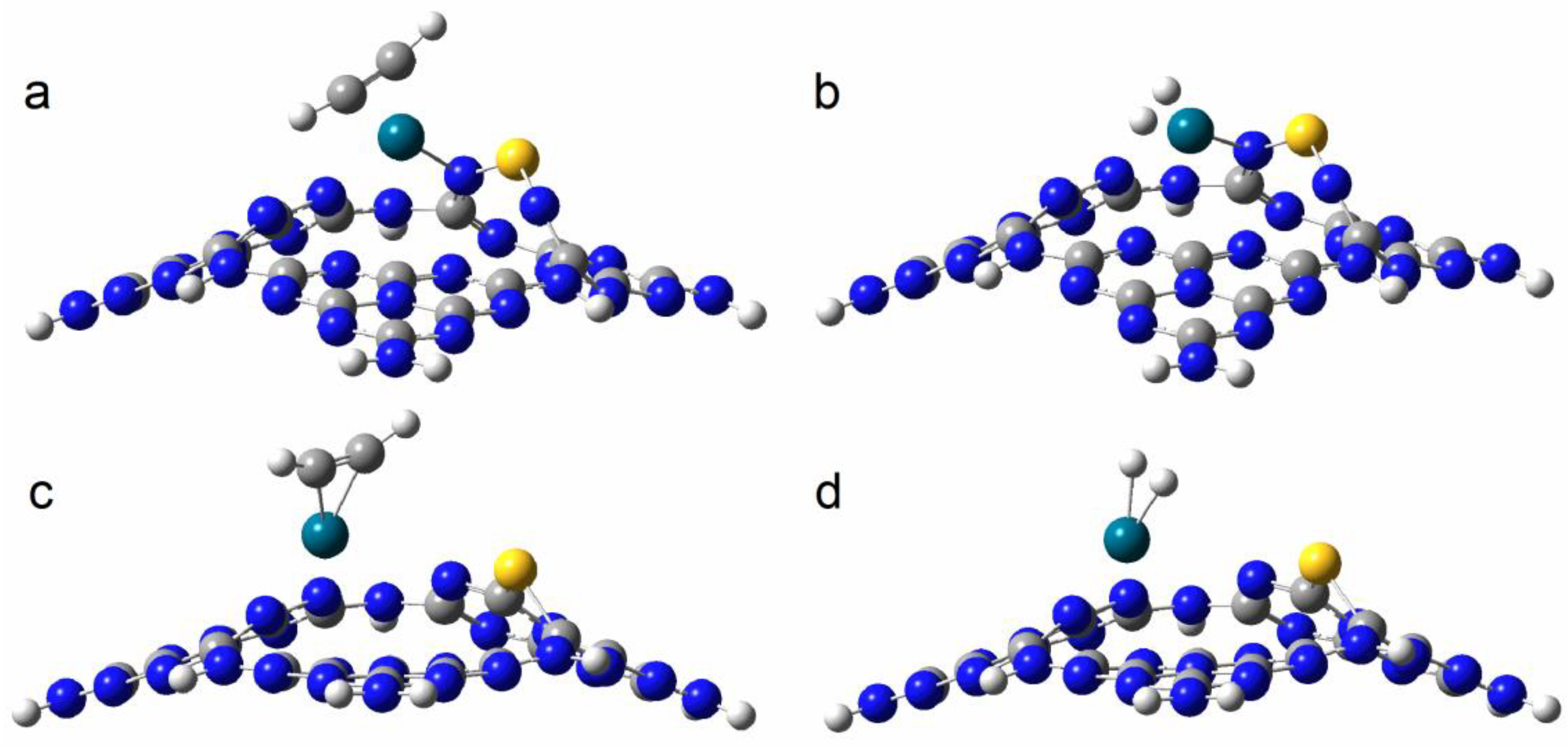

The reactants include C₂H₂ and H₂ molecules, according to the highest occupied orbital from Figure 2c,d, molecular orbitals obtained by overlapping the same phase have the property of accumulating electrons in the region between atoms, thus forming stable bonds between atoms and forming molecular bonding orbitals, and it is found that the reactant is most likely to adsorb near Pd and S atoms. Therefore, we placed the reactants at different sites near the S and Pd atoms, such as the top and side of the Pd atom, the bridge of S and Pd atom. By calculating the adsorption energy at different sites, we obtained the optimal adsorption structure. Figure 3a–d represent the optimal adsorption configurations of the doped C sites and the doped N sites, respectively. For the S-doped C sites, both the optimal adsorption sites for the C₂H₂ and H₂ molecules are on one side of the Pd atom, where the C-Pd bond length in the C₂H₂ adsorption structure is 2.18 Å, and the C-C bond length is increased from 1.205 Å to 1.236 Å, the bond angle of C₂H₂ also changed, with the adsorption energy of −17.0 kcal/mol. the H-Pd bond length in H₂ adsorption structure was 1.83 Å, and the H-H bond length was also increased from 0.74 Å to 0.79 Å, the adsorption energy was −6.19 kcal/mol. For the S-doped N sites, the optimal adsorption sites for the C₂H₂ and H₂ molecules are at the top of the Pd atom, but the position of the Pd atom changes to the left N atom in the six-fold cavity, which is consistent with the results reported previously [13]. The C-C bond length in the C₂H₂ adsorption structure increases from 1.205 Å to 1.261 Å, the C-Pd bond length is 2.06 Å, the bond angle also changes from 180° to 155.5°, with the adsorption energy of −21.62 kcal/mol. The bond length in the H₂ adsorption structure changes from 0.74 Å to 0.87 Å, the H-Pd bond length is 1.67 Å, and the adsorption energy is −8.16 kcal/mol. We found that both the adsorption energy of the C₂H₂ molecules corresponding to these two different S-doping sites is larger than that of the H₂ molecule, indicating that the C₂H₂ molecule preferentially adsorbs with respect to the H₂ molecule, we also found that the adsorption energy of S-doped N atom for the reactant is larger than that of S-doped C atom for the reactant. Therefore after determining the preferential adsorption order of the reactants, we placed H₂ molecules at different positions near the C₂H₂ molecule and obtained the most stable co-adsorbed structure. The structure can be seen in the following figure, then we start to explore the reaction mechanism of two different doping sites in detail.

2.3. Reaction Mechanism of Acetylene Hydrogenation Catalyzed by S-Doped C Site

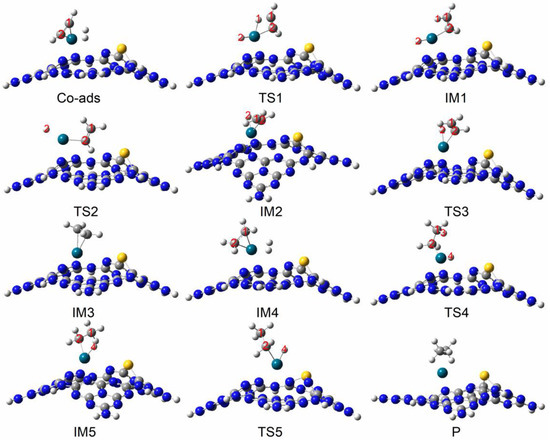

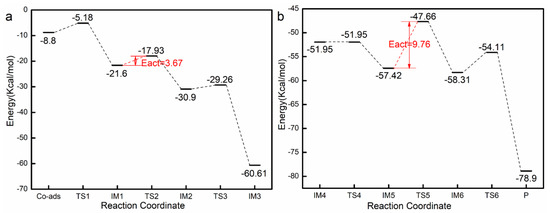

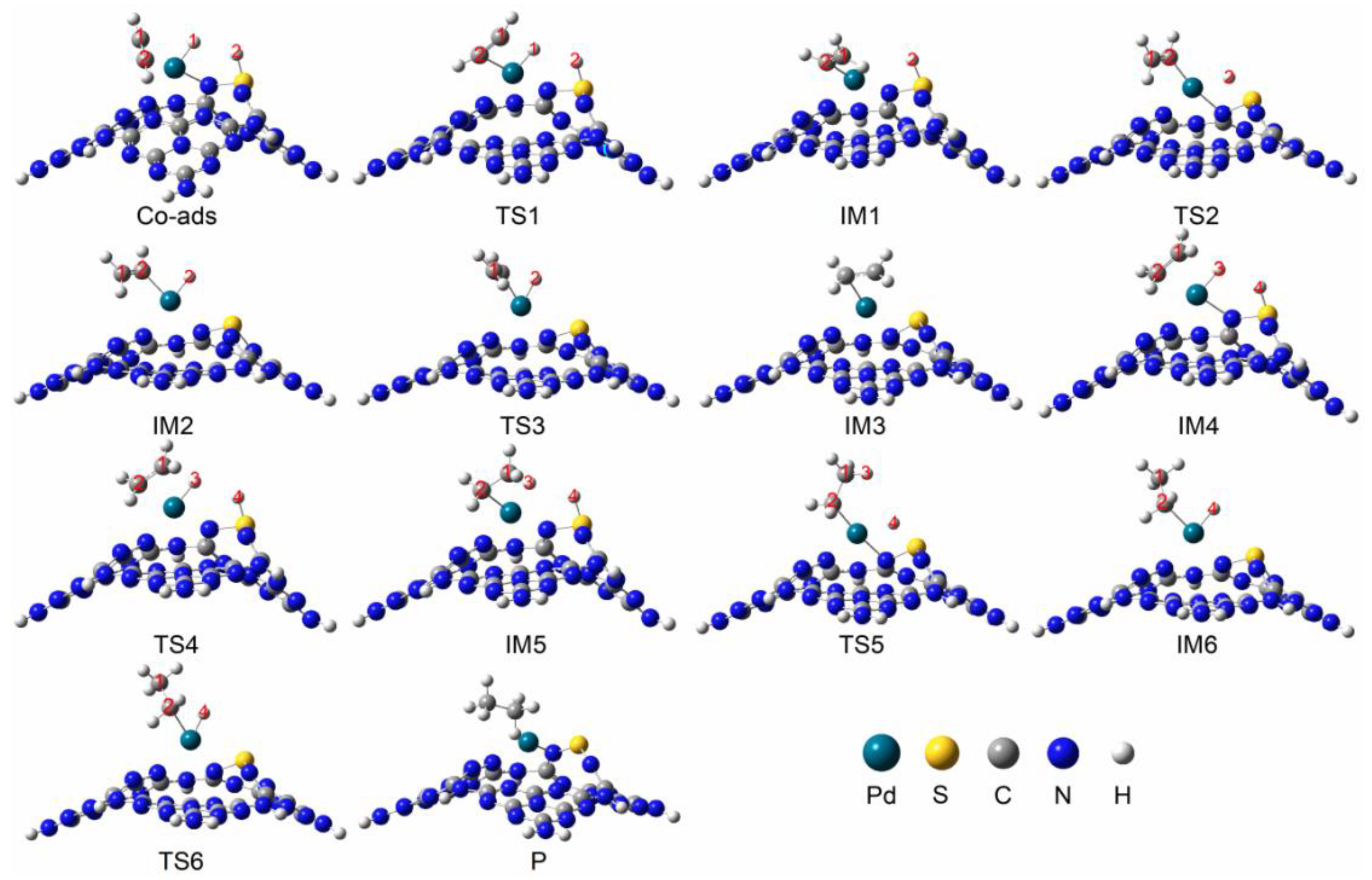

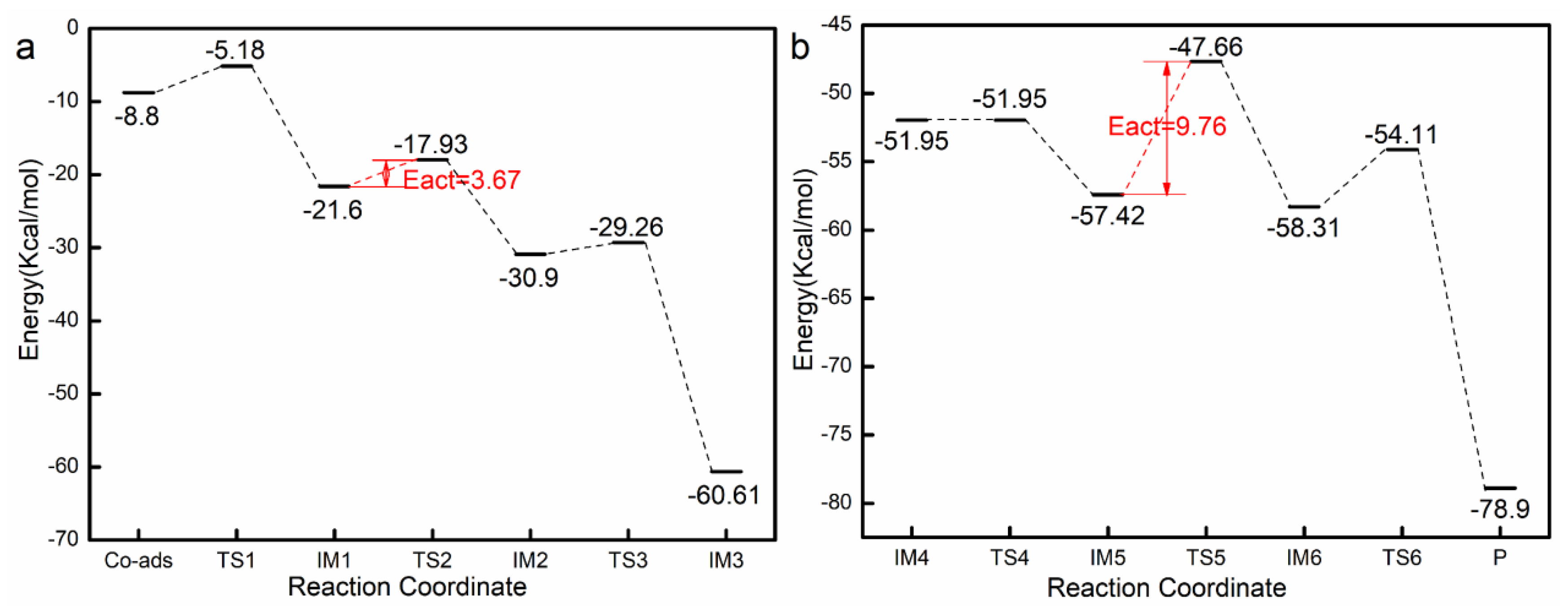

The structure and energy corresponding to each step in the catalytic acetylene hydrogenation reaction at the S-doped C site can be seen in Figure 4 and Figure 5, respectively. Hydrogenation has many side reactions, but we found that the process of continuous hydrogenation of acetylene is the optimal route based on our previous study, therefore we only study the reaction process and mechanism of this route. The hydrogenation process of this route is still divided into two steps, the first step is to hydrogenate acetylene to form the target product ethylene, and the second step to continue hydrogenation to produce by-product ethane.

First, we studied the reaction process of hydrogenation of acetylene to ethylene. The catalytic hydrogenation reaction of this process is still started from the co-adsorption structure, we can see the co-ads structure in Figure 4. When we place the H₂ molecule on the side of the C₂H₂ molecule, H₂ molecules dissociate directly while bonding with Pd atoms and S atoms, with bond lengths of 1.52 Å and 1.35 Å, respectively, which indicates that the S atom doping promotes the dissociation process of H₂ molecules, and then the sequential hydrogenation of the acetylene is started. The H1 atom will pass through the transition state TS1 and only needs to overcome an energy barrier of 3.62 kcal/mol to form the intermediate IM1. In the transition state TS1, the H1 atom is close to the C1 atom, and its bond length is shortened from the co-adsorbed of 2.48 Å to 1.80 Å. The atom of H1 vibrates in the direction of producing intermediate IM1. The transition state has only one imaginary frequency of −30.58 cm⁻¹. In the intermediate IM1, the H1 atom is connected to the C1 atom, and the bond length is shortened to 1.09 Å. Since the H2 atom is far from the C2 atom, the H2 atom will generate ethylene (IM3) through two transition states (TS2, TS3). In the transition state TS2, the H2 atom is separated from the S atom, and the bond length is increased from 1.37 Å to 1.65 Å. The vibration direction of the H2 atom is toward the C2 atom, with the only one virtual frequency of −309.41 cm⁻¹ and the activation energy is 3.67 kcal/mol, which is the rate control step for the ethylene reaction process. In the intermediate IM2, the H2 atom is bonded to the Pd atom, the bond length is shortened from 1.84 Å to 1.54 Å in the transition state TS2, and the angle of C2-Pd-H2 is also reduced from 102.78° to 77.79°. Then the intermediate IM2 will pass through a smaller energy barrier of 1.64 kcal/mol to form ethylene (IM3) via the transition state TS3. In the transition state TS3, the C2-H2 bond length shortened from 2.25 Å to 1.67 Å, and the H2 atom vibrates to the C2 atom, and with only one virtual frequency of −636.56 cm⁻¹.

In all of the transition states found above, we also use IRC calculations to ensure that the transition state corresponds to the correct previous step reactant and the latter step intermediate to ensure the accuracy of the transition state. In IM3, H2 and C2 are bonded to each other to form an ethylene structure, and the desorption energy is 16.82 kcal/mol, which is consistent with the absolute value of the adsorption energy of ethylene.

After the formation of ethylene, we explored the reaction process of ethylene hydrogenation to ethane. Similarly, a H₂ molecule was placed at different positions near the C₂H₂ molecule and the optimal and most stable adsorption configuration was obtained, which was consistent with the co-adsorption structure obtained by the first acetylene hydrogenation. When ethylene is hydrogenated, the H₂ molecule is also directly dissociated into two H atoms, which bond to Pd and S atoms, with the bond lengths of 1.53 Å and 1.35 Å, respectively. Owing to the fact the H3 atom is very close to the C1 atom, we have found that the adsorbed structure did not need to overcome any energy barrier to form the intermediate IM5. In the transition state TS4, the H3 atom vibrates toward the C1 atom and the bond length is shortened to 1.77 Å, with only one imaginary frequency of −263.15 cm⁻¹. In the intermediate IM5, H3 atom associated with the C1 atom. Since the H4 atom attached to the S atom was far from the C2 atom, the H4 atom needs to undergo two transition states (TS5, TS6) to form the final product ethane (P). In the transition states TS5 and TS6, the H4 atom vibrate to the C2 atom, and the virtual frequencies were −372.69 cm⁻¹ and −703.98 cm⁻¹, Then H4 atom bonds with the C2 atom to form ethane.

During the whole second step of ethylene hydrogenation to ethane, each transition state was calculated by IRC to ensure that each transition state connect to the reactant in front and the intermediate in back. We found that the structure of carrier g-C₃N₄ in the two-step hydrogenation process (Co-ads and IM4 in Figure 4) was bowl-shaped, while that of carrier g-C₃N₄ in all transition states and intermediates in the reaction process was wavy. In addition, when we observe the structure of the target product ethylene (IM3) and the product ethane (P), the carrier structure of g-C₃N₄ was restored to the bowl shape, and such structural changes indicate that the catalyst plays a large role in the overall reaction.

2.4. Reaction Mechanism of Acetylene Hydrogenation Catalyzed by S-Doped N Site

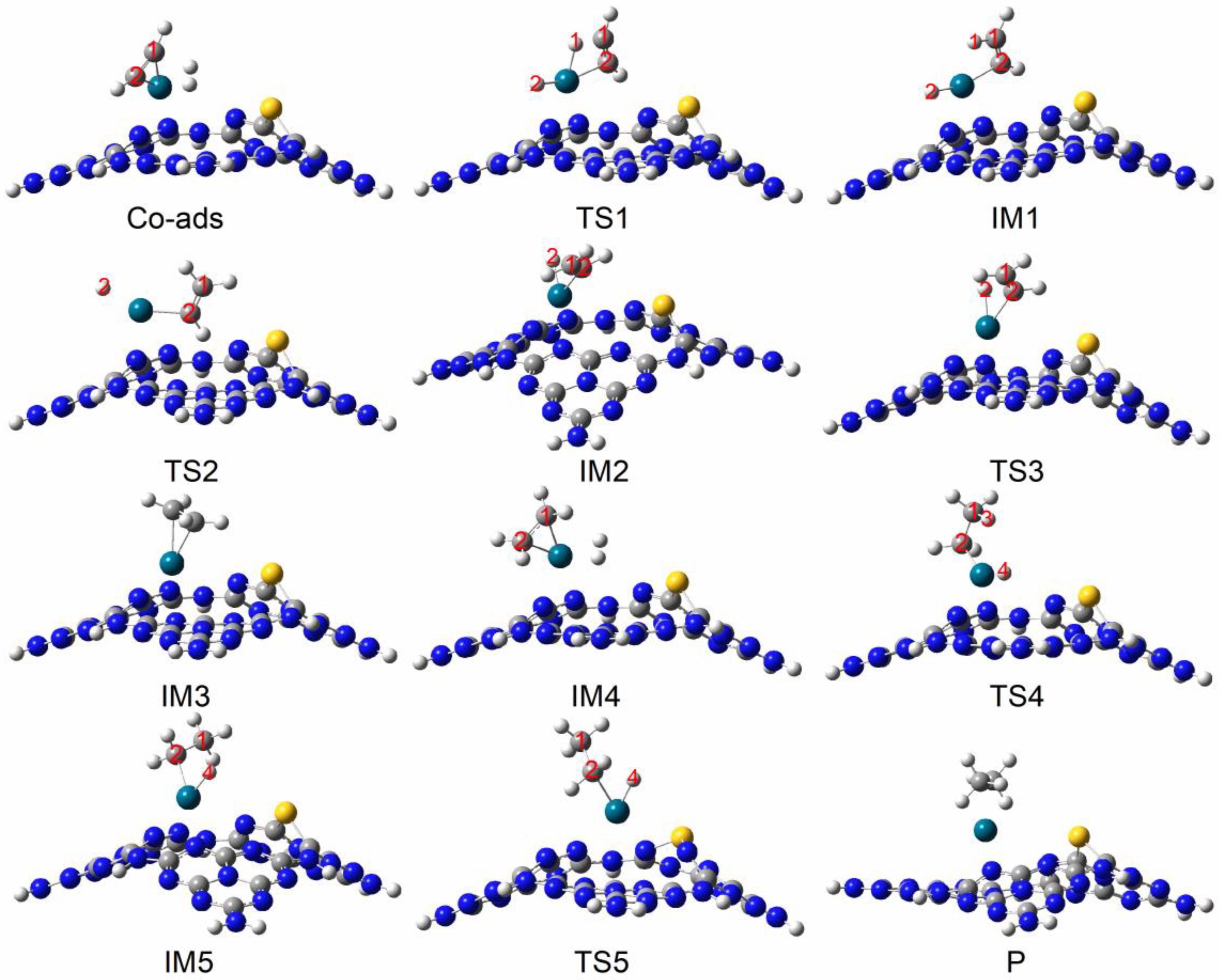

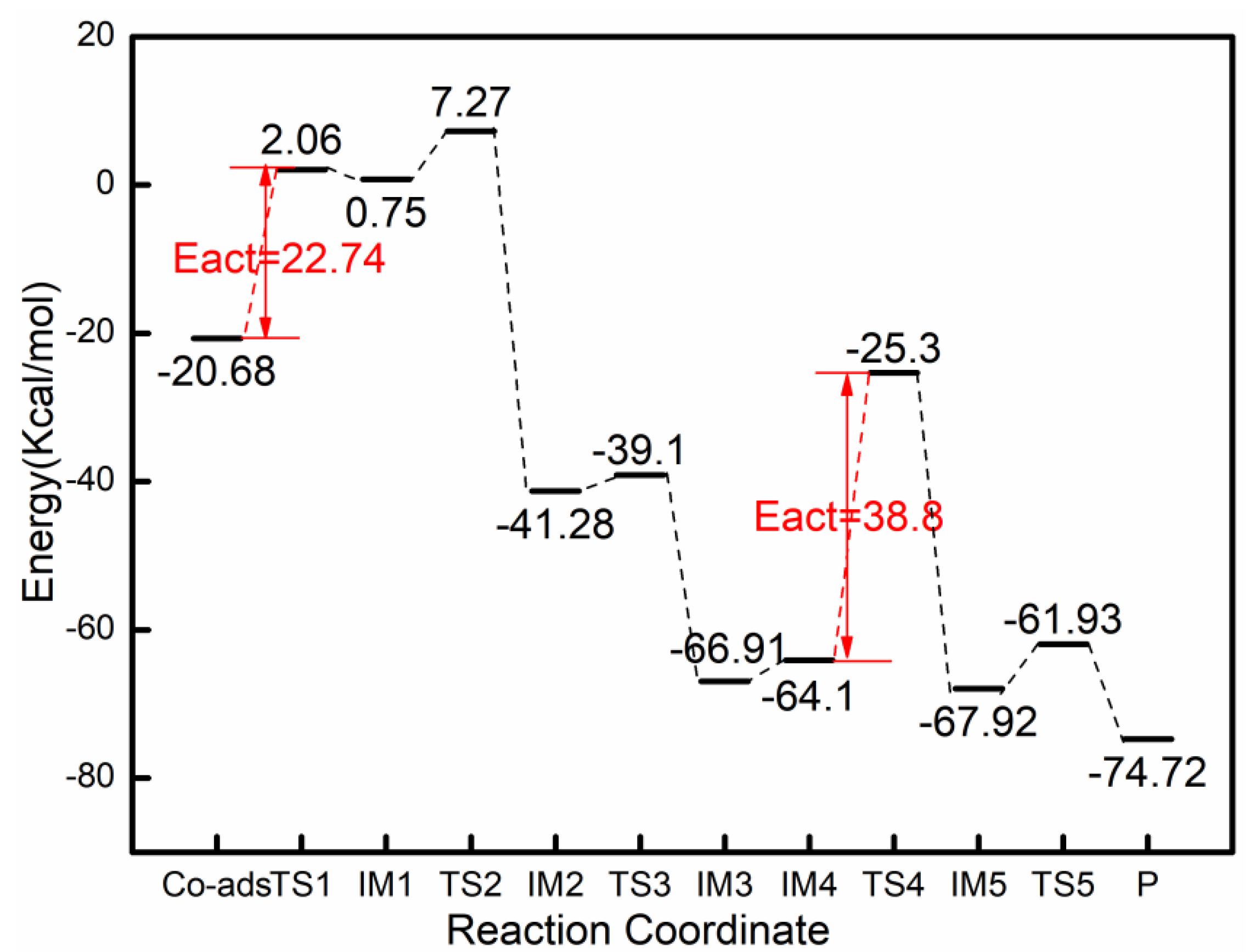

Figure 6 and Figure 7 illustrate the corresponding structures and energies in the catalytic acetylene hydrogenation reaction at the S-doped N site. We only introduce the mechanism of this optimal reaction path for continuous hydrogenation of acetylene. The first hydrogenation starts from co-ads (Co-ads), the co-adsorption energy is −20.68 kcal/mol, and the C₂H₂ and H₂ molecules were adsorbed on both sides of the Pd atom, respectively. The bond length of the H₂ molecule is only increased by 0.04 Å, indicating the H₂ molecule is not activated. It can be seen from the figure that the co-adsorbed structure needs to generate the intermediate IM1 overcoming an energy barrier of 22.74 kcal/mol. In the transition state (TS1), the H1 atom vibrates to the C1 atom, and only one virtual frequency of −753.54 cm⁻¹ was generated. The distance between the H1 atom and the H2 atom became longer, indicating that the H₂ molecule has been activated. In the intermediate IM1, H1 bonded to C1 atom, with the bond length shortened from 1.50 Å to 1.17 Å. Owing to the fact the H2 atom is far from the C2 atom, the intermediate needs to pass through two transition states (TS2 and TS3) and overcome an energy barrier of 6.25 kcal/mol and 2.18 kcal/mol to produce ethylene (IM3). In the transition state TS2, the C2 atom vibrates toward the upper right while the C2 atom also vibrates in the direction of H2, with the virtual frequency of −734.61 cm⁻¹, and the bond angle of C2-Pd-H2 is reduced from 161.81° to 150.79°. In the structure of intermediate IM2, the bond length of Pd-C2 was reduced from 1.76 Å to 1.54 Å, and the C2-H2 bond length was shortened from 3.60 Å to 2.27 Å. The H2 atom in the transition state TS3 vibrates in the direction of ethylene generation, the virtual frequency is −682.65 cm⁻¹, and the bond length between C2 and H2 is shortened to 1.65 Å. Ethylene has been formed in IM3, and the desorption energy is 23.11 kcal/mol, in the process of hydrogenation of acetylene to ethylene, the hydrogenation intermediate IM1 is a rate controlling step.

After the formation of ethylene, we continued to study the process of hydrogenation of ethylene to ethane. Similarly, we placed a H₂ molecule at different locations near the ethylene and obtained the optimal co-adsorption structure (IM4). In the transition state TS4, H3 atom vibrated toward the C1 atom while H4 atom and C2 atom also vibrate toward each other, the virtual frequency was −704.52 cm⁻¹ and the energy barrier in this process was 38.8 kcal/mol. In the intermediate IM5, the H3-C1 bond length was shortened from 1.13 Å to 1.09 Å, and the bond angle of C2-Pd-H4 was reduced from 139.79° to 80.26°. Subsequently, the intermediate IM5 only needs to overcome an energy barrier of 5.99 kcal/mol to generate ethane. In the transition state TS5, the H4 atom vibrated to the C2 atom, its bond length is shortened from 2.34 Å to 1.65 Å, and here was only one virtual frequency of −756.61 cm⁻¹. In the product structure, the H4 atom bonded to the C2 atom to form an ethane molecule and separated from the single Pd atom. The structure of the carrier g-C₃N₄ changed and the fragment structure of the left is recessed. In the two-step hydrogenation reaction, each transition state was verified by IRC calculations, ensuring the correct reactants and intermediates and the accuracy of the calculations.

2.5. Comparison of Activity and Selectivity before and after Doping S Atom

First, we studied the corresponding change in activity after doping with S atoms. The activation energy of Pd₁/g-C₃N₄ catalyzed hydrogenation of acetylene to ethylene with an undoped S catalyst was 21.53 kcal/mol. For the S-doped C site, the activation energy of hydrogenation of acetylene to ethylene is 3.67 kcal/mol, because the doping of S accelerates the dissociation of H₂ molecules and results in a decrease in activation energy, while for S-doped N sites, the activation energy of hydrogenation of acetylene to ethylene is 22.74 kcal/mol. The experimental results indicated that the doping of the N site does not increase the activation energy of the reaction, which is similar to the activation energy before undoping and S-doped N site had no effect on the activity of the reaction.

There are still two ways to judge the selectivity. The first is that the activation energy of ethylene hydrogenation to ethane is larger than that of acetylene hydrogenation to ethylene. Another is the difference between the activation energy of ethylene hydrogenation to ethane (E_a) and the desorption energy of ethylene (|E_ad|): ∆E = E_a − |E_ad|, the larger difference represent the higher the selectivity of ethylene [39,40,41]. The activation energy of ethylene hydrogenation before S doping is 38.88 kcal/mol, which is larger than that of acetylene hydrogenation to ethylene (21.53 kcal/mol), and the selectivity is 15.4 kcal/mol according to the second method. For S-doped C atoms, the activation energy of ethylene hydrogenation to ethane is 9.76 kcal/mol, which is larger than the activation energy of acetylene hydrogenation to ethylene (3.67 kcal/mol). For the first method, owing to the fact the desorption energy of ethylene (16.82 kcal/mol) is much larger than the activation energy of ethylene hydrogenation to ethane (9.76 kcal/mol), the selectivity is not high according to the selectivity judgment formula. For S-doped N sites, the activation energy (38.8 kcal/mol) of ethane formation in the second step is larger than that in the first step (22.74 kcal/mol), and the difference between the activation energy (38.8 kcal/mol) of ethane formation by-product and the desorption energy (23.11 kcal/mol) of ethylene is 15.69 kcal/mol, which means the selectivity is 15.69 kcal/mol and slightly larger than that of ethylene production in the first step (22.74 kcal/mol).

3. Computational Methods

All the density functional theory (DFT) calculations were performed by using the Guassian09 software package [42]. In the process of geometrical optimizations, the nonlocal correlation functional of Lee, Yang and Parr (B3LYP) [43] with the 6-31G** basis were set for C, N, S, H atoms and the Los Alamos effective core pseudo-potentials (ECP) basis set LANL2DZ was applied to the Pd atoms. The energies of all structures presented in the whole reaction pathway were zero-point (ZPE) energy corrections at the same level of optimization and there are no geometric constraints during the structural optimization processes. In order to verify that the optimized structure has the lowest energy with no imaginary frequency or the transition structure with only one imaginary frequency, we calculate the harmonic vibration frequency at the same theoretical level. In addition, intrinsic reaction coordinate (IRC) [44,45] calculations were executed to ensure that each transition state links the correct reactant and product during reaction process. We also calculated adsorption energy (E_ads) and co-adsorption energy (E_co-ads) during the study, which were defined as follows:

$${\mathrm{E}}_{\mathrm{ads}}={\mathrm{E}}_{\mathrm{ads}-\mathrm{state}}-\left({\mathrm{E}}_{{\mathrm{C}}_2{\mathrm{H}}_2/{\mathrm{H}}_2}+{\mathrm{E}}_{\mathrm{Pd}/\mathrm{S}-{\mathrm{C}}_3{\mathrm{N}}_4}\right)$$

(1)

$${\mathrm{E}}_{\mathrm{co}-\mathrm{ads}}={\mathrm{E}}_{\mathrm{co}-\mathrm{ads}-\mathrm{state}}-\left({\mathrm{E}}_{{\mathrm{C}}_2{\mathrm{H}}_2}+{\mathrm{E}}_{{\mathrm{H}}_2}+{\mathrm{E}}_{\mathrm{Pd}/\mathrm{S}-{\mathrm{C}}_3{\mathrm{N}}_4}\right)$$

(2)

In the above two formulas, ${\mathrm{E}}_{\mathrm{ads}-\mathrm{state}}$ and ${\mathrm{E}}_{\mathrm{co}-\mathrm{ads}-\mathrm{state}}$ are the whole energy of the reactant and catalyst systems, whereas ${\mathrm{E}}_{\mathrm{Pd}/\mathrm{S}-{\mathrm{C}}_3{\mathrm{N}}_4}$, ${\mathrm{E}}_{{\mathrm{C}}_2{\mathrm{H}}_2}$ and ${\mathrm{E}}_{{\mathrm{H}}_2}$ are the energies of the isolated Pd/S-C₃N₄, C₂H₂ or H₂ molecules.

4. Conclusions

In this study, we have carried out density functional calculations to investigate the mechanism of selective acetylene hydrogenation reactions over S-doped g-C₃N₄. Firstly, we found that after doping with S atoms, the overall structure of g-C₃N₄ corresponding to the C-doping site is bowl-shaped, while that of g-C₃N₄ corresponding to the N-doping site is wavy-shaped, and the monoatomic Pd is still adsorbed in the six-fold cavity of g-C₃N₄. Then for S-doped C sites, the optimal sites for C₂H₂ and H₂ are on the side of the Pd atom, where the C₂H₂ adsorption energy is −17.0 kcal/mol and H₂ adsorption energy is −6.19 kcal/mol. For S-doped N sites, the optimal adsorption sites of C₂H₂ and H₂ molecules are at the top of the Pd atom, but the position of the Pd atom was changed to the upper left of N atoms in the six-fold cavity. The adsorption energy of C₂H₂ is −21.62 kcal/mol and that of H₂ is −8.16 kcal/mol. The adsorption energy of C₂H₂ molecules corresponding to these two different S-doping sites is higher than that of H₂ molecules, which indicates that C₂H₂ molecules have preferential adsorption over H₂ molecules and the adsorption energy of S-doped N atom for reactants is higher than that of S-doped C atoms. Then, by comparing the activation energy and selectivity of undoped S atoms with those of S-doped C and N sites, we found that S-doped C sites can improve the reactivity owing to the S-doped C site promote the dissociation of H₂ molecules. However, ethylene is not easy to dissociate from the catalyst surface, resulting in poor selectivity, while the activity of N site doped with S atom is not improved, with a slightly improved for selectivity.
