Next Article in Journal
Sulfonated Hydrothermal Carbons from Cellulose and Glucose as Catalysts for Glycerol Ketalization
Previous Article in Journal
Biocatalysis as Useful Tool in Asymmetric Synthesis: An Assessment of Recently Granted Patents (2014–2019)
Open AccessArticle

On the Influence of Composition and Structure of Carbon-Supported Pt-SnO2 Hetero-Clusters onto Their Electrocatalytic Activity and Durability in PEMFC

1
National Research Center “Kurchatov Institute”, 1, Akademika Kurchatova sq., 123182 Moscow, Russia
2
National Research University “Moscow Power Engineering Institute”, 14, Krasnokazarmennaya st., 111250 Moscow, Russia
*
Author to whom correspondence should be addressed.
Catalysts 2019, 9(10), 803; https://doi.org/10.3390/catal9100803
Received: 19 August 2019 / Revised: 17 September 2019 / Accepted: 22 September 2019 / Published: 25 September 2019
(This article belongs to the Special Issue Electrocatalysis for Low-Temperature Water Electrolysis)

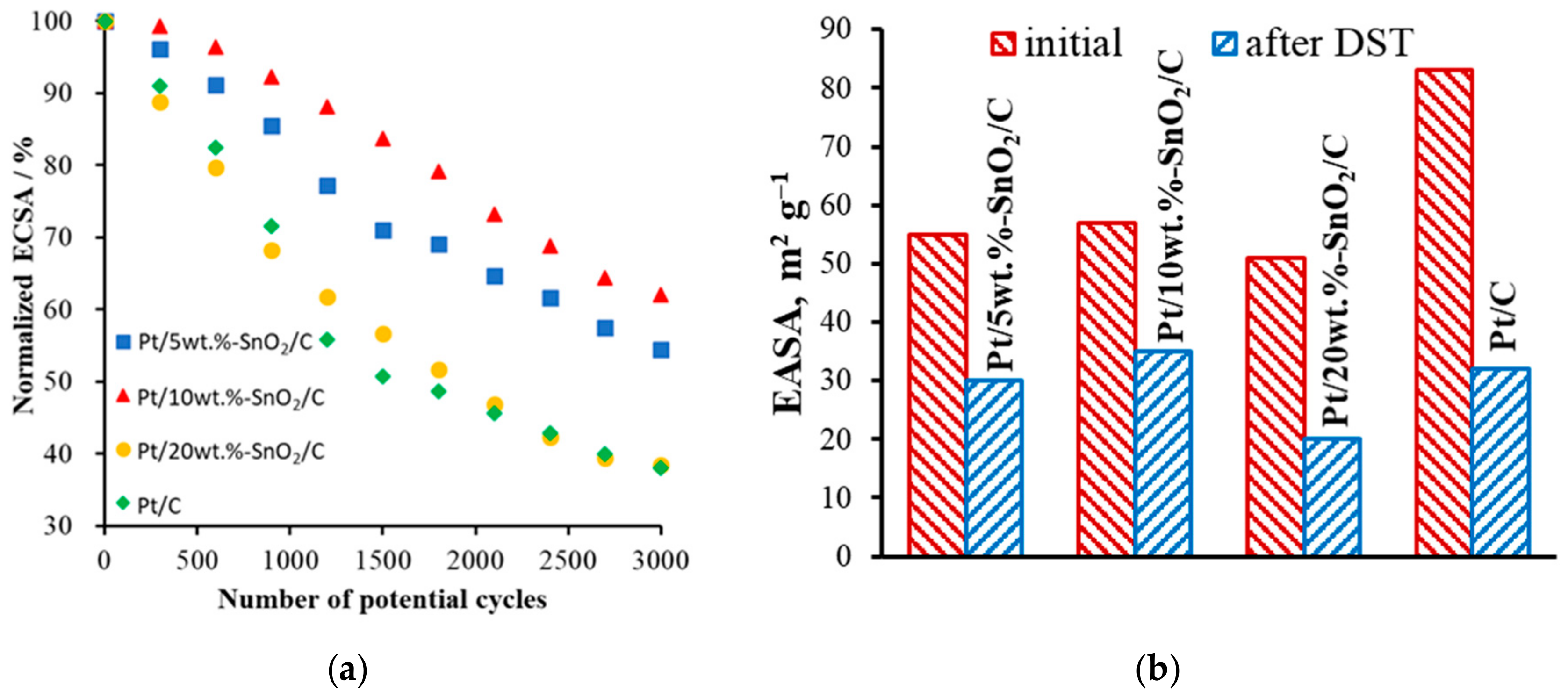

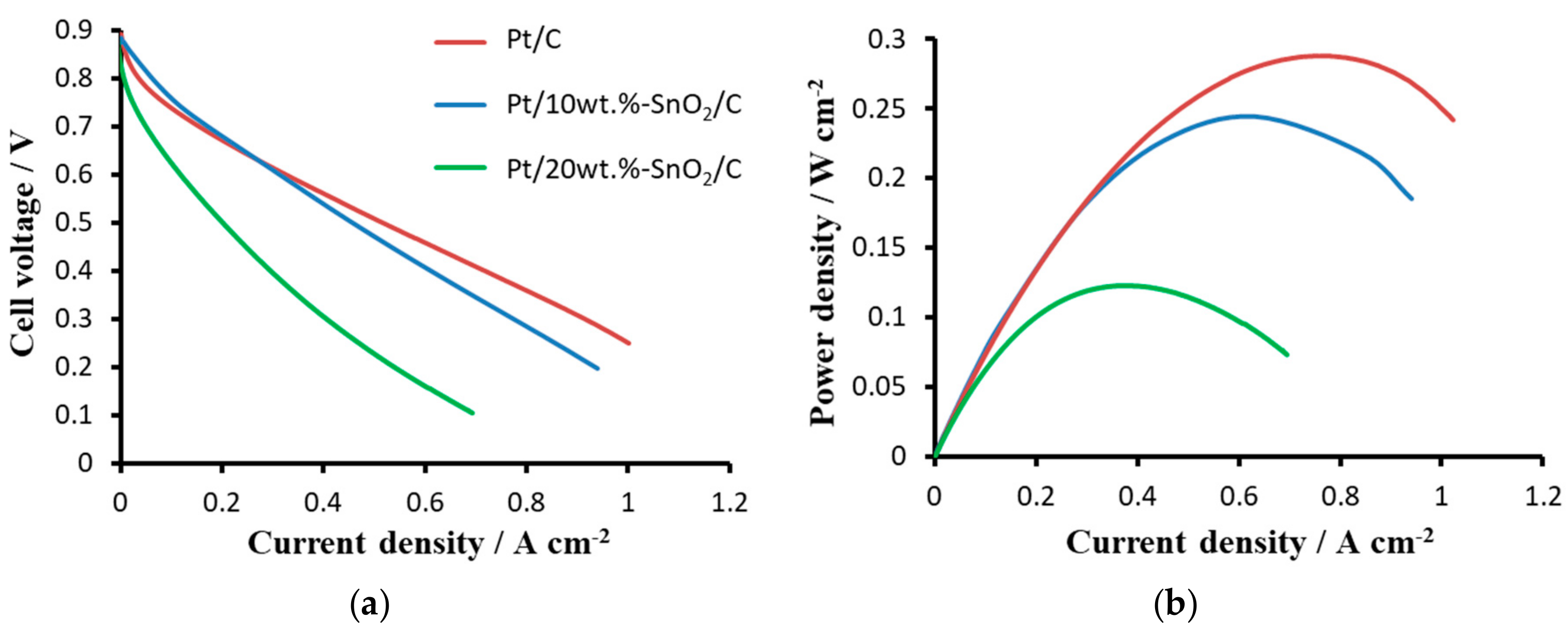

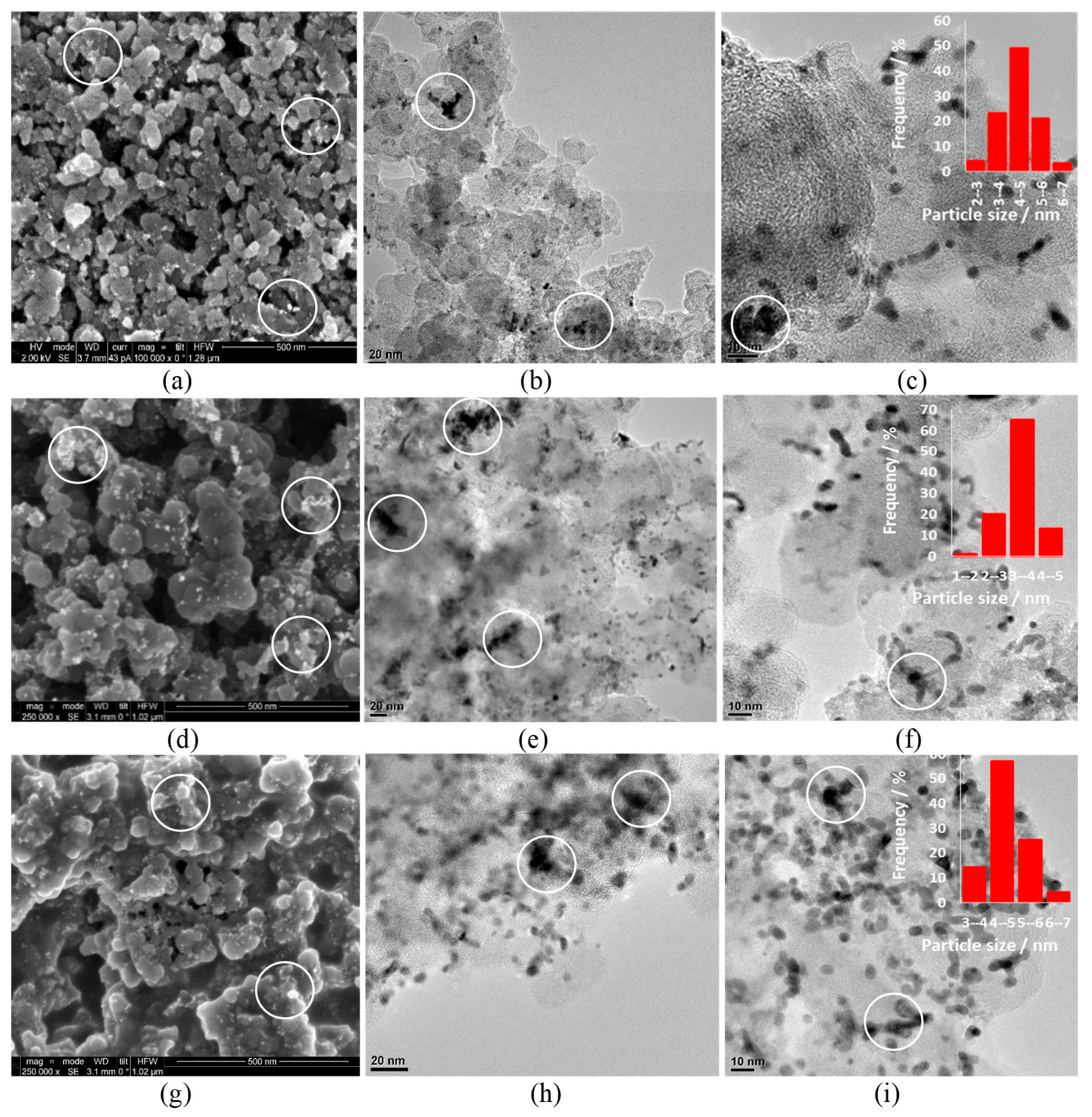

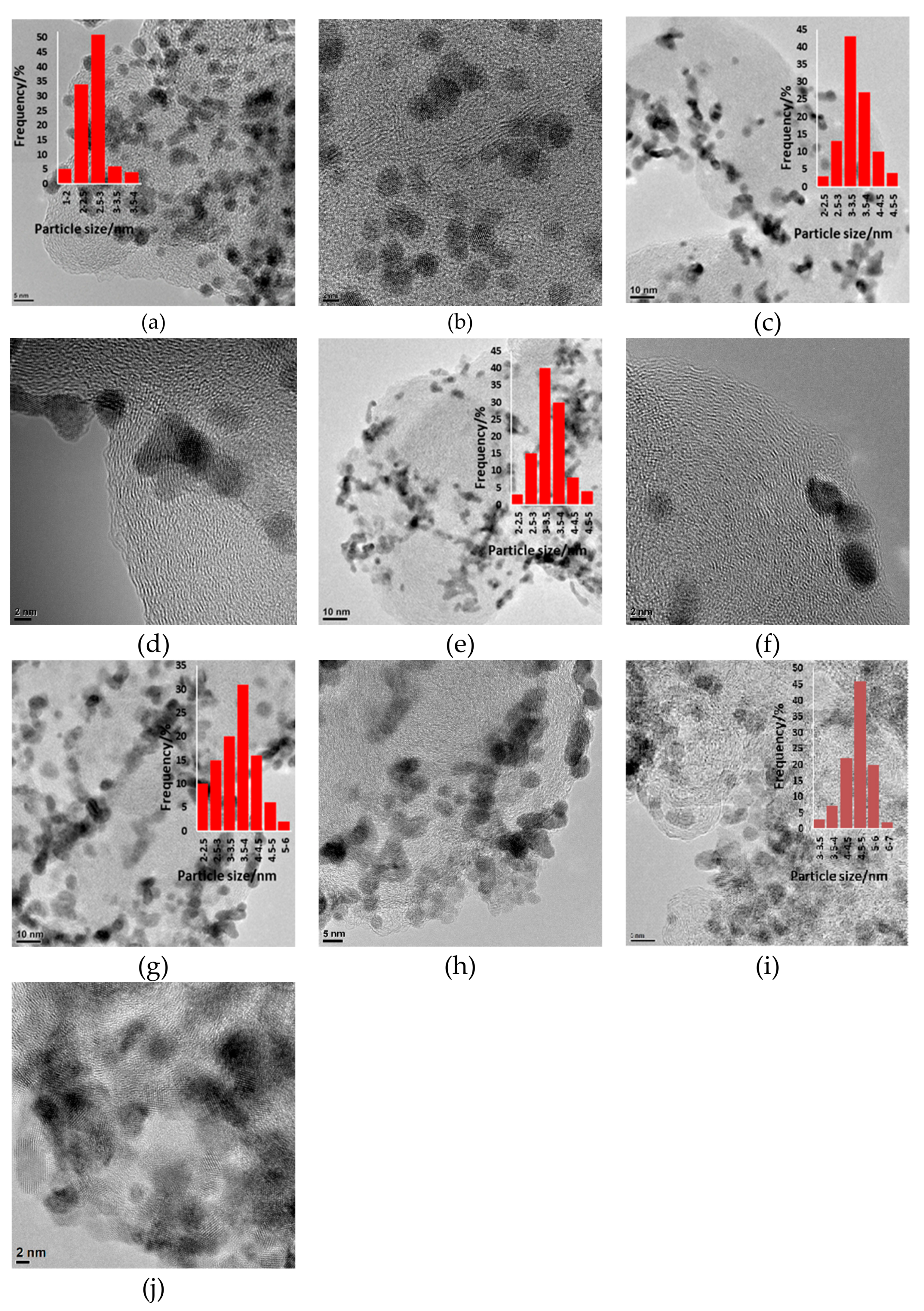

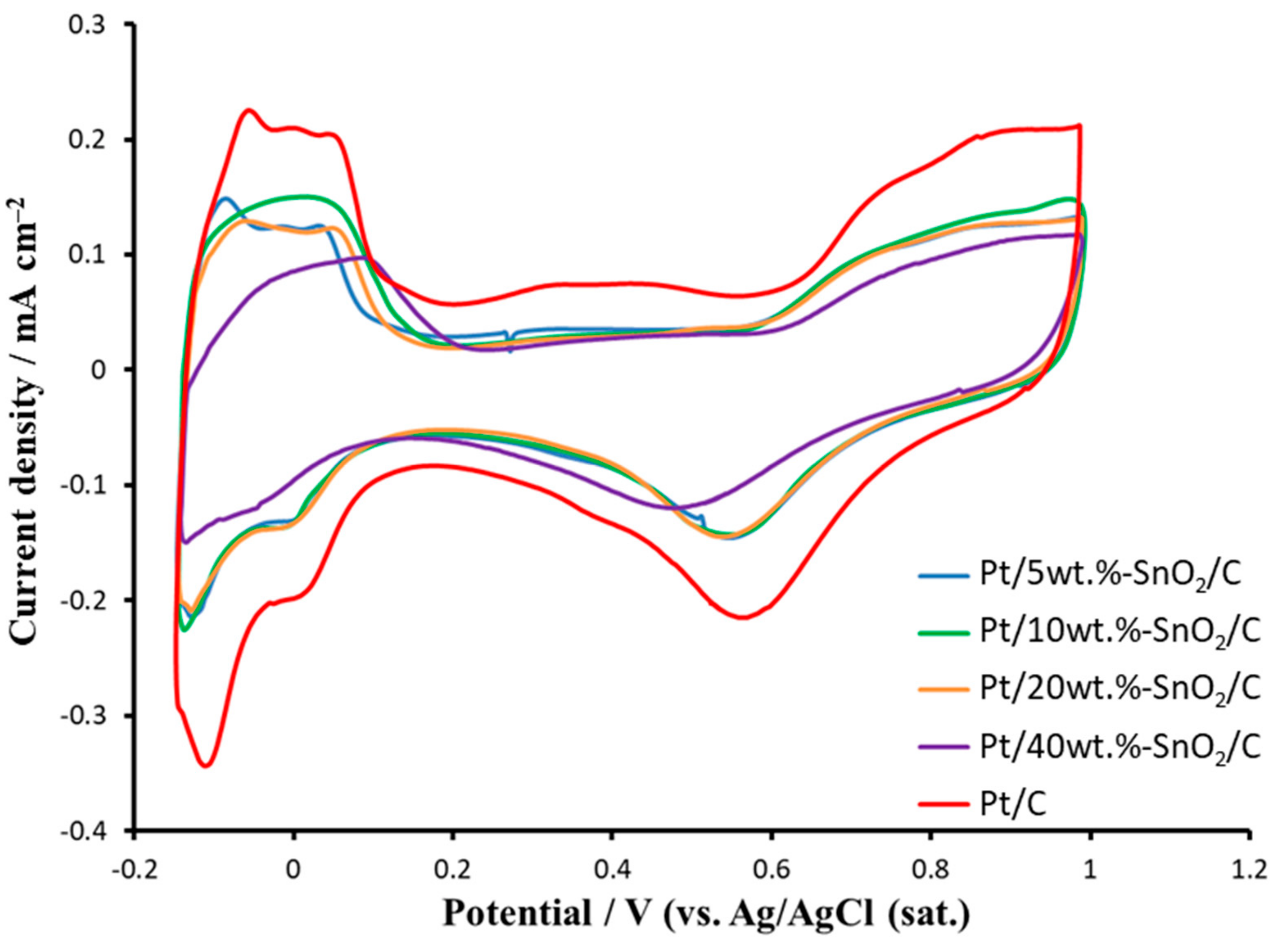

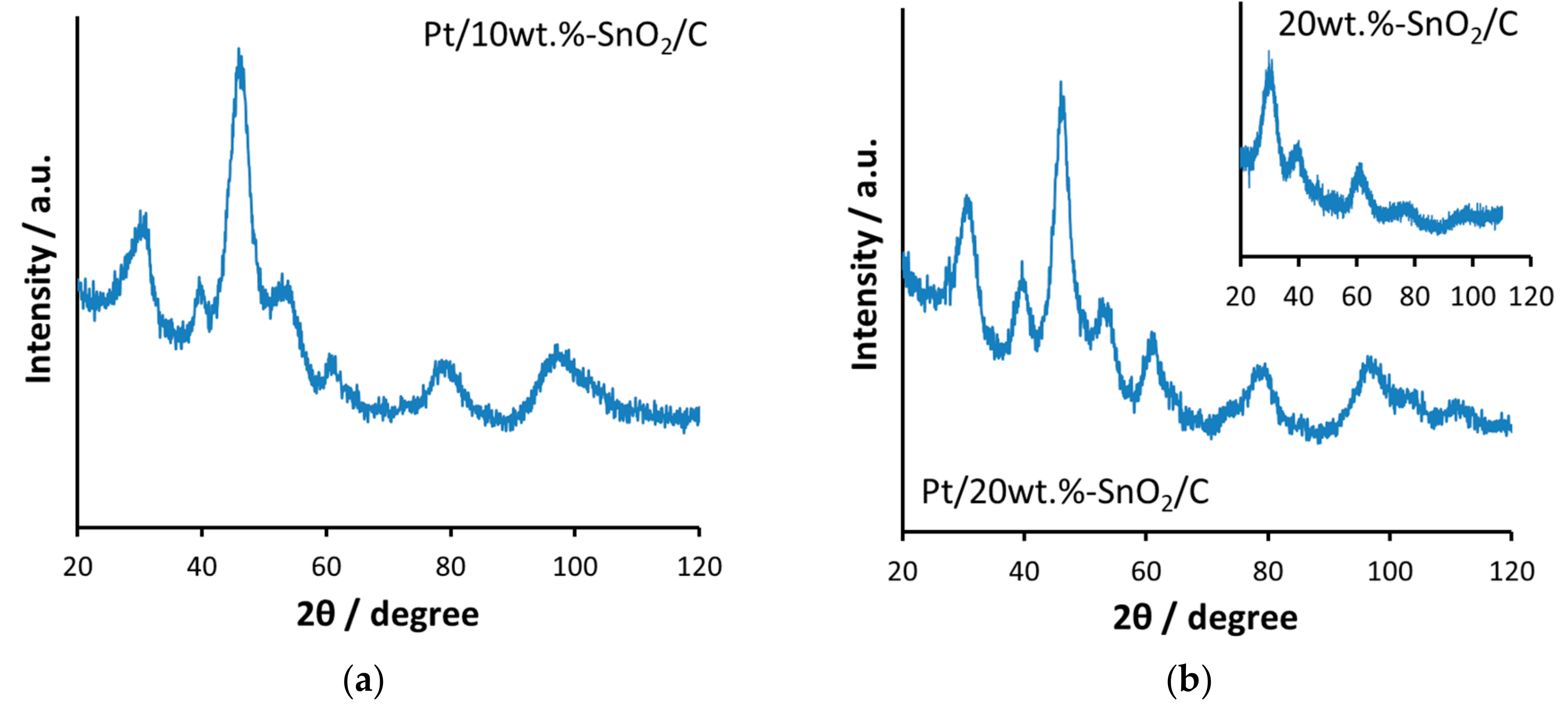

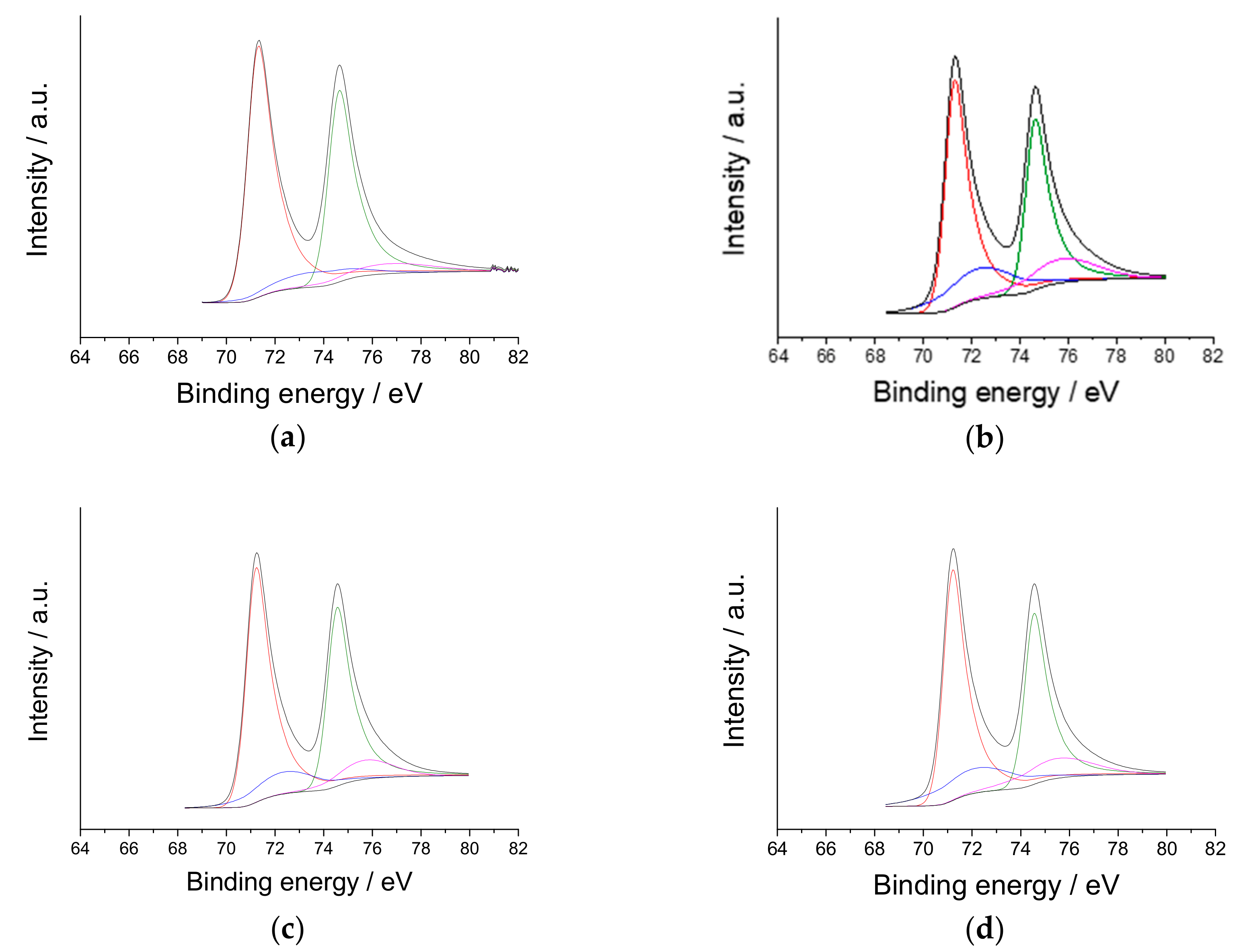

A detailed study of the structure, morphology and electrochemical properties of Pt/C and Pt/x-SnO2/C catalysts synthesized using a polyol method has been provided. A series of catalysts supported on the SnO2-modified carbon was synthesized and studied by various methods including transmission electron microscopy (TEM), X-ray diffraction (XRD), X-ray photoelectron spectroscopy (XPS), electrochemical methods, and fuel cell testing. The SnO2 content varies from 5 to 40 wt %. The TEM images, XRD and XPS analysis suggested the Pt-SnO2 hetero-clusters formation. The SnO2 content of ca. 10% ensures an optimal catalytic layer structure and morphology providing uniform distribution of Pt-SnO2 clusters over the carbon support surface. Pt/10wt %-SnO2/C catalyst demonstrates increased activity and durability toward the oxygen reduction reaction (ORR) in course of accelerated stress testing due to the high stability of SnO2 and its interaction with Pt. The polymer electrolyte membrane fuel cell current–voltage performance of the Pt/10wt %-SnO2/C is comparable with those of Pt/C, however, higher durability is expected. View Full-Text
Keywords: PEM fuel cell; cathode catalysts; carbon support; catalyst stability; hybrid carrier; tin oxide; Pt-SnO2 nanoclusters; accelerated stress testing PEM fuel cell; cathode catalysts; carbon support; catalyst stability; hybrid carrier; tin oxide; Pt-SnO2 nanoclusters; accelerated stress testing
Show Figures

Figure 1

MDPI and ACS Style

Spasov, D.D.; Ivanova, N.A.; Pushkarev, A.S.; Pushkareva, I.V.; Presnyakova, N.N.; Chumakov, R.G.; Presnyakov, M.Y.; Grigoriev, S.A.; Fateev, V.N. On the Influence of Composition and Structure of Carbon-Supported Pt-SnO2 Hetero-Clusters onto Their Electrocatalytic Activity and Durability in PEMFC. Catalysts 2019, 9, 803.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
