Co-Aromatization of n-Butane and Methanol over PtSnK-Mo/ZSM-5 Zeolite Catalysts: The Promotion Effect of Ball-Milling
Abstract
:1. Introduction
2. Results and Discussion

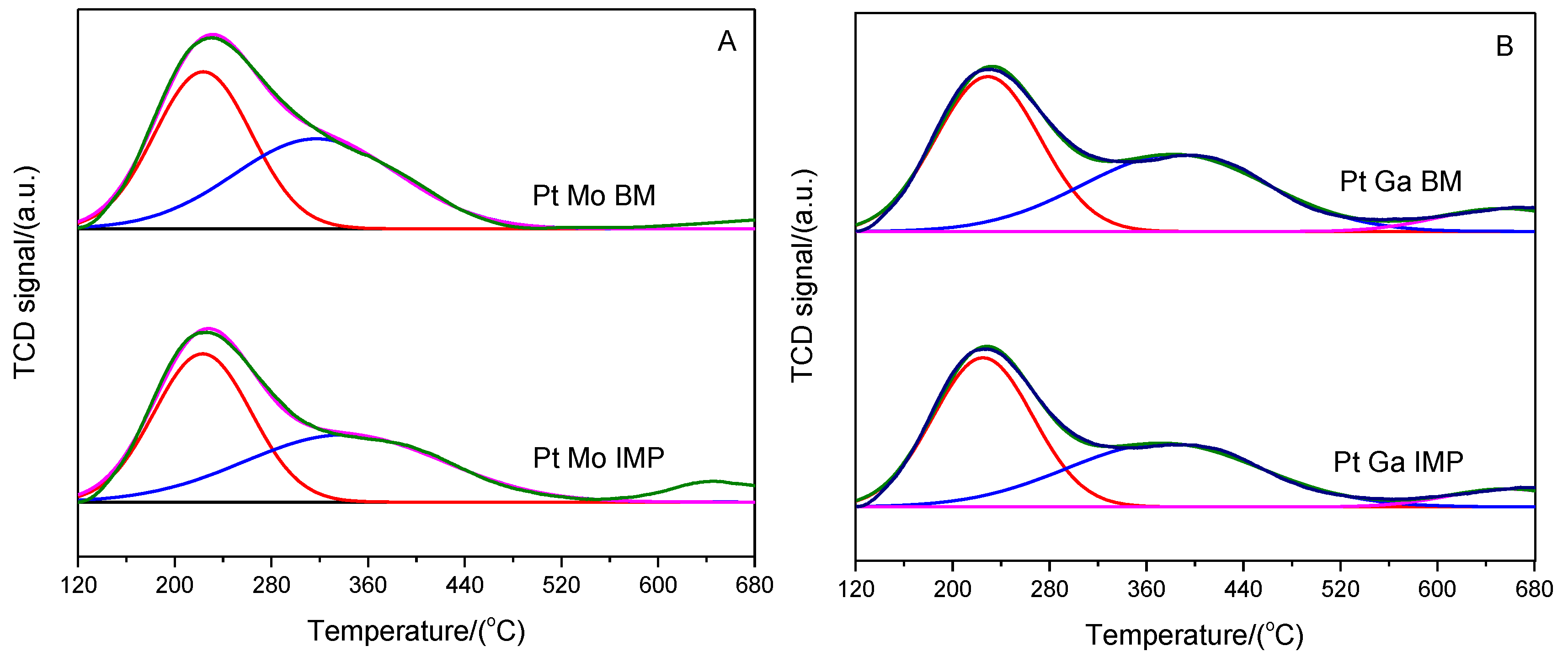

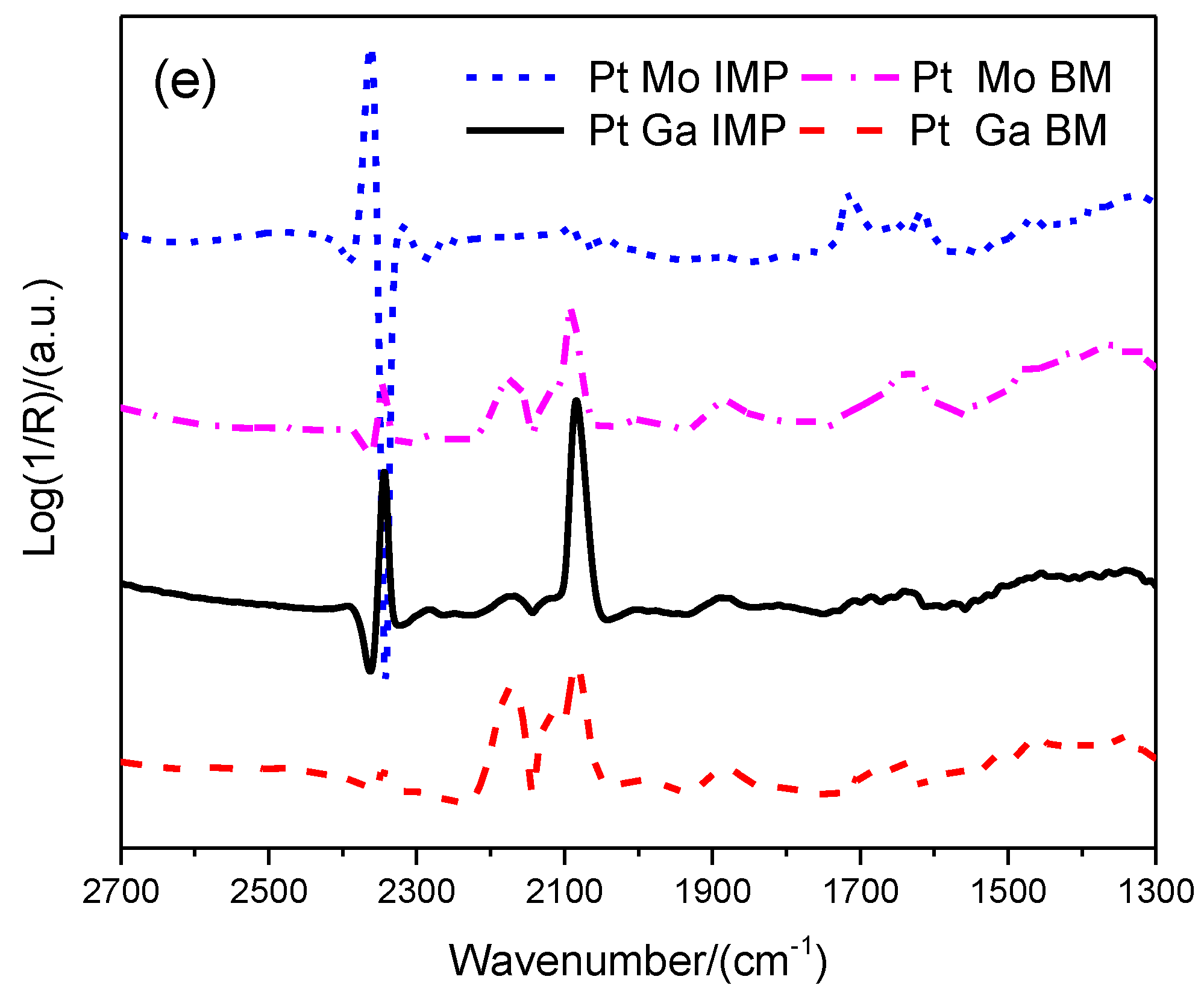

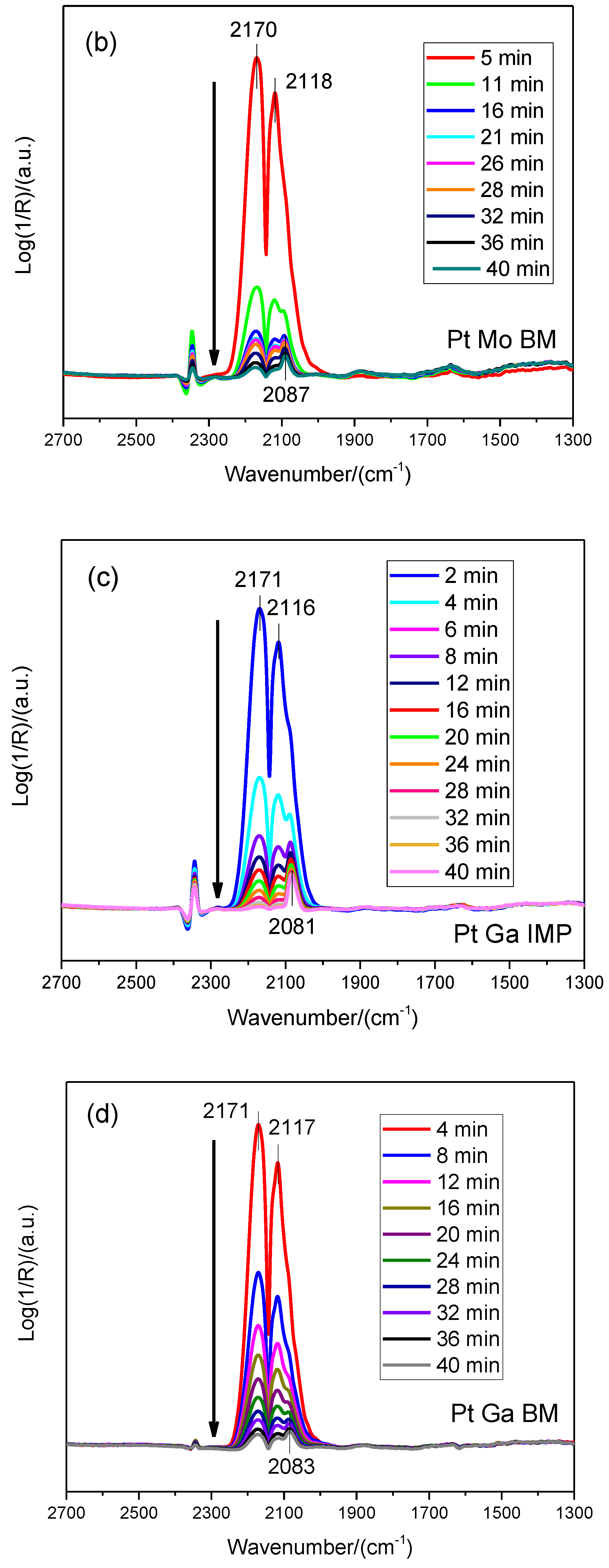

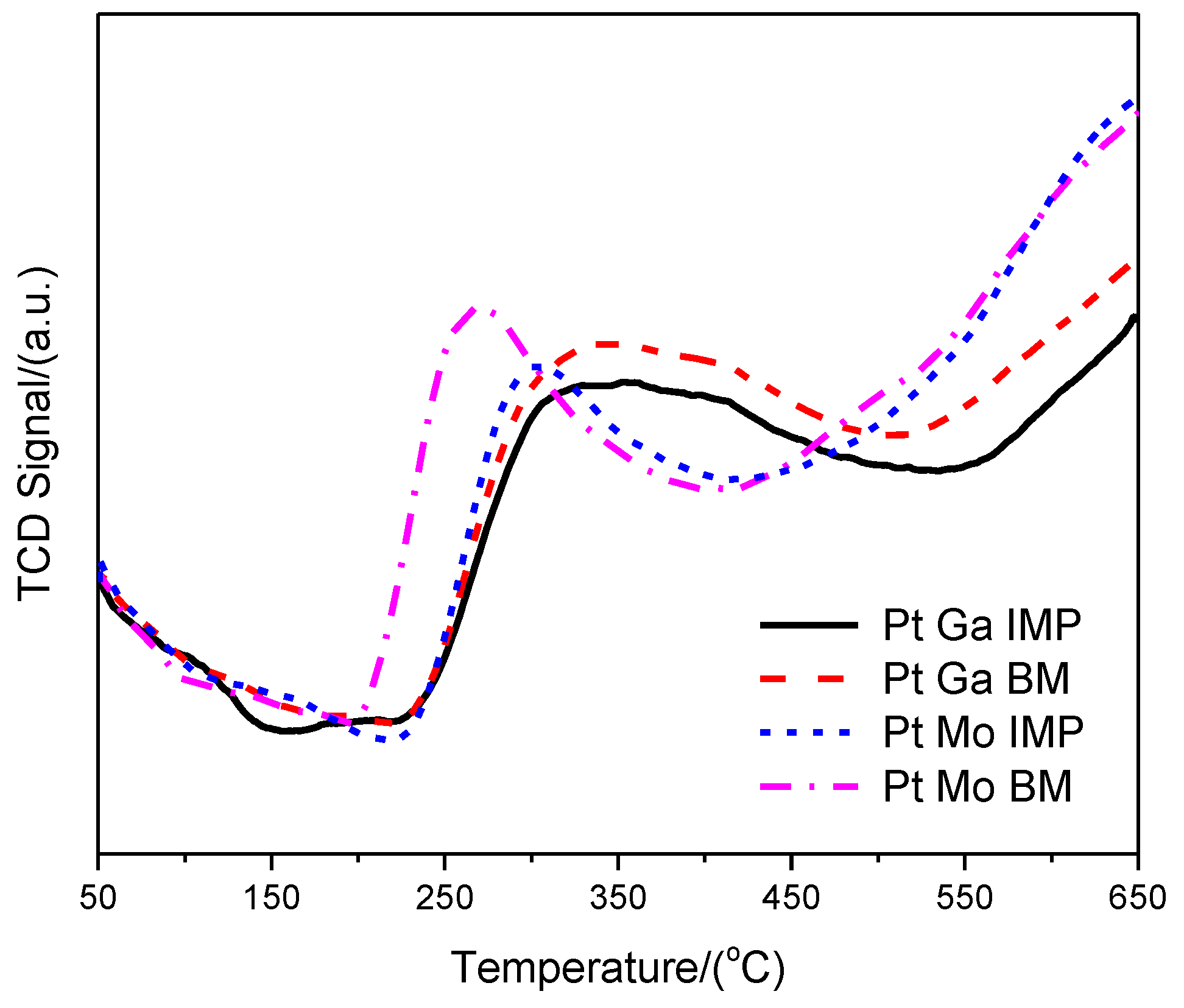

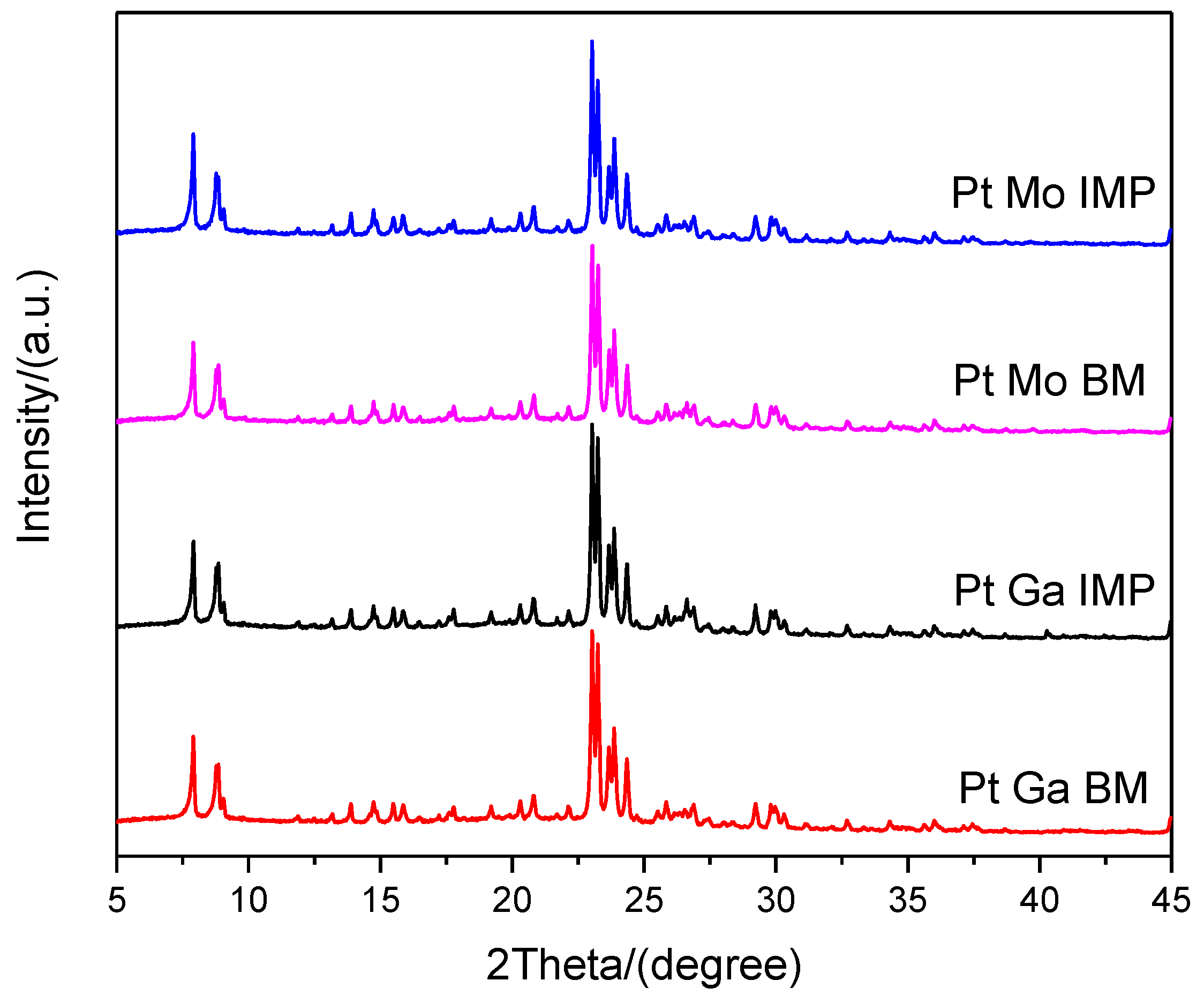

2.1. Catalyst Characterization

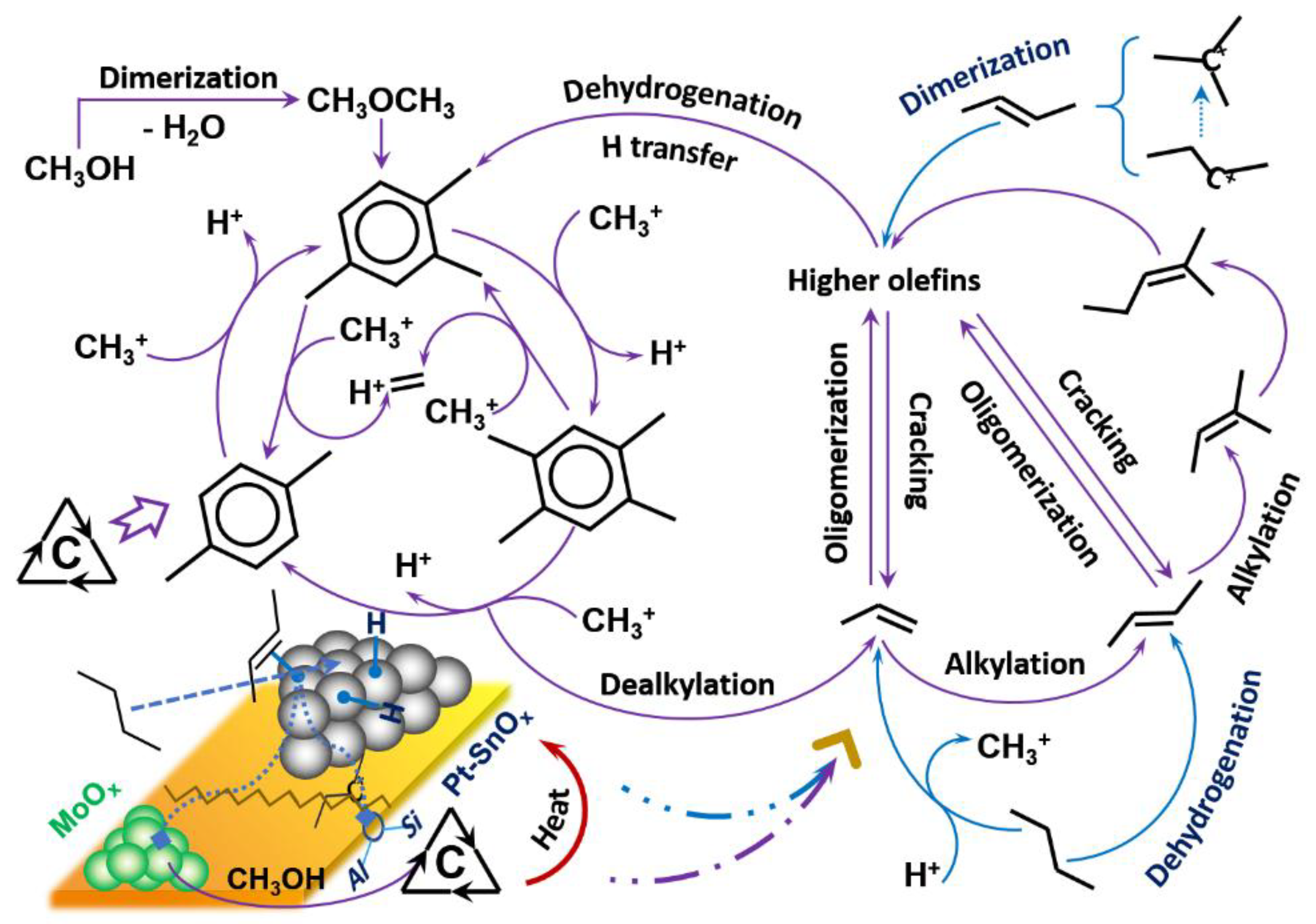

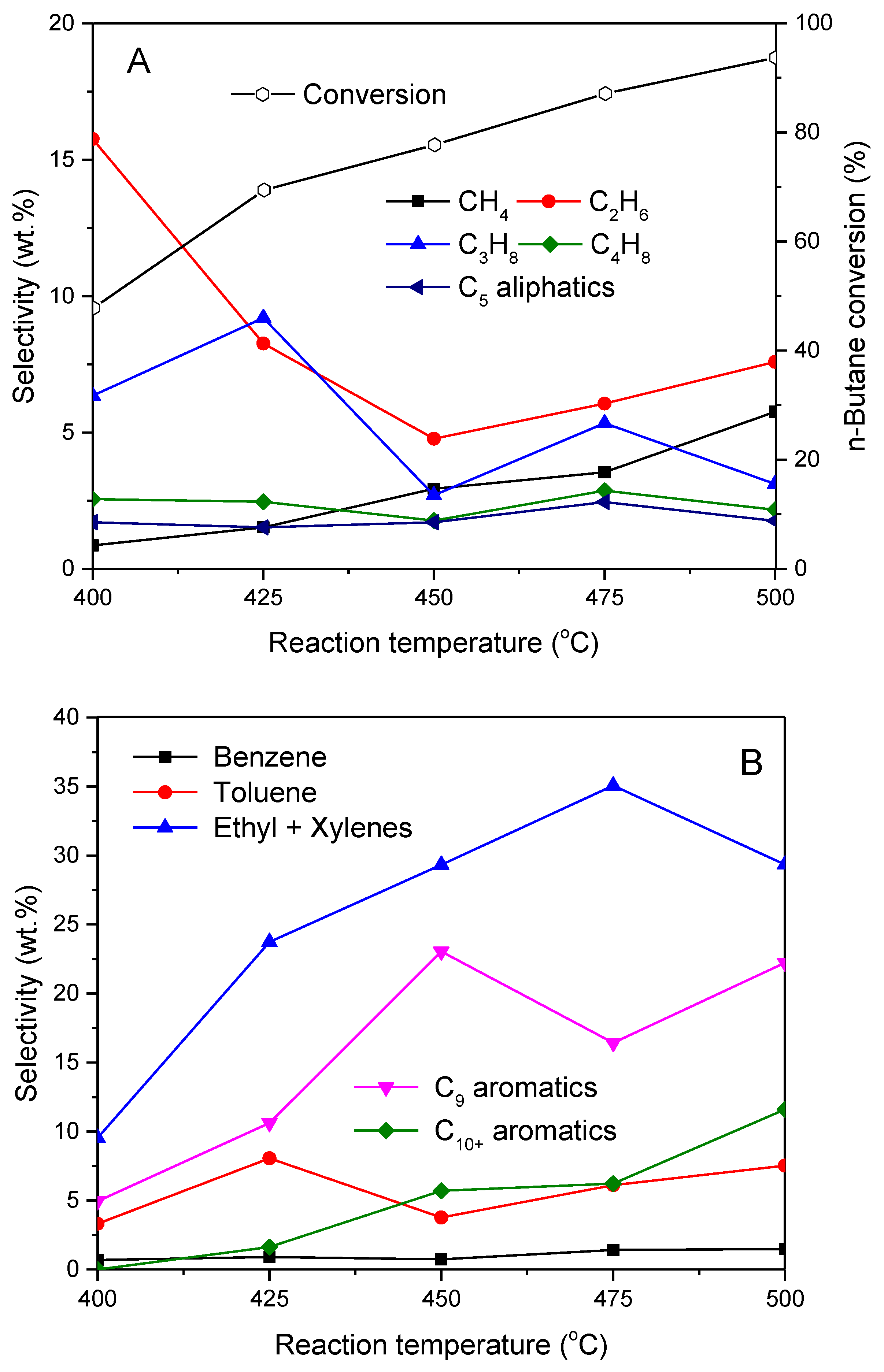

2.2. Influence of Preparation Method on the Aromatization of Cofeeding n-Butane with Methanol
2.3. PtSnK–Mo/ZSM-5 Catalyst Stability for Co-Aromatization
3. Materials and Methods
3.1. Catalyst Preparation
3.2. Catalyst Characterization
3.3. Catalyst Evaluation
4. Conclusions
Supplementary Materials
Author Contributions
Acknowledgments
Conflicts of Interest
References
