Catalysts 2018, 8(4), 165; doi:10.3390/catal8040165

Article
Asymmetric Ketone Reduction by Immobilized Rhodotorula mucilaginosa
1
School of Marine Sciences, Sun Yat-Sen University, Guangzhou 510275, China
2
Shanghai Institute of Materia Medica, Chinese Academy of Sciences, Shanghai 210203, China
3
University of Chinese Academy of Sciences, Beijing 100049, China
4
Departamento de Química, Faculdade de Ciências, UNESP, Bauru 17033-360, Brazil
*
Author to whom correspondence should be addressed.
Received: 29 March 2018 / Accepted: 17 April 2018 / Published: 19 April 2018

Abstract

:
In our previous study, Rhodotorula mucilaginosa (R. mucilaginosa) was selected via high throughput screening as a very active and selective whole-cell biocatalyst for the asymmetric reduction of ketones. In this study, the reduction of ketones to the desired chiral alcohols by immobilized cells of this strain was investigated. Characterization with Fourier-transform infrared (FTIR) spectroscopy and scanning electron microscopy (SEM) showed that whole R. mucilaginosa cells were successfully immobilized on support matrices composed of agar, calcium alginate, PVA-alginate and chitosan. The immobilized cells were applied to the enantioselective reduction of fourteen different aromatic ketones. Good to excellent results were achieved with R. mucilaginosa cells immobilized on agar and calcium alginate. The immobilized cells on the selected support matrix composed of agar exhibited a significant increase in pH tolerance at pH 3.5–9 and demonstrated highly improved thermal stability compared to free cells. The cells immobilized on agar retained 90% activity after 60 days storage at 4 °C and retained almost 100% activity after 6 reuse cycles. In addition, the immobilization procedures are very simple and cause minimal pollution. These results suggest that the application of immobilized R. mucilaginosa can be practical on an industrial scale to produce chiral alcohols.
Keywords:
biocatalyst; Rhodotorula mucilaginosa; immobilization; asymmetric reduction; stability

1. Introduction

Chiral alcohols are useful intermediates that are applicable for the synthesis of pharmaceuticals, flavors, aromas, agricultural chemicals and specialty materials [1]. Among the methods for their production, enantioselective ketone reduction is generally regarded as a reliable, scalable and straightforward method to obtain optically active alcohols [2,3]. Whereas traditional synthetic methods usually use toxic metals or expensive complex hydrides [4,5,6], enzymatic enantioselective reductions benefit from high selectivity, environmentally friendly processes and simple operations and are thus of great interest [7]. Nevertheless, biotechnological approaches are still limited in their industrial application due, in most cases, to low volumetric productivity, high cost of catalyst preparation, complex final products, and/or complicated downstream processing [8]. Much attention is needed for the development of robust biocatalysts to facilitate the performance of biocatalytic reduction processes, such as high substrate loads, to obtain industrial feasibility and competitiveness of preparative-scale biotransformations.
Biocatalytic processes can benefit from the habitat-related characteristics of marine enzymes, that is excellent stability and activity under extreme conditions (such as, extreme temperature, pressure, or pH or an organic solvent) and the unique enzyme properties of substrate specificity and affinity [9,10]. In our previous study, after a microbial screen, the marine fungi R. mucilaginosa was selected as a very active and selective whole-cell biocatalyst for the asymmetric reduction of ketones [11,12]. Although this strain has promising catalytic properties, several challenges remain before it can be used in industrial applications. In particular, its pH tolerance and thermostability were not perfect yet compared to those of other marine-derived biocatalysts, which limits the utilization of this strain.
To maintain the effectiveness of a biocatalyst in a certain process, it should be protected from interactions with the reaction solvent to avoid inactivation, as inactivation might halt the enzymatic reaction [13]. In this context, a range of immobilization technologies have been introduced to improve the stability of biocatalysts and assist their recovery and reusability [14]. Among the immobilized biocatalysts, purified enzymes are commonly immobilized in/on materials known as matrices, yet the immobilization of marine fungi has rarely been reported. Notably, the immobilization of whole cell biocatalysts is of interest in light of the growing number of industrial applications using biotechnological approaches in the medicinal and food industries, especially the application of methods using filamentous fungi with a large production of enzymes [15].
The present study is a continuation of our work on the use of marine-derived fungi as biocatalysts for the asymmetric reduction of ketones. The conversion of ketones to the corresponding chiral alcohols by immobilized R. mucilaginosa cells was investigated. Whole R. mucilaginosa cells were immobilized on support matrices composed of agar, calcium alginate, PVA-alginate and chitosan and the synthetic potential of the immobilized cells was evaluated for the enantioselective reduction of fourteen aromatic ketones of various compound classes.

2. Results and Discussion

Marine fungi, which are considered promising biological carriers, have been employed in many industrial sectors [16]. Recently, we investigated the use of marine-derived fungi for the reduction of aromatic ketones [10,11] and R. mucilaginosa GIM 2.157 was selected as a very active and selective whole-cell biocatalyst after a microbial screen. Whole-cell immobilization technology has attracted widespread attention for its application in several fields, such as its application for the biodegradation of mixed wastes and drug or fuel biosynthesis [17]. To develop a successful bioprocess, we immobilized R. mucilaginosa GIM 2.157 cells on various support matrices for the catalytic reduction of ketones (1a1n) and tested the immobilized cells for recyclability and storage stability.

2.1. Characterization of Immobilized Cells

2.1.1. FTIR Spectroscopy

The immobilized and non-immobilized cells were confirmed by FTIR (Fourier transform infrared spectroscopy) and SEM (scanning electron microscopy). FTIR spectra showed the functional group of the immobilized cell matrices [18]. Scans were performed at 4000–400 cm−1 using a Hitachi 270–50 IR spectrophotometer with KBr discs. For the immobilization of whole cells on agar, the FTIR spectra of free cells, agar and immobilized cells are shown in Figure 1a [(a) is for free cells; (b) is for agar; (c) is for immobilized cells on agar]. Figure 1a (b) shows characteristic peaks at 3313 cm−1 (O–H stretching), 2911 cm−1 (C–H stretching) and 1152 cm−1 (C–O–C stretching) for the agar. The FTIR results support that the immobilization reaction occurred, as the peaks of the whole cells immobilized on agar show changes relative to the position and intensity of the characteristic peaks for native agar. The presence of additional peaks at 1742 cm−1 and 1546 cm−1 [Figure 1a (c)] confirms that immobilization reaction occurred.
For the immobilization of whole cells on calcium alginate, the FTIR spectra of free cells, calcium alginate and immobilized cells are shown in Figure 1b [(a) is for free cells; (d) is for calcium alginate; (e) is for immobilized cells on calcium alginate]. Figure 1b (d) shows characteristic peaks at 3428 cm−1 (O–H trenching), 2930 cm−1 (C–H stretching), 1032 cm−1 (C–O–C stretching), 1623 cm−1 and 1419 cm−1 (–COO asymmetric and symmetric stretching) for calcium alginate. The FTIR results support that the immobilization reaction occurred, as the peaks for the whole cells immobilized on calcium alginate show changes relative to the position and intensity of the characteristic peaks for native calcium alginate]. The presence of additional peaks at 1743 cm−1 and 1548 cm−1 [Figure 1b (e)] confirms that the immobilization reaction occurred.
For the immobilization of whole cells on PVA-alginate, the FTIR spectra of free cells, PVA-alginate and immobilized cells are shown in Figure 1c [(a) is for free cells; (f) is for PVA-alginate; (g) is for immobilized cells on PVA-alginate]. Figure 1c (f) shows characteristic peaks at 3417 cm−1 (for O–H stretching) and 2941 cm−1 (for C–H stretching) in PVA-alginate. The FTIR results support the occurrence of the immobilization reaction, as the peaks for whole cells immobilized on PVA-alginate show changes relative to the position and intensity of the characteristic peaks for native PVA-alginate. The presence of additional peaks at 1547 cm−1 [Figure 1c (g)] confirms that the immobilization reaction occurred.
For the immobilization of whole cells on chitosan, the FTIR spectra of free cells, chitosan and immobilized cells on chitosan are shown in Figure 1d [(a) is for free cells; (h) is for chitosan; (i) is for immobilized cells on chitosan]. Figure 1d (h) shows characteristic peaks at 3373 cm−1 (for O–H stretching), 1157 cm−1 (for C–O–C stretching), 1655 cm−1 and 2876 cm−1 (for C–H stretching) for chitosan. FTIR confirmed the occurrence of the immobilization reaction, as the peaks for whole cells immobilized on calcium alginate show changes relative to the position and intensity of the characteristic peaks of native chitosan. The presence of additional peaks at 1547 cm−1 [Figure 1d (i)] confirms that the immobilization reaction occurred.

2.1.2. SEM Spectroscopy

The SEM images of agar, calcium alginate, PVA-alginate and chitosan immobilization are shown in Figure 2. Using simple and easy gelation technology, R. mucilaginosa GIM 2.157 cells were captured in agar microspheres and cross-linked with agar using distilled water. The SEM images for the agar immobilization are shown in Figure 2A–C. These images confirmed good immobilization of R. mucilaginosa GIM 2.157 cells on the surface due to the agar’s flocculating ability and cross-linkability.
R. mucilaginosa GIM 2.157 cells were captured in calcium alginate (one of the most important immobilization matrices) microspheres and cross-linked with calcium alginate using CaCl2. The SEM images for calcium alginate immobilization are shown in Figure 2A,D,E. These images confirmed good immobilization of R. mucilaginosa GIM 2.157 cells on the surface due to calcium alginate’s high mechanical strength and cross-linkability. Notably, the gelling characteristic of an alginate highly depend on its monomeric composition and sequential arrangement, which is essential for its use as an immobilization matrix [19]. The electron micrographs revealed that 4% CaCl2 played a vital role in the formation of microspheres and that complex interactions occurred between cells and support materials.
The addition of calcium alginate to the mixture improved the bead characteristics by reducing the agglomeration problems of the PVA–boric acid method thus enhanced the surface characteristics of the beads [20]. R. mucilaginosa GIM 2.157 cells were captured in PVA-alginate microspheres and cross-linked with alginate-polyvinyl alcohol using boric acid. The SEM images for PVA-alginate immobilization were specifically shown in Figure 2A,F,G. These images confirmed good immobilization of R. mucilaginosa GIM 2.157 cells on the surface due to alginate-polyvinyl alcohol’s covalent interactions and cross-linkability [21]. The electron micrographs also revealed that pores were made on the outer layer of the beads and the pores were almost evenly distributed and had an average size.
R. mucilaginosa GIM 2.157 cells were entrapped in chitosan surface and cross-linked using glutaraldehyde. The SEM images for chitosan immobilization are shown in Figure 2A,H,I. These images confirmed the effective immobilization of R. mucilaginosa GIM 2.157 cells on the surface because of chitosan’s flocculating ability and cross-linkability [22]. Moreover, (interconnected) porous structures were observed for chitosan-immobilized R. mucilaginosa GIM 2.157 cells, suggesting that the cells have excellent immobilization performance and strong adhesion properties.

2.2. Catalytic Activity of Immobilized Cells for the Reduction of Various Ketones

The biocatalytic reduction of a series of prochiral ketones was attempted with R. mucilaginosa GIM 2.157 cells immobilized on the abovementioned support matrices (Table 1). Parallel reactions were conducted with free resting cells without the support matrices. The resting cells were also used for immobilization on agar, calcium alginate, PVA-alginate and chitosan. R. mucilaginosa GIM 2.157 cells were cultured for 24 h. The cell mixture was centrifuged at 4000 rpm (4 °C) and washed three times with given buffer and the pellets were collected as resting cells, which were further used for immobilization reactions. All reduction reactions were performed in 10 mL of Na2HPO4-KH2PO4 buffer (100 mM, pH 7.0) supplemented with glucose (0.5 g), substrates (10 mM) and biocatalysts (3 g resting cells or 4.5 g immobilized cells) at 25 °C for 24 h. Yield and enantioselectivity were measured on a chiral HPLC (Conditions see the Experimental section). The absolute configuration of reduction products was assigned by comparison the optical rotations measured for the isolated products with those reported. The results are shown in Table 1. According to the data displayed in Table 1, the free (not immobilized) resting cells catalyzed Prelog’s stereospecific reduction of ketones 1a1h, 1k and 1l into the corresponding chiral alcohols with excellent yield and enantioselectivities. Notably, the immobilized cells showed slightly better activity towards substrates with substituent –Cl (1d, 1e and 1f) than those with substituent –Br (1a, 1b and 1c). Regarding the mechanism, although ketone 1c is closely related to 1f, the substituent –Br in 1c is a relatively poor electron-withdrawing group compared to –Cl in substrate 1f. In our previous study with free resting cells [11,12], we found that substrates with electron-donating substituents inhibited the enzyme activity of R. mucilageinosa GIM 2.157, which might be useful to explain why the yield and ee value of 2c was slightly lower than those of 2f. On the other hand, –Br has larger atomic radius than –Cl, increasing the distances between substrates and immobilized cells and thus resulting in slightly lower activity (i.e., yield and ee). When resting cells were immobilized on agar, calcium alginate and PVA-alginate, they could still catalyze the reduction of assayed ketones (1a1h, 1k and 1l) with excellent activities; however, in some cases, the yields/enantioselectivities were slightly lower. It is possible that the access of the substrate to the carbonyl reductases must have been hindered by partial coverage of the mycelia, preventing the reaction. The R. mucilaginosa GIM 2.157 cells immobilized on agar showed slightly better activity (higher yields/ee) than those immobilized on calcium alginate and PVA-alginate. The agar bead surface likely had many porous structures, allowing more substrates and carbonyl reductases to freely access to cells inside and outside, maintaining stronger mechanical strength than other support matrices and improving the stability of the entire cellular system [23]. However, when the R. mucilaginosa GIM 2.157 cells were immobilized on chitosan, the reduction occurred in only substrates 1l and 1k. This might be due to two factors: chitosan adhered strongly to the surface of the whole cells, forming a strong barrier and blocking the access of the substrate to one or more enzymes involved in the reduction [24] and the chitosan matrix completely covered the entire cellular surface so that the ketone reductase cannot be released, halting the reactions [9,25,26]. Interestingly, the reduction of 1l and 1k with R. mucilaginosa GIM 2.157 cells immobilized on chitosan resulted in total inversion of the configuration compared to the other biocatalysts (free cells and R. mucilaginosa GIM 2.157 cells immobilized on agar, calcium alginate and PVA-alginate). This phenomenon might occur because all carbons present in the chitosan itself were chiral, making the reaction environment chiral. In these chiral conditions, the configurations of the glycosidic bonds could be easily altered, which is likely related to the inversion of the configuration of reduction products 2l and 2k. Further experiments regarding the mechanism are currently being implemented in our laboratory. Nevertheless, it can be concluded that agar was a perfect support matrix for the immobilization of R. mucilaginosa GIM 2.157 cells, which were used for all further studies.

2.3. Stability of Immobilized Cells on Agar

2.3.1. pH Tolerance

It is commonly known that pH plays an essential role in biocatalytic reactions, that is, pH variation can affect the activity and selectivity of the biocatalyst. In principle, the pH stability of a biocatalyst can be strongly enhanced by immobilization. Thus, the effects of pH on the enzymatic activity of immobilized cells and free cells were both studied. Either free cells or immobilized cells were added to buffer (10 mL) containing 10 mM of 1-(2-bromophenyl)ethanone 1a and glucose (0.5 g) at a given pH value between 3.5–11 (buffers at pH 3.5 and 4.5 were prepared with citrate buffer; buffers at pH 5.5, 6.5, 7 and 7.5 were prepared with phosphate buffer; buffers at pH 8.5, 9, 10 and 11 were prepared with Tris buffer; 100 mM) at 25 °C for 24 h. As shown in Figure 3, the reaction product yield was kept above 99% within the tested range of pH 3.5–9.0 when substrate 1a was treated with immobilized cells. As the buffer pH increased from 9.0 to 11.0, the activity of the immobilized cells slightly decreased and approximately 90% of its original activity was maintained. However, the catalytic activity of the free cells was much more sensitive to alkaline/acidic environments. As illustrated in Figure 3, buffer pH showed a significant impact on the product yield of the reaction treated with free cells. The product yield slowly increased with the increase in pH from 3.5 to 7.0. When buffer pH was further increased to alkaline ranges (pH 7.0–11), the activity of the free cells dramatically decreased to 10% of their original activity at pH 11. Notably, within the tested buffer pH ranged from 3.5 to 11.0, there was only a marginal change in the product ee (not shown in Figure 3). Obviously, these results suggested that R. mucilaginosa GIM 2.157 immobilization on agar beads was much more effective for improving the pH stability of the cells, which might be due to the unique micro-environment induced by the gel networks that may protected cells from the impact of H+ ions (pH variation).

2.3.2. Thermostability

The immobilized cells are particularly interesting because of their stability with respect to higher temperatures, which makes them superior to the free cells. Hence, the thermostability of the immobilized R. mucilaginosa GIM 2.157 cells was characterized compared to that of the free resting cells. The immobilized cells were incubated at various temperatures (30–70 °C) for 1 h, 3 h, 6 h, 12 h and 15 h. The cells were added to a solution containing 10 mL Na2HPO4-KH2PO4 buffer (100 mM, pH 7.0) supplemented with substrate 1a (10 mM) and 0.5 g glucose. The reaction proceeded at 25 °C for 24 h. As shown in Figure 4, the immobilized biocatalyst showed a retention of >99% of its original activity after 15 h of incubation at 30 °C or 40 °C. The immobilized cells maintained approximately 99% of their original activity after 1 h of incubation at 50 °C or 60 °C. However, when the temperature was higher than 60 °C, a significant decrease was observed in the activity of the immobilized cells over a 3-h period. The immobilized cells were completely deactivated after 1 h at 70 °C. Free cells retained >99% of their original activity after incubation for 1 h at 30 °C. When the temperature increasing from 30 to 60 °C led to a clear reduction in the activity (27% of initial activity was lost after 1 h at 40 °C, 40% was lost after 1 h at 50 °C and total deactivation was observed after 1 h at 60 °C). It is clear that the immobilized cells have huge thermal stability advantages compared to the free cells.

2.3.3. Storage Stability

One essential factor for the practical application of whole cells is their storage stability for an extended period of time. The longer the period that a biocatalyst maintains stable, the more efficient a process is. To estimate the storage stability of R. mucilaginosa GIM 2.157, free cells and cells immobilized on agar were stored at 4 °C with physiological saline (0.85% NaCl, w/v). Samples were withdrawn at various time intervals (5, 10, 20, 25, 30, 60 days) to determine the catalytic activity at 25 °C using 1-(2-bromophenyl)ethanone (1a) as the substrate. As shown in Figure 5, the cells immobilized on agar showed a superior retention of activity comparing to free cells after storage for 60 days at 4 °C. The cells immobilized on agar maintained approximately 95% of their original activity after storage for 60 days at 4 °C, while the catalytic activity of free cells decreased to 82% after storage for 20 days at 4 °C and to 7% after storage for 60 days at 4 °C. Hence, we concluded that immobilization of R. mucilaginosa GIM 2.157 cells on agar resulted in a biocatalyst with excellent storage properties and essential industrial application potential.

2.3.4. Recyclability

Recyclability is a crucial parameter for the practical application of an immobilized cell system. From a process economics point of view, if immobilized cells are stable for a higher number of cycles, then the process can be more efficiently operated. Thus, experiments were conducted to examine the recyclability of the free and agar-immobilized R. mucilaginosa GIM 2.157 cells for the reduction of 1-(2-bromophenyl)ethanone (1a) as an example. Each reaction was carried out in 10 mL Na2HPO4-KH2PO4 buffer (100 mM, pH 7.0) with 4.5 g immobilized cells or 3 g free cells, 10 mM substrate and 0.5 g glucose and the reactions were shaken at 25 °C for 23 h. Afterwards, the cells were separated, washed two times with the same buffer [Na2HPO4-KH2PO4 buffer (100 mM, pH 7.0)] and reused for the next batch under the same reaction conditions. R. mucilaginosa GIM 2.157 cells immobilized on agar showed high activity than free cells and completed the reduction of 1a for six cycles without significant loss of activity and selectivity. A loss of 68% of the initial activity was detected in cycle 7, whereas almost no activity (3.7% yield of alcohol) was retained in cycle 8 (Figure 6). When the free cells were used, the yield dropped to 80% at cycle 4. At cycle 5, the activity of free cells was completely lost (corresponding to the yield of 1.4%). Consequently, the immobilization of the R. mucilaginosa GIM 2.157 cells on agar provided a slight advantage for increasing the reusability of the cells, potentially making their implementation in commercial availability simpler and more cost effective.

3. Materials and Methods

3.1. General Methods

All substrates used in this study were obtained from Sigma-Aldrich (Schnelldorf, Denmark) and were used directly without any further purification. Fungus culture media components were purchased from Huankai Microbial (Guangzhou, China).
All NMR experiments were recorded with a Bruker Avance 500 instrument (1H 500 MHz and 13C 125 MHz) using CDCl3 as the solvent. Data for 1H NMR are documented in terms of chemical shift (δ ppm), multiplicity (s = singlet, d = doublet, t = triplet, q = quartet, m = multiplet), integration, coupling constant (Hz) and assignment. Data for 13C NMR are recorded as chemical shift. Optical rotations were measured at 20 °C on a MCP 300 (Anton Paar) (sodium D line). Column chromatography (CC) was performed with silica gel (200–300 mesh, Qingdao Marine Chemical Factory) and mixtures of petroleum ether (PE) and ethyl acetate (EtOAc) as solvents. Thin-layer chromatography (TLC) was performed on silica gel plates (Qingdao Huang Hai Chemical Group Co., G60, F-254).
Reduction products were analyzed using High Performance Liquid Chromatography (HPLC) coupled to a UV/Vis detector SPD-M10Avp (190–370 nm, Shimadzu) on a column (Daicel 4.6 × 250 mm 5 m Chiralcel AD-H). The mobile phase: n-hexane/i-PrOH (95:5, v/v); flow rate: 0.5 mL/min; column temperature: 25 °C. Retention times: 11.85 min [1-(2-bromophenyl)ethanone (1a)], 12.71 min [(R)-1-(2-bromophenyl)ethan-1-ol (R-2a)], 13.23 min [(S)-1-(2-bromophenyl)ethan-1-ol (S-2a)]; 10.66 min [1-(3-bromophenyl)ethanone (1b)], 16.45 min [(R)-1-(3-bromophenyl)ethan-1-ol (R-2b)], 17.39 min [(S)-1-(3-bromophenyl)ethan-1-ol (S-2b)]; 11.21 min [1-(4-bromophenyl)ethanone (1c)], 16.83 min [(R)-1-(4-bromophenyl)ethan-1-ol (R-2c)], 17.99 min [(S)-1-(4-bromophenyl)ethan-1-ol (S-2c)]; 10.71 min [1-(2-chlorophenyl)ethanone (1d)], 13.32 min [(R)-1-(2-chlorophenyl)ethan-1-ol (R-2d)], 13.98 min [(S)-1-(2-chlorophenyl)ethan-1-ol (S-2d)]; 10.49 min [1-(3-chlorophenyl)ethanone (1e)], 14.60 min [(R)-1-(3-chlorophenyl)ethan-1-ol (R-2e)], 16.35 min [(S)-1-(3-chlorophenyl)ethan-1-ol (S-2e)]; 10.78 min [1-(4-chlorophenyl)ethanone (1f)], 15.09 min [(R)-1-(4-chlorophenyl)ethan-1-ol (R-2f)], 16.09 min [(S)-1-(4-chlorophenyl)ethan-1-ol (S-2f)]; 11.46 min [acetophenone (1g)], 15.93 min [(R)-1-phenylethan-1-ol (R-2g)], 17.93 min [(S)-1-phenylethan-1-ol (S-2g)]; 10.94 min [propiophenone (1h)], 14.74 min [(R)-1-phenylpropan-1-ol (R-2h)], 16.49 min [(S)-1-phenylpropan-1-ol (S-2h)]; 16.75 min [2-chloro-1-phenylethanone (1k)], 20.98 min [(R)-2-chloro-1-phenylethan-1-ol (R-2k)], 24.71 min [(S)-2-chloro-1-phenylethan-1-ol (S-2k)]; 16.42 min [2-bromo-1-phenylethanone (1l)], 22.33 min [(R)-2-bromo-1-phenylethan-1-ol (R-2l)], 27.39 min [(S)-2-bromo-1-phenylethan-1-ol (S-2l)].
The optical rotations of reduction products were recorded as: (S)-2a, [α]D20 = −62.4 (c 1.00, CHCl3); {Ref. [23] (S)-1-(2-bromophenyl)ethanol [α]D27 = −29.8 (c 0.68, CHCl3)}; (S)-2b, [α]D20 = −43.9 (c 1.00, CHCl3); {Ref. [24] (S)-1-(3-bromophenyl)ethanol [α]D25 = −27.6 (c 1.00, CHCl3)}; (S)-2c, [α]D20 = −17.3 (c 1.00, MeOH), {Ref. [25] (S)-1-(4-bromophenyl)ethanol [α]D21 = −20.6 (c 1.07, MeOH)}; (S)-2d, [α]D20 = −78.4 (c 1.00, MeOH), Ref. [26] (S)-1-(2-chlorophenyl)ethanone [α]D20 = −57.75 (c 1.46, CHCl3)}; (S)-2e, [α]D20 = −49.7 (c 1.00, MeOH), Ref. [27] (R)-1-(3-chlorophenyl)ethanone [α]D20 = +40.4 (c 1.00, CHCl3)}; (S)-2f, [α]D20 = −66.49 (c 1.00, MeOH), Ref. [27] (R)-1-(4-chlorophenyl)ethanone [α]D20 = +46.1 (c 1.70, CHCl3)}; (S)-2h, [α] D20 = −38.5 (c 1.00, MeOH), Ref. [28] (S)-1-phenylpropan-1-ol [α]D20 = −45.4 (c 1.00, CHCl3)}; (S)-2k, [α]D20 = +9.68 (c 0. 05, MeOH), Ref. [28] (R)-2-chloro-1-phenylethanone [α]D20 = −5.5 (c 1.00, CHCl3)}; (R)-2l, [α]D20 = −16.9 (c 0.35, MeOH), Ref. [28] (R)-2-bromo-1-phenylethanone [α]D20 = −30.9 (c 1.00, CHCl3)}.

3.2. Microorganism and Culture Conditions

The marine fungus R. mucilaginosa GIM 2.157 was isolated from marine sediments collected in Guangdong Province, China and deposited at the Guangdong Culture Collection Center.
The marine fungus was cultivated on medium containing 15 g glucose, 5 g peptone, 5 g yeast extract, 0.5 g disodium hydrogen phosphate, 0.5 g sodium dihydrogen phosphate, 0.5 g magnesium sulphate and 10 g sodium chloride, in 1 L distilled water, final pH 7.0. The medium was autoclaved at 115 °C for 30 min to get sterilized. A single colony was cut from the agar stock cultures and added to 1 L of medium in a 2-L Erlenmeyer flask. This culture was shaken at 28 °C for about 48 h. Then the cells were harvested by centrifugation at 4000 rpm at 4 °C for 20 min. The supernatant was discard and the cells were rinsed with a Na2HPO4-KH2PO4 buffer (100 mM, pH 7.0) and centrifuged again. The supernatant was removed and the pellets were stored at −20 °C.

3.3. Immobilization of R. mucilaginosa GIM 2.157 by Various Matrices

3.3.1. On Agar

First, 2.5 g wet cells were suspended in 2 mL distilled water and the suspensions were added to a 10-mL sterilized agar (5% w/v) solution in a 50-mL screw-capped glass vial and mixed thoroughly for 5 min. Subsequently, the mixture was poured into the plate. The mixture was allowed to solidify and yielded a solid agar layer. The solid layer was divided into blocks (3 × 3 × 3 mm3) using a grid-cutter and then washed with distilled water and stored in phosphate buffer (pH 7, 0.1 M) at 4 °C.

3.3.2. On Calcium Alginate

First, 2.5 g wet cells were suspended in 5 mL distilled water and the suspensions were added to a 5-mL sterilized calcium alginate (40 g/L) solution in a 50-mL screw-capped glass vial, stirring thoroughly for 5 min. Subsequently, the mixture was injected dropwise into a sterilized CaCl2 (4% v/v) solution with a needle. After the formation of stable bead structures, the solid layers were moved to a 20–22 °C water bath for 2 h. The spherical particles were washed thoroughly and stored in CaCl2 (4%) solution at 4 °C.

3.3.3. On PVA-Alginate

First, 2.5 g wet cells were suspended in 5 mL distilled water and the suspensions were added to 5 mL calcium alginate (1% w/v) in a polyvinyl alcohol (10% w/v) solution and stirred thoroughly for 5 min in a 50-mL screw-capped glass vial. Subsequently, the mixture was injected dropwise into a sterilized CaCl2 (4% v/v) solution by a needle. After the formation of stable bead structures, the solid layers were moved to a 20–22 °C water bath for 2 h. These spherical particles were washed thoroughly and stored in saturated boric acid solution at 4 °C.

3.3.4. On Chitosan

First, 2.5 g wet cells were suspended in 5 mL distilled water and the suspensions were added to a 10-mL sterilized chitosan solution (3% w/v) in acetic acid 3% v/v, with thorough stirring for 5 min in a 50-mL screw-capped glass vial. Subsequently, this mixture was dropped with the help of a syringe into an NaOH (1 M):MeOH (80:20) solution. After 30 min, the beads were washed thoroughly with distilled water. Thereafter, glutaraldehyde (1% v/v) was added and stored at 4 °C for further use.

3.4. Scanning Electron Microscopy

For the scanning electron microscopy (SEM) analysis, the surfaces of the immobilized whole cells were washed with water to remove the non-adhering support matrix. Alcohol dehydration was performed using 10%, 30%, 50%, 70%, 90% and 100% ethanol; samples contacted each alcoholic solution for 15 min. The samples were air dried at room temperature and coated with 8–10 nm of gold using argon ion sputtering with a Baltec MCS 010 model sputter. Finally, the metallization of the dehydrated samples was achieved and samples were observed at 15 kV on a Joel JMS 6480 LV computer for Scanning Electron Microscopy.

3.5. Bioconversion of Ketones with Immobilized Cells

The asymmetric catalytic reduction of ketones was performed in a 50-mL screw cap glass vial to prevent spillage of substrate or product. Shaking was performed in a heated ground-top shaker at 25 °C with 240 rpm. Approximately 4.5 g immobilized cells with agar (or with calcium alginate, PVA-alginate, chitosan) were suspended in 10 mL of Na2HPO4-KH2PO4 buffer (100 mM, pH 7.0) containing 0.5 g glucose and 10 mM of aromatic ketones (1a1n). For the control reaction, the setup was the same but with the addition of free cells instead of immobilized cells. Reactions were performed for 24 h. For workup, the cells were discarded by filtration and 1 mL of the supernatant was saturated with NaCl, followed by extraction with 1 × 1 mL of HPLC eluent (n-hexane/i-PrOH = 95/5, v/v) with shaking for 5 min. The organic layer was combined, dried over Na2SO4 and measured by HPLC for yield and ee.

3.6. pH Profile

Reactions were performed in 10 mL buffer (100 mM) containing 10 mM 1-(2-bromophenyl)ethanone (1a), 4.5 g immobilized cells on agar and glucose (0.5 g) at pH values of 3.5–11 (buffers at pH 3.5 and 4.5 were prepared with citrate buffer; buffers at pH 5.5, 6.5, 7 and 7.5 were prepared with phosphate buffer; and buffers at pH 8.5, 9, 10 and 11 were prepared with Tris buffer) at 25 °C for 24 h. Afterwards, the cells were removed by filtration and 1 mL of the supernatant was saturated with NaCl, followed by extraction with 1 × 1 mL of HPLC eluent (n-hexane/i-PrOH = 95/5, v/v) with shaking for 5 min. The organic layer was combined, dried over Na2SO4 and measured using an HPLC to determine the yield and ee.

3.7. Thermostability

For thermostability studies, the immobilized cells (physiological saline) or free cells were incubated at various temperatures (30–70 °C) for 1 h, 3 h, 6 h, 12 h and 15 h before being added to the reaction. The cells were recovered, washed thoroughly with distilled water and used for the reduction of 1-(2-bromophenyl)ethanone (1a). Reactions were performed in 10 mL of Na2HPO4-KH2PO4 buffer (100 mM, pH 7.0) containing 10 mM of 1-(2-bromophenyl)ethanone (1a), 4.5 g cells immobilized on agar and glucose (0.5 g) at 25 °C for 24 h. Then, the cells were discarded by filtration and 1 mL of supernatant was saturated with NaCl, followed by extraction with 1 × 1 mL of HPLC eluent (n-hexane/i-PrOH = 95/5, v/v) with shaking for 5 min. The organic layer was combined, dried over Na2SO4 and measured using an HPLC to determine the yield and ee.

3.8. Storage Stability

To estimate their storage stability, both free and immobilized cells were stored in 100 mL physiological saline (0.85% NaCl, w/v) at 4 °C for 5, 10, 20, 25, 30 or 60 days. The cells were used to reduce 1-(2-bromophenyl)ethanone (1a). The reactions were performed in 10 mL of Na2HPO4-KH2PO4 buffer (100 mM, pH 7.0) containing 10 mM of 1-(2-bromophenyl)ethanone (1a), 4.5 g cells immobilized on agar and glucose (0.5 g) at 25 °C for 24 h. Then, the cells were discarded by filtration and 1 mL of the supernatant was saturated with NaCl followed by extraction with 1 × 1 mL of HPLC eluent (n-hexane/i-PrOH = 95/5, v/v) with shaking for 5 min. The organic layer was combined, dried over Na2SO4 and measured using an HPLC to determine the yield and ee.

3.9. Reusability

For recyclability studies, reactions were performed with substrate 1a (10 mM) in 10 mL of Na2HPO4-KH2PO4 buffer (100 mM, pH 7.0) and 4.5 g R. mucilaginosa GIM 2.157 cells immobilized on agar at 25 °C for 23 h. At the end of the reaction, the cells were centrifuged at 4000 rpm for 20 min to separate them from the reaction mixture, washed with Na2HPO4-KH2PO4 buffer (100 mM, pH 7.0) and suspended in 10 mL of the same buffer containing the same substrate. The reaction mixture (1 mL of supernatant separated from cells) was saturated with NaCl and extracted with 1 mL (×2) of HPLC eluents (n-hexane/i-PrOH = 95/5, v/v) while being shaken for 5 min. The organic phases were combined, dried over Na2SO4 and crude samples were analyzed using HPLC to determine the yield and ee.

4. Conclusions

In this study, we reported the immobilization of whole mycelia of a selected strain of marine-derived R. mucilaginosa GIM 2.157 on agar, calcium alginate, PVA-alginate and chitosan as support matrices. The successful immobilization was confirmed by FTIR and SEM. The immobilized cells showed a potential for the asymmetric reduction of various ketones, depending on the support matrix. It was shown that agar is a highly effective material for the entrapment of R. mucilaginosa GIM 2.157 cells in terms of the catalytic activity of the cells for the asymmetric reduction of ketones. The cells immobilized on agar maintained activities and selectivities comparable to those of free cells. The free cells exhibited an optimum activity at pH of 7.0 and were very sensitive to alkaline or acidic environments. The cells immobilized on agar retained approximately 99% of their initial activity in the pH range 3.5–9, with a slight decrease at pH 10 and 11. The cells immobilized on agar retained >99% of their original activity after incubation for 1 h at 60 °C, while the activity of the free cells decreased to 70% after incubation for 1 h at 40 °C. The storage stability of the R. mucilaginosa GIM 2.157 strain was greatly enhance by immobilization on agar. The agar-immobilized cells maintained approximately 95% of their original activity after storage at 4 °C for 60 days, while the catalytic activity of free cells decreased to 82% after storage at 4 °C for 20 days and to 7% after storage at 4 °C for 60 days. The immobilized cells on agar could be reused for 6 cycles without significant loss of activity, while free cells began to lose their activity at cycle 4. As a result, the R. mucilaginosa GIM 2.157 cells immobilized on agar are highly practical for the enantioselective preparation of chiral alcohols.

Acknowledgments

This study was funded by the Natural Science Foundation of Guangdong Province (Grant No. 2017A030310232), the National Natural Science Foundation of China (Grant No. 41706148), the Basic Research Program of Sun Yat-Sen University (Grant No. 17lgpy58) and the National Science and Technology Major Project of the Ministry of Science and Technology of China (2018ZX09735010).

Author Contributions

Bi-Shuang Chen and Fayene Zeferino Ribeiro de Souza designed the study. Bi-Shuang Chen wrote the paper. Hui Liu and Wen-Di Duan performed the experiments. Bi-Shuang Chen and Lan Liu supervised the study. All authors made substantial contributions to the discussion of data and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kataoka, M.; Kita, K.; Wada, M.; Yasohara, Y.; Hasegawa, J.; Shimizu, S. Novel bioreduction system for the production of chiral alcohols. Appl. Microbiol. Biotechnol. 2003, 62, 437–445. [Google Scholar] [CrossRef] [PubMed]
  2. Nealon, C.M.; Musa, M.M.; Patel, J.M.; Phillips, R.S. Controlling substrate specificity and stereospecificity of alcohol dehydrogenases. ACS Catal. 2015, 2, 2100–2114. [Google Scholar] [CrossRef]
  3. Zhang, R.; Xu, Y.; Xiao, R. Redesigning alcohol dehydrogenases/reductases for more efficient biosynthesis of enantiopure isomers. Biotechnol. Adv. 2015, 33, 1671–1684. [Google Scholar] [CrossRef] [PubMed]
  4. Gyarmati, J.; Hajdu, C.; Dinya, Z.; Micskei, K.; Pályi, G. Asymmetric induction by amino acid ligands in chromium(II)-assisted reduction of ketones. J. Organomet. Chem. 1999, 586, 106–109. [Google Scholar] [CrossRef]
  5. Micskei, K.; Holczknecht, O.; Hajdu, C.; Patonay, T.; Marchis, V.; Meo, M.; Zucchi, C.; Pályi, G. Asymmetric synthesis of amino acids by Cr(II) complexes of natural amino acids. J. Organomet. Chem. 2003, 682, 143–148. [Google Scholar] [CrossRef]
  6. Micskei, K.; Patonay, T.; Caglioti, L.; Pályi, G. Amino acid ligand chirality for enantioselective syntheses. Chem. Biodivers. 2010, 7, 1660–1669. [Google Scholar] [CrossRef] [PubMed]
  7. Kroutil, W.; Mang, H.; Edegger, K.; Faber, K. Recent advances in the biocatalytic reduction of ketones and oxidation of sec-alcohols. Curr. Opin. Chem. Biol. 2004, 8, 120–126. [Google Scholar] [CrossRef] [PubMed]
  8. Stefaan, M.A.; De, W.; Theo, S.; Hans, E.S.; Oliver, M. Biocatalytic reductions: From lab curiosity to “first choice”. Acc. Chem. Res. 2007, 40, 1260–1266. [Google Scholar]
  9. Rocha, L.C.; de Souza, A.L.; Filho, U.P.R.; Filho, S.P.C.; Sette, L.D.; Porto, A.L.M. Immobilization of marine fungi on silica gel, silica xerogel and chitosan for biocatalytic reduction of ketones. J. Mol. Catal. B Enzym. 2012, 84, 160–165. [Google Scholar] [CrossRef]
  10. Chen, B.-S.; Liu, H.; de Souza, F.Z.R.; Liu, L. Organic solvent-tolerant marine microorganisms as catalysts for kinetic resolution of cyclic β-hydroxy ketones. Mar. Biotechnol. 2017, 19, 351–360. [Google Scholar] [CrossRef] [PubMed]
  11. Liu, H.; de Souza, F.Z.R.; Liu, L.; Chen, B.-S. The use of marine-derived fungi for preparation of enantiomerically pure alcohols. Appl. Microbiol. Biotechnol. 2018, 102, 1317–1330. [Google Scholar] [CrossRef] [PubMed]
  12. Liu, H.; Chen, B.-S.; de Souza, F.Z.R.; Liu, L. A comparative study on asymmetric reduction of ketones using the growing and resting cells of marine-derived fungi. Mar. Drugs 2018, 16, 62. [Google Scholar] [CrossRef] [PubMed]
  13. Chen, X.-H.; Wang, X.-T.; Lou, W.-Y.; Li, Y.; Wu, H.; Zong, M.-H.; Smith, T.J.; Chen, X.-D. Immobilization of Acetobacter sp. CCTCC M209061 for efficient asymmetric reduction of ketones and biocatalyst recycling. Microb. Cell Fact. 2012, 11, 119. [Google Scholar] [CrossRef] [PubMed]
  14. Lusta, K.A.; Chung, I.K.; Sul, I.W.; Park, H.S.; Shin, D.I. Immobilization of fungus Aspergillus sp. by a novel cryogel technique for production of extracellular hydrolytic enzymes. Process Biochem. 2000, 35, 1177–1182. [Google Scholar] [CrossRef]
  15. Sanchez, S.; Demain, A.L. Enzymes and bioconversions of industrial, pharmaceutical, and biotechnological significance. Org. Process Res. 2011, 15, 224–230. [Google Scholar] [CrossRef]
  16. Rocha, L.C.; Seleghim, M.H.R.; Comasseto, J.V.; Sette, L.D.; Porto, A.L.M. Stereoselective bioreduction of α-azido ketones by whole cells of marine-derived fungi. Mar. Biotechnol. 2015, 17, 736–742. [Google Scholar] [CrossRef] [PubMed]
  17. Zhang, Y.W.; Prabhu, P.; Lee, J.K. Alginate immobilization of recombinant Escherichia coli whole cells harboring L-arabinose isomerase for L-ribulose production. Bioprocess. Biosyst. Eng. 2010, 33, 741–748. [Google Scholar] [CrossRef] [PubMed]
  18. Li, G.Y.; Huang, K.L.; Jiang, Y.R.; Ding, P. Production of (R)-mandelic acid by immobilized cells of Saccharomyces cerevisiae on chitosan carrier. Process Biochem. 2007, 42, 1465–1469. [Google Scholar] [CrossRef]
  19. Idris, A.; Suzana, W. Effect of calcium alginate concentration, bead diameter, initial pH and temperature on lactic acid production from pineapple waste using immobilized Lactobacillus delbrueckii. Process Biochem. 2006, 41, 1117–1123. [Google Scholar] [CrossRef]
  20. Wang, W.; Huang, X.J.; Cao, J.D.; Lan, P.; Wu, W. Immobilization of calcium alginate sulfates on polysulfone ultrafiltration membranes for selective adsorption of low-density lipoprotein. Acta Biomater. 2014, 10, 234–243. [Google Scholar] [CrossRef] [PubMed]
  21. Cheng, Y.; Lin, H.Y.; Chen, Z.; Megharaj, M.; Naidu, R. Biodegradation of crystal violet using Burkholderia vietnamiensis C09V immobilized on PVA–calcium alginate–kaolin gel beads. Ecotoxiol. Environ. Saf. 2012, 83, 108–114. [Google Scholar] [CrossRef] [PubMed]
  22. Krajewska, B. Application of chitin- and chitosan-based materials for enzyme immobilizations: A review. Enzyme Microb. Technol. 2004, 35, 126–139. [Google Scholar] [CrossRef]
  23. Nunes, M.A.P.; Vila-Real, H.; Fernandes, P.C.B.; Ribeiro, M.H.L. Immobilization of naringinase in PVA–alginate matrix using an innovative technique. Appl. Biochem. Biotechnol. 2010, 160, 2129–2147. [Google Scholar] [CrossRef] [PubMed]
  24. Wu, H.; Wang, J.; Kang, X.; Wang, C.; Wang, D.; Liu, J.; Aksay, I.A.; Lin, Y. Glucose biosensor based on immobilization of glucose oxidase in platinum nanoparticles/graphene/chitosan nanocomposite film. Talanta 2009, 80, 403–406. [Google Scholar] [CrossRef] [PubMed]
  25. Wu, F.C.; Tseng, R.L.; Juang, R.S. Enhanced abilities of highly swollen chitosan beads for color removal and tyrosinase immobilization. J. Hazard. Mater. 2001, 81, 167–177. [Google Scholar] [CrossRef]
  26. Kumirska, J.; Czerwicka, M.; Kaczyński, Z.; Bychowska, A.; Brzozowski, K.; Thöming, J.; Stepnowski, P. Application of spectroscopic methods for structural analysis of chitin and chitosan. Mar. Drugs 2010, 8, 1567–1636. [Google Scholar] [CrossRef] [PubMed]
  27. Martins, J.E.D.; Morris, D.J.; Wills, M. Asymmetric hydrogenation of ketones using Ir(III) complexes of N-alkyl-N′-tosyl-1,2-ethanediamine ligands. Tetrahedron Lett. 2009, 50, 688–692. [Google Scholar] [CrossRef]
  28. Yearick, K.; Wolf, C. Catalytic enantioselective addition of diethylzinc to trifluoromethyl ketones. Org. Lett. 2008, 10, 4391. [Google Scholar]

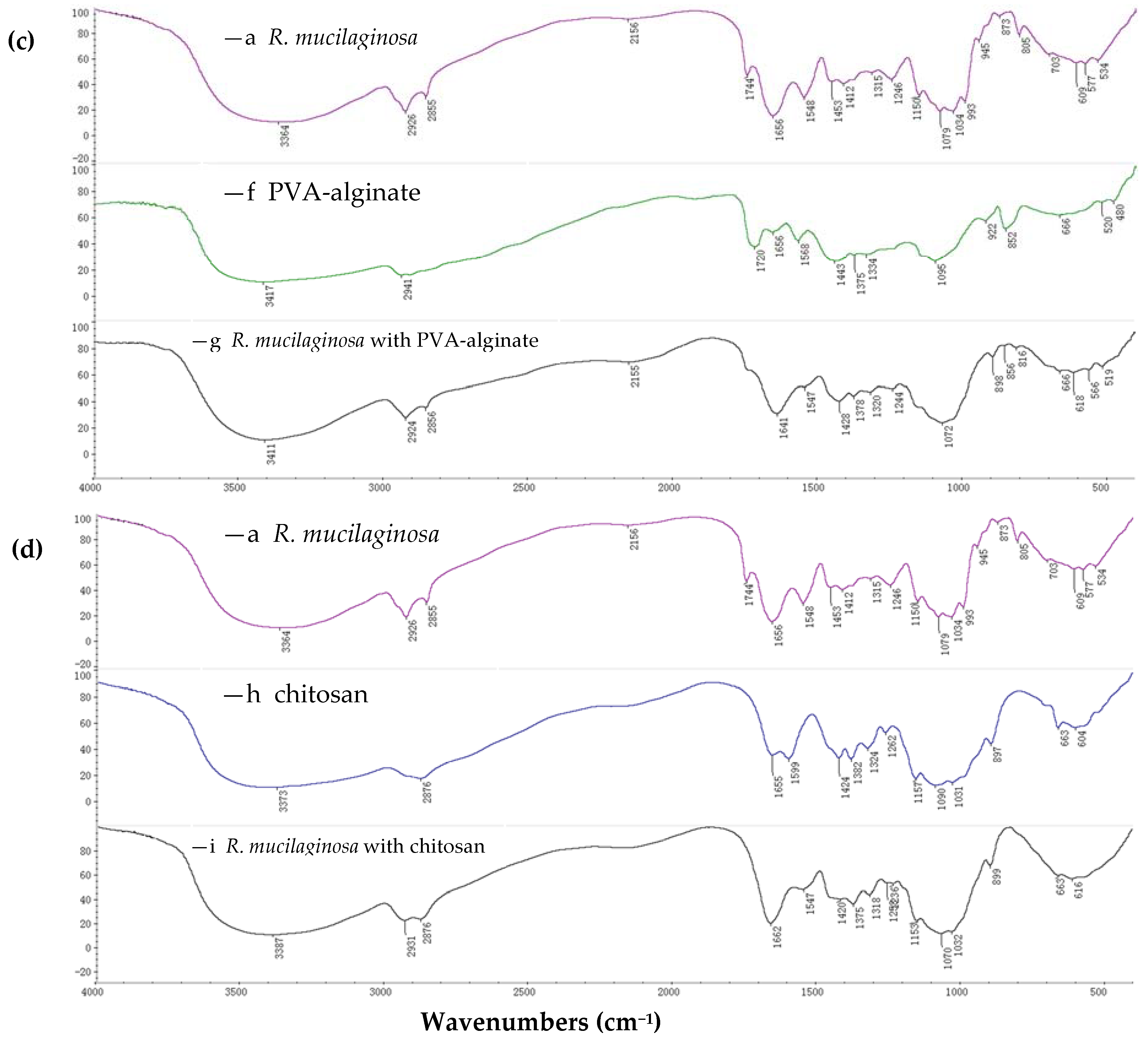

Figure 1. Fourier transform infrared (FTIR) for immobilization of R. mucilaginosa GIM 2.157 on agar (a), on calcium alginate (b), on PVA-alginate (c) and on chitosan (d): —a R. mucilaginosa; —b agar; —c R. mucilaginosa with agar; —d calcium alginate; —e R. mucilaginosa with calcium alginate; —f PVA-alginate; —g R. mucilaginosa with PVA-alginate; —h chitosan; —i R. mucilaginosa with chitosan.
Figure 1. Fourier transform infrared (FTIR) for immobilization of R. mucilaginosa GIM 2.157 on agar (a), on calcium alginate (b), on PVA-alginate (c) and on chitosan (d): —a R. mucilaginosa; —b agar; —c R. mucilaginosa with agar; —d calcium alginate; —e R. mucilaginosa with calcium alginate; —f PVA-alginate; —g R. mucilaginosa with PVA-alginate; —h chitosan; —i R. mucilaginosa with chitosan.
Catalysts 08 00165 g001aCatalysts 08 00165 g001b
Figure 2. Scanning electron micrographs of agar, calcium alginate, PVA-alginate and chitosan beads containing R. mucilaginosa GIM 2.157 cells. (A) Free R. mucilaginosa GIM 2.157 cells; (B) agar; (C) R. mucilaginosa GIM 2.157 cells immobilized on agar; (D) calcium alginate; (E) R. mucilaginosa GIM 2.157 cells immobilized on calcium alginate; (F) PVA-alginate; (G) R. mucilaginosa GIM 2.157 cells immobilized on PVA-alginate; (H) chitosan; and (I) R. mucilaginosa GIM 2.157 cells immobilized on chitosan.
Figure 2. Scanning electron micrographs of agar, calcium alginate, PVA-alginate and chitosan beads containing R. mucilaginosa GIM 2.157 cells. (A) Free R. mucilaginosa GIM 2.157 cells; (B) agar; (C) R. mucilaginosa GIM 2.157 cells immobilized on agar; (D) calcium alginate; (E) R. mucilaginosa GIM 2.157 cells immobilized on calcium alginate; (F) PVA-alginate; (G) R. mucilaginosa GIM 2.157 cells immobilized on PVA-alginate; (H) chitosan; and (I) R. mucilaginosa GIM 2.157 cells immobilized on chitosan.
Catalysts 08 00165 g002

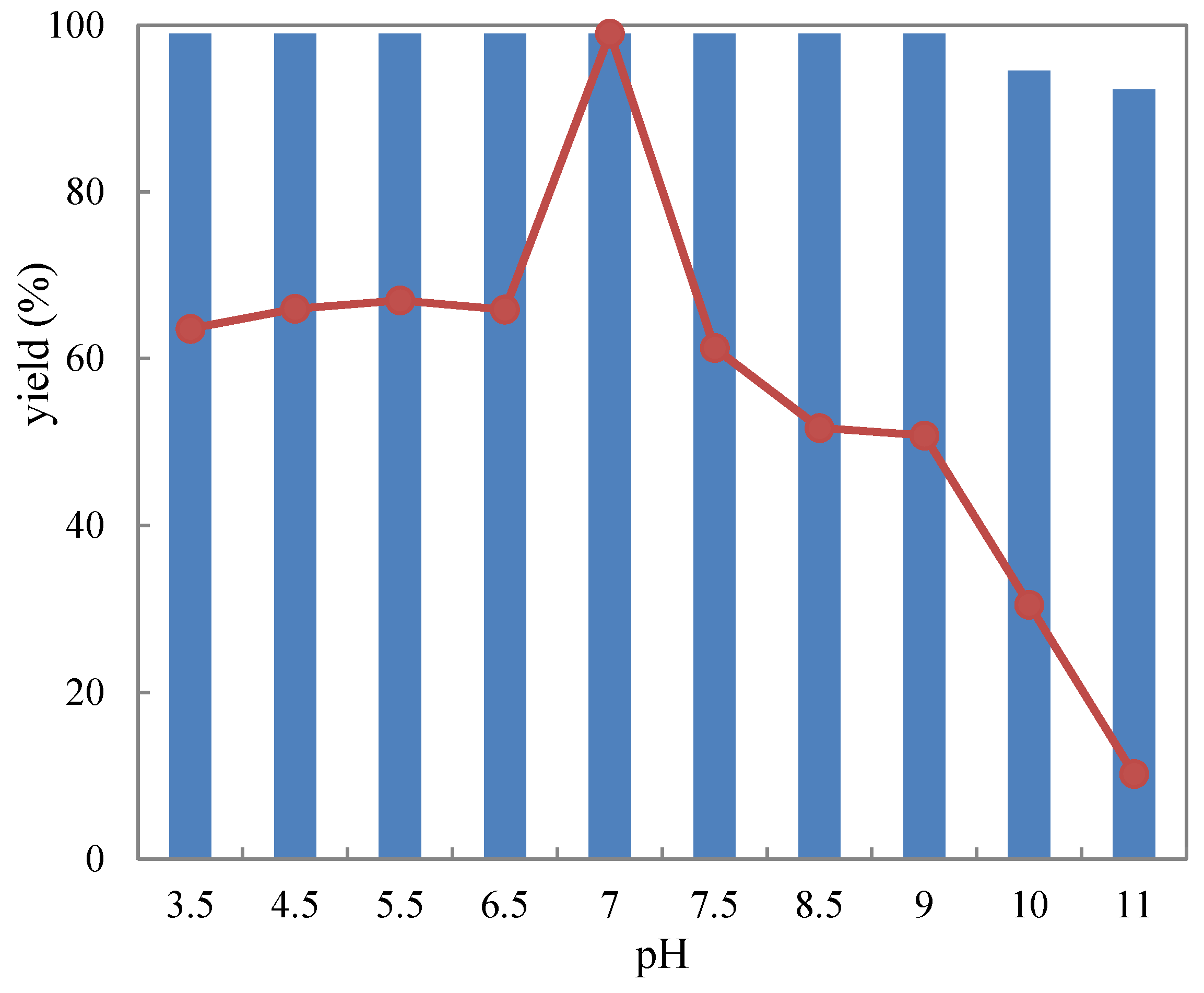

Figure 3. Optimum pH profile of free (represented by the dots) and agar-immobilized (striped bar) R. mucilaginosa GIM 2.157 cells for catalyzing the reduction of 1-(2-bromophenyl)ethanone (1a).
Figure 3. Optimum pH profile of free (represented by the dots) and agar-immobilized (striped bar) R. mucilaginosa GIM 2.157 cells for catalyzing the reduction of 1-(2-bromophenyl)ethanone (1a).
Catalysts 08 00165 g003

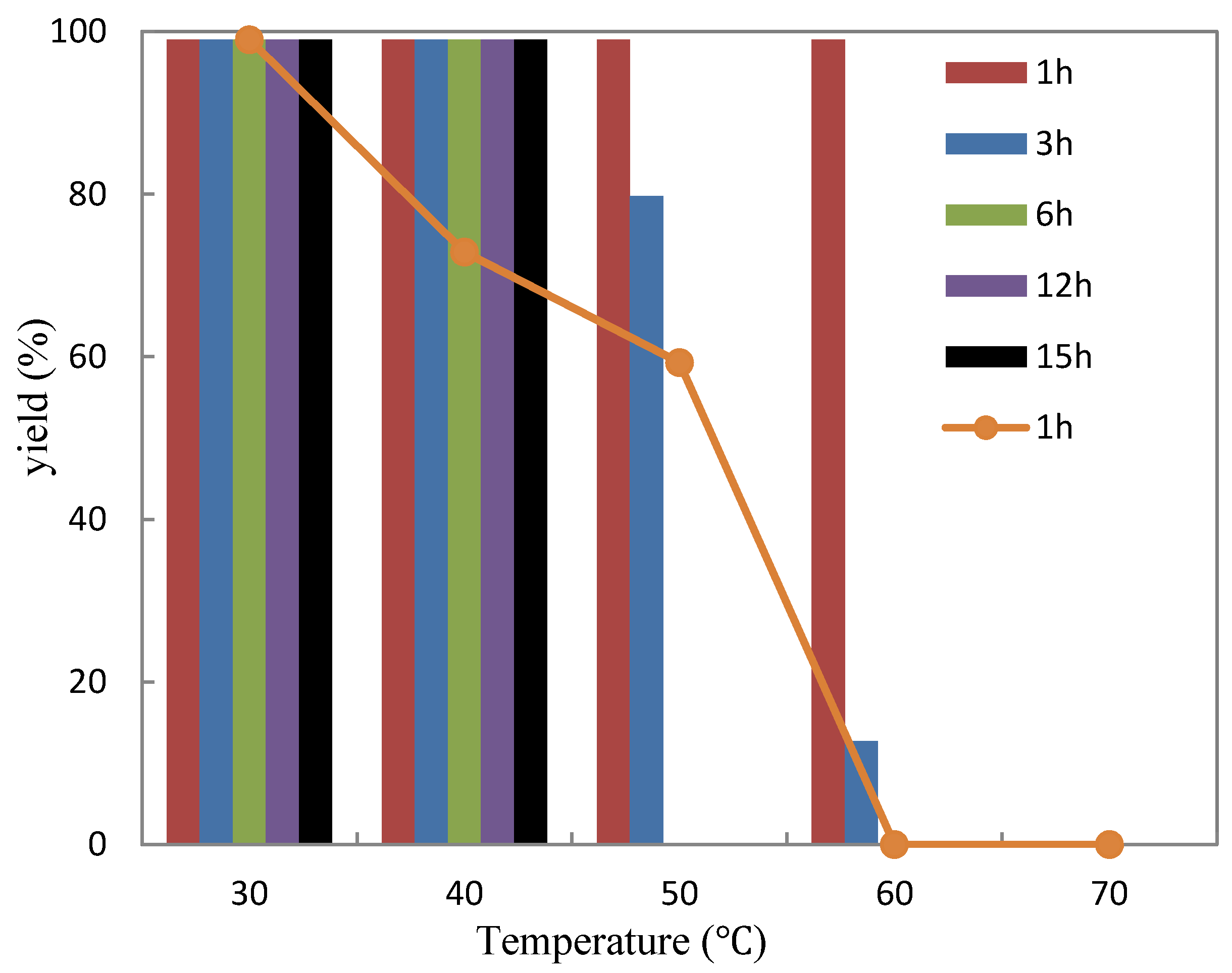

Figure 4. Thermostability of free (represented by the dots) and agar-immobilized (striped bar) R. mucilaginosa GIM 2.157 cells for catalyzing the reduction of 1-(2-bromophenyl)ethanone (1a). Cells were incubated at various temperatures and times before substrate was added to initiate reactions.
Figure 4. Thermostability of free (represented by the dots) and agar-immobilized (striped bar) R. mucilaginosa GIM 2.157 cells for catalyzing the reduction of 1-(2-bromophenyl)ethanone (1a). Cells were incubated at various temperatures and times before substrate was added to initiate reactions.
Catalysts 08 00165 g004

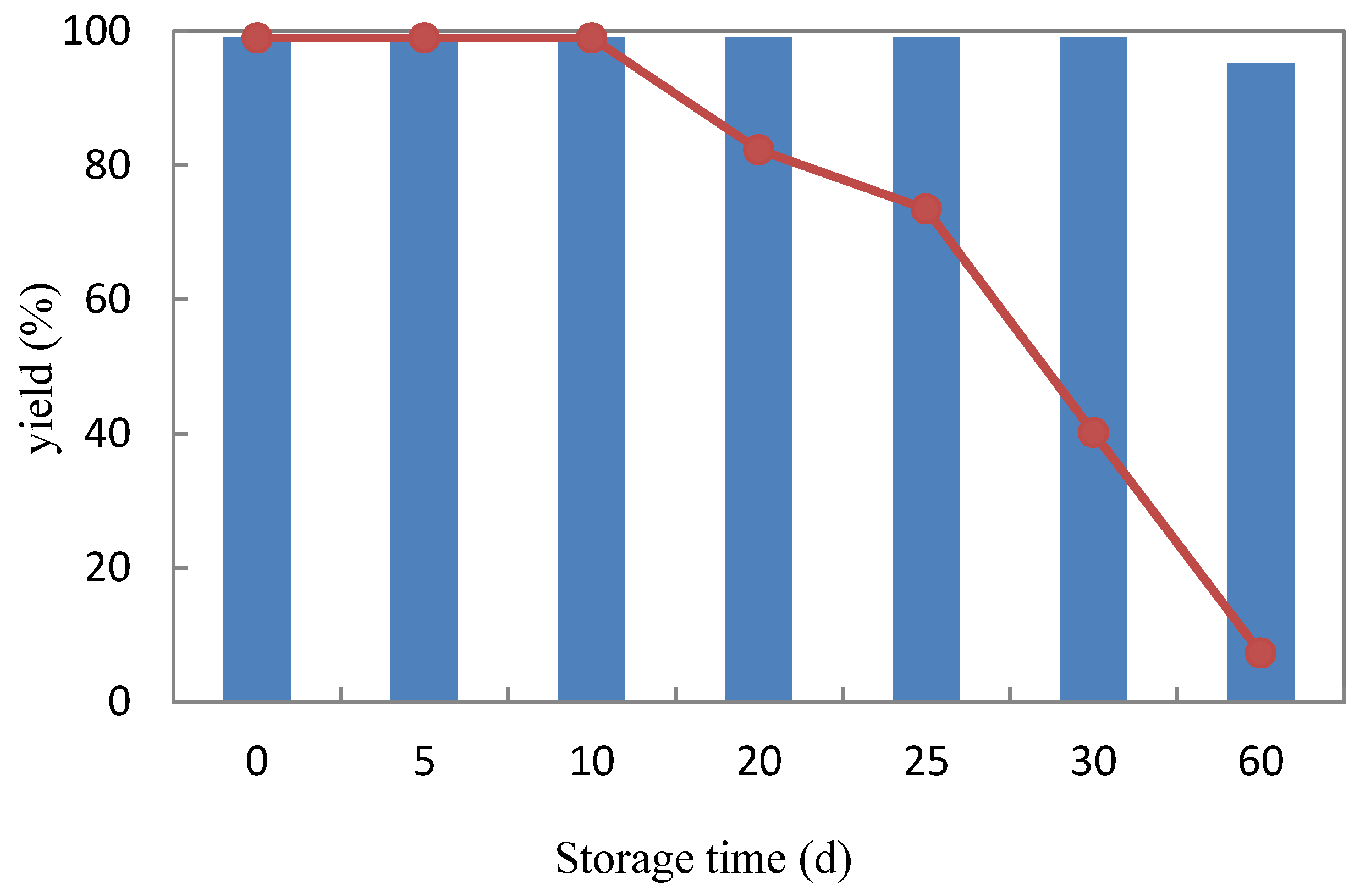

Figure 5. Storage stability of free (represented by the dots) and agar-immobilized (represented by striped bar) R. mucilaginosa GIM 2.157 cells for catalyzing the reduction of 1-(2-bromophenyl)ethanone (1a) at 4 °C.
Figure 5. Storage stability of free (represented by the dots) and agar-immobilized (represented by striped bar) R. mucilaginosa GIM 2.157 cells for catalyzing the reduction of 1-(2-bromophenyl)ethanone (1a) at 4 °C.
Catalysts 08 00165 g005

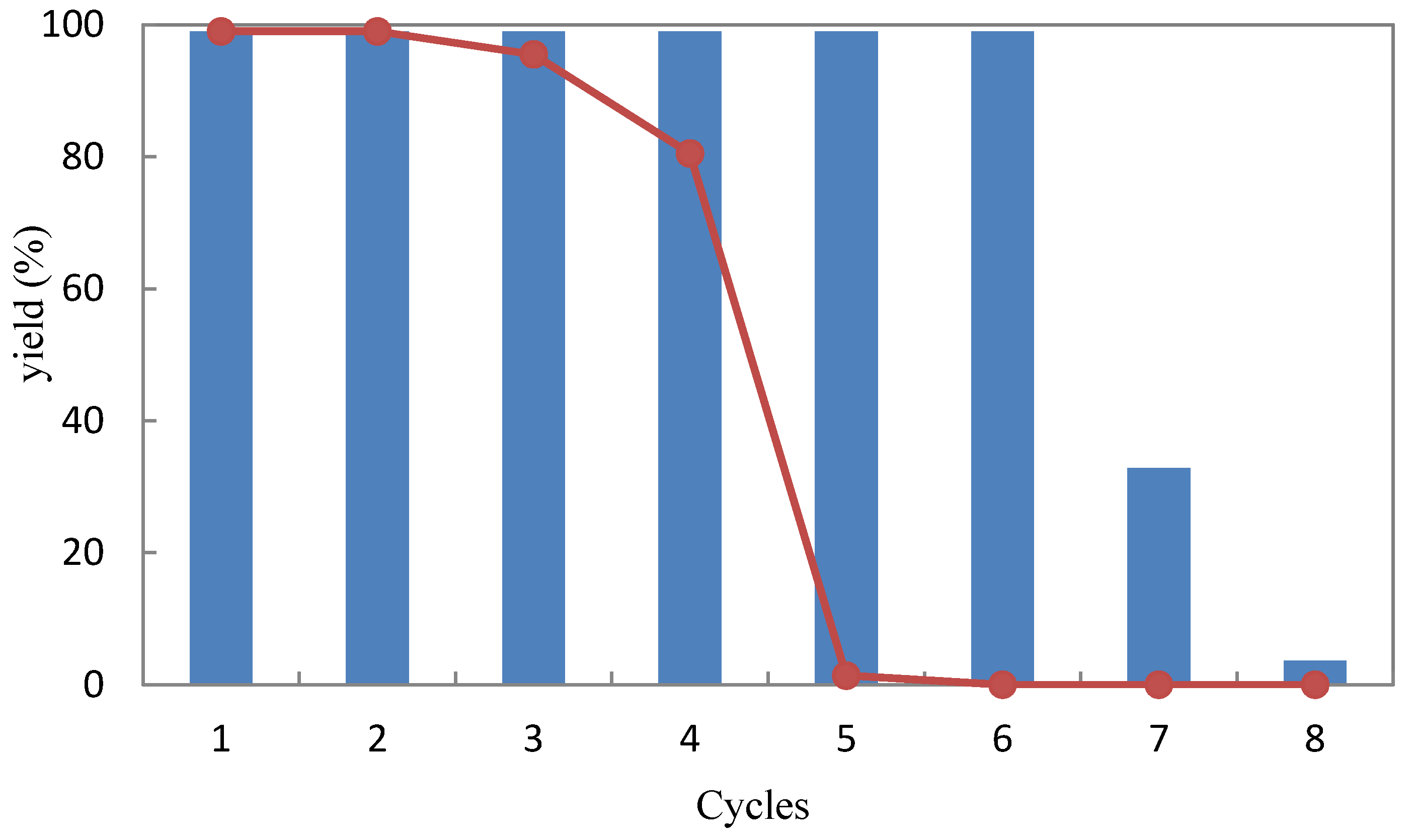

Figure 6. Repeated bioreduction of 1-(2-bromophenyl)ethanone (1a) catalyzed by free (dots) and agar-immobilized (striped bar) R. mucilaginosa GIM 2.157 cells.
Figure 6. Repeated bioreduction of 1-(2-bromophenyl)ethanone (1a) catalyzed by free (dots) and agar-immobilized (striped bar) R. mucilaginosa GIM 2.157 cells.
Catalysts 08 00165 g006

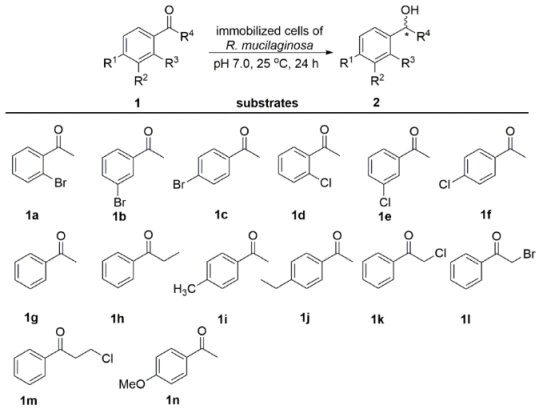

Table 1. Catalytic activity of immobilized cells in the reduction of various ketones a: the numbers indicate chemical yields of desired products, numbers within brackets indicate the enantiomeric excess values of the desired product (%), S/R within brackets indicate the absolute configuration of the desired products.
Table 1. Catalytic activity of immobilized cells in the reduction of various ketones a: the numbers indicate chemical yields of desired products, numbers within brackets indicate the enantiomeric excess values of the desired product (%), S/R within brackets indicate the absolute configuration of the desired products.
Catalysts 08 00165 i001
Reduction ProductsBiocatalysts
Free CellsR. mucilaginosa Cells Immobilized on
AgarCalcium AlginatePVA-AlginateChitosan
2a99 (99, S)99 (99, S)99 (99, S)99 (99, S)0
2b99 (99, S)99 (89, S)86 (99, S)89 (94, S)0
2c99 (99, S)73 (68, S)71 (19, S)51 (54, S)0
2d99 (99, S)99 (99, S)89 (99, S)97 (99, S)0
2e99 (99, S)99 (99, S)94 (89, S)99 (99, S)0
2f99 (99, S)94 (83, S)91 (94, S)59 (77, S)0
2g99 (99, S)99 (91, S)94 (97, S)75 (66, S)0
2h99 (99, S)99 (99, S)93 (99, S)94 (99, S)0
2i00000
2j00000
2k99 (99, S)99 (89, S)99 (85, S)77 (84, S)88 (91, R)
2l99 (99, R)99 (73, R)99 (82, R)23 (21, R)72 (84, S)
2m00000
2n00000
a Reaction conditions: 10 mL Na2HPO4-KH2PO4 buffer (100 mM, pH 7.0), 3 g resting cells (or 4.5 g immobilized cells), 10 mM substrate, 0.5 g glucose, 25 °C, 24 h; 94 (83, S) indicates 94% yield of desired (S)-selective reduction product with 83% ee for all data listed in the table above; Yield and ee were determined by chiral HPLC analysis equipped with a Chiralcel AD-H chiral column; Configuration was assigned by comparing specific signs of rotation measured for isolated products to those reported in the literature.
