Catalysts 2018, 8(4), 142; https://doi.org/10.3390/catal8040142

Article
Continuous Dimethyl Carbonate Synthesis from CO2 and Methanol Using [email protected] as Catalyst Synthesized by a Novel Sulfuration Method
1
The Key Laboratory of Low-Carbon Chemistry & Energy Conservation of Guangdong Province/State Key Laboratory of Optoelectronic Materials and Technologies, Sun Yat-sen University, Guangzhou 510275, China
2
School of Biomedical Engineering, Southern Medical University, Guangzhou 510515, China
*
Correspondence: [email protected] (S.W.); [email protected] (Y.M.); Tel.: +86-020-841-14113 (Y.M.)
Meng Zhang and Kirill A. Alferov have contributed equally to this work.
Received: 23 January 2018 / Accepted: 29 March 2018 / Published: 3 April 2018

Abstract

:
Conversion of carbon dioxide into useful chemicals is a valuable task. One way to perform it is to transform CO2 into dimethyl carbonate (DMC) by a reaction with methanol. Catalyst exerts significant impact on this process. During this work, [email protected] bimetallic catalysts were successfully synthesized by traditional solution and novel sulfuration methods. The catalytic materials were characterized by several analytical techniques and were tested in a continuous fixed-bed reactor under different reaction conditions to promote DMC synthesis from CO2 and methanol in the absence of dehydrating agents. The effects of reaction temperature, pressure, space velocity, metal loading, and bulk density on the catalytic performance were investigated in detail. It was found that the activity of [email protected] catalyst with the support obtained by the novel sulfuration method is about three times higher when compared to that of the catalyst with the support that is synthesized by the traditional solution method. This result may stem from the difference in microstructure of the studied catalytic materials.
Keywords:
copper-nickel catalysts; dimethyl carbonate; carbon dioxide; fixed bed reactor

1. Introduction

Dimethyl carbonate is one of the promising chemicals for the chemical industry. For example, it can be used for polymer synthesis, as a solvent, and a fuel additive. A number of publications about dimethyl carbonate (DMC) synthesis appeared recently [1,2,3,4,5]. Several synthetic routes affording DMC were reported; for example, methanolysis of phosgene [6], oxidative carbonylation of methanol [7], transesterification of ethylene carbonate [8] or urea [9], electrochemical synthesis [10], direct DMC synthesis from carbon dioxide and methanol [11]. Full accounts of the advantages and disadvantages of different synthesis methods can be found in [12,13,14,15]. The reaction of CO2 and methanol to produce DMC deserves attention as it is one of promising routes that are based on green chemistry and sustainable development.
A difficulty of the direct DMC synthesis from CO2 and methanol is the activation of highly stable CO2 molecules. Various approaches were employed to increase DMC yield (methanol conversion times selectivity toward DMC), such as the application of supercritical CO2, dehydrating agents, developing efficient catalysts [13,14,15,16,17,18,19,20,21,22,23]. Improved yield of DMC was continuously reported in many publications [24,25,26,27].
A fundamental way to increase DMC yield is to develop efficient catalysts to activate CO2. A large number of catalysts were investigated for the conversion of CO2 and methanol into DMC. Ikeda [28] reported that commercially available ZrO2 modified with H3PO4 afforded a DMC yield of 0.42%. Tomishige [29] used a CeO2-ZrO2 catalyst, and the DMC yield reached 0.76%. Aresta [30] reported an Al2O3/CeO2 catalyst with 0.45% DMC yield. Lee [31] synthesized a 5Ga2O3/Ce0.6Zr0.4O2 catalyst which afforded 0.47% yield of DMC. High DMC yields (>95%) can be achieved via the use of dehydrating agents [11,13,15,32]. Dehydrating agents are generally expensive and are difficult to recycle though. A relatively high yield (16%) was reported recently for the process in the presence of a titanium-based zeolitic thiophenebenzimidazolate framework only [33].
We had been studying the direct DMC synthesis by heterogeneous Cu-Ni catalysts in the absence of dehydrating compounds [34,35,36,37,38,39,40,41,42]. One catalyst type is [email protected] (copper and nickel supported on V2O5/SiO2 carrier). Copper and nickel are active components of the catalysts. The presence of “VOn” species in catalyst may provide additional sites for reactant activation [34,43]. In the present study, a novel sulfuration method was employed to synthesize [email protected] catalyst. When compared with a catalyst that was obtained by a traditional solution method, the structure and properties of the catalyst changed significantly. The activities of supported metal catalysts are usually determined by many factors, including metal dispersion, morphology of metal clusters, metal particle size, and metal-support interaction. The synthesized catalysts consisted of uniform particles without any agglomeration phenomenon. Accordingly, the novel sulfuration method solved many inevitable defects of the traditional synthetic method.

2. Results and Discussion

2.1. Chemical Structure and Morphology of Synthesized Catalysts

2.1.1. Characterization of Catalyst Support VSiO Microstructure

VSiO supports with close contents of vanadium and silicon were synthesized by the traditional solution and sulfuration methods, and their chemical structures were characterized by several techniques. Fourier transform infrared spectrum (FTIR) spectra of the supports are shown in Figure 1. Both the positions and relative intensities of peaks are obviously different. The following peak position shifts were observed: 3466 cm−1 moved to 3428 cm−1, 1679 cm−1 moved to 1624 cm−1, 1146 cm−1 moved to 1101 cm−1, 867 cm−1 moved to 806 cm−1. Signals from SiO2 dominate in the IR spectra of the obtained materials [34,44,45,46].
The X-ray diffraction (XRD) spectra in Figure 2 demonstrate the peaks of amorphous SiO2 and the absence of peaks corresponding to crystalline phases, which may indicate that vanadium oxide species were well distributed over silica surface.
Temperature programmed reduction (TPR) technique was able to analyze the interaction between components of the supports. The reduction peak of VSiO obtained by the sulfuration method was observed at about 541 °C (Figure 3). In the case of VSiO synthesized by the solution method, two peaks appeared at about 554 °C and 605 °C. Therefore interaction mode between V2O5 and SiO2 in the VSiO supports was significantly different, which led to different catalytic properties.
In order to further analyze specific differences, the particle size and morphology for the different supports were estimated by Scanning electron microscopy (SEM) (Figure 4). VSiO obtained by the solution method consisted of larger particles and agglomeration phenomenon was obvious. In contrast, VSiO synthesized by the sulfuration method was composed of uniform small particles and agglomeration phenomenon was not observed. So, if the particle size and the morphology are considered, the sulfuration method is better than the solution method. Energy dispersive X-ray spectrometers (EDS) analysis was employed to make sure whether the proportion of elements in support was equal to the proportion used for synthesis (Figure 5 and Figure 6). According to the experimental results, these two were nearly the same.
Consequently, the VSiO supports synthesized by the different synthetic methods with same synthetic ratio are very different according to FTIR, XRD, TPR, and SEM measuring techniques.

2.1.2. [email protected] and [email protected] Microstructure Characterization

[email protected] (intermediate product of catalyst synthesis before reduction with H2) and [email protected] were synthesized by the traditional solution and novel sulfuration routes using the same synthetic ratio of reagents. Their microstructures were characterized by several techniques.
The following peaks were observed in XRD spectra (Figure 7): one peak of CuO(110) and one peak of CuNi alloy phase (111) in [email protected] and [email protected] that were obtained by the solution method, respectively; two peaks of CuO(110) and NiO(101), two peaks of CuNi alloy phase (111), (200) in [email protected] and [email protected] that were produced by the sulfuration method, respectively.
DMC synthesis from methanol and CO2 is a heterogeneous catalytic reaction that is promoted by a catalyst crystalline phase. Therefore, more CuNi alloy phase is beneficial to improve catalytic efficiency.
TPR technique was employed to analyze the interaction between components of the catalysts (Figure 8). CuO reduction peak was at 263 °C and NiO reduction peak was at 418 °C for [email protected] that was obtained by the sulfuration method [35]. In the case of [email protected] synthesized by the solution method, these values were 302 °C and 424 °C, respectively. The lower reduction temperature for the CuO component in the first case (263 °C vs. 302 °C) is probably the consequence of weaker interaction of CuO with the support.
Temperature programmed desorption (CO2-TPD) spectra revealed the characteristics of basic sites on the catalyst surface and the absorption capacity of CO2 (Figure 9). The number of peaks represents the number of types of active centers and the area of a peak indicates the amount of active sites of the catalyst. There was only one peak around 328 °C and 265 °C for [email protected] obtained by the sulfuration and solution methods, respectively. Therefore, it was shown that only one type of active centers bonding CO2 exists in each case. According to peak area values, the number of active centers for the catalyst that are produced by the sulfuration method is much higher than that for the catalyst produced by the solution method. Therefore, the adsorption strength of CO2 and the activation extent of CO2 for [email protected] produced by the sulfuration method are higher when compared to those of [email protected] synthesized by the solution method.
The NH3-TPD (Figure 10) spectra revealed the characteristics of acid sites on catalyst surface and allowed to investigate the activation of methanol on catalyst. There is only one broad peak of NH3 desorption, corresponding to one type of acid site, at around 294 °C and 140 °C, for [email protected] that is produced by the sulfuration and solution methods, respectively. According to peak areas, much more acid sites were produced when catalyst support was synthesized via the sulfuration method. Consequently, the activation of methanol for this catalyst is expected to be stronger than for [email protected] with support obtained by the solution method. The observed differences between the two catalysts in CO2-TPD and NH3-TPD profiles could be attributed to well-dispersed and smaller granular Cu-Ni particles on VSiO support in the case of [email protected] with support that is synthesized by the sulfuration method, which provided extra acid and base sites.
In order to analyze the catalyst surface morphology, particle size, and composition, SEM and EDS analyses were employed. According to experimental results, [email protected] surfaces were extremely different for the two synthesis methods (Figure 11). [email protected] that was synthesized by the solution method consisted of larger particles and agglomeration phenomenon was observed in contrast to [email protected] produced by the sulfuration method that was composed of uniform small particles without agglomeration. Based on the observation of the morphology, sulfuration synthesis method seems to be better when compared to the solution method. Additionally, EDS was measured to make sure whether actual element proportion in catalysts was the same as that used during catalyst synthesis (Figure 12 and Figure 13). The experimental results proved that these two were close in values.
Consequently, [email protected] and [email protected] synthesized by the different synthetic methods with same synthetic ratio were extremely distinct according to XRD, TPR, CO2-TPD, NH3-TPD, SEM, and EDS measuring techniques.

2.2. Catalytic Performance Characterization

The [email protected] catalysts produced by the two different synthetic methods were evaluated in the reaction between methanol and CO2 in a continuous tubular fixed-bed reactor. Different parameters (reaction temperature (T) and pressure (P), space velocity (SV), catalyst bulk density (DB), CuO-NiO loading, and methanol bubbler temperature (TMB)) were varied in order to achieve optimal performance.
With the increase of reaction temperature, methanol conversion showed an increasing trend (Figure 14a). When the reaction temperature was increased beyond 140 °C, the methanol conversion decreased slightly. Generally, DMC selectivity decreased with the increase of reaction temperature. The kinetic energy of CO2 and methanol molecules goes up with temperature and the probability of their interaction and of side reactions becomes higher, which could induce the increase of conversion and the decline of DMC selectivity. Elevated temperature also leads to lower concentration of the reactants in the reaction vessel. This may explain the reduction of methanol conversion at 160 °C.
The elevation of the reaction pressure favored higher methanol conversion, and the DMC selectivity went through a maximum (Figure 14b). For the reaction of DMC synthesis from CO2 and methanol, the increased pressure is beneficial to shift the reaction equilibrium toward the products. Thus, the equilibrium concentration of the target product increased correspondingly. A downward trend of DMC selectivity at P > 0.8 MPa could be a consequence of the increased rate of by-product formation.
With the increase of the space velocity, methanol conversion decreased, and DMC selectivity passed through a minimum (Figure 15a). As the space velocity increases, so does the amount of the reaction materials to be processed per unit time. If the catalyst does not have ability to process so many reactants, methanol conversion decreases. The trend of the DMC selectivity change is difficult to explain.
Temperature, pressure, and space velocity exerted significant influence on catalyst performance. However, another important factor—catalyst bulk density—was found from a large number of experiments. Increasing the bulk density of the catalyst was helpful to improve methanol conversion, as follows from Figure 15b. If the bulk density of catalyst layer was too small, the reaction materials might pass through the catalyst where resistance was the least. Then, the catalyst layer could form an empty material inertia channel. As a result, the reaction materials could not contact well with the catalyst layer and then left it off. Increasing catalyst layer bulk density extended contact time between the reaction materials and the catalyst layer, which improved methanol conversion. Reasons for the drop of DMC selectivity upon raising the bulk density are not obvious.
The agglomeration of active components is one of problems for supported catalysts. Generally, the larger the load, the higher the extent of the agglomeration. Different amounts of active components are necessary for different supports to provide the best dispersion, least agglomeration, and, consequently, optimum catalytic performance. Within the limits that were studied by us, the higher was the active component load the lower was methanol conversion, and DMC selectivity went through a maximum (Figure 16a).
We also investigated the effect of methanol bubbler temperature on the reaction outcome. Methanol bubbler temperature can change the feed ratio of the reactants, that is, the molar ratio of CO2 to methanol. Methanol conversion and DMC yield can be greatly improved by changing methanol bubbler temperature (Figure 16b). When the latter was 60 °C, optimum catalyst performance was observed.
The influence of temperature on the reaction was also studied for [email protected] obtained by the solution method (Table 1). With the increase of reaction temperature, methanol conversion increased continuously and dimethyl carbonate (DMC) selectivity decreased. Table 2 lists data from the present work and other publications for different Cu-Ni catalysts tested in the direct DMC synthesis. Methanol conversion obtained in the presence of [email protected] synthesized by the sulfuration method was 2.7 times higher than that of [email protected] resulted from the solution method when they were tested under the same conditions. According to microstructure analysis, the novel catalytic material contained more Cu-Ni alloy phase and consisted of smaller particles. The TPD data showed the presence of higher amounts of centers interacting with CO2 and methanol and higher strength of the interactions in this case. These differences in microstructure might be the reason of the more efficient catalytic performance.
After comparison with the best data obtained previously, it can be concluded that [email protected] catalyst synthesized by the sulfuration method affords the highest DMC selectivity coupled with a reasonable methanol conversion.

3. Materials and Methods

3.1. Catalyst Synthesis

3.1.1. Traditional Solution Synthetic Method of [email protected]

Firstly, V2O5 was treated with excess hydrochloric acid at 90 °C, and the remaining hydrochloric acid was removed after reaction. Then nano-SiO2 aqueous solution was added and the mixture was mechanically stirred for 30 min. After 12 h of aging, the liquid part was removed by decompressive rotary evaporation. The residue was dried at 120 °C for 24 h. The completely dried solid was ground with an agate mortar and passed through a 200 mesh sieve. Subsequently, the product was calcined in air at 450 °C for 5 h using a muffle furnace to get the VSiO support. Then, the product was mixed with ammonium solutions of metal nitrates (Cu:Ni mole ratio is 2:1) by equal volume impregnation. The resulting bimetallic/VSiO slurry was dried under reduced pressure in a rotary evaporator, and the obtained solid was further dried at 120 °C and calcined at 550 °C for 6 h to get a catalyst precursor. Subsequently, the latter was reduced in a stream of H2 at 500 °C for 6 h to get the final [email protected] catalyst.

3.1.2. Novel Sulfuration Method to Synthesize [email protected]

Sulfur powder was reacted with VOCl3 at 130 °C for 2 h in a round bottom flask to get VOCl2. Then, VOCl2 was dissolved in dimethylacetamide and nano-SiO2 was added. The slurry was stirred at 90 °C for 12 h and was evaporated under reduced pressure in a rotary evaporator. The obtained solid was further dried under vacuum. The resulting substance was ground with an agate mortar and passed through a 200 mesh sieve. Subsequently, the product was calcined in air at 450 °C for 6 h to get the VSiO support. The same method, as described above, was used to load the Cu Ni bimetallic components to produce the final [email protected] catalyst.

3.2. Catalysts Characterization

The X-ray powder diffraction was performed on Rigaku Dmax 2200 diffractometer (Rigaku Company, Tokyo, Japan) with graphite monochromatized Cu Kα radiation (λ = 0.154178 nm) at 40 kV and 30 mA. The sample was scanned from 10° to 80°, at a rate of 4°/min.
FTIR spectra were acquired on an Analect RFX-65A instrument (Analect Company, New York, NY, USA). TPD and TPR were implemented on a Quantachrom Chem-BET 3000 apparatus (Quantachrome Company, Boynton Beach, FL, USA) to determine the surface acid-base properties of catalysts.
SEM was performed on a Hitachi S-4800 system (Hitachi Company, Tokyo, Japan) that was equipped with an energy dispersive X-ray detector at 10.0 kV under high vacuum. The energy dispersion spectra were also recorded.

3.3. Evaluation of Catalytic Performance

The synthesis of DMC from methanol and CO2 was carried out in a continuous tubular fixed-bed micro-reactor (Golden Eagle Technology Ltd., Tianjin, China). A detailed description of the reactor setup and data treatment was published previously [35,36,40]. CO2 was purged into methanol container to get CO2/methanol mixed gas. The mixed gas was then charged into the reactor (reactor internal diameter D = 10 mm, catalyst filling length L = 50 mm). Unless otherwise stated, the following parameters were used to carry out the reaction: T = 140 °C, P = 1.2 MPa, SV = 460 h−1, DB = 0.308 g/mL, TMB = 25 °C, CuO-NiO loading 10 wt. %). The resulting products of the reaction were analyzed by a GC-7890F chromatograph (Techcomp Ltd., Shanghai, China) equipped with a flame ionization detector. Samples were introduced through a six-way valve that was connected to the reactor.

4. Conclusions

In summary, the use of the VSiO support synthesized by the novel sulfuration method afforded a more efficient Cu-Ni catalyst compared to the catalyst with the support that was obtained by the solution method. The former one contained more Cu-Ni phase and interacted with CO2 and methanol stronger that the latter. The novel synthetic method extremely changed catalyst microstructure and the catalytic performance was greatly improved. Catalytic activity of [email protected] that was obtained by the sulfuration method was about three times higher than that of [email protected] produced by the solution method. For the studied direct DMC synthesis from methanol and CO2, the optimal reaction conditions were found to have the following values: T = 140 °C, P = 1.2 MPa, SV = 460 h−1, DB = 0.308 g/mL, TMB = 60 °C, and metal oxides loading 10 wt. %.

Acknowledgments

The authors would like to thank the National Natural Science Foundation of China (Grant No. 21376276, 21643002), the Guangdong Province Sci & Tech Bureau (Key Strategic Project Grant No. 2008A080800024, 10151027501000096), and Chinese Universities Basic Research Founding (171gjc37) for financial support of the work.

Author Contributions

Min Xiao and Shuanjin Wang conceived and designed the experiments; Meng Zhang performed the experiments; Kirill A. Alferov and Dongmei Han analyzed the data; Yuezhong Meng wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Marin, C.M.; Li, L.; Bhalkikar, A.; Doyle, J.E.; Zeng, X.C.; Cheung, C.L. Kinetic and mechanistic investigations of the direct synthesis of dimethyl carbonate from carbon dioxide over ceria nanorod catalysts. J. Catal. 2016, 340, 295–301. [Google Scholar] [CrossRef]
  2. Stoian, D.; Bansode, A.; Medina, F.; Urakawa, A. Catalysis under microscope: Unraveling the mechanism of catalyst de- and re-activation in the continuous dimethyl carbonate synthesis from CO2 and methanol in the presence of a dehydrating agent. Catal. Today 2017, 283, 2–10. [Google Scholar] [CrossRef]
  3. Ghorbel, S.B.; Medina, F.; Ghorbel, A.; Segarra, A.M. Phosphoric acid intercalated Mg–Al hydrotalcite-like compounds for catalytic carboxylation reaction of methanol in a continuous system. Appl. Catal. A Gen. 2015, 493, 142–148. [Google Scholar] [CrossRef]
  4. Zhang, M.; Xiao, M.; Wang, S.J.; Han, D.M.; Lu, Y.X.; Meng, Y.Z. Cerium oxide-based catalysts made by template-precipitation for the dimethyl carbonate synthesis from Carbon dioxide and methanol. J. Clean. Prod. 2015, 103, 847–853. [Google Scholar] [CrossRef]
  5. Yang, Z.-Z.; Zhao, Y.-N.; He, L.-N.; Gao, J.; Yin, Z.-S. Highly efficient conversion of carbon dioxide catalyzed by polyethylene glycol-functionalized basic ionic liquids. Green Chem. 2012, 14, 519–527. [Google Scholar] [CrossRef]
  6. Drake, N.L.; Carter, R.M. Some representative carbonates and carbo-ethoxy derivatives related to ethylene glycol1. J. Am. Chem. Soc. 1930, 52, 3720–3724. [Google Scholar] [CrossRef]
  7. Curnutt, G.L. Catalytic Vapor Phase Process for Producing Dihydrocarbyl Carbonates. U.S. Patent 5,004,827, 2 April 1991. [Google Scholar]
  8. Feng, X.-J.; Lu, X.-B.; He, R. Tertiary amino group covalently bonded to MCM-41 silica as heterogeneous catalyst for the continuous synthesis of dimethyl carbonate from methanol and ethylene carbonate. Appl. Catal. A Gen. 2004, 272, 347–352. [Google Scholar] [CrossRef]
  9. Aresta, M. Perspectives in the use of carbon dioxide. Quim. Nova 1999, 22, 269–272. [Google Scholar] [CrossRef]
  10. Yamanaka, I.; Funakawa, A.; Otsuka, K. Electrocatalytic synthesis of DMC over the Pd/VGCF membrane anode by gas–liquid–solid phase-boundary electrolysis. J. Catal. 2004, 221, 110–118. [Google Scholar] [CrossRef]
  11. Bansode, A.; Urakawa, A. Continuous DMC Synthesis from CO2 and Methanol over a CeO2 Catalyst in a Fixed Bed Reactor in the Presence of a Dehydrating Agent. ACS Catal. 2014, 4, 3877–3880. [Google Scholar] [CrossRef]
  12. Tamboli, A.H.; Chaugule, A.A.; Kim, H. Catalytic developments in the direct dimethyl carbonate synthesis from carbon dioxide and methanol. Chem. Eng. J. 2017, 323, 530–544. [Google Scholar] [CrossRef]
  13. Santos, B.A.V.; Silva, V.M.T.M.; Loureiro, J.M.; Rodrigues, A.E. Review for the Direct Synthesis of Dimethyl Carbonate. ChemBioEng Rev. 2014, 1, 214–229. [Google Scholar] [CrossRef]
  14. Sakakura, T.; Kohno, K. The synthesis of organic carbonates from carbon dioxide. Chem. Commun. 2009, 1312–1330. [Google Scholar] [CrossRef] [PubMed]
  15. Fu, Z.; Meng, Y. Research Progress in the Phosgene-Free and Direct Synthesis of Dimethyl Carbonate from CO2 and Methanol. In Chemistry beyond Chlorine; Tundo, P., He, L.-N., Lokteva, E., Mota, C., Eds.; Springer International Publishing: Cham, Switzerland, 2016; pp. 363–385. ISBN 978-3-319-30071-9. [Google Scholar]
  16. Cao, Y.; Cheng, H.; Ma, L.; Liu, F.; Liu, Z. Research Progress in the Direct Synthesis of Dimethyl Carbonate from CO2 and Methanol. Catal. Surv. Asia 2012, 16, 138–147. [Google Scholar] [CrossRef]
  17. Zhou, Y.J.; Wang, S.J.; Xiao, M.; Han, D.M.; Lu, Y.X.; Meng, Y.Z. Novel Cu-Fe bimetal catalyst for the formation of dimethyl carbonate from carbon dioxide and methanol. RSC Adv. 2012, 17, 6831–6837. [Google Scholar] [CrossRef]
  18. Choi, J.C.; He, L.N.; Yasuda, H.; Sakakura, T. Selective and high yield synthesis of dimethyl carbonate directly from carbon dioxide and methanol. Green Chem. 2002, 230–234. [Google Scholar] [CrossRef]
  19. Fang, S.N.; Fujimoto, K. Direct synthesis of dimethyl carbonate from carbon dioxide and methanol catalyzed by base. Appl. Catal. A Gen. 1996, 142, L1–L3. [Google Scholar] [CrossRef]
  20. Kumar, P.; With, P.; Srivastava, V.C.; Glaser, R.; Mishra, I.M. Conversion of carbon dioxide along with methanol to dimethyl carbonate over ceria catalyst. J. Environ. Chem. Eng. 2015, 3, 2943–2947. [Google Scholar] [CrossRef]
  21. Tamboli, A.H.; Chaugule, A.A.; Kim, H. Highly selective and multifunctional chitosan/ionic liquids catalyst for conversion of CO2 and methanol to dimethyl carbonates at mild reaction conditions. Fuel 2016, 166, 495–501. [Google Scholar] [CrossRef]
  22. Saada, R.; Kellici, S.; Heil, T.; Morgan, D.; Saha, B. Greener synthesis of dimethyl carbonate using a novel ceria-zirconia oxide/graphene nanocomposite catalyst. Appl. Catal. B Environ. 2015, 168, 353–362. [Google Scholar] [CrossRef]
  23. Kumar, S.; Kumar, P.; Jain, S.L. Graphene oxide immobilized copper phthalocyanine tetrasulphonamide: The first heterogenized homogeneous catalyst for dimethylcarbonate synthesis from CO2 and methanol. J. Mater. Chem. A 2014, 18861–18866. [Google Scholar] [CrossRef]
  24. Eta, V.; Maki-Arvela, P.; Leino, A.R.; Kordas, K.; Salmi, T.; Murzin, D.Y.; Mikkola, J.P. Synthesis of Dimethyl Carbonate from Methanol and Carbon Dioxide: Circumventing Thermodynamic Limitations. Ind. Eng. Chem. Res. 2010, 49, 9609–9617. [Google Scholar] [CrossRef]
  25. Fan, B.B.; Li, H.Y.; Fan, W.B.; Zhang, J.L.; Li, R.F. Organotin compounds immobilized on mesoporous silicas as heterogeneous catalysts for direct synthesis of dimethyl carbonate from methanol and carbon dioxide. Appl. Catal. A Gen. 2010, 372, 94–102. [Google Scholar] [CrossRef]
  26. Kohno, K.; Choi, J.C.; Ohshima, Y.; Yasuda, H.; Sakakura, T. Synthesis of dimethyl carbonate from carbon dioxide catalyzed by titanium alkoxides with polyether-type ligands. ChemSusChem 2008, 1, 186–188. [Google Scholar] [CrossRef] [PubMed]
  27. Wu, X.L.; Shu, D.; Meng, Y.Z. Direct synthesis of dimethyl carbonate from CO2 and methanol. Res. J. Chem. Environ. 2005, 9, 74–79. [Google Scholar] [CrossRef]
  28. Ikeda, Y.; Sakaihori, T.; Tomishige, K.; Fujimoto, K. Promoting effect of phosphoric acid on zirconia catalysts in selective synthesis of dimethyl carbonate from methanol and carbon dioxide. Catal. Lett. 2000, 66, 59–62. [Google Scholar] [CrossRef]
  29. Tomishige, K.; Kunimori, K. Catalytic and direct synthesis of dimethyl carbonate starting from carbon dioxide using CeO2-ZrO2 solid solution heterogeneous catalyst: Effect of H2O removal from the reaction system. Appl. Catal. A Gen. 2002, 237, 103–109. [Google Scholar] [CrossRef]
  30. Aresta, M.; Dibenedetto, A.; Pastore, C.; Cuocci, C.; Aresta, B.; Cometa, S.; De Giglio, E. Cerium(IV)oxide modification by inclusion of a hetero-atom: A strategy for producing efficient and robust nano-catalysts for methanol carboxylation. Catal. Today 2008, 137, 125–131. [Google Scholar] [CrossRef]
  31. Lee, H.J.; Park, S.; Song, I.K.; Jung, J.C. Direct Synthesis of Dimethyl Carbonate from Methanol and Carbon Dioxide over Ga2O3/Ce0.6Zr0.4O2 Catalysts: Effect of Acidity and Basicity of the Catalysts. Catal. Lett. 2011, 141, 531–537. [Google Scholar] [CrossRef]
  32. Zhao, T.; Hu, X.; Wu, D.; Li, R.; Yang, G.; Wu, Y. Direct synthesis of dimethyl carbonate from CO2 and methanol at room temperature using imidazolium hydrogen carbonate ionic liquid as recyclable catalyst and dehydrant. ChemSusChem 2017, 10, 2046–2052. [Google Scholar] [CrossRef] [PubMed]
  33. Verma, S.; Nasir Baig, R.B.; Nadagouda, M.N.; Varma, R.S. Fixation of carbon dioxide into dimethyl carbonate over titanium-based zeolitic thiophenebenzimidazolate framework. Sci. Rep. 2017, 7, 655. [Google Scholar] [CrossRef] [PubMed]
  34. Wu, X.L.; Meng, Y.Z.; Xiao, M.; Lu, Y.X. Direct synthesis of dimethyl carbonate (DMC) using Cu-Ni/VSO as catalyst. J. Mol. Catal. A Chem. 2006, 249, 93–97. [Google Scholar] [CrossRef]
  35. Wang, X.J.; Xiao, M.; Wang, S.J.; Lu, Y.X.; Meng, Y.Z. Direct synthesis of dimethyl carbonate from carbon dioxide and methanol using supported copper (Ni, V, O) catalyst with photo-assistance. J. Mol. Catal. A Chem. 2007, 278, 92–96. [Google Scholar] [CrossRef]
  36. Bian, J.; Xiao, M.; Wang, S.J.; Lu, Y.X.; Meng, Y.Z. Novel application of thermally expanded graphite as the support of catalysts for direct synthesis of DMC from CH3OH and CO2. J. Colloid Interface Sci. 2009, 334, 50–57. [Google Scholar] [CrossRef] [PubMed]
  37. Zhou, Y.; Wang, S.; Xiao, M.; Han, D.; Lu, Y.; Meng, Y. Formation of dimethyl carbonate on nature clay supported bimetallic copper-nickel catalysts. J. Clean. Prod. 2015, 103, 925–933. [Google Scholar] [CrossRef]
  38. Chen, H.; Wang, S.; Xiao, M.; Han, D.; Lu, Y.; Meng, Y. Direct synthesis of dimethyl carbonate from CO2 and CH3OH using 0.4 nm molecular sieve supported Cu-Ni bimetal catalyst. Chin. J. Chem. Eng. 2012, 20, 906–913. [Google Scholar] [CrossRef]
  39. Bian, J.; Xiao, M.; Wang, S.J.; Lu, Y.X.; Meng, Y.Z. Highly effective direct synthesis of DMC from CH3OH and CO2 using novel Cu-Ni/C bimetallic composite catalysts. Chin. Chem. Lett. 2009, 20, 352–355. [Google Scholar] [CrossRef]
  40. Bian, J.; Xiao, M.; Wang, S.; Wang, X.; Lu, Y.; Meng, Y. Highly effective synthesis of dimethyl carbonate from methanol and carbon dioxide using a novel copper-nickel/graphite bimetallic nanocomposite catalyst. Chem. Eng. J. 2009, 147, 287–296. [Google Scholar] [CrossRef]
  41. Bian, J.; Xiao, M.; Wang, S.; Lu, Y.; Meng, Y. Direct synthesis of DMC from CH3OH and CO2 over V-doped Cu-Ni/AC catalysts. Catal. Commun. 2009, 10, 1142–1145. [Google Scholar] [CrossRef]
  42. Bian, J.; Xiao, M.; Wang, S.J.; Lu, Y.X.; Meng, Y.Z. Carbon nanotubes supported Cu-Ni bimetallic catalysts and their properties for the direct synthesis of dimethyl carbonate from methanol and carbon dioxide. Appl. Surf. Sci. 2009, 255, 7188–7196. [Google Scholar] [CrossRef]
  43. Zhong, S.H.; Wang, J.W.; Xiao, X.F.; Li, H.S. Dimethyl carbonate synthesis from carbon dioxide and methanol over Cu-Ni/MoSiO(VSiO) catalysts. In 12th International Congress on Catalysis; Corma, A., Melo, F.V., Mendioroz, S., Fierro, J.L.G., Eds.; Studies in Surface Science and Catalysis; Elsevier: Amsterdam, The Netherlands, 2000; Volume 130, pp. 1565–1570. [Google Scholar]
  44. Wang, D.; Zhou, L.; Feng, X.; Zhao, N.; Yang, B. Polysilicic acid gel method derived V2O5/SiO2 composite materials: Synthesis and characterization. AIP Conf. Proc. 2017, 1794, 020021. [Google Scholar] [CrossRef]
  45. Khatab, T.K.; Abdelghany, A.M.; Soliman, H.A. V2O5/SiO2 as a Heterogeneous Catalyst in the Synthesis of bis(indolyl)methanes under Solvent Free Condition. Silicon 2017, 1–6. [Google Scholar] [CrossRef]
  46. Musić, S.; Filipović-Vinceković, N.; Sekovanić, L. Precipitation of amorphous SiO2 particules and their properties. Braz. J. Chem. Eng. 2011, 28, 89–94. [Google Scholar] [CrossRef]
  47. Poungsombate, A.; Imyen, T.; Dittanet, P.; Embley, B.; Kongkachuichay, P. Direct synthesis of dimethyl carbonate from CO2 and methanol by supported bimetallic Cu–Ni/ZIF-8 MOF catalysts. J. Taiwan Inst. Chem. Eng. 2017, 80, 16–24. [Google Scholar] [CrossRef]
  48. Pimprom, S.; Sriboonkham, K.; Dittanet, P.; Föttinger, K.; Rupprechter, G.; Kongkachuichay, P. Synthesis of copper-nickel/SBA-15 from rice husk ash catalyst for dimethyl carbonate production from methanol and carbon dioxide. J. Ind. Eng. Chem. 2015, 31, 156–166. [Google Scholar] [CrossRef]

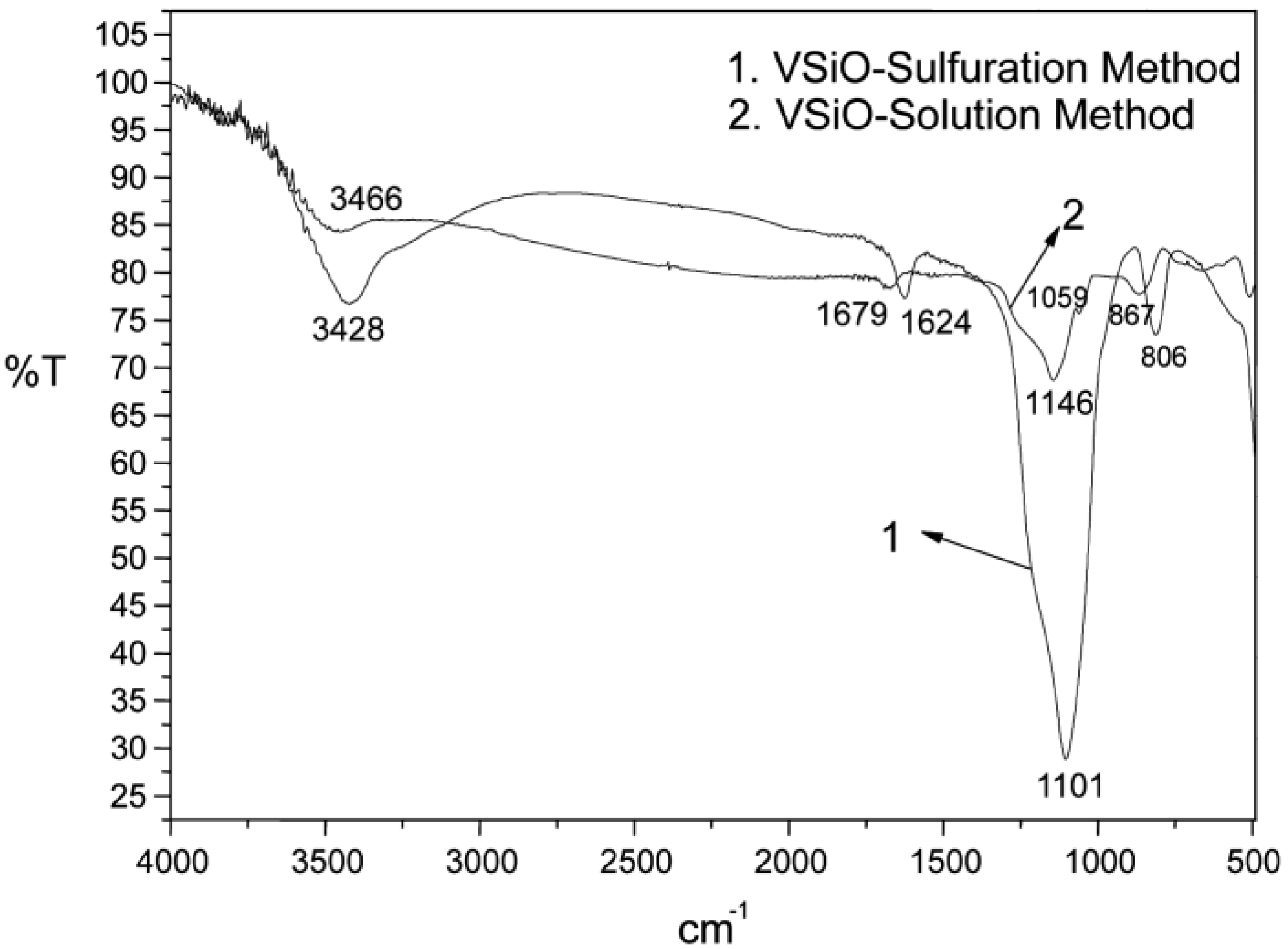

Figure 1. FTIR spectra of the VSiO supports: 1—sulfuration method; 2—solution method.
Figure 1. FTIR spectra of the VSiO supports: 1—sulfuration method; 2—solution method.
Catalysts 08 00142 g001

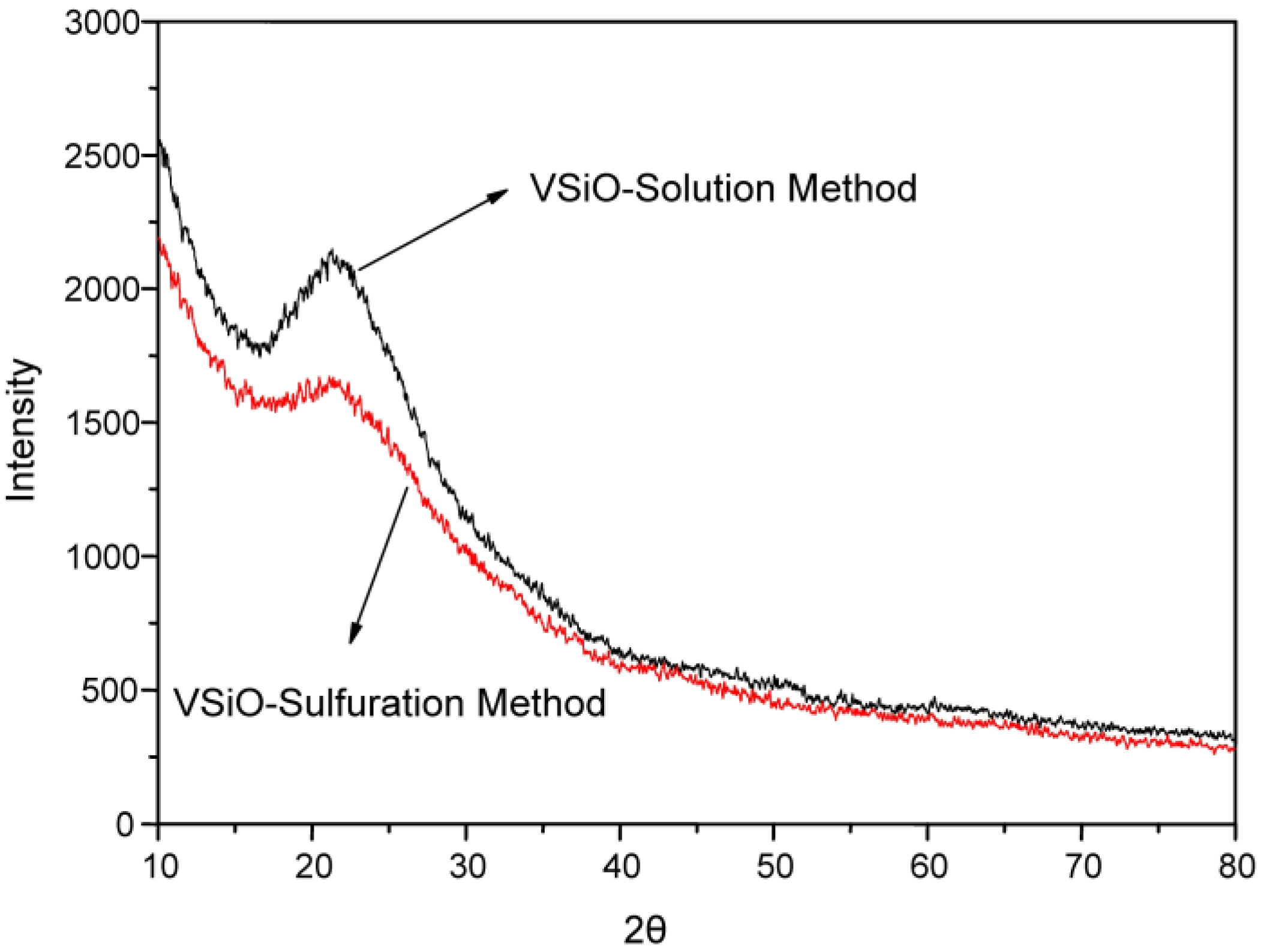

Figure 2. XRD profiles of the VSiO supports.
Figure 2. XRD profiles of the VSiO supports.
Catalysts 08 00142 g002

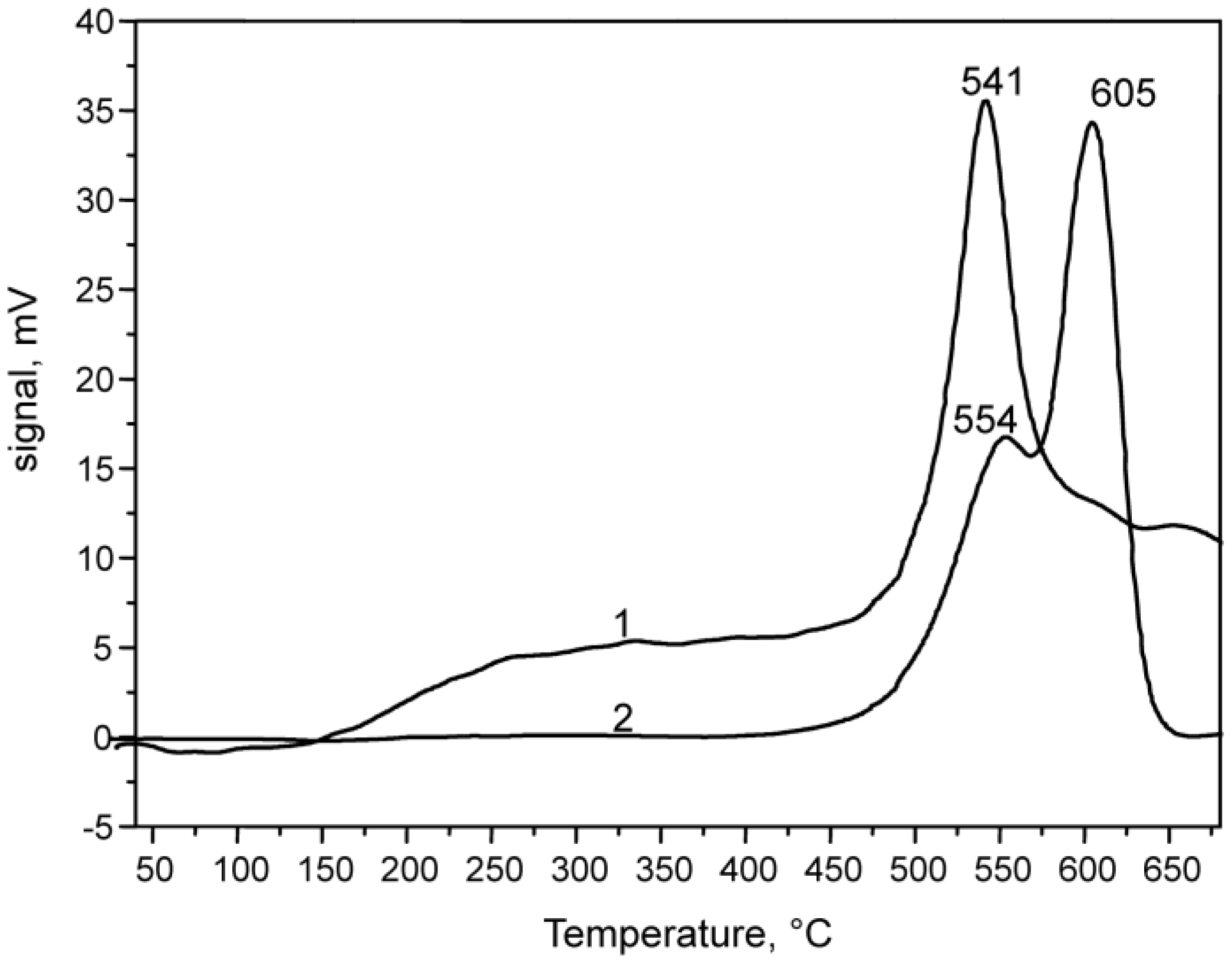

Figure 3. TPR profiles of the VSiO supports obtained by: 1—sulfuration method; 2—solution method.
Figure 3. TPR profiles of the VSiO supports obtained by: 1—sulfuration method; 2—solution method.
Catalysts 08 00142 g003
Figure 4. SEM images of the VSiO supports obtained by: (a) Solution method; (b) Sulfuration method.
Figure 4. SEM images of the VSiO supports obtained by: (a) Solution method; (b) Sulfuration method.
Catalysts 08 00142 g004
Figure 5. Results of EDS analysis of the VSiO support obtained by the solution method.
Figure 5. Results of EDS analysis of the VSiO support obtained by the solution method.
Catalysts 08 00142 g005
Figure 6. Results of EDS analysis of the VSiO support obtained by the sulfuration method.
Figure 6. Results of EDS analysis of the VSiO support obtained by the sulfuration method.
Catalysts 08 00142 g006
Figure 7. XRD patterns of [email protected] and [email protected]
Figure 7. XRD patterns of [email protected] and [email protected]
Catalysts 08 00142 g007

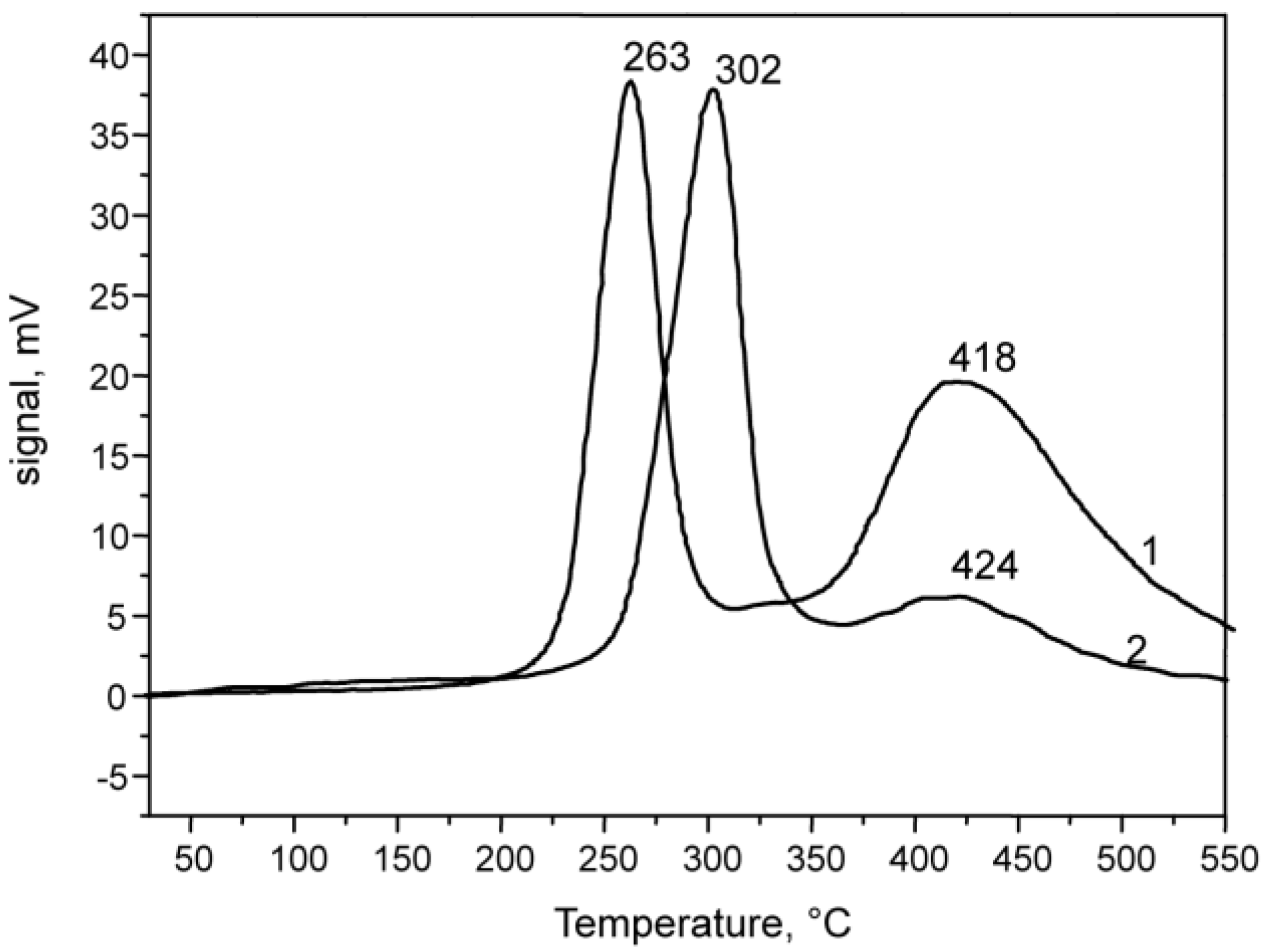

Figure 8. TPR profiles of [email protected] obtained by: 1—sulfuration method, 2—solution method.
Figure 8. TPR profiles of [email protected] obtained by: 1—sulfuration method, 2—solution method.
Catalysts 08 00142 g008

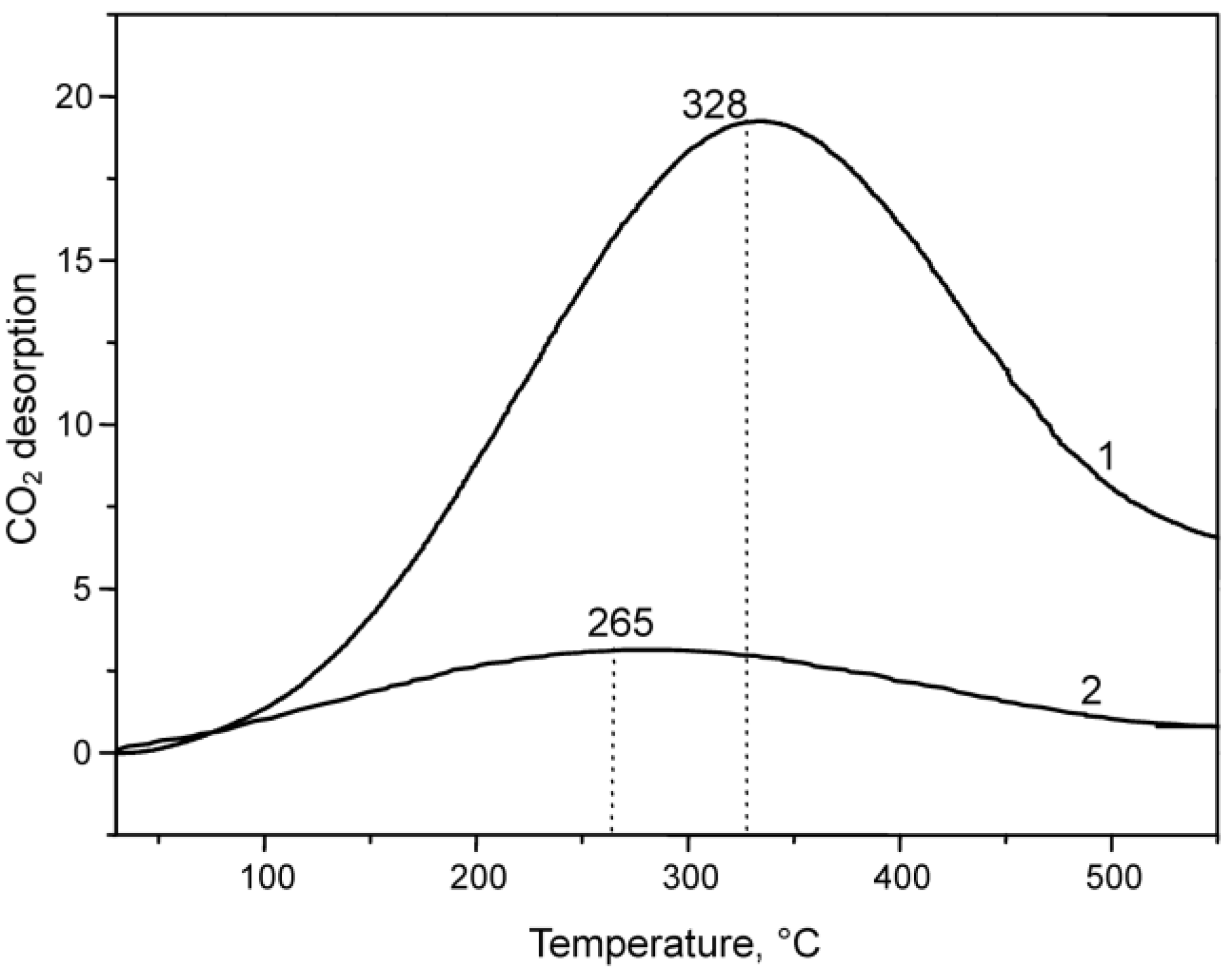

Figure 9. CO2-TPD of [email protected] obtained by: 1—sulfuration method, 2—solution method.
Figure 9. CO2-TPD of [email protected] obtained by: 1—sulfuration method, 2—solution method.
Catalysts 08 00142 g009

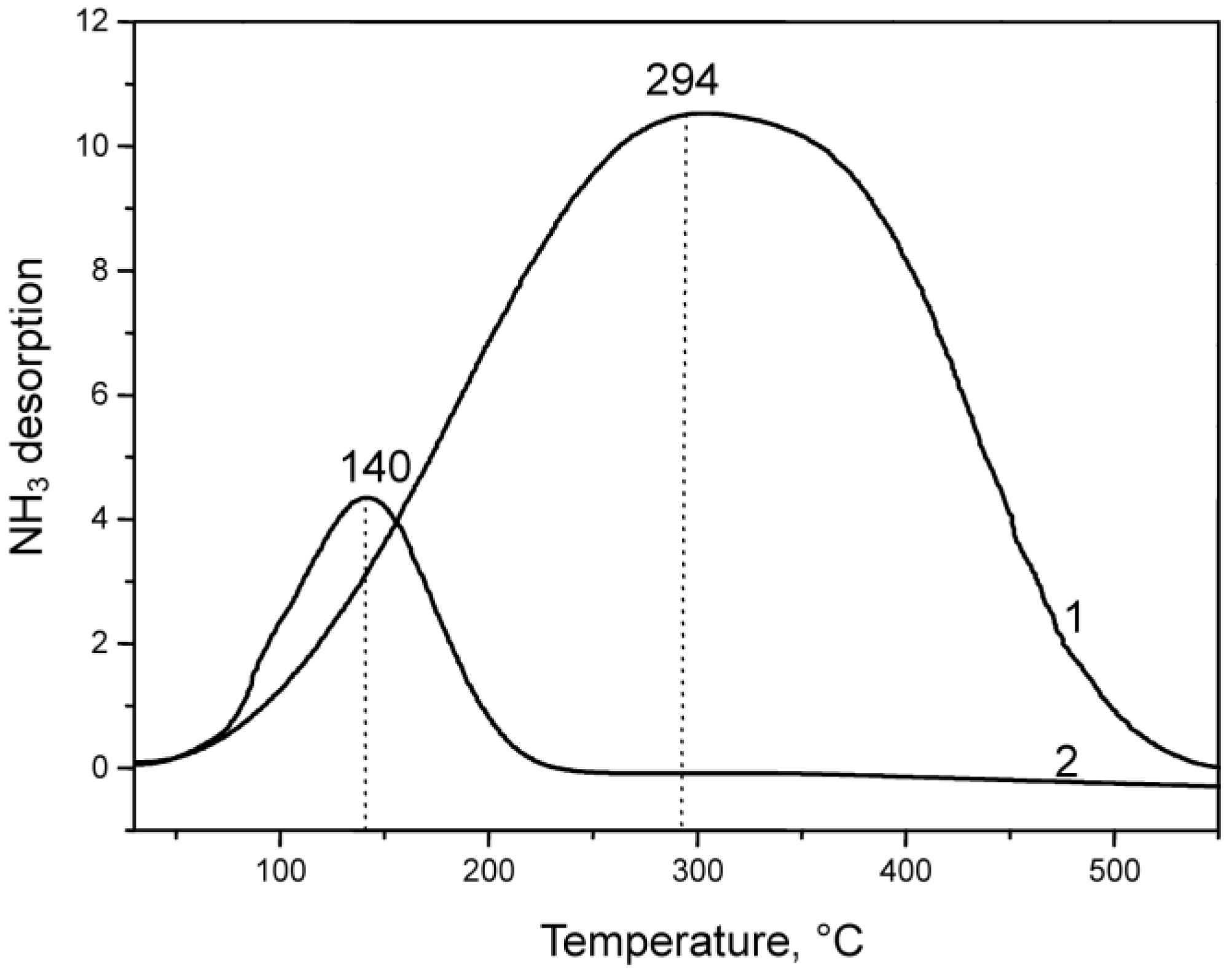

Figure 10. NH3-TPD profiles of [email protected] obtained by: 1—sulfuration method; 2—solution method.
Figure 10. NH3-TPD profiles of [email protected] obtained by: 1—sulfuration method; 2—solution method.
Catalysts 08 00142 g010
Figure 11. SEM images of [email protected] obtained by: (a) Solution method; and, (b) Sulfuration method.
Figure 11. SEM images of [email protected] obtained by: (a) Solution method; and, (b) Sulfuration method.
Catalysts 08 00142 g011

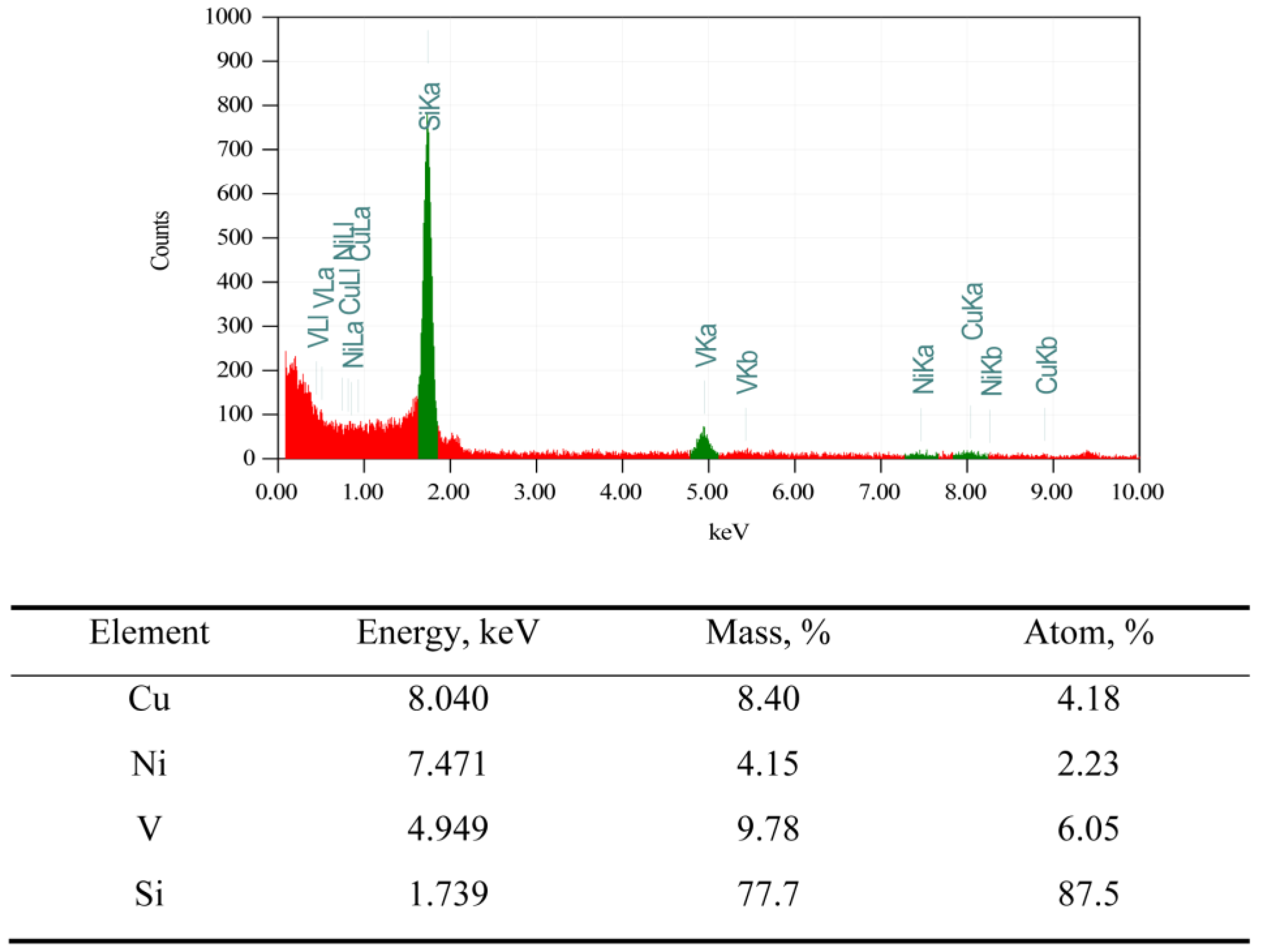

Figure 12. Results of EDS analysis of [email protected] obtained by the solution method.
Figure 12. Results of EDS analysis of [email protected] obtained by the solution method.
Catalysts 08 00142 g012

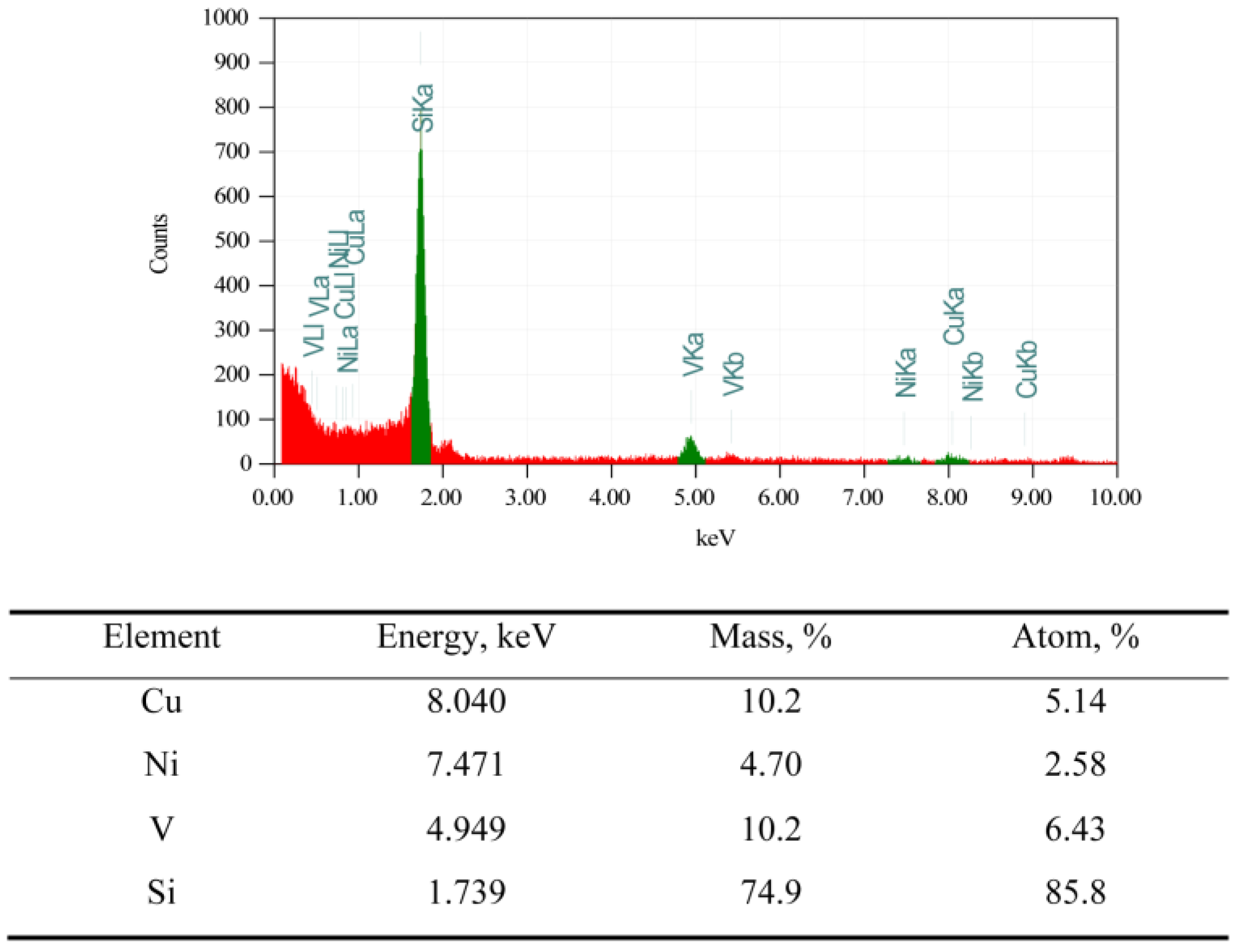

Figure 13. Results of EDS analysis of [email protected] obtained by the sulfuration method.
Figure 13. Results of EDS analysis of [email protected] obtained by the sulfuration method.
Catalysts 08 00142 g013

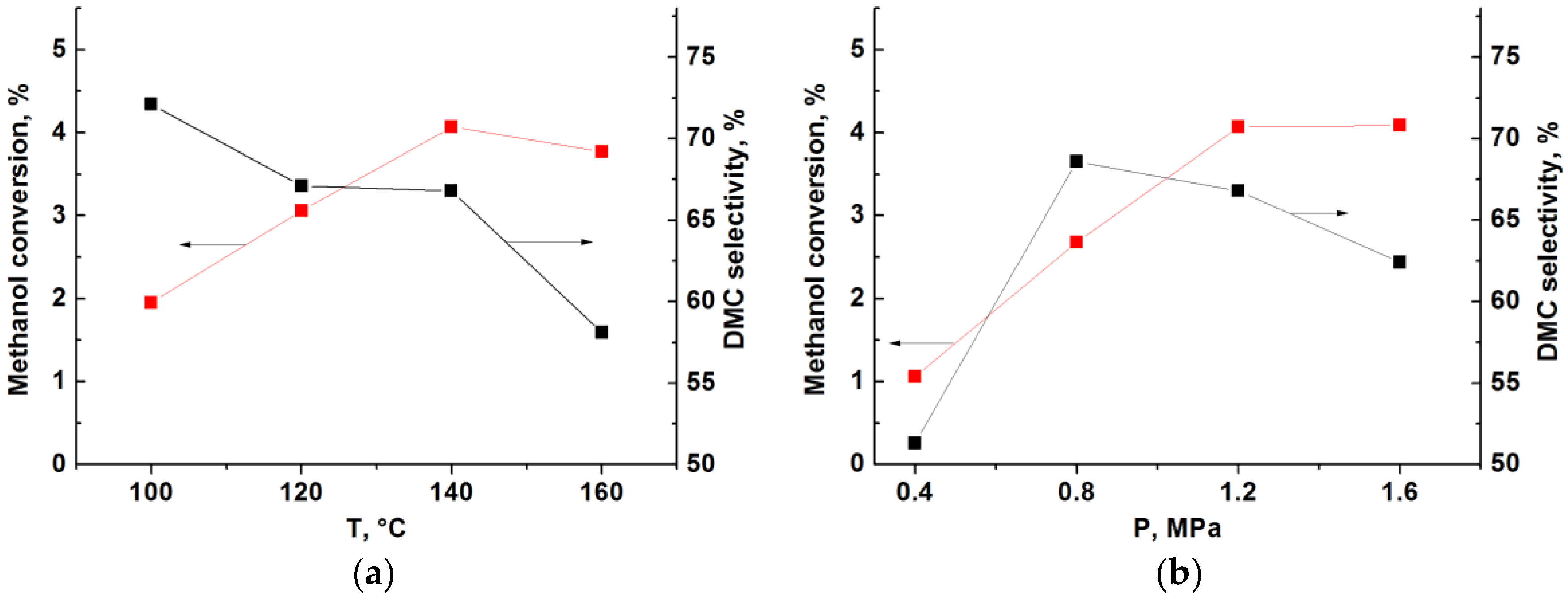

Figure 14. Effect of reaction temperature (a) and reaction pressure (b) on the performance of [email protected] catalyst obtained by the sulfuration method.
Figure 14. Effect of reaction temperature (a) and reaction pressure (b) on the performance of [email protected] catalyst obtained by the sulfuration method.
Catalysts 08 00142 g014

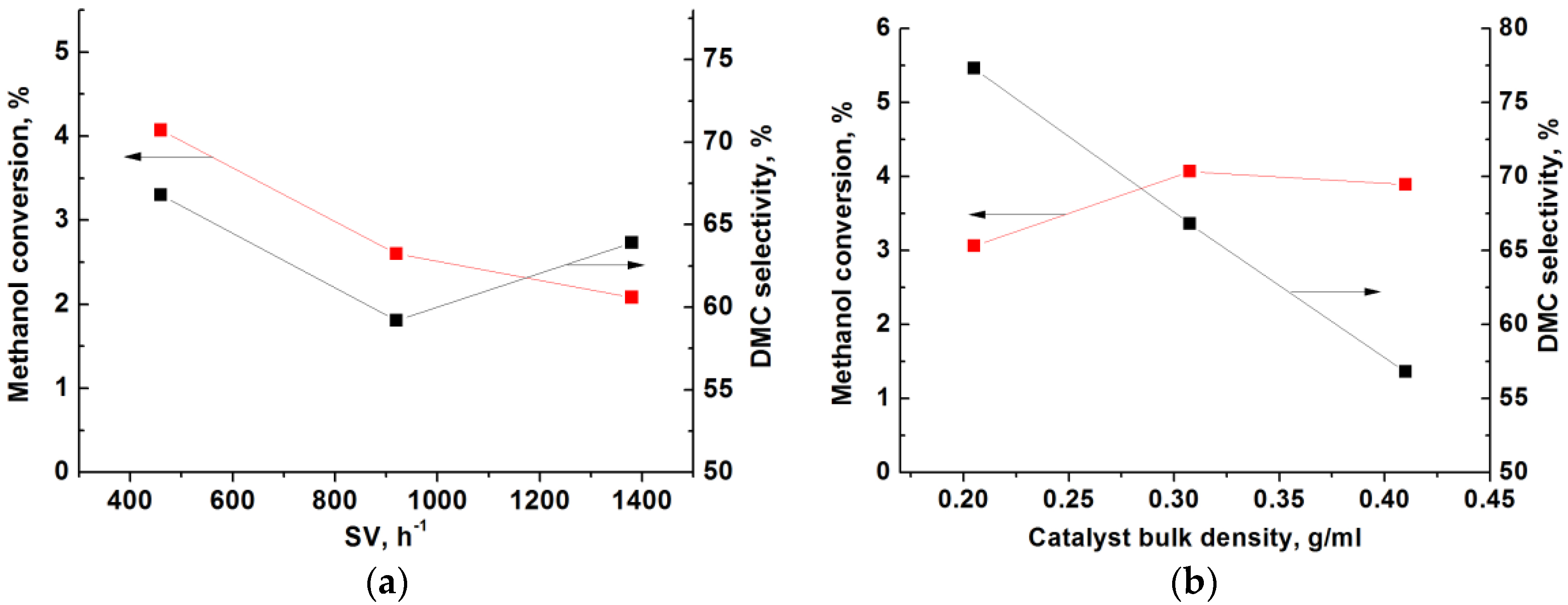

Figure 15. Effect of space velocity (a) and bulk density (b) on the performance of [email protected] catalyst obtained by the sulfuration method.
Figure 15. Effect of space velocity (a) and bulk density (b) on the performance of [email protected] catalyst obtained by the sulfuration method.
Catalysts 08 00142 g015

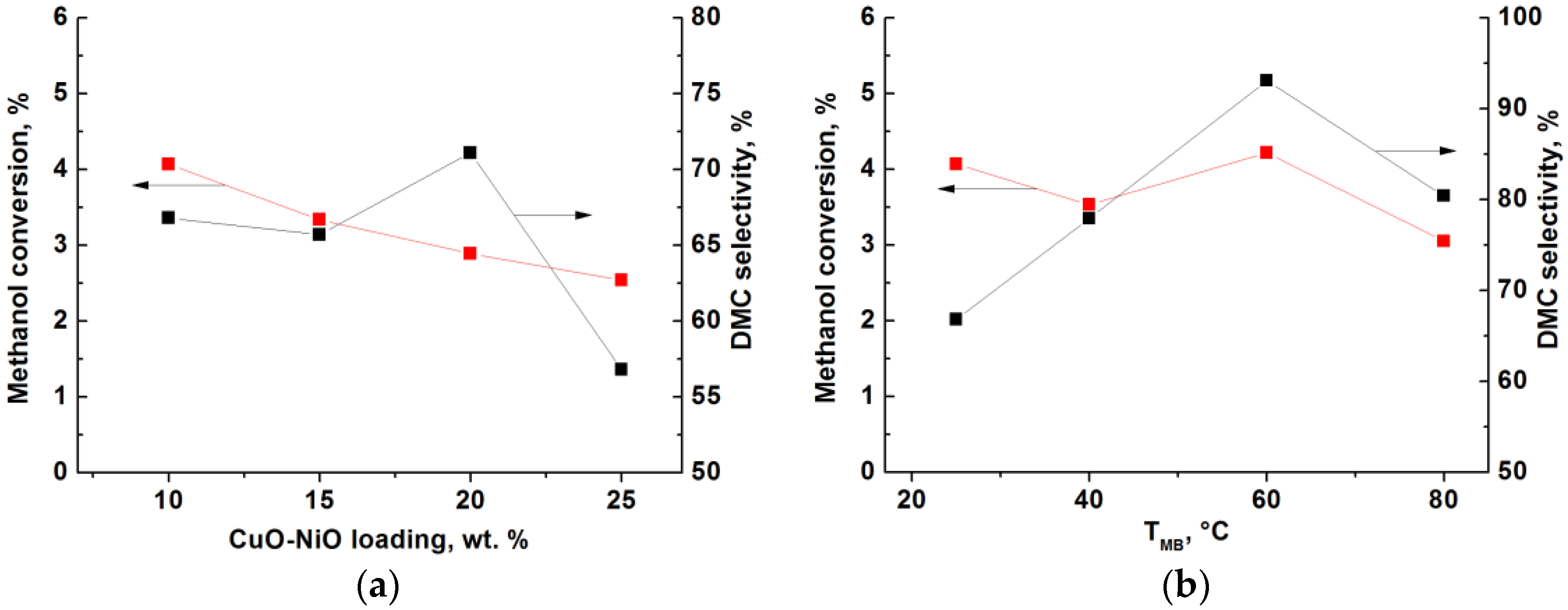

Figure 16. Effect of CuO-NiO loading (a) and methanol bubbler temperature (b) on the performance of [email protected] catalyst obtained by the sulfuration method.
Figure 16. Effect of CuO-NiO loading (a) and methanol bubbler temperature (b) on the performance of [email protected] catalyst obtained by the sulfuration method.
Catalysts 08 00142 g016
Table 1. Effect of reaction temperature on the performance of [email protected] catalyst obtained by the solution method.
Table 1. Effect of reaction temperature on the performance of [email protected] catalyst obtained by the solution method.
Temperature, °CMethanol Conversion, %DMC Selectivity, %
1000.4796.3
1200.8491.5
1401.6986.3
1601.7380.6
Table 2. Comparison of the performance of different Cu-Ni catalysts.
Table 2. Comparison of the performance of different Cu-Ni catalysts.
CatalystT, °CP, MPaReactor TypeMeOH Conversion, %DMC SelectivityRef.
[email protected] (sulfuration)1401.2C 14.293.1present work
[email protected] (solution)1401.2C1.786.3present work
[email protected]1400.1C14.587.8[43]
Cu–[email protected] 21102batch12.850.0[47]
[email protected] 31200.1C4.085[35]
[email protected]1400.9Cn.a.87.1[34]
[email protected]1101.2continuous fixed-bedca 21ca 20[48]
[email protected] 21001.4C5.091.0[36]
[email protected] KHNTs 21301.2C7.889.0[37]
[email protected] 21201.1C7.187[38]
[email protected]1001.2C10.190.2[40]
[email protected] 21101.2C7.889.9[41]
[email protected] 21201.2C4.490.5[42]
1 Continuous tubular fixed bed reactor; 2 ZIF-8, TEG, KHNTs, MS, AC, MWCNTs are zeolitic imidazolate framework-8, thermally expanded graphite, K treated halloystite nanotubes, molecular sieves, activated carbon, multi-walled carbon nanotubes; 3 The reaction mixture was exposed to ultra violent (UV) radiation.
