Catalysts 2018, 8(4), 126; doi:10.3390/catal8040126

Article
Vanadium Supported on Alumina and/or Zirconia Catalysts for the Selective Transformation of Ethane and Methanol
1
Instituto de Tecnología Química, Universitat Politècnica de València-Consejo Superior de Investigaciones Científicas, Avenida de los Naranjos s/n, 46022 Valencia, Spain
2
Laboratoire des Applications Energétiques de l’Hydrogène, Faculté de Technologie, Université Saad Dahlab, Blida 1, Blida 09000, Algeria
3
Department of Chemical Engineering, Universitat de València, Av. Universitat s/n, 46100 Burjassot, Spain
*
Author to whom correspondence should be addressed.
Received: 2 February 2018 / Accepted: 19 March 2018 / Published: 22 March 2018

Abstract

:
Vanadium supported on pure (Al2O3, ZrO2) or mixed zirconia-alumina (with Al/(Al + Zr) ratio of 0.75 or 0.25) catalysts have been prepared by wet impregnation, using homemade prepared supports. The catalysts have been characterized and tested in the oxidative dehydrogenation (ODH) of ethane and in the methanol aerobic transformation. The catalytic performance strongly depends on the nature of the metal oxide support. Thus, activity decreases in the order: VOx/ZrO2 > VOx/(Al,Zr-oxides) > VOx/Al2O3. On the other hand, at low and medium ethane conversions, the selectivity to ethylene presents an opposite trend: VOx/Al2O3 > VOx/(Al,Zr-oxides) > VOx/ZrO2. The different selectivity to ethylene at high conversion is due to the lower/higher initial ethylene formation and to the extent of the ethylene decomposition. Interestingly, VOx/(Al,Zr-oxides) with low Zr-loading present the lowest ethylene decomposition. The catalytic results obtained mainly depend on the nature of the supports whereas the role of the dispersion of vanadium species is unclear. In methanol oxidation, the catalysts tested present similar catalytic activity regardless of the support (Al2O3, ZrO2 or mixed Al2O3-ZrO2) but strong differences in the selectivity to the reaction products. Thus, dimethyl ether was mainly observed on alumina-supported vanadium oxide catalysts (which is associated to the presence of acidic sites on the surface of the catalyst, as determined by TPD-NH3). Formaldehyde was the main reaction product on catalysts supported on Zr-containing oxides (which can be related to a low presence of acid sites). In this article, the importance of the presence of acid sites in ethane ODH, which can be estimated using the methanol transformation reaction, is also discussed.
Keywords:
ODH of ethane; ethylene; methanol transformation; formaldehyde; dimethyl ether; vanadium; zirconia; alumina

1. Introduction

Ethylene is, probably, the most important raw material used in petrochemistry. In fact, the crisis of the last decade did not affect the ethane demand and the global capacity has been continuously increasing. Currently, more than 95% of the ethylene produced around the world proceeds from the steam cracking process, an easy, but inefficient, non-catalytic process. Steam cracking presents low energetic efficiency and low selectivity to the desired compounds. Therefore, new alternatives to sort out these problems are under study. Probably, the most promising alternative is the oxidative dehydrogenation of ethane (ODH of ethane), an exothermic reaction in which ethane is fed together with oxygen. In this reaction, using standard catalytic systems the catalysts hardly deactivates as a continuous re-activation of the active sites by the oxygen fed takes place. Moreover, only a few by-products, which are easy to be separated, are formed. Unfortunately, the oxidative dehydrogenation of ethane has not been implemented yet in industry. Nevertheless, there are promising results at the laboratory scale that make this reaction very interesting to study.
Among the catalytic systems reported in the literature (including patents) in the oxidative dehydrogenation of ethane, there are four groups that are especially interesting: (i) supported vanadium oxide catalysts [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27]; (ii) promoted and supported nickel oxide catalysts [4,11,28,29,30,31,32]; (iii) MoVTe(Sb) multicomponent oxides presenting an orthorhombic bronze structure (M1 phase) [1,2,11,33,34]; and (iv) catalysts based on non-reducible metal oxides [11,35]. In the present article we will focus on the first group.
Vanadium oxide based catalysts are well known and extensively employed in industry for the gas phase heterogeneous oxidation and ammoxidation of hydrocarbons [1,2,3,4] and for the oxidative dehydrogenation of short chain alkanes, including ethane [4,5,6,7,8,9,10,11,12]. Supported vanadium oxide catalysts have been considered for many years the most promising catalysts in the ODH of C2–C4 alkanes [4,5,6,7,8,9,10,11,12,13,14], although the nature of the optimal support is different depending on the nature of the alkane fed [5,6,7,14,15]. The catalytic behavior of supported vanadia catalysts can be related to [5,6,7,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27]: (i) the nature of Vn+-O species, i.e., coordination, aggregation and oxidation state of V-species; (ii) the redox properties of the catalysts, i.e., the V5+/V4+ ratio in reaction conditions, which are influenced by the presence of promoters and the nature of the metal oxide support; and (iii) the acid–base character of the catalysts (and support), which strongly influences the adsorption of reactants and the desorption of partial oxidation products and finally determines the selectivity to olefins. Depending on the support material and the VOx concentration, supported vanadium oxide can exist as isolated tetrahedral monovanadates, one or two-dimensional polyvanadate domains, or bulk V2O5 crystallites [5,6,7,12,23].
Al2O3 seem to be one of the most effective support for vanadium in the ODH of ethane [5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24] as it presents relatively high acidity, which seems to be beneficial in this reaction in contrast with the ODH of propane and n-butane [5,6,7,12]. It seems that the acidity of the support could favor the ethylene desorption from the surface of the catalyst, thus, increasing the selectivity to ethylene [21].
ZrO2 has received considerable attention in catalysis and material science, not only as a promising catalyst for a number of reactions, but also as a support. Thus, zirconia has bifunctional properties as an acid and as a base, and high thermal stability. More interestingly ZrO2 [25] and Al2O3-ZrO2 [26,27] are appropriate supports for the synthesis of highly dispersed VOx-species. As highly-isolated vanadium species tend to overoxidize ethylene to a lower extent than more aggregated species [5,6,7,8,9,10,11] we have thought that by modifying the alumina support through the addition of zirconia, the ethylene decomposition could be mitigated. Moreover, the oxygen species bridging surface vanadium oxide species to the support may play a significant role in catalyst activity. Thus, a change in the support modifies the V-O-Support bond and consequently the catalytic performance. Thus, the reaction rate for ethane oxidation varies in the sequence TiO2 > ZrO2 >> Al2O3 > Nb2O5 > CeO2-SiO2 [13].
The selective transformation of methanol in the presence of oxygen is a very interesting reaction that can lead to the formation of highly valuable compounds such as formaldehyde (CH2O) and/or dimethylether (DME, CH3OCH3) depending on the characteristics of catalysts and/or the reaction conditions. However, in addition, this reaction can be also used for determining, in “in-situ” conditions, the acid and redox nature of catalytically active sites of catalysts [3,36,37,38]. One advantage of methanol compared to other molecules is its high sensitivity to the nature of the surface active sites. Thus, when working at low methanol conversion the formaldehyde formation is associated to the presence of redox sites (which seems to be also active in the oxidative dehydrogenation of alkanes), whereas the dimethylether is formed by methanol dehydration that takes place in presence of Lewis and Brønsted acid sites. Since, in our case, the catalytic performance of supported vanadium oxide catalysts (in terms of selectivity) seems to be related to both redox and acid characteristics of catalysts, it could be interesting to study in parallel the catalytic performance of some of the most interesting catalysts in both ethane ODH and in the aerobic transformation of methanol. According to Tatibouet [36], the selectivity pattern in methanol transformation and the formation rates of the reaction products can be used to characterize both structural (dispersion), as well as chemical properties (acid-base and redox) of supported oxide catalysts. Thus, methanol transformation can be summarized into three principal reactions [36,37,38,39]: (i) oxidation reactions which need oxygen (molecular or supplied by the catalyst), involving the formation of formaldehyde, formic acid and carbon oxides; (ii) dehydration reactions, which do not need oxygen, carried out by acid catalysts which are involved in the formation of DME; and (iii) both redox and acid reactions, involved in the formation of dimethoxymethane and methyl formate. Several metal oxides, including supported vanadium oxides catalysts, have been studied for methanol oxidation [4,36,37,38,39]. In addition, a comparison between catalytic performance for oxidation of methanol [39,40,41,42,43] or ethanol [44] and propane ODH has been reported in the last years. More recently, it has been reported that the use of methanol adsorption/desorption followed by in situ DRIFTS could be of interest in order to determine the concentration of active sites in Nb-doped nickel oxide catalysts, which are very selective in the ethane ODH [29]. Accordingly, it could be also of interest to carry out a parallel study on both the methanol selective aerobic transformation and the ethane ODH over supported vanadium oxide catalysts.
Alumina-supported vanadia catalysts modified with other metal oxides, such as Cr, Mo, or W, have been studied for the oxidative transformation of methanol [45,46]. According to their results, modifiers can cover the support acidic surface sites, without modification of the surface vanadia redox product yield. So, the use of methanol aerobic transformation could be of interest to study (in reaction conditions) the characteristics of the surface of catalysts in term of activity, but also selectivity when considering the acid/redox ratio in catalysts, since the presence of acid sites (and the DME formation in these catalysts) seems to be in a parallel behavior [47].
As alumina is one of the preferred supports of vanadium oxide for the oxidative dehydrogenation of ethane, we have thought that a modification of VOx/Al2O3 catalysts by the partial replacement of alumina by zirconia, oxide with redox characteristics, could lead to a positive effect as this reaction proceeds by a redox Mars–Van Krevelen mechanism. Then, the objective of this work is to study the catalytic performance of vanadium oxides supported on Al2O3 and/or ZrO2 supports as catalysts for the ODH of ethane. In this way, several V-contents (from 1 to 12 wt%, depending on the surface area of support) and different metal oxides supports (i.e., Al2O3, ZrO2, and mixed Al-Zr oxides) have been synthesized and characterized. Additionally, the selective aerobic transformation of methanol on these catalysts has also been studied in order to evaluate, in reaction conditions, the possible role of redox and acid sites in the ODH of ethane.

2. Results and Discussion

2.1. Characterization of Catalysts

Table 1 summarizes the main physicochemical characteristics of the catalysts synthesized. The metal oxide supports correspond to Al2O3 (named as AC), ZrO2-Al2O3 mixed metal oxides, with a Al/(Al + Zr) atomic ratio of 0.75 (named as BC) or 0.25 (named as CC), and ZrO2 (named as DC).
X-ray Diffraction (XRD) patterns of the supports (Figure 1) suggest that the AC material present γ-Al2O3 as the only crystalline phase (broad reflections at 2θ = 37.1°, 46.0° and 66°) [48]. In the case of materials with Al/(Al + Zr) atomic ratios of 0.75 or 0.25 (i.e., BC and CC supports, respectively), new broad reflections are also observed at 2θ = 30.16° and 50.65° (their intensities increasing when increasing the Zr-content), which indicate the appearance of ZrO2 crystallites with tetragonal symmetry. However, zirconia support (DC) is a mixture of monoclinic m-ZrO2 (JCPDS file: 37-1484) and tetragonal t-ZrO2 (JCPDS file: 27-997) phases [49,50].
Figure 1 shows also the XRD patterns of supported vanadium oxide catalysts with different V-loadings. In the case of Al2O3-supported vanadium oxide catalysts, i.e., AC-series (Figure 1a), the characteristic peaks of γ-Al2O3 (broad reflections at 2θ = 37.1°, 46.0° and 66.6°) can be seen for the V-free sample and the sample with low V-loadings (i.e., Al2O3 and 4AC). In addition to these, new peaks at 2θ = 15.3°, 20.3°, 26.2°, 31.2°, 34.3°, and 47.3° are also observed for samples with high V-loading (Figure 1a, patterns 8AC and 12AC) which can be related to the presence of orthorhombic V2O5 (JCPDS: 41-1426) [51].
In the case of catalysts supported on Al,Zr-oxide with low Zr-loading (BC series) (Figure 1b), it can be observed the presence of broad diffraction peaks at 2θ = 30°, 50.7° and 61.0°, which is related to tetragonal t-ZrO2 (JCPDS file: 79-1976). However no peaks related to V2O5 have been detected for catalysts with V-loadings of 4 and 8 wt%, suggesting a better dispersion of vanadium atoms on this support that in the Zr-free alumina catalysts.
A different behavior is observed for the catalysts supported on Al,Zr-oxide with high Zr-loading (CC-series) (Figure 1c). Thus, diffraction peaks at 2θ = 30°, 50.7° and 61.0° (related to tetragonal t-ZrO2 (JCPDS card No. 79-1976) [49]) are observed. Moreover, peaks related to V2O5 crystallites have been also observed in catalysts with V-loading of 8 wt% and higher.
In ZrO2-supported vanadium oxide catalysts (DC-series), it can be seen the presence of both monoclinic and tetragonal ZrO2 and V2O5 crystallites in the sample with highest V-loading, i.e., 8DC sample (Figure 1d). Moreover, the presence of mixed Zr-V oxides, as ZrV2O7 (JCPDS file: 16-0422), cannot be ruled out in the case of sample 8DC [50,52].
Raman spectroscopy has been also used in order to study the presence of non-crystalline phases, as well as the presence/absence of V2O5 crystallites with low crystal sizes. Figure 2 presents the Raman spectra of supported vanadium oxide catalysts. In the case of Al2O3-supported catalysts (Figure 2a), all spectra show the presence of characteristics bands related to V2O5, i.e., 994, 702, 697, 527, 404, 284, and 146 cm−1 [50,51]. However, a broad band is also observed at ca. 900 cm−1 related to polymeric vanadium species. Different Raman spectra are observed in the case of samples supported on Al and Zr oxides with low Zr-content (BC-series) (Figure 2b). Thus, in addition to bands of V2O5, relatively intense broad bands are also observed at ca. 900 cm−1 and at 1020 cm−1, related to polymeric V5+ species and isolated V5+=O species, respectively [52,53]. Therefore, the size of crystals of V2O5 must be low (they are not observed by XRD), and most of V-species are dispersed as V5+ species.
In the case of vanadium oxide supported on Al,Zr-oxide with high Zr-content (CC-series, Figure 2c), V2O5 is mainly observed for catalysts with V-loading higher than 2 wt%, whereas a broad band at ca. 860 cm−1 is also observed in addition to those related to V2O5 for catalysts with V-loading of 2 wt% of V-atoms. However, only the band at 860 cm−1 is observed in the catalysts prepared with a V-content of 1 wt% of V-atoms. The band at 860 cm−1 was observed previously in supported VOx catalysts [54] and was assigned to V–O–V vibrations in polyvanadate structures for VOx/ZrO2 catalysts.
The Raman spectra of catalysts supported on ZrO2 (DC-series) (Figure 2d) presents several bands, some of them also observed in the support (V-free). Raman spectrum of pure ZrO2 shows the presence of bands at 175, 190, and 477 cm−1 (related to m-ZrO2) and bands at 263, 330, 472, 552, and 640 cm−1 (related to t-ZrO2) [50]. These results are in good agreement to those previously reported for V2O5/ZrO2 catalysts [50,54] in which the Raman spectrum of the supported 4% V2O5/ZrO2 catalyst (with 8.1 V at./nm2) contains bands from the dehydrated surface VO4 species at 1035 and ~935 cm−1 arising from the terminal V=O and bridging V-O-Zr bonds, respectively, as well as the presence of band at 860 cm−1 assigned to V–O–V vibrations in polyvanadate structures [52]. The Raman features at ~630, ~552, ~528, ~470, ~375, and ~330 cm−1 were related to crystalline monoclinic ZrO2 support [50]. Similar surface VO4 vibrational bands at ~1035 and 935/900 cm−1 are also present in the Raman spectra of the samples supported on Al,Zr-oxide (with a Al/(Al + Zr) ratio of 0.75) revealing the presence of bridging V–O–V bonds, whereas the possible presence of broad band at ~580 and ~800 cm−1 should be related to the polymeric surface vanadia species, and in which V-O-support bond stretches at 900 cm−1 [50].
Temperature-programmed reduction (TPR) experiments were carried out on the supported catalysts as it gives us an indication of the reducibility of the catalysts. The H2-TPR profiles are presented in Figure 3 and information about the hydrogen consumption is given in Table 1. For a comparative purpose, Figure S1 shows the TPR results of some catalysts and pure V2O5.
In general, the total H2-uptake increases when increasing the V-loading in good agreement with previous results reported by other authors [13,14,15,16,17,18,19,20,21,22,23,24,25,26,27]. This suggests that all V-atoms are involved in the TPR experiments. However, important differences are observed depending on the support. Thus, a single peak at ca. 450–460 °C is observed in the case of AC- and BC-series (Figure 3a,b, respectively) with V-loading lower than 8 wt%. However, a second reduction peak at ca. 600 °C is observed for samples with higher V-loadings (Figure 3a, sample 12AC). A similar effect was observed for VOx/Al2O3 catalysts with high V-loadings, which could be related to an incipient AlVO4 phase [55], but also to the presence of small crystals of V2O5. We must remark that the intensity of the reduction peaks increases with the V-loading, but the temperature of the maximum reduction is similar in both AC- and BC-series.
On the other hand, in both CC- and DC-series (Figure 3c,d, respectively), it can be observed the presence of two reduction peaks: (i) one peak in the 425–395 °C range, in which the intensity increases initially with the V-loading up to a V-content of ca. 8 wt%; and (ii) a second reduction peak at ca. 600 °C, in which the intensity increases dramatically for samples with a V-loading higher than 4 wt%. The first reduction peak can be tentatively assigned to isolated or polymeric V-species [15,56], in which the reducibility of V-species in ZrO2-supported catalysts are higher than those in Al2O3-supported catalysts [56]. The second peak can be related to V2O5 crystallites on the surface of the support (mainly observed in catalysts with high V-loading), although probably with relatively low crystal size [51], and/or attributed to the formation of small ZrV2O7 crystals [27]. In this way, the reduction of pure V2O5 appears at temperatures higher than 600 °C (Figure S1).
Some representative catalysts have been also studied by XPS. The results are summarized in Table S1 and Figure S2. In all cases, V5+ has been mainly observed, although presenting different environments. The XPS peaks at 517.5 eV, the main peak in all cases, is assigned to V5+, whereas the peak at 516.4 eV (as minority in the case of samples 8CC and 8DC) can be related to V4+ species [57,58]. In the case of sample 4BC (Figure S2), it can be also observed a peak at ca. 518.9 eV which is characteristic for highly dispersed V5+ species in supported vanadium oxide catalysts, as proposed previously by Hess et al. [59], which is in agreement with the XRD (Figure 1) and Raman (Figure 2) results.
The acid characteristics of these catalysts have been estimated using temperature-programmed desorption of NH3, TPD-NH3 (Figure 4). A maximum at ca. 205 °C has been observed in all cases with two shoulders at ca. 277 and ca. 350 °C. The most intense band at 205 °C has been assigned to weak Lewis acid sites of the VOx/Al2O3 catalysts, which mainly originate from the exposed alumina sites [53].
Accordingly, for a given support, the amount of acid sites (area inside the curve) decreases with the vanadium loading suggesting that vanadium sites covers the acidic sites of the supports (Figure 4a). For fixed vanadium loading it is observed that the number of acid sites decreases when increasing the amount of Zr in the support. Thus, the sample supported on Al2O3 shows the highest amount of acid sites, whereas the sample supported on ZrO2 presented the lower adsorption of ammonia, i.e., the lower amount of acid sites. It is also observed that the intensity of the band at ca. 277 °C increases in the Zr-rich Al,Zr-oxide support and that the peak at 350 °C is hardly appreciated if the support is zirconia.

2.2. Catalytic Results on ODH of Ethane

In the ODH of ethane over supported vanadium oxide catalysts, ethylene, CO and CO2 have been the main reaction products although the catalytic performance highly varies depending on the catalyst chosen. Figure 5 shows the variation of the ethane conversion with the V-loading for the different supports.
In general, the conversion of ethane increases when increasing the vanadium loading although this effect strongly depends on the nature of the support. Thus, in the case of Al2O3 and Al-Zr-O-supported catalysts the activity increases with the V-content, whereas if the support is pure zirconia, the catalytic activity increases up to 4 wt% and then slightly falls. This change in catalytic activity can be related in the last case to the formation of V-Zr-O compounds and the presence of V-species in the bulk of the catalyst for V-loading higher than 4 wt%. This effect can be also related not only to the higher reactivity of ZrO2 with respect to Al2O3, but also to the lower surface area of ZrO2, which favors a lower number of dispersed V atoms on the surface of the support. Thus, the catalytic activity for ethane ODH decreases in the following trend [59]: VOx/ZrO2> VOx/(Al,Zr-oxides) > VOx/Al2O3.
It has been previously suggested that the reactivity of the supported vanadia catalysts for alkane ODH is also a strong function of the specific oxide supports [53,54]. This is in good agreement with the catalytic results presented here in which ZrO2-supported catalysts are more active than Al2O3-supported catalysts (see Figure 5).
Figure 6 shows the variation of the selectivity to the main reaction products (ethane, CO, and CO2) with the ethane conversion for catalysts of AC-, BC-, CC-, and DC-series. In general, no influence of V-loading on selectivity to ethylene is observed for each specific series. In addition, the selectivity to ethylene decreases when increasing the ethane conversion, suggesting that ethylene is partially transformed (to carbon oxides, especially carbon monoxide) when working at higher ethane conversion levels (Figure 6). However, according to the results of Figure 6, it can be also concluded that the selectivity to ethylene strongly depend on the nature of metal oxide support. Thus, the catalysts supported on alumina (AC-series, with 4, 8, and 12 wt% of V atoms) are the most selective at low ethane conversion (selectivity to ethylene of ca. 70% is observed) (Figure 6a), whereas those supported on zirconia (DC-series, with 2, 4, 8, and 12 wt% of V atoms) present the lowest selectivity to ethylene (ca. 40%) (Figure 6d). In the case of vanadium catalysts supported on Al and Zr oxides (BC-series with 4 or 8 wt% of V-atoms; and CC-series with 2, 4, 8, 10 wt% of V-atoms) (Figure 6b,c, respectively), the selectivity to ethylene shows an intermediate behavior to those achieved over alumina-and zirconia-supported vanadium oxide catalysts. In a similar way, the selectivity to ethylene also changes at higher ethane conversion, depending on the type of support. In this ways, at ethane conversion of 30%, catalysts of AC- and BC-series present the highest selectivity to ethylene (ca. 50%) and the lowest selectivity to CO (ca. 45%), whereas those of CC- and DC-series present the lowest selectivity to ethylene (ca. 27%) and the highest selectivity to CO (ca. 55%). Accordingly, at isoconversion conditions, the selectivity to ethylene decreases as follow: VOx/Al2O3 > VOx/(Al,Zr-oxides) > VOx/ZrO2 (see also Figure S3, Supporting Information). This is an opposite trend to that observed for the catalytic activity in ethane ODH of these catalysts (Figure 5).
We want to note that alumina-supported vanadium oxide catalysts prepared by this preparation method presents selectivity to ethylene similar to those of vanadium prepared on commercial γ-Al2O3 (see Figure S4, Supporting Information), suggesting that in both cases we likely have similar dispersion of vanadium on the metal oxide support. On the other hand, the presence of V-free sites of support should have a relatively low influence on selectivity to ethylene. Thus, the surface area of catalysts seems to have little influence on the final selectivity to ethylene.
According to these catalytic results, a reaction network can be proposed (Figure 7), in which CO is formed from both ethane and ethylene deep oxidation, and CO2 is mainly formed by the deep oxidation of ethane.

2.3. Selective Aerobic Transformation of Methanol

Selective transformation of methanol tests have been focused in the catalysts with 8 wt% V. Formaldehyde (CH2O), dimethylether (DME) and carbon oxides (CO and CO2) are the main reaction products. In addition, dimethoxymethane (DMM), which is formed from the decomposition of formaldehyde and methyl formate were also observed as minorities.
Figure 8 shows the variation of the conversion of methanol with reaction temperature of all studied catalysts. The most active catalyst is that with zirconia as a support whereas the least active one corresponds to the catalyst supported on alumina. V-catalysts on mixed Al2O3/ZrO2 supports present an intermediate catalytic activity between the pure supports. This trend is similar to that observed in the ethane ODH although the variation of activity is lower in methanol activation.
However, as it will be discussed later, this behavior is explained by considering that both redox and acid sites are involved in the aerobic transformation of methanol. Accordingly, and considering that the reactivity of acid sites is different to the reactivity of redox sites, the total conversion of methanol should be explained by these two parameters. The different nature and relative reactivity of the active sites between the ODH (where redox sites are the predominant) of ethane and methanol oxidation can account for this different performance.
Figure 9 presents the variation of the selectivity to formaldehyde (or to formaldehyde + DMM, at low reaction temperature) and the selectivity to DME with the methanol conversion. It can be observed that formaldehyde and DME are formed in all cases, although depending on the characteristics of catalysts the ratio of formaldehyde and DME ratio could change. This change is indicative of the ratio between acid and redox sites.
In the same way, we compared the catalytic performance of alumina-supported vanadium oxide catalysts using commercial Alumina, i.e., V (4 wt%)/Al and V (8 wt%)/Al samples, and home-made alumina containing catalysts (i.e., 4AC and 8AC samples). The variation of the selectivity to formaldehyde (or to formaldehyde + dimetoxymethane at low reaction temperature) and the selectivity to dimethyl ether (DME) with the methanol conversion are shown in Figure S5 (Supporting Information). According to these results, the presence of more vanadium on the catalyst surface (decreasing the alumina concentration on the catalyst surface) could favor a higher formaldehyde formation as the redox reaction is favored and also a lower DME formation as the concentration of acid sites decreases.
Thus, according to these results, the sample with alumina support, 8AC, presents a high concentration of acid sites (the highest yield to DME and the lowest to formaldehyde). In an opposite trend, the catalysts with zirconia-alumina supports present a very low concentration of acid sites (high yield to formaldehyde and poor to DME). Finally, no DME was observed in the series with pure zirconia as a support, suggesting the absence of acid sites.

2.4. General Remarks

According to the results observed in this work, alumina seems to be the preferred support for vanadium to obtain efficient catalysts for the ODH of ethane. However, this is true only at low and moderate ethane conversions, as vanadium supported on mixed Al2O3-ZrO2 with low amount of zirconia (i.e., 75Al-25Zr support) mitigates the decomposition of the olefin. Consequently, for a selected vanadium loading, the selectivity to ethylene achieved at conversions over 30% is the highest in the catalysts using the 75Al-25Zr support and higher than that achieved on the catalysts supported on pure alumina. These results are not straightforward to explain but are likely related to the dispersion of vanadium species and especially to the acid/redox characteristics of the supports/catalysts. Thus, the incorporation of low amounts of zirconia expands the support structure, thus increasing the surface area and then improving the dispersion of vanadium species (see characterization data). Moreover, in view of methanol transformation results, the proportion of acid/redox sites decreases when zirconia is incorporated. Thus, in addition to redox sites, acid sites are also required as they favor a higher desorption of ethylene [5,6,7,16]. In fact, the presence of redox sites is required since they are responsible for the ethane to ethylene reaction. However, they are also directly involved in the combustion of ethane. Accordingly, the presence of acid sites can decrease the concentration of ethylene adsorbed on the catalyst surface favoring a lower degradation of ethylene.
As it has been reported in the past, acidic supports are preferred over basic ones [5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26] as supports of vanadium oxide for the ODH of ethane; however, acidic sites themselves could be active in the olefin decomposition and then this can be related to the fact that the replacement of a part of the alumina by zirconia decreases the drop of the ethylene selectivity when the conversion of ethane is increased. However, the low selectivity to ethylene and the high selectivity to carbon oxides in catalysts with high Zr-loading has been reported to be related to the presence of dispersed V-species (at low surface densities) and bulk ZrV2O7. It appears to be associated with exposed unselective V–O–Zr and Zr–O–Zr sites [60] which are especially active in the alkane combustion. In catalysts with high Zr-loading (CC- and DC-series) the selectivity to ethylene is very low. In addition, it has also been proposed that the rates for alkane ODH increase initially as the size of polyvanadate domains increases (i.e., increasing VOx surface density). Thus, the rate of ODH decreases with the formation of V2O5 clusters (usually at high surface densities in which the fraction of VOx species exposed at cluster surfaces decreases). Our catalytic results indicate that the polymerization degree of the surface vanadia species does not significantly affect the reactivity of the catalysts for ethane oxidation but the increase in the crystallite size of V2O5 crystallites leads to a decrease in the activity per V-site. In the DC-series the ethane conversion (Figure 5) reaches a maximum at 2 wt% V and for higher V-loadings, in which the vanadium pentoxide crystallite size increases, the activity per gram of catalyst slightly drops.
The formation of complex oxides with vanadium, zirconium and aluminum cannot be ruled out (V-Al-Zr-O species), although we do not have conclusive evidences. Vanadium in this ternary oxide can have different characteristics that those of vanadium supported on pure alumina or pure zirconia, then affecting the catalytic performance.
Another parameter that could have some influence on the catalytic performance in the ODH of ethane is the oxidation state of vanadium in the surface. Thus, in the present work, the least selective catalysts studied are those with some V4+ (samples 8CC and 8DC) whereas in the most selective catalysts, samples 4AC and 4BC, no appreciable V4+ has been observed. However, we cannot conclusively state that the presence of V4+ in the catalysts is deleterious for the ODH of ethane since in all cases the amount of V4+ has been low (<6%). The presence of dispersed V5+ species in 4BC could be related to the lower ethylene decomposition (lower fall in the selectivity to ethylene when the ethane conversion increases) compared to other catalysts.
According to kinetic aspects of the ODH reactions [5,6,7,17,23,26,27,61,62] and the results obtained in the present work a simplified reaction network can be tentatively proposed. It must be mentioned that more catalytic data would be needed for a comprehensive kinetic analysis. A reaction network with parallel and consecutive reactions has been proposed, Figure 7, in which k1, k2, and k3 are kinetic constants. In this reaction network, the initial selectivity to olefin (at low conversion of alkane) will be related to the k1/k2 ratio while at high alkane conversion levels, the selectivity to olefins will be associated to the k1/(k2 + k3) ratio. However, in our case, it is possible to propose a more adequate reaction network in which the main formation of both CO and CO2 can be directly assigned to different reaction step. In fact, the selectivity to ethylene decreases and the selectivity to CO increases when increasing the ethane conversion. Apparently, ethylene is mainly transformed into CO when increasing the ethane conversion. However, the selectivity to CO2 remains practically constant in the ethane conversion region studied (see Figure 6c for samples supported over Al2O3, i.e., AC-series). Thus, CO2 is mainly formed by parallel reaction from ethane. However, the formation of CO occurs by both the deep oxidation of ethane and the deep oxidation of ethylene (the ratio of both reactions depending on the nature of catalysts). According to our results the incorporation of zirconia to alumina decreases the k1/k2 ratio but also the k3/(k1 + k2) ratio. Thus, at low zirconia loadings, a compromise between both factors takes place, thus obtaining the highest selectivity to ethylene at high ethane conversions.

3. Materials and Methods

3.1. Preparation of Metal Oxide Support

Different metal support with Al/(Al + Zr) ratios of 1, 0.75, 0.25, and 0 have been synthesized. The synthesis of supports was carried by calcination at 500 °C, during 5 h under a stream of oxygen, from the corresponding hydroxides precursors. The aluminum and/or zirconium hydroxides, i.e., Al(OH)3, Zr(OH)4 or Zr(OH)4-Al(OH)3, were prepared by precipitation at pH = 10, by adding a 30% NH4OH solution to aqueous solutions of AlCl3·6H2O and/or ZrOCl2·8H2O (with adequate Al/Zr molar ratio). The white gels were then washed with distilled water to remove the Cl-ions in excess, followed by filtration and drying at 110 °C. The final metal oxide supports correspond to: (i) Al2O3, with a surface area of 168 m2 g−1 (named as AC); (ii) ZrO2-Al2O3 mixed metal oxides, with a Al/(Al + Zr) at ratio of 0.75, with a surface area of 180 m2 g−1 (named as BC); (iii) ZrO2-Al2O3 mixed metal oxides, with a Zr/(Al + Zr) at ratio of 0.75, with a surface area of 99 m2 g−1 (named as CC); and (iv) ZrO2, with a surface area of 38 m2 g−1 (named as DC).

3.2. Preparation of Catalyst

Supported vanadium oxide catalysts were prepared by wet impregnation method, using aqueous solution of ammonium metavanadate, and rotaevaporated in vacuum at 60 °C. The paste obtained was dried in a furnace at 100 °C overnight and calcined in static air for 6 h at 500 °C. The catalysts will be named as nAC, nBC, nCC, nDC (in which n is the V-loading, in wt% of V-atoms), and AC, BC, CC, and CD correspond to the home made supports mentioned above. Some physicochemical properties of the supported vanadium oxide catalysts are shown in Table 1.

3.3. Characterization Techniques

Catalyst surface areas were determined by multi-point N2 adsorption at −196 °C. The data were treated in accordance with the BET method.
Powder X-ray diffraction (XRD) was used to identify the crystalline phases present in the catalysts. An Enraf Nonius FR590 sealed tube diffractometer (Bruker, Delft, The Netherlands), with a monochromatic CuKα1 source operating at 40 kV and 30 mA was used.
Raman spectra were obtained with an ‘‘in via’’ Renishaw spectrometer, equipped with an Olympus microscope Renishaw, Gloucestershire, UK), using an exciting wavelength of 514 nm (from a Renishaw HPNIR laser with a power of approximately 15 mW on the sample).
Temperature-programmed reduction (TPR) was carried out in a Micromeritics Autochem 2910 (Micromeritics, Norcross, GA, USA) equipped with a TCD detector, in which the reducing gas was 10% H2 in Ar (total flow rate of 50 mL min−1). The temperature range explored was from room temperature to 800 °C. The heating rate was maintained at 10 °C min−1.
Experiments of temperature-programmed desorption of ammonia (TPD-NH3) were carried out on a TPD/2900 apparatus (Micromeritics, Norcross, GA, USA). Three-hundred milligrams of sample was pre-treated in a He stream at 450 °C for 1 h. Ammonia was then chemisorbed by pulses at 100 °C until equilibrium was reached. Finally, the sample was fluxed with a He stream for 15 min, prior to increasing the temperature up to 500 °C in a helium stream of 100 mL min−1 and using a heating rate of 10 °C min−1. Desorption of NH3 was monitored with a thermal conductivity detector (TCD).
The chemical characterization of the near surface of the catalysts was performed by XPS. A Physical Electronics spectrometer (PHI 5700) (PHI, Chanhassen, MN, USA) with X-ray Mg Kα radiation (300 W, 15 kV, 1253.6 eV) as the excitation source was used for high-resolution record. Measurements were conducted by a concentric hemispherical analyzer which operates in the constant pass energy mode at 29.35 eV, using a 720 μm diameter analysis area.

3.4. Catalytic Studies

The catalytic tests for both ethane ODH and the aerobic transformation of methanol were carried out at atmospheric pressure in a fixed-bed quartz tubular flow reactor [33]. The reaction temperature has been controlled by a thermocouple placed inside the catalytic reactor at the level of the catalyst bed.
In the case of ethane ODH, the catalyst weight was varied and the total flow of ethane/oxygen/helium with a molar ratio of 4/8/88 (maintaining a total flow of 100 mL min−1) was used. The protocol employed for the catalytic study in the oxidative dehydrogenation of ethane using these catalysts was as follows. Firstly we conducted a series of experiments at 500 °C and a contact time of 50 gcat h molC2−1 (this corresponds to 0.25 g of catalyst and a total flow of 50 mL min−1) with all catalysts. As the reactivity of the catalysts was different, several contact times have been employed in order to reach conversions until ca. 30%. With the least active catalysts, i.e., 2CC, contact times higher than 50 were used (until 250 gcat h molC2−1 which corresponds to 1.25 g of catalyst and a flow of 50 mL min−1). In the case of the most active catalysts, i.e., DC-series, contact times lower than 50 gcat h molC2−1 were used (until 10 gcat h molC2−1 which corresponds to 50 mg of catalyst and a flow of 50 mL min−1). As the amount of sample employed largely varies depending on the experiment, the catalysts have been diluted with silicon carbide in order to have a catalytic bed with a constant volume.
Analysis of the reaction products was carried out on-line using gas chromatography [31,32]. Two GC columns were employed in the analysis of the reactants and reaction products: Porapak Q and Molecular Sieve 5A. Porapak Q (3 m long) has been used to identify hydrocarbons, mainly ethane and ethylene, water, and carbon dioxide. As this column cannot split oxygen properly and carbon monoxide a second column (molecular sieve 5A, 3 m long) was used to quantify O2 and CO. The temperature of the columns in the analysis was fixed in 80 °C and the total flow of the helium carrier gas maintained in 30 mL min-1.
The aerobic transformation of methanol was carried out in the 250–400 °C temperature range. 50 to 250 mg of catalyst (diluted with 0.5 g CSi) and a feed consisted of a methanol/oxygen/nitrogen mixture with a molar ratio of 6/13/81 (total flow of 100 mL min−1) were used. The analysis of reactants and products was carried out by means of gas-chromatography, using two different chromatographic columns [47]: (i) RTU-bond (30 m, 0.53 i.d.); and (ii) molecular sieve 5A (3 m length).
Blank runs in the absence of catalysts have been carried out until 550 °C (50 °C higher than the highest temperature used in this study) maintaining the ethane/oxygen/helium molar ratio of 4/8/88. Ethane conversions lower than 0.2% were observed in all of the experiments conducted.

4. Conclusions

Alumina-supported vanadia catalysts are more selective to ethylene in the ODH of ethane than the corresponding catalysts supported on Zr-containing metal oxides. The selectivity to ethylene decreases and the selectivity to CO increases when increasing the Zr-content in the support. In a parallel way, it has been observed that the acid characteristics of supports also decreases when increasing Zr-content as concluded from both TPD-NH3 and the aerobic transformation of methanol. Accordingly, the presence of acid sites could favor a rapid desorption of ethylene favoring a higher selectivity to olefin (and a lower ethylene degradation to CO). Overall, alumina has demonstrated to present the highest selectivity to ethylene. However, the partial replacement of alumina by zirconia (75%Al2O3/25%ZrO2), has led to an enhanced selectivity to ethylene at high ethane conversions in the ODH of ethane. This increase of the selectivity to ethylene is due to a lower ethylene decomposition which can be related to a better V-dispersion and a higher proportion of redox sites, as corroborated in the methanol oxidation tests. Thus, a compromise between acid and redox sites seems to be necessary to obtain high selectivity to ethylene at high ethane conversion. However, if supports with high Zr-loadings are used (i.e., high Zr/Al ratios or pure ZrO2) a drastic decrease in the ethylene formation, but also in the ethylene degradation (with CO formation) is observed due to their low acid character, the formation of unselective V–O–Zr sites and the low V-dispersion capacity as a consequence of the low surface area of the supports.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/8/4/126/s1, Figure S1. TPR-H2 results of supported catalysts. For comparison it has also been included in the results for pure V2O5. Characteristics of catalysts are shown in Table 1. Table S1. XPS results of supported catalysts. Figure S2. V 2p3/2 photoelectron spectra of catalysts with a V-loading of 4 or 8 wt% of V-atoms. Characteristics of catalysts in Table 1, Table S2. Catalytic results during the ethane ODH over catalysts of AC-series. Table S3. Catalytic results during the ethane ODH over catalysts of BC-series. Table S4. Catalytic results during the ethane ODH over catalysts of CC-series. Table S5. Catalytic results during the ethane ODH over catalysts of DC-series. Figure S3. Variation of the selectivity to ethylene with V-loading during the ODH of ethane over supported vanadium oxide catalysts (AC, BC, CC and DC series) at an ethane conversion of: (a) 5%; and (b) 35%. Reaction conditions: T = 500 °C; ethane/oxygen/helium with a molar ratio of 4/8/88. Figure S4. Variation of the selectivity ethylene, CO and CO2 with ethane conversion during the ODH of ethane over Al2O3-supported vanadium oxide catalysts (V/Al series, prepared over commercial Al2O3 support). Reaction conditions: T = 500 °C; ethane/oxygen/helium with a molar ratio of 4/8/88. Figure S5. Variation of the selectivity to formaldehyde (or formaldehyde + DMM) (left) and to DME (right) with methanol conversion during the aerobic transformation of methanol over Al2O3-supported vanadium oxide catalysts (V/Al series: V(4 wt%)/Al and V(8 wt%)/Al), prepared over commercial Al2O3 support). For comparison it has been also included the catalytic results for samples 4AC and 8AC.

Acknowledgments

The authors would like to acknowledge the DGICYT (CTQ2015-68951-C3-1-R and MAT2017-84118-C2-1-R projects), the Secretary of State for International Cooperation in Spain (Project AP/040992/11) and FEDER for financial support. B.S. also thanks the University of Valencia (UV-INV-AE16-484416).

Author Contributions

S.B. carried out the catalytic tests and participated in the discussion of the results; A.M. prepared some catalysts and participated in the discussion of the results; B.S. participated in the discussion of the results, in the writing of the paper and is the main responsible for the characterization part; R.I. actively participated in the discussion of the results; and J.M.L.N. conceived the experiments and is the coordinator of the work.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chieregato, A.; López Nieto, J.M.; Cavani, F. Mixed oxides catalysts with vanadium as the key element for gas phase reactions. Coord. Chem. Rev. 2015, 301–302, 3–23. [Google Scholar] [CrossRef]
  2. López Nieto, J.M. Selective oxidative activation of light alkanes. From supported vanadia to multicomponent bulk V-containing catalysts. Top. Catal. 2006, 41, 3–15. [Google Scholar] [CrossRef]
  3. Wachs, I.E. Catalysis science of supported vanadium oxide catalysts. Dalton Trans. 2013, 42, 11762–11769. [Google Scholar] [CrossRef] [PubMed]
  4. James, O.O.; Mandal, S.; Alele, N.; Chowdhury, B.; Maity, S. Lower alkanes dehydrogenation: Strategies and reaction routes to corresponding alkenes. Fuel Process. Technol. 2016, 149, 239–255. [Google Scholar] [CrossRef]
  5. Blasco, T.; López Nieto, J.M. Oxidative dehydrogenation of short chain alkanes on supported vanadium oxide catalysts. Appl. Catal. A Gen. 1997, 157, 117–142. [Google Scholar] [CrossRef]
  6. Kung, H.H.; Kung, M.C. Oxidative dehydrogenation of alkanes over vanadium-magnesium-oxides. Appl. Catal. A Gen. 1997, 157, 105–116. [Google Scholar] [CrossRef]
  7. Cavani, F.; Trifiró, F. Some aspects that affect the selective oxidation of paraffins. Catal. Today 1997, 36, 431–439. [Google Scholar] [CrossRef]
  8. Banares, M.A. Supported metal oxide and other catalysts for ethane conversion: A review. Catal. Today 1999, 51, 319–348. [Google Scholar] [CrossRef]
  9. Bhasin, M.M.; McCain, J.H.; Vora, B.V.; Imai, T.; Pujado, P.R. Dehydrogenation and oxydehydrogenation of paraffins to olefins. Appl. Catal. A Gen. 2001, 221, 397–419. [Google Scholar] [CrossRef]
  10. Cavani, F.; Ballarini, N.; Cericola, A. Oxidative dehydrogenation of ethane and propane. How far from commercial implementation? Catal. Today 2007, 127, 113–131. [Google Scholar] [CrossRef]
  11. Gartner, C.A.; Van Veen, A.C.; Lercher, J.A. Oxidative dehydrogenation of ethane: Common principles and mechanistic aspects. ChemCatChem 2013, 5, 3196–3217. [Google Scholar] [CrossRef]
  12. Galli, A.; Lopez Nieto, J.M.; Dejoz, A.; Vazquez, M.I. The effect of potassium on the selective oxidation of n-butane and ethane over Al2O3-supported vanadia catalysts. Catal. Lett. 1995, 34, 51–58. [Google Scholar] [CrossRef]
  13. Argyle, M.D.; Chen, K.; Bell, A.T.; Iglesia, E. Ethane oxidative dehydrogenation pathways on vanadium oxide catalysts. J. Phys. Chem. B 2002, 106, 5421–5427. [Google Scholar] [CrossRef]
  14. Dinse, A.; Ozarowski, A.; Hess, Ch.; Schomacker, R.; Dinse, K.P. Potential of high frequency EPR for investigation of supported vanadium oxide. J. Phys. Chem. C 2008, 112, 17664–17671. [Google Scholar] [CrossRef]
  15. Chen, K.D.; Bell, A.T.; Iglesia, E. The relationship between the electronic and redox properties of dispersed metal oxides and their turnover rates in oxidative dehydrogenation reactions. J. Catal. 2002, 209, 35–42. [Google Scholar] [CrossRef]
  16. Lopez Nieto, J.M.; Soler, J.; Concepcion, P.; Herguido, J.; Menendez, M.; Santamaria, J. Oxidative dehydrogenation of alkanes over V-based catalysts: Influence of redox properties on catalytic performance. J. Catal. 1999, 185, 324–332. [Google Scholar] [CrossRef]
  17. Argyle, M.D.; Chen, K.; Iglesia, E.; Bell, A.T. In situ UV-visible spectroscopic measurement of kinetic parameters and active sites for catalytic oxidation of alkanes on vanadium oxides. J. Phys. Chem. B 2005, 109, 2414–2420. [Google Scholar] [CrossRef] [PubMed]
  18. Chen, K.; Khodakov, A.; Yang, J.; Bell, A.T.; Iglesia, E. Isotopic tracer kinetic studies of oxidative dehydrogenation pathways on vanadium oxide catalysts. J. Catal. 1999, 186, 325–333. [Google Scholar] [CrossRef]
  19. Mul, G.; Banares, M.A.; Garcia Cortez, G.; Linden, B.; Khatib, S.J.; Moulijn, J.A. Multitrack and operando Raman G-C study of oxidative dehydrogenation of propane over alumina-supported vanadium oxide catalysts. Phys. Chem. Chem. Phys. 2003, 5, 4378–4383. [Google Scholar] [CrossRef]
  20. Olthof, B.; Khodakov, A.; Bell, A.T.; Iglesia, E. Effects of support composition and pretreatment conditions on the structure of vanadia dispersed on SiO2, Al2O3, TiO2, ZrO2 and HfO2. J. Phys. Chem. B 2000, 104, 1516–1528. [Google Scholar] [CrossRef]
  21. Blasco, T.; Galli, A.; Lopez Nieto, J.M.; Trifiro, F. Oxidative dehydrogenation of ethane and n-butane on VOx/Al2O3 catalysts. J. Catal. 1997, 169, 203–211. [Google Scholar] [CrossRef]
  22. Lin, X.; Hoel, C.A.; Sachtler, W.M.H.; Poeppelmeier, K.R.; Weitz, E. Oxidative dehydrogenation (ODH) of ethane with O2 as oxidant on selected transition metal-loaded zeolites. J. Catal. 2009, 265, 54–62. [Google Scholar] [CrossRef]
  23. Al-Ghamdi, S.A.; De Lasa, H. Propylene production via propane oxidative dehydrogenation over VOx/γ-Al2O3 catalyst. Fuel 2014, 128, 120–140. [Google Scholar] [CrossRef]
  24. Solsona, B.; Dejoz, A.; Garcia, T.; Concepción, P.; Lopez Nieto, J.M.; Vázquez, M.I.; Navarro, M.T. Molybdenum-vanadium supported on mesoporous alumina catalysts for the oxidative dehydrogenation of ethane. Catal. Today 2006, 117, 228–233. [Google Scholar] [CrossRef]
  25. Chen, S.; Ma, F.; Xu, A.; Wang, L.; Chen, F.; Lu, W. Study on the structure, acidic properties of V-Zr nanocrystal catalysts in the oxidative dehydrogenation of propane. Appl. Surf. Sci. 2014, 289, 316–325. [Google Scholar] [CrossRef]
  26. Elbadawi, A.H.; Ba-Shammakh, M.S.; Al-Ghamdi, S.; Razzak, S.A.; Hossain, M.M. Reduction kinetics and catalytic activity of VOx/γ-Al2O3-ZrO2 for gas phase oxygen free ODH of ethane. Chem. Eng. J. 2016, 284, 448–457. [Google Scholar] [CrossRef]
  27. Rostom, S.; de Lasa, H. Propane Oxidative Dehydrogenation Using Consecutive Feed Injections and Fluidizable VOx/γAl2O3 and VOx/ZrO2−γAl2O3 Catalysts. Ind. Eng. Chem. Res. 2017, 56, 13109–13124. [Google Scholar] [CrossRef]
  28. Heracleous, E.; Lemonidou, A.A. Ni−Nb−O Mixed Oxides as Highly Active and Selective Catalysts for Ethene Production via Ethane Oxidative Dehydrogenation. Part I: Characterization and Catalytic Performance. J. Catal. 2006, 237, 162–174. [Google Scholar] [CrossRef]
  29. Skoufa, Z.; Heracleous, E.; Lemonidou, A.A. Mechanism and Nature of Active Sites over NiO-Based Catalysts via Isotopic Labeling and Methanol Sorption Studies. J. Catal. 2015, 322, 118–129. [Google Scholar] [CrossRef]
  30. Ipsakis, D.; Heracleous, E.; Silvester, L.; Bukur, D.B.; Lemonidou, A.A. Reduction and Oxidation Kinetic Modeling of NiO-based Oxygen Transfer Materials. Chem. Eng. J. 2017, 308, 840–852. [Google Scholar] [CrossRef]
  31. Delgado, D.; Solsona, B.; Ykrelef, A.; Rodriguez-Gomez, A.; Caballero, A.; Rodriguez-Aguado, E.; Rodriguez-Castellon, E.; Lopez Nieto, J.M. Redox and Catalytic Properties of Promoted NiO Catalysts for the Oxidative Dehydrogenation of Ethane. J. Phys. Chem. C 2017, 121, 25132–25142. [Google Scholar] [CrossRef]
  32. Solsona, B.; Concepcion, P.; Lopez Nieto, J.M.; Dejoz, A.; Cecilia, J.A.; Agouram, S.; Soriano, M.D.; Torres, V.; Jimenez-Jimenez, J.; Rodriguez Castellon, E. Nickel Oxide Supported on Porous Clay Heterostructures as Selective Catalysts for the Oxidative Dehydrogenation of Ethane. Catal. Sci. Technol. 2016, 6, 3419–3429. [Google Scholar] [CrossRef]
  33. Lopez Nieto, J.M.; Botella, P.; Vazquez, M.I.; Dejoz, A. The selective Oxidative Dehydrogenation of Ethane over Hydrothermally Synthesized MoVTeNb Catalysts. Chem. Commun. 2002, 1906–1907. [Google Scholar] [CrossRef]
  34. Lopez Nieto, J.M.; Botella, P.; Vazquez, M.I.; Dejoz, A. Method for the Oxidative Dehydrogenation of Ethane. US Patent 7,319,179 B2, 15 January 2008. [Google Scholar]
  35. Gartnet, C.; Van Veen, A.C.; Lercher, J.A. Oxidative Dehydrogenation of Ethane on Dynamically Rearranging Supported Chloride Catalysts. J. Am. Chem. Soc. 2014, 136, 12691–12701. [Google Scholar] [CrossRef] [PubMed]
  36. Tatibouet, J.M. Methanol oxidation as a catalytic surface probe. Appl. Catal. A Gen. 1997, 148, 213–252. [Google Scholar] [CrossRef]
  37. Forzatti, P.; Tronconi, E.; Elmi, A.S.; Busca, G. Methanol oxidation over vanadia-based catalysts. Appl. Catal. A Gen. 1997, 157, 387–408. [Google Scholar] [CrossRef]
  38. Wachs, I.E.; Chen, Y.; Jehng, J.M.; Briand, L.E.; Tanaka, T. Molecular structure and reactivity of the group V metal oxides. Catal. Today 2003, 78, 13–24. [Google Scholar] [CrossRef]
  39. Shah, P.R.; Baldychev, I.; Vohs, J.M.; Gorte, R.J. Comparison of redox isotherms for vanadia supported on zirconia and titania. Appl. Catal. A Gen. 2009, 361, 13–17. [Google Scholar] [CrossRef]
  40. Baldychev, I.; Gorte, R.J.; Vohs, J.M. The impact of redox properties on the reactivity of V2O5/Al2O3 catalysts. J. Catal. 2010, 269, 397–403. [Google Scholar] [CrossRef]
  41. Hess, C. Nanostructured vanadium oxide model catalysts for selective oxidation reactions. Chem. Phys. Chem. 2009, 10, 319–326. [Google Scholar] [CrossRef] [PubMed]
  42. Smith, M.A.; Zoelle, A.; Yang, Y.; Rioux, R.M.; Hamilton, N.G.; Amakawa, K.; Nielsen, P.K.; Trunschke, A. Surface roughness effects in the catalytic behavior of vanadia supported on SBA-15. J. Catal. 2014, 312, 170–178. [Google Scholar] [CrossRef]
  43. Wang, N.L.; Qiu, J.E.; Wu, J.; You, K.Y.; Luo, H.A. A comparison of the redox properties of bulk vanadium mixed oxide catalysts. Catal. Lett. 2015, 145, 1792–1797. [Google Scholar] [CrossRef]
  44. Beck, B.; Harth, M.; Hamilton, N.G.; Carrero, C.; Uhlrich, J.J.; Trunschke, A.; Shaikhutdinov, S.; Schubert, H.; Freund, H.J.; Schlögl, R.; et al. Partial oxidation of ethanol on vanadia catalysts on supporting oxides with different redox properties compare to propane. J. Catal. 2012, 296, 120–131. [Google Scholar] [CrossRef]
  45. Kim, T.; Wachs, I.E. CH3OH oxidation over well-defined supported V2O5/Al2O3 catalysts. Influence of vanadium oxide loading and surface vanadium-oxygen functionalities. J. Catal. 2008, 255, 197–205. [Google Scholar] [CrossRef]
  46. Baldychev, I.; Vohs, J.M.; Gorte, R.J. The effect of support on redox properties and methanol-oxidation activity of vanadia catalysts. Appl. Catal. A Gen. 2011, 391, 86–91. [Google Scholar] [CrossRef]
  47. Soriano, M.D.; Chieregato, A.; Zamora, S.; Basile, F.; Cavani, F.; López Nieto, J.M. Promoted hexagonal tungsten bronzes as selective catalysts in the aerobic transformation of alcohols: Glycerol and methanol. Top. Catal. 2016, 59, 178–185. [Google Scholar] [CrossRef]
  48. Hu, F.; Wu, X.; Wanga, Y.; Lai, X. Ultrathin γ-Al2O3 nanofibers with large specific surface area and their enhanced thermal stability by Si-doping. RSC Adv. 2015, 5, 54053–54058. [Google Scholar] [CrossRef]
  49. Zang, F.; Chupas, P.J.; Lui, S.L.A.; Hanson, J.C.; Caliebe, W.A.; Lee, P.L.; Chan, S.W. In situ study in the crystallization from amorphous to cubic zirconium oxide: Rietveld and reverse Monte Carlo Analyses. Chem. Mater. 2007, 19, 3118–3126. [Google Scholar] [CrossRef]
  50. Pieck, C.L.; Del Val, S.; Lopez Granados, M.; Banares, M.A.; Fierro, J.L.G. Bulk and Surface structures of V2O5/ZrO2 systems and their relevance for o-xylene oxidation. Langmuir 2002, 18, 2642–2648. [Google Scholar] [CrossRef]
  51. Soriano, M.D.; Rodríguez-Castellón, E.; García-González, E.; López Nieto, J.M. Catalytic behavior of NaV6O15 bronze for partial oxidation of hydrogen sulfide. Catal. Today 2014, 238, 62–68. [Google Scholar] [CrossRef]
  52. Zhao, C.; Wachs, I.E. Selective oxidation of propylene over model supported V2O5 catalysts. Influence of surface coverage and oxide support. J. Catal. 2008, 257, 181–189. [Google Scholar] [CrossRef]
  53. Martinez-Huerta, M.V.; Gao, X.; Tian, H.; Wachs, I.E.; Fierro, J.L.G.; Banares, M.A. Oxidative dehydrogenation of ethane to ethylene over alumina-supported vanadium oxide catalysts. Relationship between molecular structure and chemical reactivity. Catal. Today 2006, 118, 279–287. [Google Scholar] [CrossRef]
  54. Khodakov, A.; Yang, J.; Su, S.; Iglesia, E.; Bell, A.T. Structure and properties of vanadium oxide-zirconia catalysts for propane oxidative dehydrogenation. J. Catal. 1998, 177, 343–351. [Google Scholar] [CrossRef]
  55. Kanervo, J.M.; Harlin, M.E.; Krause, A.O.I.; Bañares, M.A. Characterisation of alumina-supported vanadium oxide catalysts by kinetic analysis of H2-TPR data. Catal. Today 2003, 78, 171–180. [Google Scholar] [CrossRef]
  56. Deo, G.; Wachs, I.E. Reactivity of supported vanadium oxide Catalysts: The partial oxidation of methanol. J. Catal. 1994, 146, 232–334. [Google Scholar] [CrossRef]
  57. Gao, X.; Banares, M.A.; Wachs, I.E. Ethane and n-butane oxidation over supported vanadium oxide catalysts: An in situ UV-visible diffuse reflectance spectroscopic investigation. J. Catal. 1999, 188, 325–331. [Google Scholar] [CrossRef]
  58. Silversmit, G.; Depla, D.; Poelman, H.; Marin, G.B.; De Gryse, R. Determination of the V2p XPS binding energies for different vanadium oxidation states (V5+ to V0+). J. Electron. Spectrosc. 2004, 135, 167–175. [Google Scholar] [CrossRef]
  59. Hess, C.; Tzolova-Müller, G.; Herbert, R. The influence of water on the dispersion of vanadia supported on silica SBA-15, a combined XPS and Raman study. J. Phys. Chem. C 2007, 111, 9471–9479. [Google Scholar] [CrossRef]
  60. Chen, K.; Bell, A.T.; Iglesia, E. Kinetics and mechanism of oxidative dehydrogenation of propane on vanadium, molybdenum and tungsten oxides. J. Phys. Chem. B 2000, 104, 1292–1299. [Google Scholar] [CrossRef]
  61. Elbadawi, A.H.; Ba-Shammakh, M.S.; Al-Ghamdi, S.; Razzak, S.A.; Hossain, M.M.; de Lasa, H.I. A fluidizable VOx/γ-Al2O3-ZrO2 catalyst for the ODH of ethane to ethylene operating in a gas phase oxygen free environment. Chem. Eng. Sci. 2016, 145, 59–70. [Google Scholar] [CrossRef]
  62. Solsona, B.; Blasco, T.; Lopez Nieto, J.M.; Peña, M.L.; Rey, F.; Vidal Moya, A. Vanadium oxide supported on mesoporous MCM-41 as selective catalysts in the oxidative dehydrogenation of alkanes. J. Catal. 2001, 203, 443–452. [Google Scholar] [CrossRef]

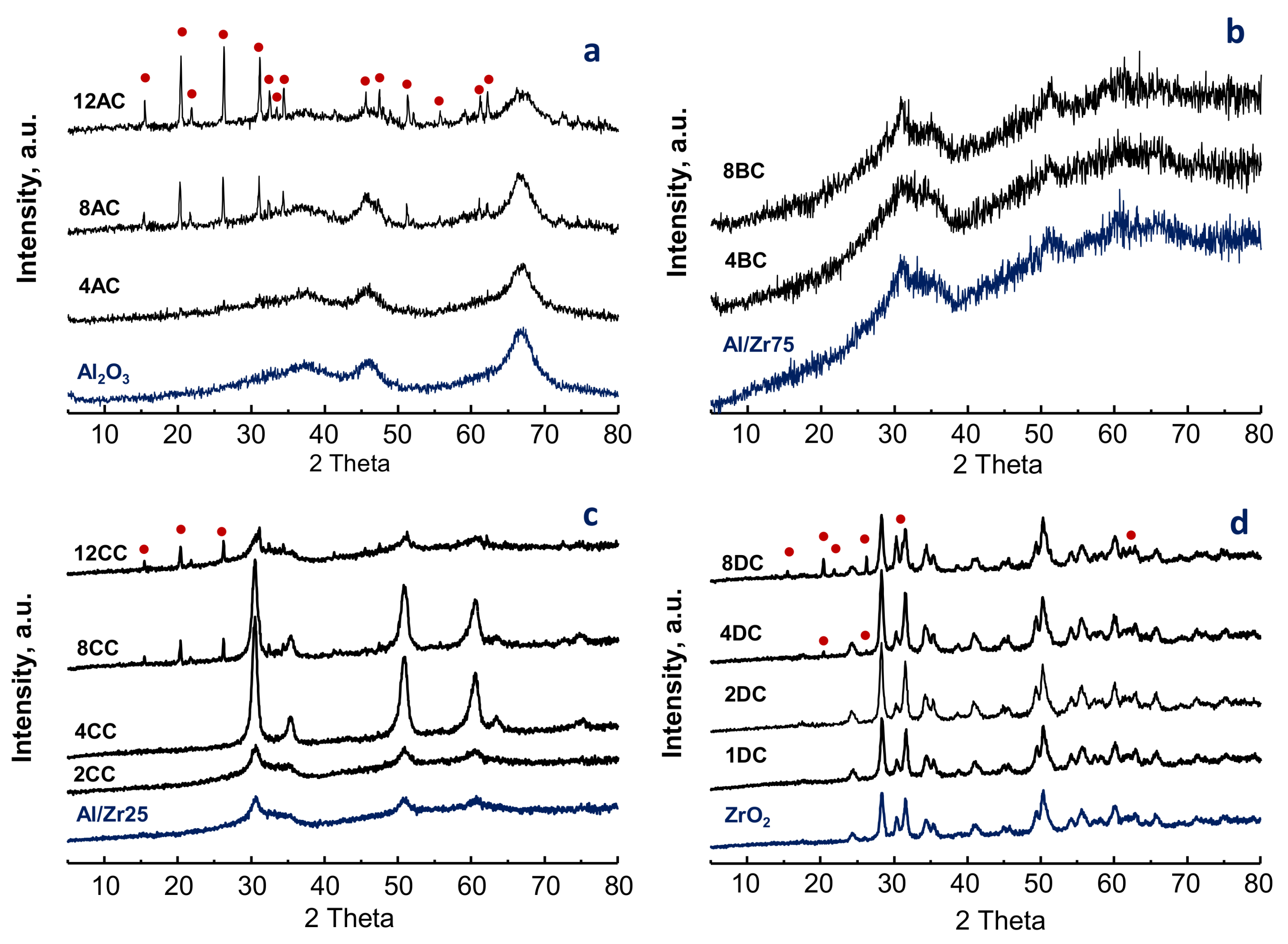

Figure 1. X-ray Diffraction (XRD) patterns of 4 sets of catalysts prepared by wet impregnation varying the amount of vanadium over different supports: (a) supported on Al2O3 (AC-series), with loadings of 4 (4AC), 8 (8AC), and 12 wt% of V-atoms (12AC); (b) supported on Al/Zr-mixed oxide, Al/Zr = 75/25 (BC-series), with loadings of 4 (4BC), and 8 wt% of V-atoms (8BC); (c) supported Al/Zr-mixed oxide, Al/Zr = 25/75 (CC-series), with loadings of 2 (2CC), 4 (4CC), 8 (8CC), and 12 wt% of V-atoms (12CC); and (d) supported on ZrO2 (DC-series), with loading of 1 (1DC), 2 (2DC), 4 (4DC), 8 (8DC), and 12 wt% of V-atoms (12DC). Symbols: () V2O5 (JCPDS: 41-1426). Name of catalysts as in Table 1.
Figure 1. X-ray Diffraction (XRD) patterns of 4 sets of catalysts prepared by wet impregnation varying the amount of vanadium over different supports: (a) supported on Al2O3 (AC-series), with loadings of 4 (4AC), 8 (8AC), and 12 wt% of V-atoms (12AC); (b) supported on Al/Zr-mixed oxide, Al/Zr = 75/25 (BC-series), with loadings of 4 (4BC), and 8 wt% of V-atoms (8BC); (c) supported Al/Zr-mixed oxide, Al/Zr = 25/75 (CC-series), with loadings of 2 (2CC), 4 (4CC), 8 (8CC), and 12 wt% of V-atoms (12CC); and (d) supported on ZrO2 (DC-series), with loading of 1 (1DC), 2 (2DC), 4 (4DC), 8 (8DC), and 12 wt% of V-atoms (12DC). Symbols: () V2O5 (JCPDS: 41-1426). Name of catalysts as in Table 1.
Catalysts 08 00126 g001

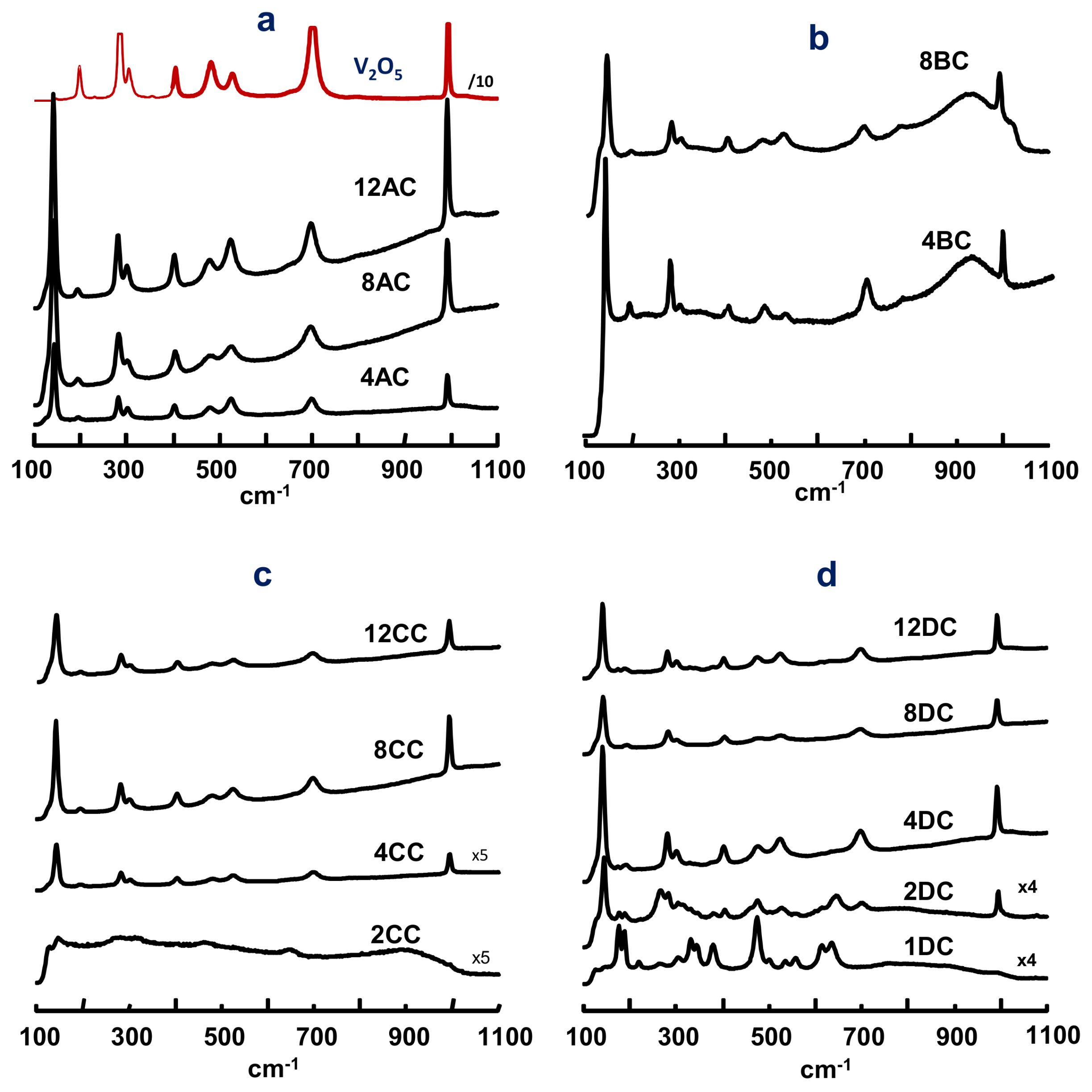

Figure 2. Raman spectra of four sets of catalysts prepared by wet impregnation varying the amount of vanadium over different supports: (a) Al2O3, (AC-series); (b) Al/Zr-mixed oxide, Al/Zr = 75/25 (BC-series); (c) Al/Zr-mixed oxide, Al/Zr = 25/75 (CC-series); and (d) ZrO2, (DC-series). Catalysts as in Figure 1. For comparison, the Raman spectrum of pure V2O5 crystalline phase has been also included.
Figure 2. Raman spectra of four sets of catalysts prepared by wet impregnation varying the amount of vanadium over different supports: (a) Al2O3, (AC-series); (b) Al/Zr-mixed oxide, Al/Zr = 75/25 (BC-series); (c) Al/Zr-mixed oxide, Al/Zr = 25/75 (CC-series); and (d) ZrO2, (DC-series). Catalysts as in Figure 1. For comparison, the Raman spectrum of pure V2O5 crystalline phase has been also included.
Catalysts 08 00126 g002

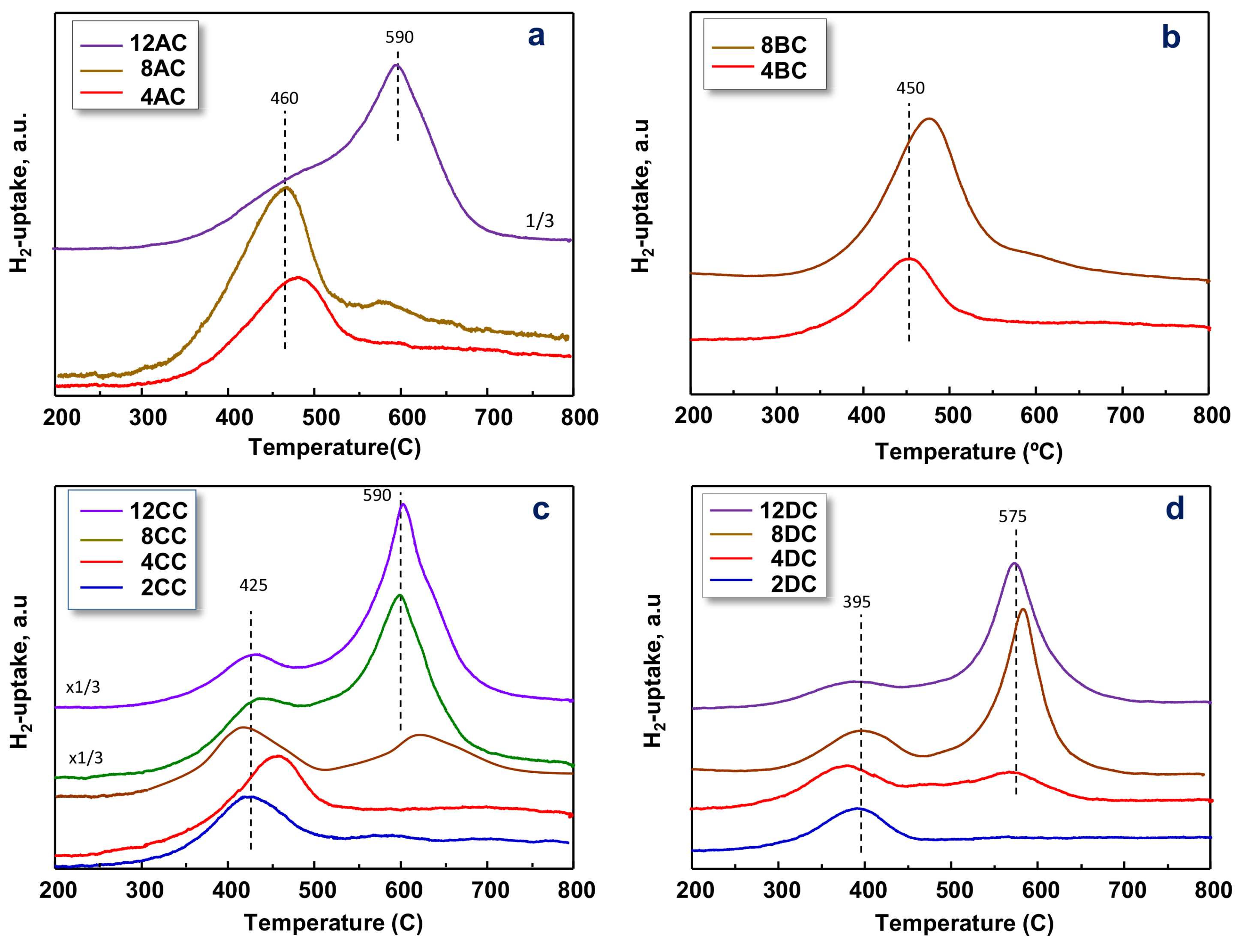

Figure 3. Temperature-programmed reduction (TPR-H2) patterns of supported catalysts prepared by wet impregnation varying the amount of vanadium over different supports: (a) Al2O3, (AC-series); (b) Al/Zr-mixed oxide, Al/Zr = 75/25 (BC-series); (c) Al/Zr-mixed oxide, Al/Zr = 25/75 (CC-series); and (d) ZrO2, (DC-series). Catalysts are as in Figure 1.
Figure 3. Temperature-programmed reduction (TPR-H2) patterns of supported catalysts prepared by wet impregnation varying the amount of vanadium over different supports: (a) Al2O3, (AC-series); (b) Al/Zr-mixed oxide, Al/Zr = 75/25 (BC-series); (c) Al/Zr-mixed oxide, Al/Zr = 25/75 (CC-series); and (d) ZrO2, (DC-series). Catalysts are as in Figure 1.
Catalysts 08 00126 g003

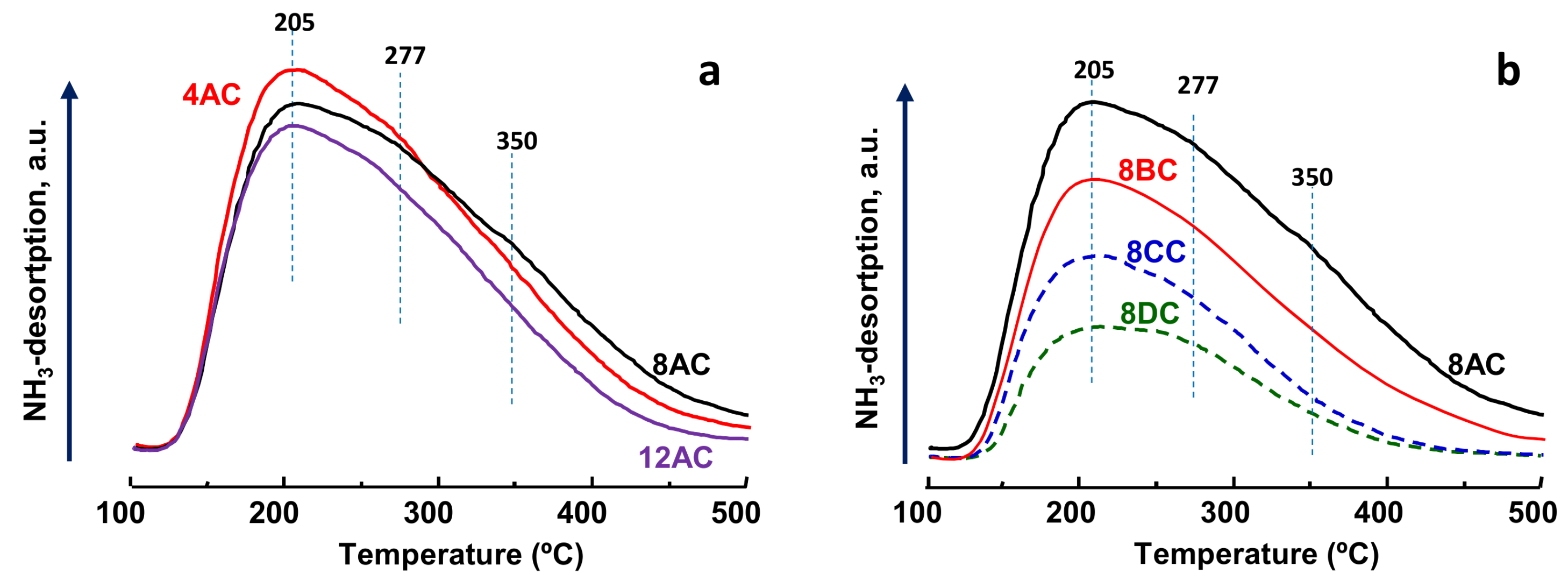

Figure 4. Temperature-programmed desorption of NH3 (TPD-NH3) patterns of catalysts: (a) Al2O3-Supported catalysts with V-loadings of 4 (4AC), 8 (8AC) and 12 wt% of V-atoms (12AC); and (b) supported catalysts with a V-loading of 8 wt% of V-atoms, using different supports: Al2O3 (sample 8AC); Al/Zr-mixed oxide, Al/Zr = 75/25 (sample 8BC); Al/Zr-mixed oxide, Al/Zr = 25/75 (sample 8CC); and ZrO2 with (sample 8DC).
Figure 4. Temperature-programmed desorption of NH3 (TPD-NH3) patterns of catalysts: (a) Al2O3-Supported catalysts with V-loadings of 4 (4AC), 8 (8AC) and 12 wt% of V-atoms (12AC); and (b) supported catalysts with a V-loading of 8 wt% of V-atoms, using different supports: Al2O3 (sample 8AC); Al/Zr-mixed oxide, Al/Zr = 75/25 (sample 8BC); Al/Zr-mixed oxide, Al/Zr = 25/75 (sample 8CC); and ZrO2 with (sample 8DC).
Catalysts 08 00126 g004

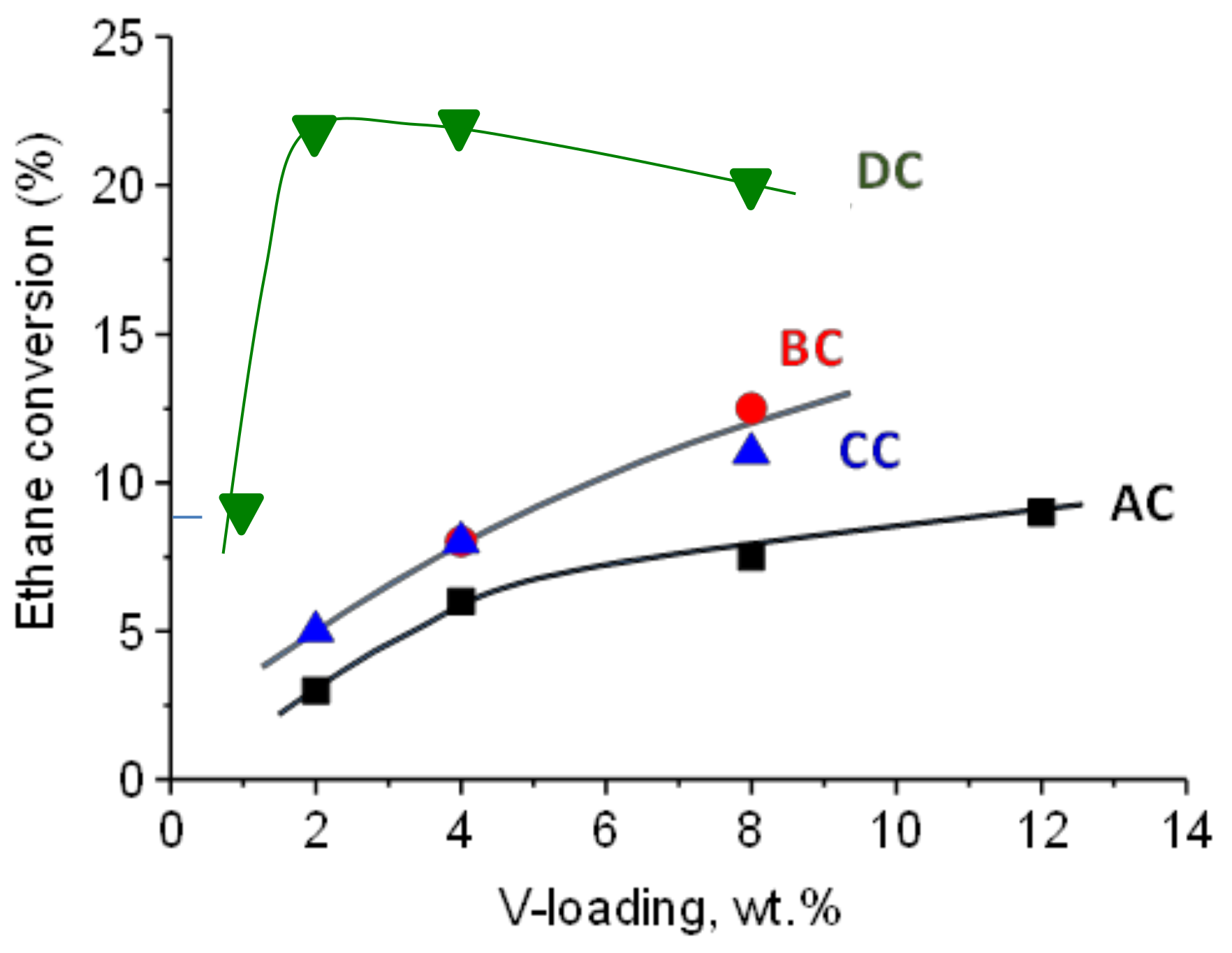

Figure 5. Variation of the ethane conversion with the V-loading for the different series. Notes: T = 500 °C, W/F = 50 gcat h molC2H6−1 and molar ratio C2H6/O2/He of 4/8/88. Symbols: (■) AC-series; () BC-series; () CC-series; () DC-series.
Figure 5. Variation of the ethane conversion with the V-loading for the different series. Notes: T = 500 °C, W/F = 50 gcat h molC2H6−1 and molar ratio C2H6/O2/He of 4/8/88. Symbols: (■) AC-series; () BC-series; () CC-series; () DC-series.
Catalysts 08 00126 g005

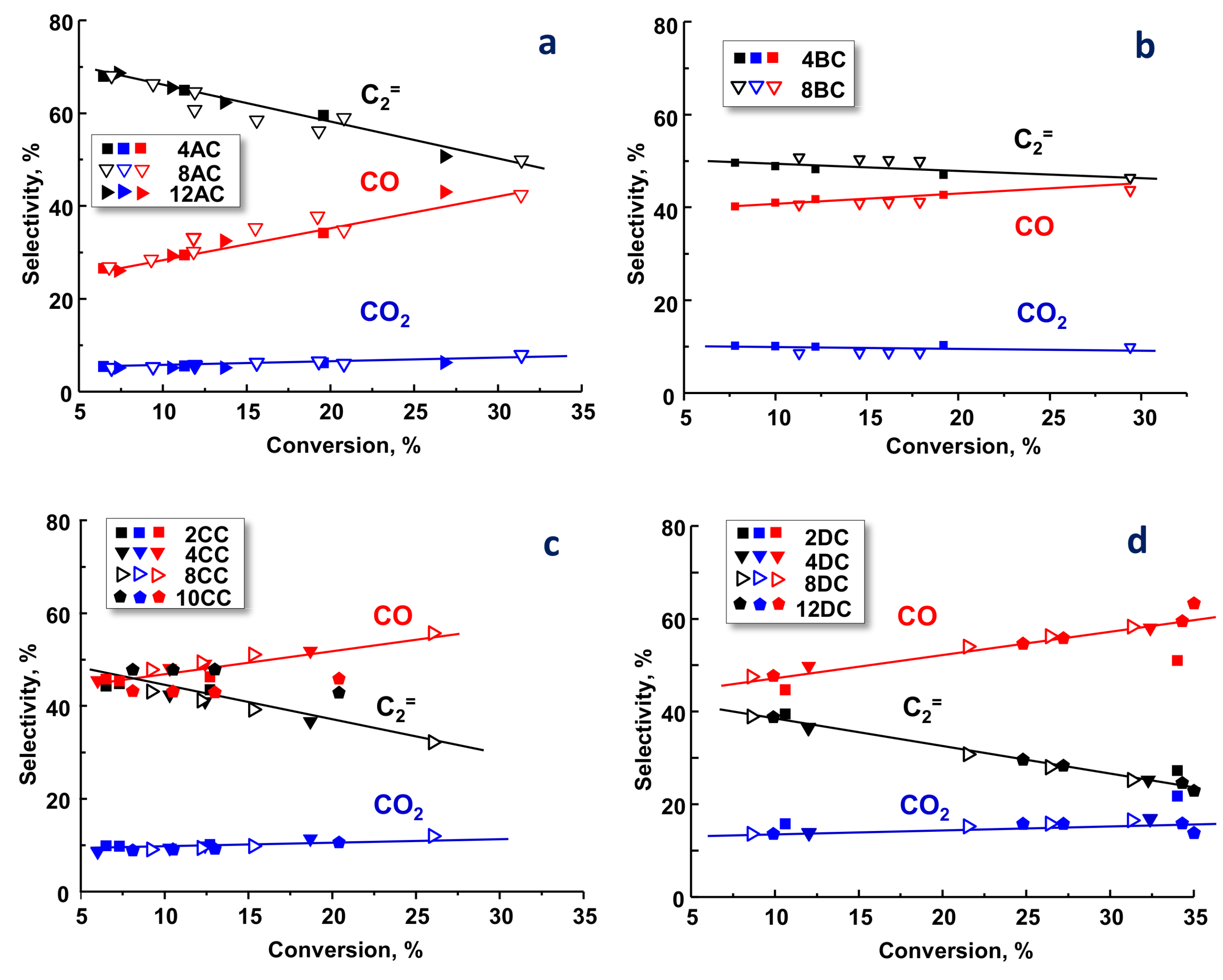

Figure 6. Variation of the selectivity to ethylene, CO and CO2 with ethane conversion during the ODH of ethane on supported vanadium oxide catalysts: (a) AC-series; (b) BC-series; (c) CC-series; and (d) DC-series. Reaction conditions: T = 500–530 °C and molar ratio C2H6/O2/He of 4/8/88. Several contact times (W/F) were used in order to get different ethane conversions. See also Tables S2–S5.
Figure 6. Variation of the selectivity to ethylene, CO and CO2 with ethane conversion during the ODH of ethane on supported vanadium oxide catalysts: (a) AC-series; (b) BC-series; (c) CC-series; and (d) DC-series. Reaction conditions: T = 500–530 °C and molar ratio C2H6/O2/He of 4/8/88. Several contact times (W/F) were used in order to get different ethane conversions. See also Tables S2–S5.
Catalysts 08 00126 g006

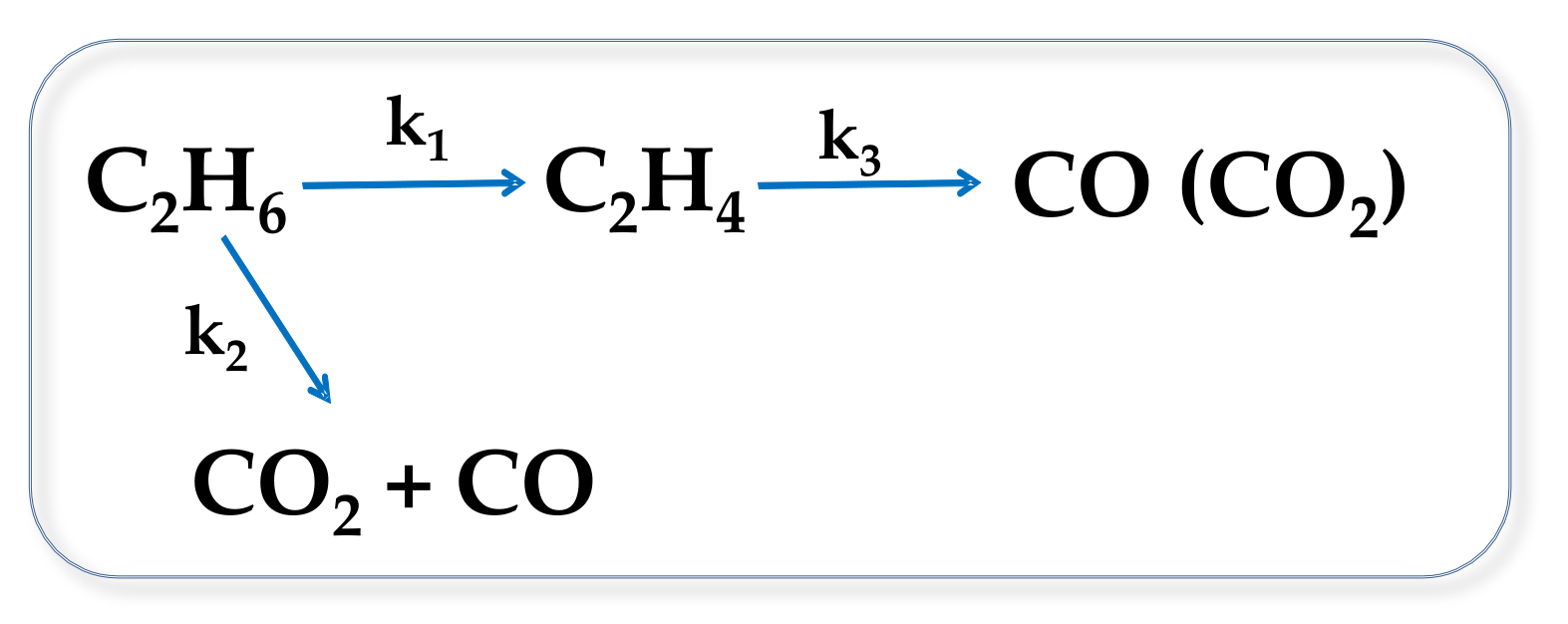

Figure 7. Reaction network for the oxidative dehydrogenation of ethane over supported vanadium oxide catalysts.
Figure 7. Reaction network for the oxidative dehydrogenation of ethane over supported vanadium oxide catalysts.
Catalysts 08 00126 g007

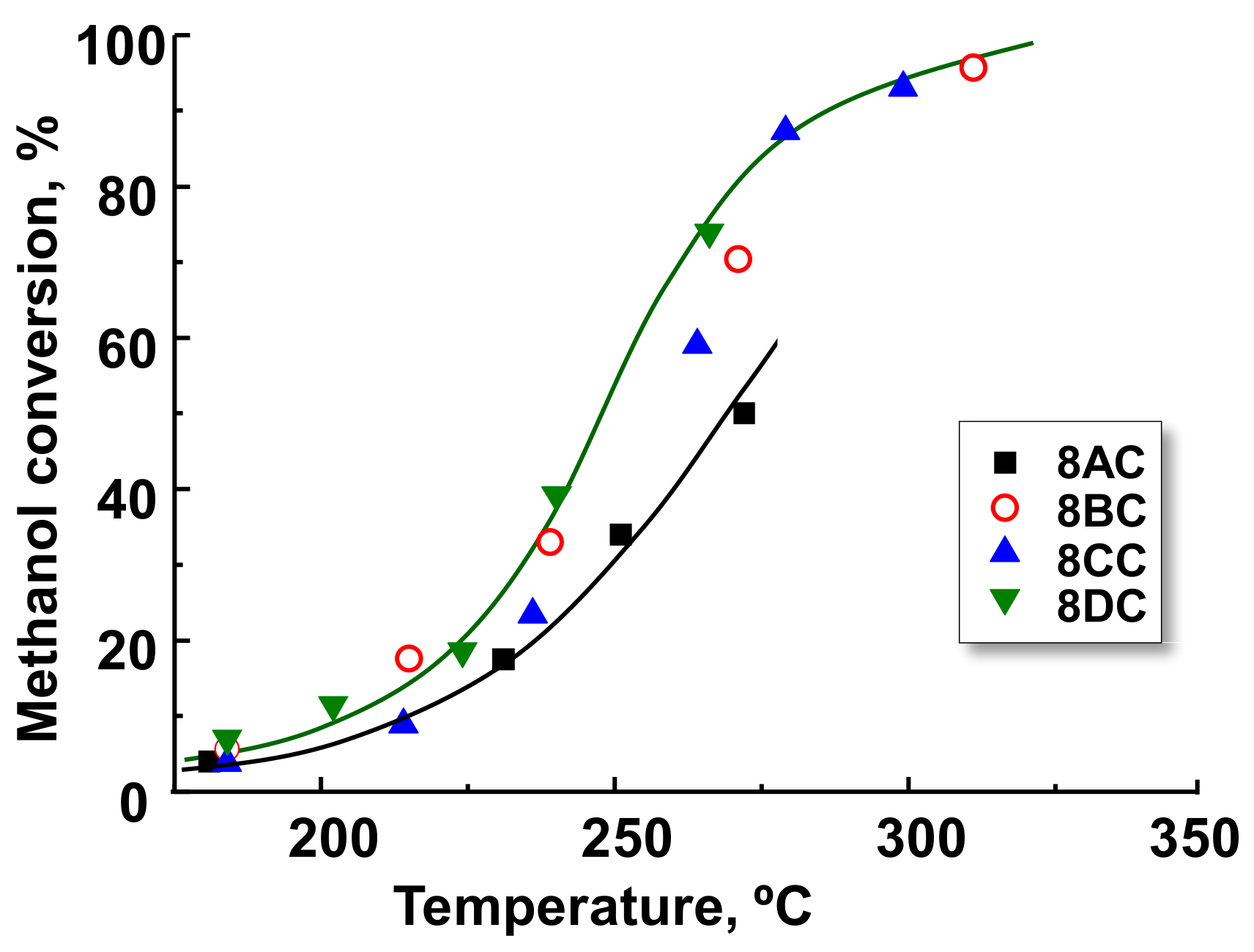

Figure 8. Variation of the methanol conversion with the reaction temperature during the aerobic methanol conversion over supported vanadium oxide catalysts. Notes: reaction conditions in text. Symbols: (■) 8AC; () 8BC; () 8CC; () 8DC catalyst.
Figure 8. Variation of the methanol conversion with the reaction temperature during the aerobic methanol conversion over supported vanadium oxide catalysts. Notes: reaction conditions in text. Symbols: (■) 8AC; () 8BC; () 8CC; () 8DC catalyst.
Catalysts 08 00126 g008
Figure 9. Variation of the selectivity to formaldehyde (or formaldehyde + dimetoxymethane, i.e., FA + DMM) (a) and the selectivity to dimethyl ether (DME) (b) with the methanol conversion achieved during the methanol transformation. Notes: Reaction conditions in text. Symbols: (■) 8AC; () 8BC; () 8CC; () 8DC catalyst.
Figure 9. Variation of the selectivity to formaldehyde (or formaldehyde + dimetoxymethane, i.e., FA + DMM) (a) and the selectivity to dimethyl ether (DME) (b) with the methanol conversion achieved during the methanol transformation. Notes: Reaction conditions in text. Symbols: (■) 8AC; () 8BC; () 8CC; () 8DC catalyst.
Catalysts 08 00126 g009
Table 1. Characteristics of the vanadium supported catalysts prepared by impregnation and activated at 550 °C/5 h in air a.
Table 1. Characteristics of the vanadium supported catalysts prepared by impregnation and activated at 550 °C/5 h in air a.
CatalystSBETSupportV-LoadingTPR-Experiments
(m2/g) (wt% V-Atoms) bTMC (°C) cH2-Uptake (mmolH2/gcat) d
4AC136Al2O34 (0.53)4780.5
8AC159Al2O38 (0.83)4700.6
12AC115Al2O312 (1.61)5972.0
4BC177Al-Zr-O (Al/Zr = 75/25)4 (0.41)4540.6
8BC143Al-Zr-O (Al/Zr = 75/25)8 (0.93)4773.7
2CC88Al-Zr-O (Al/Zr = 25/75)2 (0.43)4610.5
4CC46Al-Zr-O (Al/Zr = 25/75)4 (1.57)4200.5
8CC45Al-Zr-O (Al/Zr = 25/75)8 (1.95)409/6020.5
12CC70Al-Zr-O (Al/Zr = 25/75)12 (2.66)426/6051.5
1DC34ZrO21 (0.57)3920.2
2DC33ZrO22 (1.13)3910.3
4DC24ZrO24 (2.85)3790.8
8DC28ZrO28 (4.73)396/5832.2
12DC23ZrO212 (8.11)5731.8
a The metal oxide supports correspond to Al2O3 (named as AC), ZrO2-Al2O3 mixed metal oxides, with a Al/(Al + Zr) atomic ratio of 0.75 (named as BC) or 0.25 (named as CC), and ZrO2 (named as DC). b V-loading: in wt% of V atoms and, in parenthesis, in 102 mmolV m−2; c temperature of the main maximum in the temperature-programmed reduction (TPR) profiles; d for 1 wt% V, the reduction from V5+ to V3+ consumes 0.2 mmolH2 (gcat)−1.

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Catalysts EISSN 2073-4344 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
