Synthesis, Characterization of g-C3N4/SrTiO3 Heterojunctions and Photocatalytic Activity for Organic Pollutants Degradation

by
Panagiotis-Spyridon Konstas
,
Ioannis Konstantinou
*,
Dimitrios Petrakis
and
Triantafyllos Albanis
*
Department of Chemistry, University of Ioannina, 45110 Ioannina, Greece
*
Authors to whom correspondence should be addressed.
Catalysts 2018, 8(11), 554; https://doi.org/10.3390/catal8110554
Submission received: 9 October 2018 / Revised: 13 November 2018 / Accepted: 14 November 2018 / Published: 17 November 2018
(This article belongs to the Special Issue Photocatalysis Science and Engineering in Europe)
Browse Figures
Versions Notes

Abstract

Perovskite-structure SrTiO3 (STO) and graphitic carbon nitride (g-C3N4, CN) have attracted considerable attention in photocatalytic technology due to their unique properties, but also suffer from some drawbacks. The development of composite photocatalysts that combine properties of the individual semiconductors with enhanced charge separation is the current major trend in the photocatalysis field. In this study, SrTiO3/g-C3N4 (CNSTO) composites with different ratios (10, 20, 30, 40 and 50% g-C3N4) were prepared with a sonication mixing method. The samples were characterized by X-ray diffraction (XRD), scanning electron microscopy (SEM), N2 porosimetry, Fourrier transform infra-red spectroscopy (FT-IR), UV-Vis diffuse reflectance (DRS) and dynamic light scattering (DLS). STO spherical particles were successfully loaded on the g-C3N4 planes forming heterojunction composite materials. The photocatalytic activity was tested against the degradation of methylene blue (MB) dye under simulated solar light (SSL) irradiation following first-order kinetics. The photocatalytic activity followed the trend: 20CNSTO > 30CNSTO > 40CNSTO > 50CNSTO ≈ 10CNSTO, in accordance with the amount of •OH radicals determined by fluorescence spectroscopy. A Z-scheme mechanism was proposed for the enhanced photocatalytic degradation of MB as evidenced by trapping experiments with scavengers. Finally, significant stability and reusability was exhibited, indicating that such composites are of potential interest for photocatalytic treatments under sunlight irradiation.

Graphical Abstract

1. Introduction

Photocatalysis with semiconductors is an advanced oxidation process for organic pollution abatement that has received great interest due to several advantages, such as the use of ambient conditions of temperature and pressure, the use of solar light, the absence of fouling, lack of mass transfer limitation, and the mineralization of organic pollutants into carbon dioxide, water and inorganic ions [1,2,3,4].
Titanate perovskites, ATiO3 (A = Ca, Sr, Ba, etc.), are semiconductors with a wide band gap and interesting electronic, optical, magnetic and photocatalytic properties. They are considered promising materials for photocatalytic processes because of their strong resistance to photo corrosion, suitable oxidation potential and their high physicochemical stability [5,6,7,8]. Among them, SrTiO3 is the most promising material for photocatalytic applications [9,10,11,12]. It is a cubic perovskite (Pm3m, a = 3.9 Å) n-type semiconductor with an indirect band gap of 3.1–3.7 eV depending on the crystal structure and morphology obtained by the synthesis method [13,14]. Therefore, SrTiO3 is an excellent photocatalyst only under UV light, which include about 5.0% of sunlight energy [15]. Modification of SrTiO3 in order to increase absorptivity into the visible light spectrum has been mainly studied by transition metal doping of the Ti site [16] and by noble metals deposition on the semiconductor surface [17]. However, the use of rare or precious metals constitutes an important disadvantage [18]. Because of this, non-metal doping [19] and coupling with other semiconductors like TiO2 [20] and ZnFe2O4 [21] are considered effective alternative methods to increase the activity.
On the other hand, graphitic carbon nitride (g-C3N4) is a polymeric semiconductor with a mild band gap (2.7 eV) and a good response to visible light (up to 460 nm). The medium band gap, along with low cost, simple preparation method, high chemical stability, and non-toxicity, makes g-C3N4 appropriate for photocatalytic applications, including organic pollutant degradation, water splitting, CO2 reduction and organic synthesis under visible light [22,23,24,25,26]. In addition, g-C3N4 has found application in optical and electronic devices, chemical sensors, and energy generation/storage [23,27,28,29,30,31,32,33].
Despite its remarkable electronic and optical properties, g-C3N4 photocatalytic activity faces some limitations, such as the high recombination of charge carriers, low conductivity, low valence band (VB) potential and small specific surface area (<10 m2 g−1) [34,35,36,37,38]. Methods that have been used so far to increase the photocatalytic activity of g-C3N4 include metal and non-metal doping [39,40,41,42] and the application of g-C3N4 as a sensitizer with well-known photocatalysts like TiO2 [43] and TaON [44]. In the last few years g-C3N4 has been widely used in formation of heterojunctions with perovskites in order to improve their photocatalytic performance. Heterojunctions are mainly formed by g-C3N4 and LaTiO3/N-LaTiO3 [45], LaFeO3 [46], CaTiO3 [47], N-doped SrTiO3 [48] and the layered perovskite oxide La2NiO4 [49]. However, only a couple of reports have been made on the synthesis and applications of g-C3N4/SrTiO3 heterojunctions for oxidation of pollutants, and in general, only low loading ratios have been examined. For example, Cr-doped and N-doped SrTiO3/g-C3N4 have been studied for environmental remediation under solar and visible light [48,50]. On the other hand, g-C3N4/SrTiO3 and g-C3N4/SrTiO3: Rh heterostructures have been studied for photocatalytic H2 evolution [51,52].
Based on the previous statements, the principal aims of this study are: (i) the preparation of a series of heterojunctions SrTiO3/g-C3N4 with different ratios of g-C3N4, as very few reports have been made regarding their applications in pollutant oxidation; (ii) the characterization of the prepared photocatalysts with a variety of techniques in order to understand the components with respect to their photocatalytic activity; and (iii) the study of their photocatalytic activity towards the degradation of organic pollutants in aqueous phase using methylene blue (MB) dye as a model compound and •OH radicals formation by fluorescence measurements.

2. Results and Discussion

2.1. Characterization of the Prepared Photocatalysts

2.1.1. XRD Analysis

The XRD patterns (Figure 1) of all the prepared g-C3N4/SrTiO3 photocatalysts were assigned to SrTiO3 perovskite phase with cubic symmetry (JCPDS no. 79-0176). The main peaks, at about 32.4°, 39.9°, 46.4°, 57.8°, 67.8° and 77.2°, represent the SrTiO3 (1 1 0), (1 1 1), (2 0 0), (2 1 1), (2 2 0) and (3 1 0) surfaces, respectively. The XRD pattern of g-C3N4 with hexagonal symmetry is also presented in Figure 1 (JCPDS no. 87-1526). The weak peak at 13.1° (110) and the strong one at 27.4° (200) represent the g-C3N4 surfaces. The sharp peaks in all patterns indicate that the obtained powders are highly crystalline, and that they have no impurities. The XRD data was performed by Rietveld refinement, as reported in [53]. The crystal size of all the materials was calculated by appropriate software, using a Williamson and Hull [54,55,56]-type plotting method, and ranged from 17.1 nm for the 10CNSTO to 29.0 nm for the 30CNSTO, as shown in Table 1. The refinement parameters of % crystal phase, cell parameters (a, b and c), strain analysis and R2 are also presented in Table 1. The lattice constants (a, b, c) of SrTiO3 in the composites are slightly higher than those of pure SrTiO3. It can be observed that the crystal size values of the materials present a small variation, increasing along with the % content of CN until 30CNSTO, and then they decrease. In the composites 40CNSTO and 50CNSTO, the peak at 27.4° that corresponds to g-C3N4 is hardly observed. This is because g-C3N4 is partly exfoliated in the mixing process by sonication. As a result, lamellar structure of g-C3N4 was formed and so the crystallization degree is limited. The same observation has been reported in other studies, too [57,58]. In the rest of the materials, the diffraction peaks did not change after the introduction of g-C3N4. Hydrodynamic particle size (median diameter) measurements were also performed by the dynamic light scattering (DLS) and the values ranged from 0.302 μm for the CN to 0.345 μm for the STO, indicating the formation of aggregates in aqueous solutions.

2.1.2. Morphology—Surface Analysis of the Photocatalysts

Representative nitrogen adsorption–desorption isotherms of the 10CNSTO and the 20CNSTO catalysts are presented in Figure 2. The photocatalysts are non-porous materials and the isotherms belong to type II, according to IUPAC classification [59]. Their specific surface areas (SSA) are 29.6 and 32.3 m2/g, respectively. Representative SEM images of CN, STO and 20CNSTO, 30CNSTO are shown in Figure 3. CN (Figure 3a) presented some sheet layers and sheet stacks with a smooth surface and irregular shape. The SEM image of STO (Figure 3b) clearly revealed spherical particles. The images of 20CNSTO and 30CNSTO (Figure 3c,d) showed that, after mixing with g-C3N4, the spherical particles of SrTiO3 were deposited in the CN sheet-stacks.
The PZC (Point of Zero Charge) values of STO and CN were determined to be 9.33 and 4.63, respectively. 10CNSTO, 20CNSTO, 30CNSTO, 40CNSTO and 50CNSTO presented PZC values 8.02, 7.90, 7.87, 7.79 and 7.65 respectively. It is observed that the increment of CN decreases the PZC of the composite materials.

2.1.3. FT-IR Spectroscopy

The FT-IR spectra of the g-C3N4/SrTiO3 photocatalysts, CN and STO are presented in Figure 4. In all samples except CN, the shoulder below 1000 cm−1 appears because of the SrTiO3 crystal lattice vibrations [60]. Bands at around 858 and 596 cm−1 are caused by the stretching vibration of the Sr–O and Ti–O bonds, respectively [61]. The band at 1637 cm−1 for STO is due to the bending vibration of –OH (caused by bending water) [60,62]. The absorption peak at around 3443–3447 cm−1 could be caused by the stretching vibrations of lattice hydroxyls from Ti–OH, perturbed by nearby Sr atoms or by Sr–OH [60]. For CN, the peak at around 815 cm−1 can be attributed to the s-triazine ring vibrations. The observed peaks in the range of 1253–1636 cm−1 can be ascribed to the stretching vibrations of aromatic C–N and C ≡ N in the heterocycles [45]. The peak at around 2173 cm−1 is assigned to cyano group stretch, which can be attributed to loss of ammonia [62]. The broad peak at 3180–3340 cm−1 can be ascribed to stretching vibration N-H or N=H from uncondensed amine groups [45]. The above-mentioned characteristic peaks of CN and STO are present in the composite materials. The observed shifts of characteristic peaks of g-C3N4 in the range of 1253–1636 cm−1 for the composite materials indicate the weaker bond strengths of C=N and C–N, and reveal the existence of interactions between g-C3N4 and STO. Similarly, shifts in STO characteristic peaks at 584 and 3432 cm−1 were observed.

2.1.4. UV-Vis Spectra

The diffuse reflectance spectroscopy (DRS) results for all photocatalysts are presented in Figure 5a. The absorption edge of pure SrTiO3 (STO) was about 390–395 nm, as expected, so no response to visible irradiation was observed. On the contrary, the absorption edge of g-C3N4 was about 445 nm, indicating visible light response. The Eg values (Table 2) of the photocatalysts were calculated with the use of Kubelka-Munk plots, which are presented in Figure 5b. The Kubelka –Munk plot of 20CNSTO is presented separately in Figure 5c. In both DRS and Kubelka-Munk plots of each photocatalyst, it can be observed that there are bands of both CN and STO. Also, it can be observed that, with the increment of CN in the composites, the band of STO decreases, while the band of CN increases. All the composite samples displayed a significantly enhanced visible light absorption compared to pristine STO.

2.1.5. Determination of •OH by Fluorescence Measurements

The evolution of fluorescence spectra intensity of 2-hydroxyterephthalic acid (OHTA) for the 20CNSTO photocatalyst at different intervals within an irradiation time framework of 120 min is displayed in Figure 6 as a representative example. It can be seen that the fluorescence intensity increases along with irradiation time. The kinetics of •OH radicals formation for all photocatalysts are shown in Figure 7. The ability of the photocatalysts to generate •OH radicals follows the trend: 20CNSTO > 50CNSTO > 30CNSTO > 10CNSTO > 40CNSTO. The 20CNSTO material showed greater •OH formation ability compared to all other prepared composites, which is consistent with the photocatalytic kinetics described in the next paragraph. Thus, it was considered the optimum ratio for such composites.

2.2. Photocatalytic Activity

The photocatalytic activity of all catalysts towards the degradation of MB under UV-Vis and visible irradiation is presented in Figure 8 and Figure 9, respectively. The degradation of MB in both cases followed first-order kinetics. As expected, the degradation kinetics under visible light irradiation was slower than under UV-Vis (simulated solar) irradiation. The apparent rate constants (k), the corresponding correlation coefficients (R2) and half-lives (t1/2) of all photocatalysts are shown in Table 3. According to the determined apparent rate constants, the photocatalytic activity under both UV-Vis and visible irradiation had the following trend: 20CNSTO > 30CNSTO > 40CNSTO > 50CNSTO ≈ 10CNSTO. The highest photocatalytic activity of the 20CNSTO catalyst is also verified by its ability to form •OH radicals. The corresponding apparent degradation rate constants trends for UV-Vis and visible light irradiation are presented in Figure 8 and Figure 9. The initial increase in the degradation efficiency can be attributed to the increment of CN content which benefits charge transfer in the materials interface and causes greater response into the visible light region. The greater increment of g-C3N4 amount, though, decreases the effective heterointerfaces in the composites, which is unfavorable for the charge transfer [46,63] while the entrained decrease of STO, which has a higher oxidation potential valence band led to the decrease of •OH radicals formation.
Finally, the stability of the best catalyst (20CNSTO) was investigated for three consecutive photocatalytic cycles (Figure 10). The photocatalyst presented quite stable photocatalytic activity among the repeated cycles and about 95% of the initial degradation efficiency was maintained. This fact suggests that the 20CNSTO photocatalyst has good reusability. The slight decrease in the photocatalytic efficiencies could occur because of the accumulation of later stage products into the catalyst surface after the first catalytic cycle or because of small losses of catalyst during the recovery procedure due to the good dispersibility in the aqueous solution.

2.3. Mechanism Analysis

Generally, superoxide radicals (O2•−), hydroxyl radicals (OH•) and the photogenerated holes (h+) have important role in the photocatalytic process. To propose the proper photocatalytic mechanism for the activity of the photocatalyst, trapping experiments took place with the use of scavengers. The used scavengers were isopropanol (IPA), formic acid (FA), N2, superoxide dismutase (SODred), acetonitrile /N2, and sodium azide (NaN3) as OH•, h+, O2•−, OH•/O2•− and (OH• + 1O2) scavengers, respectively. The apparent rate constants (k) and the corresponding correlation coefficients (R2) of 20CNSTO under the effect of each scavenger are presented in Table 4. The redox potentials of g-C3N4 (conduction band, CB = −1.4 eV vs. NHE (Normal Hydrogen Electrode), valence band VB = +1.3 eV vs. NHE) are more negative than those of SrTiO3 (CB = −0.2 eV vs. NHE, VB = +3.0 eV vs. NHE) [52,63]. Based on the experimental results that are presented in Table 4, the classical Type II photocatalytic mechanism, i.e., the migration of electrons from the CB of CN to the CB of STO with concurrently migration of holes from VB of STO to VB of CN, is excluded. More specifically, in such mechanisms, the accumulated holes in the VB of g-C3N4 couldn’t produce •OH from the oxidation-adsorbed water molecules or OH- ions because the VB potential was less positive than the redox potential E0(OH•/H2O) (+2.68 eV vs. NHE) and E0(OH−/•OH) (+1.99 eV vs. NHE). However, according to the experimental results, •OH are indeed produced, as evidenced by OHTA fluorescence, as well as by the degradation rate decrease in the presence of IPA, NaN3 and acetonitrile. In addition, the molecular O2 could also not be photoreducted to •OH in the CB of SrTiO3, as the CB potential was more positive than the redox potential E0(O2/ O2•−) (−0.3 eV vs. NHE). Nevertheless, the decrease of the degradation rate in the presence of N2 demonstrated the formation of O2•−. Finally, the apparent rate constant value in the presence of acetonitrile/N2 as a scavenger showed the oxidation of MB by the holes in the VB of SrTiO3. As a result, a z-scheme mechanism is proposed for the photocatalytic activity of the composites. In the z-scheme mechanism, the photogenerated electrons in the CB of the STO will combine with the photogenerated holes in the VB of CN, while the accumulated holes the with high oxidation potential in the VB of STO and electrons with high reductive potential in the CB of CN could easily produce •OH and O2•−, which participate in the oxidative degradation of MB. In conclusion, the results of the trapping experiments showed that OH• and O2•− were the major oxidant species, followed by a minor contribution of 1O2, and the generation of such species can only be rationalized by a z-scheme mechanism.

3. Materials and Methods

3.1. Materials and Chemicals

Urea (99.5%) was obtained by Acros Organics (Geel, Belgium). Pure SrTiO3 (STO) was purchased from Sigma–Aldrich (St. Louis, MO, USA). KBr (≥ 99%, Sigma–Aldrich, St. Louis, MO, USA), BaSO4 (NacalaiTesque, extra pure reagent, Kyoto, Japan), terephthalic acid (TA) (98%, Sigma-Aldrich, St. Louis, MO, USA) and NaOH (2×10−3 M, 99% Riedel-de Haen, Seelze, Germany) were also used in the present study. Finally, the used scavengers were isopropanol (IPA) (Ananlytical Reagent A.R., LAB-SCAN, Dublin, Ireland), formic acid (FA) (98-100%, Merck, Darmastadt Germany), N2, acetonitrile (LC-MS grade, Fisher Chemical, Loughborough, Leics, UK)/N2, superoxide dismutase (SOD) (SOD from Horseradish, Sigma-Aldrich, St. Louis, MO, USA) and sodium azide (NaN3) (≥99.5% Sigma-Aldrich, St. Louis, MO, USA). Double distilled water was used throughout all the experimental procedures.

3.2. Preparation of g-C3N4 and g-C3N4/SrTiO3 Heterojunctions

For g-C3N4 synthesis, urea was preheated at 80 °C for 24 h in an alumina crucible and then calcined at 500 °C for 4 h with the heating rate of 10 °C /min [64,65]. The composite photocatalysts were prepared by a sonication mixing method. Appropriate stoichiometric amount of SrTiO3 and g-C3N4 were suspended in double distilled water separately under sonication for 1 h. Then both solutions were mixed, and the whole solution was treated again under sonication for 90 min (Hielscher UP100H Teltow, Germany ultrasonic processor, Amplitude 85%). The as-prepared samples contained different g-C3N4 to SrTiO3 amounts and had the following %wt content and code names (in brackets): 10% (10CNSTO), 20% (20CNSTO), 30% (30CNSTO), 40% (40CNSTO), 50% (50CNSTO) [57]. Also, for the comparison for the heterojunction oxides, g-C3N4 which had been sonicated for 1 h (CN) was also used.

3.3. Texture Characterization of the Heterojunctions

Crystallinity and phase identification of the photocatalytic materials were defined by powder X -ray diffraction (XRD) using a Bruker Advance D8 XRD instrument (Billerica, MA, USA), which generates monochromated Cu Ka (λ = 1.5418 Å) radiation with a continuous scanning rate in the range of 10 < 2θ < 90 in steps of 0.02° and rate 0.01 °θ/sec. The patterns were determined with the use of the Joint Committee on Powder Diffraction Standards (JCPDS) database. The results were studied with Rietvield refinement by a suitable computer program.
The N2 adsorption–desorption isotherms at 77K were obtained by porosimetry using a Quantachrome Autosorb –1 instrument (Bounton Beach, FL, USA). All samples (≈ 0.1 g) were degassed for 4h at 353 K for the elimination of any moisture and condensed volatiles. Brauner-Emmet-Teller (BET) method at relative pressure between 0.05–0.3 was used for the calculation of the specific surface area (SSA). The morphology of the photocatalysts was observed by scanning electron microscopy (SEM) by a JEOL JSM 5600 instrument (Tokyo, Japan).
Particle size measurements were carried out after 10 min of sonication with a Shimadzu SALD-2300 (Kyoto, Japan) laser diffraction particle size analyzer in dynamic light scattering (DLS) mode. The point-of-zero charge (PZC) of the materials was measured by the mass titration method, as reported elsewhere [66].

3.4. Fourier Transform. Infrared Spectroscopy (FT-IR)

The chemical structure of all heterojunctions was recorded by Fourier transform infrared spectroscopic (FT-IR) analysis. The analysis was carried out with an instrument by Thermo Scientific (Nicolet iS5) (Waltham, MA, USA). Spectral grade KBr (≥99%, Sigma-Aldrich St. Louis, MO, USA) was used as a reference. The materials were ground with KBr in 1:3 ratio and made into pellets using an appropriate hydraulic press. The pellet was scanned at 0.964 cm−1 in the range 4000–400 cm−1.

3.5. UV-Vis.-Diffuse Reflectance Measurements

The absorbance spectra of the g-C3N4/SrTiO3 heterojunctions were obtained by a Shimadzu 2600 (Kyoto, Japan) spectrophotometer which was equipped with an ISR-2600 (Kyoto, Japan) integrating sphere at room temperature with BaSO4 as reference sample in the range of 200–800 nm.

3.6. Photocatalytic Experiments and Analytical Methods

The photocatalytic experiments were conducted with Suntest XLS+ apparatus (Atlas Linsengericht, Germany) under UV-Vis irradiation (simulated solar light, λ > 290 nm). A xenon lamp (2.2 kW), jacked with special 290 nm cut-off glass filter, was the light source. During the experiments, the irradiation intensity was maintained at 500 W m−2. Experiments under visible light irradiation (λ > 400 nm) were performed using LED flood lamps (LG SMD, LED, 45 pcs, Seoul, Korea) 2 × 50 Wm−2. The photocatalytic activity was tested against the degradation of methylene blue (MB).
For both UV-Vis and visible irradiation experiments, the photocatalysts were suspended in double distilled water by sonication for 10 min then transferred in an appropriate Pyrex glass reactor (250 mL) and stirred using a magnetic stirrer. An initial concentration of 5 mg L−1 of MB and 200 mg L−1 of photocatalyst was used in all experiments. Prior to irradiation, the suspension is magnetically stirred for 30 min in the dark to ensure substrate adsorption/desorption equilibrium established on the catalyst surface. During irradiation the temperature was kept at 23 ± 1 °C by water circulation in the jacket of the reactor and air-circulation.

3.7. Determination of •OH Radicals by Fluorescence Measurements

TA was used as a probe for the determination of hydroxyl radical formation rate. Aqueous solution contained of NaOH and TA (5 × 10−4 M) was prepared and then 20 mg of photocatalyst powder was suspended in the photocatalytic reactor and stirred for 30 min under UV-Vis irradiation. The irradiation conditions are described in the next paragraph. Portions of 5 mL of the suspension were collected at different time intervals and filtered with 0.45 μm membrane filter. A Shimadzu RF-5300PC (Kyoto, Japan) fluorescence spectrophotometer was used in order to measure the intensity of the fluorescence peak at 425 nm with 310 nm excitation, which is attributed to 2-hydroxyterephthalic acid (OHTA), and it is known to be proportional to the amount of •OH radicals produced. The concentration of •OH was calculated by a calibration curve plotting the fluorescence intensity of standard OHTA (TCI, > 98% TCI, Tokyo Chemical Industry, Tokyo, Japan) solutions.

4. Conclusions

Visible-light active SrTiO3/g-C3N4 photocatalysts have been synthesized by a sonication mixing method. The optimum fortification level of g-C3N4 loading was 20%. All the prepared catalysts presented photocatalytic performance towards the decolorization of MB. Among them, the 20CNSTO material showed the best photocatalytic activity for the degradation of MB in both UV-Vis and visible light irradiation. This fact is also proved because the 20CNSTO showed greater •OH formation ability of all the other heterojunctions. A z-scheme mechanism is proposed for the photocatalytic activity.

Author Contributions

Conceptualization and methodology, I.K., D.P. and T.A.; Formal analysis, P.-S.K., I.K., D.P.; Investigation, P.-S.K. and I.K.; Data curation, P.-S.K.; Writing—original draft preparation, P.-S.K. and I.K.; Writing—review and editing, P.-S.K., I.K. and D.P., T.A.; Validation and Visualization, P.-S.K.; Supervision, T.A. and I.K.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Serpone, N.; Emeline, A.V. Semiconductor photocatalysis —Past, present, and future outlook. J. Phys. Chem. Lett. 2012, 3, 673–677. [Google Scholar] [CrossRef] [PubMed]
  2. Konstantinou, I.K.; Albanis, T.A. TiO2-assisted photocatalytic degradation of azo dyes in aqueous solution: Kinetic and mechanistic investigations: A review. Appl. Catal. B Environ. 2004, 49, 1–14. [Google Scholar] [CrossRef]
  3. Mohammad, N.; Arami, M. Degradation and toxicity reduction of textile wastewater using immobilized titania nanophotocatalysis. J. Photochem. Photobiol. B Biol. 2009, 94, 20–24. [Google Scholar]
  4. Molinari, R.; Borgese, M.; Drioli, E.; Palmisano, L.; Schiavello, M. Hybrid processes coupling photocatalysis and membranes for degradation of organic pollutants in water. Catal. Today 2002, 75, 77–85. [Google Scholar]
  5. Kato, H.; Sasaki, Y.; Shirakura, N.; Kudo, A. Synthesis of highly active rhodium-doped SrTiO3 powders in Z-scheme systems for visible-light-driven photocatalytic overall water splitting. J. Mater. Chem. A 2013, 1, 12327–12333. [Google Scholar] [CrossRef]
  6. Jia, Y.; Shen, S.; Wang, D.; Wang, X.; Shi, J.; Zhang, F.; Han, H.; Li, C. Composite Sr2TiO4/SrTiO3 (La, Cr) heterojunction based photocatalyst for hydrogen production under visible light irradiation. J. Mater. Chem. A 2013, 1, 7905–7912. [Google Scholar] [CrossRef]
  7. Maeda, K. Rhodium-Doped Barium Titanate Perovskite as a Stable p-Type Semiconductor Photocatalyst for Hydrogen Evolution under Visible Light. ACS Appl. Mater. Interfaces 2014, 6, 2167–2173. [Google Scholar] [CrossRef] [PubMed]
  8. Alammar, T.; Hamm, I.; Wark, M.; Mudring, A.-V. Low-temperature route to metal titanate perovskite nanoparticles for photocatalytic applications. Appl. Catal. B Environ. 2015, 178, 20–28. [Google Scholar] [CrossRef]
  9. Sulaeman, U.; Yin, S.; Sato, T. Solvothermal synthesis and photocatalytic properties of chromium-doped SrTiO3 nanoparticles. Appl. Catal. B Environ. 2011, 105, 206–210. [Google Scholar] [CrossRef]
  10. Yu, H.; Wang, J.; Yan, S.; Yu, T.; Zou, Z. Elements doping to expand the light response of SrTiO3. J. Photochem. Photobiol. A: Chem. 2014, 275, 65–71. [Google Scholar] [CrossRef]
  11. Wang, J.; Yin, S.; Komatsu, M.; Sato, T. Lanthanum and Nitrogen Co-Doped SrTiO3 Powders as Visible Light Sensitive Photocatalyst. J. Eur. Ceram. Soc. 2005, 25, 3207–3212. [Google Scholar] [CrossRef]
  12. Cao, T.; Li, Y.; Wang, C.; Shao, C.; Liu, Y. A facile in situ hydrothermal method to SrTiO3/TiO2 nanofiber heterostructures with high photocatalytic activity. Langmuir 2011, 27, 2946–2952. [Google Scholar] [CrossRef] [PubMed]
  13. Van Benthem, K.; Elsässer, C.; French, R. Bulk electronic structure of SrTiO3: Experiment and theory. J. Appl. Phys. 2001, 90, 6156–6164. [Google Scholar] [CrossRef]
  14. Sayama, K.; Mukasa, K.; Abe, R.; Abe, Y.; Arakawa, H. A new photocatalytic water splitting system under visible light irradiation mimicking a Z-scheme mechanism in photosynthesis. J. Photochem. Photobiol. A Chem. 2002, 148, 71–77. [Google Scholar] [CrossRef]
  15. Jiang, Z.; Xiao, T.; Kuznetsov, V.L.; Edwards, P.P. Turning carbon dioxide into fuel. Philos. Trans. R. Soc. Lond. A 2010, 368, 3343–3364. [Google Scholar] [CrossRef] [PubMed]
  16. Konta, R.; Ishii, T.; Kato, H.; Kudo, A. Photocatalytic Activities of Noble Metal Ion Doped SrTiO3 under Visible Light Irradiation. J. Phys. Chem. B 2004, 108, 8992–8995. [Google Scholar] [CrossRef]
  17. Puangpetch, T.; Chavadej, S.; Sreethawong, T. Hydrogen production over Au-loaded mesoporous-assembled SrTiO3 nanocrystal photocatalyst: Effects of molecular structure and chemical properties of hole scavengers. Energy Convers. Manag. 2011, 52, 2256–2261. [Google Scholar] [CrossRef]
  18. Kappadan, S.; Gebreab, T.W.; Thomas, S.; Kalarikkal, N. Tetragonal BaTiO3 nanoparticles: An efficient photocatalyst for the degradation of organic pollutants. Mat. Sci. Semicond. Proc. 2016, 51, 42–47. [Google Scholar] [CrossRef]
  19. Liu, J.; Wang, L.; Liu, J.; Wang, T.; Qu, W.; Li, Z. DFT study on electronic structures and optical absorption properties of C, S cation- doped SrTiO3. Cent. Eur. J. Phys. 2009, 7, 762–767. [Google Scholar] [CrossRef]
  20. Zhang, J.; Bang, J.H.; Tang, C.; Kamat Pr., V. Tailored TiO2-SrTiO3 Heterostructure Nanotube Arrays for Improved Photoelectrochemical Performance. ACS Nano 2010, 4, 387–395. [Google Scholar] [CrossRef] [PubMed]
  21. Boumaza, S.; Boudjemaa, A.; Bouguelia, A.; Bouarab, R.; Trari, M. Visible light induced hydrogen evolution on new hetero-system ZnFe2O4/SrTiO3. Appl. Energy 2010, 87, 2230–2236. [Google Scholar] [CrossRef]
  22. Zhao, Z.; Sun, Y.; Dong, F. Graphitic carbon nitride based nanocomposites: A review. Nanoscale 2014, 7, 15–37. [Google Scholar] [CrossRef] [PubMed]
  23. Ong, W.J.; Tan, L.L.; Ng, Y.H.; Yong, S.T.; Chai, S.P. Graphitic carbon nitride(g-C3N4)-Based photocatalysts for artificial photosynthesis and environmental remediation: Are we a step closer to achieving sustainability. Chem. Rev. 2016, 116, 7159–7329. [Google Scholar] [CrossRef] [PubMed]
  24. Zhu, J.; Xiao, P.; Li, H.; Carabineiro, S.A.C. Graphitic carbon nitride: Synthesis, properties, and applications in catalysis. ACS Appl. Mater. Interfaces 2014, 6, 16449–16465. [Google Scholar] [CrossRef] [PubMed]
  25. Ou, H.; Lin, L.; Zheng, Y.; Yang, P.; Fang, Y.; Wang, X. Tri-s-triazine-based crystalline carbon nitride nanosheets for an improved hydrogen evolution. Adv. Mater. 2017, 29, 1700008. [Google Scholar] [CrossRef] [PubMed]
  26. Yang, P.; Ou, H.; Fang, Y.; Wang, X. A facile steam reforming strategy to delaminate layered carbon nitride semiconductors for photoredox catalysis. Angew. Chem. Int. Ed. 2017, 56, 3992–3996. [Google Scholar] [CrossRef] [PubMed]
  27. Wang, H.; Yuan, X.; Wu, Y.; Huang, H.; Peng, X.; Zeng, G.; Zhong, H.; Liang, J.; Ren, M.M. Graphene-based materials: Fabrication, characterization and application for the decontamination of wastewater and waste gas and hydrogen storage/generation. Adv. Colloid Interface Sci. 2013, 195–196, 19–40. [Google Scholar] [CrossRef] [PubMed]
  28. Song, X.; Hu, J.; Zeng, H. Two-dimensional semiconductors: Recent progress and future perspectives. J. Mater. Chem. C 2013, 1, 2952–2969. [Google Scholar] [CrossRef]
  29. Wang, X.; Sun, G.; Li, N.; Chen, P. Quantum dots derived from two-dimensional materials and their applications for catalysis and energy. Chem. Soc. Rev. 2016, 45, 2239–2262. [Google Scholar] [CrossRef] [PubMed]
  30. Mamba, G.; Mishra, A.K. Graphitic carbon nitride (g-C3N4) nano composites: A new and exciting generation of visible light driven photocatalysts for environmental pollution remediation. Appl. Catal. B Environ. 2016, 198, 347–377. [Google Scholar] [CrossRef]
  31. Wu, Z.; Zhong, H.; Yuan, X.; Wang, H. Adsorptive removal of methylene blue by rhamnolipid-functionalized graphene oxide from wastewater. Water Res. 2014, 67, 330–344. [Google Scholar] [CrossRef] [PubMed]
  32. Wu, Z.; Yuan, X.; Zhong, H.; Wang, H.; Zeng, G.; Chen, X.; Wang, H.; Zhang, L.; Shao, J. Enhanced adsorptive removal of p-nitrophenol from water by aluminum metal-organic framework/reduced graphene oxide composite. Sci. Rep. 2016, 6, 25638. [Google Scholar] [CrossRef] [PubMed]
  33. Xu, M.; Liang, T.; Shi, M.; Chen, H. Graphene-like two-dimensional materials. Chem. Rev. 2013, 113, 3766–3798. [Google Scholar] [CrossRef] [PubMed]
  34. Wen, P.; Gong, P.; Sun, J.; Wang, J.; Yang, S. Design and synthesis of Ni-MOF/CNT composites and rGO/carbon nitride composites for an asymmetric supercapacitor with high energy and power density. J. Mater. Chem. A: Chem. 2015, 3, 13874–13883. [Google Scholar] [CrossRef]
  35. Dyjak, S.; Kicinski, W.; Huczko, A. Thermite-driven melamine condensation to CxNyHz graphitic ternary polymers: Towards an instant, large-scale synthesis of g-C3N4. J. Mater. Chem. A. 2015, 3, 9621–9631. [Google Scholar] [CrossRef]
  36. Zhang, X.-S.; Tian, K.; Hu, J.-Y.; Jiang, H. Significant enhancement of photoreactivity of graphitic carbon nitride catalysts under acidic conditions and the underlying H+-mediated mechanism. Chemosphere 2015, 141, 127–133. [Google Scholar] [CrossRef] [PubMed]
  37. Wang, Z.; Guan, W.; Sun, Y.; Dong, F.; Zhou, Y.; Ho, W.-K. Water-assisted production of honeycomb-like g-C3N4 with ultralong carrier lifetime and outstanding photocatalytic activity. Nanoscale 2015, 7, 2471–2479. [Google Scholar] [CrossRef] [PubMed]
  38. Chen, D.; Wang, K.; Hong, W.; Zong, R.; Yao, W.; Zhu, Y. Visible light photoactivity enhancement via CuTCPP hybridized g-C3N4 nanocomposite. Appl. Catal. B Environ. 2015, 166–167, 366–373. [Google Scholar] [CrossRef]
  39. Liu, G.; Niu, P.; Sun, C.; Smith, S.C.; Chen, Z.; Lu, G.Q.; Cheng, H.M. Unique electronic structure induced high photoreactivity of sulfur-doped graphitic C3N4. J. Am. Chem. Soc. 2010, 132, 11642–11648. [Google Scholar] [CrossRef] [PubMed]
  40. Yan, S.-C.; Li, Z.-S.; Zou, Z.-G. Photodegradation of Rhodamine B and methyl orange over boron-doped g-C3N4 under visible light irradiation. Langmuir 2010, 26, 3894–3901. [Google Scholar] [CrossRef] [PubMed]
  41. Zhang, Y.-J.; Mori, T.; Ye, J.-H.; Antonietti, M. Phosphorus-doped carbon nitride solid: Enhanced electrical conductivity and photocurrent generation. J. Am. Chem. Soc. 2010, 132, 6294–6295. [Google Scholar] [CrossRef] [PubMed]
  42. Yue, B.; Li, Q.-Y.; Iwai, H.; Kako, T.; Ye, J.-H. Hydrogen production using zinc-doped carbon nitride catalyst irradiated with visible light. Sci. Technol. Adv. Mater. 2011, 12, 034401. [Google Scholar] [CrossRef] [PubMed]
  43. Mitoraj, D.; Kisch, H. The nature of nitrogen-modified titanium dioxide photocatalysts active in visible light. Angew. Chem. Int. Ed. Engl. 2008, 47, 9975–9978. [Google Scholar] [CrossRef] [PubMed]
  44. Li, Q.Y.; Yue, B.; Iwai, H.; Kako, T.; Ye, J.H. Carbon nitride polymers sensitized with N-doped tantalic acid for visible light- Induced photocatalytic hydrogen evolution. J. Phys. Chem. C 2010, 114, 4100–4105. [Google Scholar] [CrossRef]
  45. Rakibuddin, Md.; Kim, H.; Khan, M.E. Graphite-like carbon nitride (C3N4) modified N-doped LaTiO3 nanocomposite for higher visible light photocatalytic and photo-electrochemical performance. Appl. Surf. Sci. 2018, 452, 400–412. [Google Scholar] [CrossRef]
  46. Wu, Y.; Wang, H.; Tu, W.; Liu, Y.; Tan, Y.Z.; Yuan, X.; Chew, J.W. Quasi-polymeric construction of stable perovskite-type LaFeO3/g-C3N4 heterostructured photocatalyst for improved Z-scheme photocatalytic activity via solid p-n heterojunction interfacial effect. J. Hazard. Mater. 2018, 347, 412–422. [Google Scholar] [CrossRef] [PubMed]
  47. Kumar, A.; Schuerings, C.; Kumar, S.; Kumar, A.; Krishnan, V. Perovskite-structured CaTiO3 coupled with g-C3N4 as a heterojunction photocatalyst for organic pollutant degradation. Beilstein J. Nanotechnol. 2018, 9, 671–685. [Google Scholar] [CrossRef] [PubMed]
  48. Kumar, S.; Tonda, S.; Baruah, A.; Kumar, B.; Shanker, V. Synthesis of novel and stable g-C3N4/N-doped SrTiO3 hybrid nanocomposites with improved photocurrent and photocatalytic activity under visible light irradiation. Dalton Trans. 2014, 43, 16105–16114. [Google Scholar] [CrossRef] [PubMed]
  49. Luo, J.; Zhou, X.; Ning, X.; Zhan, L.; Chen, J.; Li, Z. Constructing a direct Z-scheme La2NiO4/g-C3N4 hybrid photocatalyst with boosted visible light photocatalytic activity. Sep. Purif. Technol. 2018, 201, 327–335. [Google Scholar] [CrossRef]
  50. Chen, X.; Tan, P.; Zhou, B.; Dong, H.; Pan, J.; Xiong, X. A green and facile strategy for preparation of novel and stable Cr-doped SrTiO3/g-C3N4 hybrid nanocomposites with enhanced visible light photocatalytic activity. J. Alloys Compd. 2015, 647, 456–462. [Google Scholar] [CrossRef]
  51. Xu, X.; Liu, G.; Randorn, C.; Irvine, J.T.S. g-C3N4 coated SrTiO3 as an efficient photocatalyst for H2 production in aqueous solution under visible light irradiation. Int. J. Hydrog. Energy 2011, 36, 13501–13507. [Google Scholar] [CrossRef]
  52. Kang, H.W.; Lim, S.N.; Song, D.; Park, S.B. Organic-inorganic composite of g-C3N4-SrTiO3: Rh photocatalyst for improved H2 evolution under visible light irradiation. Int. J. Hydrog. Energy 2012, 37, 11602–11610. [Google Scholar] [CrossRef]
  53. Rietveld, H.M. Line profiles of neutron powder-diffraction peaks for structure refinement. Acta Cryst. 1967, 22, 151–152. [Google Scholar] [CrossRef]
  54. Mittemeijer, E.J.; Welzel, U. The “state of the art” of the diffraction analysis of crystallite size and lattice strain. Z. Kristallogr. 2008, 223, 552–560. [Google Scholar] [CrossRef]
  55. Hall, W.H. X-ray line broadening in metals. Proc. Philos. Soc. Lond. 1949, 62, 741–743. [Google Scholar] [CrossRef]
  56. Williamson, G.K.; Hall, W.H. X-ray line broadening from filed aluminium and wolfram. Acta Metall. 1953, 1, 22–31. [Google Scholar] [CrossRef]
  57. Acharya, S.; Mansingh, S.; Parida, K.M. The enhanced photocatalytic activity of g-C3N4-LaFeO3 for water reduction reaction through mediator free Z-scheme mechanism. Inorg. Chem. Fron. 2017, 4, 1022–1032. [Google Scholar] [CrossRef]
  58. Xian, T.; Yang, H.; Di, L.J.; Dai, J.F. Enhanced photocatalytic activity of BaTiO3@g-C3N4 for the degradation of methyl orange under simulated sunlight irradiation. J. Alloys Compd. 2015, 622, 1098–1104. [Google Scholar] [CrossRef]
  59. Thommes, M.; Kaneko, K.; Neimark, A.V.; Olivier, J.P.; Rodriguez-Reinoso, F.; Rouquerol, J.; Sing, K.S.W. Physisorption of gases, with special reference to the evaluation of surface area and pore size distribution (IUPAC Technical Report). Pure Appl. Chem. 2015, 87, 1051–1069. [Google Scholar] [CrossRef]
  60. Jia, A.; Liang, X.; Su, Z.; Zhu, T.; Liu, S. Synthesis and the effect of calcination temperature on the physical–chemical properties and photocatalytic activities of Ni, La codoped SrTiO3. J. Hazard. Mater. 2010, 178, 233–242. [Google Scholar] [CrossRef] [PubMed]
  61. Wu, Z.; Zhang, Y.; Wang, X.; Zou, Z. Ag@SrTiO3 nanocomposite for super photocatalytic degradation of organic dye and catalytic reduction of 4-nitrophenol. New J. Chem. 2017, 41, 5678–5687. [Google Scholar] [CrossRef]
  62. Yang, M.; Jin, X.-Q. Improvement of visible light-induced photocatalytic performance by Cr-doped SrTiO3−carbon nitride intercalation compound (CNIC) composite. J. Cent. South Univ. 2016, 23, 310–316. [Google Scholar] [CrossRef]
  63. Sun, L.; Qi, Y.; Jia, C.J.; Jin, Z.; Fan, W. Enhanced visible-light photocatalytic activity of g-C3N4/Zn2GeO4 heterojunctions with effective interfaces based on band match. Nanoscale 2014, 6, 2649–2659. [Google Scholar] [CrossRef] [PubMed]
  64. Li, Y.; Wang, J.; Yang, Y.; Zhang, Y.; He, D.; An, Q.; Cao, G. Seed-induced growing various TiO2 nanostructures on g-C3N4 nanosheets with much enhanced photocatalytic activity under visible light. J. Hazard. Mater. 2015, 292, 79–89. [Google Scholar] [CrossRef] [PubMed]
  65. Chen, X.; Li, H.; Wu, Y.; Wu, H.; Wu, L.; Tan, P.; Pan, J.; Xiong, X. Facile fabrication of novel porous graphitic carbon nitride/copper sulfide nanocomposites with enhanced visible light driven photocatalytic performance. J. Colloid Interface Sci. 2016, 476, 132–143. [Google Scholar] [CrossRef] [PubMed]
  66. Bourikas, K.; Vakros, J.; Kordulis, C.; Lycourghiotis, A. Potentiometric Mass Titrations:  Experimental and Theoretical Establishment of a New Technique for Determining the Point of Zero Charge (PZC) of Metal (Hydr)Oxides. J. Phys. Chem. B 2003, 107, 9441–9451. [Google Scholar] [CrossRef]
Catalysts 08 00554 g001

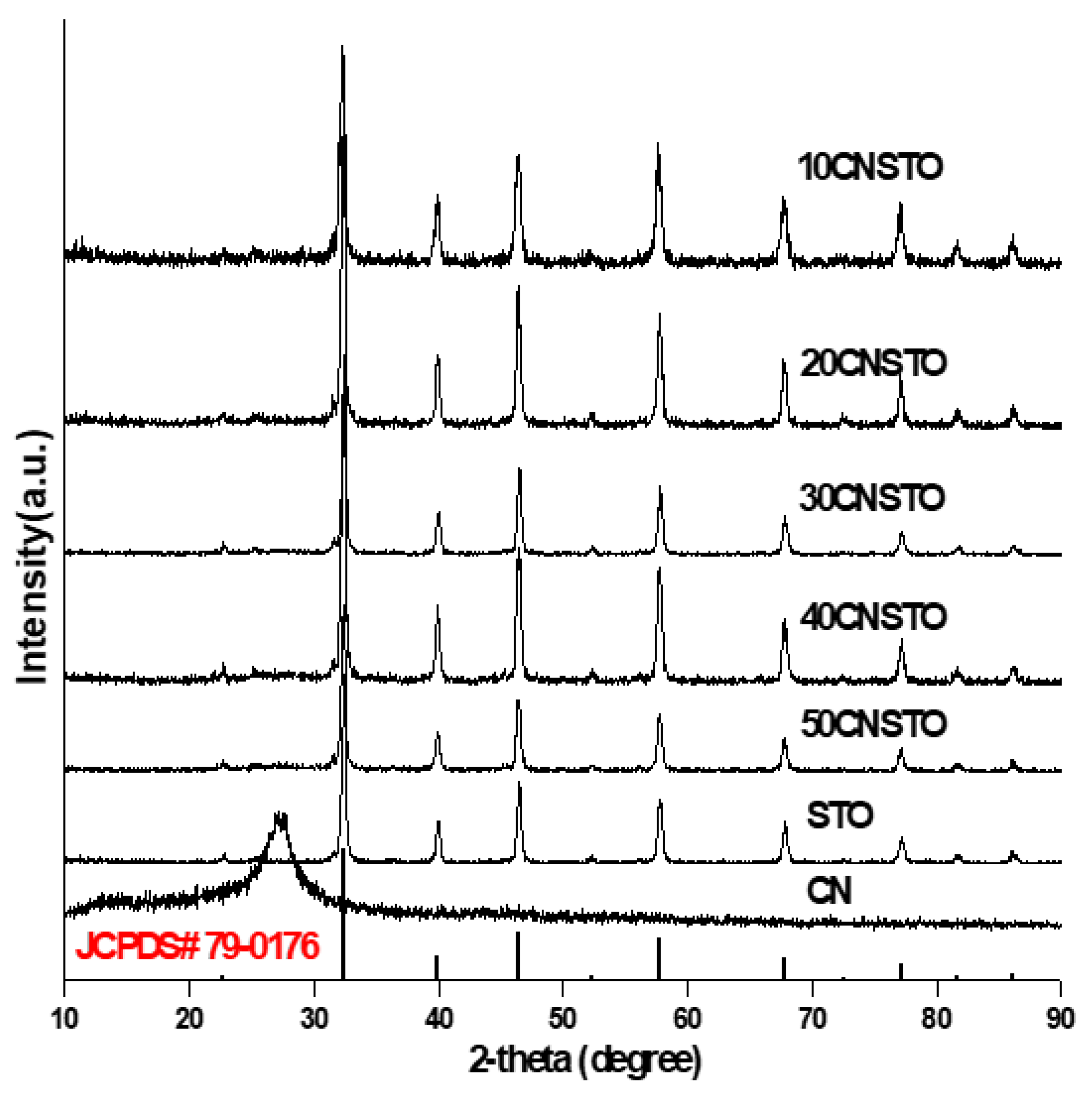

Figure 1. XRD patterns of the prepared heterojunctions in comparison with STO.
Figure 1. XRD patterns of the prepared heterojunctions in comparison with STO.
Catalysts 08 00554 g001
Catalysts 08 00554 g002

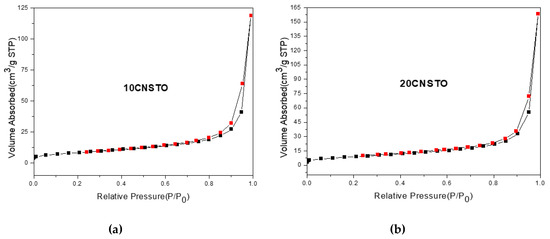

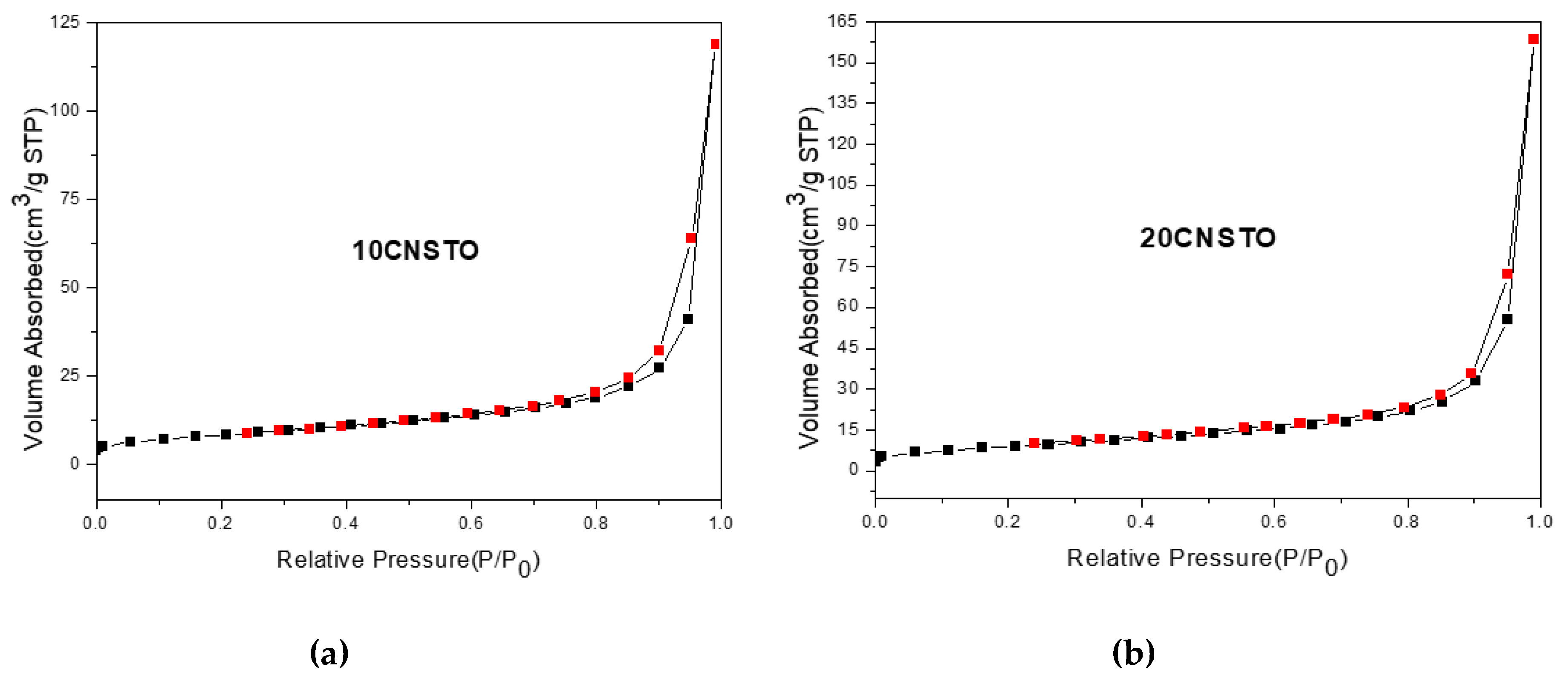

Figure 2. Adsorption–desorption isotherms for 10CNSTO (a)and 20CNSTO (b) composites.
Figure 2. Adsorption–desorption isotherms for 10CNSTO (a)and 20CNSTO (b) composites.
Catalysts 08 00554 g002
Catalysts 08 00554 g003
Figure 3. Representative SEM images of the photocatalysts: (a) CN (magnification ×3000); (b) STO (magnification ×2000); (c) 20CNSTO(magnification ×3000); and (d) 30CNSTO (magnification ×5000).
Figure 3. Representative SEM images of the photocatalysts: (a) CN (magnification ×3000); (b) STO (magnification ×2000); (c) 20CNSTO(magnification ×3000); and (d) 30CNSTO (magnification ×5000).
Catalysts 08 00554 g003
Catalysts 08 00554 g004

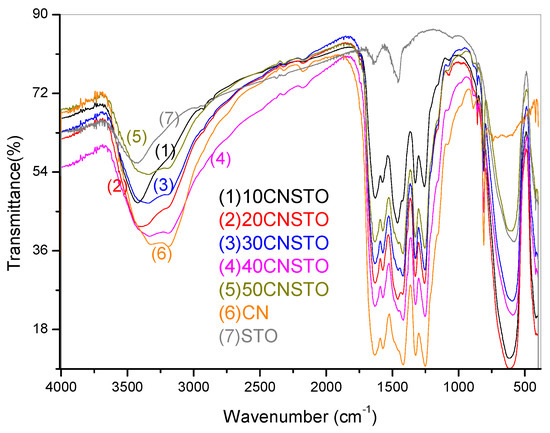

Figure 4. FT-IR spectra of the composite photocatalysts and pristine CN, STO.
Figure 4. FT-IR spectra of the composite photocatalysts and pristine CN, STO.
Catalysts 08 00554 g004
Catalysts 08 00554 g005aCatalysts 08 00554 g005b

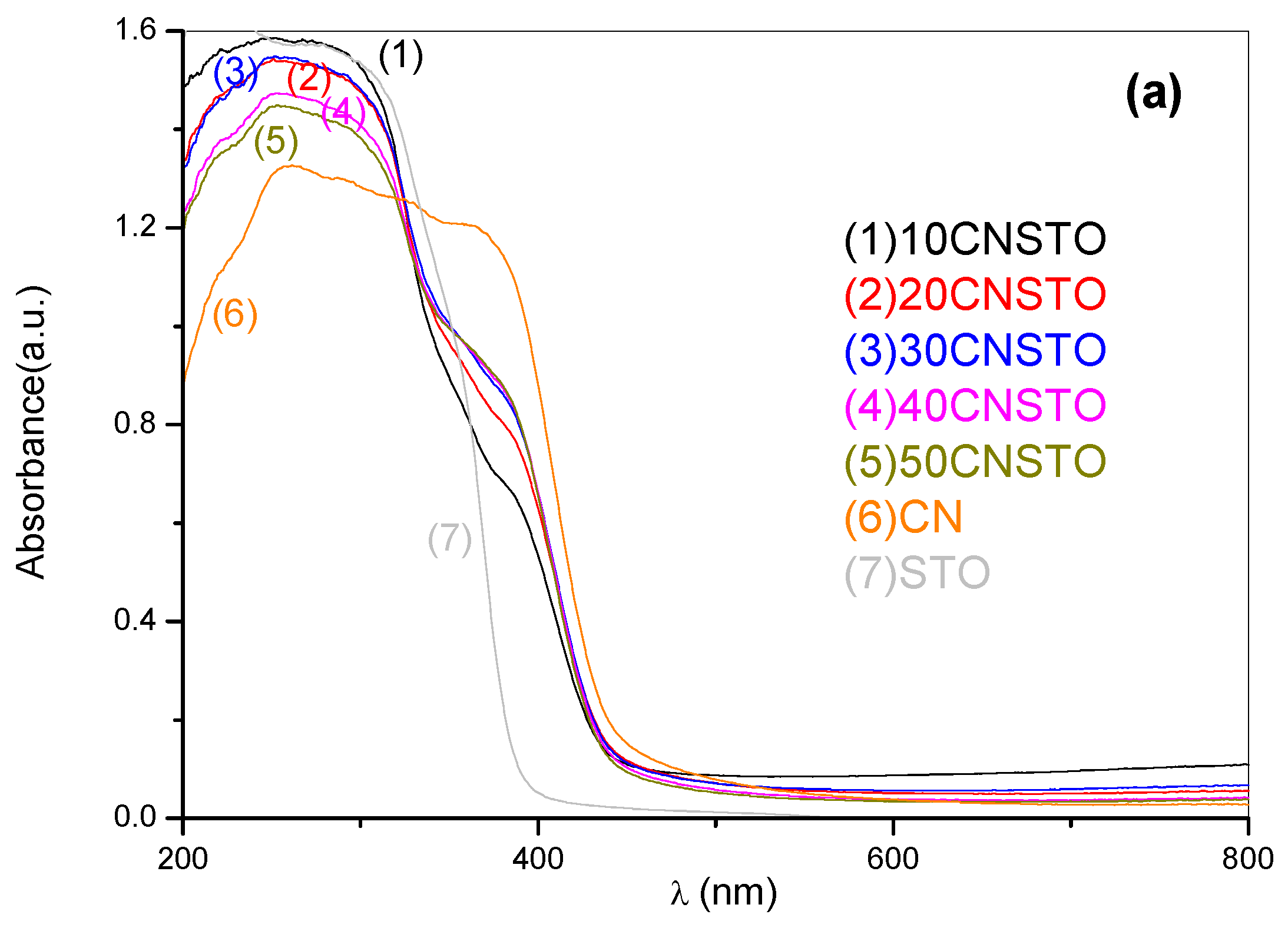

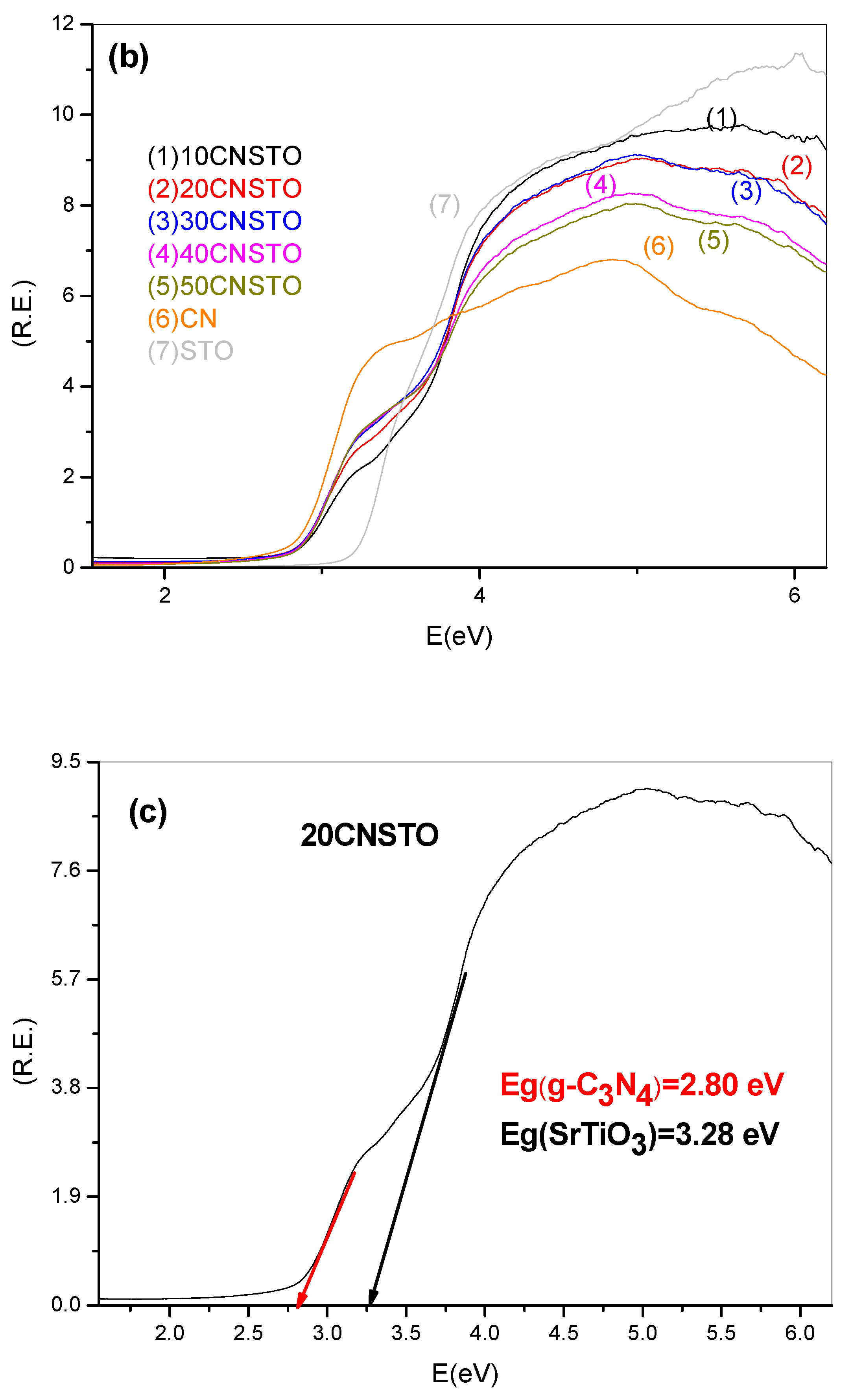

Figure 5. (a) DR UV-Vis spectra plots; (b) Kubelka-Munk plots for the prepared heterojunctions. R: absorbance, E = 1239.7/λ, energy in eV, λ = wavelength in nm, (c) Kubelka-Munk plot for the 20CNSTO heterojunction.
Figure 5. (a) DR UV-Vis spectra plots; (b) Kubelka-Munk plots for the prepared heterojunctions. R: absorbance, E = 1239.7/λ, energy in eV, λ = wavelength in nm, (c) Kubelka-Munk plot for the 20CNSTO heterojunction.
Catalysts 08 00554 g005aCatalysts 08 00554 g005b
Catalysts 08 00554 g006

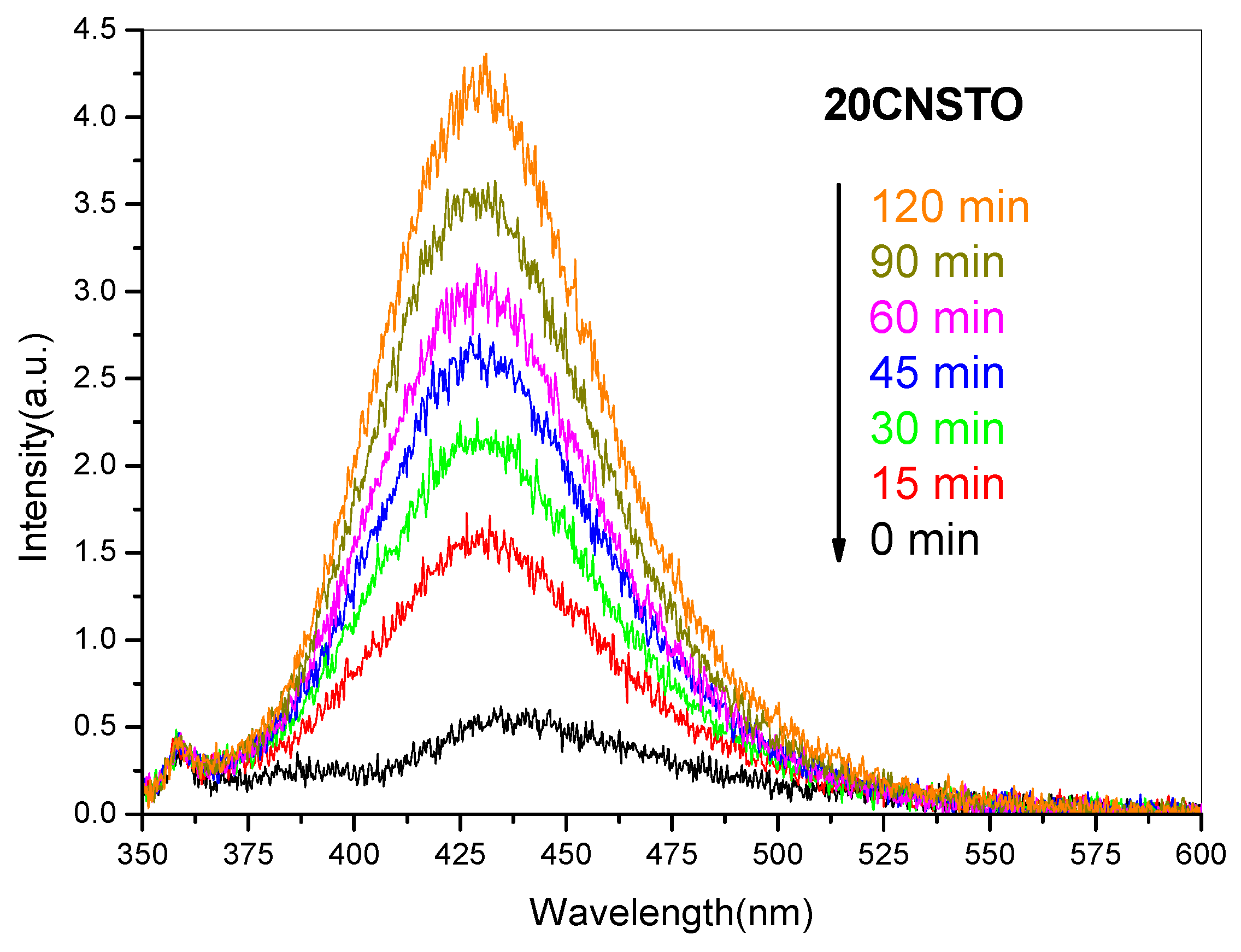

Figure 6. Evolution of OH-TA fluorescence spectra after 120 min of irradiation of 20CNSTO.
Figure 6. Evolution of OH-TA fluorescence spectra after 120 min of irradiation of 20CNSTO.
Catalysts 08 00554 g006
Catalysts 08 00554 g007

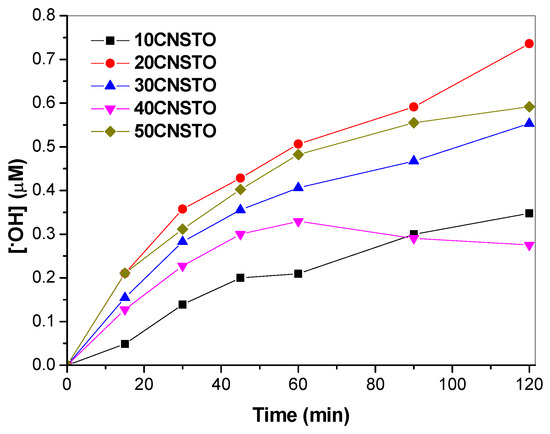

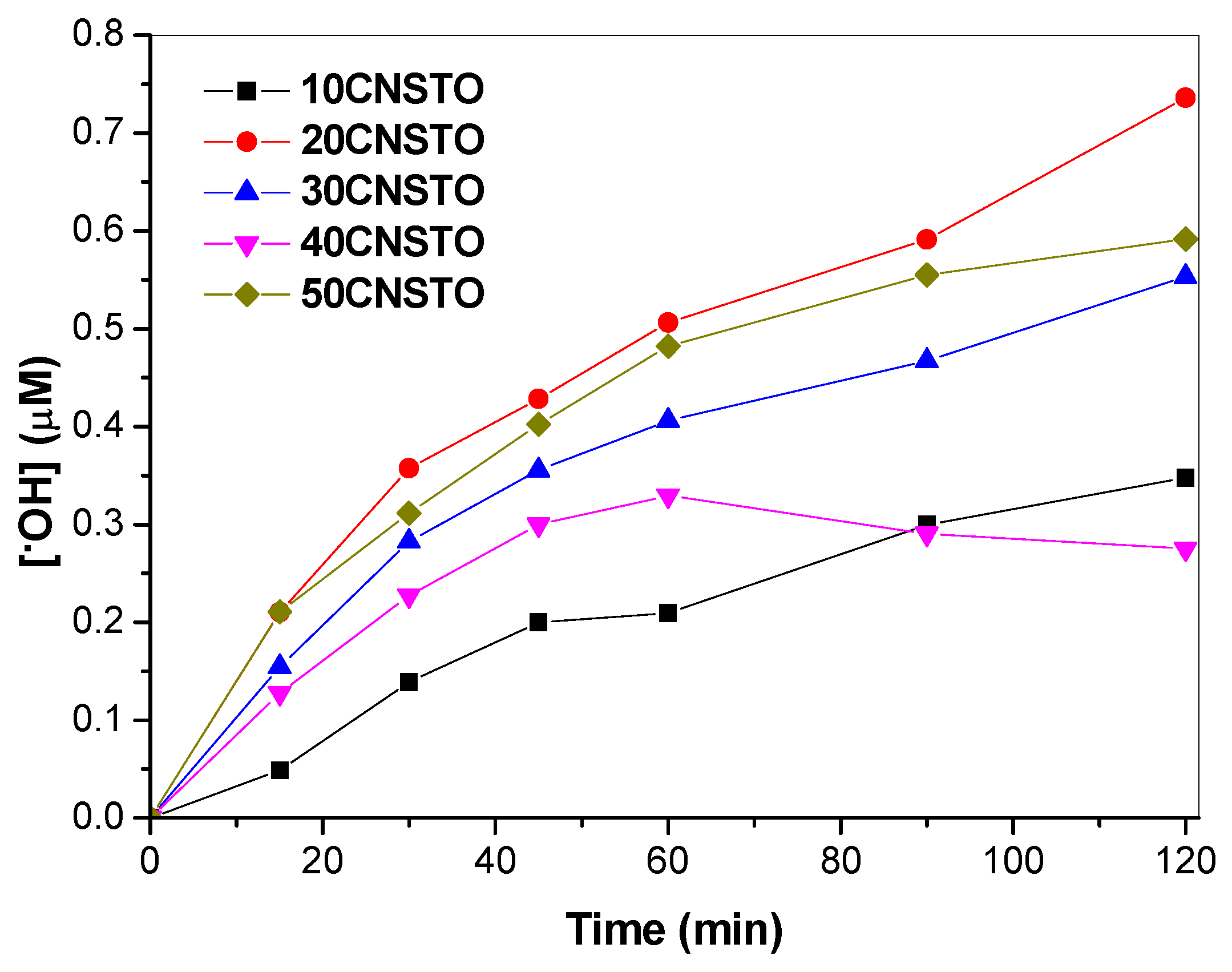

Figure 7. Kinetics of •OH formation for all composite catalysts based on ΟΗΤΑ fluorescence measurements.
Figure 7. Kinetics of •OH formation for all composite catalysts based on ΟΗΤΑ fluorescence measurements.
Catalysts 08 00554 g007
Catalysts 08 00554 g008

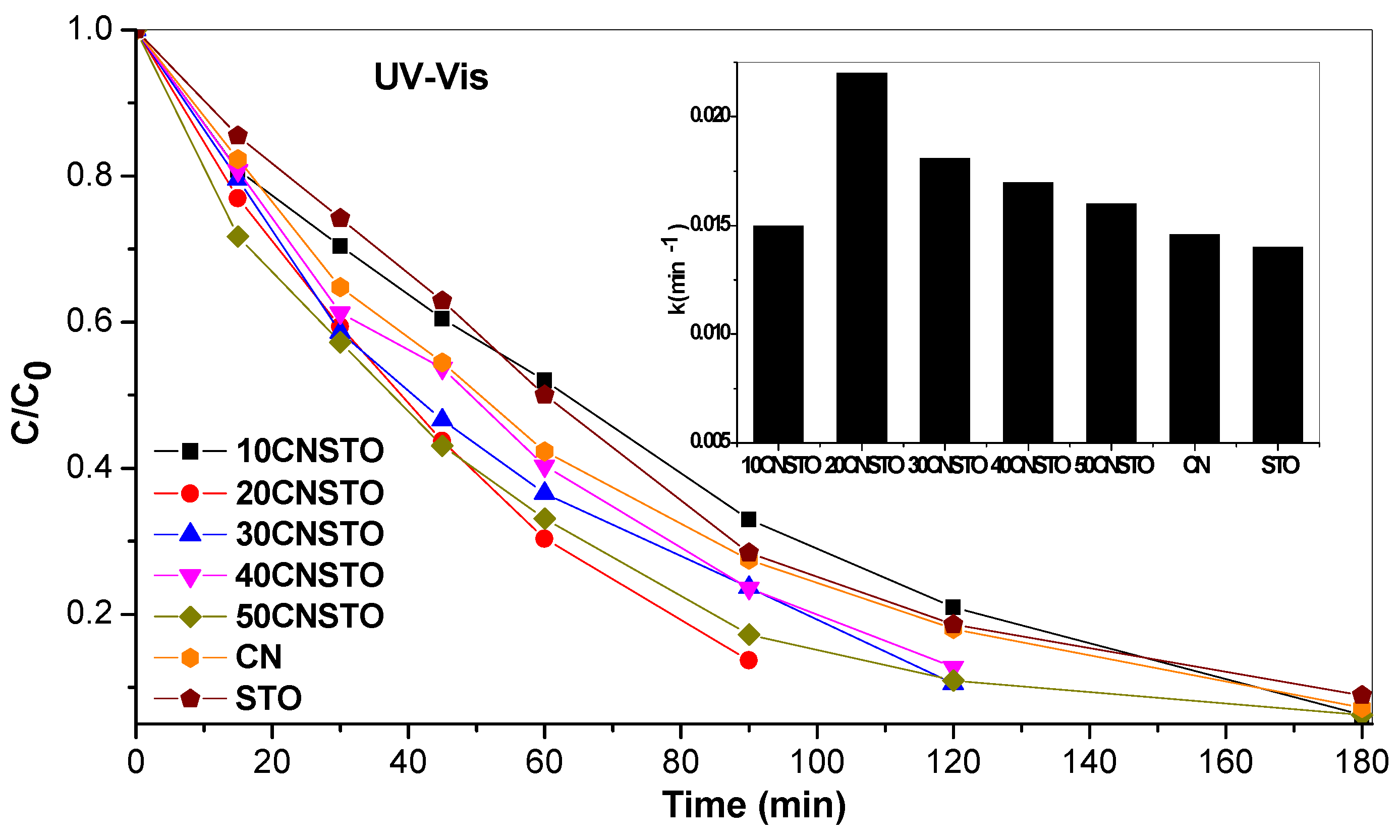

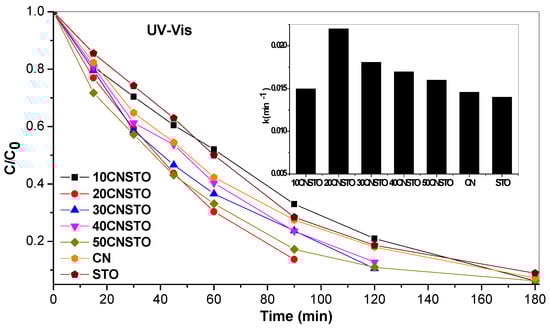

Figure 8. Degradation kinetics of MB under UV-Vis irradiation (CMB = 5 mg L−1, Ccat = 200 mg L−1, I = 500 Wm−2) and apparent rate constants (inset) for all studied photocatalysts.
Figure 8. Degradation kinetics of MB under UV-Vis irradiation (CMB = 5 mg L−1, Ccat = 200 mg L−1, I = 500 Wm−2) and apparent rate constants (inset) for all studied photocatalysts.
Catalysts 08 00554 g008
Catalysts 08 00554 g009

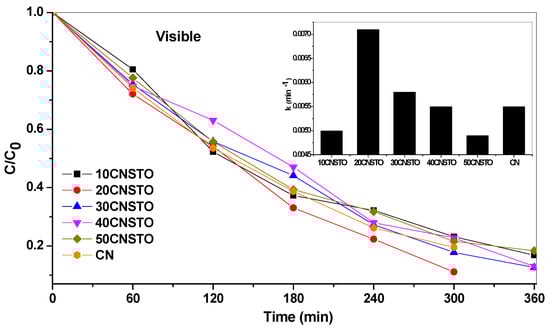

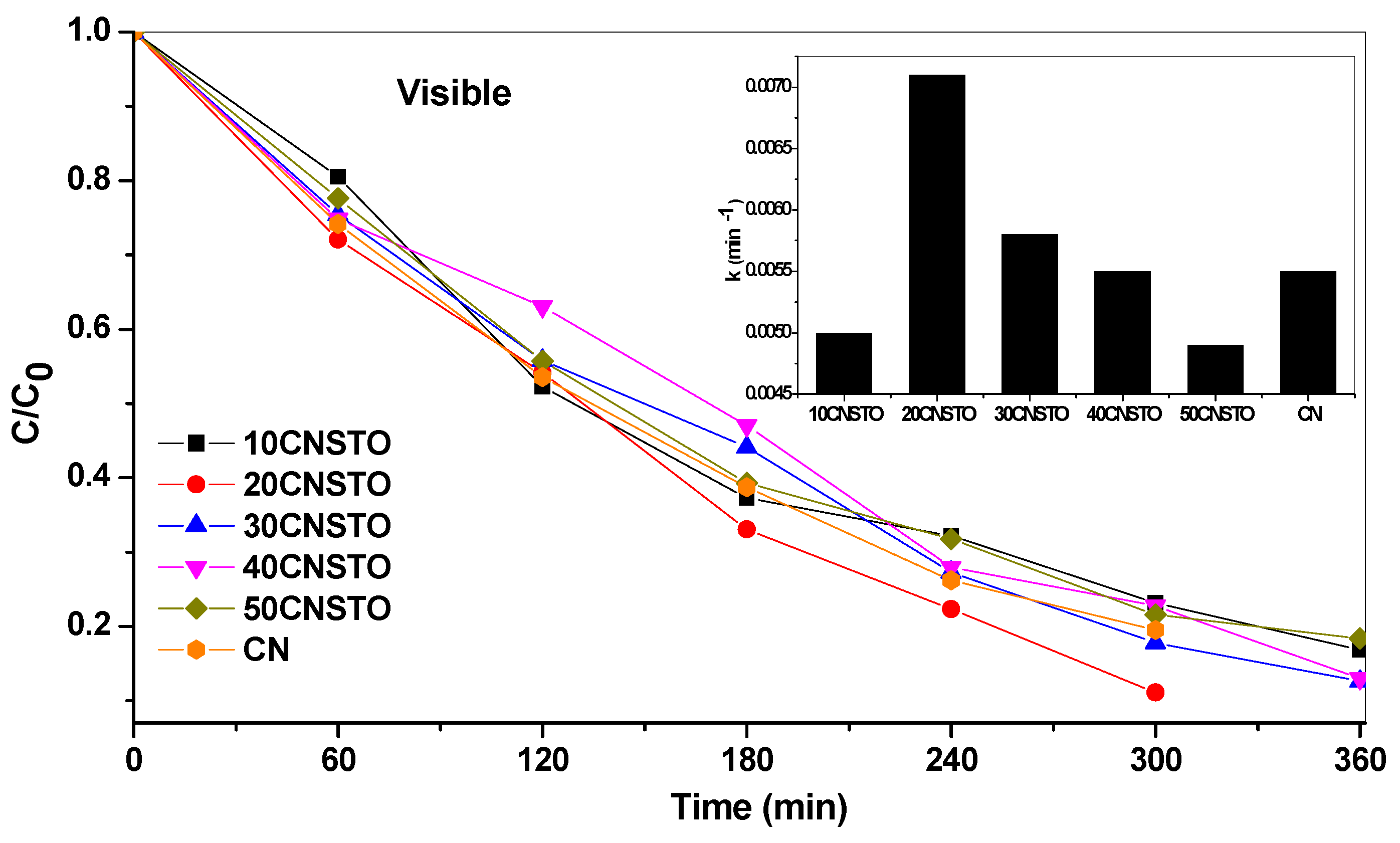

Figure 9. Degradation kinetics of MB under visible light irradiation (CMB = 5 mg L−1, Ccat = 200 mg L−1, I = 500 Wm−2) and apparent rate constants (inset) for all studied photocatalysts.
Figure 9. Degradation kinetics of MB under visible light irradiation (CMB = 5 mg L−1, Ccat = 200 mg L−1, I = 500 Wm−2) and apparent rate constants (inset) for all studied photocatalysts.
Catalysts 08 00554 g009
Catalysts 08 00554 g010

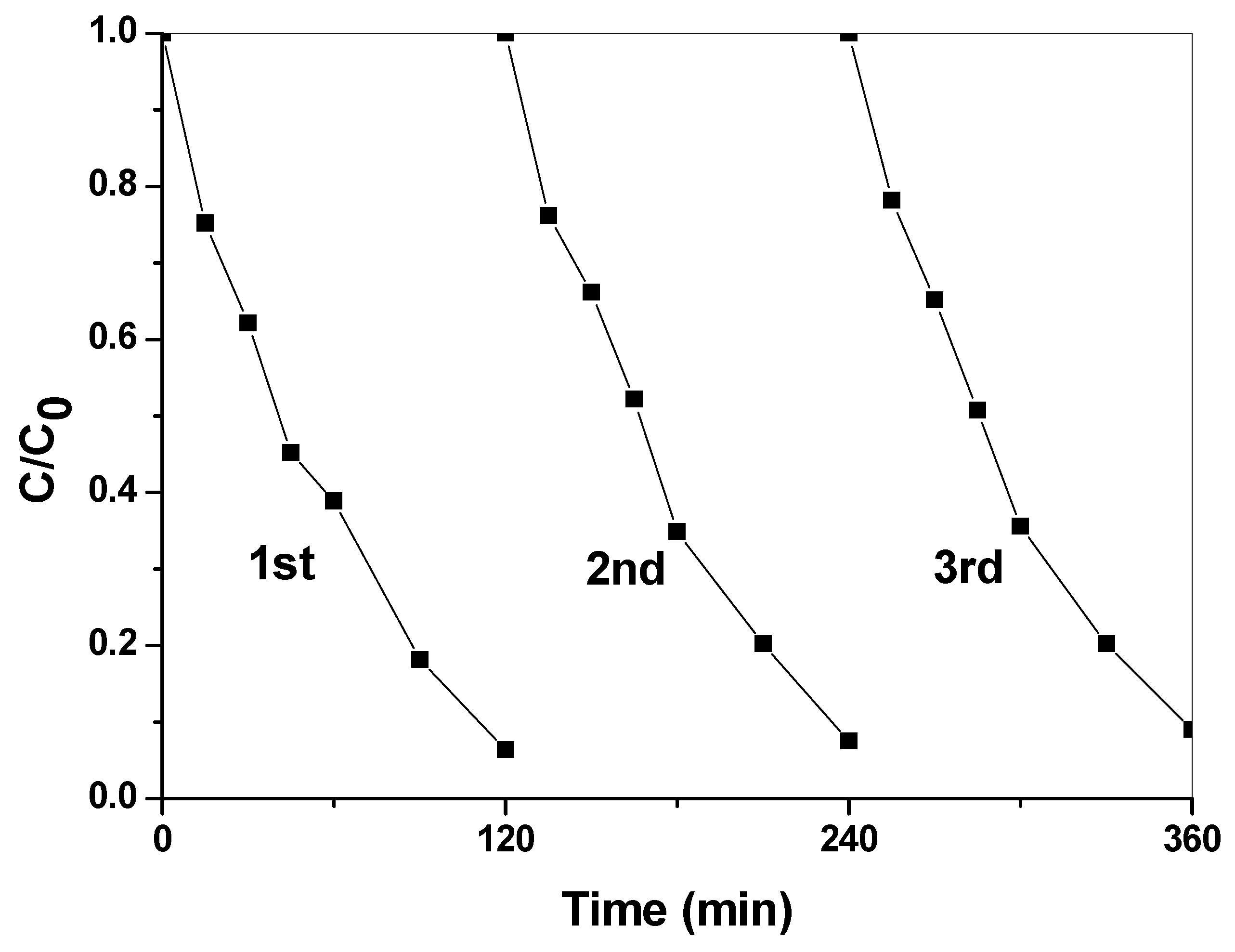

Figure 10. Reusability performance of TV450 20CNSTO photocatalyst for three consecutive catalytic cycles.
Figure 10. Reusability performance of TV450 20CNSTO photocatalyst for three consecutive catalytic cycles.
Catalysts 08 00554 g010
Table 1. XRD results and Rietveld analysis of all photocatalysts.
Table 1. XRD results and Rietveld analysis of all photocatalysts.
Code NameCrystal PhaseSpace Group% PhaseabcUnit Cell Volume (A3)E %R %Crystal Size (nm)% StrainR2
10CNSTOSrTiO3cubic1003.91143.91143.911459.8419.1626.8717.1−0.074−0.359
20CNSTOSrTiO3cubic1003.91043.91053.910559.8016.1623.5325.5−0.037−0.320
30CNSTOSrTiO3cubic1003.90933.90933.909359.7413.7721.2229.00.0000.060
40CNSTOSrTiO3cubic1003.90993.90993.909959.7716.0024.9924.9−0.005−0.106
50CNSTOSrTiO3cubic1003.91033.91033.910359.7916.0425.2924.2−0.040−0.332
STOSrTiO3cubic1003.90873.90873.908759.714.7920.6227.50.0160.930
Table 2. Point of zero charge and Eg values of all photocatalysts.
Table 2. Point of zero charge and Eg values of all photocatalysts.
PZCEg (eV)
Catalysts g-C3N4SrTiO3
10CNSTO8.022.803.40
20CNSTO7.902.803.28
30CNSTO7.872.823.28
40CNSTO7.792.843.20
50CNSTO7.652.843.21
CN4.632.82
STO9.33 3.15
Table 3. Kinetic parameters (k, t1/2, R2) for the photocatalytic degradation of MB in the presence of the heterojunctions under simulated solar light (UV-Vis) and visible light irradiation (CMB = 5 mg L−1, Ccat = 200 mg L−1, I = 500 Wm−2).
Table 3. Kinetic parameters (k, t1/2, R2) for the photocatalytic degradation of MB in the presence of the heterojunctions under simulated solar light (UV-Vis) and visible light irradiation (CMB = 5 mg L−1, Ccat = 200 mg L−1, I = 500 Wm−2).
UV-VisVisible
CatalystsK (min−1)t1/2 (min)R2K (min−1)t1/2 (min)R2
10CNSTO0.015046.20.98040.0050138.60.9690
20CNSTO0.022031.50.98860.007197.60.9780
30CNSTO0.018138.30.98850.0058119.50.9893
40CNSTO0.017040.80.99320.0055126.00.9766
50CNSTO0.016043.30.97970.0049141.40.9942
STO0.014049.50.9932---
CN0.014647.50.99960.0055126.00.9986
Table 4. Used scavengers for 20CNSTO along with the scavenged radicals, k (min−1), % Δk and R2.
Table 4. Used scavengers for 20CNSTO along with the scavenged radicals, k (min−1), % Δk and R2.
20CNSTO
ScavengersRadicals Scavengek (min−1)% ΔkR2
No scavenger-0.022000.9886
IPAOH•0.014832.70.9996
FAh+0.008660.90.9803
N2O2•−0.015629.10.9773
Acetonitrile/N2OH•/ O2•−0.005077.30.9052
SODredO2•−0.030940.40.9936
NaN3OH• + 1O20.013040.90.9814

Share and Cite

MDPI and ACS Style

Konstas, P.-S.; Konstantinou, I.; Petrakis, D.; Albanis, T. Synthesis, Characterization of g-C3N4/SrTiO3 Heterojunctions and Photocatalytic Activity for Organic Pollutants Degradation. Catalysts 2018, 8, 554. https://doi.org/10.3390/catal8110554

AMA Style

Konstas P-S, Konstantinou I, Petrakis D, Albanis T. Synthesis, Characterization of g-C3N4/SrTiO3 Heterojunctions and Photocatalytic Activity for Organic Pollutants Degradation. Catalysts. 2018; 8(11):554. https://doi.org/10.3390/catal8110554

Chicago/Turabian Style

Konstas, Panagiotis-Spyridon, Ioannis Konstantinou, Dimitrios Petrakis, and Triantafyllos Albanis. 2018. "Synthesis, Characterization of g-C3N4/SrTiO3 Heterojunctions and Photocatalytic Activity for Organic Pollutants Degradation" Catalysts 8, no. 11: 554. https://doi.org/10.3390/catal8110554

APA Style

Konstas, P.-S., Konstantinou, I., Petrakis, D., & Albanis, T. (2018). Synthesis, Characterization of g-C3N4/SrTiO3 Heterojunctions and Photocatalytic Activity for Organic Pollutants Degradation. Catalysts, 8(11), 554. https://doi.org/10.3390/catal8110554

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
