Feasibility Study on the Etherification of Fermentative-Produced Isobutylene to Fully Renewable Ethyl Tert-Butyl Ether (ETBE)

Abstract

This work evaluates the direct etherification of bio-sourced isobutylene with ethanol forming fully renewable ethyl tert-butyl ether (ETBE). Challenge was the use of the fermentative produced substrate in a solvent-free catalysis using the acidic ion exchanger Amberlyst-15. CO₂ impurities have a significant influence on the liquid phase process. The conversion at a ratio that is based on molarities of isobutylene to ethanol of 1:0.9 results in yields up to 97 mol% ETBE. Purities up to 99 wt.% could be achieved by subsequent water extraction in order to ensure qualities for technical application as high performance fuel additive.

1. Introduction

The reduction of CO₂ emissions and other pollutants, especially in the transport sector, is of central importance for a sustainable energy management. A limit value of 95 g CO₂/km is set for new licensed vehicles [1]. Hence, liquid fuels and fuel additives that are based on biomass are increasingly in focus of research. To date, mainly alcohol-based biofuels, such as bioethanol in Otto engines or fatty acid methyl esters as biodiesel in diesel vehicles are used. However, these biofuels can only be blended to conventional fossil fuels in limited amounts in order to avoid technical incompatibilities. A promising candidate to overcome this so-called blend wall of bioethanol is ETBE. When compared to methyl tert-butyl ether (MTBE), it has less critical environmental impact [2,3] and it can be blended up to 47% [4]. Moreover, ethyl tert-butyl ether (ETBE) provides nearly triple the alternative energy value than the direct blending of ethanol into fuels [5].

Partially renewable ETBE is obtained by the reaction of renewable ethanol with a molecule of fossil isobutylene. This is already used in vehicles, up to a maximum of 23 wt.% possessing a global market valued with more than € two billion and three billion tons annually [6]. One attempt has already been made to produce completely bio-sourced ETBE fuel additive using bio-sourced isobutylene. In 2015, Sun et al. [7] has been shown the pioneering work to produce completely bio-based ETBE fuel additive from acetic acid prepared in the presence of a Zn/ZrO catalyst. Bio-sourced isobutylene can also be produced directly from sugar and lignocellulose-based biomass by bacterial fermentative processes utilizing a genetically engineered microorganism [8,9,10,11]. Renewable resources, such as sugar, cereals, agricultural, and forestry waste are available in huge amounts for such sustainable application. Subsequent conversion to fuels and fuel additives, e.g., isooctane, MTBE, ETBE, or alkylates, are in focus of recent investigations. The mentioned additives improve the quality of raw gasoline blends that are produced in refineries, especially regarding the octane number, knock resistance, energy density, and the associated increase in range, respectively [12].

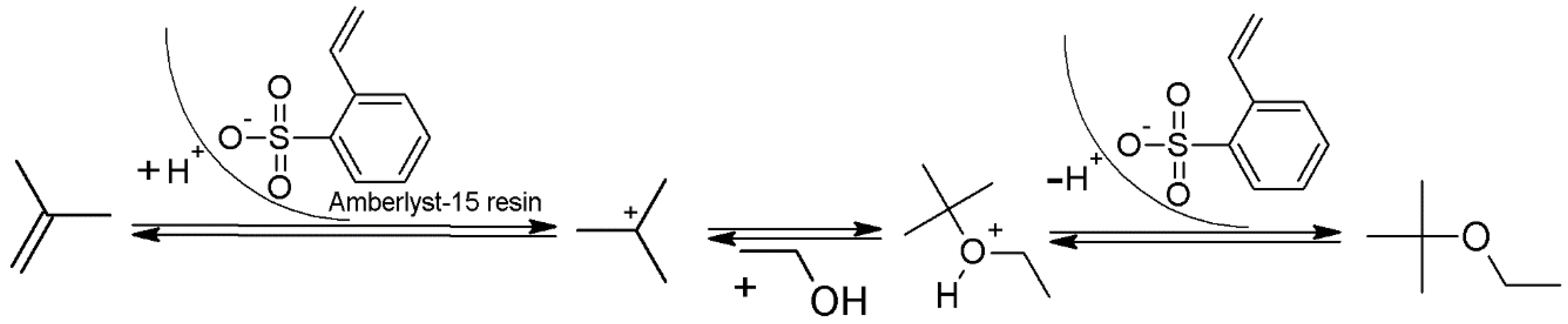

Generally, ETBE has been formed via an exothermic electrophilic addition reaction of ethanol and isobutylene using heterogeneous catalysts [13]. Shpantseva et al. [14] describe a process in which isobutylene containing hydrocarbon mixtures are converted with ethanol at 30 °C to 100 °C, 0.5 MPa to 2.0 MPa, and a space velocity of 3.5 h⁻¹ to 10 h⁻¹ to ETBE via an acidic ion exchange catalyst. The molar ratio of ethanol to isobutylene was varied from 0.95:1 to 1.1:1. Goto et al. [15,16] describe a method for the conversion of isobutylene and water containing C4 fractions with ethanol, in which isobutylene reacts with water to form tert-butanol and with ethanol to give ETBE using a solid-state catalyst. The used catalyst Amberlyst-15 is a macroreticular structured polystyrene divinylbenzene matrix containing strongly acid sulfonic acid groups. Alternatively, β-zeolite can be used. When compared to Amberlyst-15, a reduced catalytic activity was found, but with a significantly higher selectivity [17].

Etherification to MTBE and ETBE are well known in the industrial scale and utilize isobutylene fractions from FCC (fluid catalytic cracking), steam cracking or isobutylene dehydrogenation processes. Here, isobutylene is diluted with saturated C4-mixtures containing max. 55 wt.% isobutylene. Unreactive components act as a solvent in order to decrease the stoichiometry of the reactive gas, and thus, to control the exothermic nature of the reaction [18,19]. However, this concept cannot be pursued to avoid contamination of the substrate.

The goal of this study was the first evaluation of ETBE synthesis from fermentative generated isobutylene in order to produce a purely biogenic product fraction, and, in consequence, providing a neutral CO₂ balance. Accordingly, higher conversion rates and the avoidance of side reactions have been assumed. Ethanol/ETBE mixtures are known for poor separation by distillation methods because of the given azeotropic properties of the product, which hindered the recycling of unreacted ethanol in the process [12,13]. Another purpose was therefore to optimize the synthesis eliminating high leftover of ethanol in the expected product mixture and to avoid the ETBE/ethanol azeotrope issues. ETBE with a reasonably high quality of ≥95 wt.% has to be obtained to ensure a satisfactory quality for further application as a fuel additive.

2. Results and Discussion

2.1. Initial Screening Using Excess of Ethanol

The macroreticular structure of Amberlyst-15 imparts unique properties when compared to the homogeneous gel structure of conventional ion exchange resins. Chemical stability is given when employed dry or in nonpolar atmosphere and thus, broadens applications to nonpolar solvent systems in continuous fluidized reactors. The range of application is large and allows mild and highly selective transformations and synthesis in a facile and environmentally friendly manner [20,21]. During etherification the olefin molecule is adsorbed by two sulfonic groups. Carbenium-ion mechanism is proposed and realized at the active sites of the catalyst. A nucleophilic attack by the hydroxyl-oxygen of the ethanol results in the formation of the oxonium-ether species followed by release from the catalyst site (Figure 1) [22,23]. Di- and trimerization of isobutylene are competing reaction pathways. In the case of methanol, it has been found that, in the presence of the alcohol, oligomerization to species heavier than dimers may be greatly reduced. Amount of MTBE fraction is strongly dependent on methanol content as well as reactor design for the provision of efficient cooling to describe an appropriate temperature profile [18].

First experiments included the adjustment of the process conditions that were applied for diluted stream to the designed flow reactor system for ETBE formation by using fossil based non-diluted isobutylene [12,24,25,26]. Accordingly, the loading of Amberlyst-15 catalyst in the reactor catalyst bed has been reduced to easily verify the catalyst volume, and thus, the number of active sites (sulfonic sites). In detail, the catalyst was diluted with inert non-catalytically-active material (glass beads) to avoid favored formation of dimerization (2,4,4-trimethyl-1-pentene, 2,4,4-trimethyl-2-pentene as C₈ fraction) and probable oligomerization (C₁₂ and C₁₆ derivatives) byproducts (Figure 2) at the given reaction conditions and moreover, to intercept the exothermic nature of the reaction and associated temperature runaways. The ETBE production process was carried out continuously using different ratios of isobutylene and anhydrous ethanol (molar ratio isobutylene to ethanol with 0.25, 0.43, 0.67 and 1.0). Moreover, ethanol was used in excess also primarily to avoid the formation of intermolecular products from isobutylene. For every run the same residence time of τ = 1.8 min was applied. Besides the variation of the molar ratios of isobutylene and ethanol, the influence of the temperature and pressure was investigated as well.

Table 1. Data set of the initial screening for continuous processing and ETBE formation using fossil-based isobutylene IBN (constant residence time τ = 1.8 min).

Entry	IBN/EtOH Molar Ratio	Process Conditions (a)	Flow (mL/min)	Yield C8 (%)	Formation Rate ETBE (mol/s/gcat.)	Yield ETBE (%)
1	(1:4.0)	22 °C/2.4 MPa	5.3:13.1	-	6.07 × 10−7	2.6
2	(1:2.3)	22 °C/2.4 MPa	7.5:10.9	-	9.92 × 10−7	3.0
3	(1:1.5)	22 °C/2.4 MPa	9.5:8.9	-	1.25 × 10−6	3.0
4	(1:4.0)	40 °C/2.4 MPa	5.3:13.1	-	5.86 × 10−6	25.1
5	(1:2.3)	40 °C/2.4 MPa	9.5:8.9	-	8.42 × 10−6	20.1
6	(1:4.0)	60 °C/2.4 MPa	5.3:13.1	-	1.36 × 10−5	58.2
7	(1:1.5)	60 °C/2.4 MPa	7.5:10.9	-	2.42 × 10−5	73.2
8	(1:2.3)	60 °C/2.4 MPa	9.5:8.9	-	3.07 × 10−5	73.4
9	(1:1.0)	60 °C/2.4 MPa	11.4:7.0	-	3.77 × 10−5	75.0
10	(1:1.0)	60 °C/1.5 MPa	11.4:7.0	9.8 (b)	3.97 × 10−5	79.0

^(a) Catalyst filling: 1/3 of the total bulk volume; 2/3 filled with inert material; 117 mL reactor volume 33 mL catalyst volume; ^(b) observed only within the starting fraction.

presents the isobutylene conversion profile that is based on fossil feedstock (fossil EtOH/fossil IBN) adjusted as a function of different process temperatures at the exit of the reactor applying for every run the same total substrate flow of mL/min. In initial screenings, ethanol was used in multiple excess at 22 °C and 40 °C process temperature yielding ETBE in low concentration because of a low isobutylene conversion rate. However, ETBE was obtained as the major product. It is noticeable, that with increasing temperature, the conversion of isobutylene increases, and thus, also the yield of ETBE. Increasing the temperature from 22 °C to 60 °C, more than the twenty-fold amount of ETBE was obtained with the same isobutylene to ethanol ratio (Table 1, entry 1 and 6). The assays represent a total yield of ETBE between 2.6% up to 75%. Interestingly, the use of ethanol in excess under higher pressure (p = 2.4 MPa) only resulted in high ETBE selectivity without showing traces of dimerization and/or oligomerization products but to the disadvantage of a low ETBE yield. On the other hand, the continuous formation of ETBE under p = 1.5 MPa partially showed dimerization products at least at the beginning of the conversion process (

Table 2. Data set for the optimization of continuous processing for ETBE formation and increasing its final purity (process pressure 2.4 MPa, catalyst volume 33 mL).

Entry	IBN/EtOH Molar Ratio	T (°C) (a)	Flow (mL/min)	Residence Time (min)	Formation Rate ETBE (mol/s/gcat.)	Yield ETBE (%)	Purity ETBE (wt.%)
1	(1:1.2)	53	9.71:6.88	2.0	3.63 × 10−5	85	80
2	(1:1.0)	55	12.91:8.16	1.6	4.83 × 10−5	85	85
3	(1:0.9)	54	13.61:7.60	1.6	4.96 × 10−5	92	88
4	(1:0.8)	52	16.05:6.95	1.4	5.54 × 10−5	98	86

^(a) Temperature set at the plant between 51 °C to 59 °C.

, entry 10). The purity of the ETBE was not determined during this part of investigations.

2.2. Optimization of the Continuous Synthesis of ETBE Using Fossil Isobutylene

Conversions obtained in the reaction system were evaluated as a function of the iso-butylene/ethanol molar ratio and the process temperature at the reactor exit. In a second screening, the molar ratio of isobutylene to ethanol was varied from 0.86, 1.0, and 1.09 to 1.23 including a real flow setting. Here, the temperature was set between 51 °C to 59 °C and a defined total flow rate of 16.6–23 mL/min was applied resulting in a residence time of τ = 2.0–2.8 min. This set-up was chosen based on the previous experiments determining the limitations of the catalyst productivity and in order to ensure a sufficient residence time of the reactants. Based on the preliminary experimental results summarized in Table 1, the highest production of ETBE without formation of side products was found to occur with entry 9 at IBN/ethanol ratio of 1:1. However, this led to a higher content of ethanol in the product giving an ETBE purity of only 85 wt.% shown in a following experiment (Table 2, entry 2). Consequently, a lower ethanol ratio was used to increase the purity of the product mixture with high degree of isobutylene conversion. An optimal ETBE production procedure is attained while using a stoichiometric molar ratio of 1:0.9 (Table 2, entry 3).

The yield of ETBE was directly measured by quantification within the liquid product phase. Since the isobutylene conversion rate is not determined, selectivity can not be determined unambiguously from experimental results. However, we assume 100% selectivity towards the etherification product: C₈ fractions were not detected in this as well as in the following experiments. Rate of ETBE normalized per catalyst weight reflects the formation of the product as a function of the stream of reactants. A dependence on the amount of catalyst is not given. Nevertheless, it can be seen that the stoichiometry of the educts has a considerable influence on the rate of formation.

2.3. Technology Transfer of the Continuous Synthesis of ETBE Using Bio-Sourced Isobutylene and Production of Sample Amounts

In the synthesis of bio-sourced ETBE from bio-sourced isobutylene, also the given thermo-regulated reactor was used. While setting a constant ethanol flow of ~7.6 mL/min, the highest bio-sourced isobutylene conversion was obtained at reaction temperatures between 53 °C to 55 °C. Lower temperatures usually result in reduced isobutylene conversion and consequently in reduced ETBE concentration in the liquid product fraction. At the same time, a low ETBE purity was observed with a considerable excess of ethanol in the feed stream since unreacted ethanol accumulates in the product phase (

Table 3. Data set for the optimization of continuous processing for bio-sourced ETBE formation (process pressure 2.4 MPa, catalyst volume 33 mL).

Entry	IBN/EtOH Molar Ratio	T (°C) (a)	Flow (mL/min)	Residence Time (min)	Formation Rate ETBE (mol/s/gcat.)	Yield ETBE (%)	Purity ETBE (wt.%)
1	(1:0.9)	54	13.61:7.60	1.6	4.96 × 10−5	92	88
2	(1:1.0)	55	13.22:7.52	1.6	5.42 × 10−5	93	88
3	(1:1.1)	53	9.69:7.50	1.9	3.54 × 10−5	83	79
4	(1:1.5)	52	7.96:7.65	2.1	2.80 × 10−5	80	65
5	(1:1.8)	52	7.28:7.65	2.2	2.76 × 10−5	86	66
6	(1:3.0)	49	4.15:7.56	2.8	1.68 × 10−5	92	49

^(a) temperature set between at the plant 51 °C to 58 °C.

, entry 4–6). This is also reflected in the formation rate of ETBE. Highest values were obtained for short residence times and equimolar proportions of isobutylene and ethanol.

Because of irregular gas flows from the bio-sourced isobutylene cylinder that are caused by carbon dioxide impurities in isobutylene, the flow rate of the feedstock had to be continuously adjusted to the given fluctuations and result in both too low and too high isobutylene flows. This caused temperature fluctuations that could not be compensated due to the inertia of the temperature control system at the reactor. Hot spot formation and temperature runaways are likely to take place, since no dilution of the feed stream was provided. These can only be compensated inadequately and explains the slightly fluctuating temperature profile in the reactor. Best yield and purity of ETBE was reached using process parameters determined previously, namely at IBN/ethanol molar ratio of 1:0.9 and of 1:1.0 (Table 3, entry 1 and 2). At this point, it must be noted that the operation of the reaction system has been adapted by permanent manipulation to the given CO₂ stream. Finally, a continuous flow of isobutylene could be achieved temporarily, resulting in comparable yield and purity levels, as in the fossil feed. This short-term steady-state condition was used as the reference data set.

Optimized conditions (IBN/EtOH molar ratio = 1:0.9 and T = 53 °C) were applied to produce more than 2.0 L of 100% renewable ETBE from bio-sourced isobutylene and bio-sourced ethanol in good yield (97%) but moderate quality of 89 wt.% (

Table 4. Data set and process parameters for 100% renewable ETBE production in liter-scale (process pressure 2.4 MPa, catalyst volume 33 mL).

Entry	IBN/EtOH Molar Ratio	T (°C) (a)	Flow (mL/min)	Residence Time (min)	Formation Rate ETBE (mol/s/gcat.)	Yield ETBE (%)	Purity ETBE (wt.%) (b)	Water Content (wt.%)
1	(1:0.9)	53	13.09:7.56	1.6	4.77 × 10−5	97	89	-
2	(1:0.4)	54	25.97:7.10	1.0	4.26 × 10−5	34	84/99 (b),(c)	0.02/0.50

^(a) Temperature set at the plant between 51 °C to 58 °C; ^(b) after water extraction of the ETBE product; ^(c) 4.2 L ETBE solution were purified to give 2.9 L ETBE with 99 wt.%.

, entry 1). In order to increase the ETBE purity, a second campaign was started to convert bio-sourced isobutylene accompanied by an increase in the IBN/ethanol molar ratio to 1:0.4 (Table 4, entry 2). The flow rate of isobutylene was doubled to suppress enrichment of ethanol in the liquid product phase and suppress the formation of dimerization products; mainly for the reason of being able to realize a continuous isobutylene stream from the cylinder. However, an entirely steady reaction was not observed, resulting in a temperature fluctuation between 51 °C to 58 °C within the reactor. Dilution of the catalysts reduces the number of active sites. However, only dilution of the substrate by an inert feed, such as alkanes, allow a constant temperature distribution in the catalyst bed and the avoidance of hot spots, since alkanes are adsorbed uniformly on the catalyst surface and block active sites.

This mode of reaction led to incomplete conversion of isobutylene with a yield of ETBE, relative to isobutylene of only 34%. Isobutylene was released from the reactor unconverted. Dimerization and oligomerization to higher olefins were not observed in the product phase.

Purification methods were evaluated to subsequently increase ETBE purity to a reasonable quality for further application tests. After post-distillation of the ETBE product at reduced pressure (390 mbar) at moderate temperature (50 °C), water extraction was applied in order to transfer the residual ethanol into the water phase and further increase the ETBE concentration beyond the ETBE/ethanol azeotrope. This purification procedure was successfully carried out and led to 2.9 L of a final solution with w_ETBE ≥ 99 wt.%. This corresponds to an overall yield of 28%. At the same time, the water content in the solution rises from 0.02 wt.% to 0.50 wt.%. One-cylinder engine testing results confirmed that the renewable gasoline meets the requirements and it has very high performances. Start of the on-road testing phase for renewable ETBE is being announced [27].

3. Materials and Methods

3.1. Chemicals and Equipment

Fossil-based isobutylene (IBN) (3.0; w_IBN ≥99 wt.% and w_CO2 ≤ 0.1 vol.%; Linde, Leuna, Germany) and a very early sample of bio-sourced isobutylene provided by Global Bioenergies (Leuna, Germany) with an IBN concentration of w_IBN = 92.8 vol.% and a carbon dioxide concentration of w_CO2 = 6.4 vol.% was used and handled as a liquefied gas. Bio-sourced absolute ethanol was purchased from VWR Chemicals (Dresden, Germany) (≥99.8 wt.%) and Merck (Darmstadt, Germany) (≥99.9 wt.%), respectively. The reaction was heterogeneously catalyzed while using Amberlyst-15 (hydrogen form; Sigma-Aldrich, (Taufkirchen, Germany)). To dilute the catalyst´s loading, inert glass beads (5 mm, VWR (Dresden, Germany)) were used with a mass ratio of catalyst to inert material of 1:3 (volume ratio catalyst/glass beads = 2.57) and catalyst volume V_cat = 33 mL.

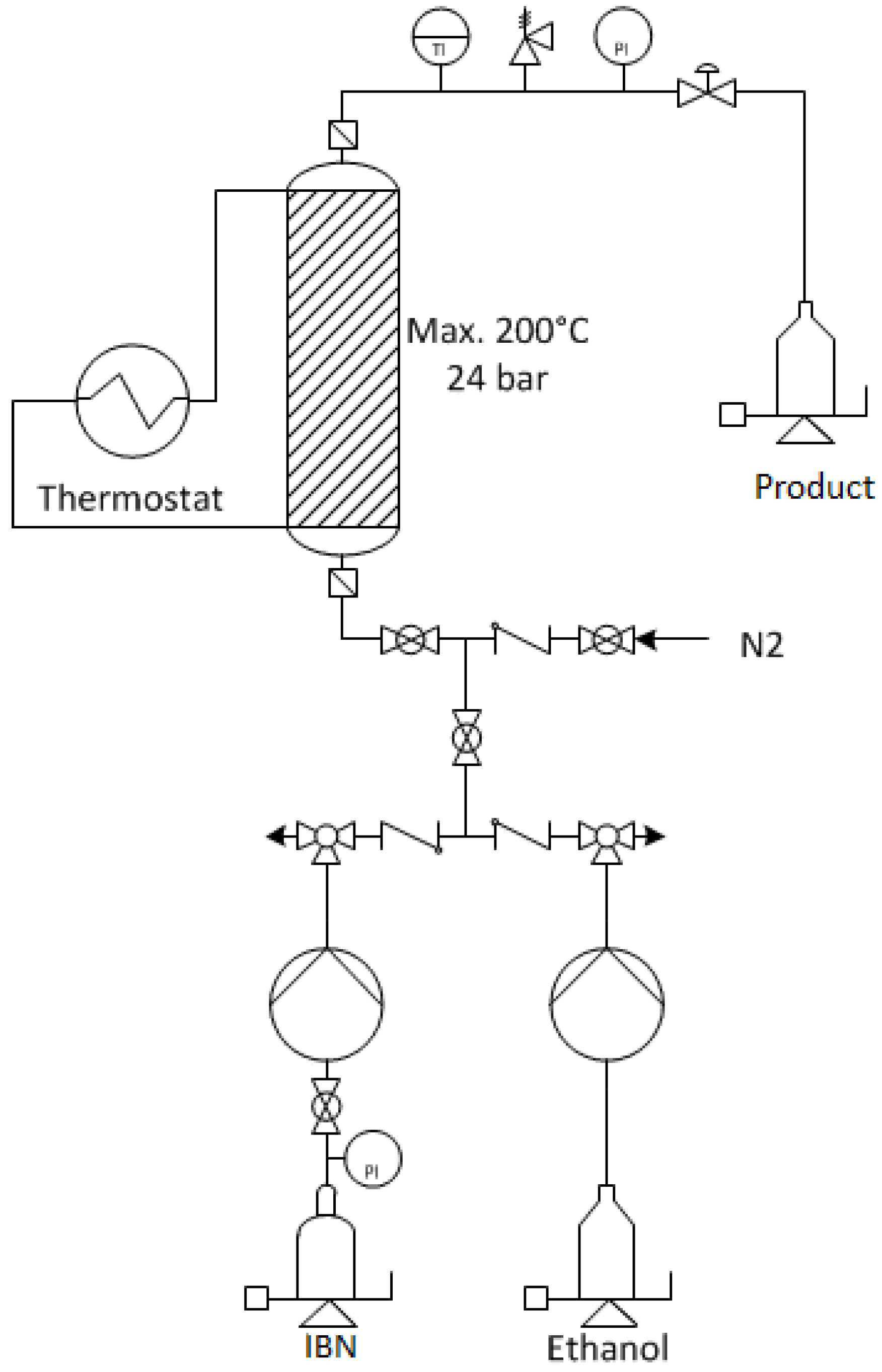

The catalytic reaction was carried out in a continuous-flow reactor system (Figure 3). The reactor consisted of a countercurrent heated flow tube. The heated section was about 60.5 cm and the inner diameter ¾" (19.05 mm). The heating medium was externally tempered and the process temperature was measured approx. 20 cm above the upper end of the heating jacket. The total reactor volume was defined to be 117 mL. Two high-pressure piston pumps were used to pump individual liquid feeds into the reactor system, controlling the flow rates from each pump. The pressure adjustment was carried out via a manual pressure valve that was mounted at the reactor outlet.

3.2. Methods for Catalysis and Purification

After connecting the isobutylene cylinder and the ethanol feed, the system was first purged with nitrogen at 60 °C and subjected to a pressure test of up to 26 bar for 30 min. Subsequently, the pressure was adjusted to 24 bar and the ethanol flow started. As soon as ethanol emerged from the reactor outlet into the collecting vessel, isobutylene has been dosed and the measurement was started. Three pre-flows were collected for an interval of 10 min to ensure that isobutylene was fully circulated through the reactor space and the catalyst was activated. If the reaction stagnated due to too much gas in the isobutylene cylinder, the flow rates were adjusted and/or the supply of isobutylene was vented. Various ratios on molarities of isobutylene to ethanol were adjusted by regulation of the pump flow rate. Residence time τ was calculated as quotient of catalyst volume in mL and flow rate of both substrates (ethanol and isobutylene) in mL/min. The yield of the product was determined as the amount of ETBE in the product solution always related to the deficient part of starting material in the feedstock solution. It is defined as the amount of ETBE in the isolated liquid product determined by gas-chromatography analysis. ETBE formation rate was derived from that taking into account ρ(catalyst) = 1.2 g/mL at 25 °C and ρ(isobutylene) = 0.5879 g/mL in liquid phase.

The ETBE/ethanol mixture was post-distilled at 50 °C and under reduced pressure at 390 mbar removing traces of isooctene, oligomerization products, and flushed catalyst sulfonylic acid residues. Selected samples from bio-sourced ETBE production have been further purified by water extraction. Here, ETBE samples were stirred with a 1:3 mass ratio (determined with Gibbs’s phase diagram) with deionized water in the batch reactor (10 L borosilicate glass reactor equipped with a KPG stirrer) for 10 min. Phase separation resulted in the isolation of the purified ETBE sample without further treatment.

3.3. Analytical Methods

Products were analyzed using instrumental gas-chromatography methods. A device from Agilent Technologies (Waldbronn, Germany), type 7890A as a gas chromatograph with a post-coupled mass spectrometer (5975c VL MSD with Triple Axis Detector, (Agilent Technologies (Waldbronn, Germany)) and the 7693 auto sampler was used for the quantitative measurement of the samples. As a separation column, a HP-5MS column was employed. O-xylene was used as an internal standard. Conversion rates and yields were determined from a molar mass balance in the reactor system. Water content was determined by Karl Fischer titration (KF; 803 Ti Stand from Metrohm (Filderstadt, Germany)).

4. Conclusions

The use of fermentative produced isobutylene as undiluted substrate in a solvent-free catalysis was demonstrated for the first time. It was shown that bio-soured isobutylene can be implemented directly in process chains for the production of fuels and fuel additives. Direct etherification with bio-sourced ethanol results in the production of fully renewable ethyl tert-butyl ether (ETBE) in yields up to 97 mol% ETBE applying the acidic ion exchanger Amberlyst-15. Hot-spot formation and temperature runways probably occurred during the reaction, although the catalyst was diluted. Deactivation of the catalyst by catalyst-poisons was not observed. However, occasions of a gradual deterioration in the eligibility of the biogenic isobutylene ensued. The reason for this is the presence of gaseous impurities, in particular, of dissolved carbon dioxide in the isobutylene cylinder, which makes the continuous processing of the liquid substrates more difficult. Plant-specific modifications are required to suppress gas formation, while feeding the liquefied and CO₂ containing gas during reaction.

Finally, product mixtures in liter scale could be synthesized by continuous process adaption with purities up to 89% and yields of 97%. Residues of ethanol were successfully removed from the ETBE phase by evaporation and water extraction giving ETBE purities of 99 wt.%, and thus, providing satisfactory quality for application as a fuel additive in engine-testing.
