Two-Dimensional Layered Double Hydroxide Derived from Vermiculite Waste Water Supported Highly Dispersed Ni Nanoparticles for CO Methanation

Key Laboratory for Green Processing of Chemical Engineering of Xinjiang Bingtuan, School of Chemistry and Chemical Engineering, Shihezi University, Shihezi 832003, China
Collaborative Innovation Center of Renewable Energy Materials, Guangxi University, Nanning 530004, China
Environmental Functional Nanomaterials (EFN) Laboratory, College of Environmental Science and Engineering, Beijing Forestry University, Beijing 100083, China
State Key Laboratory of Chemical Engineering, East China University of Science and Technology, Shanghai 200237, China
Authors to whom correspondence should be addressed.
Academic Editor: Simon Penner
Catalysts 2017, 7(3), 79;
Received: 9 December 2016 / Accepted: 1 March 2017 / Published: 7 March 2017
PDF [6918 KB, uploaded 9 March 2017]

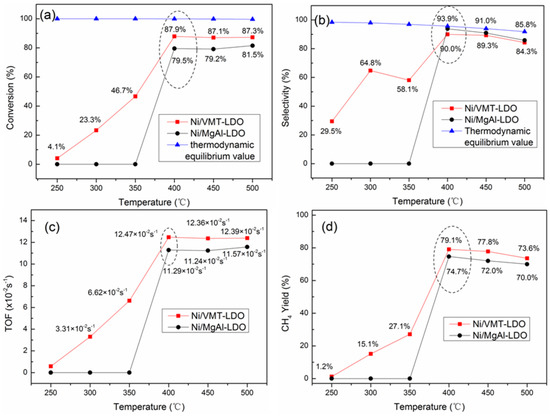

Expanded multilayered vermiculite (VMT) was successfully used as catalyst support and Ni/VMT synthesized by microwave irradiation assisted synthesis (MIAS) exhibited excellent performance in our previous work. We also developed a two-dimensional porous SiO2 nanomesh (2D VMT-SiO2) by mixed-acid etching of VMT. Compared with three-dimensional (3D) MCM-41, 2D VMT-SiO2 as a catalyst support provided a superior position for implantation of NiO species and the as-obtained catalyst exhibited excellent performance. In this paper, we successfully synthesized a layered double hydroxide (LDH) using the spent liquor after mixed-acid etching of VMT, which mainly contained Mg2+ and Al3+. The as-calcined layered double oxide (LDO) was used as a catalyst support for CO methanation. Compared with Ni/MgAl-LDO, Ni/VMT-LDO had smaller active component particles; therefore, in this study, it exhibited excellent catalytic performance over the whole temperature range of 250–500 °C. Ni/VMT-LDO achieved the best activity with 87.88% CO conversion, 89.97% CH4 selectivity, and 12.47 × 10−2·s−1 turn over frequency (TOF) at 400 °C under a gas hourly space velocity of 20,000 mL/g/h. This study demonstrated that VMT-LDO as a catalyst support provided an efficient way to develop high-performance catalysts for synthetic natural gas (SNG) from syngas. View Full-Text
Keywords: two-dimensional materials; layered double hydroxide (LDH); CO methanation; vermiculite two-dimensional materials; layered double hydroxide (LDH); CO methanation; vermiculite

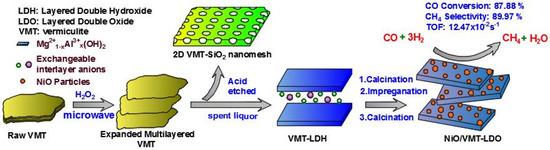

Graphical abstract
