One Pot Synthesis of Pt/Graphene Composite Using Polyamidoamine/Chitosan as a Template and Its Electrocatalysis for Methanol Oxidation

by
Yanli Wang
1,
Zhongshui Li
1,2,
Shuhong Xu
1,
Fengling Lei
1 and
Shen Lin
1,2,*
1
College of Chemistry & Chemical Engineering, Fujian Normal University, Fuzhou 350007, China
2
Fujian Key Laboratory of Polymer Materials, Fujian Normal University, Fuzhou 350007, China
*
Author to whom correspondence should be addressed.
Catalysts 2016, 6(10), 165; https://doi.org/10.3390/catal6100165
Submission received: 17 August 2016 / Revised: 18 October 2016 / Accepted: 19 October 2016 / Published: 24 October 2016
(This article belongs to the Special Issue Catalysis for Low Temperature Fuel Cells)
Browse Figures
Versions Notes

Abstract

:
A one-pot hydrothermal strategy was used to synthesize Pt/GNs (PAMAM) & Pt/GNs (CS) composites. Pt nanoparticles are deposited onto graphene sheets (GNs) via synchronous reduction of K2PtCl4 and graphene oxide (GO) under hydrothermal conditons without additional reducing agent. During the synthesis process, polyamidoamine (PAMAM) or chitosan (CS) was used as a template respectively to obtain shape controlled Pt particles on the surface of GNs, leading to the formation of flower-like Pt nanoclusters for Pt/GNs (PAMAM) and uniform spherical Pt nanoparticles for Pt/GNs (CS). PAMAM and CS are simultaneously served as intrinsic reducing agents to accelerate reduction process; ensuring excellent electrical conductivity of the composites. Electrochemical tests show that Pt/GNs (PAMAM) and Pt/GNs (CS) have much higher electrocatalytic activity and better stability toward methanol oxidation reaction (MOR) in comparison with counterpart Pt/GNs and the commercially available 20% Pt/C catalyst (Pt/C) due to their better dispersion of Pt particles, stronger interaction between Pt and substrate materials, and better electron transfer capability.

Graphical Abstract

1. Introduction

Hydrothermal synthesis method is widely used to synthesize composite materials with excellent properties. Boppella et al. [1] reported the formation of oriented ZnO structures with tunable percentage of exposed polar facets via a simple hydrothermal route in aqueous base environment. Yu et al. [2] demonstrated unique hollow Pt-ZnO nanocomposite microspheres with hierarchical structure under mild solvothermal conditions. Especially, this method has an advantage for the synthesis of graphene-based nanomaterials due to the possible synchronous reduction of graphene oxide and the corresponding metal precursors [3,4]. Lei et al. [5] have reported one-pot hydrothermal synthesis of an efficient anodic electro-photo catalyst Pt/SnO2/GNs (EDTA) for direct methanol fuel cell (DMFCs) applications. Li et al. [6] developed a facile hydrothermal approach to efficiently synthesize Pt-NCs/rGO composites with high shape selectivity and enhanced catalytic activity for MOR. Yun et al. [7] reported the in situ hydrothermal synthesis of 3D macroporous rGO aerogels/palladium nanoparticle hybrids for electrocatalytic applications. In these reports, they emphasized that the shapes, assembly or dispersion of as-prepared nanoparticles by hydrothermal synthesis method can significantly impact their performance. However, hydrothermal reaction is a “covert operation” and unable to intervene in the reaction process. Therefore, in order to effectively control the micro structure of the products, the raw materials must be strictly selected and the reasonable chemical reactions process needs to be predetermined.
Polyamidoamine (PAMAM) is one of the most popular dendrimers with a near-spherical structure [8,9]. It contains rich cavities within molecules and has a large number of active functional groups on the surface of molecules, which makes it able to graft other ions, molecules or particles on the core, peripheral or embedded cavity by electrostatic interaction and covalent coordination [10,11]. Maiyalagan, T. [9] has anchored PAMAM on functionalized carbon nanofibers (CNF) to facilitate the controlled dispersion of Pt–Ru nanoparticles which are used to catalyze methanol oxidation. Chitosan (CS) is an abundant linear polymer, in which there exist a large number of hydroxyls and aminos in polymer chain segments [12,13,14]. Especially, its –NH2 groups can be protonated in acidic medium, causing them to have a positive charge. The positive protonated amines and the rich hydroxyl in chitosan can act as the mooring point and steric hindrance agent of metal nanoparticles [15,16]. Li et al. [17] have assembled worm-like Pt nanoparticles on PW12-GNs support using CS as a shape directing agent for catalyzing methanol oxidation. Thus, it can be reasonable to deduce that the unique structures of dendritic and linear macromolecule above can be used as the agent for controlling Pt nanoparticles shape and dispersion under hydrothermal conditions.
In this case, a one-pot hydrothermal method was used to synthesize Pt/graphene composites Pt/GNs (PAMAM) and Pt/GNs (CS) without additional reducing agent. The fourth generation amine-terminated polyamidoamine dendrimers (PAMAM) and chitosan (CS) not only act as templates to control the morphology of Pt particles but also serve as internal reductants to accelerate reduction reaction, which effectively makes up the “covert operation” shortcomings of hydrothermal reaction to present a new paradigm for the synthesis of graphene based nano-materials with desired morphology. As-synthesized composites show remarkably higher electrocatalytic activity and enhanced resistance to CO poisoning compared with counterpart Pt/GNs and commercially available 20% Pt/C catalyst (Pt/C). Especially, as-synthesized composites show better stability toward methanol oxidation reaction (MOR), which is helpful to overcome the fast decay in catalytic reaction process for Pt-based catalysts.

2. Results and Discussion

2.1. Characterization

X-ray photoelectron spectroscopy (XPS) of Pt/GNs, Pt/GNs (CS) and Pt/GNs (PAMAM) are shown in Figure 1. The C1s spectra show that carbon elements in complex exist in three kinds of chemical bonds which are mainly in the form of C–C, C–O/C–N and –CONH [18]. It is calculated that the percentages of the above three kinds of carbon functional groups are 43.24%, 15.82%, 40.94% for Pt/GNs (PAMAM) and 43.21%, 18.81%, 37.98% for Pt/GNs (CS), respectively. Correspondingly, they are 60.32%, 17.39%, 22.29% for Pt/GNs, respectively. Evidently, the C–O/C–N components in the three complexes are drastically decreased in comparison with pristine GO [19], which indicates that GO was converted into graphene sheets (GNs) at high temperature and pressure [20,21,22]. Furthermore, the proportion of –CONH bond components for Pt/GNs (PAMAM) and Pt/GNs (CS) are 40.94% and 37.98%, respectively, both are much higher than that for Pt/GNs, which may be due to that some of PAMAM and CS chains have been bonded to the graphene surface during the GO reduction process [21]. The Pt 4f spectrum of Pt/GNs is displayed in Figure 1D. Based on curve fitting with a mixed Gaussian-Lorentzian line shape, Pt seems to exist in various states. The most intense doublet (71.19 eV and 74.66 eV) is ascribed to metallic Pt (0) [23]. The doublet (71.92 eV and 75.51 eV) can be assigned to Pt (II) chemical state (PtO and Pt(OH)2) [24]. Correspondingly, Pt 4f of Pt/GNs (CS) exhibits the clear peaks which can be deconvoluted to reveal Pt (0) species at 71.39 eV and 74.85 eV (Figure 1E). The peaks assigned to Pt (II) species are also observed at 72.17 eV & 76.14 eV. Similarly, Pt (0) species is the main species for Pt in Pt/GNs (CS). As shown in Figure 1F, Pt 4f spectra of Pt/GNs (PAMAM) show the presence of metallic Pt (0) (71.38 eV, 74.84 eV), PtO/Pt(OH)2 (72.4 eV, 77.71 eV), respectively. It is calculated that the percentages of Pt (0) for Pt/GNs, Pt/GNs (CS), and Pt/GNs (PAMAM) are 73.49%, 68.36%, 62.21%, respectively, and the percentages of Pt (II) for Pt/GNs, Pt/GNs (CS), and Pt/GNs (PAMAM) are 26.51%, 31.64%, 37.79%, respectively. It is reported that the existence of appropriate amount of oxide species may promote methanol oxidation reaction in acid medium [25,26]. Furthermore, it can be seen that the binding energies of Pt 4f7/2 and Pt 4f5/2 for Pt (0) in Pt/GNs (PAMAM) and Pt/GNs (CS) shift to a higher value in comparison with that in Pt/GNs, indicating that Pt/GNs (PAMAM) and Pt/GNs (CS) have stronger interaction between Pt and GNs (support) due to the introduction of PAMAM and CS [27].
Transmission electron microscope (TEM) and high-resolution transmission electron microscope (HRTEM) images of Pt/GNs (PAMAM), Pt/GNs (CS), and Pt/GNs are shown in Figure 2. It is found that the Pt nanoparticles in Pt/GNs (PAMAM) were mainly in the form of flower-like clusters consisting of primary nanoparticles (Figure 2A,B), and the size of the primary particles were uniform, with the average diameter of about 5 nm as seen in the inset of Figure 2A. ThenHRTEM image in Figure 2C presents the details fringes of Pt for Pt/GNs (PAMAM). The lattice fringes with a d-spacing of 0.226 nm is attributed to the spacing of the (111) planes in face-centered cubic (fcc) Pt [28,29], which further suggests the zero-valent state of Pt and high crystallinity of Pt nanoparticles. Figure 2D,E show the Pt nanoparticles of Pt/GNs (CS) are highly dispersed on the surface of GNs, mainly in the form of spherical particles. As depicted in the inset of Figure 2D, the particle size of Pt nanoparticles was very uniform, with the average diameter of about 3 nm. It should be noted that uniform and small spherical Pt nanoparticles have a significant advantage of large surface areas. Similarly, the HRTEM image in Figure 2F presents the details fringes of Pt for Pt/GNs (CS), and the lattice fringes with a d-spacing of 0.225 nm correspond to the (111) plane of fcc Pt. In contrast, Pt particles in Pt/GNs (Figure 2G–H) are big and non-uniform, with the average diameter about 10–34 nm (the inset of Figure 2G). Furthermore, the lattice spacing for dark Pt particles is 0.227 nm (Figure 2I). Obviously, the dispersity of Pt nanoparticles in Pt/GNs (PAMAM) and Pt/GNs (CS) is drastically improved compared with Pt/GNs, and their morphologies can be effectively controlled by PAMAM and CS.
The shape of Pt nanoparticles on Pt/GNs (PAMAM) is different from that of the Pt nanoparticles on Pt/GNs (CS). As for Pt/GNs (PAMAM), the primary Pt nanoparticles are formed with uniform size due to the mooring role of the protonated amines in PAMAM. Meanwhile, with the template effect of the dendrimer stucture, these primary nanoparticles are connected to each other to form flower-like nanoclusters. Similarly, CS also can be protonated under acidic conditions to greatly enhance the solubility of CS and promote polymer chain segment stretching in aqueous solution [16], which brings about the electrostatic interaction between PtCl42− and protonated –NH3+ in the polymer chain. The interaction contributes to the rapid nucleation of Pt particles after the reduction of PtCl42−. The rich hydroxyls in CS act as a steric hindrance agent to protect Pt particles from further aggregation [30], resulting in the formation of uniform Pt nanoparticles. Saidi and Fichthorn have pointed out that both thermodynamics and kinetics likely played a role in the formation of these nanostructures [31,32]. On one hand, PAMAM (or CS) can induce kinetic Pt particles shapes by regulating the relative Pt fluxes to desired facets (Pt (111) in this work) [32]. On the other hand, the freshly formed primary Pt particles are thermodynamically unstable because of their high surface energy, and they tend to aggregate driven by the minimization of interfacial energy [33,34]. With the template of the dendrimer structure, Pt primary particles on Pt/GNs (PAMAM) are inclined to aggregate into nanoclusters; on the contrary, the rich hydroxyls in CS block Pt primary particles surface diffusion, leading to uniform spherical particles. Additionally, it is reported that organic amines can serve as a reducing agent to reduce GO into GNs [35,36]. Therefore, PAMAM and CS should promote to reduce GO and PtCl42− into GNs and Pt under hydrothermal conditions, accelerating the nucleation rate of Pt particles and favoring the formation of Pt nanoparticles of smaller size. Thus, PAMAM and CS not only act as a template to control the morphology of Pt nanoparticles but also serve as an intrinsic reducing agent to increase the dispersity of Pt nanoparticles.
Powder X-ray diffraction (XRD) patterns of Pt/GNs, Pt/GNs (CS), and Pt/GNs (PAMAM) are shown in Figure 3A. The diffraction peaks at 40.0°, 46.5°, 67.8°, 81.6°, and 86.2° (2θ value) can be assigned to (111), (200), (220), (311), and (222) crystalline planes of Pt (0) fcc lattice, respectively [37], which further indicates good crystallinity and zero-valent state of Pt in the obtained three composites. The diffraction peak for Pt (220) is used to estimate the size of Pt nanoparticles with the Scherrer Equation (1) [30,37].
d = Kλ/βcosθ
It is calculated that the average size of Pt nanoparticles in Pt/GN, Pt/GNs (CS) and Pt/GNs (PAMAM) is about 21.5, 4.0 and 5.5 nm, respectively, which are consistent with the TEM analysis.
Figure 3B displays Raman spectra of Pt/GNs, Pt/GNs (CS), and Pt/GNs (PAMAM). The D band (about 1310 cm−1) originates from the defects in the curved graphene sheet and staging disorder, while the G band (about 1597 cm−1) was associated with the graphitic hexagonpinch mode [38,39]. The ID/IG intensity ratio can be used to measure the crystalline quality of graphite or graphene via different kinds of treatment, increasing with the amount of disorder for grapheme-based materials [40,41,42,43]. It is found that the values of ID/IG for Pt/GNs (PAMAM) and Pt/GNs (CS) are 1.57 and 1.62, both of which are lower than the value of ID/IG for the Pt/GNs value (1.68), indicating that the disorder degree of GNs is decreased in Pt/GNs (PAMAM) and Pt/GNs (CS). A possible reason for this is that PAMAM and CS promote GO to be reduced into GNs, in favor of the recovery of the original structure for GNs. GNs with lower degrees of disorder can maintain their good electron transfer capability and endow graphene-based composites with better catalytic performance [42,44].

2.2. Electrocatalysis

Figure 4 displays the cyclic voltammetry (CV) curves of the different composites conducted at room temperature in 0.5 M H2SO4 solution at 100 mV·s−1. For all composites, typical hydrogen adsorption/desorption peaks and Pt oxide formation/reduction peaks can be observed. Their electrochemical surface area (ECSA) is evaluated by the integrated charge (QH) in the hydrogen adsorption region, with Equation (2) [42].
ECSA = QH/(210 uC·cm−2 × Pt loading)
By calculation, it is found that the specific ECSA of Pt/GNs (PAMAM) and Pt/GNs (CS) is 117.8 m2·g−1 and 103.7 m2·g−1, respectively, which is higher than that of Pt/GNs (47.7 m2·g−1) and commercial catalyst Pt/C (75.1 m2·g−1) (Table 1). The higher ECSA of Pt/GNs (PAMAM) and Pt/GNs (CS) are obviously related to the unique morphology and uniform distribution of Pt nanoparticles, which is helpful to improve their catalytic performance [37].
The electrocatalytic activities of as-synthesized composites for MOR were discussed by analyzing their CV curves carried out in 0.5 M H2SO4 containing 1 M CH3OH solution at a scan rate of 100 mV·s−1 (Figure 5A,B). It can be seen from Figure 5B that the Pt/GNs (CS) and Pt/GNs (PAMAM) exhibit a mass activity (forward peak current density) of 1031 mA·mg−1 and 1203 mA·mg−1 (listed in Table 1), which is 2.3 and 2.6 times higher than that of Pt/C (455 mA·mg−1), respectively. It is observed that the onset potential value for Pt/GNs (CS) and Pt/GNs (PAMAM) is 0.36 and 0.35 V, respectively, which is lower than that for Pt/GNs (0.40 V) and Pt/C (0.45 V) (Table 1). Lower onset potential may contribute to superior electro-catalytic activity for methanol oxidation [37,45]. It is reported that the functional-modified graphene is in favor of inhibiting the irreversible aggregation process of Pt/graphene composites [46]. In this case, the introduction CS and PAMAM into the graphene layer may play a functional-modified role to prevent the aggregation of graphene composites, resulting in remarkably improved electrocatalytic activity.
In addition, the enhanced catalytic activity may be ascribed to the superior electric conductivities of the as-synthesized composites, which can be proven by EIS analysis. The Nyquist plots of EIS for Pt/GNs (PAMAM), Pt/GNs (CS), Pt/GNs and Pt/C in 1 M CH3OH + 0.5 M H2SO4 solution at 0.5 V are shown in Figure 5C. The diameter of semicircle at high frequencies is a measure of charge transfer resistance related to the charge transfer reaction kinetics [47,48,49]. Obviously, the diameters of semicircle for Pt/GNs (PAMAM) and Pt/GNs (CS) are much lower than those of Pt/GNs and Pt/C, which demonstrates that Pt/GNs (PAMAM) and Pt/GNs (CS) have lower charge transfer resistance and faster reaction rate for MOR [50]. This suggests that the introduction of PAMAM and CS can keep the good electron transfer capability of graphene-based composites to endow them with better catalytic performance.
In order to directly observe their anti-poisoning ability to CO-like intermediate species, CO stripping curves of Pt/GNs (PAMAM), Pt/GNs (CS), Pt/GNs and Pt/C were measured by oxidation of pre-adsorbed and saturated CO in the 0.5 M H2SO4 solution at 100 mV·s−1 (Figure 6A). The peak potential of CO oxidation for Pt/GNs (PAMAM) (curve 3) and Pt/GNs (CS) (curve 2) is 0.59 and 0.64 V, respectively, which is lower than that for Pt/GNs (0.67 V) and Pt/C (0.72 V). Their more negative CO oxidation peak demonstrates that CO on Pt/GNs (PAMAM) and Pt/GNs (CS) surface is easier to oxidize and remove from the Pt surface [27], suggesting an enhanced poisoning tolerance. The possible reasons for the greater tolerance to CO-like species are as follows: firstly, there are abundant cavities in the core of PAMAM and a large number of nitrogen-containing groups on the surface of PAMAM [51], and CS also possesses abundant –NH2 and –OH groups on its polymer chains [52], which results in a complex interaction between PAMAM (CS) mooring groups and Pt particles [30,53]. The strong interaction can induce modulation in the electronic structure of Pt particles and decrease the Pt–CO binding energy to reduce the CO adsorption on Pt active sites [9,12]. This point can be proved by Pt 4f XPS spectra analysis. As shown in Figure 1D, the binding energy of Pt 4f for Pt/GNs (PAMAM) and Pt/GNs (CS) presents a positive shift due to the introduction of PAMAM and CS, which means that the interaction between Pt and support materials is much stronger than that of their corresponding counterpart Pt/GNs [27,29]. A higher binding energy would increase metal bond strength and reduce the potential of metal to form strong bonds with absorbed reactants, in favor of removing the strongly adsorbed CO-like species during MOR [29]. Secondly, the protonated NH3+ groups or –OH groups can enhance the hydrophilic properties of RGO to promote water activation [16], and as a result, the adsorbed OH− species at the surface of Pt particles promote the oxidation of CO [30].
Chronoamperometry tests were carried out at 0.70 V for 3600 s to assess the electrocatalytic stability of different composites. As shown in Figure 6B, their current densities decay quickly during the initial minutes, which may be due to CO-like intermediate species poisoning on the Pt surface during the early stage of MOR [54]. Following this, the current densities decreased slowly and reach a quasi-stationary value after 3600 s. It was found that Pt/GNs (PAMAM) (curve 3) and Pt/GNs (CS) (curve 2) present the lower declining rate and the higher quasi-stationary current density in contrast with Pt/GNs (curve 1) and Pt/C (curve 0), suggesting an enhanced catalytic stability. The results are in agreement with CO stripping curves analysis. The superior catalytic activity and stability of Pt/GNs (PAMAM) and Pt/GNs (CS) may be related to the fact that the abundant protonated NH3+ groups or –OH groups can effectively stabilize Pt particles against gathering, endowing Pt active sites with a stronger ability to refresh [16,30,51,53].

3. Materials and Methods

3.1. Materials

Natural graphite powder (about 325 mesh) was purchased from Alfa Aesar (Ward Hill, MA, USA). Commercial Pt/C catalyst (Hispec 3000, wt % 20%) was purchased from Johnson-Matthey (London, UK). Fourth generation amine-terminated polyamidoamine dendrimers (PAMAM) with the highest available purity (10 wt % in methanol) were purchased from Sigma Aldrich (Darmstadt, Germany). Chitosan (CS) was purchased from Sinopharm Chemical Reagent Co. Ltd. (Shanghai, China), and then completely deacetylated as follows [55]: 80% deacetylation CS was added to 50% NaOH solution and stirred for 6 h at 95 °C under N2 protection. After that, the product was purified and lyophilized. Potassium chloride (99%), hydrogen peroxide (30%), potassium permanganate, potassium sulfate, concentrated sulfuric acid, phosphorus pentoxide, methanol, and ethanol were purchased from Sinopharm Chemical Reagent Co. Ltd. (Shanghai, China), and all the chemicals were of analytical grade. The water used in the experiments was distilled water.

3.2. Synthesis of Pt/GNs (PAMAM) and Pt/GNs (CS)

Graphene oxide (GO) was synthesized using a modified Hummers’ method [56,57], and the detailed steps were described previously [5]. The overall synthetic route of Pt/GNs (PAMAM) and Pt/GNs (CS) was illustrated in Scheme 1. In a typical procedure of Pt/GNs (PAMAM), 50 mg of GO were dispersed in 25 mL of distilled water by sonication for 1 h. Simultaneously, after removing methanol from 0.45 mL 10% PAMAM methanol solution, PAMAM was dissolved into 20 mL water and its pH was adjusted to 3 with dilute hydrochloric acid. Then 5 mL of K2PtCl4 (1 g/100 mL) were added and stirring for 30 min. After the completion of the stirring, the mixture was put into the GO solution and further sonicated for 1 h to ensure sufficient mixing, and its pH was adjusted to 3 again. Afterwards, the mixed suspension was transferred into a Teflon-lined stainless steel autoclave and reacted at 180 °C for 12 h under autogenous pressure. When hydrothermal reaction was completed, autoclave was allowed to cool naturally to room temperature. Finally, the product was purified through repeated washing and centrifugation (at 10,000 rpm for 20 min), then the black precipitate was lyophilized and Pt/GNs (PAMAM) were obtained. The Pt/GNs (CS) composite was synthesized by the same process, adjusting the pH of mixed solution to 3. For comparison, Pt/GNs was synthesized by similar procedure without addition of PAMAM or CS. Pt actual contents in the composites were determined by ICP-AES (Thermo Scientific, Pleasanton, CA, USA) with the values of 31.42% for Pt/GNs, 32.50% for Pt/GNs (CS) and 35.71% for Pt/GNs (PAMAM), respectively.

3.3. Characterization

The microscopic feature and morphology of the composites were characterized by a high-resolution transmission electron microscope (HRTEM, TECNAI G2, FEI, Hillsboro, OR, USA) operating at 200 K. XPS was recorded on monochromatic Al Ka radiation (1486.6 eV) using a Thermo Scientific VG ESCALAB 250 spectrometer (Thermo Scientific). XRD patterns were determined at a scanning rate of 5°·min−1 on a Philips X′ pert Pro diffractometer (PANalytical B.V., Holland, The Netherlands), using Cu Ka radiation. Raman spectra were measured through a Renishaw-invia Raman micro-spectrometer equipped with a 514 nm diode laser excitation on a 300 lines·mm−1 grating. The amount of actual Pt loading was determined using inductively coupled plasma atomic emission spectroscopy (ICP-AES, ICAP6300).

3.4. Electrochemical Measurements

All electrochemical tests were performed with a standard three-electrode system on a CHI 660C electrochemical workstation (ChenHua, Shanghai, China) at room temperature. The three electrodes cell included an Ag/AgCl (saturated KCl) electrode as a reference electrode, a platinum column as a counter-electrode and a modified glassy carbon electrode as a working electrode. Its working electrode was modified as follows: 5 mg of catalyst were ultrasonically dispersed into 1 mL ethanol to form homogeneous ink, then 5 μL of ink were dropped onto the surface of pre-polished glass carbon electrode (3 mm in diameter). Subsequently, 7.5 μL diluted 0.5% Nafion solution was dropped to fix the samples. Cyclic voltammetry (CV) was tested in 0.5 M H2SO4 or 0.5 M H2SO4 + 1.0 M CH3OH solution at room temperature with a scan rate of 100 mV·s−1. The CO stripping voltammograms were recorded by oxidation of preadsorbed CO (COad) in 0.5 M H2SO4 solution at 100 mV·s−1. CO gas was purged into 0.5 M H2SO4 solution at a constant potential of 0.1 V for 1800 s to ensure the complete adsorption of CO onto the samples. The excess CO in the electrolyte was driven out by purging N2 for 15 min. Chronoamperometry was conducted at 0.70 V in a solution of 0.5 M H2SO4 + 1.0 M CH3OH for a period of 3600 s. Electrochemical impedance spectra (EIS) were performed in a solution containing 0.5 M H2SO4 and 1.0 M CH3OH at 25 °C. Its perturbation potential was 5 mV, and the frequency ranged from 0.01 Hz to 100 kHz.

4. Conclusions

In summary, a one-pot hydrothermal method was used to synthesize Pt/GNs (PAMAM) and Pt/GNs (CS) composites. Under hydrothermal conditions, PAMAM and CS serve as templates to control the morphology of Pt particles, resulting in the formation of flower-like Pt nanoclusters for Pt/GNs (PAMAM) and uniform spherical Pt nanoparticles for Pt/GNs (CS). Meanwhile, PAMAM and CS play a promotion role in the reduction process to accelerate the nucleation rate of Pt particles and lead to improved recovery of the sp2 bond for GNs. The controlled morphology of Pt nanoparticles on Pt/GNs (PAMAM) and Pt/GNs (CS) is an important driving force to improve the performance of the catalysts. The introduction of PAMAM and CS results in stronger interaction between Pt and support materials and better electron transfer capability of grapheme-based composites, which synergistically contributes to the significantly improved catalytic activity (with values of 1031 mA·mg−1 and 1203 mA·mg−1 for Pt/GNs (CS) and Pt/GNs (PAMAM), respectively), stability and CO poisoning tolerance. The study above provides a green, simple and low-cost way to improve electrocatalytic performance and enhance the effective utilization of Pt catalysts in DMFC anodic reaction.

Acknowledgments

This work was financially supported by the National Natural Science Foundation of China (No. 21171037) and Research Foundation of the Education Department of Fujian Province (No. JA13082 & No. JB13010).

Author Contributions

Zhongshui Li planned and designed the experiments. Yanli Wang performed the experimental works. Zhongshui Li, Shuhong Xu, and Fengling Lei contributed to the data analysis. Yanli Wang wrote the manuscript; Shen Lin supervised the project and revised manuscript; all authors discussed the results and approved of the final version of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Boppella, R.; Anjaneyulu, K.; Basak, P.; Manorama, S.V. Facile synthesis of face oriented ZnO crystals: Tunable polar facets and shape induced enhanced photocatalytic performance. J. Phys. Chem. C 2013, 117, 4597–4605. [Google Scholar] [CrossRef]
  2. Yu, C.L.; Yang, K.; Xie, Y.; Fan, Q.Z.; Yu, J.C.; Shu, Q.; Wang, C.Y. Novel hollow Pt-ZnO nanocomposite microspheres with hierarchical structure and enhanced photocatalytic activity and stability. Nanoscale 2013, 5, 2142–2151. [Google Scholar] [CrossRef] [PubMed]
  3. Guo, W.; Zhang, F.; Lin, C.; Wang, Z.L. Direct growth of TiO2 nanosheet arrays on carbon fibers for highly efficient photocatalytic degradation of methyl orange. Adv. Mater. 2012, 24, 4761–4764. [Google Scholar] [CrossRef] [PubMed]
  4. Yu, X.; Kuai, L.; Geng, B.Y. CeO2/rGO/Pt sandwich nanostructure: rGO-enhanced electron transmission between metal oxide and metal nanoparticles for anodic methanol oxidation of direct methanol fuel cells. Nanoscale 2012, 4, 5738–5743. [Google Scholar] [CrossRef] [PubMed]
  5. Lei, F.L.; Li, Z.S.; Ye, L.T.; Wang, Y.L.; Lin, S. One-pot synthesis of Pt/SnO2/GhTs and its electro-photo-synergistic catalysis for methanol oxidation. Int. J. Hydrog. Energy 2016, 41, 255–264. [Google Scholar] [CrossRef]
  6. Li, F.M.; Gao, X.Q.; Xue, Q.; Li, S.N.; Chen, Y.; Lee, J.M. Reduced graphene oxide supported platinum nanocubes composites: One-pot hydrothermal synthesis and enhanced catalytic activity. Nanotechnology 2015, 26, 065603. [Google Scholar] [CrossRef] [PubMed]
  7. Yun, S.; Lee, S.; Shin, C.; Park, S.; Kwon, S.J.; Park, H.S. One-pot self-assembled, reduced graphene oxide/palladium nanoparticle hybrid aerogels for electrocatalytic applications. Electrochim. Acta 2015, 180, 902–908. [Google Scholar] [CrossRef]
  8. Alvarez, A.; Guzman, C.; Rivas, S.; Godinez, L.A.; Sacca, A.; Carbone, A.; Passalacqua, E.; Arriaga, L.G.; Ledesma-Garcia, J. Composites membranes based on nafion and PAMAM dendrimers for PEMFC applications. Int. J. Hydrog. Energy 2014, 39, 16686–16693. [Google Scholar] [CrossRef]
  9. Maiyalagan, T. Pt-Ru nanoparticles supported PAMAM dendrimer functionalized carbon nanofiber composite catalysts and their application to methanol oxidation. J. Solid State Electrochem. 2009, 13, 1561–1566. [Google Scholar] [CrossRef]
  10. Crespilho, F.N.; Huguenin, F.; Zucolotto, V.; Olivi, P.; Nart, F.C.; Oliveira, O.N. Dendrimers as nanoreactors to produce platinum nanoparticles embedded in layer-by-layer films for methanol-tolerant cathodes. Electrochem. Commun. 2006, 8, 348–352. [Google Scholar] [CrossRef]
  11. Sun, L.S.; Ca, D.V.; Cox, J.A. Electrocatalysis of the hydrogen evolution reaction by nanocomposites of poly(amidoamine)-encapsulated platinum nanoparticles and phosphotungstic acid. J. Solid State Electrochem. 2005, 9, 816–822. [Google Scholar] [CrossRef]
  12. Noroozifar, M.; Khorasani-Motlagh, M.; Ekrami-Kakhki, M.-S.; Khaleghian-Moghadam, R. Enhanced electrocatalytic properties of Pt-chitosan nanocomposite for direct methanol fuel cell by LaFeO3 and carbon nanotube. J. Power Sources 2014, 248, 130–139. [Google Scholar] [CrossRef]
  13. Cogo, L.C.; Batisti, M.V.; Pereira-da-Silva, M.A.; Oliveira, O.N., Jr.; Nart, F.C.; Huguenin, F. Layer-by-layer films of chitosan, poly(vinyl sulfonic acid), and platinum for methanol electrooxidation and oxygen electroreduction. J. Power Sources 2006, 158, 160–163. [Google Scholar] [CrossRef]
  14. Osifo, P.O.; Masala, A. The influence of chitosan membrane properties for direct methanol fuel cell applications. J. Fuel Cell Sci. Technol. 2011, 9, 011003. [Google Scholar] [CrossRef]
  15. Pan, Y.; Bao, H.; Li, L. Noncovalently functionalized multiwalled carbon nanotubes by chitosan-grafted reduced graphene oxide and their synergistic reinforcing effects in chitosan films. ACS Appl. Mater. Interfaces 2011, 3, 4819–4830. [Google Scholar] [CrossRef] [PubMed]
  16. Bao, H.; Pan, Y.; Ping, Y.; Sahoo, N.G.; Wu, T.; Li, L.; Li, J.; Gan, L.H. Chitosan-functionalized graphene oxide as a nanocarrier for drug and gene delivery. Small 2011, 7, 1569–1578. [Google Scholar] [CrossRef] [PubMed]
  17. Li, Z.S.; Lei, F.L.; Ye, L.T.; Zhang, X.F.; Lin, S. Controlled synthesis of Pt/CS/PW12-GNs composite as an anodic electrocatalyst for direct methanol fuel cells. J. Nanopart. Res. 2015, 17, 192. [Google Scholar] [CrossRef]
  18. Yu, D.; Dai, L. Self-assembled graphene/carbon nanotube hybrid films for supercapacitors. J. Phys. Chem. Lett. 2010, 1, 467–470. [Google Scholar] [CrossRef]
  19. Wang, X.; Zhang, X.; He, X.; Ma, A.; Le, L.; Lin, S. Facile electrodeposition of flower-like PMo12-Pt/rGO composite with enhanced electrocatalytic activity towards methanol oxidation. Catalysts 2015, 5, 1275–1288. [Google Scholar] [CrossRef]
  20. Huang, H.; Liu, Y.; Gao, Q.; Ruan, W.; Lin, X.; Li, X. Rational construction of strongly coupled metal-metal oxide-graphene nanostructure with excellent electrocatalytic activity and durability. ACS Appl. Mater. Interfaces 2014, 6, 10258–10264. [Google Scholar] [CrossRef] [PubMed]
  21. Li, Z.S.; Huang, X.M.; Zhang, X.F.; Zhang, L.; Lin, S. The synergistic effect of graphene and polyoxometalates enhanced electrocatalytic activities of Pt-{PEI-GNs/[PMo12O40]3−}n composite films regarding methanol oxidation. J. Mater. Chem. 2012, 22, 23602–23607. [Google Scholar] [CrossRef]
  22. Liu, X.; Du, H.; Sun, X.W. High-performance photoresponse of carbon-doped ZnO/reduced graphene oxide hybrid nanocomposites under UV and visible illumination. RSC Adv. 2014, 4, 5136–5140. [Google Scholar] [CrossRef]
  23. You, H.J.; Zhang, F.L.; Liu, Z.; Fang, J.X. Free-standing Pt-Au hollow nanourchins with enhanced activity and stability for catalytic methanol oxidation. ACS Catal. 2014, 4, 2829–2835. [Google Scholar] [CrossRef]
  24. Wang, H.; Wang, R.F.; Li, H.; Wang, Q.F.; Kang, J.A.; Lei, Z.Q. Facile synthesis of carbon-supported pseudo-core@shell PdCu@Pt nanoparticles for direct methanol fuel cells. Int. J. Hydrog. Energy 2011, 36, 839–848. [Google Scholar] [CrossRef]
  25. Park, K.W.; Choi, J.H.; Kwon, B.K.; Lee, S.A.; Sung, Y.E.; Ha, H.Y.; Hong, S.A.; Kim, H.; Wieckowski, A. Chemical and electronic effects of Ni in Pt/Ni and Pt/Ru/Ni alloy nanoparticles in methanol electrooxidation. J. Phys. Chem. B 2002, 106, 1869–1877. [Google Scholar] [CrossRef]
  26. Biesinger, M.C.; Payne, B.P.; Grosvenor, A.P.; Lau, L.W.M.; Gerson, A.R.; Smart, R.S. Resolving surface chemical states in XPS analysis of first row transition metals, oxides and hydroxides: Cr, Mn, Fe, Co and Ni. Appl. Surf. Sci. 2011, 257, 2717–2730. [Google Scholar] [CrossRef]
  27. Cui, Z.M.; Jiang, S.P.; Li, C.M. Highly dispersed MoOx on carbon nanotube as support for high performance Pt catalyst towards methanol oxidation. Chem. Commun. 2011, 47, 8418–8420. [Google Scholar] [CrossRef] [PubMed]
  28. Huang, H.; Chen, Q.; He, M.; Sun, X.; Wang, X. A ternary Pt/MnO2/graphene nanohybrid with an ultrahigh electrocatalytic activity toward methanol oxidation. J. Power Sources 2013, 239, 189–195. [Google Scholar] [CrossRef]
  29. Yu, S.; Liu, Q.; Yang, W.; Han, K.; Wang, Z.; Zhu, H. Graphene-CeO2 hybrid support for Pt nanoparticles as potential electrocatalyst for direct methanol fuel cells. Electrochim. Acta 2013, 94, 245–251. [Google Scholar] [CrossRef]
  30. Wietecha, M.S.; Zhu, J.; Gao, G.; Wang, N.; Feng, H.; Gorring, M.L.; Kasner, M.L.; Hou, S. Platinum nanoparticles anchored on chelating group-modified graphene for methanol oxidation. J. Power Sources 2012, 198, 30–35. [Google Scholar] [CrossRef]
  31. Saidi, W.A.; Feng, H.J.; Fichthorn, K.A. Binding of polyvinylpyrrolidone to Ag surfaces: Insight into a structure-directing agent from dispersion-corrected density functional theory. J. Phys. Chem. C 2013, 117, 1163–1171. [Google Scholar] [CrossRef]
  32. Al-Saidi, W.A.; Feng, H.J.; Fichthorn, K.A. Adsorption of polyvinylpyrrolidone on Ag surfaces: Insight into a structure-directing agent. Nano Lett. 2012, 12, 997–1001. [Google Scholar] [CrossRef] [PubMed]
  33. Qi, X.; Balankura, T.; Zhou, Y.; Fichthorn, K.A. How structure-directing agents control nanocrystal shape: Polyvinylpyrrolidone-mediated growth of Ag nanocubes. Nano Lett. 2015, 15, 7711–7717. [Google Scholar] [CrossRef] [PubMed]
  34. Li, Z.S.; Zhang, L.; Huang, X.M.; Ye, L.T.; Lin, S. Shape-controlled synthesis of Pt nanoparticles via integration of graphene and beta-cyclodextrin and using as a noval electrocatalyst for methanol oxidation. Electrochim. Acta 2014, 121, 215–222. [Google Scholar] [CrossRef]
  35. Wu, T.; Wang, X.; Qiu, H.; Gao, J.; Wang, W.; Liu, Y. Graphene oxide reduced and modified by soft nanoparticles and its catalysis of the Knoevenagel condensation. J. Mater. Chem. 2012, 22, 4772–4779. [Google Scholar] [CrossRef]
  36. Kim, N.H.; Kuila, T.; Lee, J.H. Simultaneous reduction, functionalization and stitching of graphene oxide with ethylenediamine for composites application. J. Mater. Chem. A 2013, 1, 1349–1358. [Google Scholar] [CrossRef]
  37. Qiu, J.-D.; Wang, G.-C.; Liang, R.-P.; Xia, X.-H.; Yu, H.-W. Controllable deposition of platinum nanoparticles on graphene as an electrocatalyst for direct methanol fuel cells. J. Phys. Chem. C 2011, 115, 15639–15645. [Google Scholar] [CrossRef]
  38. Guo, Q.; Zheng, Z.; Gao, H.L.; Ma, J.; Qin, X. SnO2/graphene composite as highly reversible anode materials for lithium ion batteries. J. Power Sources 2013, 240, 149–154. [Google Scholar] [CrossRef]
  39. Estudillo-Wong, L.A.; Vargas-Gomez, A.M.; Arce-Estrada, E.M.; Manzo-Robledo, A. TiO2/c composite as a support for Pd-nanoparticles toward the electrocatalytic oxidation of methanol in alkaline media. Electrochim. Acta 2013, 112, 164–170. [Google Scholar] [CrossRef]
  40. Zhang, M.; Xie, J.; Sun, Q.; Yan, Z.; Chen, M.; Jing, J. Enhanced electrocatalytic activity of high Pt-loadings on surface functionalized graphene nanosheets for methanol oxidation. Int. J. Hydrog. Energy 2013, 38, 16402–16409. [Google Scholar] [CrossRef]
  41. Zhong, X.; Wang, Z.; Huang, Y.; Yu, Y.; Feng, Q.; Li, Q. Fabrication of Pt nanoparticles on ethylene diamine functionalized graphene for formic acid electrooxidation. Int. J. Hydrog. Energy 2014, 39, 15920–15927. [Google Scholar] [CrossRef]
  42. Luo, Z.; Yuwen, L.; Bao, B.; Tian, J.; Zhu, X.; Weng, L.; Wang, L. One-pot, low-temperature synthesis of branched platinum nanowires/reduced graphene oxide (BPtNW/RGO) hybrids for fuel cells. J. Mater. Chem. 2012, 22, 7791–7796. [Google Scholar] [CrossRef]
  43. Liu, R.; Li, S.; Yu, X.; Zhang, G.; Zhang, S.; Yao, J.; Keita, B.; Nadjo, L.; Zhi, L. Facile synthesis of Au-nanoparticle/polyoxometalate/graphene tricomponent nanohybrids: An enzyme-free electrochemical biosensor for hydrogen peroxide. Small 2012, 8, 1398–1406. [Google Scholar] [CrossRef] [PubMed]
  44. Shi, J.-J.; Yang, G.-H.; Zhu, J.-J. Sonoelectrochemical fabrication of PDDA-RGO-PdPt nanocomposites as electrocatalyst for DAFCs. J. Mater. Chem. 2011, 21, 7343–7349. [Google Scholar] [CrossRef]
  45. Luo, B.; Yan, X.; Xu, S.; Xue, Q. Polyelectrolyte functionalization of graphene nanosheets as support for platinum nanoparticles and their applications to methanol oxidation. Electrochim. Acta 2012, 59, 429–434. [Google Scholar] [CrossRef]
  46. Mayavan, S.; Jang, H.-S.; Lee, M.-J.; Choi, S.H.; Choi, S.-M. Enhancing the catalytic activity of Pt nanoparticles using poly sodium styrene sulfonate stabilized graphene supports for methanol oxidation. J. Mater. Chem. A 2013, 1, 3489–3494. [Google Scholar] [CrossRef]
  47. Cui, X.; Wu, S.N.; Jungwirth, S.; Chen, Z.B.; Wang, Z.H.; Wang, L.; Li, Y.X. The deposition of Au-Pt core-shell nanoparticles on reduced graphene oxide and their catalytic activity. Nanotechnology 2013, 24, 295402. [Google Scholar] [CrossRef] [PubMed]
  48. Xiang, D.; Yin, L. Well-dispersed and size-tuned bimetallic PtFex nanoparticle catalysts supported on ordered mesoporous carbon for enhanced electrocatalytic activity in direct methanol fuel cells. J. Mater. Chem. 2012, 22, 9584–9593. [Google Scholar] [CrossRef]
  49. Yang, S.D.; Shen, C.M.; Lu, X.J.; Tong, H.; Zhu, J.J.; Zhang, X.G.; Gao, H.J. Preparation and electrochemistry of graphene nanosheets-multiwalled carbon nanotubes hybrid nanomaterials as Pd electrocatalyst support for formic acid oxidation. Electrochim. Acta 2012, 62, 242–249. [Google Scholar] [CrossRef]
  50. Huang, H.; Chen, H.; Sun, D.; Wang, X. Graphene nanoplate-Pt composite as a high performance electrocatalyst for direct methanol fuel cells. J. Power Sources 2012, 204, 46–52. [Google Scholar] [CrossRef]
  51. Qian, L.; Yang, X. Dendrimer films as matrices for electrochemical fabrication of novel gold/palladium bimetallic nanostructures. Talanta 2008, 74, 1649–1653. [Google Scholar] [CrossRef] [PubMed]
  52. Guo, W.; Xu, L.; Li, F.; Xu, B.; Yang, Y.; Liu, S.; Sun, Z. Chitosan-assisted fabrication and electrocatalytic activity of the composite film electrode of heteropolytungstate/carbon nanotubes. Electrochim. Acta 2010, 55, 1523–1527. [Google Scholar] [CrossRef]
  53. Qian, L.; Yang, X. Polyamidoamine dendrimers-assisted electrodeposition of gold-platinum bimetallic nanoflowers. J. Phys. Chem. B 2006, 110, 16672–16678. [Google Scholar] [CrossRef] [PubMed]
  54. Guo, S.; Dong, S.; Wang, E. Three-dimensional Pt-on-Pd bimetallic nanodendrites supported on graphene nanosheet: Facile synthesis and used as an advanced nanoelectrocatalyst for methanol oxidation. ACS Nano 2010, 4, 547–555. [Google Scholar] [CrossRef] [PubMed]
  55. Wu, Z.; Feng, W.; Feng, Y.; Liu, Q.; Xu, X.; Sekino, T.; Fujii, A.; Ozaki, M. Preparation and characterization of chitosan-grafted multiwalled carbon nanotubes and their electrochemical properties. Carbon 2007, 45, 1212–1218. [Google Scholar] [CrossRef]
  56. Kovtyukhova, N.I.; Ollivier, P.J.; Martin, B.R.; Mallouk, T.E.; Chizhik, S.A.; Buzaneva, E.V.; Gorchinskiy, A.D. Layer-by-layer assembly of ultrathin composite films from micron-sized graphite oxide sheets and polycations. Chem. Mater. 1999, 11, 771–778. [Google Scholar] [CrossRef]
  57. Zeng, Q.O.; Cheng, J.S.; Tang, L.H.; Liu, X.F.; Liu, Y.Z.; Li, J.H.; Jiang, J.H. Self-assembled graphene-enzyme hierarchical nanostructures for electrochemical biosensing. Adv. Funct. Mater. 2010, 20, 3366–3372. [Google Scholar] [CrossRef]
Catalysts 06 00165 g001 550
Figure 1. C1s XPS spectra of Pt/GNs (A); Pt/GNs (CS) (B); Pt/GNs (PAMAM-polyamidoamine) (C); Pt 4f XPS spectra of Pt/GNs (D); Pt/GNs (CS) (E); Pt/GNs (PAMAM) (F).
Figure 1. C1s XPS spectra of Pt/GNs (A); Pt/GNs (CS) (B); Pt/GNs (PAMAM-polyamidoamine) (C); Pt 4f XPS spectra of Pt/GNs (D); Pt/GNs (CS) (E); Pt/GNs (PAMAM) (F).
Catalysts 06 00165 g001
Catalysts 06 00165 g002 550
Figure 2. TEM images of Pt/GNs (PAMAM) (A,B); Pt/GNs (CS) (D,E); Pt/GNs (G,H). Size-distribution of Pt particles in Pt/GNs (PAMAM) (the inset of (A)); Pt/GNs (CS) (the inset of (D)); Pt/GNs (the inset of (G)). HRTEM images of Pt particles in Pt/GNs (PAMAM) (C); Pt/GNs (CS) (F); Pt/GNs (I).
Figure 2. TEM images of Pt/GNs (PAMAM) (A,B); Pt/GNs (CS) (D,E); Pt/GNs (G,H). Size-distribution of Pt particles in Pt/GNs (PAMAM) (the inset of (A)); Pt/GNs (CS) (the inset of (D)); Pt/GNs (the inset of (G)). HRTEM images of Pt particles in Pt/GNs (PAMAM) (C); Pt/GNs (CS) (F); Pt/GNs (I).
Catalysts 06 00165 g002
Catalysts 06 00165 g003 550

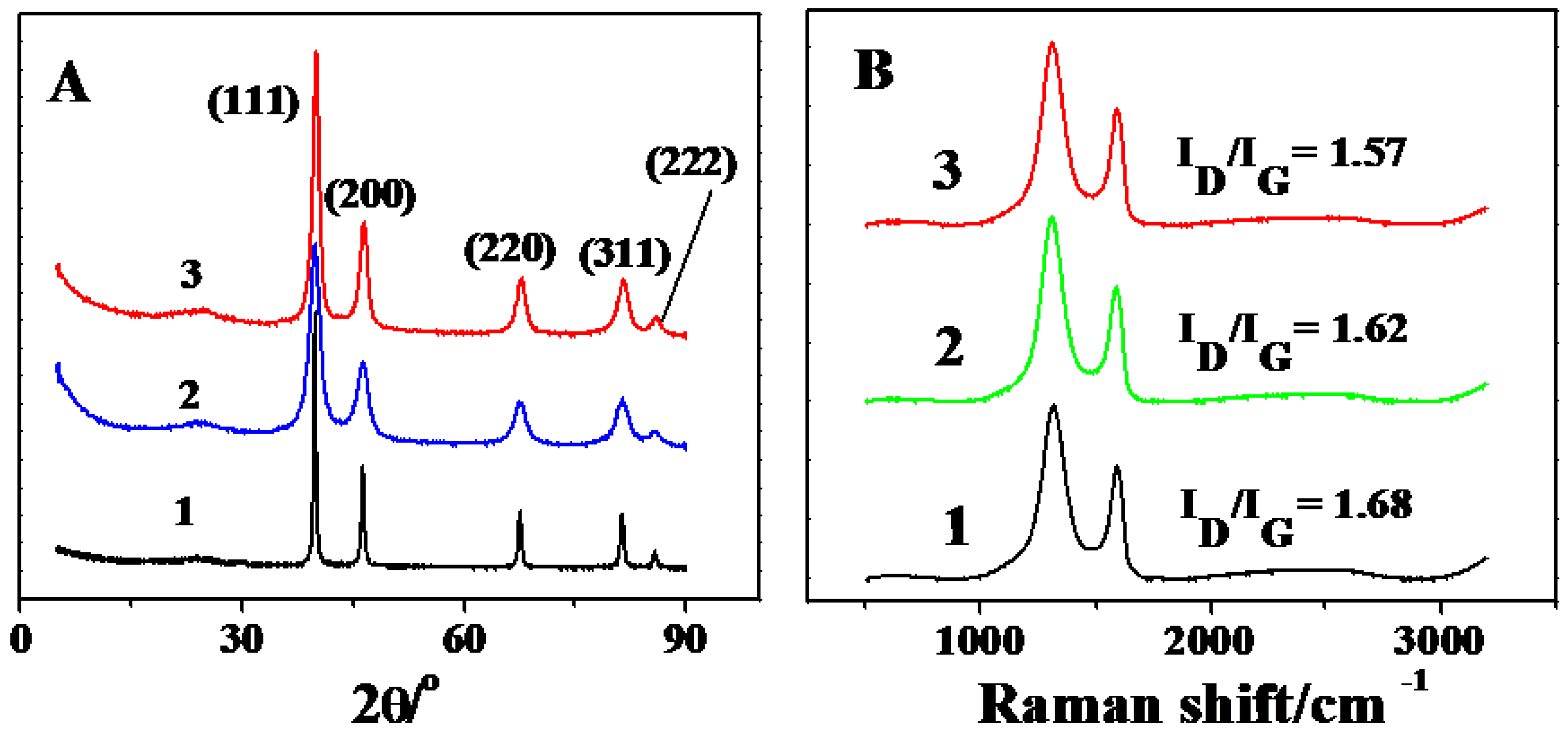

Figure 3. XRD patterns (A) and Raman spectra (B) of Pt/GNs (1), Pt/GNs (CS) (2), and Pt/GNs(PAMAM) (3).
Figure 3. XRD patterns (A) and Raman spectra (B) of Pt/GNs (1), Pt/GNs (CS) (2), and Pt/GNs(PAMAM) (3).
Catalysts 06 00165 g003
Catalysts 06 00165 g004 550
Figure 4. CV curves in 0.5 M H2SO4 at 100 mV·s−1: Pt/C (A); Pt/GNs (B); Pt/GNs (CS) (C); Pt/GNs (PAMAM) (D).
Figure 4. CV curves in 0.5 M H2SO4 at 100 mV·s−1: Pt/C (A); Pt/GNs (B); Pt/GNs (CS) (C); Pt/GNs (PAMAM) (D).
Catalysts 06 00165 g004
Catalysts 06 00165 g005 550

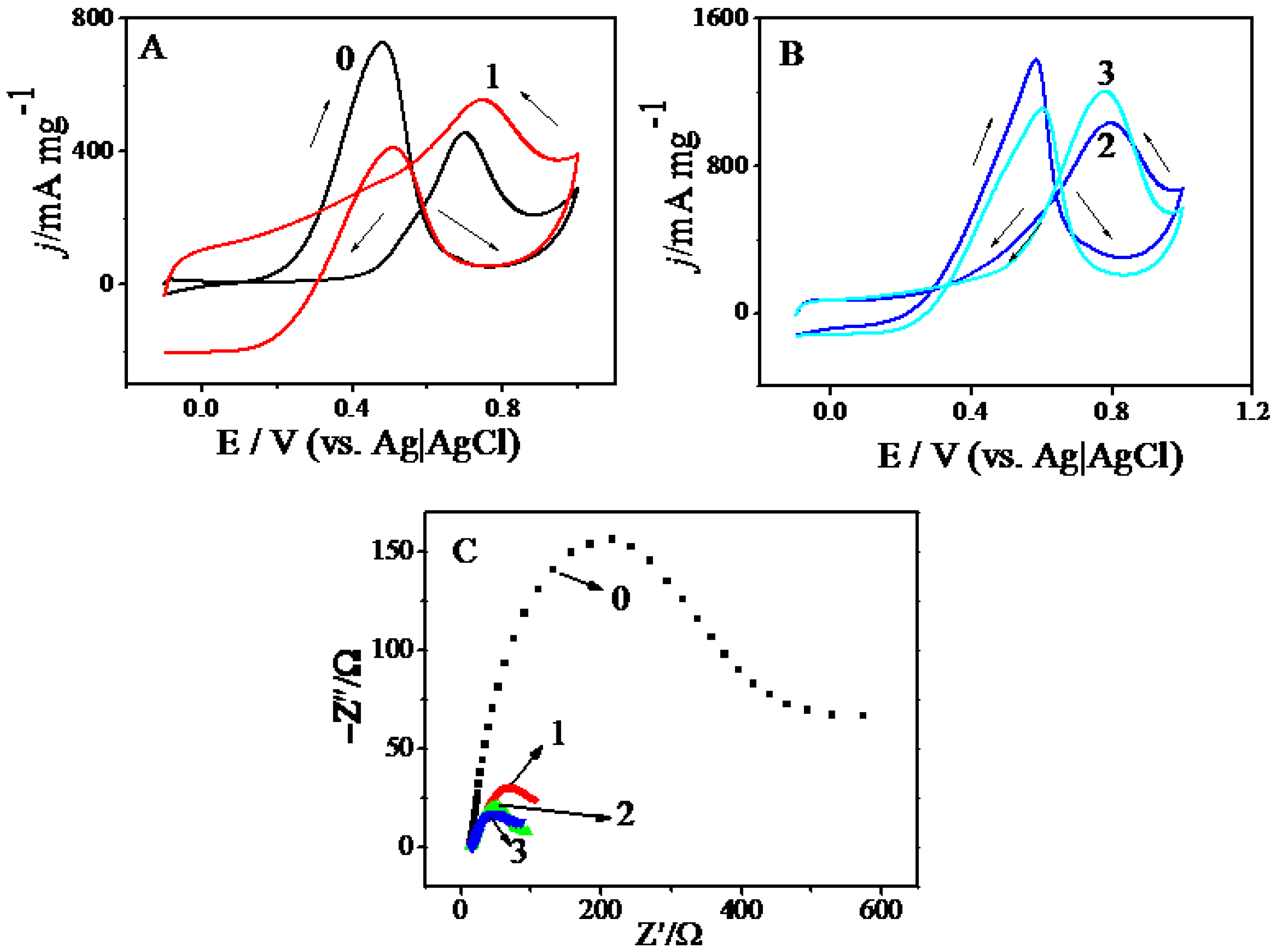

Figure 5. (A) CV curves in 1 M CH3OH + 0.5 M H2SO4 at 100 mV·s−1: Pt/C (0), Pt/GNs (1); (B) CV curves in 1 M CH3OH + 0.5 M H2SO4 at 100 mV·s−1: Pt/GNs (CS) (2), Pt/GNs (PAMAM) (3); (C) Nyquist plots of EIS for methanol electrooxidation in 1 M CH3OH + 0.5 M H2SO4 solution: Pt/C (0), Pt/GNs (1), Pt/GNs (CS) (2), Pt/GNs (PAMAM) (3).
Figure 5. (A) CV curves in 1 M CH3OH + 0.5 M H2SO4 at 100 mV·s−1: Pt/C (0), Pt/GNs (1); (B) CV curves in 1 M CH3OH + 0.5 M H2SO4 at 100 mV·s−1: Pt/GNs (CS) (2), Pt/GNs (PAMAM) (3); (C) Nyquist plots of EIS for methanol electrooxidation in 1 M CH3OH + 0.5 M H2SO4 solution: Pt/C (0), Pt/GNs (1), Pt/GNs (CS) (2), Pt/GNs (PAMAM) (3).
Catalysts 06 00165 g005
Catalysts 06 00165 g006 550
Figure 6. (A) CO-stripping voltammograms in 0.5 M H2SO4: Pt/C (0), Pt/GNs (1), Pt/GNs (CS) (2), Pt/GNs (PAMAM) (3); (B) Chronoamperometric curves in 1 M CH3OH + 0.5 M H2SO4: Pt/C (0), Pt/GNs (1), Pt/GNs (CS) (2), Pt/GNs (PAMAM) (3).
Figure 6. (A) CO-stripping voltammograms in 0.5 M H2SO4: Pt/C (0), Pt/GNs (1), Pt/GNs (CS) (2), Pt/GNs (PAMAM) (3); (B) Chronoamperometric curves in 1 M CH3OH + 0.5 M H2SO4: Pt/C (0), Pt/GNs (1), Pt/GNs (CS) (2), Pt/GNs (PAMAM) (3).
Catalysts 06 00165 g006
Catalysts 06 00165 sch001 550
Scheme 1. The synthetic route of Pt/GNs (PAMAM) and Pt/GNs (CS) composites.
Scheme 1. The synthetic route of Pt/GNs (PAMAM) and Pt/GNs (CS) composites.
Catalysts 06 00165 sch001
Table
Table 1. Electrochemical parameters of as-synthesized different composites a.
Table 1. Electrochemical parameters of as-synthesized different composites a.
CompositesECSA/m2·g−1 (Electrochemical Surface Area)Onset Potential b/VMassactivity/mA·mg−1
Pt/C-JM75.10.45455
Pt/GNs47.70.40556
Pt/GNs (CS)117.80.361031
Pt/GNs (PAMAM- polyamidoamine)103.70.351203
a The reproducibility of electrochemical experiment data in our work was ensured by repeated experiments, and their standard deviation is less than 3%; b The onset potential is defined as the potential at which 10% of the current value at the peak potential was reached in this work [34].
